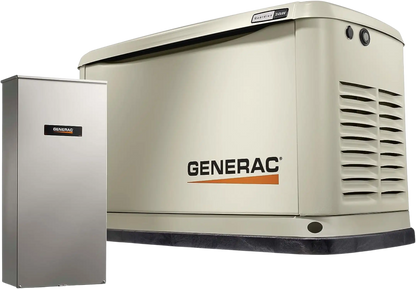

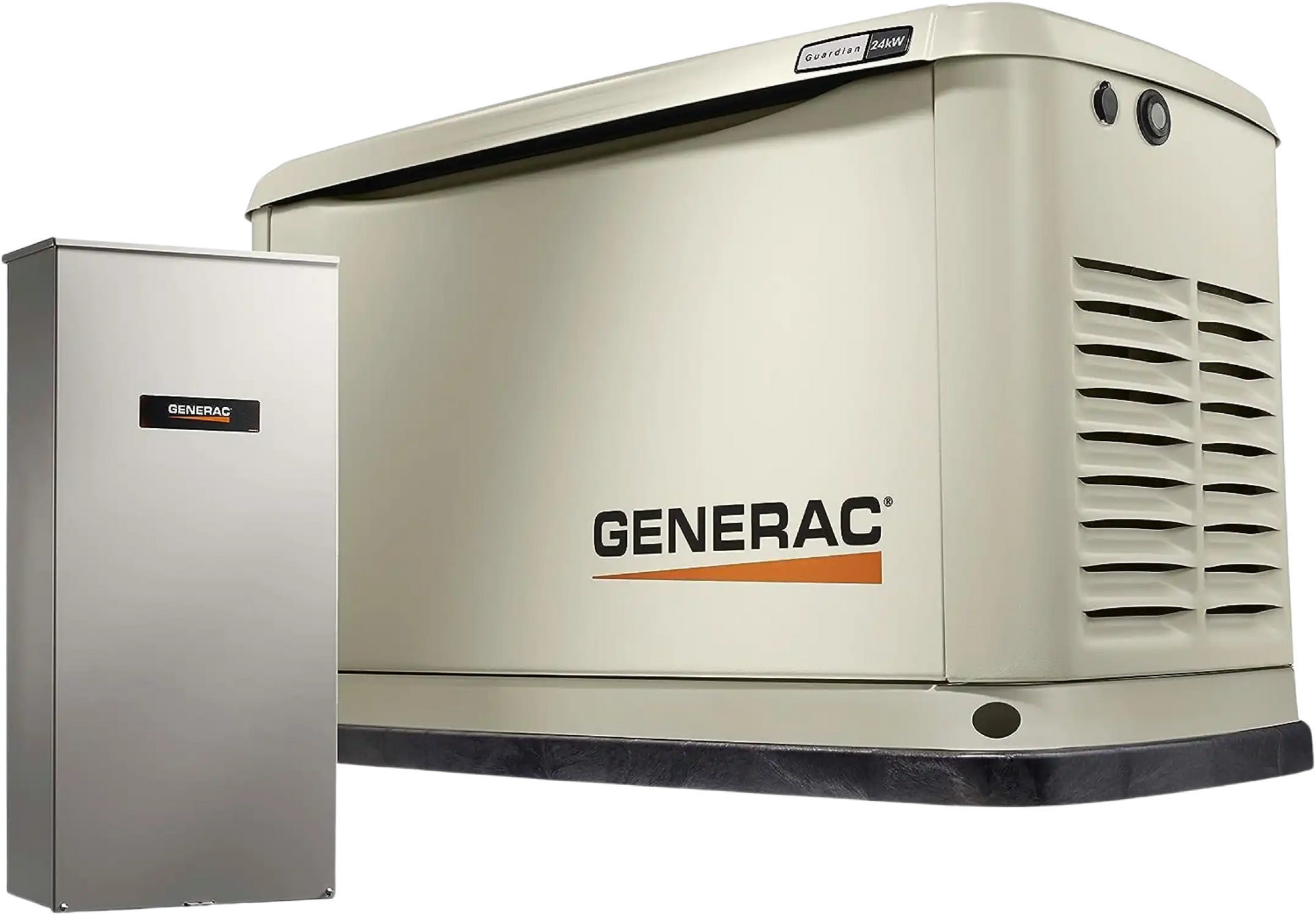

Generac 24kW Standby Generator Guardian WiFi w/ 200 Amp Automatic Transfer Switch 72109

Generac

$6,099.00
$6,497.00 $6,099.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Generac will mail you a WiFi chip that can be plugged into the outside of the generator. Chips are estimated to ship by late Summer. The WiFi feature is solely for remote monitoring and will not affect the performance of the generator.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • Mobile Link™ Remote Monitoring FREE with every Guardian Series Home standby generator Allows you to monitor the status of your generator from anywhere in the world using a smartphone, tablet, or PC. Easily access information, such as the current operating status and maintenance alerts. Connect your account to your authorized service dealer for fast, friendly and proactive service. With Mobile Link, you are taken care of before the next power outage.
  • Up to whole house protection with the 200-amp, NEMA 3R (aluminum outdoor enclosure) smart switch.
  • 5 Year Limited Warranty for automatic standby generators.
  • True Power™ Technology delivers best-in-class power quality with less than 5 percent total harmonic distortion for clean, smooth operation of sensitive electronics and appliances.
  • Generac generators and engines are engineered and assembled in the USA*.
  • Generac's G-Force Engine is a purpose-built, pressure-lubricated engine capable of handling the rigors of generator use, resulting in power that’s more reliable and requires less routine maintenance than any competitive engine.
  • Quiet-Test™ Self-Test Mode runs at a lower RPM for a five or twelve minute test, making generators significantly quieter than other brands while consuming less fuel.
  • 24/7/365 Customer Support Team standing by all day, every day from our headquarters in Wisconsin to answer any questions you might have.
  • Our RhinoCoat™ powder-coated finish helps make corrosion-resistant aluminum perfect for all weather conditions.
  • Generac’s Evolution™ Controller features a multilingual LCD display that allows users to monitor battery status and track maintenance intervals to ensure your generator is always in top operating condition.

Type: Natural Gas or Propane

Gauge: No

NG Consumption Full Load: 306 Cubic-feet / hour

NG Consumption Half Load: 203 Cubic-feet / hour

LP Consumption Full Load: 3.9 Gallons / hour

LP Consumption Half Load: 2.5 Gallons / hour

Model: RXSW200A3

Switch Amps: 200-Amps

Switch Circuits: Whole House Service Rated Switch with Home Energy Management System

ATS Poles: 2

Switch Weight: 39.0 lbs

Consumer Warranty: Generac 5-Year Limited Warranty

Model Number: 72109

Manufacturer: Generac

Made In USA: Yes

Rated Watts: 24kW Propane / 21 kW Natural Gas

Rated Amps: 100-Amps

Voltage: 120/240-Volts

AC Ton Rating: 5-Ton

Enclosure: Aluminum

UL Listed: UL-2200

Decibel Rating 7m: 57 dBA Quiet Test Exercise / 67 dBA Full Load

Type: Standby Generator

Series Name: Guardian Series

Starting System: Automatic

Low Oil Alert: Low Oil Shutdown

Mainline Breaker: 100-Amps

Battery Requirements (Battery Not Included): 12-Volt Group 26R 540 CCA / Group 35AGM 640 CCA

Mounting Pad: Yes

Weight: 455 lbs

Dimensions: 48L X 25W X 29H

Engine Brand: Generac G-Force

Engine Size: 999 cc

Engine RPM: 3600

Cast Iron Sleeve: Yes

Cooling System: Air-Cooled

Alternator Type: 2-Pole Rotating Field

Frequency: 60 Hz

Auto Voltage Regulation: Yes

This item comes with a 5 year factory warranty.
PDF User's Manual PDF Transfer Switch Manual PDF Brochure PDF Spec Sheet PDF Installation Guide PDF Warranty
