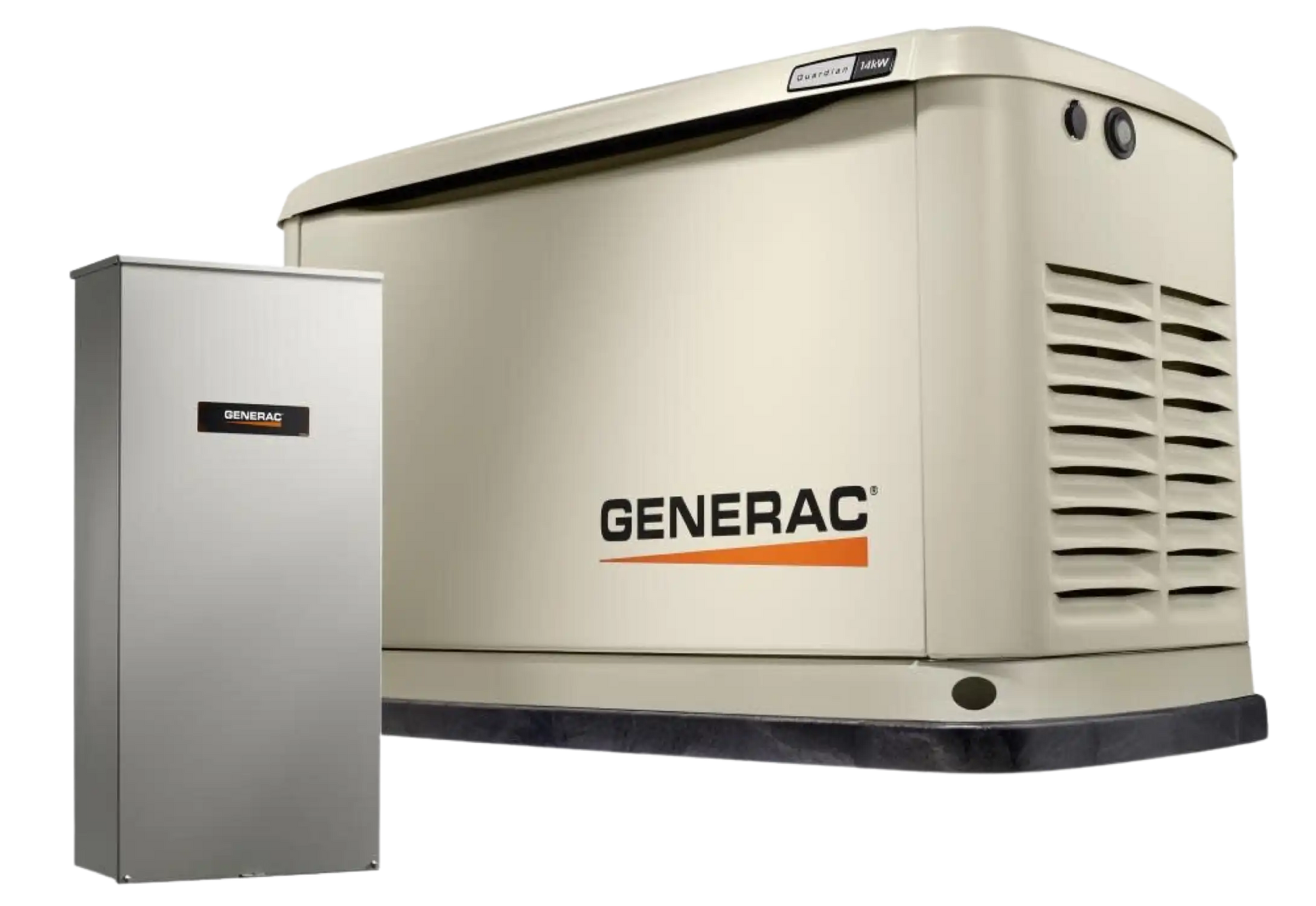

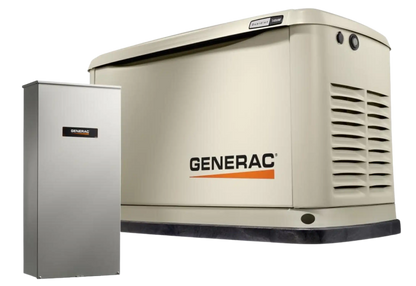

Generac 7224 14kW WiFi Guardian LP/NG Standby Generator w/ 100 Amp 16 Circuit Smart Transfer Switch

Generac

$5,149.00
$5,149.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

The Generac 7224 14kW WiFi Guardian LP/NG Standby Generator w/ 100 Amp 16 Circuit Smart Transfer Switch from Generac is engineered for reliable power performance. Contact us for full specifications and compatibility details.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • 14k Guardian® Air-Cooled Standby Generator System
  • Protects your home and family during a power outage
  • Includes Mobile Link™ Wi-Fi Remote Monitoring
  • Monitor generator status on a smart phone, tablet or PC
  • Requires internet connection and wireless router
  • 5-Year Limited Warranty
  • Have your questions answered when it's convenient for you
  • 100-Amp Automatic Transfer Switch w/ Integrated Load Center
  • NEMA 3R Outdoor Aluminum enclosure
  • Great when main breaker panel is located outdoors
  • 16-Circuit Essential Circuit Load Center
  • For large main service & only partial generator backup
  • Allows you to backup 120V & 240V circuits
  • Compatible w/ 1" standard, tandem, GFCI & AFCI breakers
  • NEW Generac G-Force 800 Series Engine
  • Hydraulic lifters for improved performance & less maintenance
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • TRUE POWER™ Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser helps prevent oil seal drying and damage
  • QUIET-TEST™ Self-Test Mode
  • Runs at a lower RPM for a five or twelve minute test
  • Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
  • Corrosion resistant design for all weather conditions
  • Installation Flexibility
  • Can be installed within 18" of a building
  • *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA
  • Built in the USA using domestic & foreign parts
  • Also Includes
  • Smart battery charger & 14" Flexible fuel line connector
  • Please Note - Battery Not Included (Sold Separately)

Circuit Breaker Size: 60 Amps

A/C Ton Rating: 3-Tons

Mounting Pad: Composite (Included)

Transfer Switch Style: Standard Installation

ATS Load Prioritizing: Not Compatible

ATS Load Shedding: Not Compatible

ATS Poles: 2 Poles

ATS Service Disconnect: No

Cooling System: Air Cooled

UL Listed: Yes

Grade Type: Emergency

Wi-Fi Remote Monitoring: Yes

Engine Brand: Generac OHVI

Starting System: 12v Auto Start

CC: 816 CC

Consumer Engine Warranty: 5 Years

Commercial Engine Warranty: 5 Years

Engine RPM: 3600 RPM

Low Oil Alert/Shutdown: Yes

Product Category: Generator - Standby

Weight: 385 Pounds

Made in USA: Yes

Consumer Warranty: 5 Years

Commercial Warranty: 5 Years

Product Style: Standby Generator

Product Length: 48 Inches

Product Width: 25.1 Inches

Product Height: 29 Inches

Voltage: 120/240 Single-Phase

Frequency: 60 Hertz

Rated Watts: 14000 Watts

Fuel Type: LP/Natural Gas

NG Power Capacity: 14000 Watts

LP Power Capacity: 14000 Watts

NG Fuel Consumption @ 50% Load: 195 ft³/hr

NG Fuel Consumption @ 100% Load: 256 ft³/hr

LP Fuel Consumption @ 50% Load: 1.81 gallons/hr

LP Fuel Consumption @ 100% Load: 3.07 gallons/hr

Rated Amps: 58.3 Amps

Decibel Rating @ 7m: 55-65

Transfer Switch: Automatic (Included)

Transfer Switch Amperage: 100-Amps

Max Circuits: 16

Battery: Not Included

Enclosure: Aluminum

This item comes with a 5 year factory warranty.
