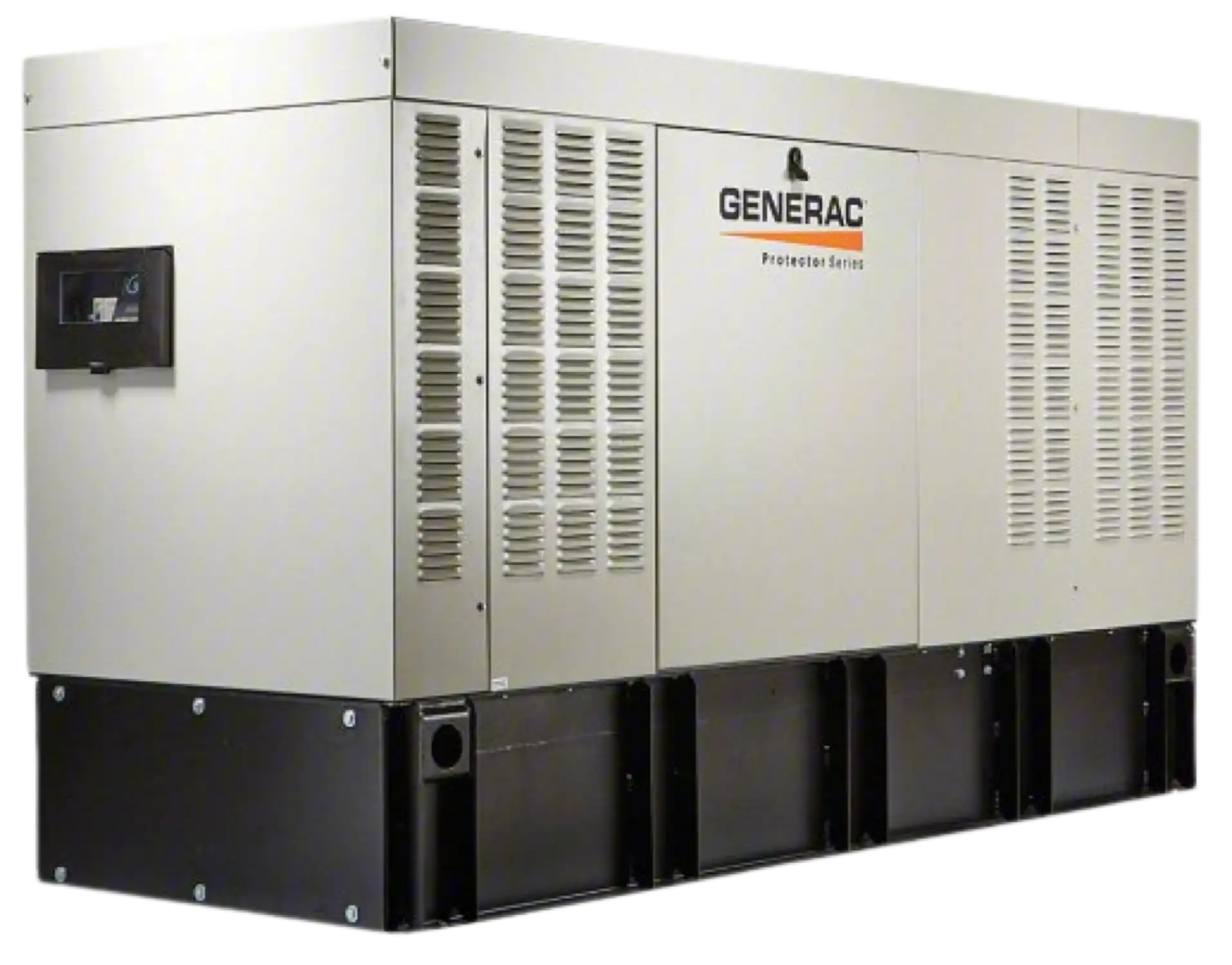

Generac Protector 20kW Extended Run Diesel Liquid Cooled 1 Phase 120/240V Standby Generator RD02025ADAL

Generac

$15,347.00
$15,347.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Generac’s new Protector® Series diesel generators raise the bar for residential and light commercial diesel generators. Building and zoning codes can vary wildly from one region to another. In the past, the only answer was to order expensive, custom-configured solutions. Generac’s diesel-powered Protector Series features Code Ready, a set of popular preconfigured options and a range of code-driven accessories, so you can feel confident that your generator will be able to conform to the required local codes.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • Generac Protector® Series Diesel Standby Generator: Designed for residential and light commercial applications
  • Fully Automatic Operation When Paired w/ Generac ATS: Generator is only compatible with Generac Auto Transfer Switches
  • Includes Mobile Link™ Wi-Fi / Ethernet Connectivity*: Monitor generator status on a smart phone, tablet or PC. *Requires internet connection
  • Mitsubishi 2.5L In-Line 4-Cylinder Diesel Engine: Fuel efficient design runs at 1800 RPM for long engine life
  • Integrated, Extended-Run, 95-Gallon Double-Wall Base Fuel Tank: Provides up to 92.2 hours of run time @ 1/2 load
  • Two-Line LCD Evolution Controller: Easy viewing, monitoring & management of generator functions
  • Quiet-Test™: Runs at a lower RPM, is quieter and consumes less fuel
  • Isochronous Electronic Governor Control: Precise load response & voltage/frequency regulation (±1%)
  • Corrosion-Resistant Aluminum Enclosure: Enhanced durability, ideal for coastal & salt-water environments. Sound dampening design limits sound pressure to a low 70dB(A)
  • Code Ready - Compatibility With A Variety Of Environments: External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
  • UL/CUL 2200-Listed Generator - 5-Year Limited Warranty

Voltage: 120/240 Single-Phase

Frequency: 60 Hertz

Rated Watts: 20000 Watts

Fuel Type: Diesel

Rated Amps: 83 Amps

Diesel Fuel Consumption @ 50% Load: 1.03 gallons/hr

Tank Size: 95 Gallons

Run Time @ 50% Load: 92.2

Fuel Tank Material: Metal

Decibel Rating @ 7m: 65 Test (70 Run) dbA

Transfer Switch: Automatic (Not Included)

Battery: Not Included (700 CCA)

Enclosure: Aluminum

Circuit Breaker Size: 100 Amps

Mounting Pad: Concrete (Not Included)

Cooling System: Liquid Cooled

UL Listed: Yes

Grade Type: Emergency

Wi-Fi Remote Monitoring: Yes

Engine Brand: Mitsubishi

Starting System: 12v Auto Start

CC: 2500 CC

Consumer Engine Warranty: 5 Years

Commercial Engine Warranty: 5 Years

Engine RPM: 1800 RPM

Low Oil Alert/Shutdown: Yes

Weight: 1757 Pounds

Made in USA: Yes

Consumer Warranty: 5 Years

Commercial Warranty: 5 Years

CARB Approved: Yes

Product Length: 81 Inches

Product Width: 31 Inches

Product Height: 61 Inches

This item comes with a 5 year factory warranty.
PDF User's Manual PDF Spec Sheet PDF Warranty
