Generac Protector RG02224GNAX 22kW Liquid Cooled 3 Phase 120/208V Standby Generator

Generac

$14,059.00
$14,059.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

A Protector Series generator senses a power outage, turns on automatically, and delivers backup power to all lights, appliances, electronics, pumps, heating and air-conditioning, allowing you to continue living life comfortably and keep business operating without interruption. It's a quiet affordable back up power solution for larger homes, small-to-medium-sized businesses & is equipped with Mobile Link connectivity so you stay informed of the status of your generator from any device at any time. All of these features, backed by a standard 5-year limited warranty.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • Protector QS Series Premium-Grade Standby Generator
  • For small commercial buildings with 120/208V 3-Phase service
  • Runs off natural gas or LP fuel supply
  • Includes Mobile Link Wi-Fi / Ethernet Connectivity
  • Monitor generator status on a smart phone, tablet or PC
  • Requires internet connection
  • Quiet-Test
  • Low-speed exercise mode for quieter weekly tests; 61 dB @ 23'
  • Multi-Lingual Evolution Controller
  • Two-Line LCD Display provides service & maintenance intervals

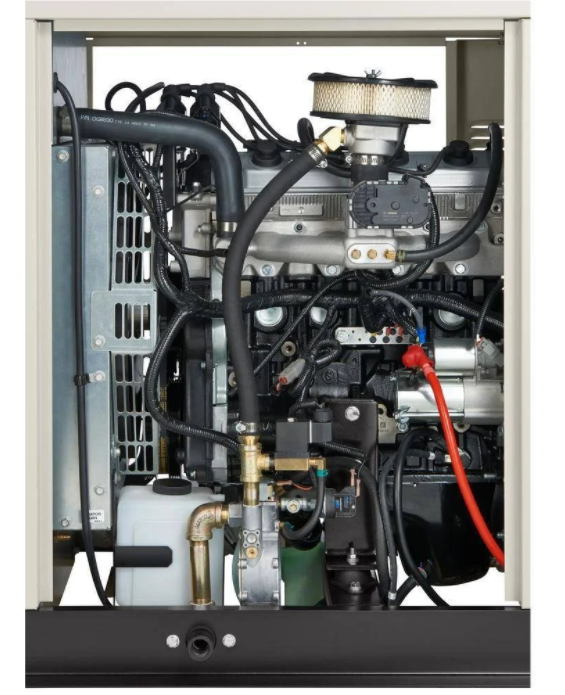

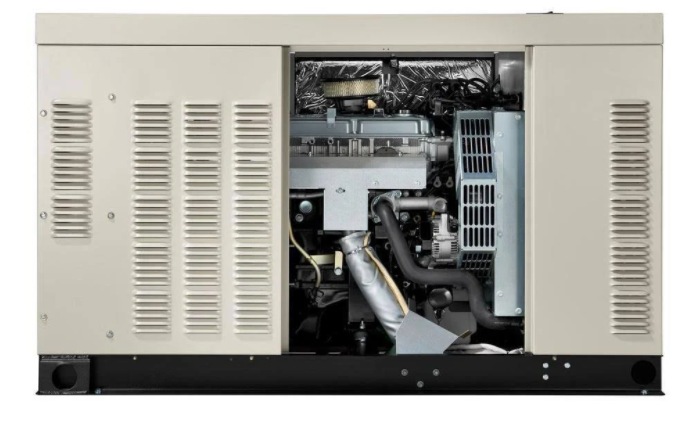

  • Automotive-Style Engine
  • Operates at half the speed of other engines (1800 vs 3600 RPM)
  • Powerful Generac in-line 4-cylinder liquid-cooled engine
  • Sound Attenuated, Acoustically Designed Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Lockable, external viewing window for quick status check
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
  • 5-Year Limited Warranty
  • Please Note - Requires Loading Dock, Forklift or Crane For Delivery

Wi-Fi Remote Monitoring: Yes

Engine Brand: Generac 2.4L 4-Cylinder

Starting System: 12v Auto Start

CC: 2400 CC

Consumer Engine Warranty: 5 Years

Commercial Engine Warranty: 5 Years

Engine RPM: 1800 RPM

Low Oil Alert/Shutdown: Yes

Weight: 905 Pounds

Made in USA: Yes

Consumer Warranty: 5 Years

Commercial Warranty: 5 Years

Product Style: Standby Generator

Product Length: 62.2 Inches

Product Width: 30.6 Inches

Product Height: 38.6 Inches

Voltage: 120/208 Three-Phase

Frequency: 60 Hertz

Rated Watts: 22000 Watts

Fuel Type: LP/Natural Gas

NG Power Capacity: 22000 Watts

LP Power Capacity: 22000 Watts

NG Fuel Consumption @ 50% Load: 190 ft³/hr

NG Fuel Consumption @ 100% Load: 316 ft³/hr

LP Fuel Consumption @ 50% Load: 2.1 gallons/hr

LP Fuel Consumption @ 100% Load: 3.4 gallons/hr

Rated Amps: 76 Amps

Decibel Rating @ 7m: 61 Test (70 Run) dbA

Transfer Switch: Automatic (Not Included)

Battery: Not Included

Enclosure: Aluminum

Circuit Breaker Size: 80 Amps

Mounting Pad: Concrete (Not Included)

Cooling System: Liquid Cooled

UL Listed: Yes

Grade Type: Emergency

This item comes with a 5 year factory warranty.
PDF User's Manual PDF Spec Sheet PDF Warranty
