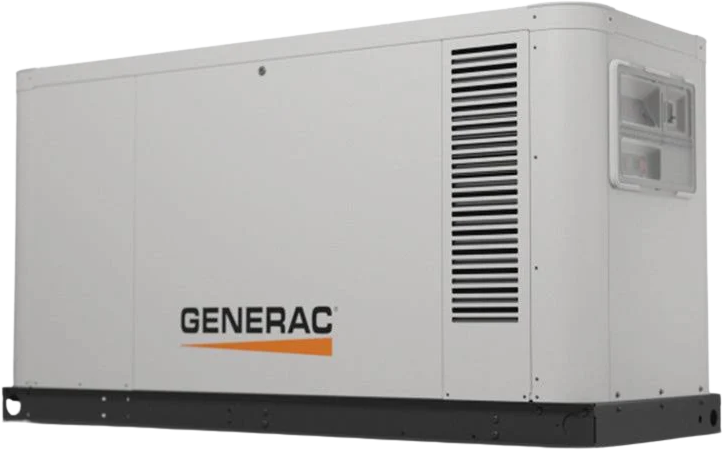

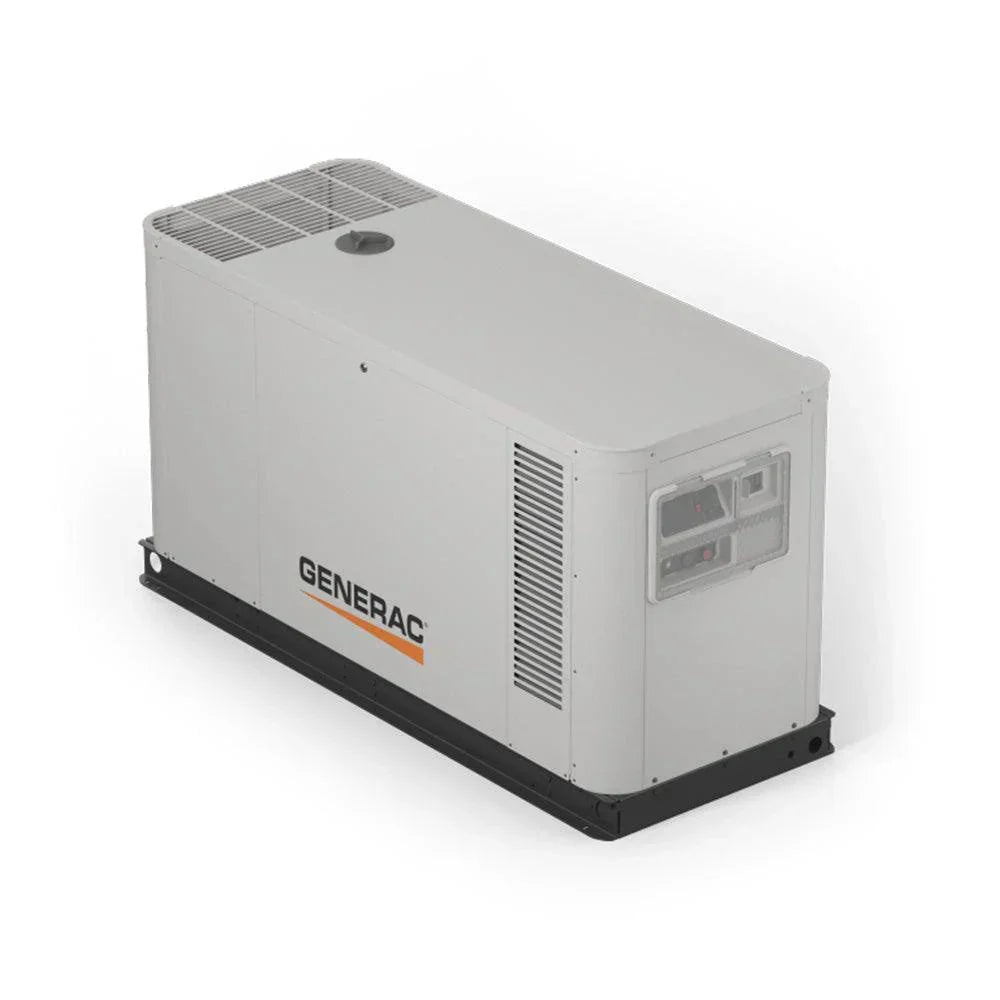

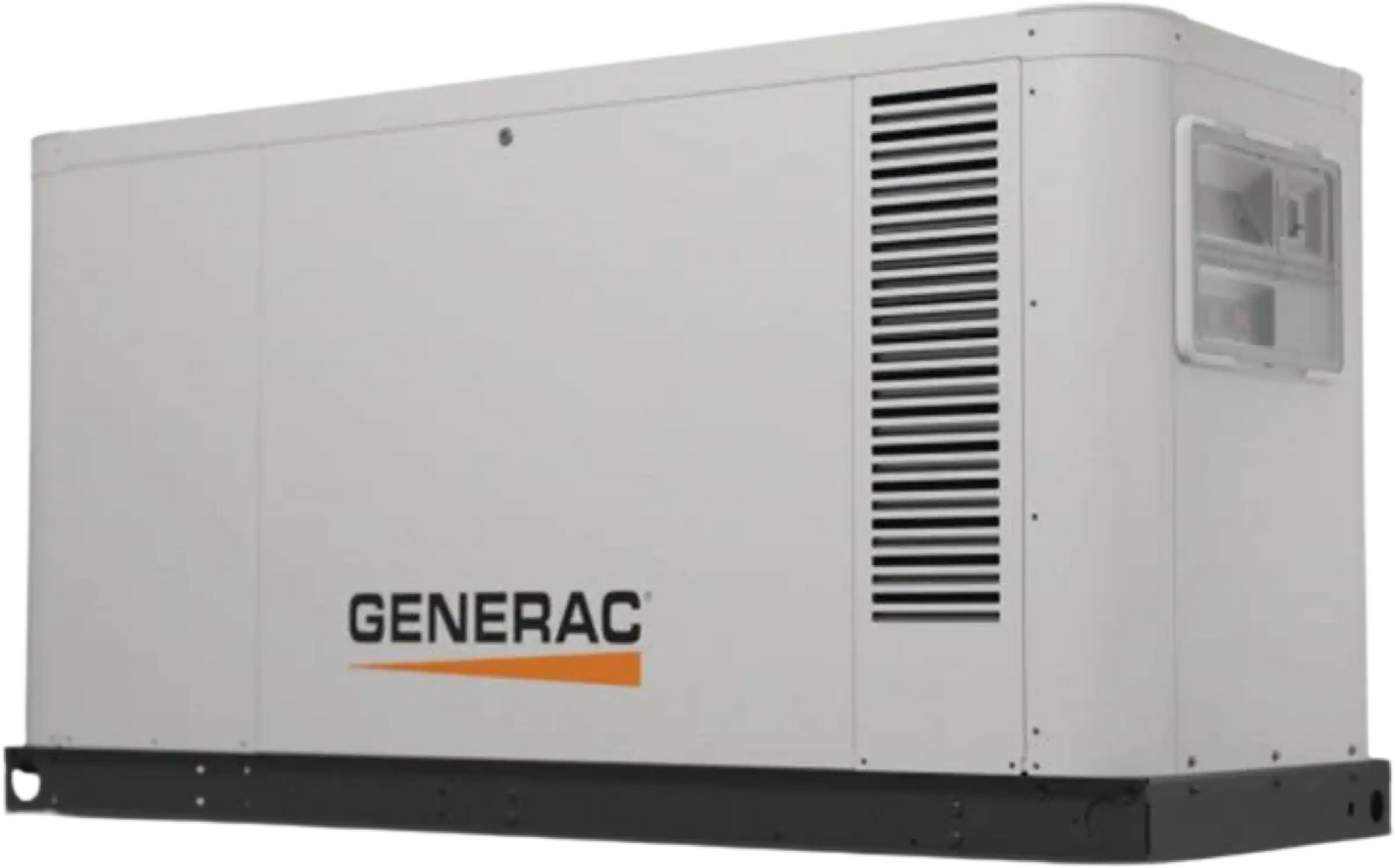

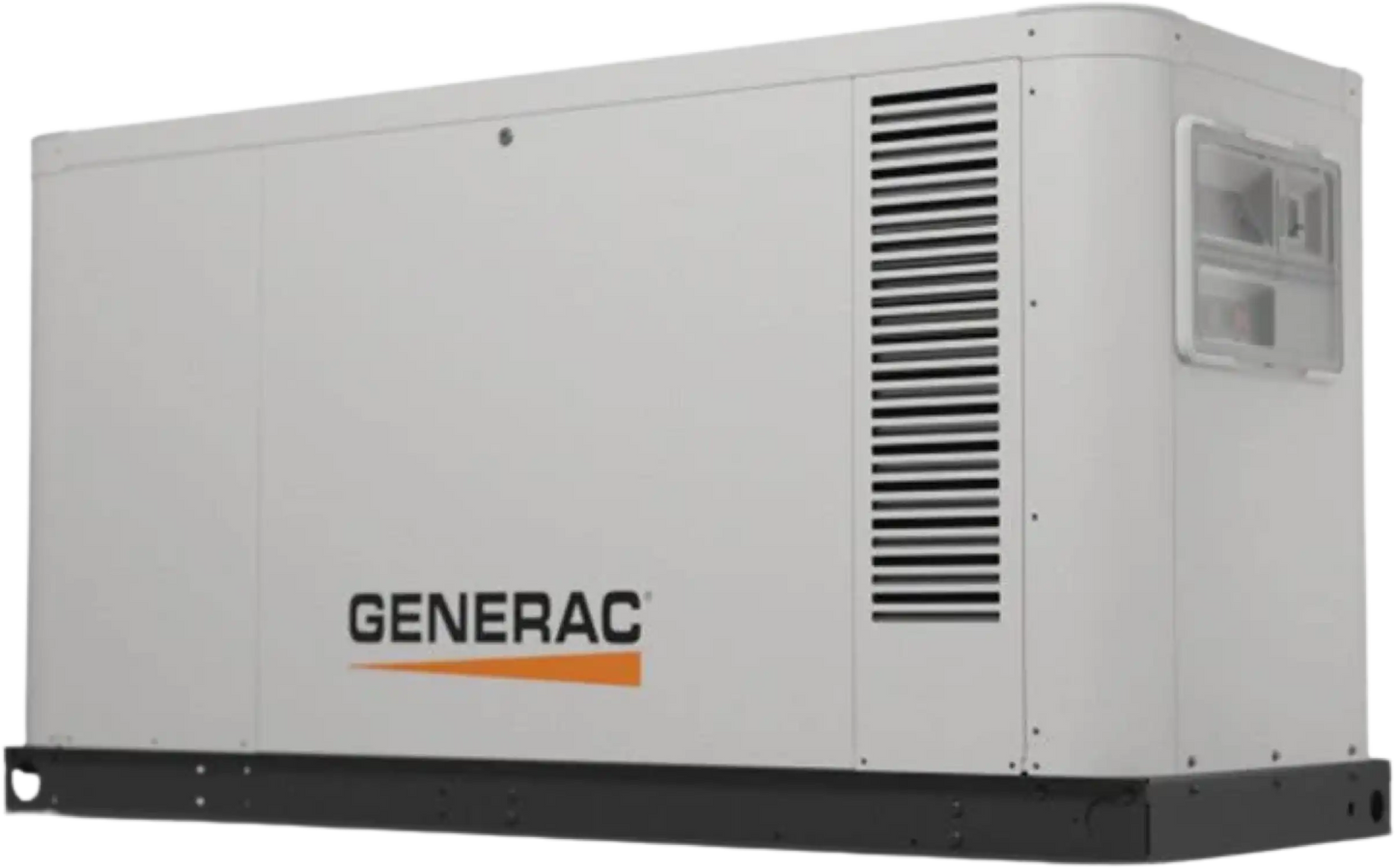

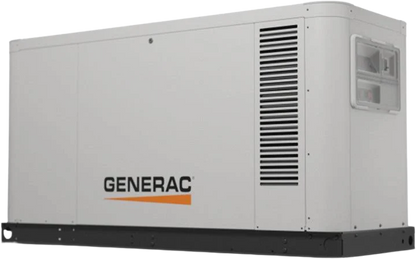

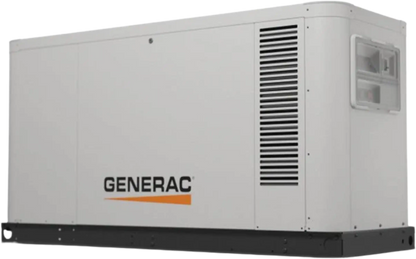

Generac Protector XG Series XG04045ANAC 40kW Liquid Cooled 1 Phase 120/240V Standby Generator SCAQMD Compliant

Generac

$24,669.00
$24,669.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

The Generac 40 kW Generator adds well-known features to new improvements with the Protector XG series. The 40kW XG04045 has a 4.5 Liter engine that runs at 1800 RPM under load and 1200 RPM at idle or Quiet Test mode. The Power Zone 410 Controller brings the latest in technology with additional functionality and more features than ever before, including the ability to select the fuel type at the controller without any other modifications. This controller is NFPA 110 capable.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • Quiet-Test™ Self-Test Mode: Runs at a lower, quieter RPM for a five-minute test, to ensure the system is running properly while consuming less fuel. Quiet-Test Self-Test Mode can be programmed to run weekly, biweekly, or monthly.
  • TruePower™ Technology: Delivers best-in-class power quality with less than 5% total harmonic distortion for clean, smooth operation of sensitive electronics and appliances.
  • Controller Selectable Fuel: Fuel type selection using only the controller simplifies generator installation.
  • Generac Designed & Built Engine: Purpose-built exclusively for generator use. Utilizes the first in class, dual-valve ultra-low pressure fuel delivery system and intelligent proprietary engine controls that manage over 100 performance functions to ensure peak efficiency in all temperature ranges and elevations.
  • Cellular Connectivity: Reliable, constant connection enables the Generator Owner to monitor function through Mobile Link and the supporting Dealer through Fleet.
  • Small Footprint: Generac liquid-cooled product packs more power into a small footprint – ideal when space is a premium. The neutral styling, color and small footprint fits unobtrusively into landscaping.
  • Corrosion Resistant Enclosure & Frame: Aluminum enclosure, zinc plated fasteners, and electro-galvanized frame rails with powder coat provide years of corrosion protection in extreme environments.
  • Built in the USA*: Generac generators and engines are engineered and built in the USA* *Assembled in the USA using domestic and foreign parts.
  • Surge Capacity: Designed to start and power large electrical loads for homes and businesses.

Generator: Standby

Voltage: 120/240 Single-Phase

Frequency: 60 Hertz

Rated Watts: 40000 Watts

Fuel Type: LP/Natural Gas

NG Power Capacity: 40000 Watts

LP Power Capacity: 40000 Watts

NG Fuel Consumption @ 50% Load: 289 ft³/hr

NG Fuel Consumption @ 100% Load: 494 ft³/hr

LP Fuel Consumption @ 50% Load: 3.8 gallons/hr

LP Fuel Consumption @ 100% Load: 5.7 gallons/hr

Rated Amps: 167 Amps

Decibel Rating @ 7m: 58 Test (64 Run) dbA

Transfer Switch: Automatic (Not Included)

Battery: 12-Volt Group 27R, 725 CCA

Enclosure: Aluminum

Circuit Breaker Size: 200 Amps

Mounting Pad: Concrete (Not Included)

Cooling System: Liquid Cooled

Grade Type: Emergency

Wi-Fi Remote Monitoring: Yes

Engine Brand: Generac

Starting System: 12V Auto Start

CC: 4500 CC

Engine RPM: 1800 RPM

Low Oil Alert/Shutdown: Yes

CARB Compliant: Yes

Certification: SCAQMD

Made in USA: Yes

UL Listed: Yes

Dimensions: 83.4 x 34 x 45.2 in.

Shipping Dimensions: 90 x 41 x 51 in.

Weight: 1781 lbs.

Consumer Warranty: 5 Years

Commercial Warranty: 5 Years

This item comes with a 5 year factory warranty.
PDF Warranty PDF Brochure PDF Specifications Sheet
