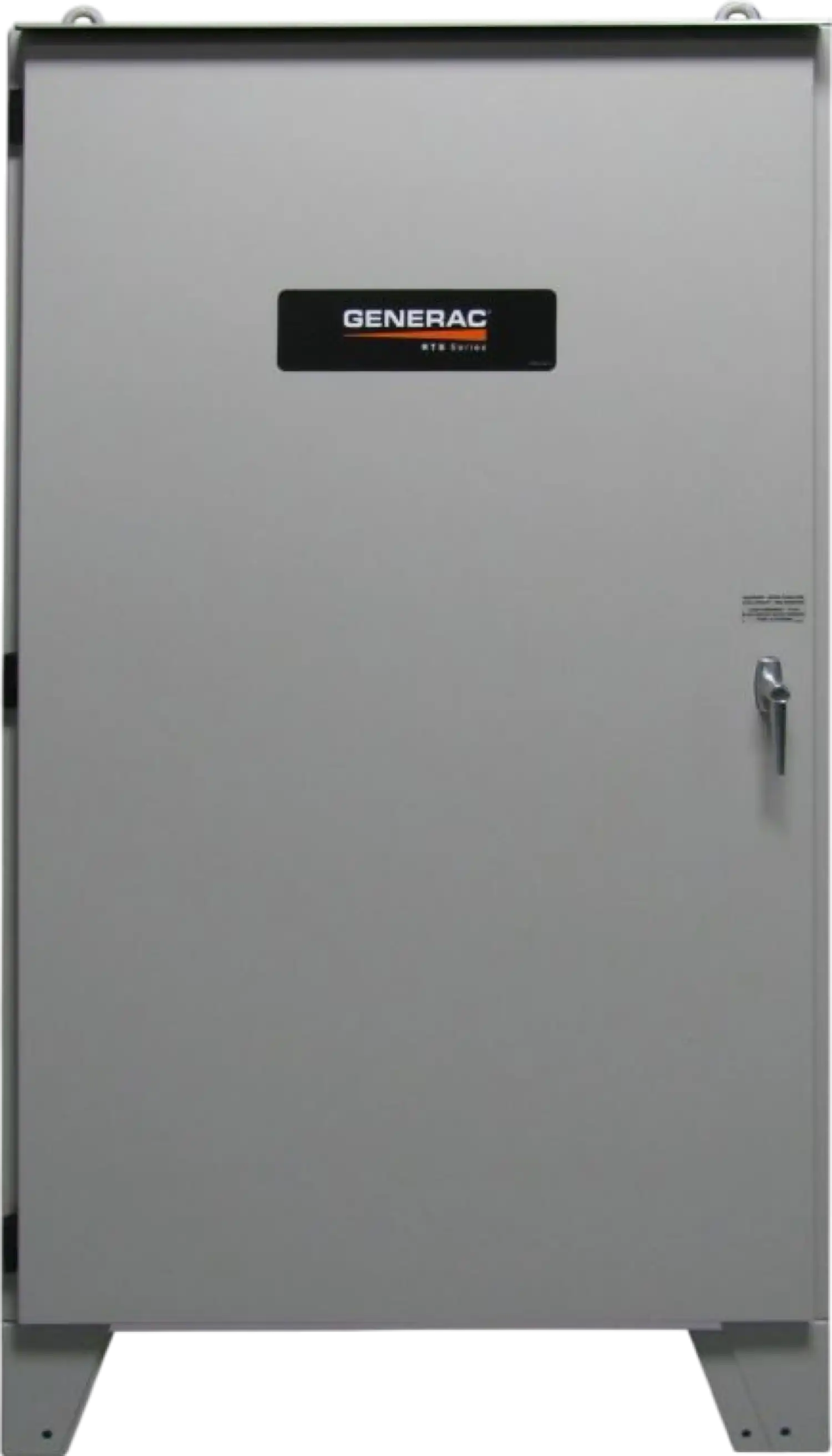

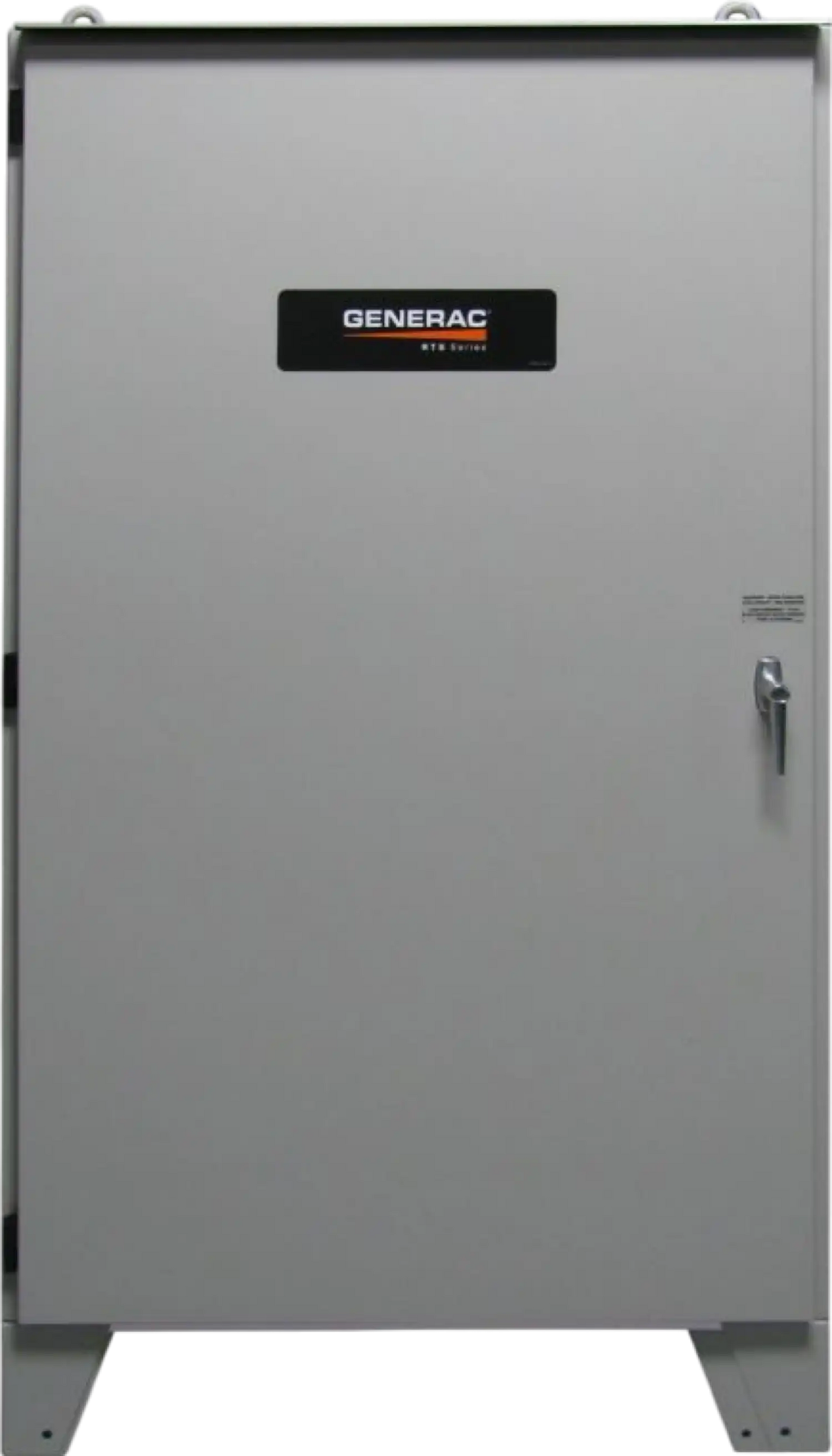

Generac RTSC600A3 600 Amp Non-Service Entrance Rated Automatic Transfer Switch 120/240V Single Phase

Generac

$5,459.00
$5,459.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Featuring a NEMA 3R aluminum enclosure and Heavy Duty Generac Contactor, this 600 Amp Non-service Entrance switch is designed for use with single phase generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required. Compatible with Generac 22-150kW liquid-cooled generators.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • Electrically operated, mechanically-held contacts for fast, positive connections.
  • Main contacts are silver plated or silver alloy to resist welding and sticking.
  • 160 millisecond transfer time.
  • Rated for all classes of load, 100% equipment rated, both inductive and resistive.
  • NEMA 3R (indoor/outdoor rated) steel enclosure is standard.
  • Single coil design.

Model: RTSC600A3

Amps: 600

Voltage: 120/240, Single Phase

Load Transition Type (Automatic): Open Transition

Enclosure Type: NEMA 3R

Withstand Rating (Amps): 42,000

Lug Range: 1/0 - 500 MCM

UL Listed: Yes

Dimensions (W x D x H): 36 x 21 x 66 in. (91.4 x 53.3 x 167.6 cm)

Weight: 337.5 lbs. (153.1 kg)

This item comes with a 5 year limited factory warranty.
PDF User Manual PDF Warranty PDF Spec Sheet
