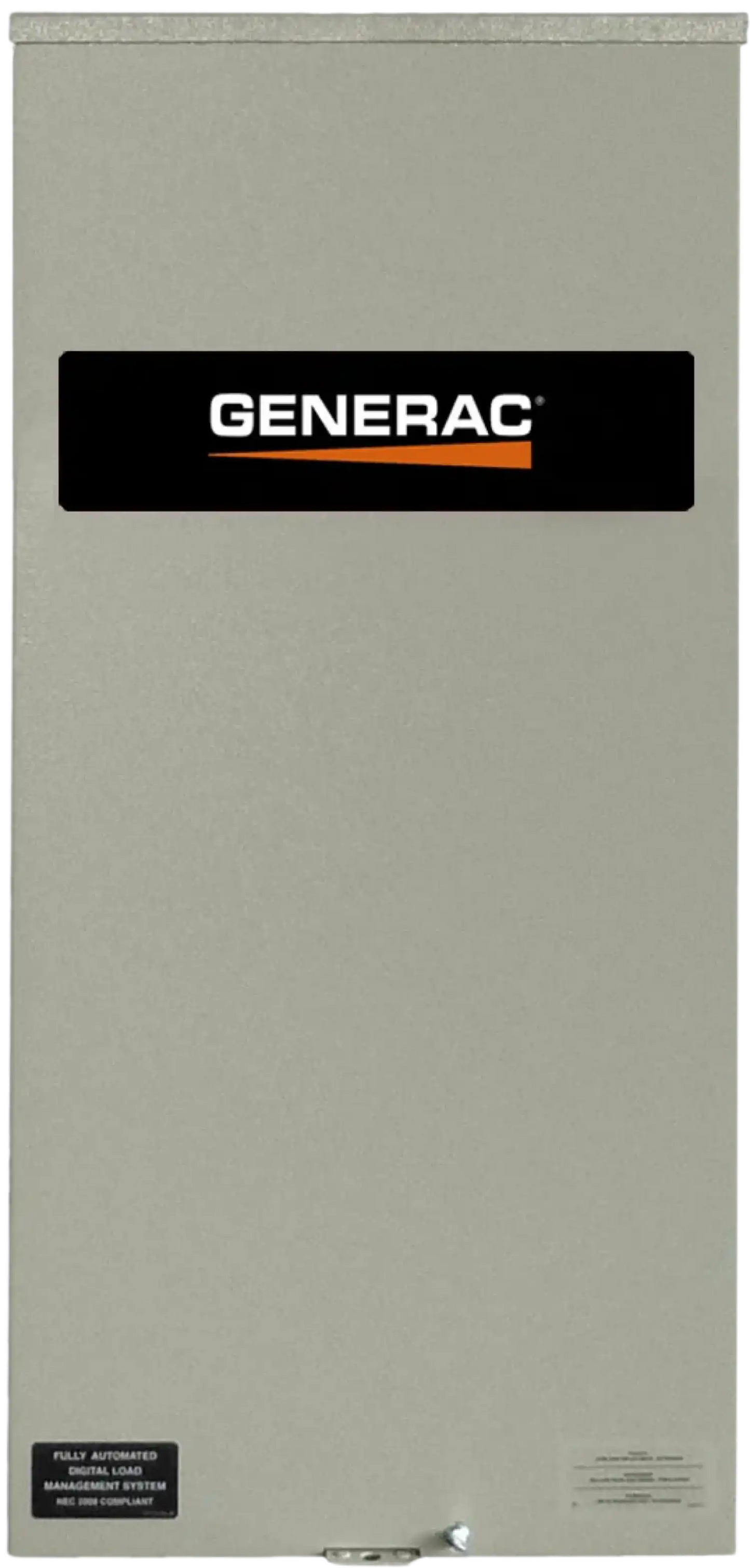

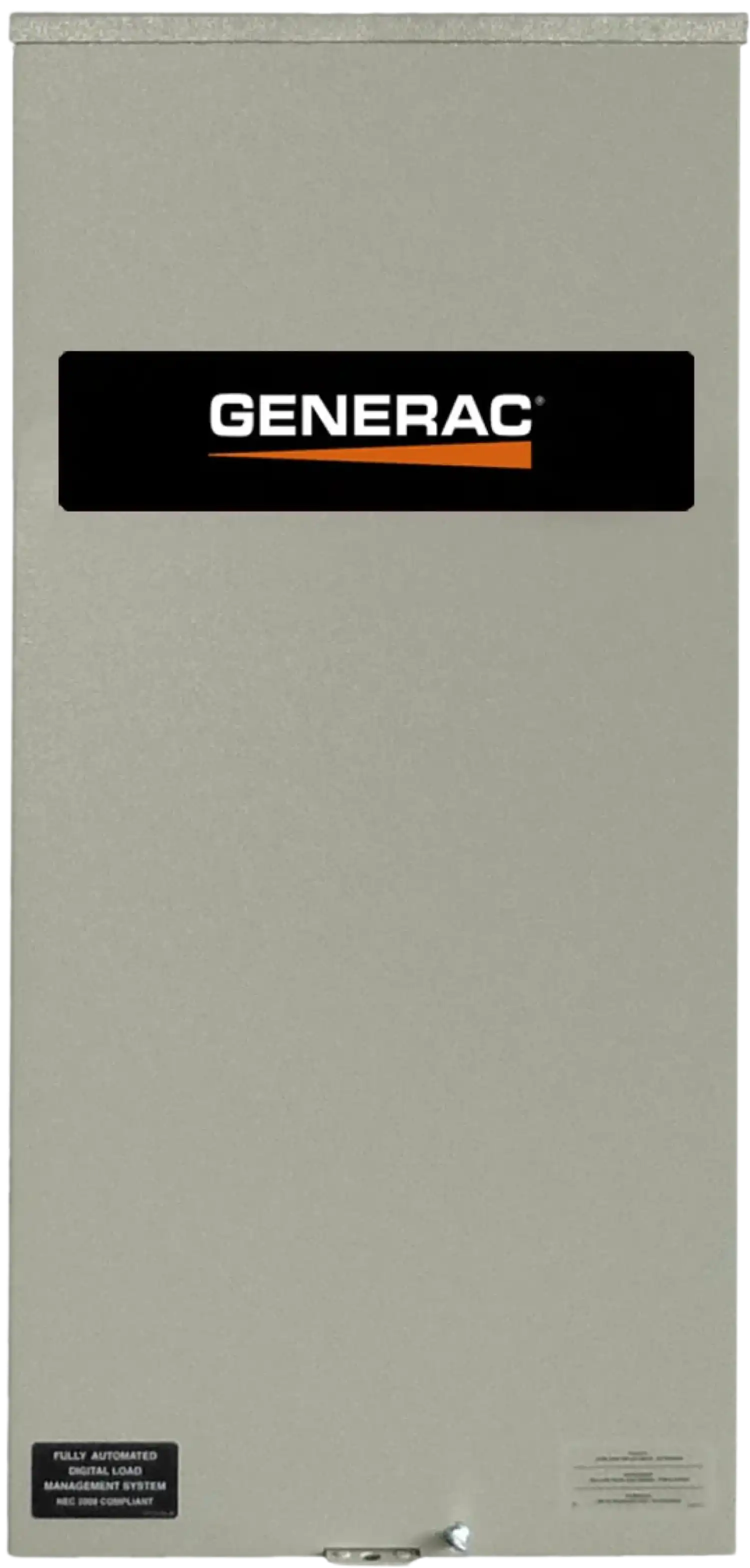

Generac RTSN200J3 200 Amp Automatic Transfer Switch 120/240V 3 Phase NEMA 3R

Generac

$1,349.00
$1,349.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

The transfer switch monitors utility power and signals the generator to start when utility power is interrupted. When utility power returns, the transfer switch returns the electrical load from the generator back to the utility. This ensures your most important electrical loads are powered, within seconds, even when you’re away. All RTS transfer switches are housed in a NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint.

2 year factory warranty

2 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer

  • 3-Phase Automatic Transfer switch: Only works with 120/240V 3-Phase generators
  • Fully Automatic Operation
  • Standard Installation: May require a sub-panel or disconnect for serviceability
  • Larger Applications: Nema 3R Aluminum Enclosure
  • For Use With Generac Generators Only
  • UL Listed 2200

Model: RTSN200J3

Voltage: 120/240 Three-Phase

Frequency: 60 Hertz

Rated Amps: 200 Amps

Enclosure: NEMA 3R

Transfer Switch Style: Standard Installation

ATS Load Prioritizing: Not Compatible

ATS Load Shedding: Not Compatible

ATS Service Disconnect: No

Max Utility Input: 200 Amps

Max Generator Input: 200 Amps

UL Listed: Yes

Product Dimensions: 24.1 x 20.2 x 7.1 in.

Product Weight: 49 lbs.

This item comes with a 2 year limited factory warranty.
