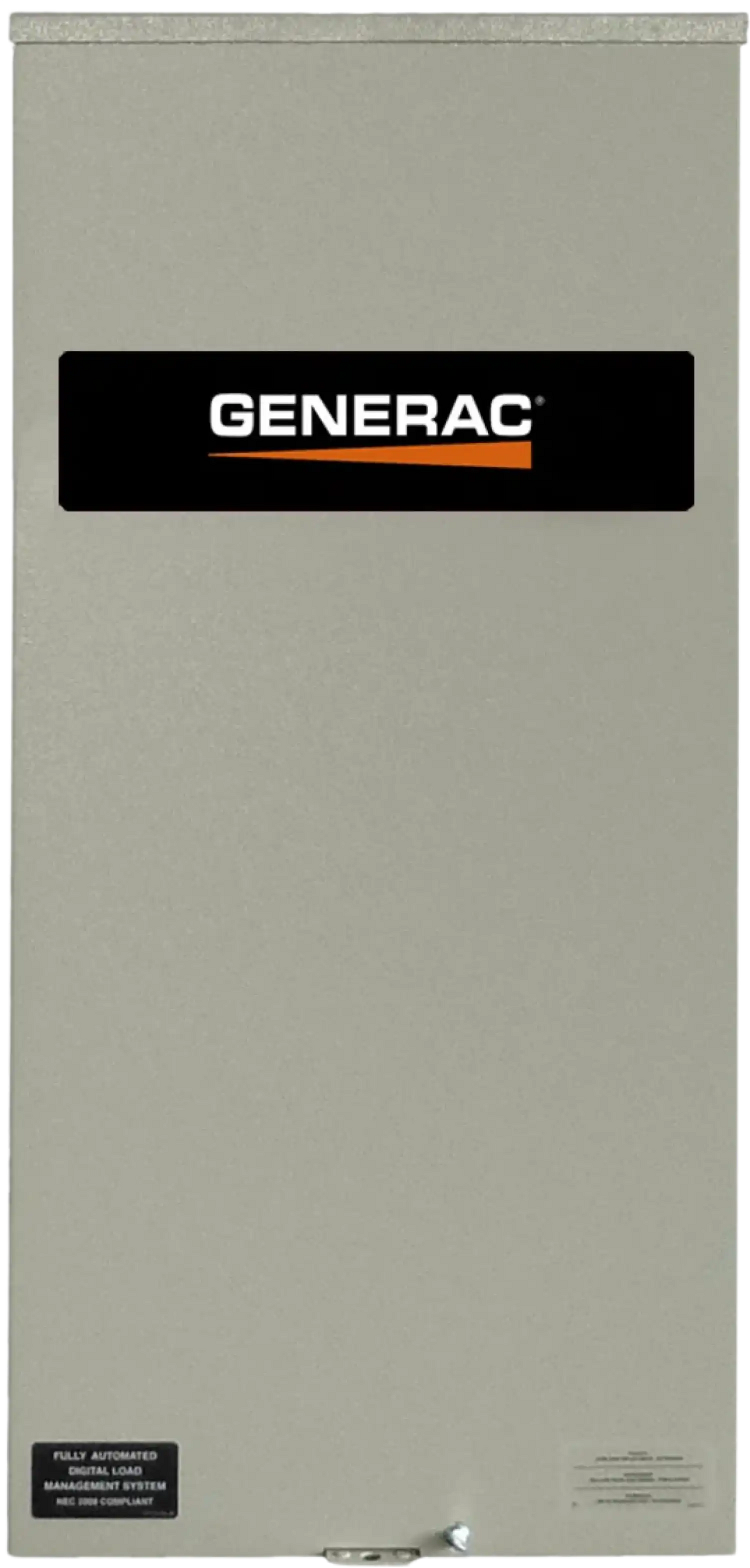

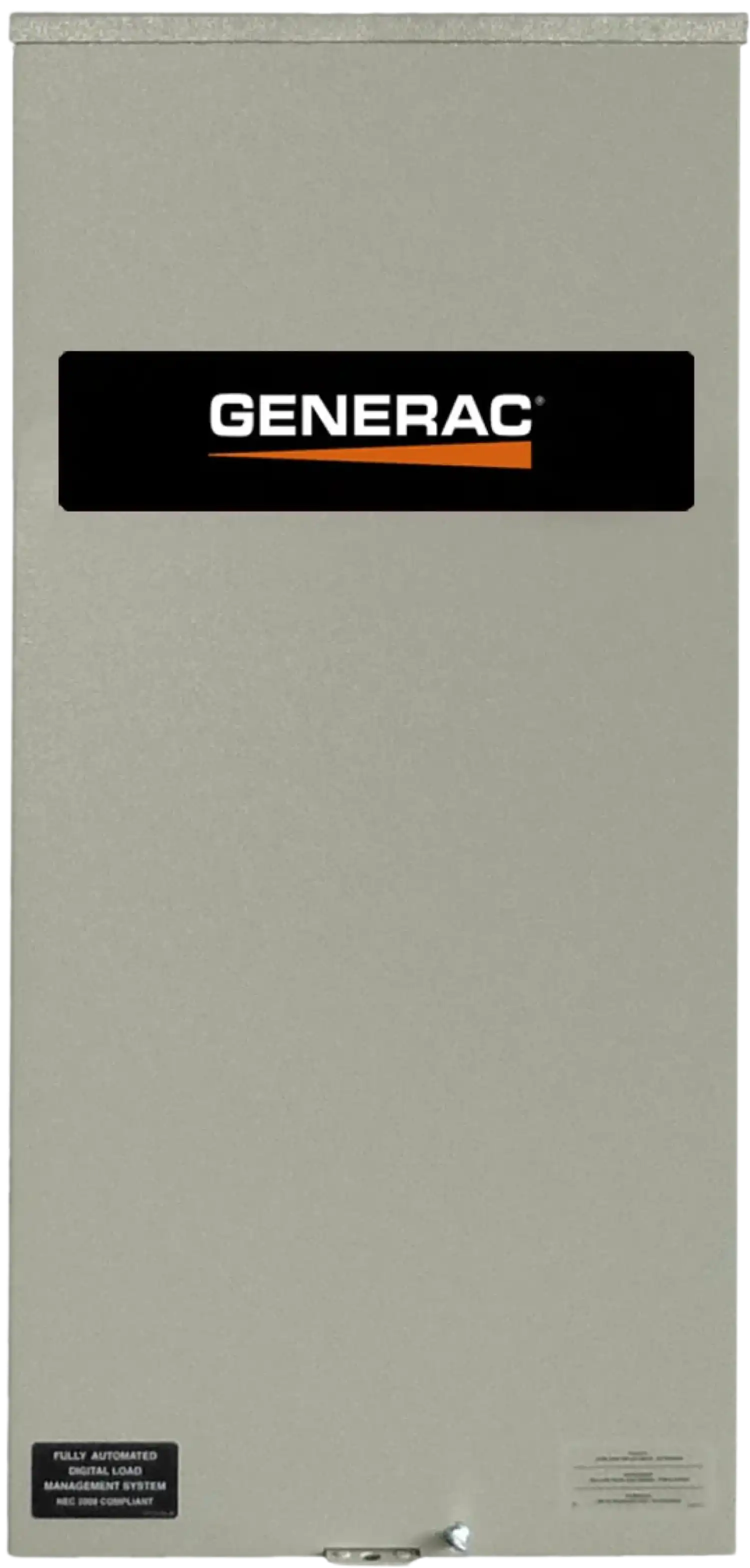

Generac RTSN400K3 400 Amp Automatic Transfer Switch 277/480V 3 Phase NEMA 3R

Generac

$2,439.00
$2,439.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

The transfer switch monitors utility power and signals the generator to start when utility power is interrupted. When utility power returns, the transfer switch returns the electrical load from the generator back to the utility. This ensures your most important electrical loads are powered, within seconds, even when you’re away. All RTS transfer switches are housed in a NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint.

2 year factory warranty

2 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer

  • 3-Phase Automatic Transfer switch
  • Only works with 277/480 3-Phase generators
  • Fully Automatic Operation
  • Standard Installation
  • May require a sub-panel or disconnect for serviceability
  • Larger Applications
  • Nema 3R Aluminum Enclosure
  • For Use With Generac Generators Only
  • UL Listed 2200

Model: RTSN400K3

Amps: 400

Voltage: 277/480, Three Phase

Type: Automatic

Enclosure Type: Aluminum NEMA 3R

Withstand Rating (Amps): 35,000

Lug Range: 600 MCM - #4 or 1/0 - 250 MCM

UL Listed: Yes

Dimensions (W x D x H): 13.1 x 30.1 x 48.1 in. (33.3 x 76.5 x 122.2 cm)

Weight: 133 lbs. (60.3 kg)

This item comes with a 2 year limited factory warranty.
