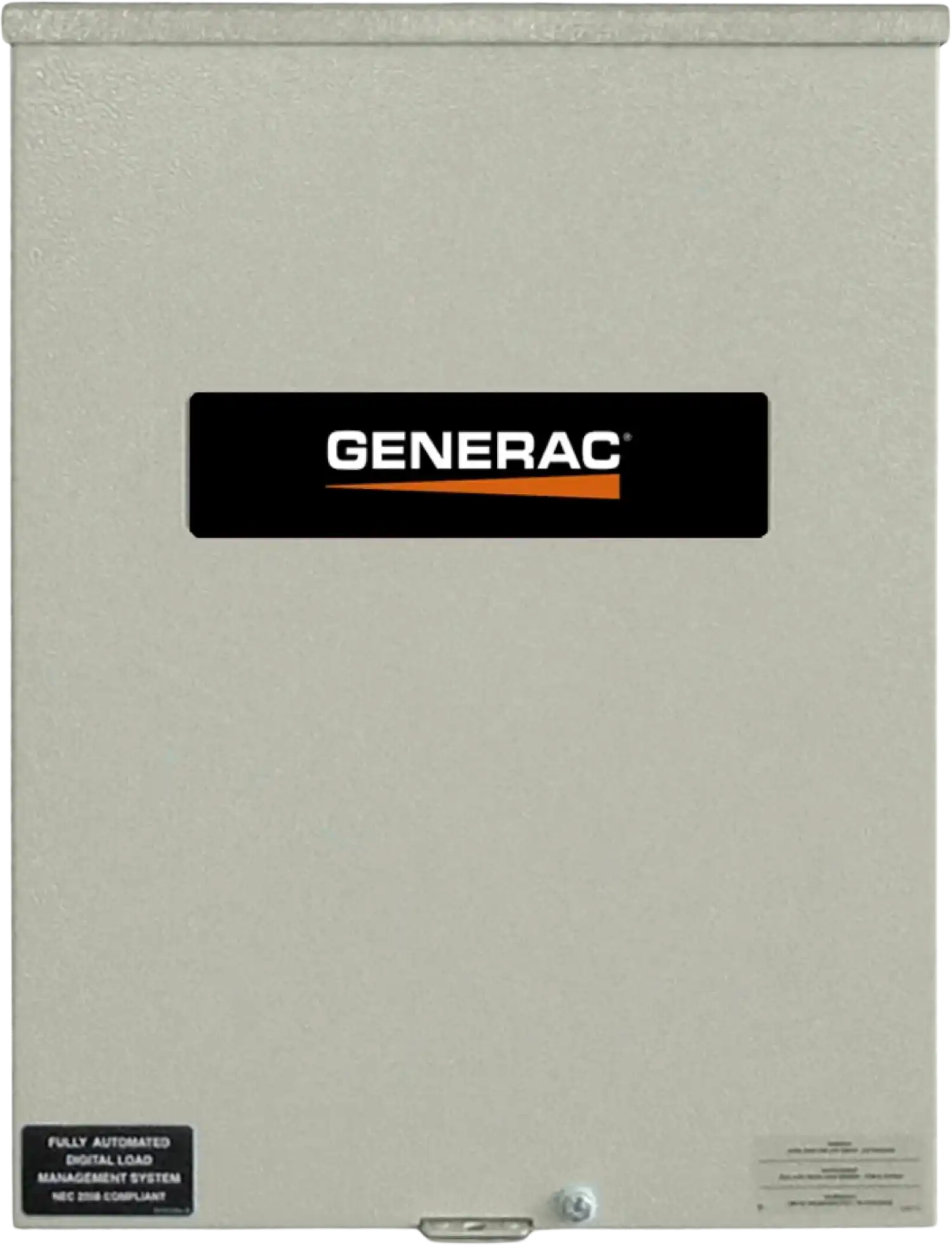

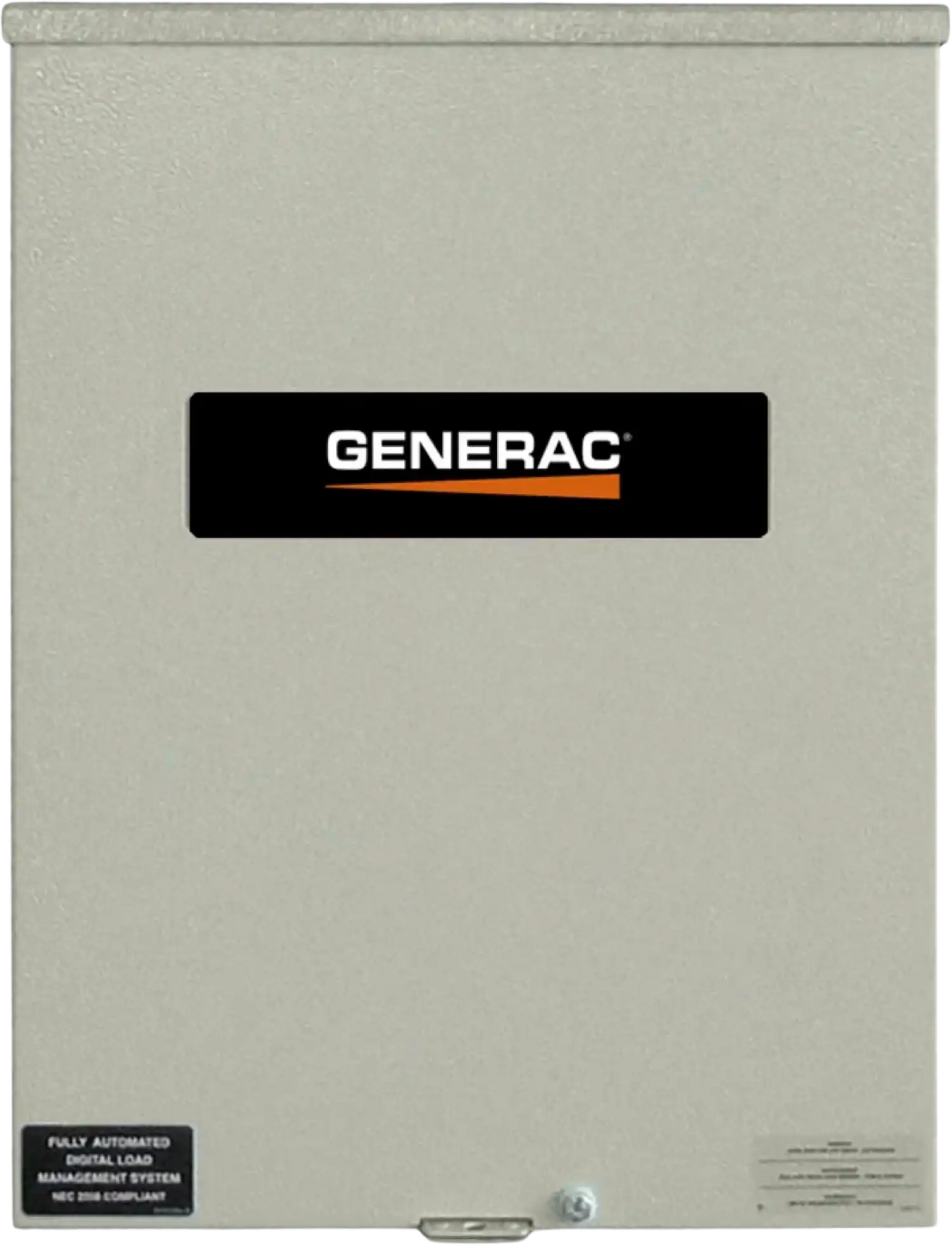

Generac RTSW200K3 200 Amp Automatic Transfer Switch 277/480V 3 Phase NEMA 3R

Generac

$2,429.00
$2,429.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Generac Three Phase Automatic Transfer Switches are designed for use with three phase generators that utilize an Evolution or Nexus Controller. The Service Entrance Transfer Switches are open transition and listed to UL 1008 for Optional Standby applications. Enclosures are provided with integrated deadfront for safe operation of the Service Disconnect. Service Disconnects are listed to UL 489.

2 year factory warranty

2 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • 200-Amp Automatic Operation: For Use With Generac Generators Only
  • 277/480V 3-Phase Automatic Transfer Switch: Designed for use with 277/480V 3 Phase generators. For Generac Evolution™ & Generac Nexus™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers): Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated: Aluminum, wall mountable weather-proof enclosure. Electrostatically applied and baked powder paint (Gray)
  • UL Listed 2200

Model: RTSW200K3

Amps: 200

Voltage: 277/480V, Three Phase

Type: Automatic

Enclosure Type: Aluminum NEMA 3R

Withstand Rating (Amps): 18 kA

Lug Range (Breaker): #6 AWG - 300MCM

Lug Range (Transfer Switch): #4 AWG - 400MCM

ATS Poles: 3

Transfer Switch Style: Service Disconnect

UL Listed: Yes

Dimensions (W x D x H): 21.8 x 10.1 x 48 in. (55.4 x 25.7 x 121.9 cm)

Weight: 55 lbs. (24.9 kg)

This item comes with a 2 year limited factory warranty.
PDF User Manual PDF Warranty PDF Specifications Sheet
