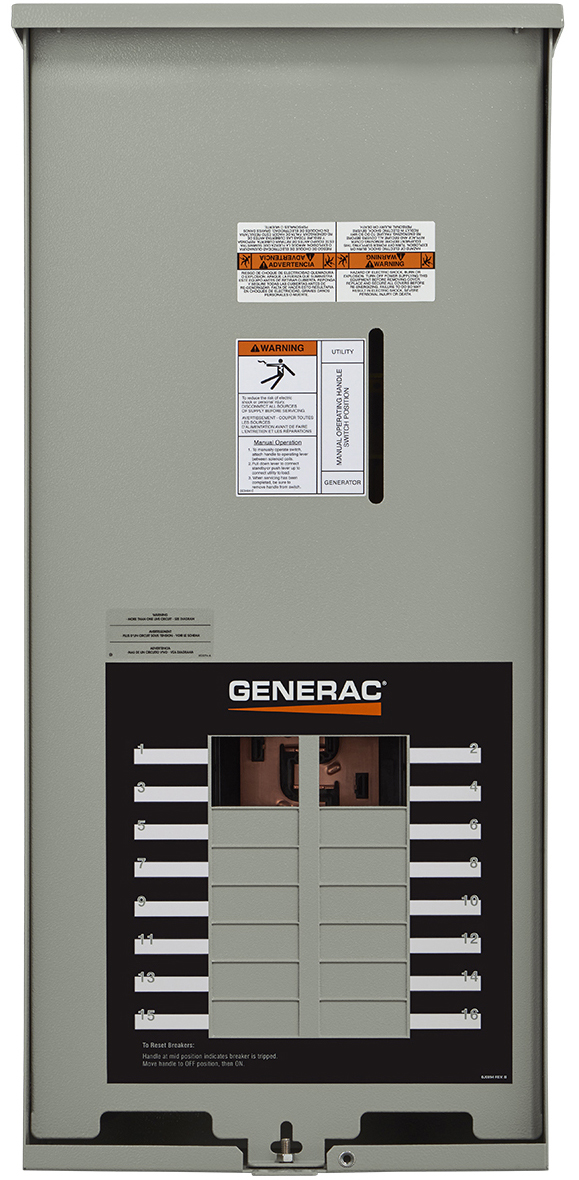

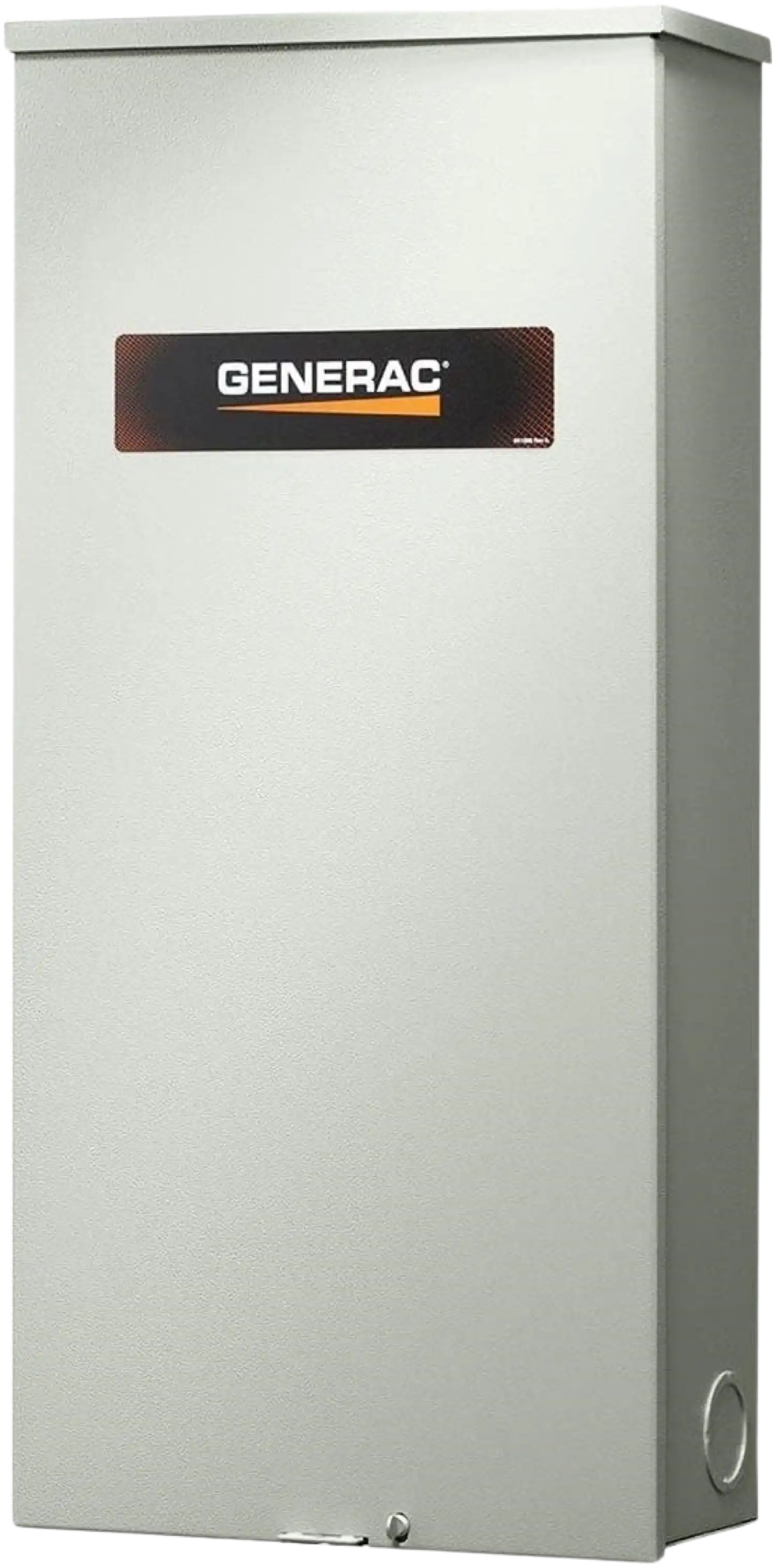

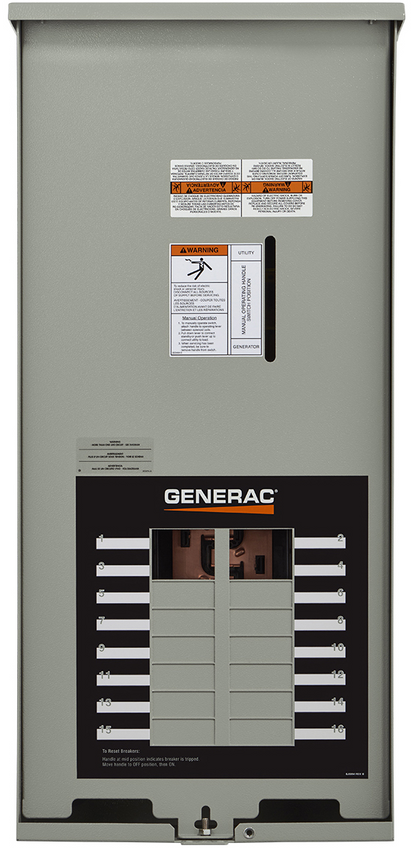

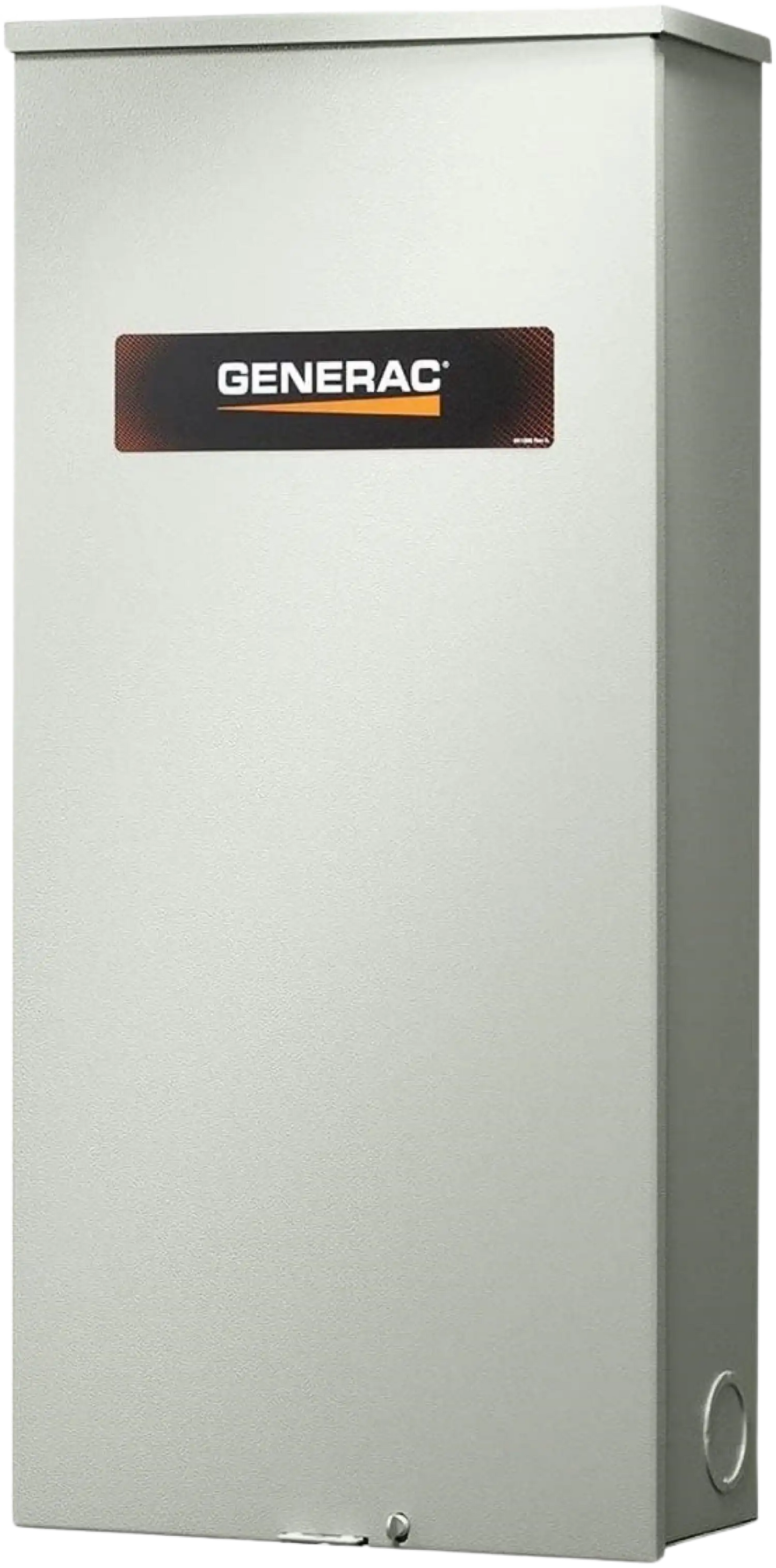

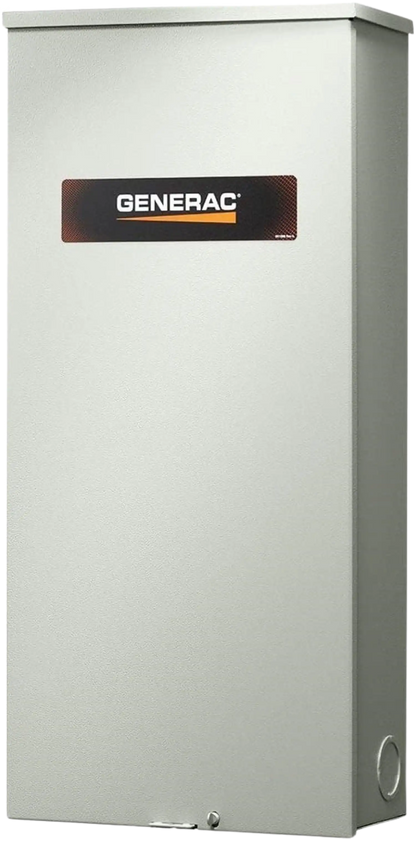

Generac RXG16EZA3 100 Amp Automatic Transfer Switch NEMA 3R With 16 Circuit Load Center

Generac

$629.00
$629.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

This Generac automatic transfer switch is designed to operate with air-cooled generators. It has an integrated load center to allow for essential circuit backup. It is especially useful where the main service is large and only a portion of the building will be served by the generator or when the main electrical breaker panel is located outdoors. Comes standard with a 16-circuit breaker panel that can be populated with the appropriately sized breakers needed for any application.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • All-Weather Protection: The transfer switch is housed in a durable aluminum NEMA 3R enclosure, designed to withstand various weather conditions, ensuring reliable performance in any environment.
  • Heavy-Duty Contactors: Equipped with a heavy-duty Generac contactor, the transfer switch ensures reliable switching between utility power and generator power, providing seamless backup power when needed.
  • Ample Breaker Space: The 16-space breaker panel included with the transfer switch offers sufficient capacity to accommodate the necessary breakers for your specific application, allowing you to customize and configure the electrical circuits as required.
  • Versatile Application: Designed for use in optional standby systems, this transfer switch is especially useful in scenarios where the main service is large and only a portion of the building needs to be served by the generator.
  • Secure and Efficient Power Backup: With the Generac RXG16EZA3 transfer switch, you can have peace of mind knowing that essential circuits in your home or building will receive reliable backup power during outages, ensuring the safety and comfort of occupants.
  • Easy Installation: Generac recommends your new transfer switch should be installed by a certified and licensed electrician.

Model: RXG16EZA3

Amps: 100

Voltage: 120/240, Single Phase

Type: Automatic

Enclosure Type: Aluminum NEMA 3R

Number of Circuits: 16

Tandem Breaker Capabilities: 8 Tandems

Compliance: cETLus

Withstand Rating (Amps): 10,000

Lug Range: 1/0 - #14

ATS Poles: 2

UL Listed: Yes

Dimensions (W x D x H): 13.5" x 6.9" x 30.1"

Weight: 39 lbs. (17.69 kg)

This item comes with a 5 year factory warranty.
PDF User's Manual PDF Spec Sheet
