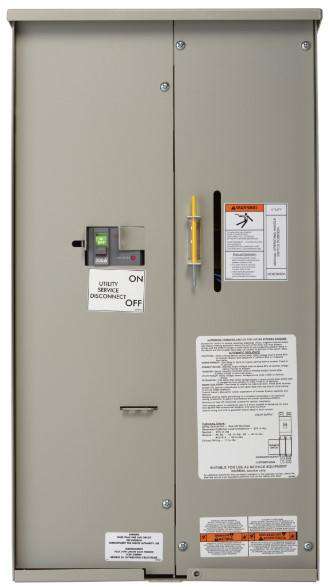

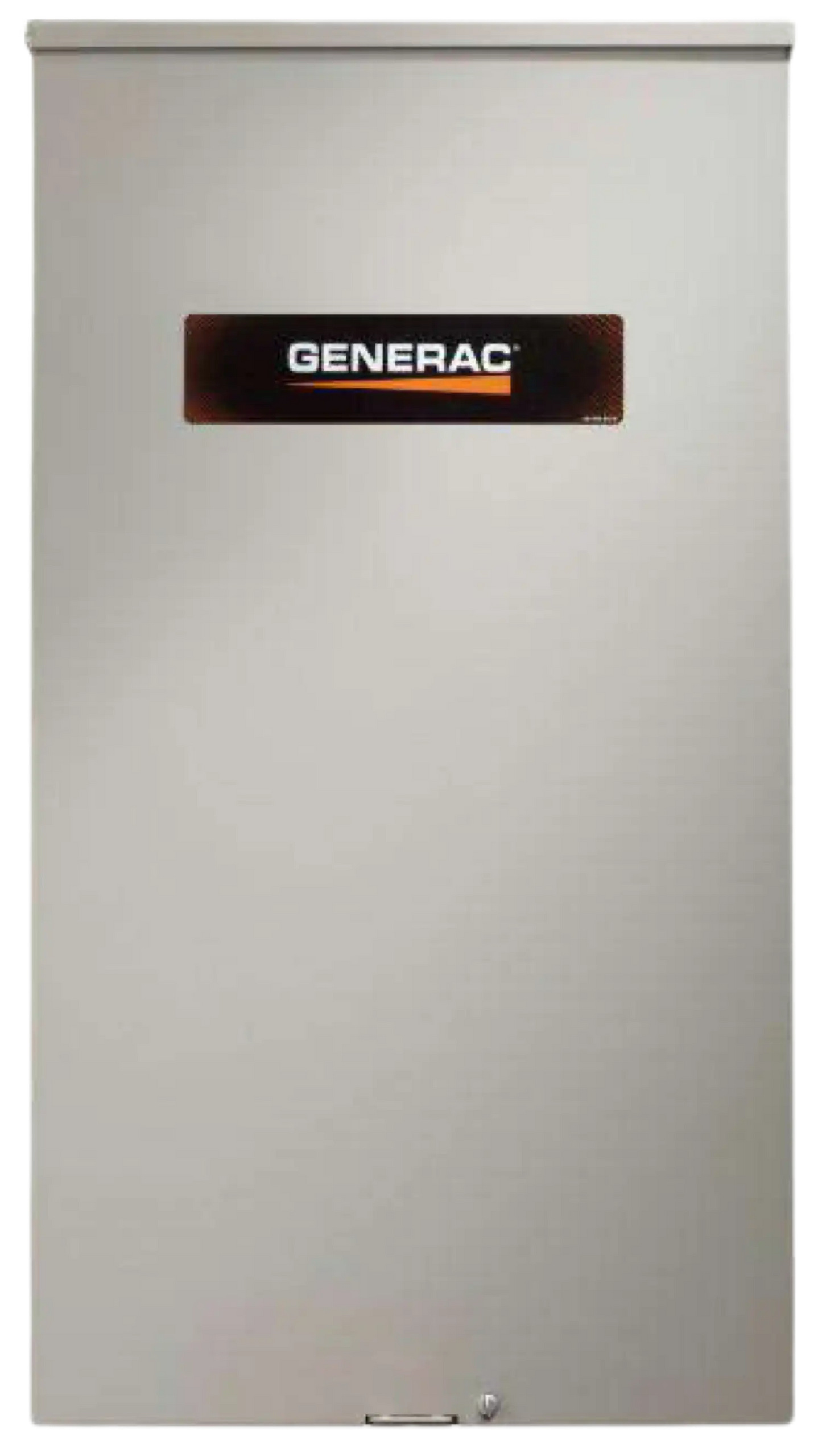

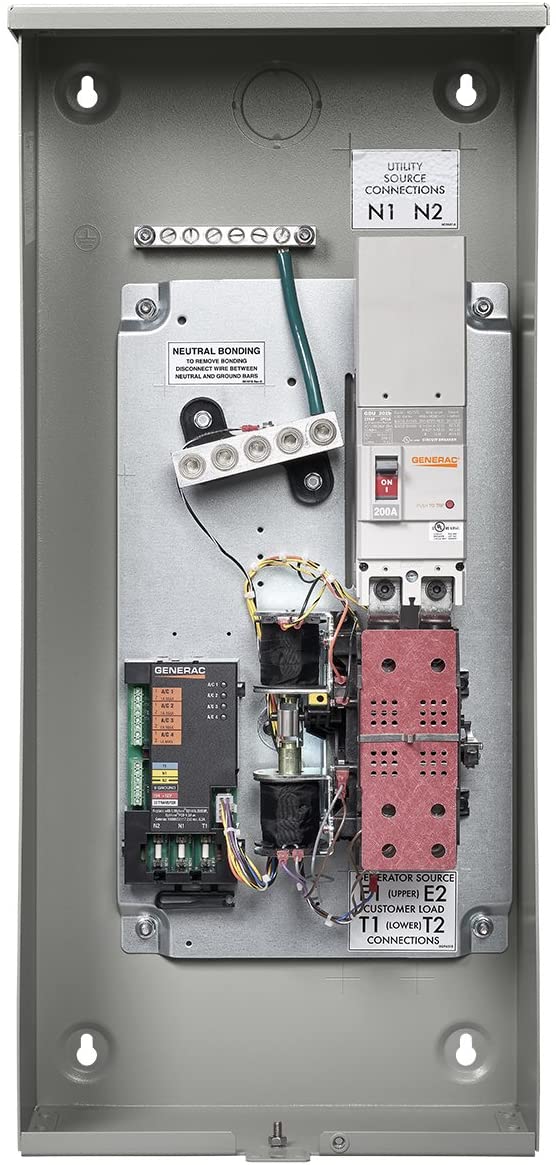

Generac RXSW200A3 200 Amp Service Entrance Rated Automatic Transfer Switch

Generac

$884.00
$884.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Generac Automatic Transfer Switches are designed for use with single phase generators that utilize an Evolution or Nexus Controller. The 200-Amp open transition switch is available in single phase with a service equipment rated configurations. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
  • Gain even more flexibility when used in tandem with Smart Management Modules
  • Smart A/C Module manages loads by shedding the connected loads in the event of a drop in generator frequency (overload)

Model: RXSW200A3

Switch Amps: 200

Switch Circuits: Whole House Switch

ATS Poles: 2

Consumer Warranty: 5-Year Limited Warranty ATS

Manufacturer: Generac

UL Listed: Yes

Voltage: 120/240 - Single Phase

Enclosure: Aluminum NEMA 3R

Type: Automatic Transfer Switch

Dimensions: 13.5"W X 6.3"D X 30"H

Weight: 37 lbs

This item comes with a 5 year factory warranty.
PDF User's Manual PDF Spec Sheet
