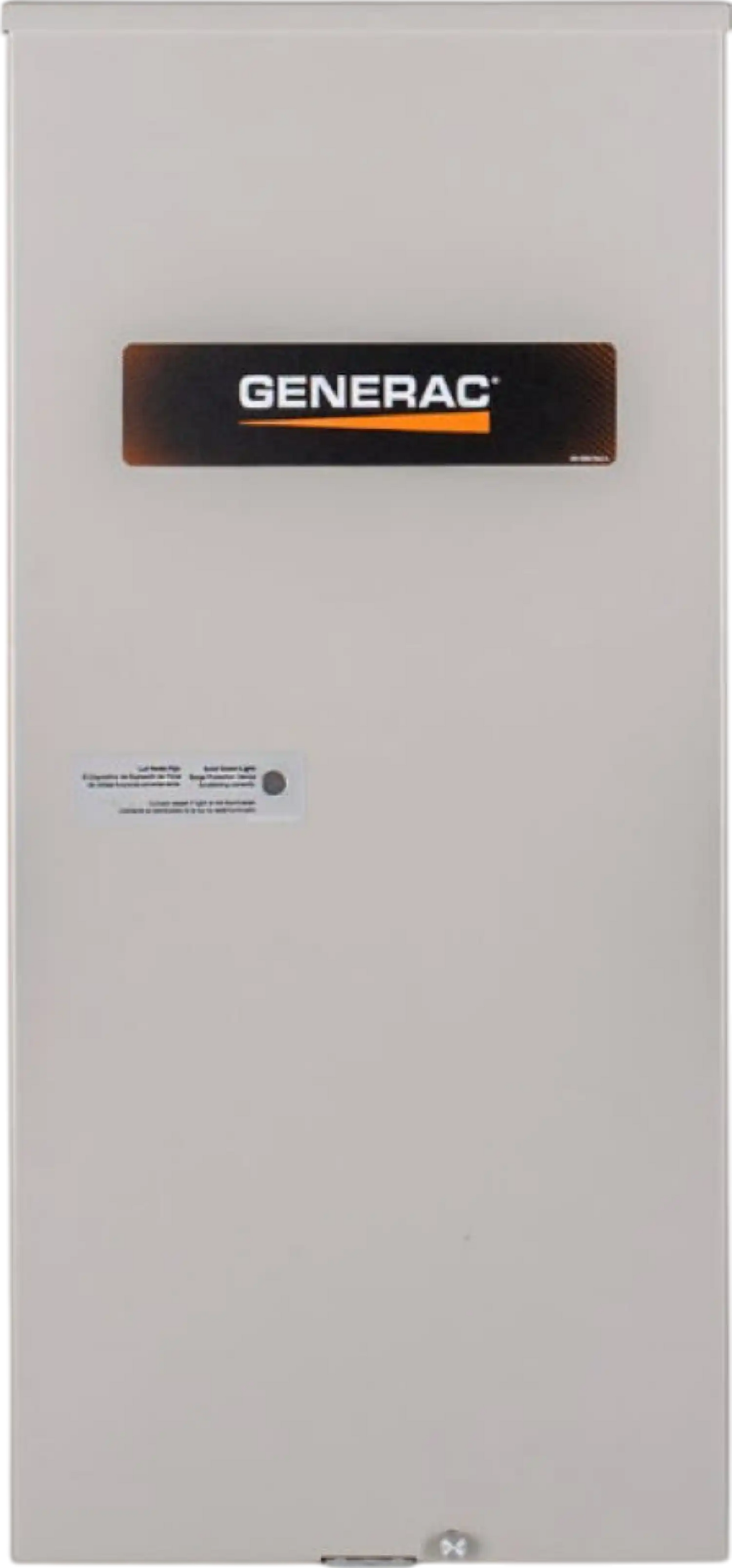

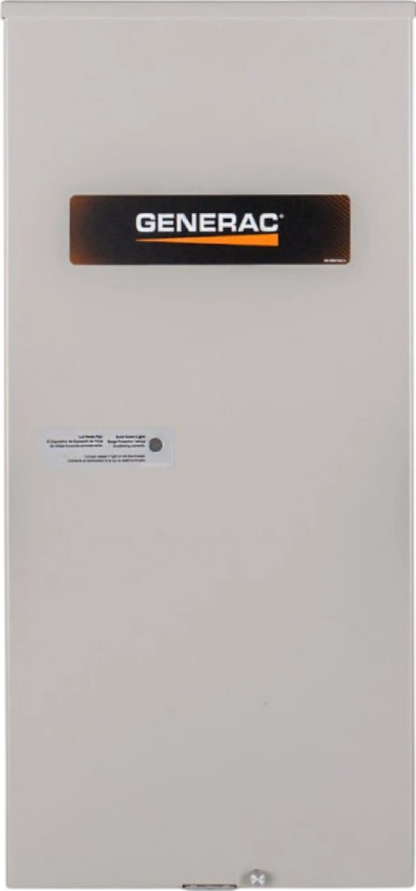

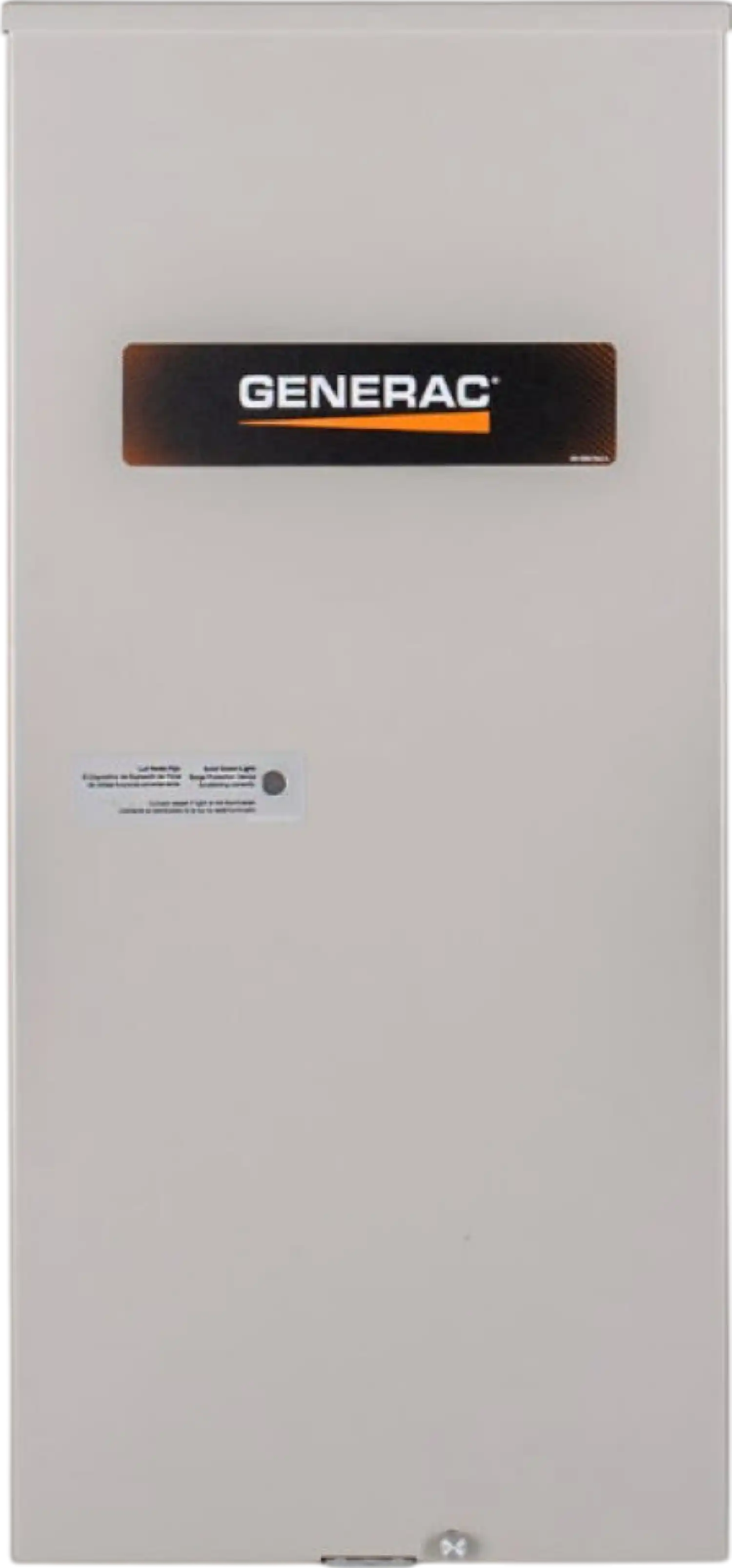

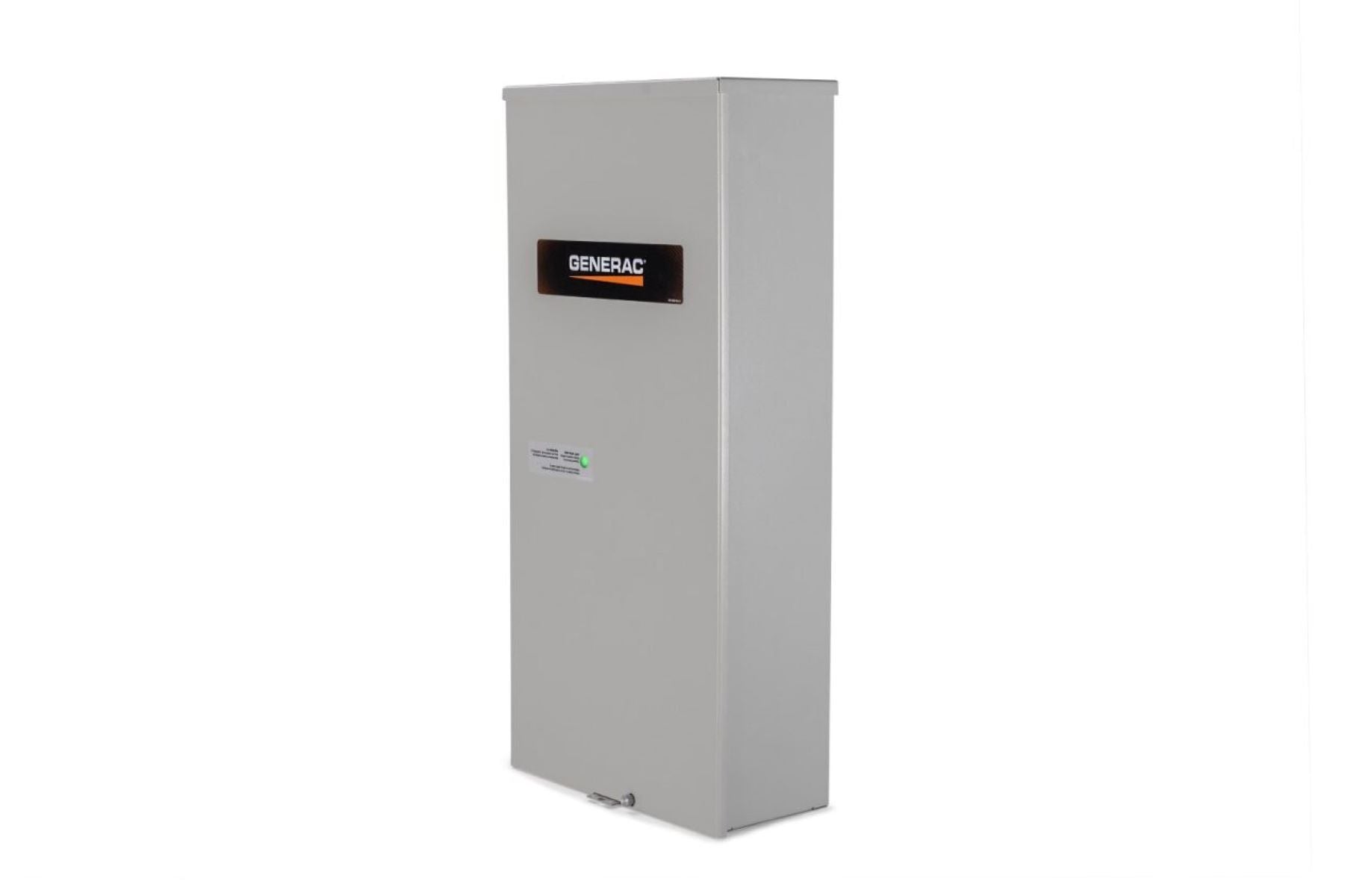

Generac RXSW200A3SPD 200 Amp Service Entrance Rated Automatic Transfer Switch Surge Protection Device

Generac

$1,029.00
$1,029.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Designed with whole-home coverage in mind, these outdoor/indoor enclosure and service entrance rated switches have built in load management using the Smart AC Module and Generac's factory installed Surge Protection Device. A Surge Protection Device, or SPD, protects sensitive electronics like computers, TVs, tablets, etc. from damaging power surges or spikes. In addition, NEC2020/23 Article 230.67 states “a Type 1 or Type 2 surge protection device (SPD) is required to be installed on dwelling unit services.

5 year factory warranty

5 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized Generac dealer

Authorized Generac dealer
  • SPD: Generac’s whole-house surge protection device (SPD) helps protect against these damaging surges and transients by blocking them from entering homes or businesses. It has thermally protected metal oxide varistors (MOVs) that help reduce risk of thermal damage. Its compact, weather-resistant design offers installation flexibility. Service-rated (RXSW) Generac Automatic Transfer Switches are housed in an aluminum NEMA Type 3R enclosure, with electrostatically applied and baked powder paint.
  • Intelligent Load Management: Manage up to four HVAC loads with no additonal hardware needed, providing a more efficient system, and allowing you to reduce the size of the generator needed to protect your home.
  • NEMA 3R Outdoor Rated Enclosure: Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris.
  • 5-Year Limited Warranty: We stand by our high-quality, innovative product design with a strong 5-year limited warranty.

Model: RXSW200A3SPD

Enclosure Type: NEMA 3R

Service Entrance Rated: Yes

Amp Rating: 200

Phase: 1

Voltage: 120/240V

Input Power Frequency: 50/60Hz

Operating Temperature -4 °F through 122 °F (-20 °C through 50 °C): Operating Humidity 5% through 95%, non-condensing

Product Dimensions (W x D x H): 13.5 x 6.3 x 30 in. (342.9 x 160.1 x 672 mm)

Product Weight: 29 lbs. (17.7 kg)

This item comes with a 5 year factory warranty.
PDF Specifications PDF User Manual PDF Warranty
