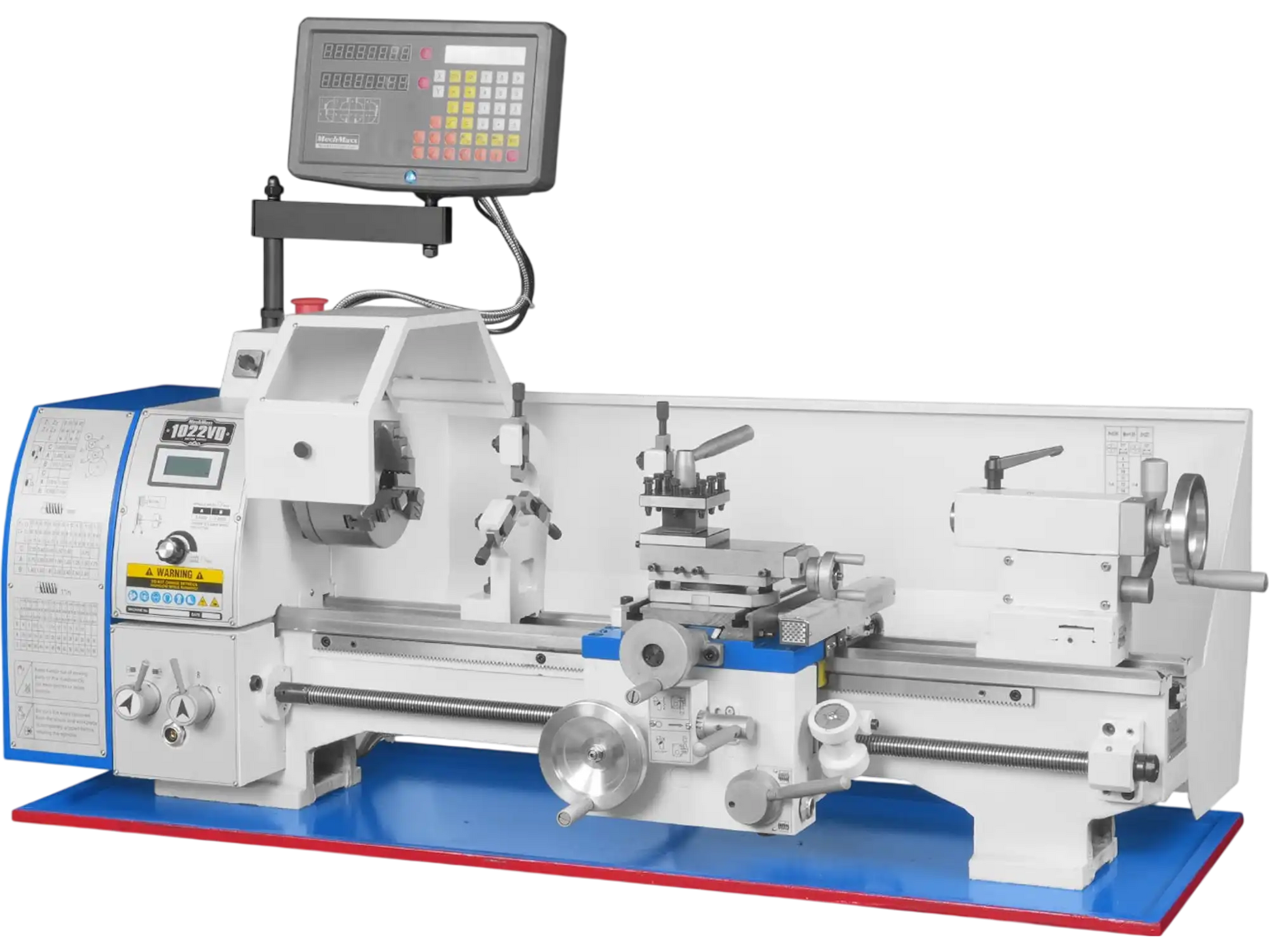

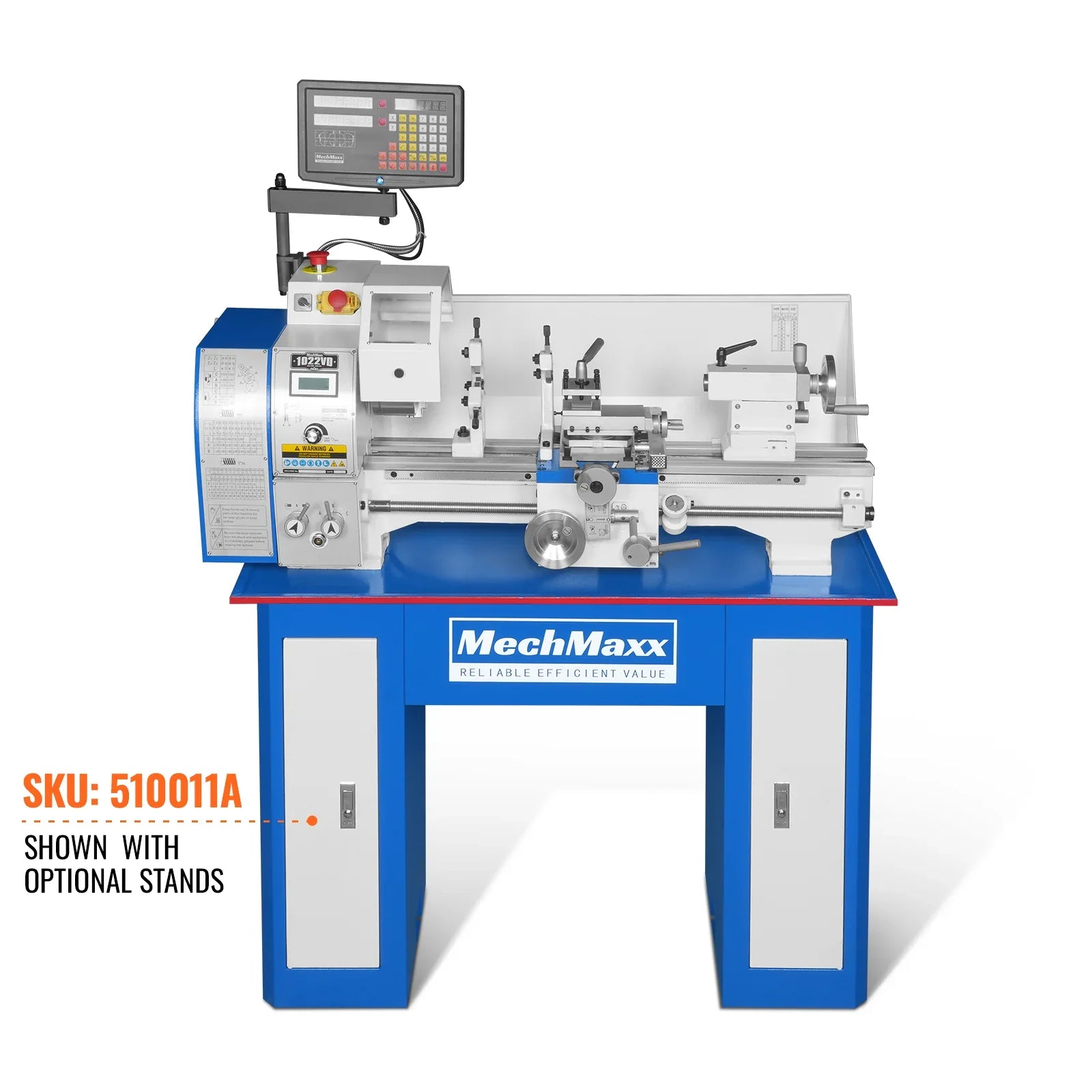

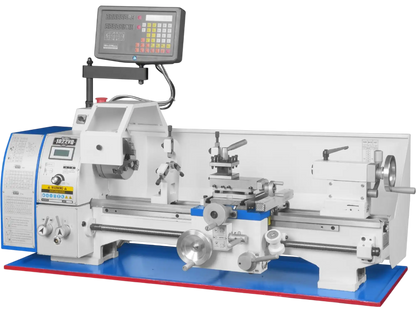

MechMaxx 1022VD Metal Lathe 10 x 22" Industrial Benchtop DRO Variable Speed 1.5HP Brushless Motor New

MechMaxx

$2,999.00
$2,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Larger Spindle Bore for Increased Flexibility: With a 1-1/2" (38 mm) spindle bore, this lathe can accommodate larger workpieces than typical lathes, providing more flexibility and versatility for various projects. The MT#5 spindle taper supports a wide range of tooling options, adding to its adaptability.

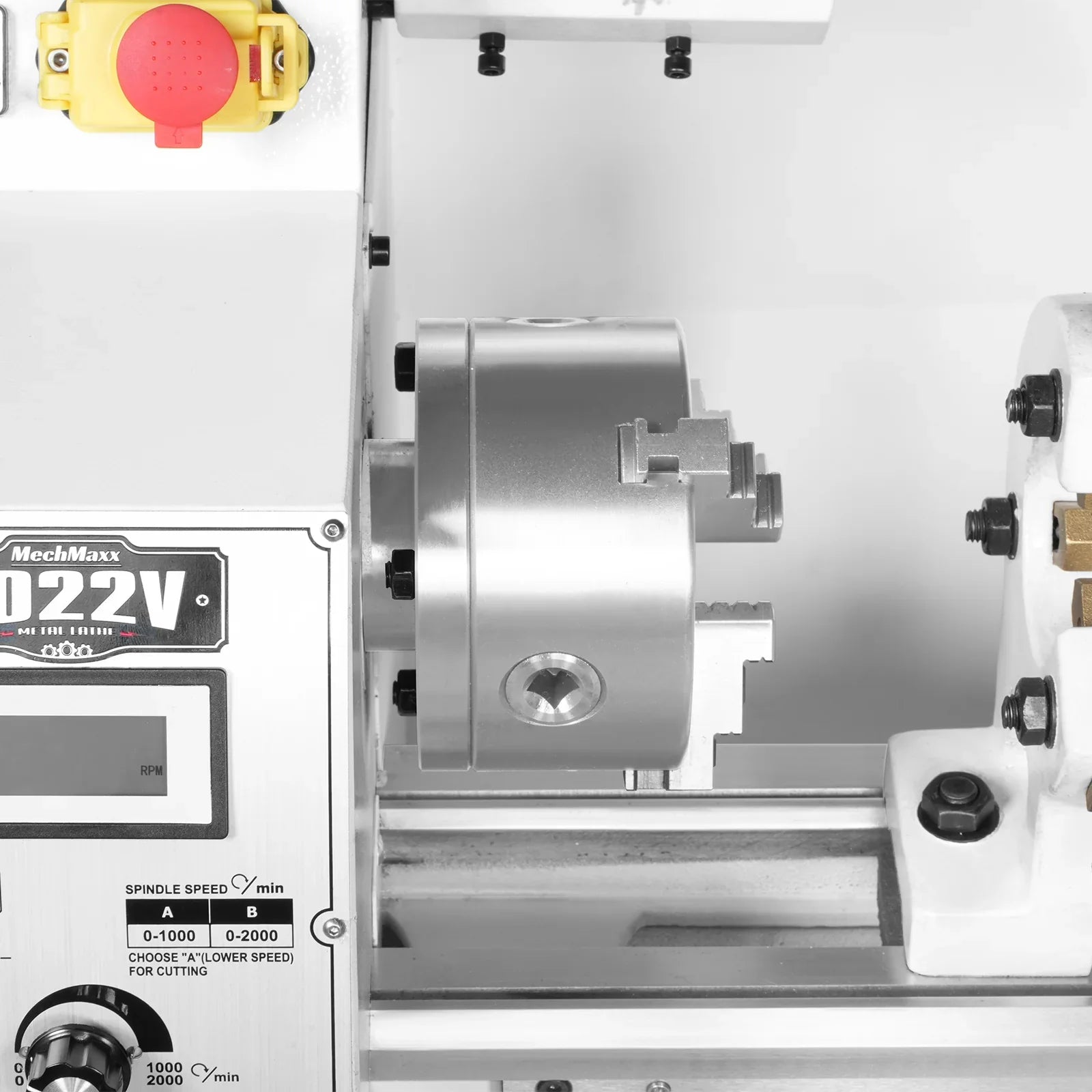

  • Powerful and Flexible Performance: The lathe features variable spindle speeds from 0 to 2000 RPM, giving you full control for different materials and tasks. The 1.5 HP motor provides ample power, ensuring smooth operation even for more demanding machining tasks.

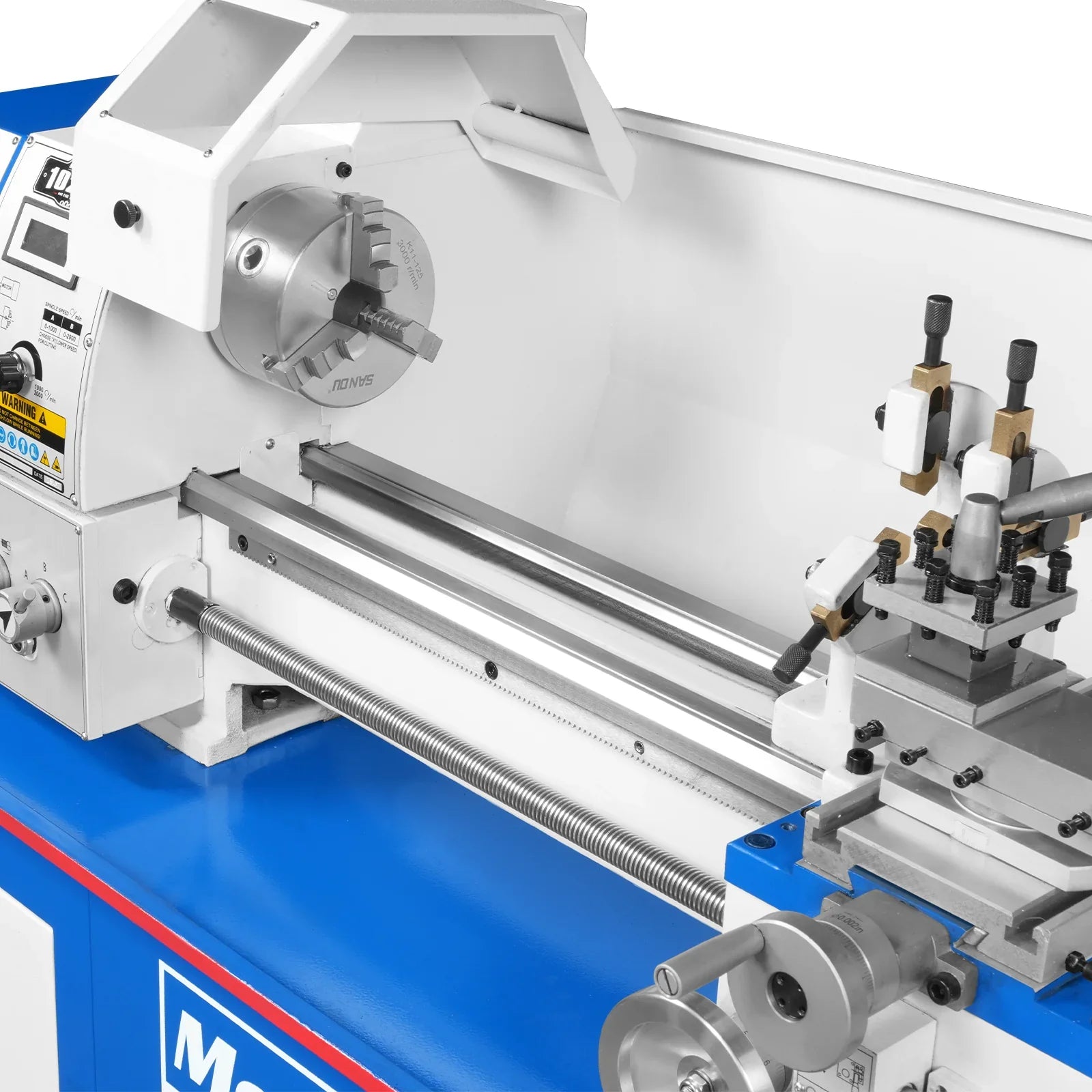

  • High-Quality Construction: The lathe is constructed with premium cast iron, which is quench-hardened for added strength and rigidity. Compared to other lathes in its class, the heavier bed ensures better stability, allowing for more precise machining and minimal vibrations during operation.
  • Precision Machining: With an 9-7/8" (250 mm) swing over bed and 21-5/8" (550 mm) distance between centers, this lathe is ideal for handling a variety of small to medium-sized workpieces. The cross slide travel and compound slide travel ensure smooth and precise movements, making internal cutting, face cutting, and bevel cutting quick and easy.

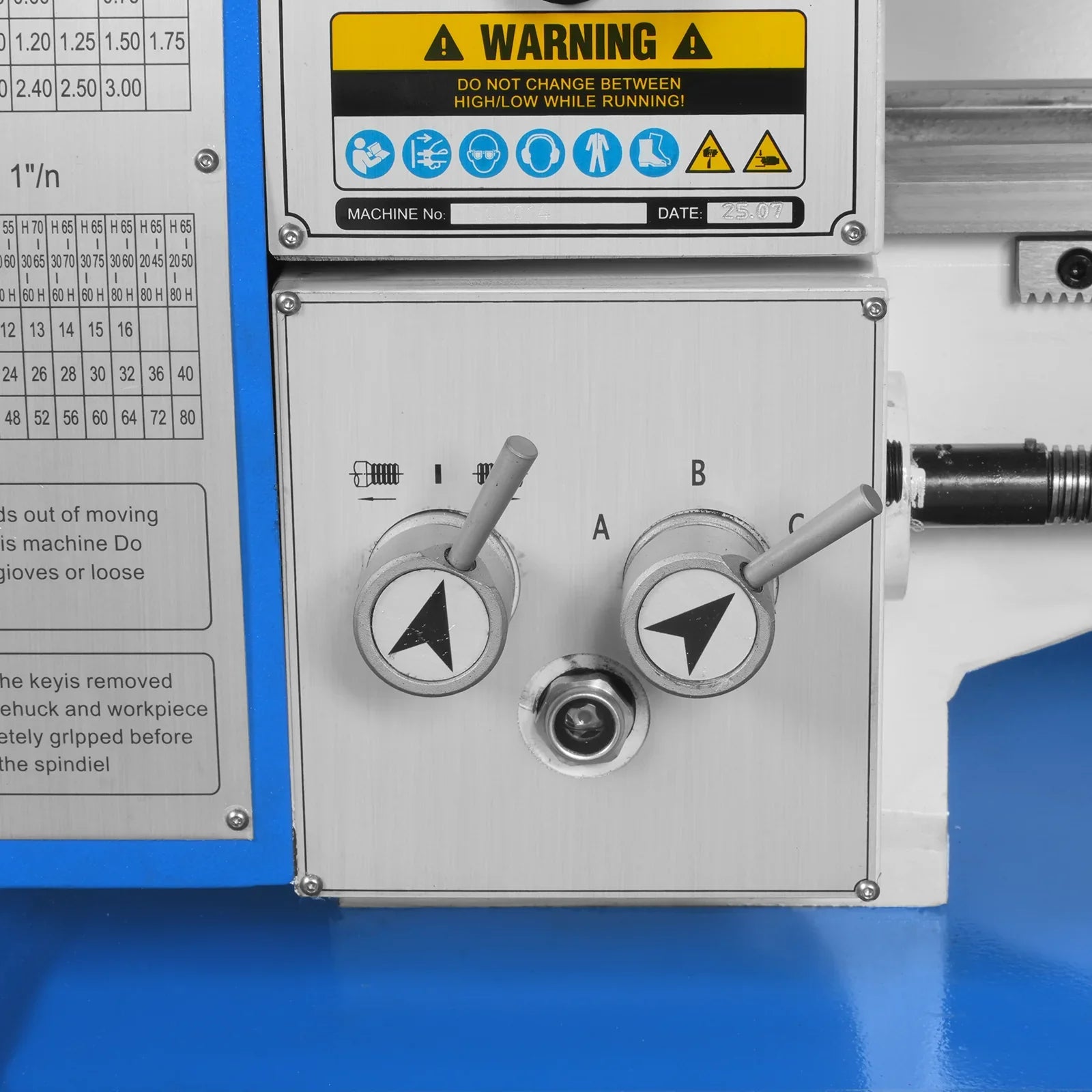

  • Enhanced Thread Cutting: Equipped with a thread dial indicator, it simplifies the threading process, ensuring precise and repeatable thread cuts.

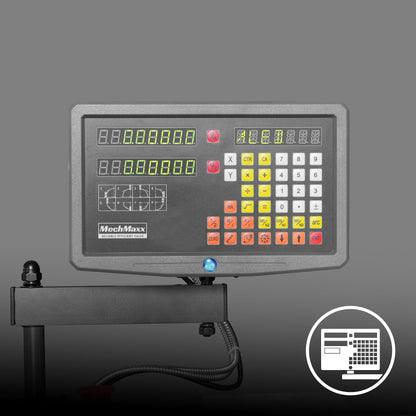

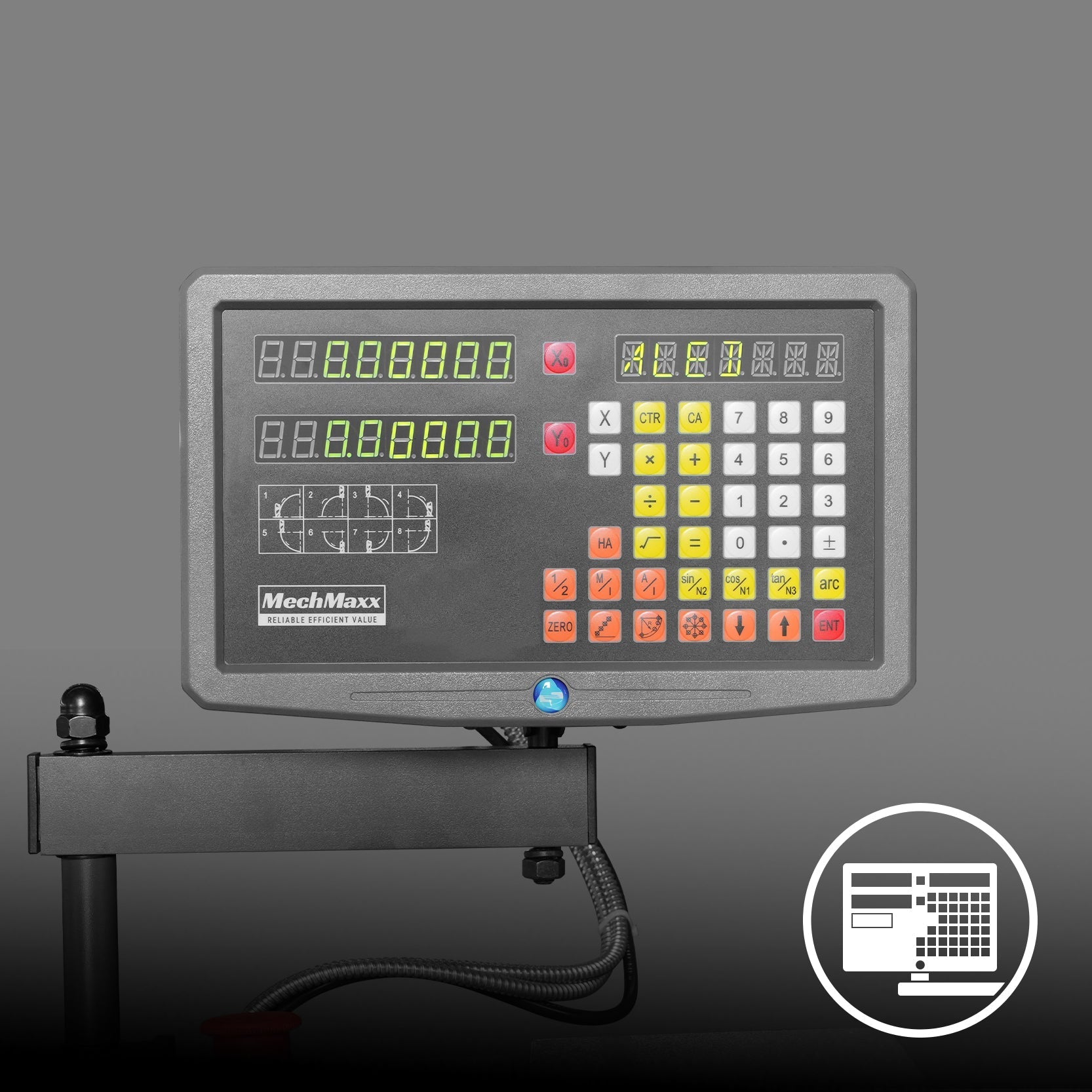

  • Enhanced Precision with DRO: Digital Readout (DRO) system provides real-time measurements for increased accuracy, allowing for quicker setups and precise adjustments across all axes.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

Specification: 1022VD

Motor: 1.5 HP, 110V, single-phase, 10A

Swing Over Bed: 9-7/8" (250 mm)

Swing Over Cross Slide: 5-1/2" (140 mm)

Swing Over Saddle: 5" (127 mm)

Distance Between Centers: 21-5/8" (550 mm)

Bed Width: 5-3/8" (135mm)

Spindle Bore: 1-1/2" (38 mm)

Spindle Mount: Intrinsic back plate

Spindle Type: One-piece Spindle

Spindle Taper: MT#5

Tailstock Taper: MT#2

Tailstock Quill Travel: 3" (75 mm)

Cross Slide Travel: 5" (127 mm)

Compound Slide Travel: 3" (75 mm)

Carriage Travel: 19-5/8"(500mm)

Spindle Speeds: 0–2000 RPM

Number of Speed Ranges: Variable

Longitudinal Feeds: 0.0025 – 0.014 in./rev.

Transverse Feed Rate: 0.0014 – 0.004 in./rev.

Leadscrew Size & Pitch: 20mm(8TPI)

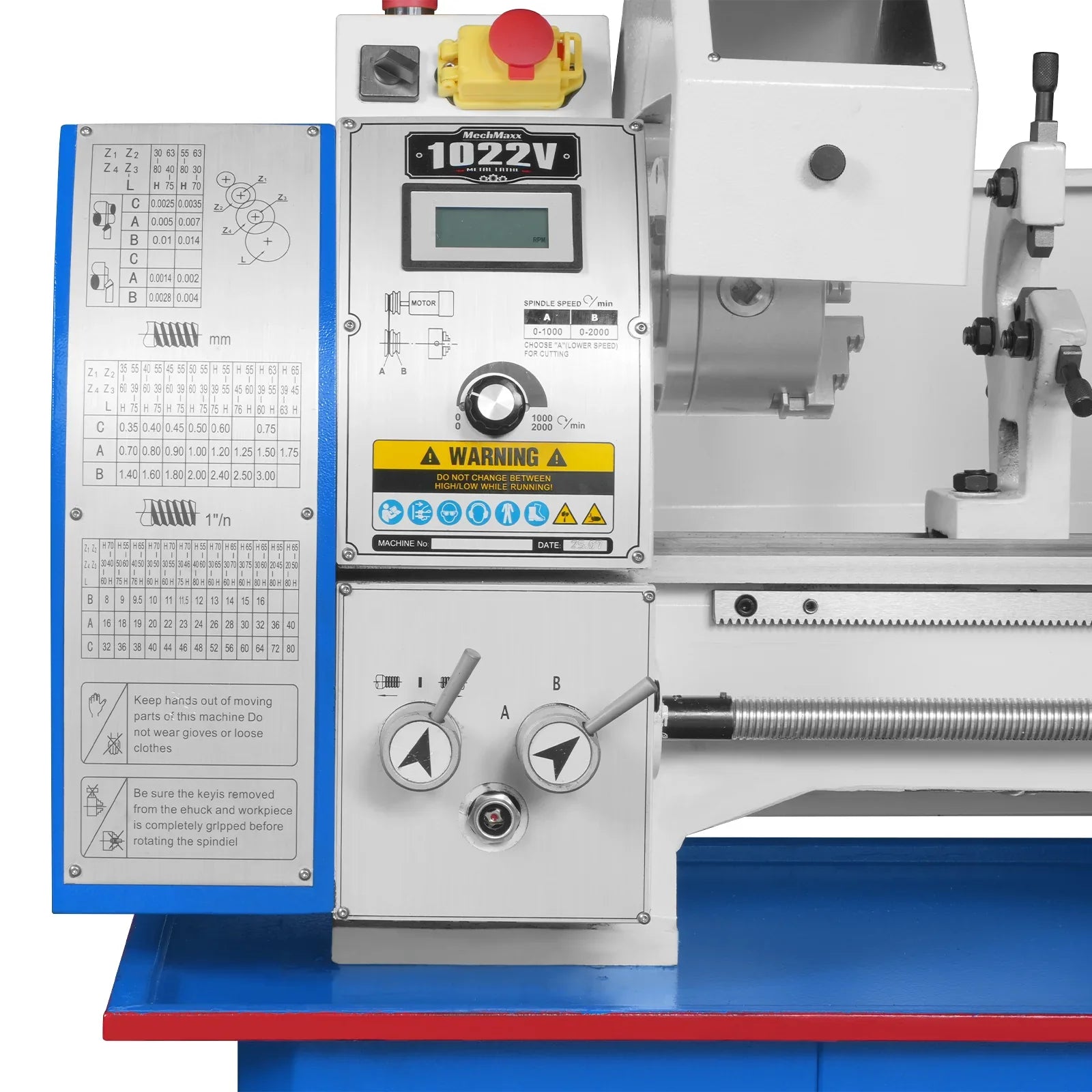

Threading Capacity - Inch: 8–80 TPI(37KINDS)

Threading Capacity - Metric: 0.35 – 3.0 mm(21kinds)

Maximum Tool Bit Size: 15/32''(12mm)

Thread Dial Indicator: YES

Coolant System: OPTIONAL

Overall Dimensions: 44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm)

Approximate Shipping Weight: 308/352 lbs (140/160 kg)
