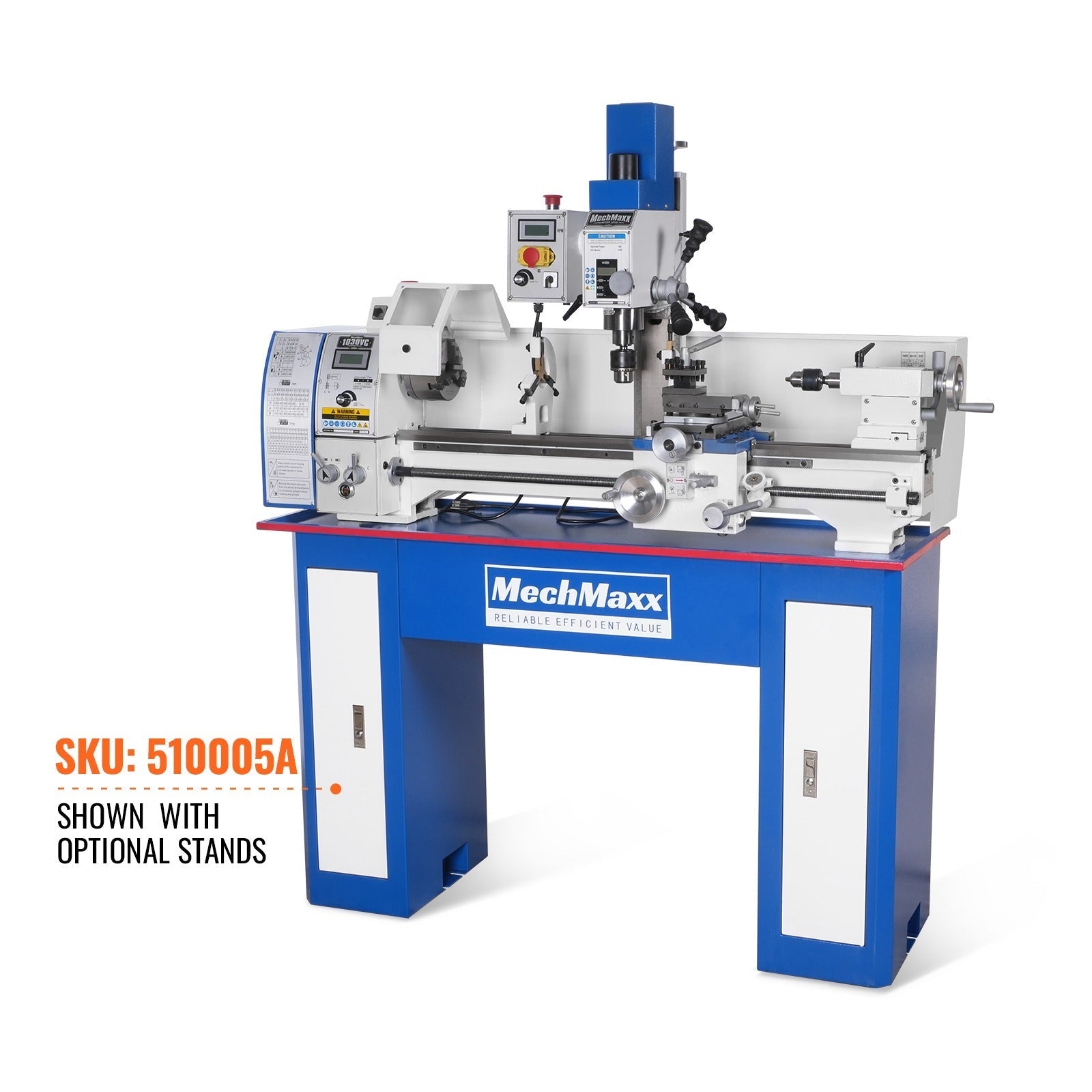

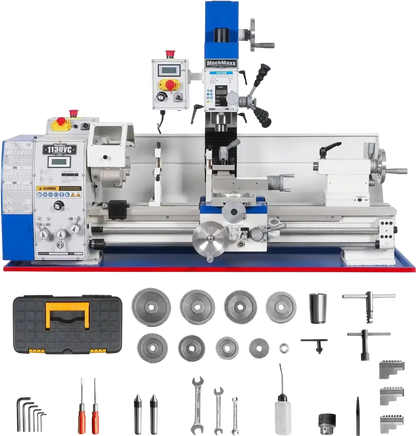

MechMaxx 1130VC Combination Lathe Milling Machine 2 HP 11" x 30" Brushless Variable Speed Benchtop Metalworking Lathe Drilling Machine New

MechMaxx

$4,999.00
$4,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Lathe Functionality:

  • The 2 HP motor (110V, single-phase, 20A) provides ample power for turning operations.
  • Swing over bed of 11-2/5" (290mm) and swing over cross slide of 7-1/4" (185mm) allow you to work with a variety of workpieces.
  • Spindle bore of 1-1/2" (38mm) and MT#5 spindle taper offer compatibility with a wide range of cutting tools.
  • Longitudinal feed rate of 0.0007–0.0098 in./rev. and transverse feed rate of 0.0027–0.02 in./rev. ensure smooth and precise movements for accurate cuts.
  • Threading capacity of 8-56 TPI (inch) and 0.4–3.5 mm (metric), along with the thread dial indicator, allows for precise threading.

Mill/Drill Functionality:

  • The 1.5 HP motor (1100W) for the mill head powers a 0-2500 RPM spindle speed range, providing versatility for various milling and drilling tasks.
  • End milling capacity of 5/8" (16mm) and face milling capacity of 2-1/2" (63mm) ensure the machine can handle a variety of material types and sizes.
  • Vertical travel of 14-1/2" (370mm) and spindle travel (quill stroke) of 2" (50mm) provide ample clearance for larger workpieces.
  • The ±60° head tilt allows for added flexibility in drilling and milling operations, especially when working with angled cuts or complex shapes.
  • R8 spindle taper and 7/16"-20 drawbar thread size ensure compatibility with a variety of tool holders.




1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

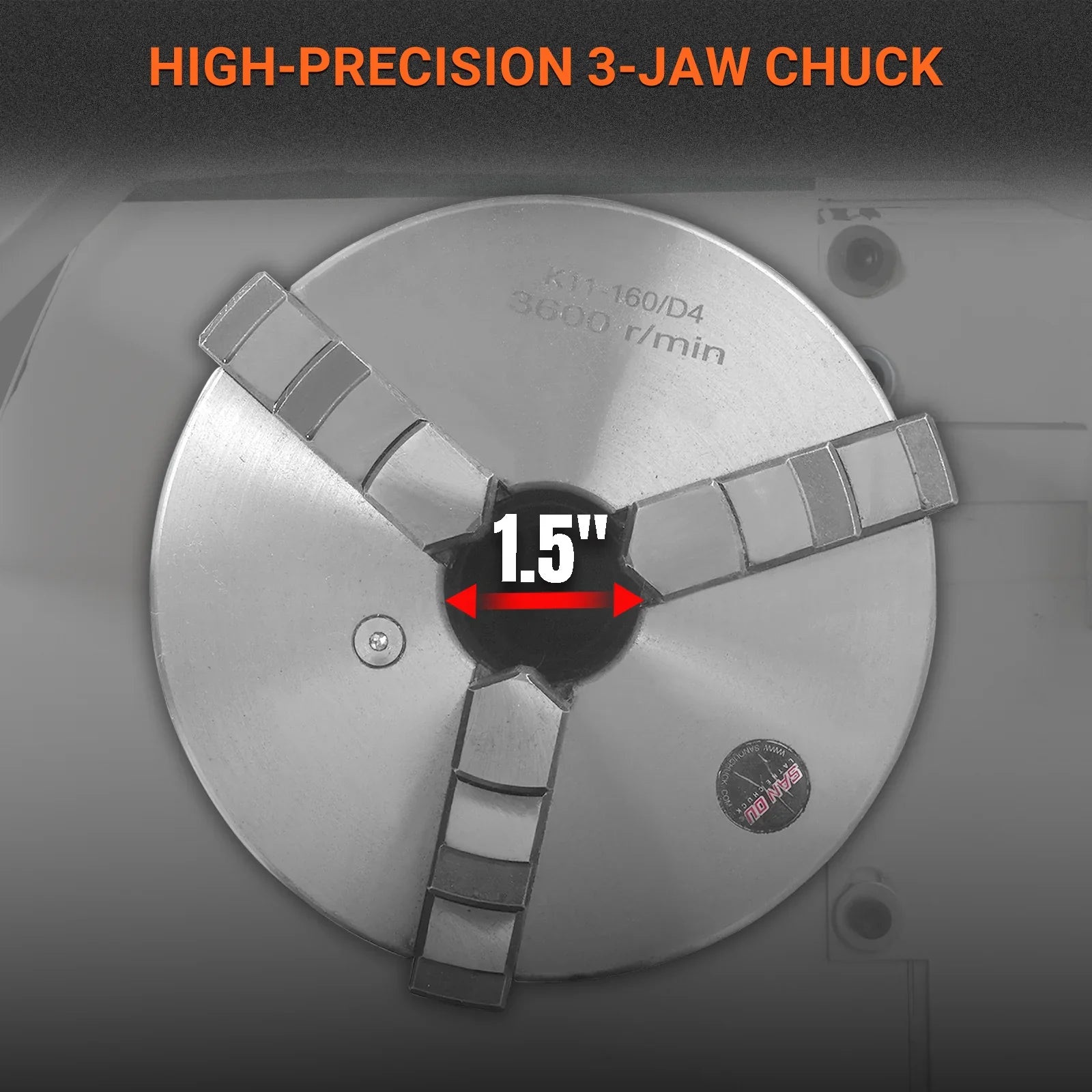

  • High-Precision 3-Jaw Chuck: This 5" 3-jaw chuck offers a strong 1.5" clamping range, ensuring secure grip and minimal runout. Designed with a MT5 spindle taper, it provides a tight, stable fit for accurate turning operations. Perfect for both small and large components, this chuck combines strength, durability, and precision.

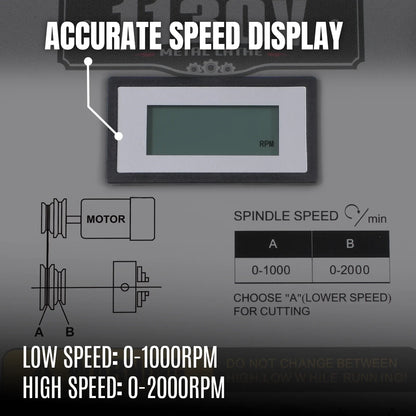

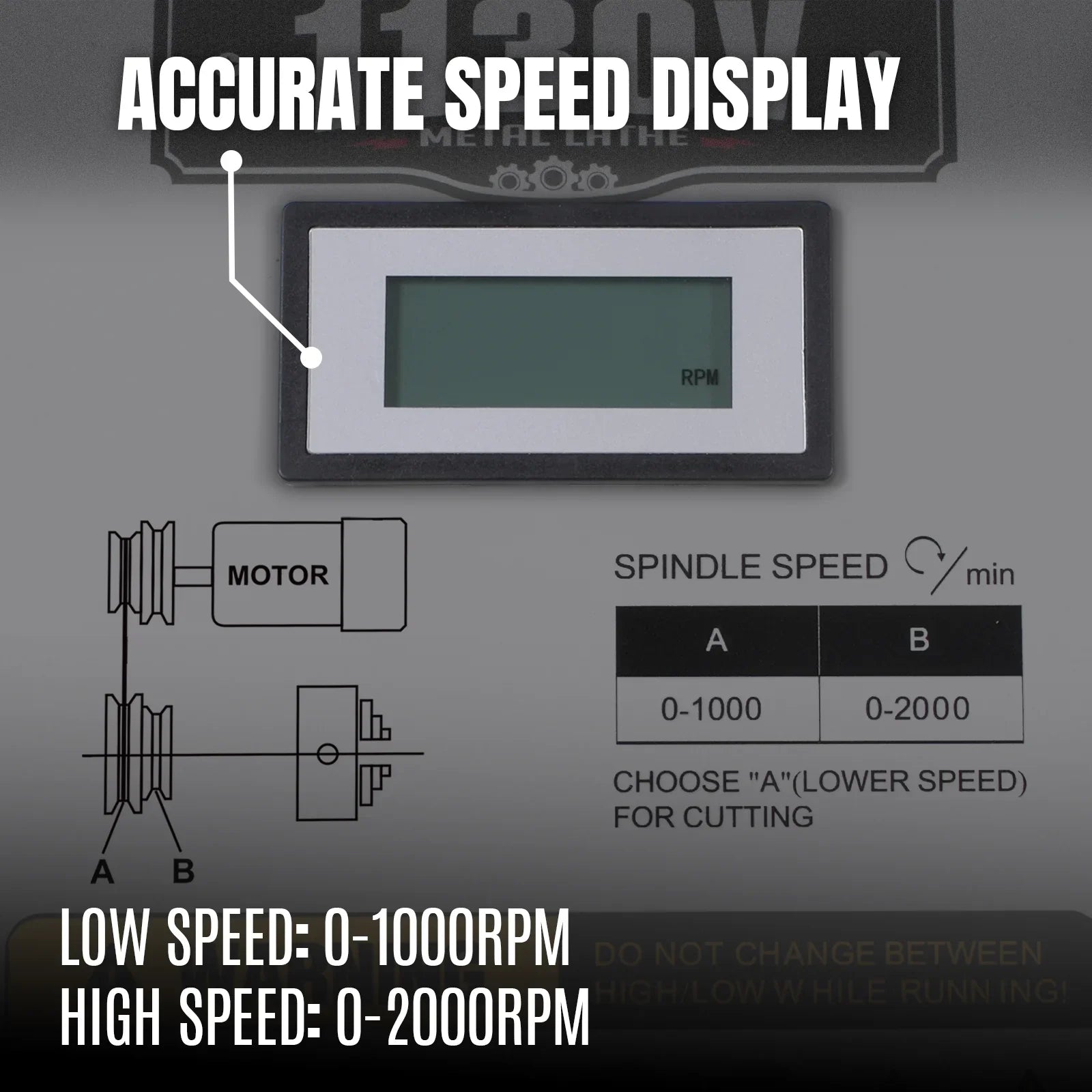

  • Electronic Control with Speed Adjustment: The high-quality electronic control system provides stepless speed adjustment, allowing for smooth, continuous speed changes for different workpieces. With a clear speed display, you can easily monitor and adjust settings, ensuring precise control and flexibility for all your machining tasks. Effortlessly switch between tasks and materials, and achieve the best results every time.

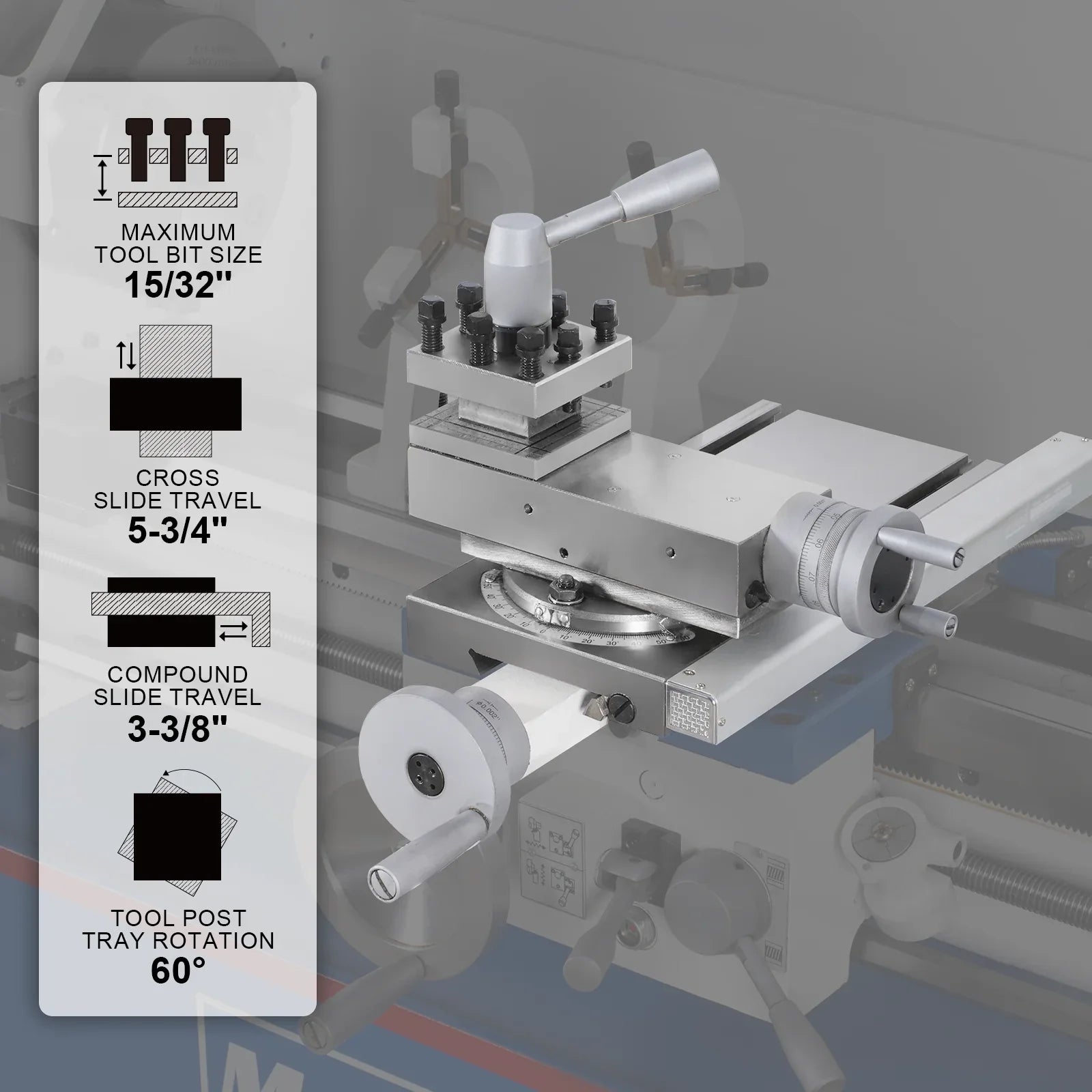

  • High-Precision Tool Post with Adjustable Features: This tool post is designed for precision and versatility, offering a maximum tool bit size of 15/32" for a wide range of cutting tasks. With a 5-3/4" cross slide travel and 3-3/8" compound slide travel, it ensures smooth, accurate movements for detailed machining. The 60° tool post tray rotation allows for easy adjustment and optimal positioning of tools, enhancing flexibility and precision in every operation.

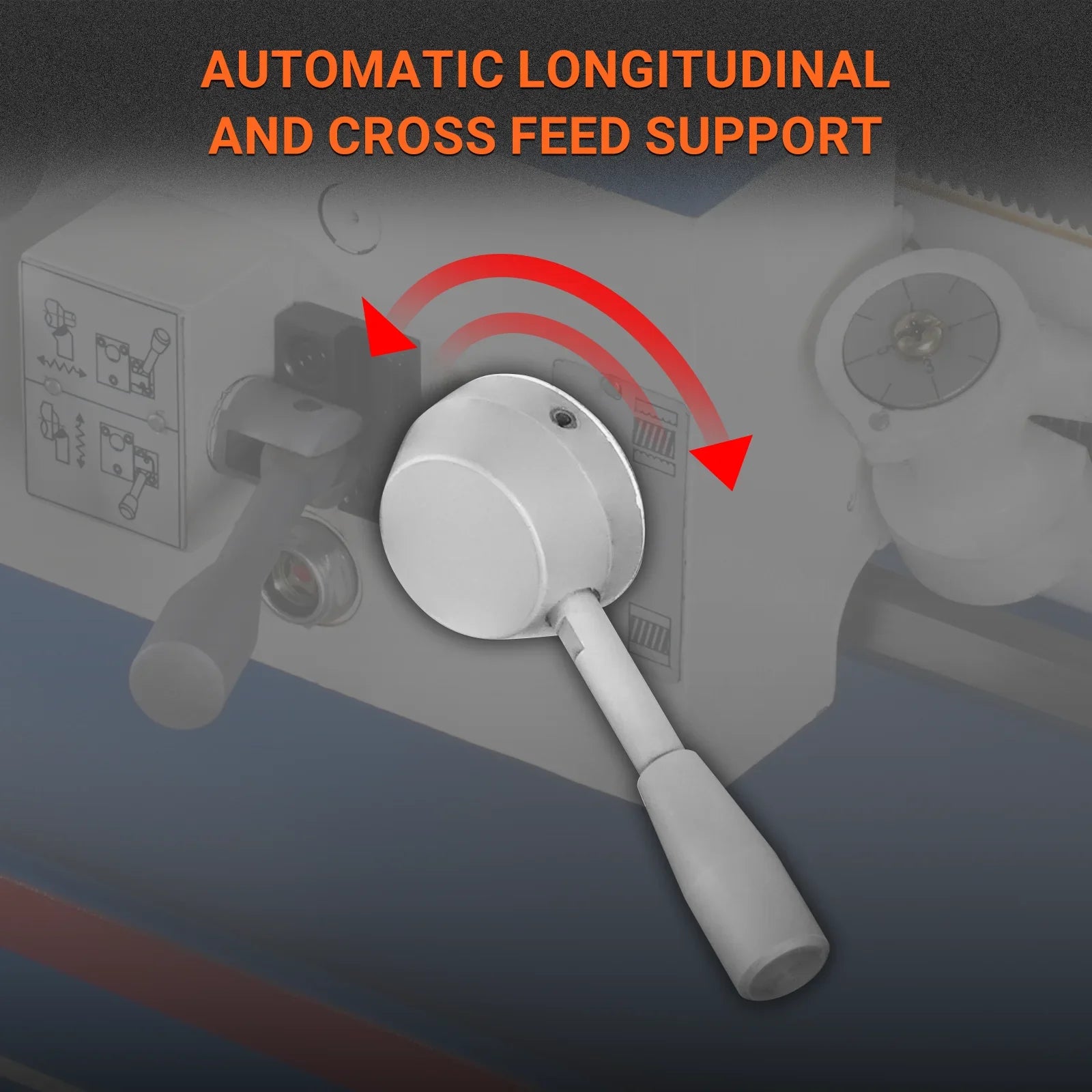

  • Automatic Longitudinal and Cross Feed Support: Equipped with automatic feed in both longitudinal and cross directions, this lathe allows for smooth, hands-free cutting operations. It enhances precision and consistency while reducing operator effort—ideal for threading, facing, and extended turning tasks where surface finish and accuracy matter most.
  • Safety Mechanisms with Power Disconnect: To ensure operator safety, this machine features automatic power cut-off when the chuck guard or gearbox cover is removed. This protective design prevents the machine from operating during maintenance or adjustments, reducing the risk of accidents and ensuring a safer working environment.
  • Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM18L: Drilling up to 3/4", Tapping (Cast Iron) up to 5/16", End Milling up to 1/2", and Face Milling up to 2". Compact yet capable — this machine gets real work done.

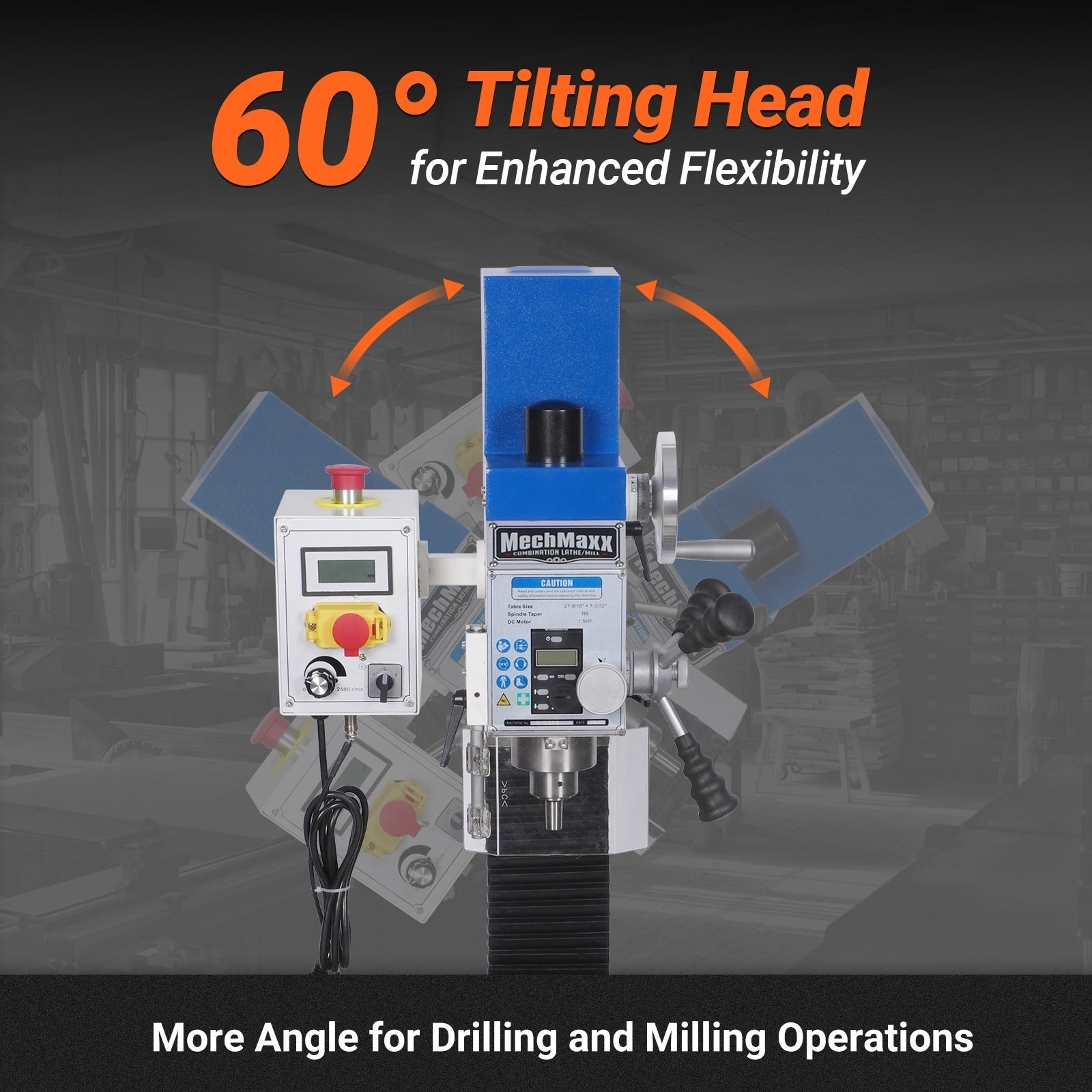

  • ±60° Head Tilt for Angular Versatility: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

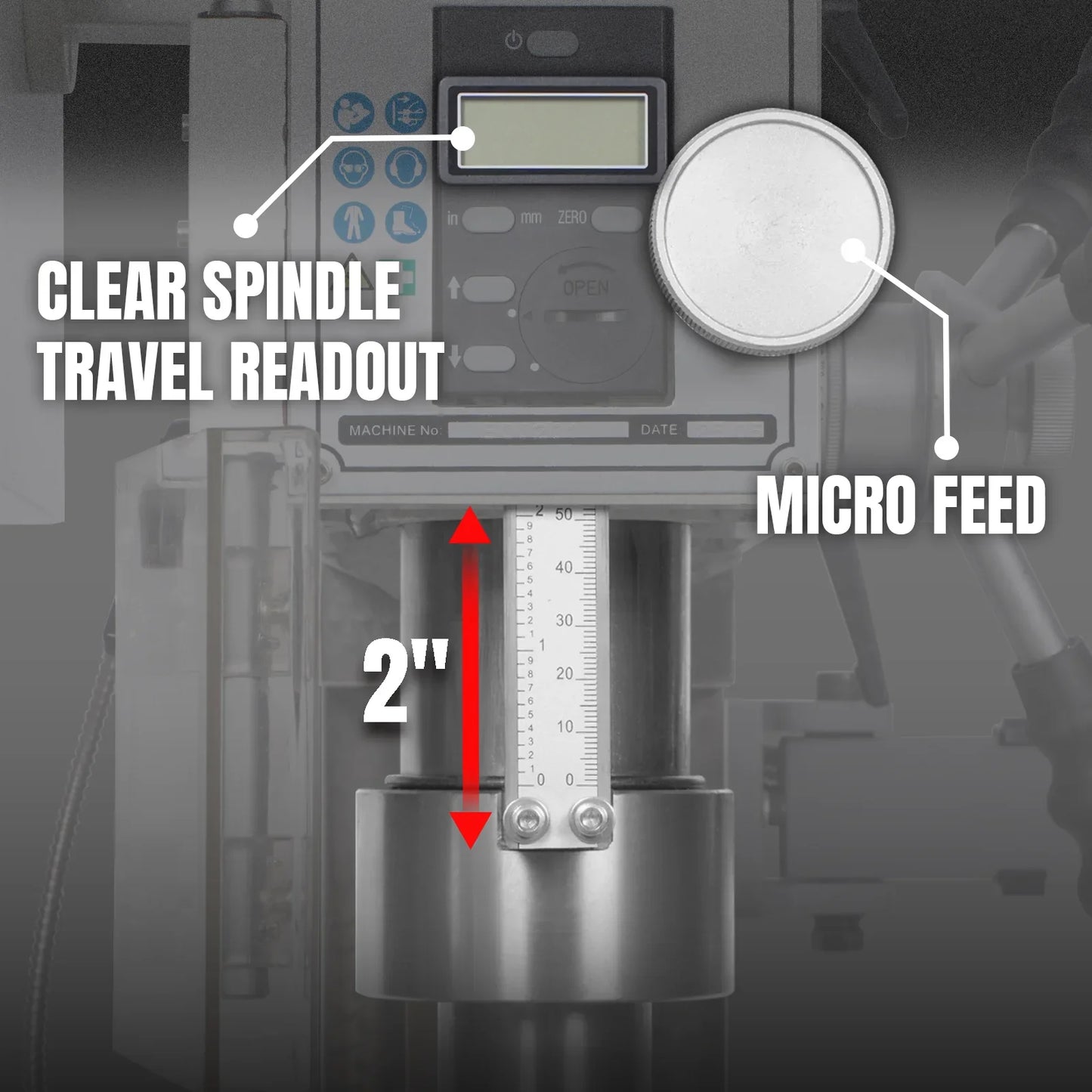

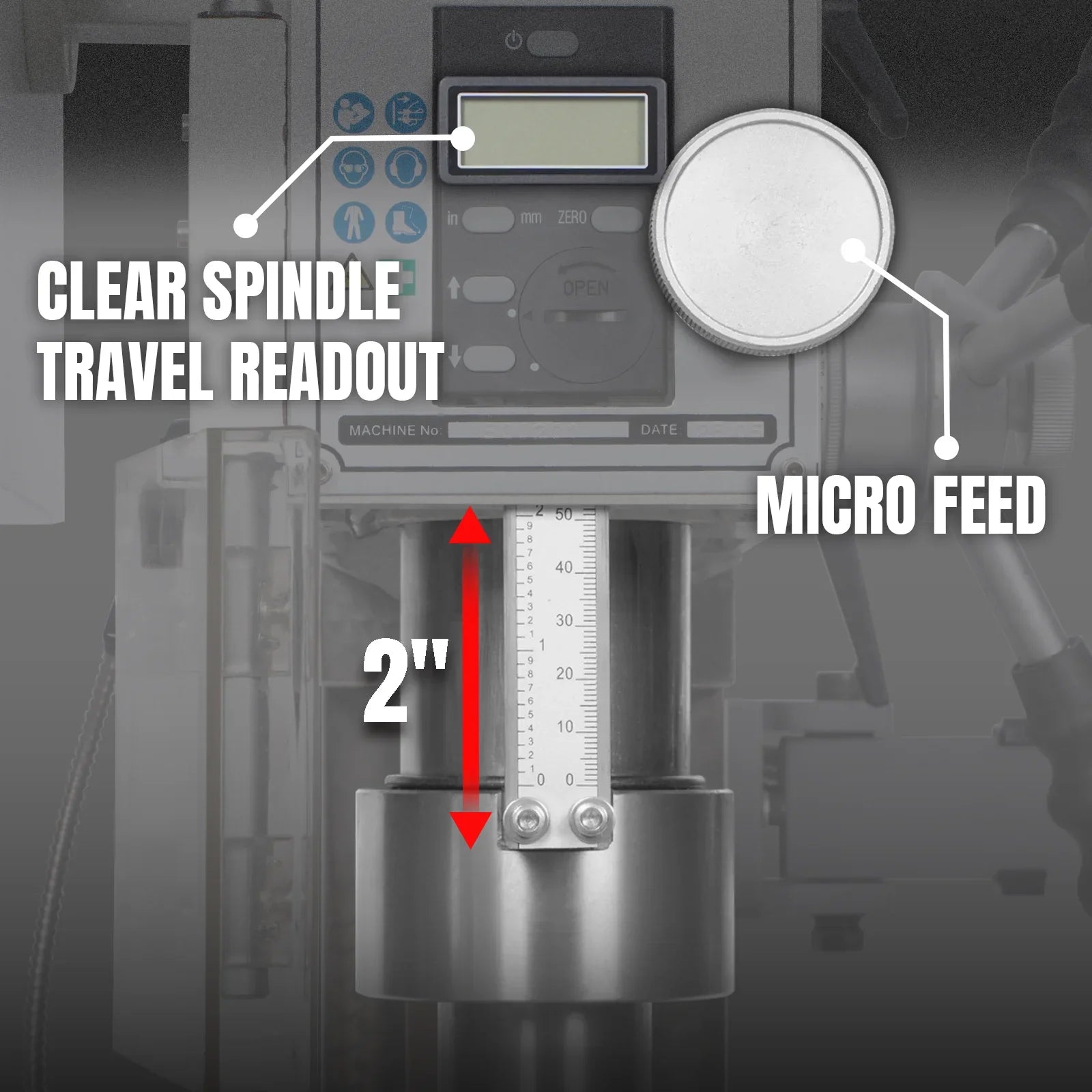

  • Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

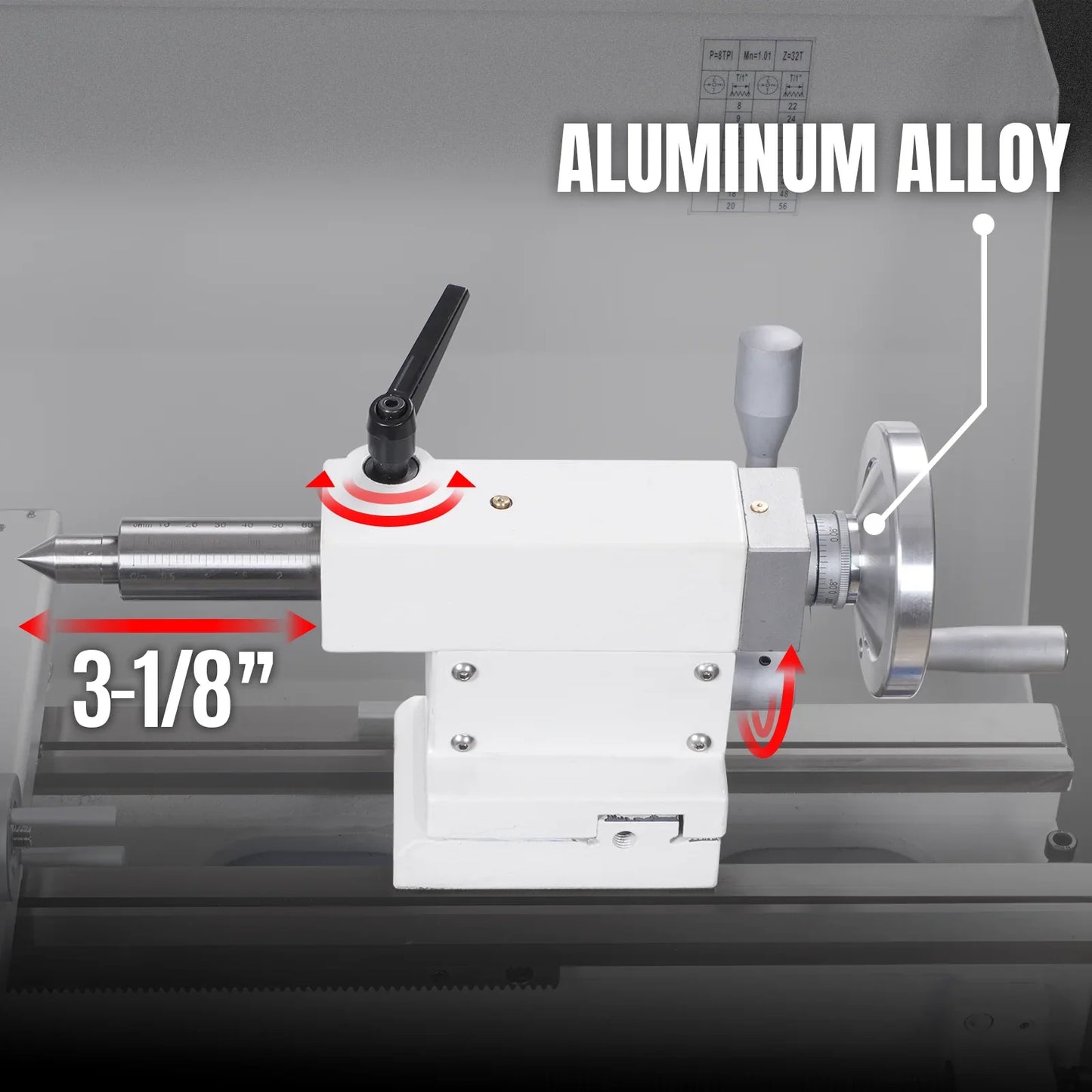

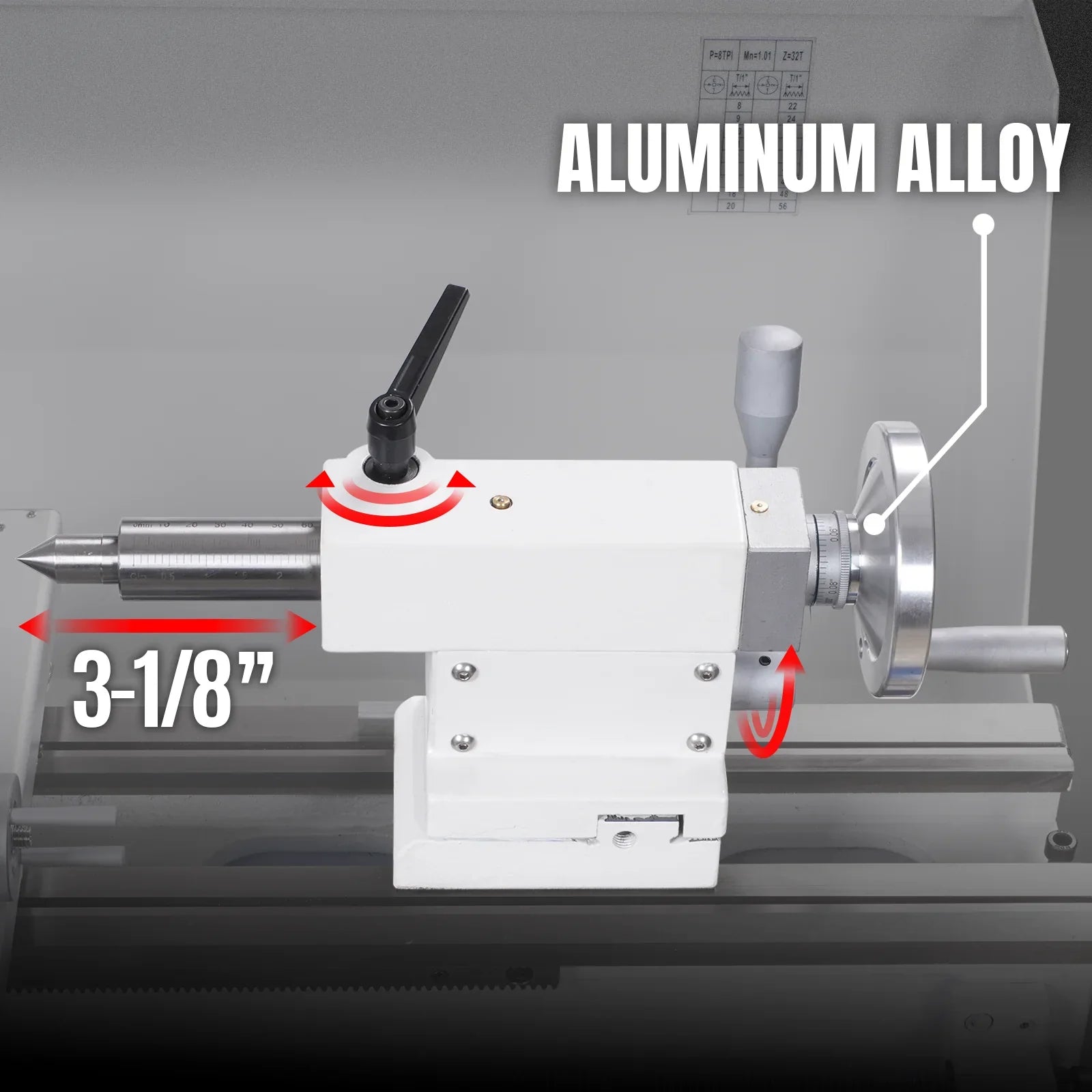

  • Quick-Lock Tailstock with Durable Aluminum Alloy Construction: This tailstock features a quick-lock design for fast, secure adjustments with minimal effort. Made from high-quality aluminum alloy, it offers durability while reducing weight. The streamlined design maintains strength without the excess material, providing an efficient and user-friendly solution for precise operations.

Motor Power (Lathe): 2 HP, 110V, single-phase, 20A

Swing Over Bed: 11-2/5"(290mm)

Swing Over Cross Slide: 7-1/4"(185mm)

Swing Over Saddle: 5-3/4"(147mm)

Distance Between Centers: 29-1/2" (750 mm)

Bed Width: 7(180mm)

Spindle Bore: 1-1/2" (38 mm)

Spindle Mount: D1-4

Spindle Taper: MT#5

Tailstock Taper: MT#3

Tailstock Quill Travel: 3-1/8"(85mm)

Carriage Travel: 27-1/2" (700 mm)

Cross Slide Travel: 5-3/4"(147mm)

Compound Slide Travel: 3-3/8"

Spindle Speed Range: 0–2000 RPM

Number of Speed Ranges: Variable

Longitudinal Feed Rate: 0.017-0.25mm/R(0.0007-0.0098 in./rev.)

Transverse Feed Rate: 0.07-0.53mm/r(0.0027-0.02in./rev)

Leadscrew Size & Pitch: 20mm(8TPI)

Threading Capacity – Inch: 8-56TPI(21KIDS)

Threading Capacity – Metric: 0.4-3.5 mm(12kids)

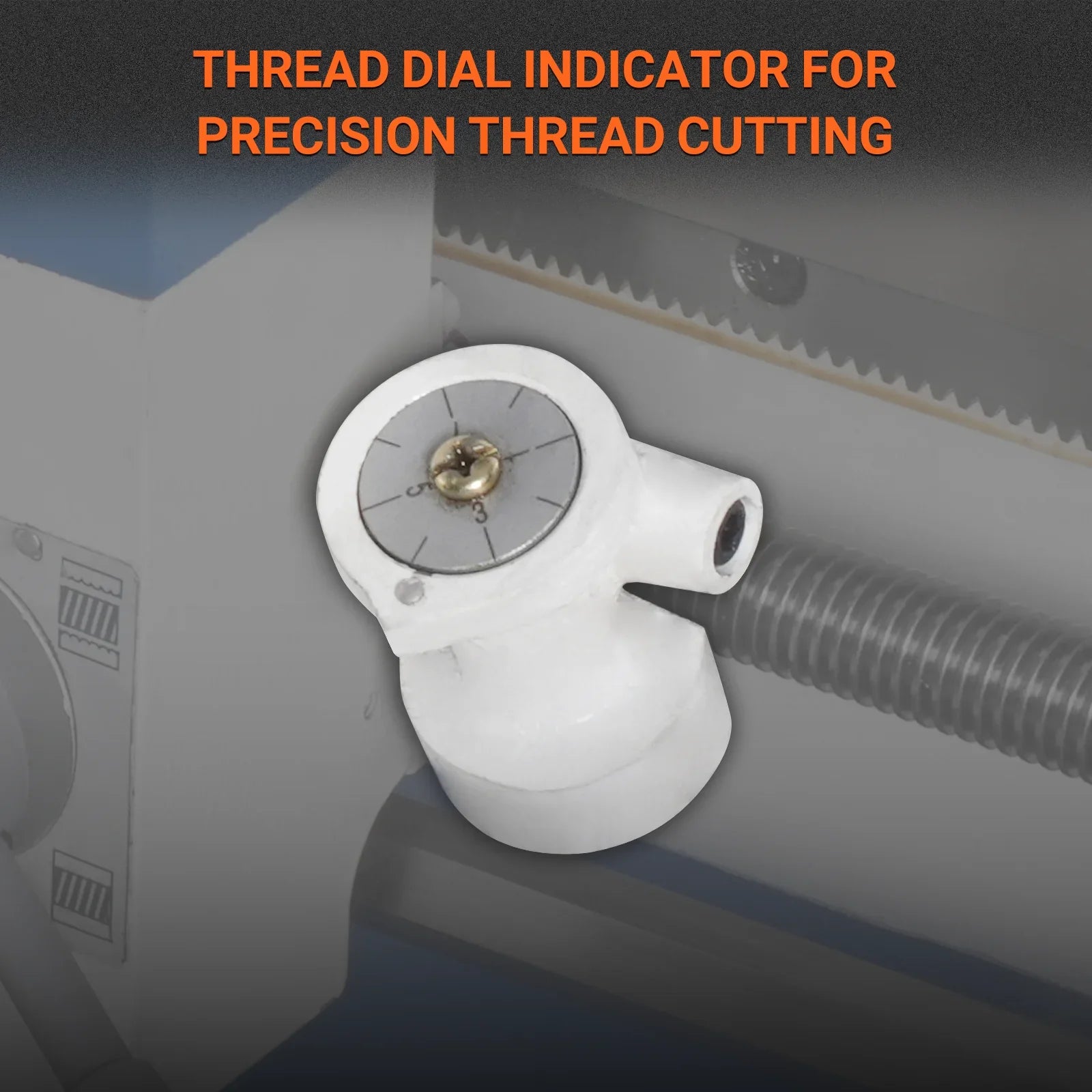

Thread Dial Indicator: YES

Tool Post Type: 4-way

Max Tool Bit Size: 15/32''(12mm)

Motor Power (Mill Head): 1.5HP(1100W)

Spindle Taper: R8

Spindle Speed Range: 0-2500RPM

Spindle Travel (Quill Stroke): 2"(50mm)

Quill Diameter: Ø60 mm

Drawbar Thread Size: 7/16"-20

Drilling Capacity: 1''(25mm)

End Milling Capacity: 5/8"(16mm)

Face Milling Capacity: 2-1/2"(63mm)

Vertical Travel (Z-Axis): 14-1/2"(370mm)

Head Tilt Angle: ±90°

Distance: Spindle to Table: 14-1/2"(370mm)

Distance: Spindle to Column: 7-1/2"(190mm)

Column Type: Dovetail Slot

Drive Type: Belt Drive Brushless

Electrical Requirements: 110V 1PHASE

Overall Dimensions: 55''x29''x42''(1400x720x1050mm)

Net / Gross Weight: 638/726lbs(290/330kg)

Shipping Dimensions: 59''x30''x42''(1500x750x1050mm)

This item comes with a 1 year factory warranty.
