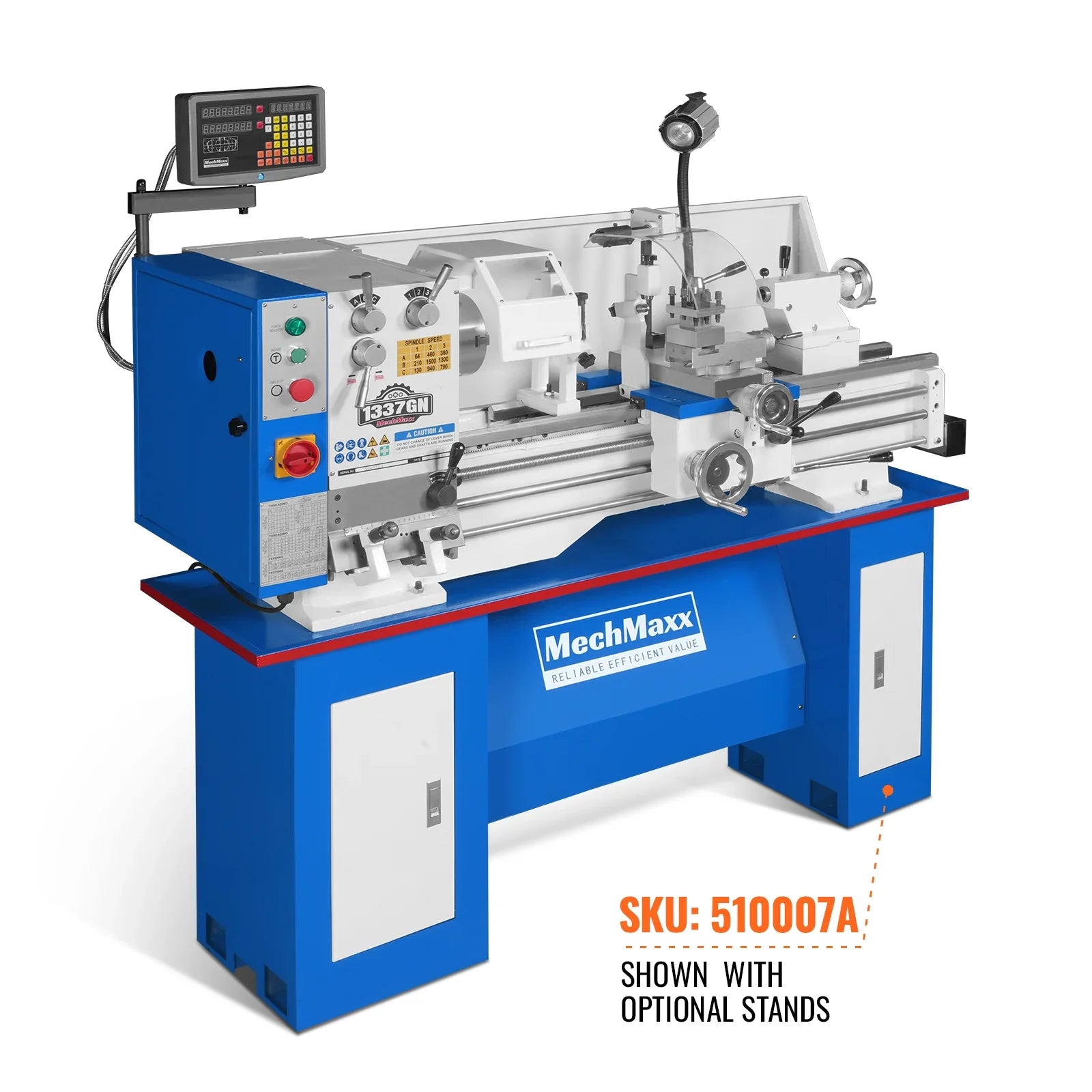

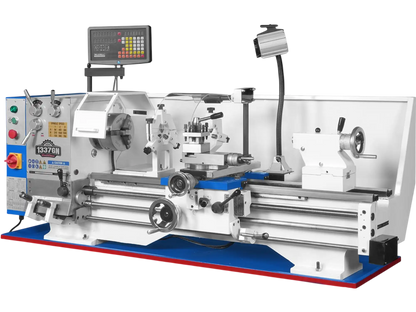

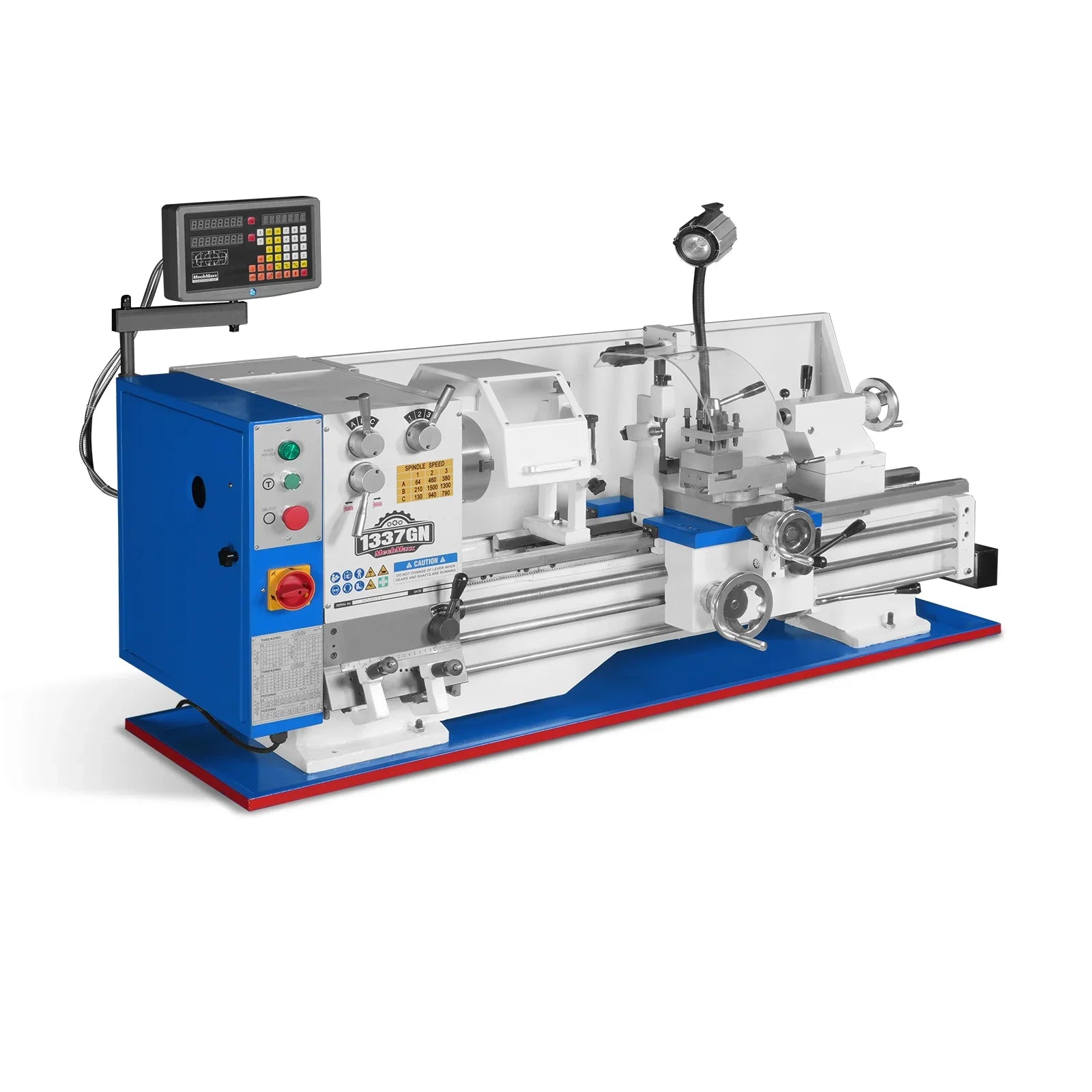

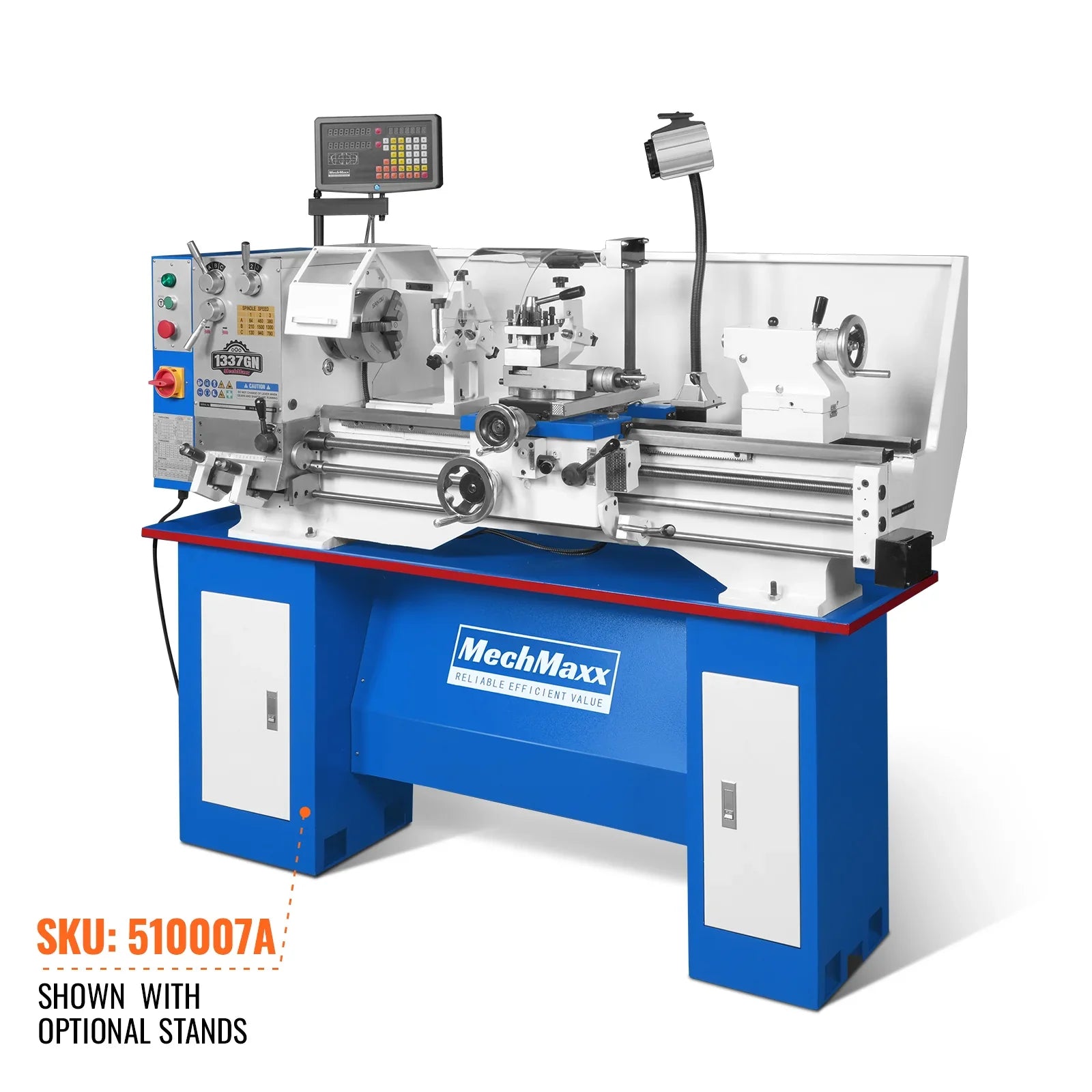

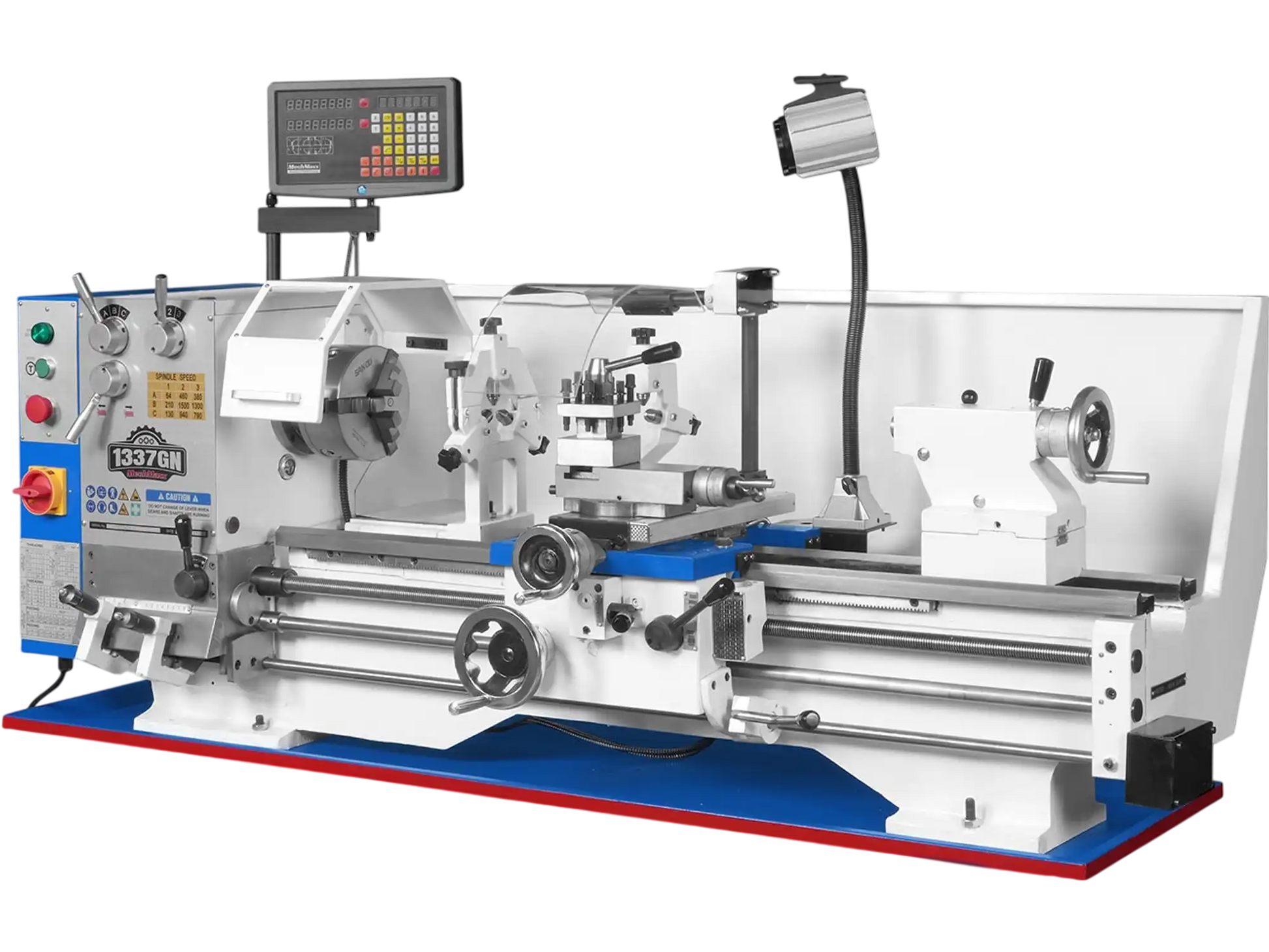

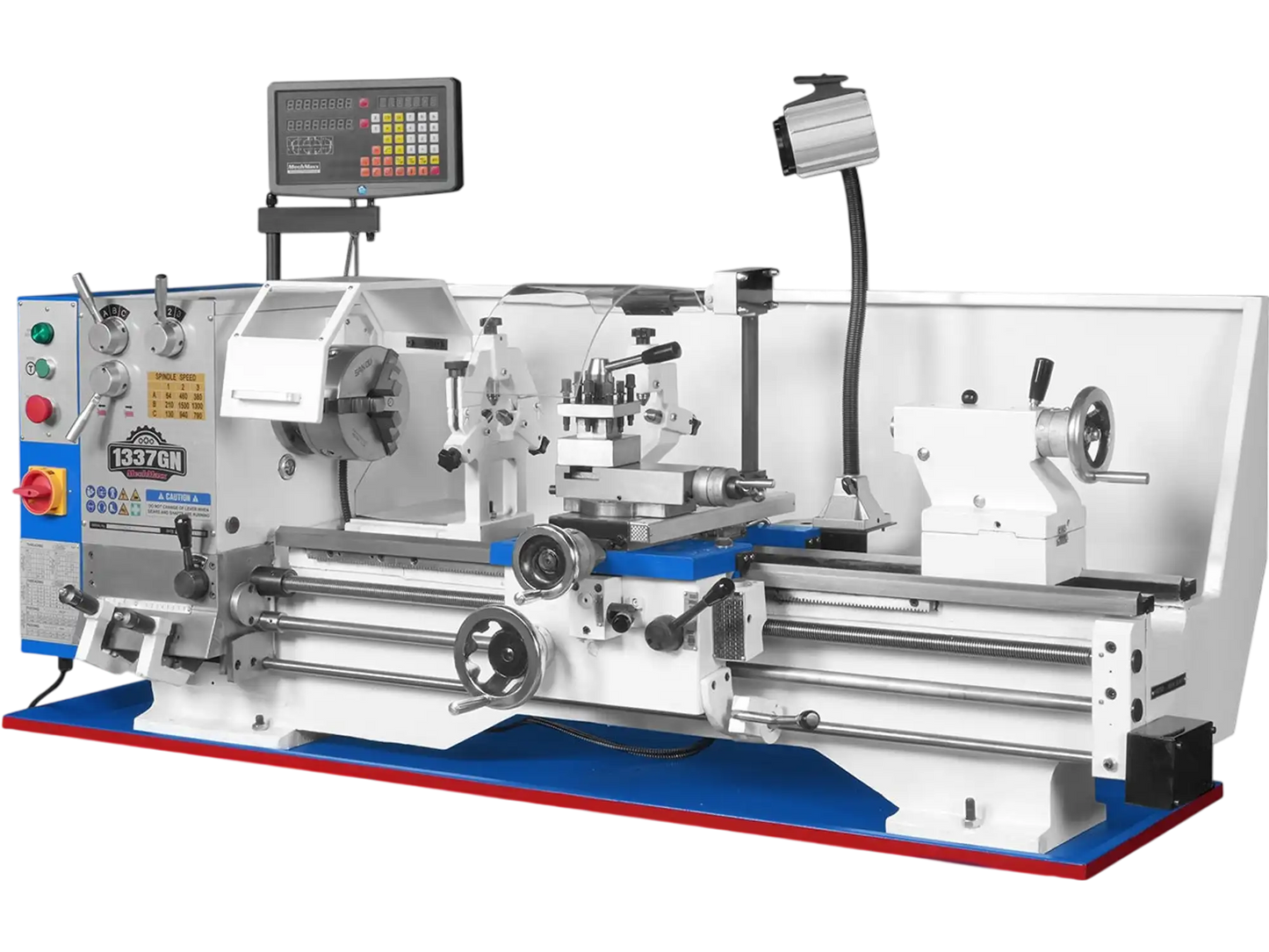

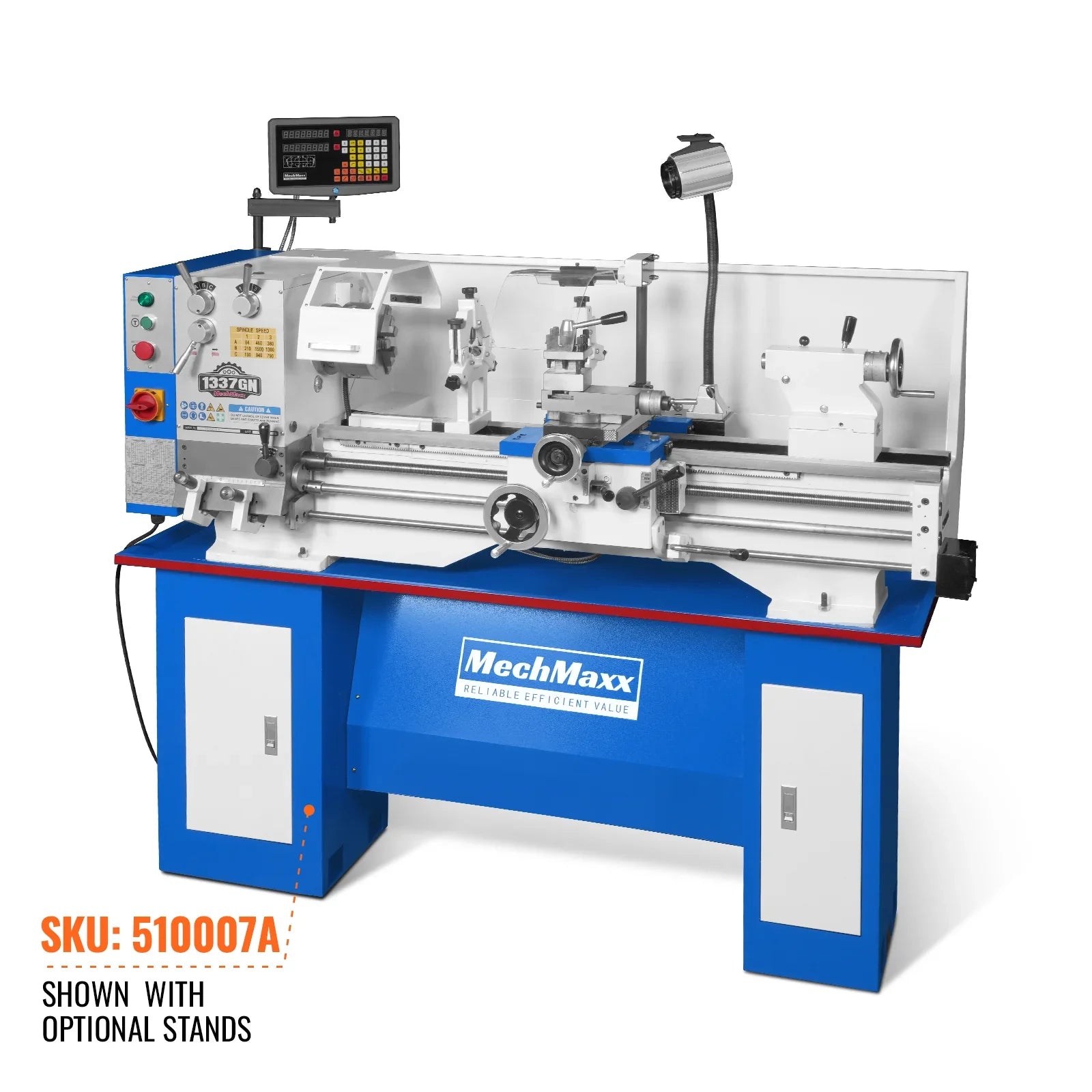

MechMaxx 1337G4 Metal Lathe 13 x 37" Industrial Heavy Duty Bench Full Norton Gear Box High Precision Variable Speed 1.5HP 64-1500 RPM New

MechMaxx

$6,199.00
$6,199.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

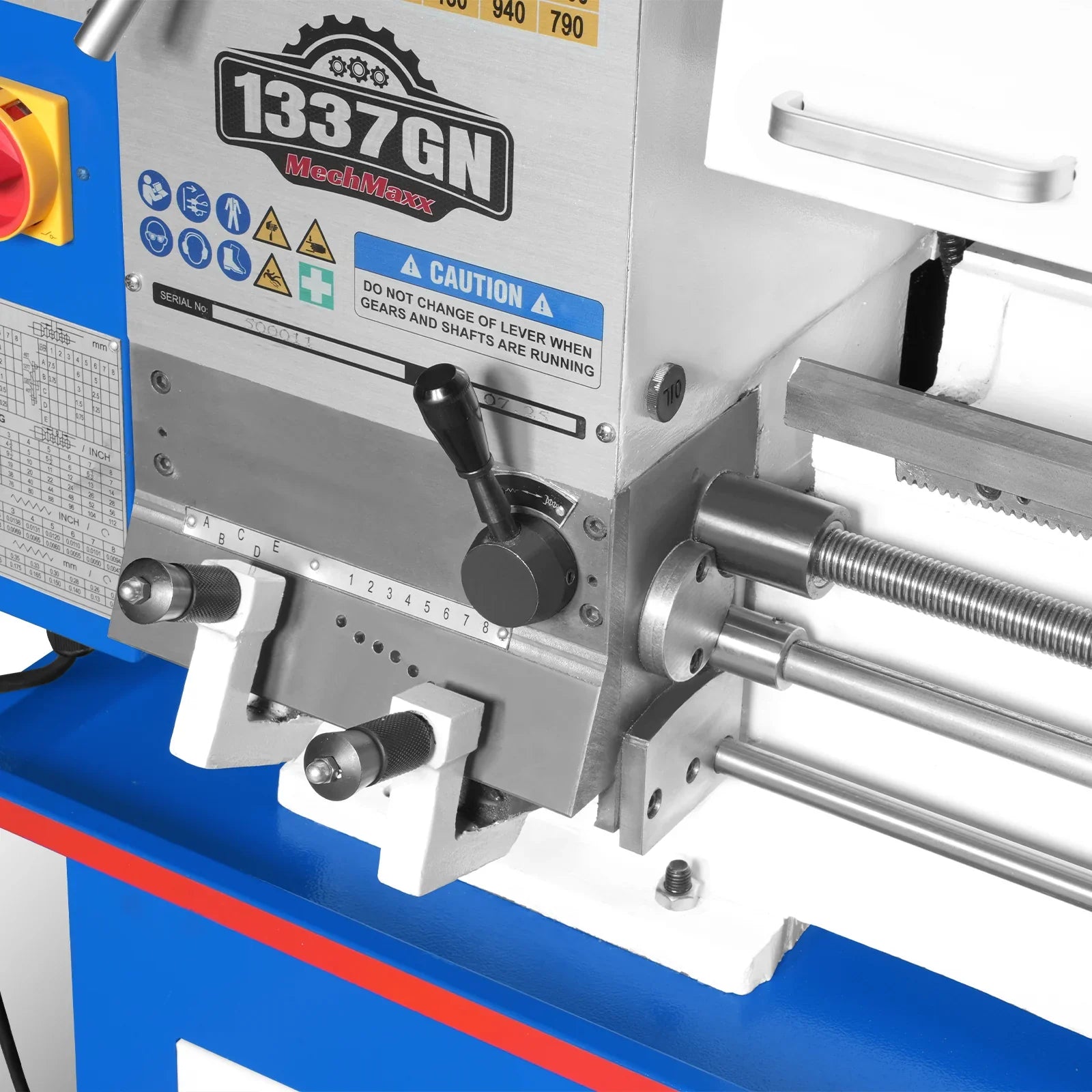

  • Full Norton Gear Box for Precision Metal Lathe Control: The Full Norton Gear Box provides precise, easy control for metal lathes. It enables quick speed and thread adjustments without manual gear changes, ensuring smooth finishes, accurate cuts, and higher efficiency. Built with hardened steel gears for durability and stable performance, it’s perfect for professional metalworking and precision machining.
  • Powerful and Reliable Performance: With a 1.5HP (1100W) motor, the 1337GN industrial heavy duty precision metal lathe offers consistent power and smooth operation, making it suitable for both light and medium-duty machining. Its 220V, 60Hz 1-phase motor ensures dependable performance across various metalworking applications.
  • Large Work Capacity: The bench metal working lathe's 13" swing over bed (330mm) and 19.1" swing over gap (485mm) provide ample space for larger workpieces, allowing users to handle a wide range of materials and sizes. With a distance between centers of 37" (940mm), this industrial lathe is ideal for long and oversized parts, while the 7.1" (181mm) bed width ensures stability during high-speed operation.
  • Precise Threading and Versatile Spindle: The 1337GN precision lathe excels in threading, offering 40 inch thread options (4-112 TPI) and 15 metric thread options (0.25-7.5mm) for maximum versatility. The 1.6" (40mm) spindle bore and D1-4 spindle mount with cam-lock ensure secure, accurate clamping and smooth cutting, making this metal lathe suitable for a wide variety of turning and threading applications.

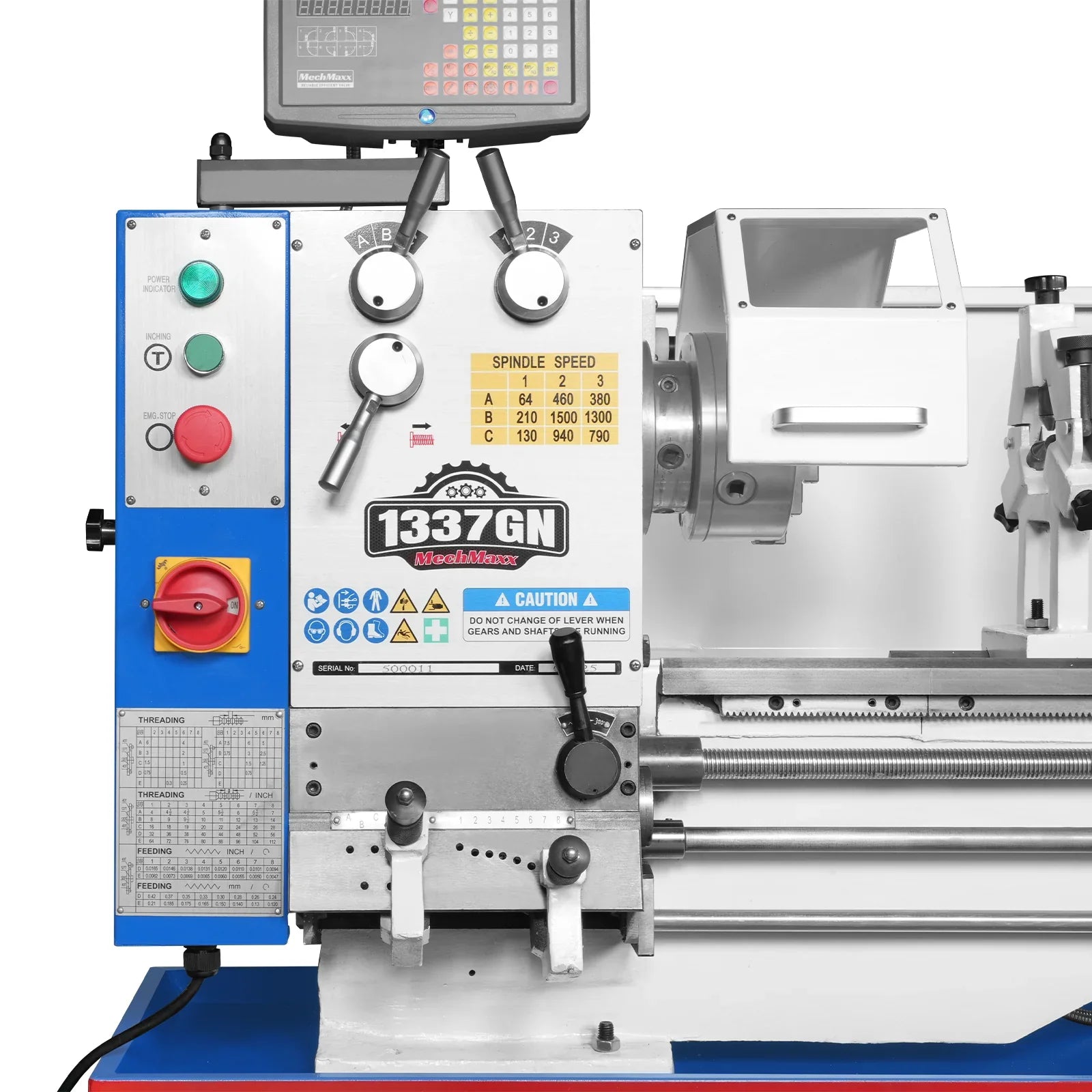

  • Flexible Speed Control: Featuring 9 speed ranges and a wide spindle speed range from 64 to 1500 RPM, the heavy duty lathe offers flexible and precise control over cutting operations. Whether you are working with soft metals or tougher alloys, the metal working lathe’s variable speeds ensure optimal results in any machining task.

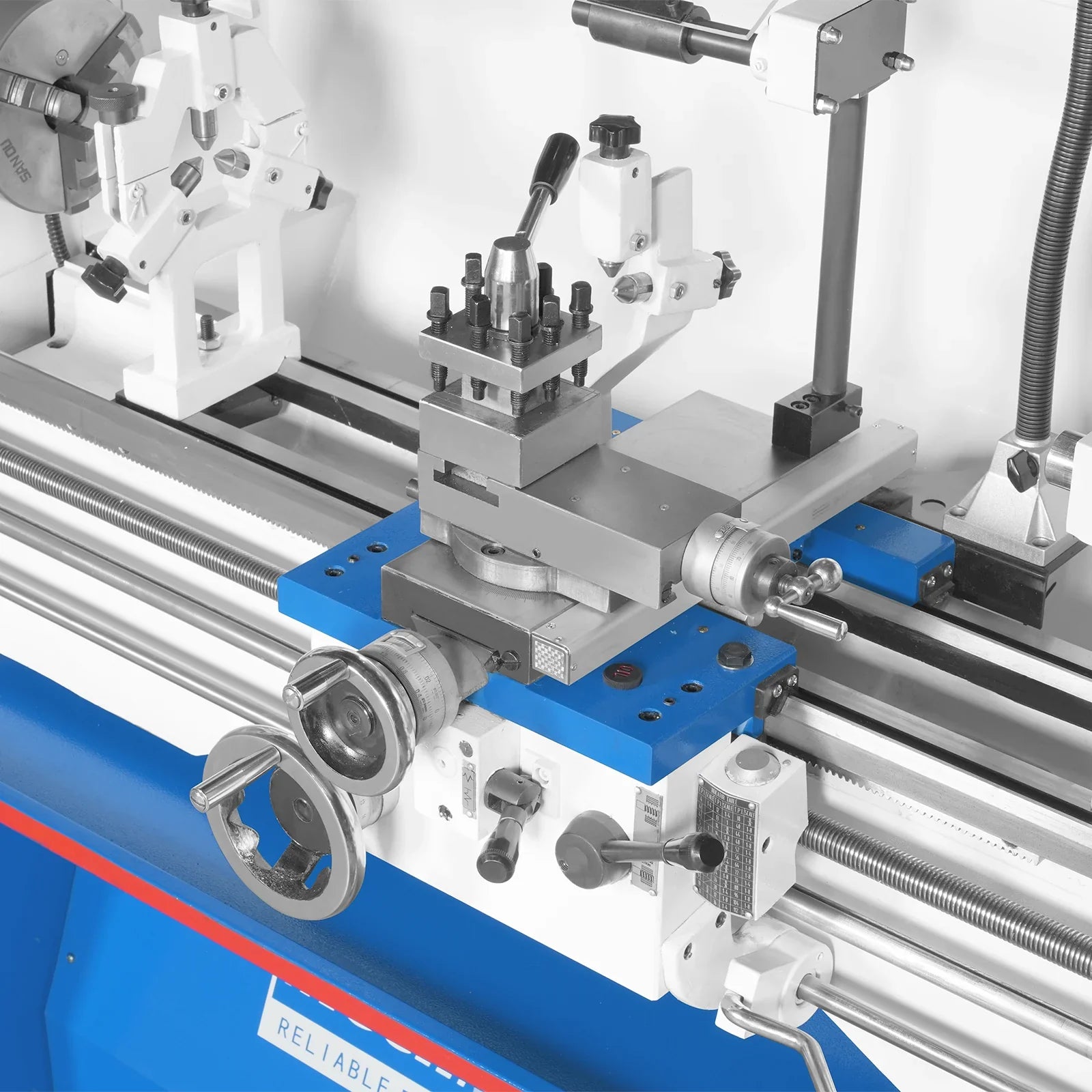

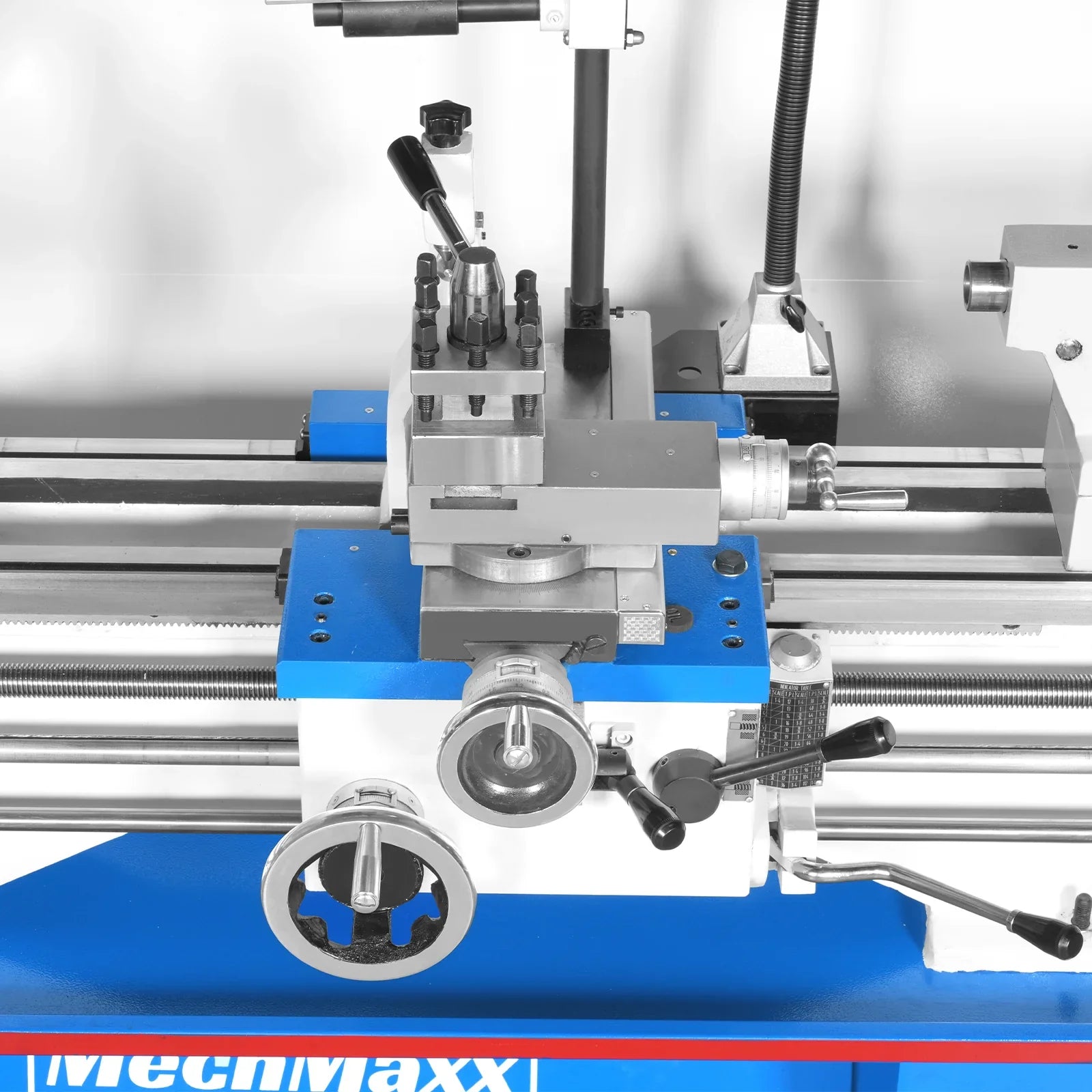

  • Enhanced Cutting Precision: The cross slide travel of 5.9" (150mm) and compound slide travel of 3.5" (90mm) allow for fine adjustments and precise cutting of small and large parts alike. Additionally, the precision lathe features longitudinal and transverse feed rates from 0.0047" to 0.0165" per rev, ensuring smooth, accurate feed during operations.
  • Durable, Heavy-Duty Construction: Designed with a solid, sturdy build, the 1337GN industrial metal lathe is engineered for durability and stability. Its robust frame and induction-hardened bedway make it an ideal addition to any professional workshop, hobby garage, or industrial setting requiring reliable metalworking performance.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

Motor: 1.5HP(1100W) 220V 60HZ 1PH

Swing Over Bed: 13 in/ 330mm

Swing Over Cross Slide: 8.46 in/ 215mm

Swing Over gap: 19.09 in/ 485mm

Distance Between Centers: 37 in/ 940mm

Bed Width: 7.12 in/ 181mm

Spindle Bore: 1.57 in/ 40mm

Spindle Mount: Cam-Lock Mechanism

Spindle Type: D1-4

Spindle Taper: MT5

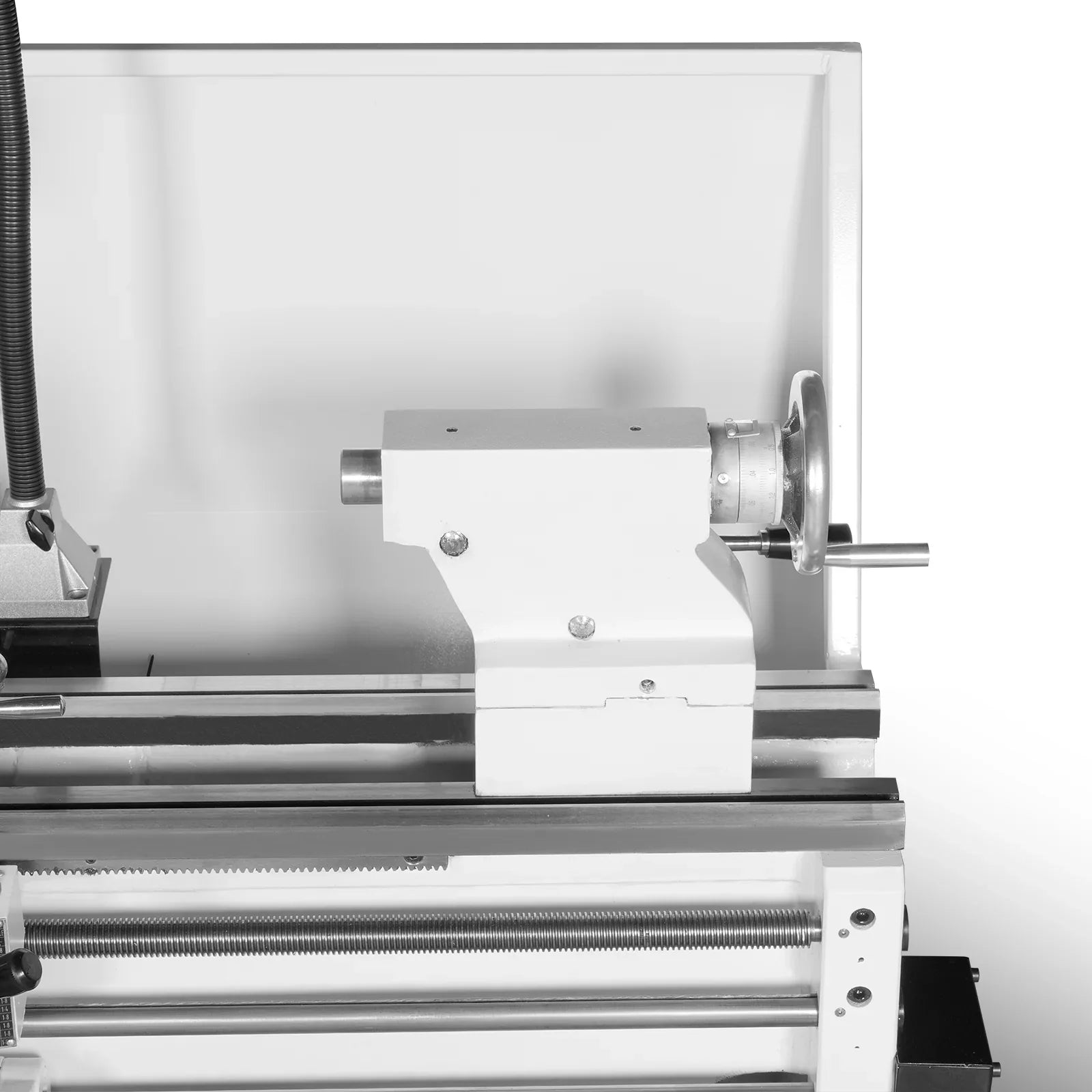

Tailstock Taper: MT3

Tailstock Quill Travel: 3.93 in/ 100mm

Cross Slide Travel: 5.9 in/ 150mm

Compound Slide Travel: 3.54 in/ 90mm

Carriage Travel: 33.46 in/ 850mm

Spindle Speeds: 64-1500RPM

Number of Speed Ranges: 9

Longitudinal Feeds: 0.0047''-0.0165''

Transverse Feed Rate: 0.0047''-0.0165''

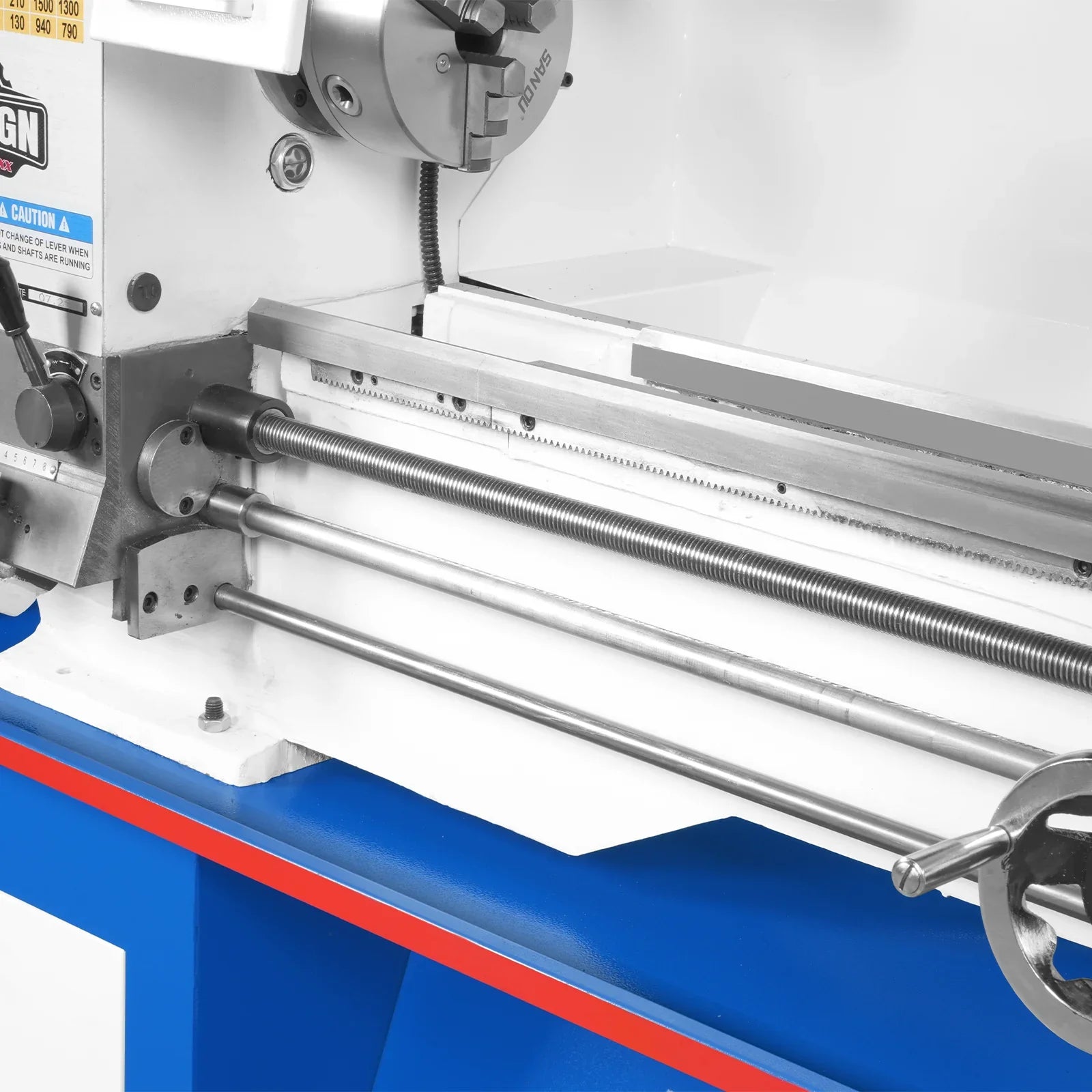

Leadscrew Size & Pitch: 22mm/ 7/8'' 8TPI

Threading Capacity - Inch: 4-112TPI(40 kinds)

Threading Capacity - Metric: 0.25-7.5mm(15 kinds)

Maximum Tool Bit Size: 0.55 inX0.55 in/ 14X14mm

Coolant System: NO

This item comes with a 1 year factory warranty.
