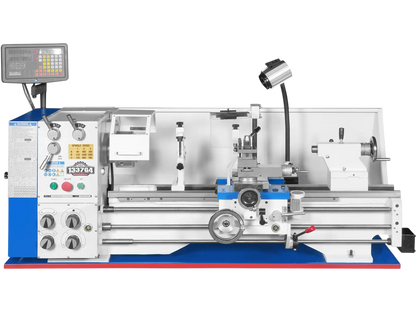

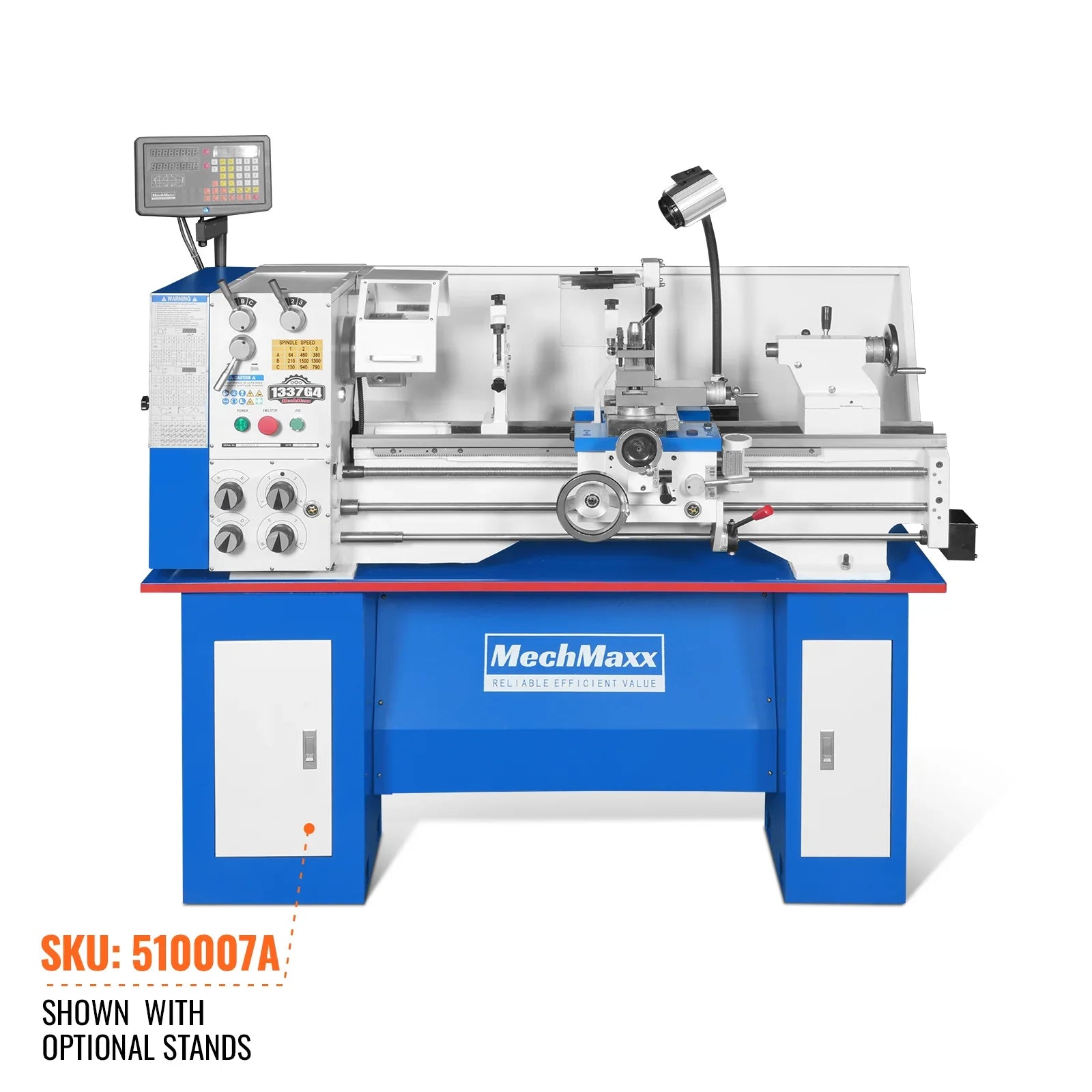

MechMaxx 1337GN Metal Lathe 13 x 37" Industrial Heavy Duty Bench High Precision Variable Speed 1.5HP New

MechMaxx

$6,199.00
$6,199.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

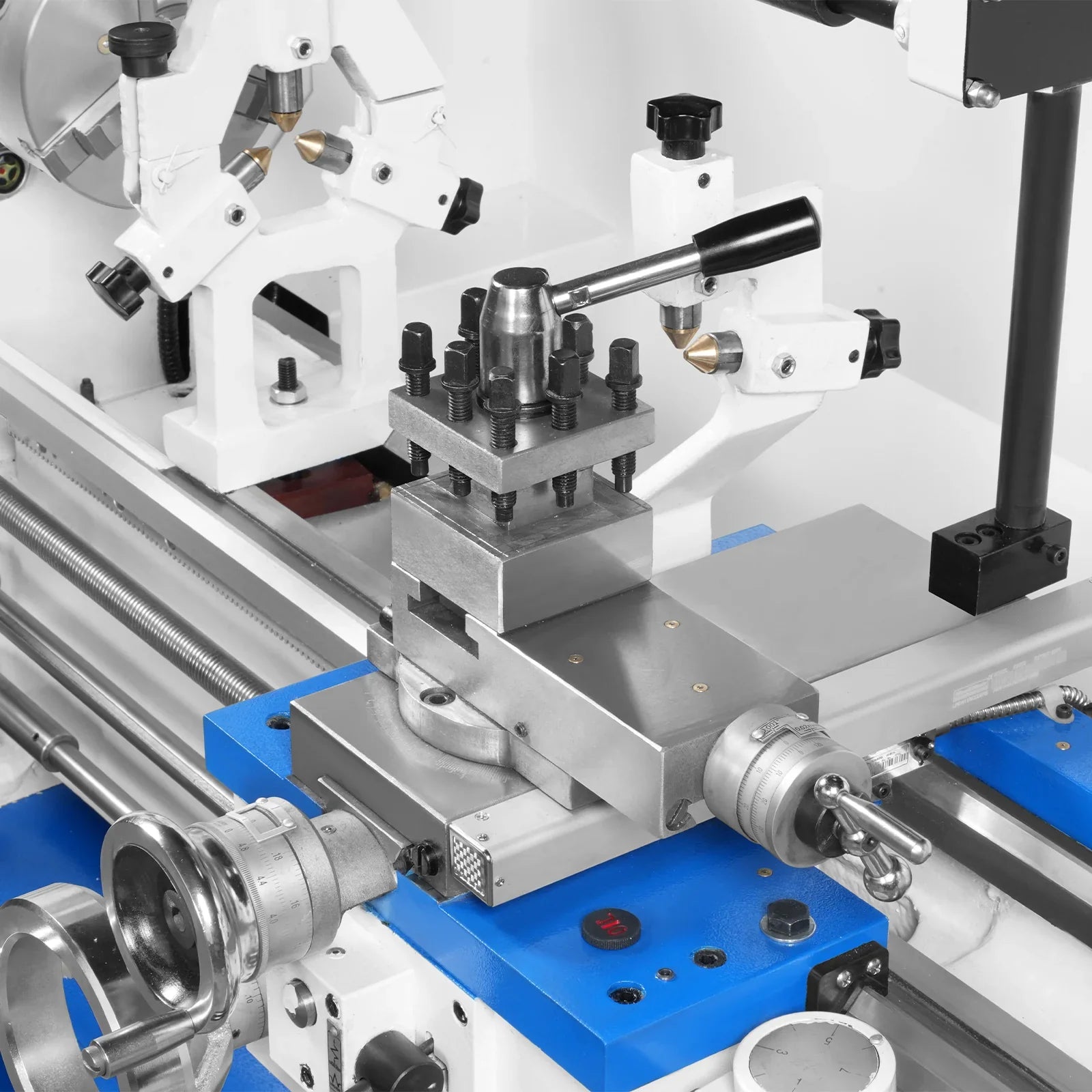

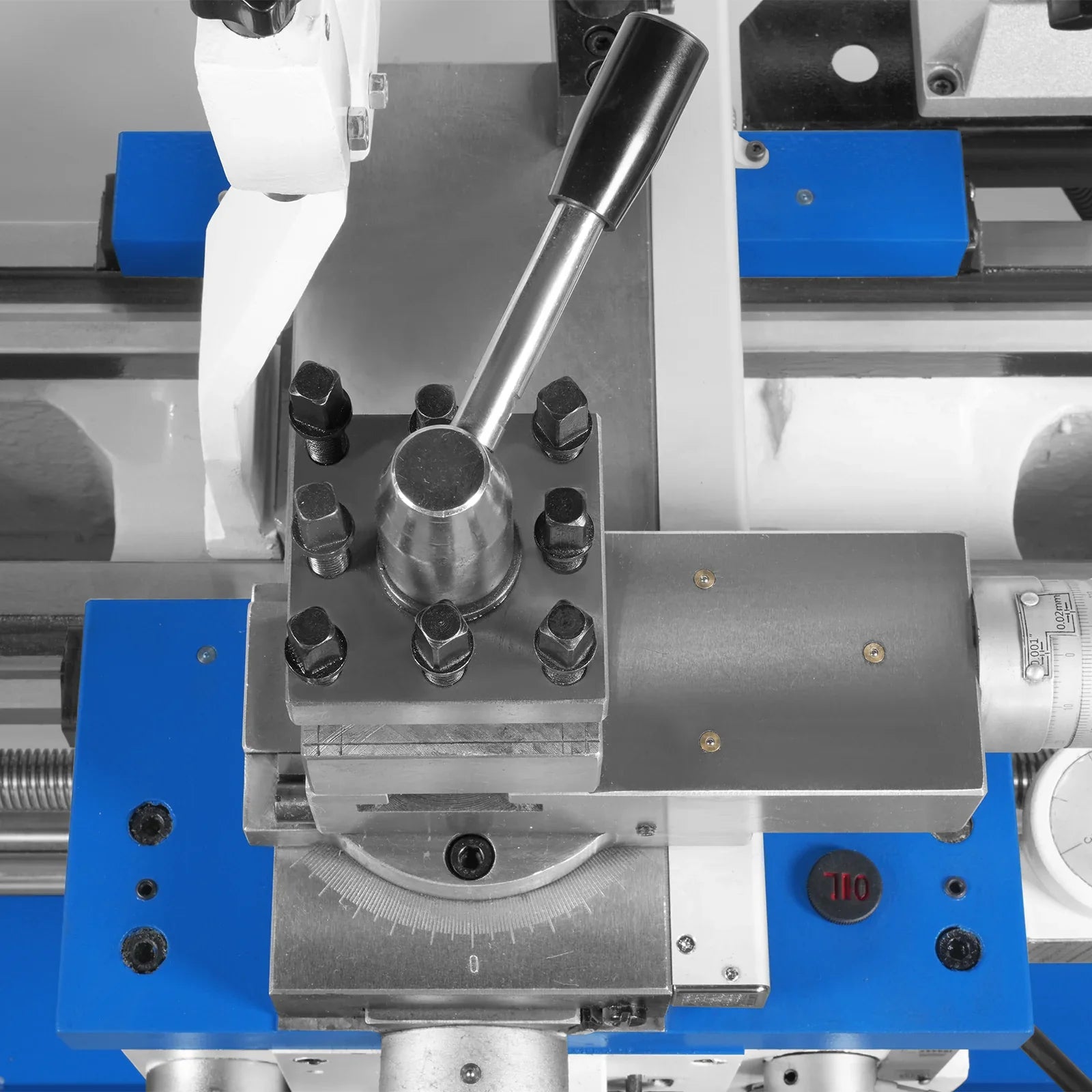

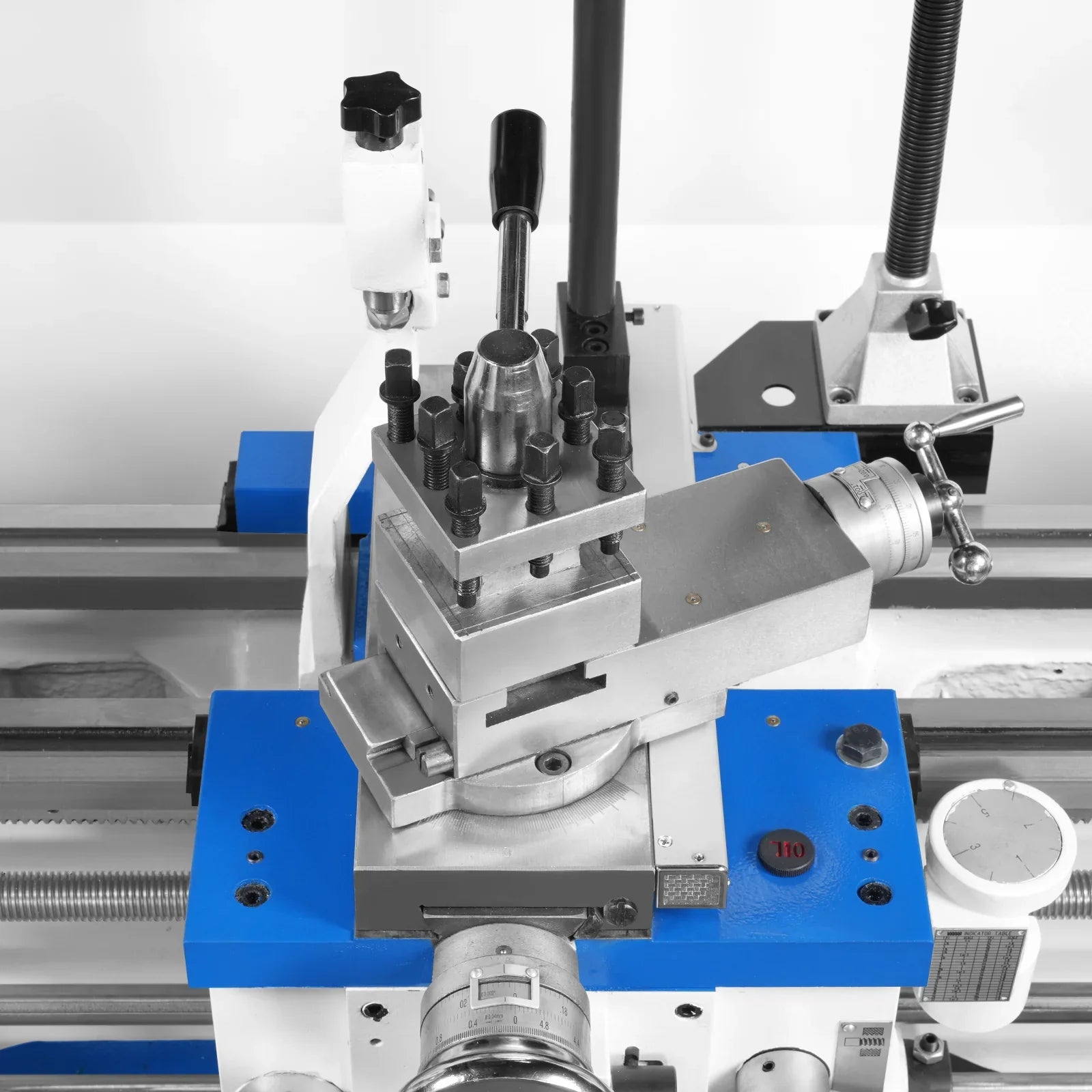

  • 4-Axis Slide for Enhanced Metal Lathe Versatility: Exclusive 4-axis slide design elevates this precision lathe with multi-directional adjustability, enabling complex cuts, fine positioning, and seamless transitions between machining tasks. Perfect for detailed metalworking projects that demand precise control over every movement.
  • Powerful & Reliable Industrial Lathe Performance: 1.5HP (1100W) motor delivers consistent power for light to Heavy duty machining, while the 220V 60Hz single-phase configuration ensures compatibility with standard workshop power sources. A hallmark of a true heavy duty lathe, it balances strength and efficiency for daily use.

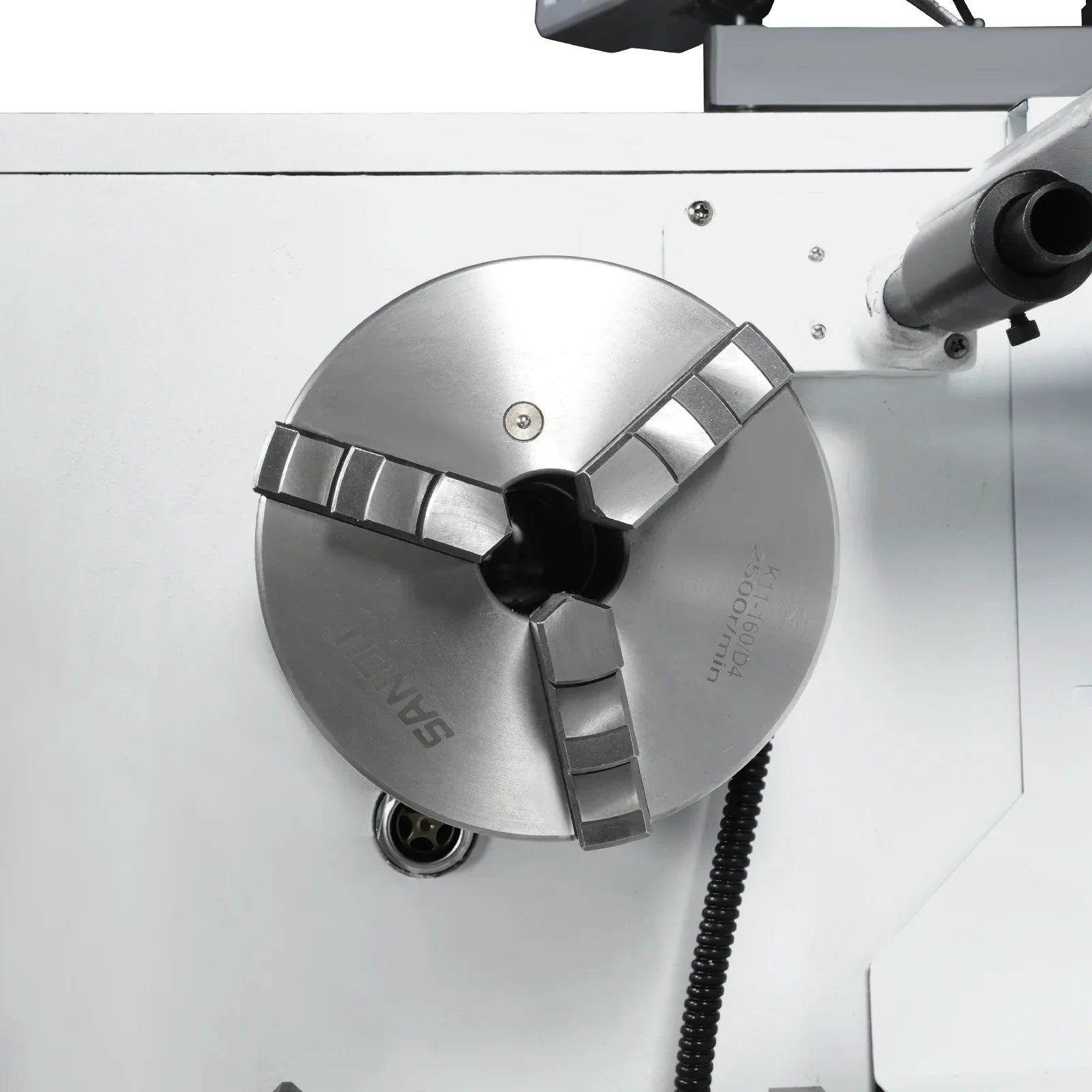

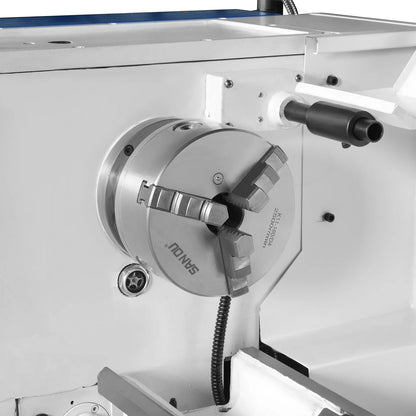

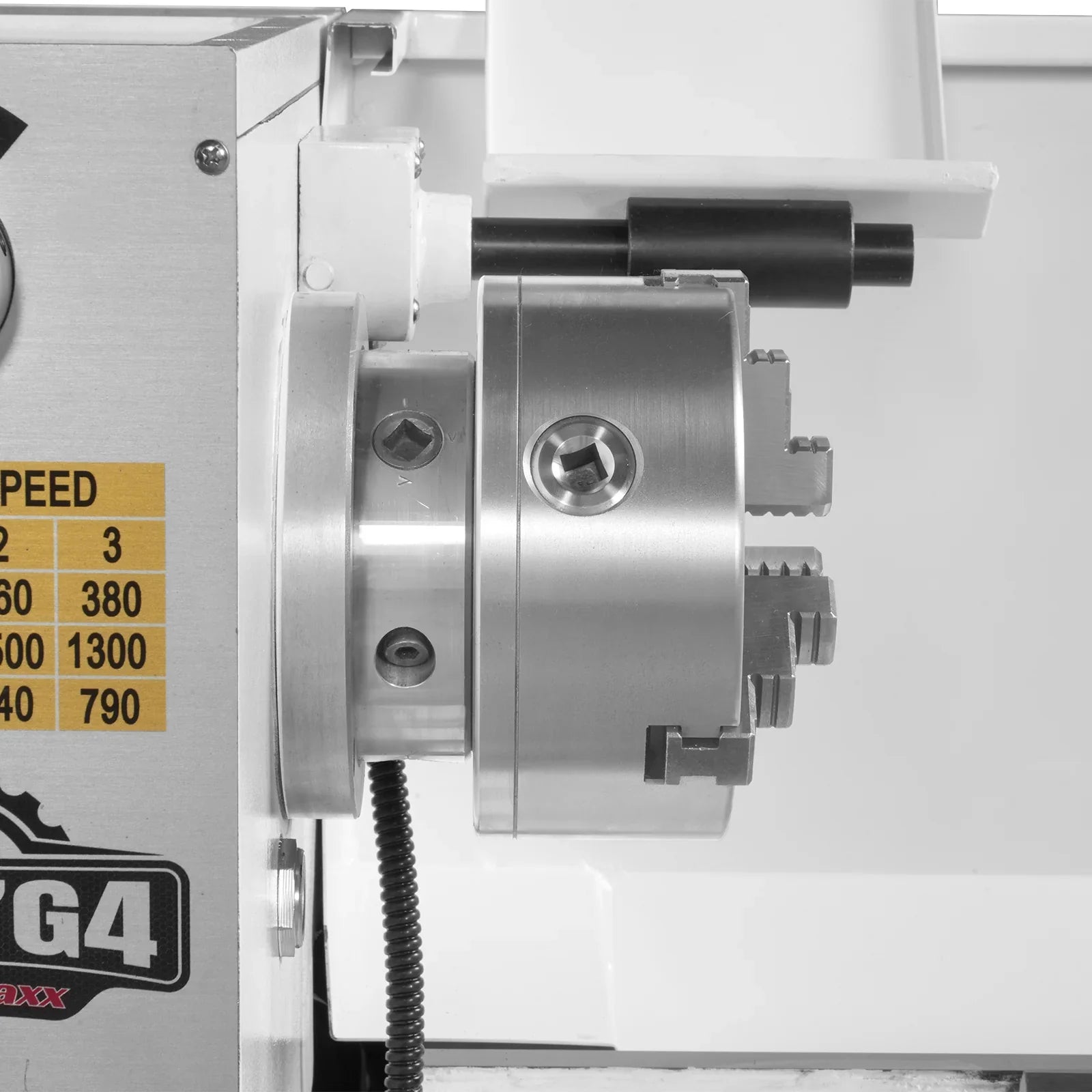

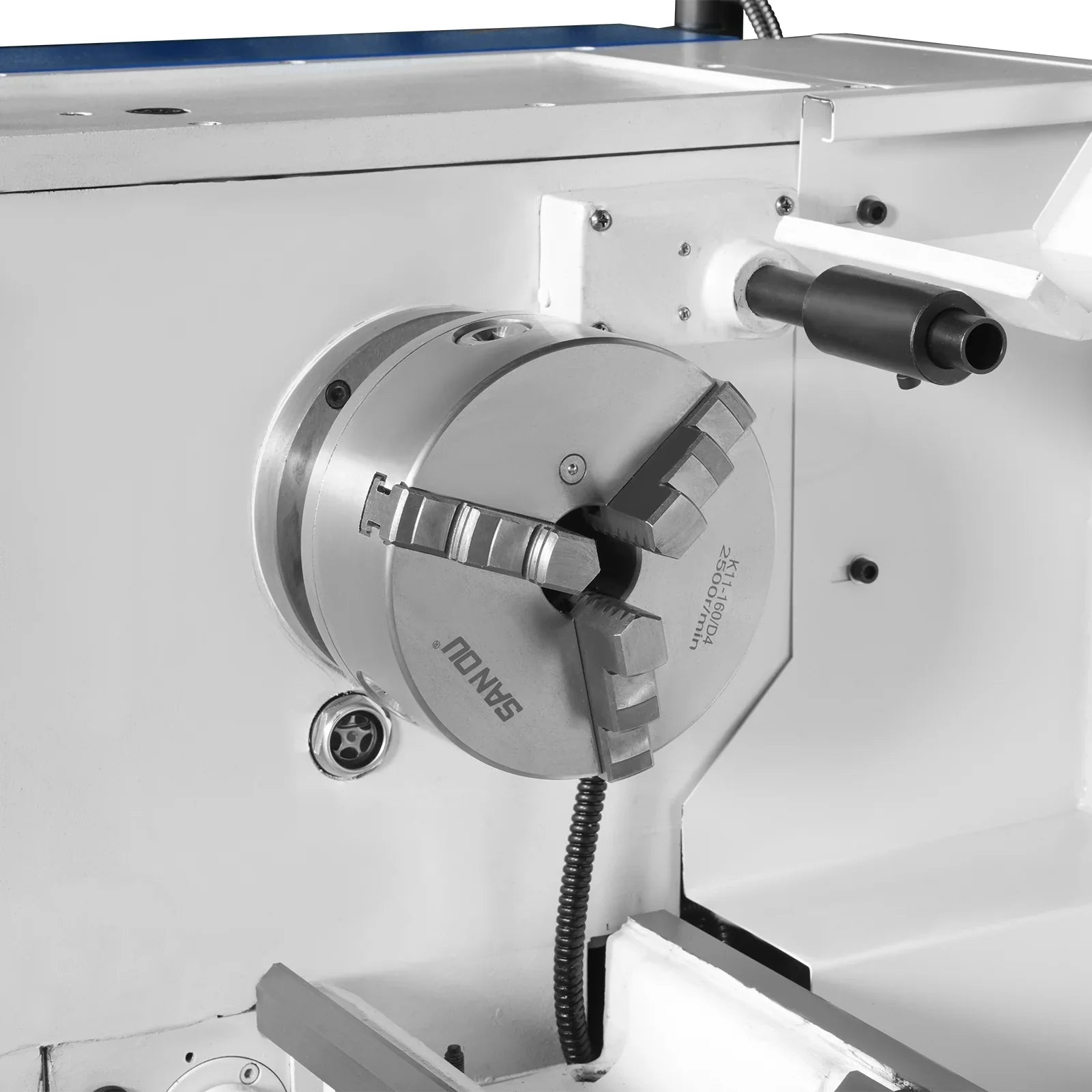

  • Secure Clamping with Cam-Lock Spindle Mount: Features a D1-4 spindle type, MT5 spindle taper, and Cam-Lock Mechanism for secure, accurate workpiece clamping—ideal for holding round, square, or irregular stock. The 1.6" (40mm) spindle bore accommodates larger raw materials, supporting diverse industrial metal working needs.

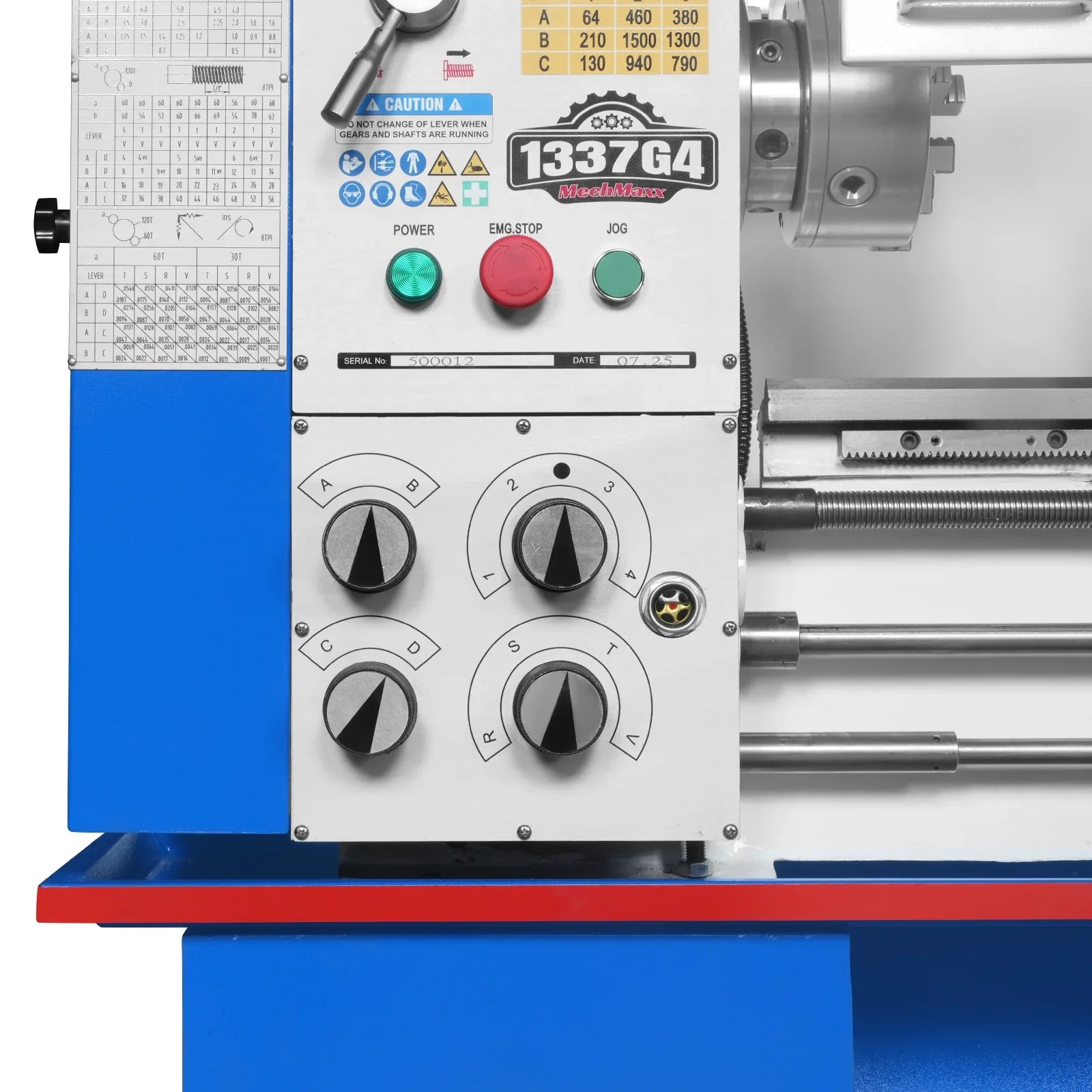

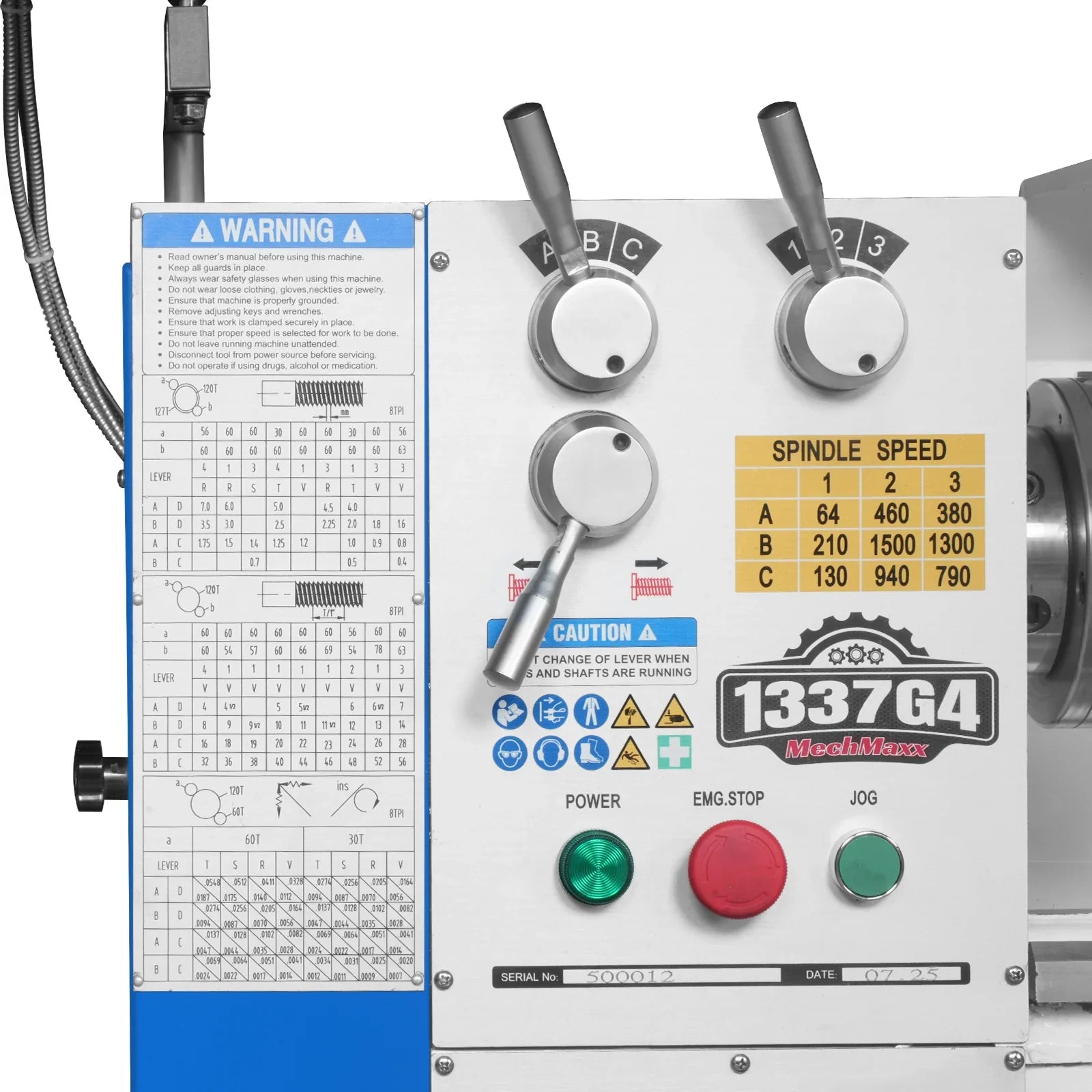

  • 9-Speed Control for Flexible Metal Working: 9-Speed Control for Flexible Metal Working9 speed ranges (64-1500 RPM) let you dial in the perfect speed for any material or task on this industrial metal lathe. Whether fine-threading delicate parts or rough-turning thick stock, variable speed control ensures optimal cutting results every time.

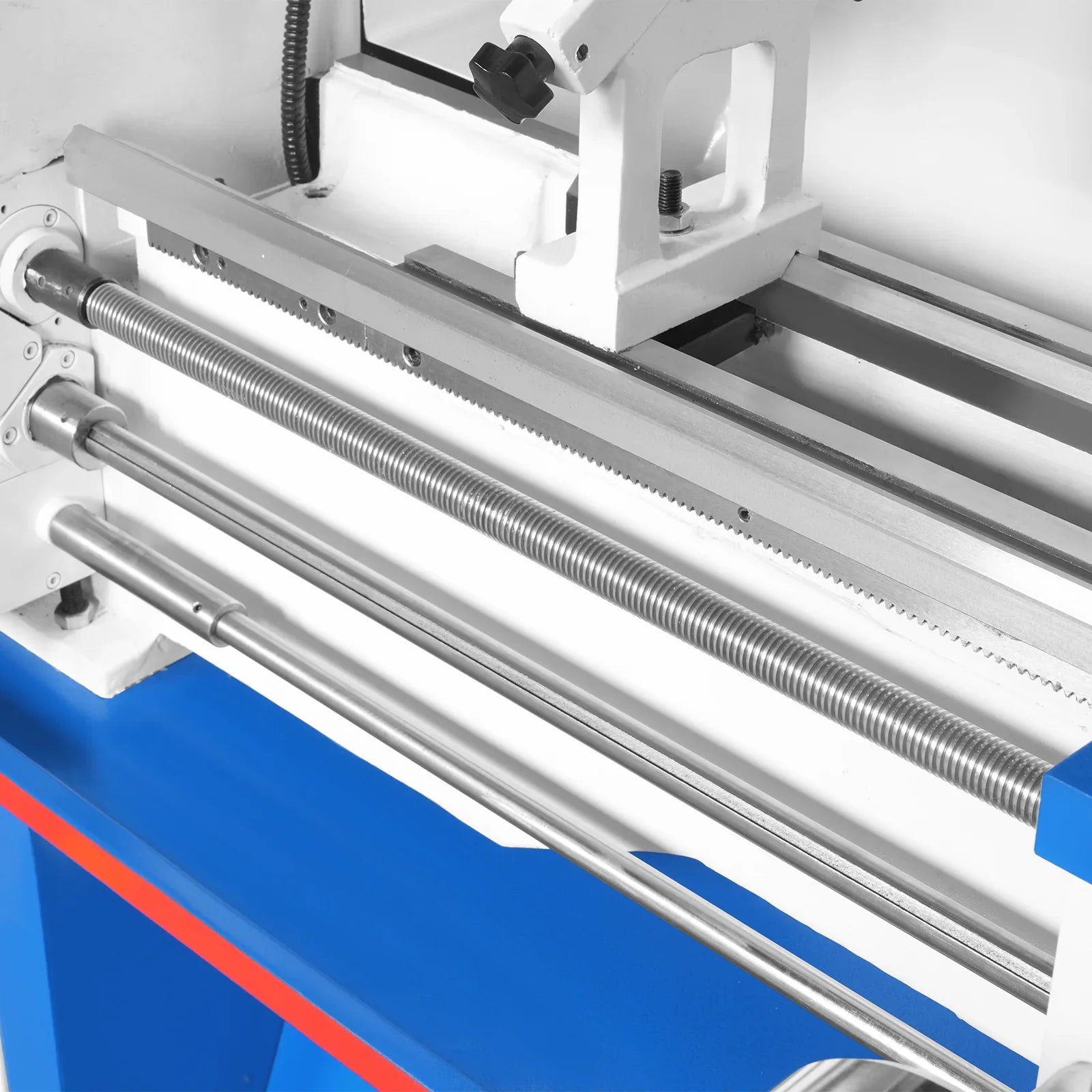

  • Expansive Threading Capabilities: Boasts 34 types of inch threads (4-56 TPI) and 26 metric thread options (0.4-7mm), covering most standard and custom threading needs for industrial projects. The precision leadscrew (22mm / 7/8" 8TPI) guarantees clean, accurate threads—solidifying its reputation as a top-tier precision metal working lathe.

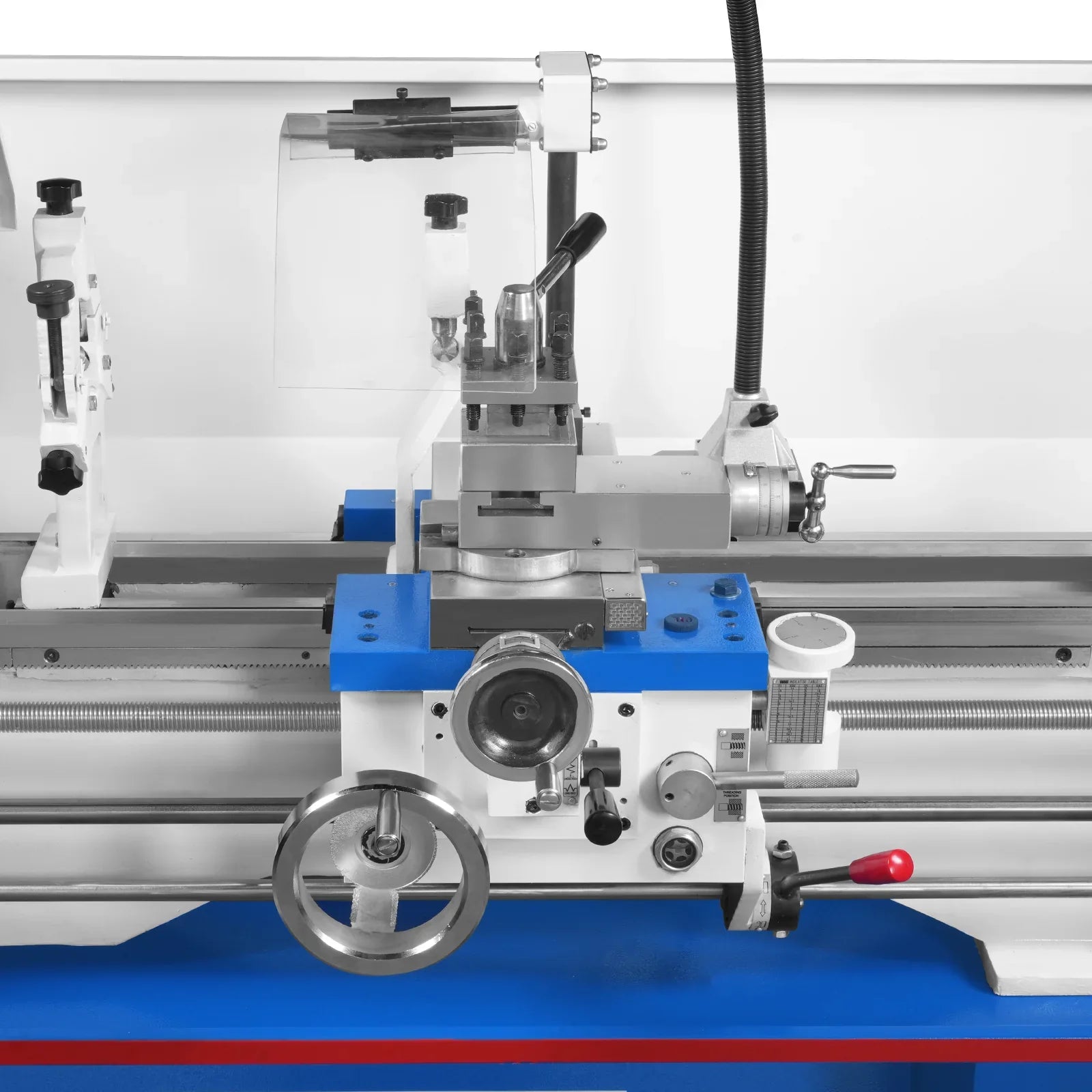

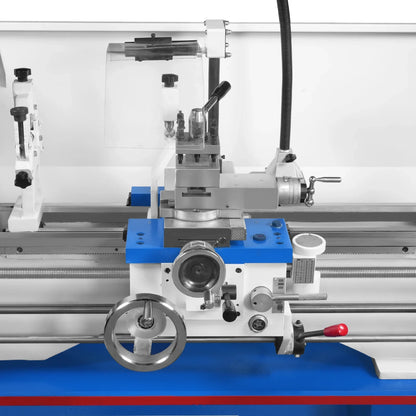

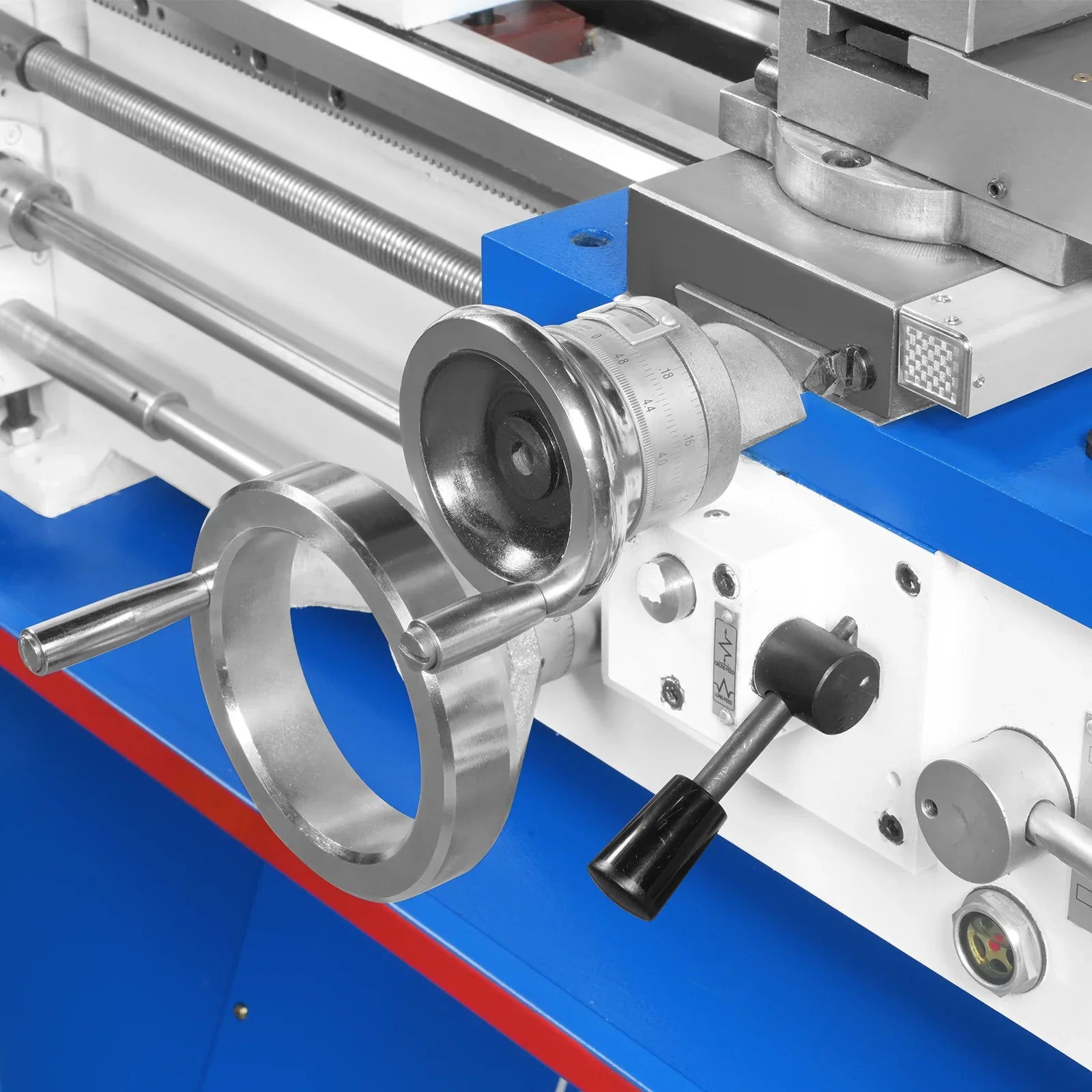

  • Smooth, Precise Sliding Movements: Cross slide travel of 5.9" (150mm) and compound slide travel of 3.5" (90mm) enable micro-adjustments for detailed cuts, while the 33.5" (850mm) carriage travel supports long workpieces. Longitudinal feeds (0.002"-0.0548" per rev) and transverse feed rates (0.00055"-0.015" per rev) ensure consistent material removal without manual fatigue.

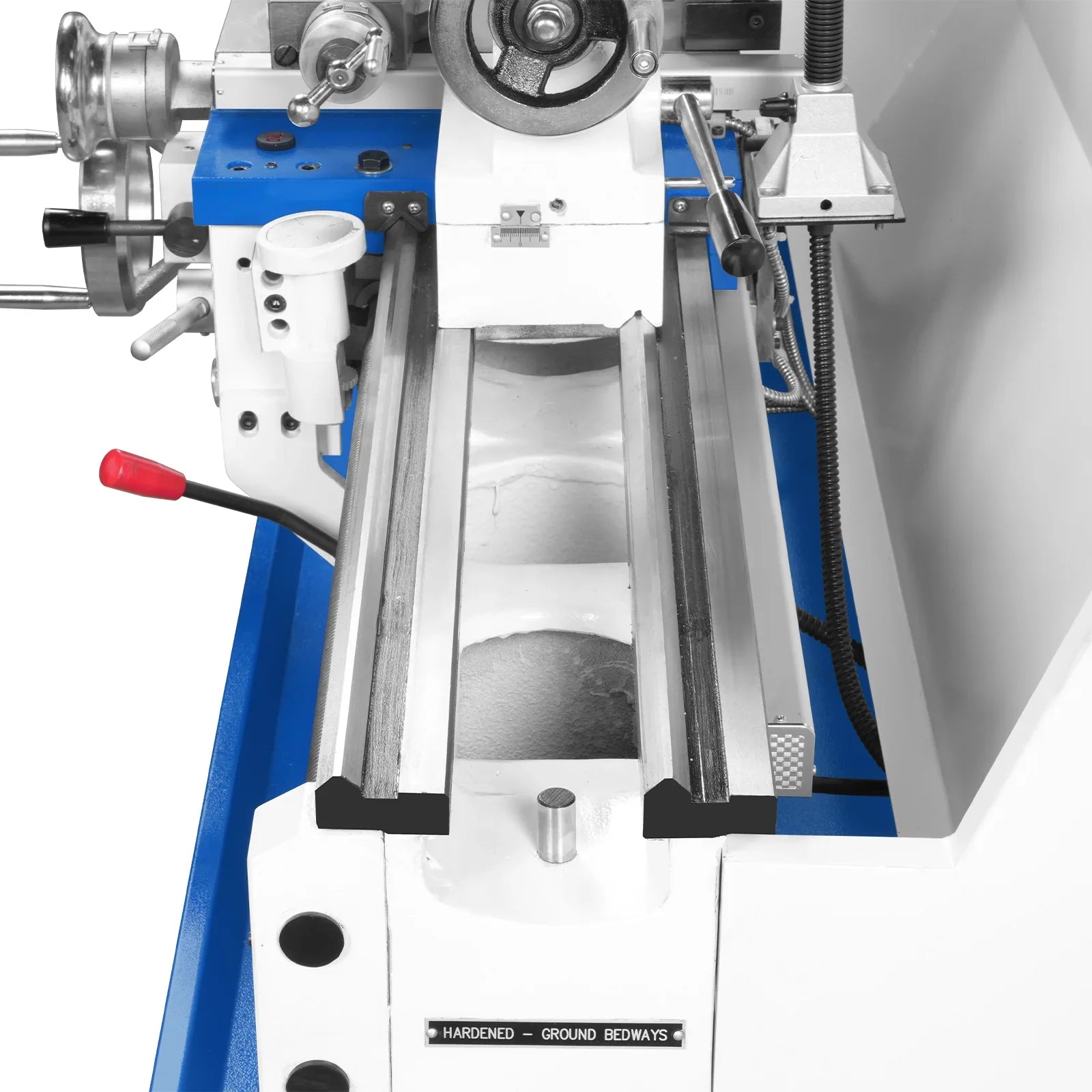

  • Durable Heavy Duty Lathe Construction: Built with a rigid frame and high-quality components, this industrial heavy duty lathe is engineered for long-lasting reliability. The sturdy bed and wear-resistant components maintain precision even after years of heavy use, making it a dependable tool for frequent machining tasks.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

Specification: 1337G4

Motor: 1.5HP(1100W) 220V 60HZ 1PH

Swing Over Bed: 13 in/ 330mm

Swing Over Cross Slide: 8.46 in/ 215mm

Swing Over gap: 19.09 in/ 485mm

Distance Between Centers: 37 in/ 940mm

Bed Width: 7.12 in/ 181mm

Spindle Bore: 1.57 in/ 40mm

Spindle Mount: Cam-Lock Mechanism

Spindle Type: D1-4

Spindle Taper: MT5

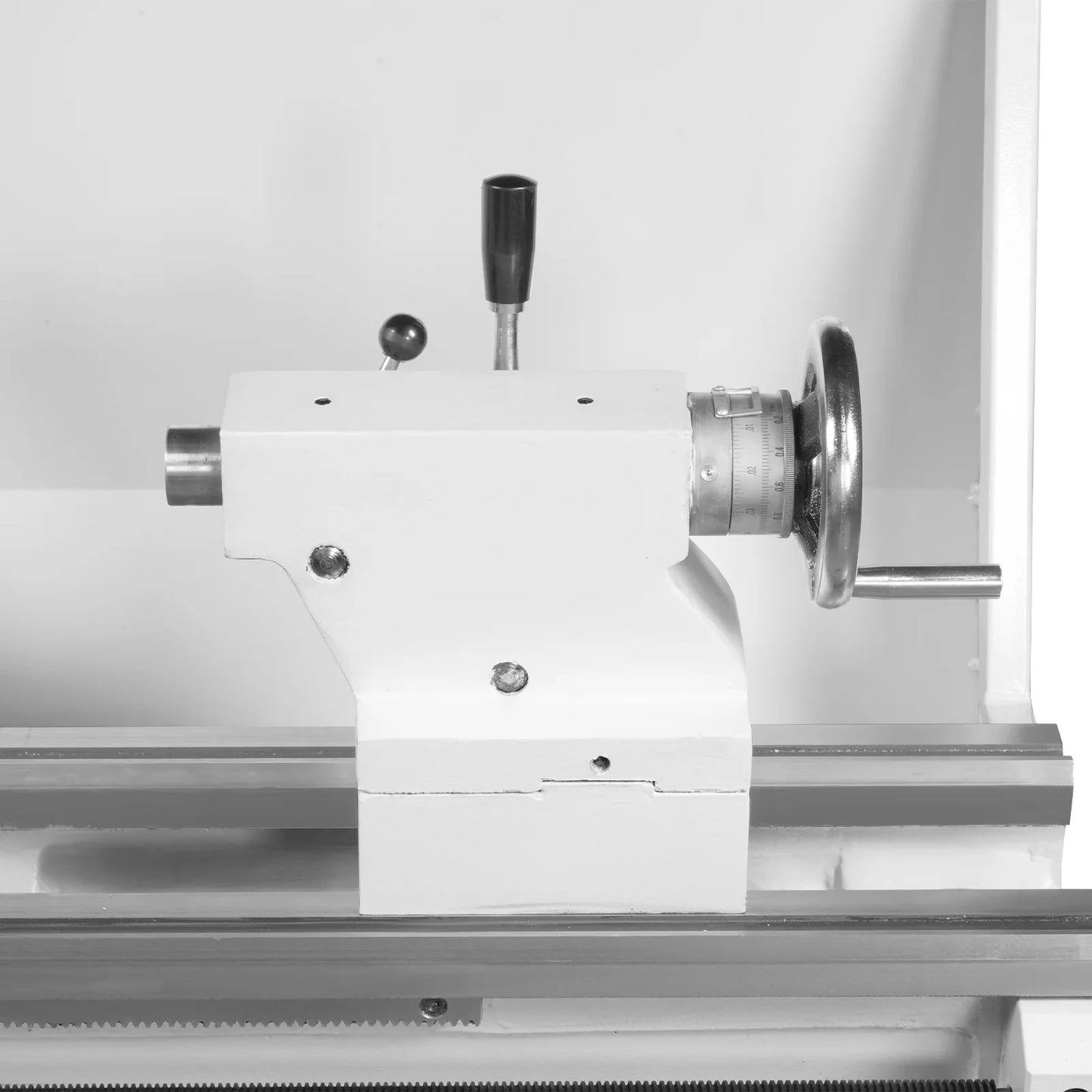

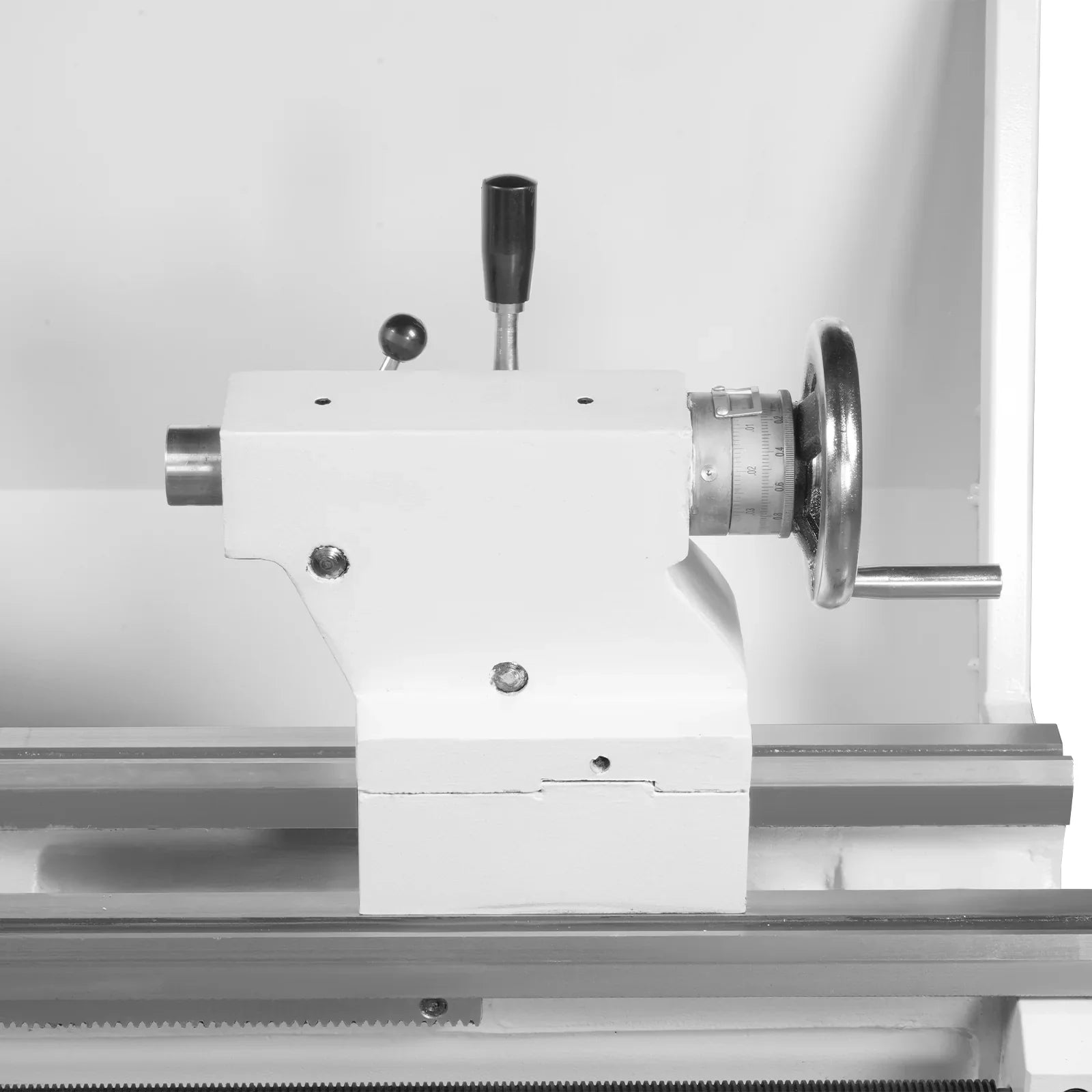

Tailstock Taper: MT3

Tailstock Quill Travel: 3.93 in/ 100mm

Cross Slide Travel: 5.9 in/ 150mm

Compound Slide Travel: 3.54 in/ 90mm

Carriage Travel: 33.46 in/ 850mm

Spindle Speeds: 64-1500RPM

Number of Speed Ranges: 9

Longitudinal Feeds: 0.002''-0.0548''

Transverse Feed Rate: 0.00055''-0.015''

Leadscrew Size & Pitch: 22mm/ 7/8'' 8TPI

Threading Capacity - Inch: 4-56TPI(34 kinds)

Threading Capacity - Metric: 0.4-7mm(26 kinds)

Maximum Tool Bit Size: 14X14mm

Coolant System: NO

Approximate Shipping Dimension Weight: 70 X 29.5 X 29.9 in 1320.8 lbs

This item comes with a 1 year factory warranty.
PDF 1337G4 Product manual
