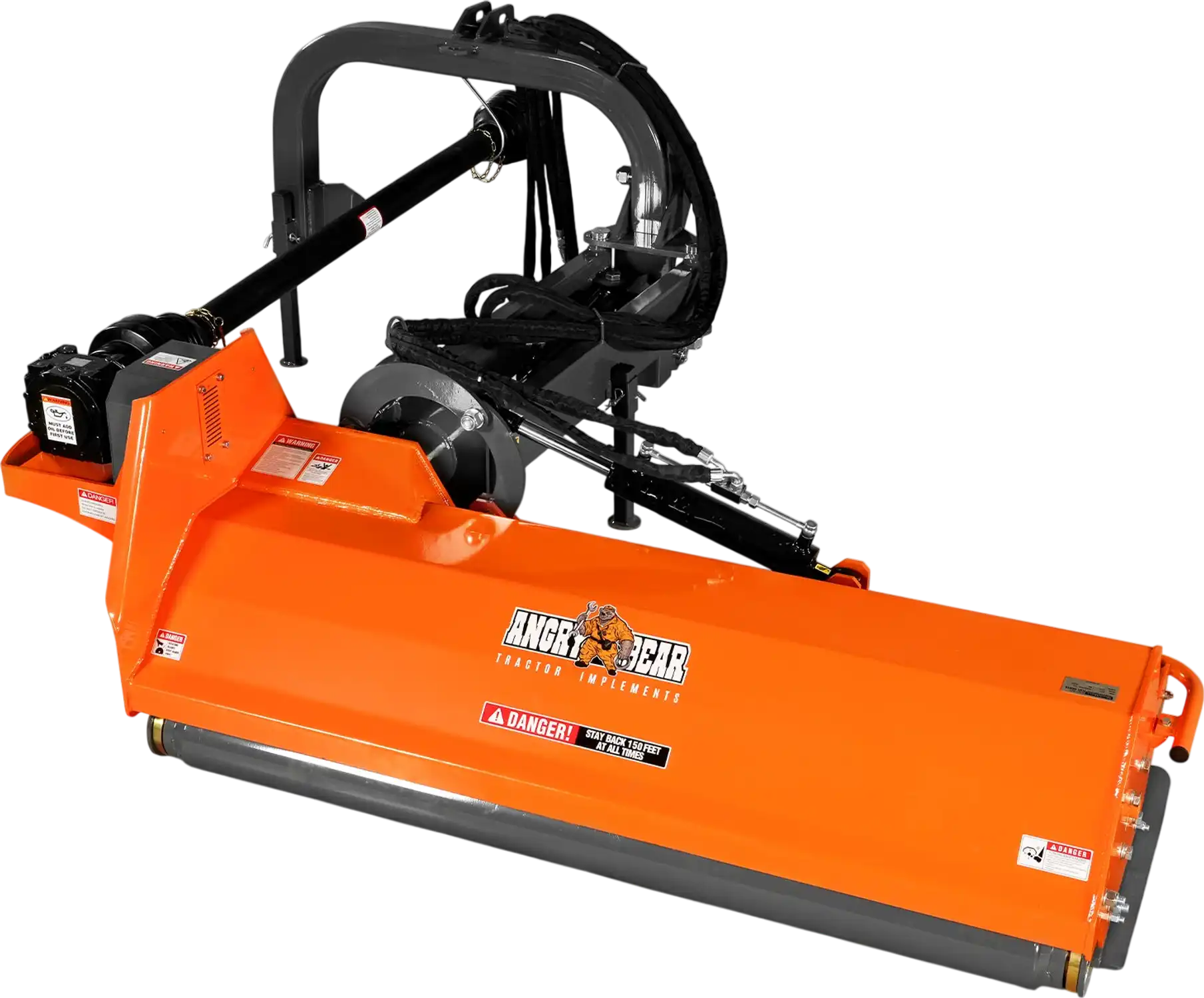

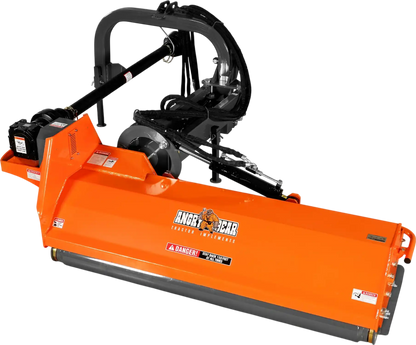

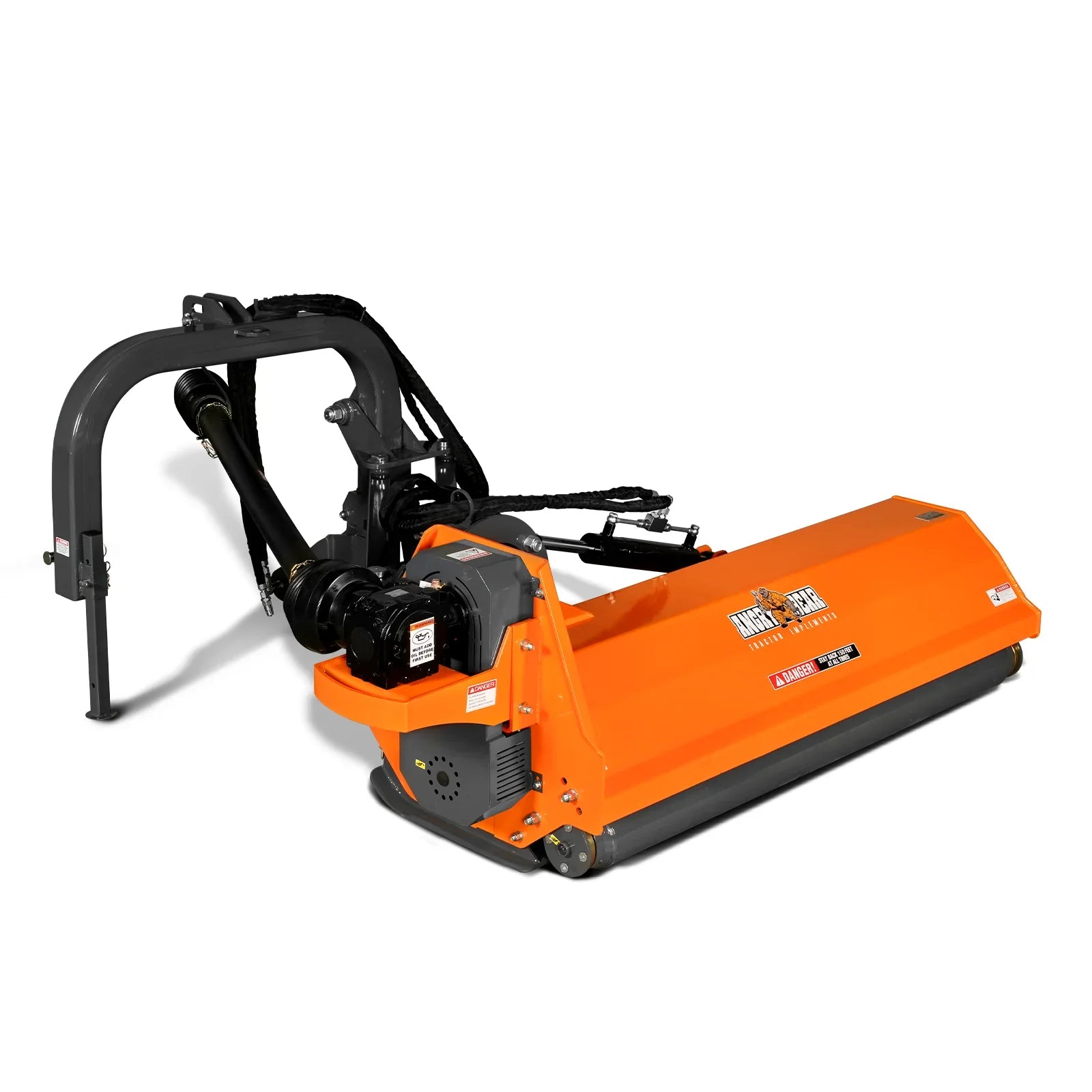

MechMaxx AGF72 Flail Mower 72" Heavy Duty 3 Point Offset Ditch Bank Verge PTO Driven 70-110HP New

MechMaxx

$4,599.00
$4,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Our bank mowers are built to efficiently handle overgrown grass on ditches and embankments.

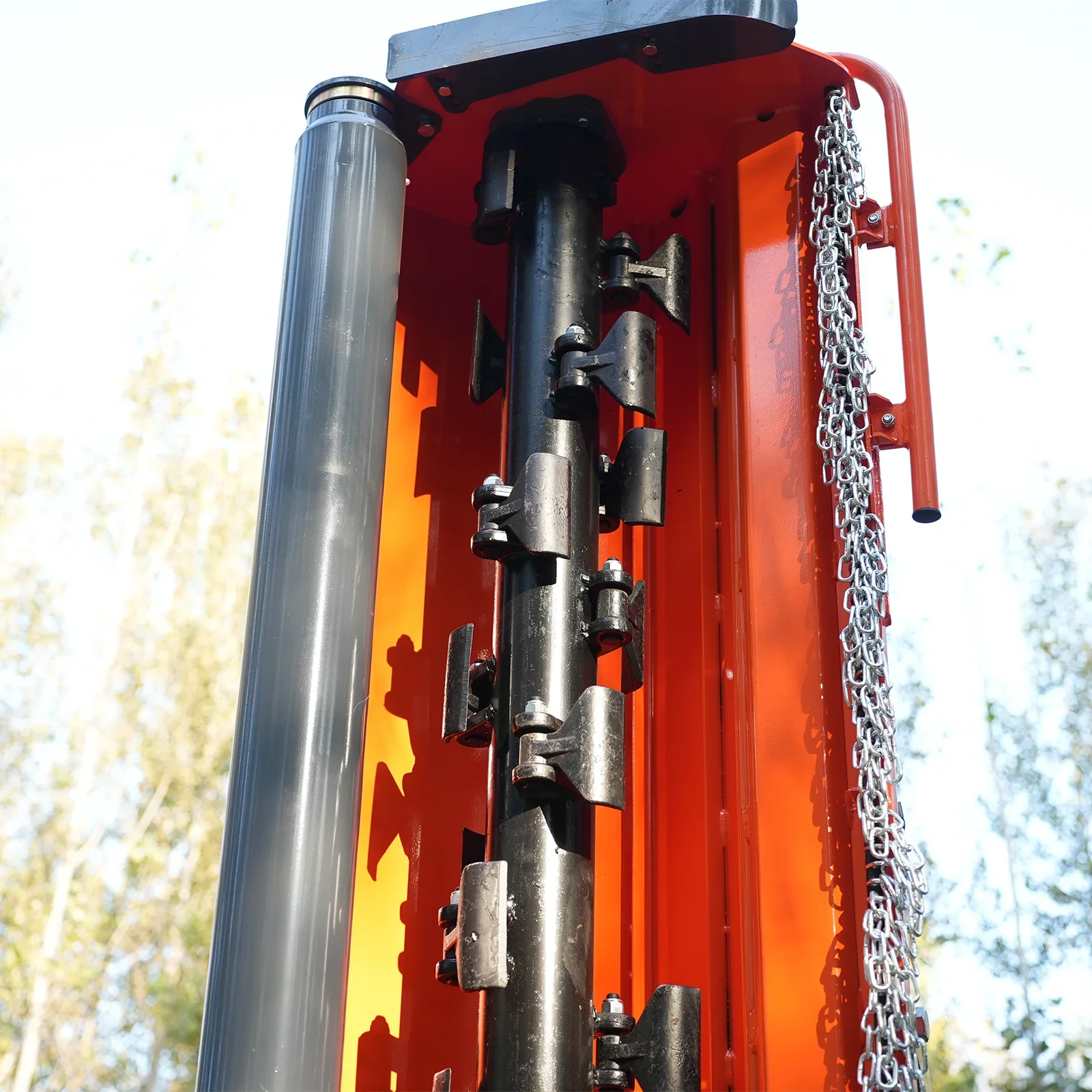

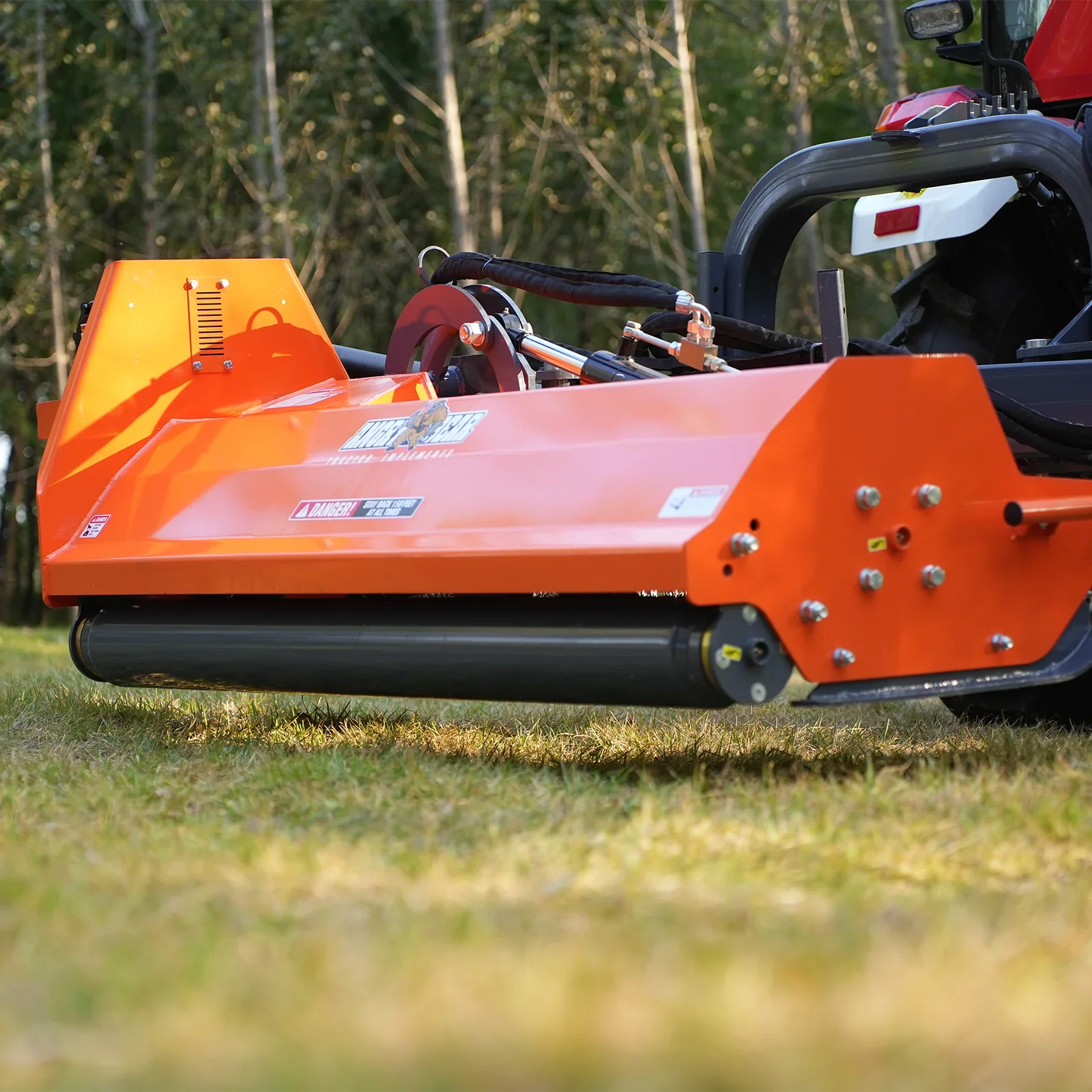

Powered by a 65HP gearbox for consistent performance, Equipped with forged hammer flail blades,The mowers can cut and mulch material up to 6" in diameter in one pass. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land. The trimmings drop directly to the ground, reducing debris. Plus, an adjustable rear roller provides precise cutting height control, ensuring a clean, even cut on uneven terrain.

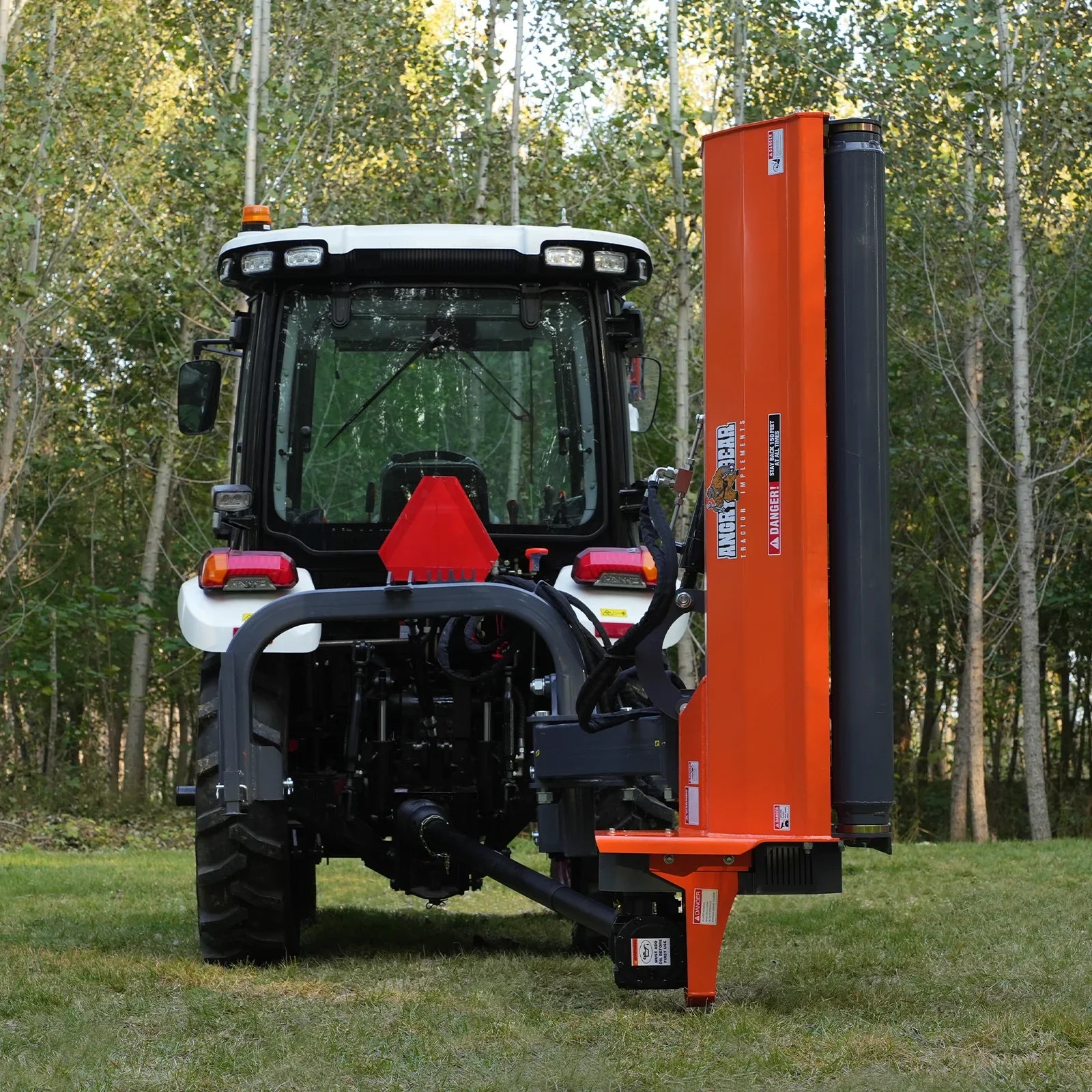

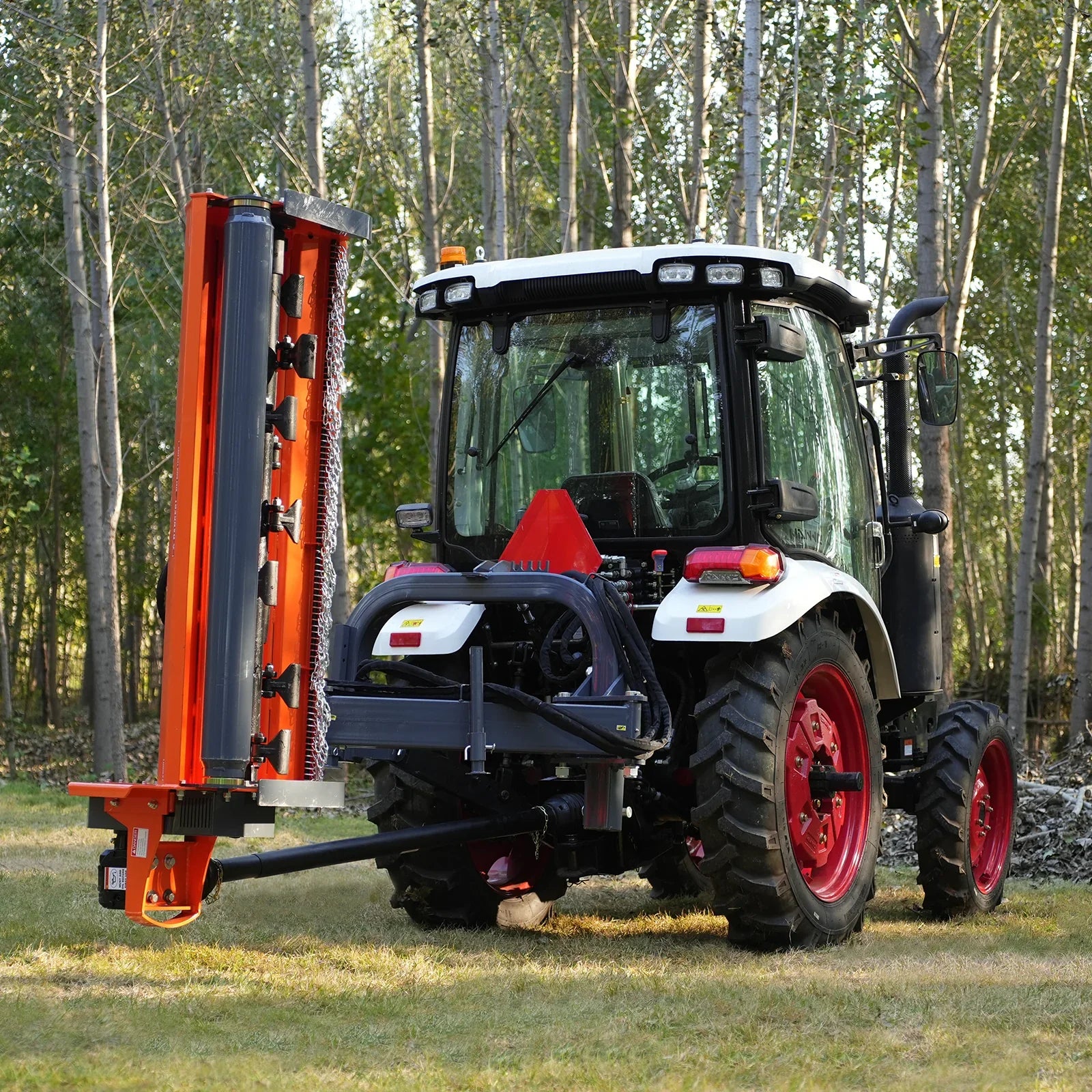

The 72" model, built for Category 2 tractors, pivots 90 degrees up and 55 degrees down, delivering a precise, clean cut every time. PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

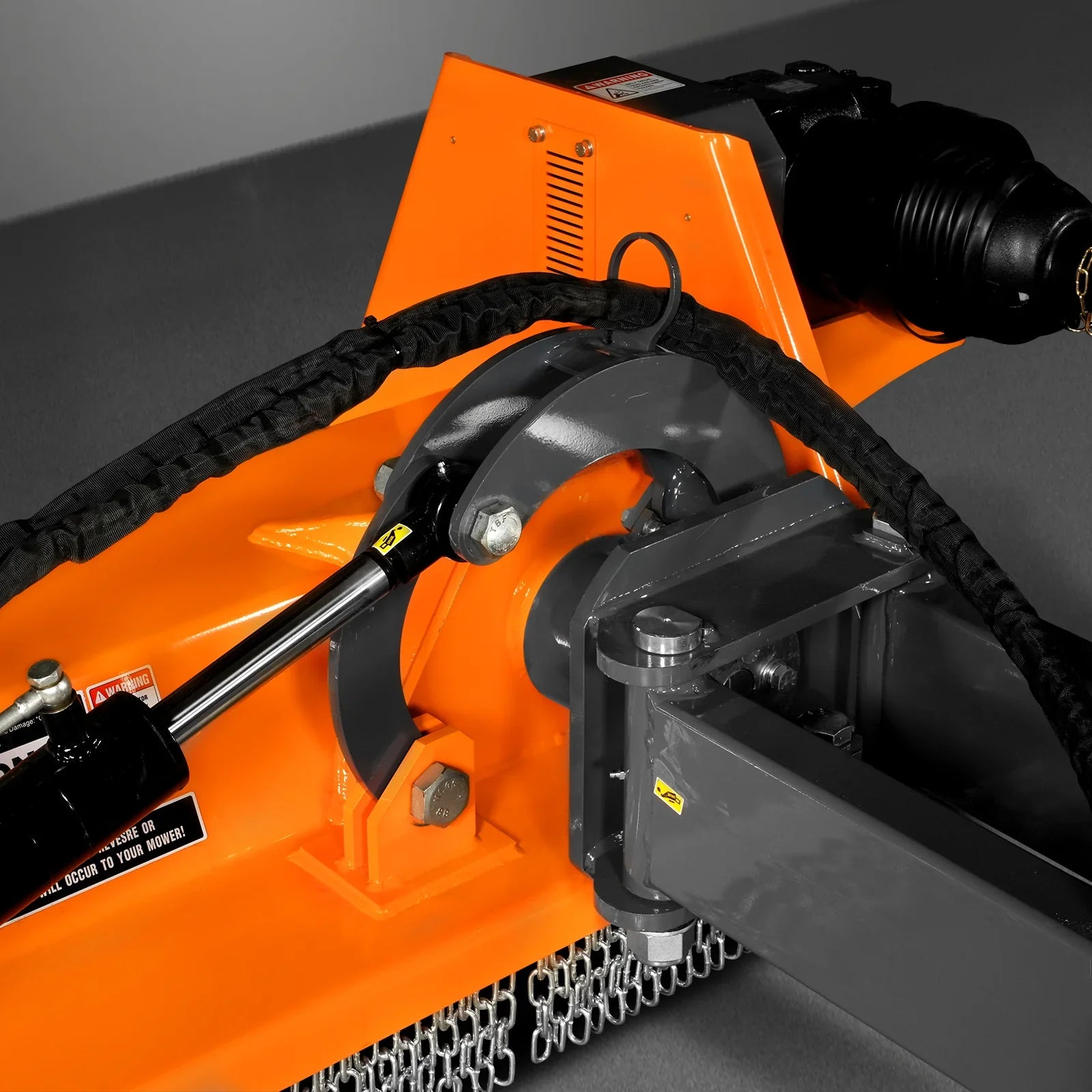

  • Rotation Angle: Hydraulically controlled with 55°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities.

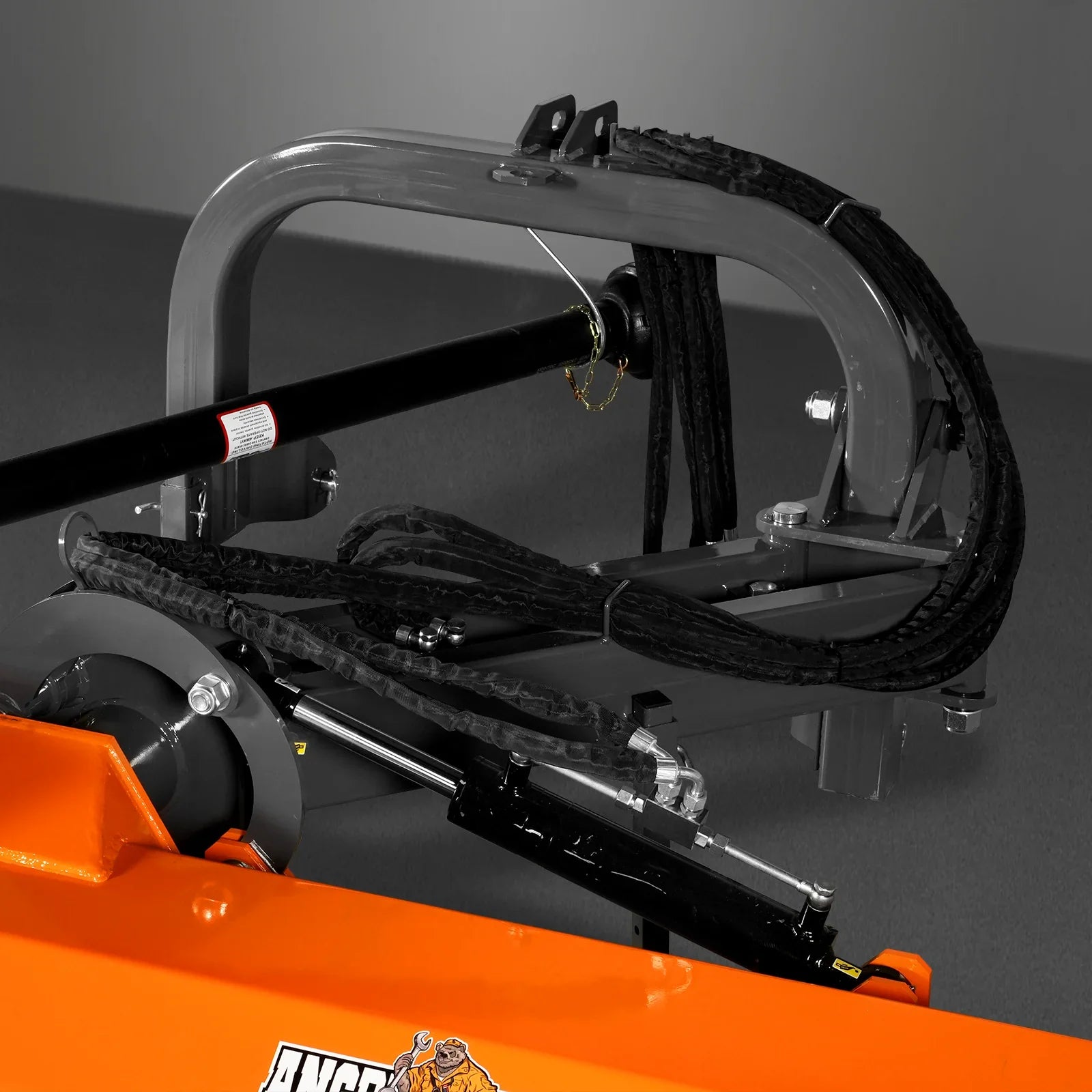

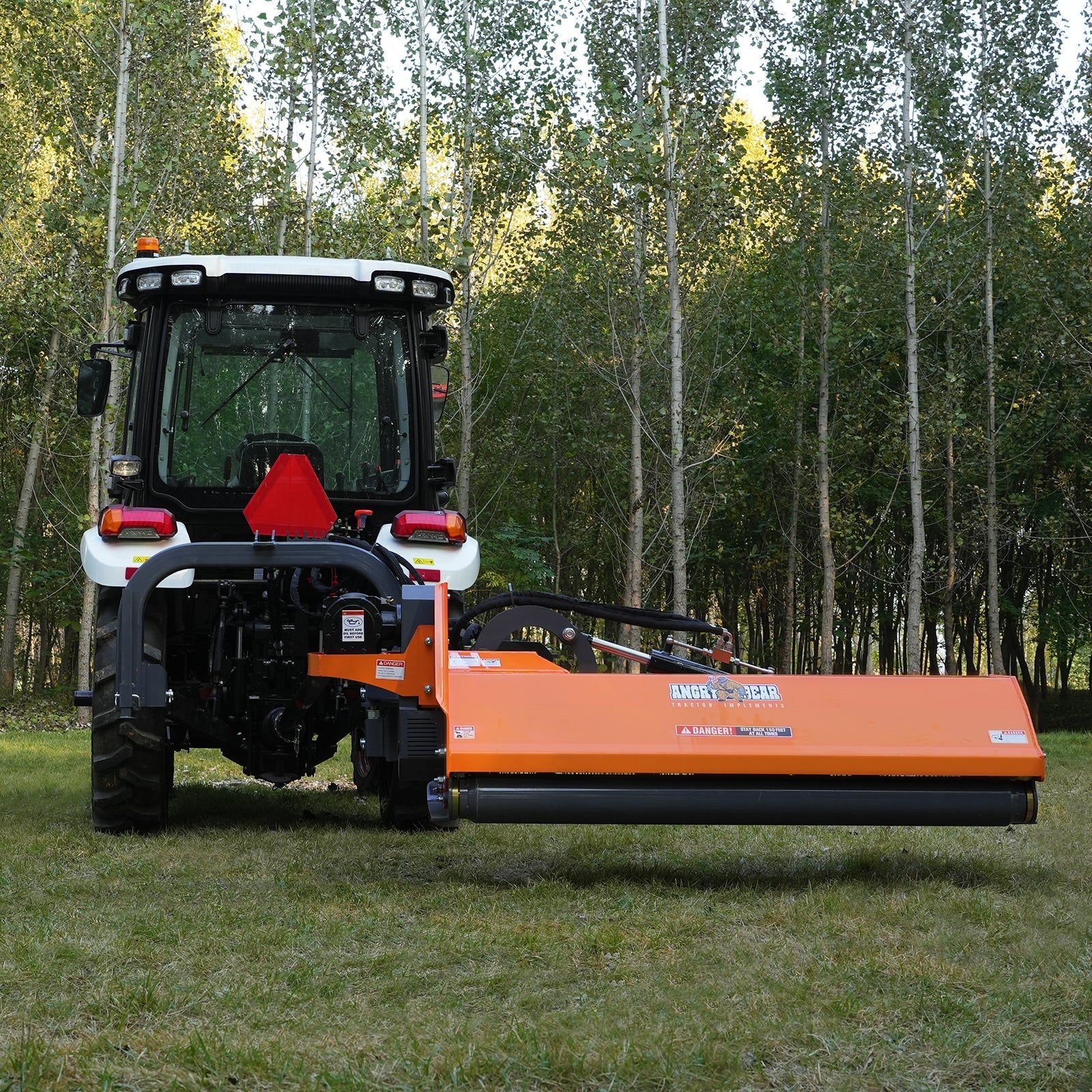

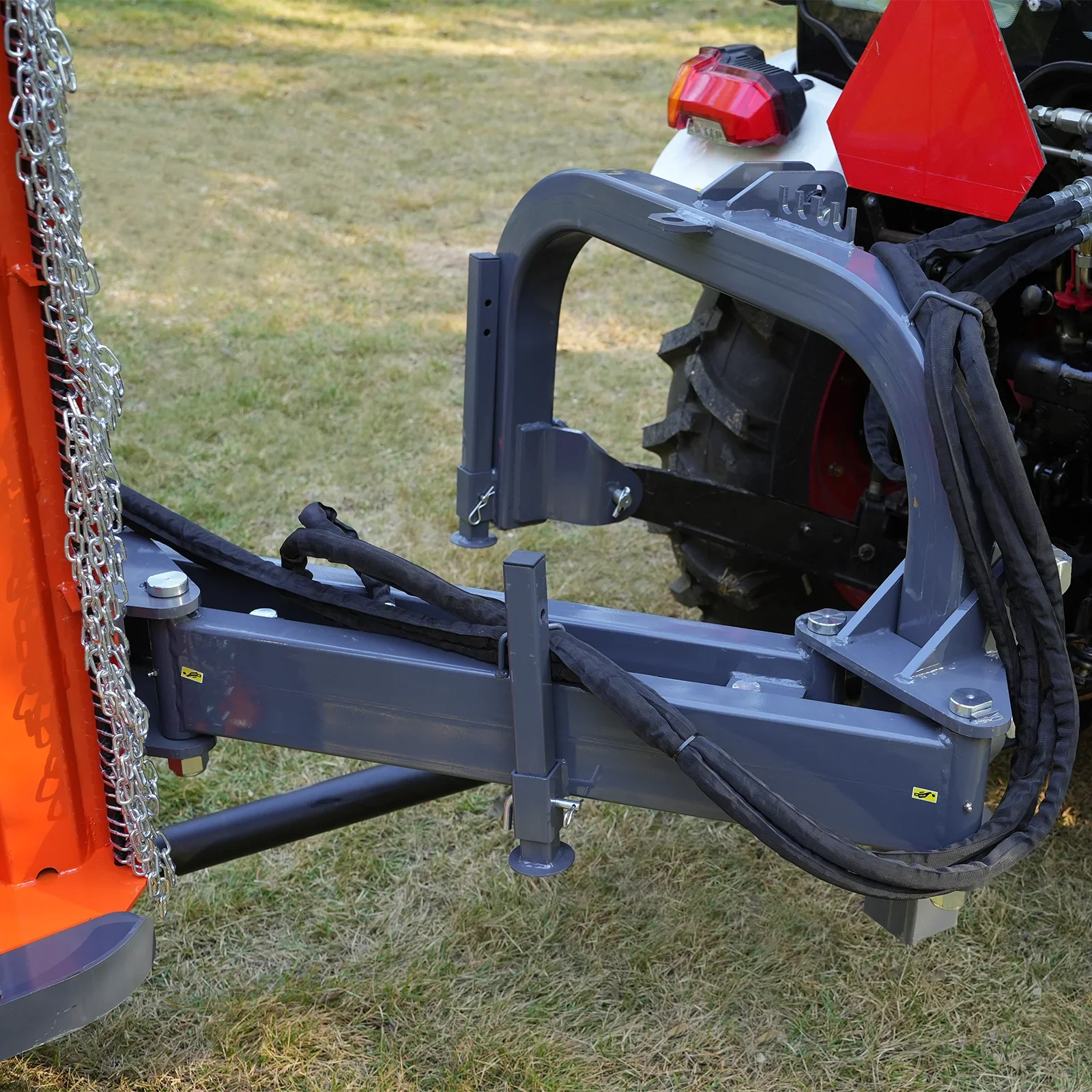

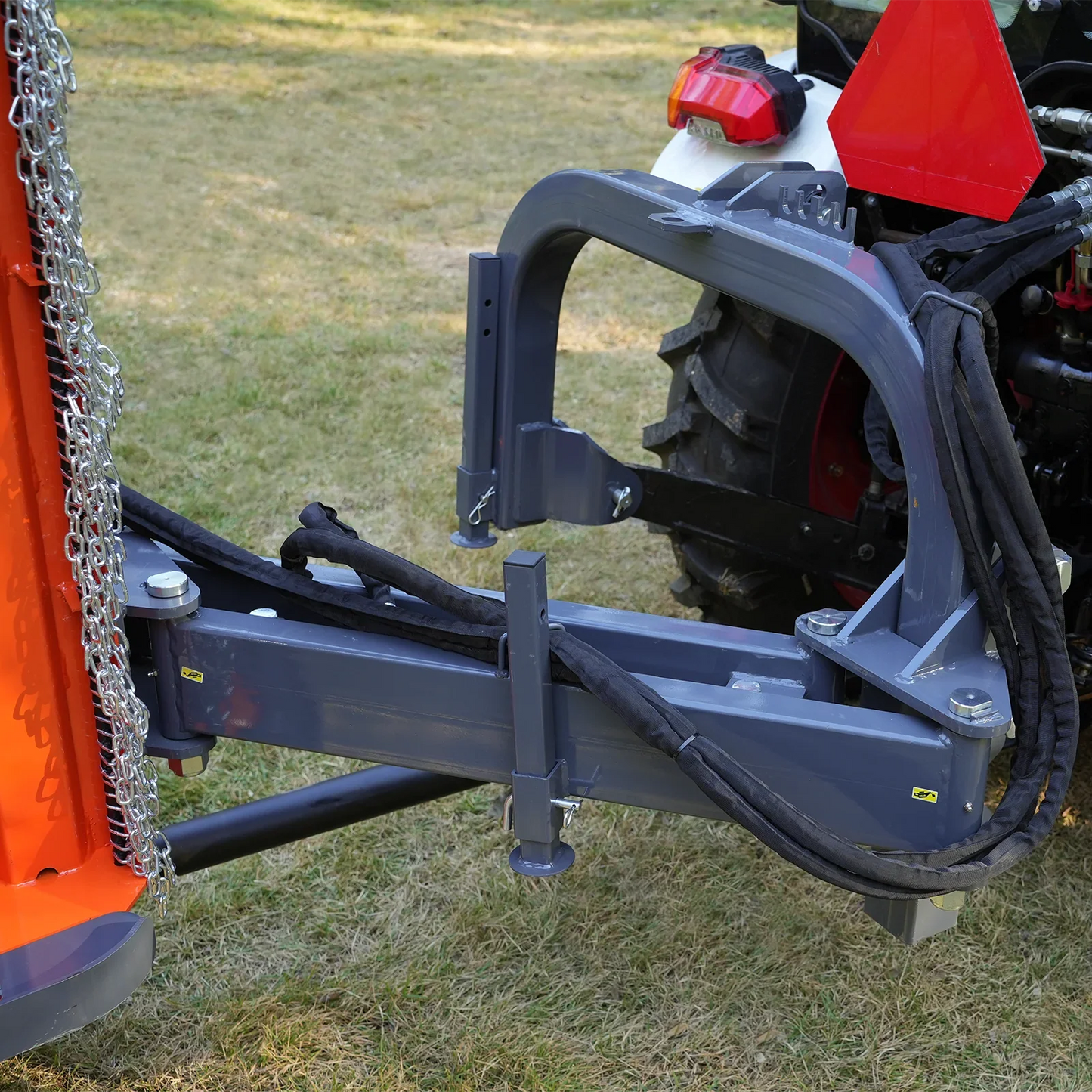

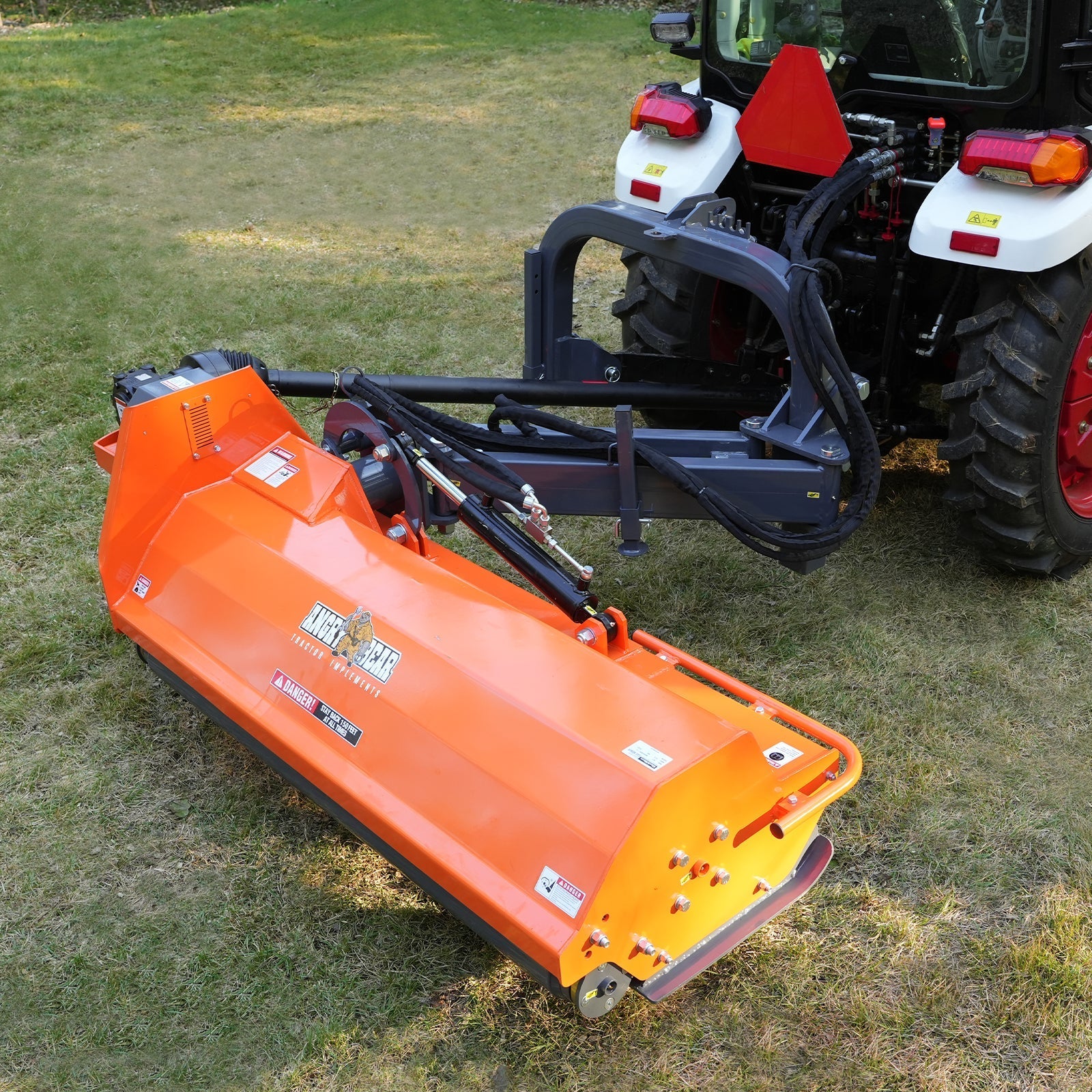

  • Side Movement: Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.
  • PTO shaft(1- 3/8’’ Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-73  With Shear Bolt ; 73in-126in
  • SKF Shaft Bearing: We use Swedish brand SKF shaft bearings. The high-quality bearings of this type are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.
  • Anti-collision Bar: Anti-shock With Spring can act as a buffer to protect the machine from damage when it collides with hard objects.

Engine Power Required: 70-110 Hp

Belt Adjustment: Bolt Tightening

Working Width: 72 in

Working Efficiency450 cu.ft./Hr.: 450 cu.ft./Hr.

Overall Width: 86 in

PTO Shaft Speed: 540 rpm

Blade Ground Clearance: 0.5 in-2.6 in

Deck Thickness: 2 in

Max. Cutting Diameter: Depends On The Type Of Grass

Side Plate Thickness: 0.25 in

Offset Distance from The Center (Maximum): 111 in

Driveline Shaft Length: T6-LF-73 With Shear Bolt ; 73in-126in

Tilt-Up Angle: 90°

Spline End: 1.375in Z6

Tilt-Down Angle: 55°

3-Point Hitch: CAT 2

Number Of Blades: 16

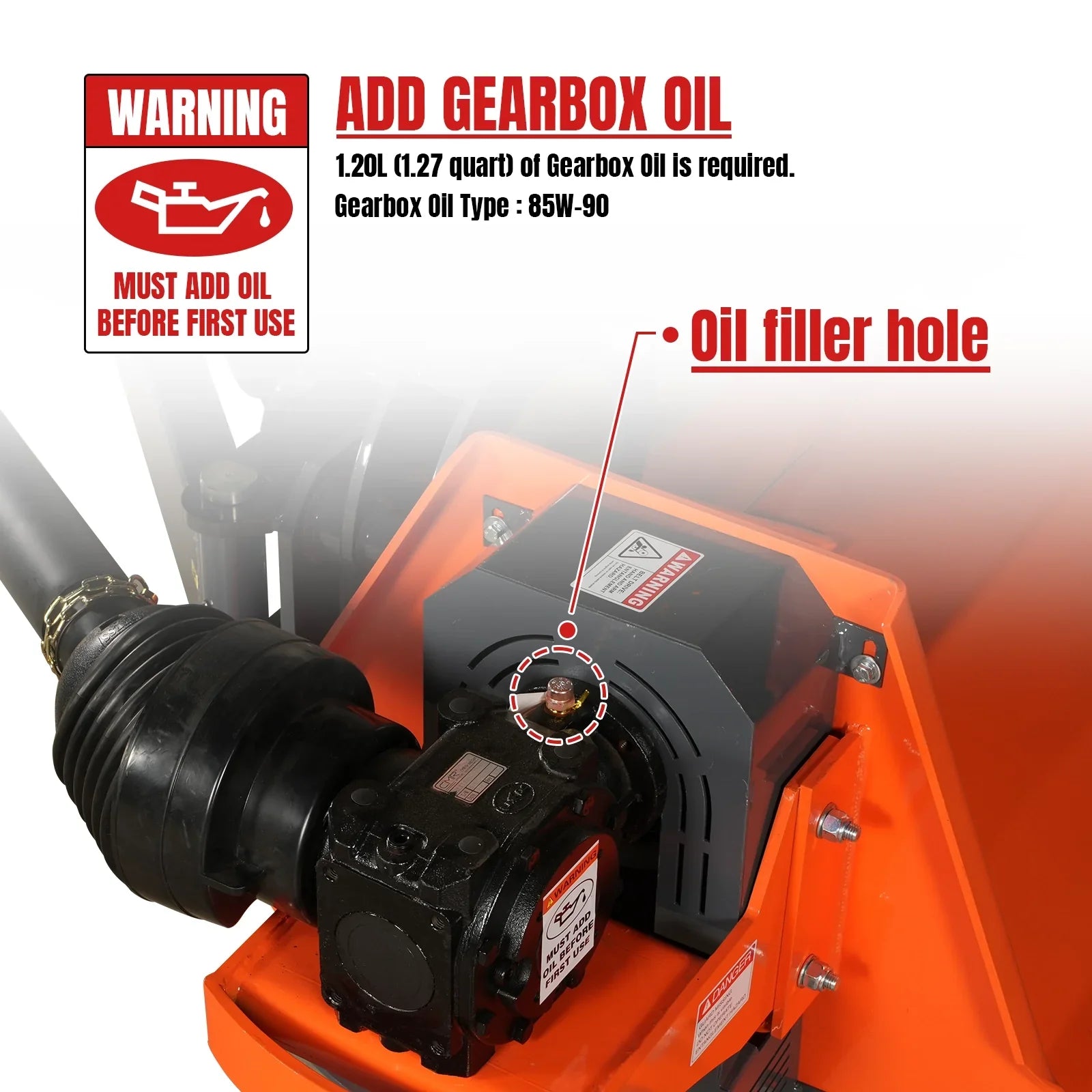

Gearbox 0il Type: 85W-90

Number of Belts: 4

Finish: Powder Coating

Blade Type: Hammer

Blade Weight: 2.6 lbs

Shipping Box: 89 X 39 X 31in

Blade Material: Cast Steel

Weight (N.W./G.W.): 1429 /1587 lbs

This item comes with a 1 year factory warranty.
PDF AGF 72 Mower Product manual 1.0
