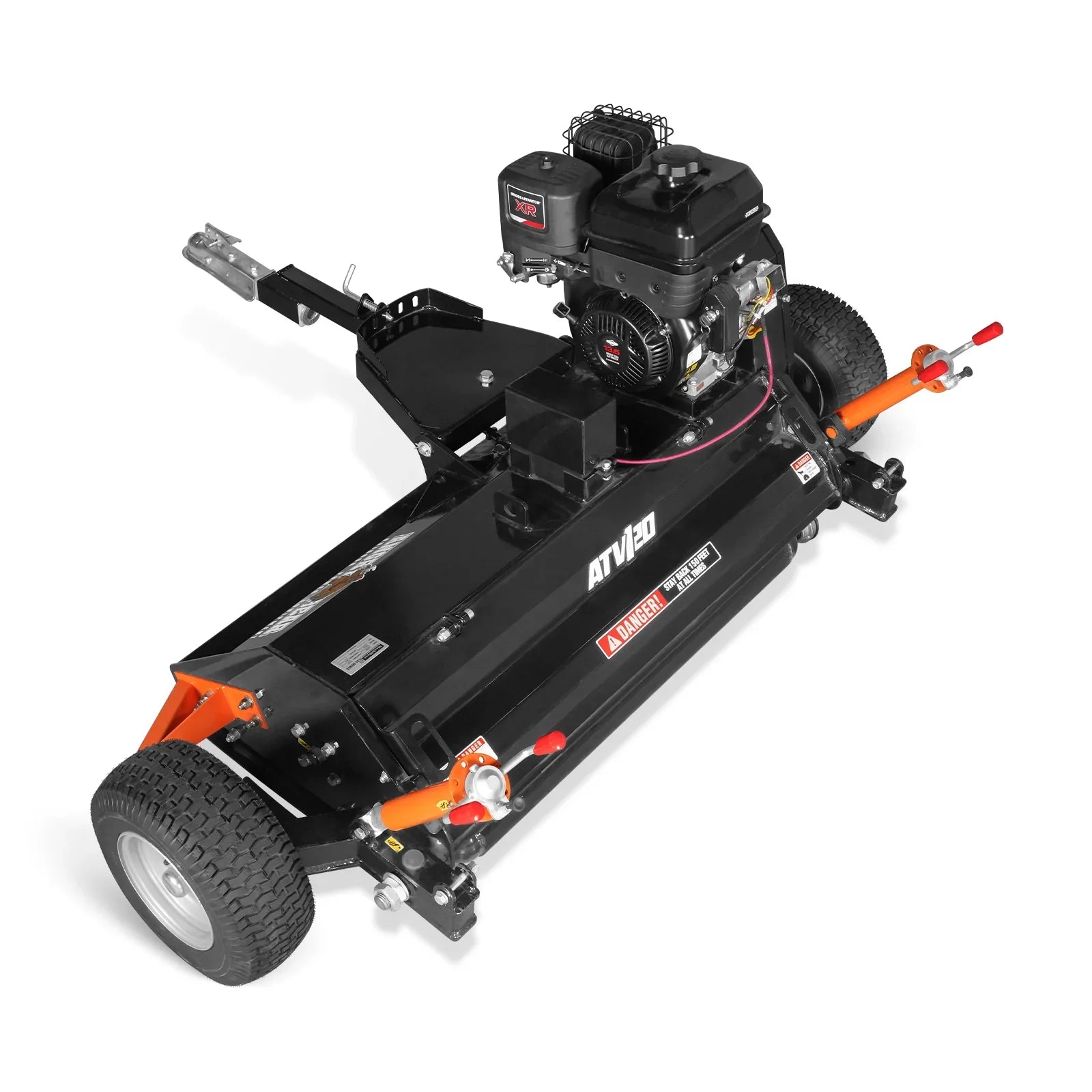

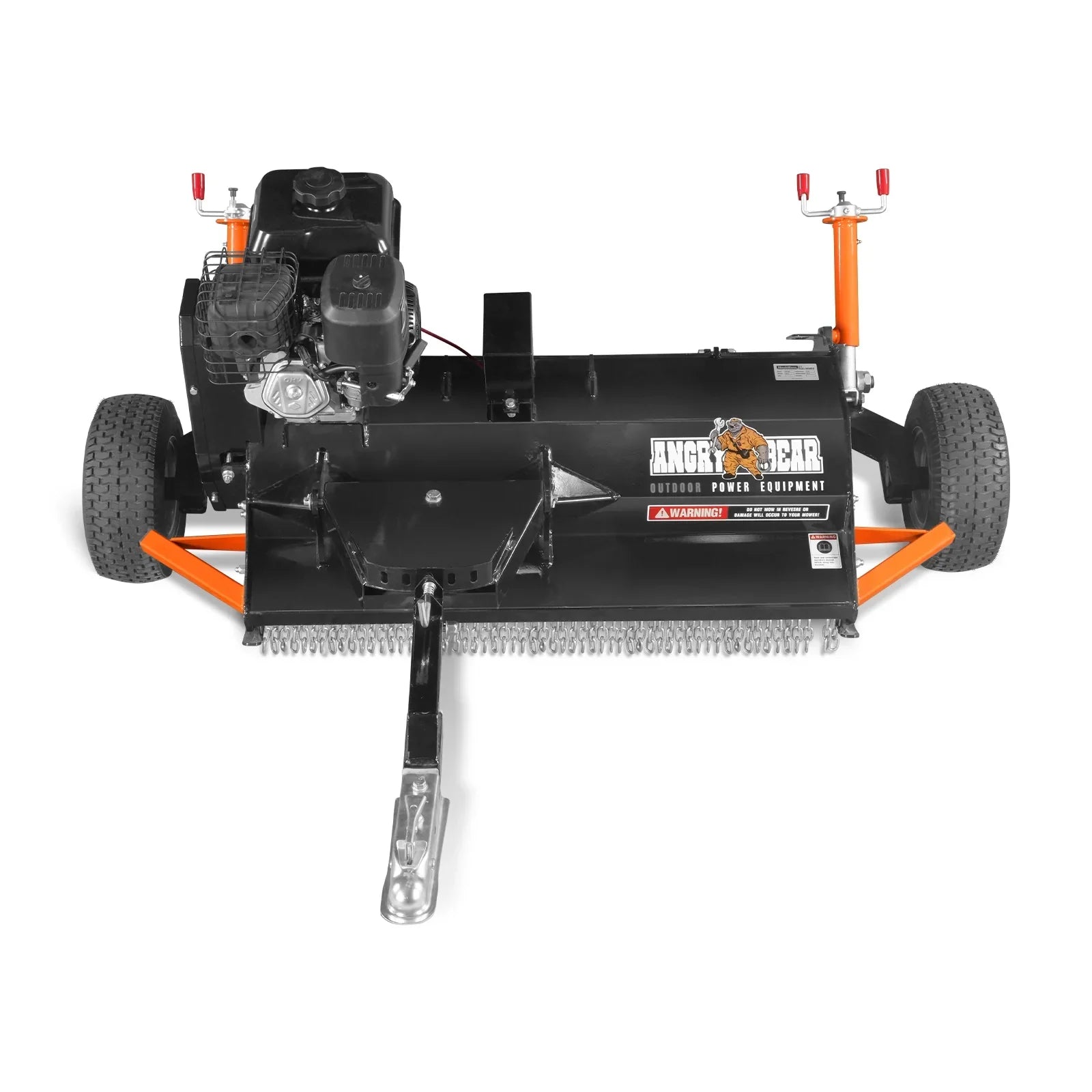

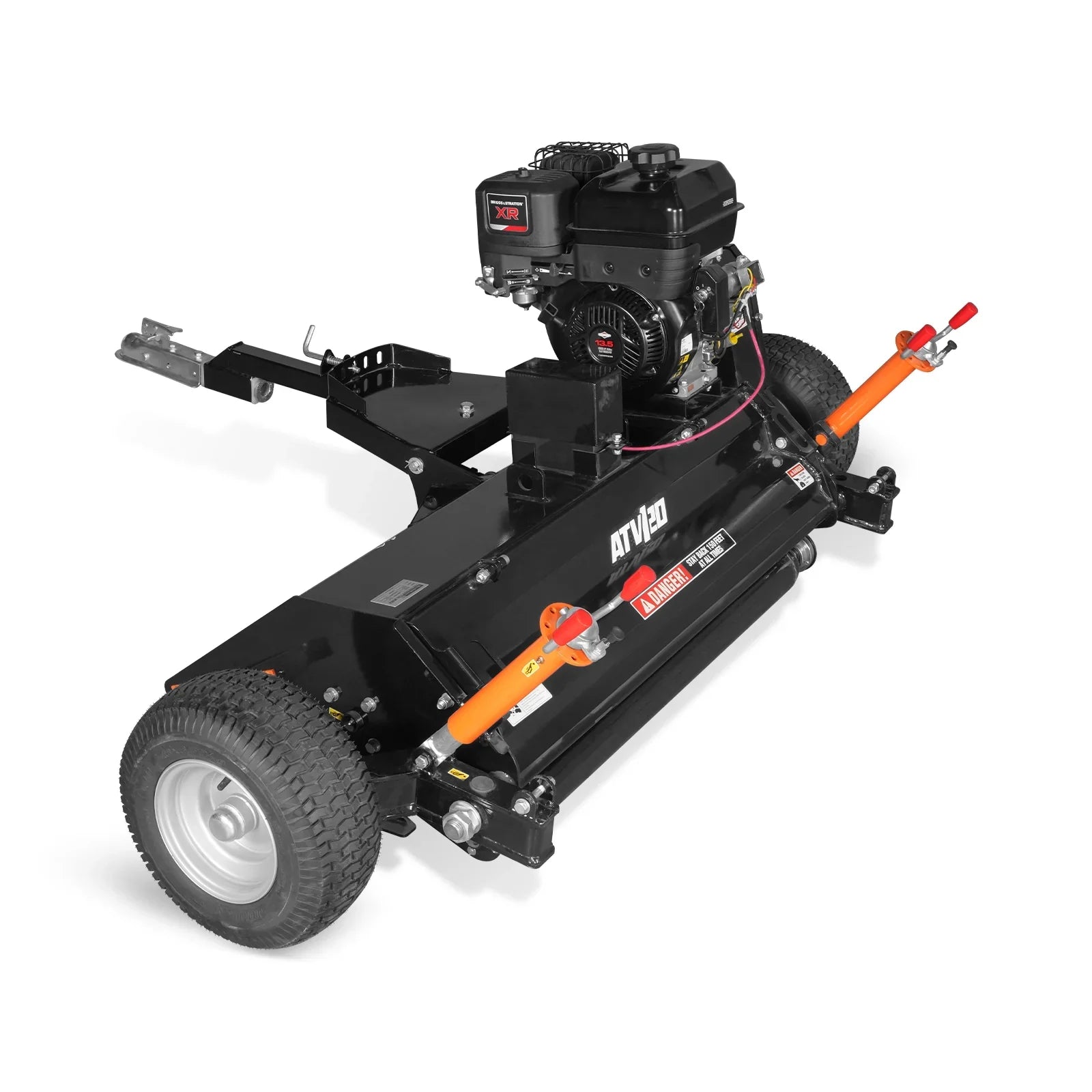

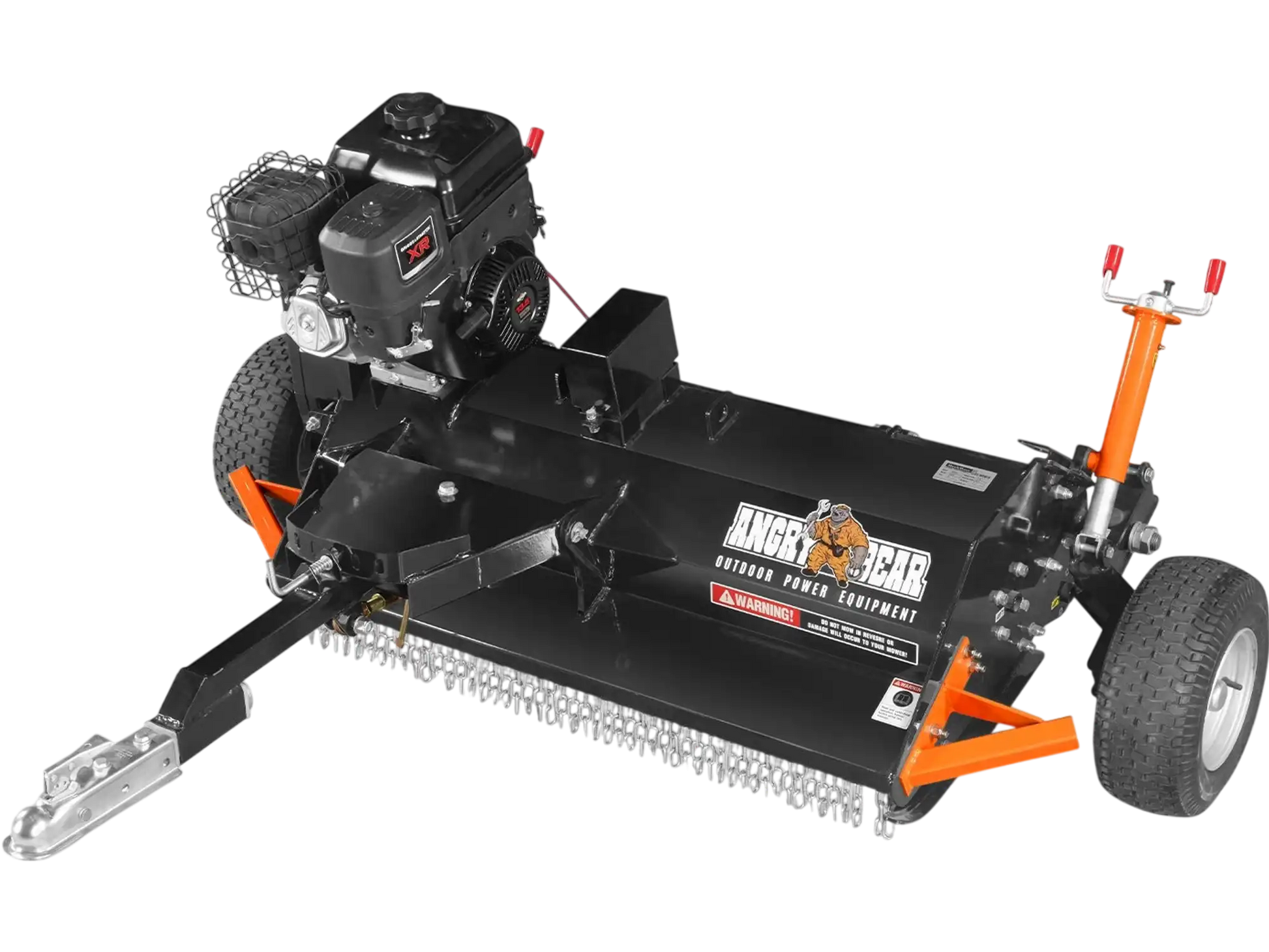

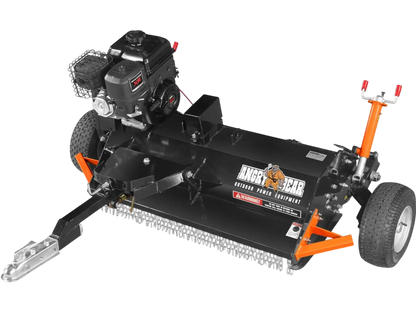

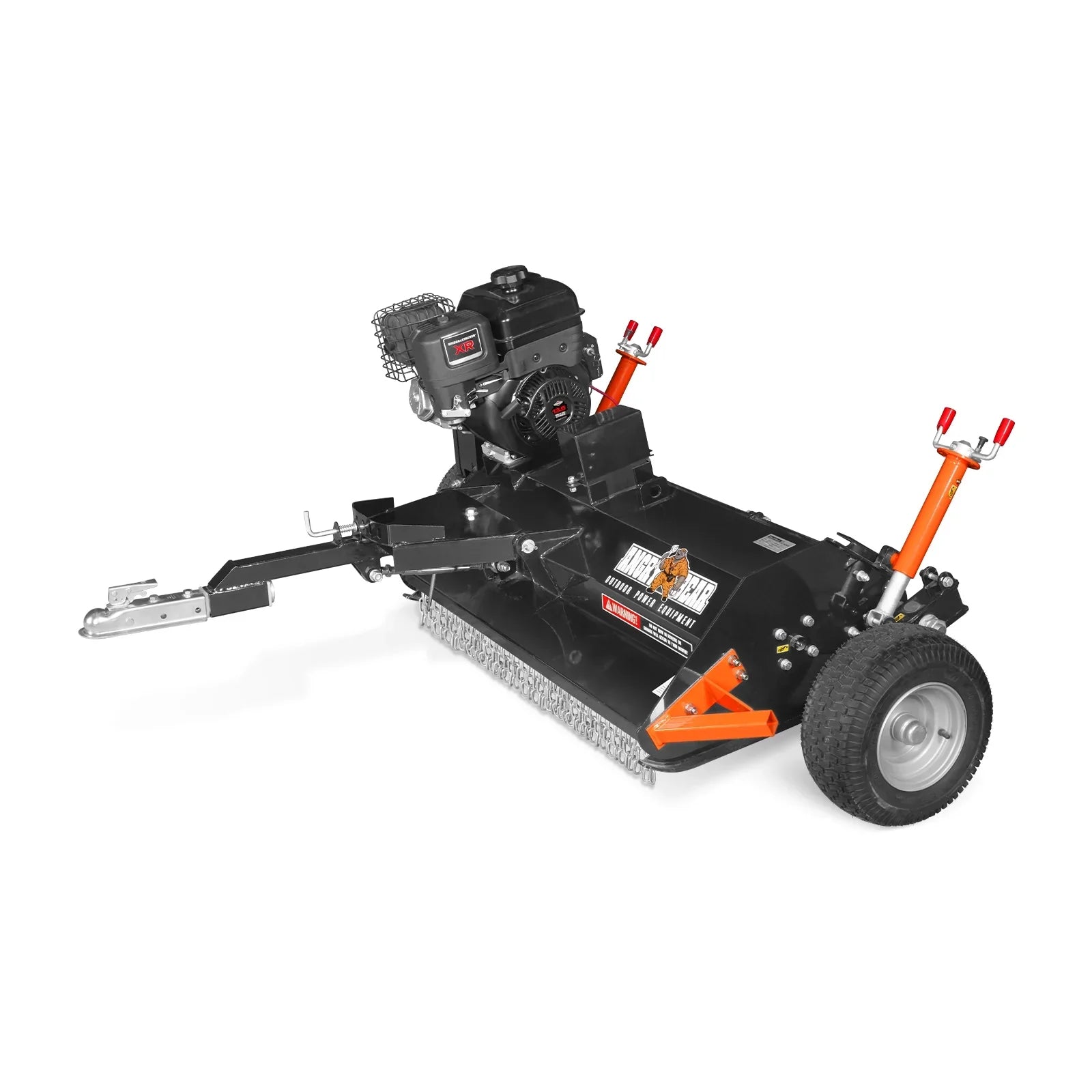

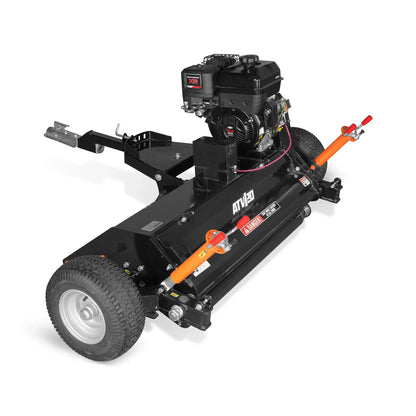

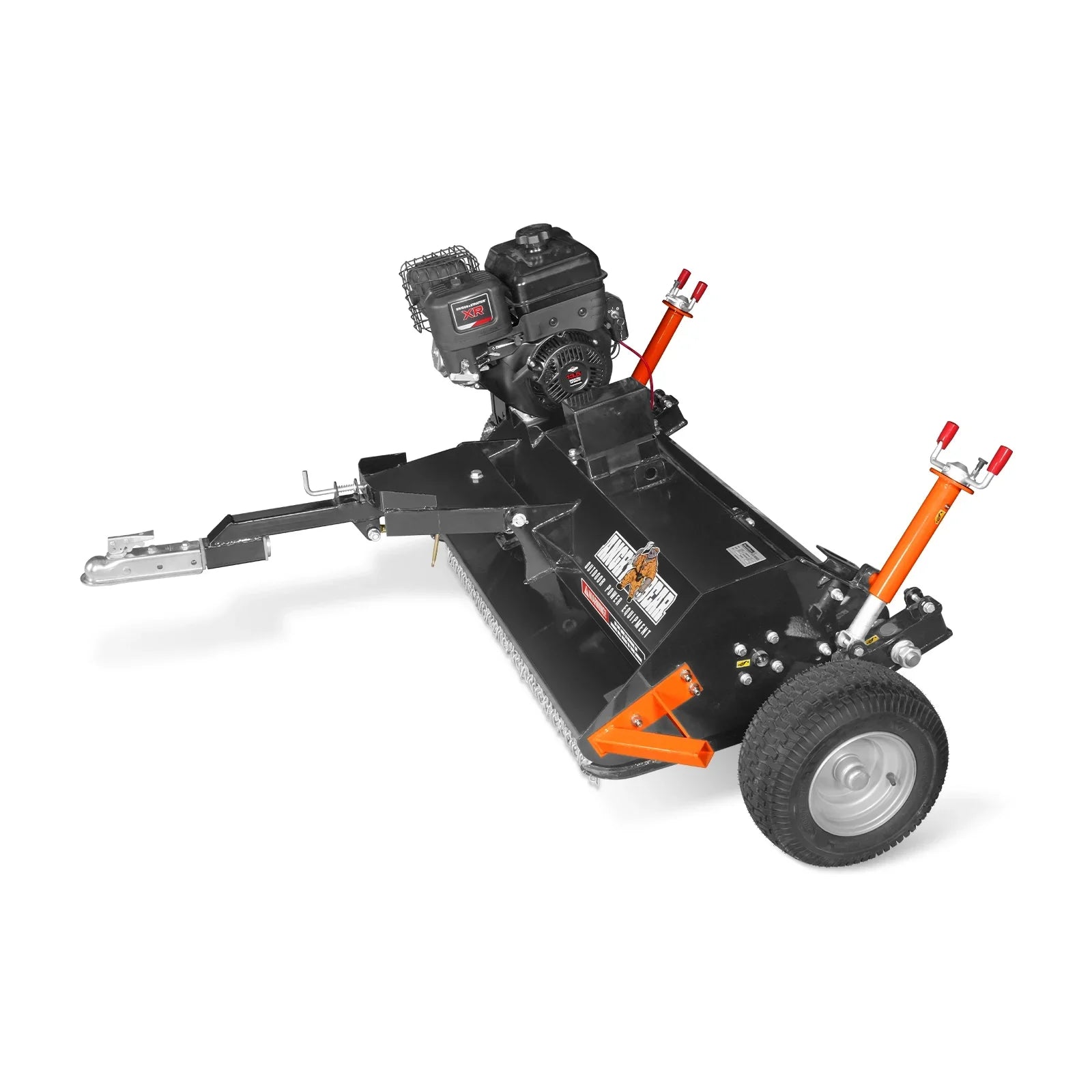

MechMaxx ATV120 Flail Mower 48" Tow-Behind ATV Offset B&S 13.5HP Gas Engine Adjustable Mowing Height New

MechMaxx

$3,199.00
$3,199.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • It has Briggs & Stratton XR2100 gasoline engine which matches any ATV equipped with a 2-inch ball receiver.
  • The handle can adjust the cutting height.
  • 48" working width with 5-point offset for fast and precise mowing of large areas around buildings.
  • Compatible with 2-inch ball receivers that easily attach to your ATV or UTV for use on your home, farm or commercial property.
  • Powered by the reliable Briggs & Stratton electric start engine that are durable and high performing.
  • Backed by two 16-inch all-terrain rubber tires, it can tackle tough work wherever you are, and it has an included stand for better storage.
  • It produces a consistent, well-sized mulch that is evenly distributed on the backside (through the rear drain) and requires no additional cleanup.
  • This product is not suitable for clearing overgrown land; it can handle grass up to a maximum height of 4 inches.

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

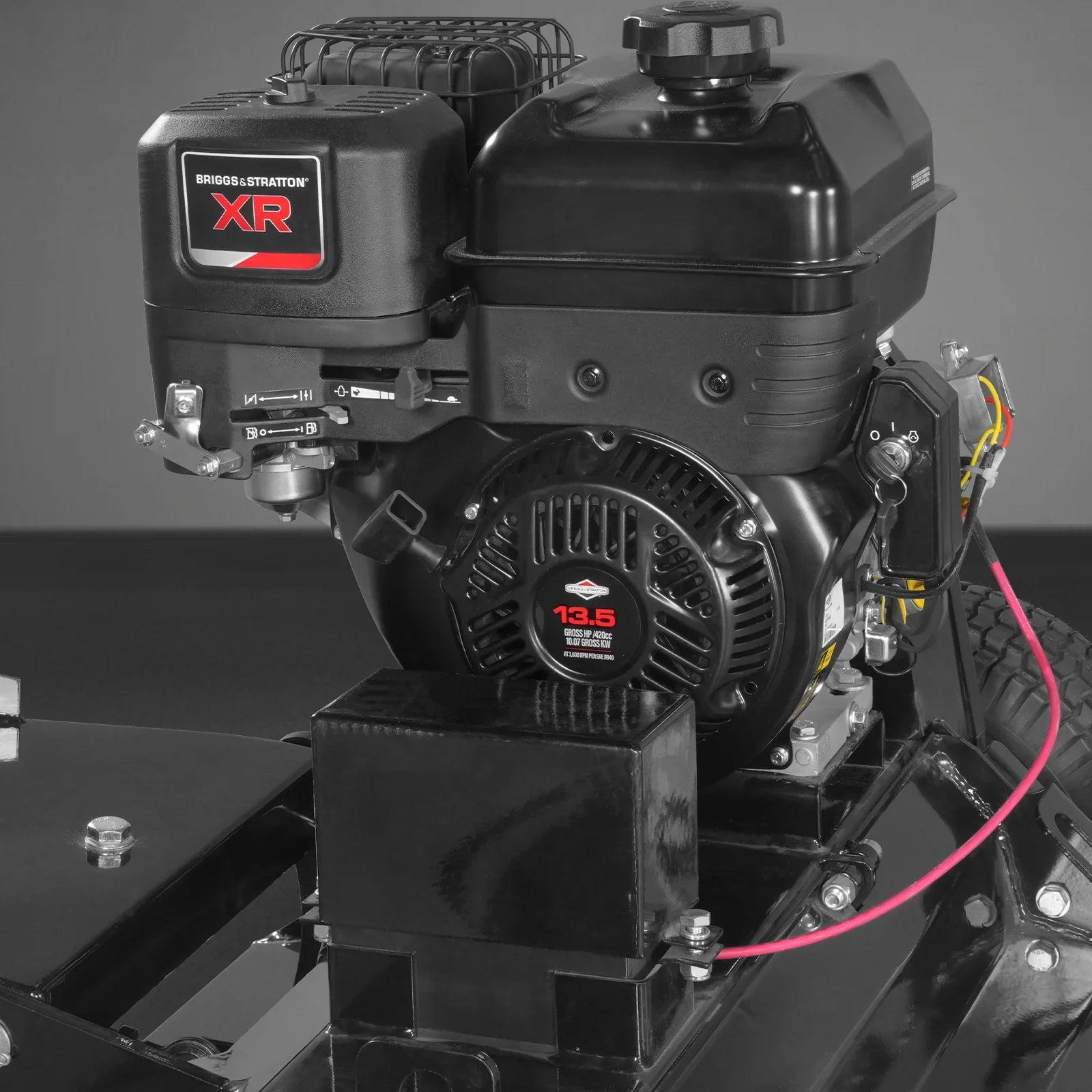

  • Engine: This ATV mower is equipped with a 13.5HP 420cc B&S XR2100 engine, which has excellent performance, reliable quality, and can be used for a long time.

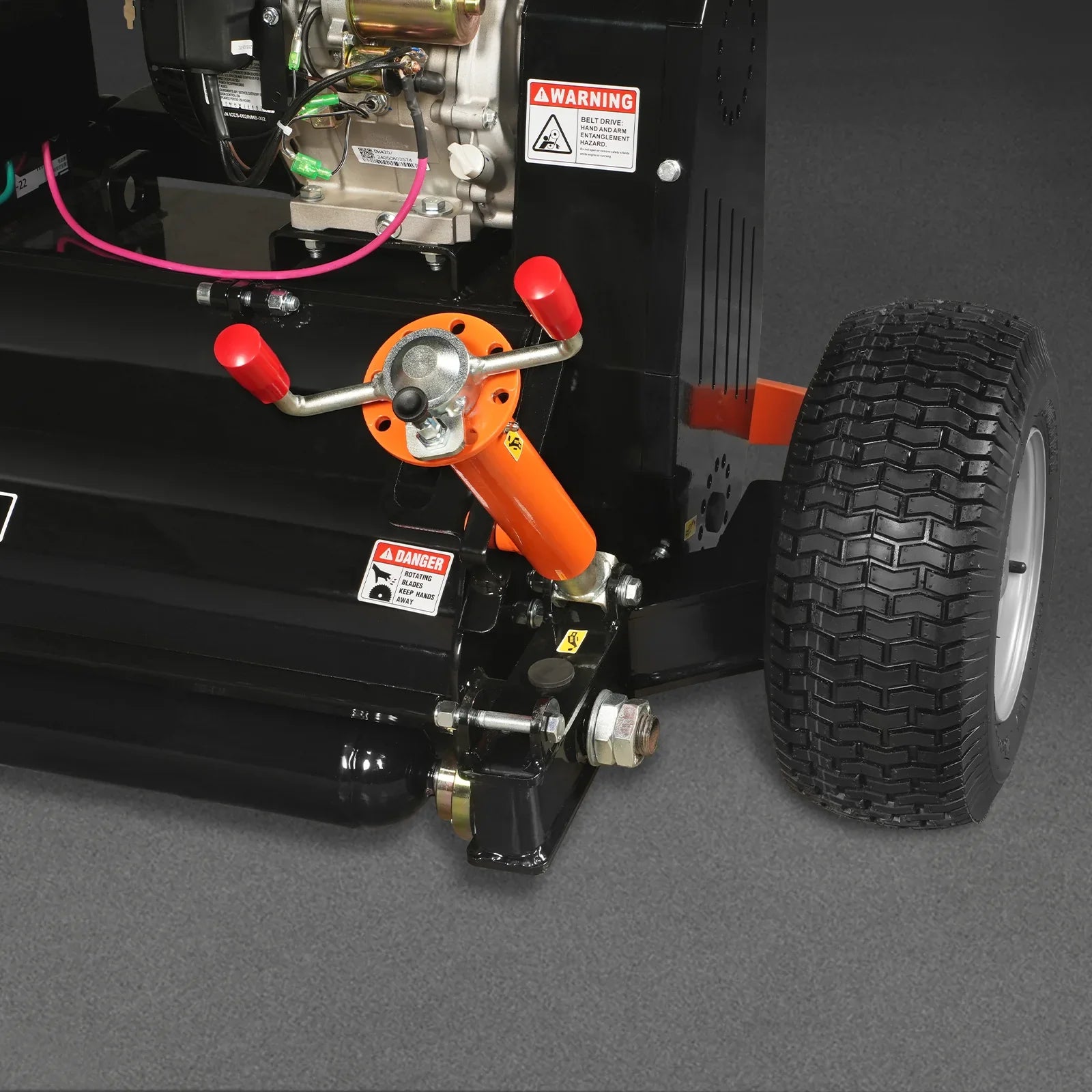

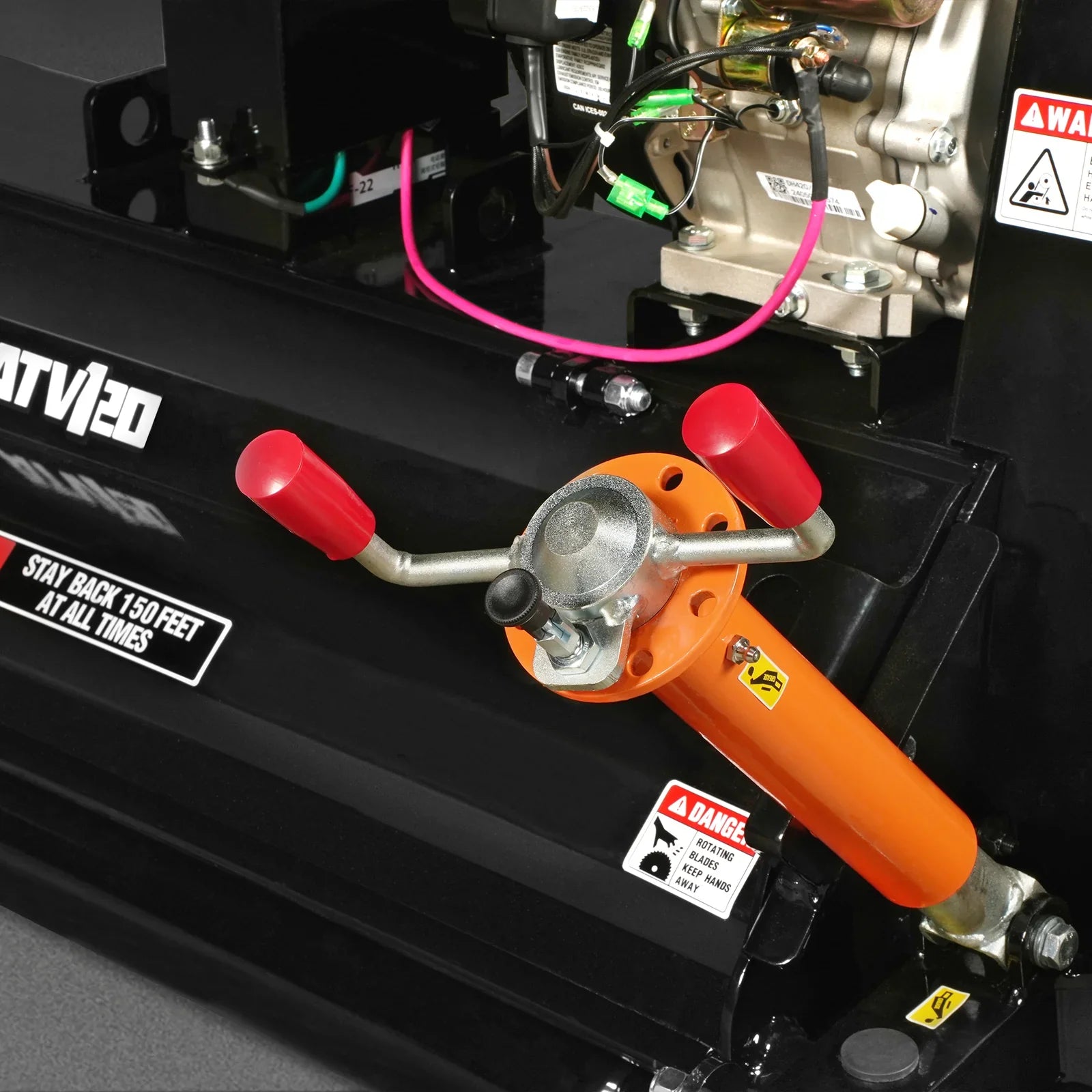

  • Adjustable Cutting Height: The handle can adjust the cutting height to meet the various needs of users.
  • 5-Point Offset Capabilities: 48'' working width with 5-point offset for fast and precise mowing of large areas around buildings.

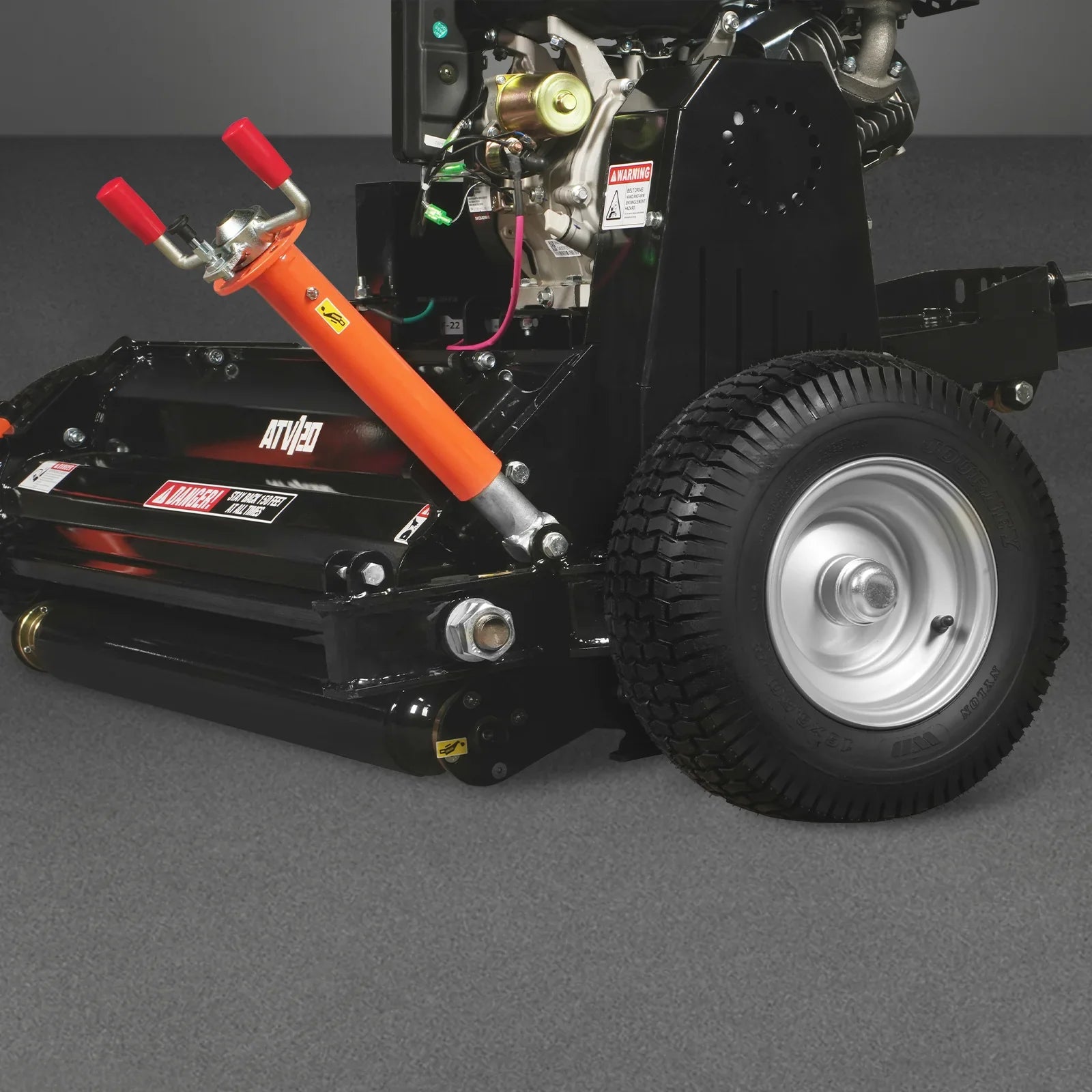

  • 16-Inch All-Terrain Rubber Tires: Backed by two 16-inch all-terrain rubber tires, it can tackle tough work wherever you are, and it has an included stand for better storage.
  • Adjustable Height Roller Bar: Adjustable Height Roller Bar adjusts to raise or lower the cutting height to your desired need.
  • Tow Bar: A 2-inch coupler is mounted on the tow bar, compatible with a 2 inch trailer ball. When outdoor work is needed, you can use the ATV or pickup truck to tow the mower to work area.

Engine: Briggs & Stratton XR2100 420cc/13.5hp Electric Start Gasoline Engine

Working Width: 48 in

Overall Width: 77 in

Cutting Height: 0.4-2.5 in

Number of Blades: 28

Blade Type: Hammers

Size of Blades: 4x2.6 in

Blade Weight: 0.8 lbs

Blade Material: Cast Steel

Rotor Bearing: SKF Bearing

Rotor Rotation: Reverse

Drive Type: Belt Drive

Number of Belts: 3

Belt Size: 0.7x40 in(17X1016)

Tire Size: 16 in

Finish: Powder Coat Paint Galvanized Steel

Net Weight/Gross Weight: 609lbs/675lbs

This item comes with a 1 year factory warranty.
PDF ATV mower Product manual 1.0 PDF B&S XR2100 Manual
