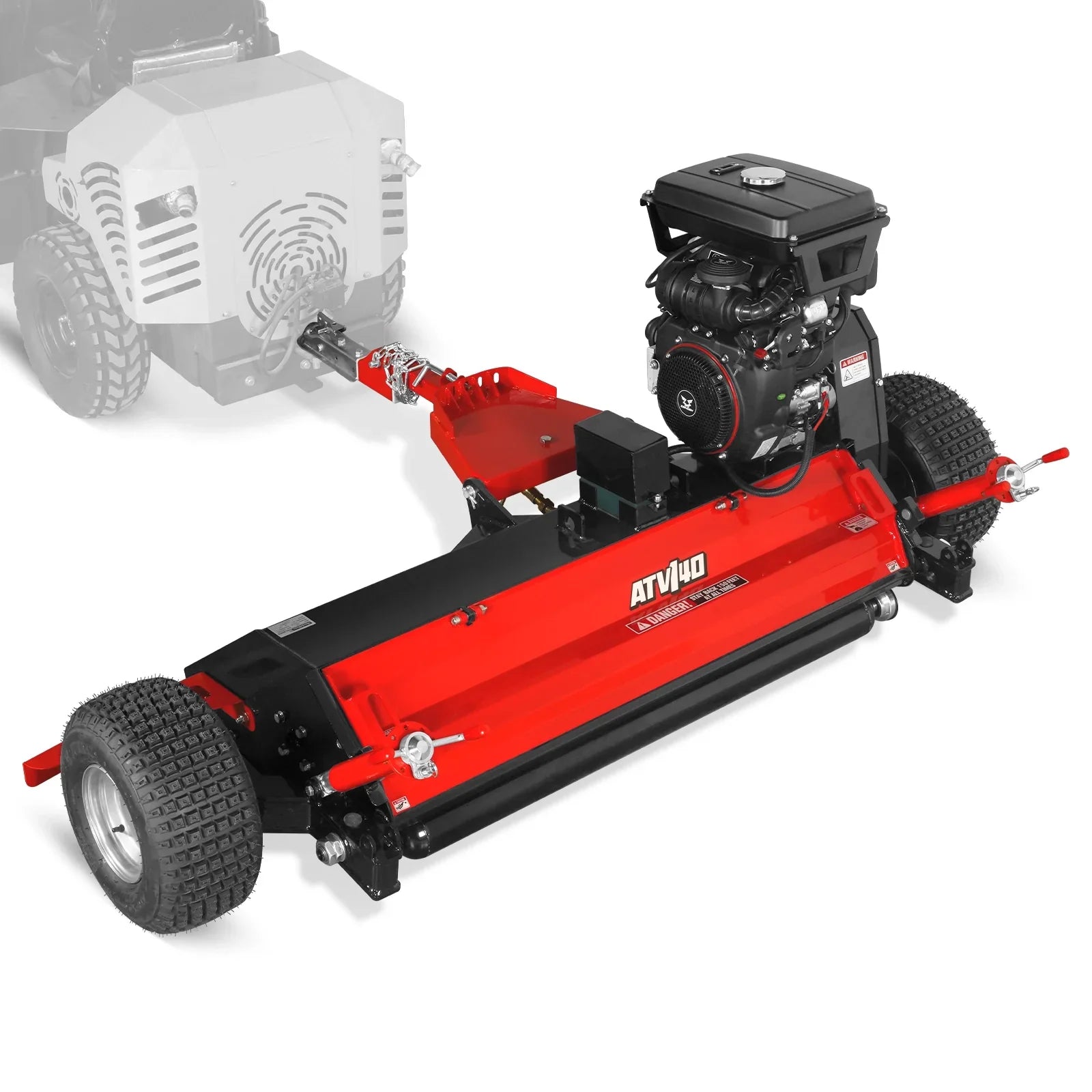

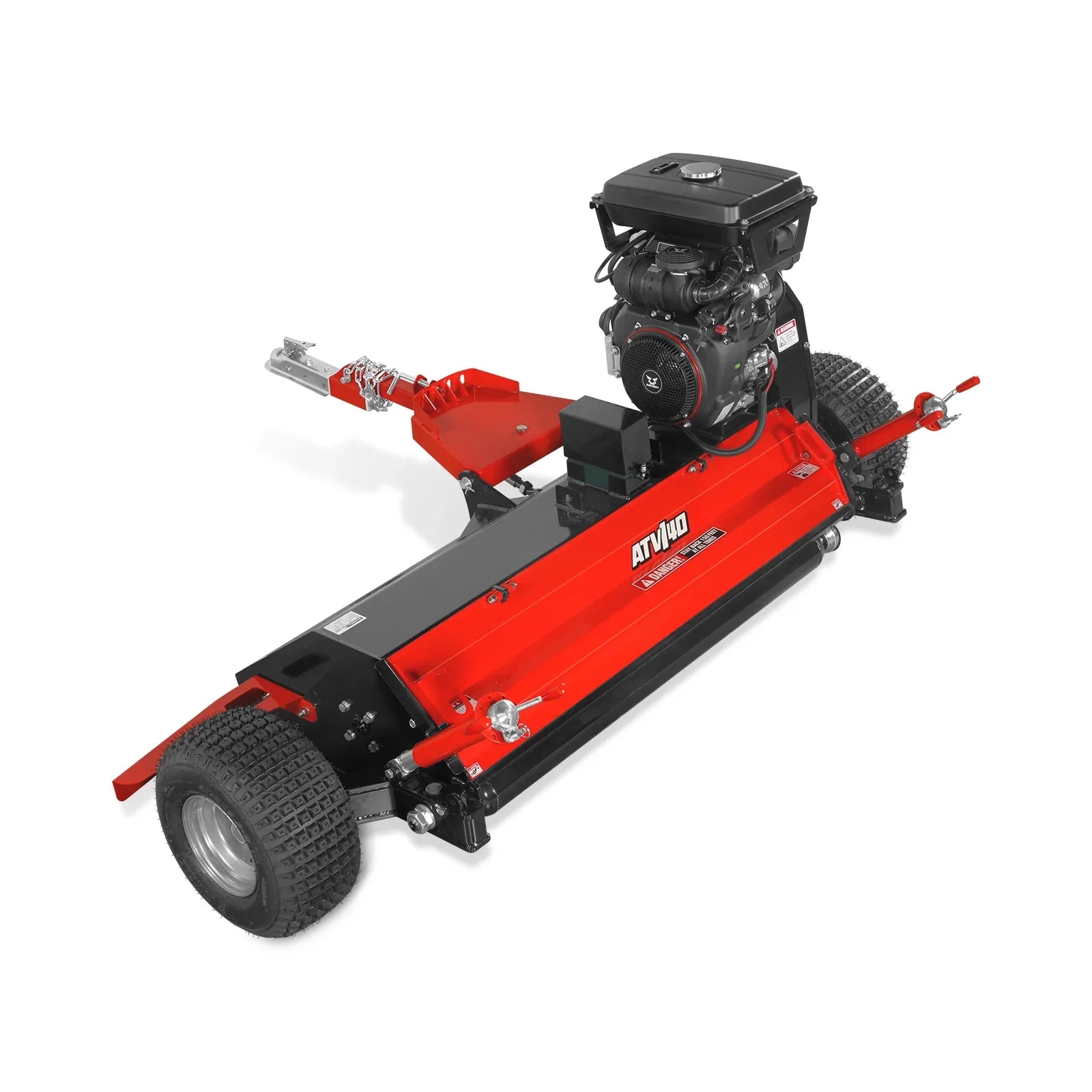

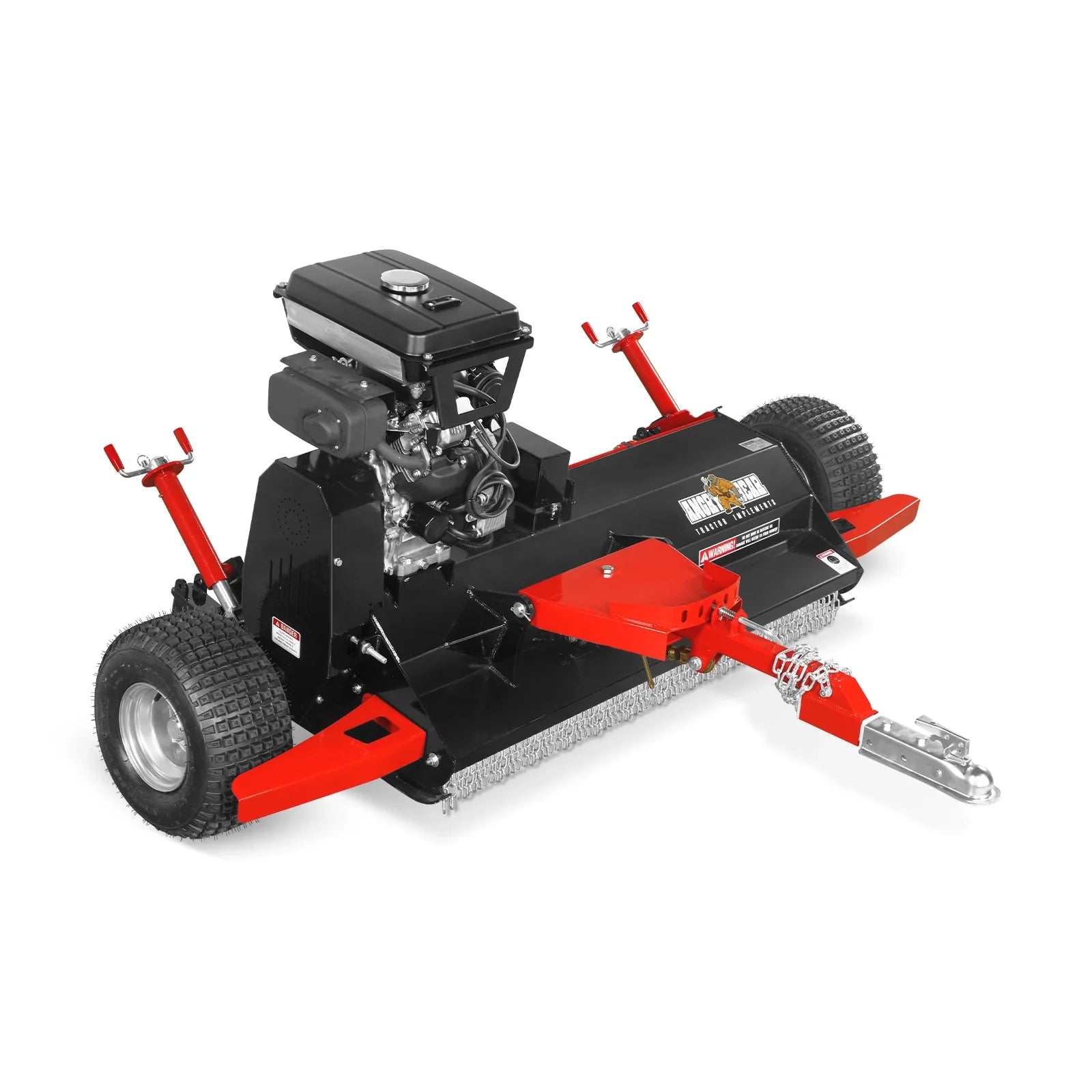

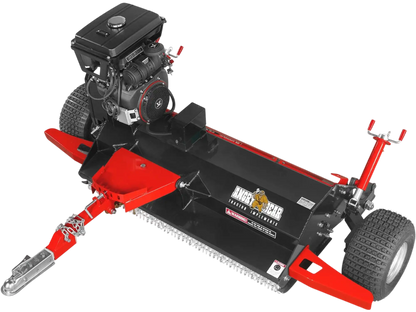

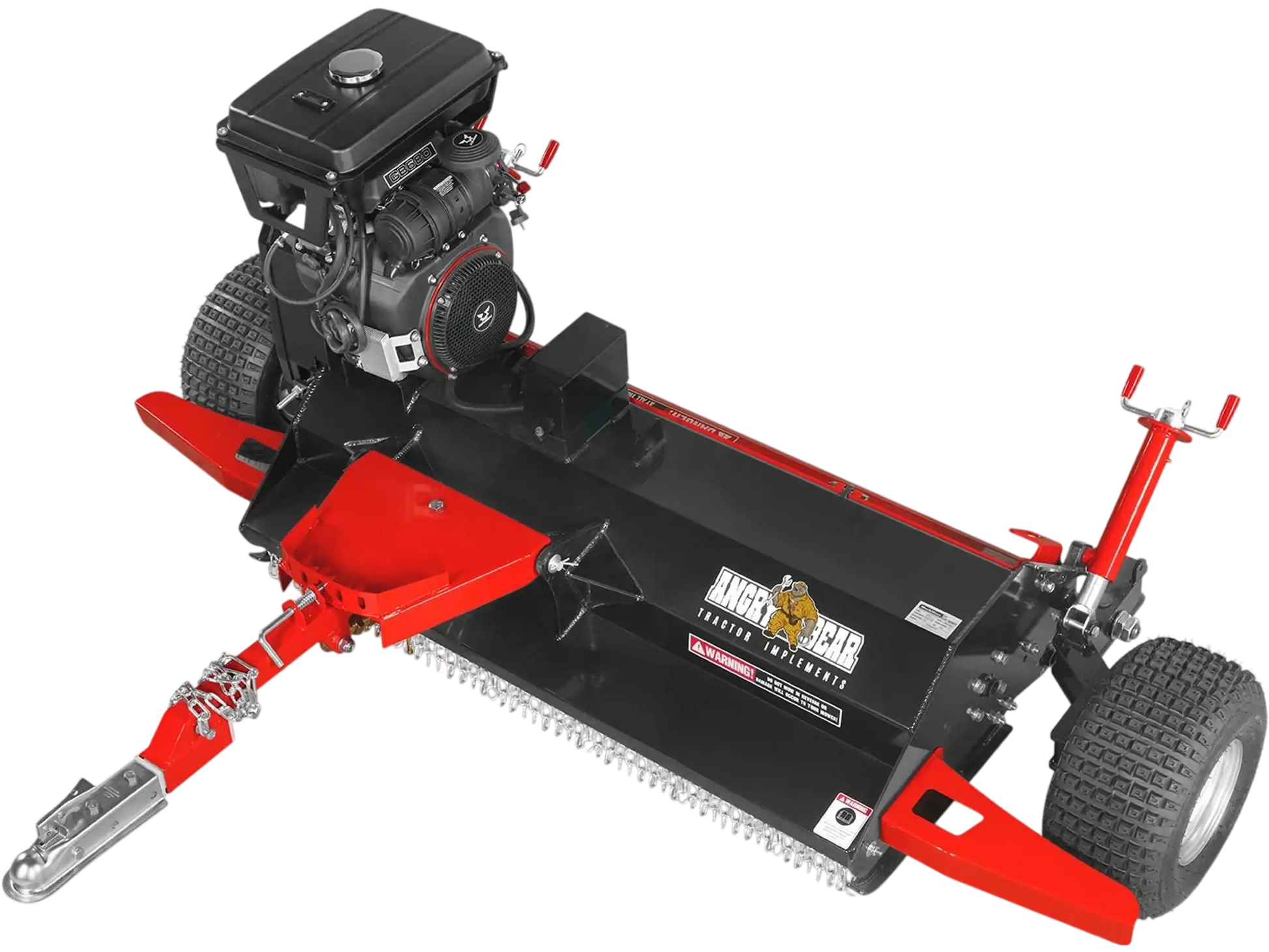

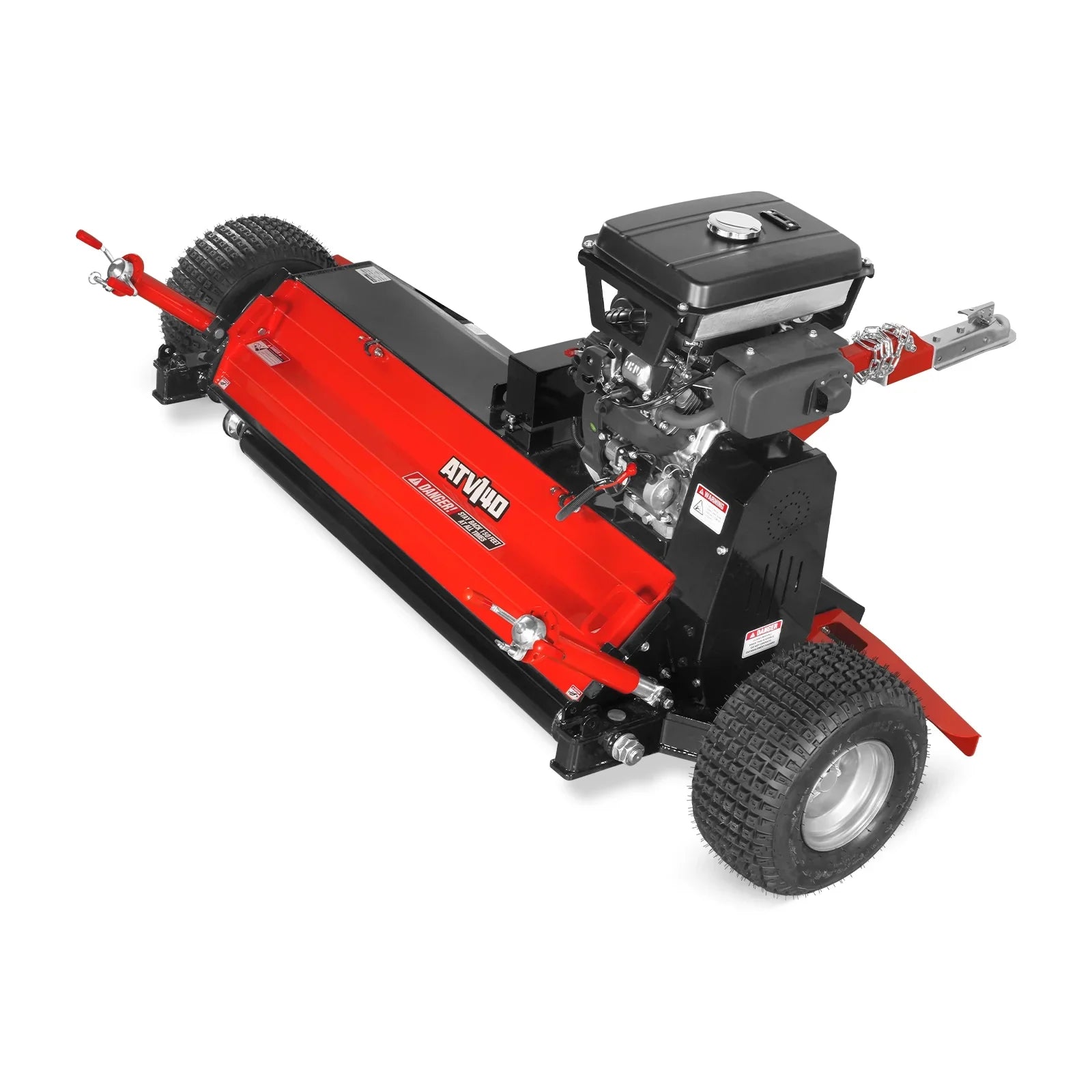

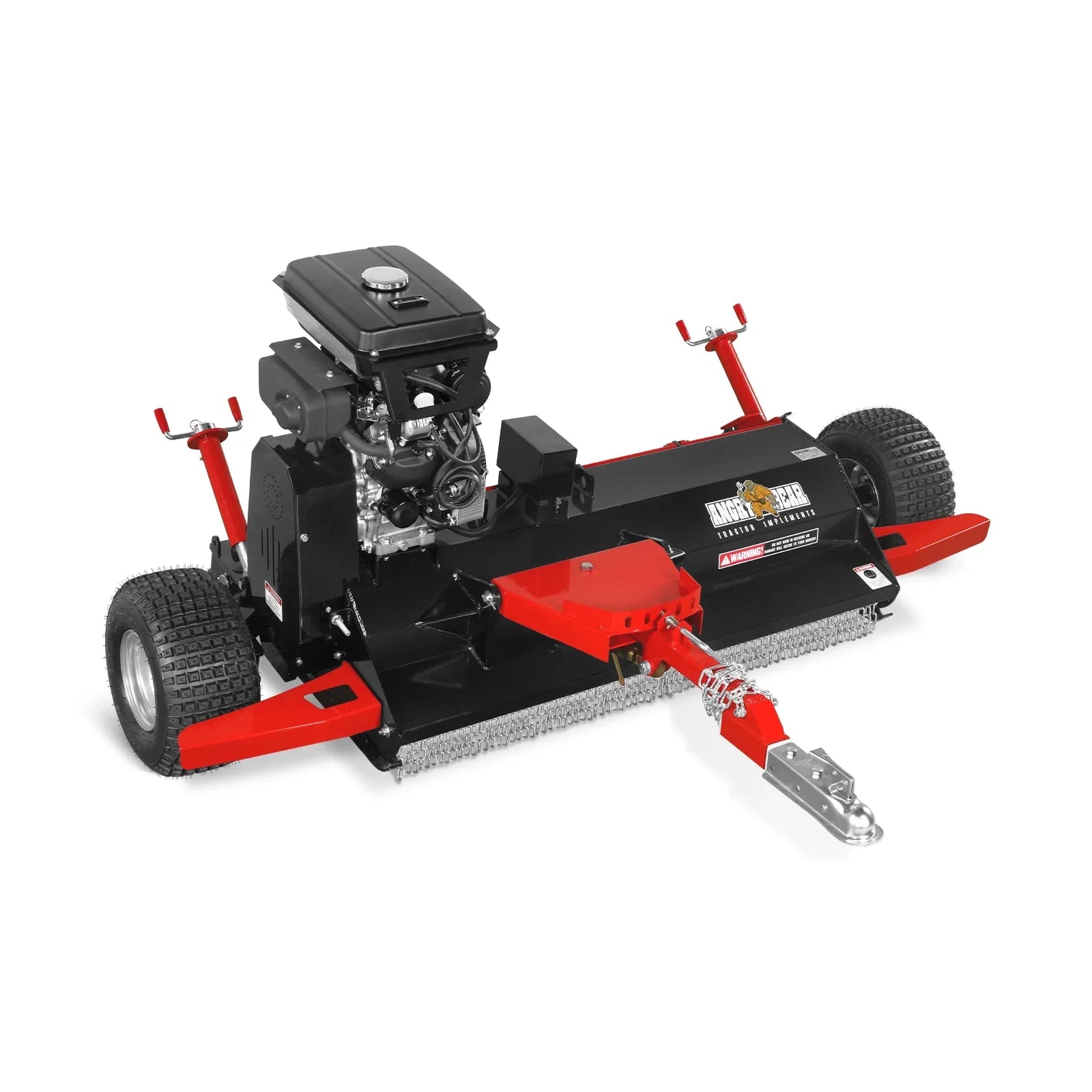

MechMaxx ATV140 Flail Mower 55" Tow-Behind ATV Offset 23HP 679cc Electric Start Gas Adjustable Mowing Height New

MechMaxx

$3,699.00
$3,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • It has ZONSEN GB680 679cc/23hp Dual Cylinder Electric Start Gasoline Engine which matches any ATV equipped with a 2-inch ball receiver.
  • The handle can adjust the cutting height.
  • 55" working width with 5-point offset for fast and precise mowing of large areas around buildings.
  • Compatible with 2-inch ball receivers that easily attach to your ATV or UTV for use on your home, farm or commercial property.
  • Powered by the reliable ZONSEN electric start engine that are durable and high performing.
  • Backed by two 18-inch all-terrain rubber tires, it can tackle tough work wherever you are, and it has an included stand for better storage.
  • It produces a consistent, well-sized mulch that is evenly distributed on the backside (through the rear drain) and requires no additional cleanup.
  • This product is not suitable for clearing overgrown land; it can handle grass up to a maximum height of 4 inches.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

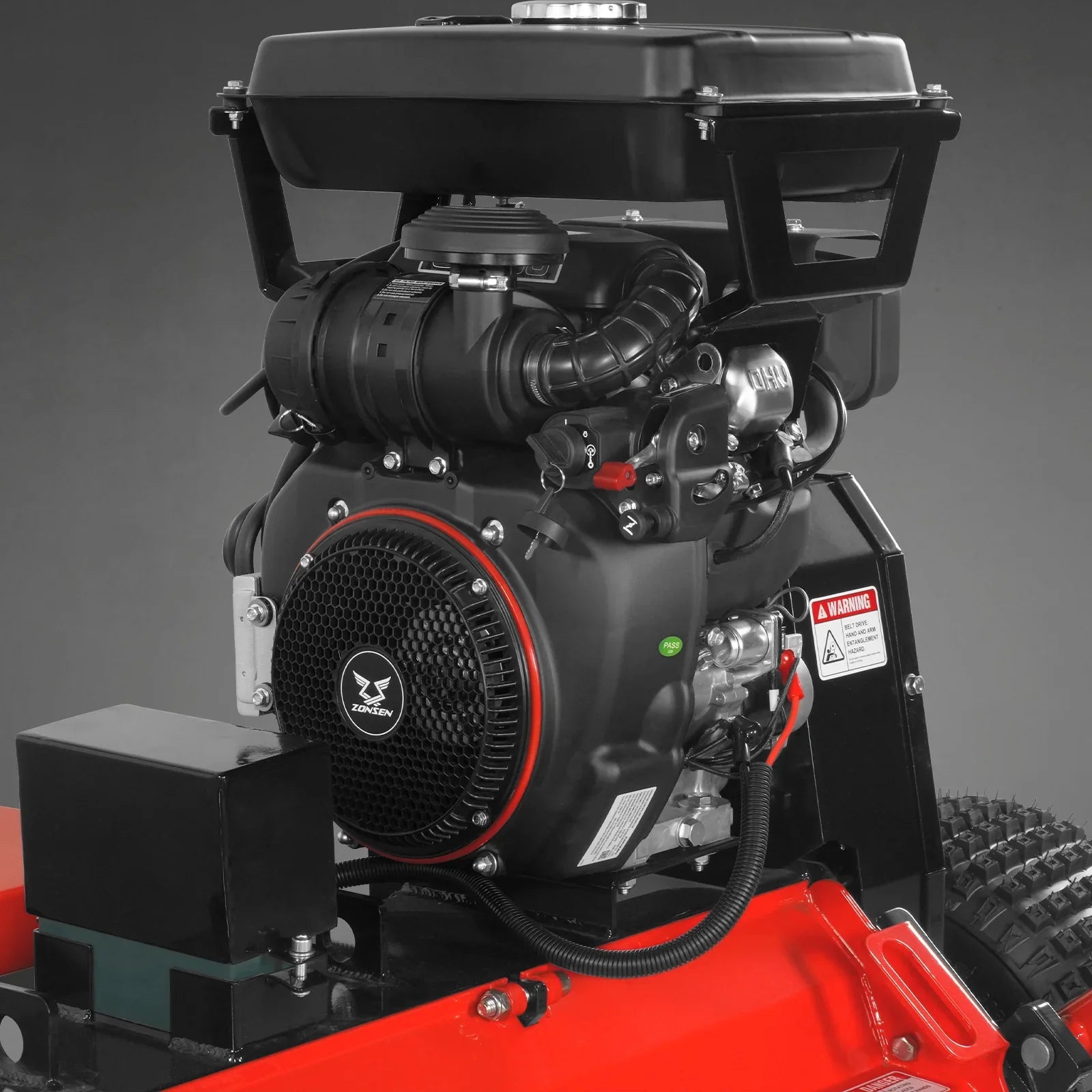

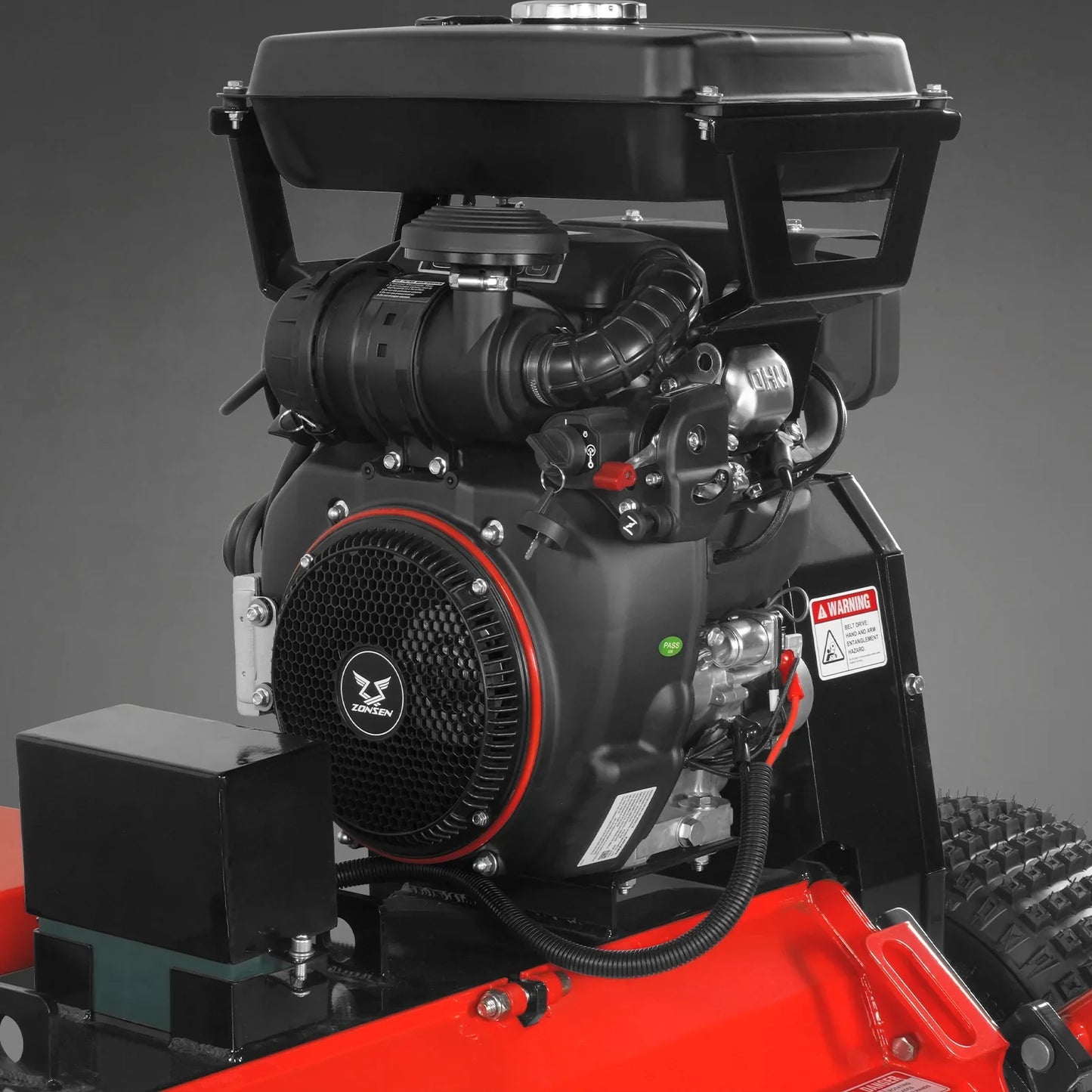

  • Engine: This ATV mower is equipped with a 679cc 23hp ZONSEN GB680 engine, which has excellent performance, reliable quality, and can be used for a long time.

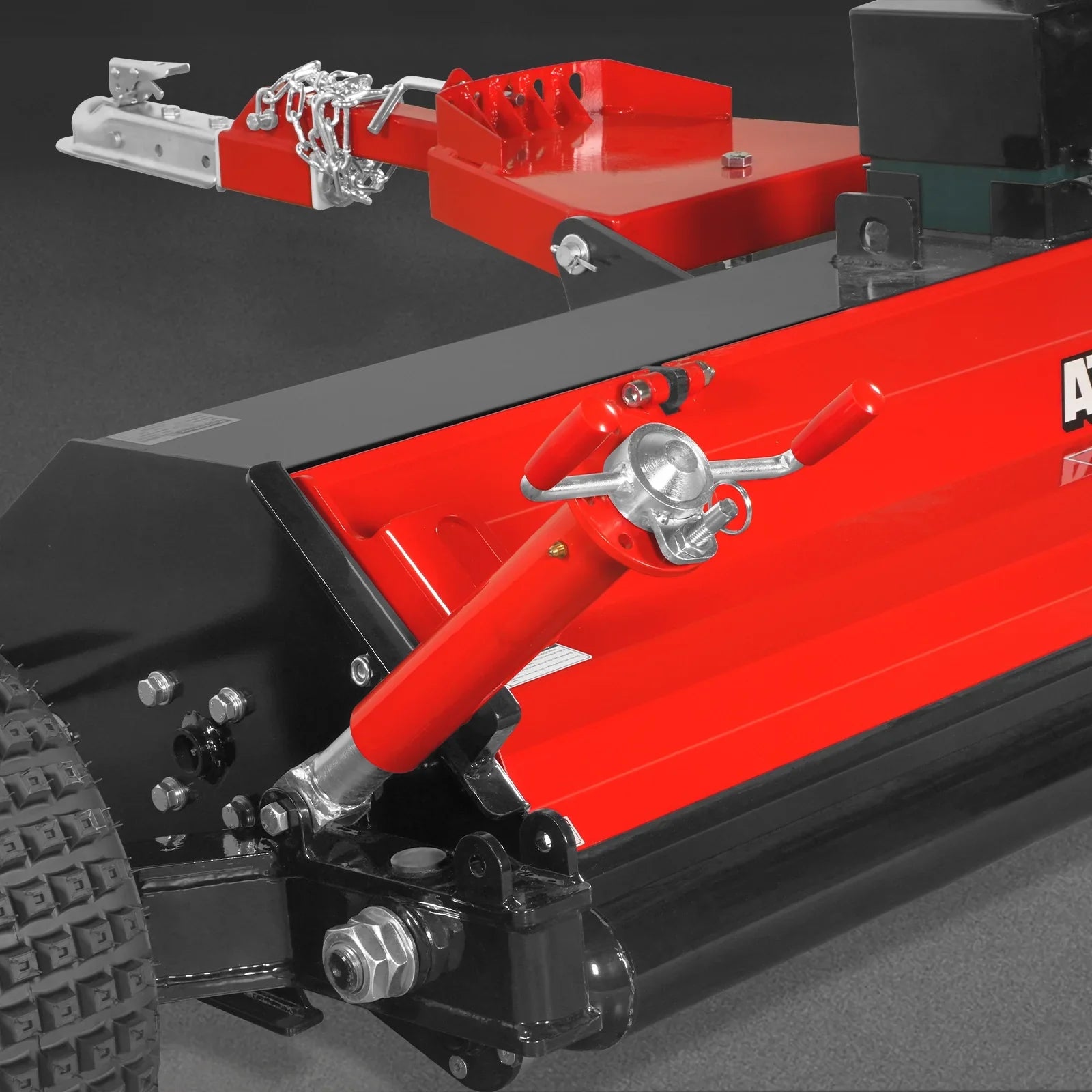

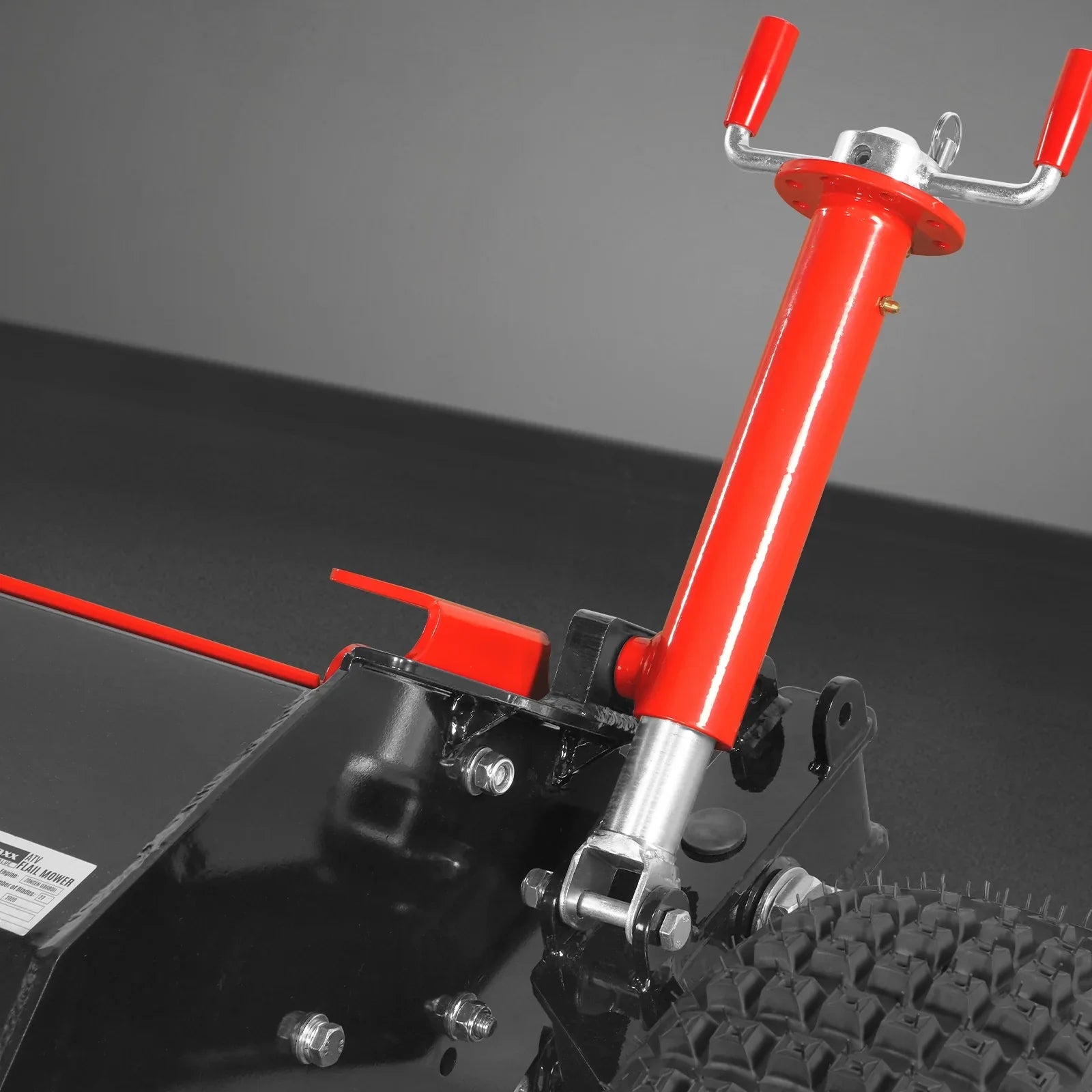

  • Adjustable Cutting Height: The handle can adjust the cutting height to meet the various needs of users.
  • 5-Point Offset Capabilities: 55'' working width with 5-point offset for fast and precise mowing of large areas around buildings.
  • 18-Inch All-Terrain Rubber Tires: Backed by two 18-inch all-terrain rubber tires, it can tackle tough work wherever you are, and it has an included stand for better storage.
  • Adjustable Height Roller Bar: Adjustable Height Roller Bar adjusts to raise or lower the cutting height to your desired need.

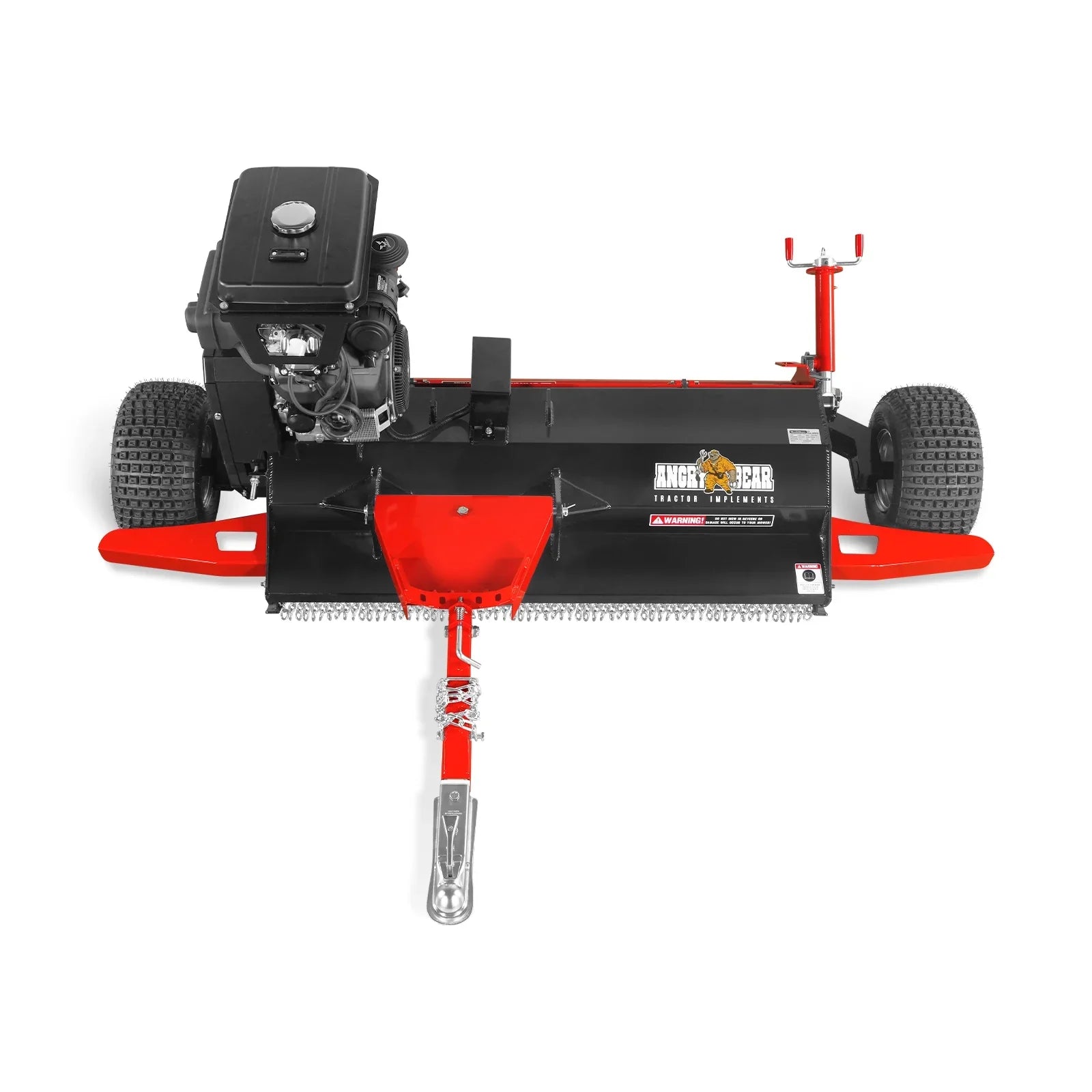

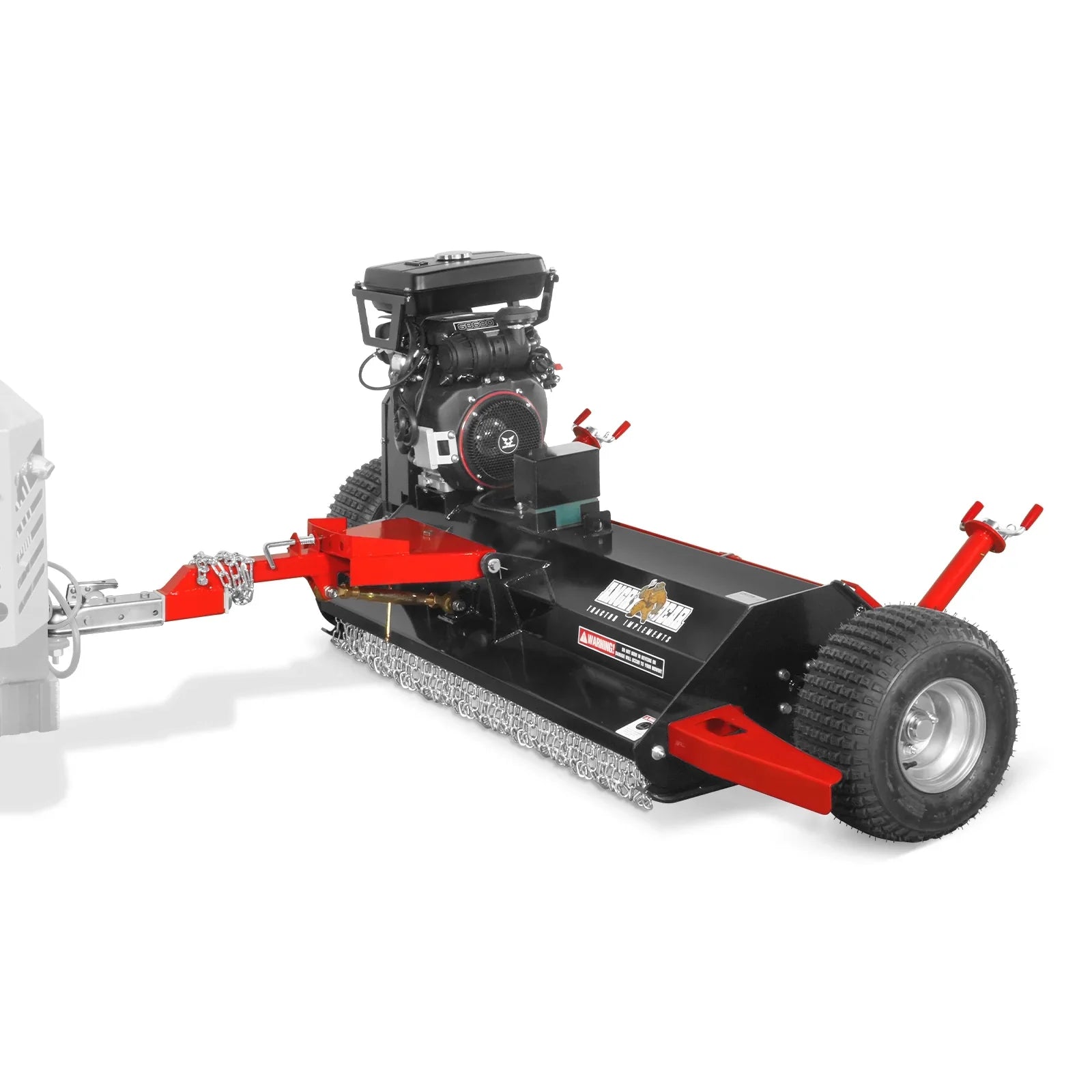

  • Tow Bar: A 2-inch coupler is mounted on the tow bar, compatible with a 2 inch trailer ball. When outdoor work is needed, you can use the ATV or pickup truck to tow the mower to work area.

Engine: ZONSEN GB680 679cc/23hp Dual Cylinder Electric Start Gasoline Engine

Working Width: 55 in

Overall Width: 88 in

Cutting Height: 0.4-2.5 in

Number of Blades: 22

Blade Type: Hammers

Size of Blades: 4x2.6 in

Blade Weight: 0.8 lbs

Blade Material: Cast Steel

Rotor Bearing: FKD Bearing

Rotor Rotation: Reverse

Drive Type: Belt Drive

Number of Belts: 3

Belt Size: AV17X1090Li

Tire Size: 18 in

Finish: Powder Coat Paint Galvanized Steel

Net Weight/Gross Weight: 672lbs/791lbs

This item comes with a 1 year factory warranty.
PDF ATV mower Product manual 1.0 PDF Zonsen GB680 Manual
