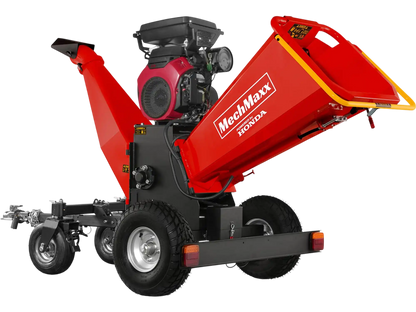

MechMaxx B200 Wood Chipper 8" Honda Electric Start 688cc 22HP Gas Powered 4-Wheel Drum with Taillight New

MechMaxx

$4,999.00
$4,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • MechMaxx 22HP gasoline engine wood chipper, electric start, rated power up to 13.0kw/3600rpm.
  • This wood chipper has extremely powerful roller with the diameter of 14in., which can shred branches up to 8 inches.

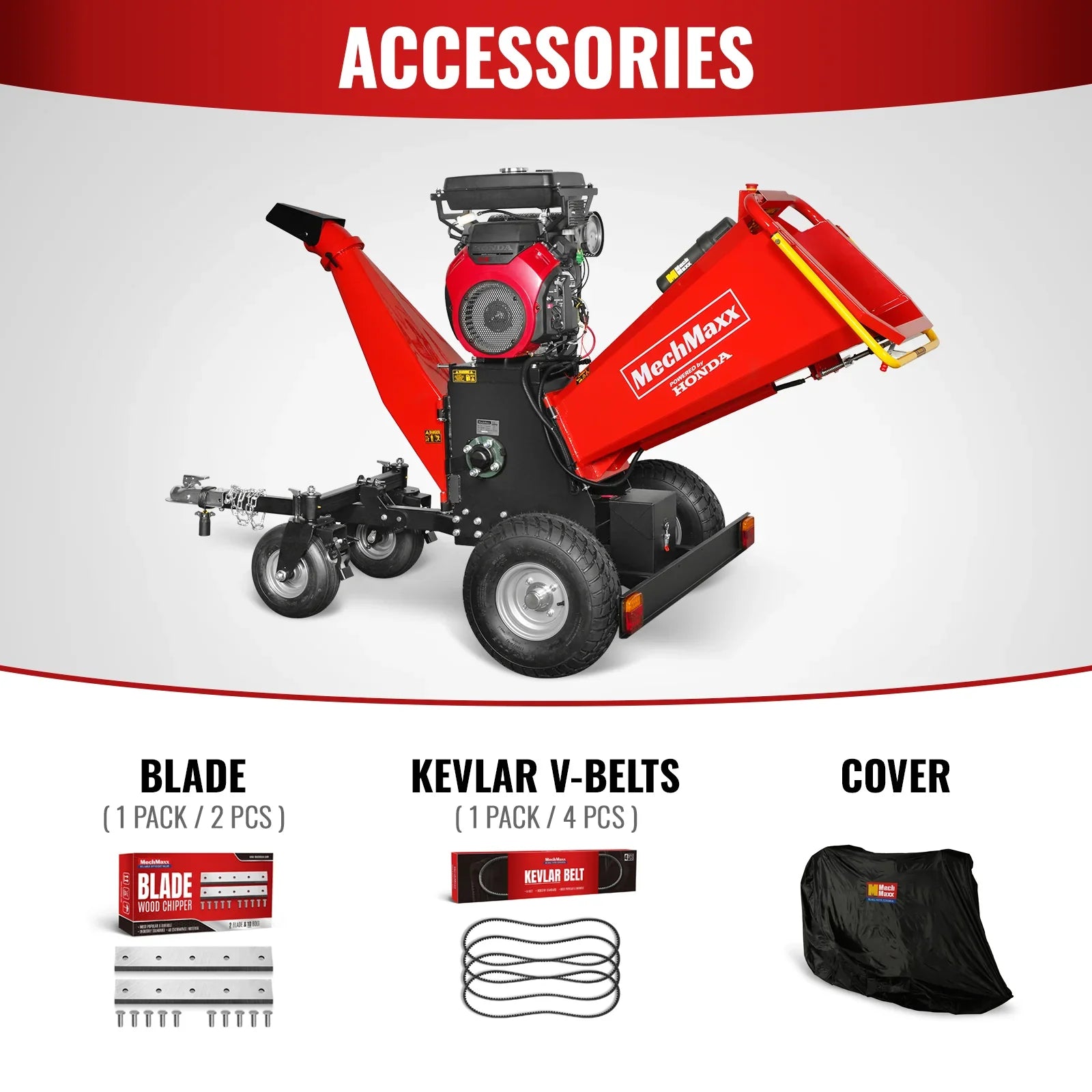

  • Double-edge cut reversible blades greatly increase the service life.
  • Both the feeding chute and the discharge chute can be opened quickly and easily for the maintenance and repair.
  • By adopting whole shaped technology, the discharge chute is both attractive and practical with the ability to rotate 360 degrees.
  • You can stop the engine quickly in a crisis to improve operator safety with a safety button above the feeding chute and the emergency stop press bar on lower side of the feeding chute.
  • With front 13x5.00-6; rear 19x7.00-8 Tubeless tires and 48in. super-wide wheelbase, this wood chipper has the ability of driving on steep ground with the high stability.
  • This is a high-performance wood chipper fit for professionals and leasing companies.
  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Oil: 10W-30
2 year factory warranty

2 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Electric Start and Battery: The B200 Wood Chipper is powered by a 22hp 688cc electric start gasoline engine, and equipped with a 36Ah 12V Lead-acid battery.

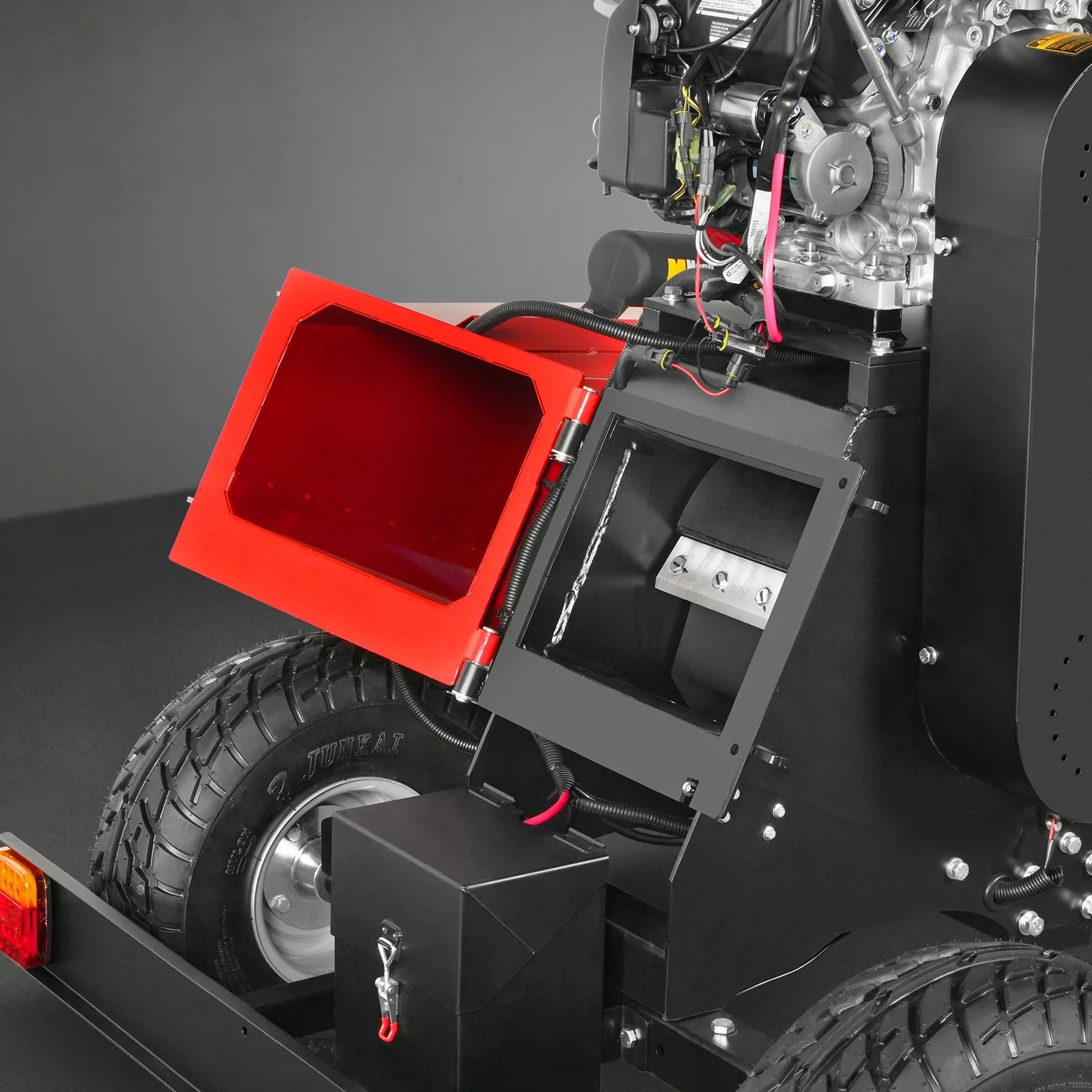

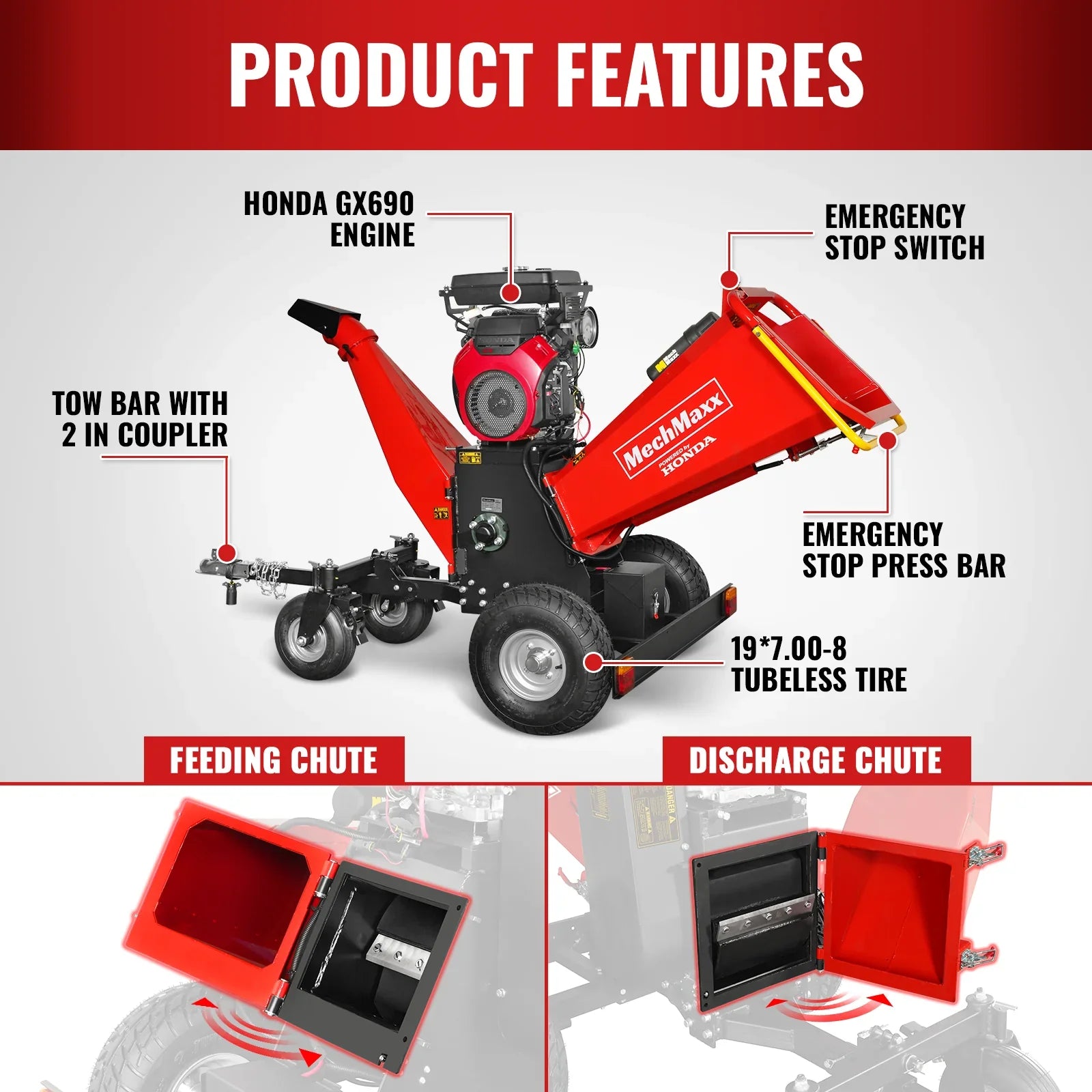

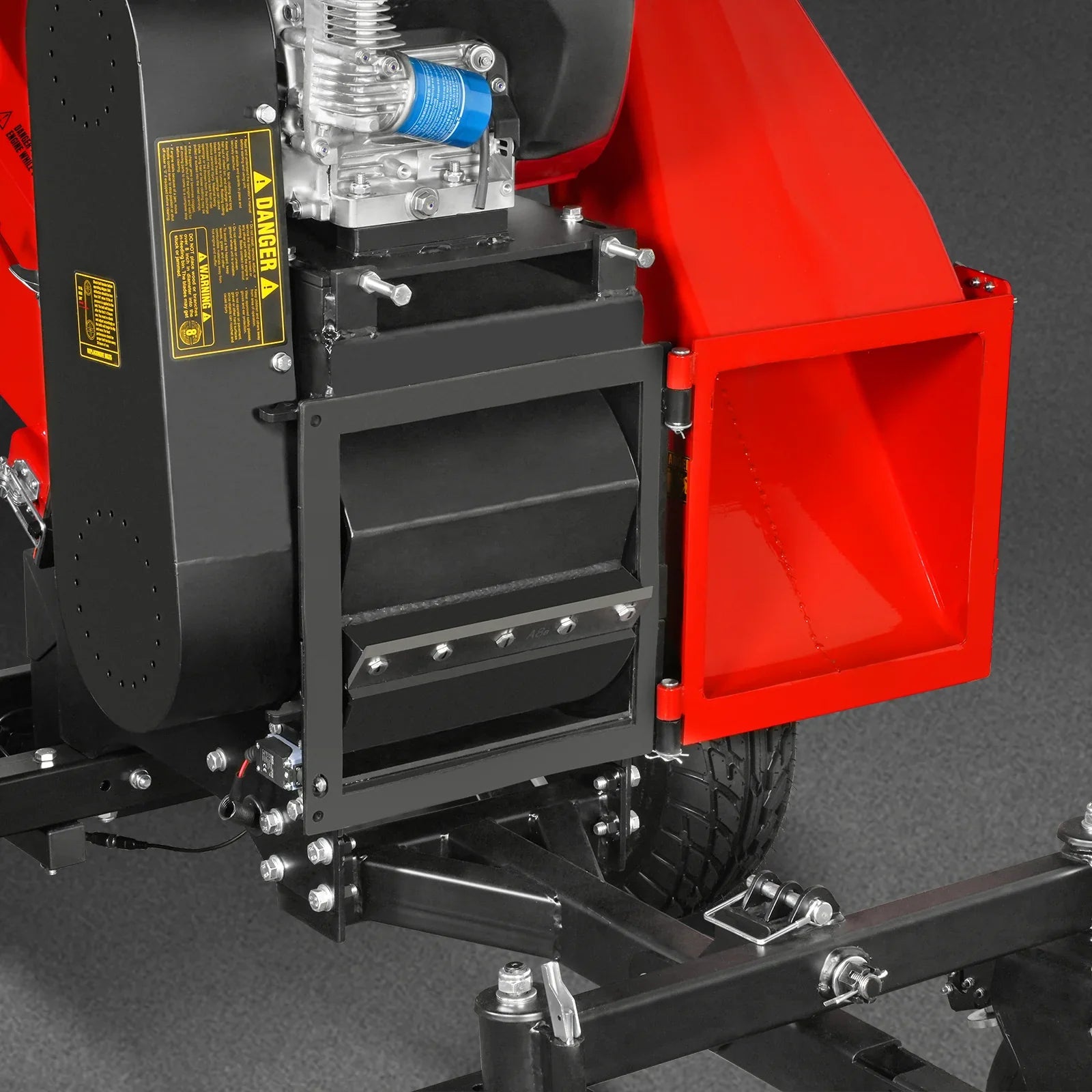

  • Feeding Chute: There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.
  • Discharge Chute: Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

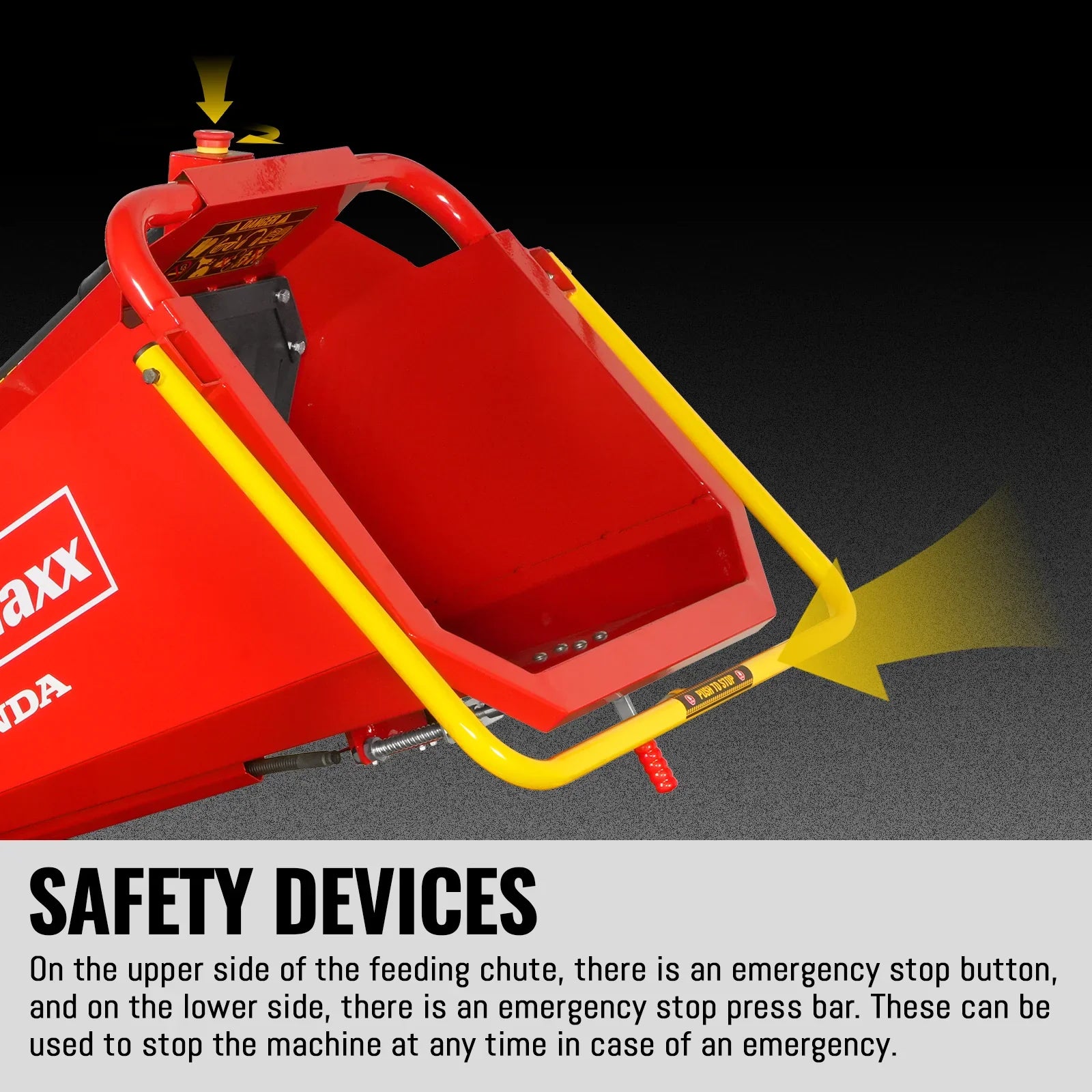

  • Safety Devices: On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

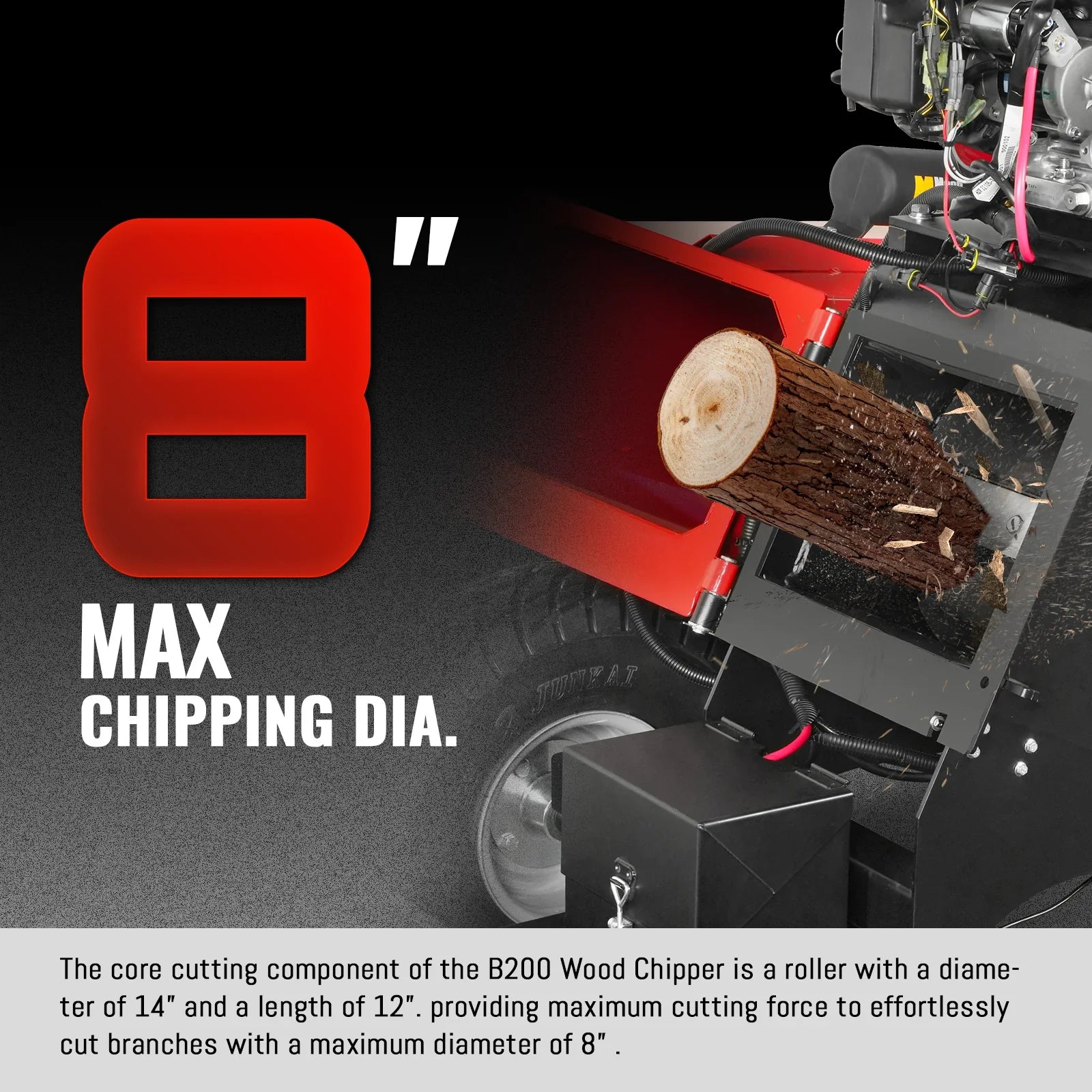

  • Maximum Wood Chip Diameter 8’’: The core cutting component of the B200 Wood Chipper is a roller with a diameter of 14” and a length of 12”. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 8” .

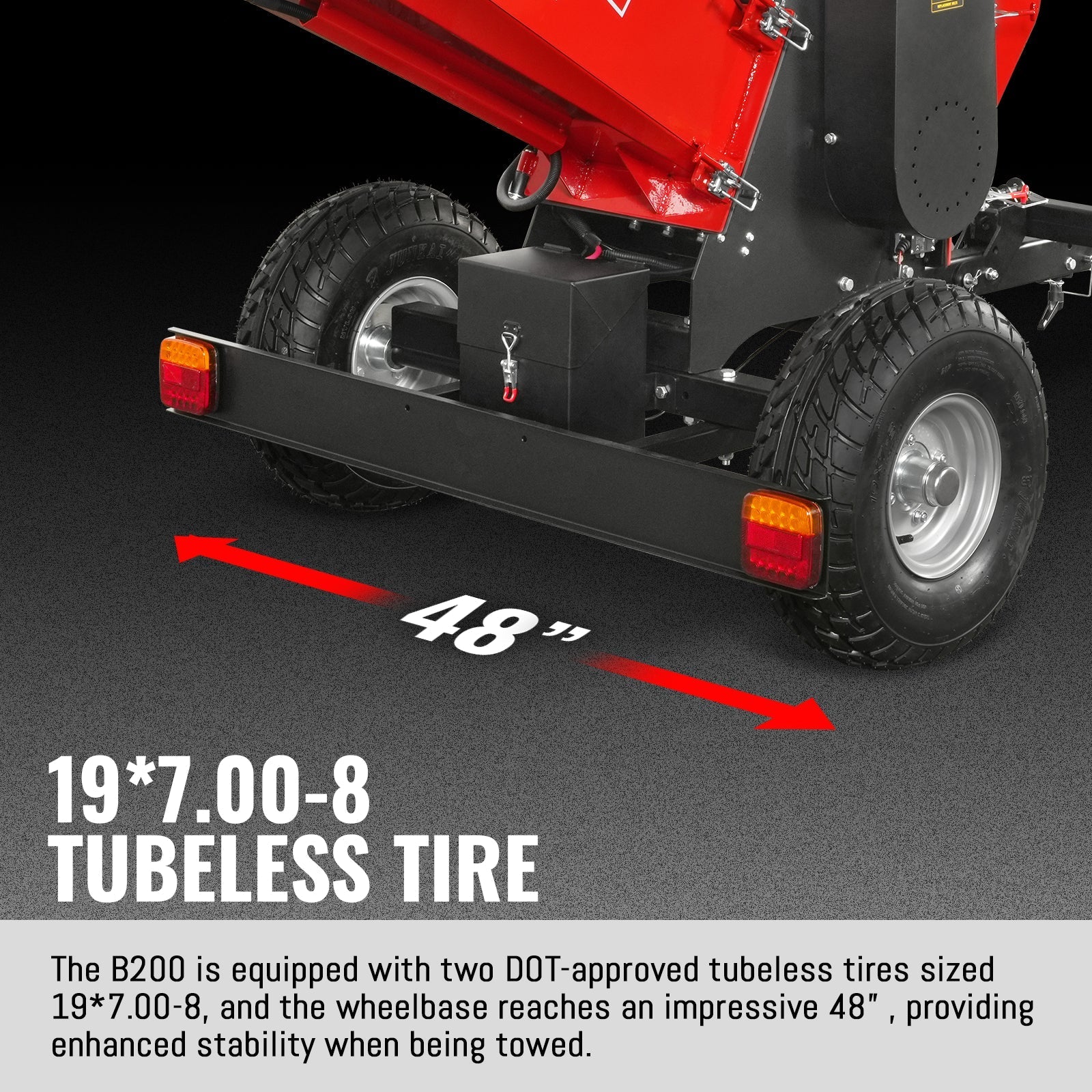

  • 19*7.00-8 tubeless tire: The B200 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

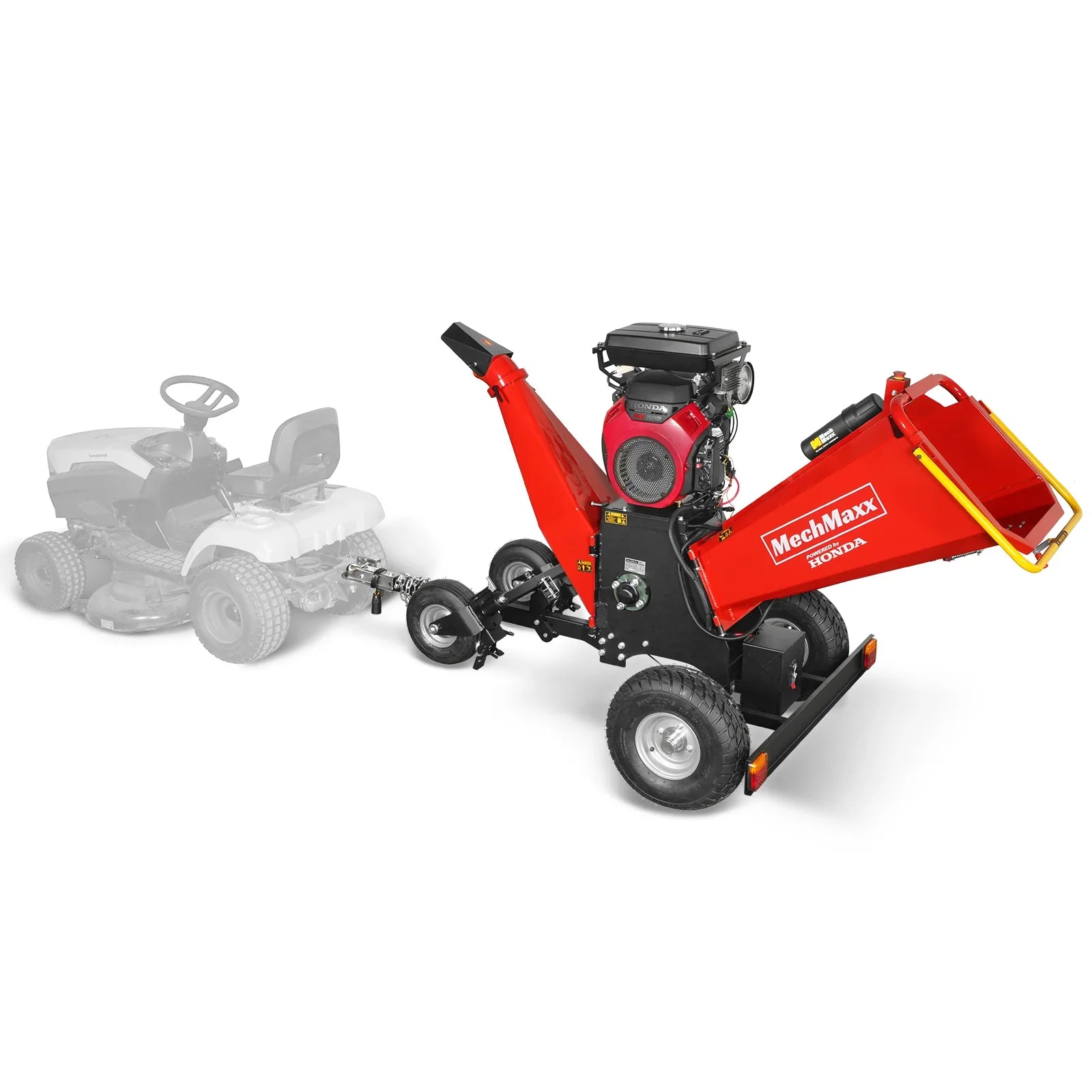

  • Tail Light and Plug: The B200 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B200 to synchronize with the vehicle's braking and turning signals.
  • Foldable and Lockable Front Wheels: When the B200 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B200 is operational, they can be lowered. When the B200 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.
  • Discharge Chute Design: The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

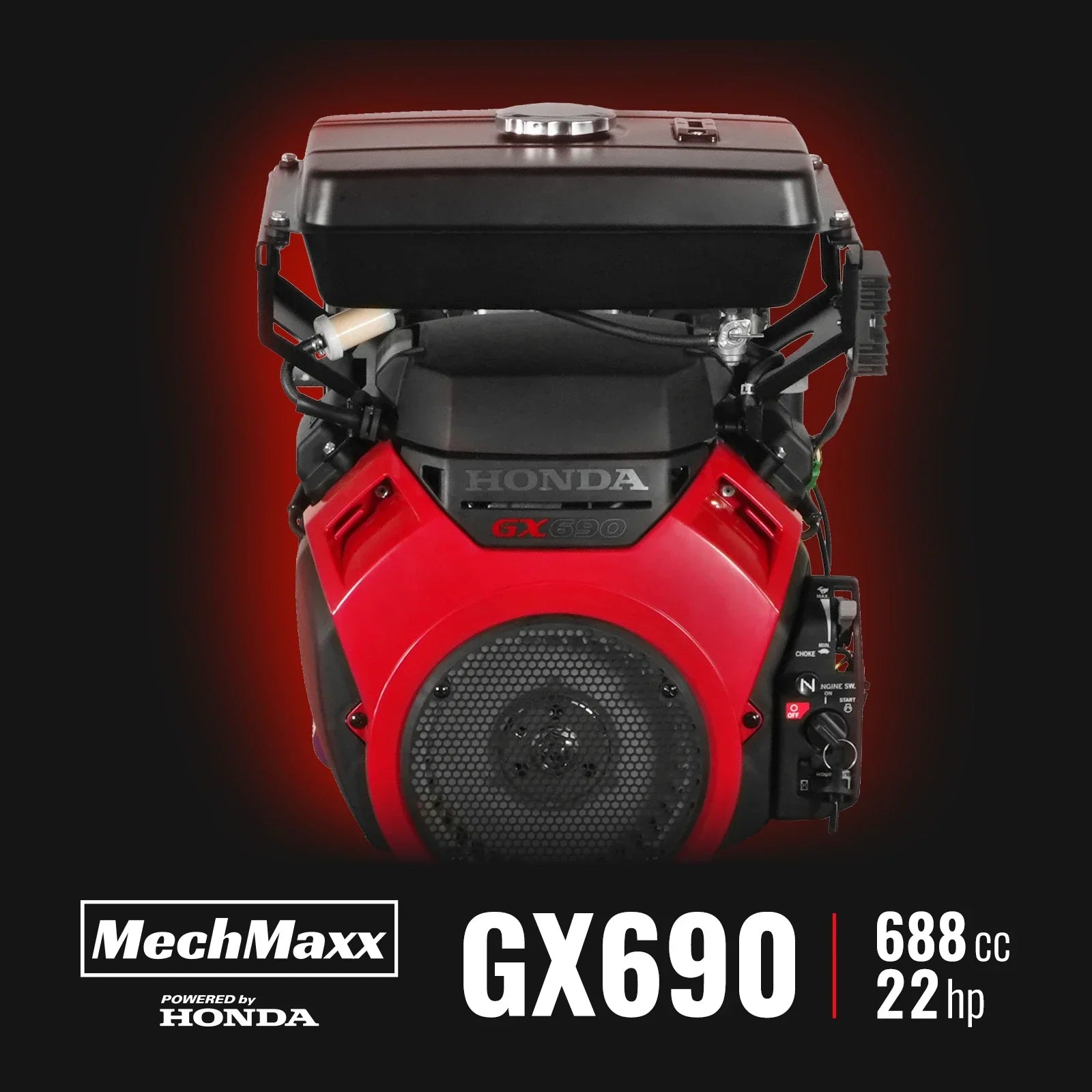

Engine: HONDA GX690

Feed Roller: 13.8 in

Engine Type: Air cooled 4-stroke OHV petrol engine

Knives Nos.: 2 x Blade; 1 x Anvil

Displacement/HP: 688 cc; 22 HP

Knives Material: A8 （5Cr8MoVSi）

Rated Power: 13.0 kw/3600 rpm

Discharge Chute: 360 Degree Rotating

Max. Net Torque: 48.3 Nm/2500 rpm

Emergency Stop: Stop Bar + Button

Fuel Capacity: 3.17 gal

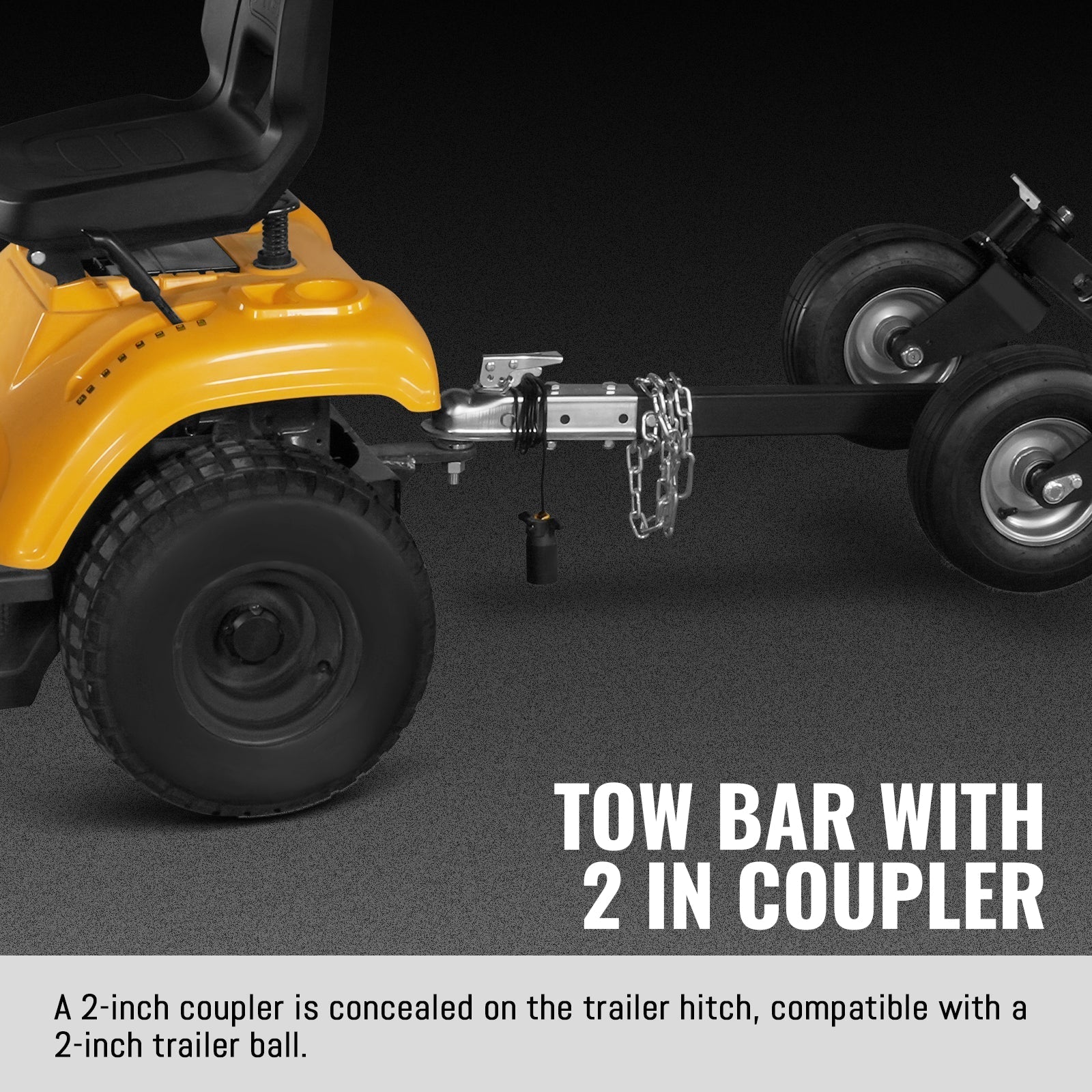

Towing: Tow Bar with 2 in Coupler

Starting: Electric Starting

Wheel: 19*7.00-8 Tubeless

Battery: 36Ah 12V Lead-Acid Battery

Wheel Base: 48 in

Belt: 4 x V-Belts

Package Method: Plywood Case

Belts Material: Kevlar

Weight (N.W./G.W.): 705/780 lbs

Clutch: Centrifugal Clutch

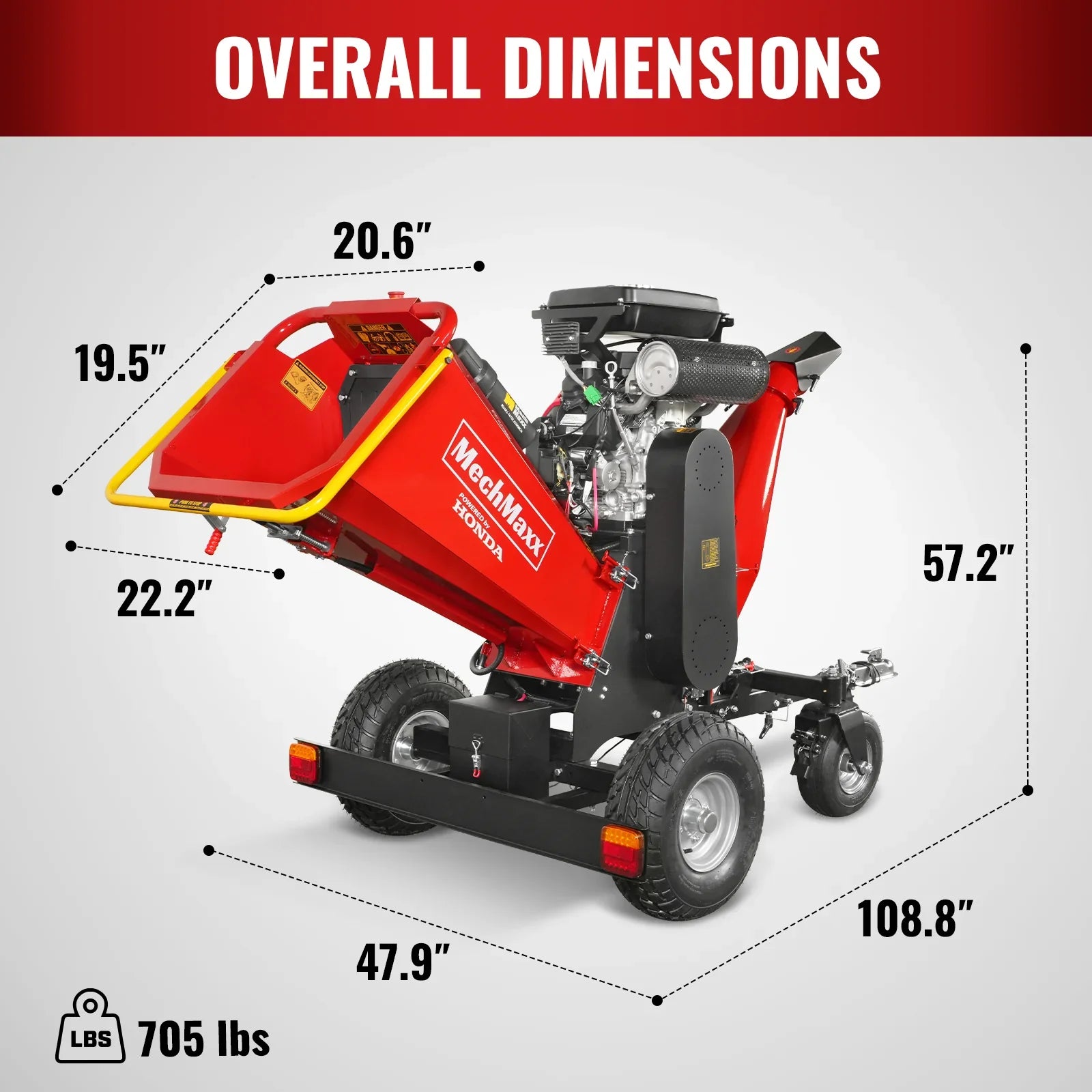

Packing Size (L*W*H): 50 x 30 x 49 in

Cutting Method: Drum

Max. Chipping Dia.: 8 in

This item comes with a 2 year factory warranty.
PDF B200 Product manual 1.0 PDF HONDA GX690 Manual PDF Wood Chipper Quick Installation Guide
