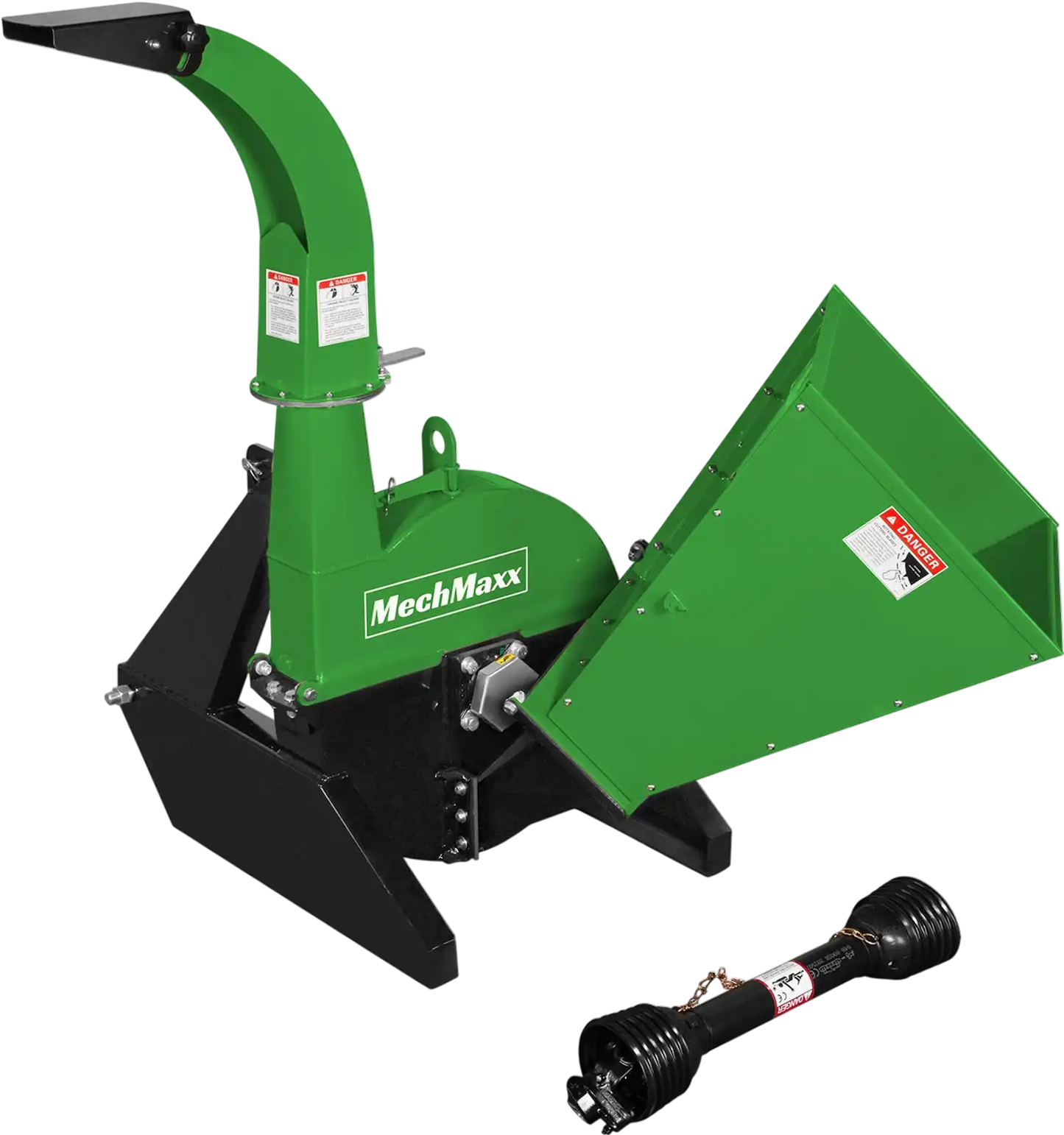

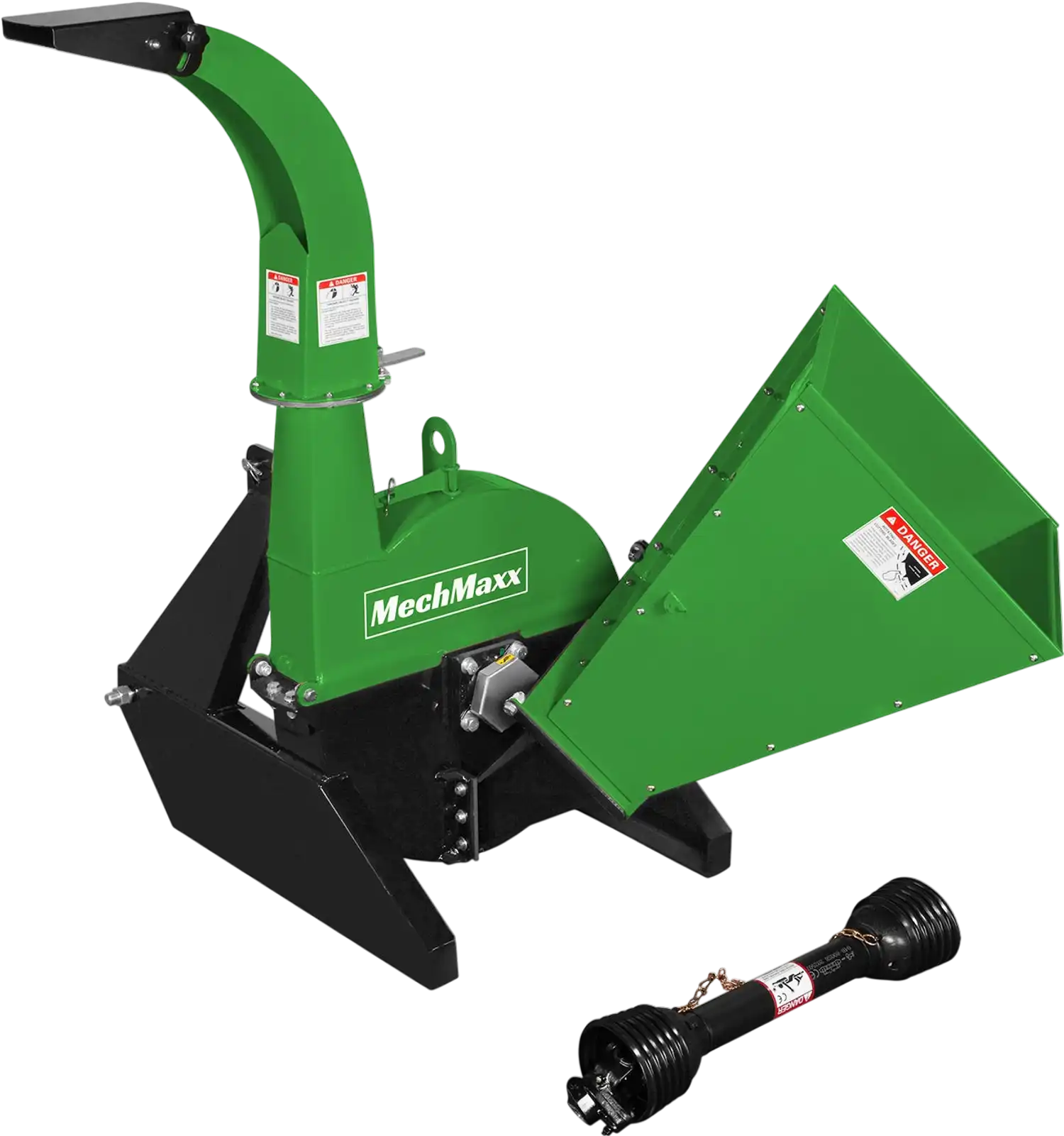

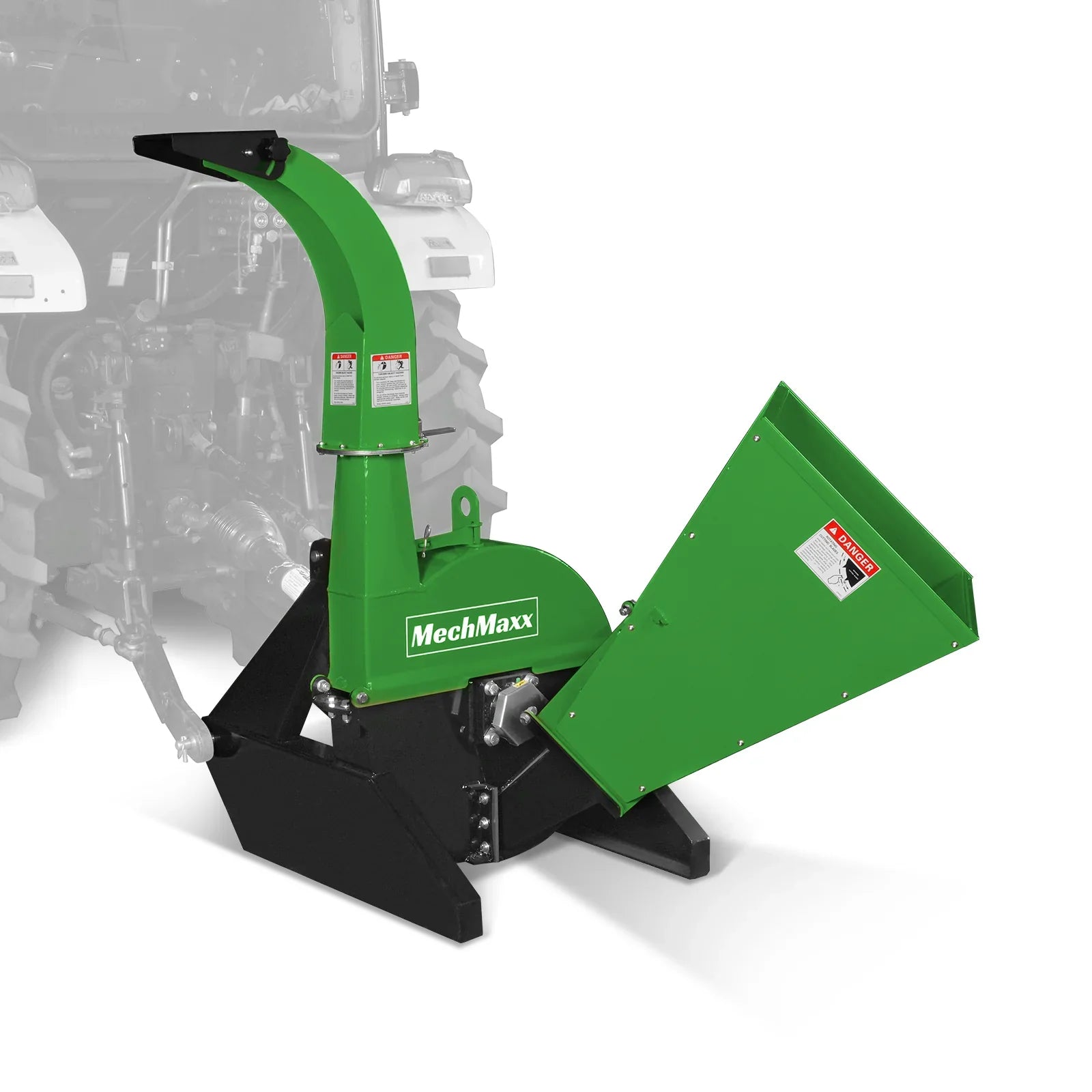

MechMaxx BX42S Wood Chipper 3 Point PTO Attachment for Tractors Up to 45HP PTO Shaft Included New

MechMaxx

$1,699.00
$1,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • This wood chipper is constructed with heavy-duty materials to withstand demanding conditions and heavy workloads. It features a robust frame, reinforced components, and durable cutting blades, ensuring long-lasting performance and durability.
  • The wood chipper offers versatile chipping capability, accepting a wide range of branch sizes and wood types. It can efficiently chip branches, limbs, brush, and even smaller trees, providing flexibility for various applications.
  • The PTO Wood Chipper is designed for easy integration with tractors equipped with a PTO system. It connects to the tractor's PTO shaft and utilizes the tractor's power to drive the chipper, eliminating the need for a separate engine or power source.
  • The wood chipper is designed for ease of maintenance. It allows easy access to the cutting blades for sharpening or replacement, simplifying maintenance tasks and ensuring optimal chipping performance.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Tractor Power: BX42s is suitable for most tractors, with a minimum of 18HP and a maximum of 45HP.

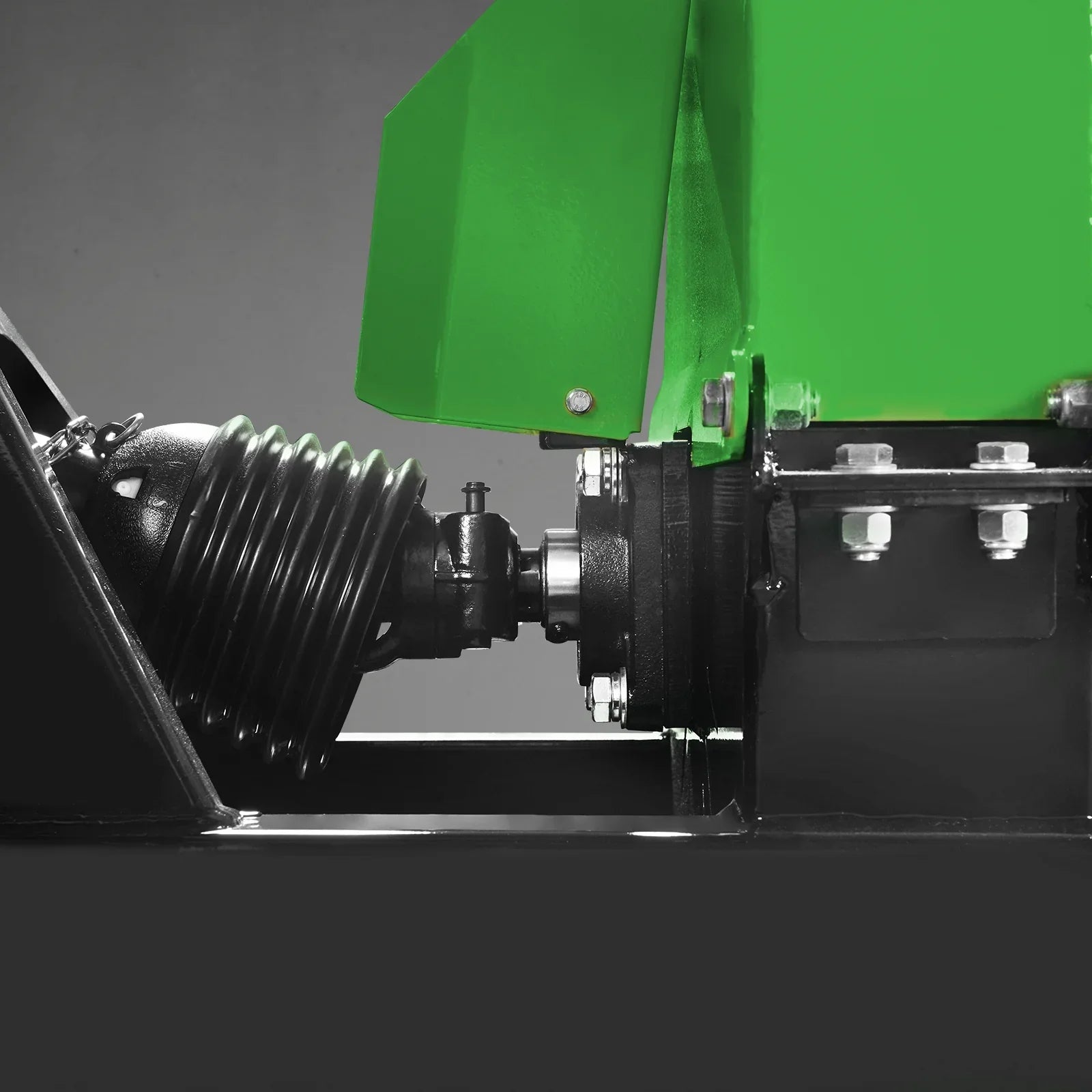

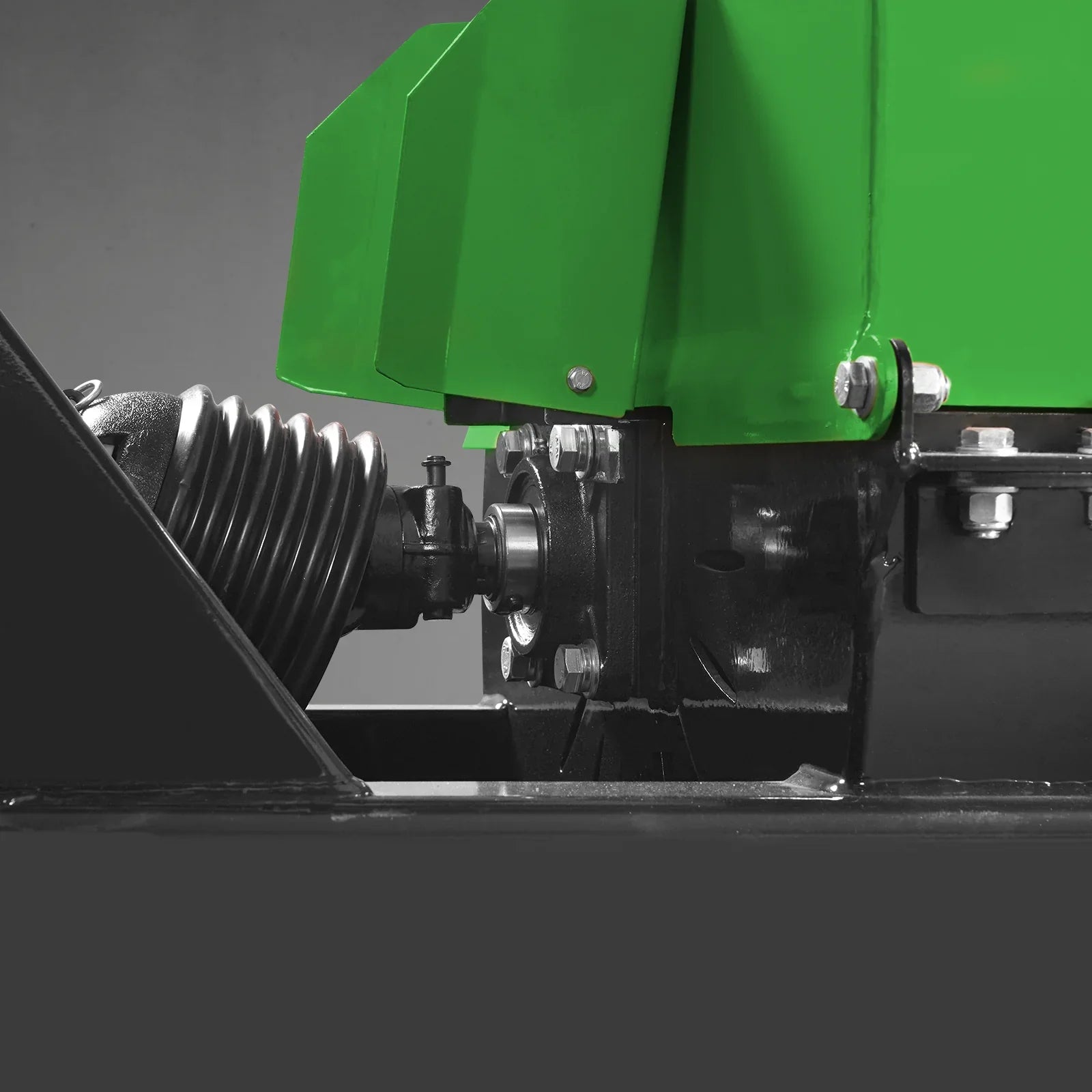

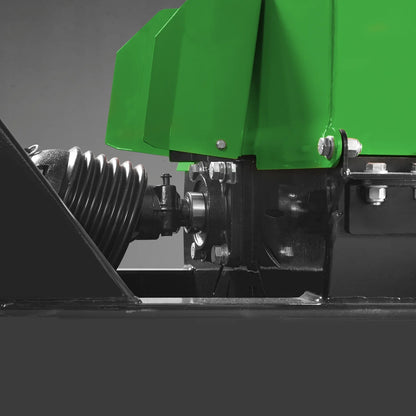

  • PTO Shaft: 1-3/8” 6 Spline Tractor and Implement Ends. Included PTO shaft for Category 1 hookups make this chipper compatible with most tractor makes and models. Model:T5-LF-31 in with shear bolt ,31.5-43 in

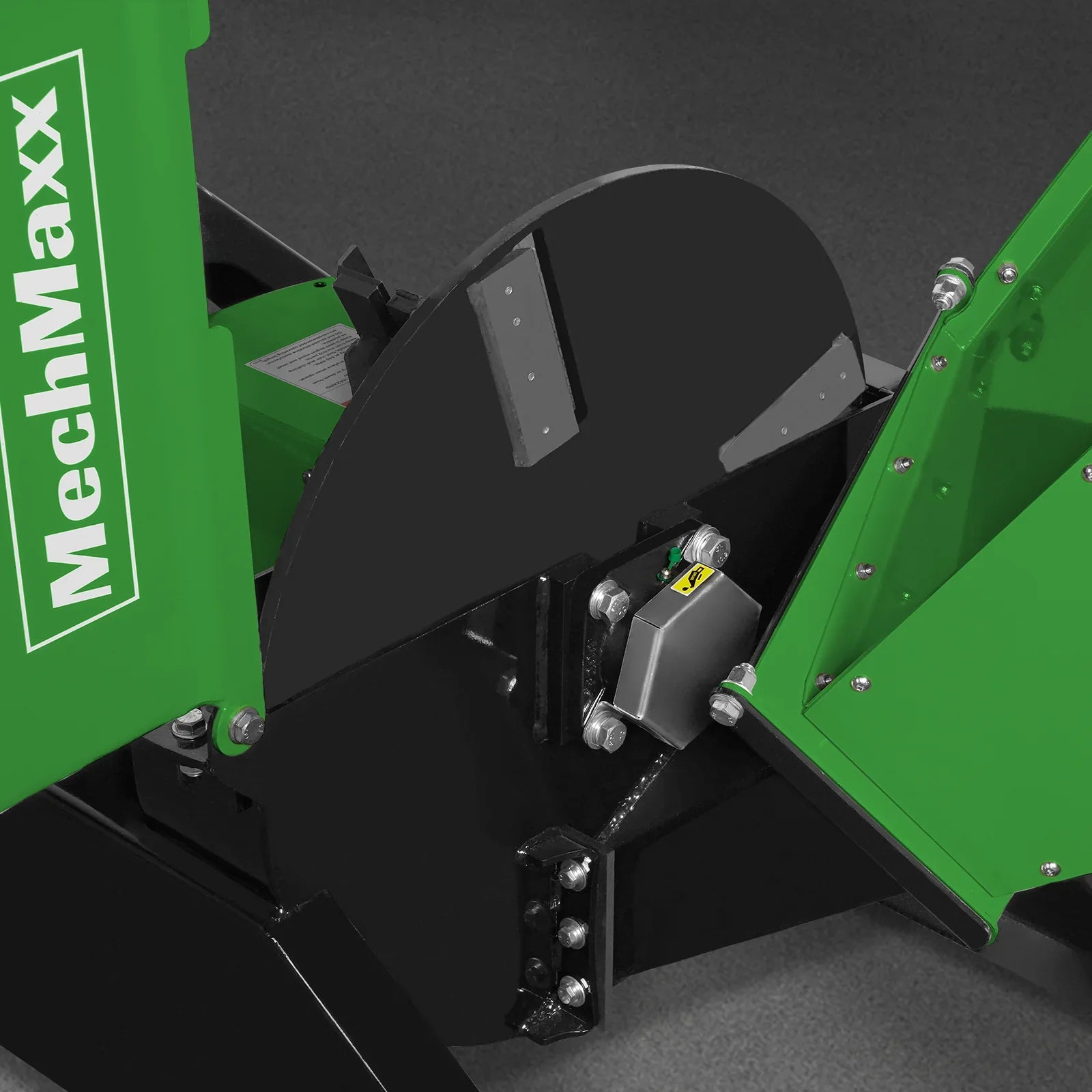

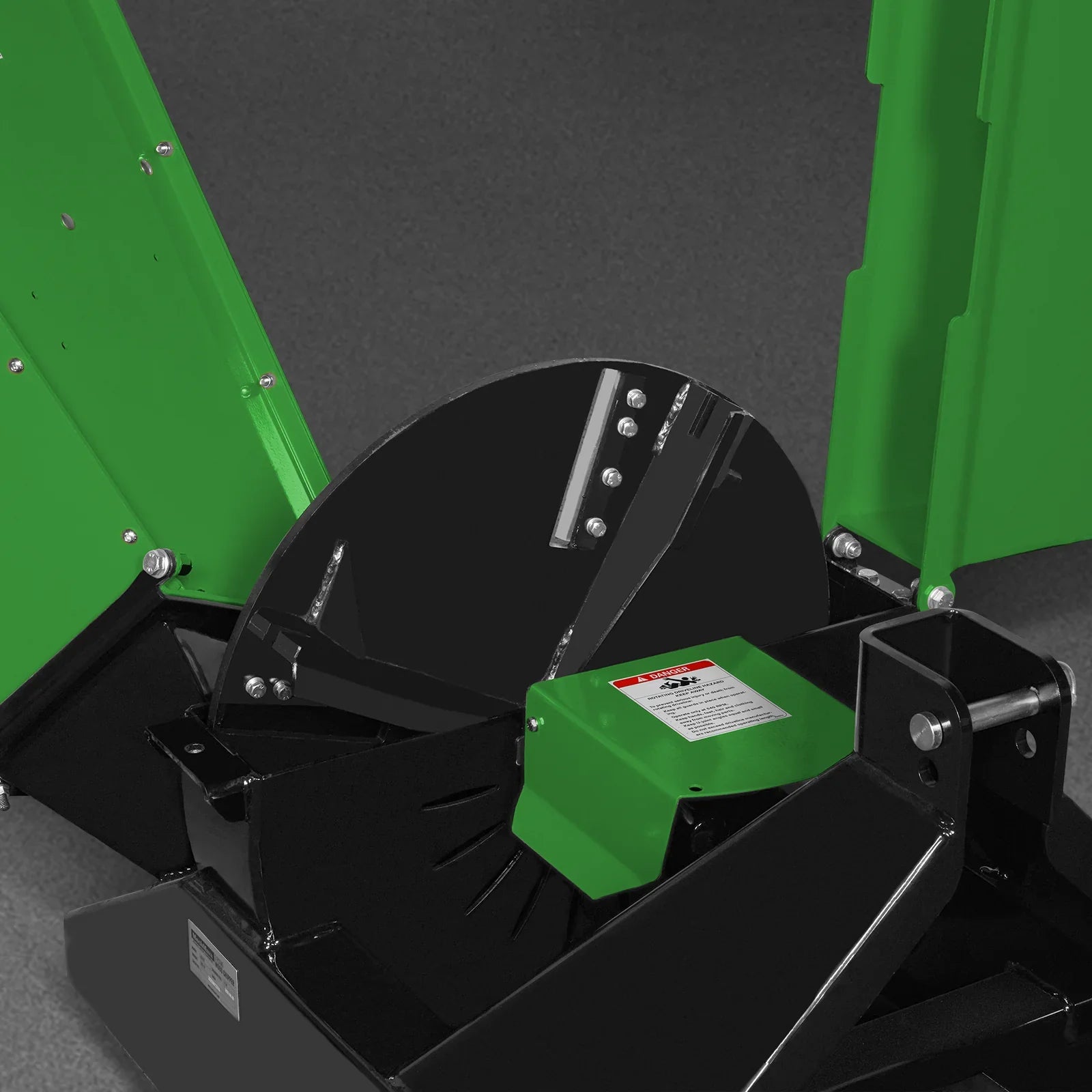

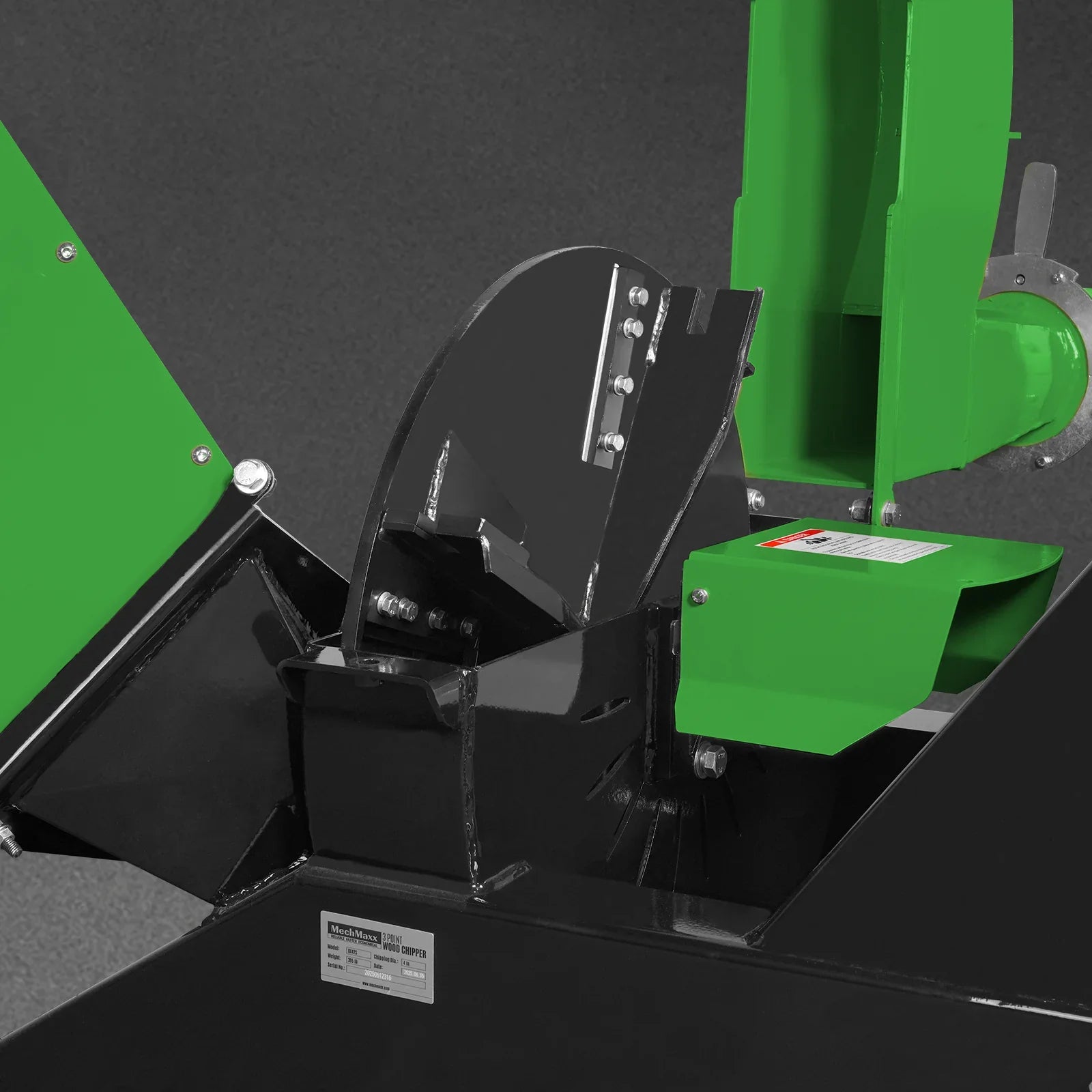

  • Cutter: The core cutting component of the BX42S Wood Chipper is a disc. Easy to isassemble for quick blade replacement.

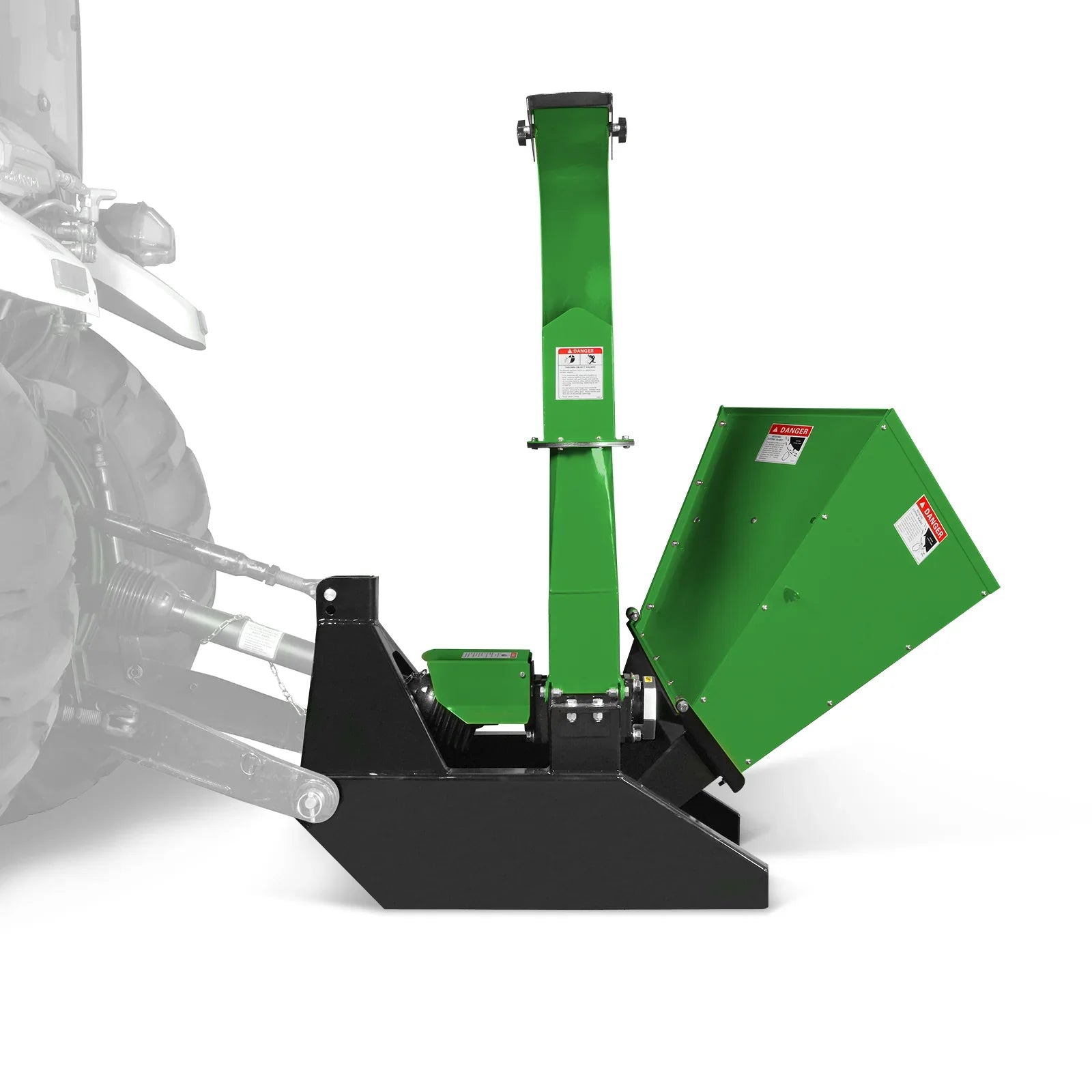

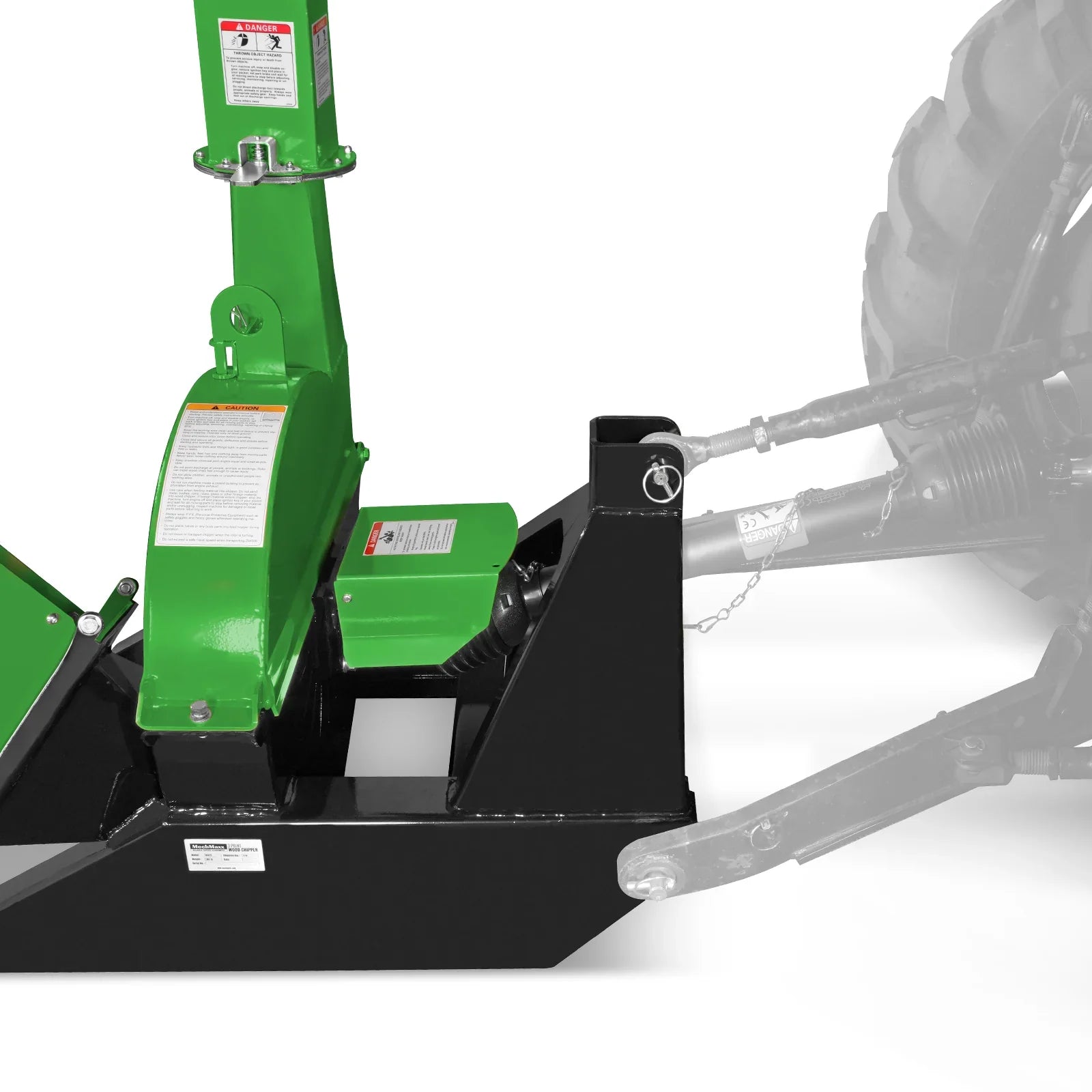

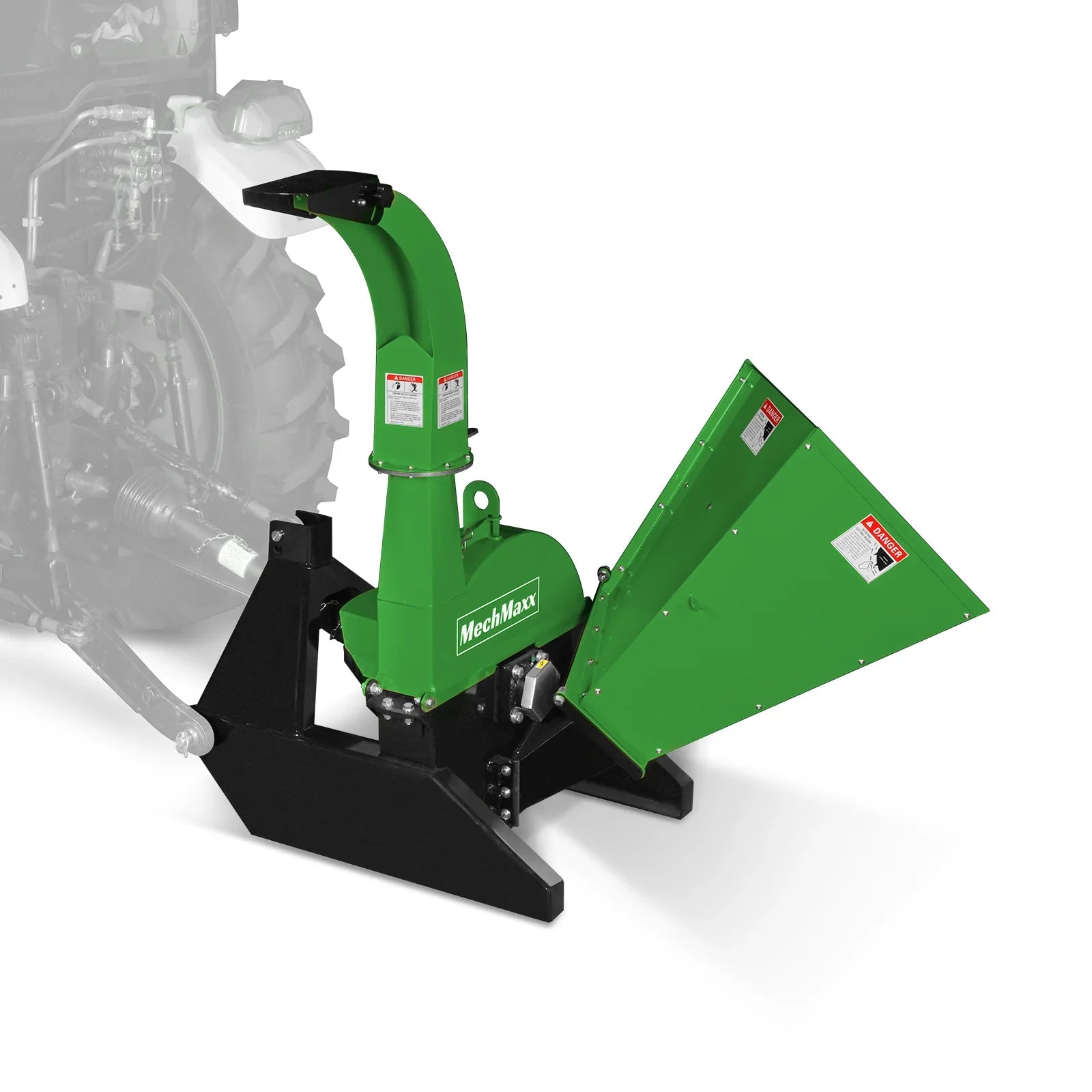

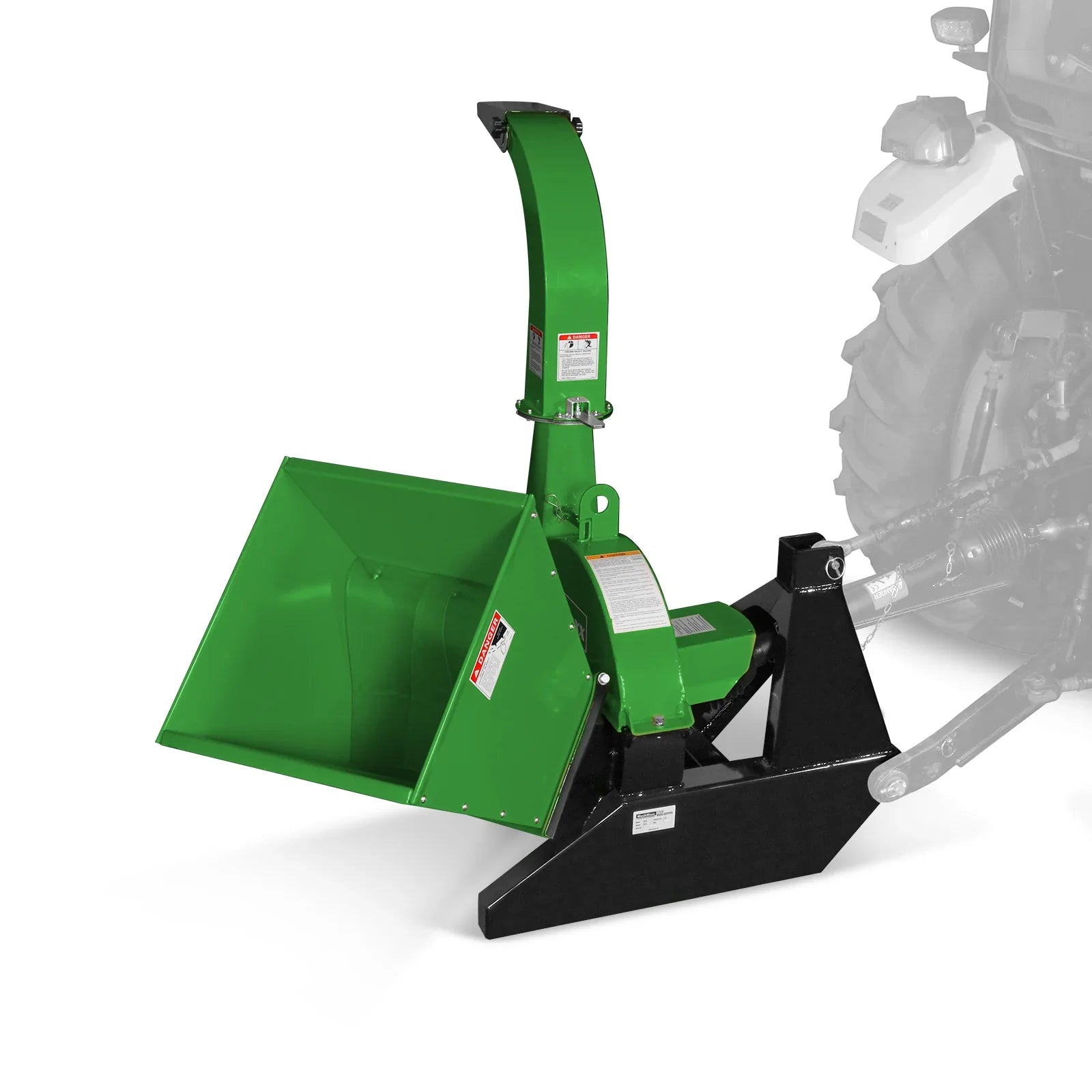

  • 3 Point Hitch: The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.
  • Maximum Wood Chip Diameter 4’’: BX42S provides maximum cutting force to effortlessly cut branches with a maximum diameter of 4’’.

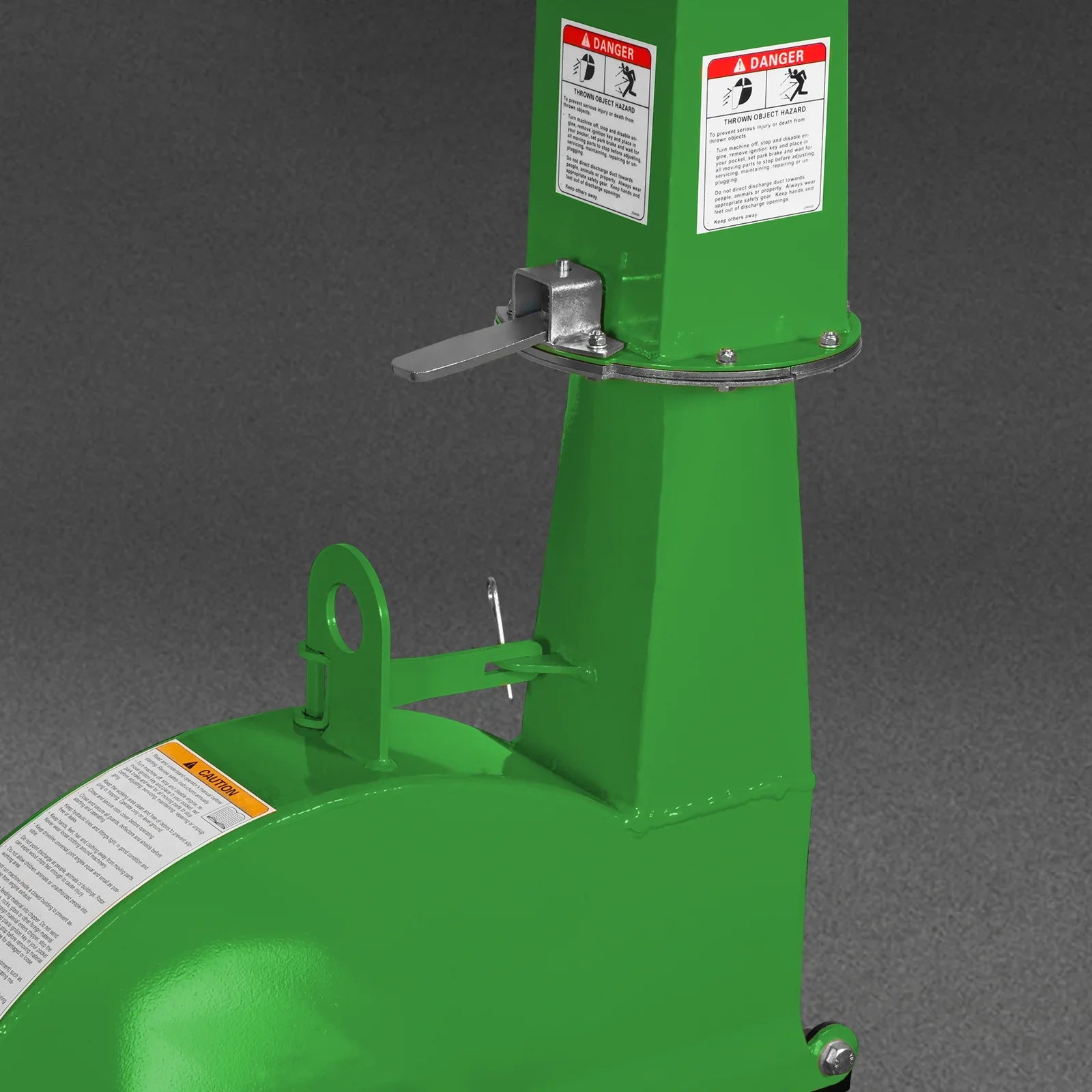

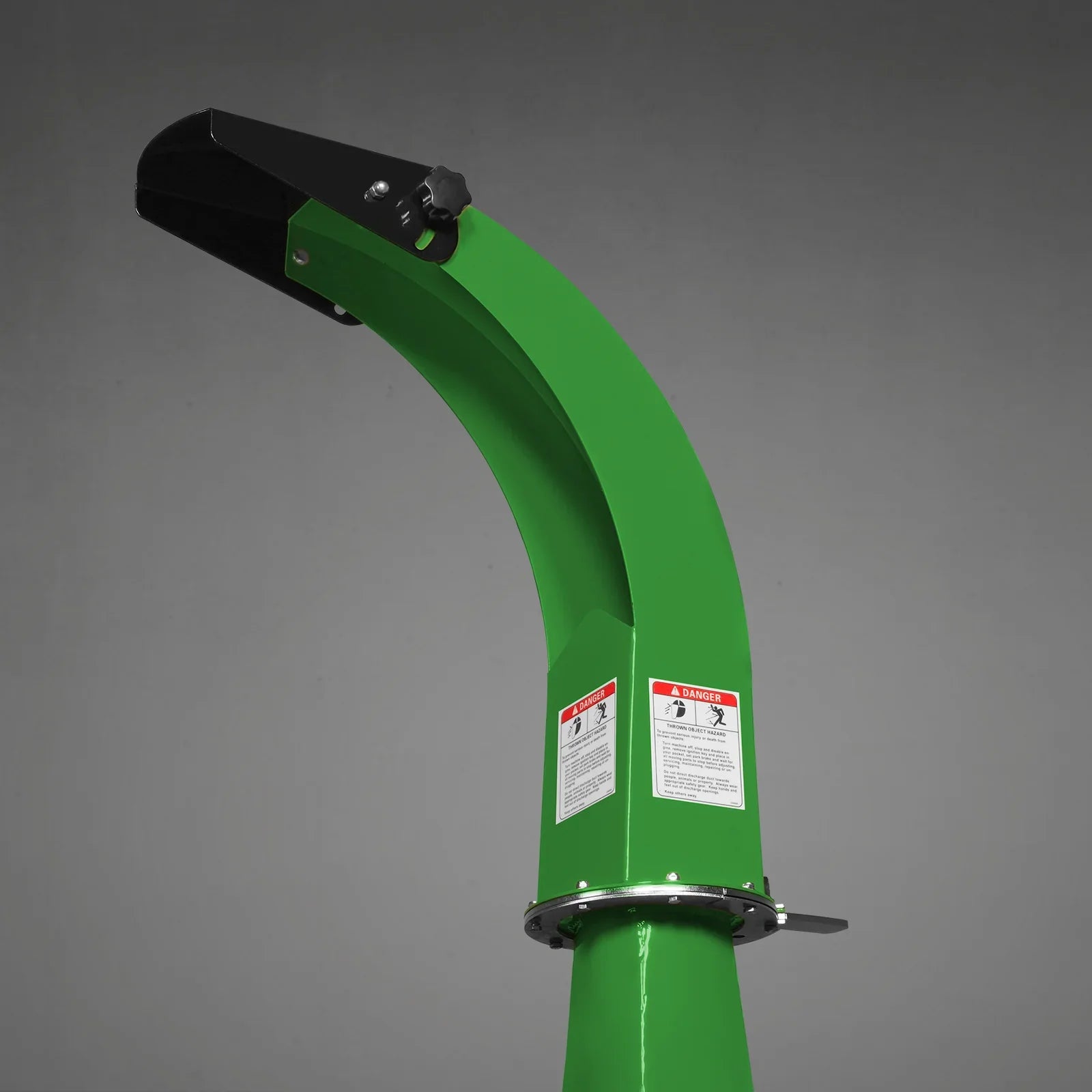

  • Discharge Chute: The top of the discharge chute can rotate 360 degrees. Easy to disassemble for quick blade replacement.

Tractor Power: 18-45HP

PTO Shaft RPM: 540 RPM

Max. Throughput Capacity: 4 in

Flywheel Speed: 540 RPM

Infeed Opening: 4*10 in

Drive Type: PTO

lnfeed Chute Opening: 20*20 in

Driveline Shaft Length: T5-LF-31 in with shear bolt, 31.5-43 in

Feeding Opening: Gravity Feed

Spline End: 1 3/8"Z6

Discharge Chute Rotation: 360 Degrees

3-Point Hitch: CAT 1

Rotor Diameter: 25 in

Dimensions (L x Wx H): 38x 33x 43 in

Rotor Thickness: 0.5 in

Finsh: Powder Coat Paint Galvanized Steel

Rotor Weight: 82 lbs

Number Of Blades: 4+1

Net Weight: 397 lbs

Blade Weight: 0.9 lbs

Gross Weight: 441 lbs

Blade (Tines) Material: 4CrW2Si

This item comes with a 1 year factory warranty.
