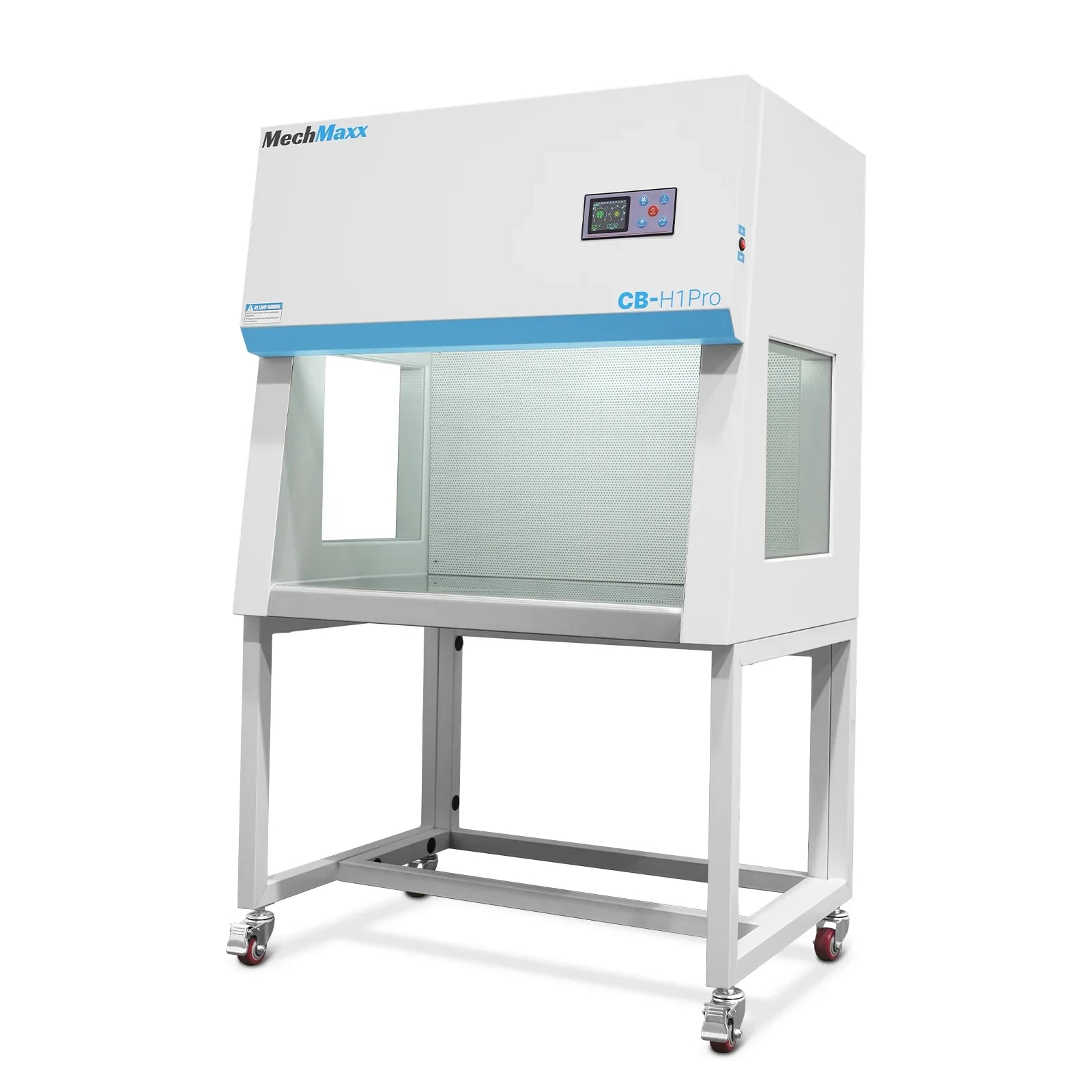

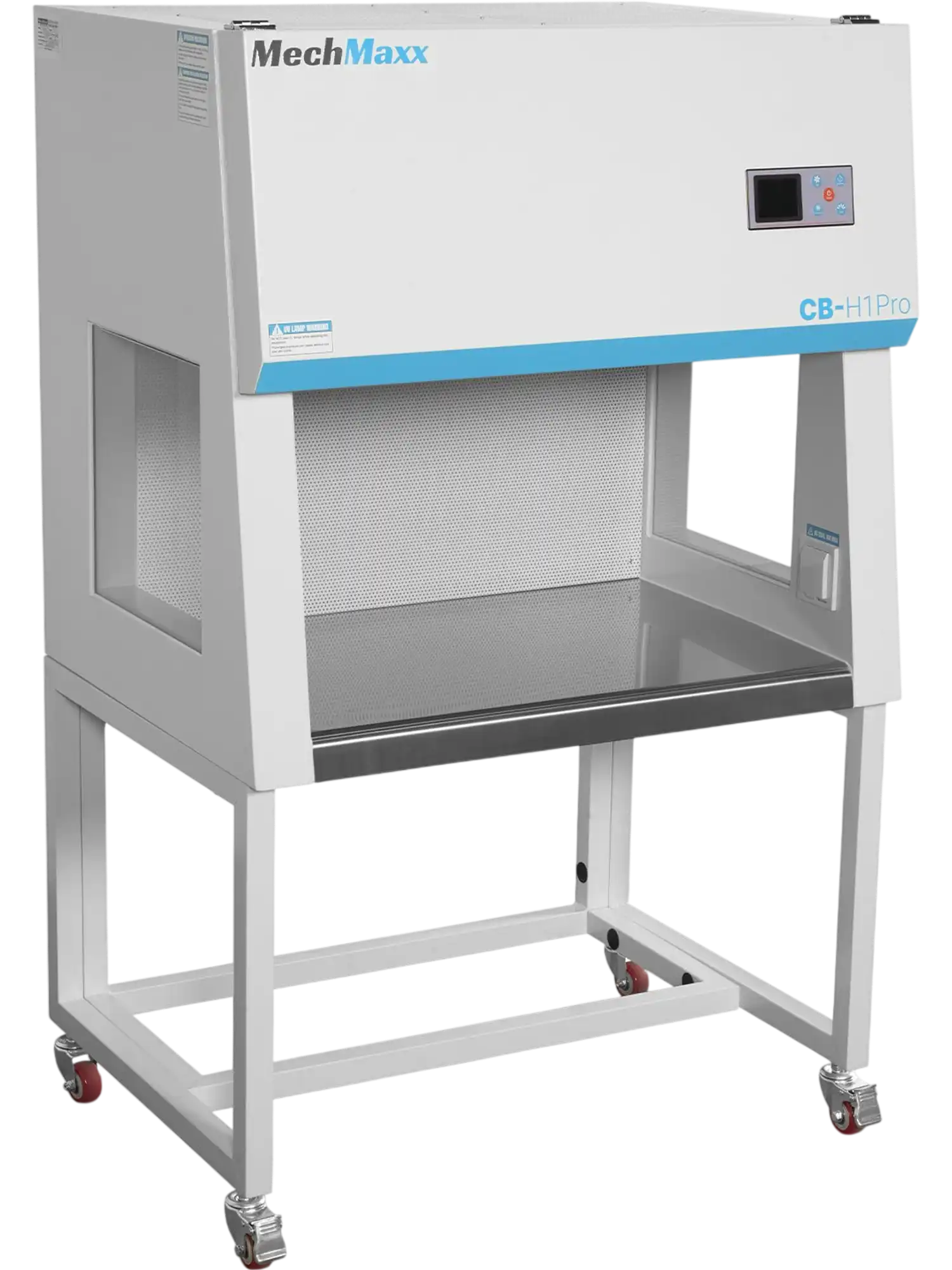

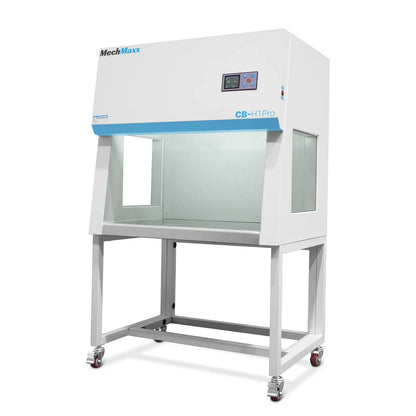

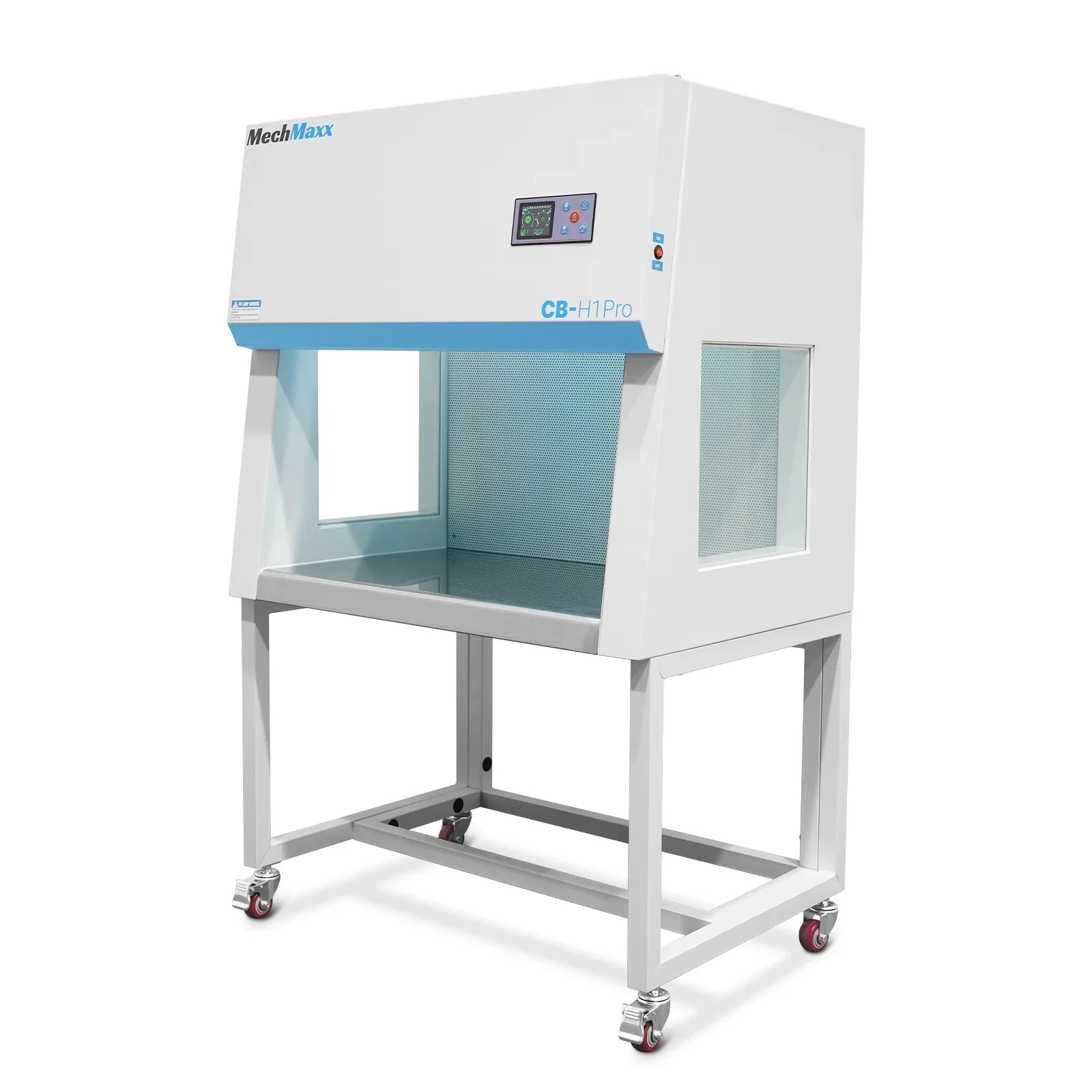

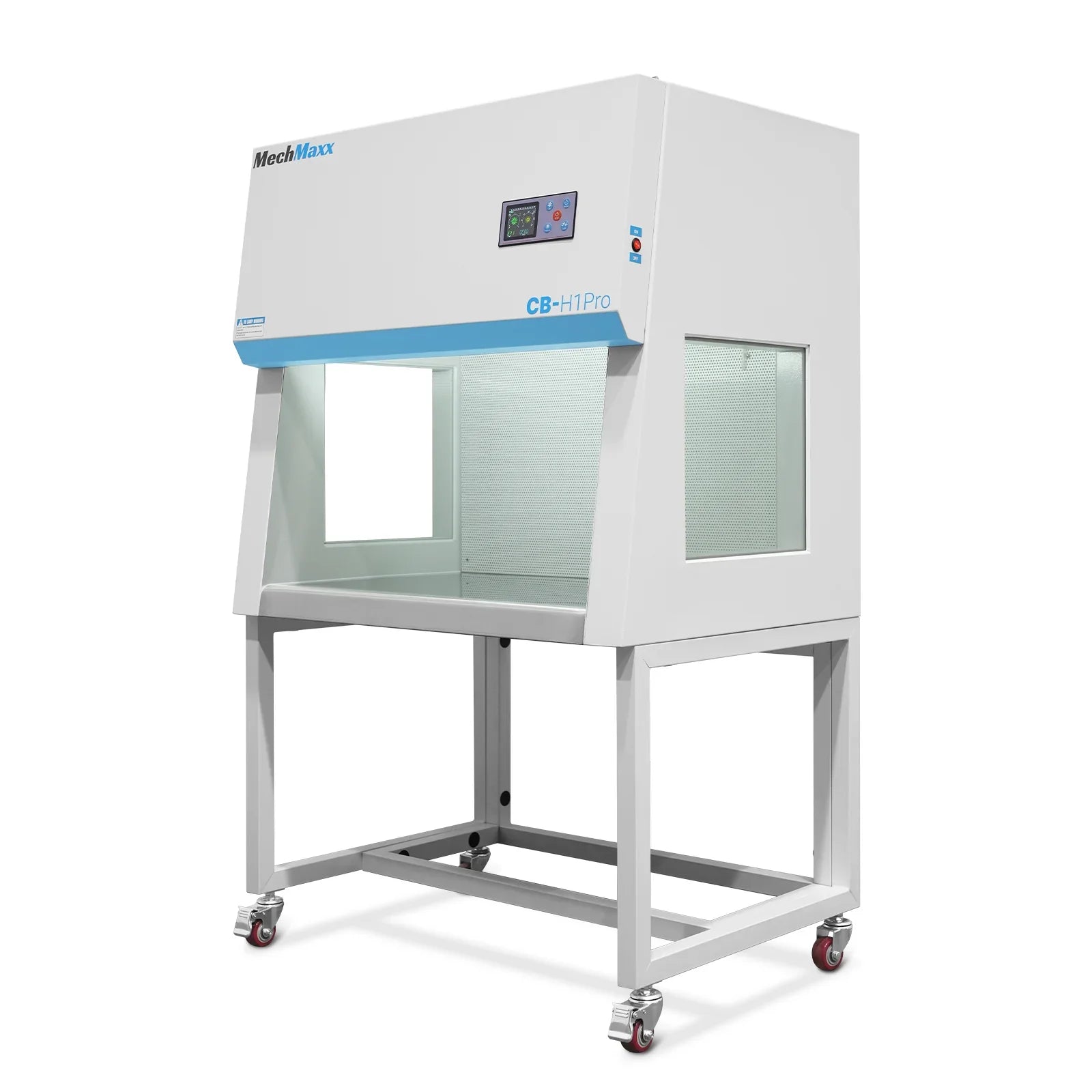

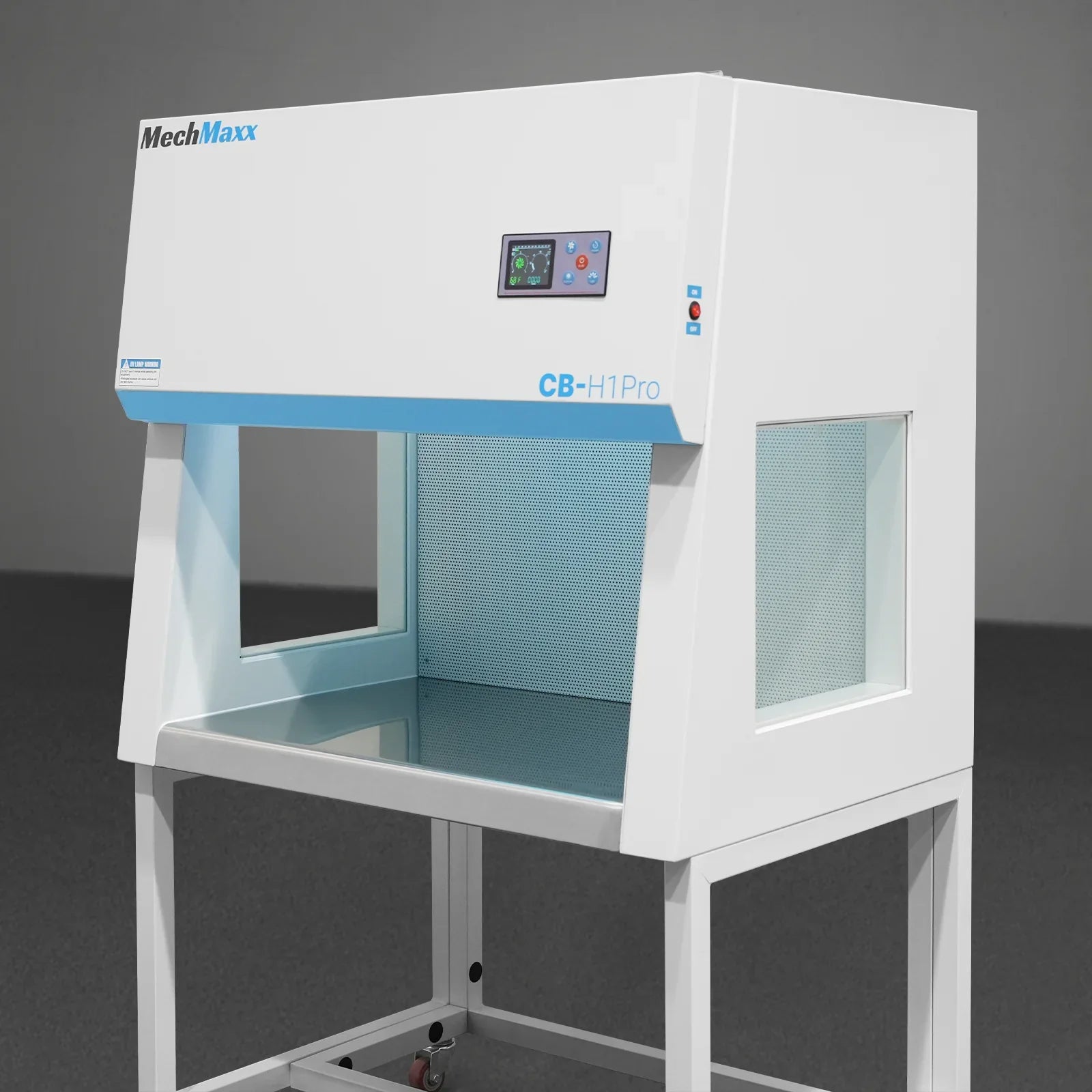

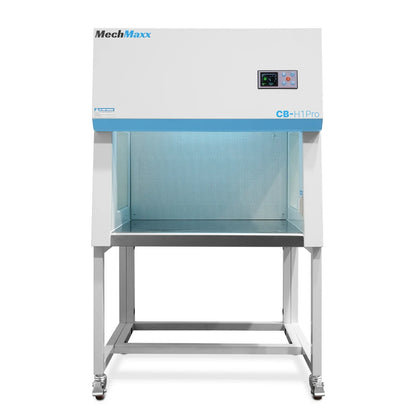

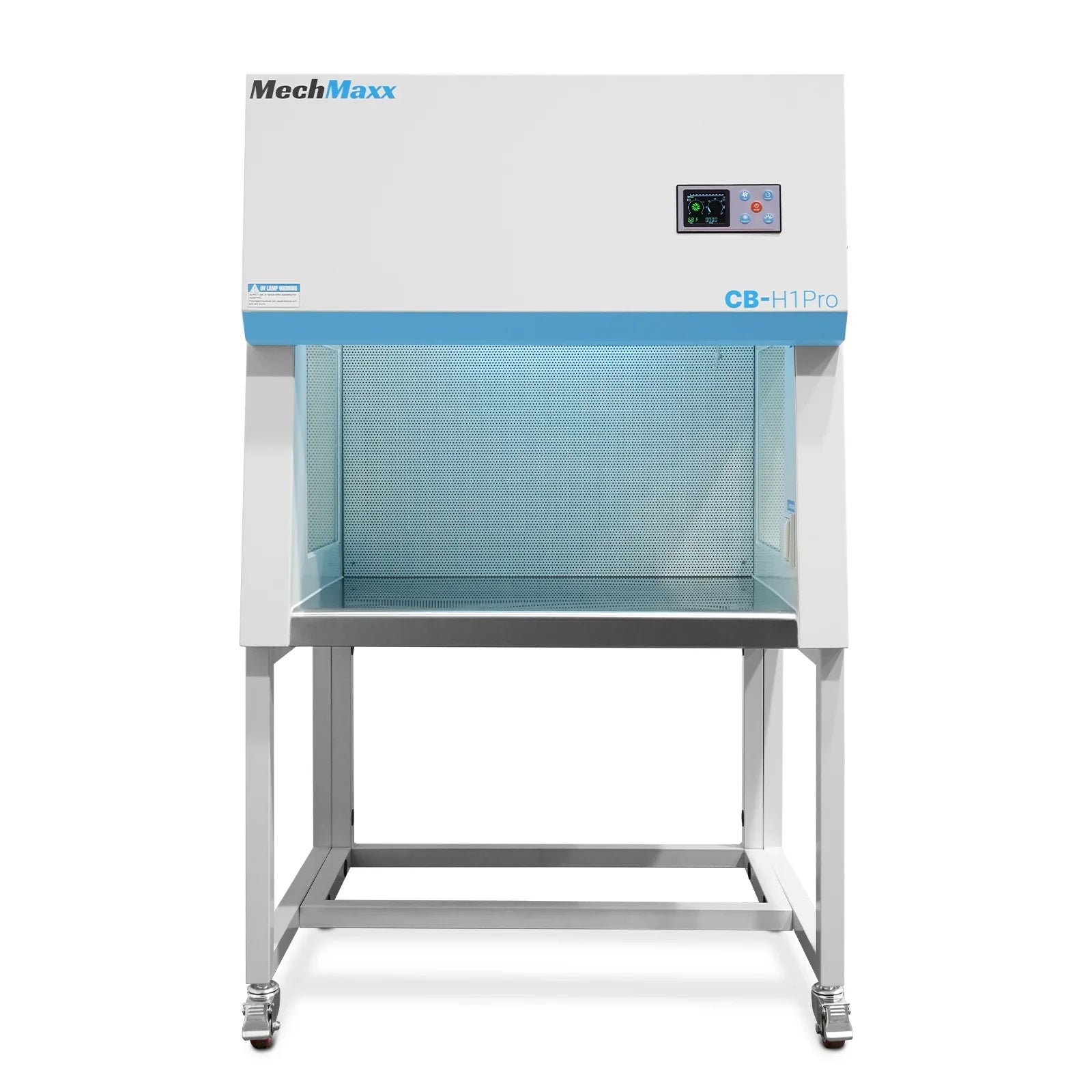

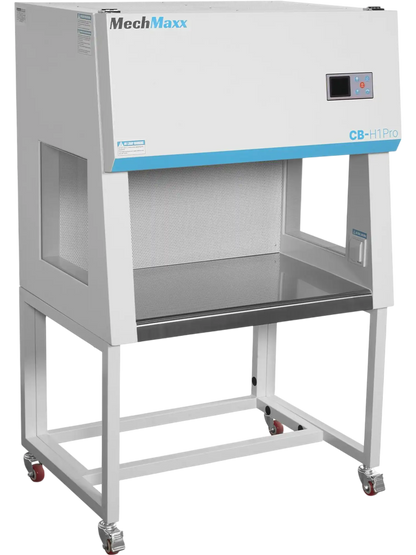

MechMaxx CB-H1Pro Laminar Flow Clean Bench 39" Wide Horizontal HEPA Filtration UV Sterilization ISO Class 5 New

MechMaxx

$2,299.00
$2,299.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

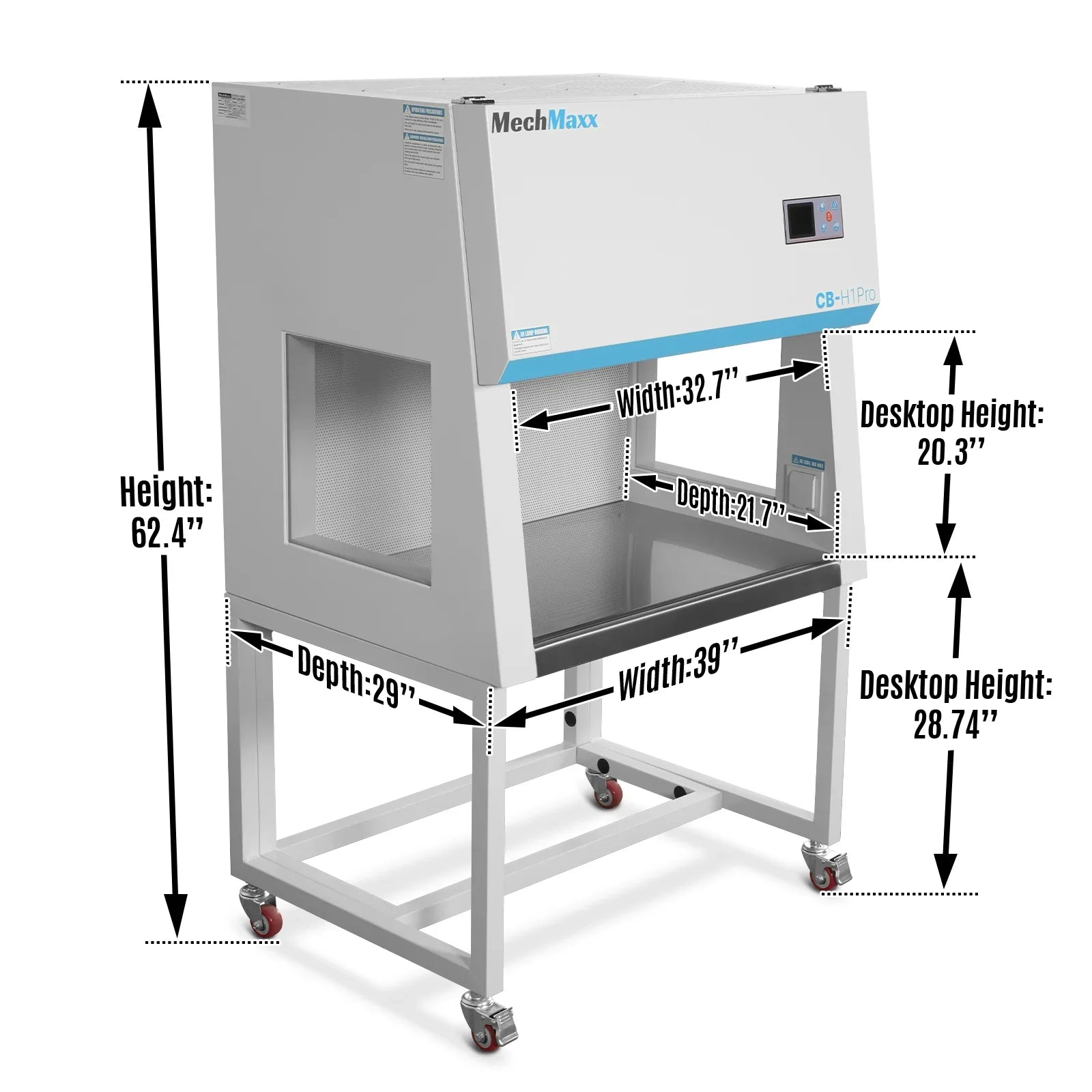

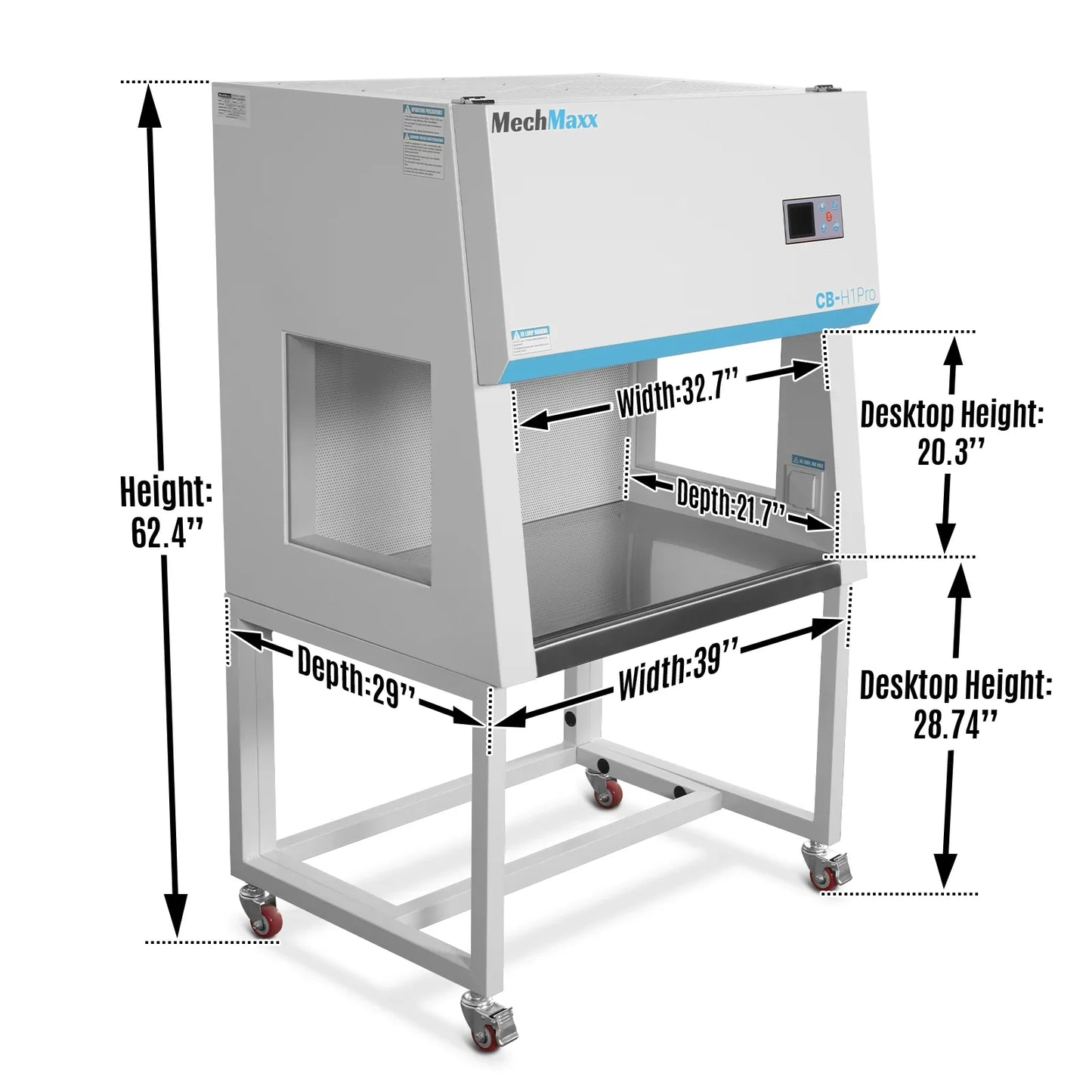

  • This clean bench has an overall size of H62.4 × W39 × D29 in, with an interior workspace measuring H20.3 × W32.7 × D21.7 in and a desktop height of 28.74 in.
  • With horizontal airflow, a washable pre-filter, and a HEPA filter, it delivers 99.99% filtration efficiency, compliant with ISO Class 5 (U.S. Fed. Std. 209E Class 100) standards.
  • CLEANFLOW Stable Airflow Technology ensures smooth, uniform airflow across the work area, minimizing turbulence and contamination while maximizing filter efficiency and product protection.
  • Vibration is minimal at ≤ 3 μm across all axes, and noise levels remain low at ≤ 62 dB, ensuring a stable and quiet working environment.
  • Features a centrifugal fan with an energy-efficient motor, high-temperature-resistant bearings, and a large arc-shaped air inlet to reduce turbulence.
  • Ergonomic design with forward tilt for more comfortable operation.Front cover flips outward for easy maintenance and quick replacement of electrical components.
  • Hood and stand made of high-grade cold-rolled steel with durable powder-coated finish for corrosion resistance and long-lasting strength.
  • Equipped with STMicroelectronics SCRs for precise and reliable power control.Standard three-prong workbench outlet with waterproof cover (max. 10A) for safe operation.
  • Fan speed adjustable in three levels via control panel, delivering 55–118 FPM airflow.Low-energy, high-pressure centrifugal fan with optimized ducting ensures consistent and even airflow.
  • Differential pressure sensor monitors filter efficiency in real time, alerting users when replacement is needed.
  • Work surface constructed from 304-grade stainless steel for durability and easy cleaning.

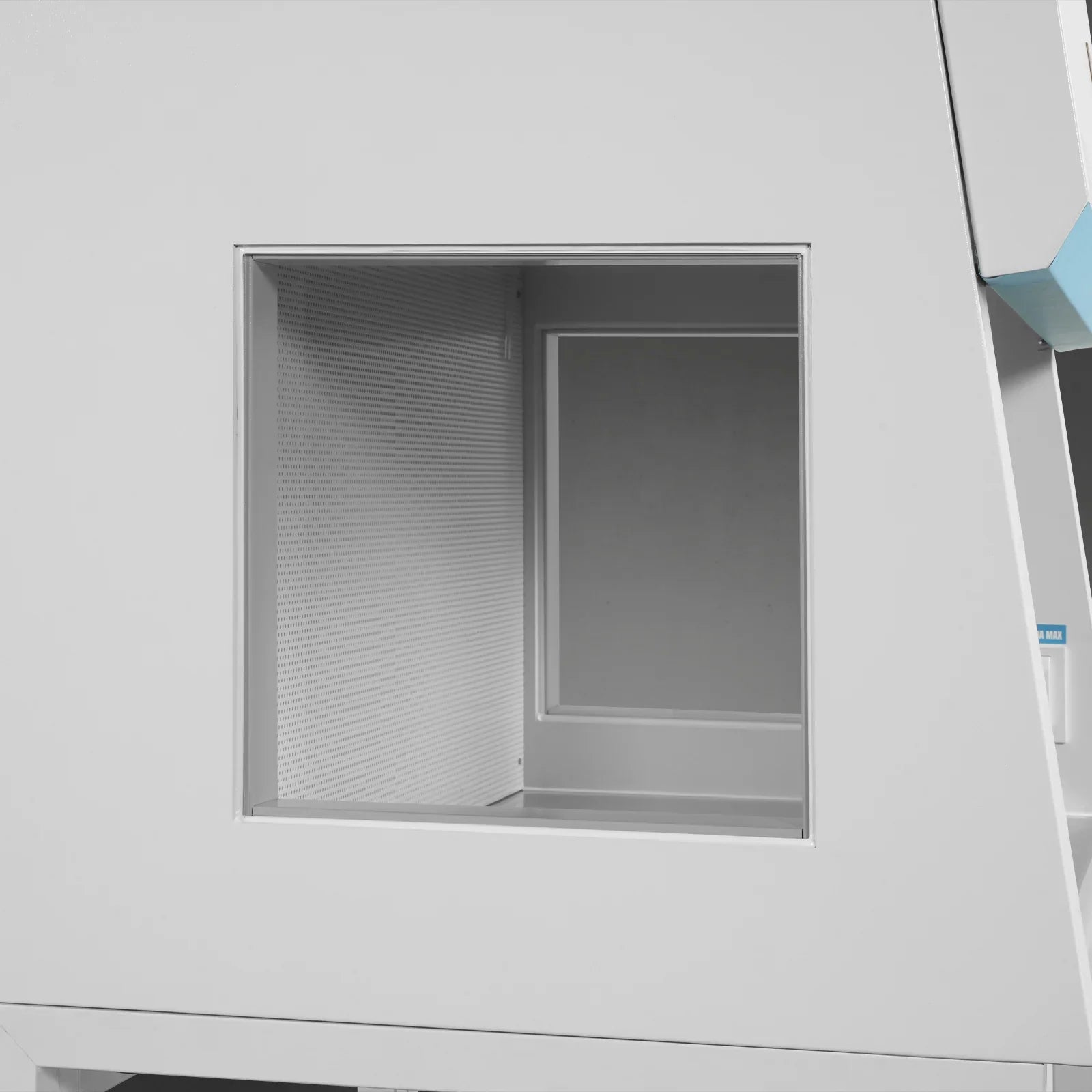

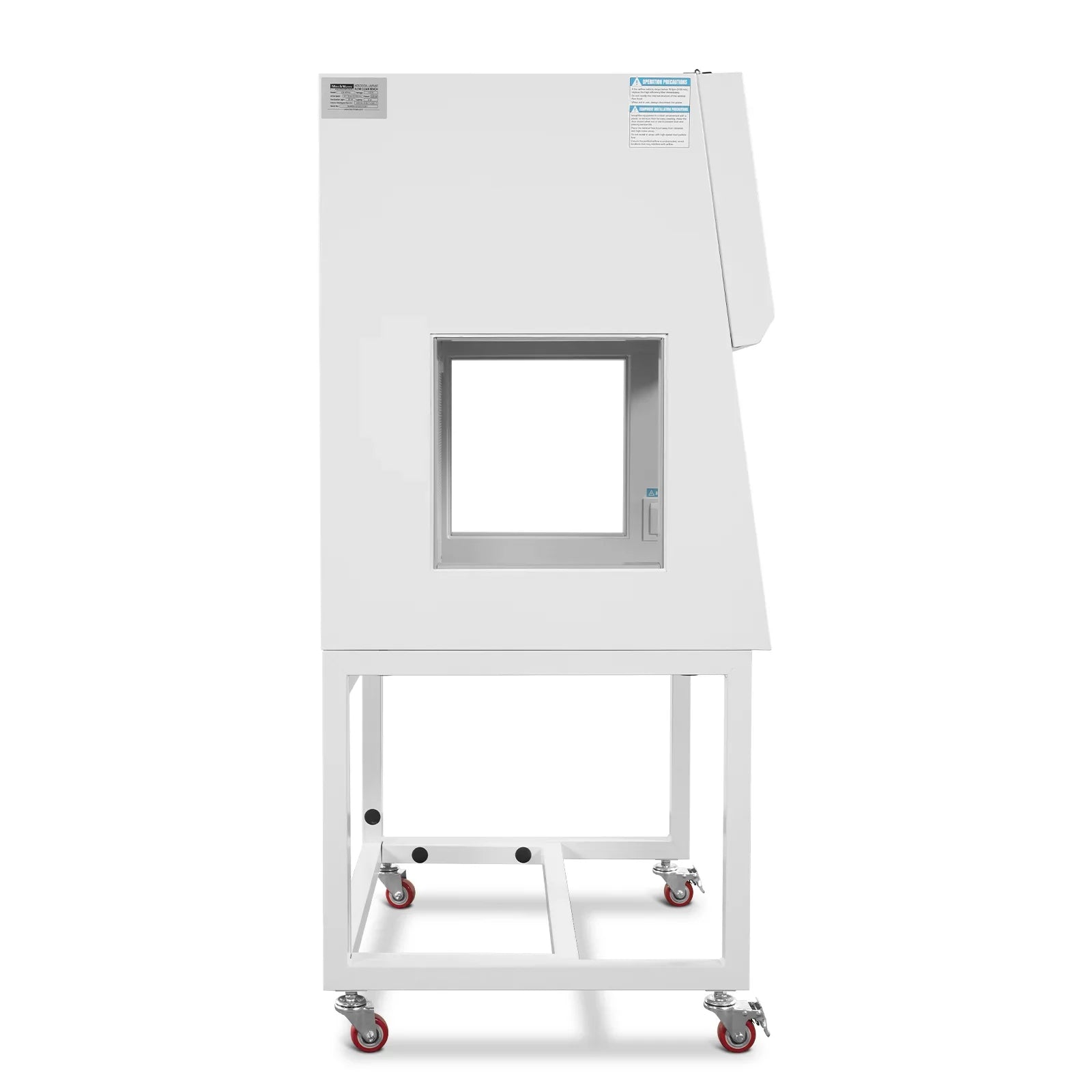

  • Double-layer side glass windows enhance visibility; work area is free of protrusions, dead corners, and airflow obstructions.
  • Equipped with a UV sterilization lamp, with button-controlled timer for automatic shut-off.
  • Supports scheduled operation up to 99 hours in advance, automatically activating airflow and filtration to ensure a clean workspace before use.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

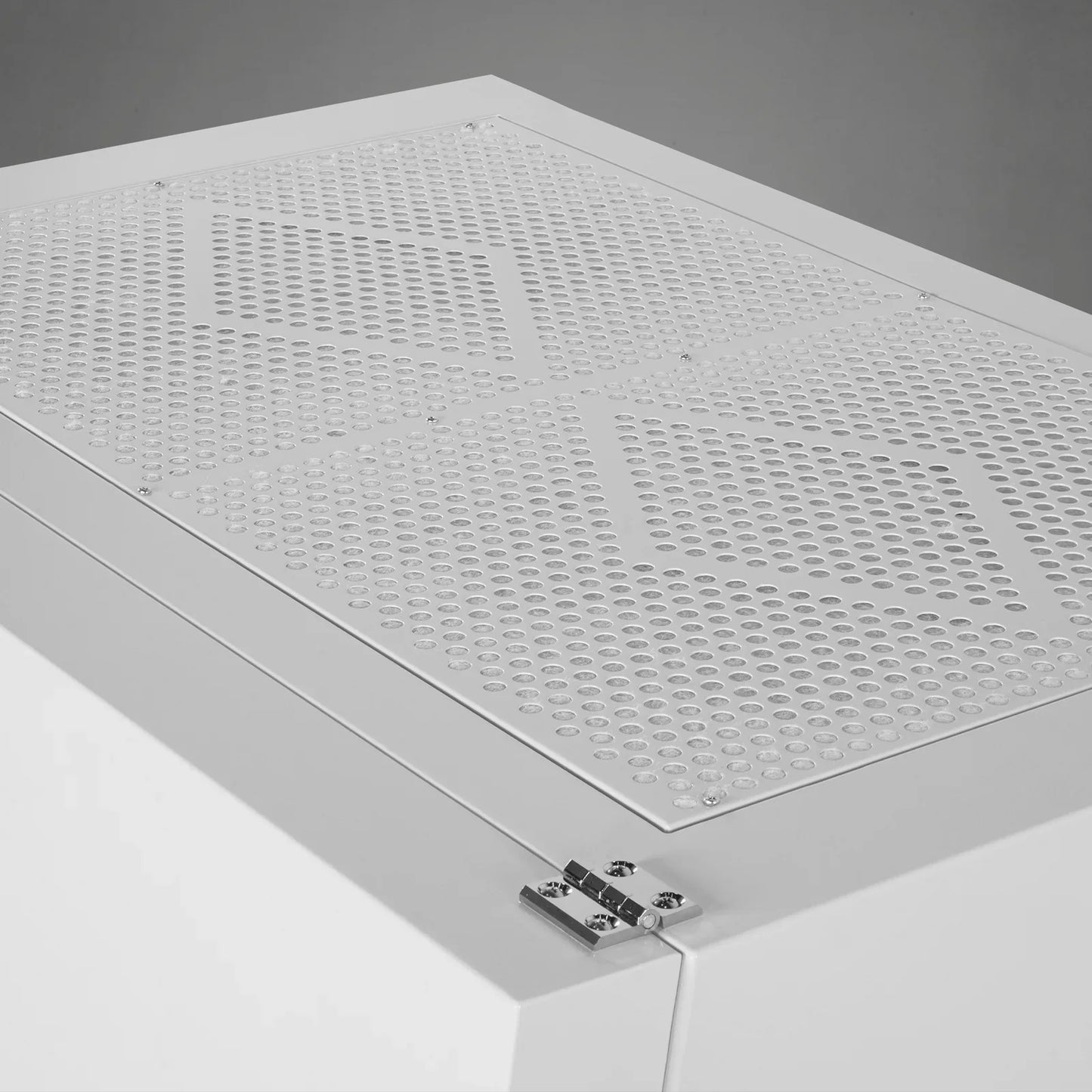

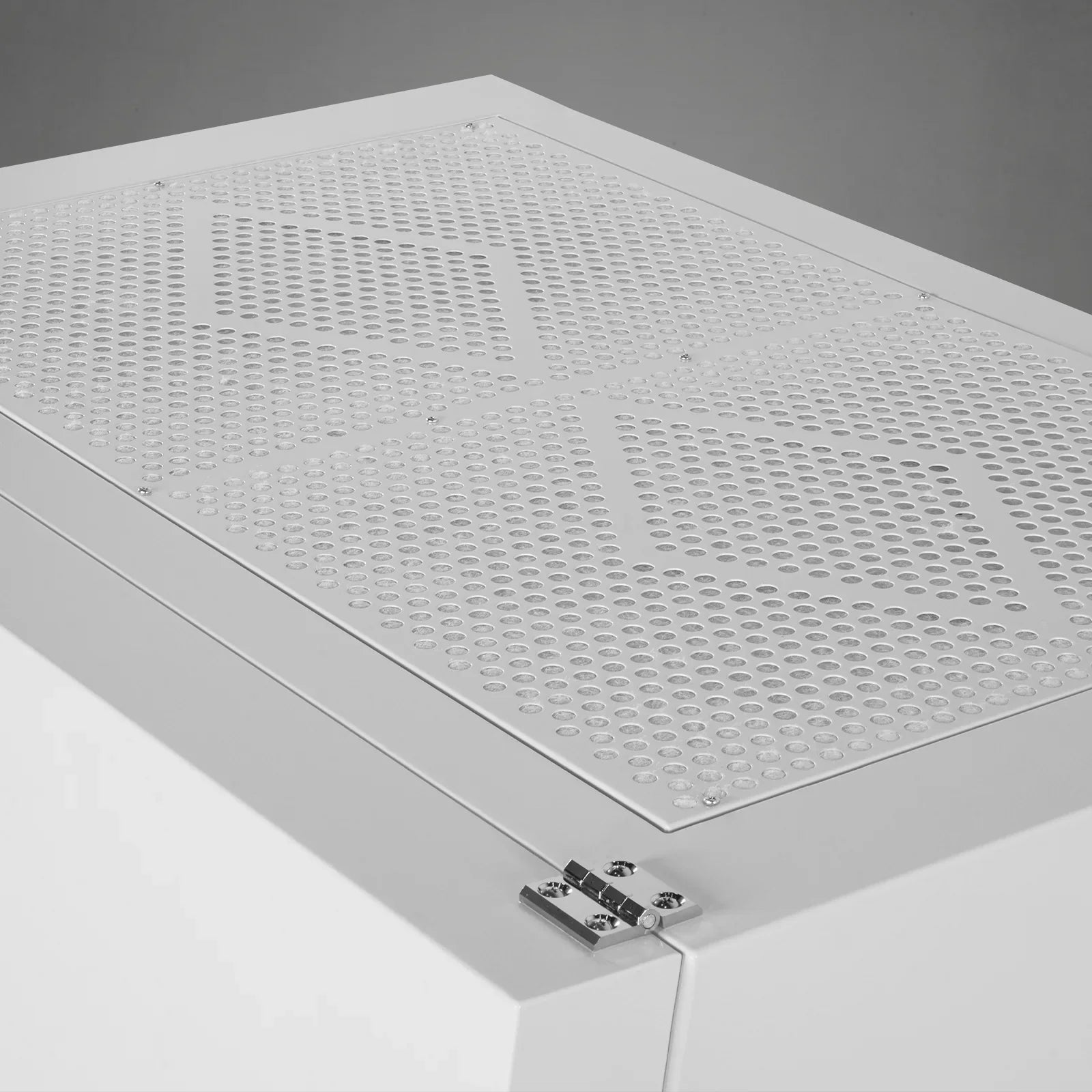

  • Dual-stage filtration system: A pre-filter pad is installed upstream of the primary HEPA filter on the top section. It captures larger particles in advance, improving overall air purification efficiency and extending the service life of the main filter. The pre-filter can be cleaned regularly and reused.

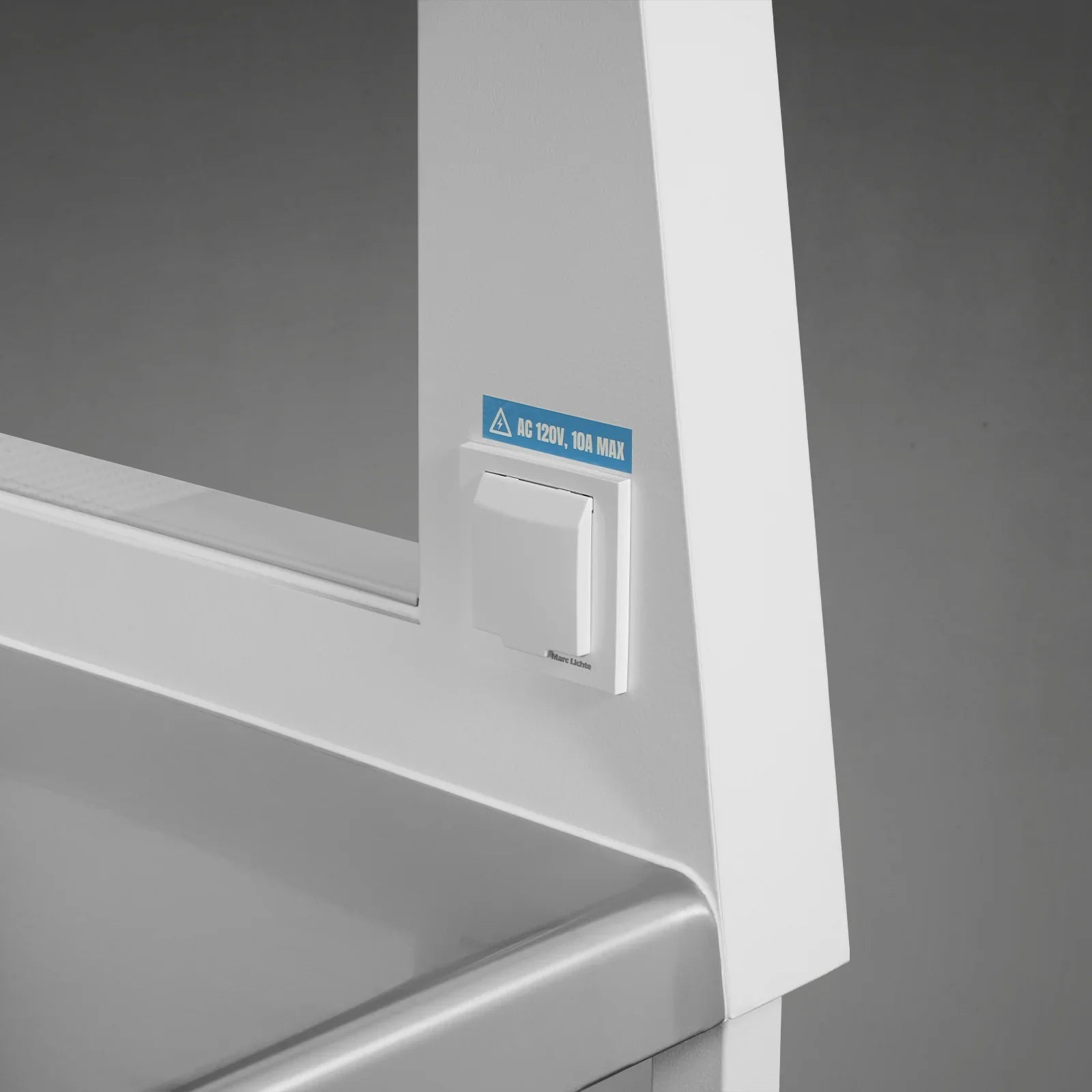

  • Waterproof power outlet: Equipped with a NEMA 5-15P grounded three-prong power outlet with a waterproof protective cover, allowing convenient use of small electrical devices directly within the work area. Maximum current rating: 10A.

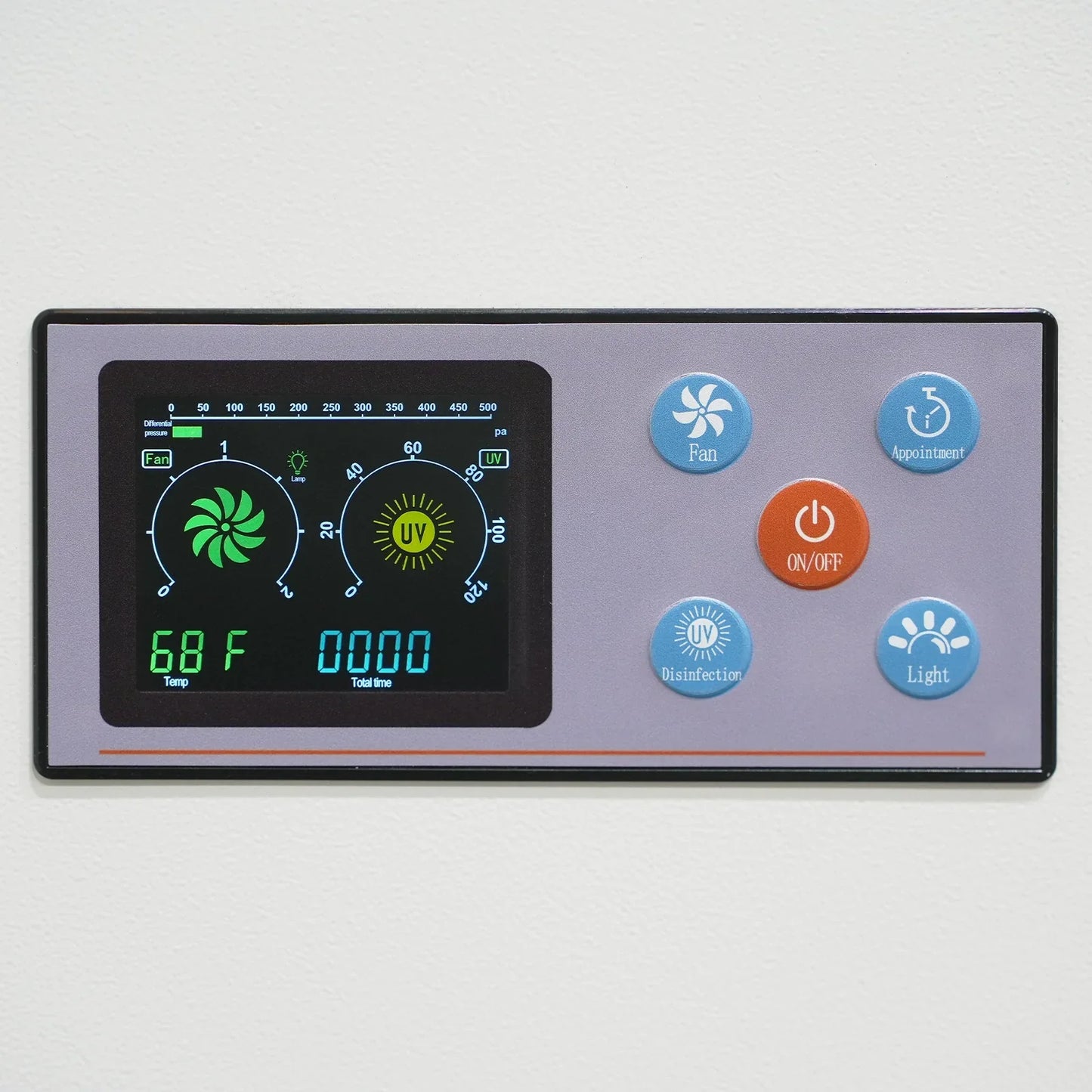

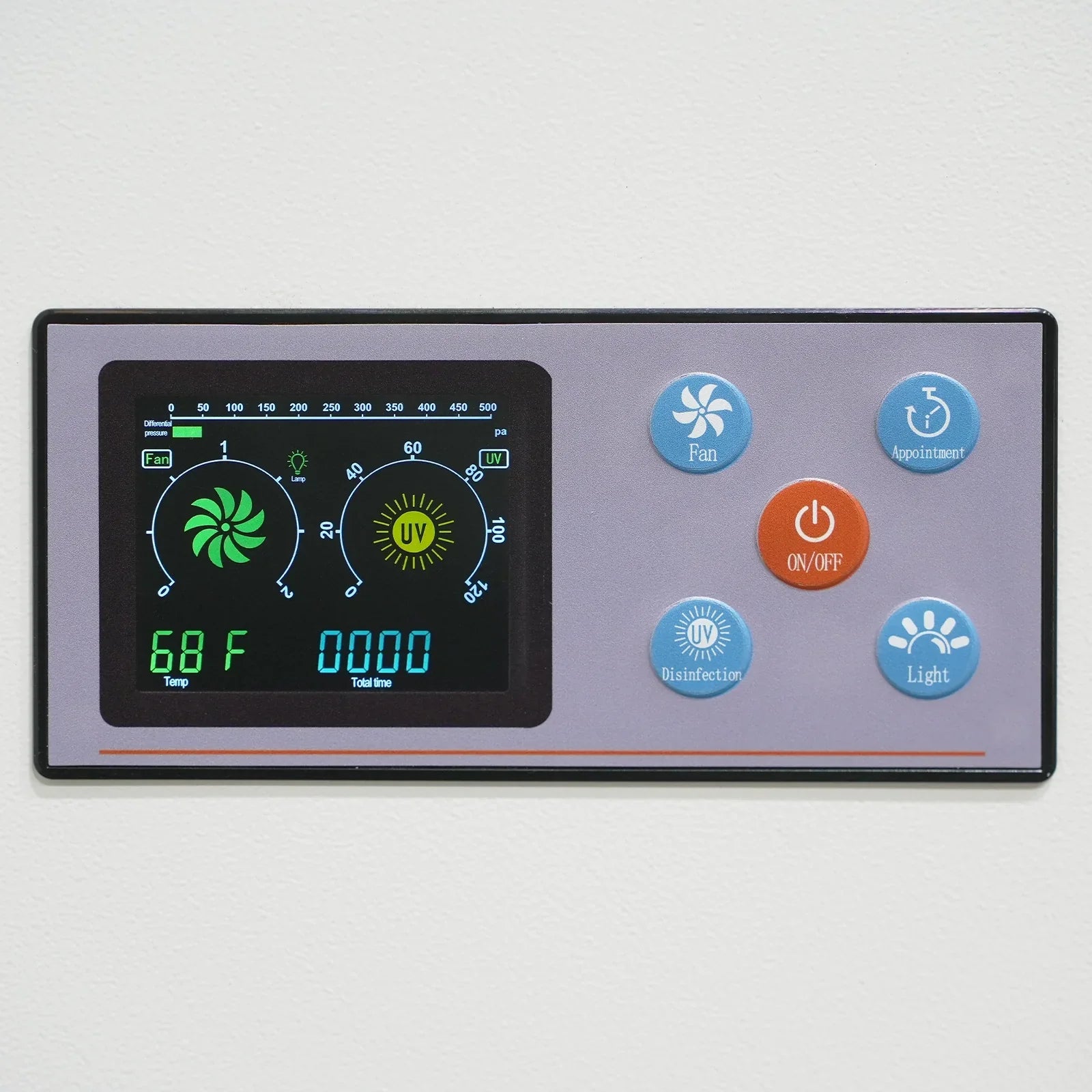

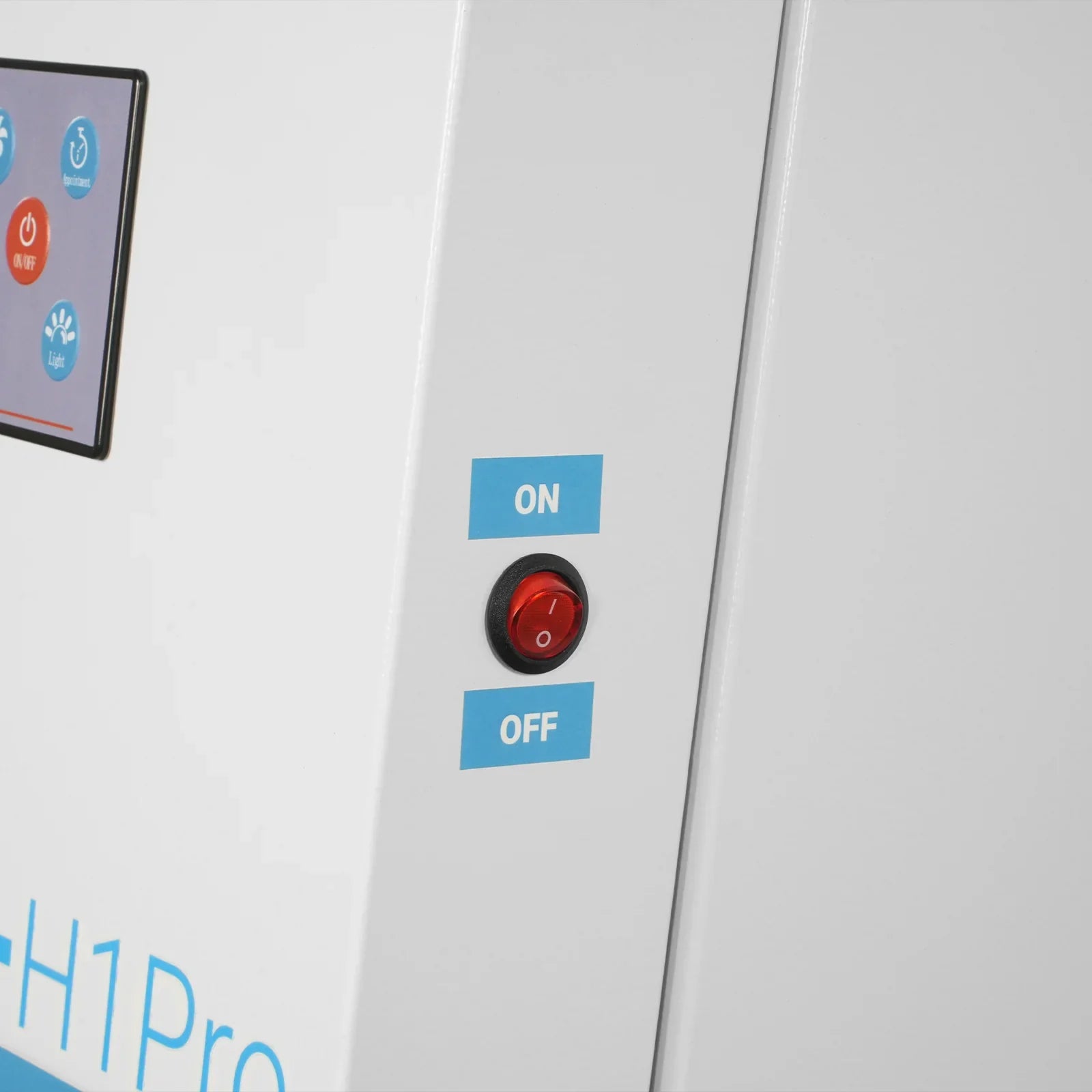

  • Control panel with display screen: Three-level adjustable fan speed (55–118 FPM) via control panel. Equipped with a differential pressure sensor for real-time filter efficiency monitoring and early replacement alerts. Supports scheduled pre-start cleaning, lighting control, UV sterilization with timed shutoff, and real-time working area temperature display.
  • Workspacer: 304-grade stainless steel work surface with double-layer glass side windows for improved visibility. Seamless interior design eliminates protrusions, dead corners, and airflow disruption for smooth, stable airflow.
  • Delay Start: Supports up to 99-hour scheduled start, enabling automatic activation of airflow and filtration at a preset time to ensure a clean and ready-to-use workspace before operation.
  • UV LAMP: Equipped with a UV sterilization lamp, with button-controlled timer for automatic shut-off.

Model: CB-H1Pro

Overall External Size: H62.4 × W39 × D29 in

Interior Workspace Size: H20.3 × W32.7 × D21.7 in

Desktop Height: 28.74 in

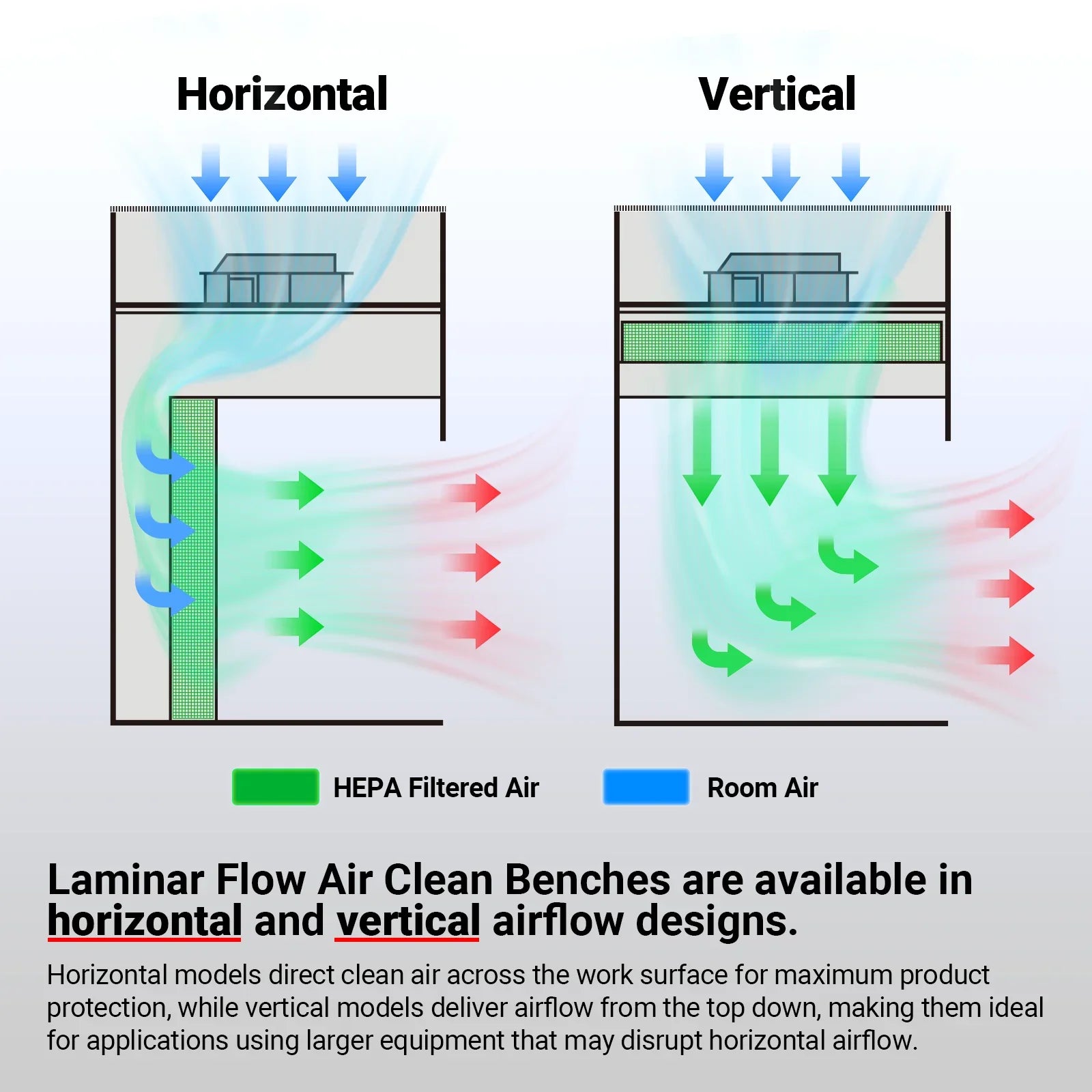

Airflow Direction: Horizontal

Vibration (Half Peak): ≤ 3 μm (X, Y, Z axes)

Filtration Efficiency: 3μm , 99.99%

Cleanliness Class: ISO 14644-1 Class 5 (U.S. Federal Standard 209E Class 100)

Noise Level: ≤62DB

Airflow Velocity: 59-118fpm(0.3-0.6m/s), adjustable

Pre-filter: Yes,Washable&Reusable

Worktop Material: 304 Stainless Steel

Illumination: ≥300 LX

Ergonomic Tilted: Yes

Body Material: Cold Rolled Steel

Side Windows: Double-layer Tempered Glass

CLEANFLOW Stable Airflow Technology: Yes

UV Sterilization Lamp: Yes,Timer-Off

Workspace Power Outlet: Yes

Differential Pressure Sensor: Yes

Outward-flip Front Cover: Yes

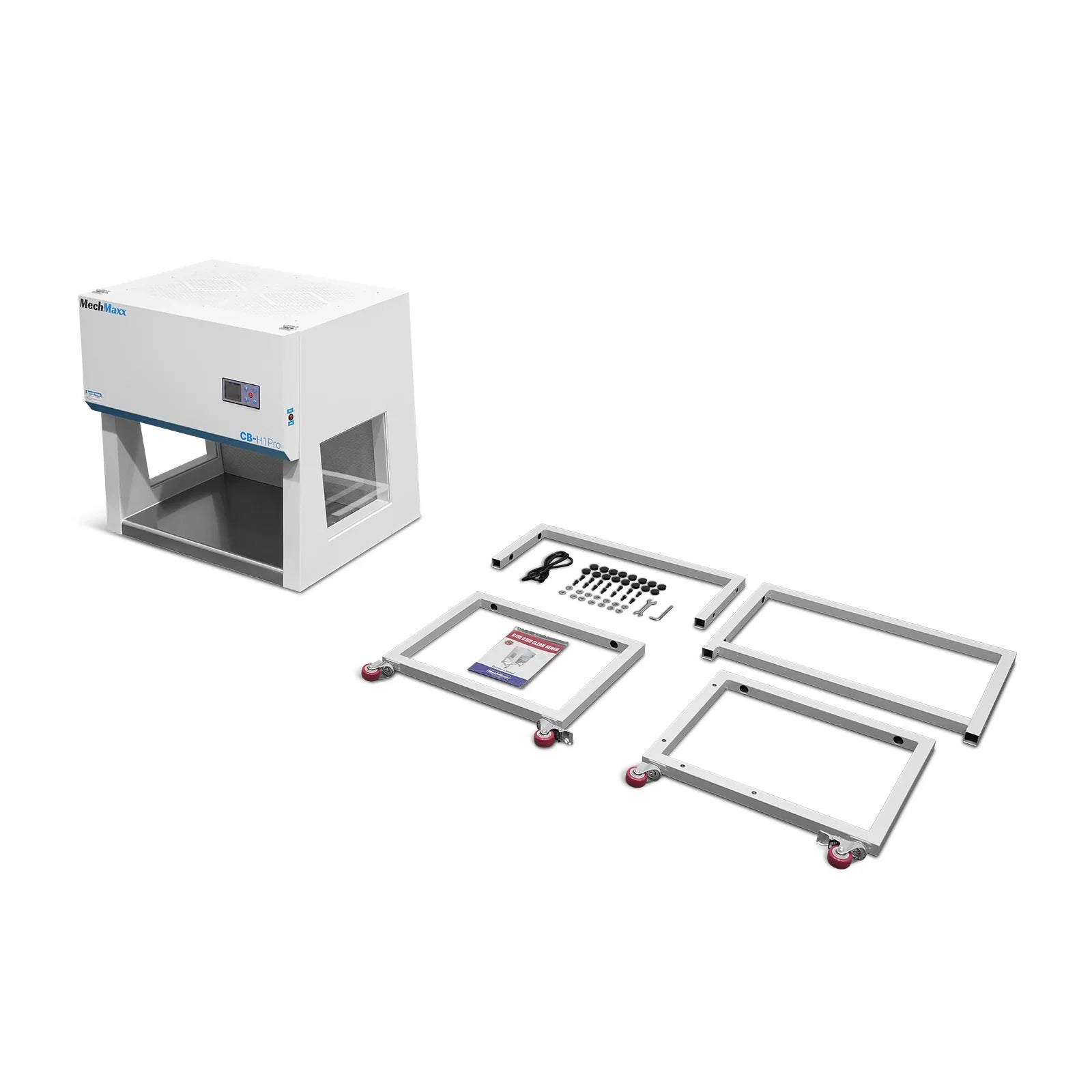

Detachable Stand With Casters: Yes

Voltage: 110V

Rated Power: 220W

Packaging Size L×W×H(in): 43.31×33.07×49.61in

Gross Weight: 330LB

This item comes with a 1 year factory warranty.
PDF CB-H1Pro Product manual 1.0
