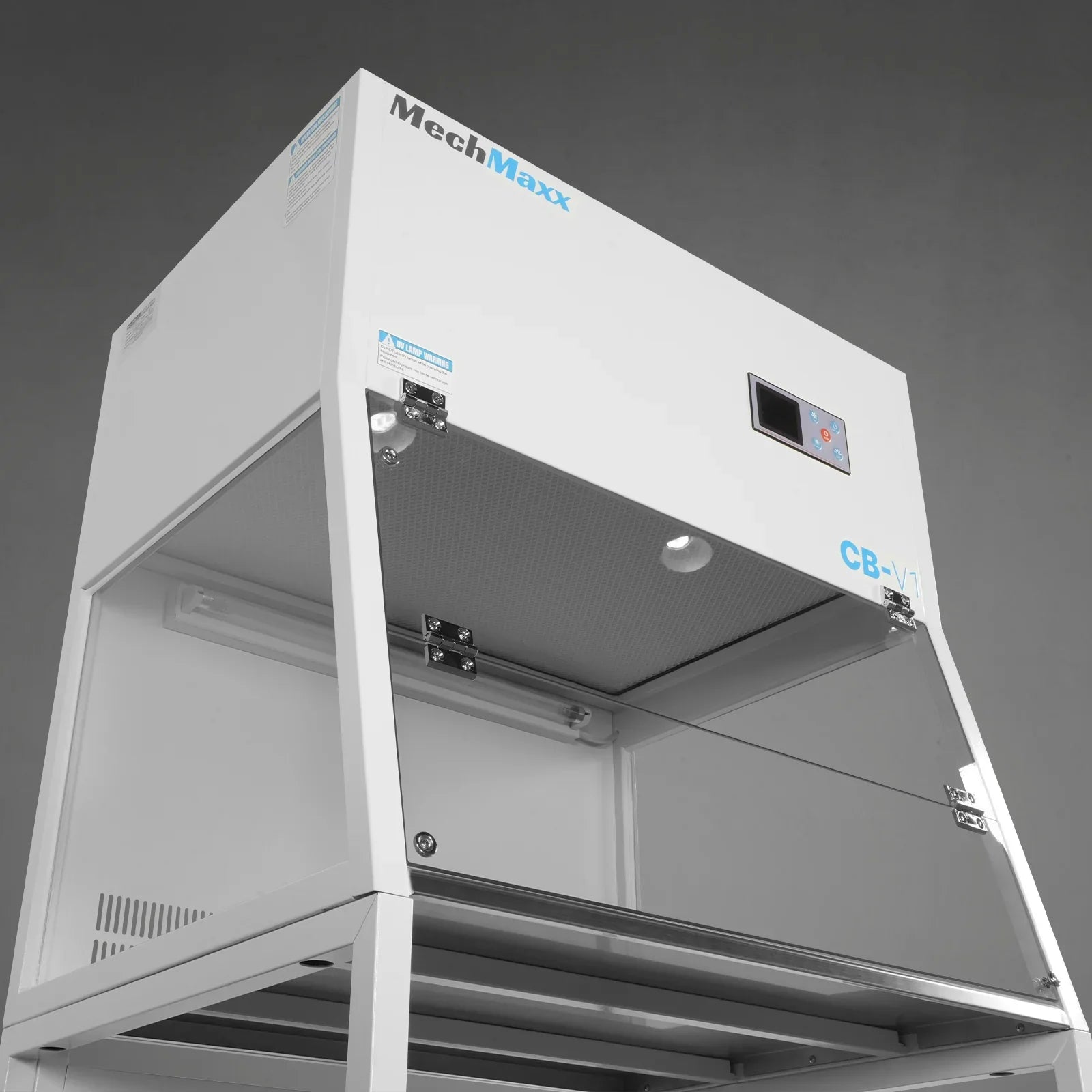

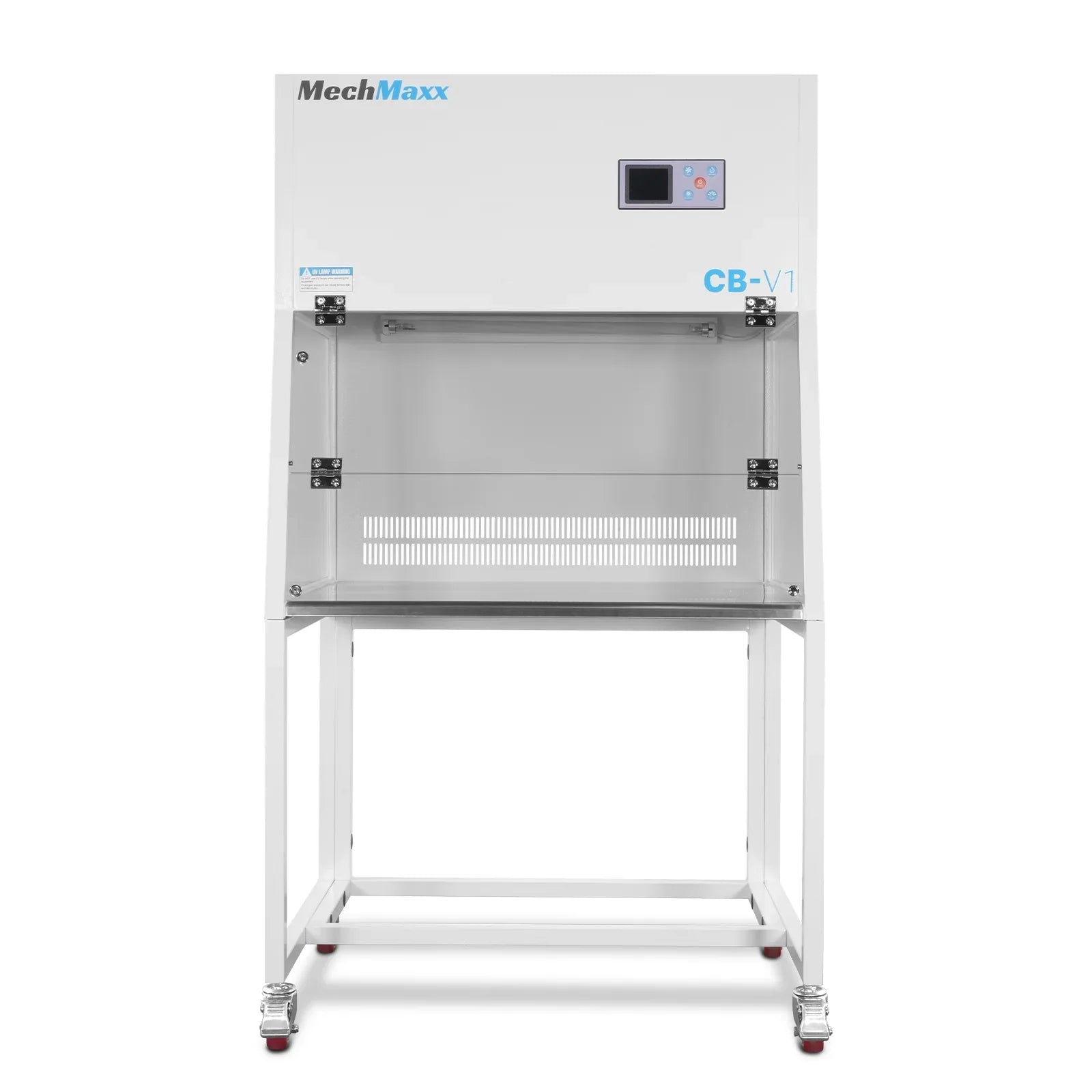

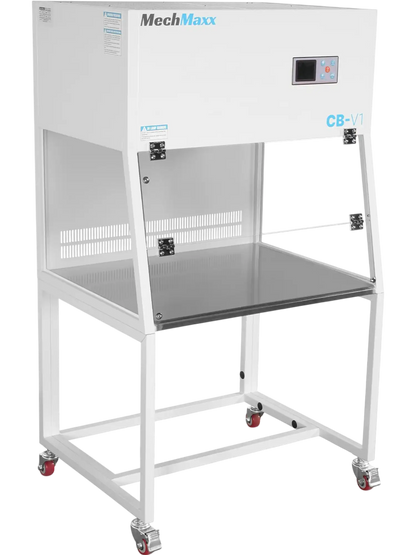

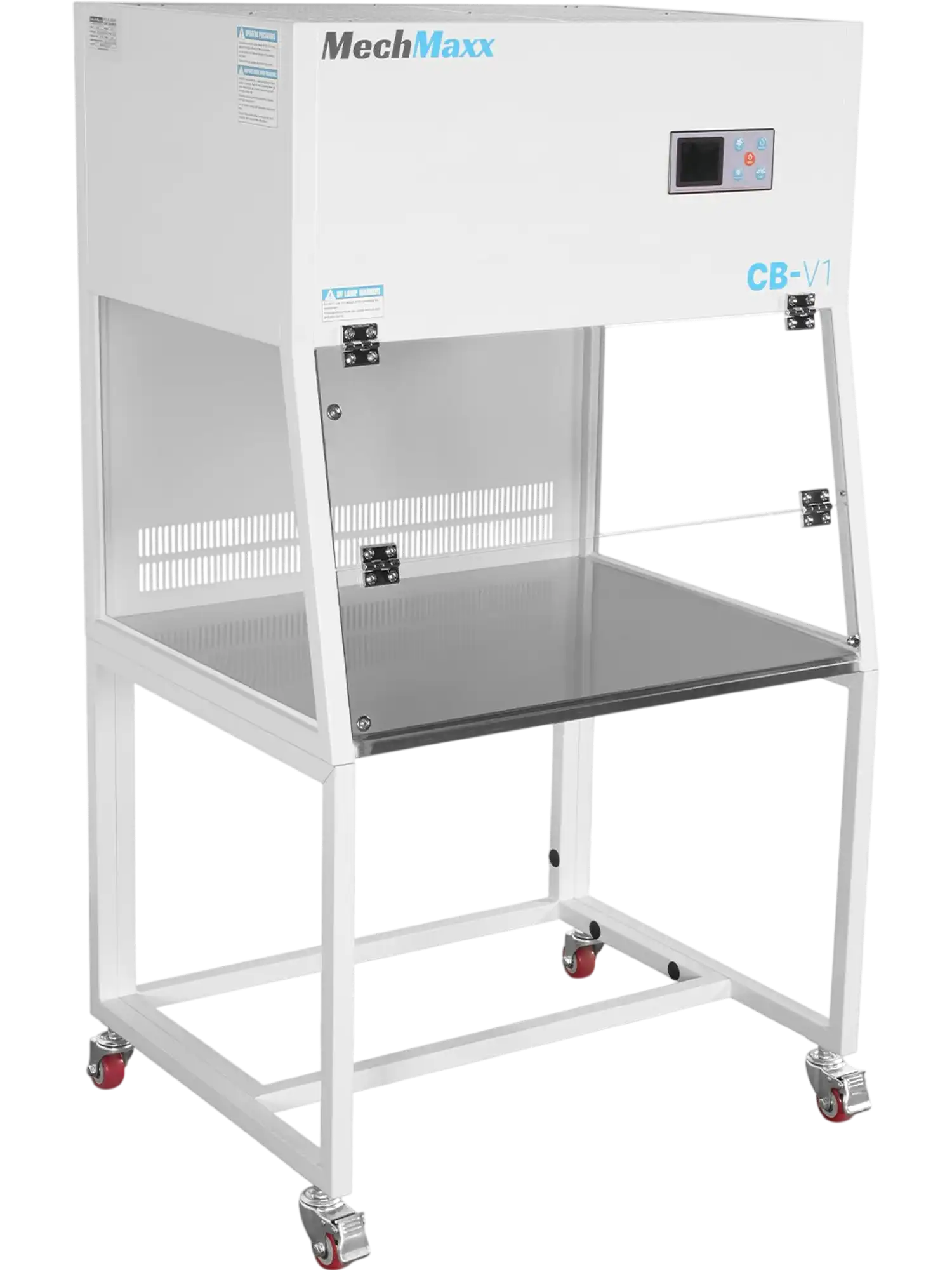

MechMaxx CB-V1 Clean Bench 33.9" Wide Vertical Laminar Flow HEPA Filtration UV Sterilization ISO Class 5 New

MechMaxx

$1,749.00
$1,749.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • This clean bench has an overall size of H59.6 × W33.9 × D26.8 in, with an interior workspace measuring H20.7 × W31.5 × D25.6 in and a desktop height of 27.56 in.
  • With vertical airflow, a washable pre-filter, and a HEPA filter, it delivers 99.99% filtration efficiency, compliant with ISO Class 5 (U.S. Fed. Std. 209E Class 100) standards.
  • Ergonomic design with forward tilt for more comfortable operation.
  • Features a centrifugal fan with an energy-efficient motor and a large arc-shaped air inlet to reduce turbulence.Fan speed adjustable in three levels via control panel, delivering 49–89 FPM airflow.
  • Vibration is minimal at ≤ 3 μm across all axes, and noise levels remain low at ≤ 62 dB, ensuring a stable and quiet working environment.
  • Hood and stand made of high-grade cold-rolled steel with durable powder-coated finish for corrosion resistance and long-lasting strength.
  • Fan speed adjustable in three levels via control panel, delivering 49–89 FPM airflow.
  • Work surface constructed from stainless steel for durability and easy cleaning.
  • High-transparency acrylic front cover with two-section upward fold, magnetically secured.
  • Single-layer side glass windows enhance visibility; work area is free of protrusions, dead corners, and airflow obstructions.

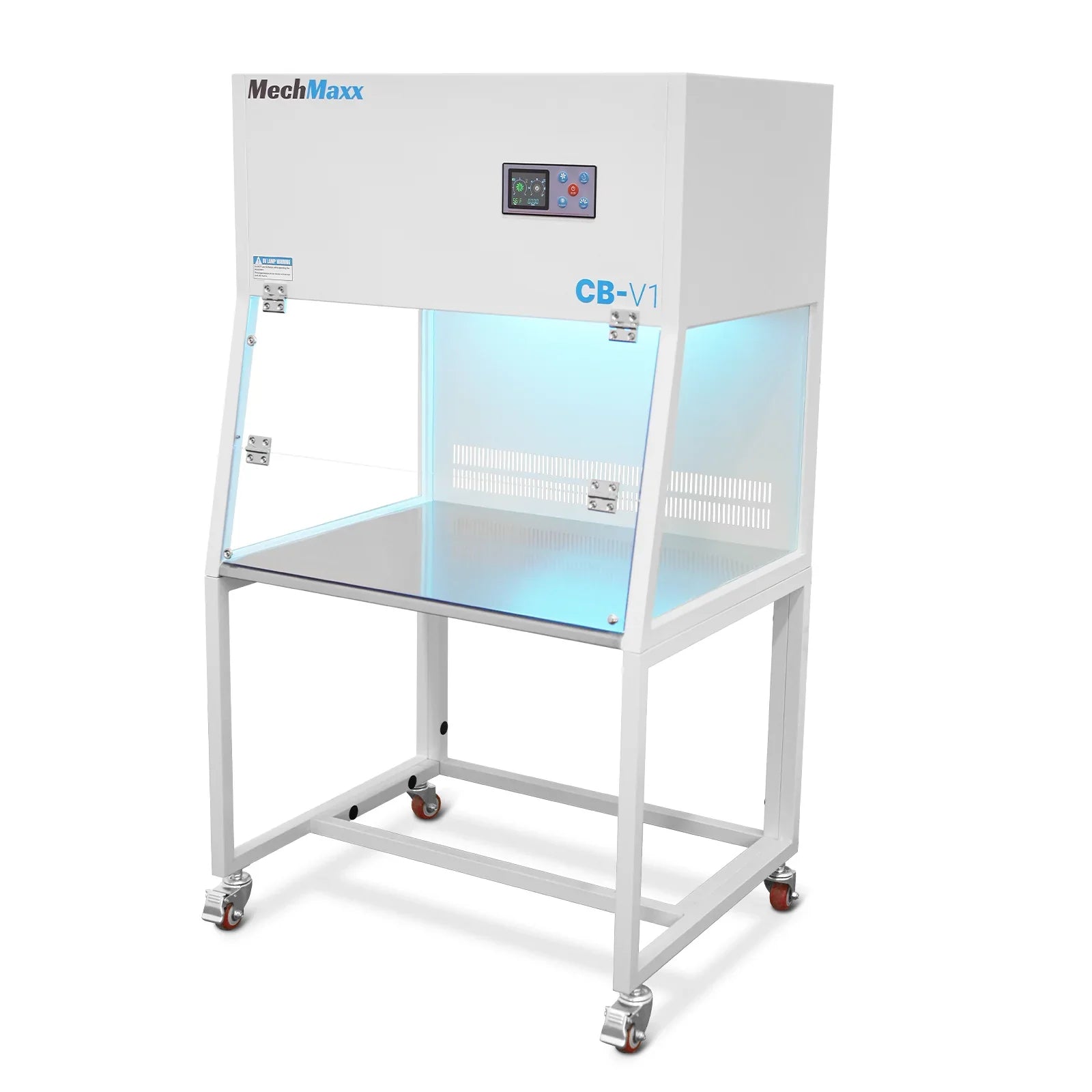

  • Equipped with a UV sterilization lamp, with button-controlled timer for automatic shut-off.
  • Supports scheduled operation up to 99 hours in advance, automatically activating airflow and filtration to ensure a clean workspace before use.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

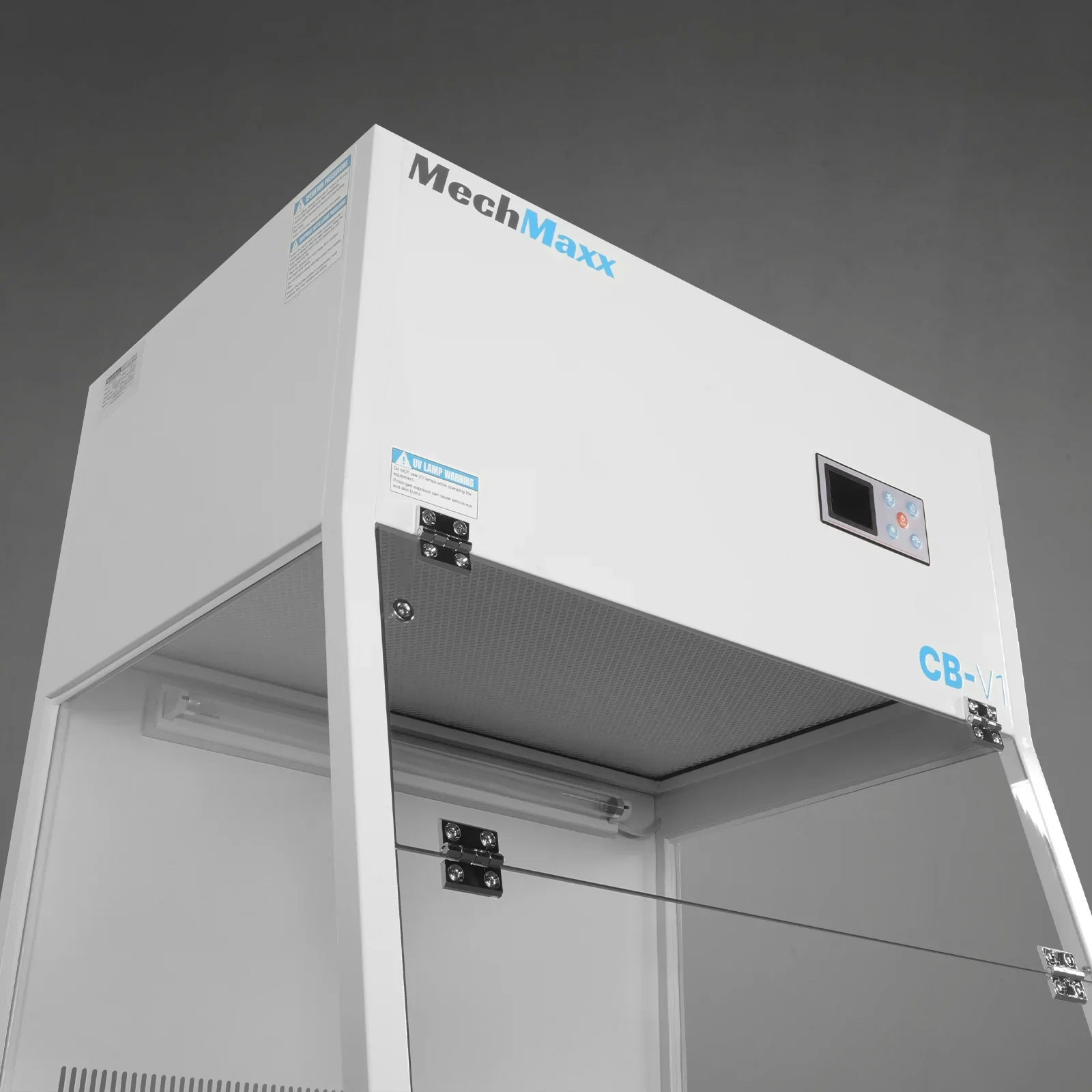

  • Dual-stage filtration system: A pre-filter pad is installed upstream of the primary HEPA filter on the top section. It captures larger particles in advance, improving overall air purification efficiency and extending the service life of the main filter. The pre-filter can be cleaned regularly and reused.

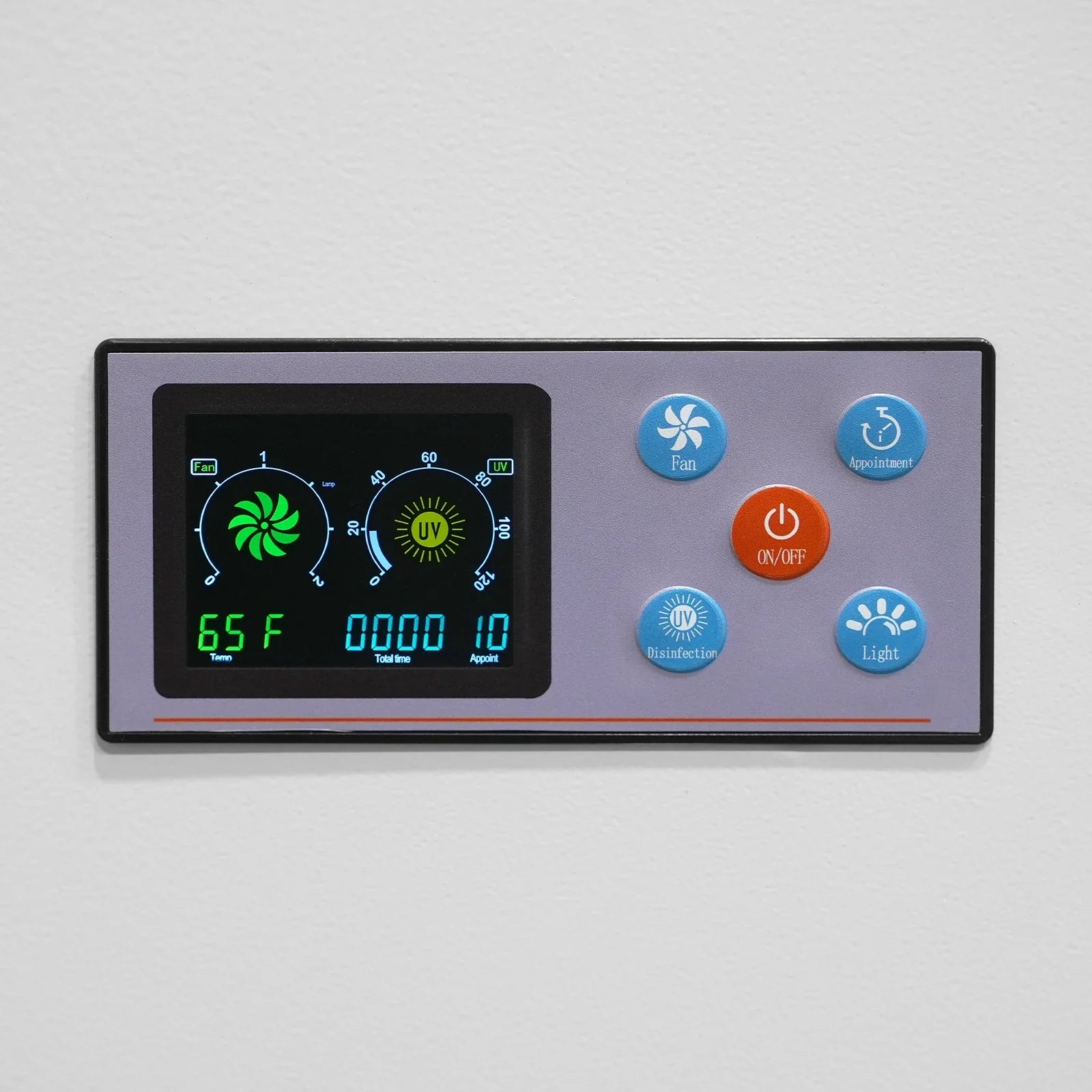

  • Control panel with display screen: Supports scheduled pre-start cleaning, 3-level adjustable airflow speed (49–89 FPM), lighting on/off control, and UV sterilization lamp with timed shutoff. It also displays real-time working area temperature for convenient monitoring. Simple and user-friendly operation.

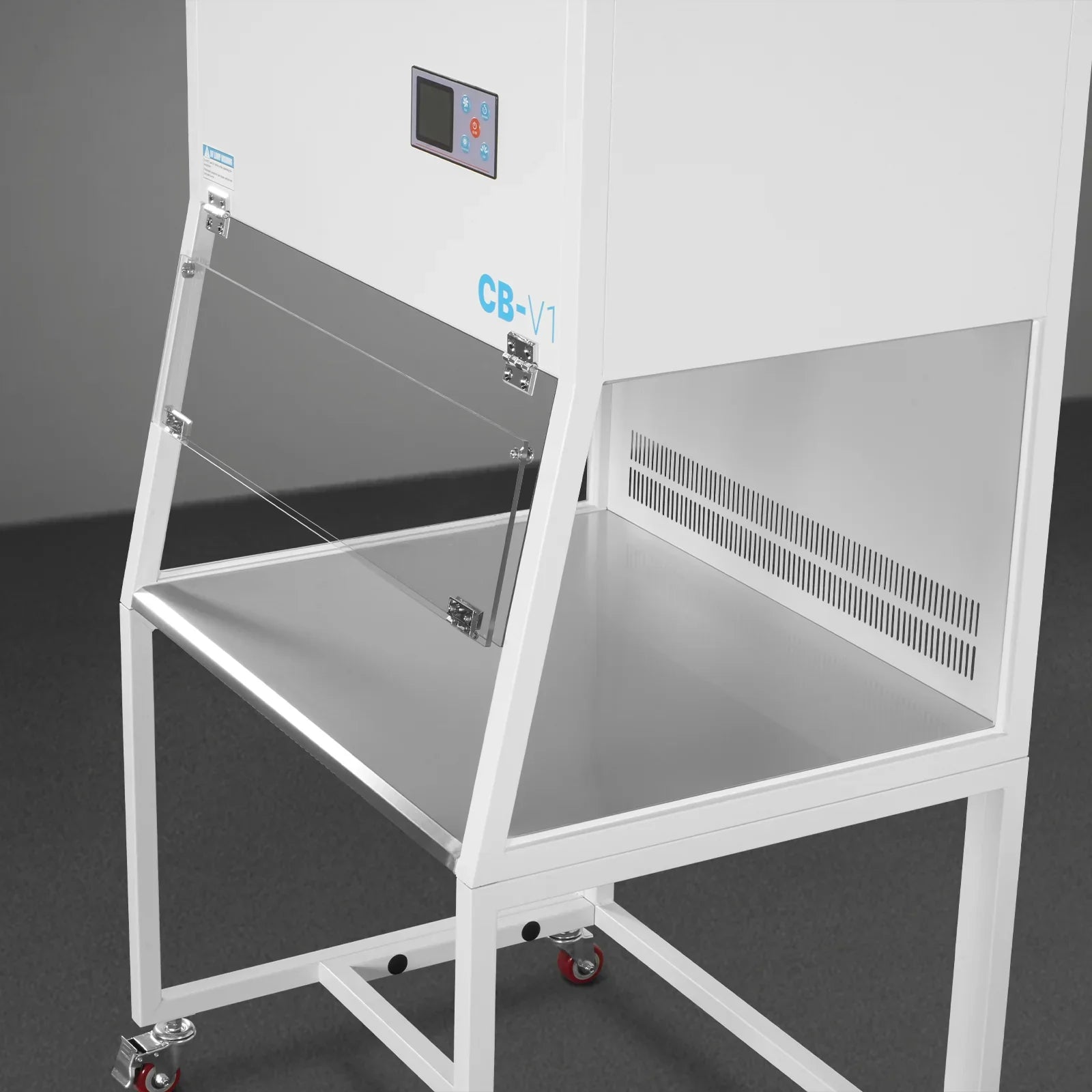

  • Workspace: Work surface constructed from stainless steel; single-layer glass side windows ensure clear visibility. The workspace is designed with a seamless interior free of protrusions, dead corners, or airflow disruption, providing contamination-free and uniform airflow.

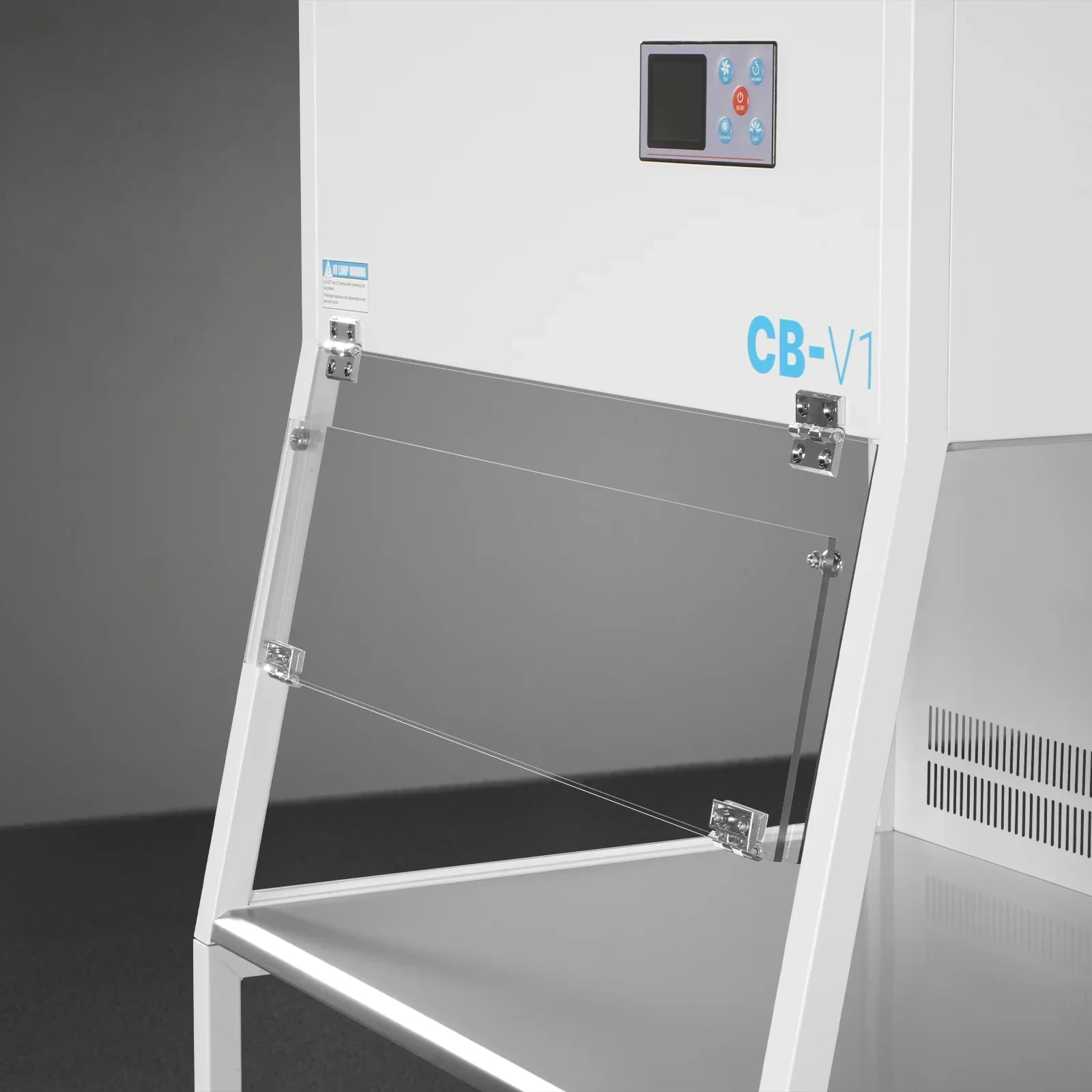

  • High-transparency acrylic front cover: Two-section upward fold, magnetically secured for effortless use.

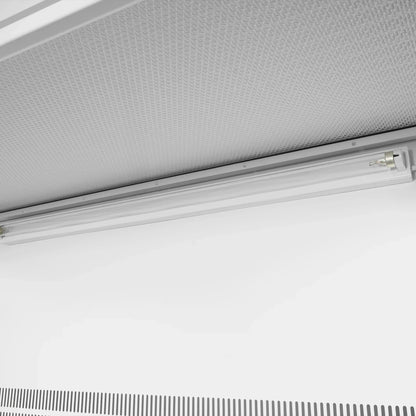

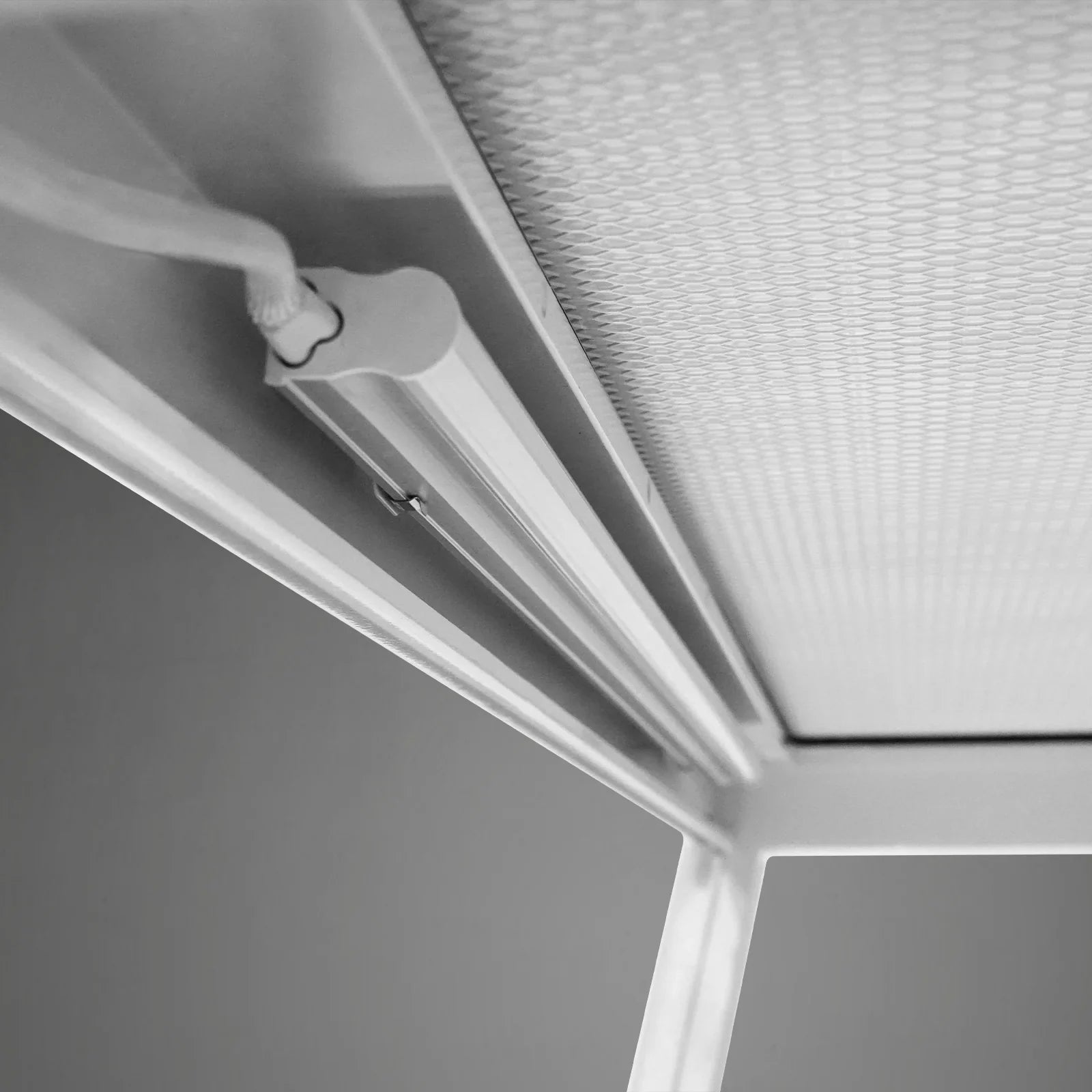

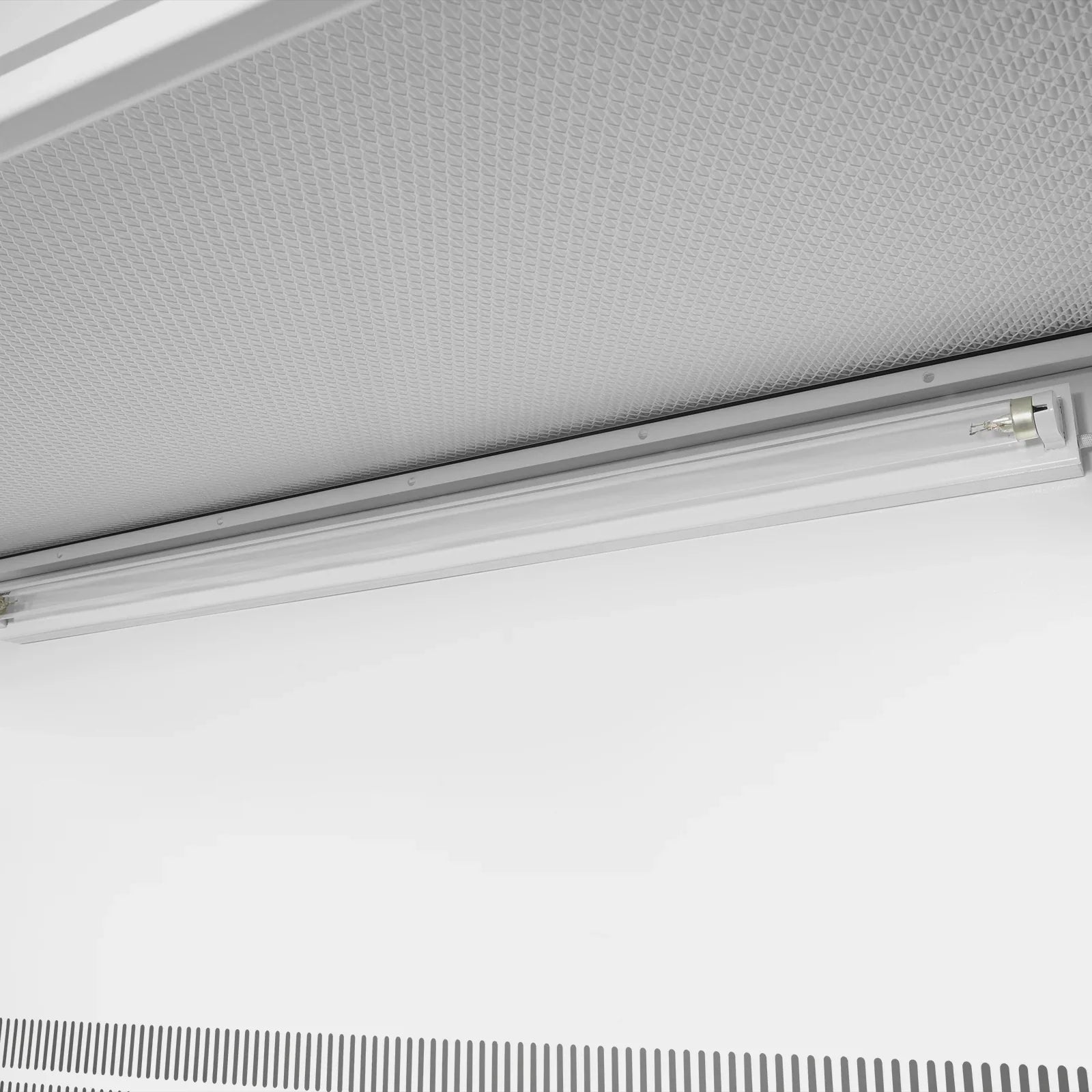

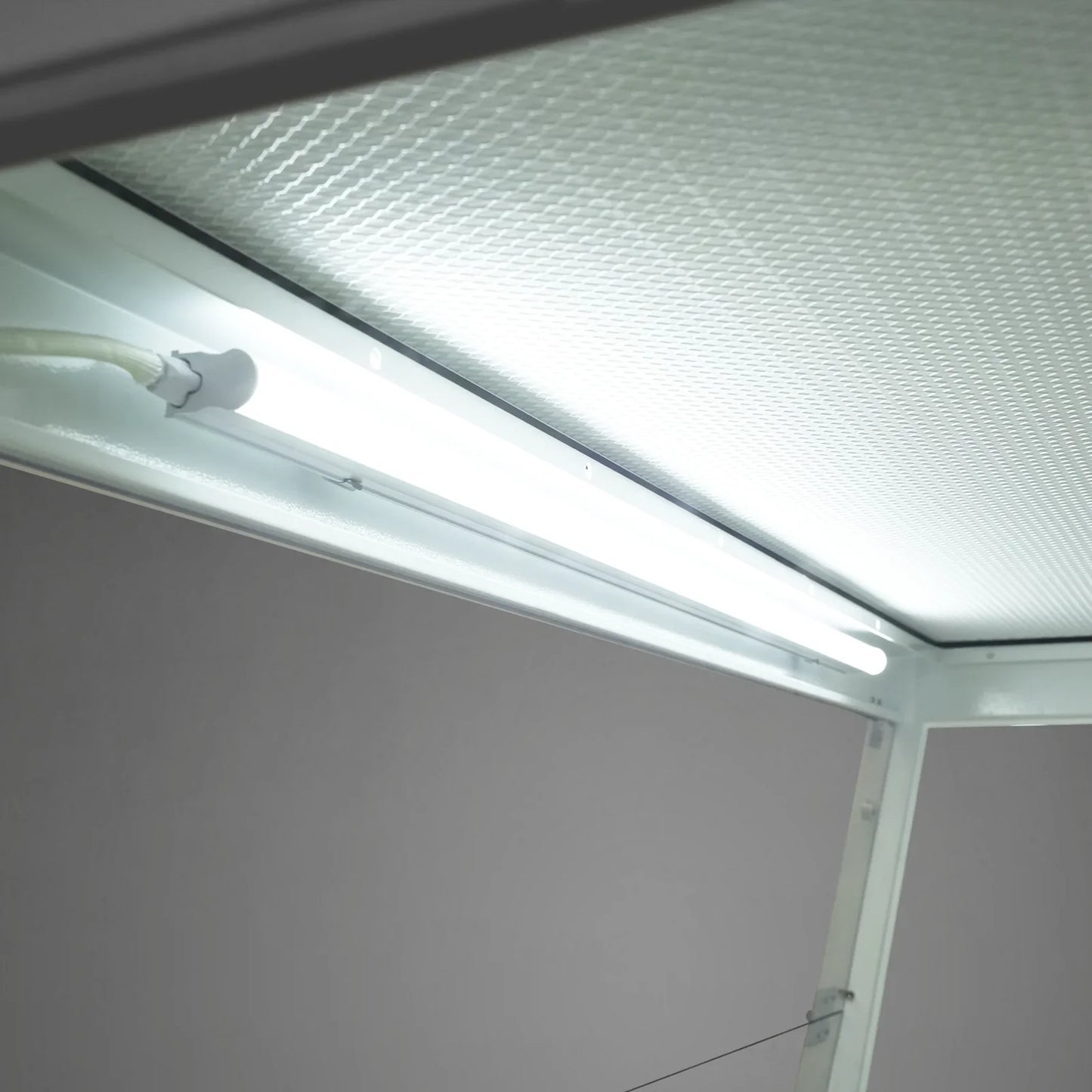

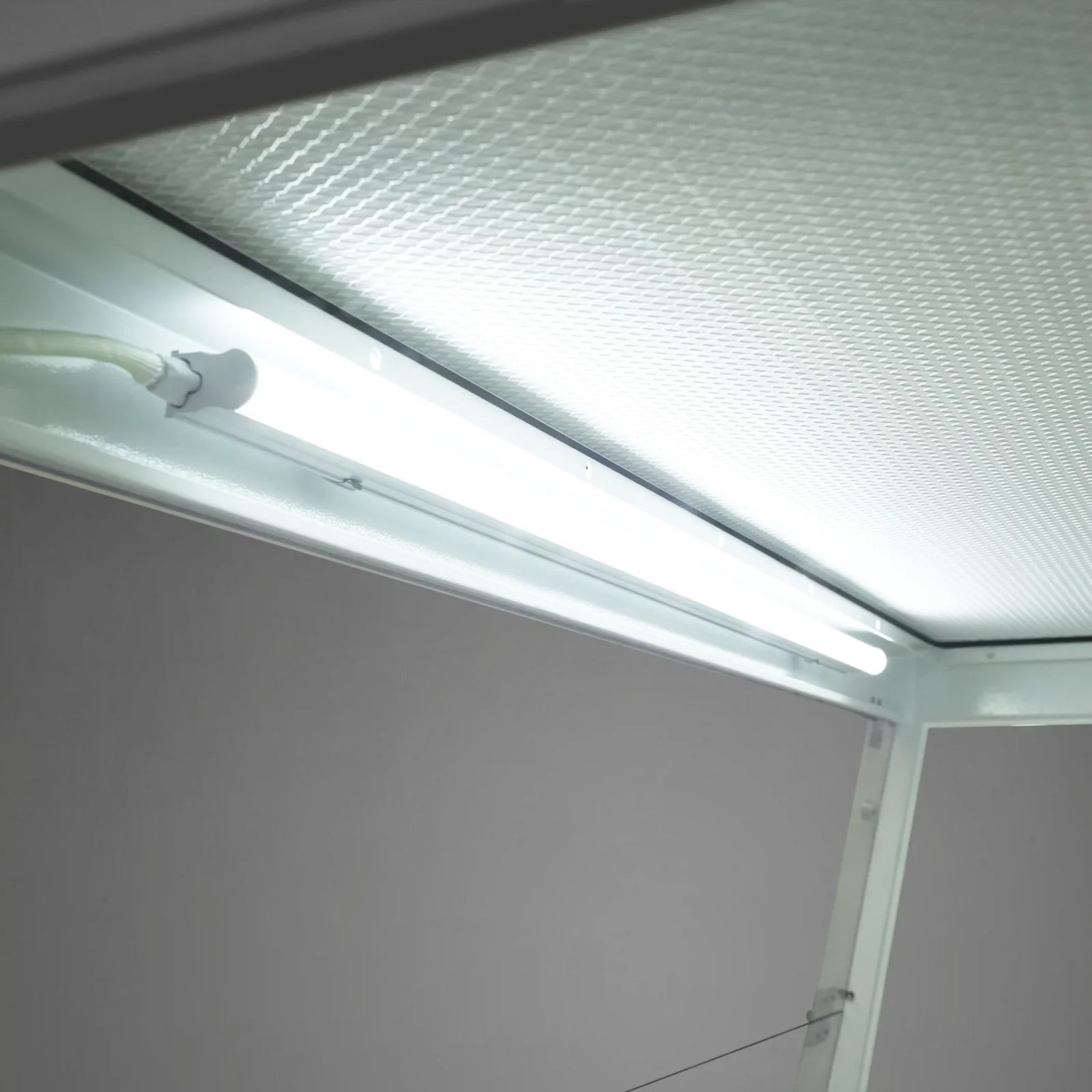

  • Lighting & Timed Start Functions: Energy-efficient lighting tube with easy replacement.
  • UV LAMP: Equipped with a UV sterilization lamp, with button-controlled timer for automatic shut-off.

Model: CB-V1

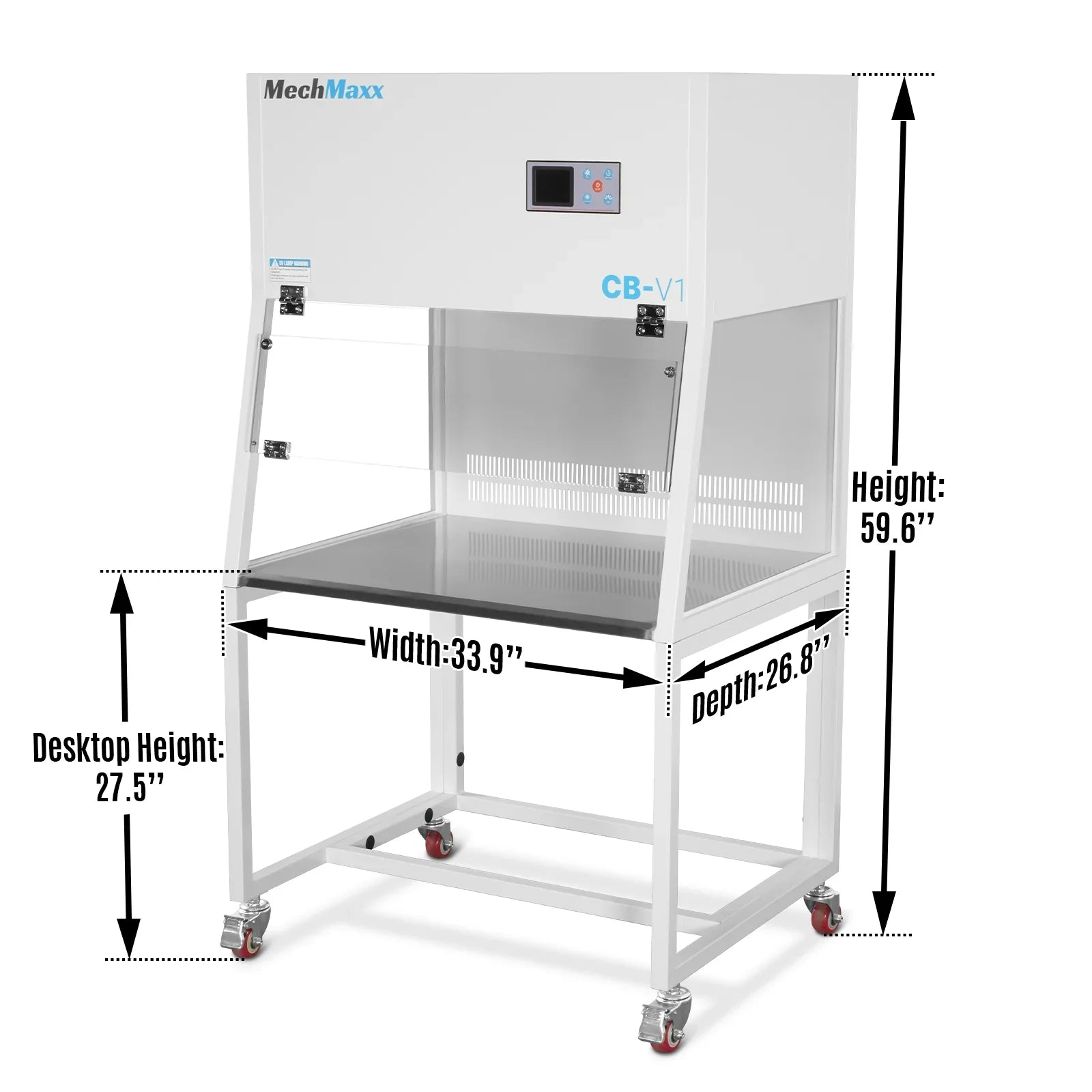

Overall External Size: H59.6 × W33.9 × D26.8 in

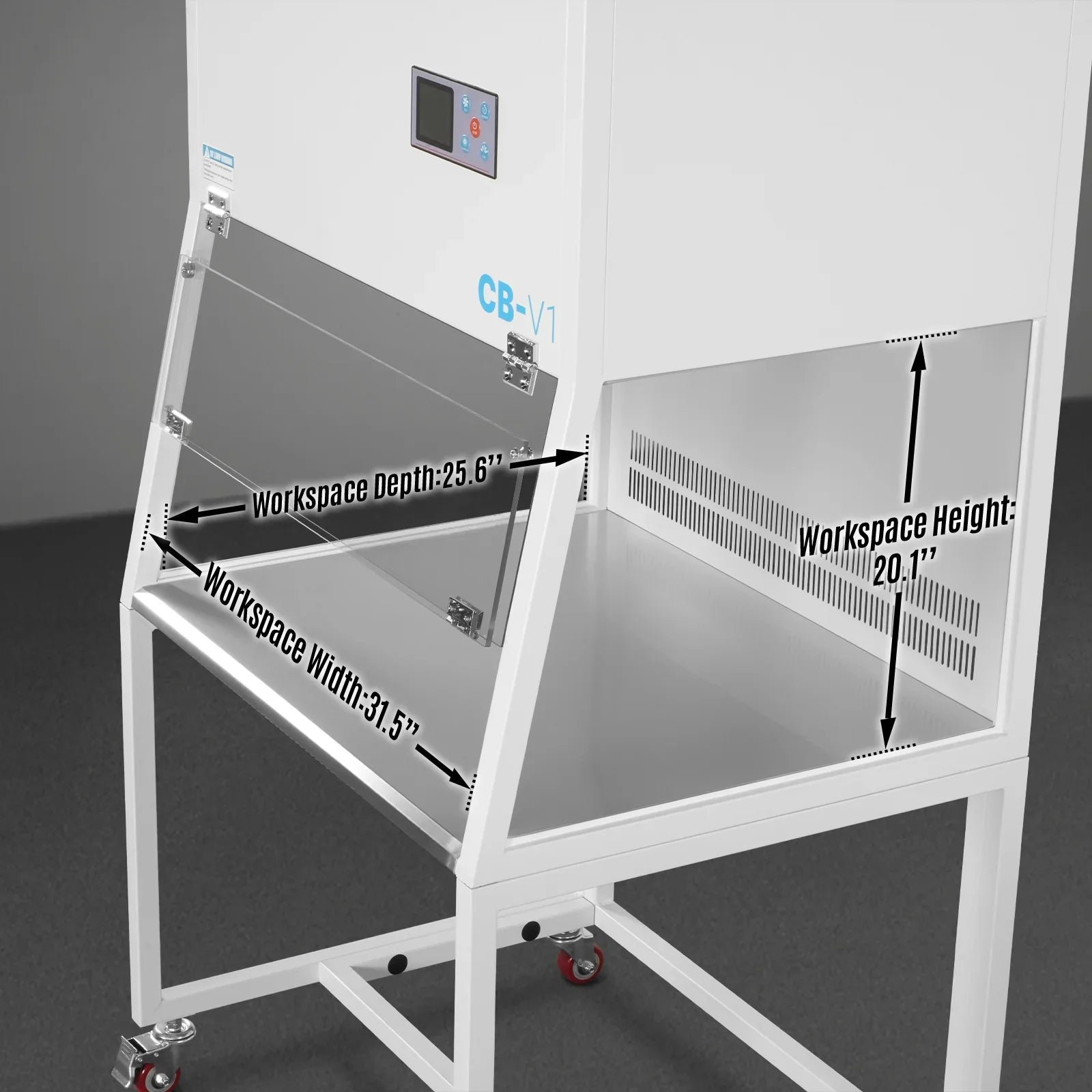

Interior Workspace Size: H20.1 × W31.5 × D25.6 in

Desktop Height: 27.56in

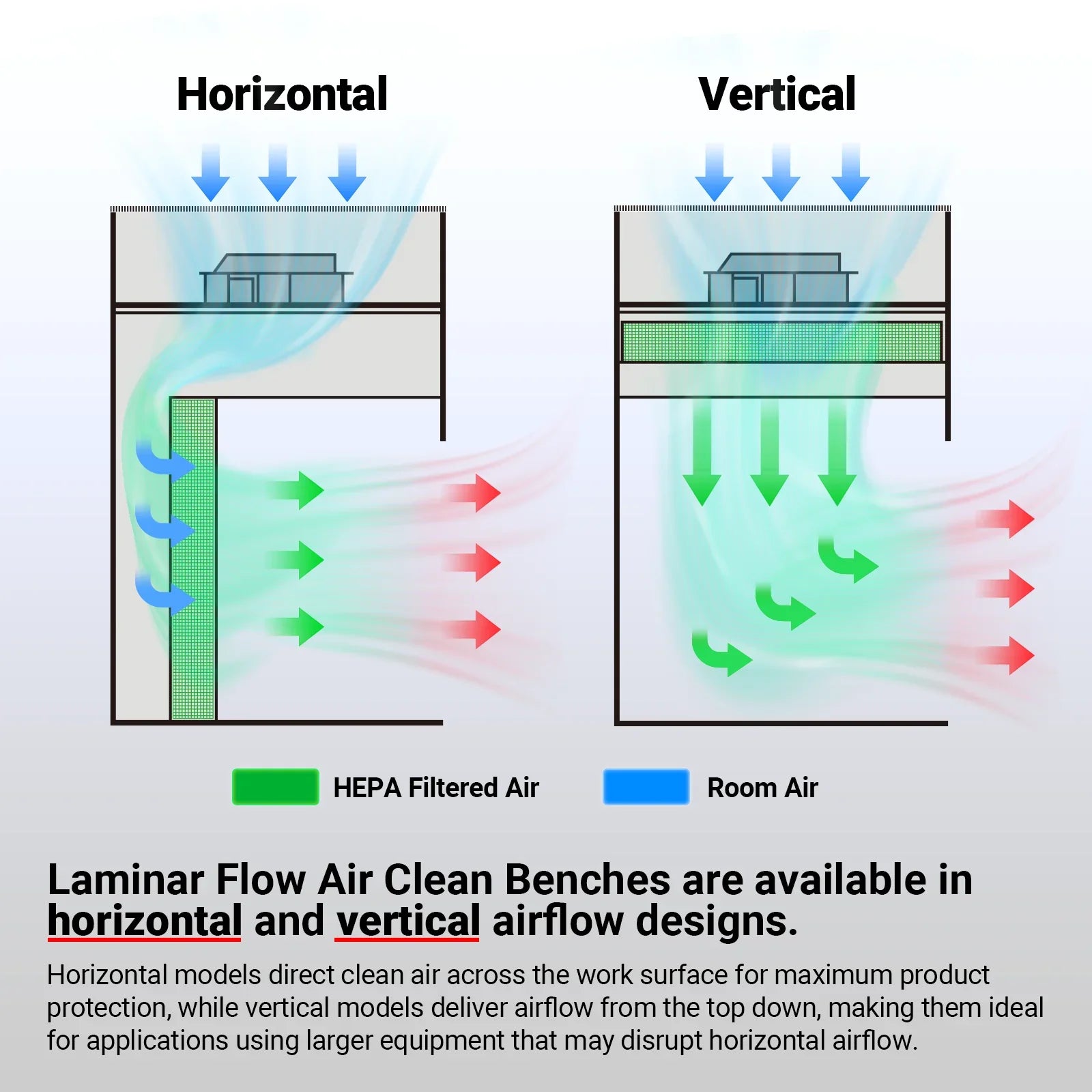

Airflow Direction: Vertical

Vibration (Half Peak): ≤ 3 μm (X, Y, Z axes)

Filtration Efficiency: 3μm , 99.99%

Cleanliness Class: ISO 14644-1 Class 5 (U.S. Federal Standard 209E Class 100)

Noise Level: ≤62DB

Airflow Velocity: 49-89fpm(0.25-0.45m/s), adjustable

Pre-filter: Yes,Washable&Reusable

Worktop Material: Stainless Steel

Illumination: ≥300 LX

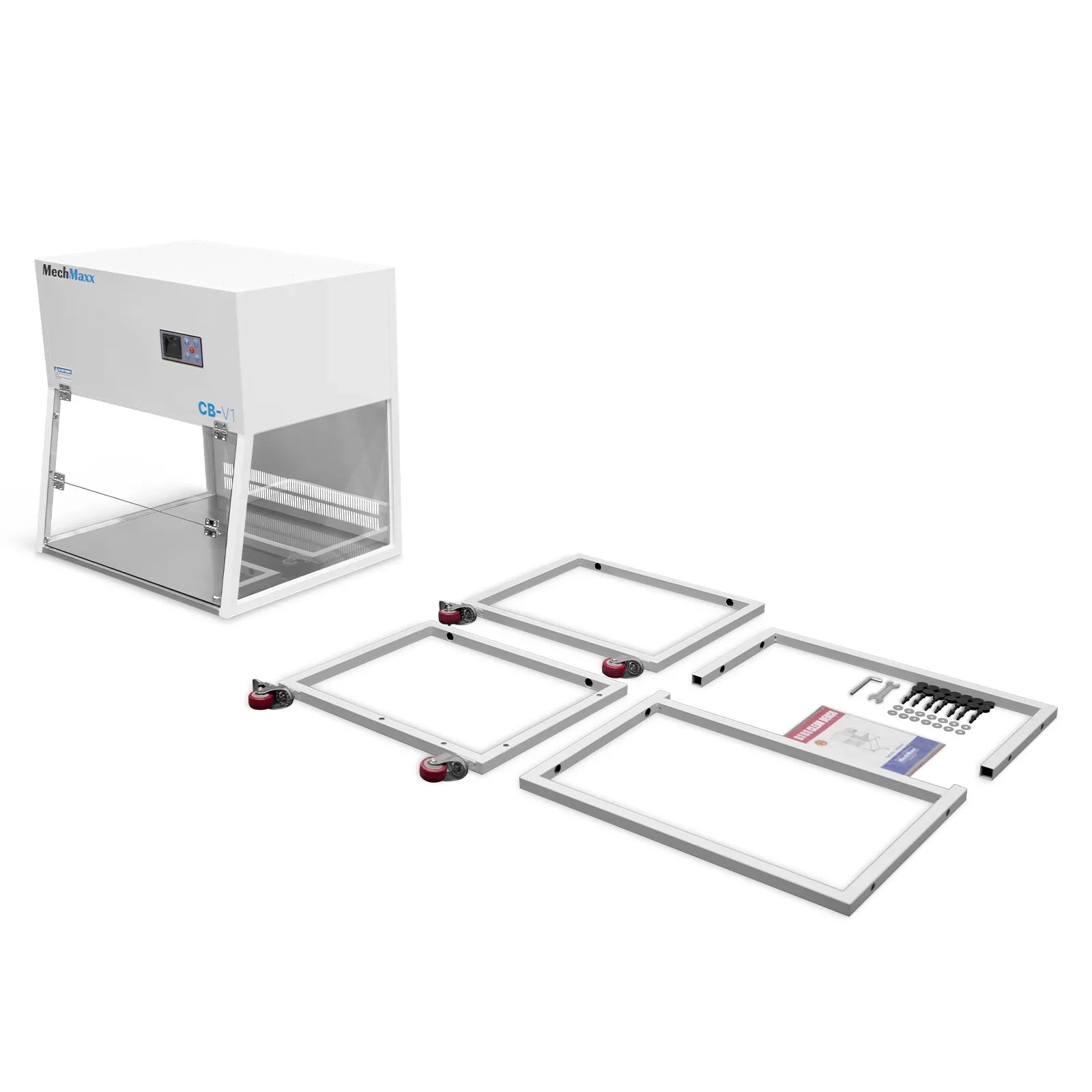

Detachable Stand With Casters: Yes

Ergonomic Tilted: Yes

Body Material: Cold Rolled Steel

Side Windows: Tempered Glass

Front Window Type: Two-section, high-clarity acrylic

UV Sterilization Lamp: Yes,Timer-Off

Voltage: 110V

Rated Power: 220W

Packaging Size L×W×H(in): 38.19×31.50×47.64in

Gross Weight: 209LB

This item comes with a 1 year factory warranty.
PDF CB-V1 Product manual 1.0
