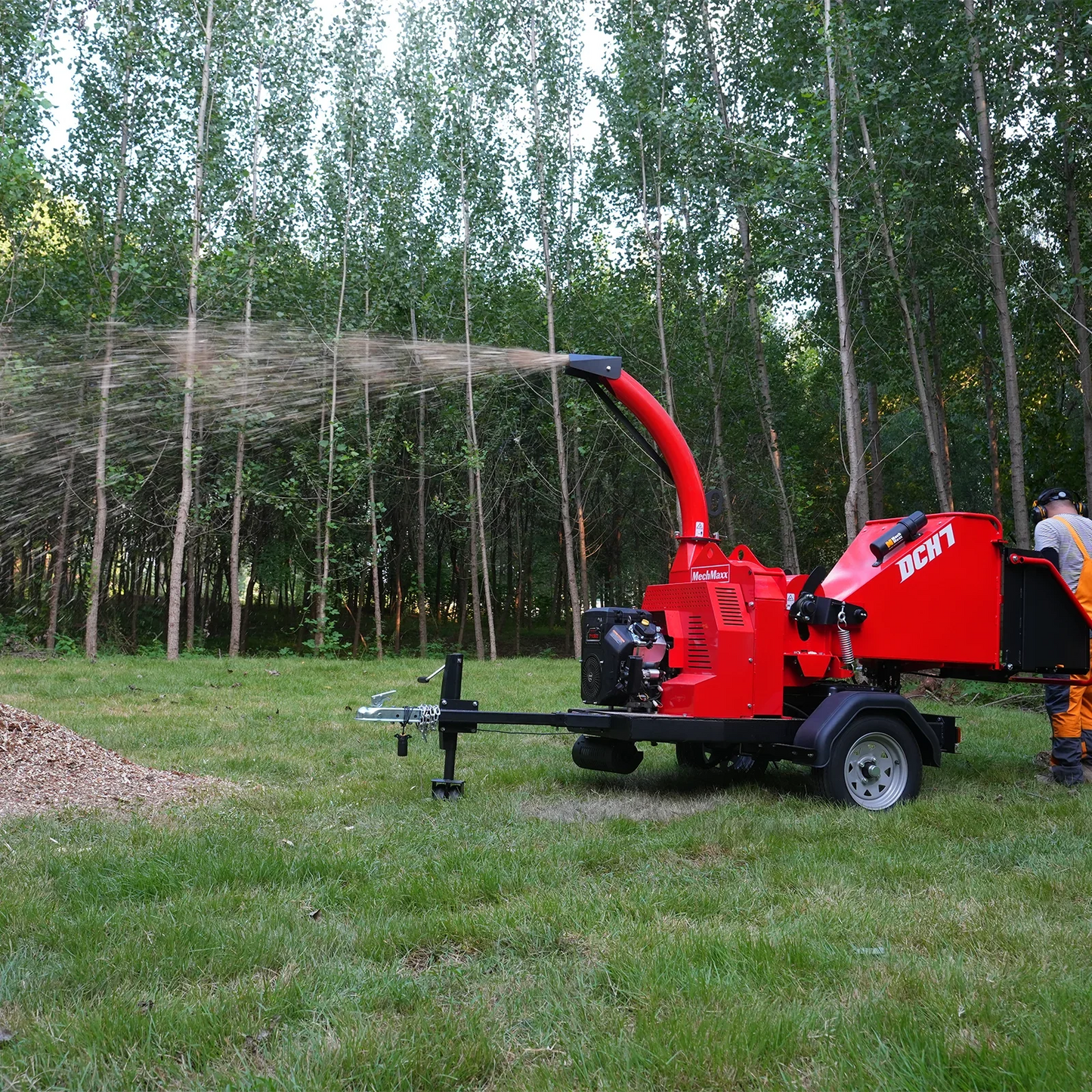

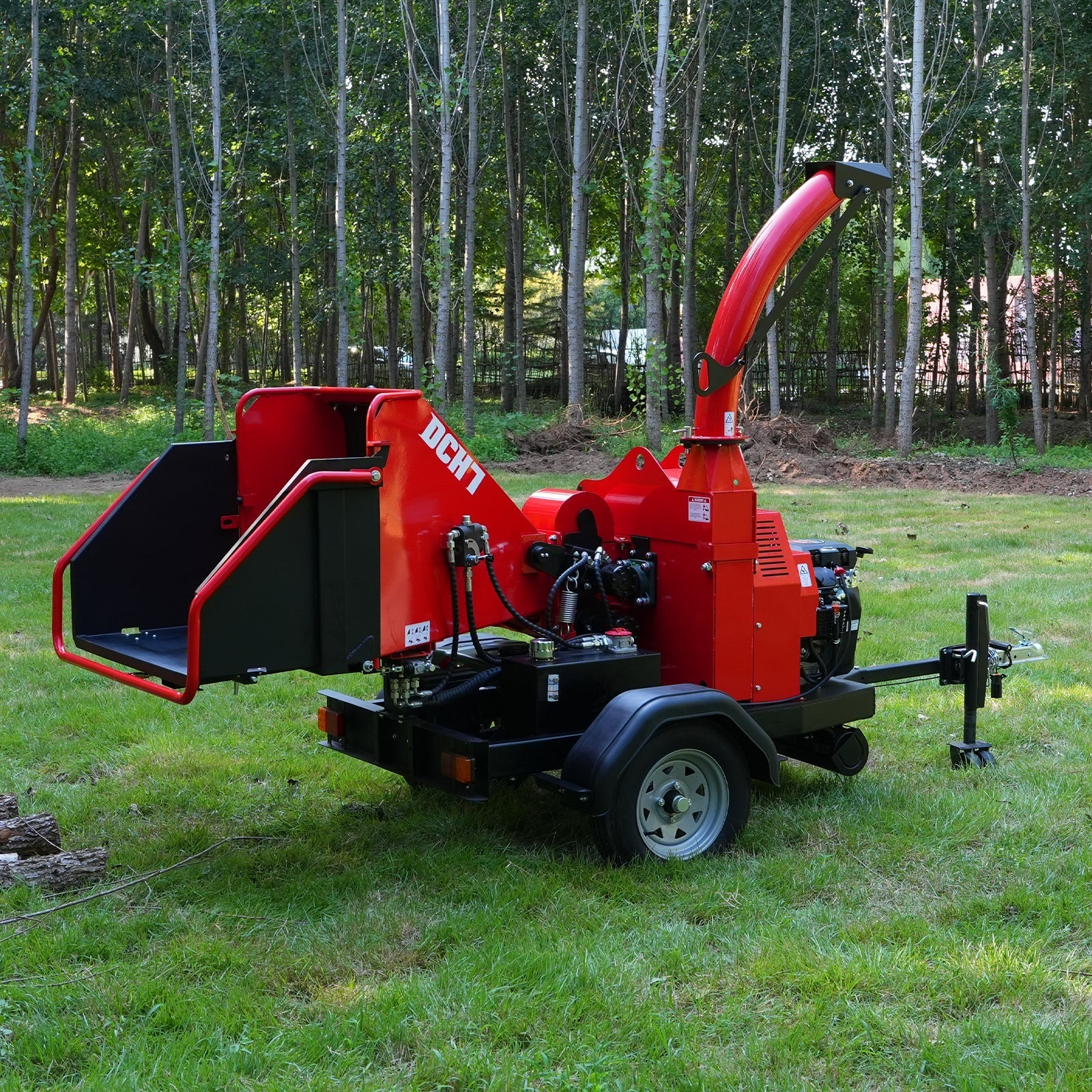

MechMaxx DCH7 Wood Chipper 25HP 750cc Twin Cylinder ZONSEN Petrol Engine 7" Hydraulic Feeding New

MechMaxx

$6,399.00
$6,399.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

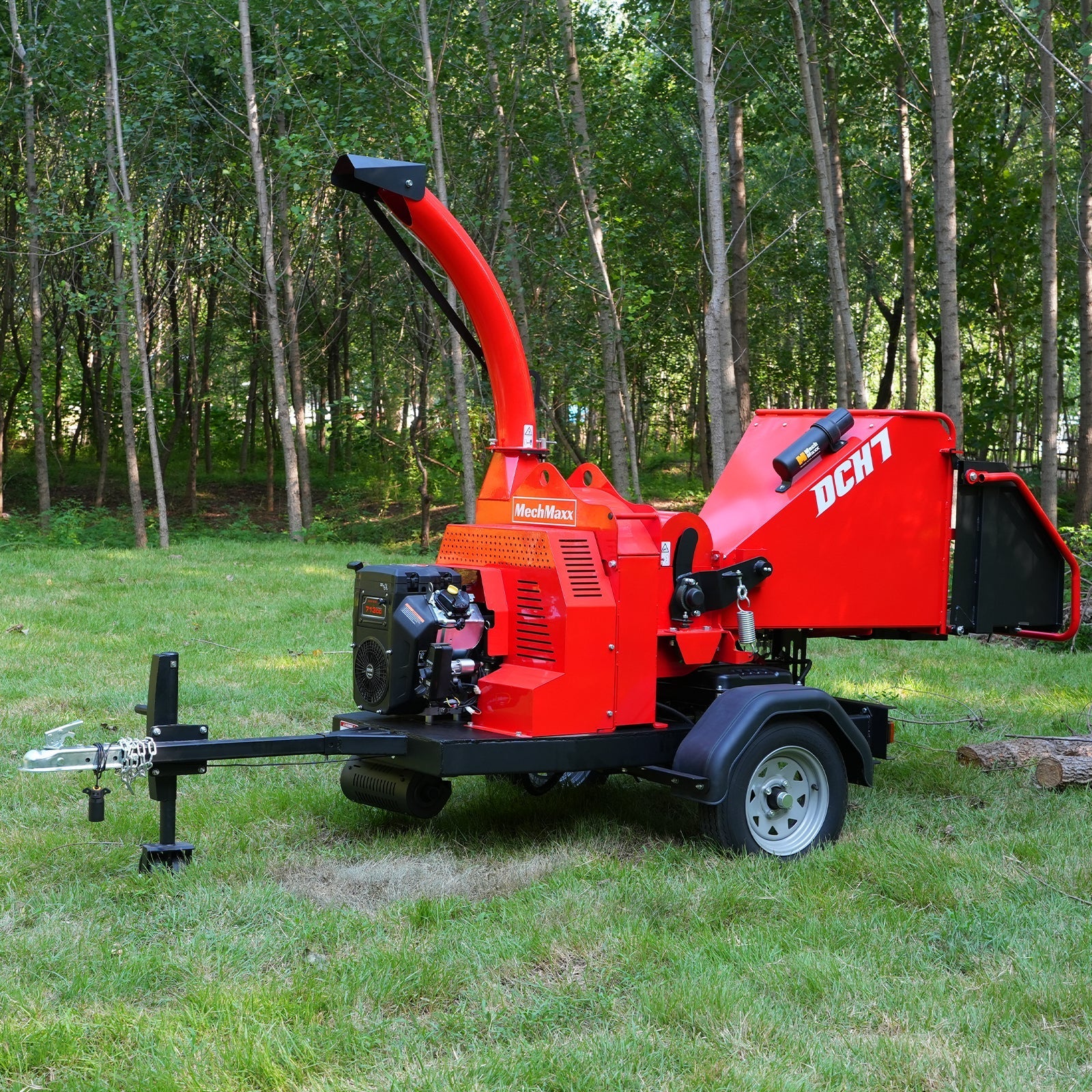

  • MechMaxx 7" Disc Brush Chipper, Highway Towable with torsion axles and Lights, Electric Start, Dual Variable Speed Hydraulic Infeed
  • This 7" chipper can stand up to commercial use. Great for Landscapers, Small Tree Service Jobs, Homeowners, Orchards, Rental Yards.
  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Applicable hydraulic oil type: ISO VG 46 hydraulic oil.
  • Engine oil type: 10W-30
  • *Shipped with NO fluids. Must add own fluid
2 year factory warranty

2 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

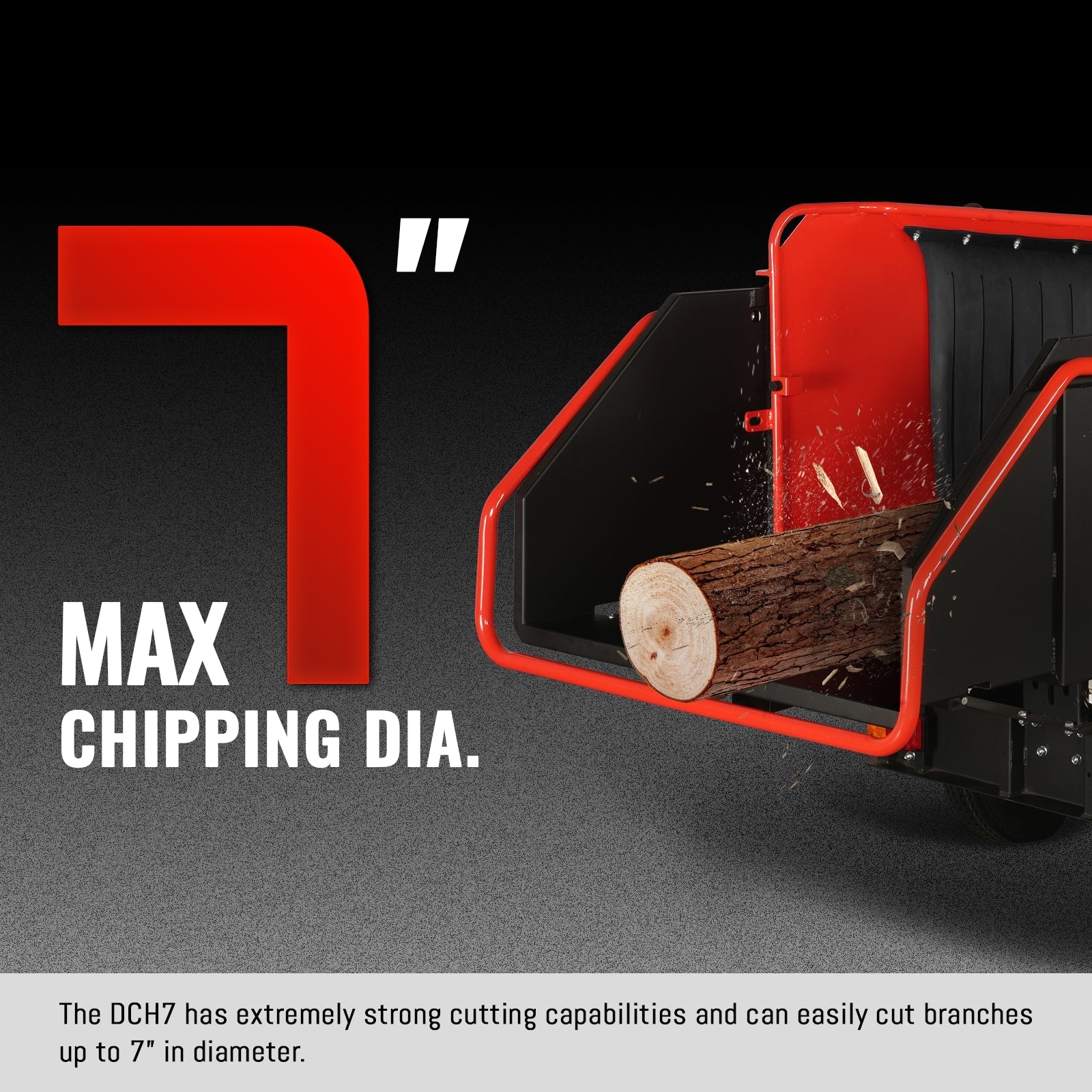

  • Maximum Wood Chip Diameter 7 in: The DCH7 has extremely strong cutting capabilities and can easily cut branches up to 7” in diameter.
  • Electric Start and Battery: This DCH7 is equipped with an electric-start engine, which has excellent performance, reliable quality and can be used for a long time.

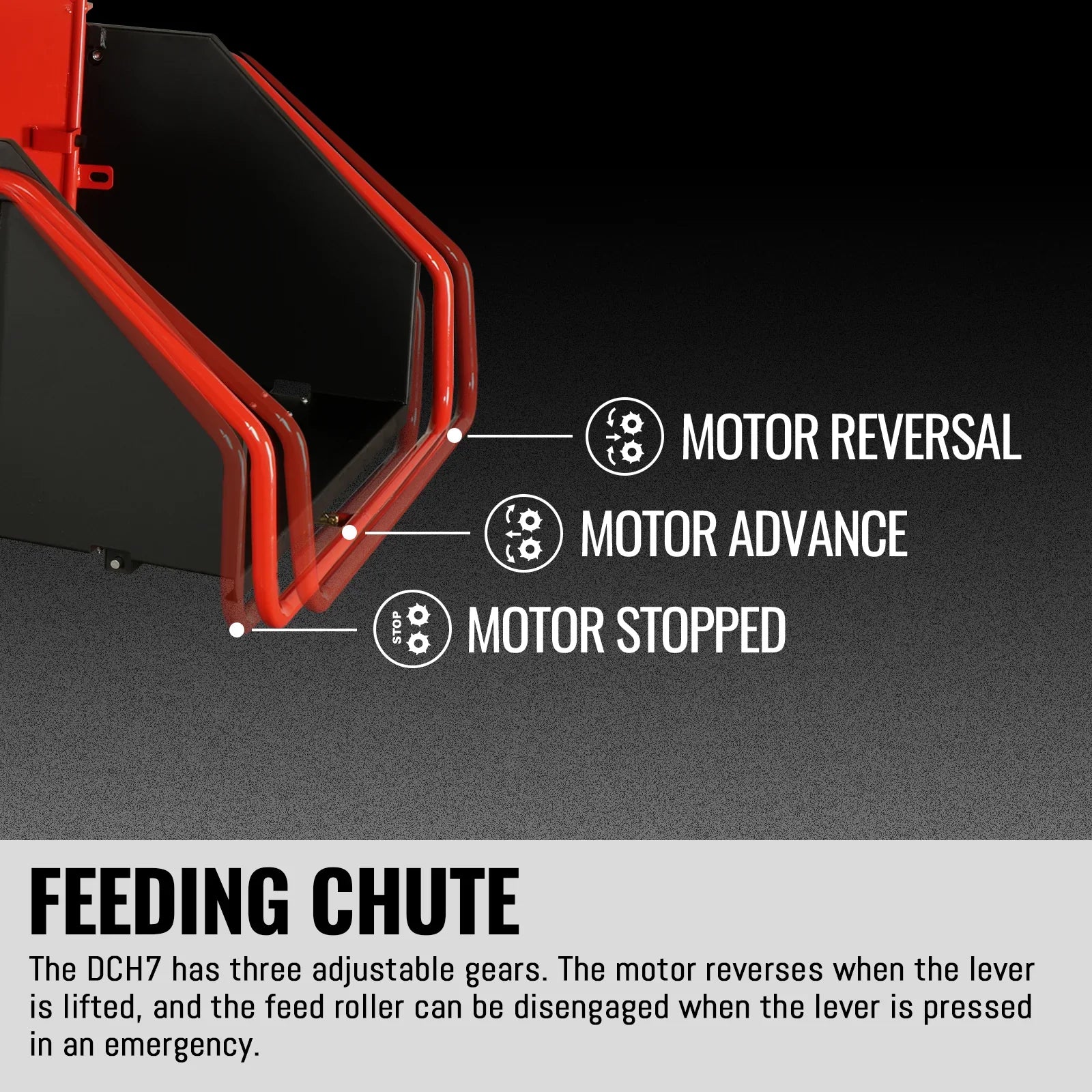

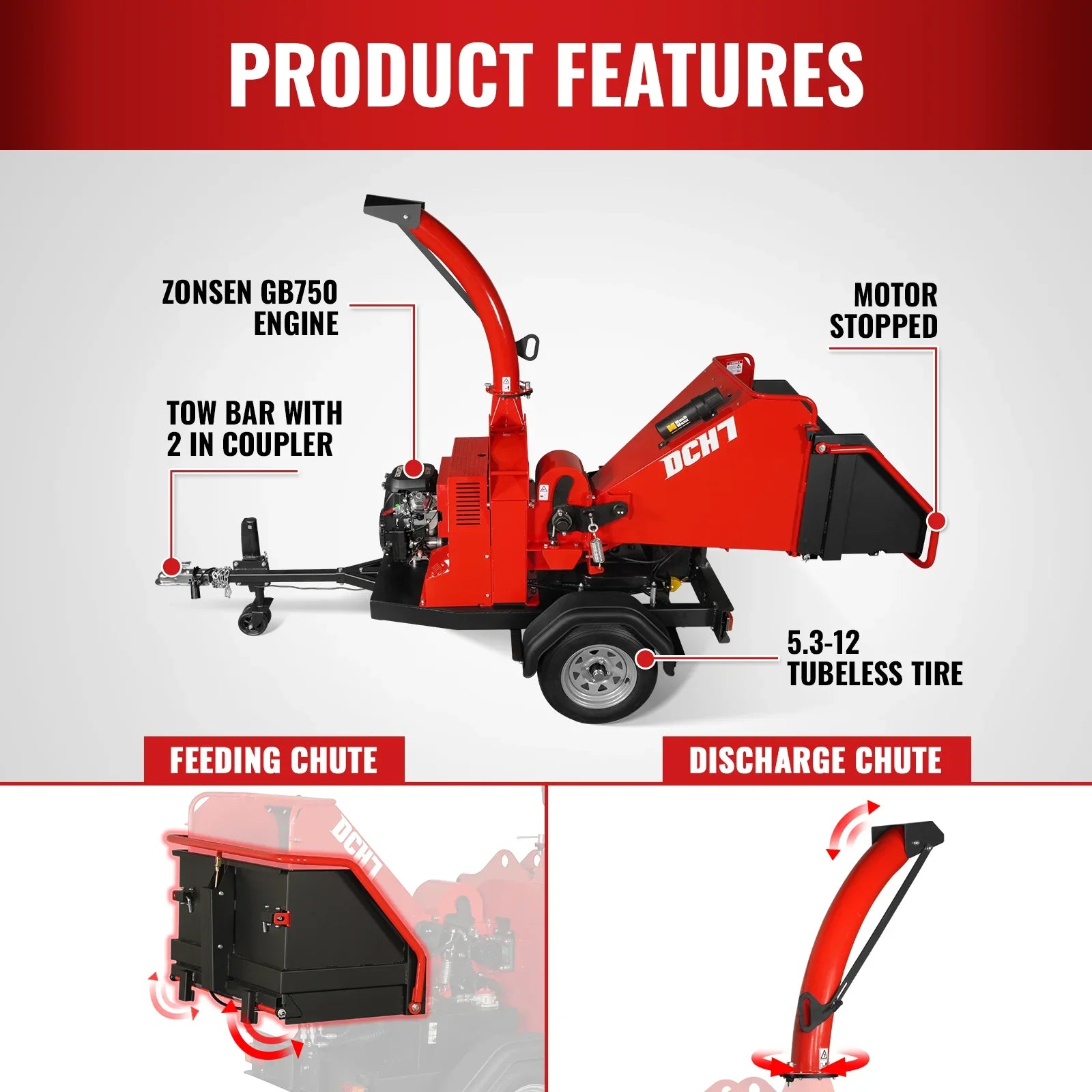

  • Folding Feeding Box: The feeding box is collapsible and can simply be folded upwards for storage or transport.

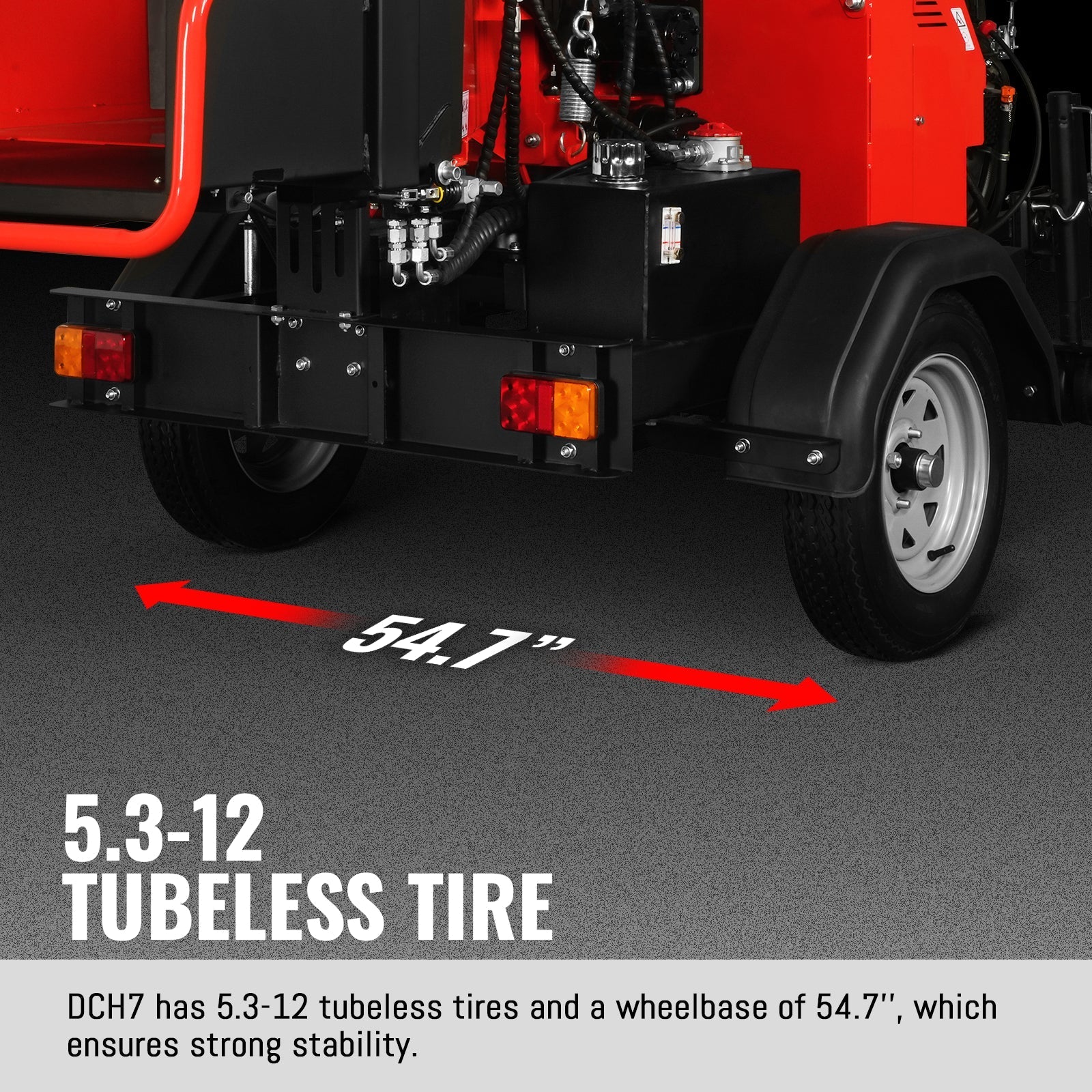

  • Axle Torsion Axis and Wheelbase: DCH7 has 5.3-12 tubeless tires and a wheelbase of 54.7’’, which ensures strong stability.
  • Tail Light and Plug: The DCH7 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of DCH7 to synchronize with the vehicle's braking and turning signals.

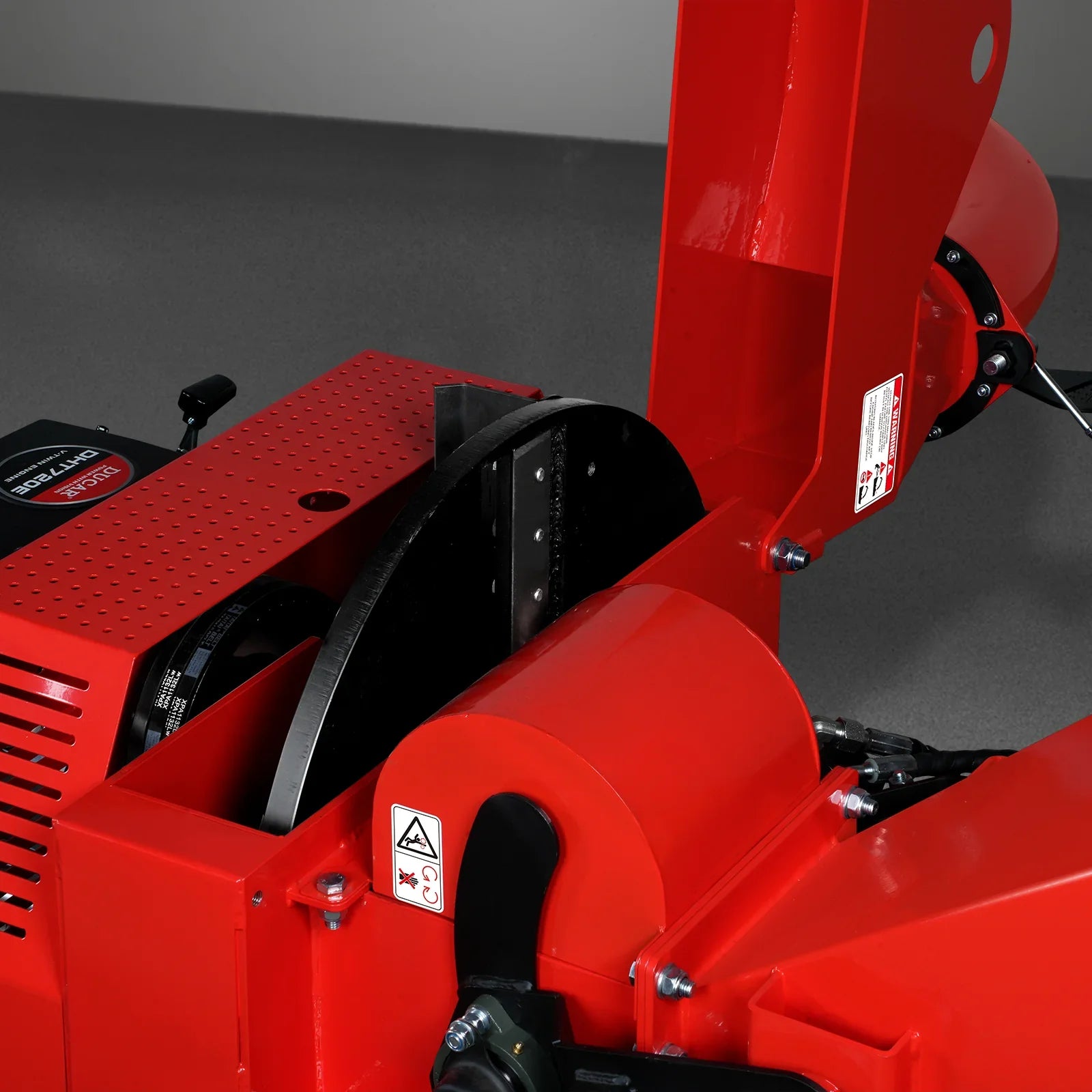

  • Discharge Chute Design: The feeding box is collapsible and can simply be folded upwards for storage or transport.The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

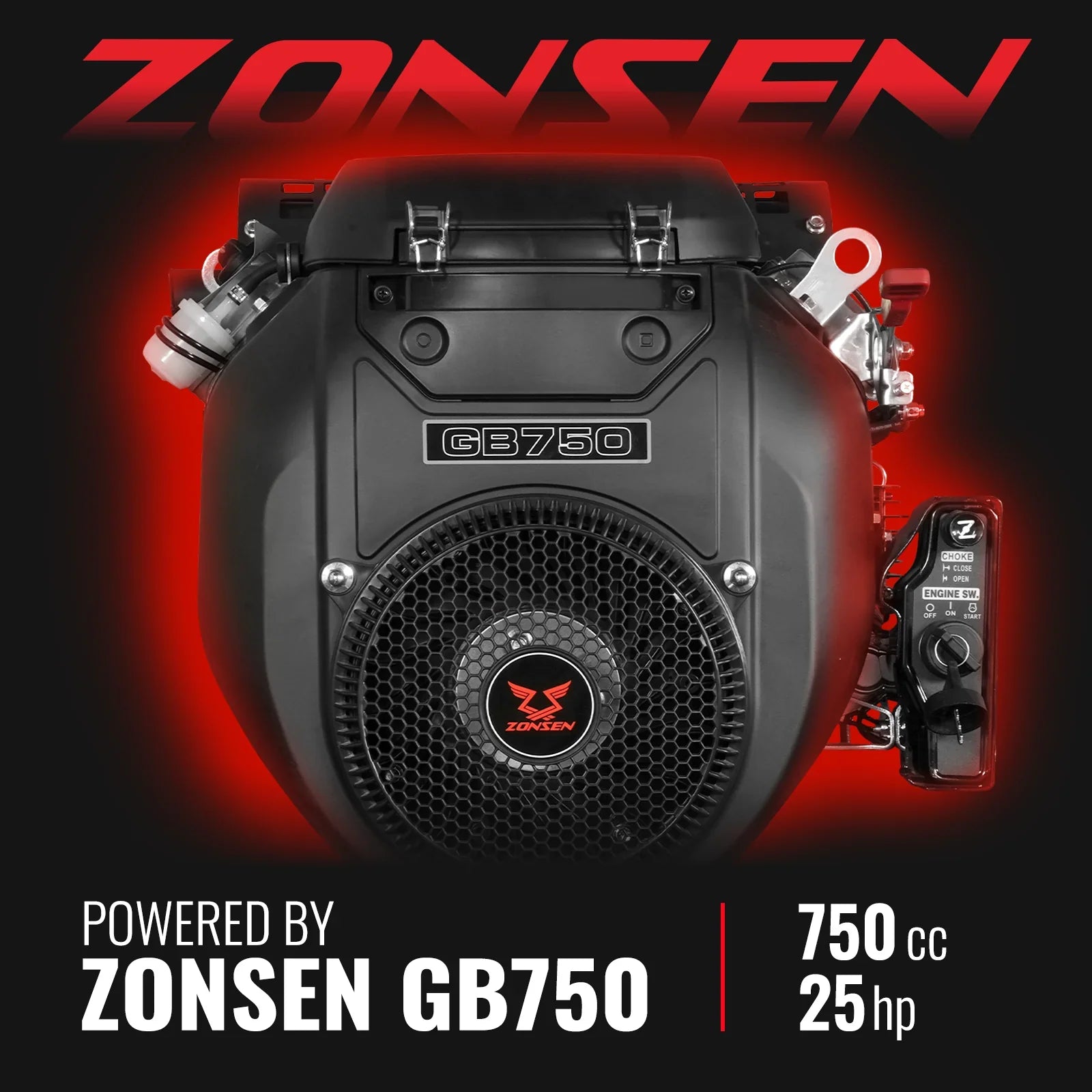

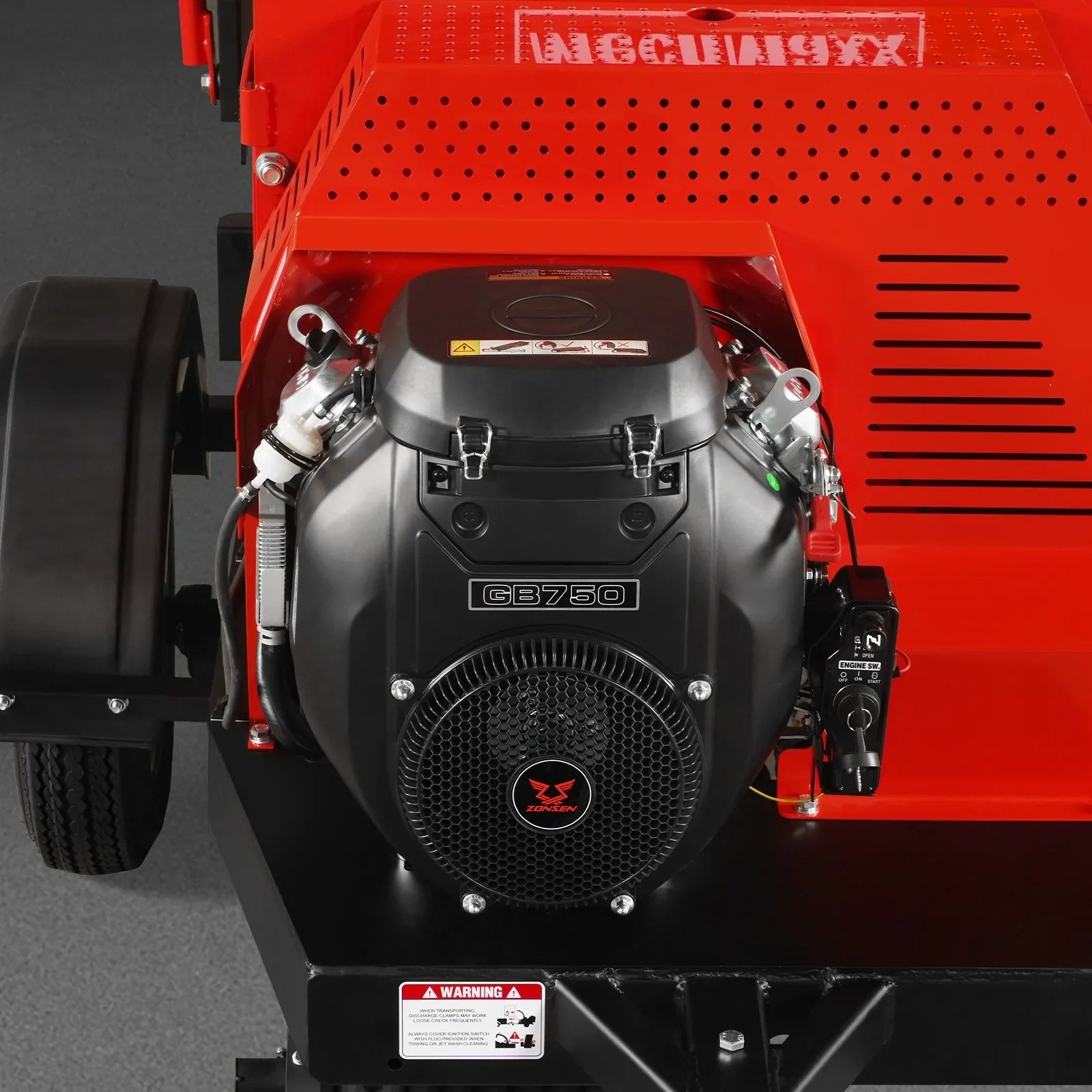

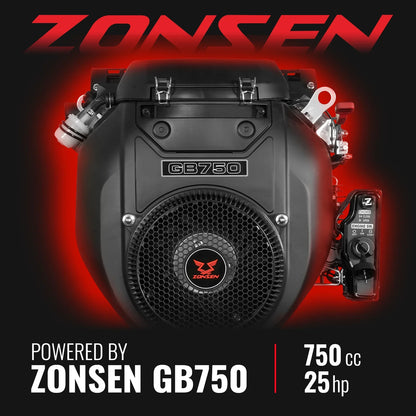

Engine: ZONSEN GB750

Blade: 2 x 8 in Blades; 2 x 6 in Anvil

Engine Type: Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling

Blade Material: A8 （5Cr8MoVSi）

Displacement: 750 cc; 25 HP

Blades Type: Double Edge Blade

Rated Power: 15.5 kw / 3600 RPM

Flywheel System: Open Top Flywheel 26 in x 1 in Twin

Max. Net Torque: 45 N·m / 2800 RPM

Discharge Chute: 360 Degree Rotating

Fuel Capacity: 3.17 gal

Emergency Stop: Stop Bar

Recommended Oil: SAE 10W-30 Classification SE or Higher

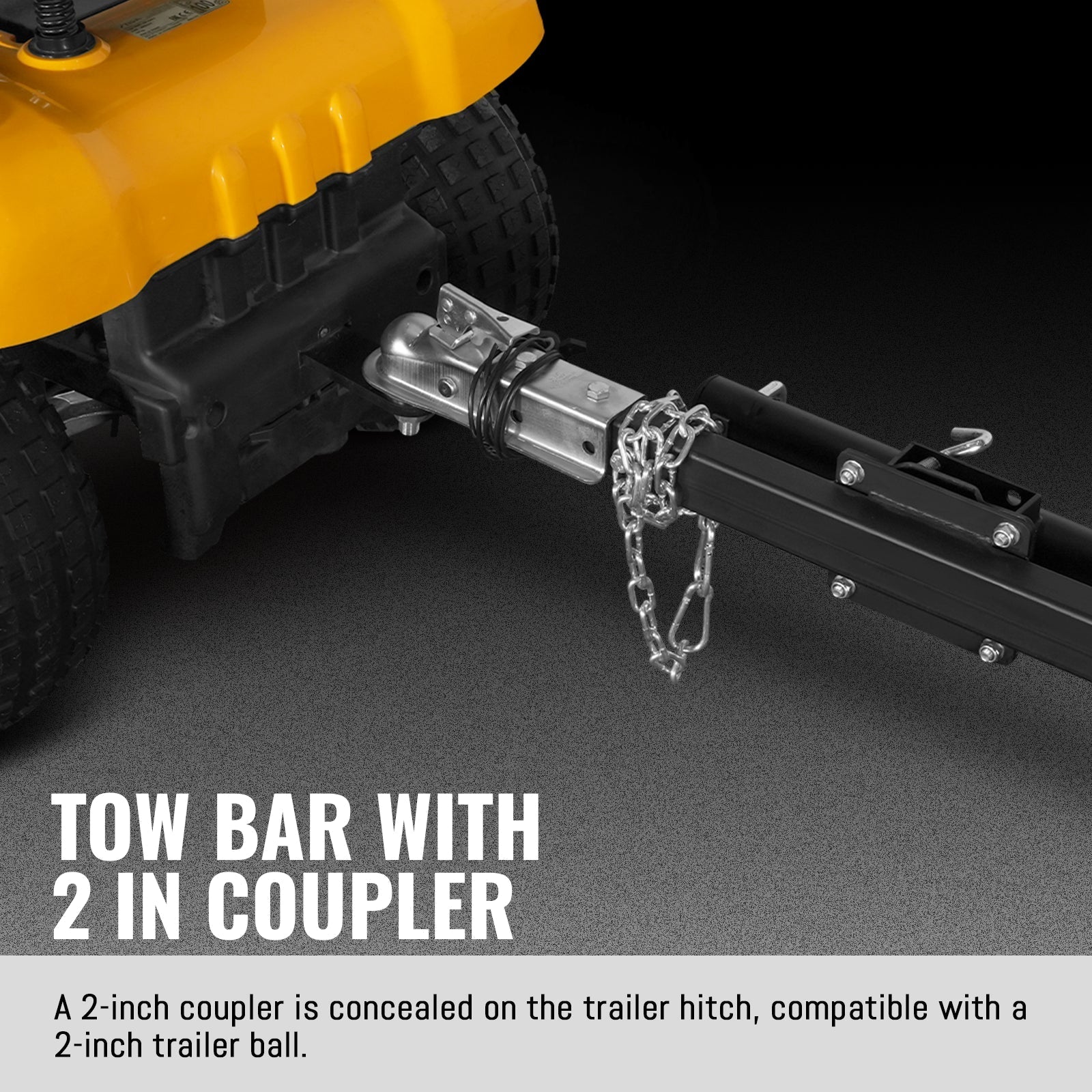

Towing Length: Tow Bar With 2 in Coupler

Hydraulic Tank: 6.87 gal

Wheel: 5.3-12 Tubeless

Starting: Electric Starting

Wheelbase: 52.5 in

Battery: 36Ah 12V Lead-Acid Battery

Axle: Damping Torsion Axle

Ignition System: CDI

Max. Speed: 50 mph

Governor System: Mechanical Centrifugal Type

Chassis: Channel Steel Welded Frame

Belt: 2 x V-Belts

Package Method: Iron Fram With Black Film

Belts Material: Kevlar

Weight (N.W./G.W.): 1389 / 1587 lbs

Clutch: Centrifugal Clutch

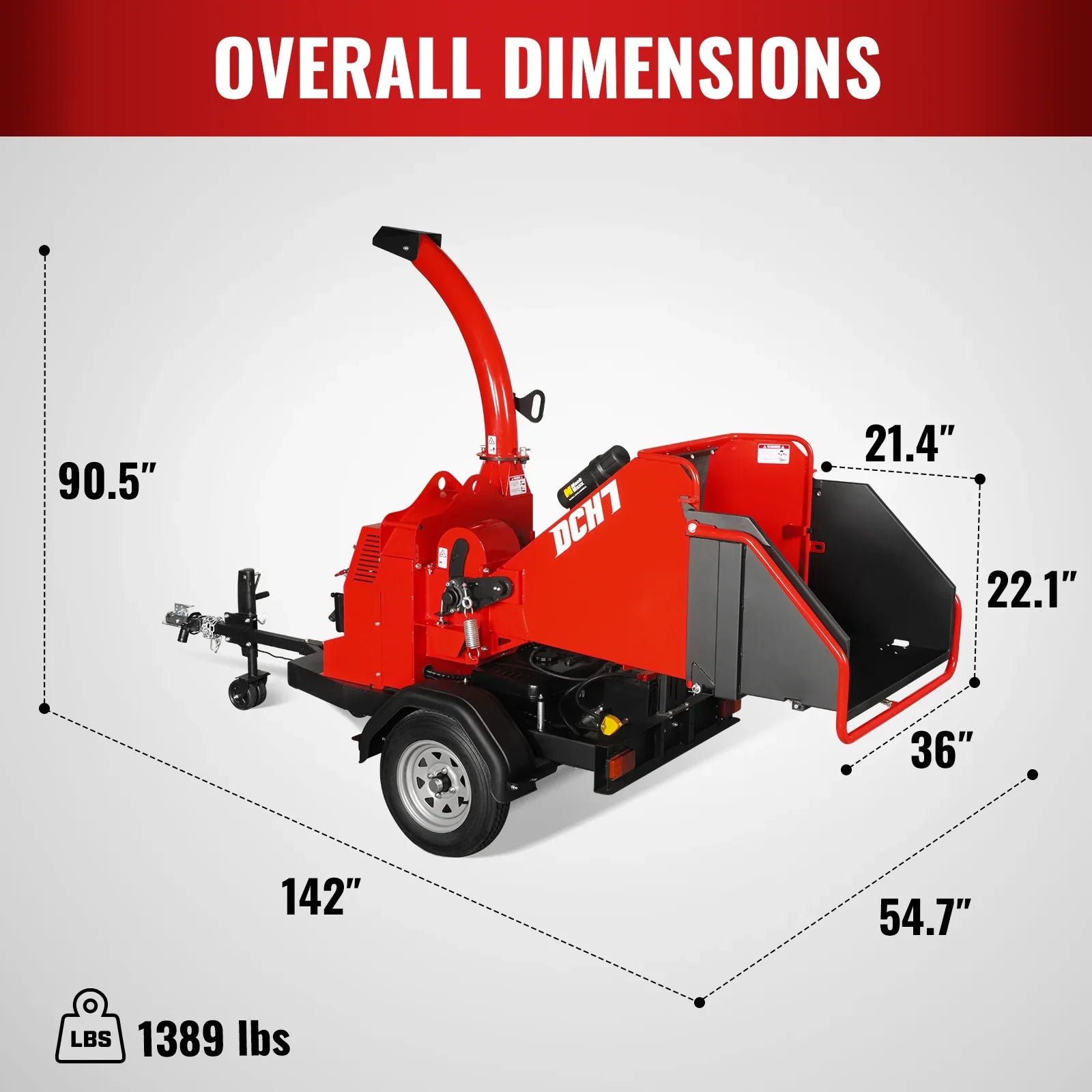

Product Size (L*W*H): 137 x 55 x 90 in

Cutting Method: Disc

Packing Size (L*W*H): 87 x 46 x 51 in

Max. Chipping Dia.: 7 in

Feed Roller: 7.5 in x 6.5 in

This item comes with a 2 year factory warranty.
PDF DCH7 Product manual 1.0 PDF Zonsen GB750 Manual PDF Wood Chipper Quick Installation Guide
