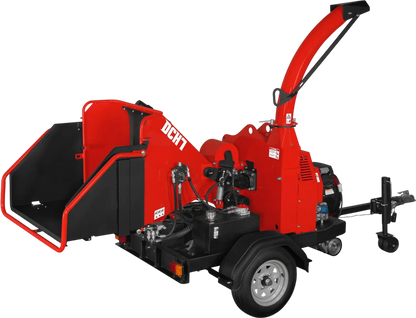

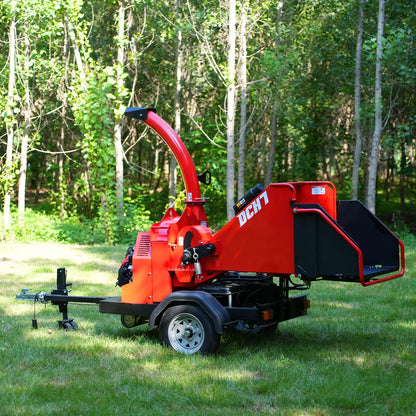

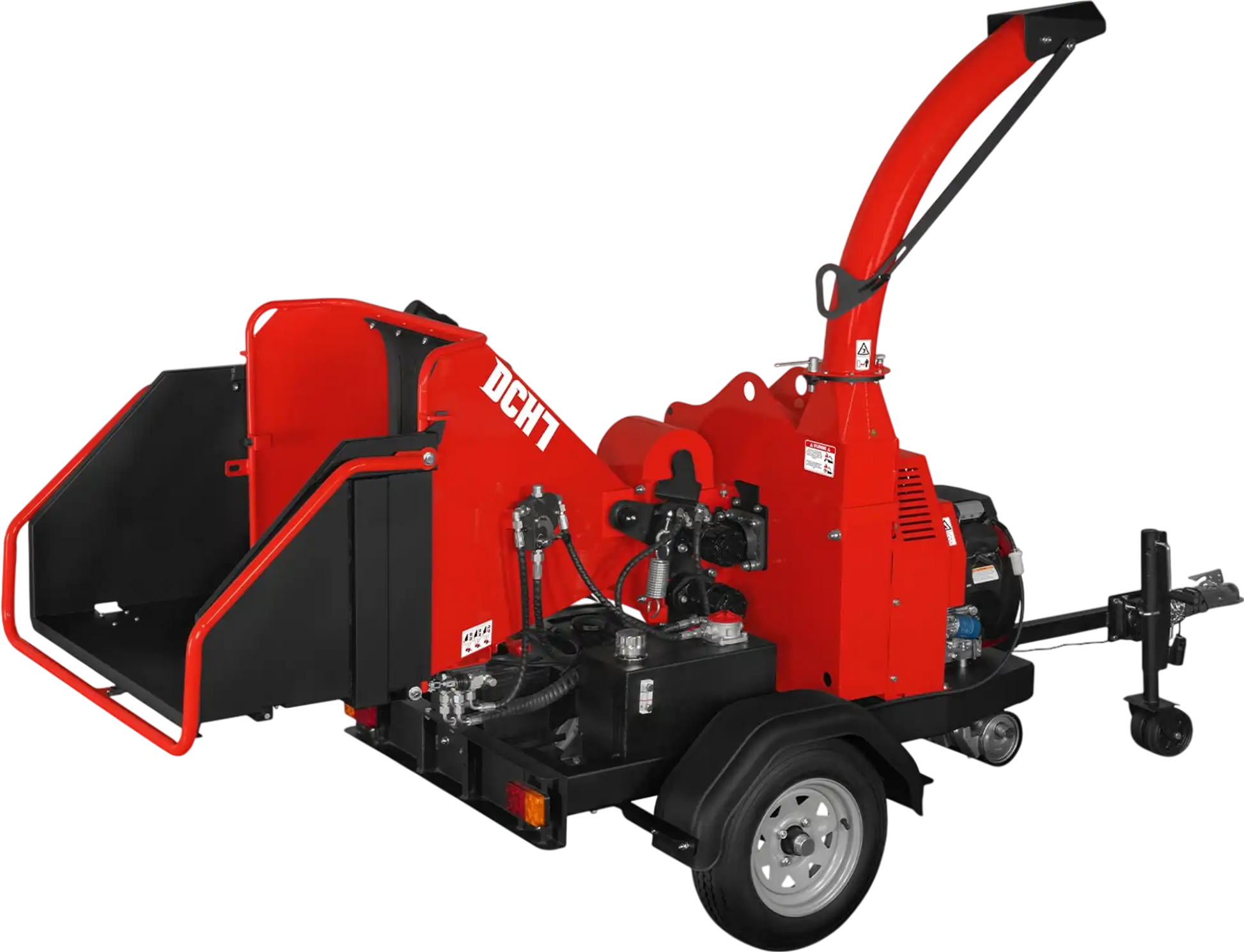

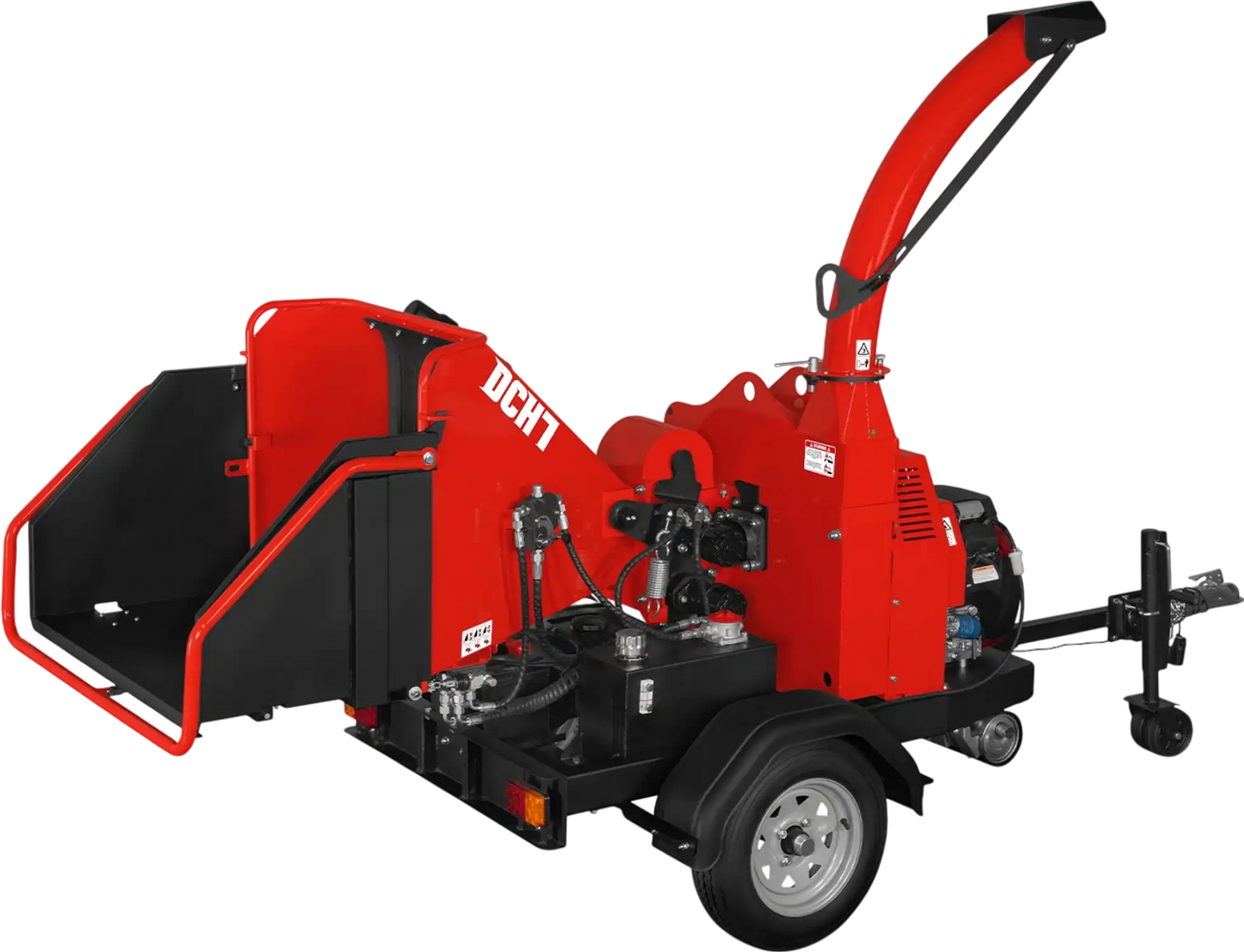

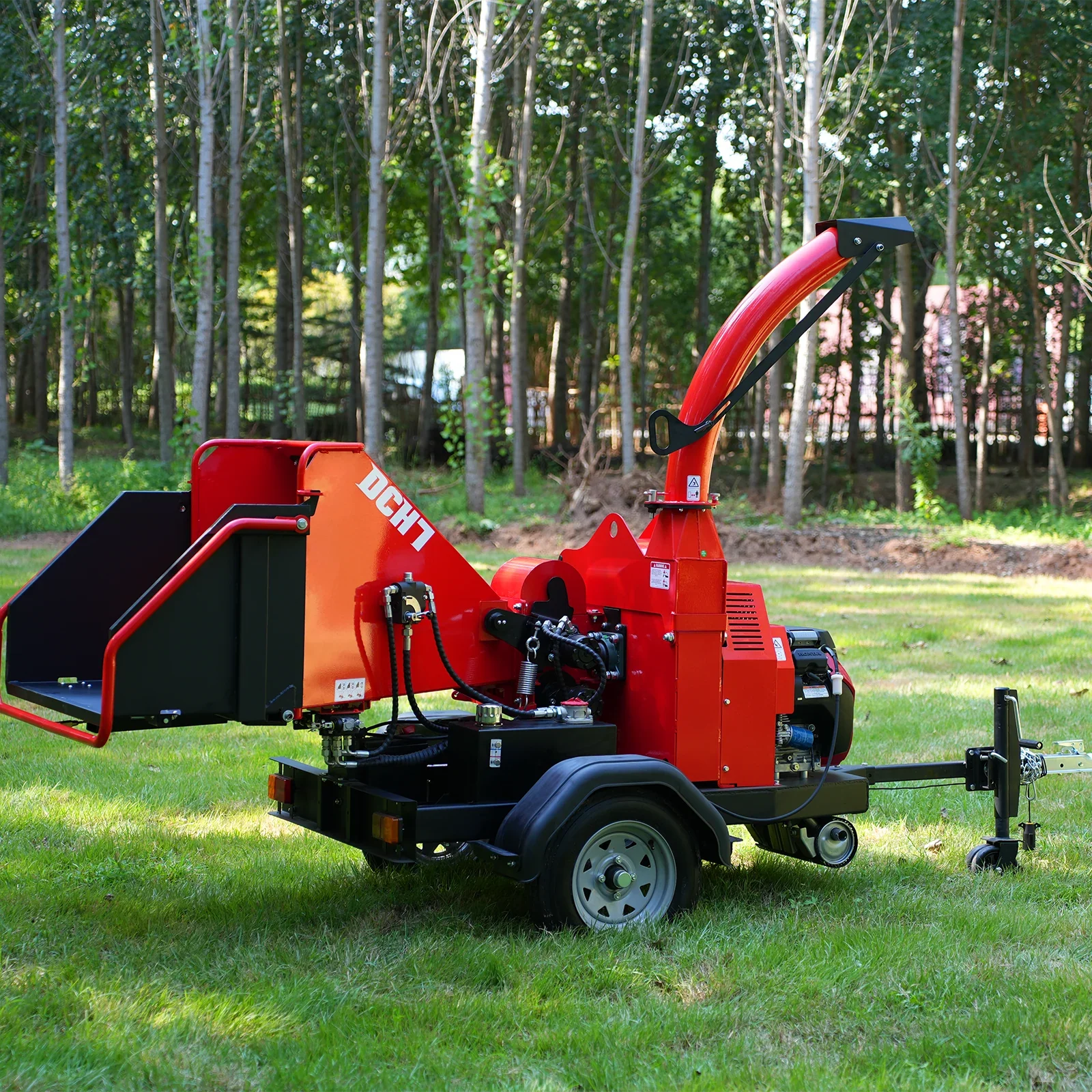

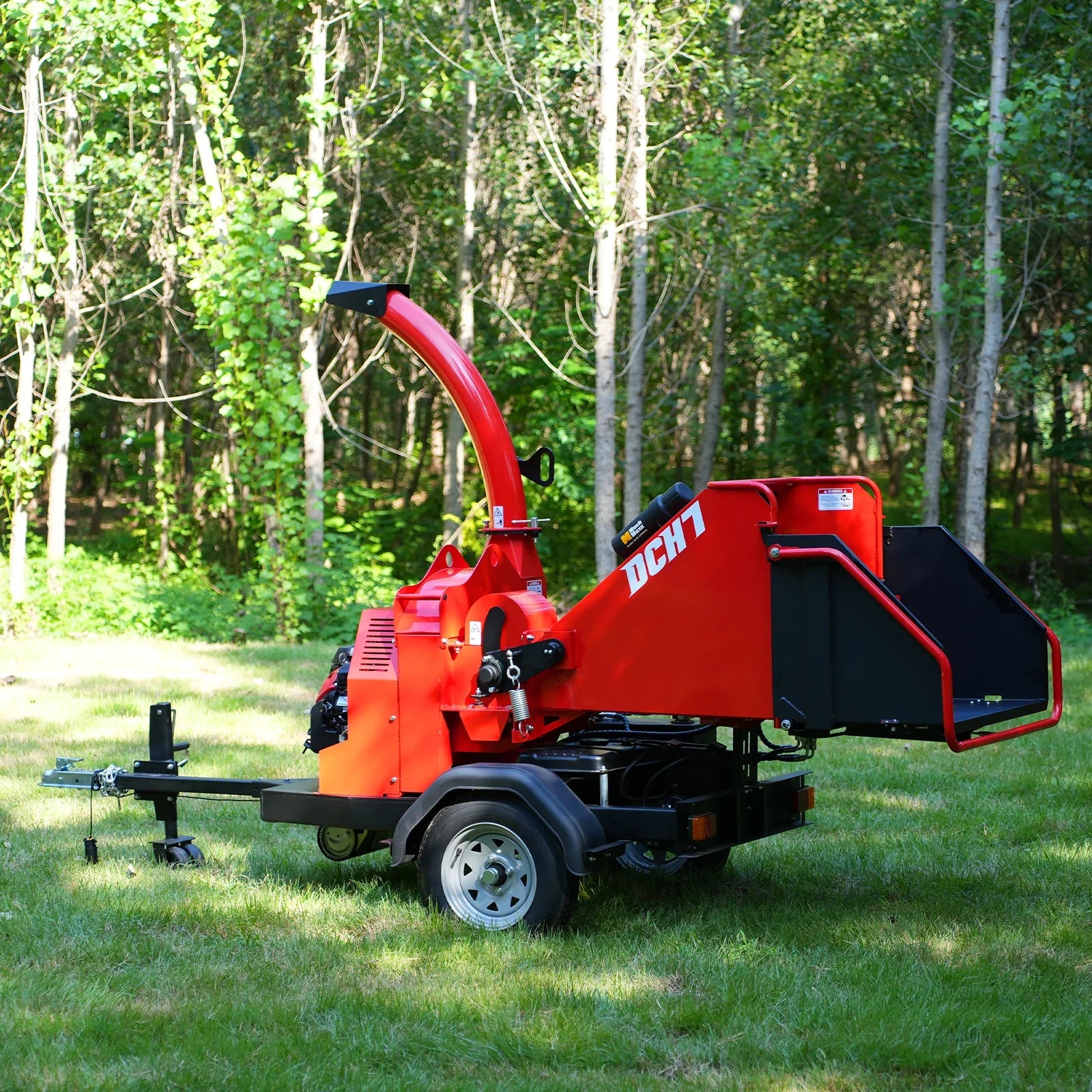

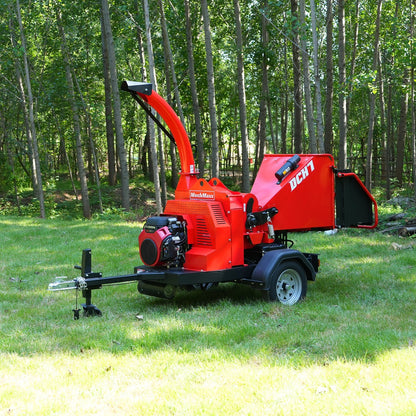

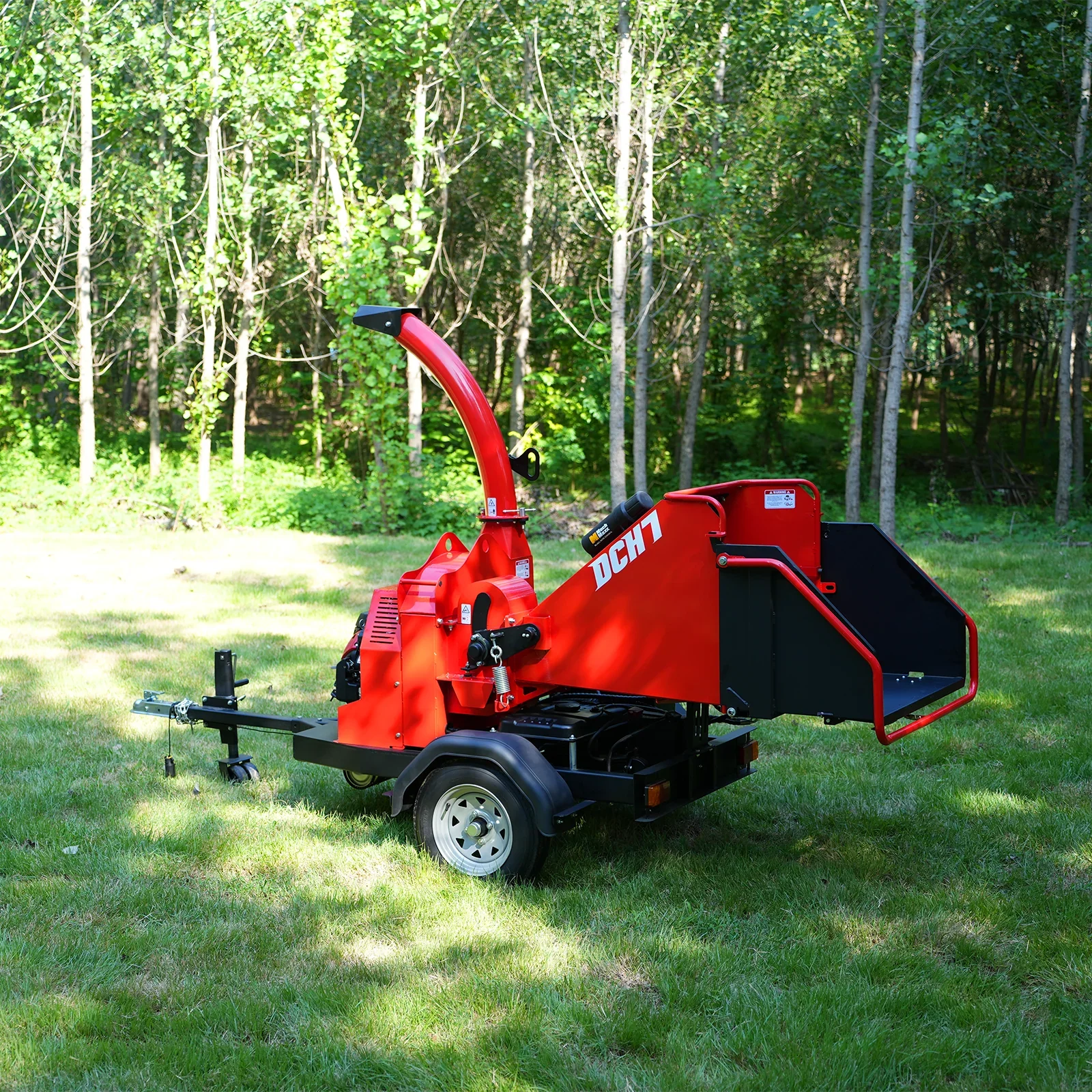

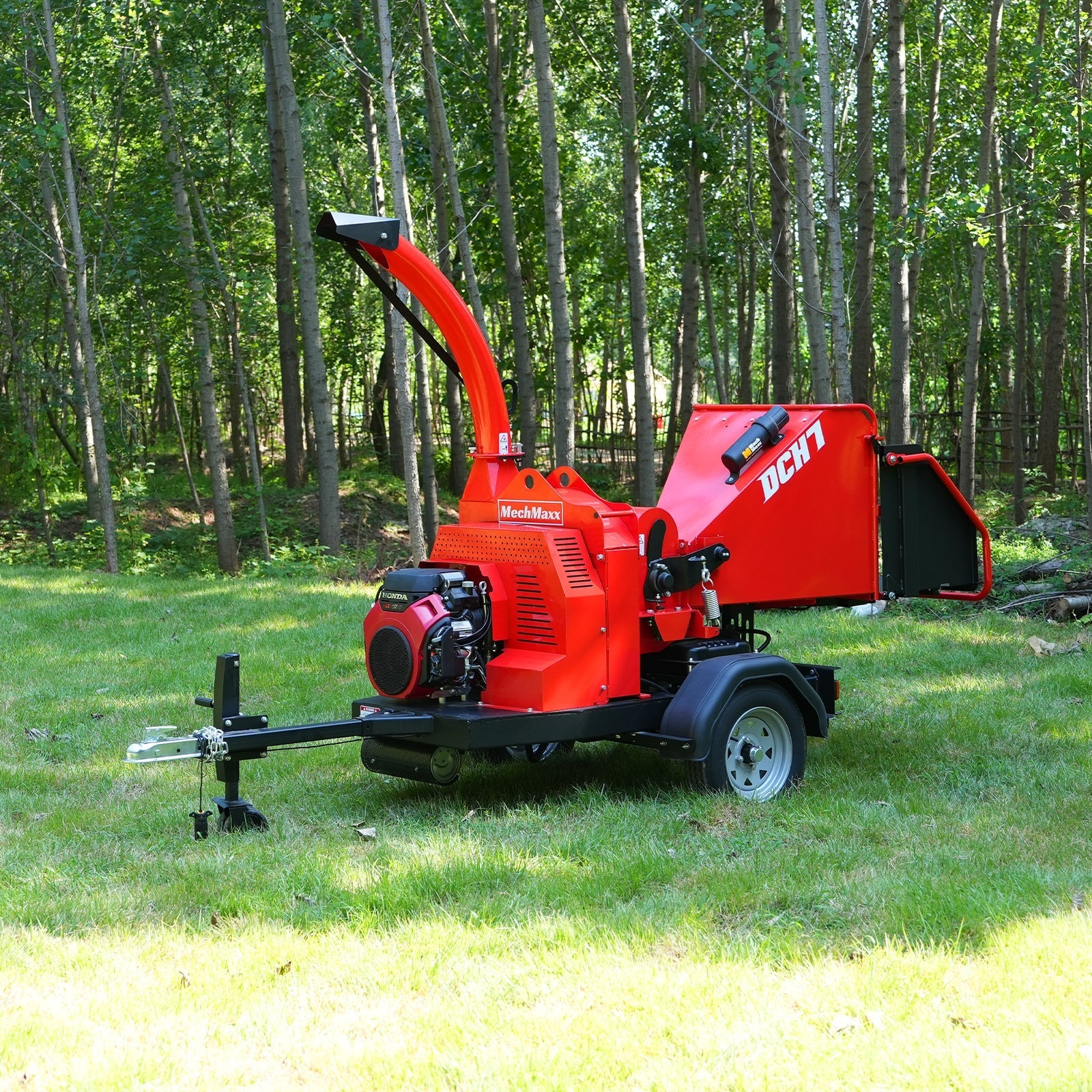

MechMaxx DCH7 Wood Chipper Honda GX690 22HP 688cc Twin Cylinder Gasoline Engine Powered 7" Hydraulic Feeding New

MechMaxx

$8,599.00
$8,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • MechMaxx 7" Disc Brush Chipper, Highway Towable with torsion axles and Lights, Electric Start, Dual Variable Speed Hydraulic Infeed
  • This 7" chipper can stand up to commercial use. Great for Landscapers, Small Tree Service Jobs, Homeowners, Orchards, Rental Yards.
  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Applicable hydraulic oil type: ISO VG 46 hydraulic oil.
  • Engine oil type: 10W-30
  • *Shipped with NO fluids. Must add own fluid
2 year factory warranty

2 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

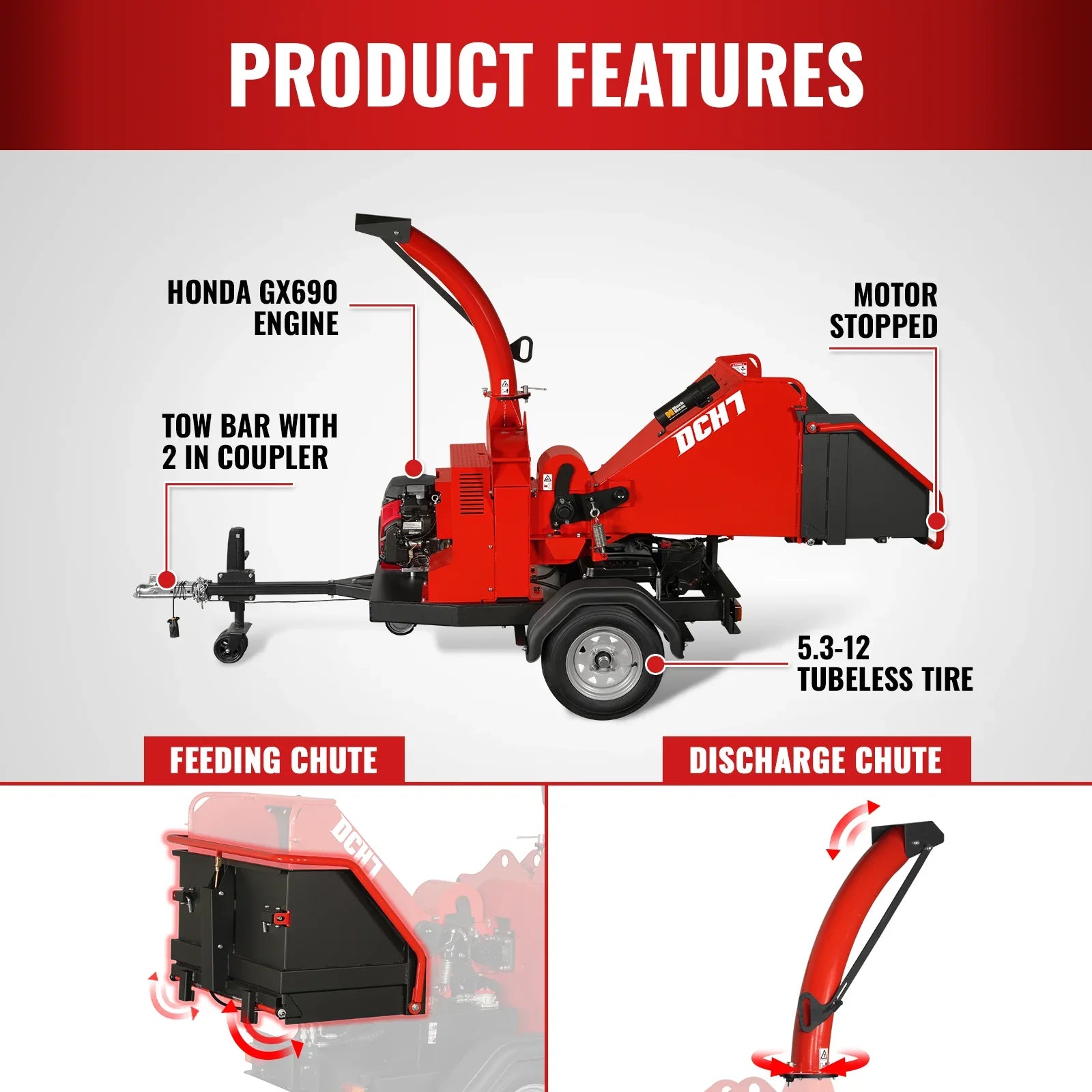

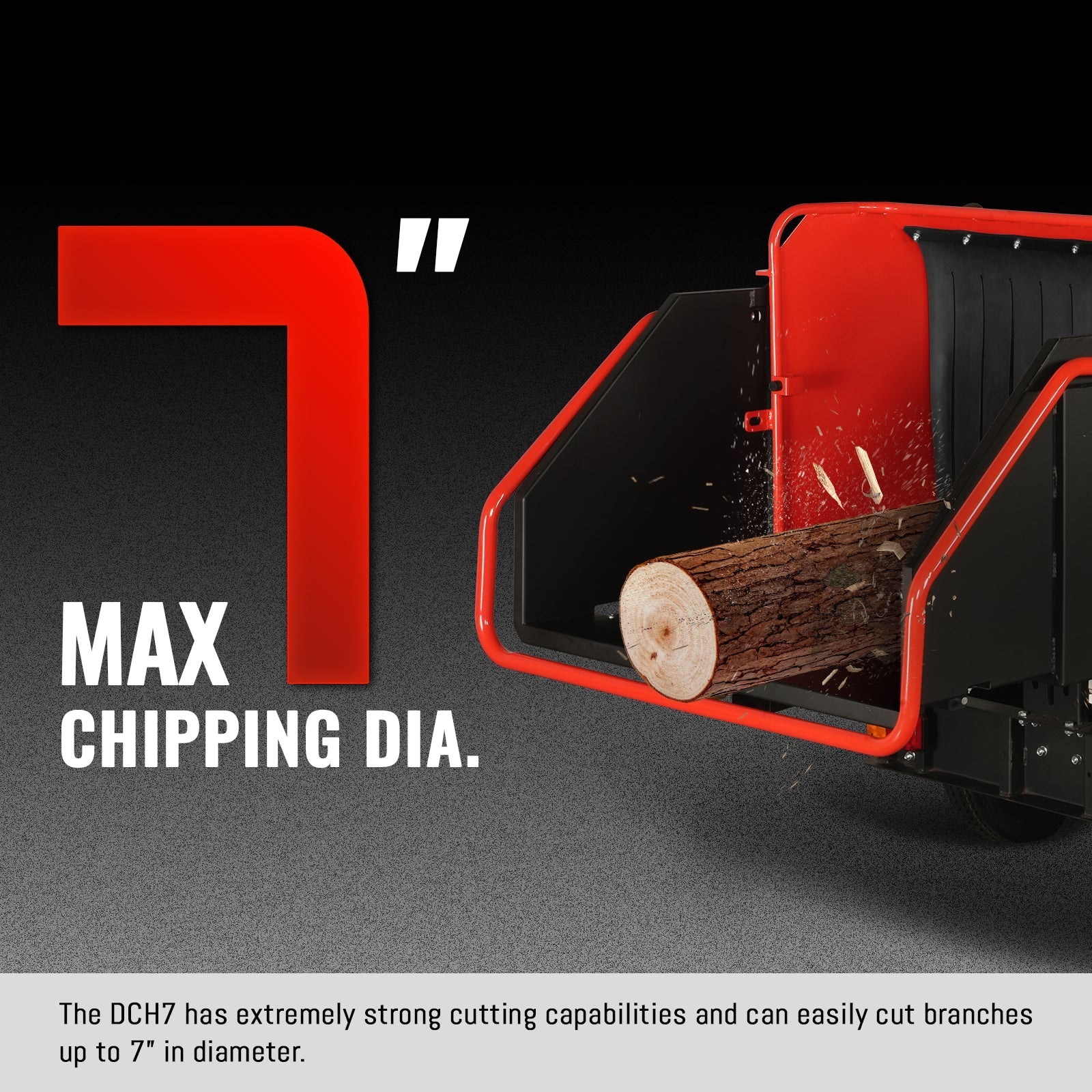

  • Maximum Wood Chip Diameter 7 in: The DCH7 has extremely strong cutting capabilities and can easily cut branches up to 7” in diameter.

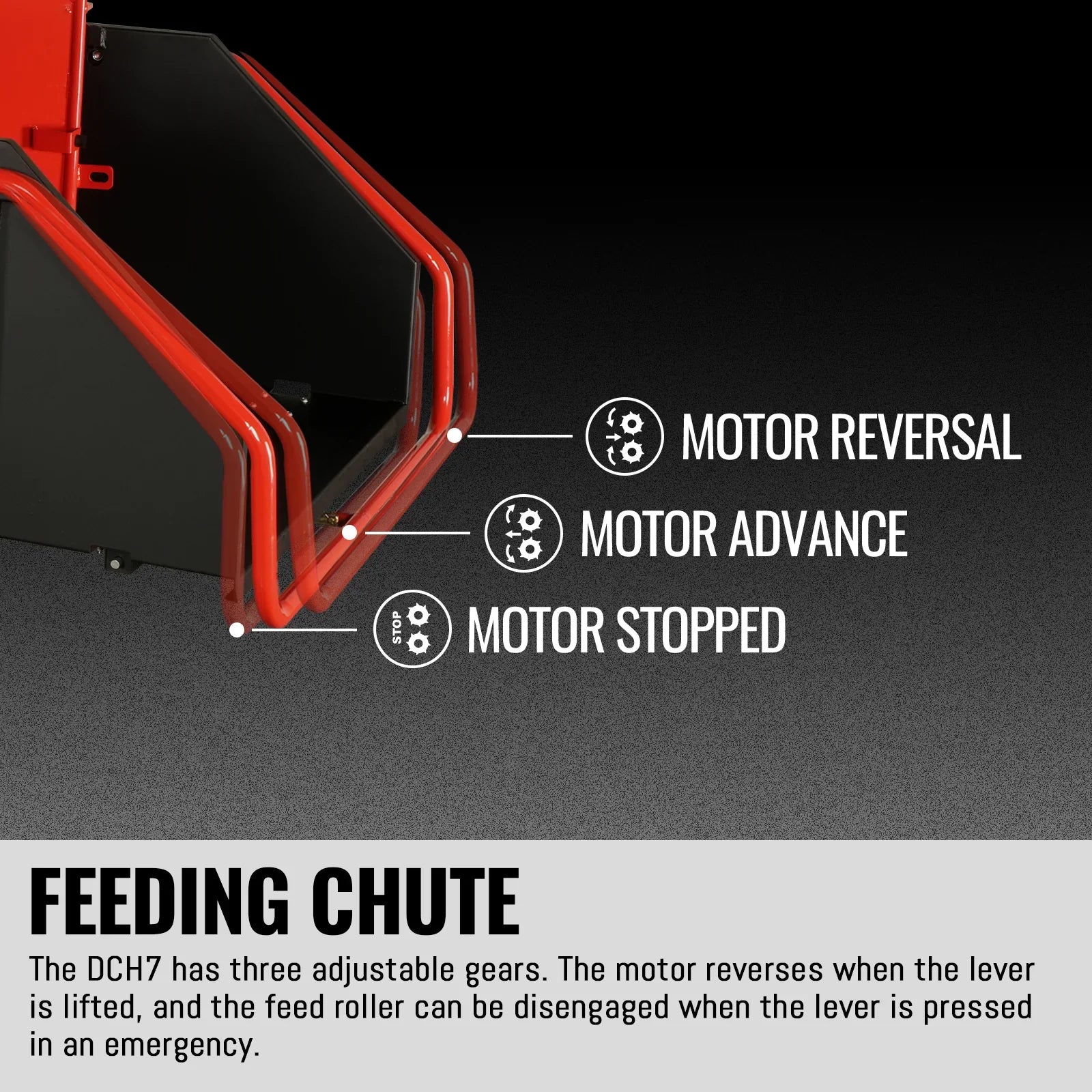

  • Hydraulic Feeding: The DCH7 features hydraulic feeding with three adjustablegears. When the control lever is lifted, the motor reverses,in an emergency, pressing the lever disengages the feedroller.
  • Folding Feeding Box: The feeding box is collapsible and can simply be folded upwards for storage or transport.

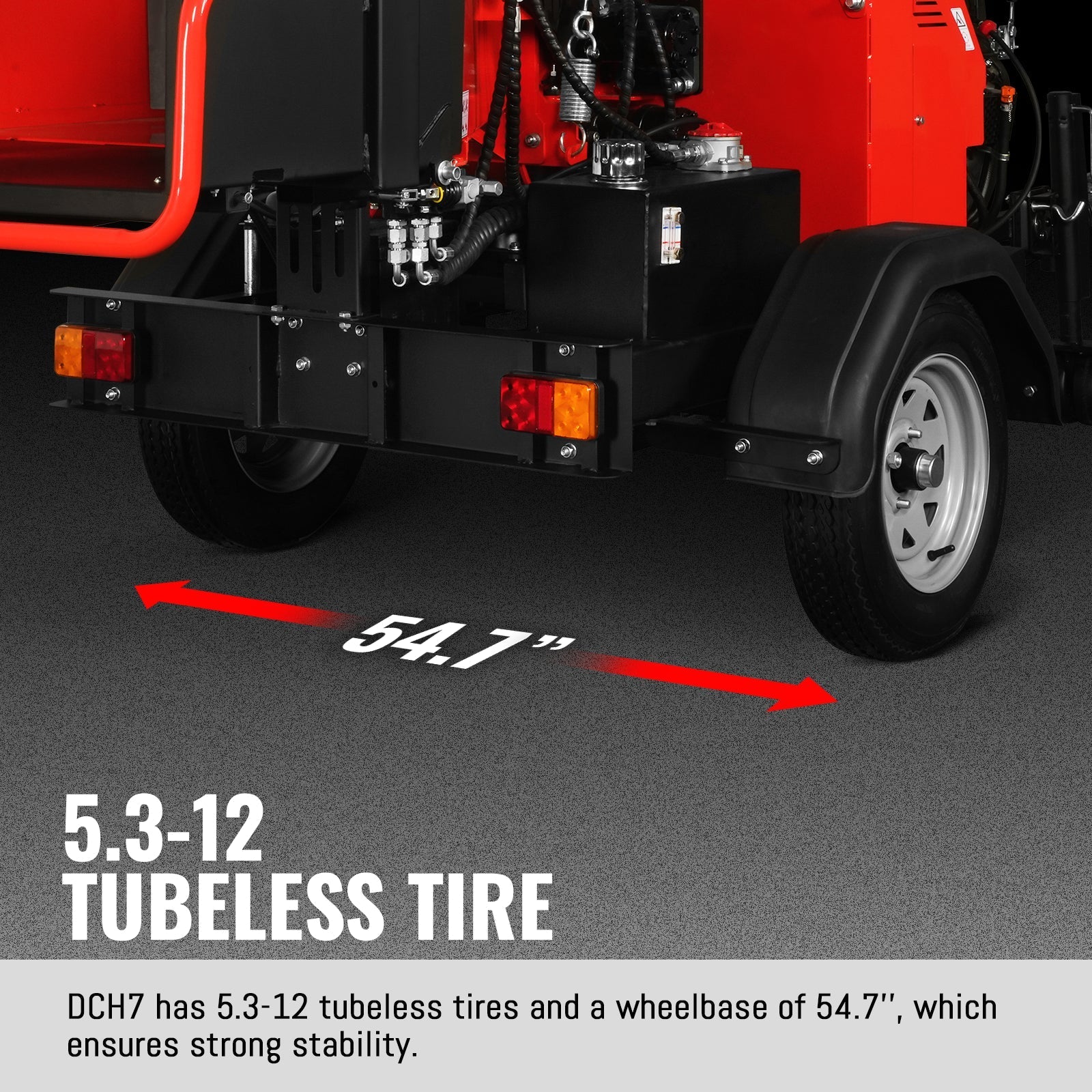

  • Axle Torsion Axis and Wheelbase: DCH7 has 5.3-12 tubeless tires and a wheelbase of 54.7’’, which ensures strong stability.
  • Tail Light and Plug: The DCH7 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of DCH7 to synchronize with the vehicle's braking and turning signals.
  • Discharge Chute: The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

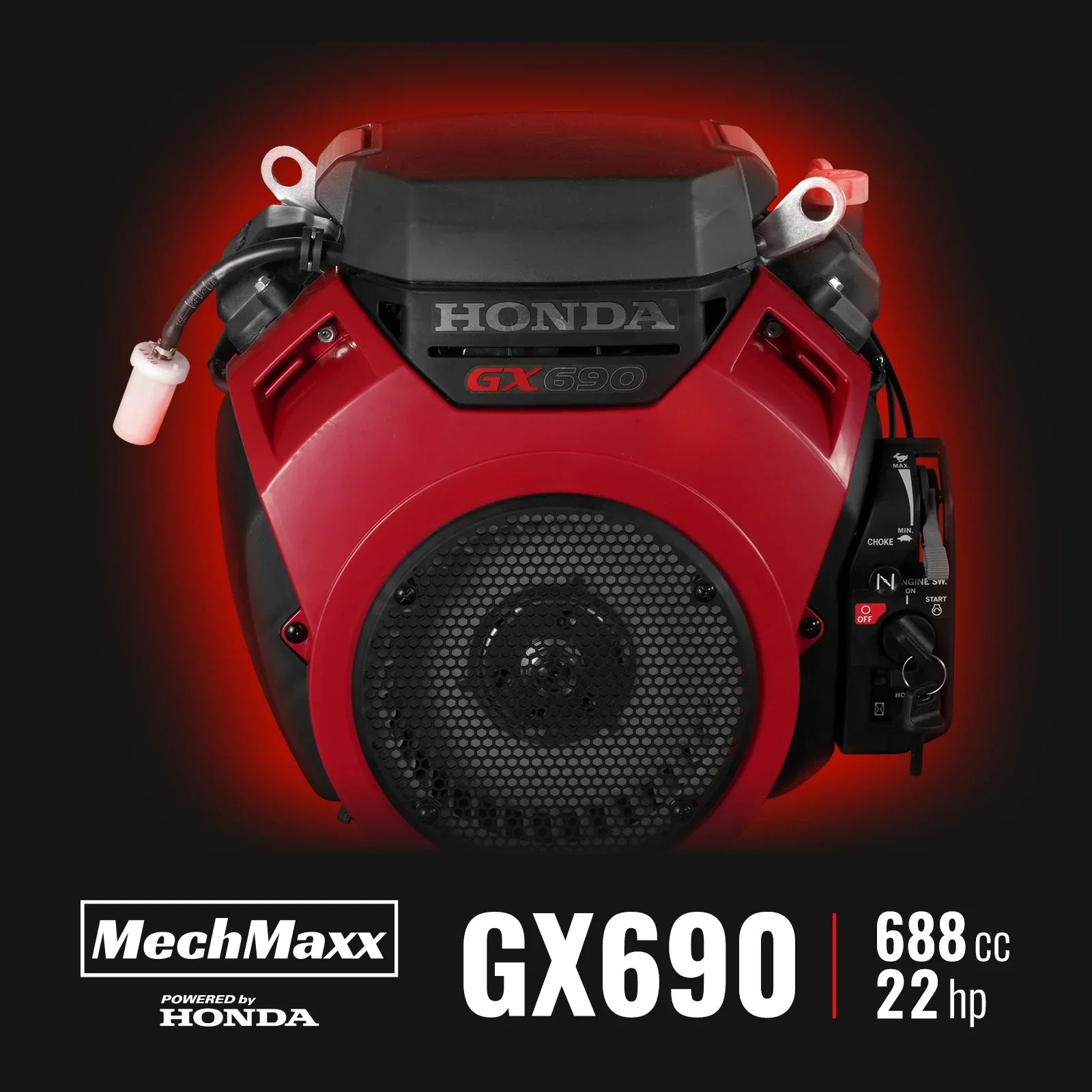

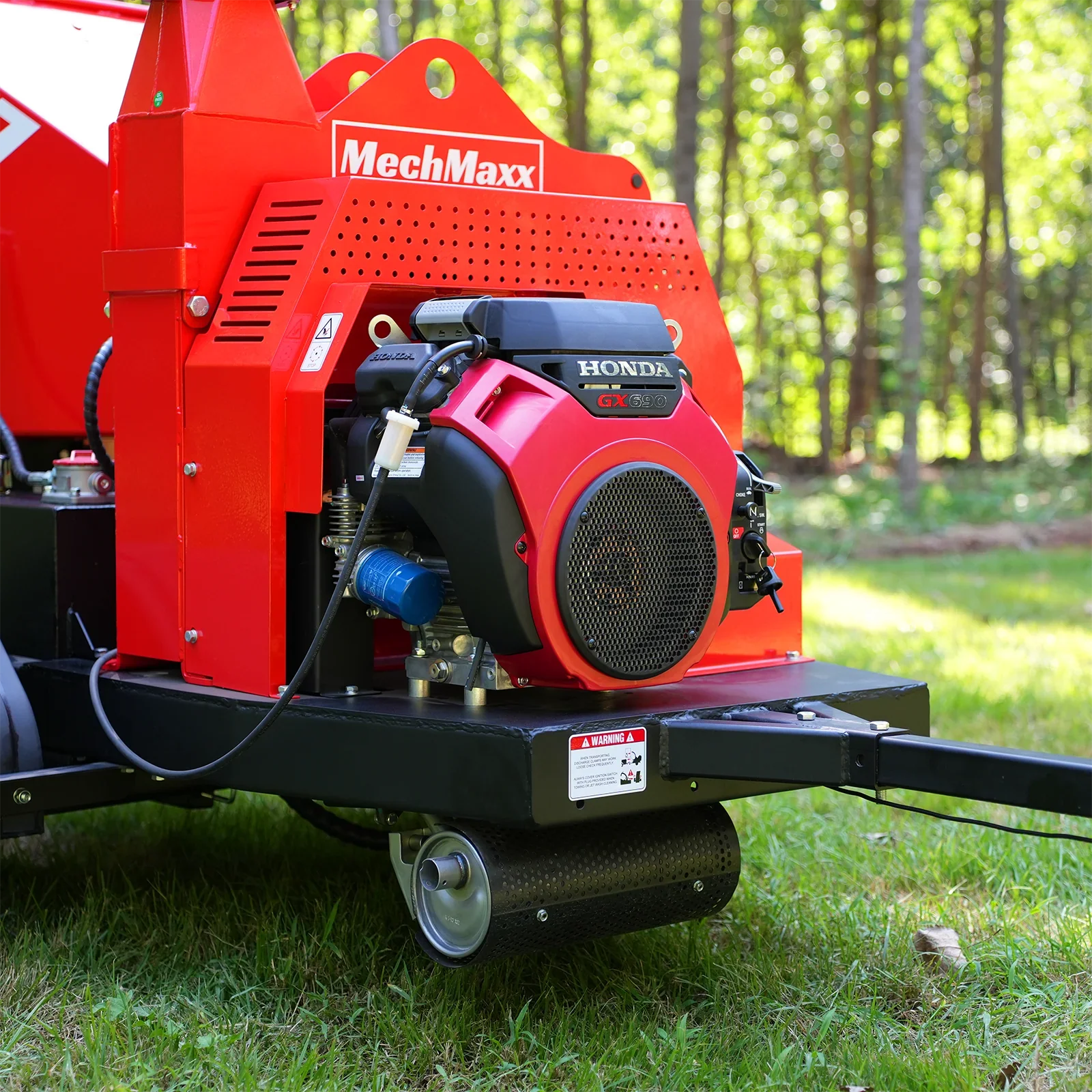

Engine: HONDA GX690

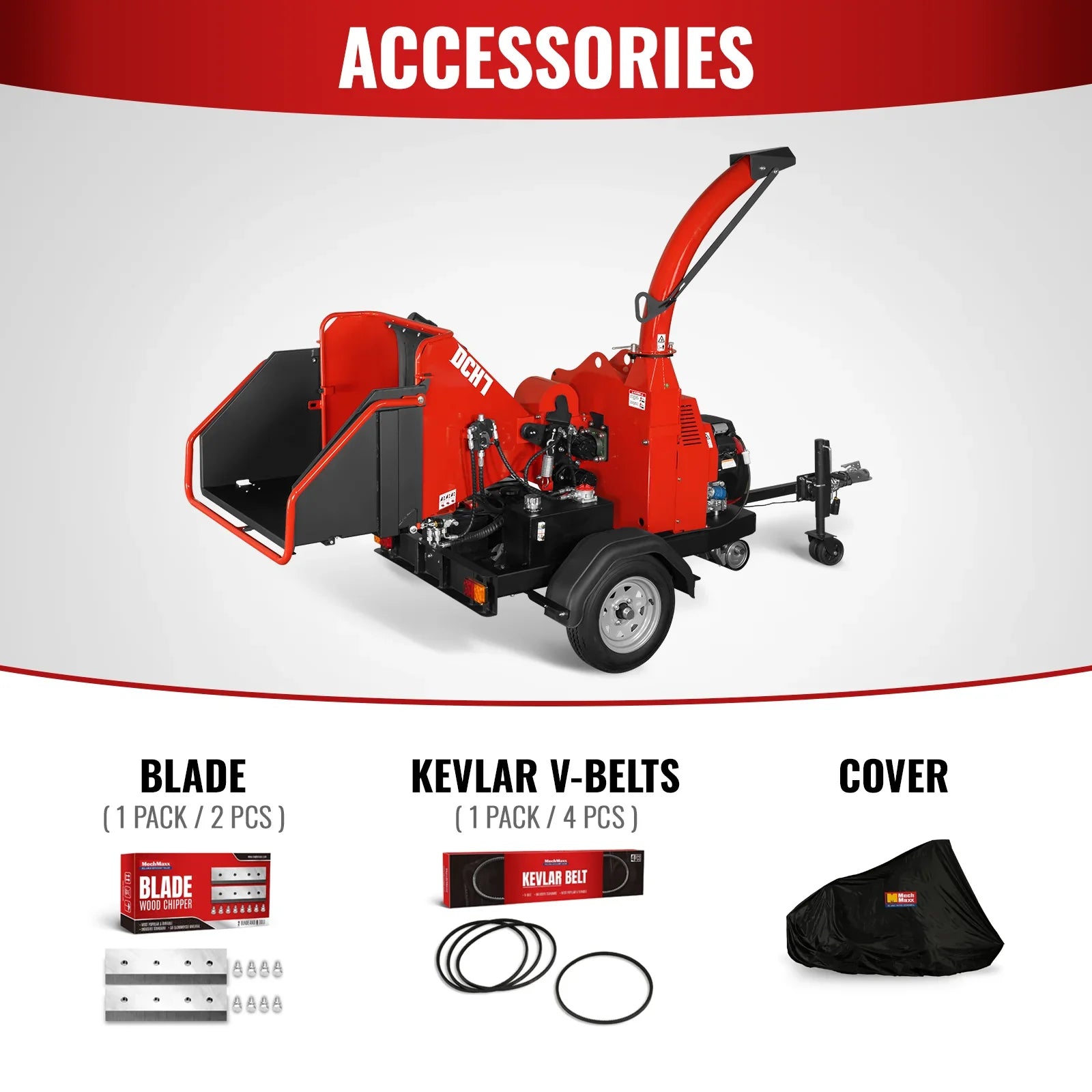

Blade: 2 x Blades; 1 x Anvil

Engine Type: Air Cooled 4-Stroke OHV Petrol Engine，90° V-Twin Design, Horizontal Shaft

Blade Material: A8 （5Cr8MoVSi）

Displacement: 688 cc; 22 HP

Blades Type: Double Edge Blade

Rated Power: 13.0 kw / 3600 RPM

Flywheel System: Open Top Flywheel 26 in x 1 in Twin

Max. Net Torque: 48.3 N·m / 2500 RPM

Discharge Chute: 360 Degree Rotating

Fuel Capacity: 3.17 gal

Emergency Stop: Stop Bar

Recommended Oil: SAE 10W-30 Classification SE or Higher

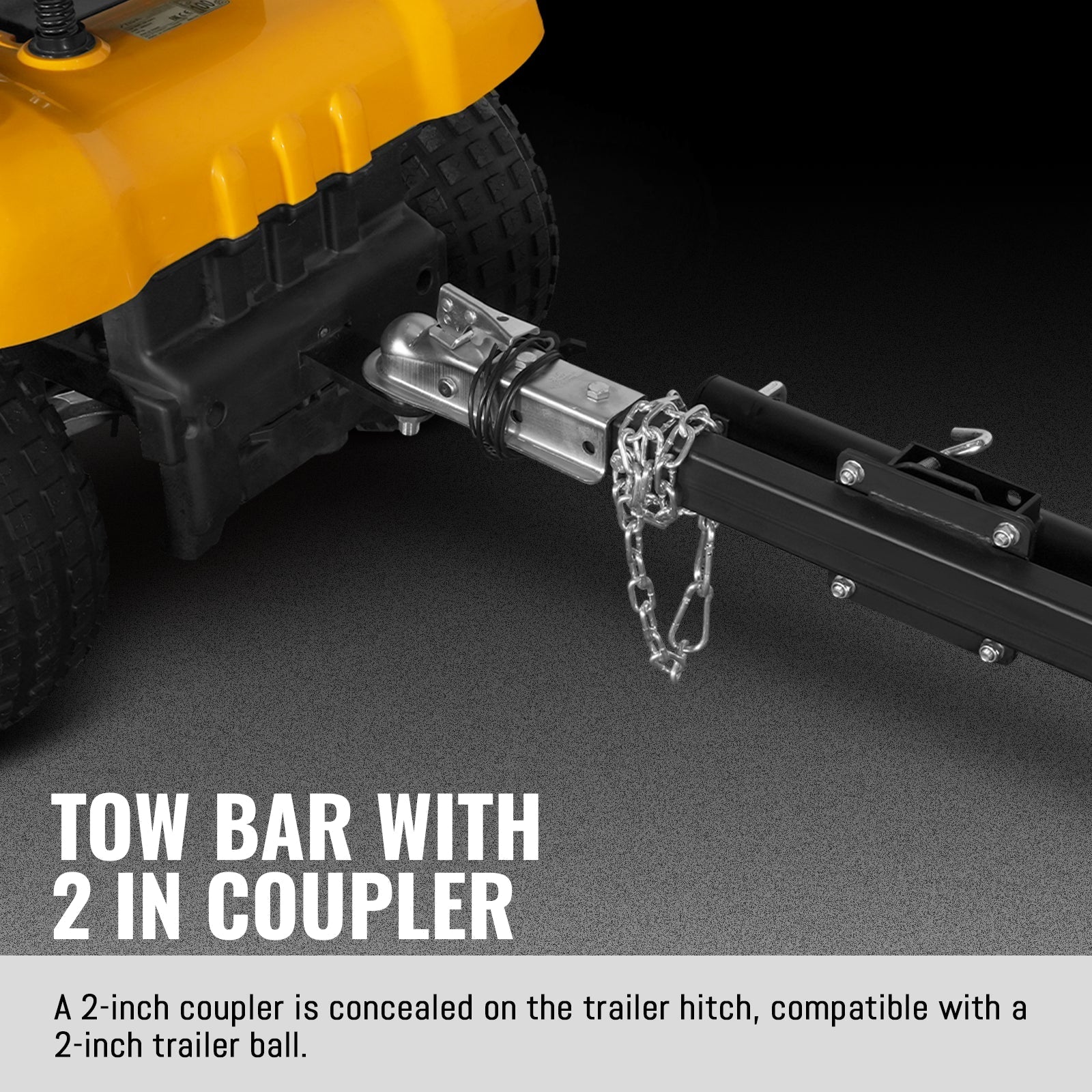

Towing Length: Tow Bar With 2 in Coupler

Hydraulic Tank: 6.87 gal

Wheel: 5.3-12 Tubeless

Starting: Electric Starting

Wheelbase: 52.5 in

Battery: 36Ah 12V Lead-Acid Battery

Axle: Damping Torsion Axle

Ignition System: CDI

Max. Speed: 50 mph

Governor System: Mechanical Centrifugal Type

Chassis: Channel Steel Welded Frame

Belt: 2 x V-Belts

Package Method: Iron Fram With Black Film

Belts Material: Kevlar

Weight (N.W./G.W.): 1389 / 1587 lbs

Clutch: Centrifugal Clutch

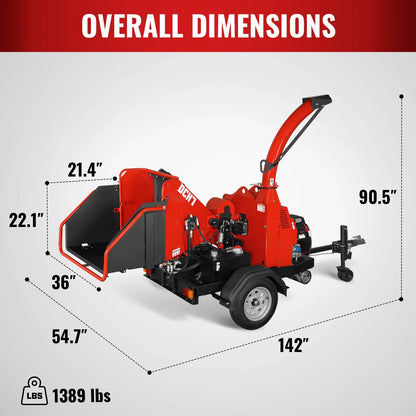

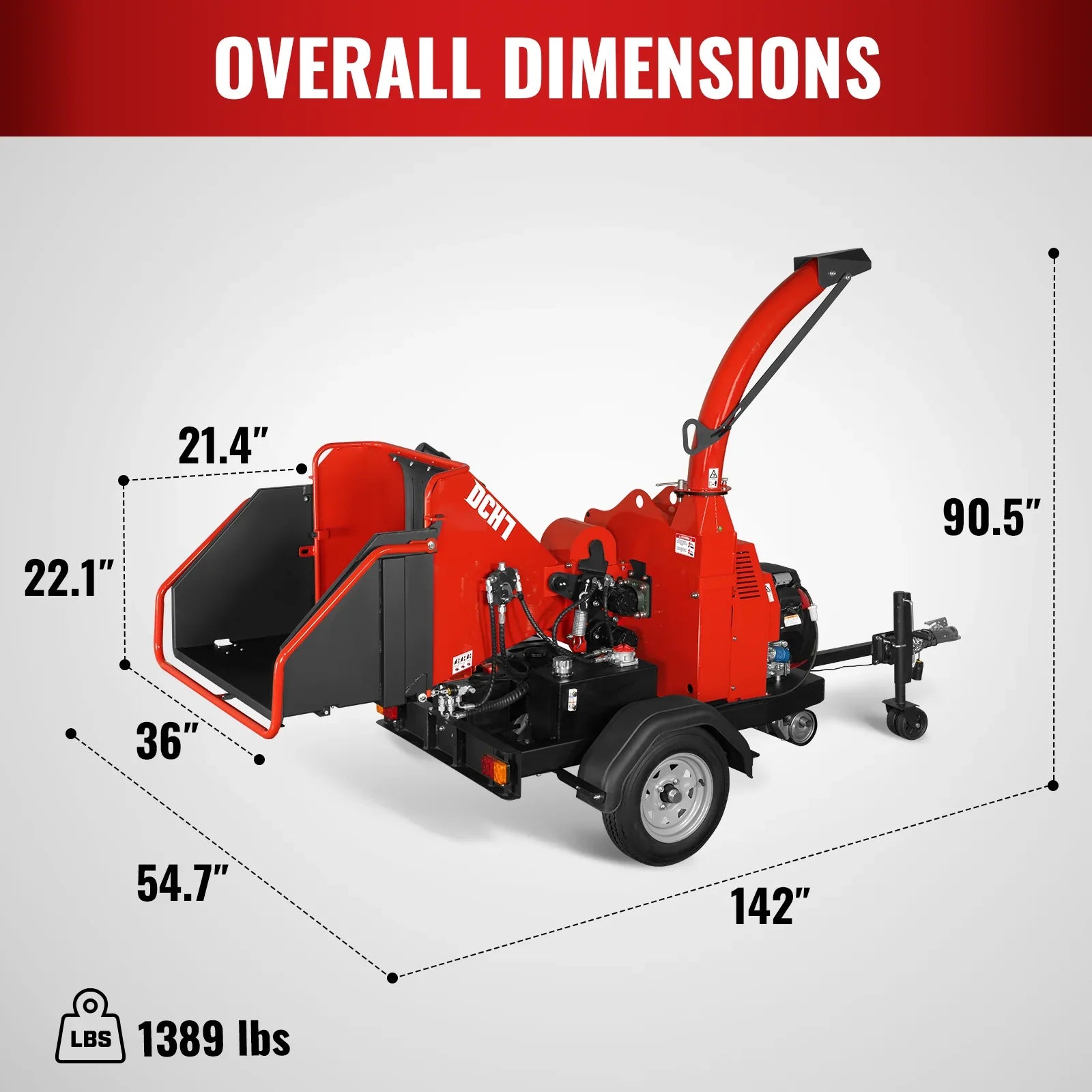

Product Size (L*W*H): 137 x 55 x 90 in

Cutting Method: Disc

Packing Size (L*W*H): 87 x 46 x 51 in

Max. Chipping Dia.: 7 in

Feed Roller: 7.5 in x 6.5 in

This item comes with a 2 year factory warranty.
PDF DCH7 Product Manual 1.0 PDF Honda GX690 Manual PDF Wood Chipper Quick Installation Guide
