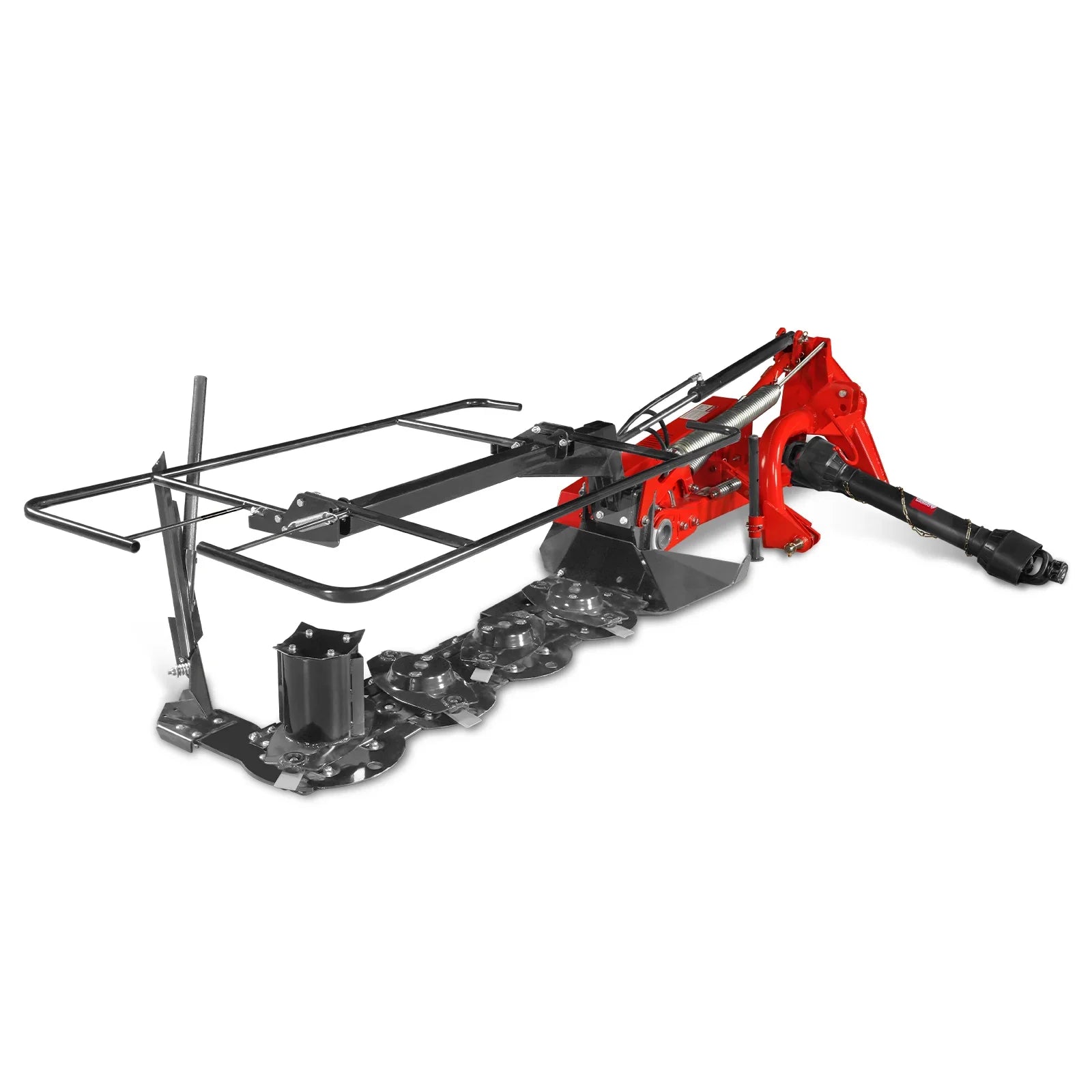

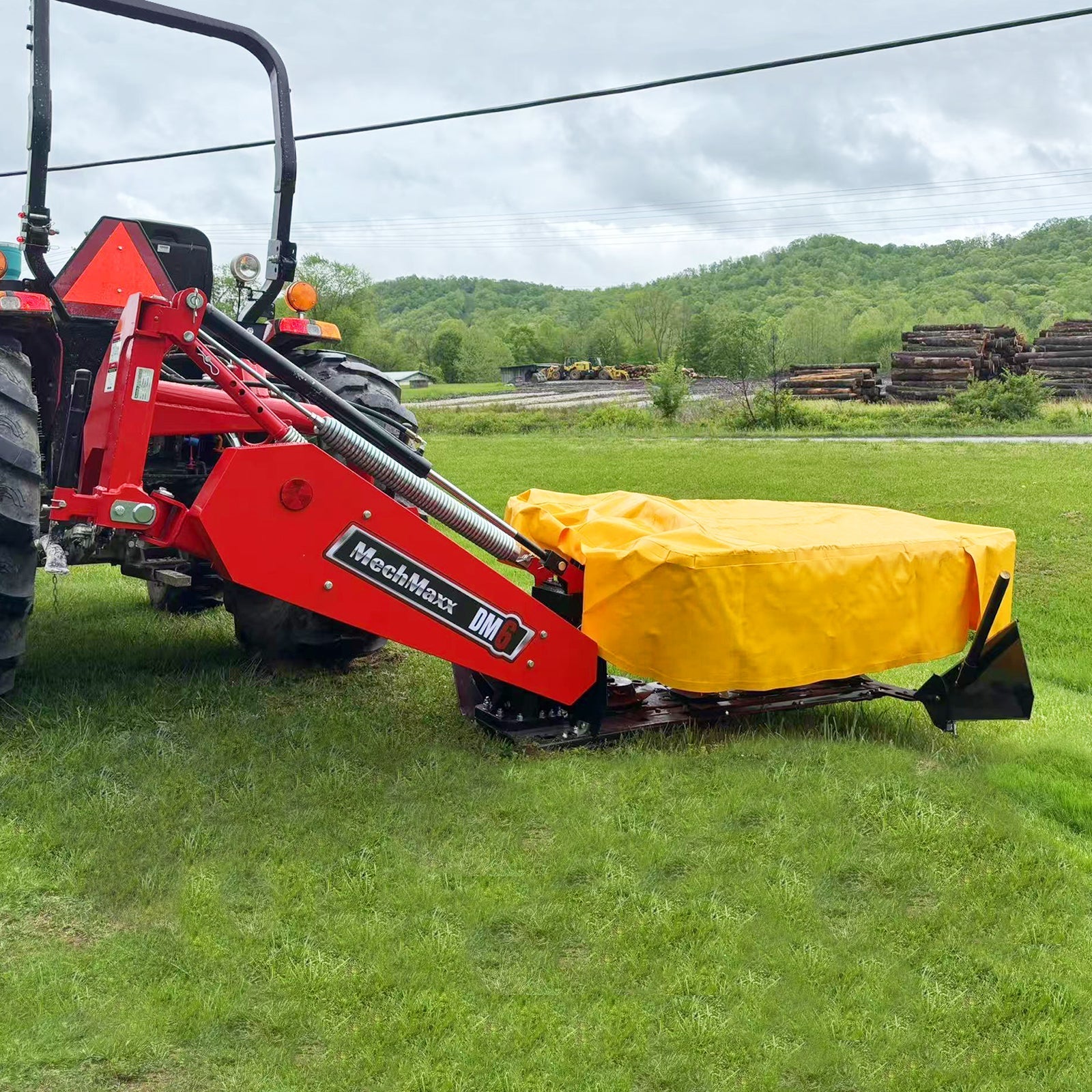

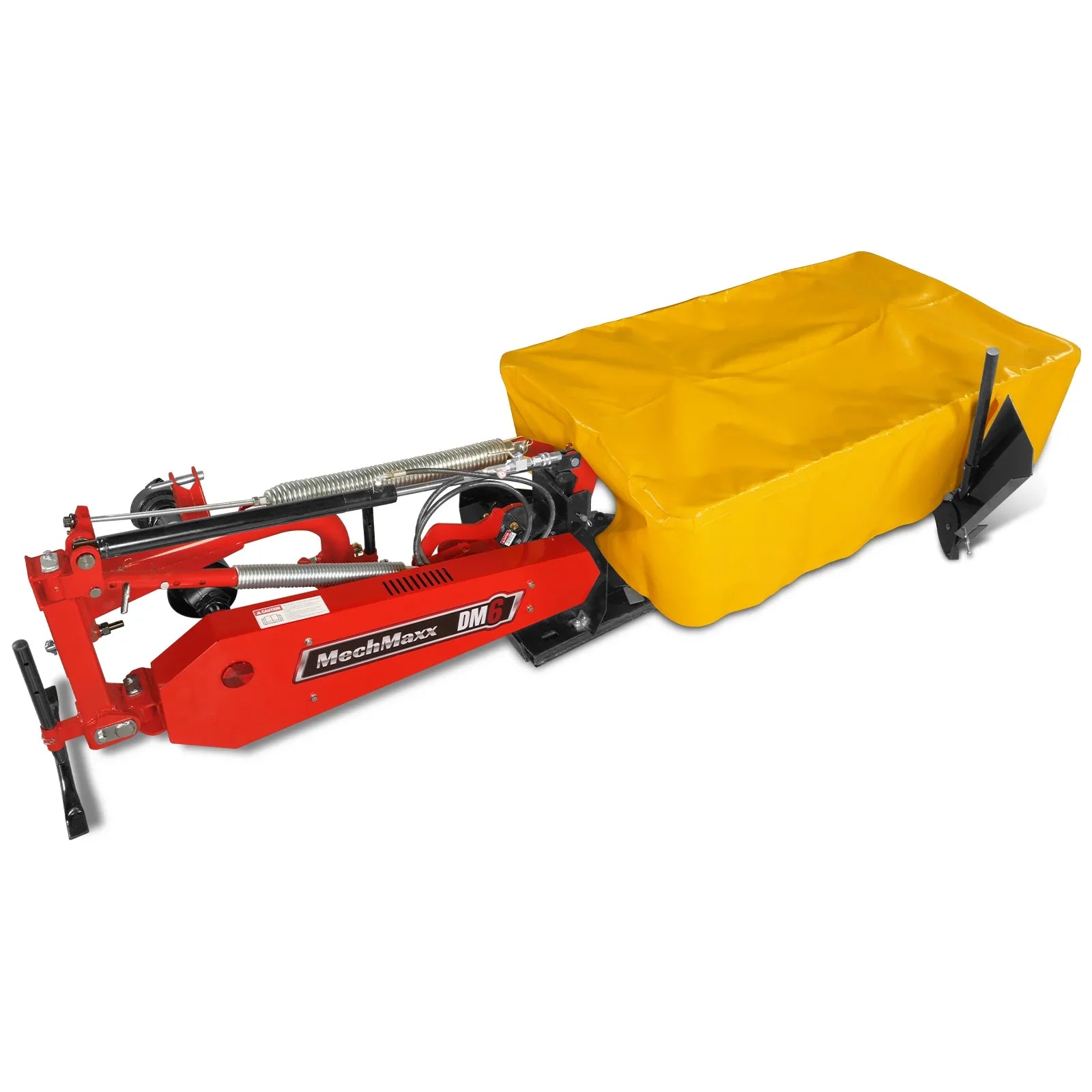

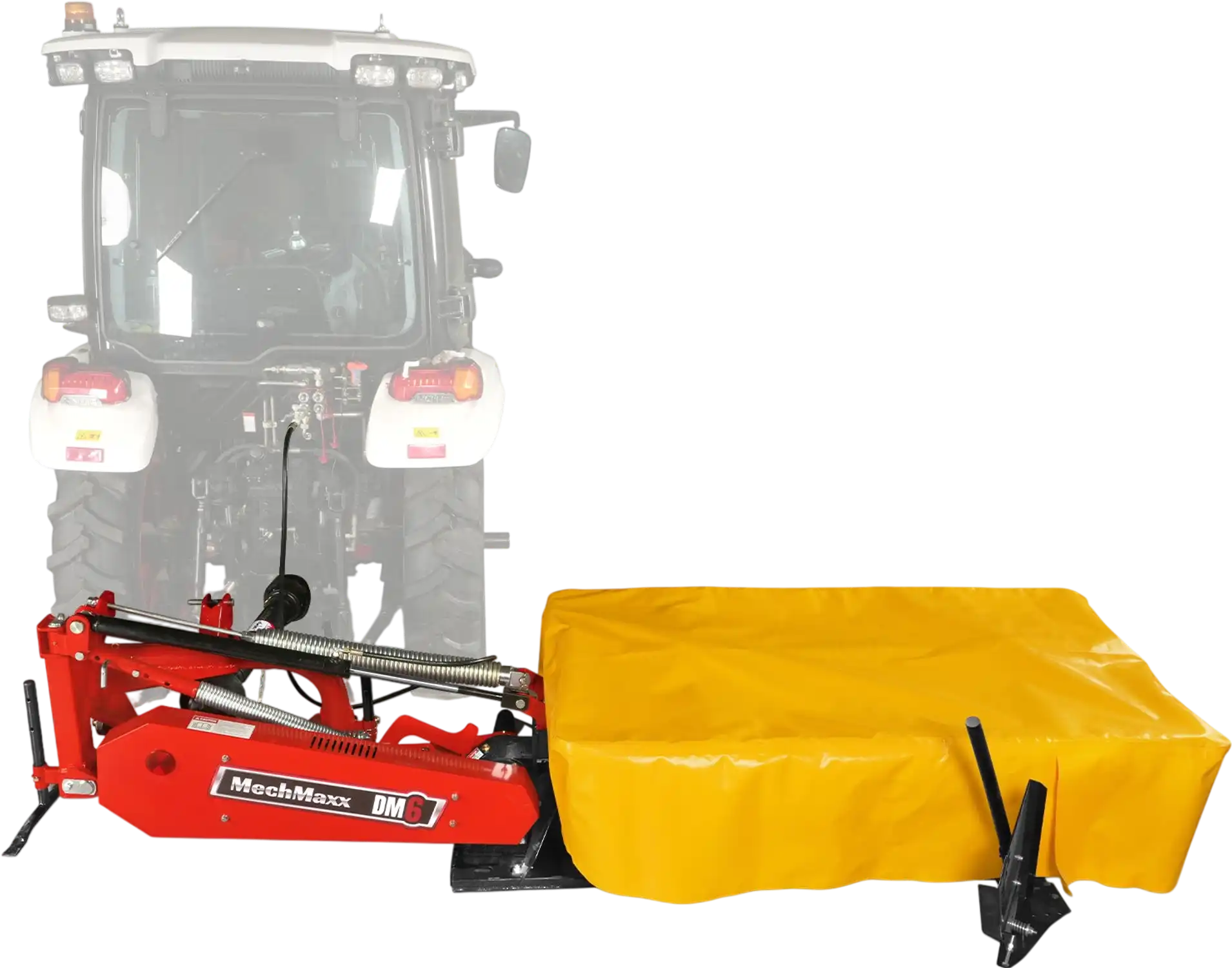

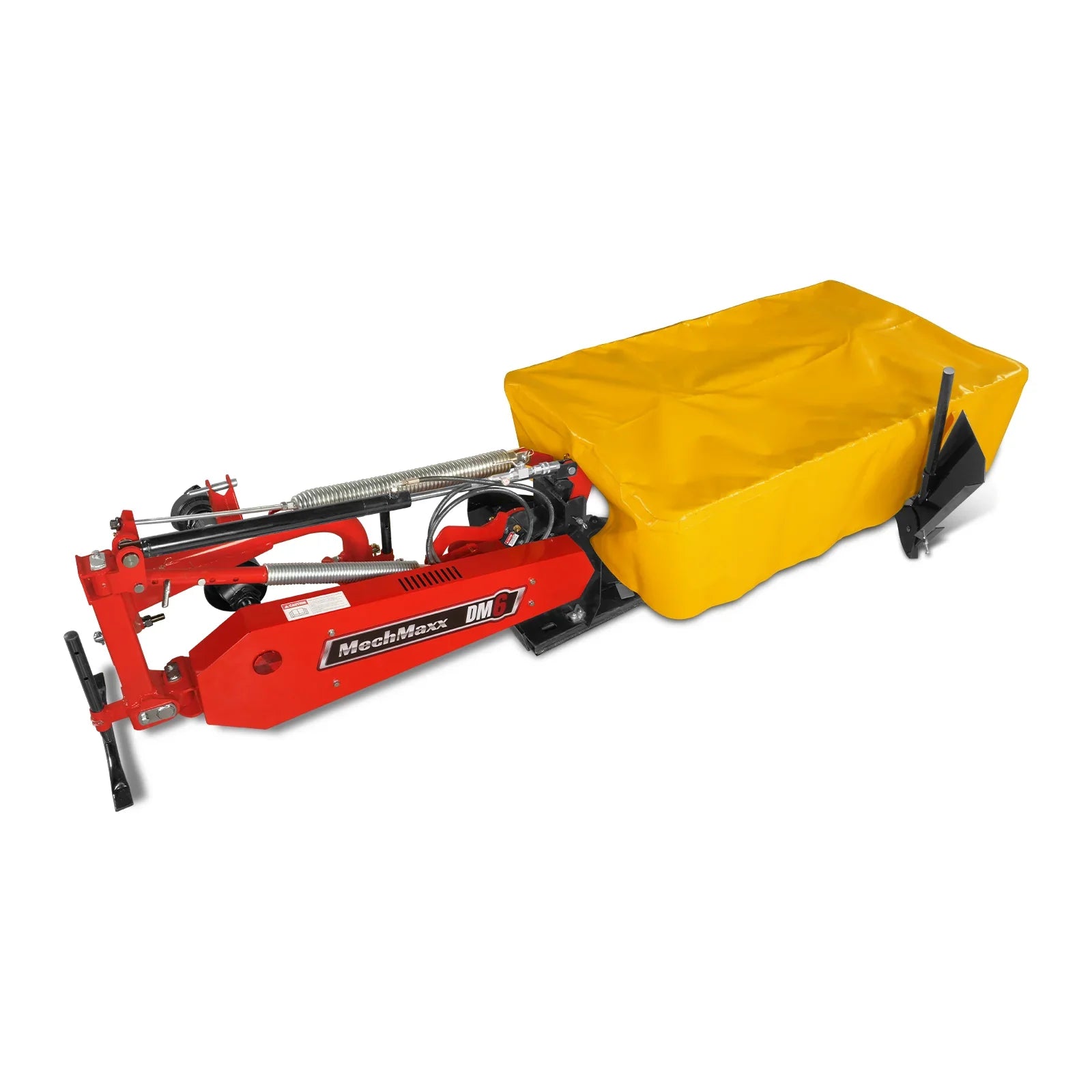

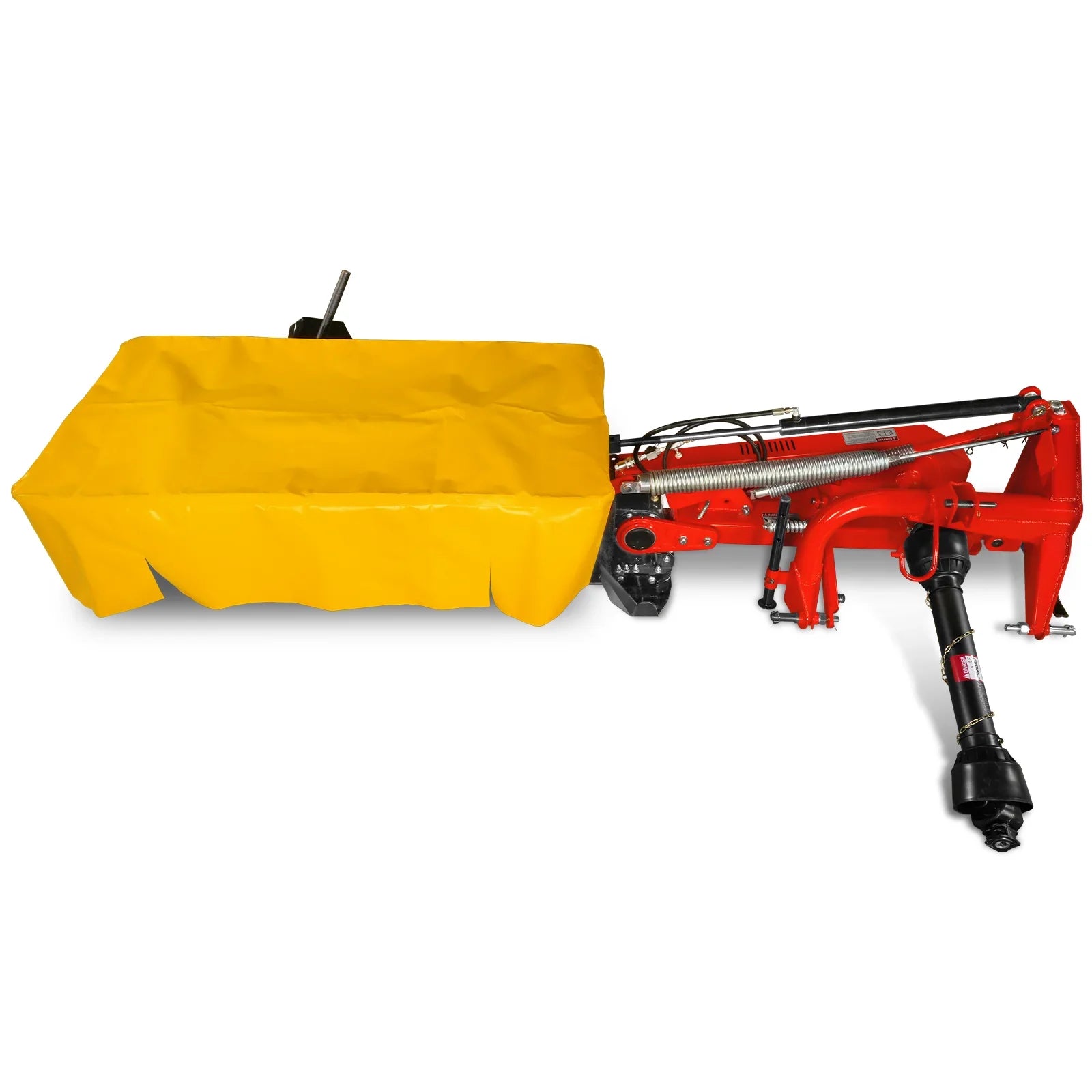

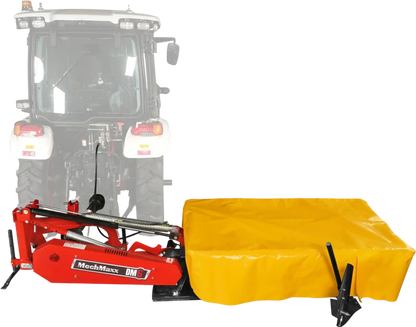

MechMaxx DM6 Disc Mower 6' 4 Disc 35-80HP Tractor Cat. 2 New

MechMaxx

$5,299.00
$5,299.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • The mower is fully gear transmission, the gearbox and gears in the cutter bar can quickly transfer power from tractor to blades, improve mowing speed, reduce power lost.
  • The disc mower was built with high quality robust components, thus suitable to heavy duty and harsh works.
  • This kind of gear transmission mower can handle various kinds of terrain and cutting fields, also for different types of grasses, including thick and long grasses, stalks, etc..
  • Gear transmission disc mowers are relatively easy for maintenance, lubricate the main points and change blades according to the instructions.
  • The mower was designed with safety components thus pullback the cutter bar while it hits heavy obstacles.

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Gear Transmission, High Efficiency: DM mower is fully gear transmission, the gearbox and gears in the cutter bar can quickly transfer power from tractor to blades, improve mowing speed, reduce power lost.
  • 19-splinebelt Pulley Transmission Shaft: Spline shafts can transmit higher torque than ordinary shafts, provide a larger contact area, and ensure efficient power transmission, improve reliability and reduce maintenance requirements.
  • Easy For Lubricating: Removing the cover on the cutting deck allows for easy lubrication, simplifying maintenance and repair.

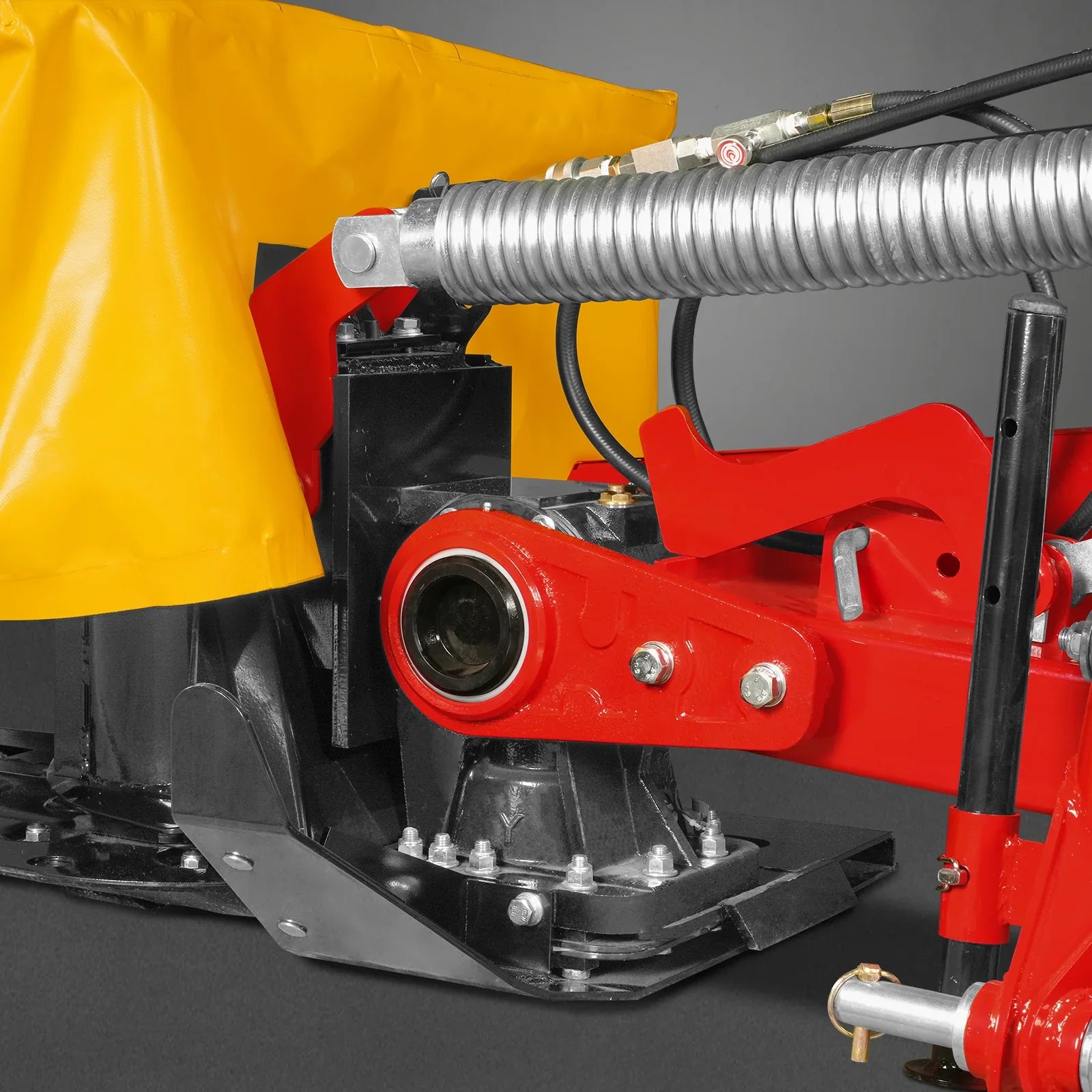

  • Bronze Decompression Valve On Gearbox: Decompressive valve was designed to release the heat inside the gearbox, thus makes the gears inside a longer life span.
  • Safety Device: Safety device to pull back the cutter bar when hit strong obstacles to protect the cutter bar.

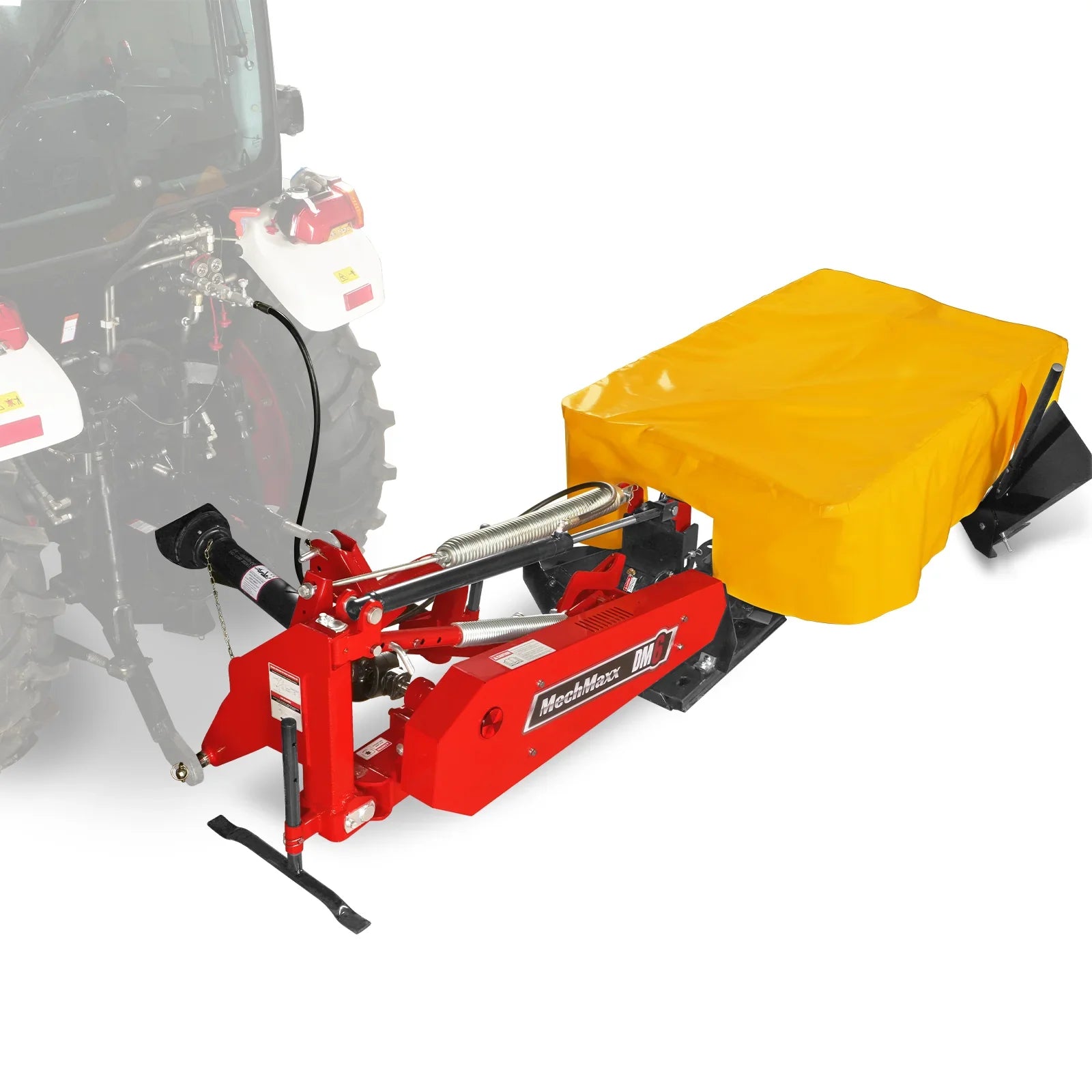

  • Quick Coupler Included: The quick hitch is very convenient and can be done by one person. The operator backs up the tractor, hooks up the disc mower with the quick hitch and is ready to operate.

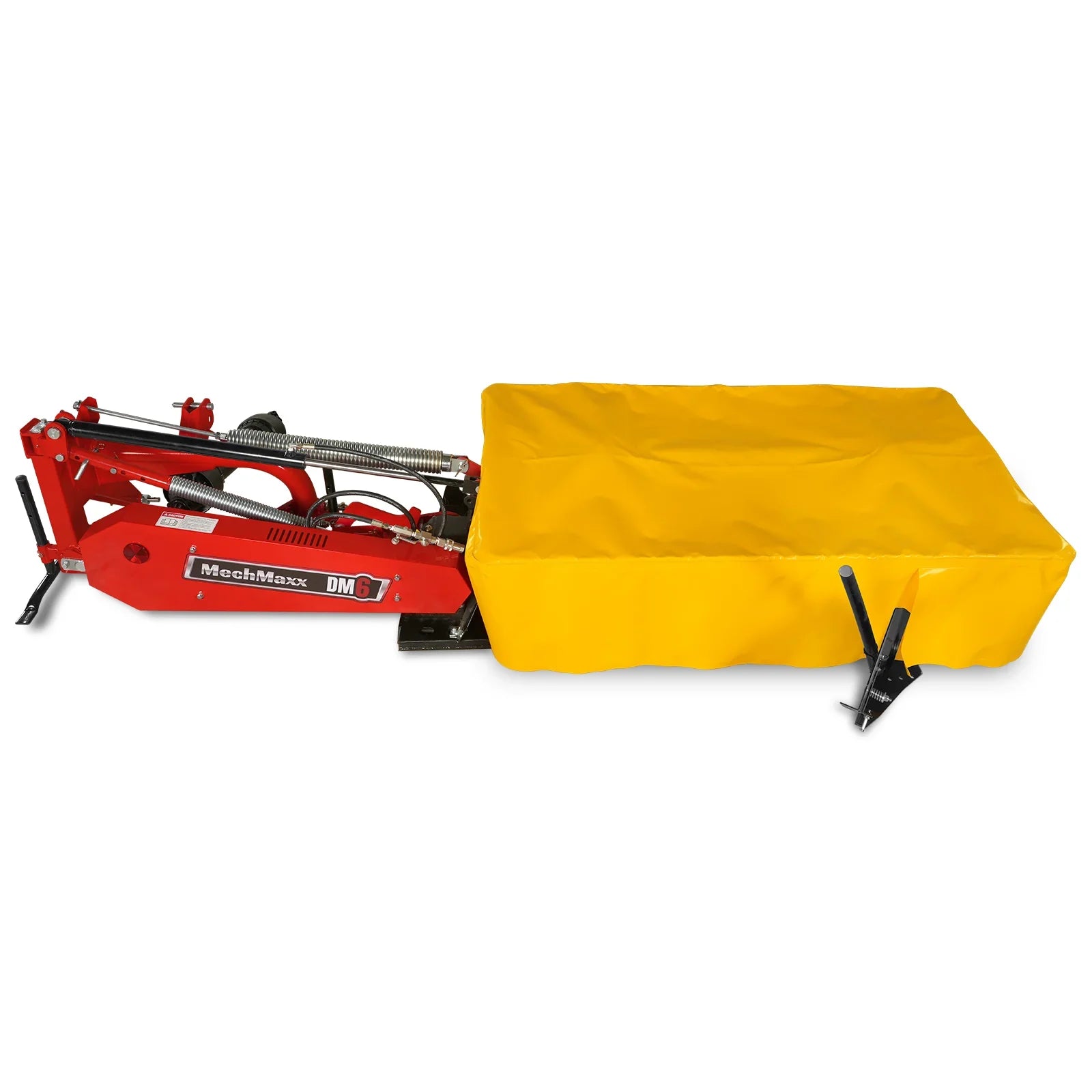

  • Thickened Safety Canopy: The thickened safety canopy prevents people from the splashed grass residue, also protect the disc mower from being rusted by rain and snow, thus extending the service life of the machine.

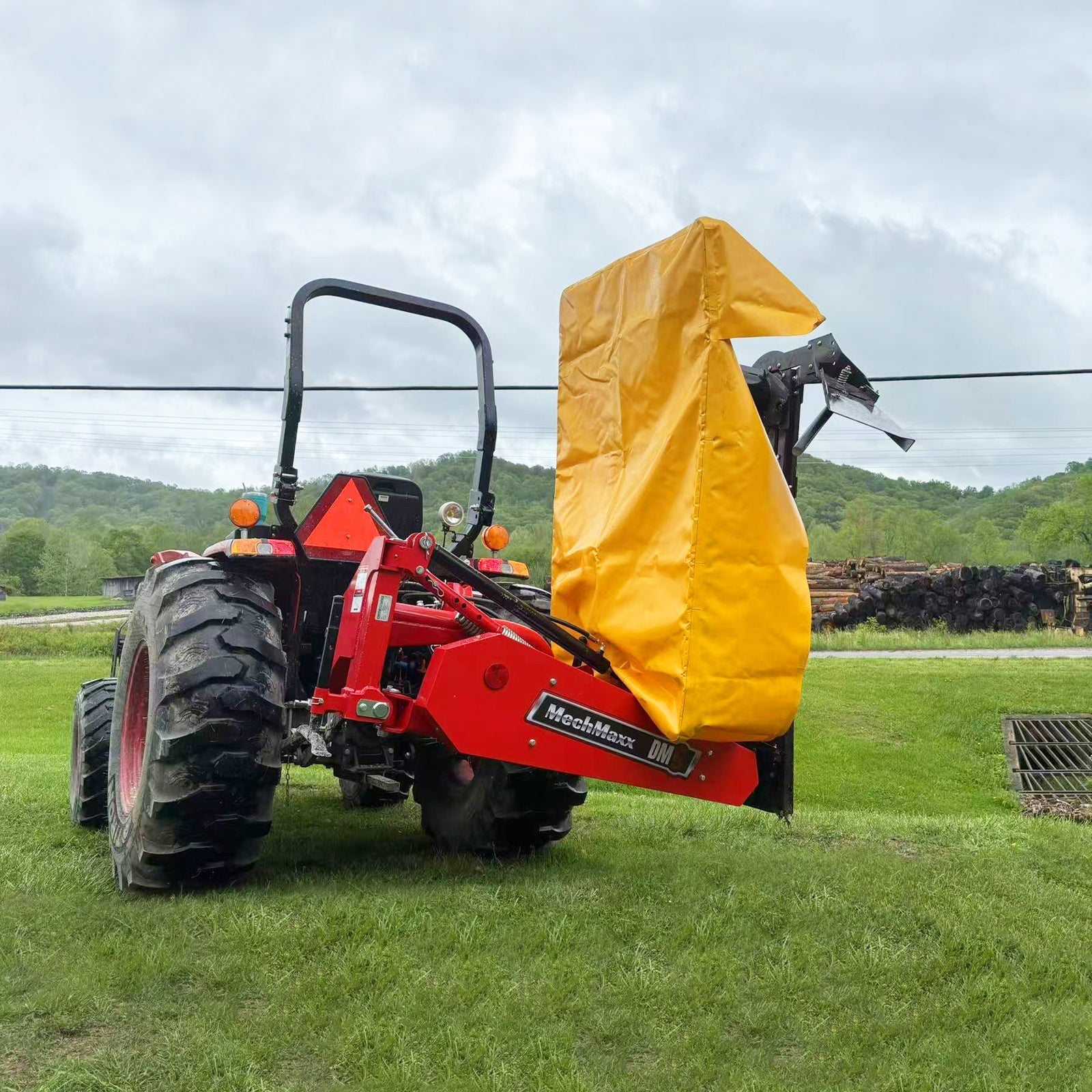

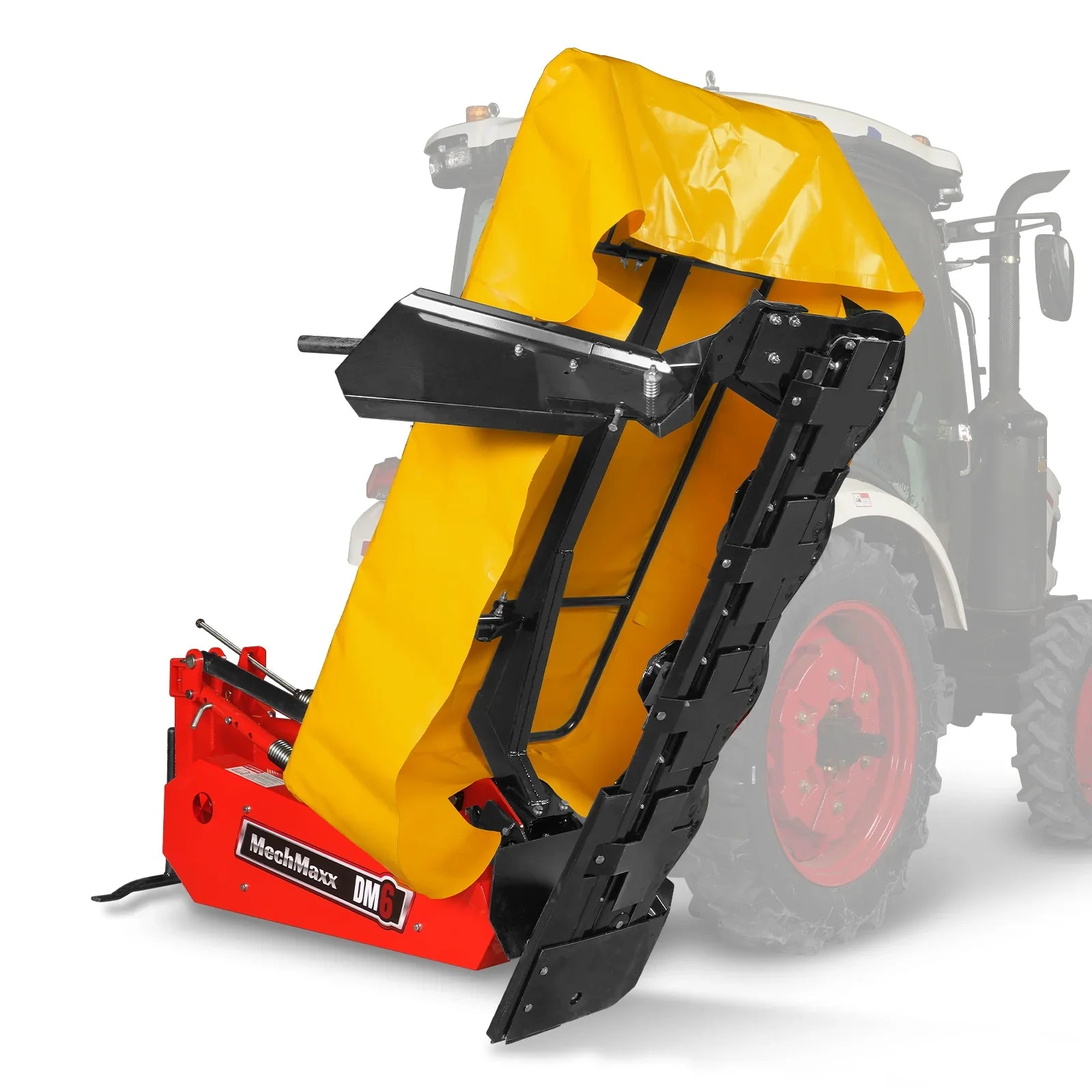

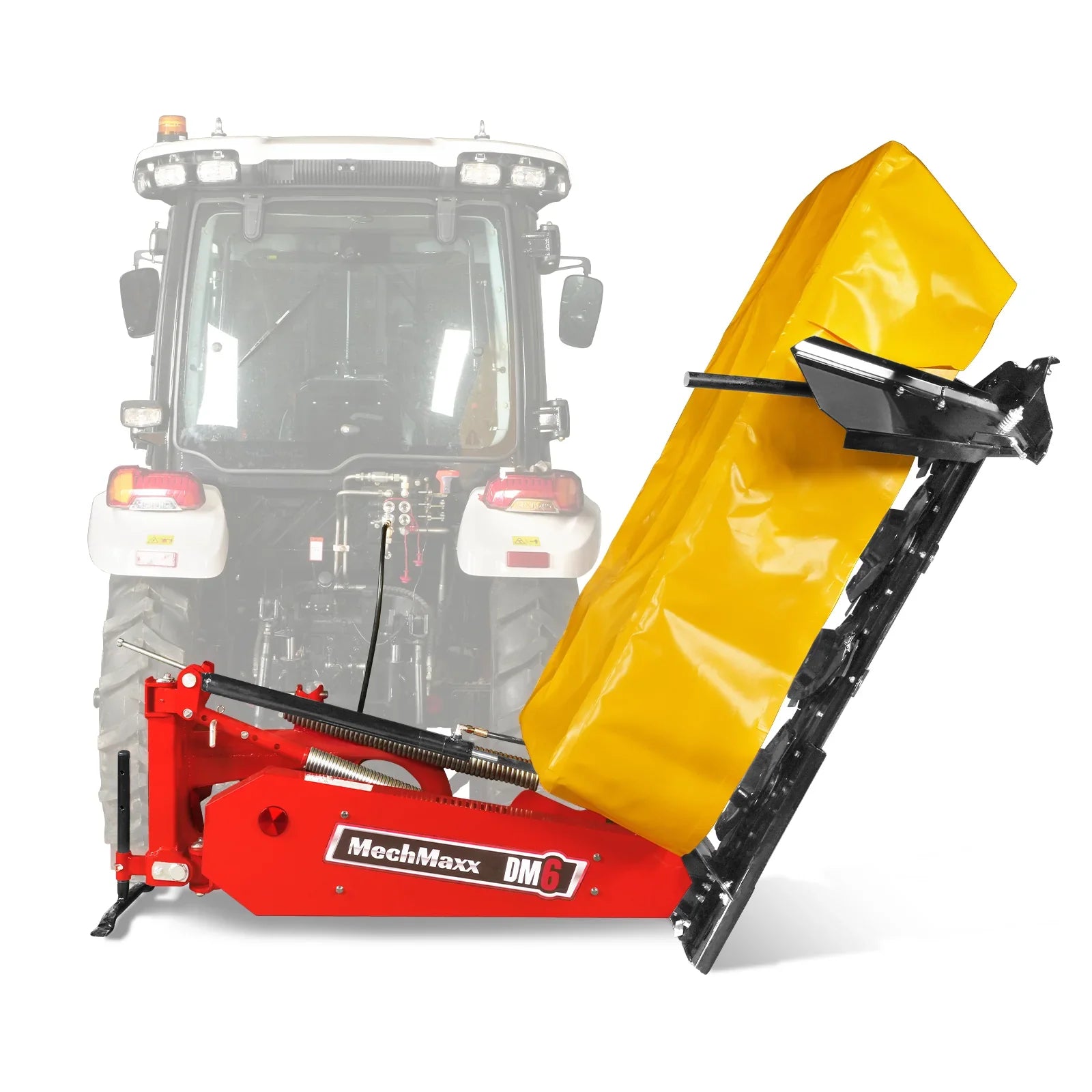

  • Folding: The DM6 mower folds up for easy transport from the seat. The tractor's hydraulic system does all the work.
  • Versatility: This kind of gear transmission mower can handle various kinds of terrain and cutting fields, also for different types of grasses, including thick and long grasses, stalks, etc..

Power Required: 35-80 hp

Tilt-Down Angle: 30°-40°

Working Width: 5.12 ft

Min. Tractor Weight: 2000 lbs

Working Speed: 2.5-6.2 mi/h

Gearbox Oil Type: 90SAE Oil

Stubble Height: 2 in

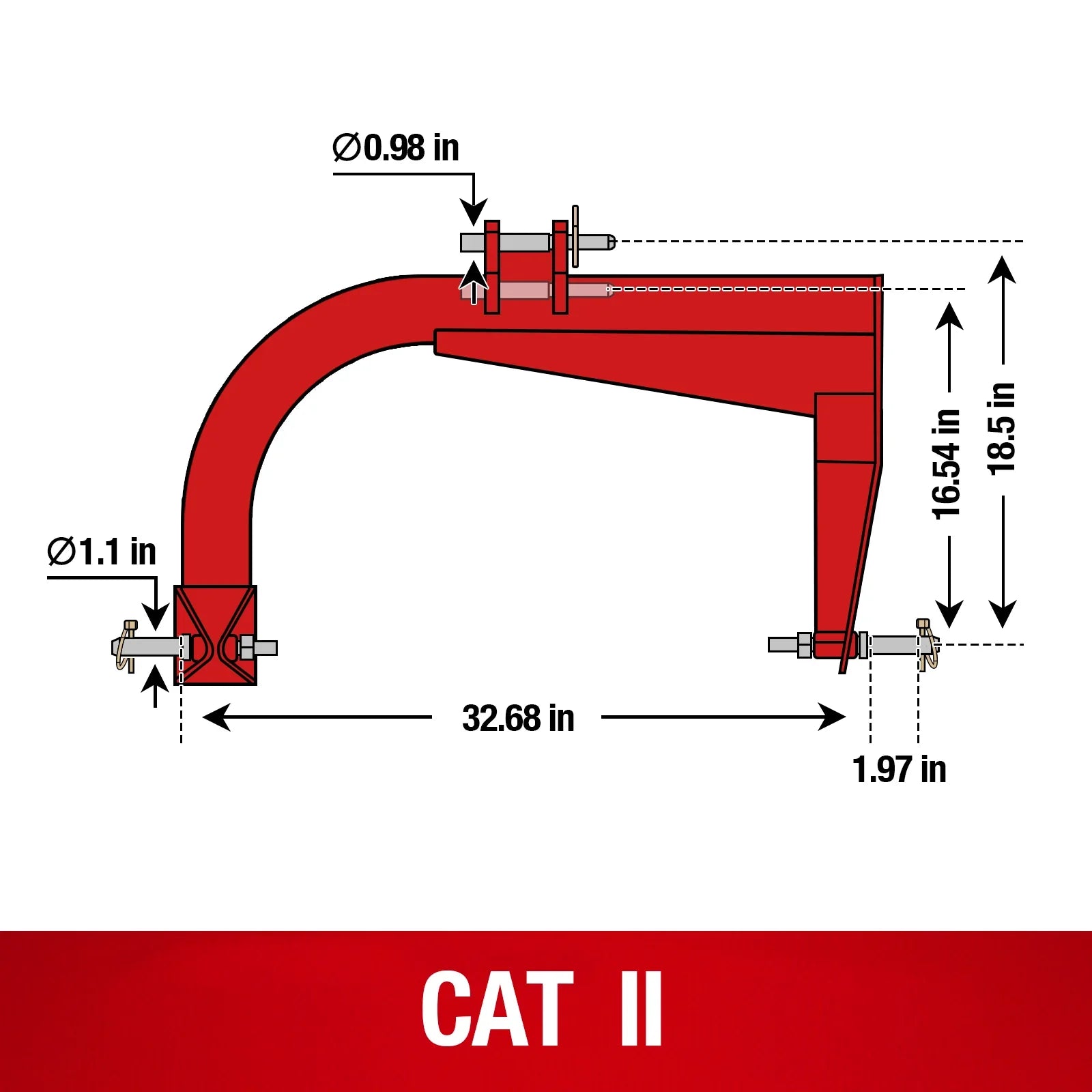

3-Point Hitch: CAT 2

Number Of Disk: 4 pcs

PTO Shaft Speed: 540 rpm

Disc Length: 15.4 in

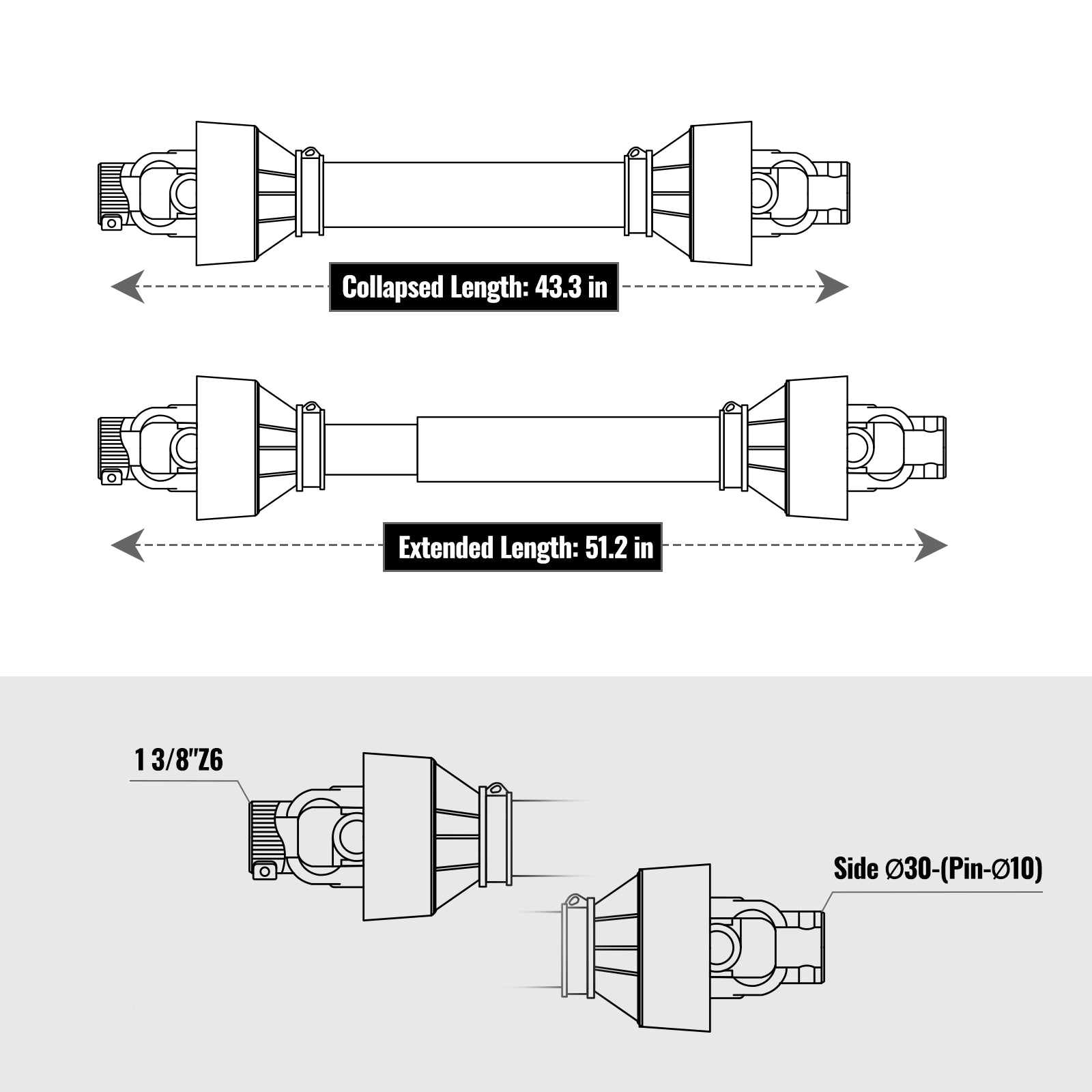

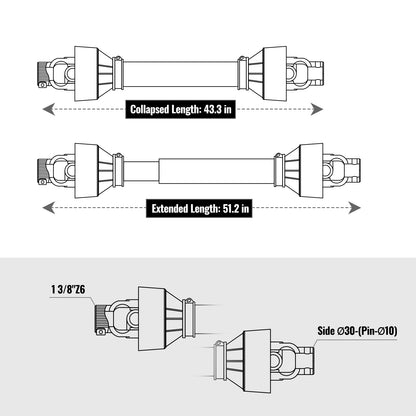

Spline End: 1.375in Z6

Disc Diameter（Including Blade）: 19.7 in

Safety Coth Material: PVC

Side Disc Height: 9.5 in

Finsh: Powder Coating

Number Of Blades: 8 pcs

Product Size (L*W*H): 138 x 55 x 30 in

Blades Material: 65Mn

Package Size (L*W*H): 71 x 29 x 67 in

Number Of Belts: 4

Tilt-Up Angle: 80°

Weight (N.W./G.W.): 1001/1186 lbs

This item comes with a 1 year factory warranty.
