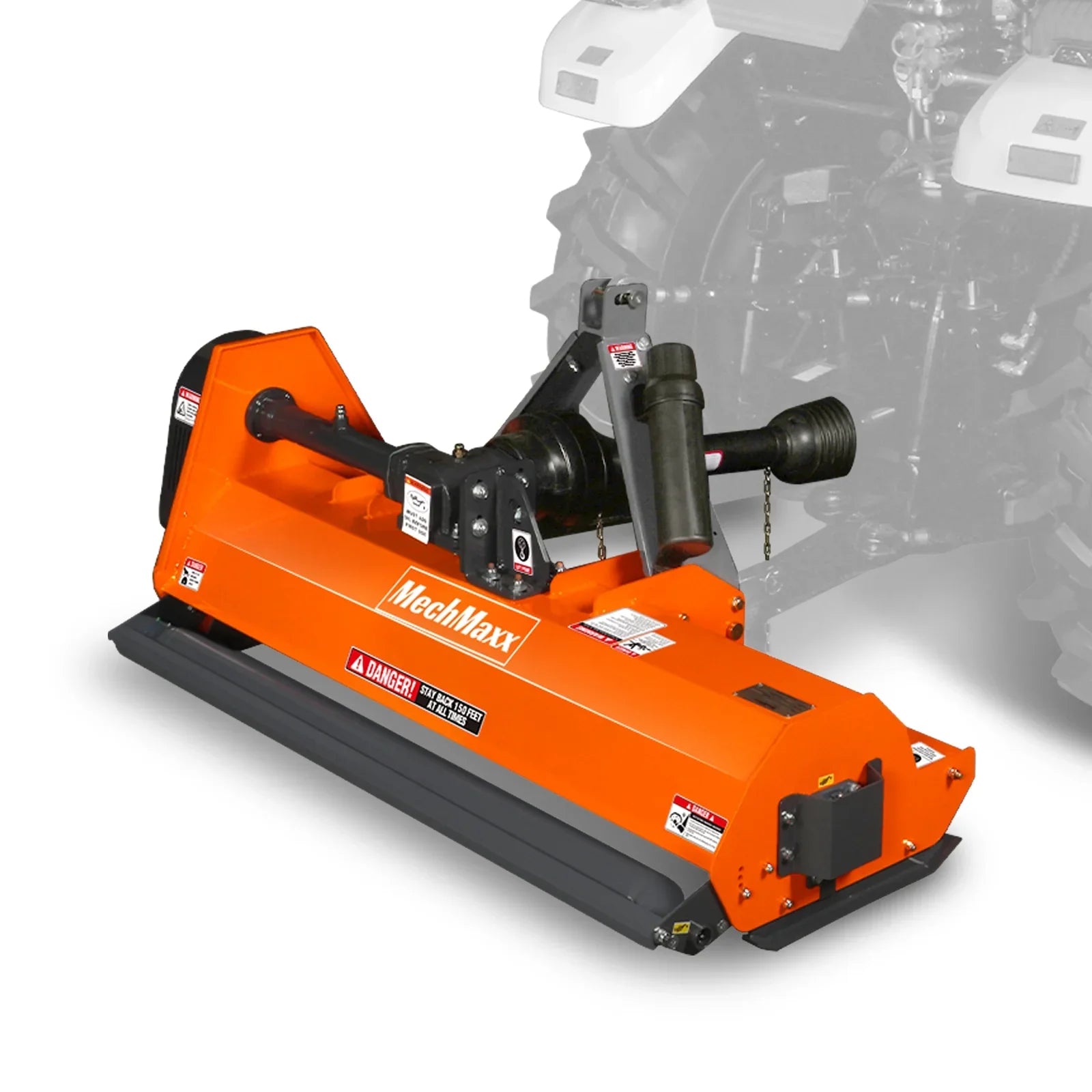

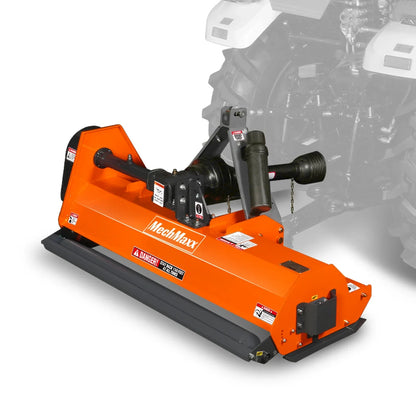

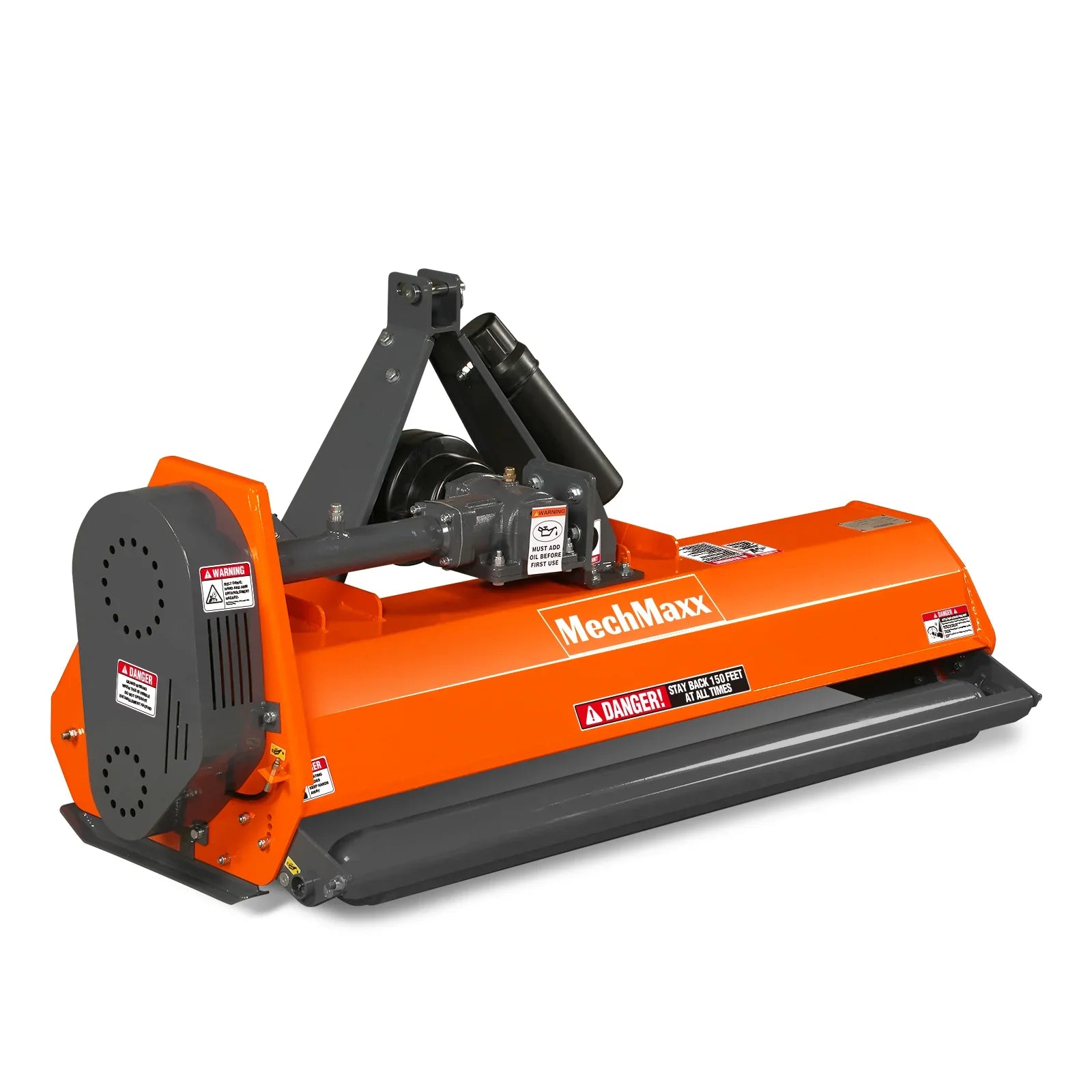

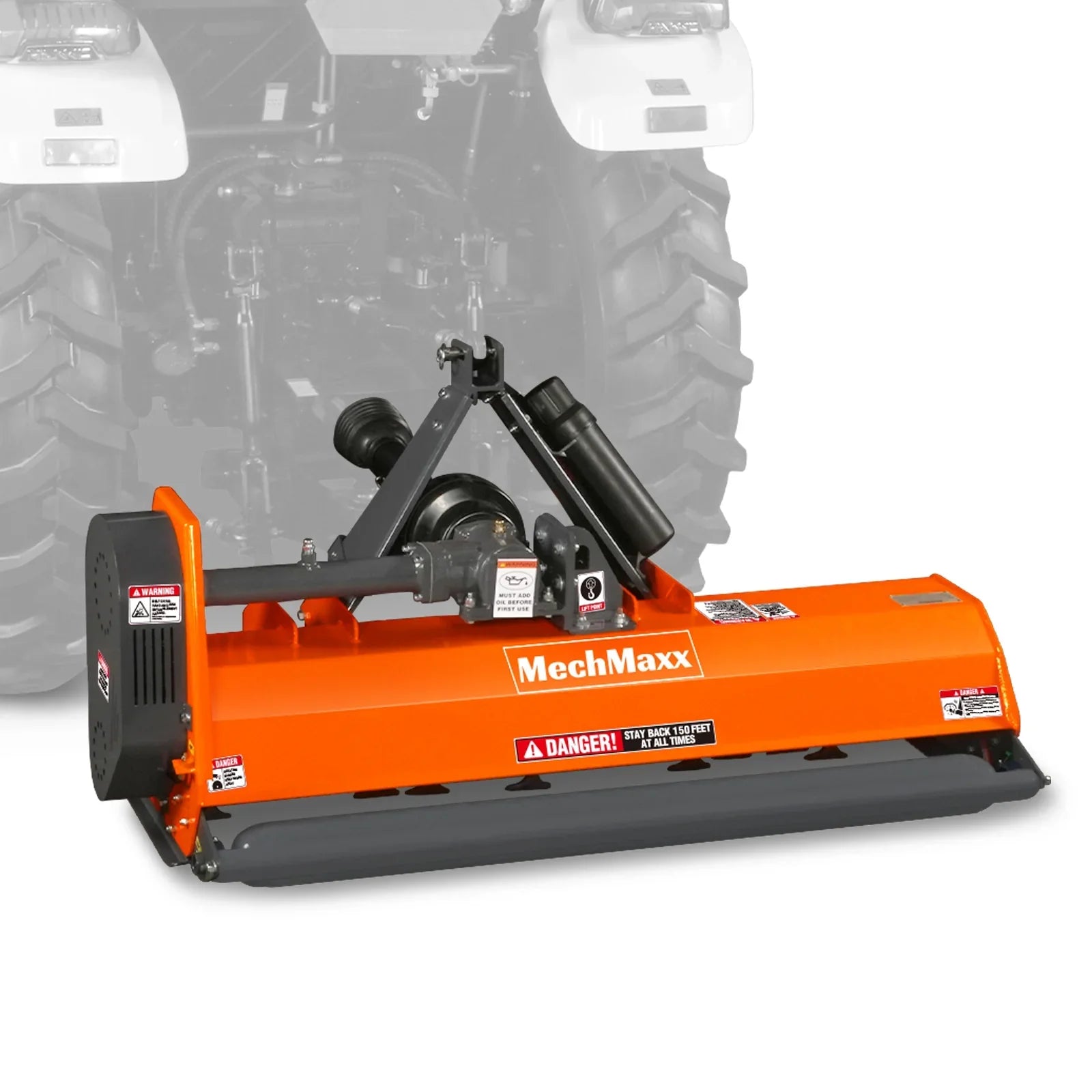

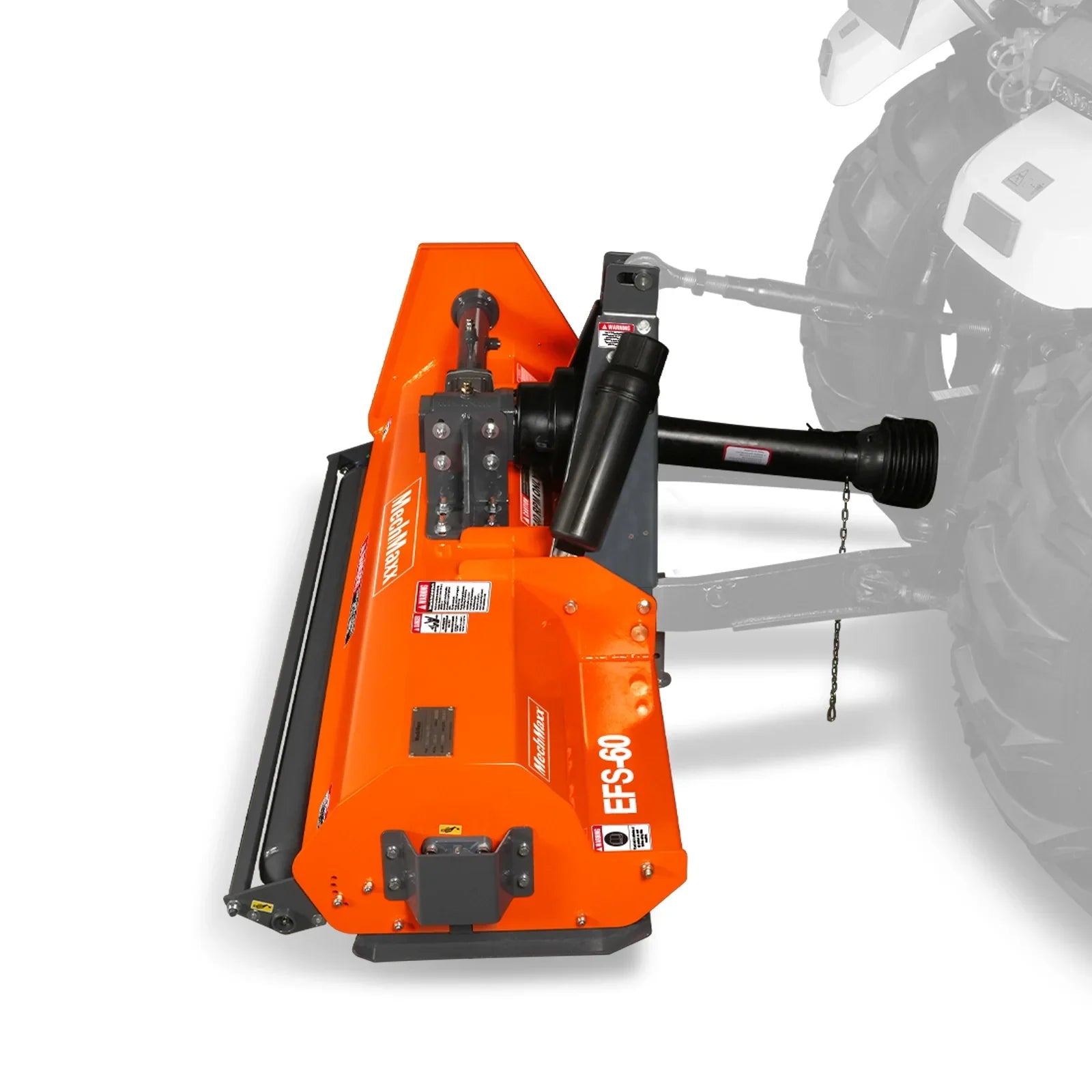

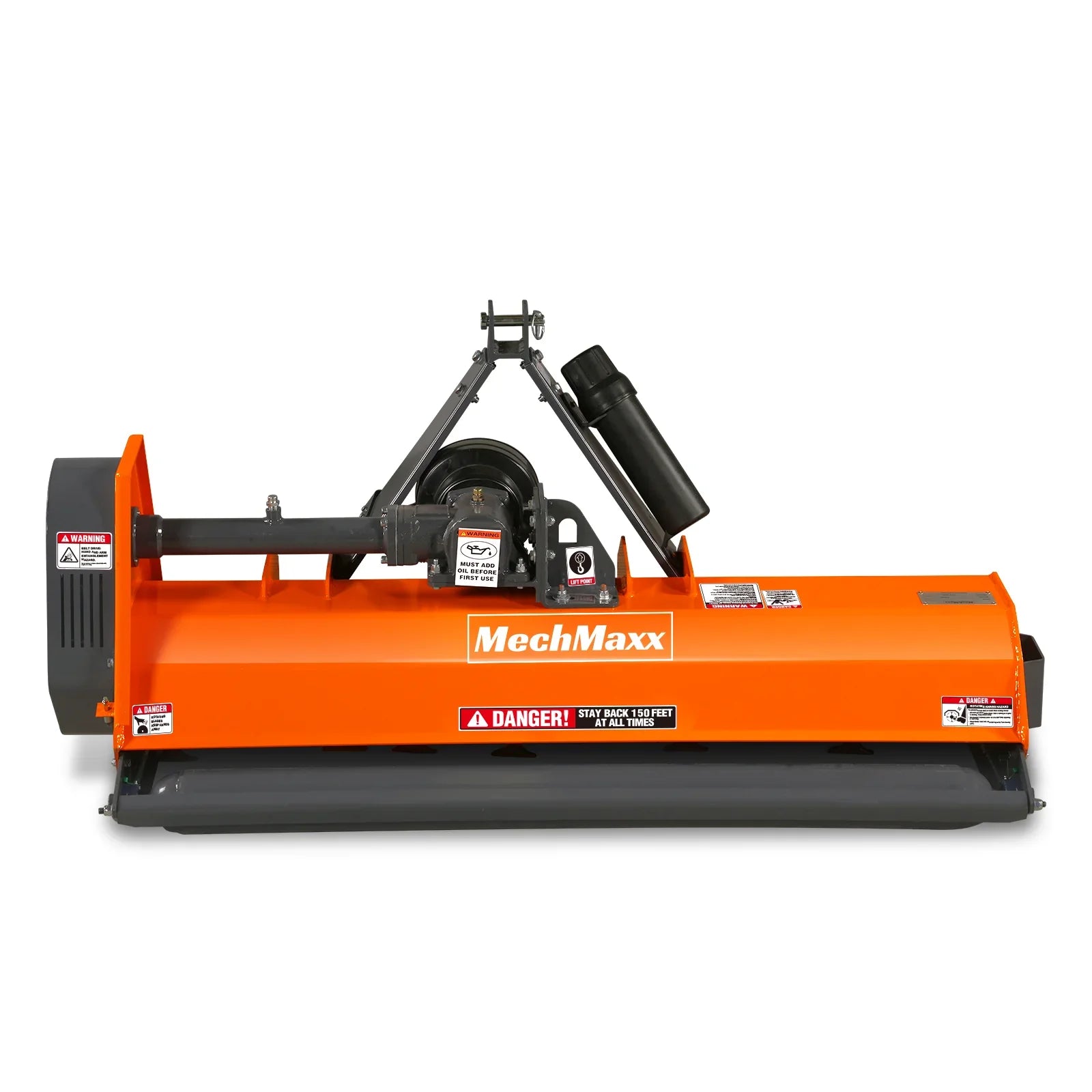

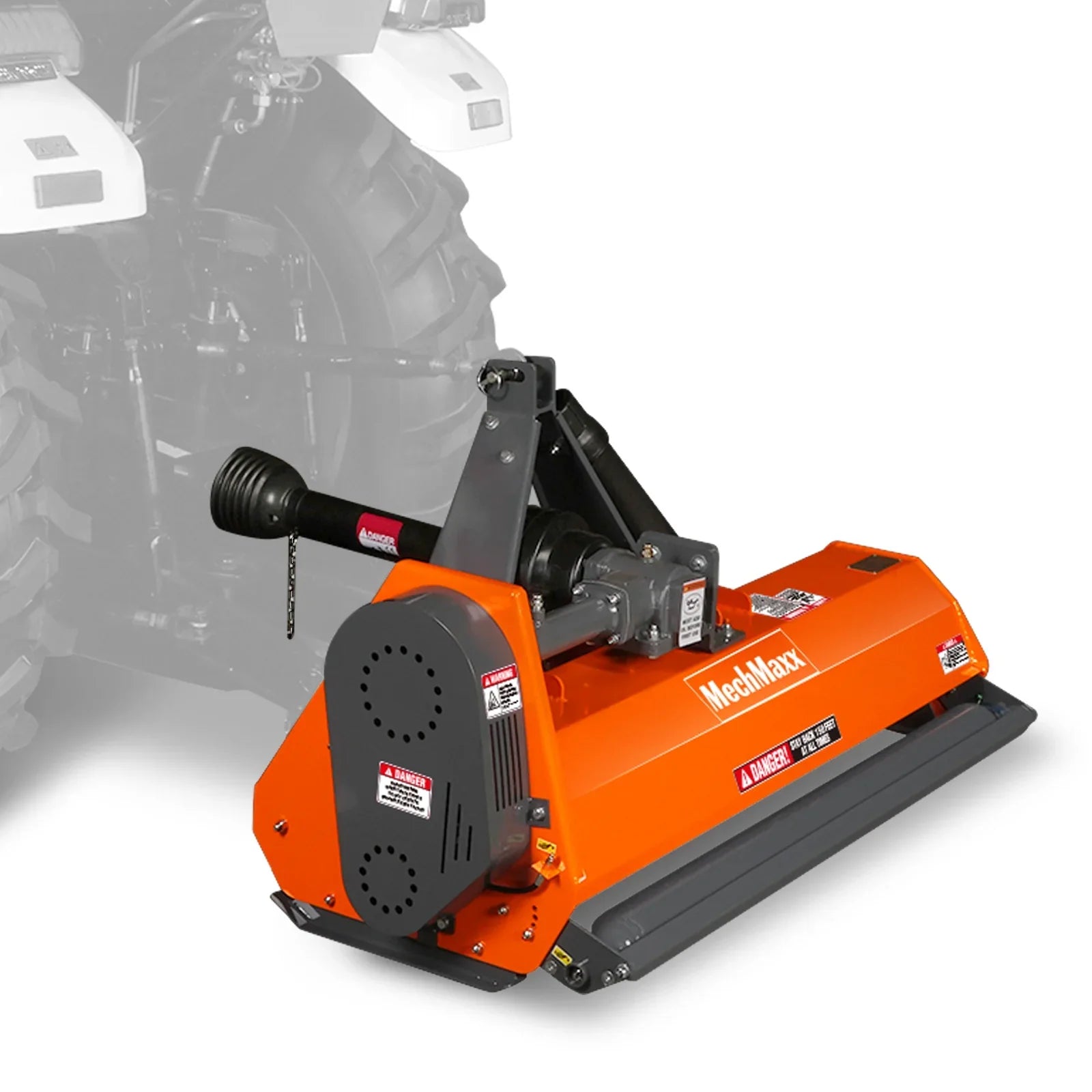

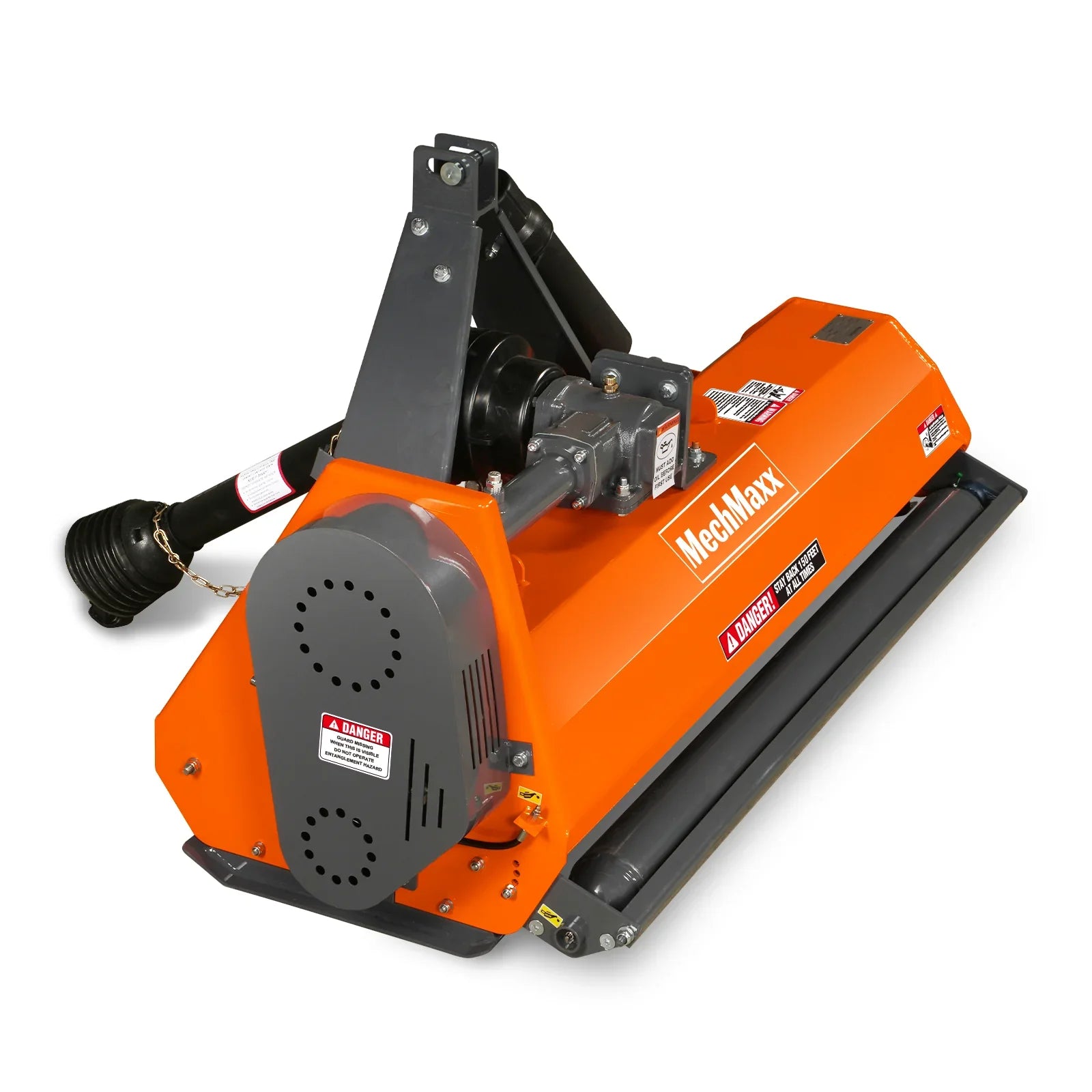

MechMaxx EFS 60 Flail Mower 60" Light-Duty 3 Point PTO Driven 15-35HP New

MechMaxx

$1,899.00
$1,899.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • This mower will save time and economically cut plants in larger areas.
  • The attachment has a flail hammer to help the mower push through dense debris.
  • The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
  • Offset category 1, 3 point knot.
  • It is recommended for 15-35HP tractors.

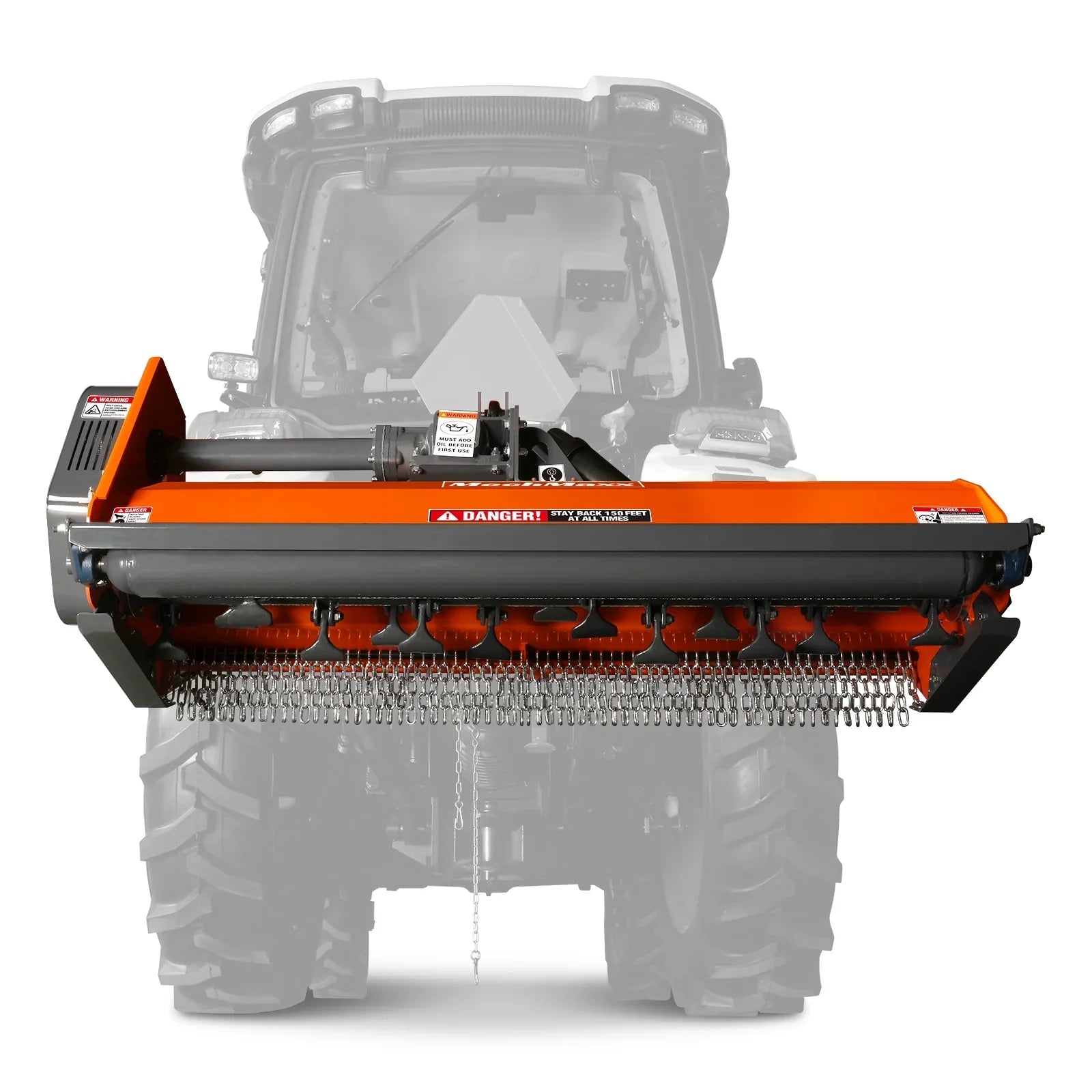

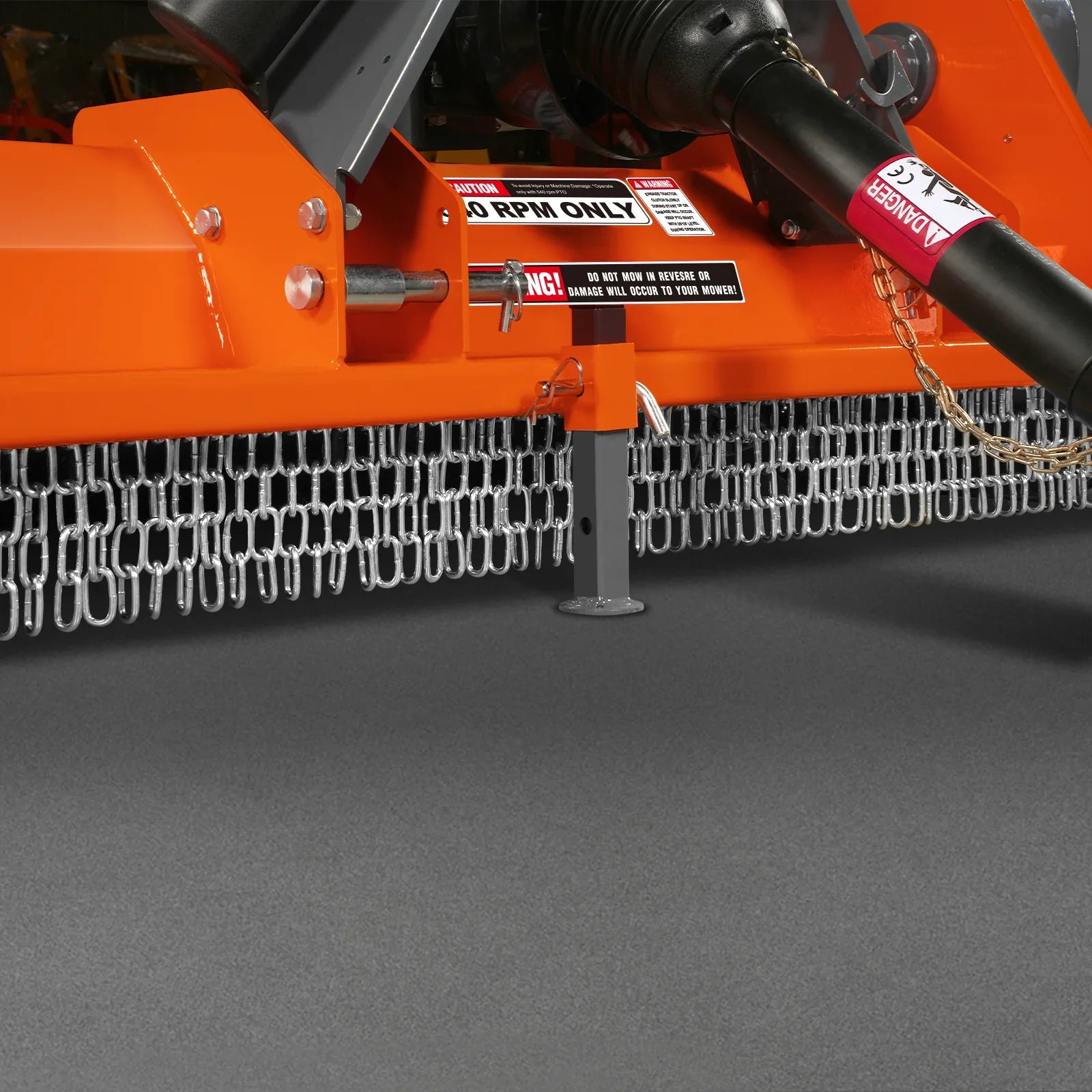

  • Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

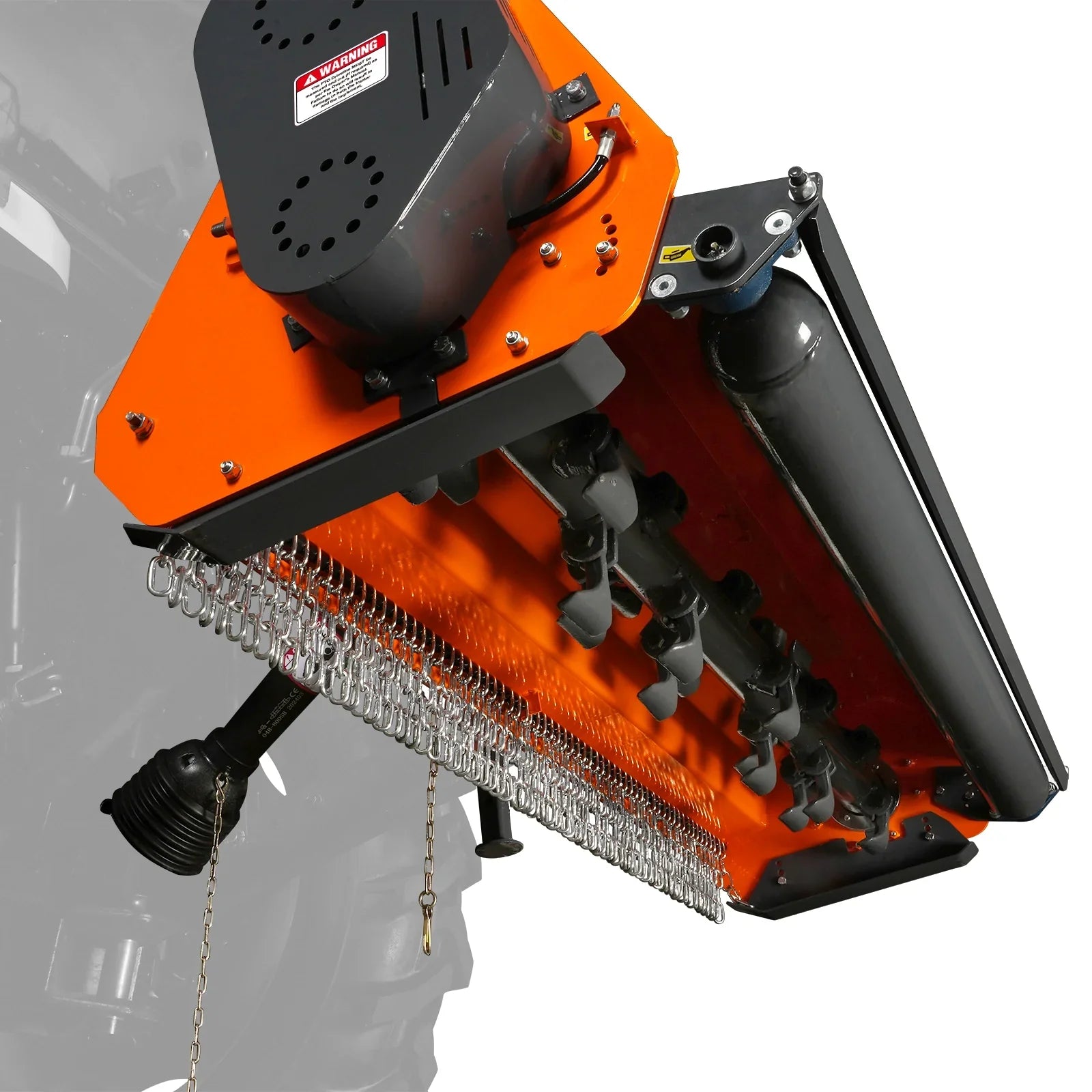

  • Hammers: 24 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.
  • PTO shaft(1- 3/8’’ Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T5-LF-31’’ with shear bolt ; 31’’-43’’
  • Max Cutting Diameter: This EFS mower has its 60’’ working width and the ability to mulch up to 0.75’’ diameter material.

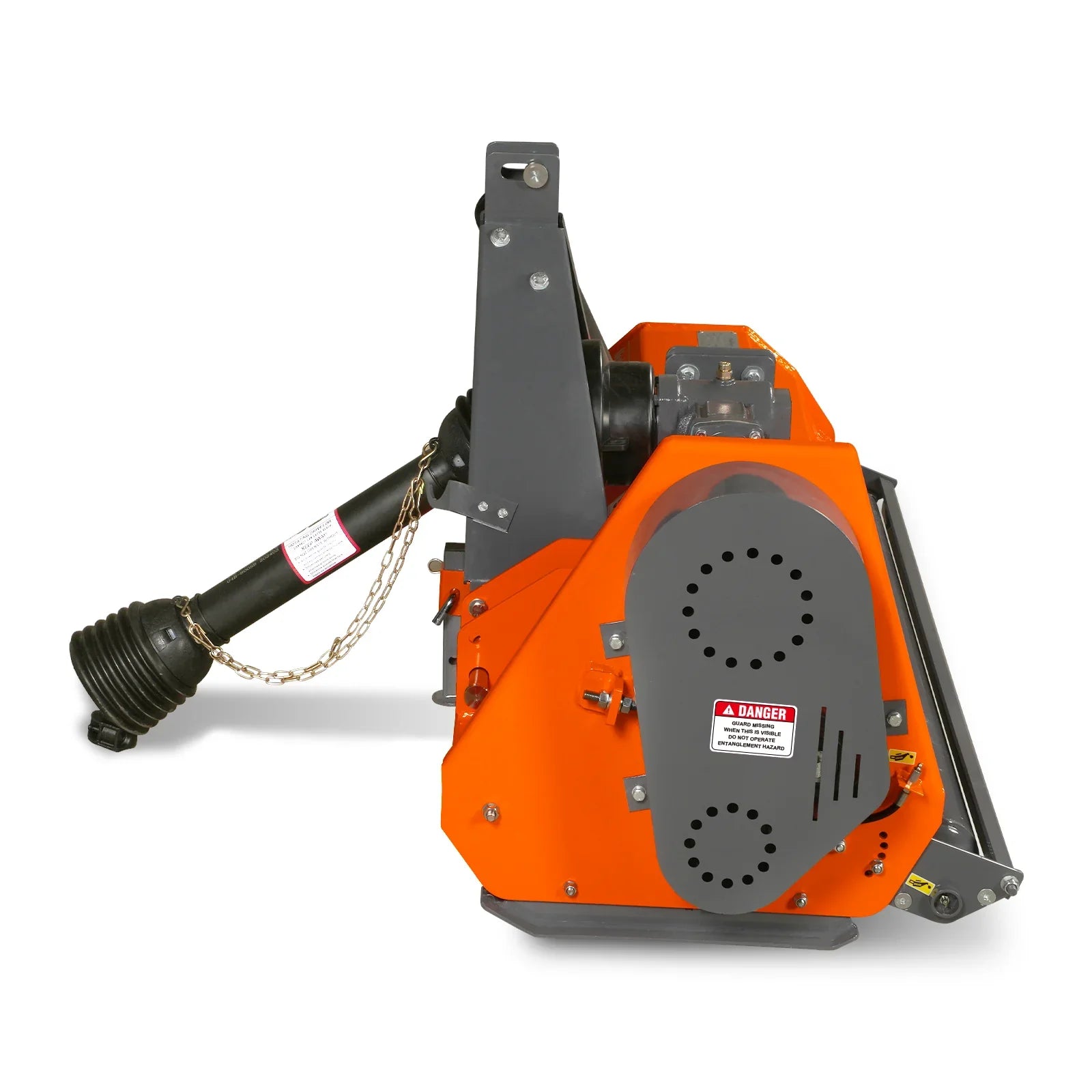

  • Belt Tensioner: The belt tensioner ensures the drive belt is properly tensioned which is crucial for efficient power transfer from the engine to the flail shaft and, in turn, the cutting blades. This prevents belt slippage, reduces wear on the belt and pulleys, and ensures consistent cutting performance.
  • Outside Rotor Bearing: The bearings of the EFS mower are external, which is convenient for user maintenance and later repairs. The high-quality bearings of shaft bearings are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.
  • Rotor Shaft: The 2958 rpm rotor shaft speed ensures the flails have enough velocity to lift and chop the material, preventing bogging down and resulting in a cleaner cut, can lead to a more efficient and effective cut.

Engine Power Required: 15-35HP

Drive Type: Belt drive

Working Width: 60in

Number of Belts: 3

Overall Width: 65in

Belt Size: V Belt 13 X 1041

Blade Ground Clearance: 0.6in-1.8in

Drive Belt Tensioner: Yes

Max. Cutting Diameter: Depends On The Type Of Grass

Deck Thickness: 0.16in

Number Of Blades: 24

Side Plate Thickness: 0.24in

Blade Type: Hammer

PTO Shaft RPM: 540 RPM

Size Of Blades: 3.5 x 3 x 1.6in

Driveline Shaft Length: T5-LF-31 with shear bolt; 31- 43in

Blade Weight: 0.8lbs

Spline End: 1.375in z6

Blade （Tines）Material: Cast Steel

Tractor Mount: Reversible

Rotor Bearing: SKF bearing

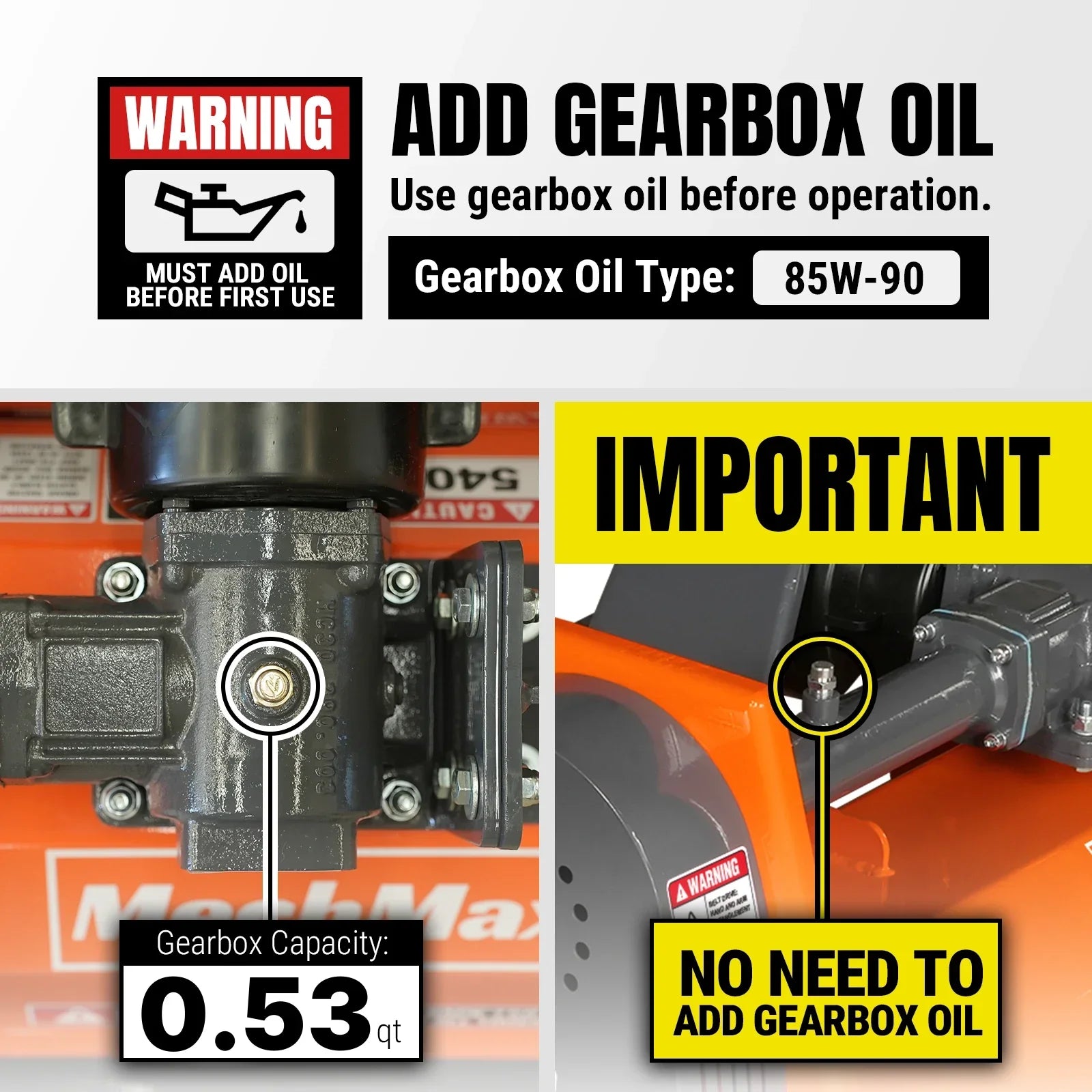

Gearbox Oil Type: 85W-90

Rotor Diameter: 3in

Dimensions (L x W x H): 65 x 30 x 28in

Rotor Swing Diameter: 11in

Finish: Powder Coat Paint Galvanized Steel

Rotor Thickness: 0.3in

Rotor Shaft Speed: 2958 rpm

Weight (N.W./G.W.): 406/503 lbs

Blade Speed: 142 ft/s

This item comes with a 1 year factory warranty.
