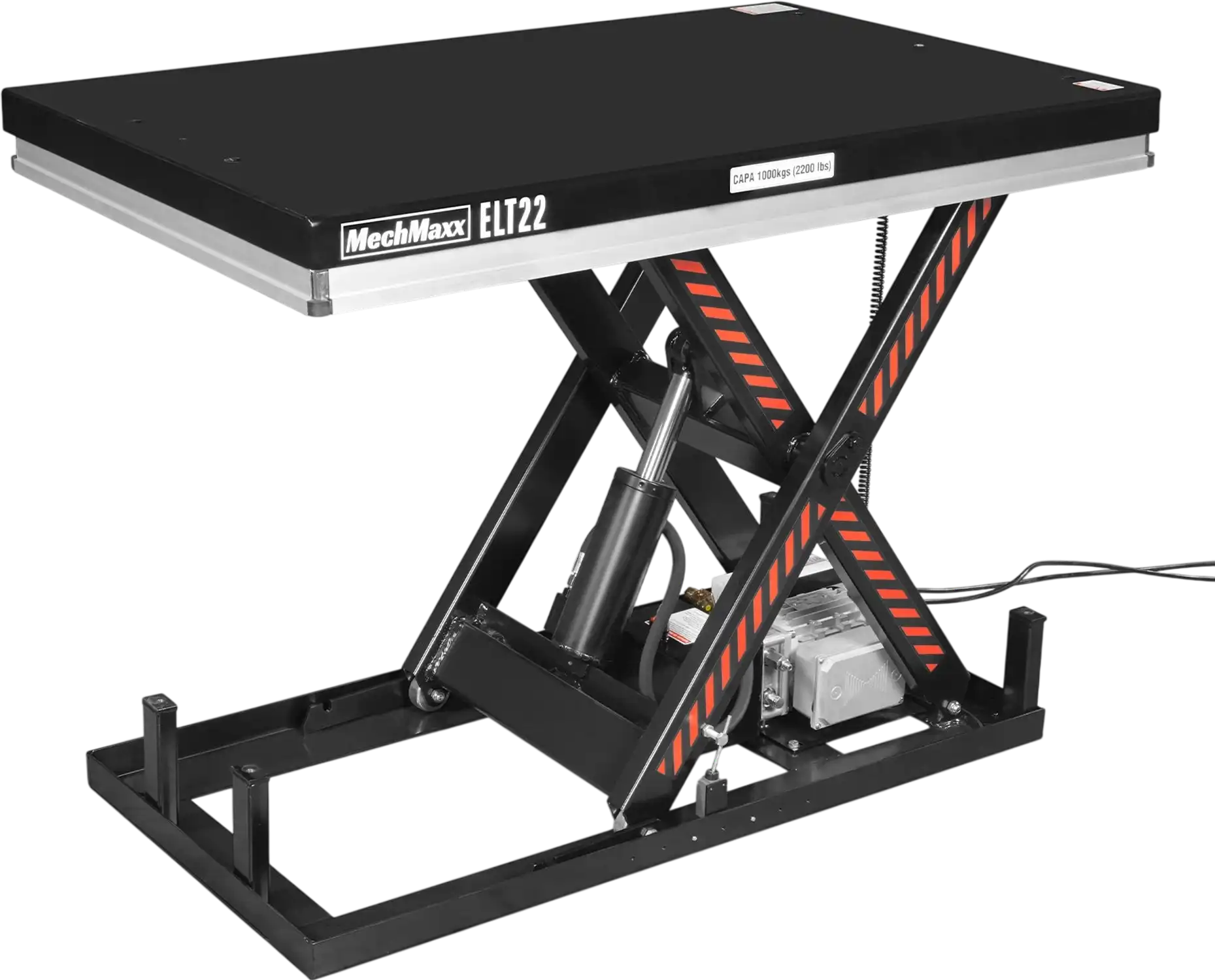

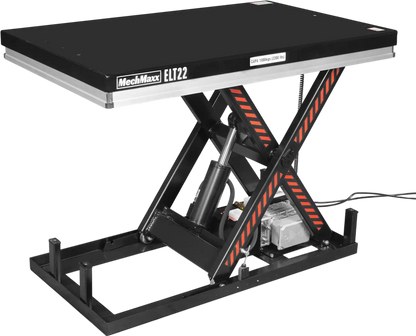

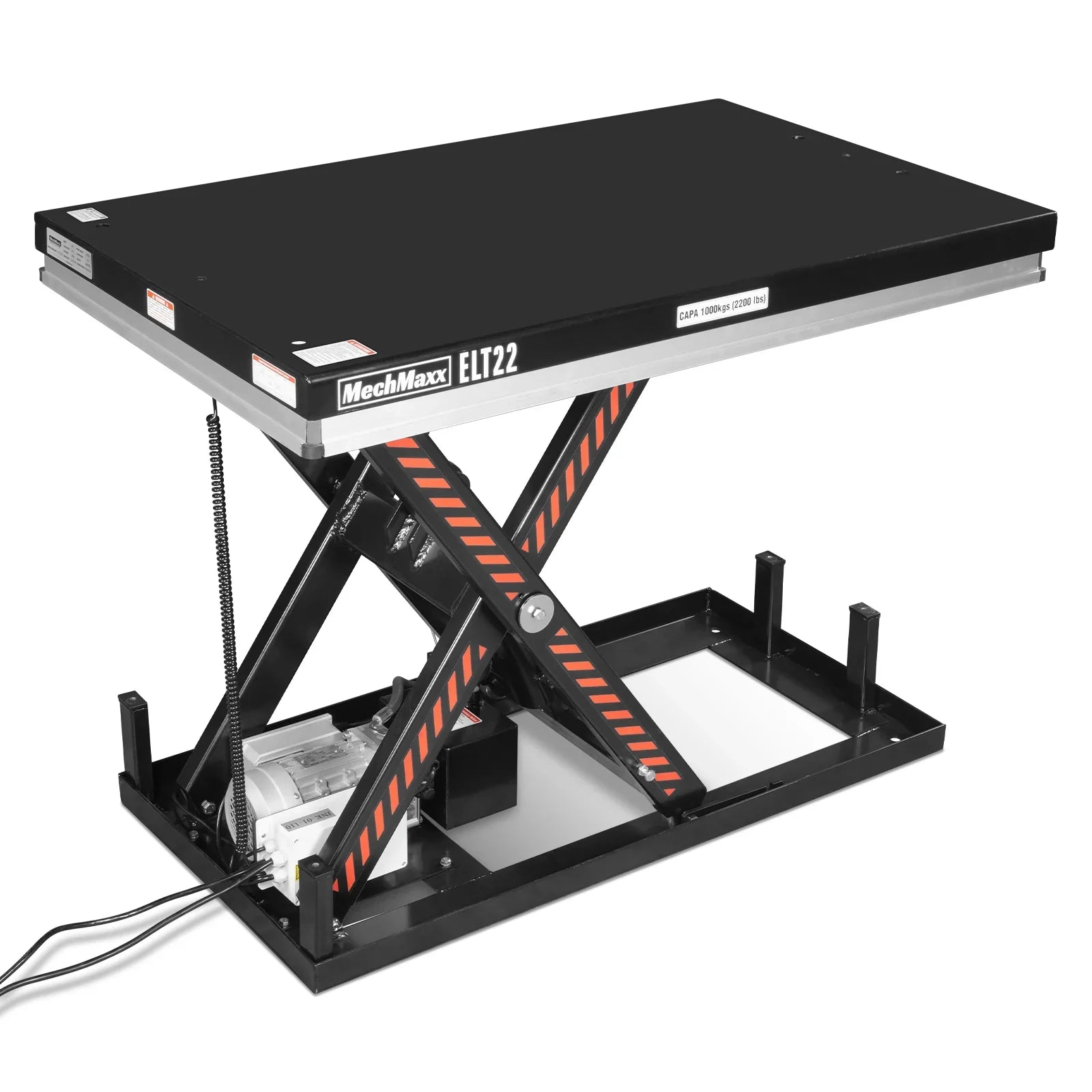

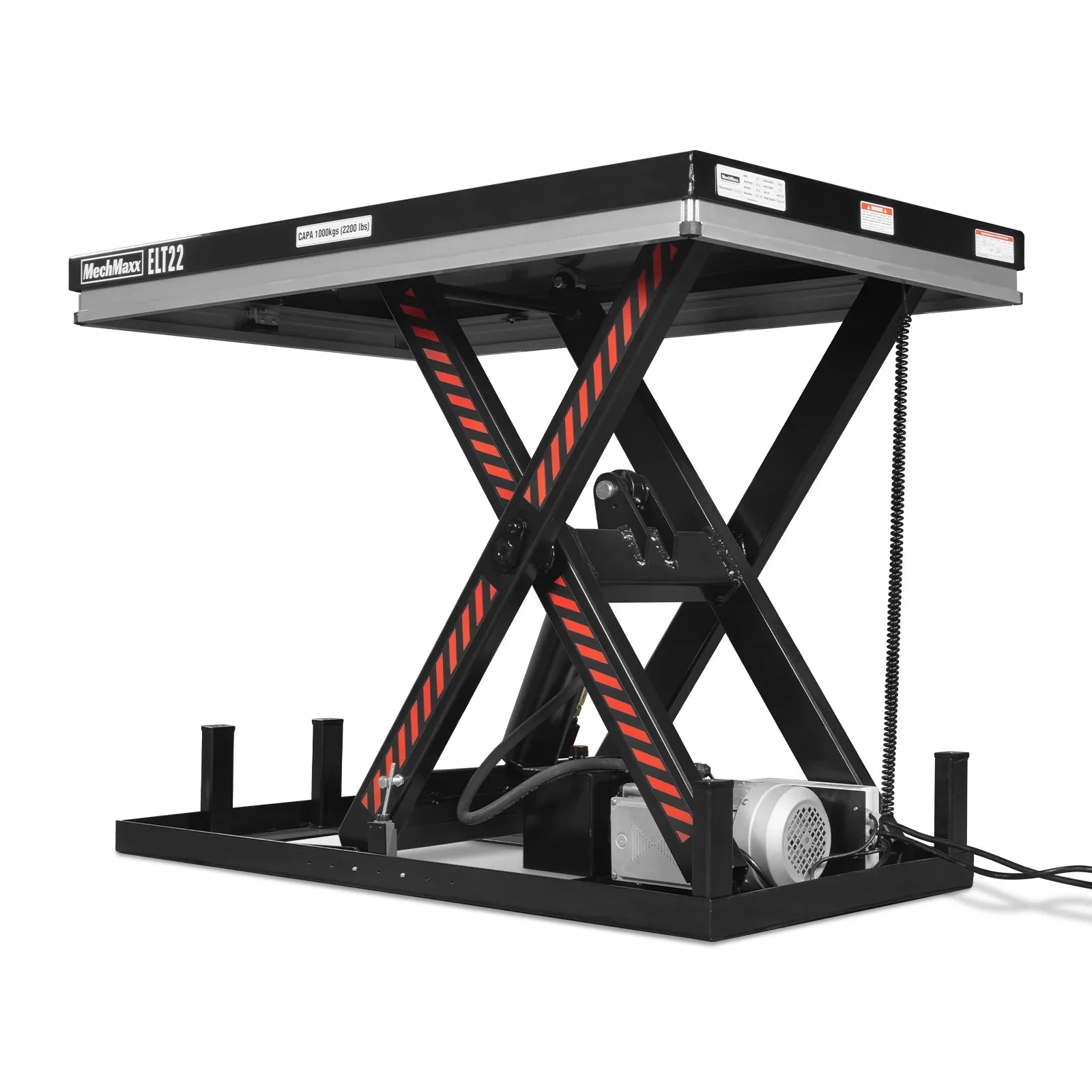

MechMaxx ELT22 Lift Table 2200 lbs Capacity Stationary Electric Hydraulic 51.2 x 32.3" Platform 39.4" Lift Height UL Certified Motor New

MechMaxx

$2,299.00
$2,299.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Equipped with a 1.5 HP 110V motor and a heavy duty hydraulic pump.
  • Weight Capacity: 2200LBS,Raised Height 39.4",Platform Size:51.2" x 32.3" .
  • Ideal for locations such as warehouses, manufacturing plants and distribution centers.
  • By lifting heavy objects to the proper height, Employees can easily, safely and efficiently move and store heavy loads for handling, assembly, manufacturing, inspection, and maintenance works.
  • With Safety guard,when the safety frame presses against obstractions, the hydraulic pump will automatically lock and the platform will stop descending.

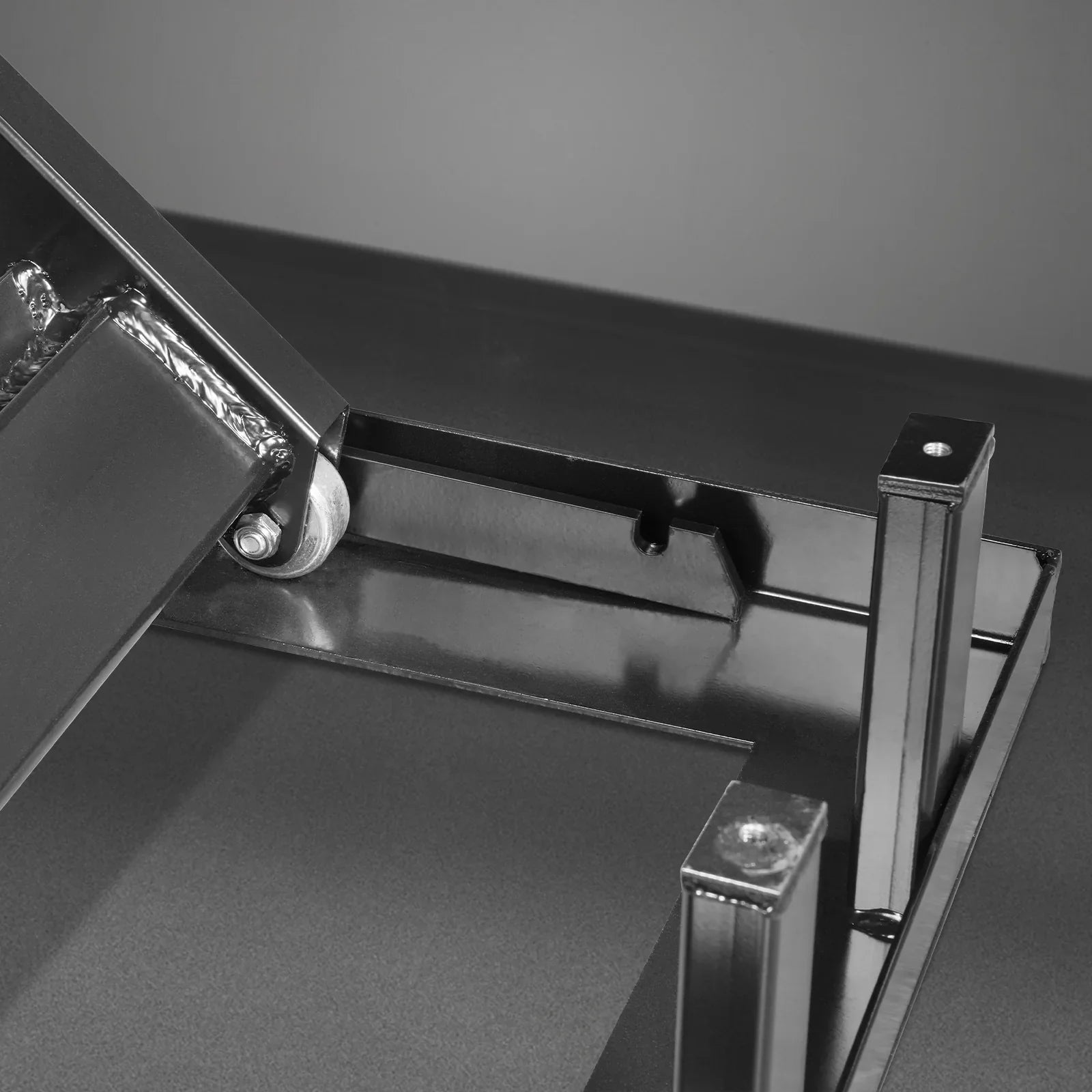

  • The safety gap between the scissors can avoid pinching.
  • The heavy-duty oil cylinder with return device and check valve prevents the table from falling when the oil pipe bursts.
  • The detachable lifting ring is convenient Countertop installation and acces.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Safety Frame: When the safety frame presses against an obstruction, the hydraulic pump automatically locks and the platform stops descending.

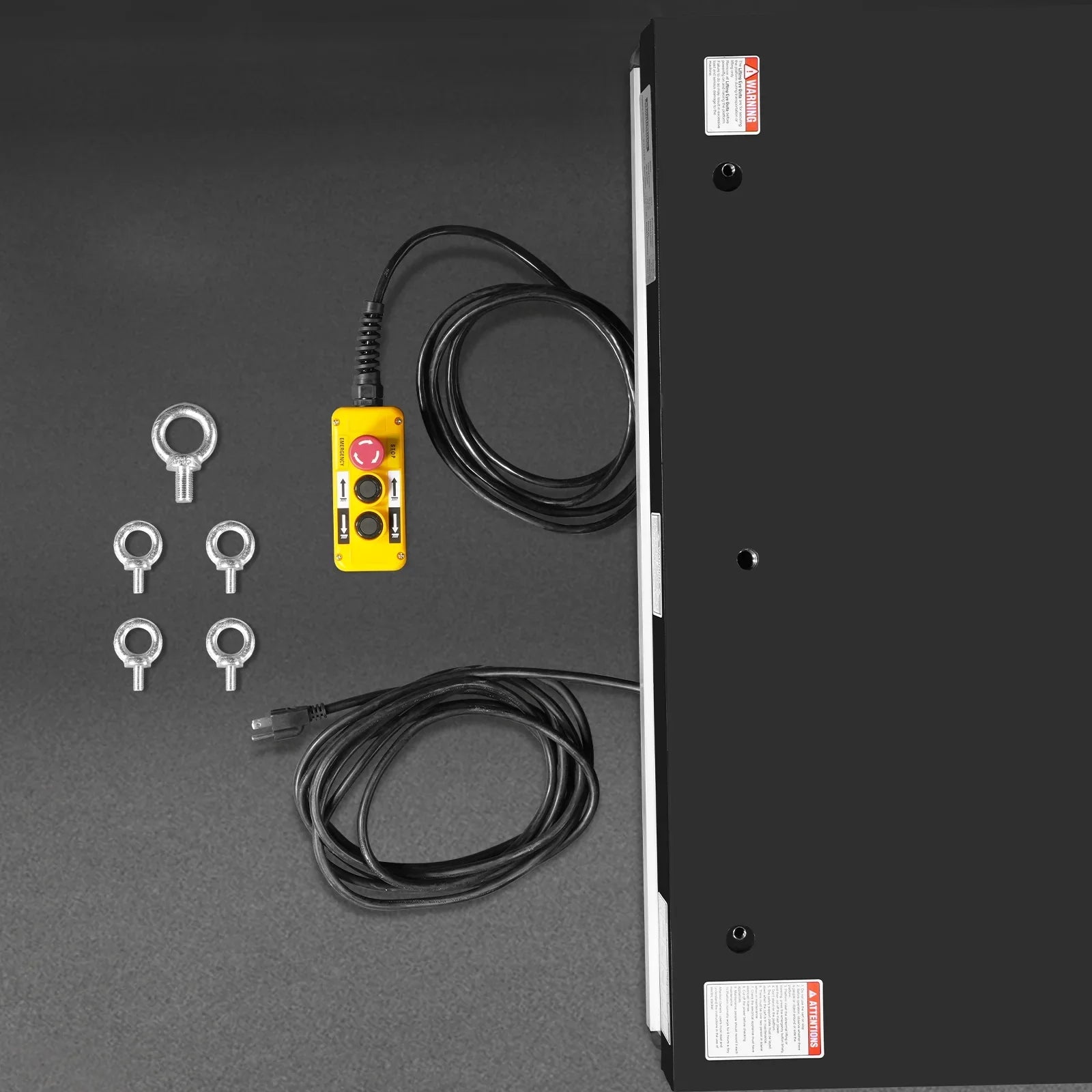

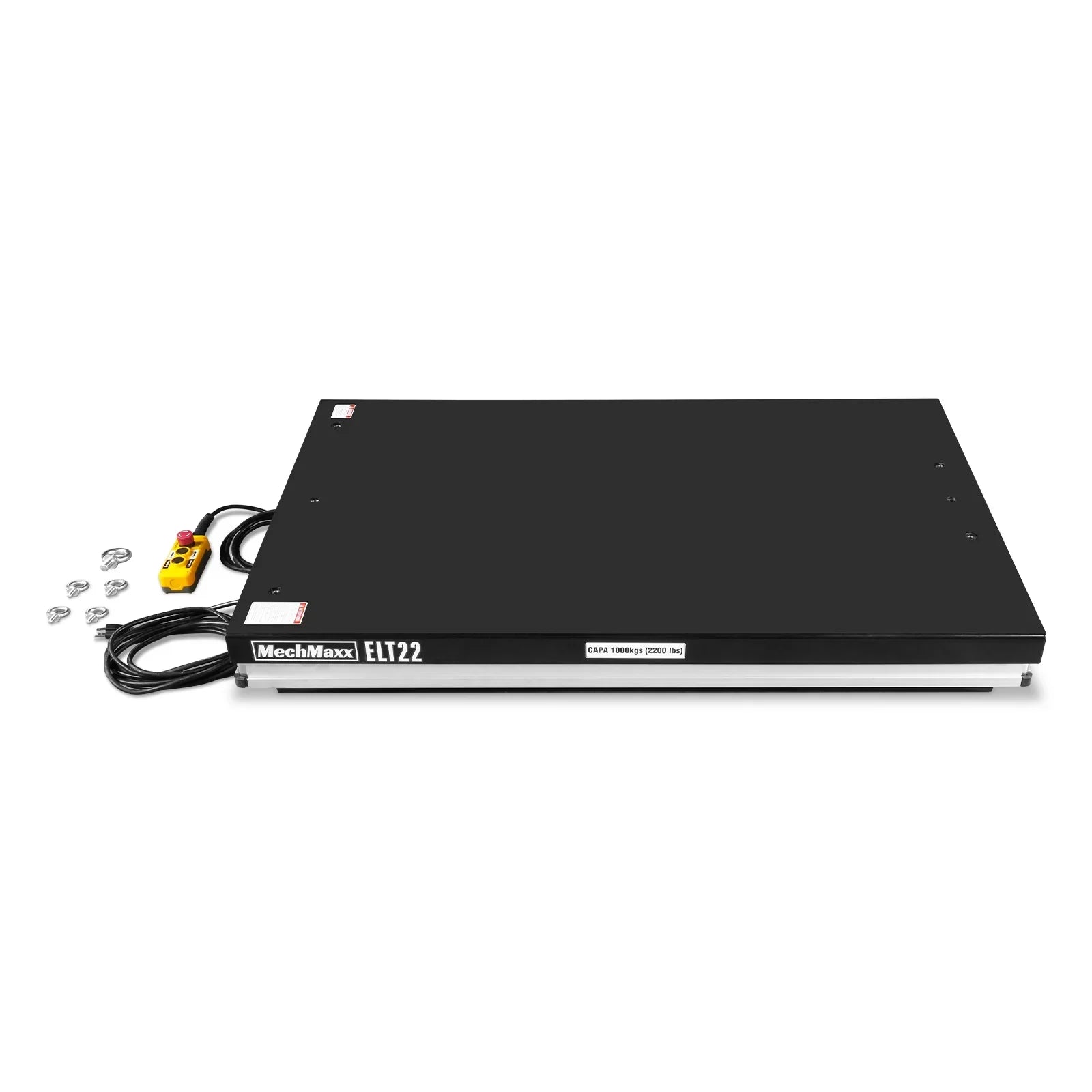

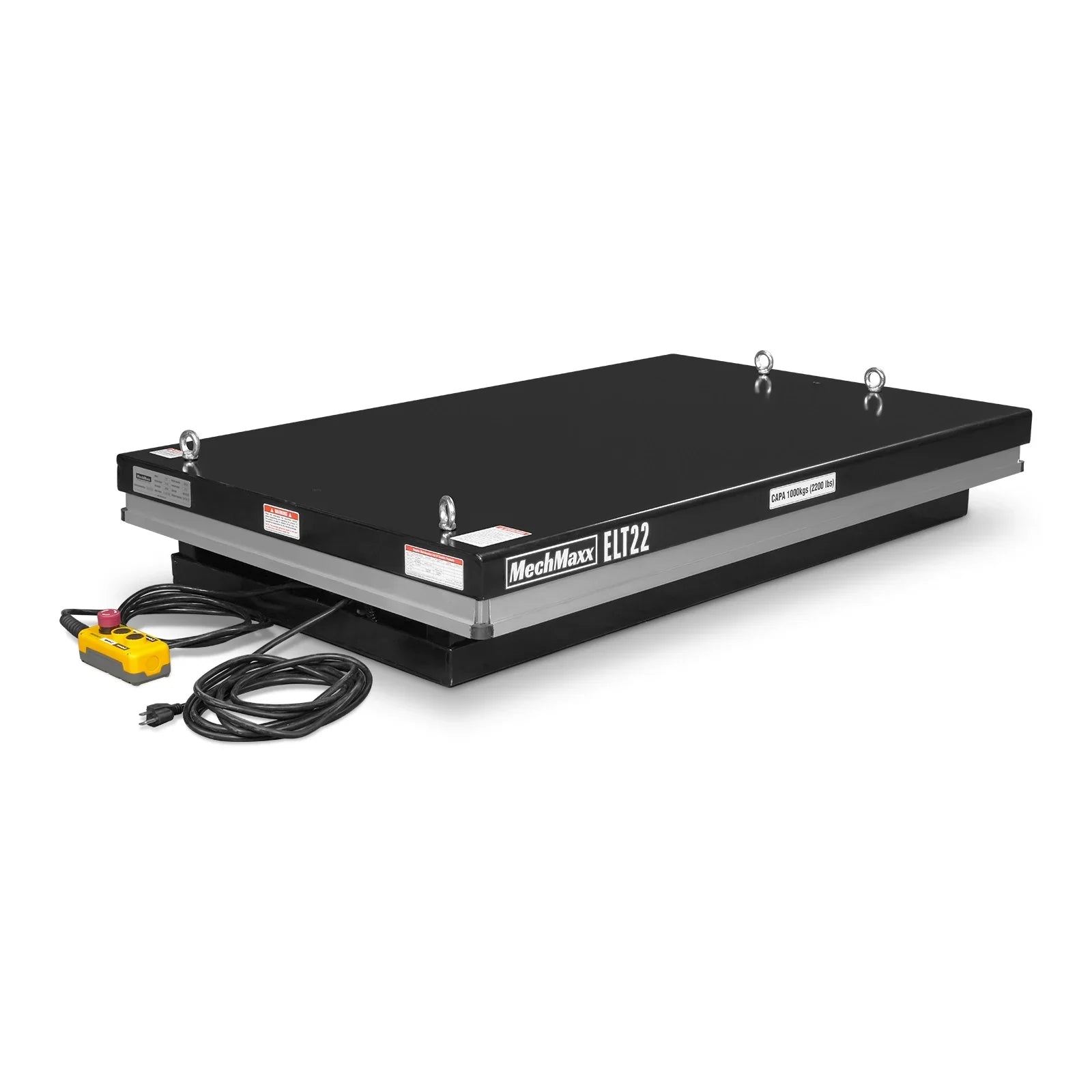

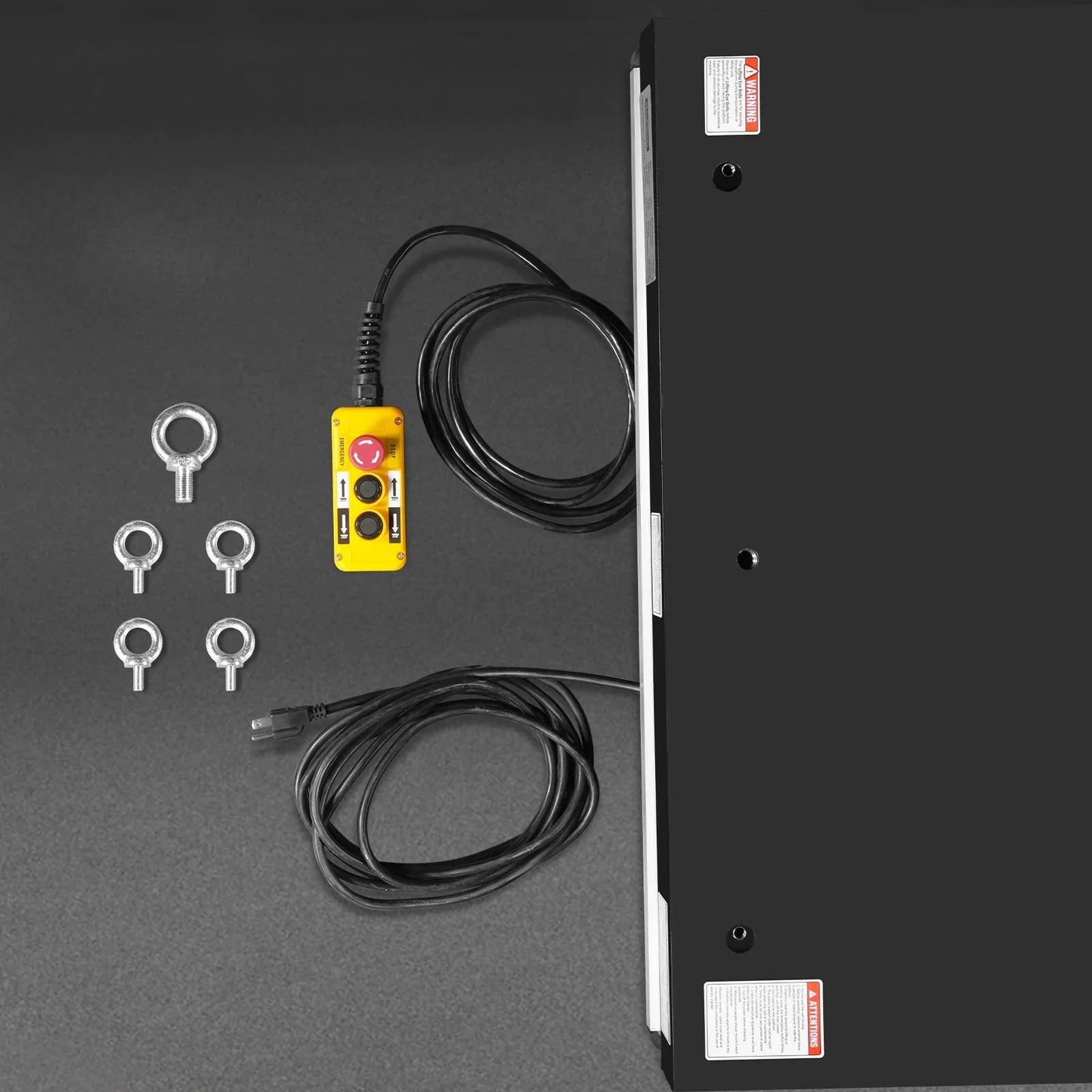

  • Lifting Eye Bolts: The detachable lifting ring is convenient countertop installation and access.

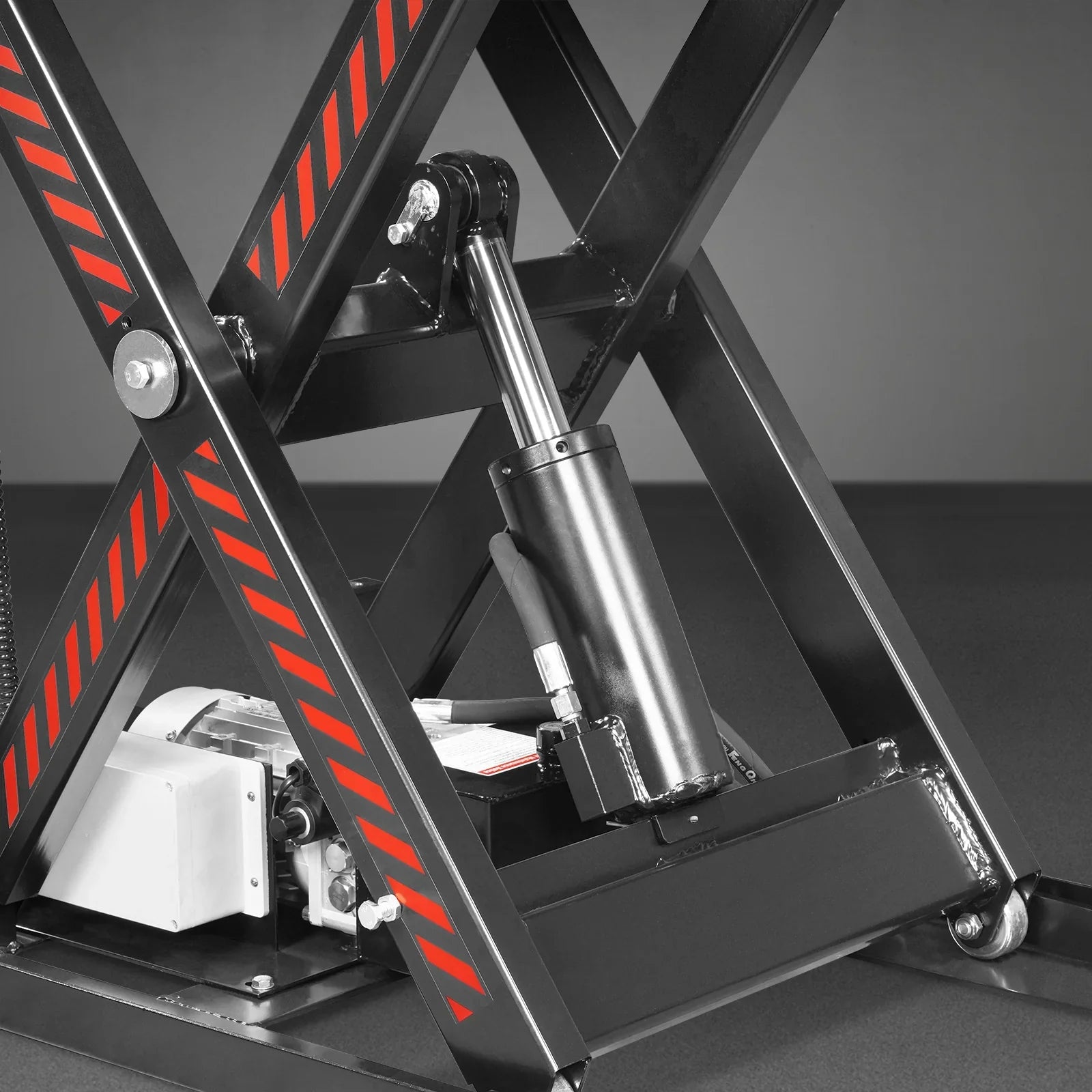

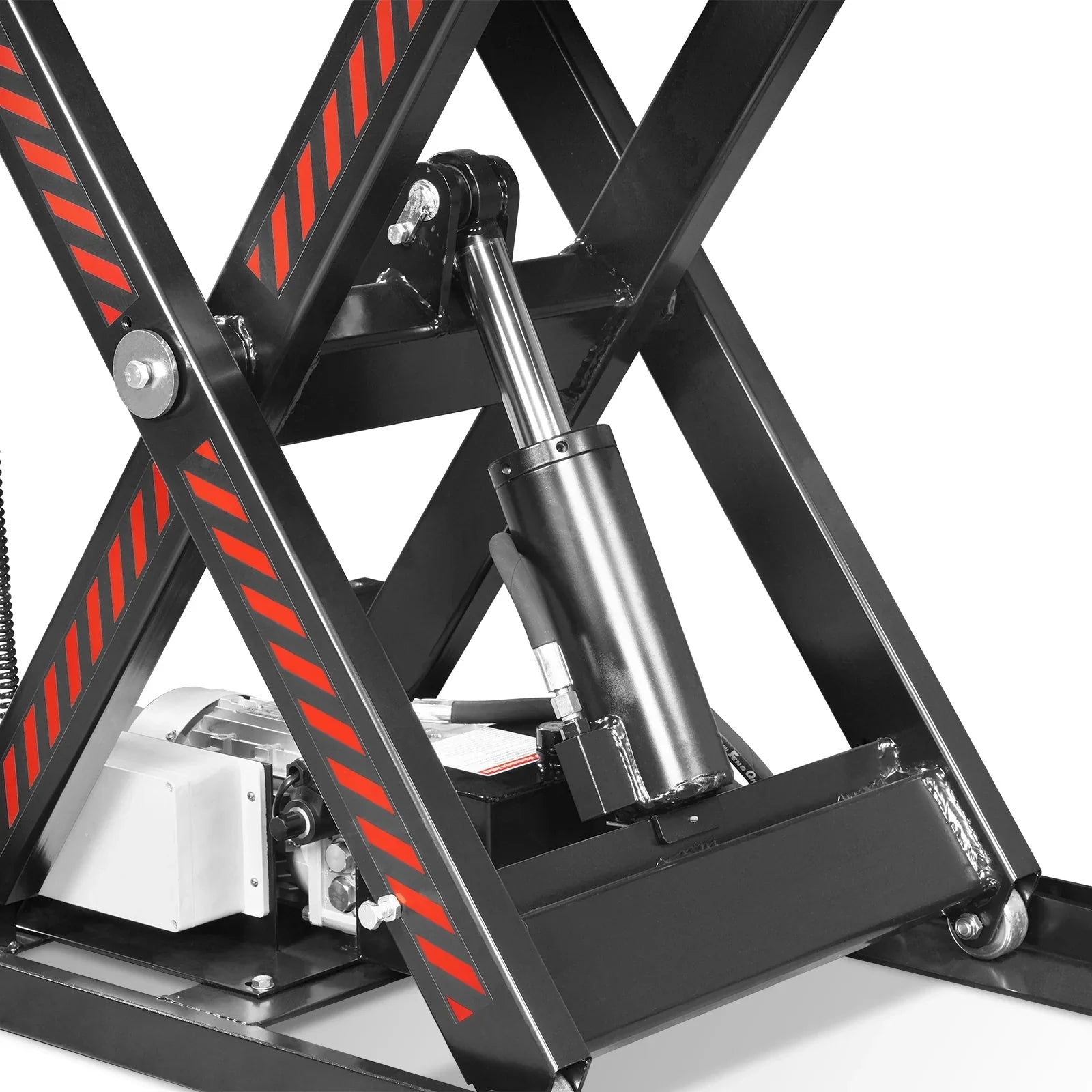

  • Heavy-duty Oil Cylinder: The support is stable,return device and check valve prevents the table from falling when the oil pipe bursts.

Model: ELT22 Black

Voltage: 110V 60HZ 1PH

Weight Capacity: 2200LBS

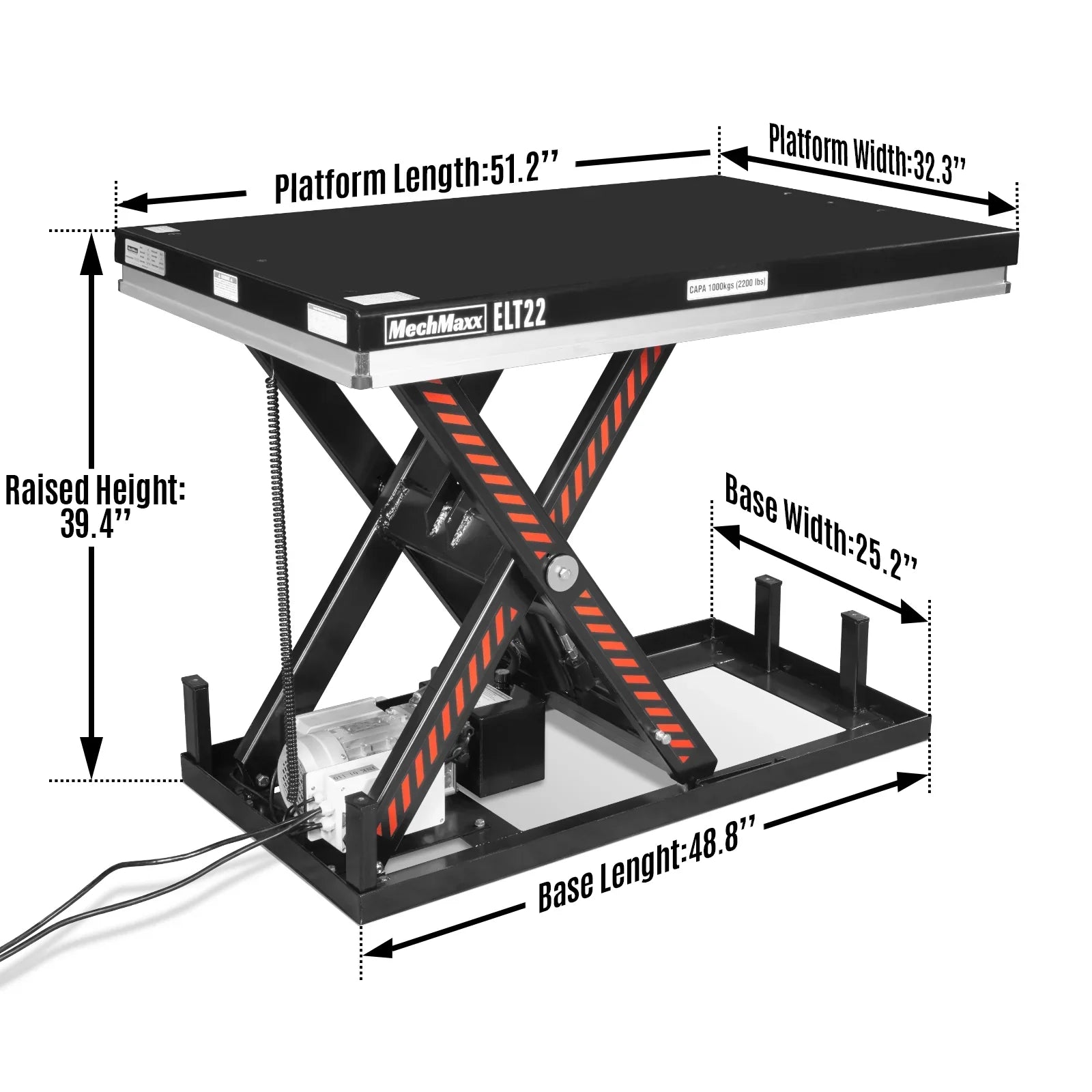

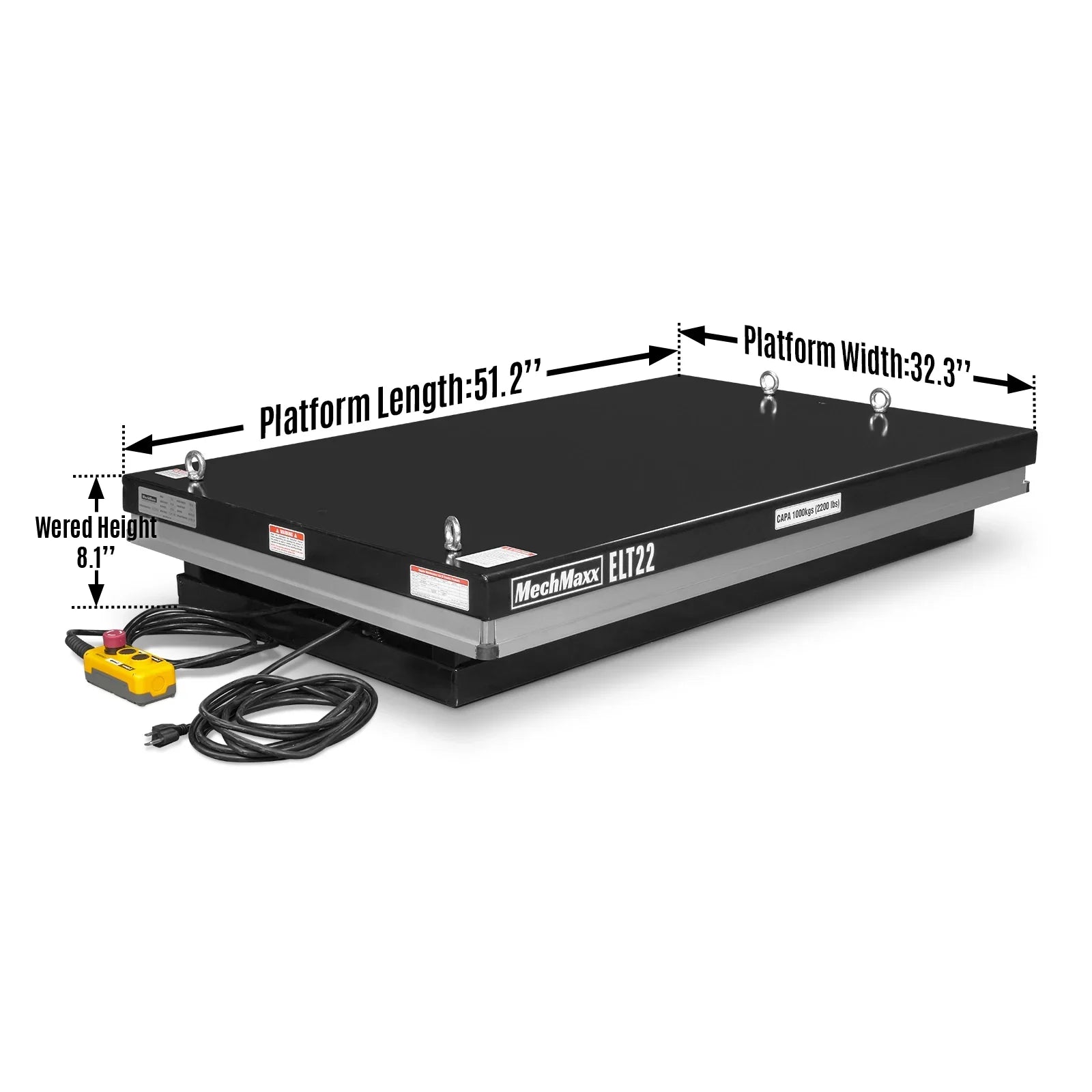

Platform Size: 51.2"x 32.3"

Raised Height: 39.4"

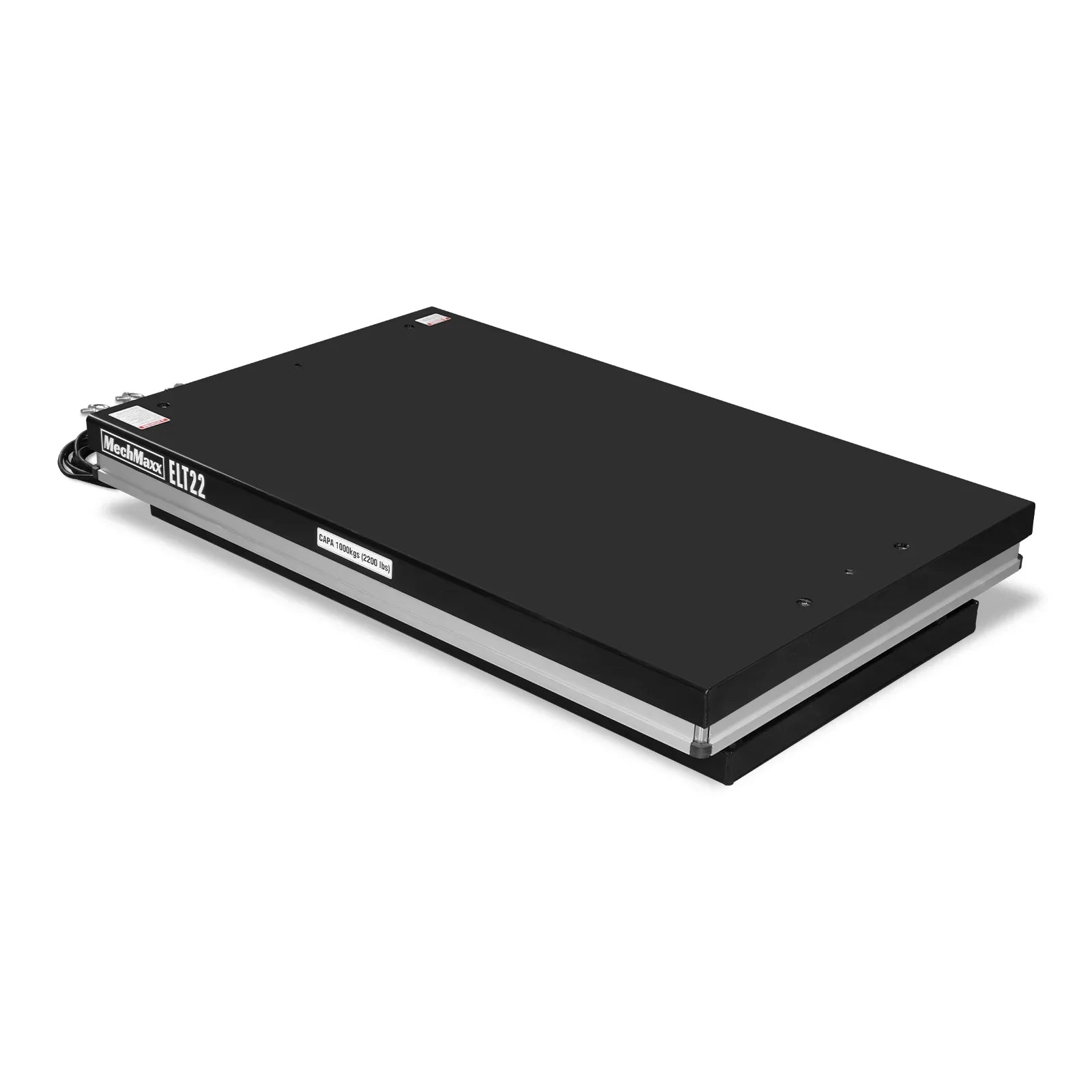

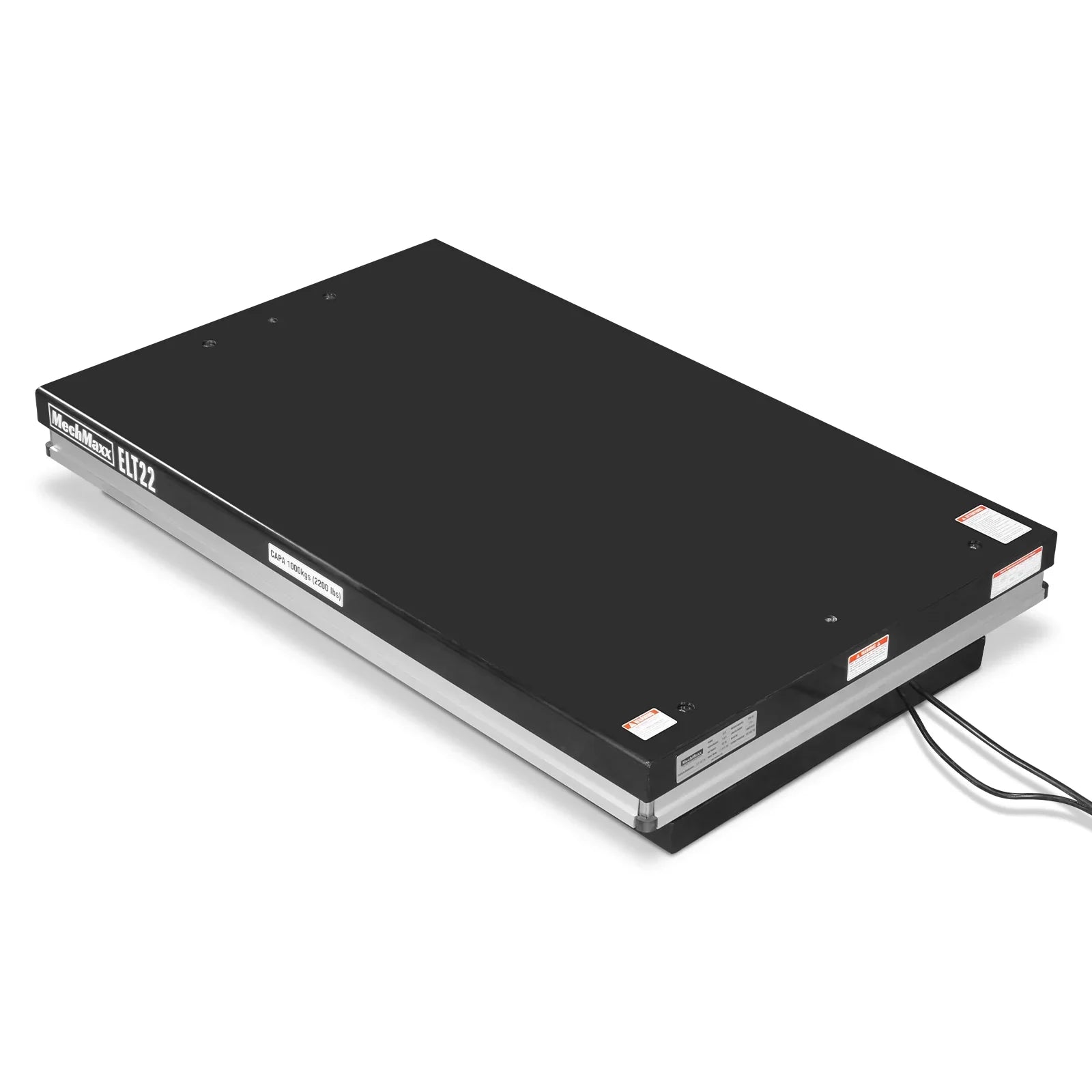

Lowered Height: 8.1"

Base Size: 48.8"x25.2"

Motor Horsepower: 1.5HP /1.1KW

Power Type: Electric-Hydraulic

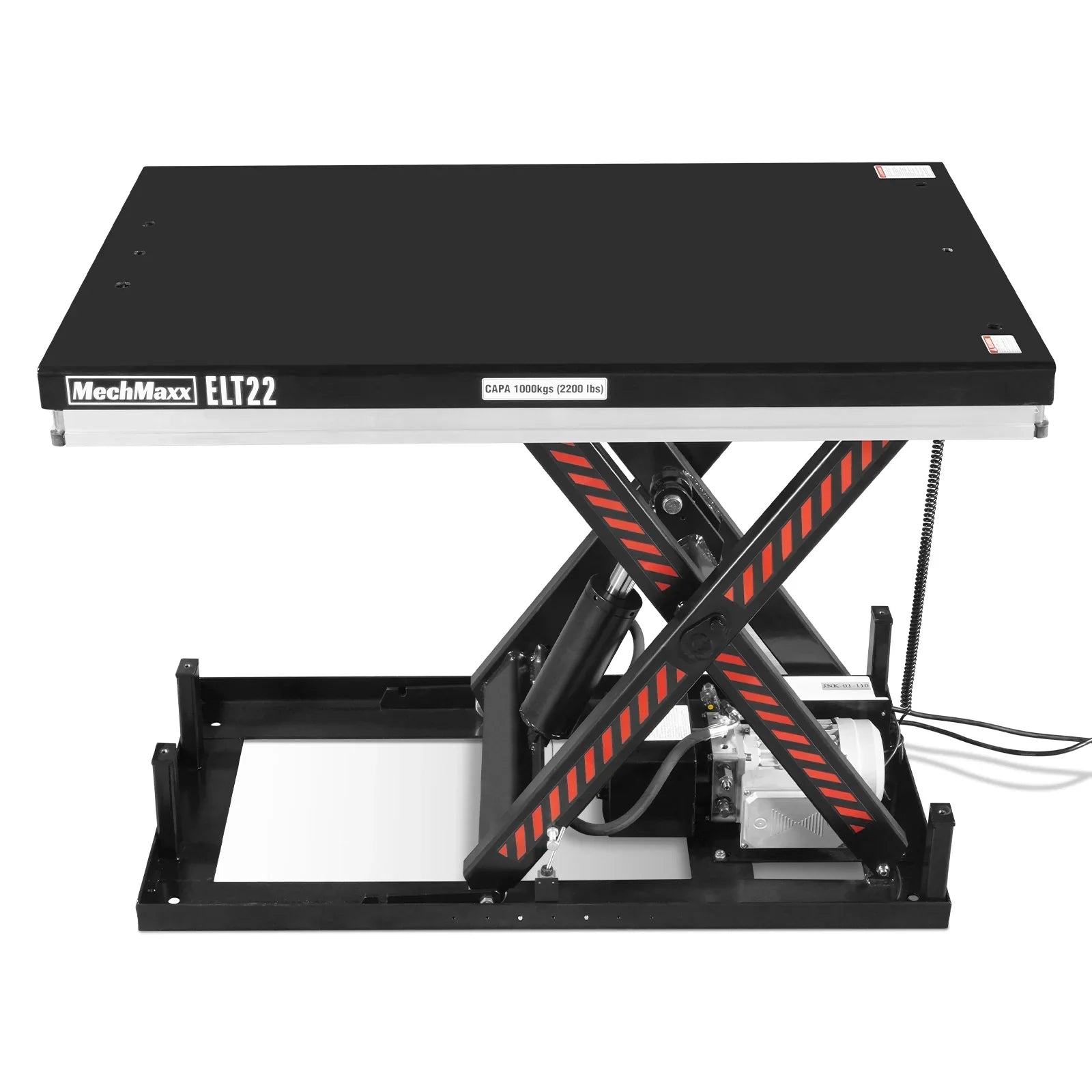

Scissor Type: Single Scissor Lift

Lift Control: Hand Operated

Material: Steel

Assembly Required: No

Wire Length: 16FT

Packing Size: :53" x 33" x 13"

N.W.:/ G.W.: :430/529 LBS

This item comes with a 1 year factory warranty.
PDF ELT22 Product manual 1.0
