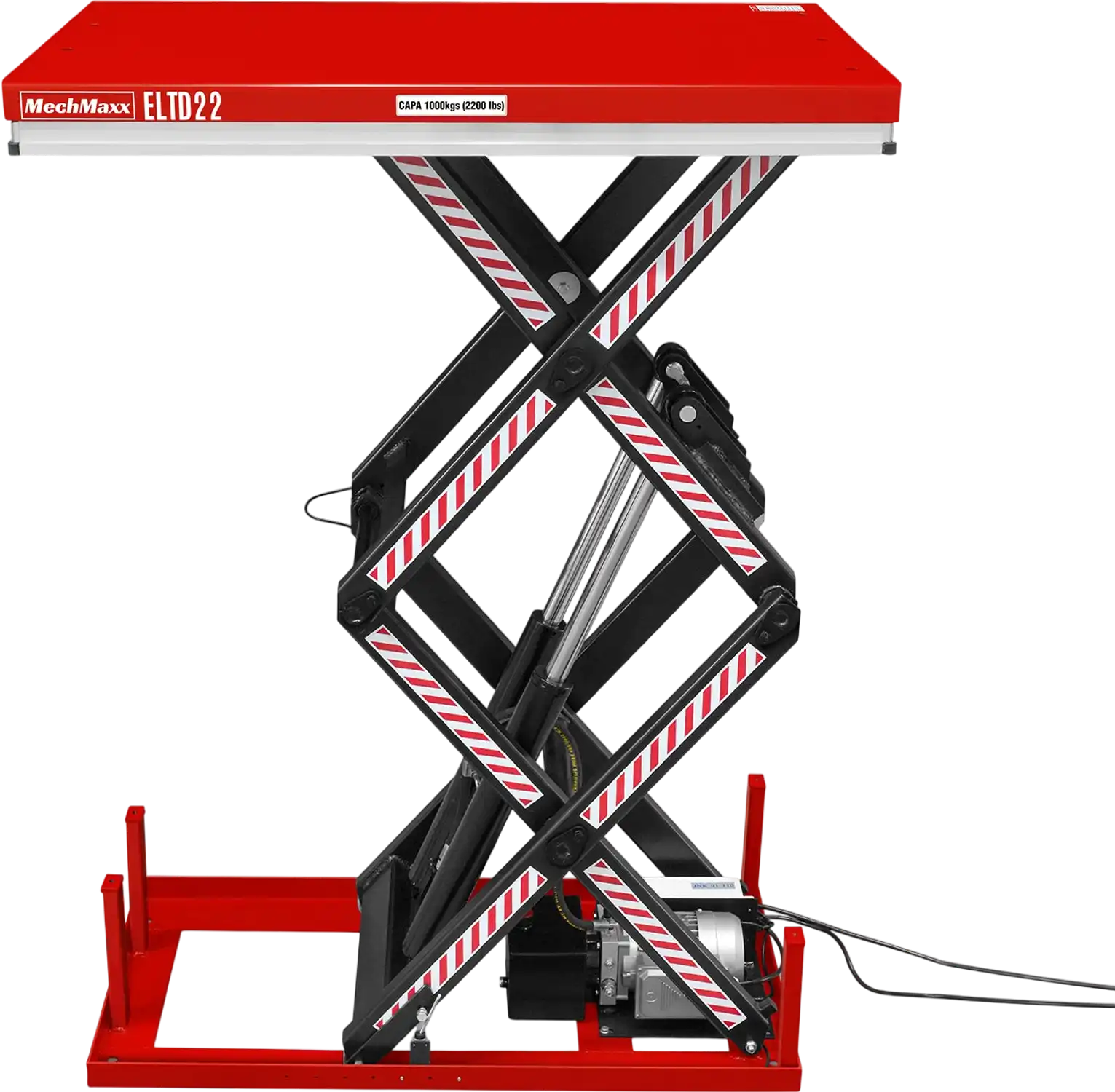

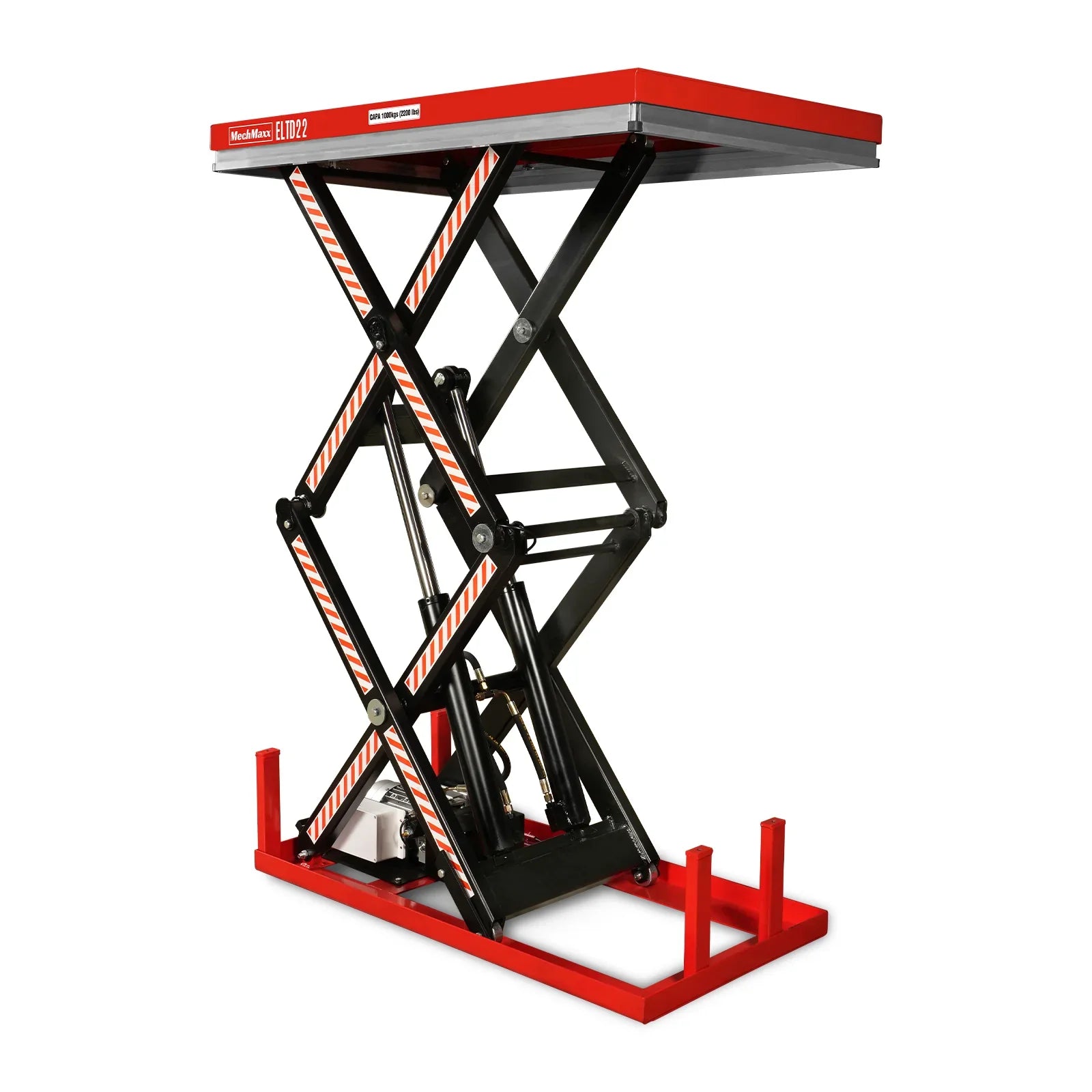

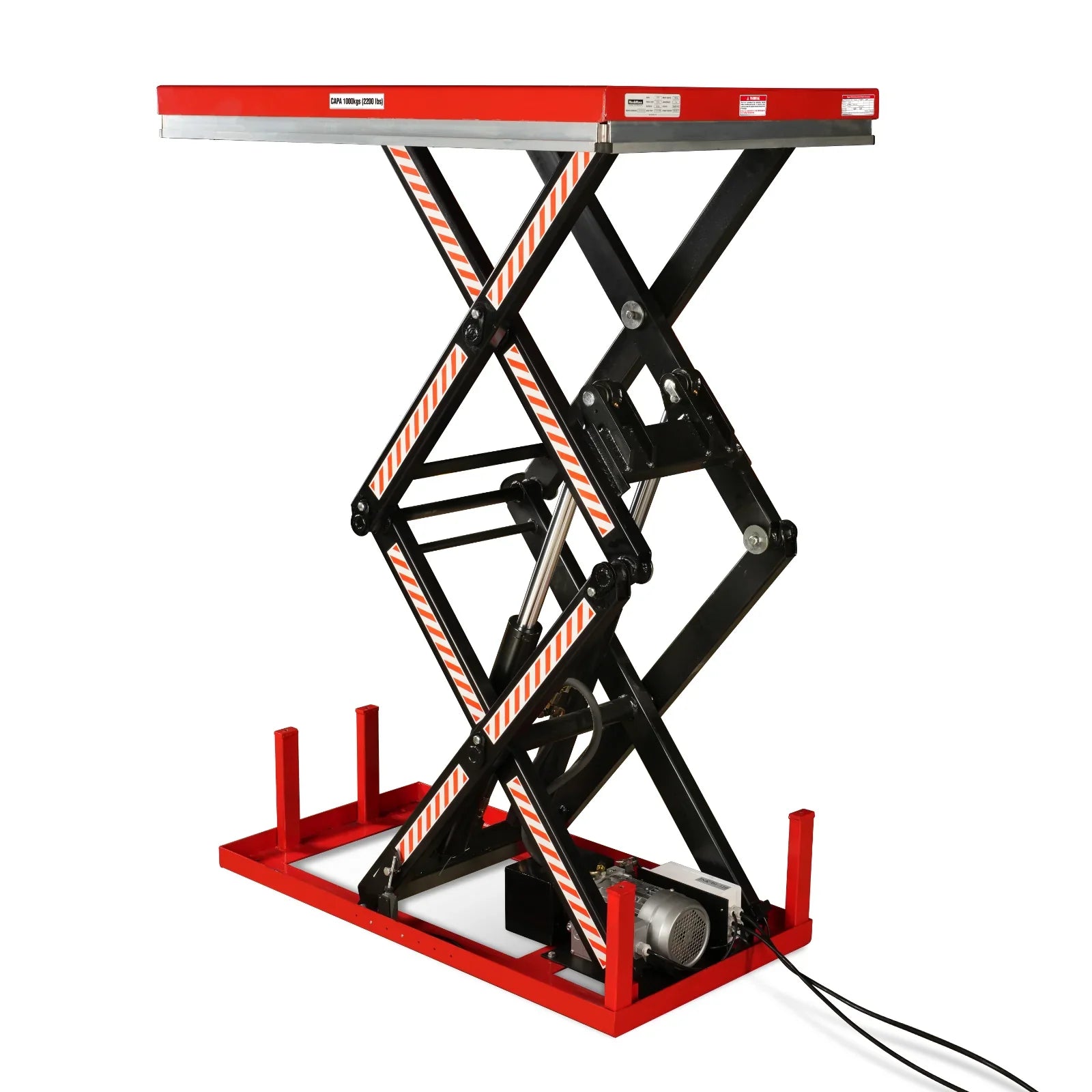

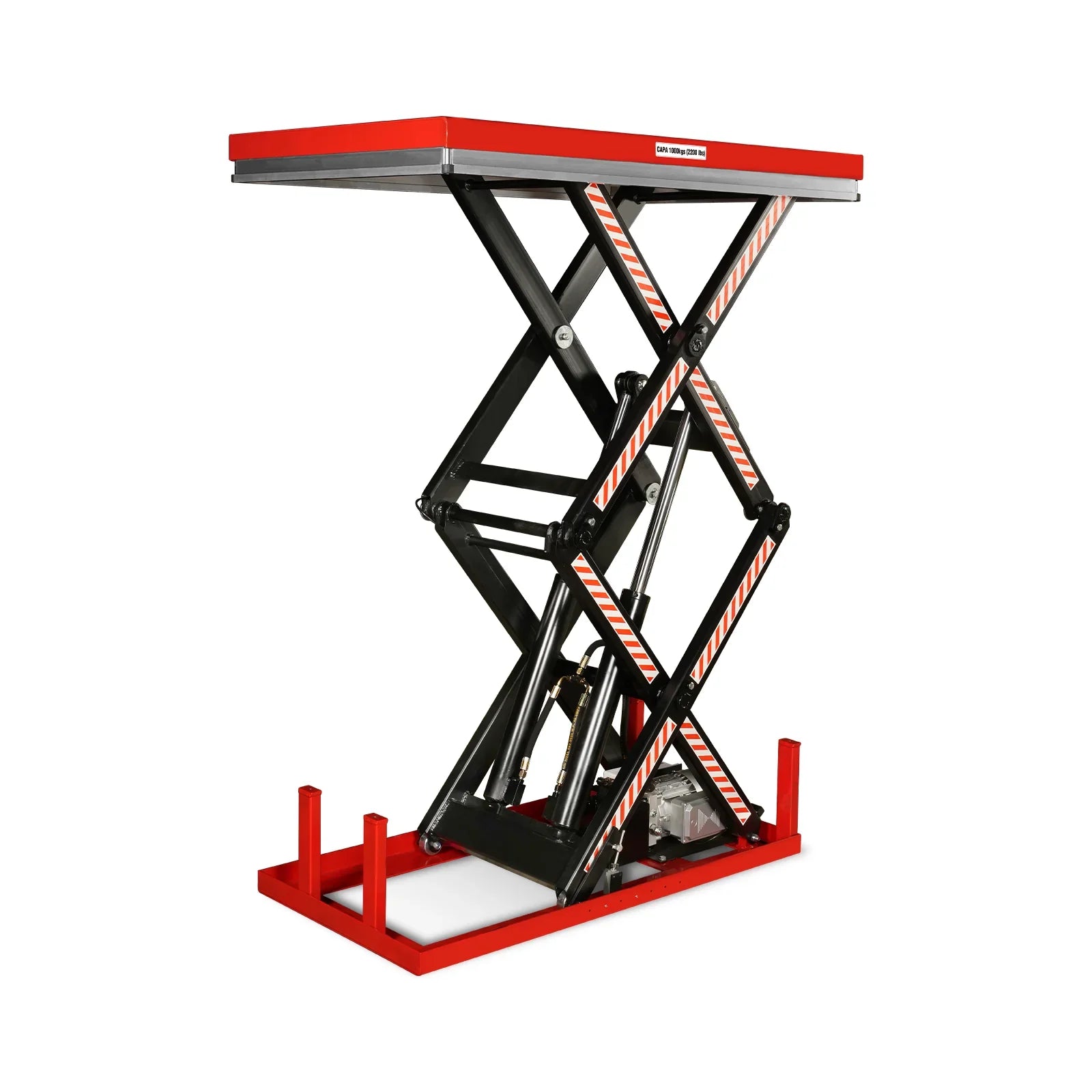

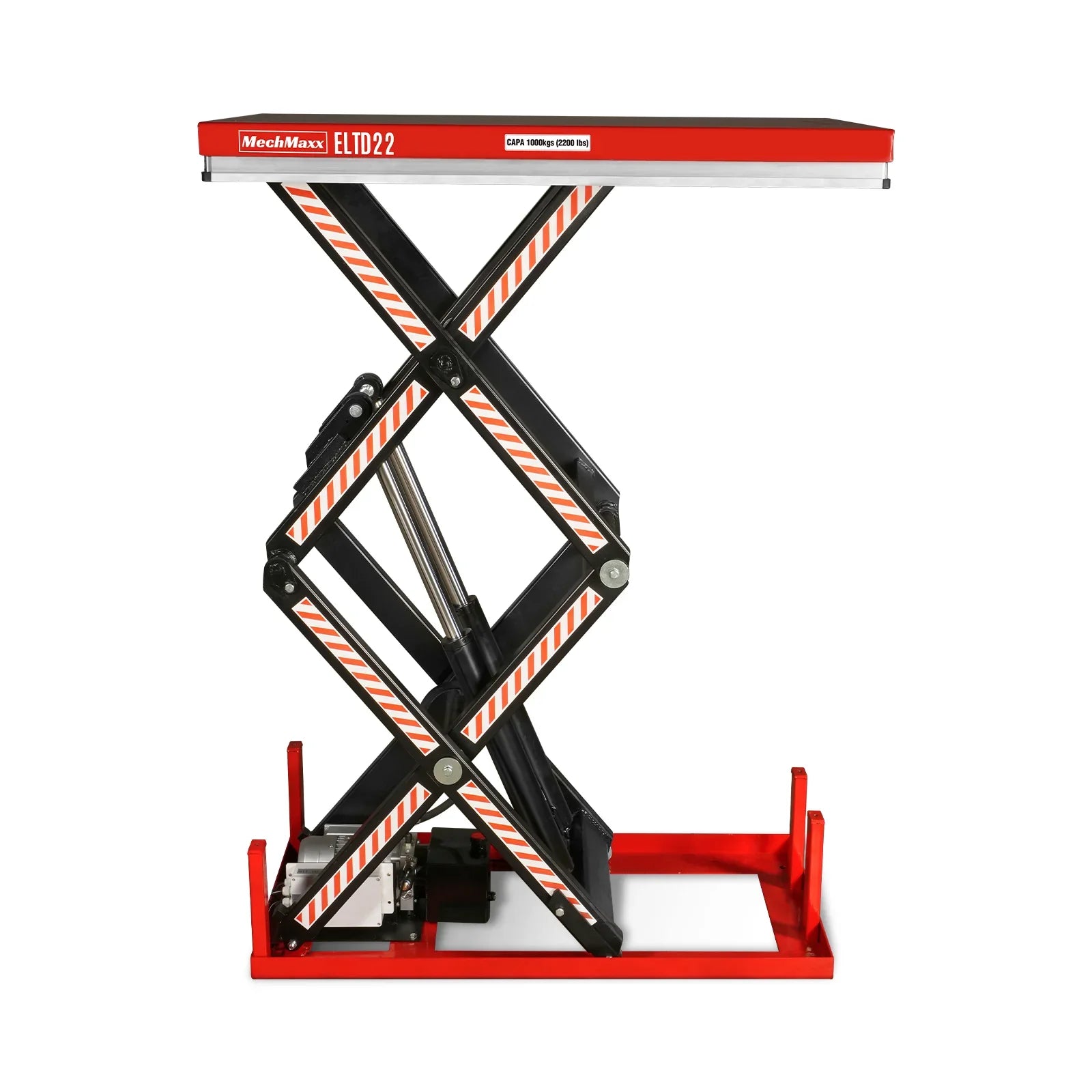

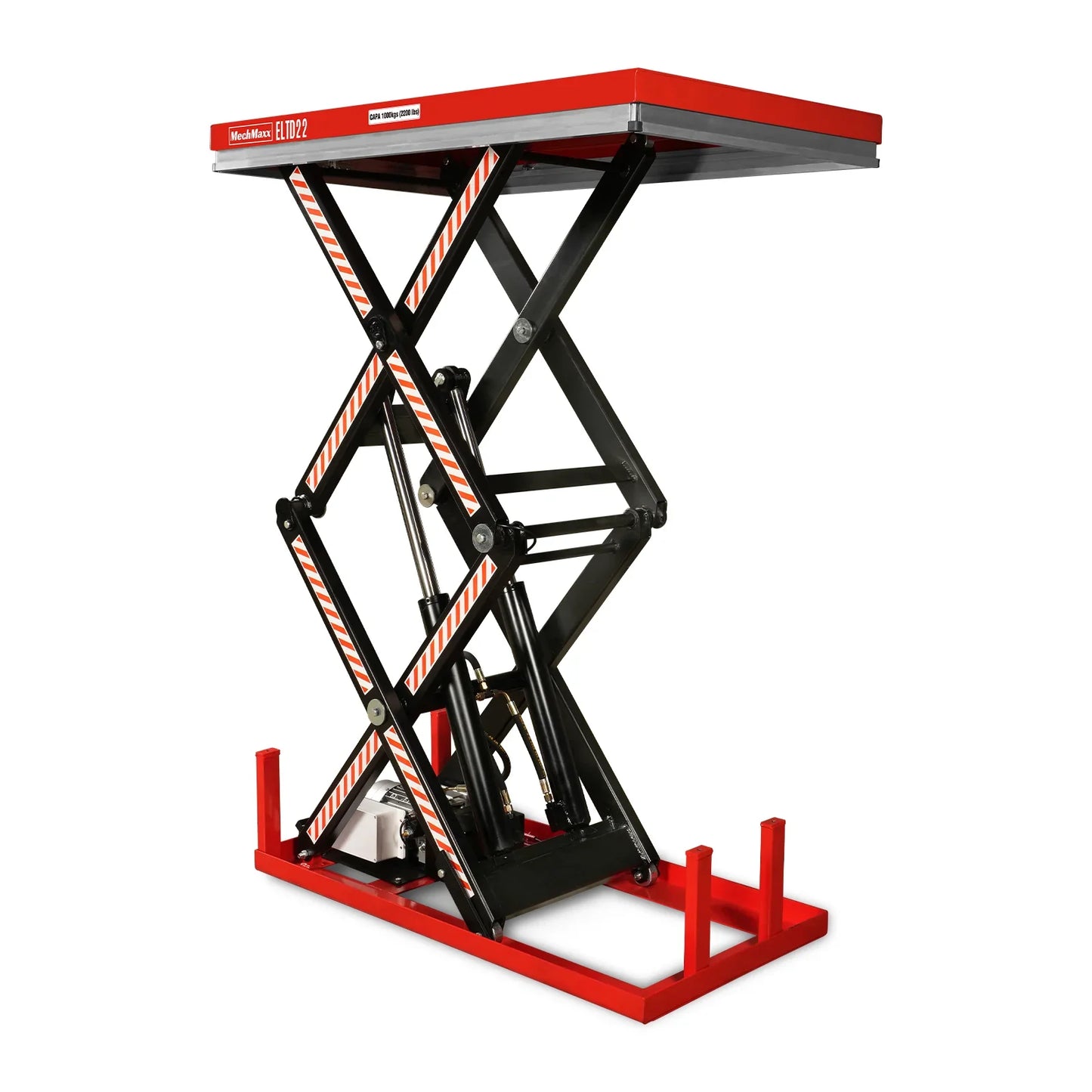

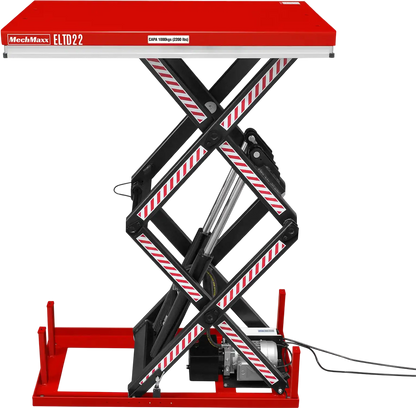

MechMaxx ELTD22 Lift Table 2200 lbs Capacity Stationary Electric Hydraulic Double Scissor 51.2" x 32.3" Platform 70.1" Lift Height UL Certified Motor New

MechMaxx

$2,599.00
$2,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

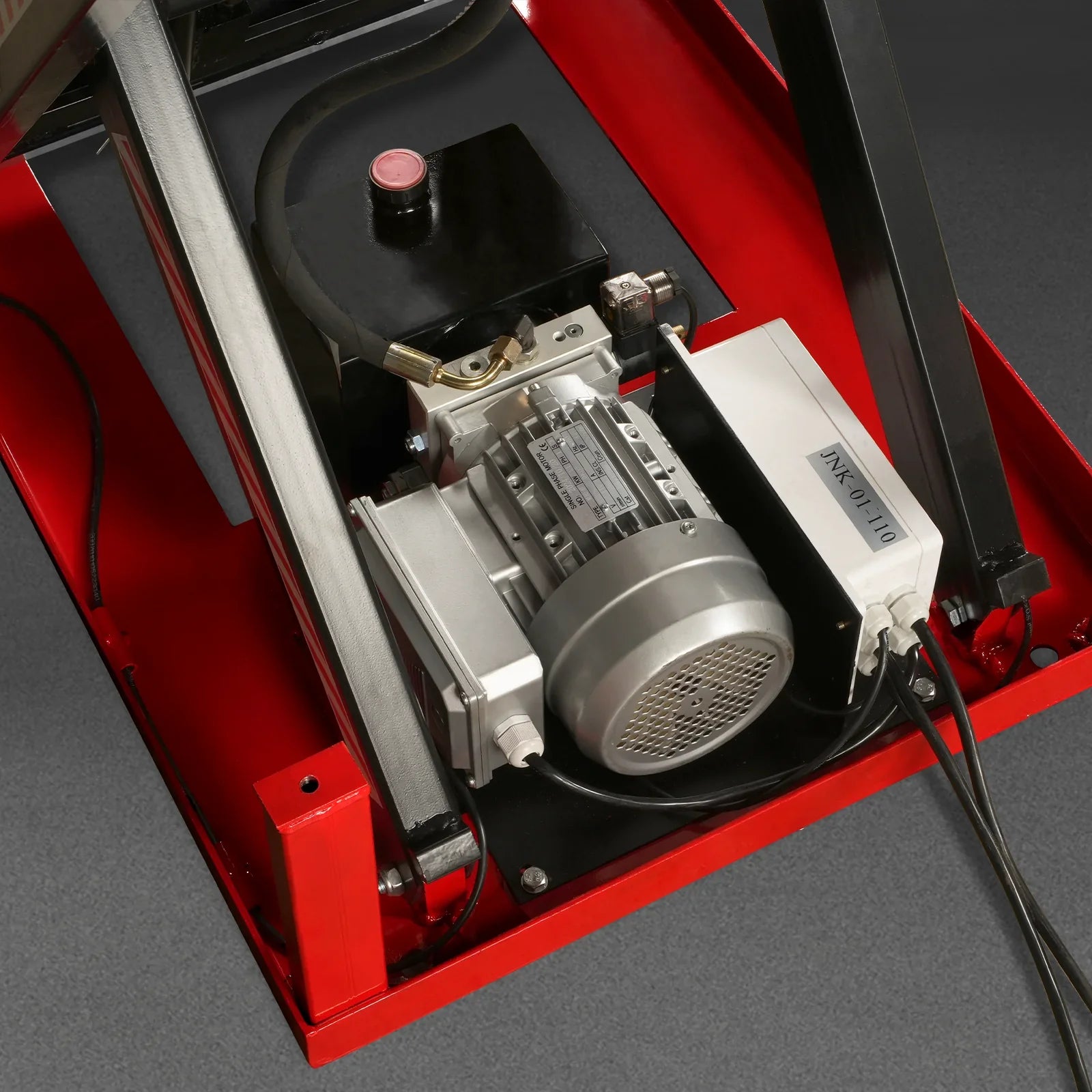

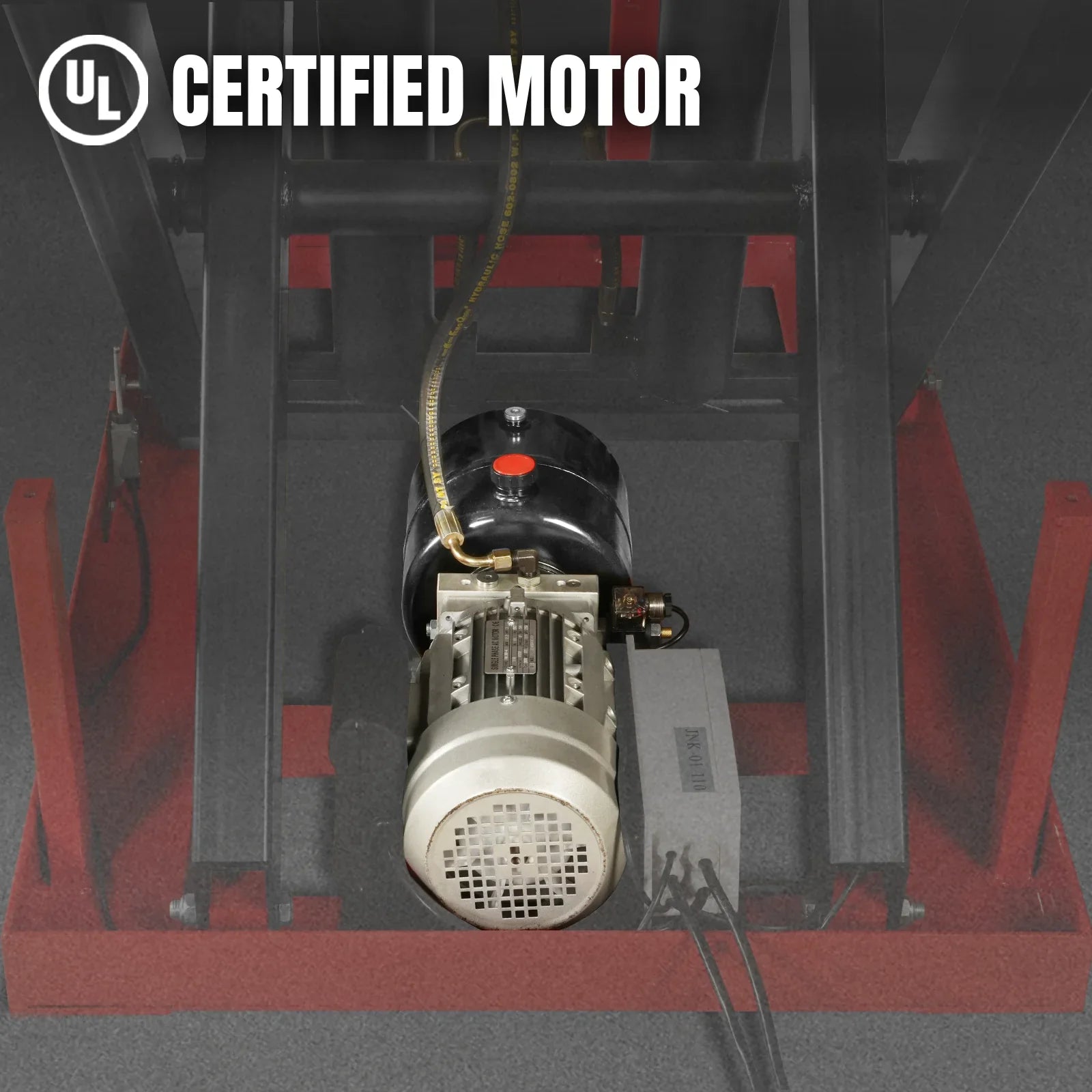

  • Equipped with a 1.5 HP 110V motor and a heavy duty hydraulic pump.
  • Weight Capacity: 2200LBS, Raised Height 70.1", Platform Size: 51.2" x 32.3" .
  • Ideal for locations such as warehouses, manufacturing plants and distribution centers.
  • By lifting heavy objects to the proper height, employees can easily, safely and efficiently move and store heavy loads for handling, assembly, manufacturing, inspection, and maintenance works.
  • With Safety guard; when the safety frame presses against obstructions, the hydraulic pump will automatically lock and the platform will stop descending.
  • The safety gap between the scissors can avoid pinching;.
  • The heavy-duty oil cylinder with return device and check valve prevents the table from falling when the oil pipe bursts.
  • The detachable lifting ring is convenient for countertop installation and access.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Safety Frame: When the safety frame presses against an obstruction, the hydraulic pump will automatically lock and the platform will stop descending.

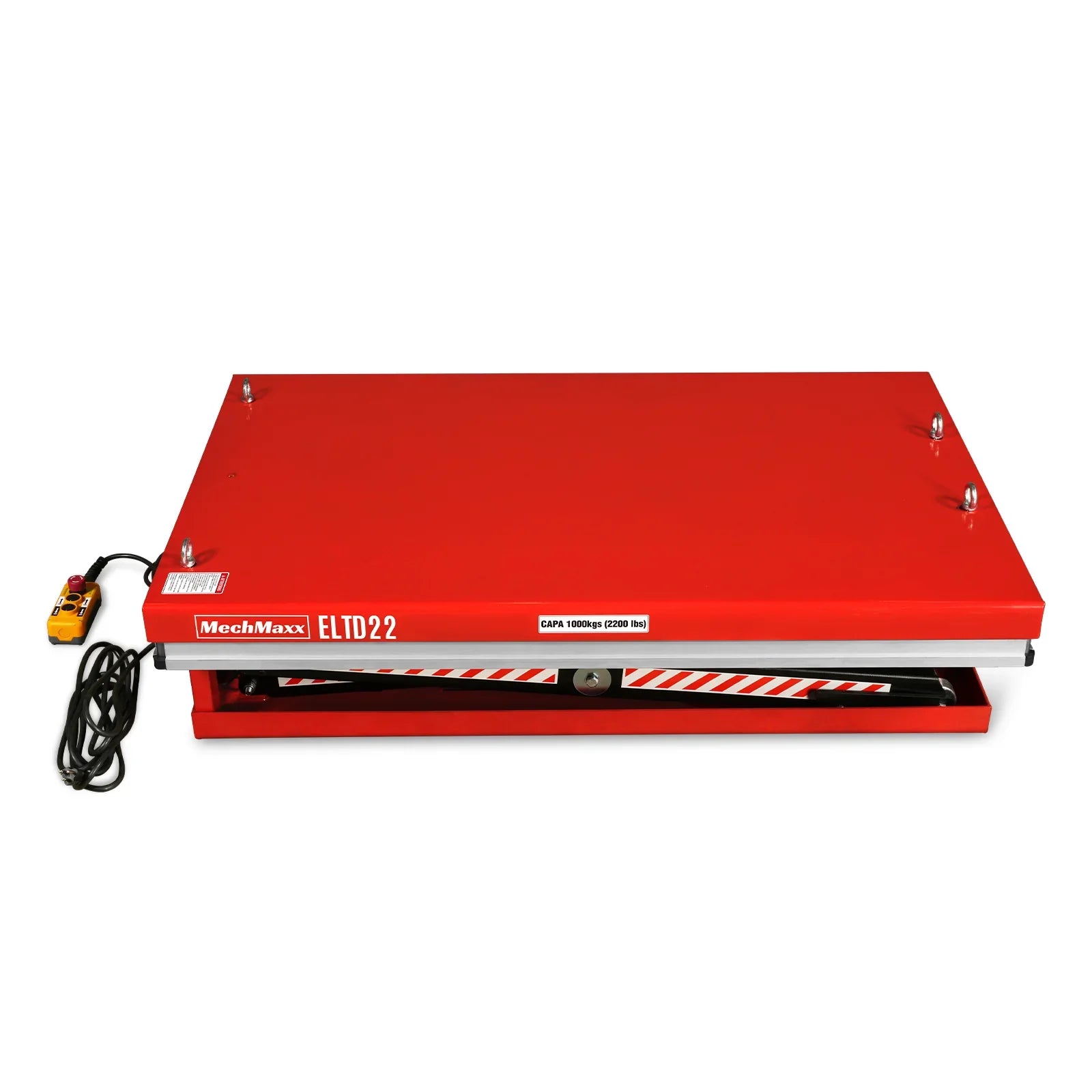

  • Lifting Eye Bolts: The detachable lifting ring is convenient countertop installation and access.

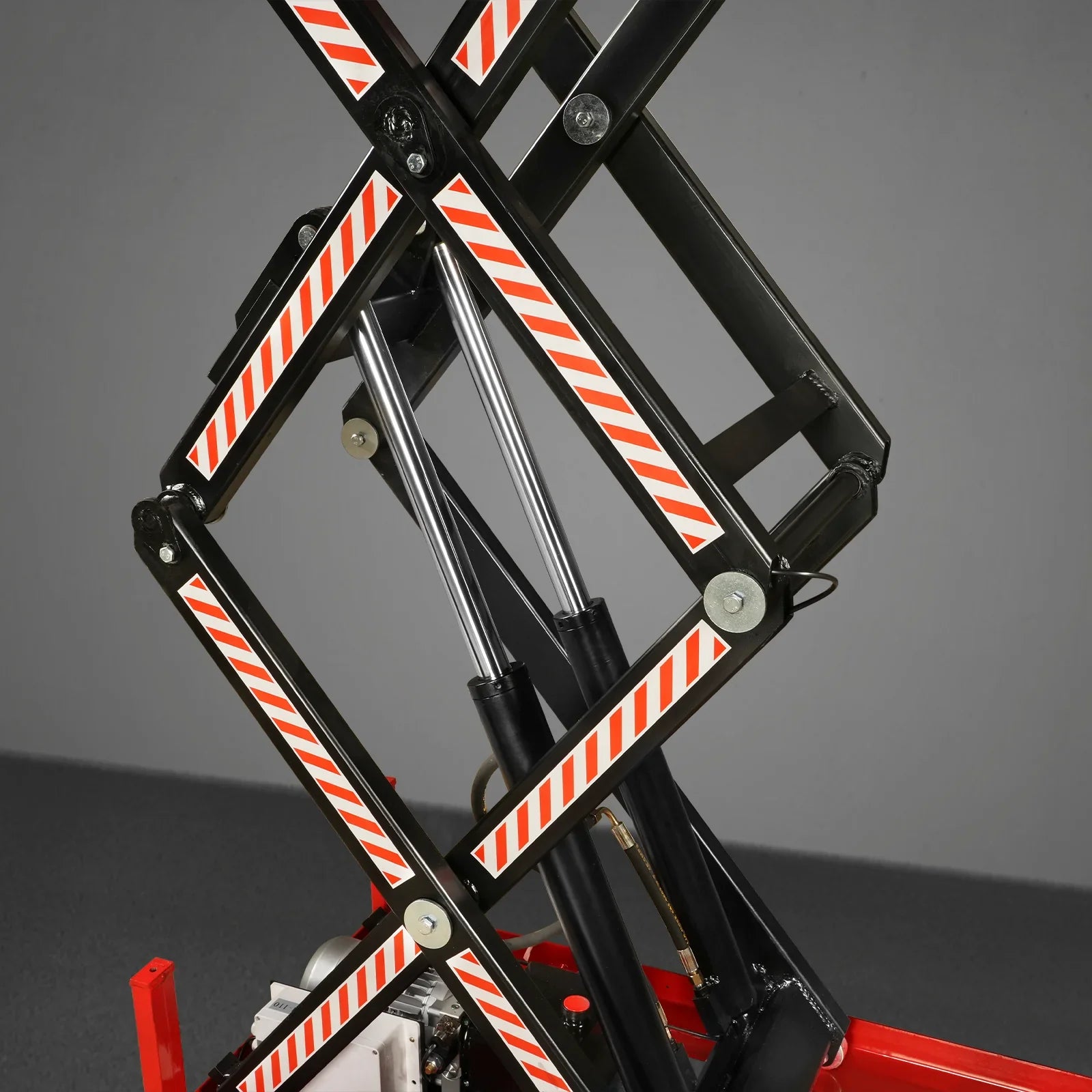

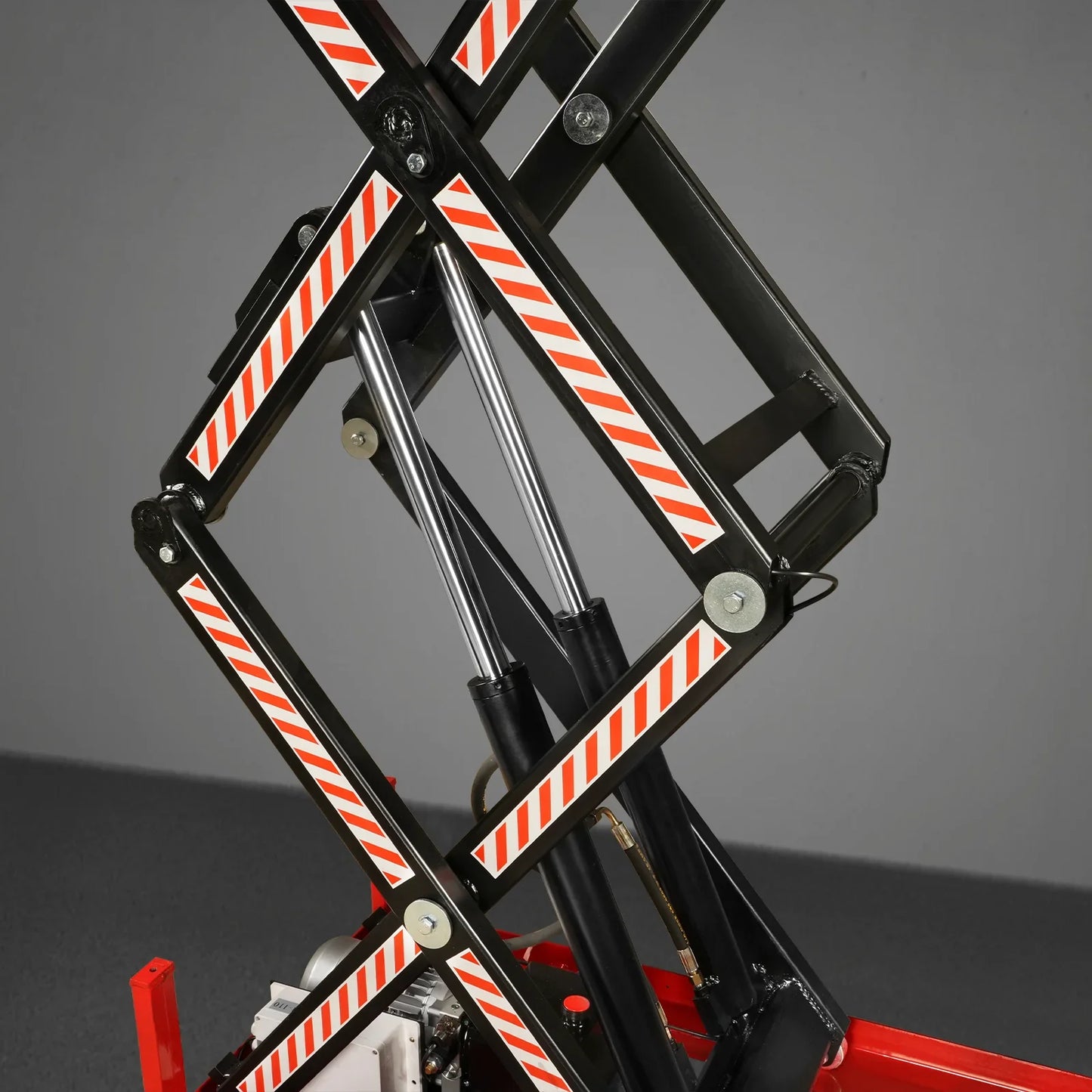

  • Double Heavy-duty Oil Cylinder: The support is stable,return device and check valve prevents the table from falling when the oil pipe bursts.

Model: ELTD22

Voltage: 110V 60HZ 1PH

Weight Capacity: 2200LBS

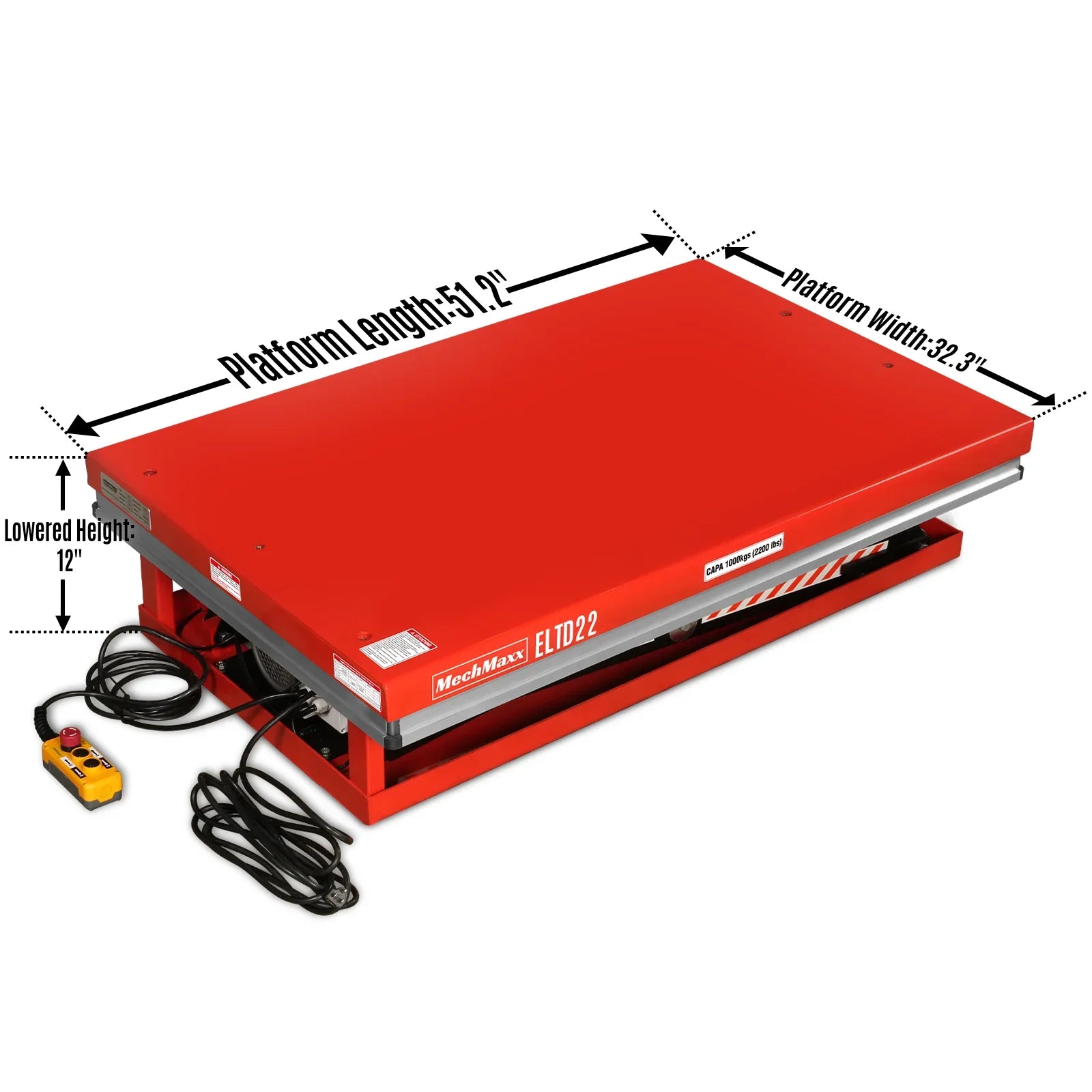

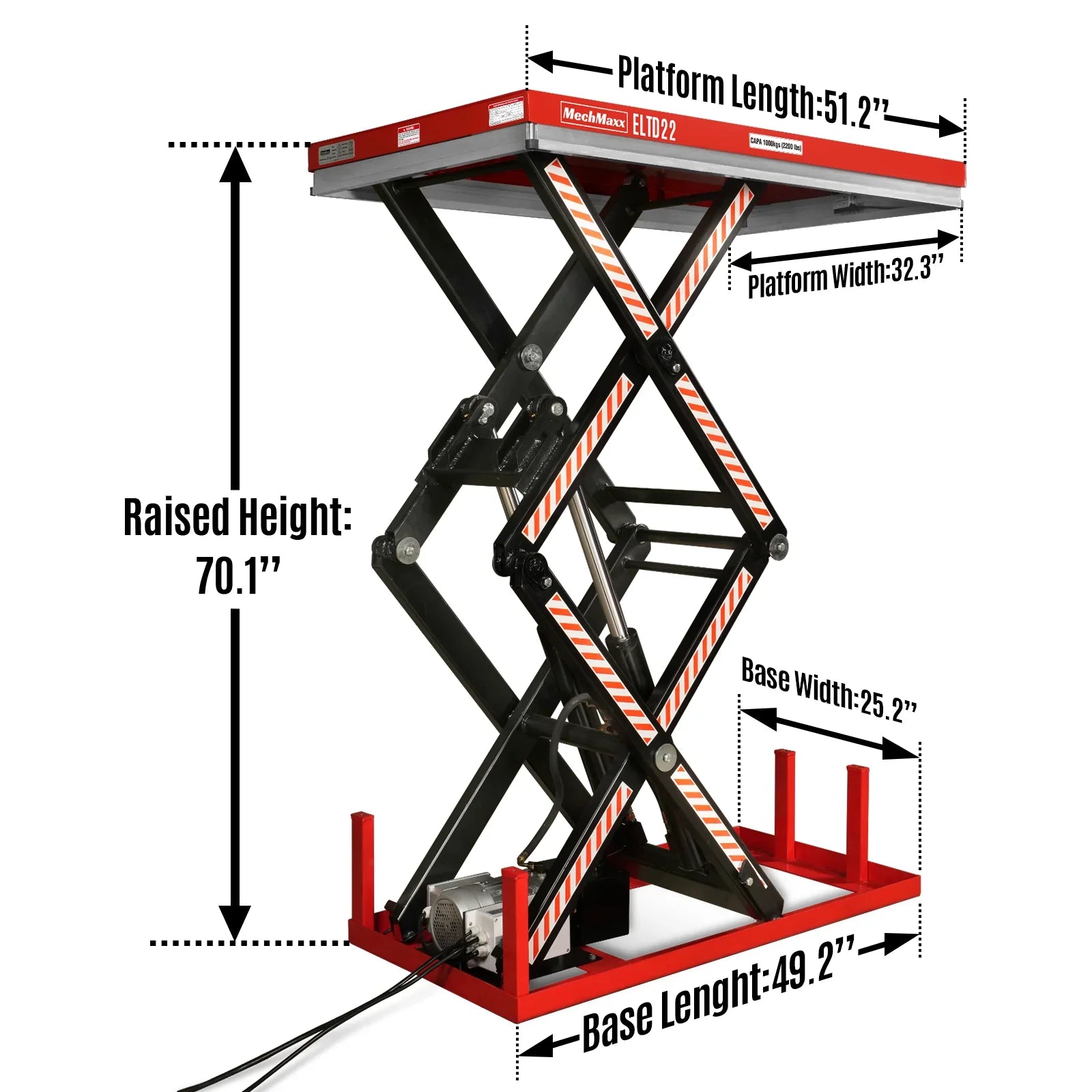

Platform Size: 51.2" x 32.3"

Raised Height: 70.1"

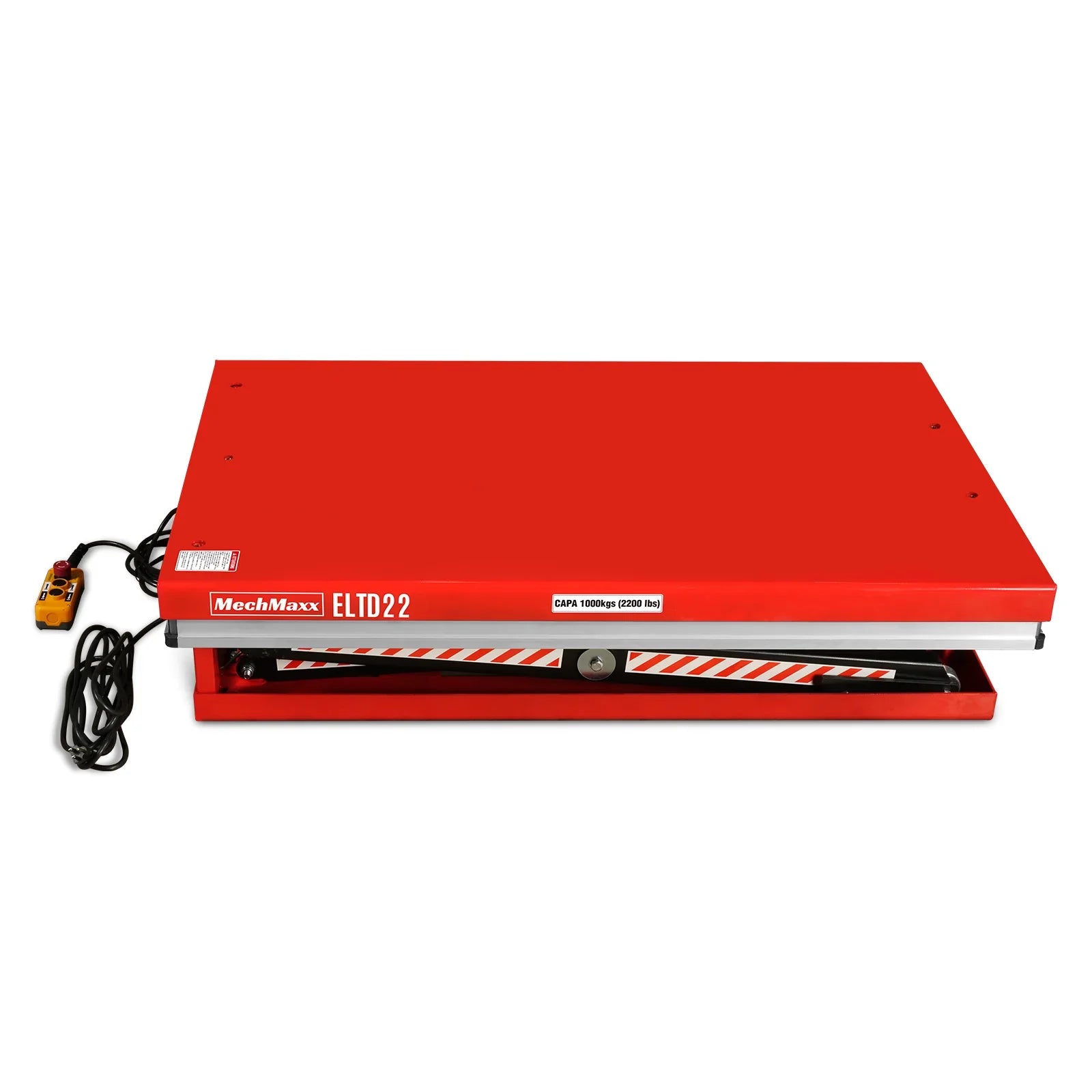

Lowered Height: 12"

Base Size: 49.2"x25.2"

Motor Horsepower: 1.5HP /1.1KW

Power Type: Electric-Hydraulic

Scissor Type: Double Scissor Lift

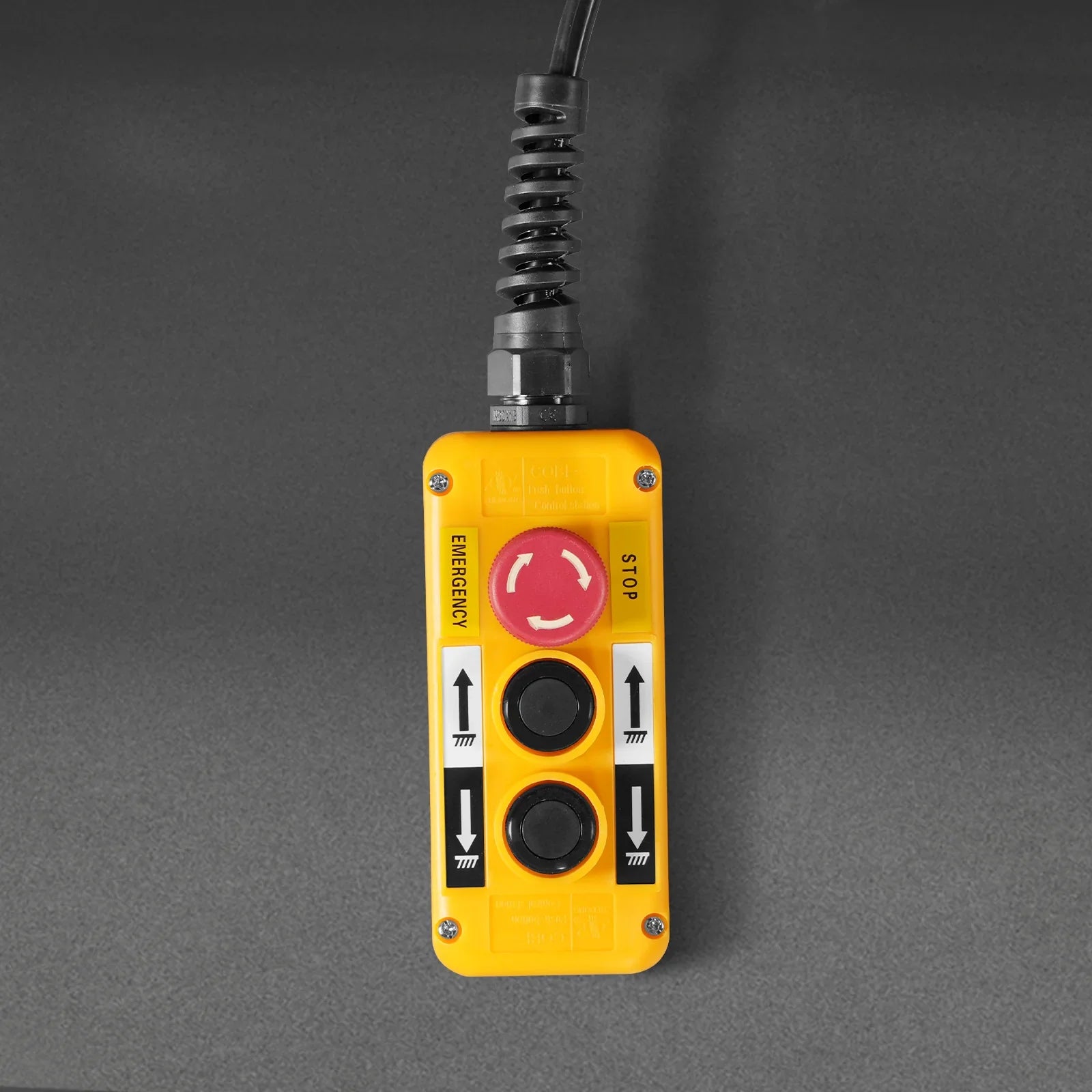

Lift Control: Hand Operated

Material: Steel

Assembly Required: No

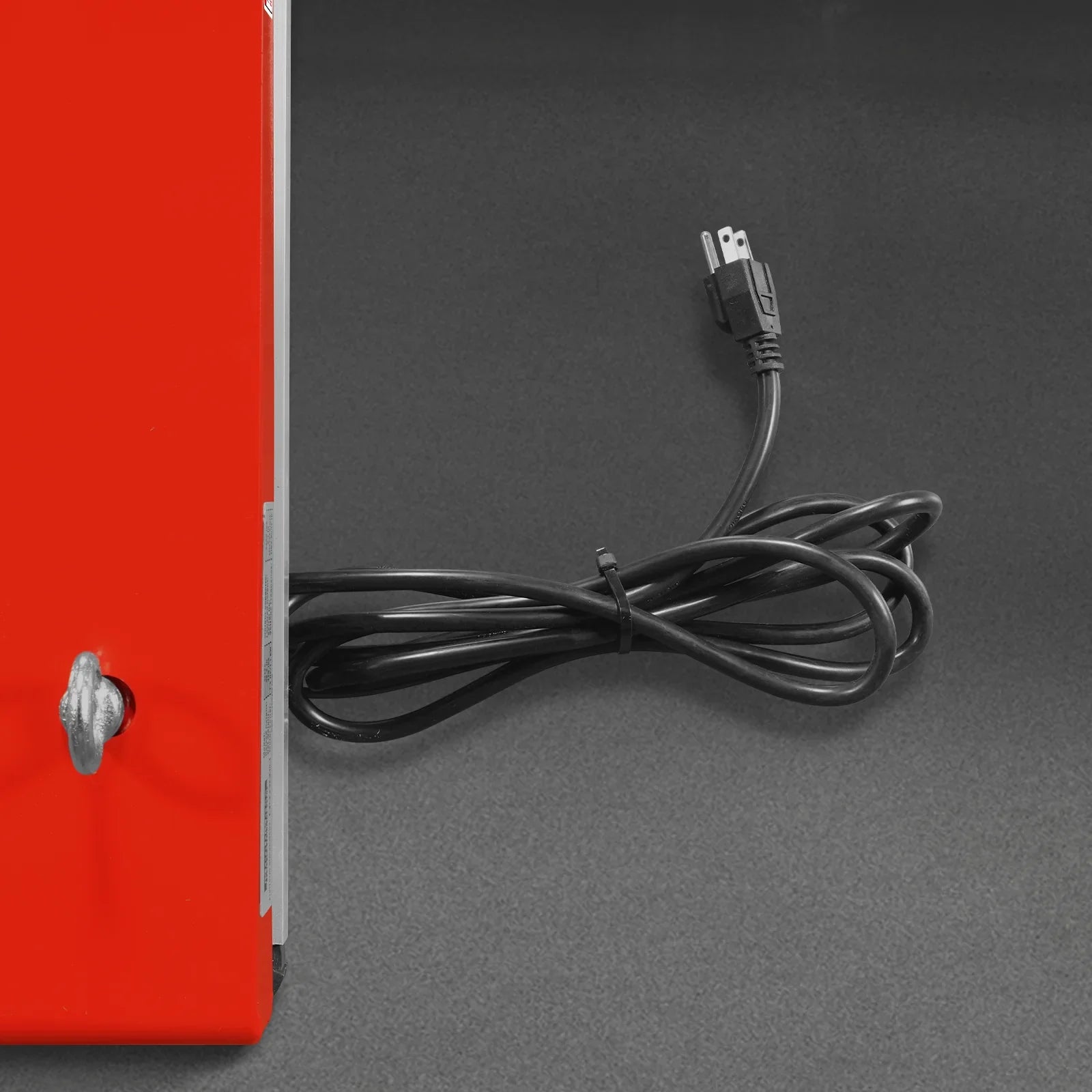

Wire Length: 16FT

Packing Size: :52" x 33" x 17"

N.W.:/ G.W.: :556/606 LBS

This item comes with a 1 year factory warranty.
PDF ELTD22 Product manual 1.0
