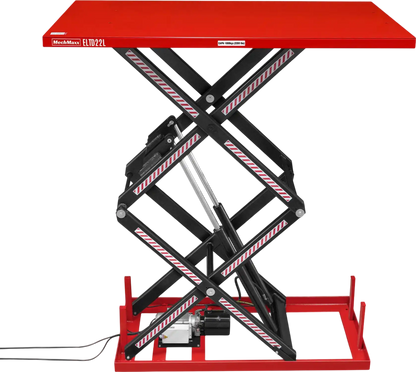

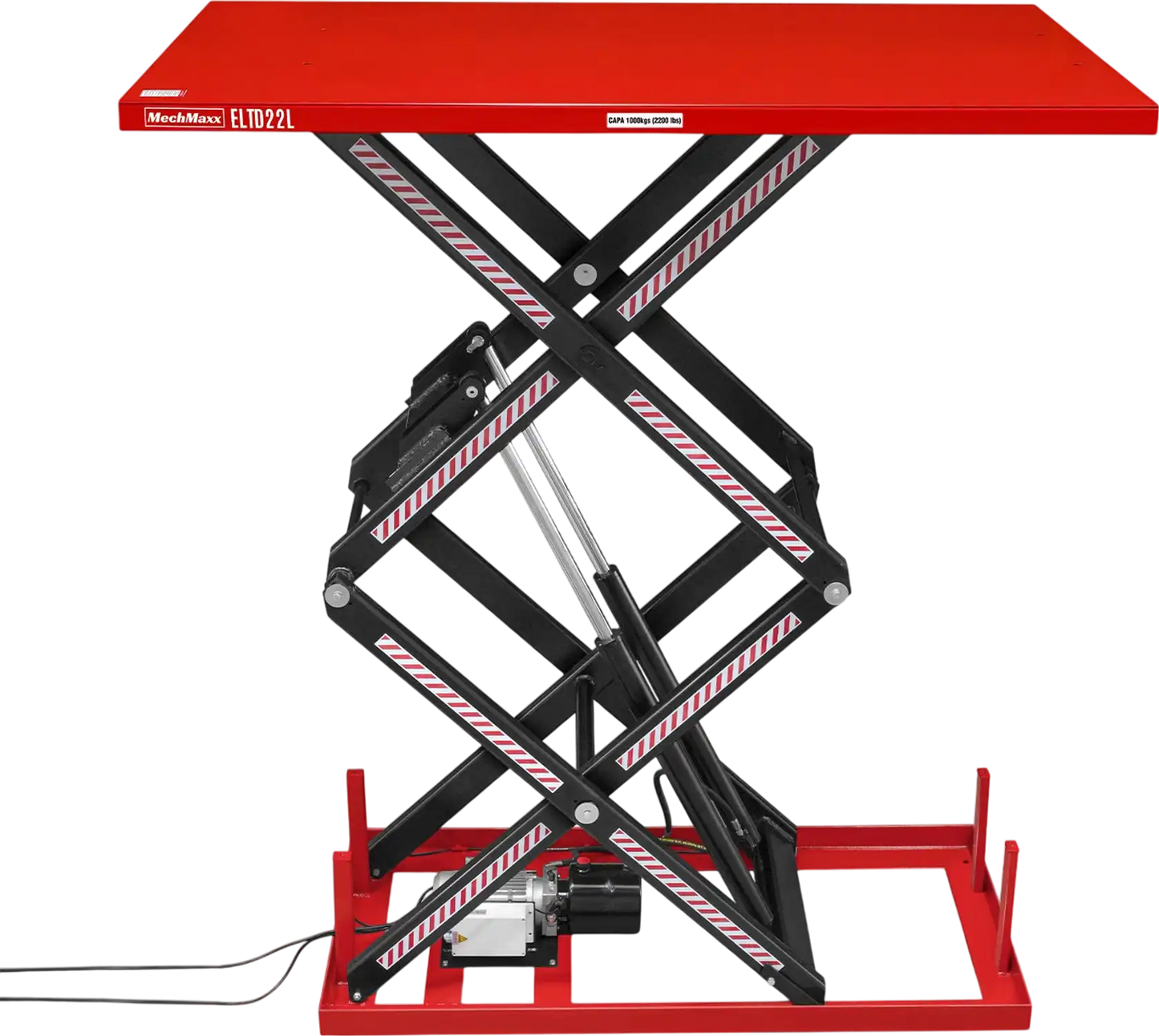

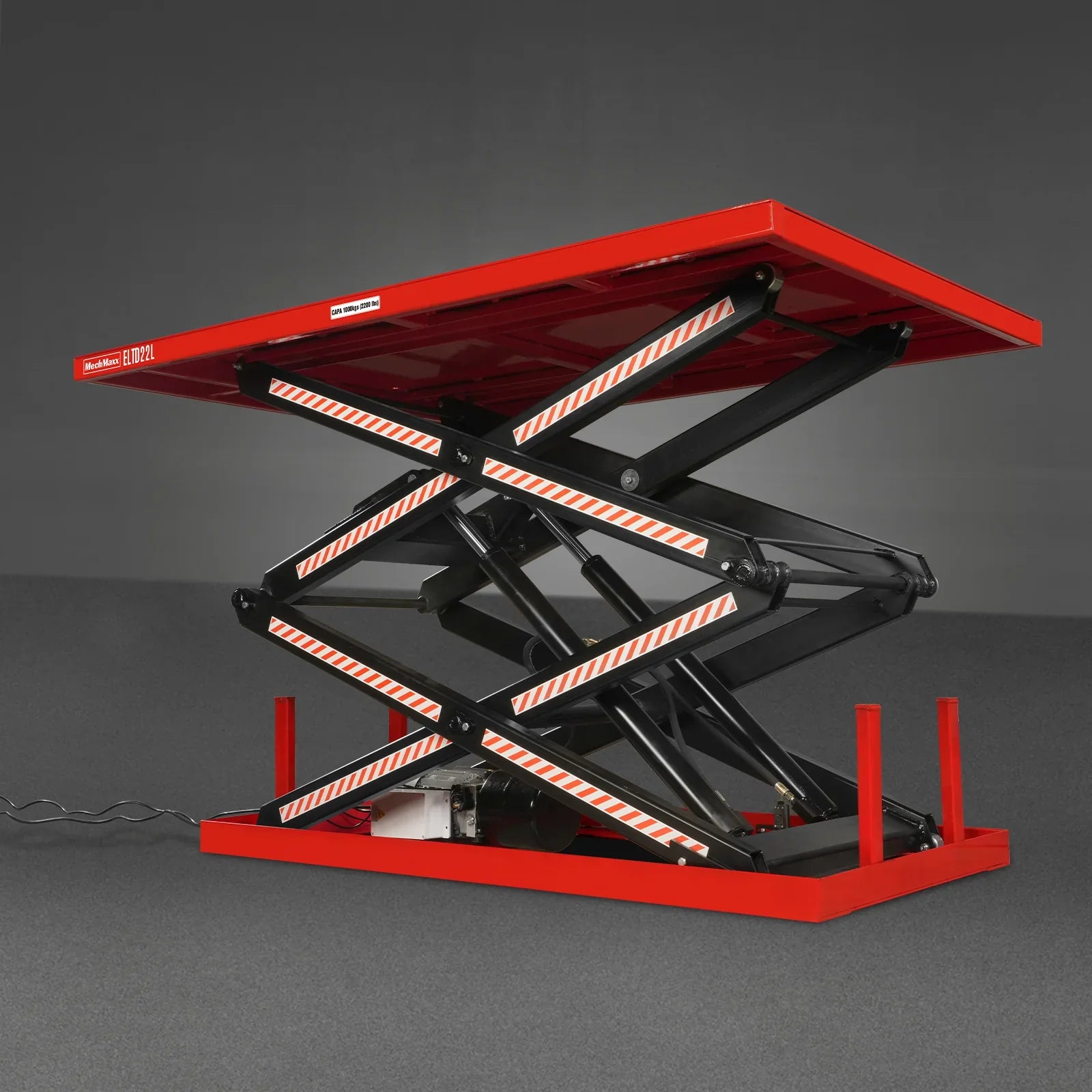

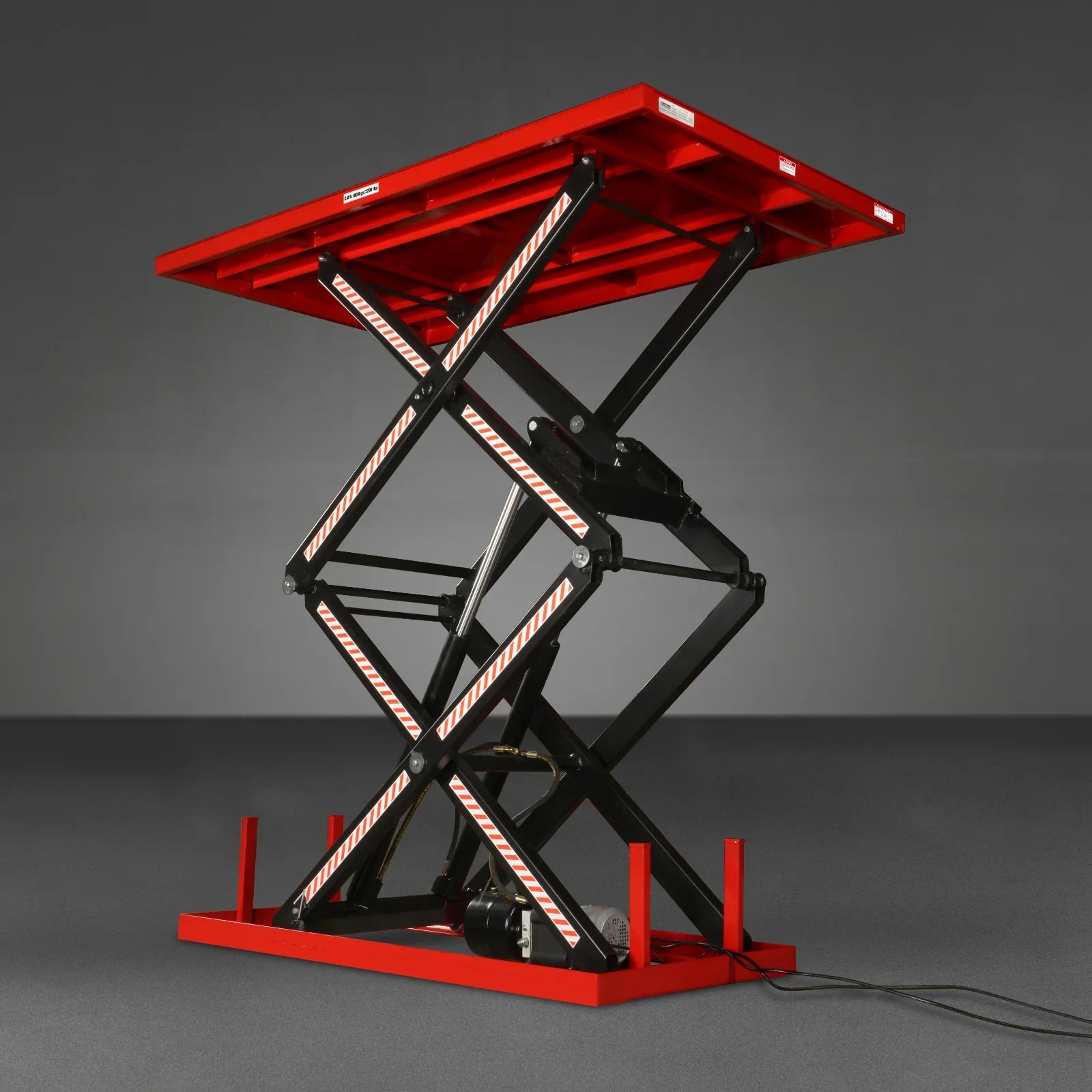

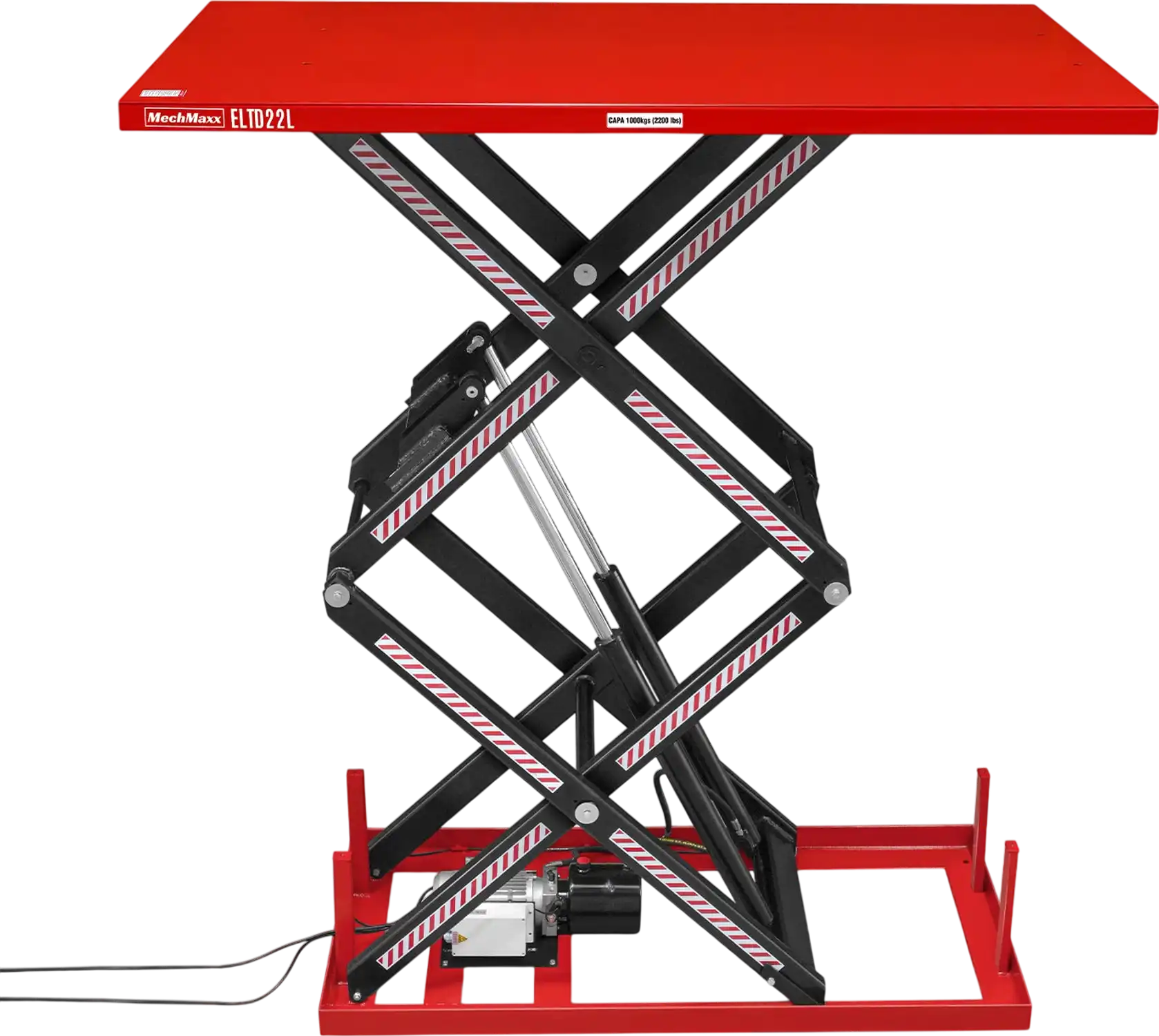

MechMaxx ELTD22L Lift Table 2200 lbs Capacity Stationary Powered Hydraulic Double Scissor 86.6" x 51.2" Platform 94.5" Lift Height UL Certified Motor New

MechMaxx

$3,599.00
$3,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Equipped with a 3 HP 110V motor and a heavy duty hydraulic pump.
  • Weight Capacity: 2200LBS,Raised Height 94.5",Platform Size:86.6" x 51.2" .
  • Ideal for locations such as warehouses, manufacturing plants and distribution centers.
  • By lifting heavy objects to the proper height, employees can easily, safely and efficiently move and store heavy loads for handling, assembly, manufacturing, inspection, and maintenance works.
  • The safety gap between the scissors can avoid pinching;.
  • The heavy-duty oil cylinder with return device and check valve prevents the table from falling when the oil pipe bursts.
  • The detachable lifting ring is convenient countertop installation and acces.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

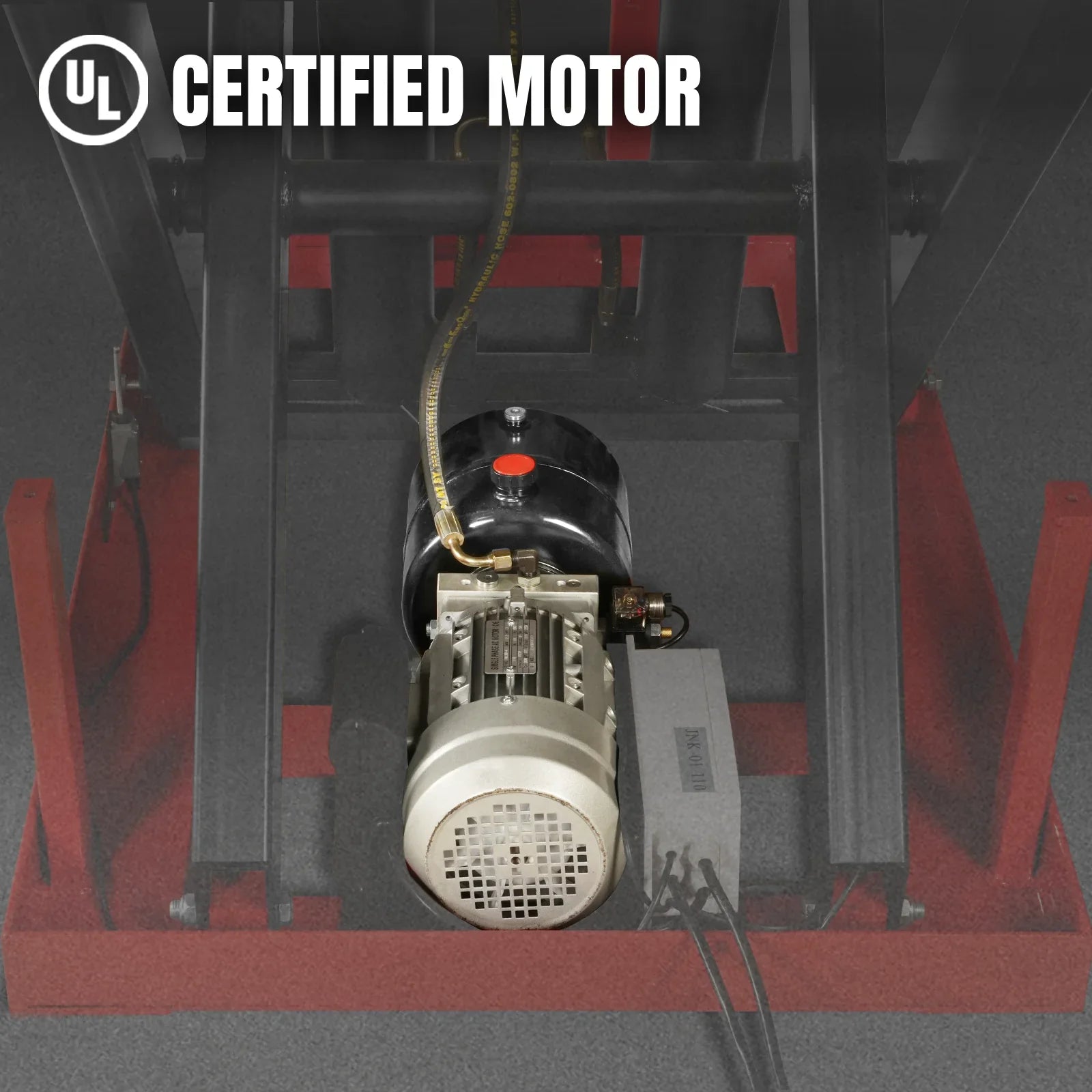

  • Pump&Motor: Durable steel platform with heavy-duty pump and 3 HP motor.
  • Lifting Eye Bolts: The detachable lifting ring is convenient countertop installation and access.

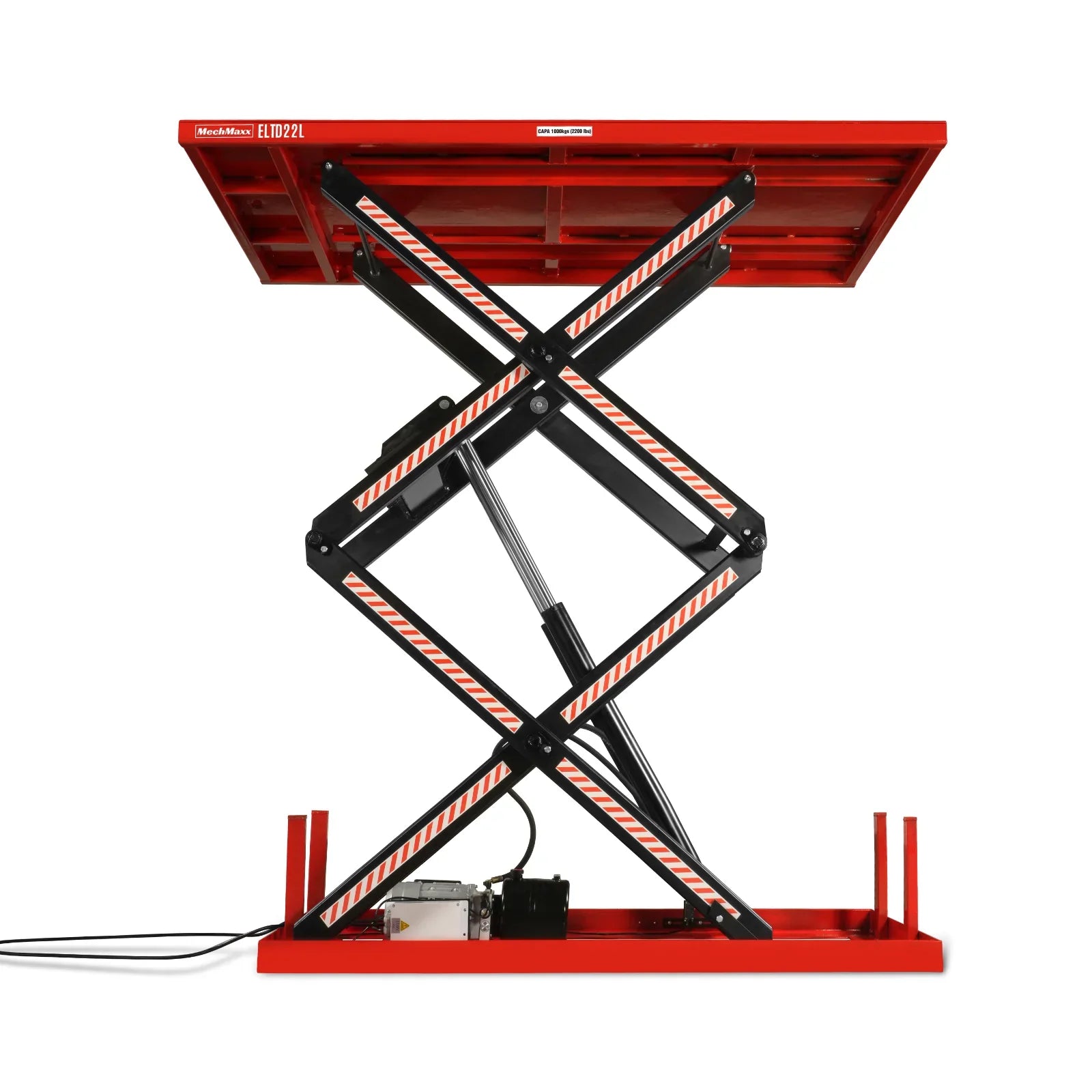

  • Double Heavy-duty Oil Cylinder: The support is stable,return device and check valve prevents the table from falling when the oil pipe bursts.

Model: ELTD22L

Voltage: 110V 60HZ 1PH

Weight Capacity: 2200LBS

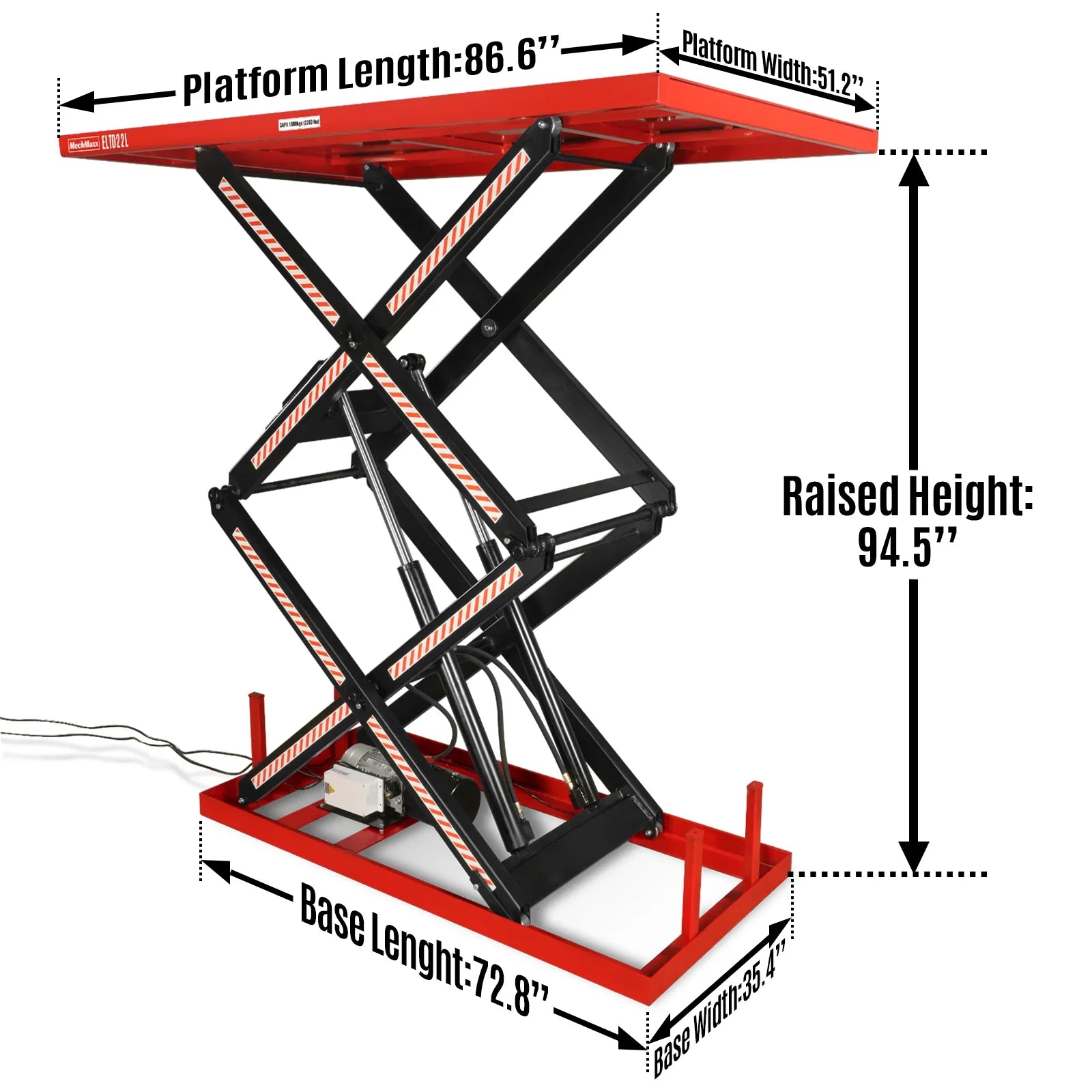

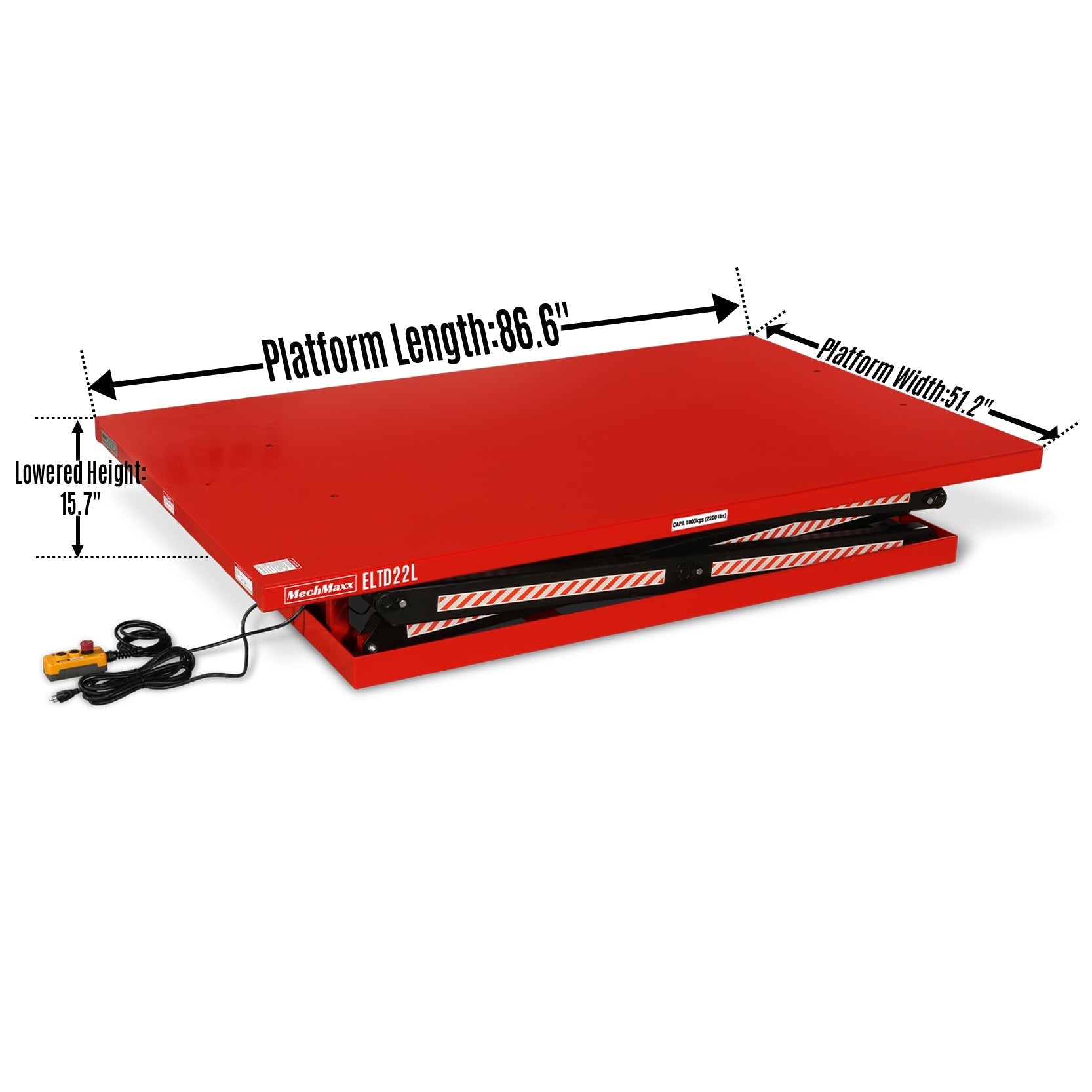

Platform Size: 86.6"x 51.2"

Raised Height: 94.5"

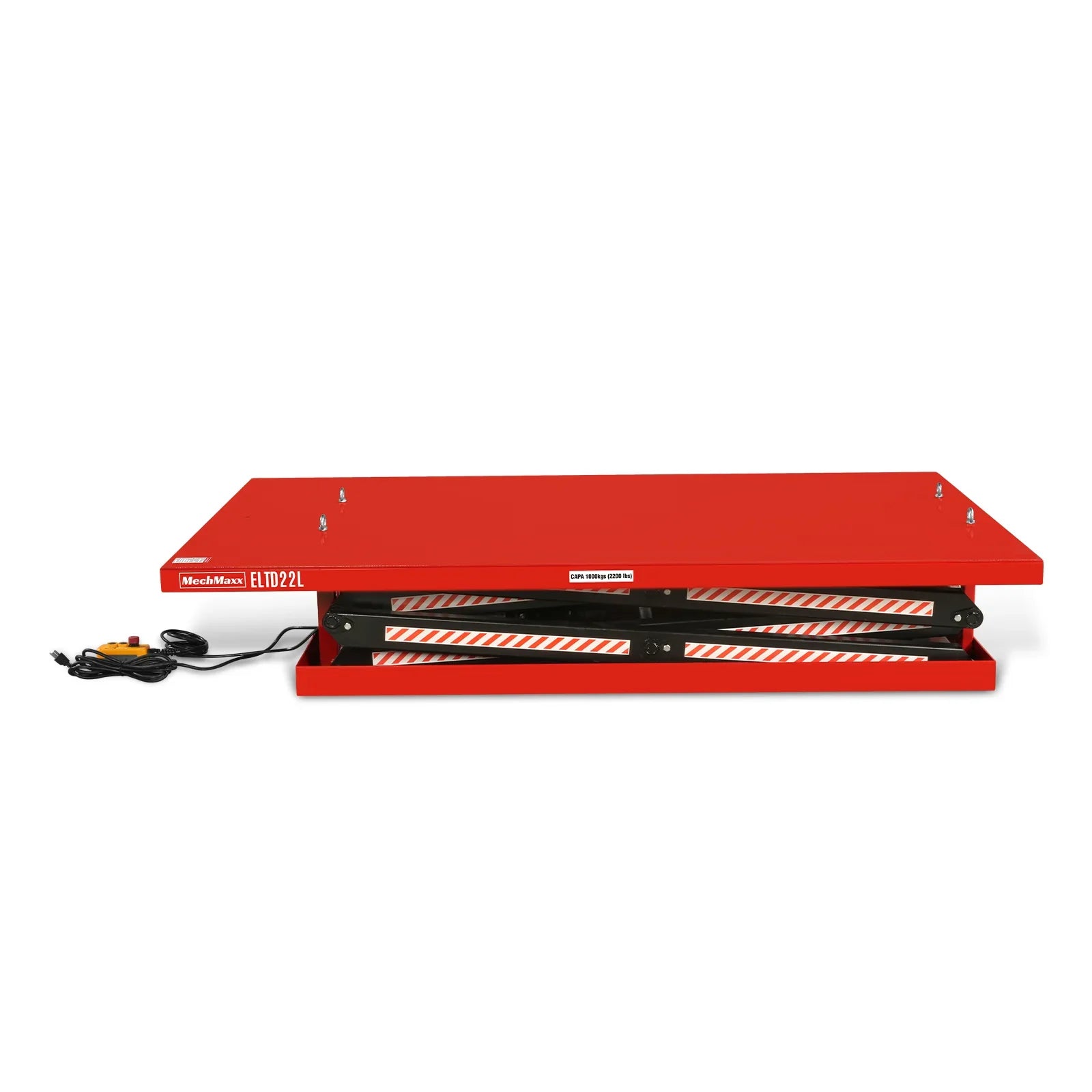

Lowered Height: 15.7"

Base Size: 72.8"x35.4"

Motor Horsepower: 3HP /2.2KW

Power Type: Electric-Hydraulic

Scissor Type: Double Scissor Lift

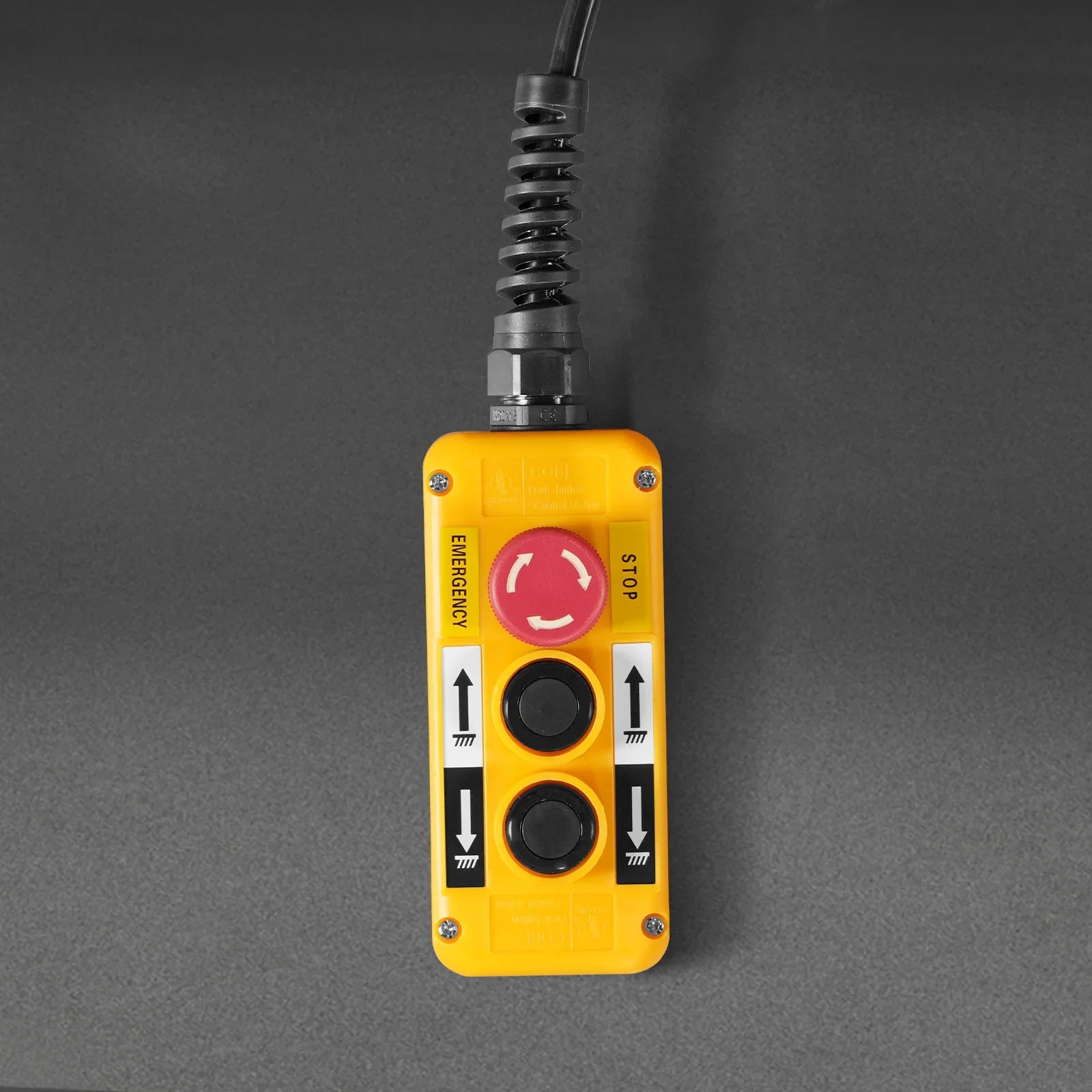

Lift Control: Hand Operated

Material: Steel

Assembly Required: No

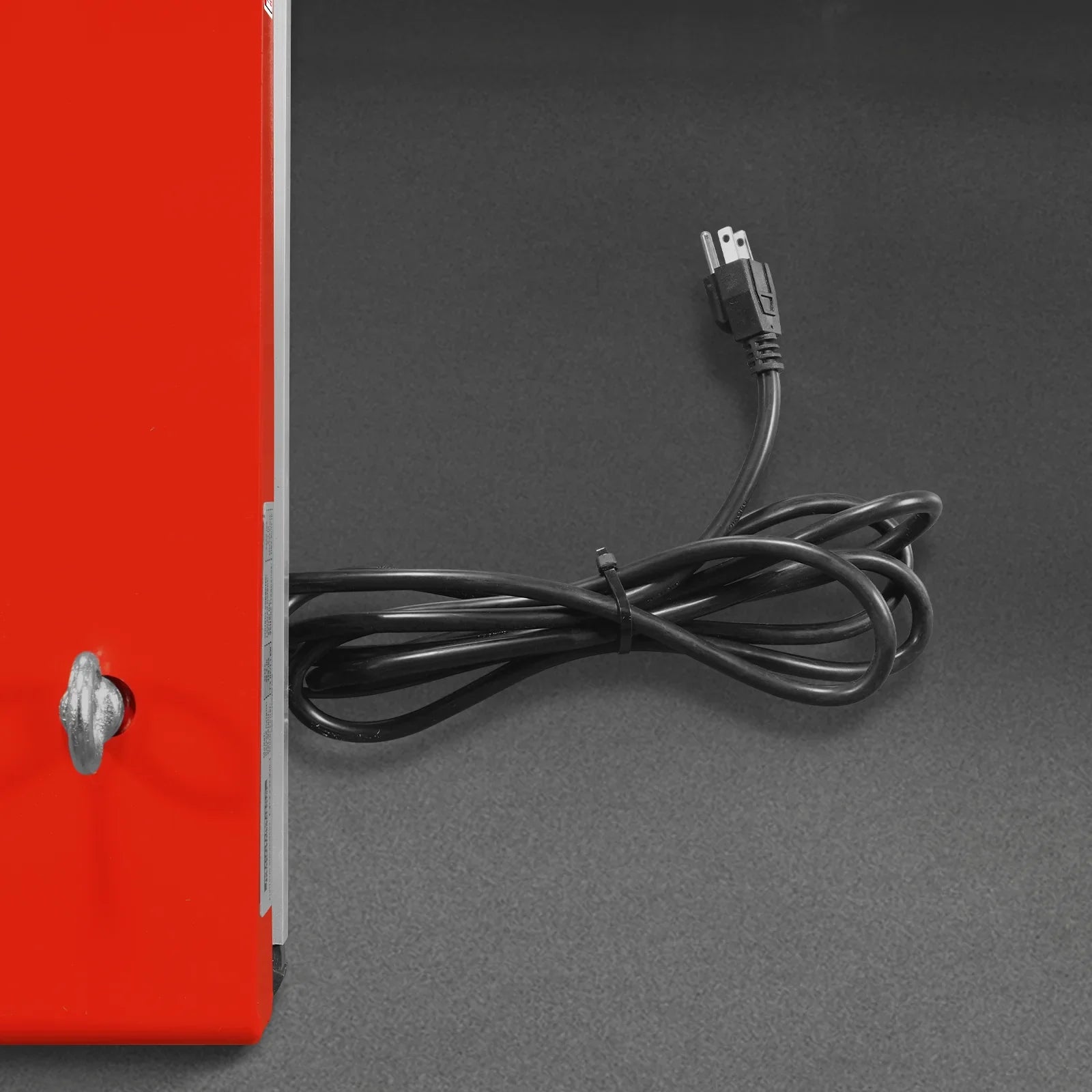

Wire Length: 16FT

Packing Size: :87" x 52" x 20"

N.W.:/ G.W.: :1144/1367 LBS

This item comes with a 1 year factory warranty.
PDF ELTD22L Product manual 1.0
