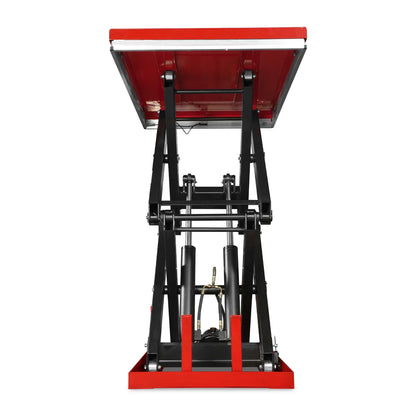

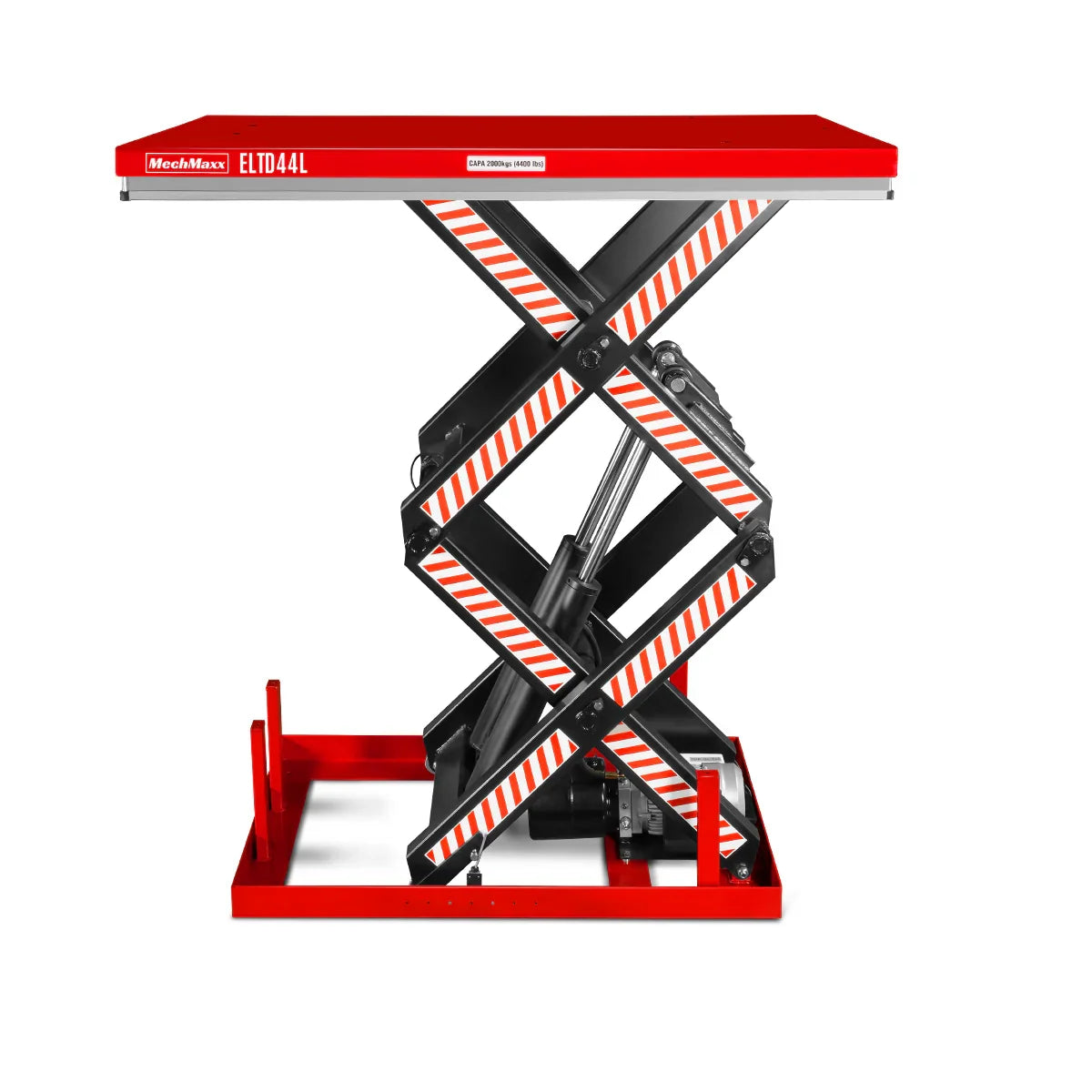

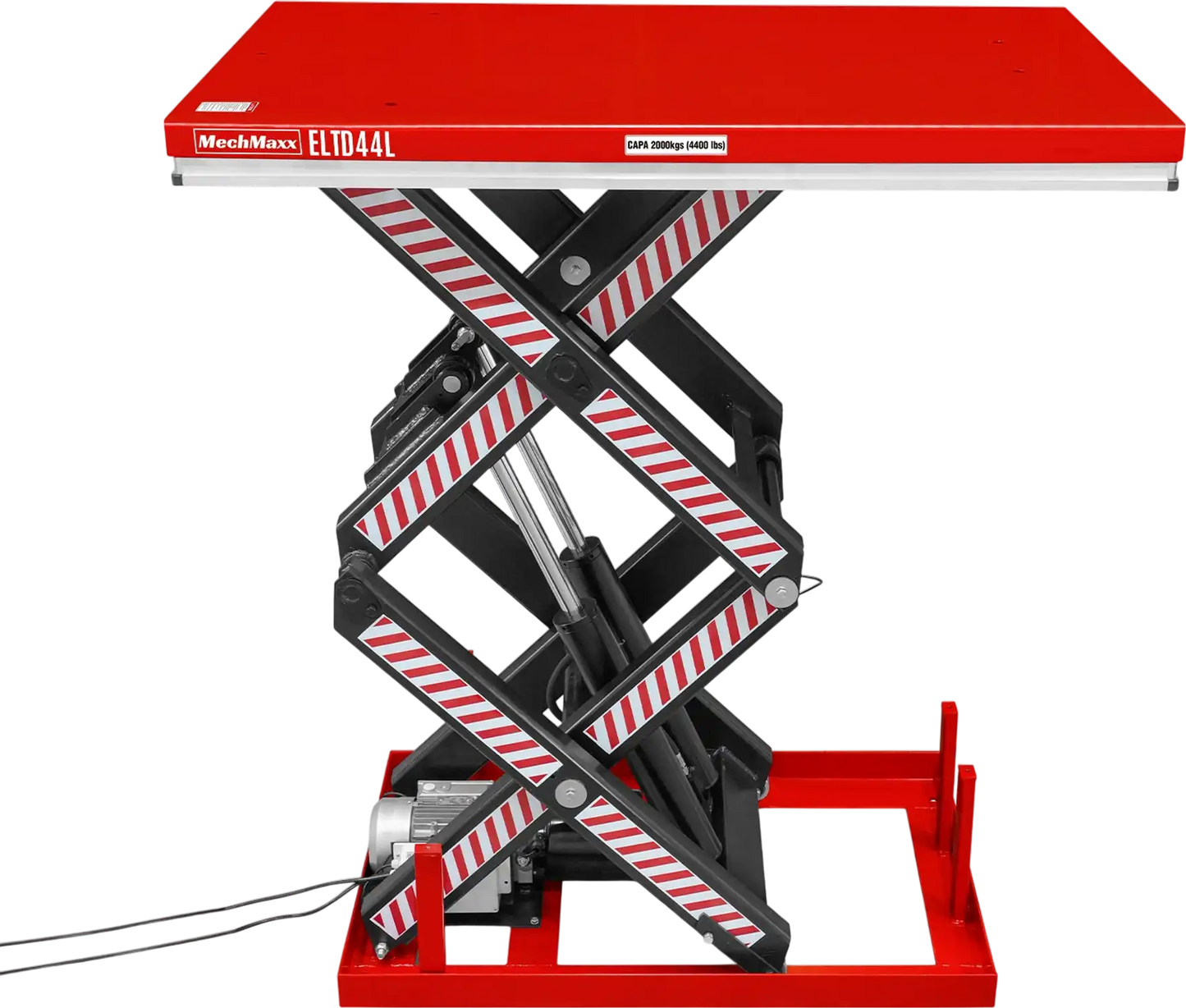

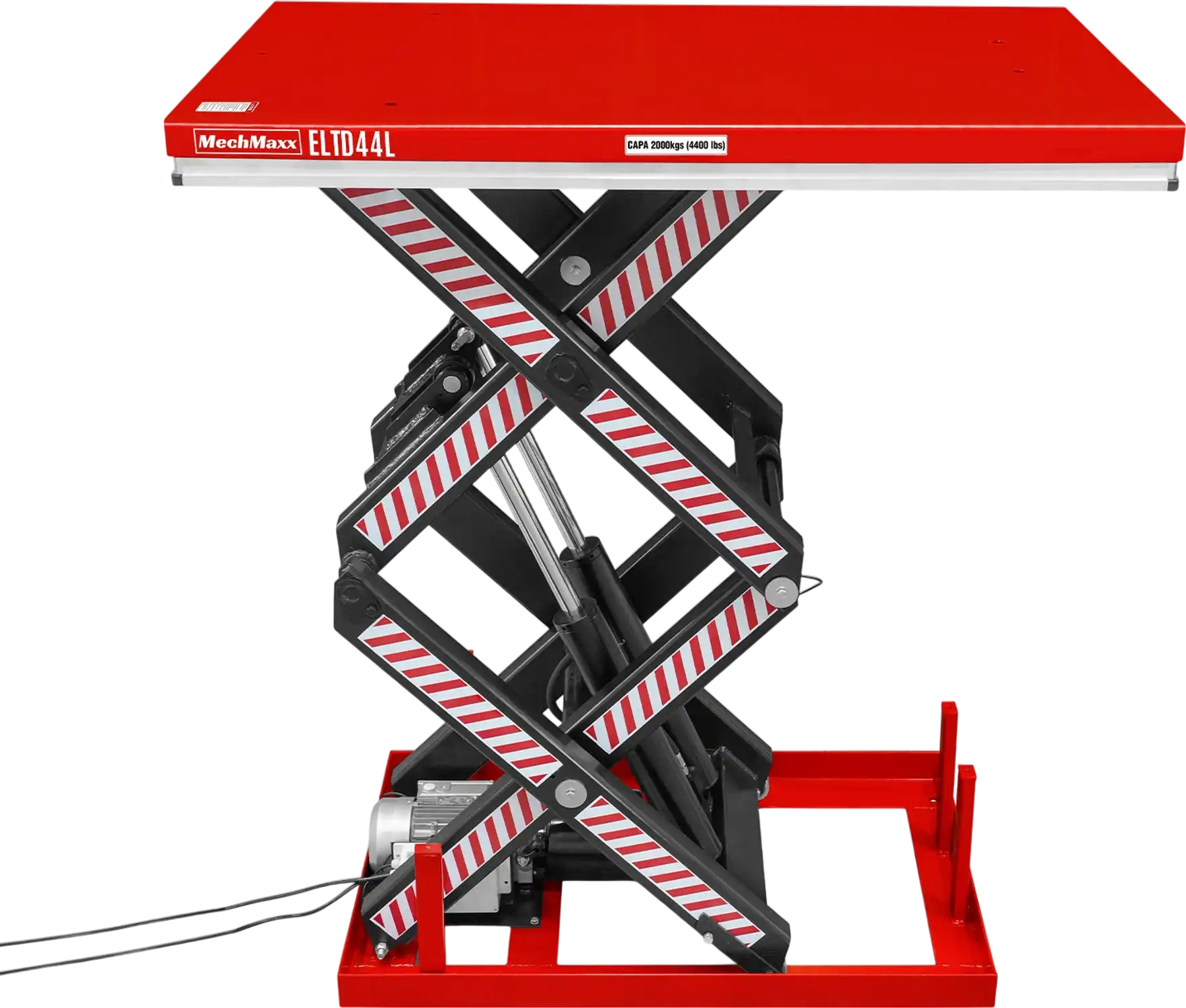

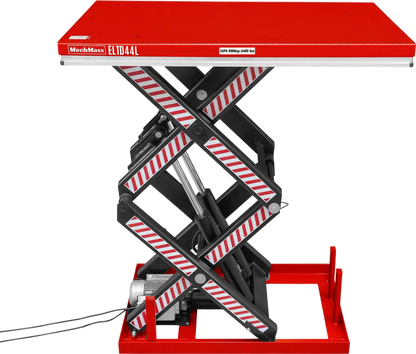

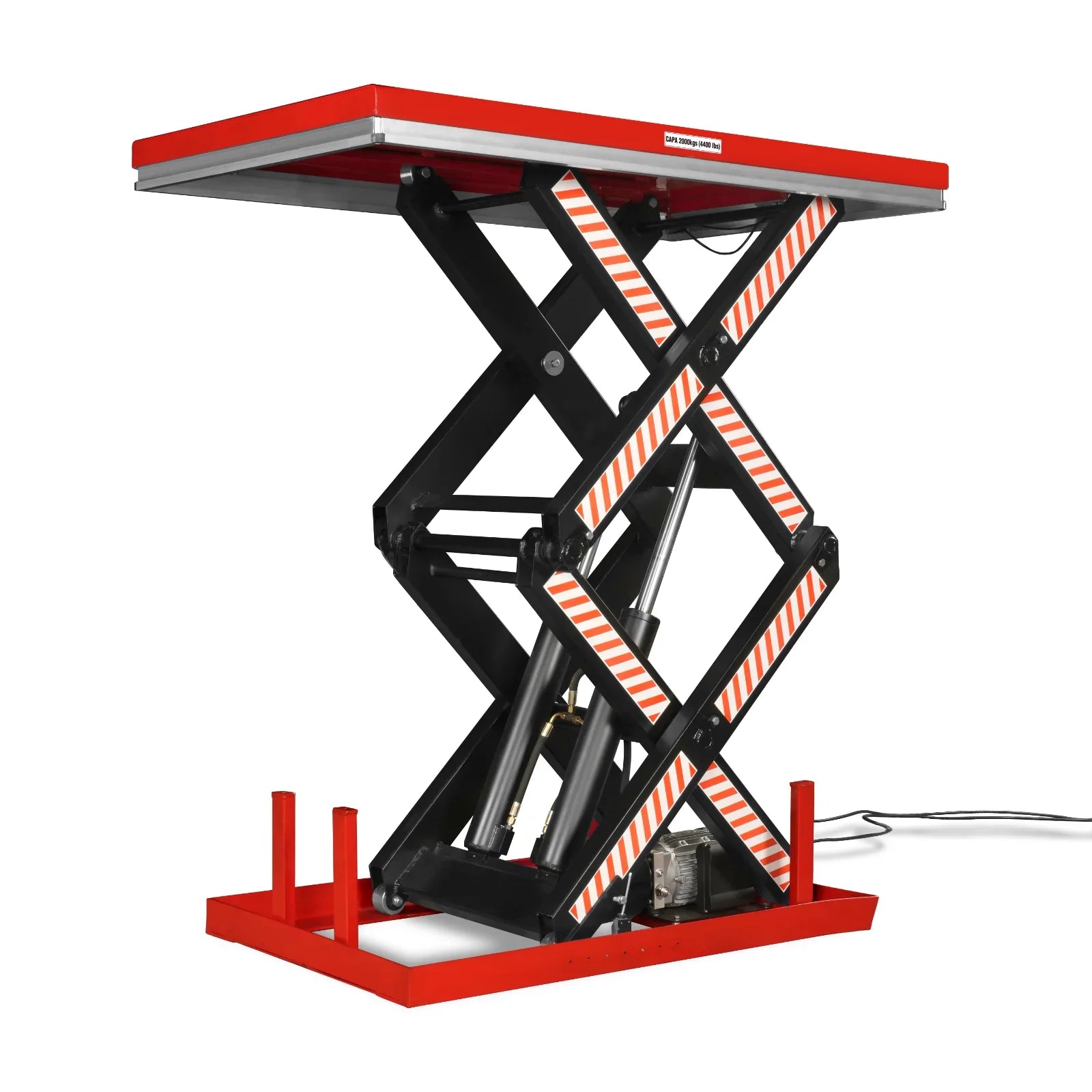

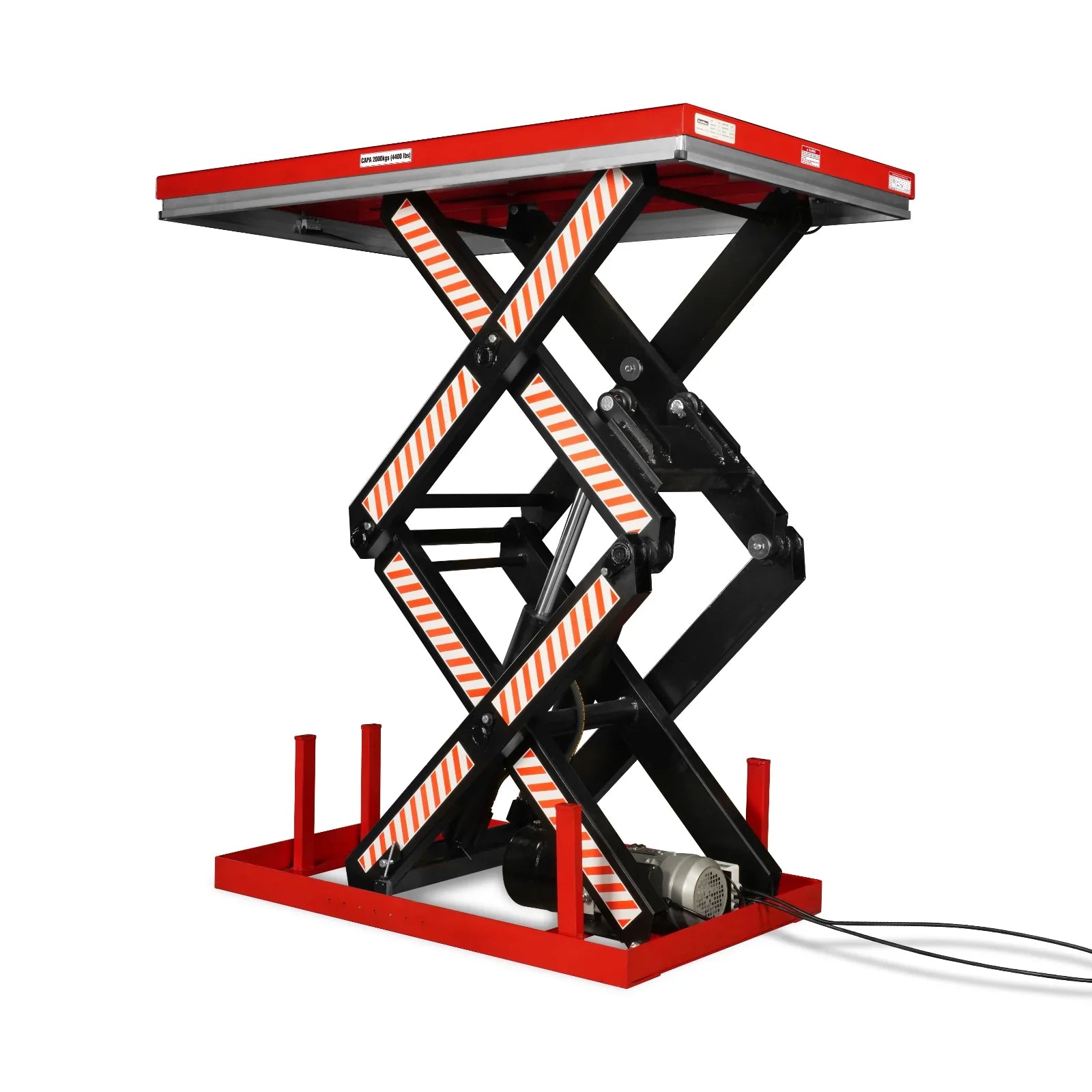

MechMaxx ELTD44L Lift Table 4400 lbs Capacity Stationary Electric Hydraulic Double Scissor 63" x 39.4" Platform 70.1" Lift Height UL Certified Motor New

MechMaxx

$3,299.00
$3,299.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

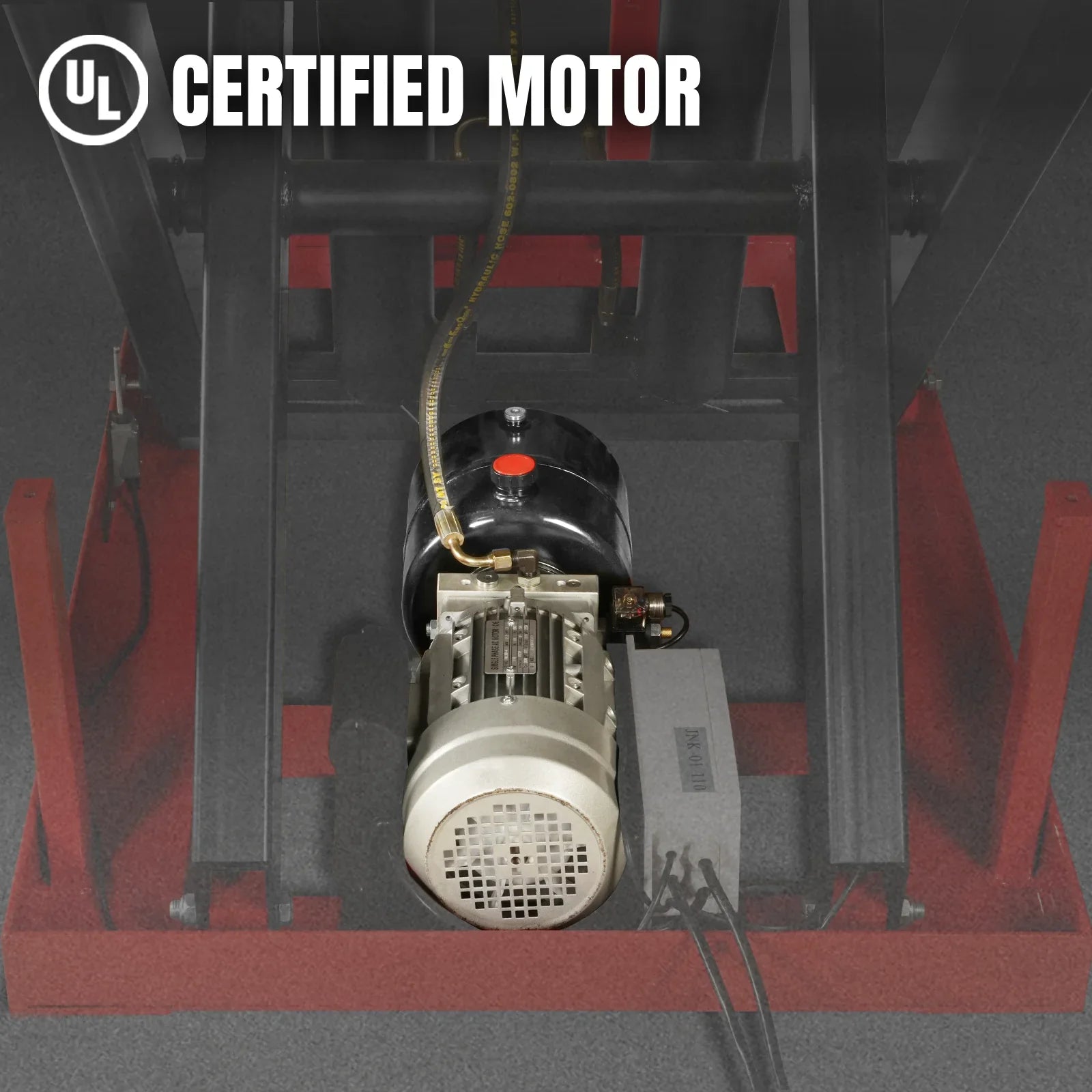

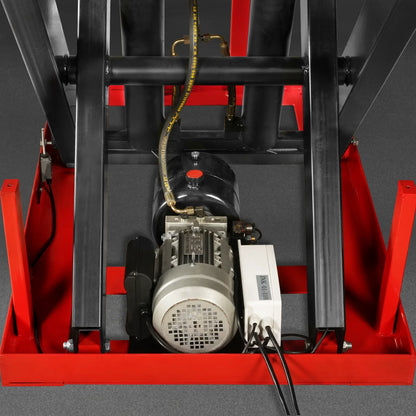

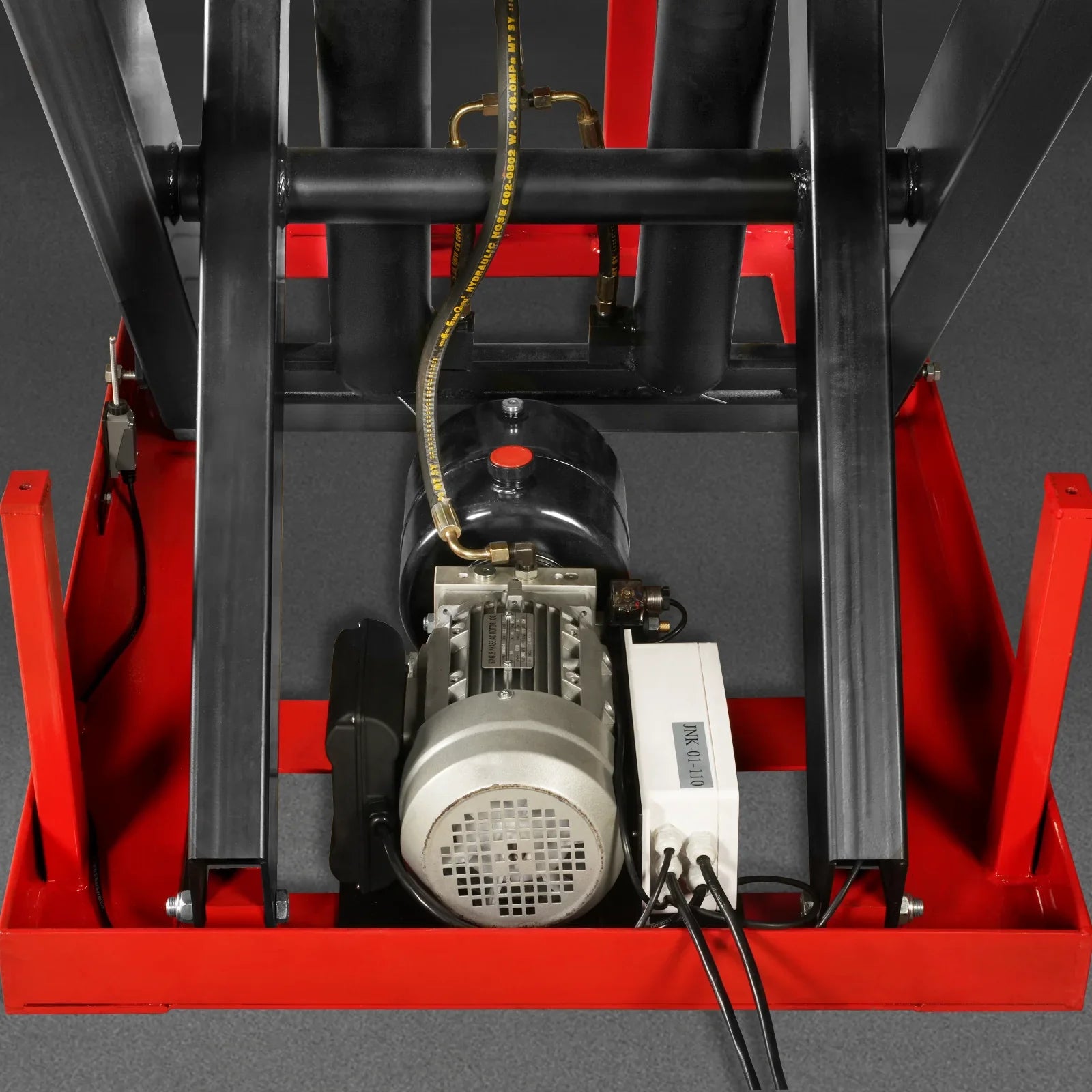

  • Equipped with a 3 HP 110V motor and a heavy duty hydraulic pump.

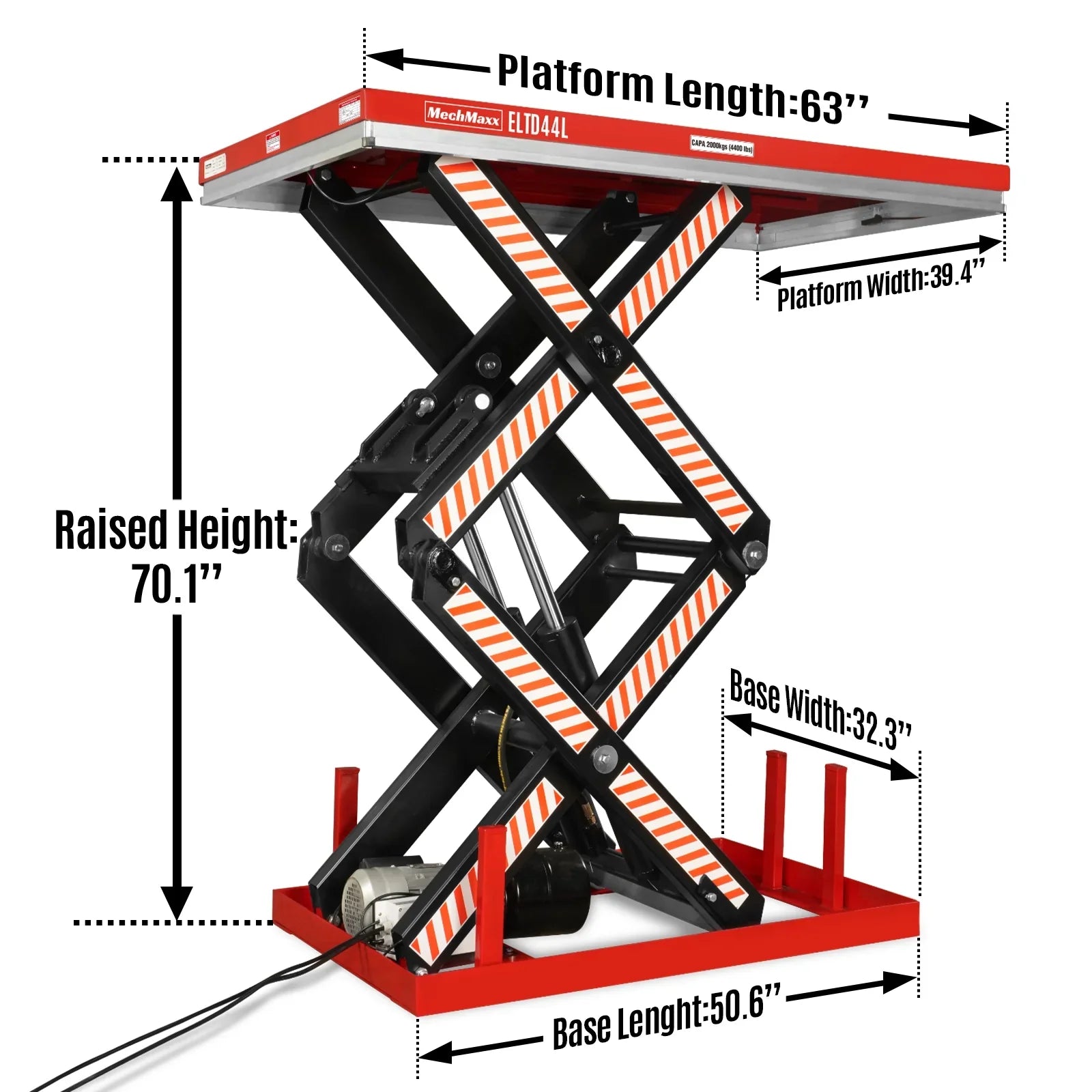

  • Weight Capacity: 4400LBS,Raised Height 70.1",Platform Size:63" x 39.4".
  • Ideal for locations such as warehouses, manufacturing plants and distribution centers.
  • By lifting heavy objects to the proper height, employees can easily, safely and efficiently move and store heavy loads for handling, assembly, manufacturing, inspection, and maintenance works.
  • With Safety guard,when the safety frame presses against obstractions, the hydraulic pump will automatically lock and the platform will stop descending.
  • The safety gap between the scissors can avoid pinching;.
  • The heavy-duty oil cylinder with return device and check valve prevents the table from falling when the oil pipe bursts.
  • The detachable lifting ring is convenient Countertop installation and acces.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

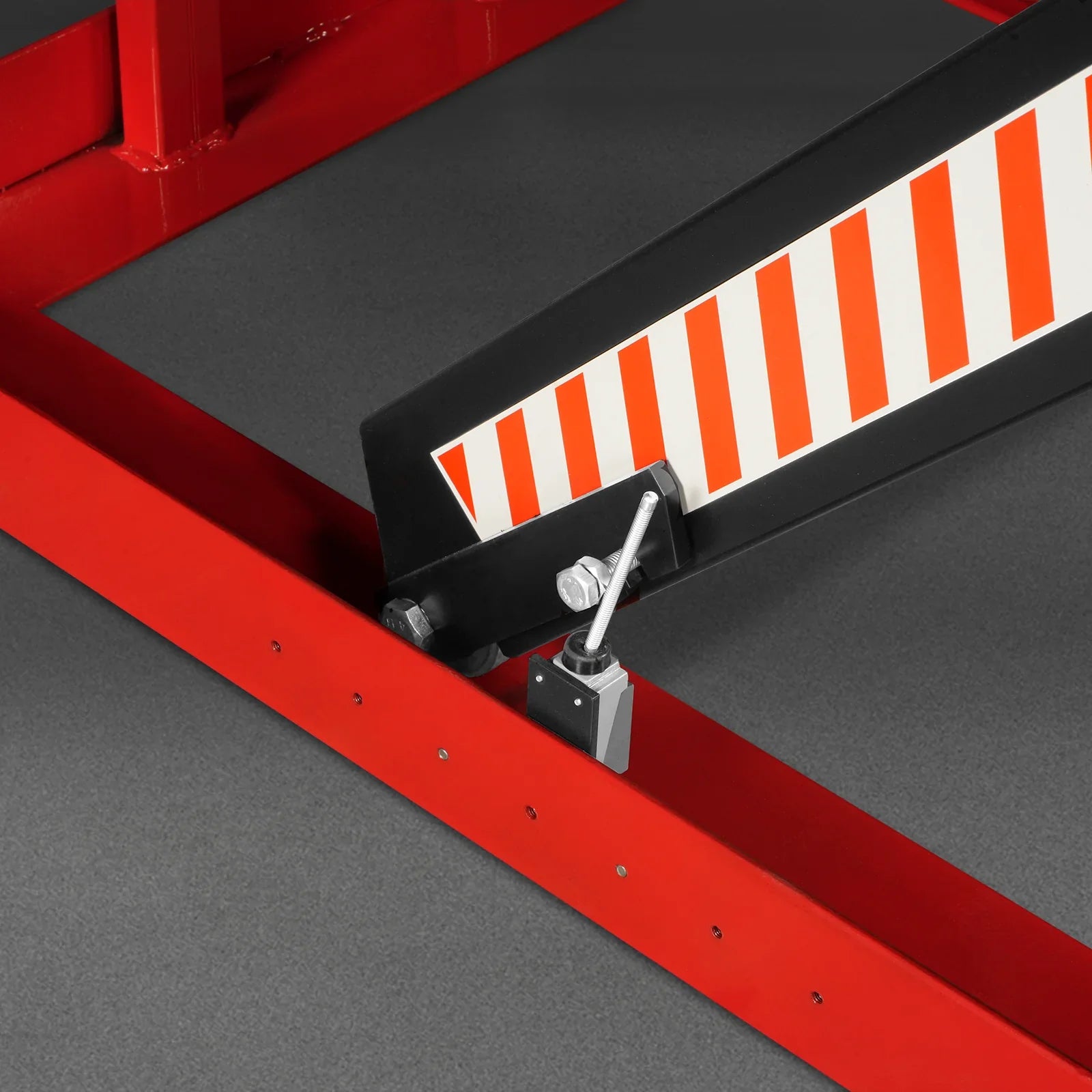

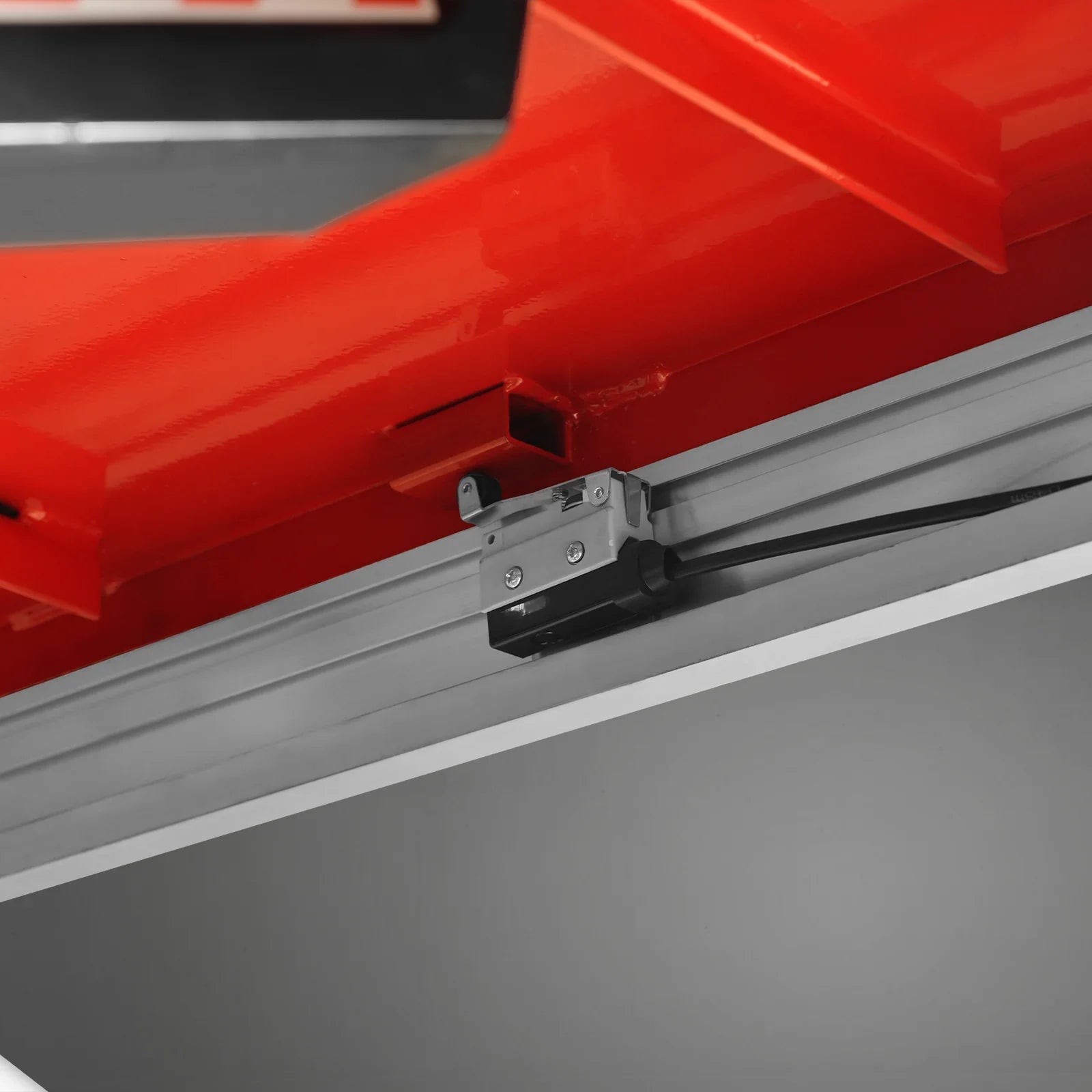

  • Safety Frame: When the safety frame presses against an obstruction, the hydraulic pump will automatically lock and the platform will stop descending.
  • Lifting Eye Bolts: The detachable lifting ring is convenient countertop installation and access.

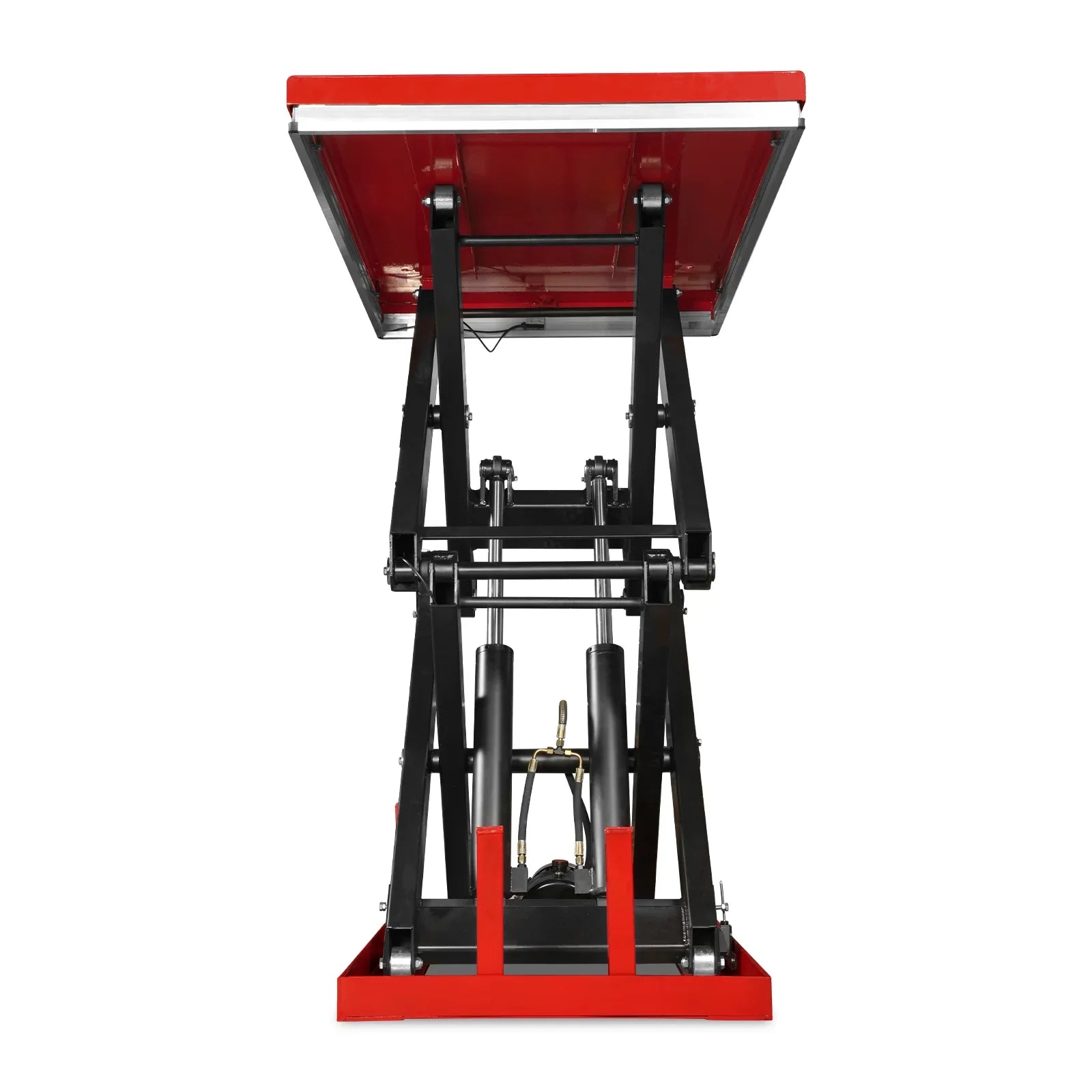

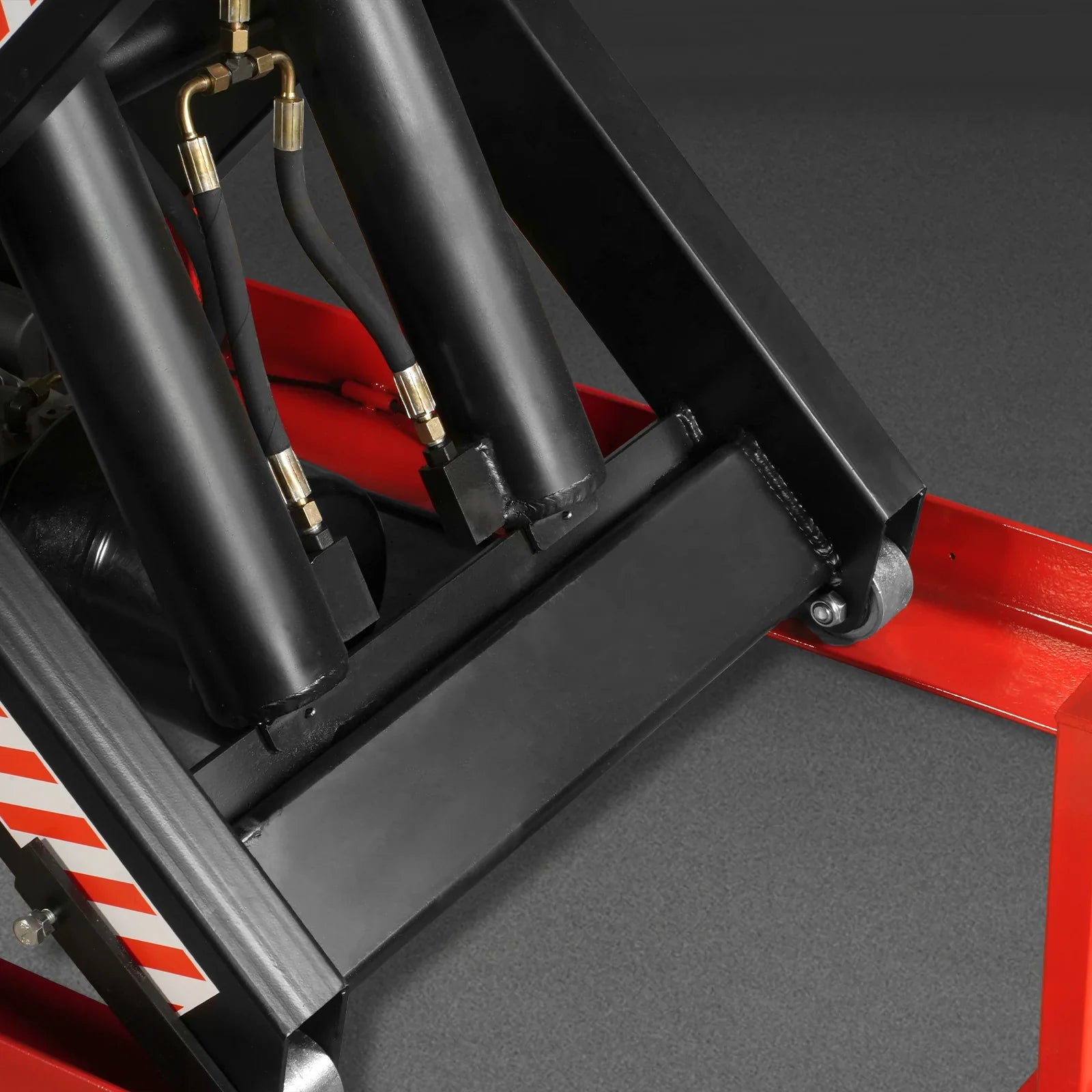

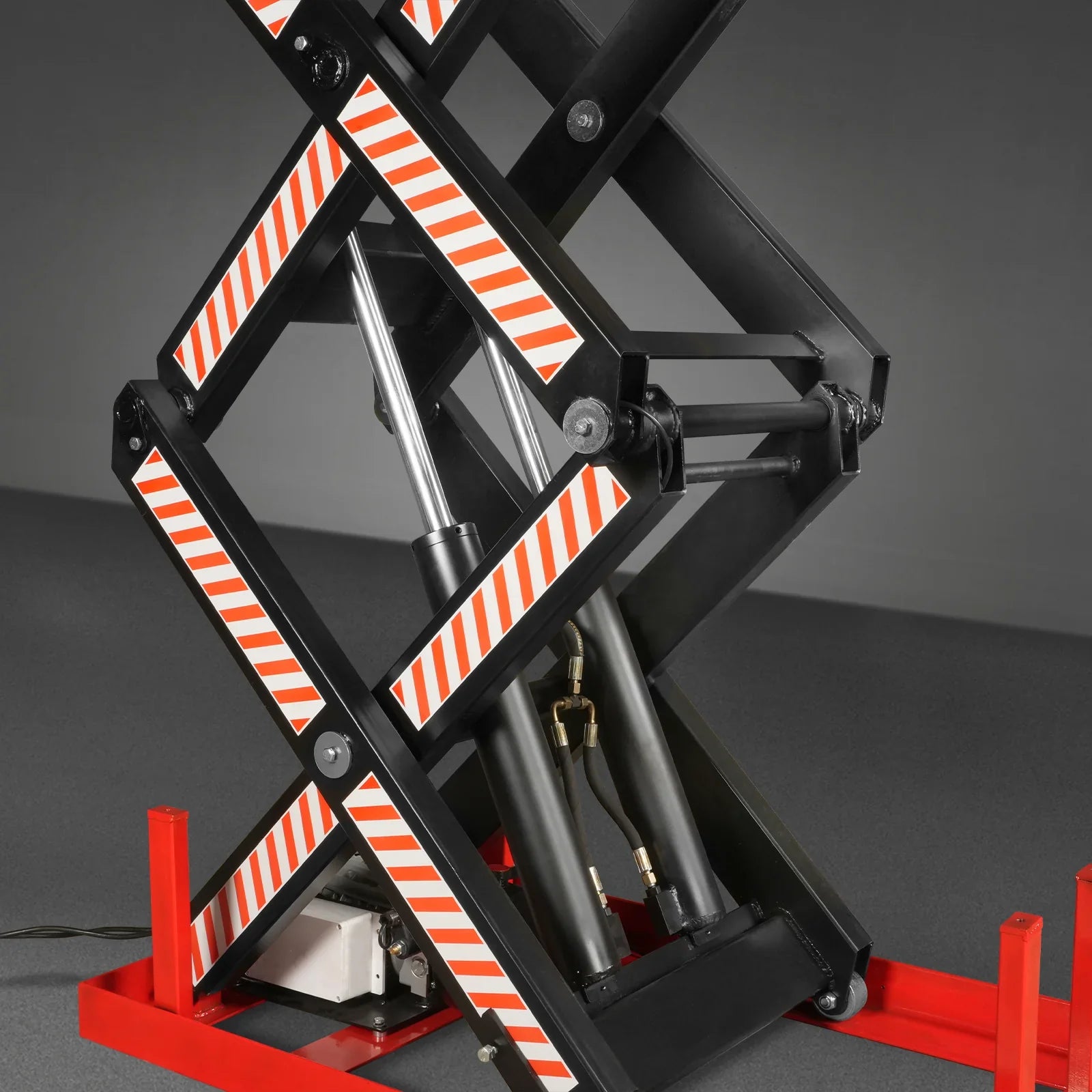

  • Double Heavy-duty Oil Cylinder: The support is stable,return device and check valve prevents the table from falling when the oil pipe bursts.

Model: ELTD44L

Voltage: 110V 60HZ 1PH

Weight Capacity: 4400LBS

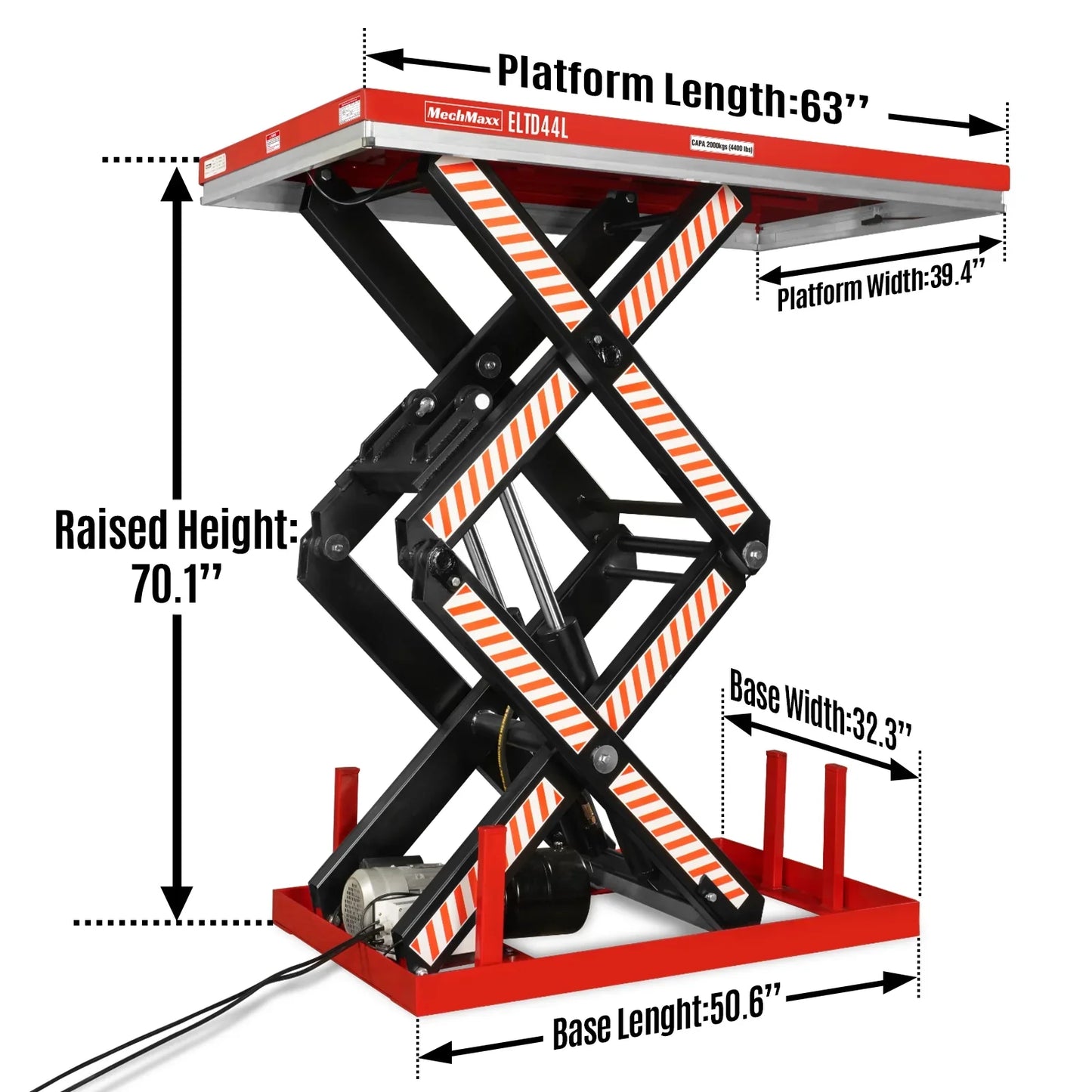

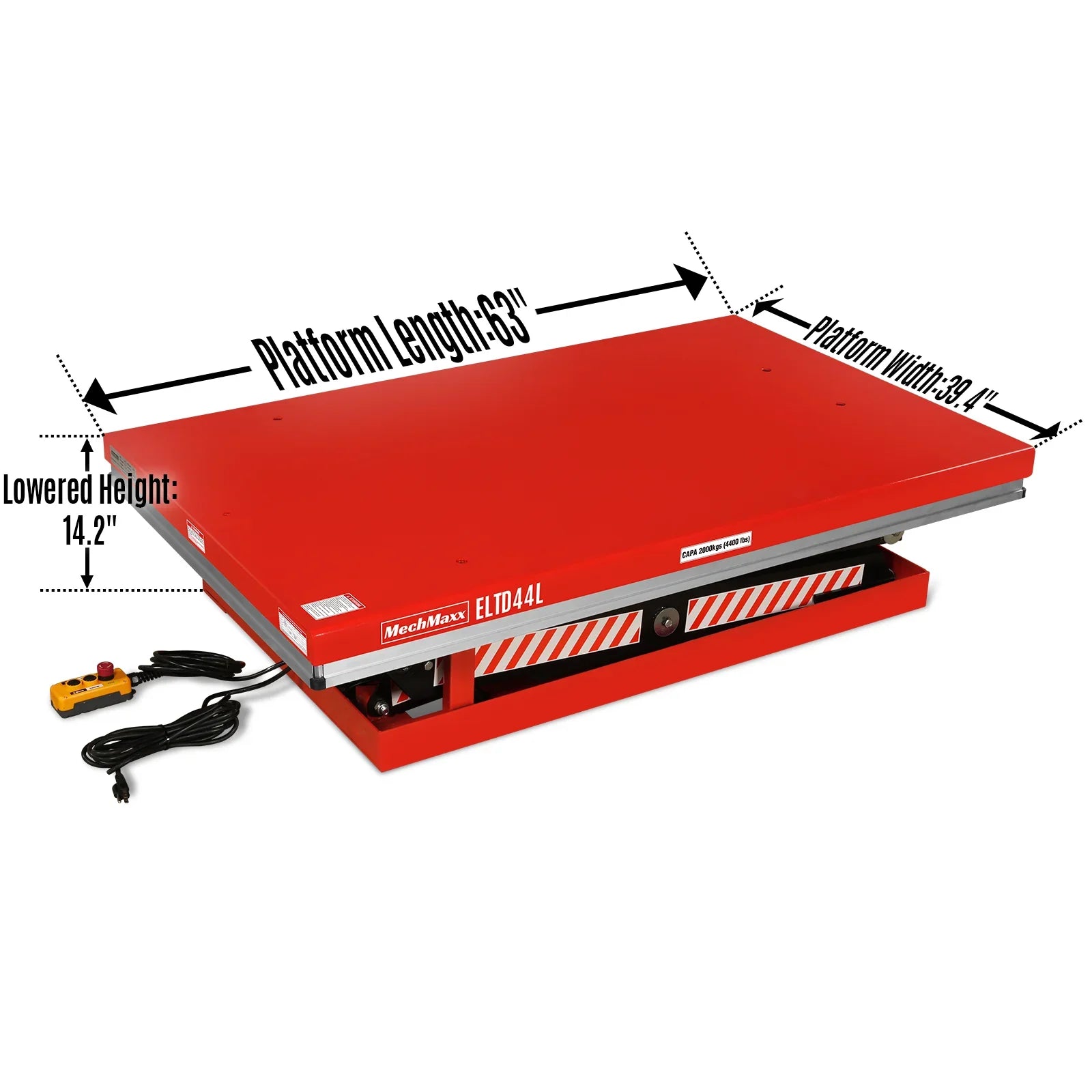

Platform Size: 63" x 39.4"

Raised Height: 70.1"

Lowered Height: 14.2"

Base Size: 50.6"x32.3"

Motor Horsepower: 3HP /2.2KW

Power Type: Electric-Hydraulic

Scissor Type: Double Scissor Lift

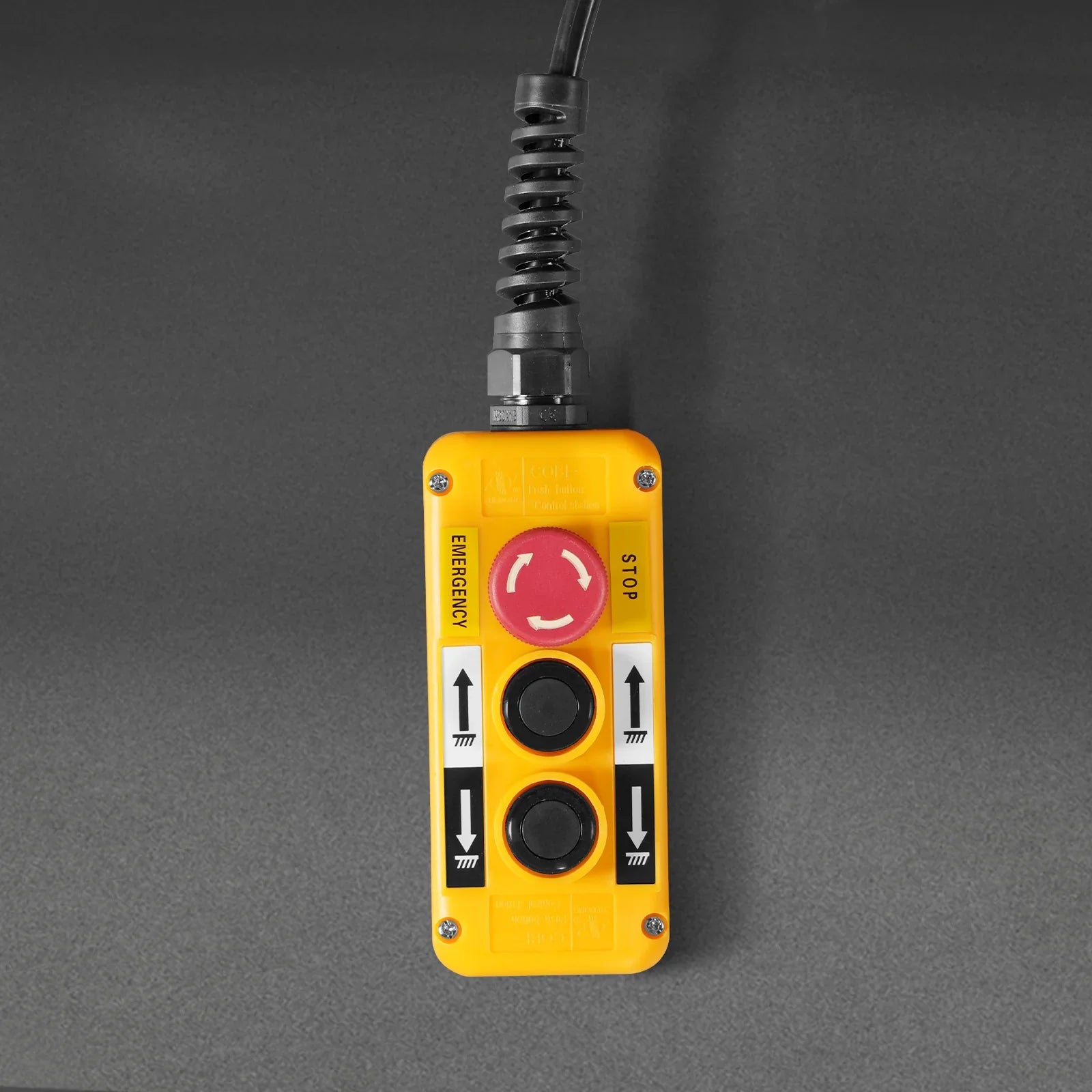

Lift Control: Hand Operated

Material: Steel

Assembly Required: No

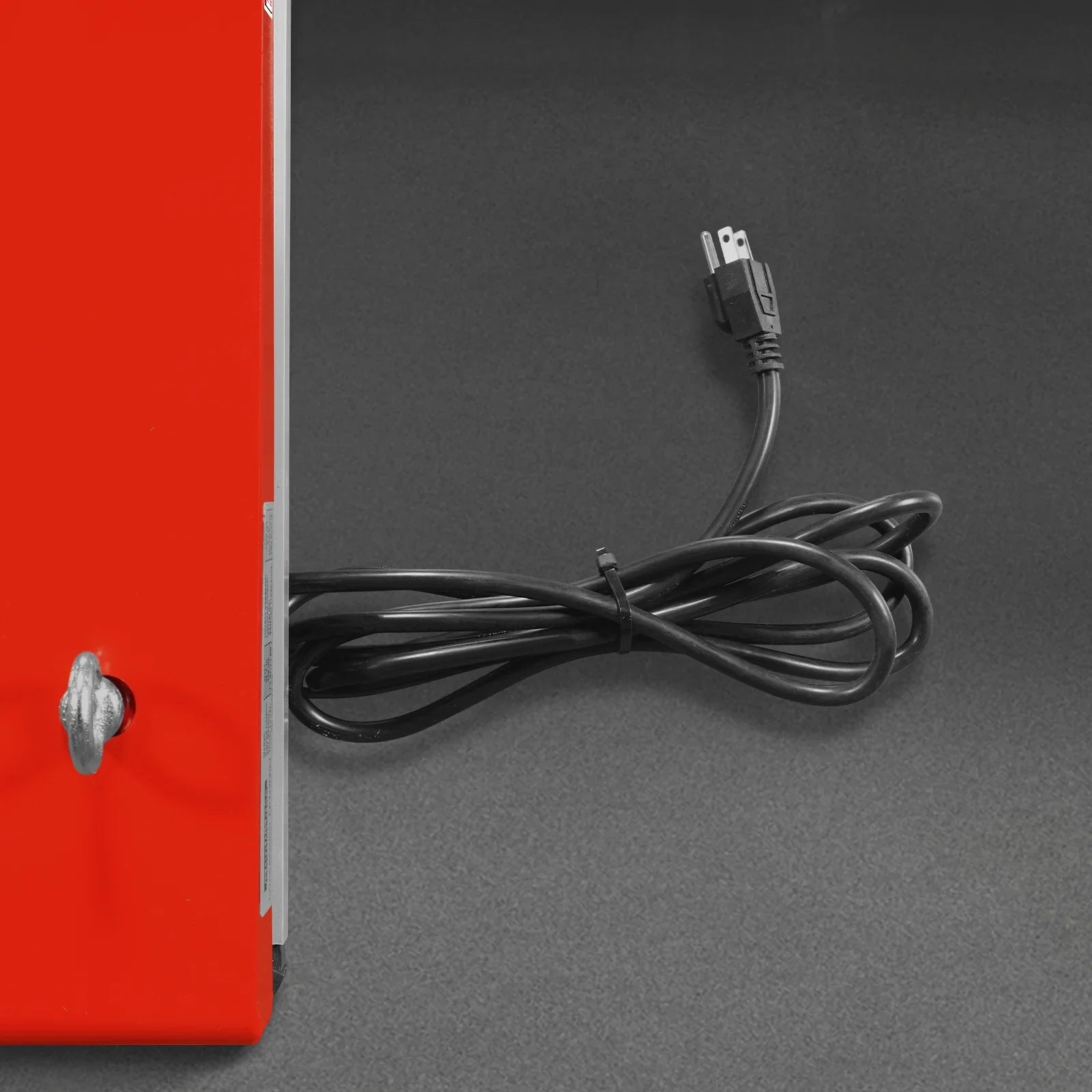

Wire Length: 16FT

Packing Size: :64" x 40" x 19"

N.W.:/ G.W.: :722/948 LBS

This item comes with a 1 year factory warranty.
PDF ELTD44L Product manual 1.0
