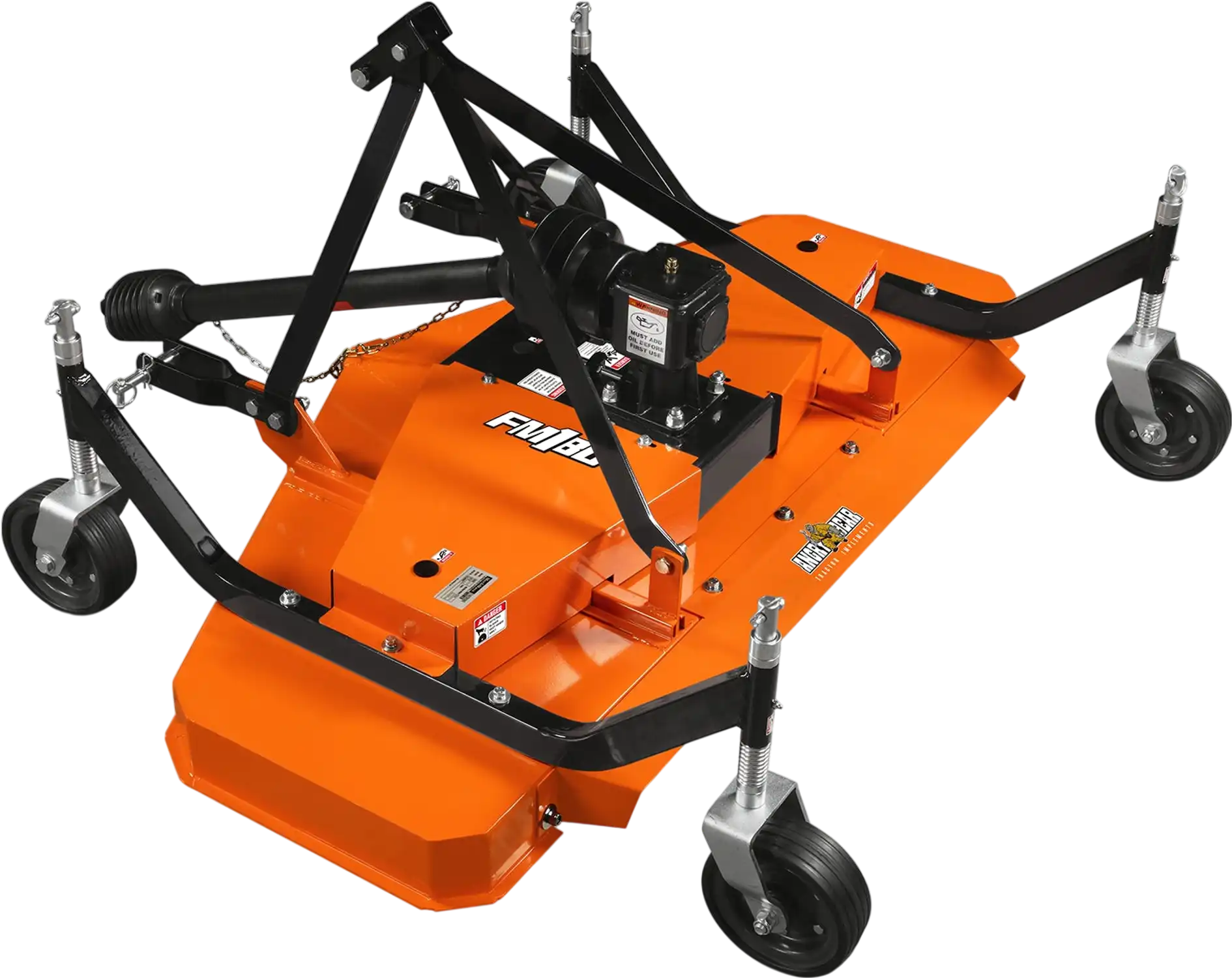

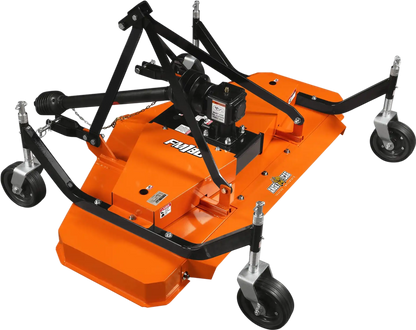

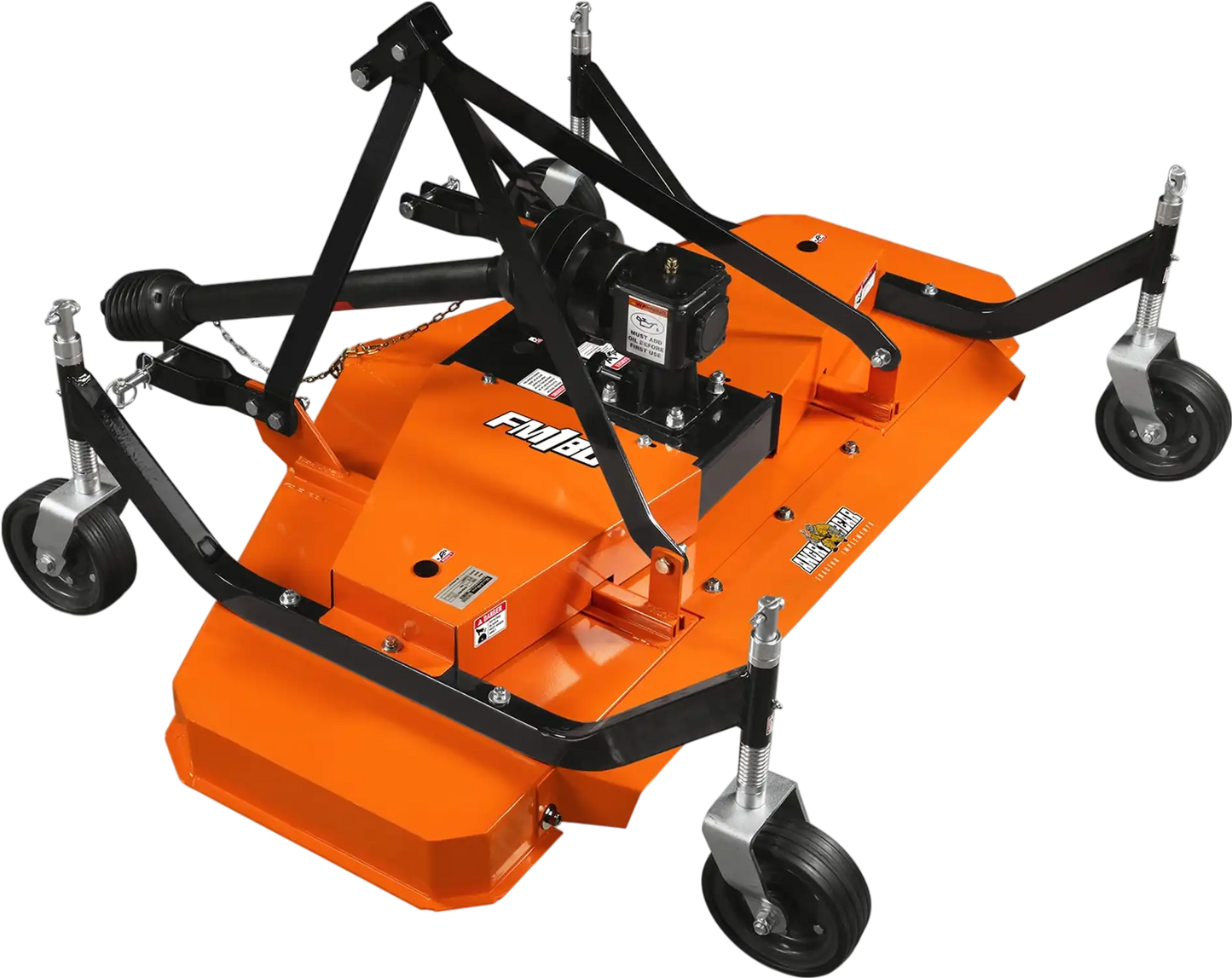

MechMaxx FM180 Flail Mower 72" Working Width Finishing Mower for Tractor 18-50 HP 3 Point New

MechMaxx

$1,799.00
$1,799.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

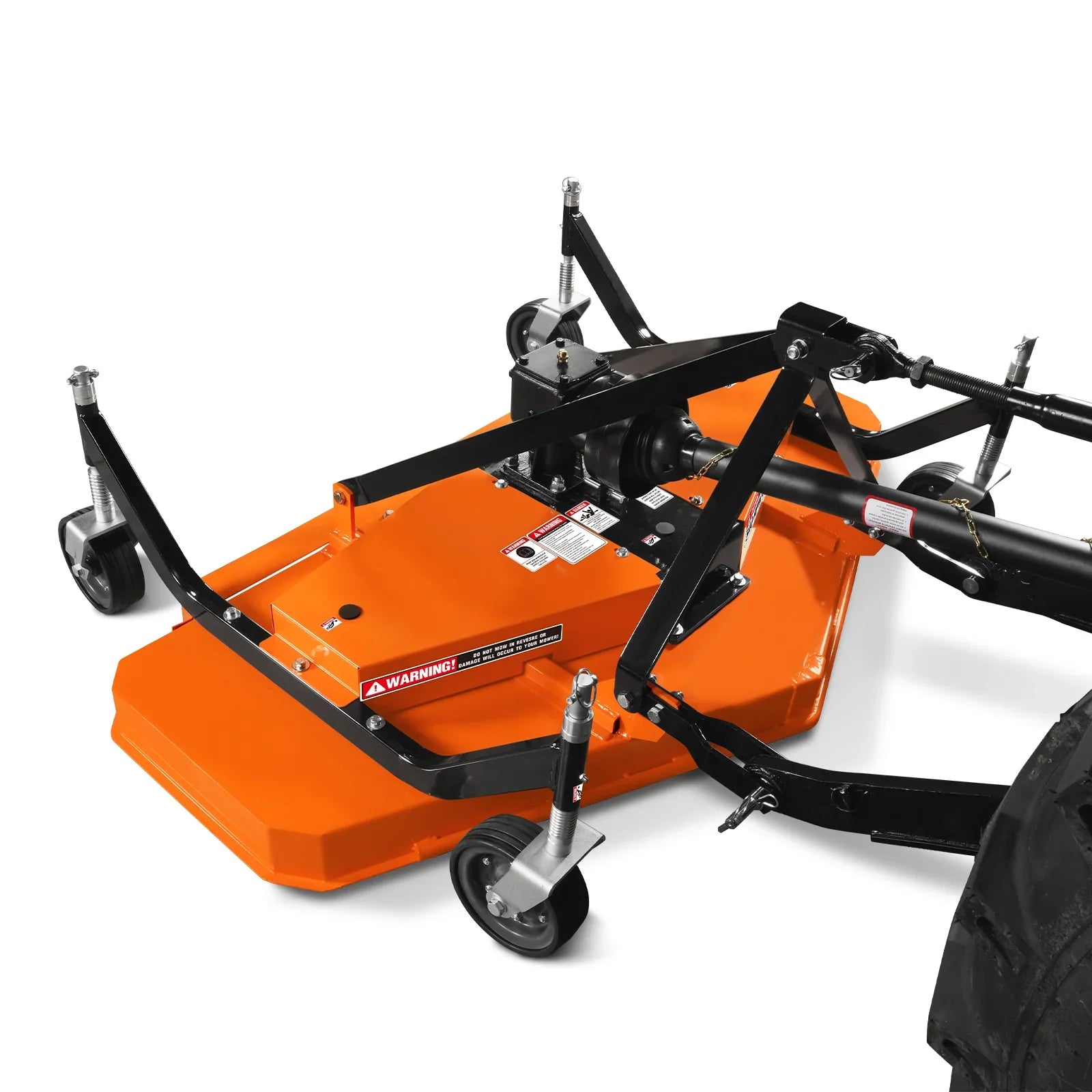

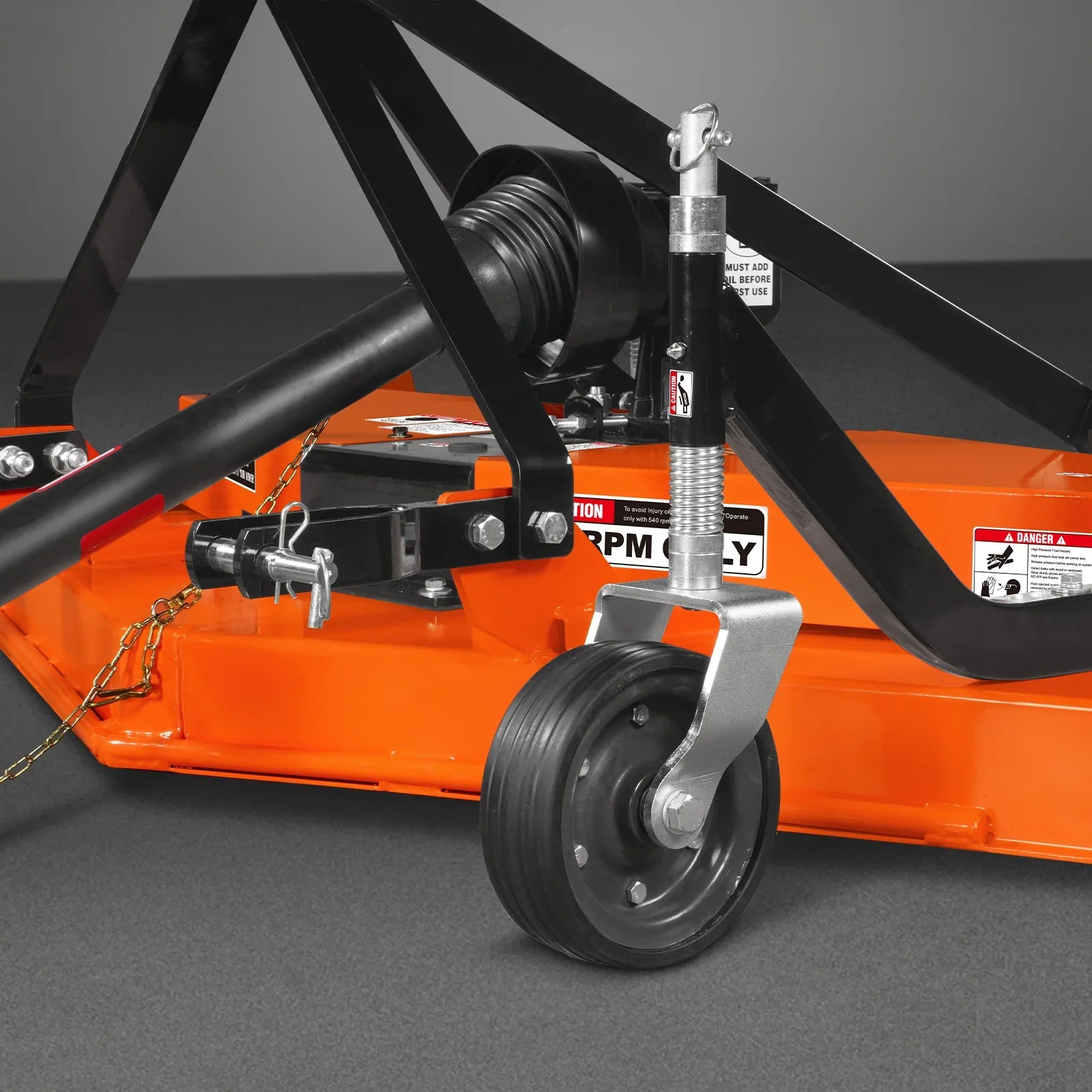

A floating hitch keeps your wheels on the ground and your blades contoured to even the most irregular terrain while adjustable wheel brackets allow you to set the cut height from 0.4" - 4." for a polished cut every time.

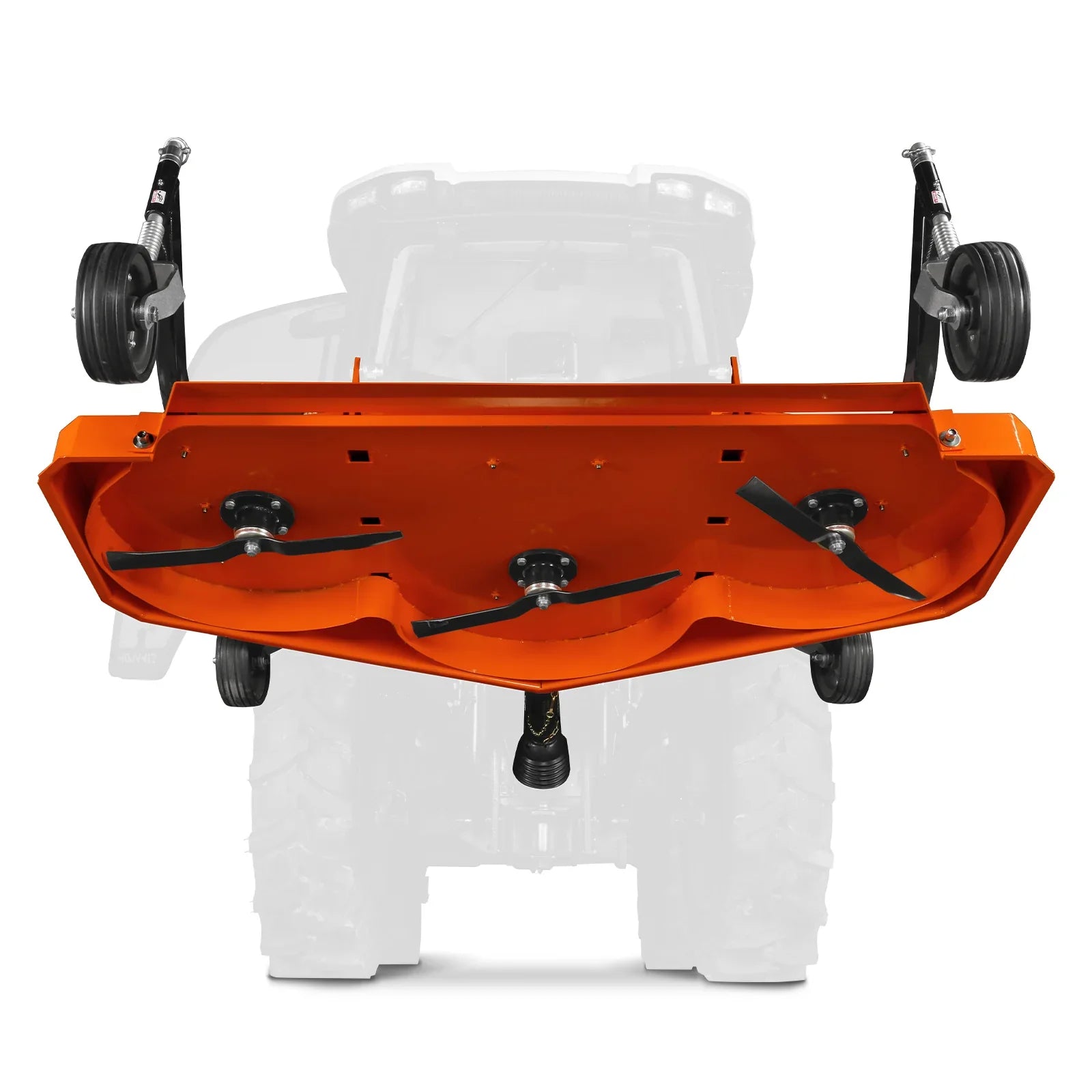

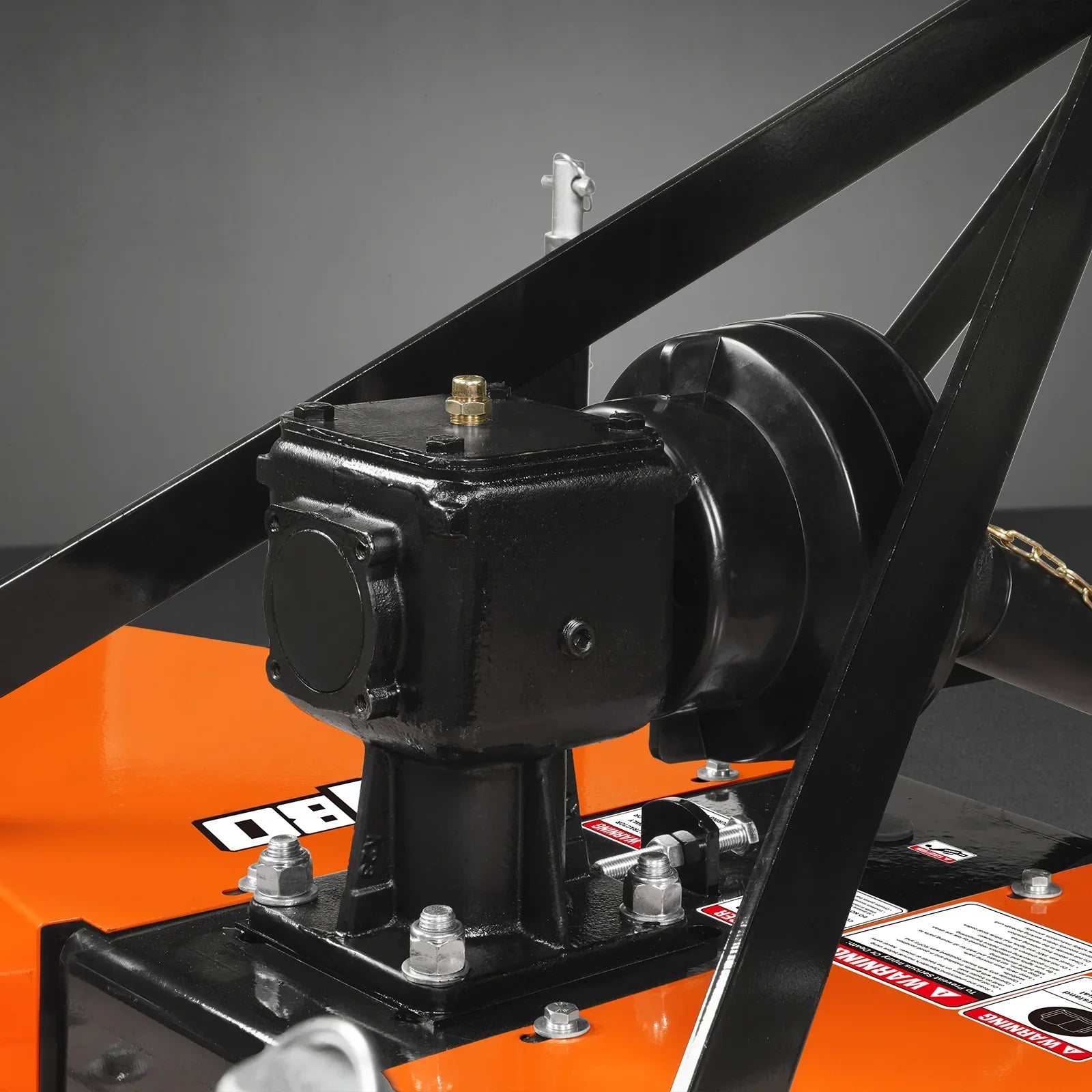

This unit comes equipped with three heat-treated blades and features a wide rear discharge to eliminate grass buildup in uncut areas. This attachment is constructed with high grade steel and a low-noise cast iron gear box for a long service life.

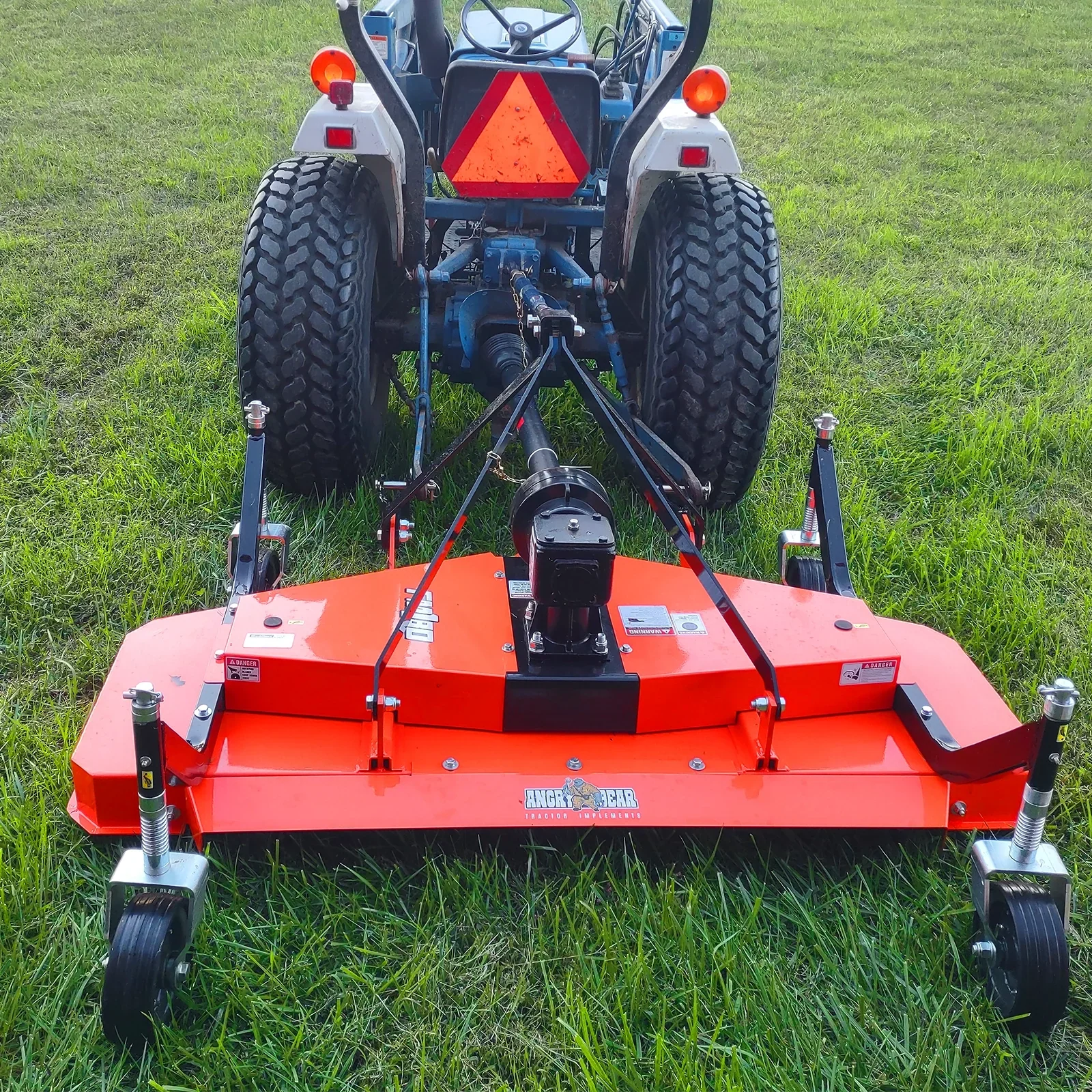

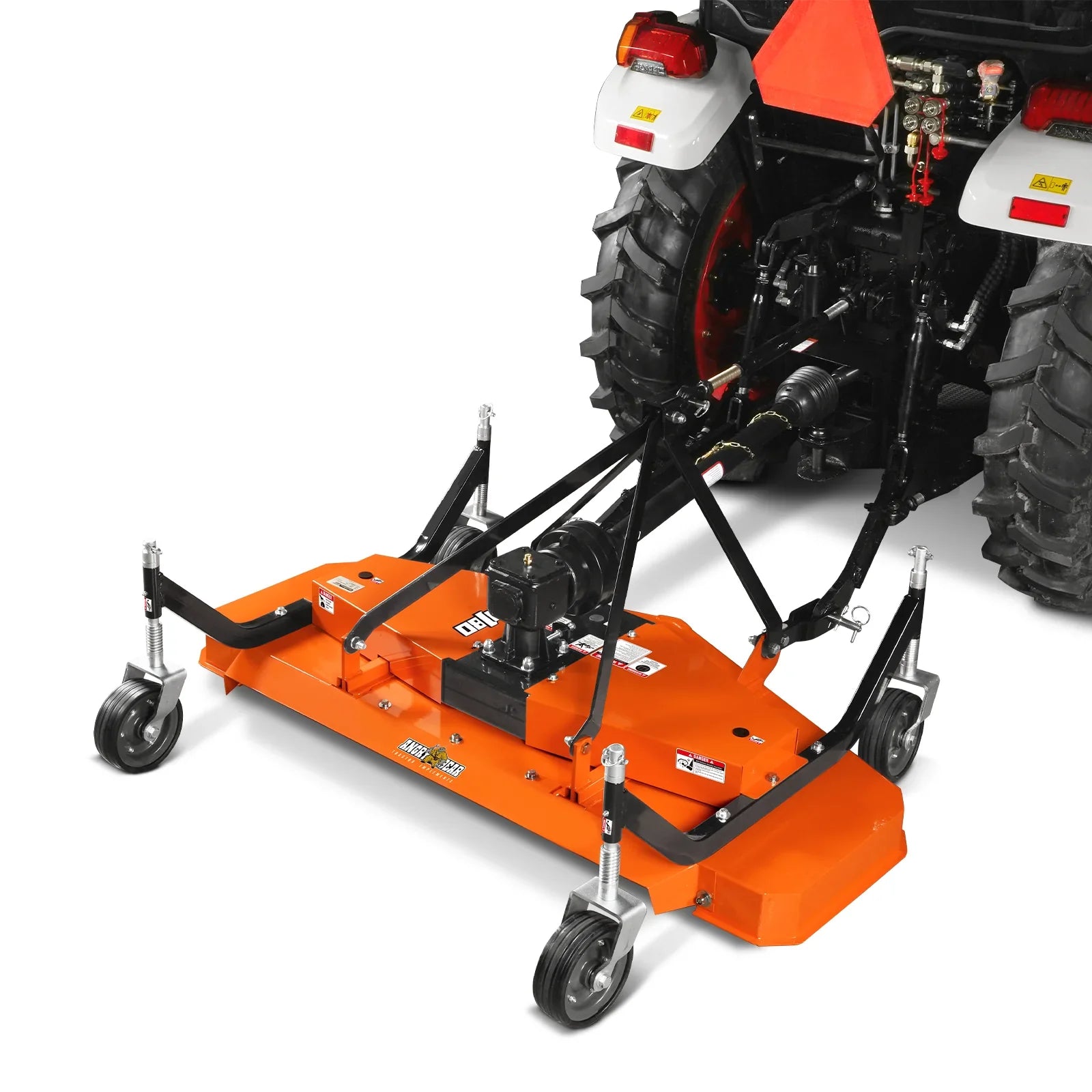

Compatible with Cat 1 tractors and loaders with a 3 Point hitch, this implement is powered by your machine’s PTO. For best results, we recommend using your attachment with a tractor or loader with 18 – 50 HP.

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Max Cutting Diameter: This FM mower has its 72’’ working width and max cutting diameter of grass is 0.75in.

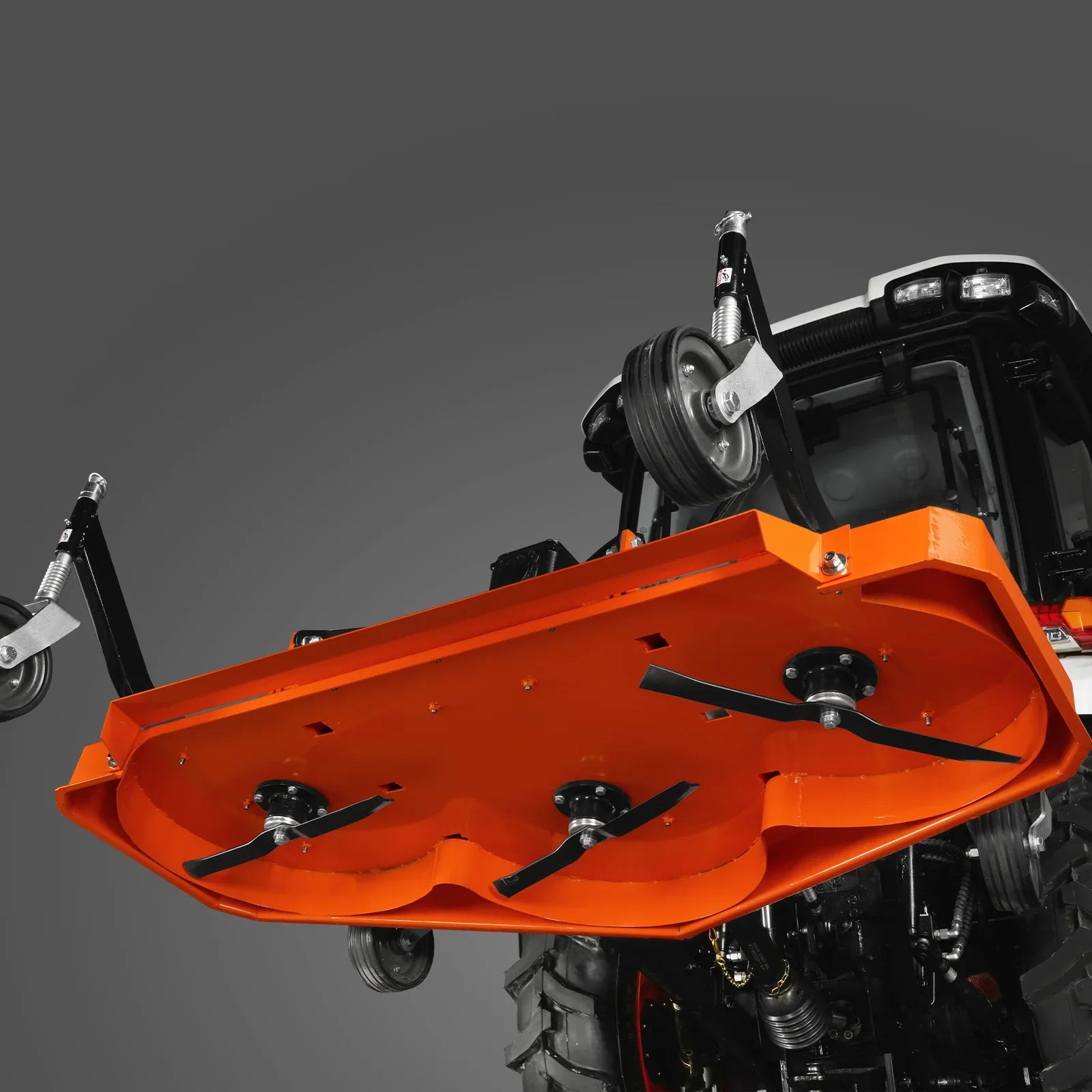

  • Blades: 3 number of 60Si2Mn blades through tough matted grass, weeds and other overgrown vegetation with ease.

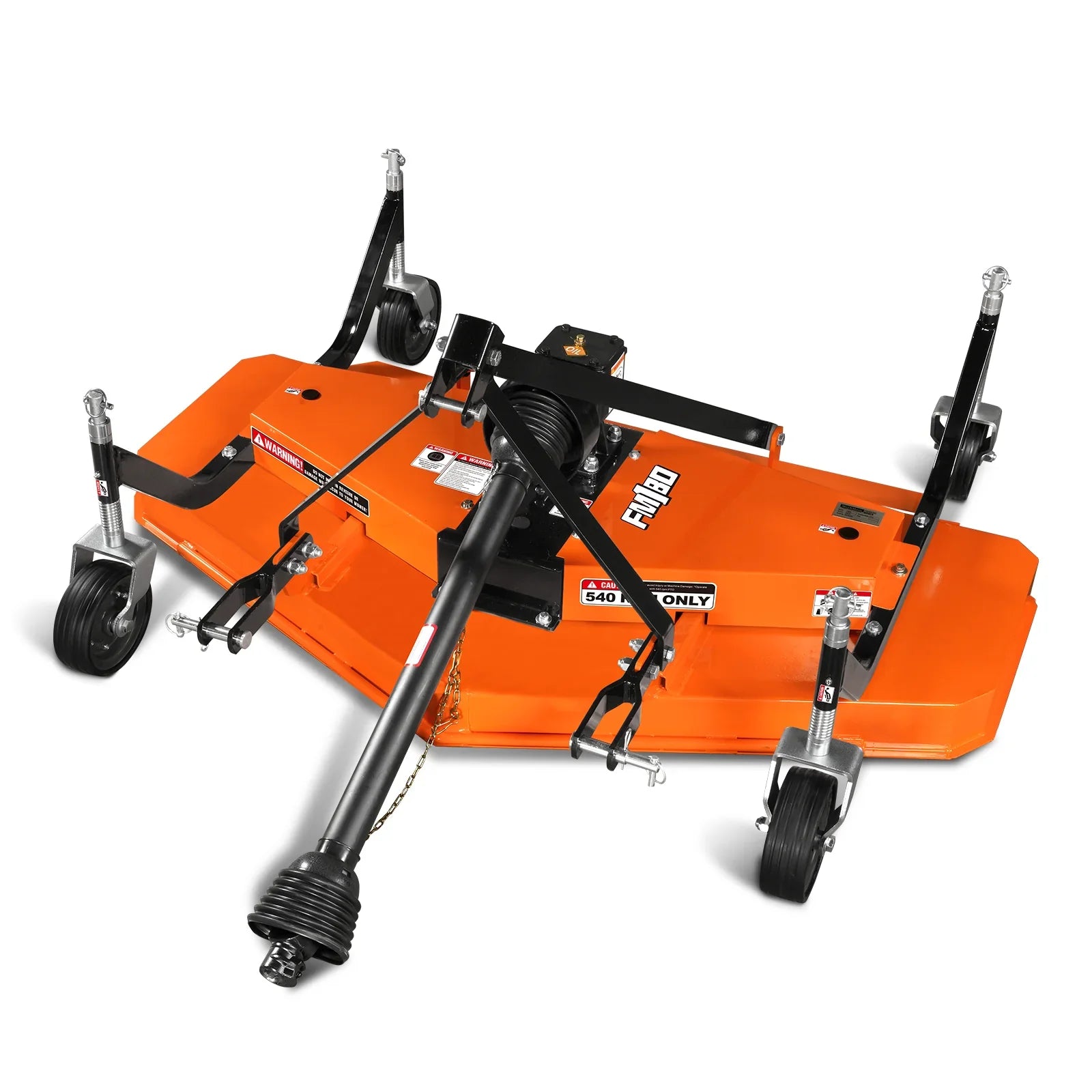

  • PTO shaft(1- 3/8’’Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T5-LF-47’’with shear bolt ; 47''-57’’
  • PTO Required: Extremely sturdy finishing mower engineered to provide optimal performance when used with tractors with PTO power of 18-50HP.
  • Tires: Supported by four solid tires for tough work no matter where you are and easy rolling storage into your barn, shed or garage.
  • 3 Point hitch Cat. 1: 3-point Category 1 floating hitch hookup and included PTO drive line shaft draw power directly from your tractor and are easy to attach.

Engine Power Required: 18-50HP

PTO Shaft RPM: 540 RPM

Working Width: 72in

Driveline Shaft Length: T5-LF-47 With Shear Bolt ；47 - 57in

Blade Thickness: 0.24in

Spline End: 1.375in z6

Deck Thickness: 0.16in

3-Point Hitch: CAT 1

Blade Ground Clearance: 0.4in-4in

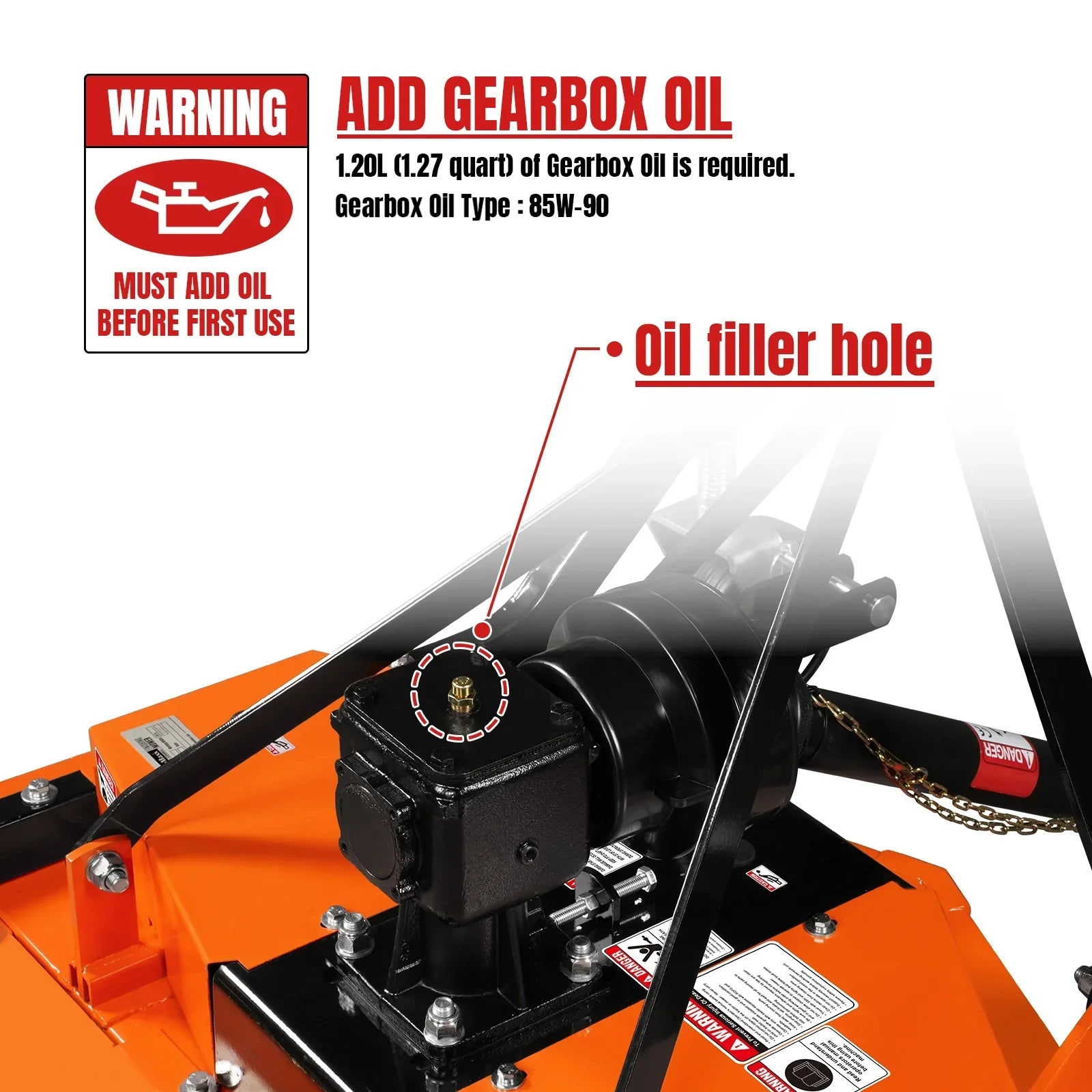

Gearbox Oil Type: 85W-90

Max. Cutting Diameter: Depends On The Type Of Grass

Dimensions (L x W x H): 75x 48 x 33in

Number Of Blades: 3

Finish: Powder Coat Paint Galvanized Steel

Drive Type: Belt drive

Number Of Belts: 2

Weight (N.W./G.W.): 437/538lbs

Top Link Type: Flotation Style

This item comes with a 1 year factory warranty.
PDF FM Mower Product manual 1.0
