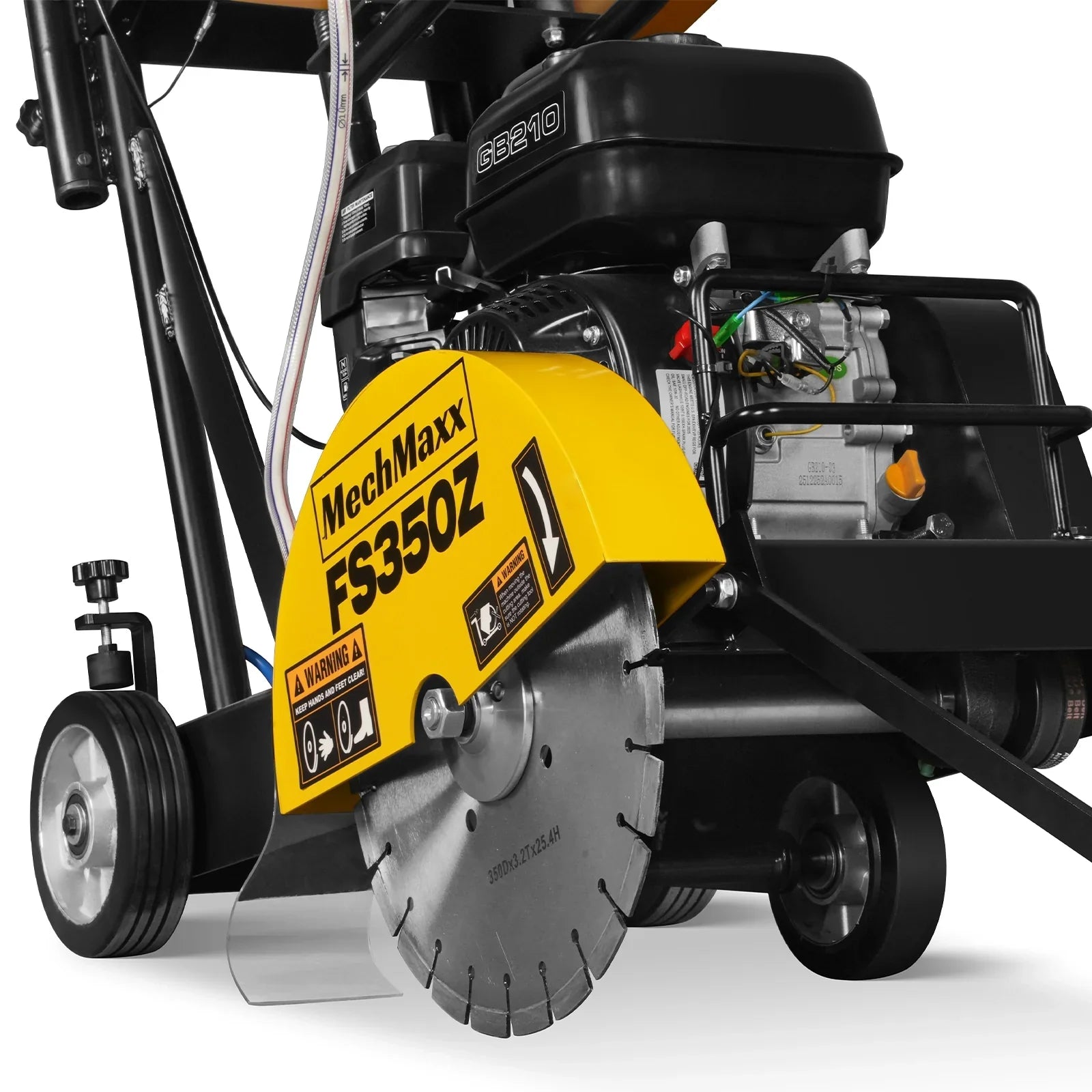

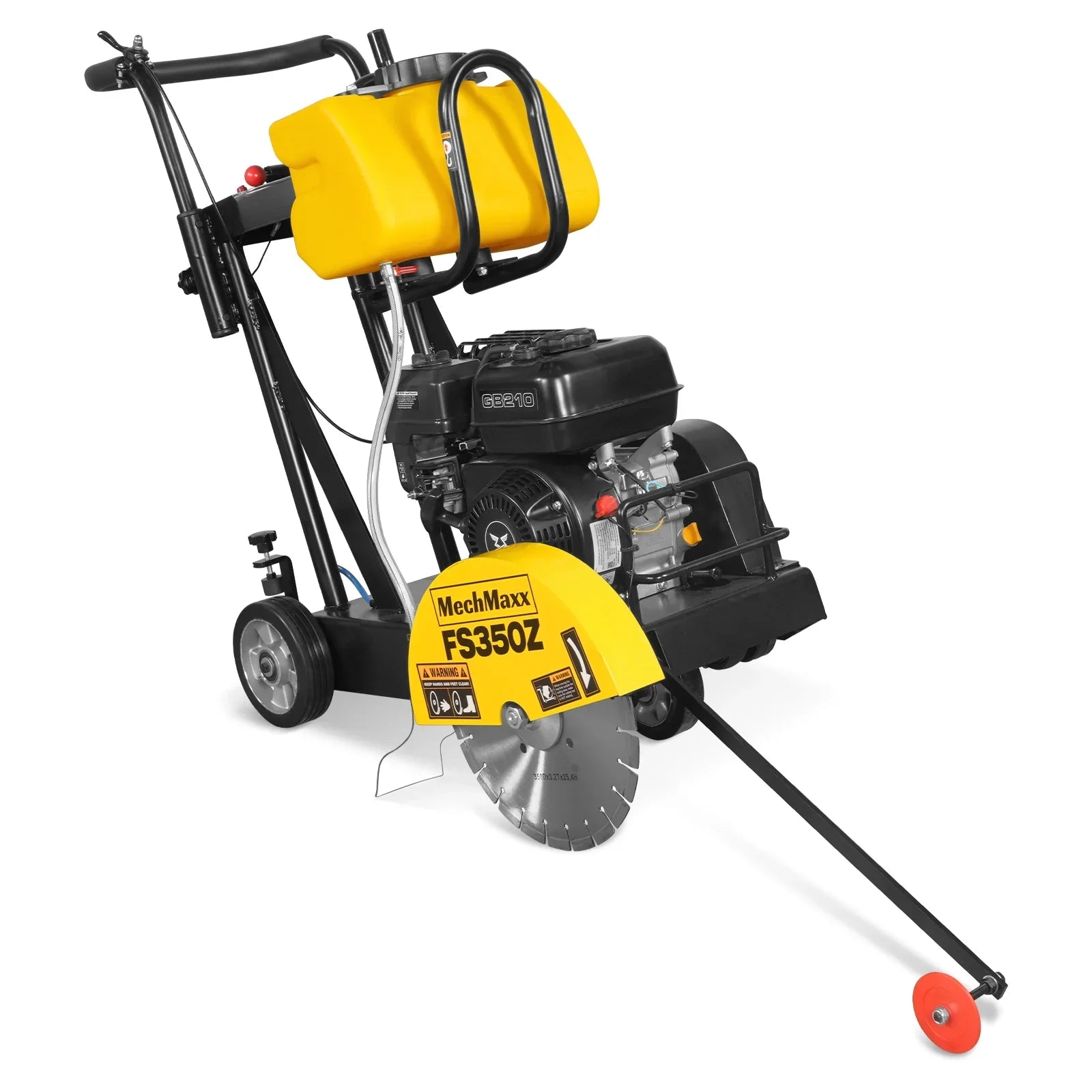

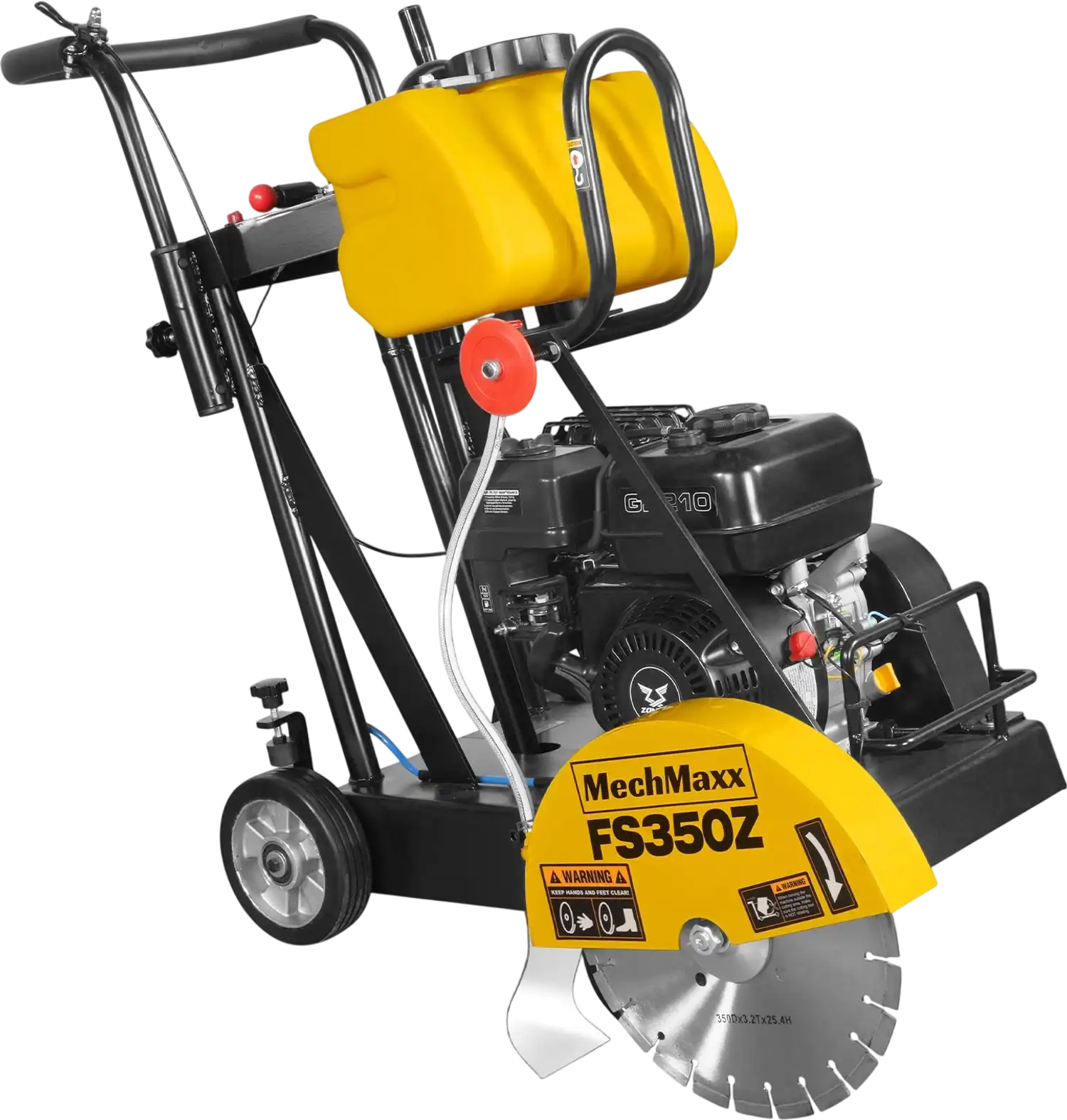

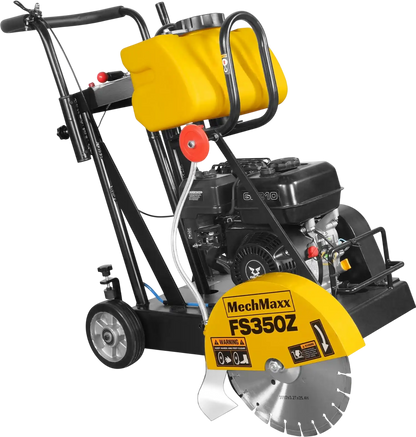

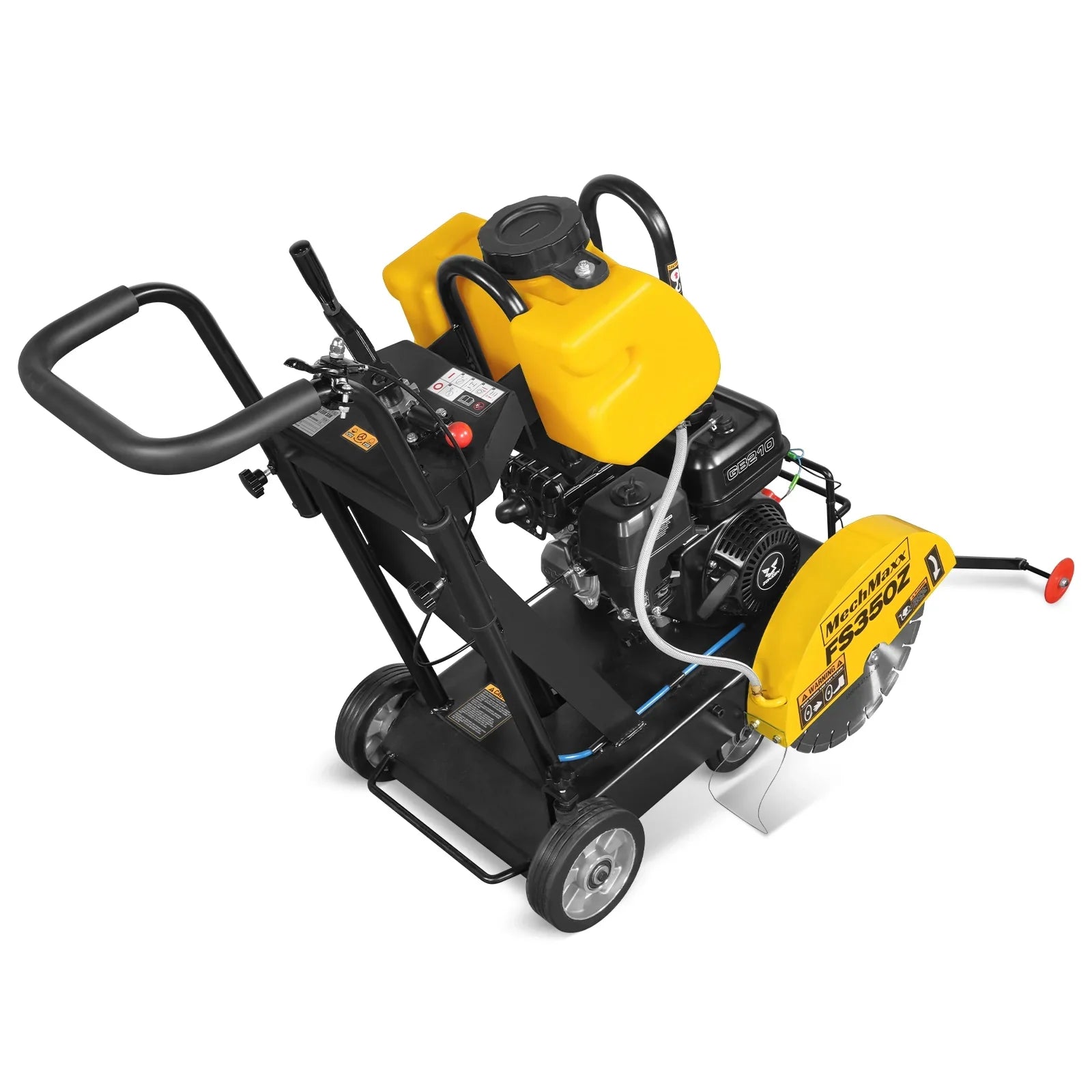

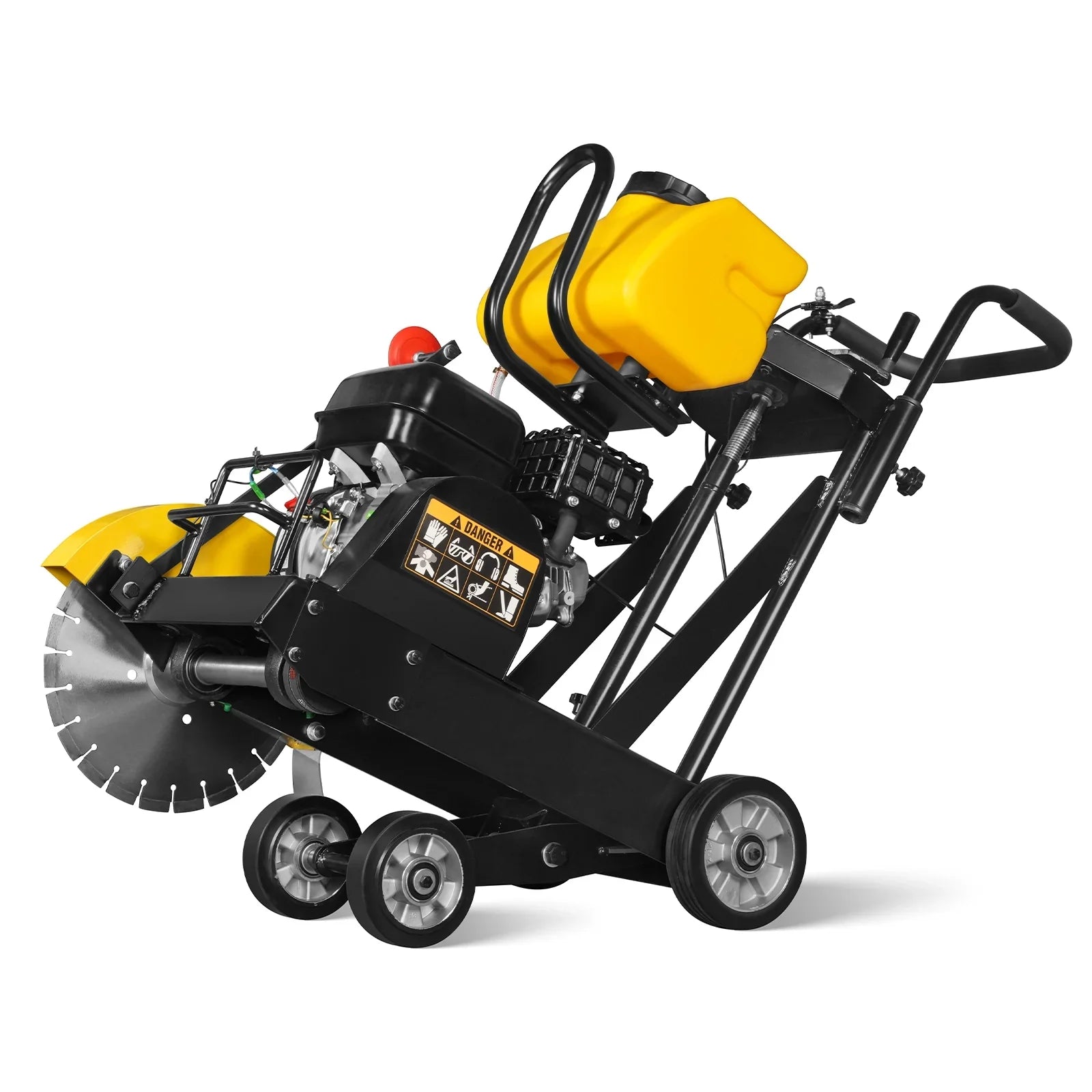

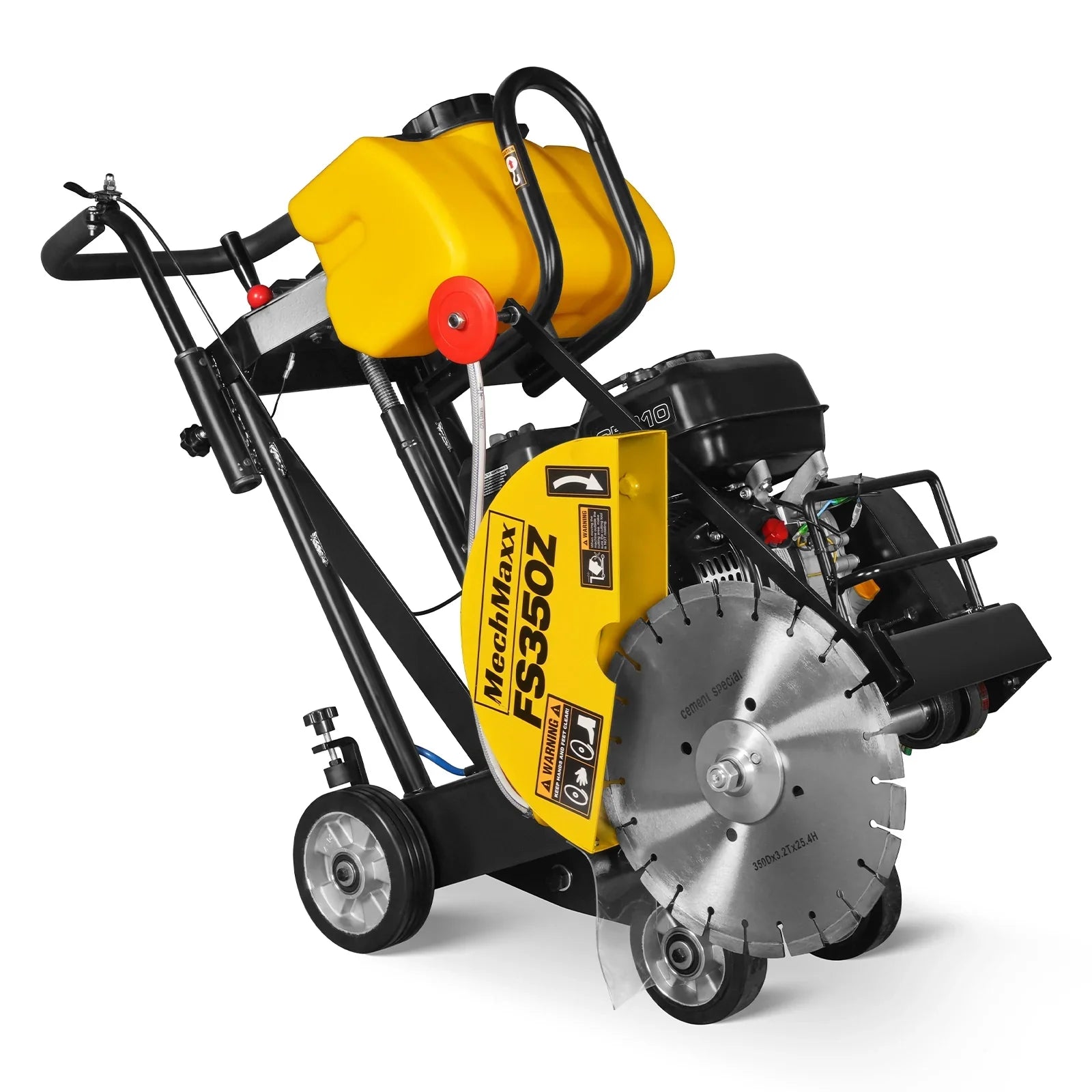

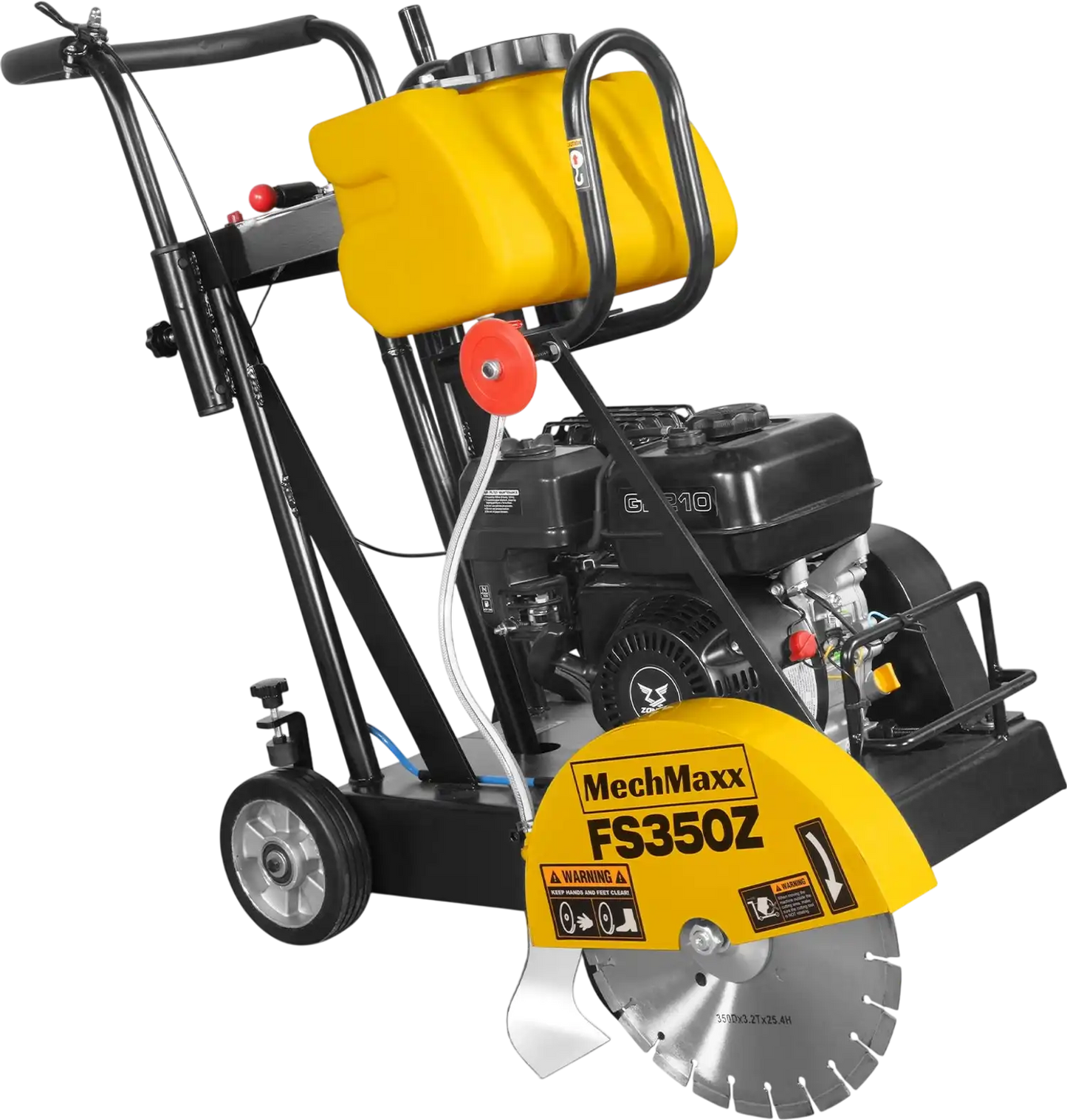

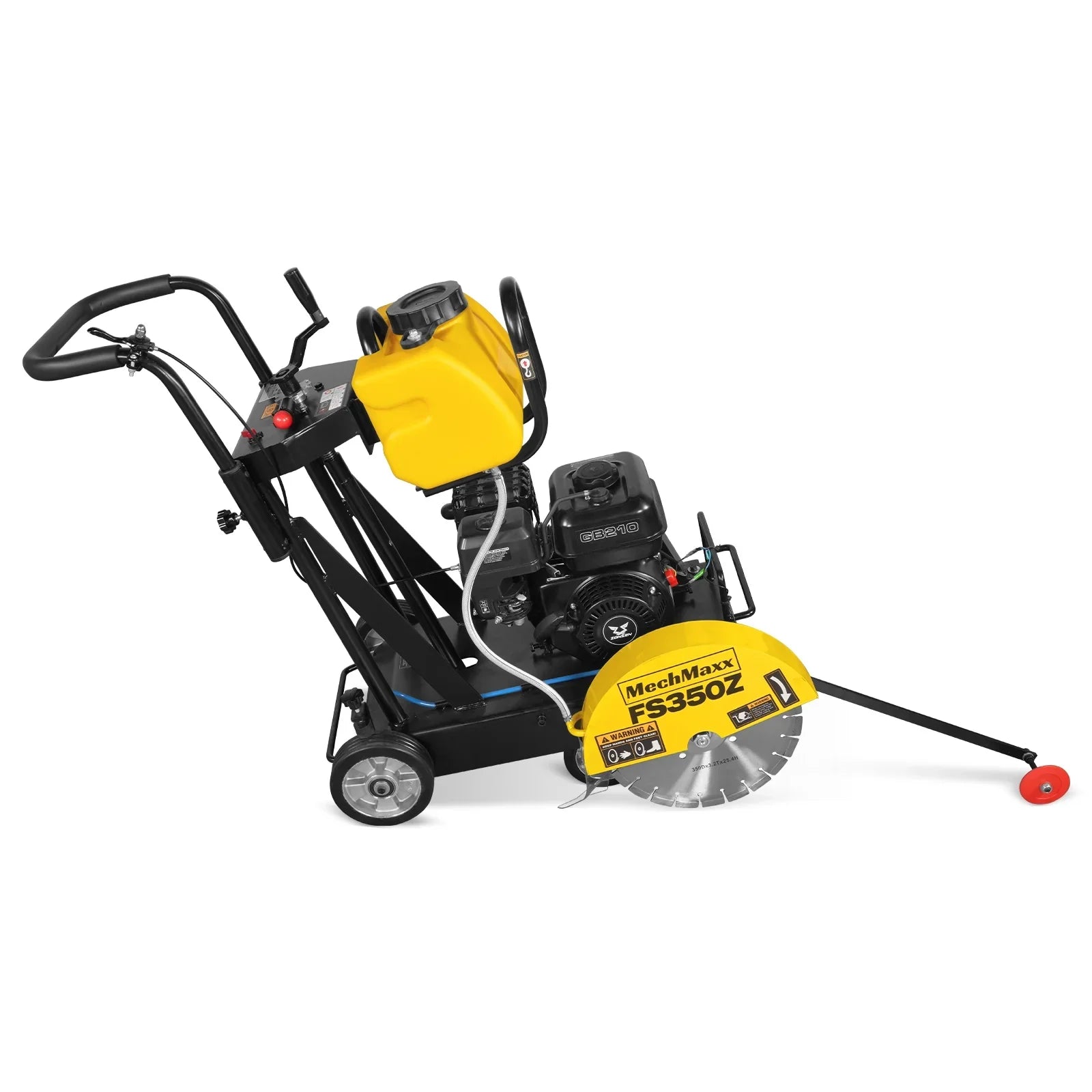

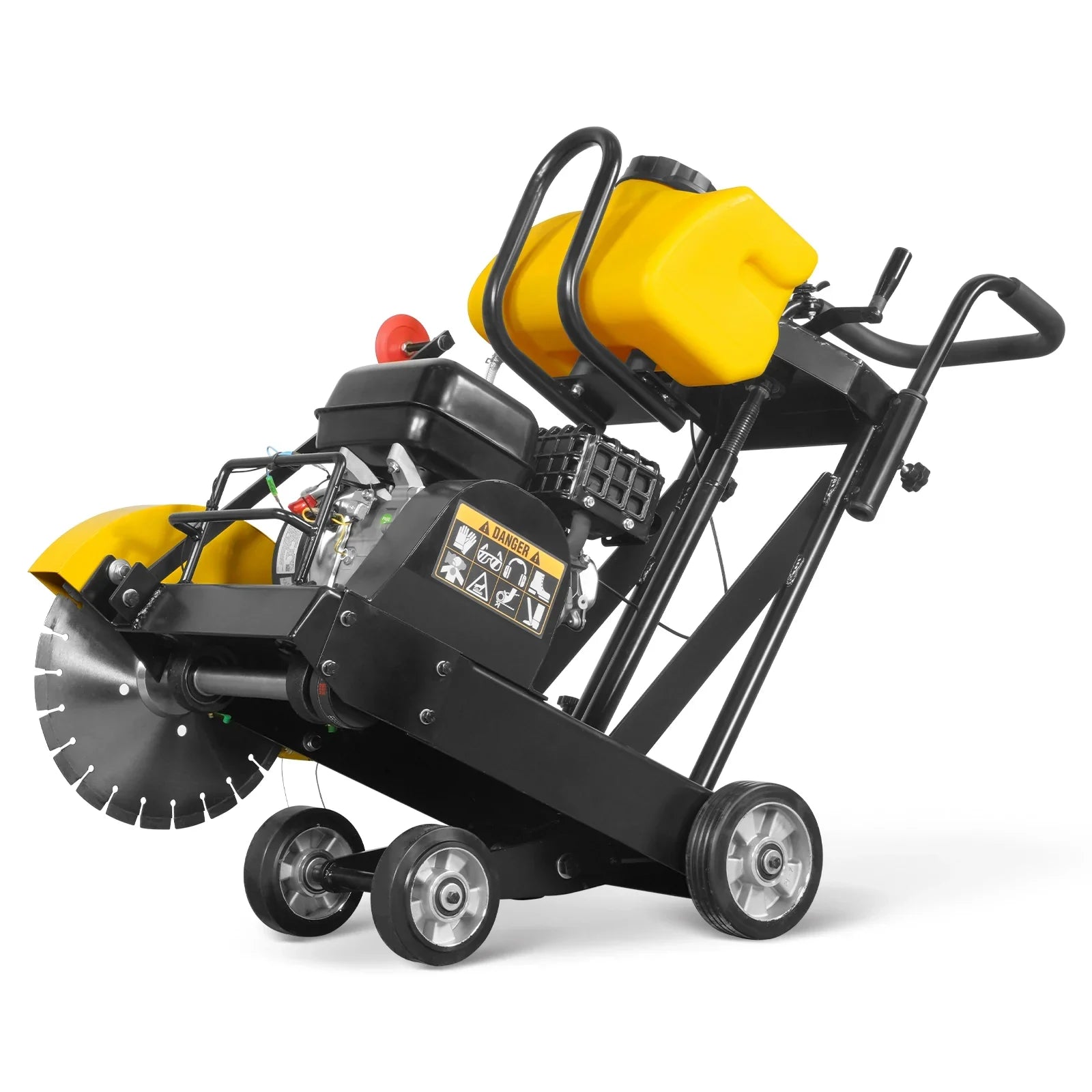

MechMaxx FS350Z Concrete Floor Saw 5.8 HP Walk-Behind 14" Blade 4" Cutting Depth New

MechMaxx

$1,136.97
$1,136.97
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

The MechMaxx FS350Z Walk-Behind Concrete Floor Saw is designed for accurate cutting in concrete, asphalt, pavement, and expansion joint applications. Powered by a Zonsen GB210 engine, it supports a 14 in blade and delivers up to 4 in cutting depth for light-duty to medium-duty cutting work. A built-in water tank, adjustable handle, operator control console, mechanical wheel lock, rugged frame, and lifting handles help improve cutting control, wet-cutting support, stability, durability, and jobsite handling.

  • Reliable Zonsen GB210 Engine: Powered by a Zonsen GB210 5.8 HP engine, this walk-behind concrete floor saw provides reliable power for concrete, asphalt, pavement, and joint-cutting applications.
  • 14 in Blade Capacity and 4 in Cutting Depth: The FS350Z supports a 14 in blade and delivers up to 4 in cutting depth for accurate floor, pavement, repair, and expansion joint cutting.
  • Built-In Water Tank for Wet Cutting Support: The 3.2-gallon water tank supplies water to the blade area to help cool the blade and reduce dust during wet cutting operation.
  • Adjustable Handle and Operator Control: The adjustable handle with rubber grips helps improve operator comfort, while the integrated control console supports easier operation and more controlled cutting.

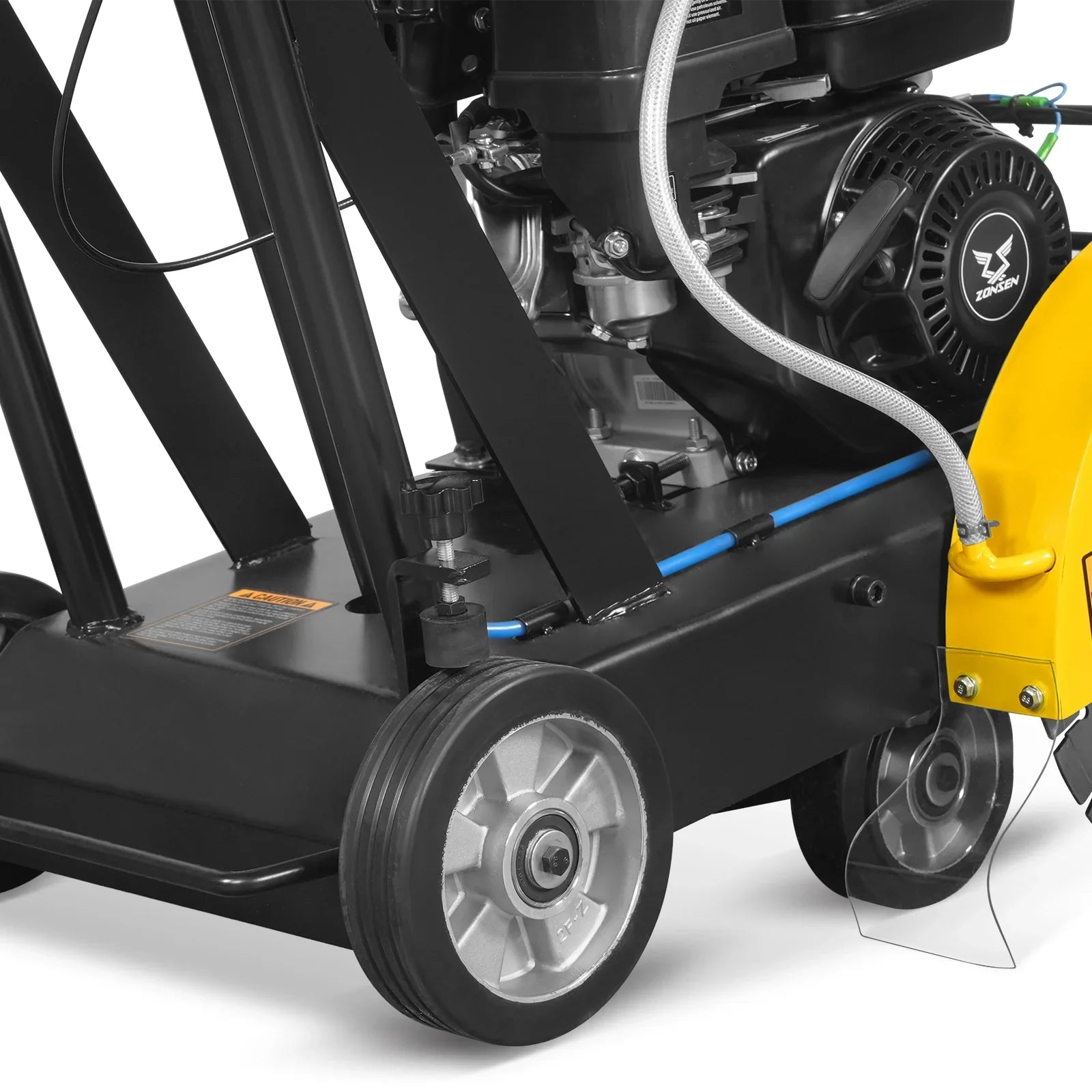

  • Mechanical Wheel Lock for Added Stability: The mechanical wheel lock helps hold the saw in place during setup, positioning, and transport.
  • Rugged Frame and Lifting Handles: The durable frame helps protect key components, while lifting handles make loading, unloading, and jobsite handling easier.

NOTE!

  • This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.
  • Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

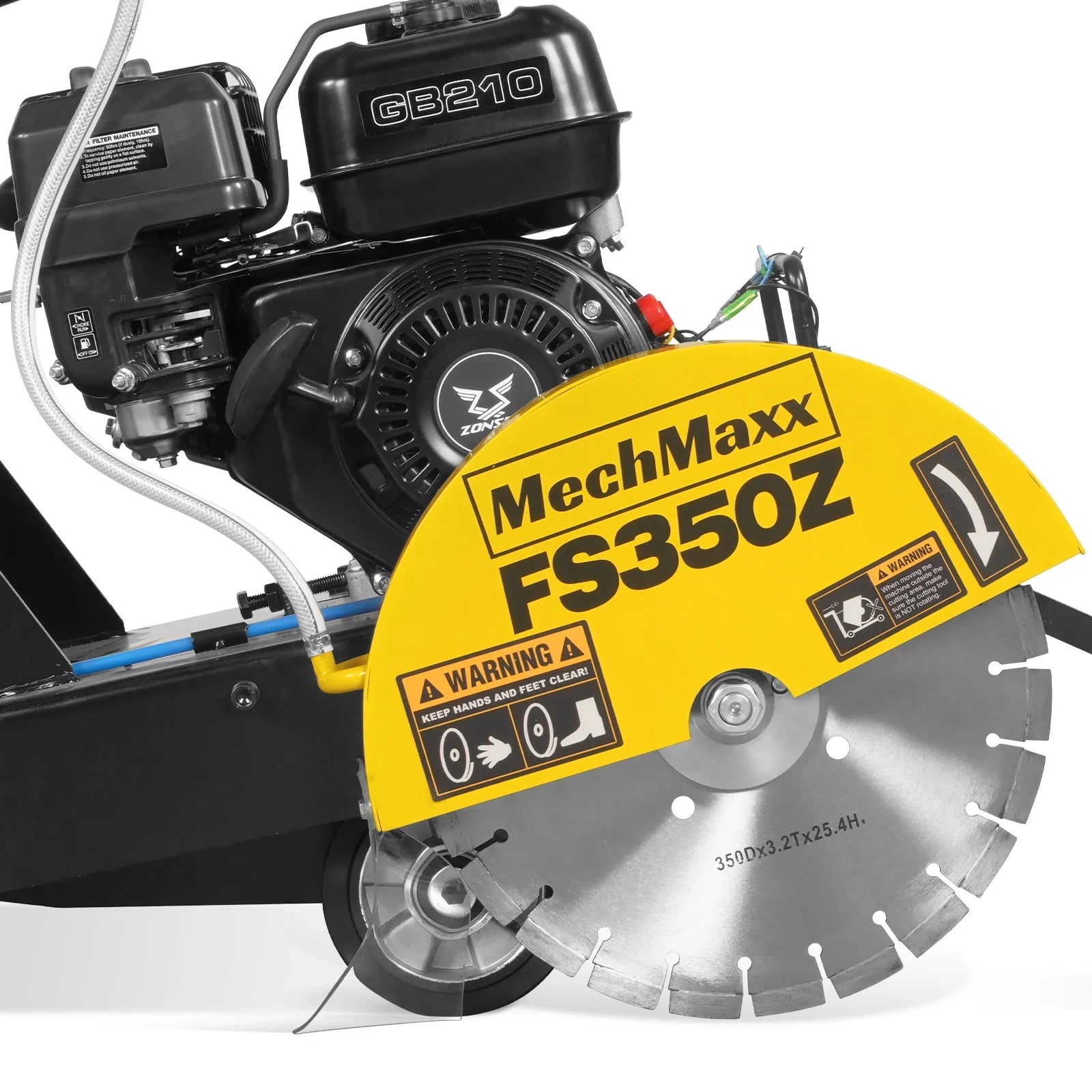

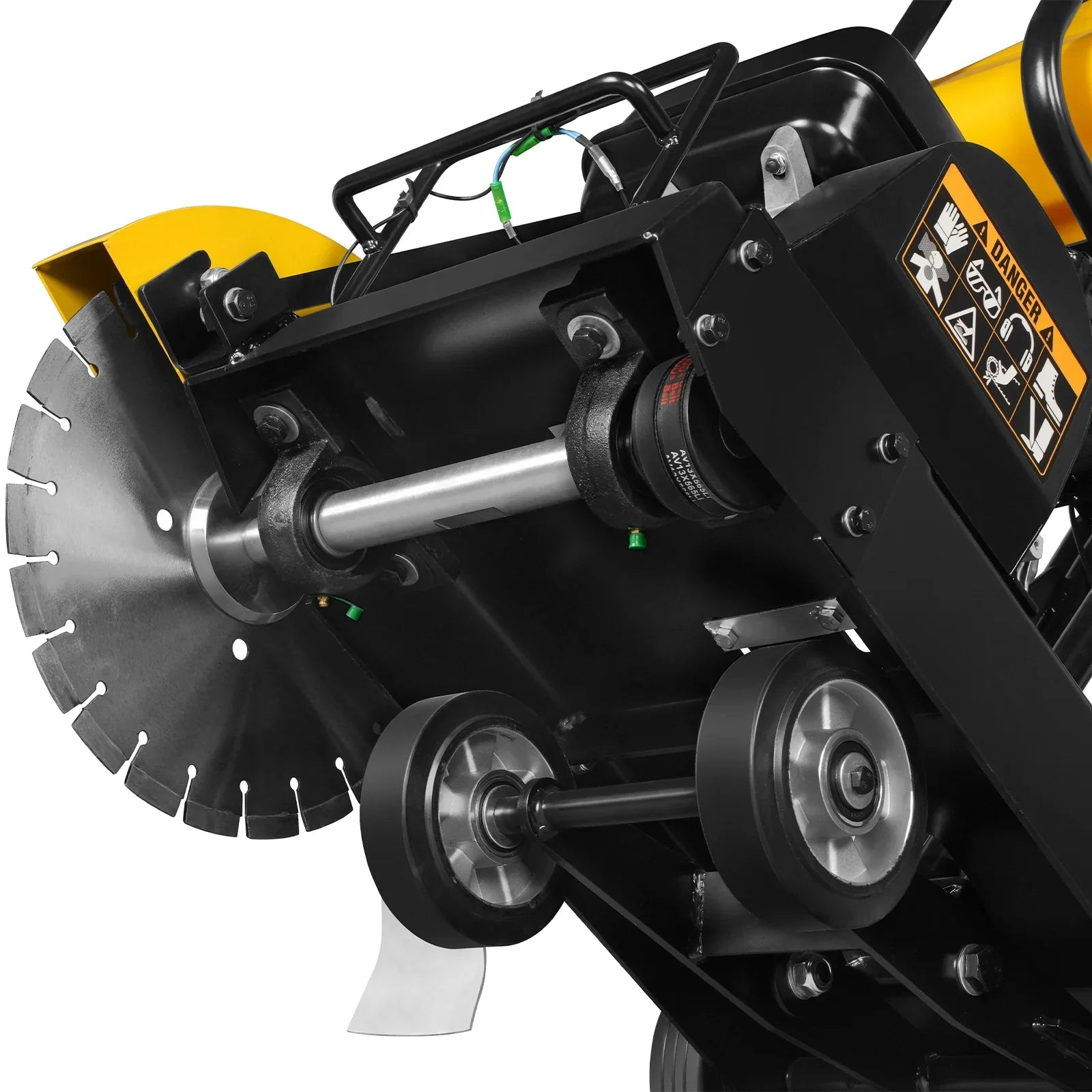

  • 14" Blade Capacity Max 4" Cutting Depth: Compatible with 14" cutting blades for efficient concrete and asphalt cutting performance. Cuts up to 4" deep for expansion joints, road repair, and concrete cutting applications.
  • Brake System: Equipped with a brake system for improved operation safety and machine control.

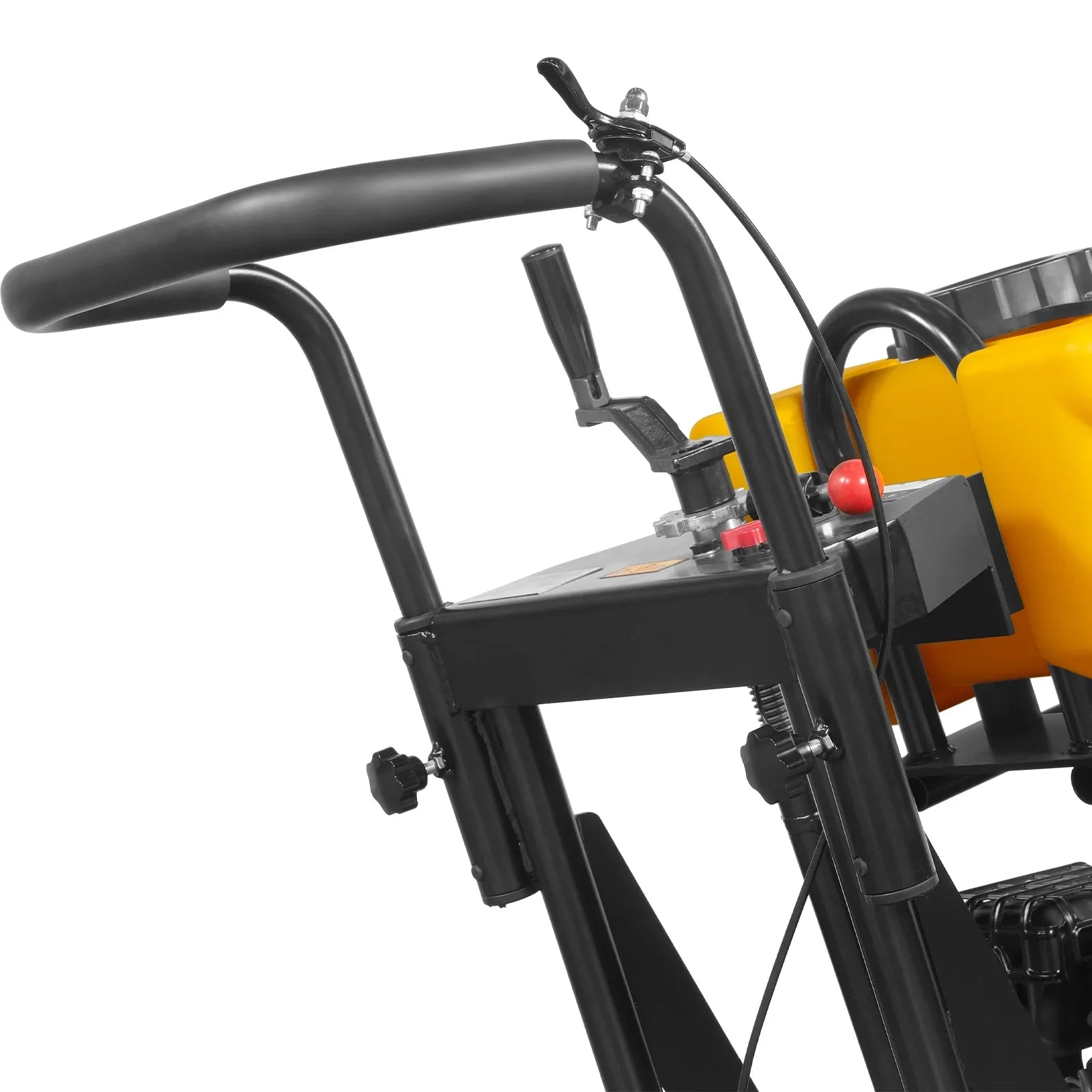

  • Adjustable Handle With Vibration Dampening: The handle position can be easily adjusted using locking set screws for improved operator comfort. Integrated rubber grips help absorb vibration and reduce fatigue during extended operation.
  • Built-In Water Tank: 3.2-gallon water tank helps reduce dust and cool the blade during wet cutting.

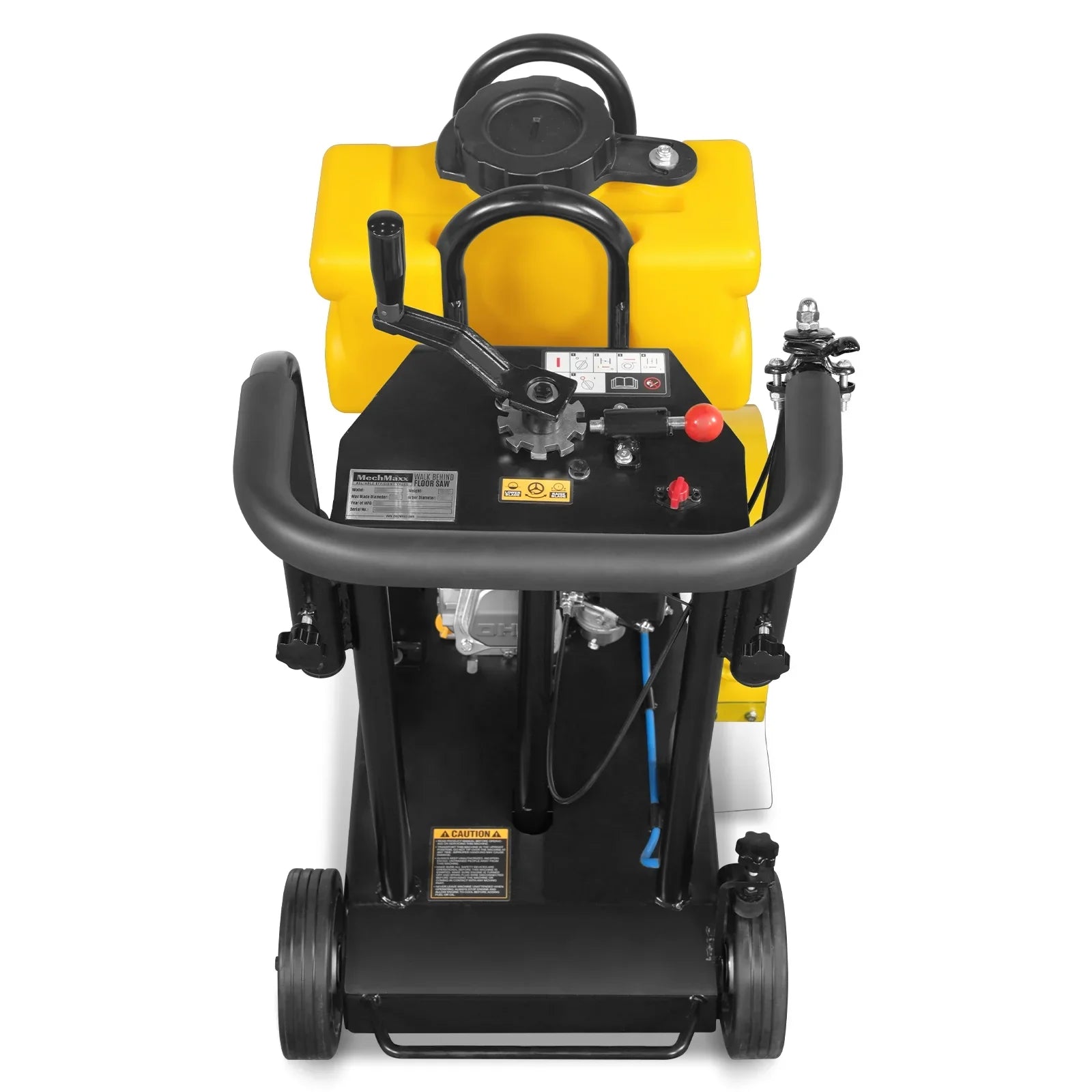

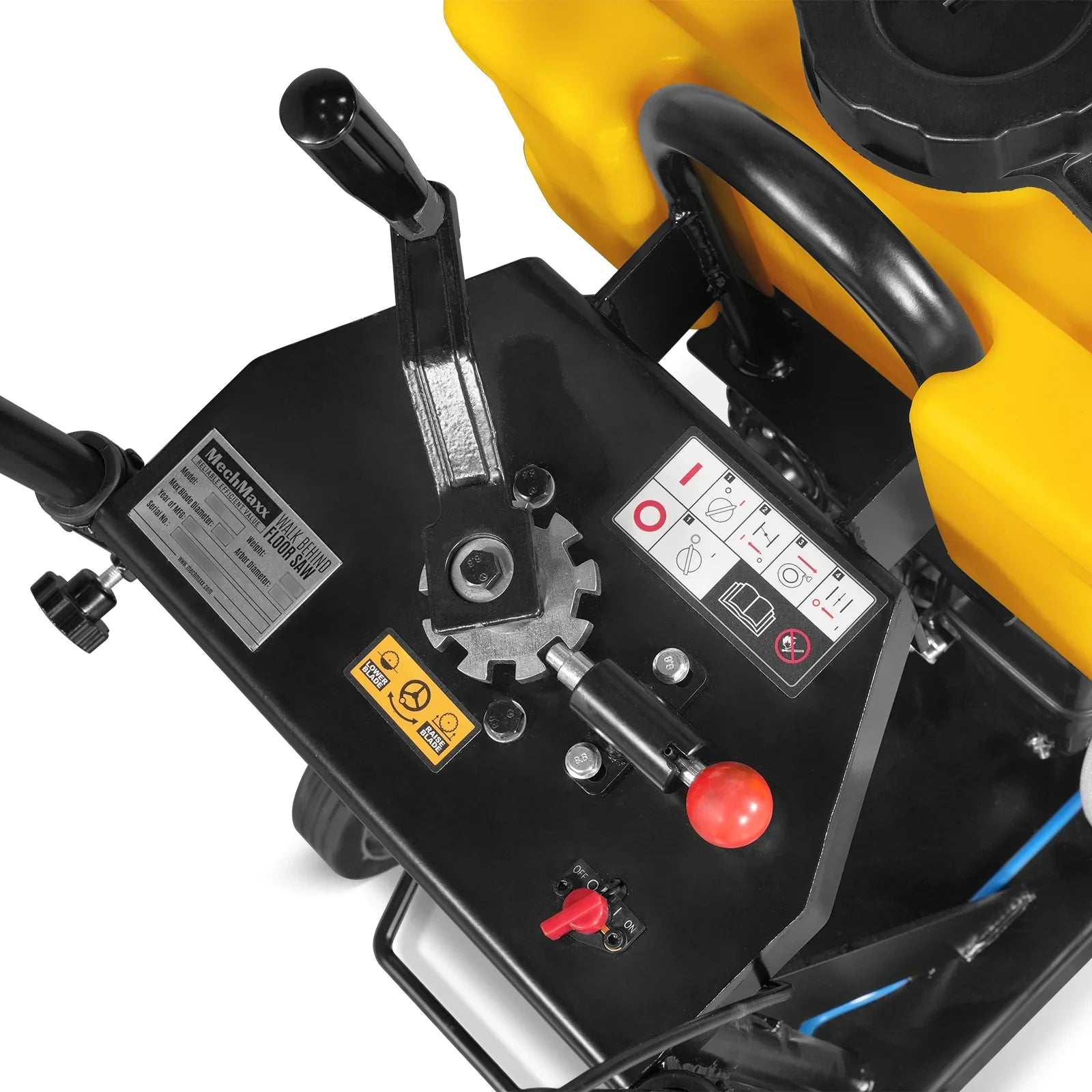

  • Professional Operator Console Design: Equipped with an integrated operator workstation for easier and more efficient operation.

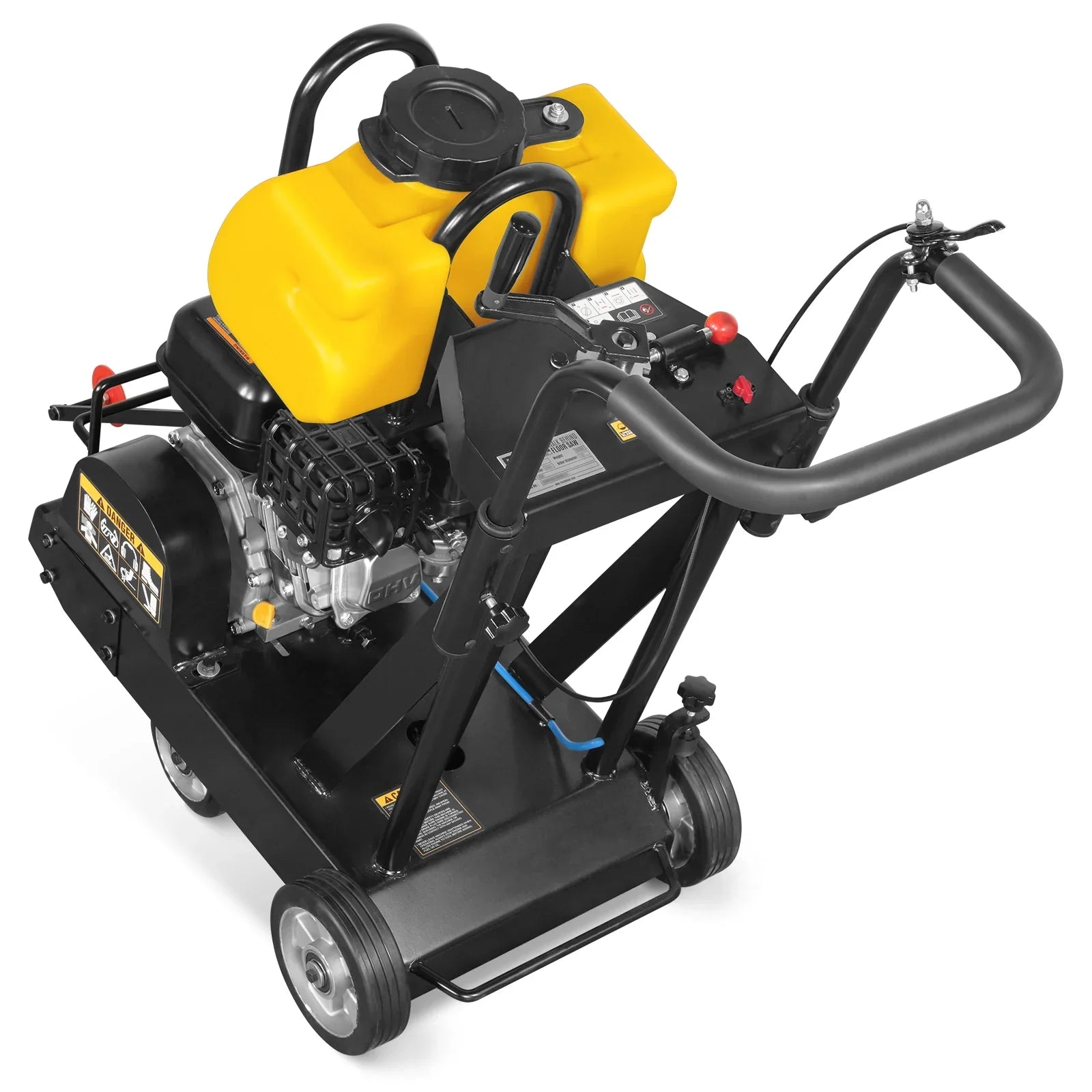

  • Easy Transport Design: Features Front and Rear Lifting Handles for easier transportation, loading, unloading, and jobsite mobility.

Engine: Zonsen GB210

Engine Type: Single-Cylinder, 4-Stroke, Air-Cooled, OHV Gasoline Engine

Engine Displacement: 208 cc

Horsepower: 5.8 HP (4.3kW) @ 3600 RPM

Start System: Recoil

Fuel Tank Capacity: 2.8 US qt (2.6L)

Engine Oil Capacity: 0.61 US qt (0.6L)

Blade Diameter: 14 in

Max Cutting Depth: 4 in

Arbor Diameter: 1 in

Water Tank Capacity: 3.2 US gal

Overall Dimension (LxWxH): 35 x 19 x 34 in

Packing Size (LxWxH): 36 x 21 x 39 in

Weight (N.W / G.W.): 179/226 lbs

This item comes with a 1 year factory warranty.
PDF Walk Behind Floor Saw Product Manual 1.0 PDF Zonsen GB210 manual
