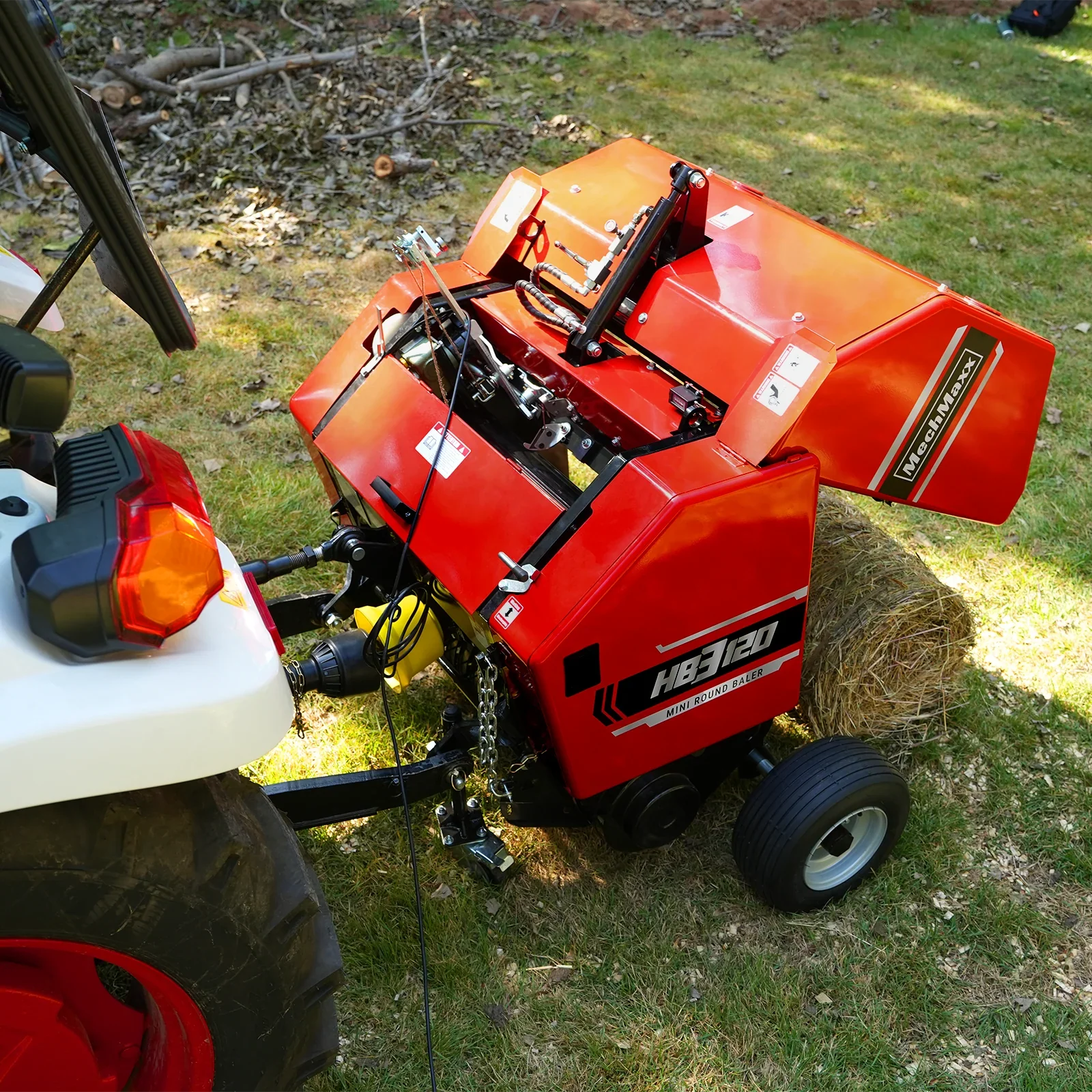

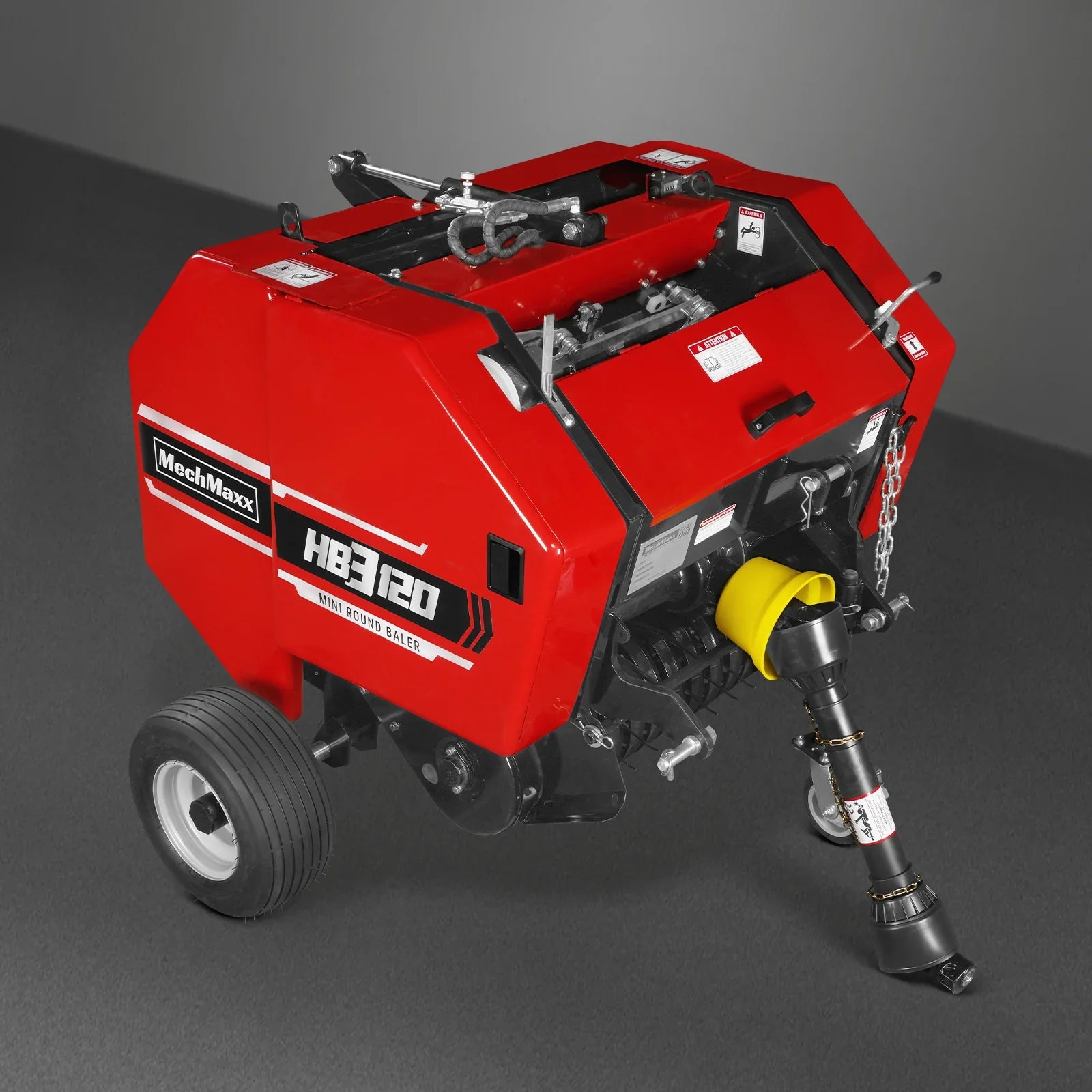

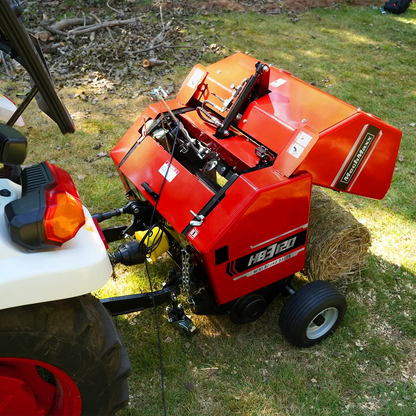

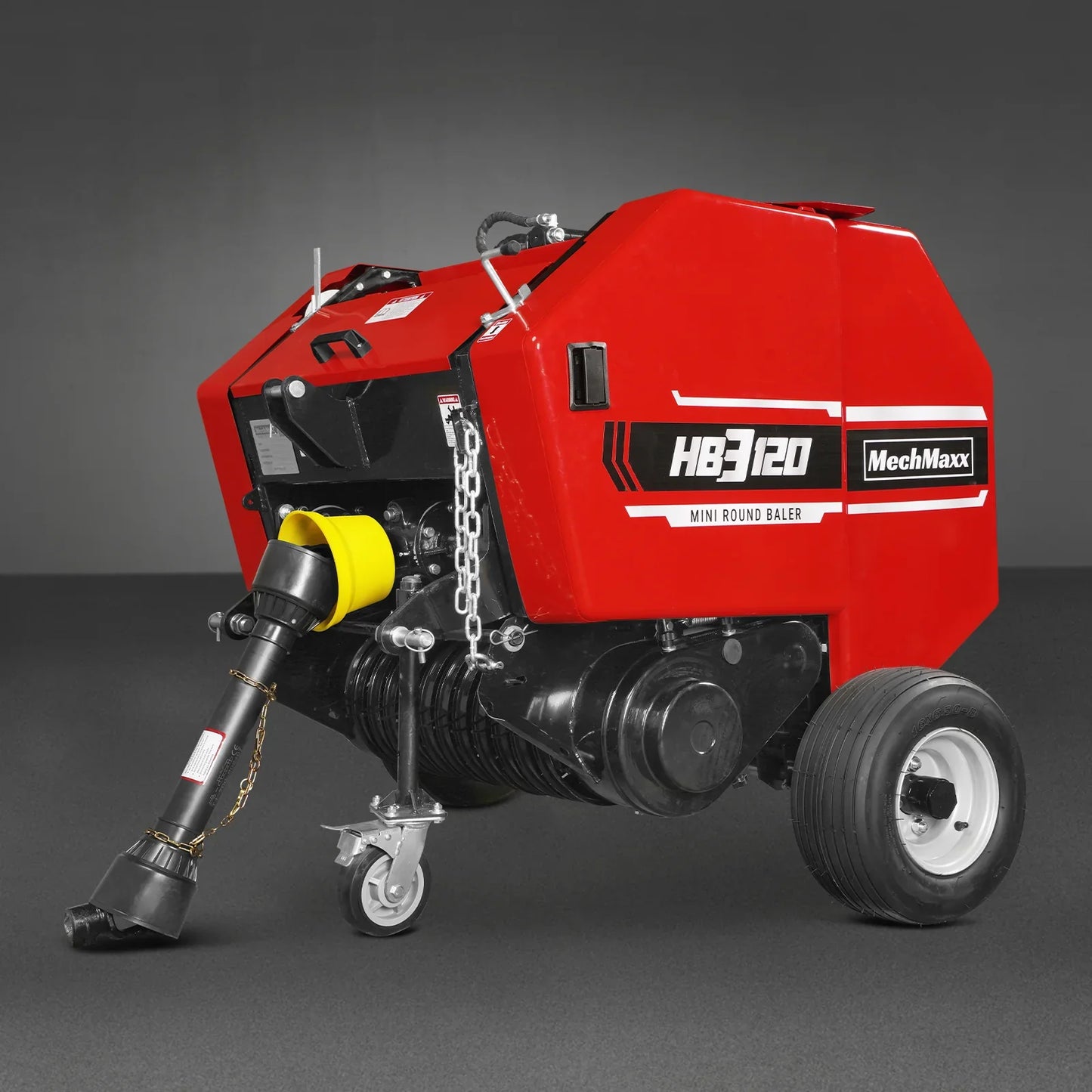

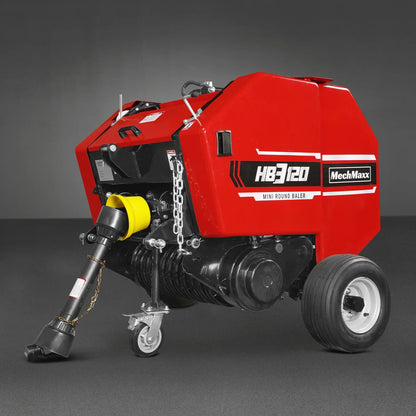

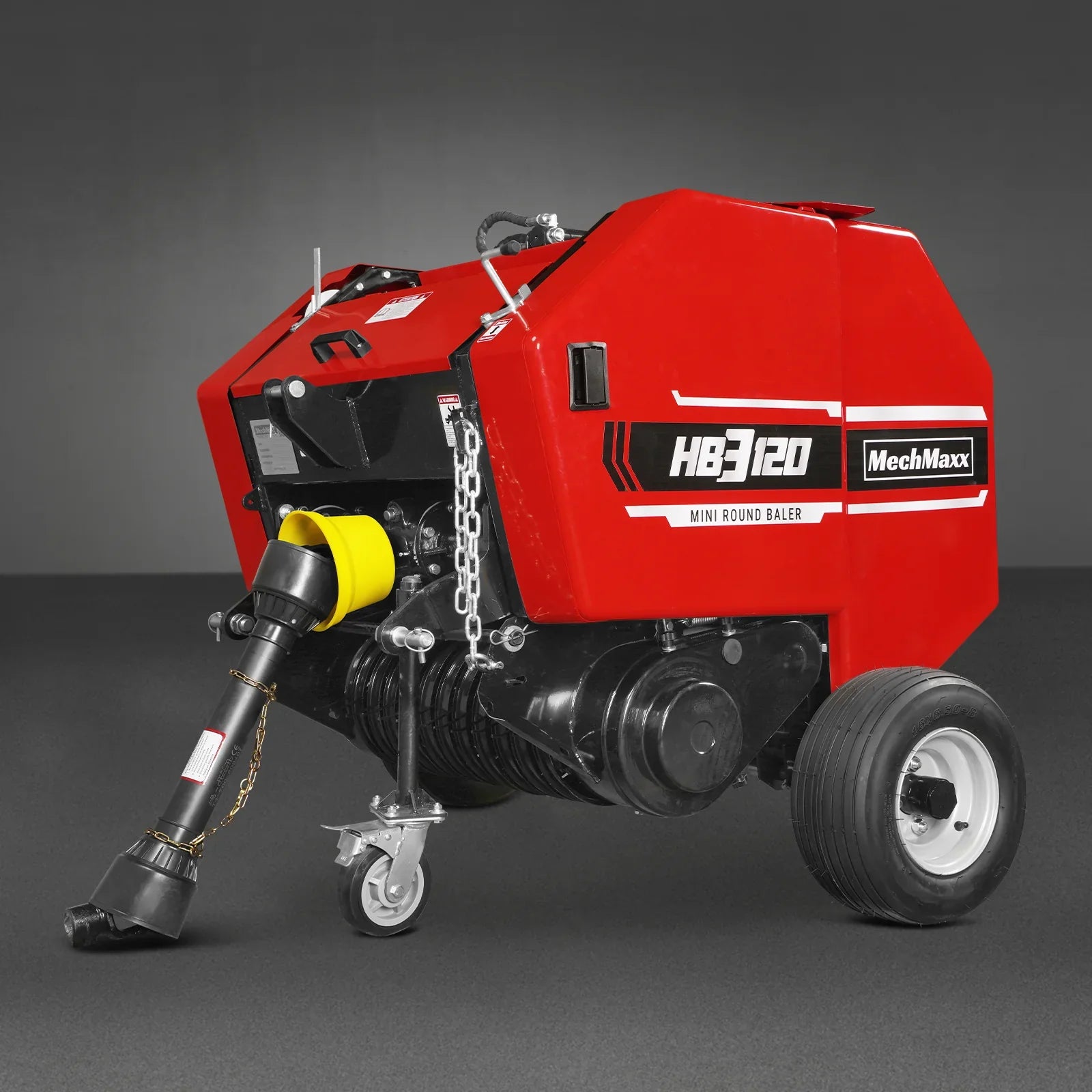

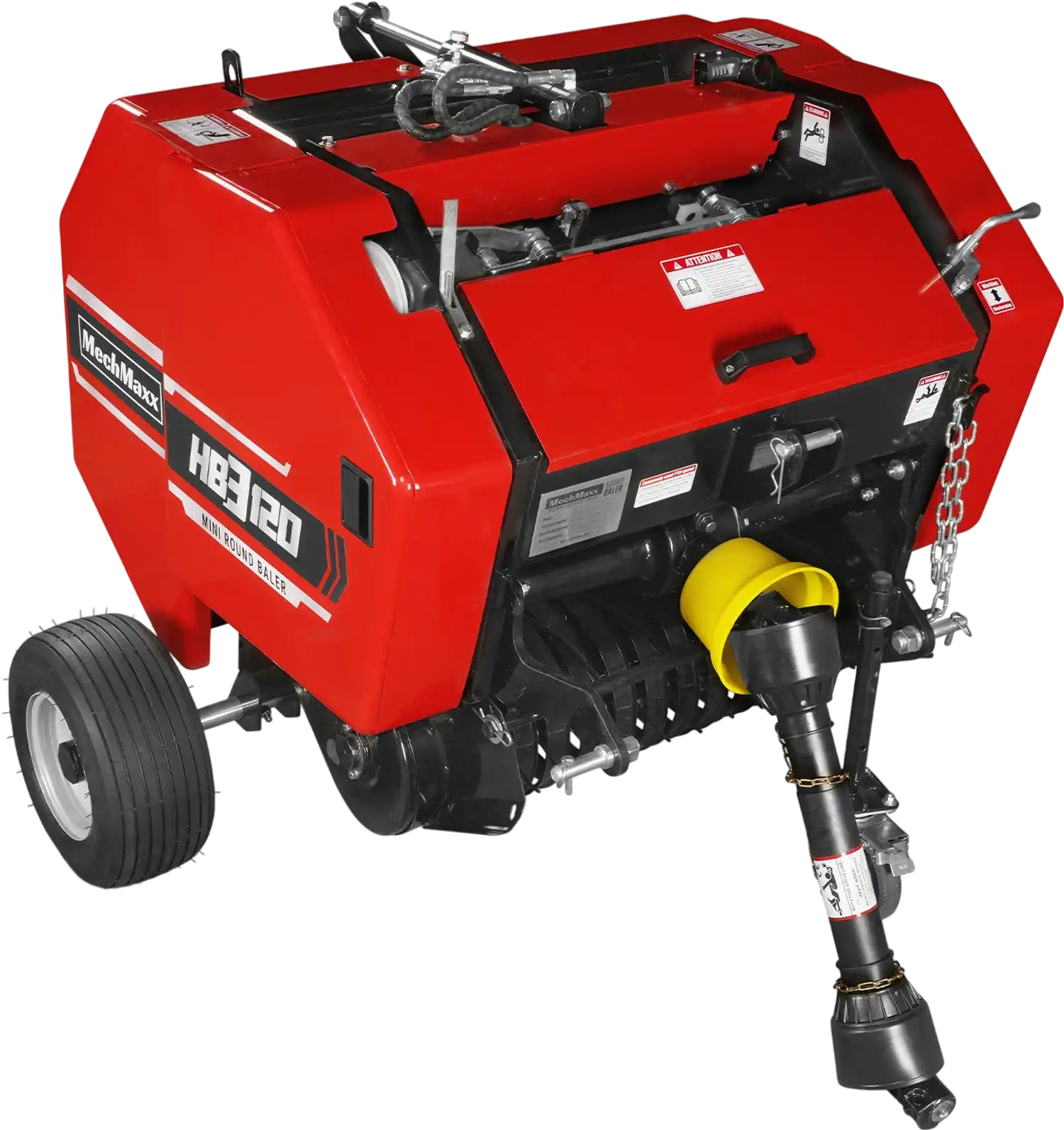

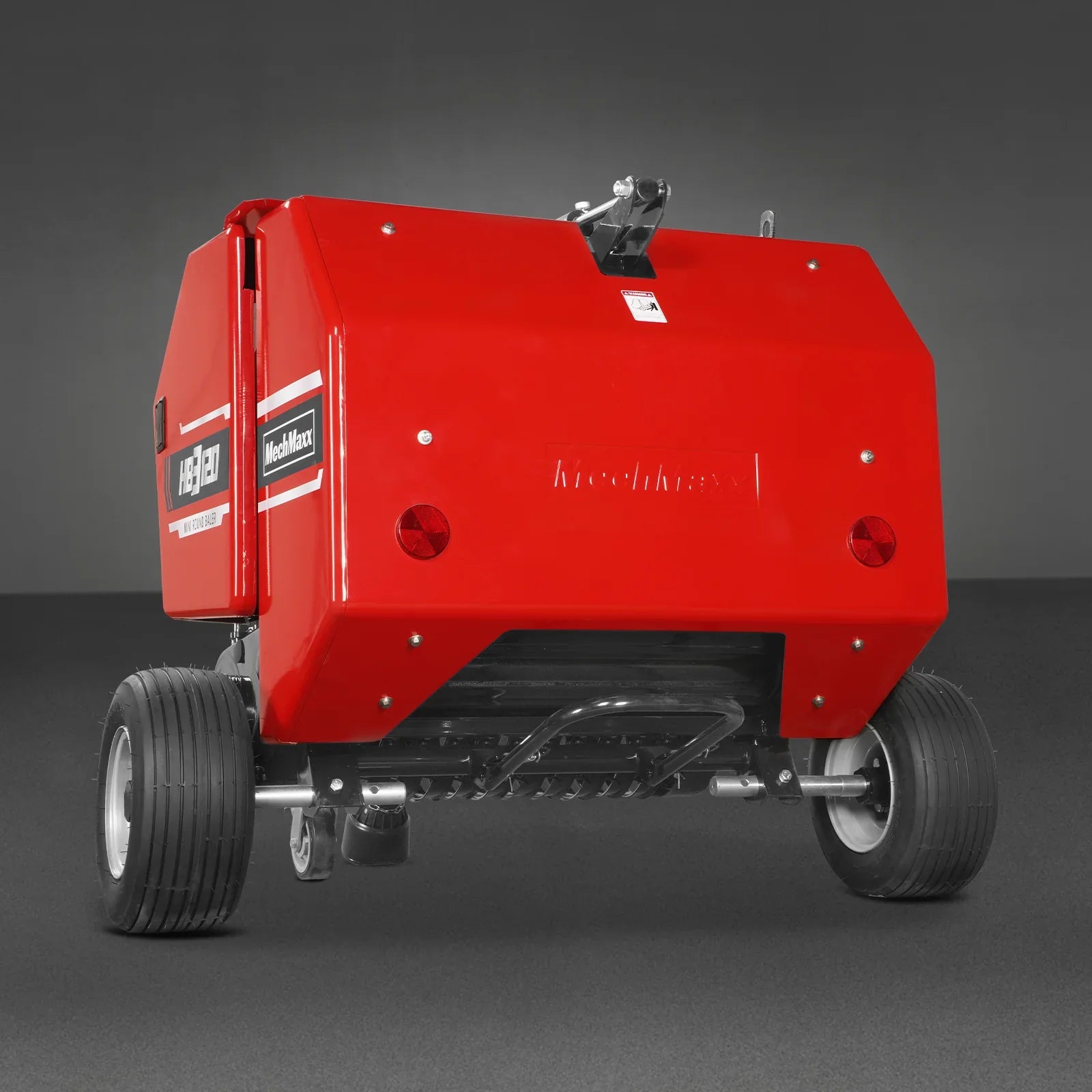

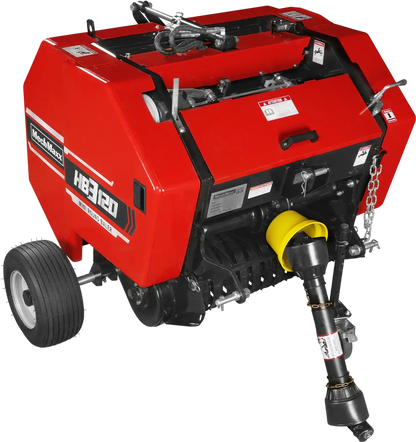

MechMaxx HB3120 Hay Baler 3-Point PTO Mini Round Twine Wrap 20" Diameter x 28" Width Bales for 15-50 HP Tractor New

MechMaxx

$4,999.00
$4,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Twine auto binding system.
  • Hydraulic bale ejection system.
  • Simple mechanism, low maintenance.
  • Bale counter, easy to know your bale quantity.
  • Hydraulic lifting system for easy ridge crossing.
  • Light and round straw bales convenient for transportation.
  • Remote control easy to release the bale compare to pull the thread to release the bale
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Light And Compact Bales: The HB3120 balers makes ø20 x 28in bales, bale weight 30-50lbs, the bale weight differs from the material you bale, the compact bales are easy to carry and transport.
  • Simple Mechanism: The HB3120 baler was driven by chains and gears, the simple mechanism structure makes the machine easy for maintenance.
  • Bale Counter: The HB3120 baler was installed with a simple bale counter, this makes you easily know how many bales you have, and it makes renting much easier.

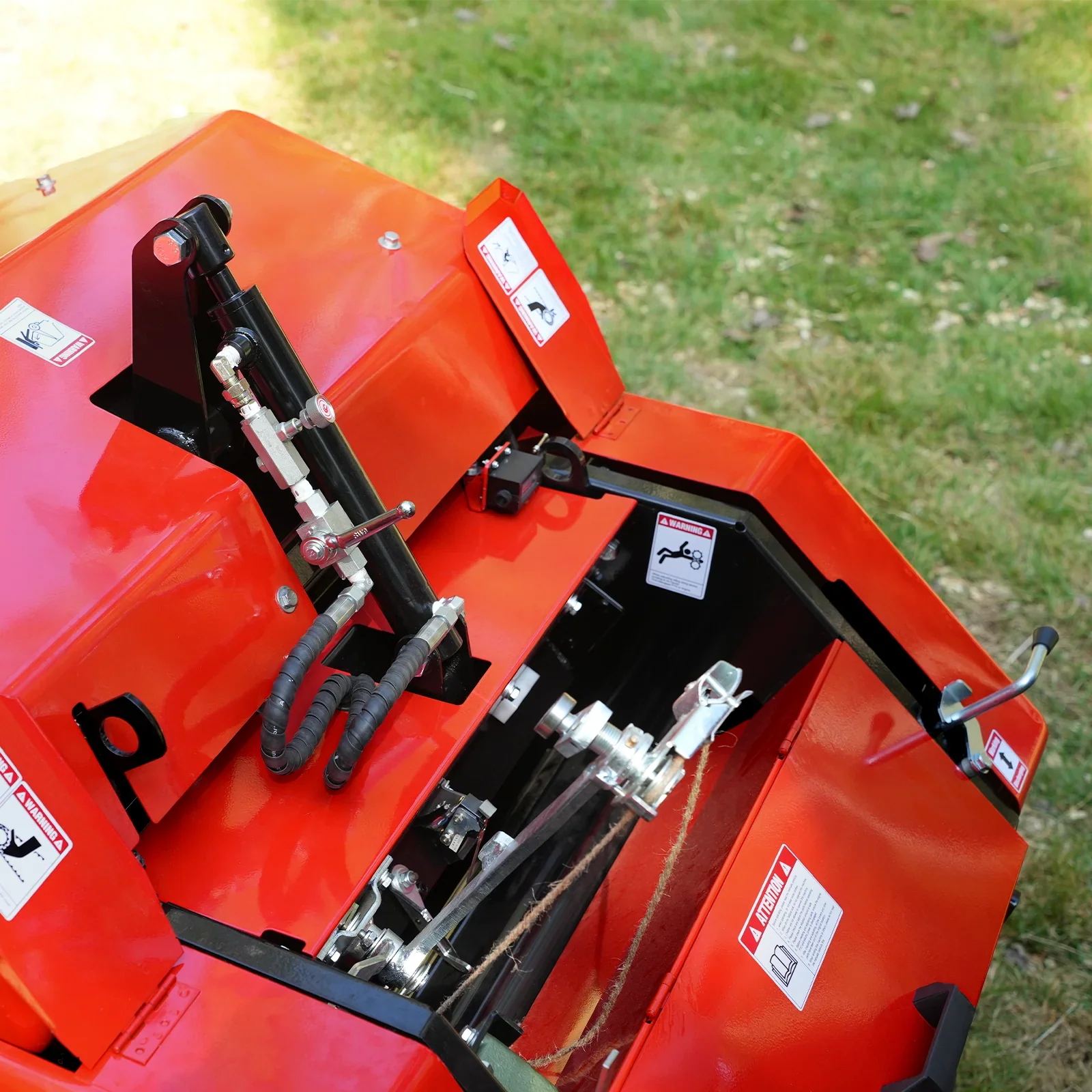

  • Easy-Access Covers: The HB3120 comes with easy-access covers which makes opening the bale covers much easier compare the ones which use Star-Handles.
  • Independent Power Unit: The HB3120 Baler does not require tractor hydraulics, as it is equipped with an independent hydraulic pump station.
  • Heavy-duty Caster Stand: The HB3120 baler comes with a heavy-duty caster stand, the strong caster stand is able to rotate as a small wheel thus help move the machine in short distance.
  • Extra Shear Bolts: The shear bolts act as an important role on the HB3120 baler, it breaks while the baler met big obstacles or bales too big, thus stop the mechanism parts to protect the main body of the machine. We designed an extra plate for holding the extra shear bolts, much convenient.
  • 0.08in steel compress roller: The HB3120 use 10 pieces 0.08in integrated forming compress rollers, each roller with 6 reinforcing ribs, this makes the rollers much stronger.

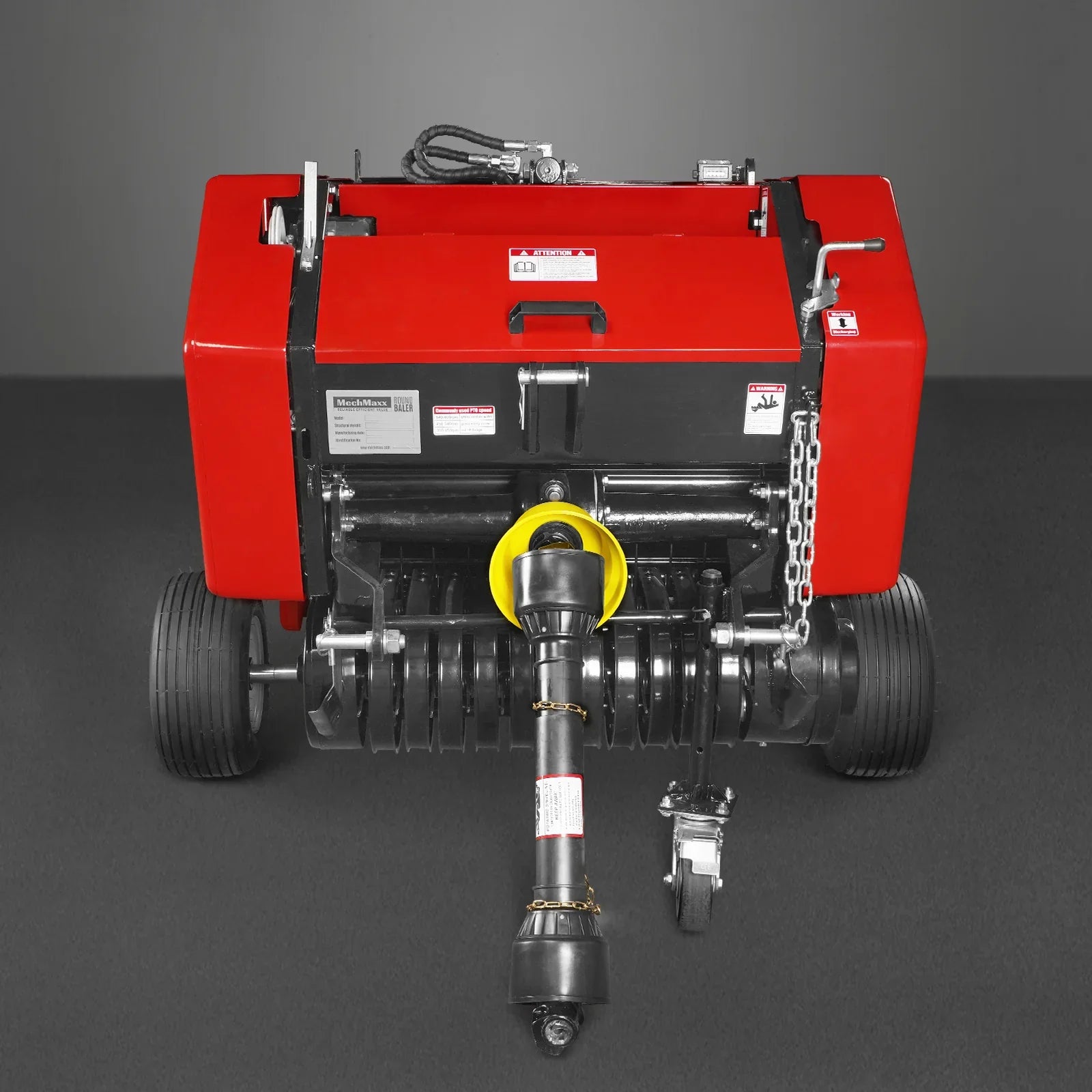

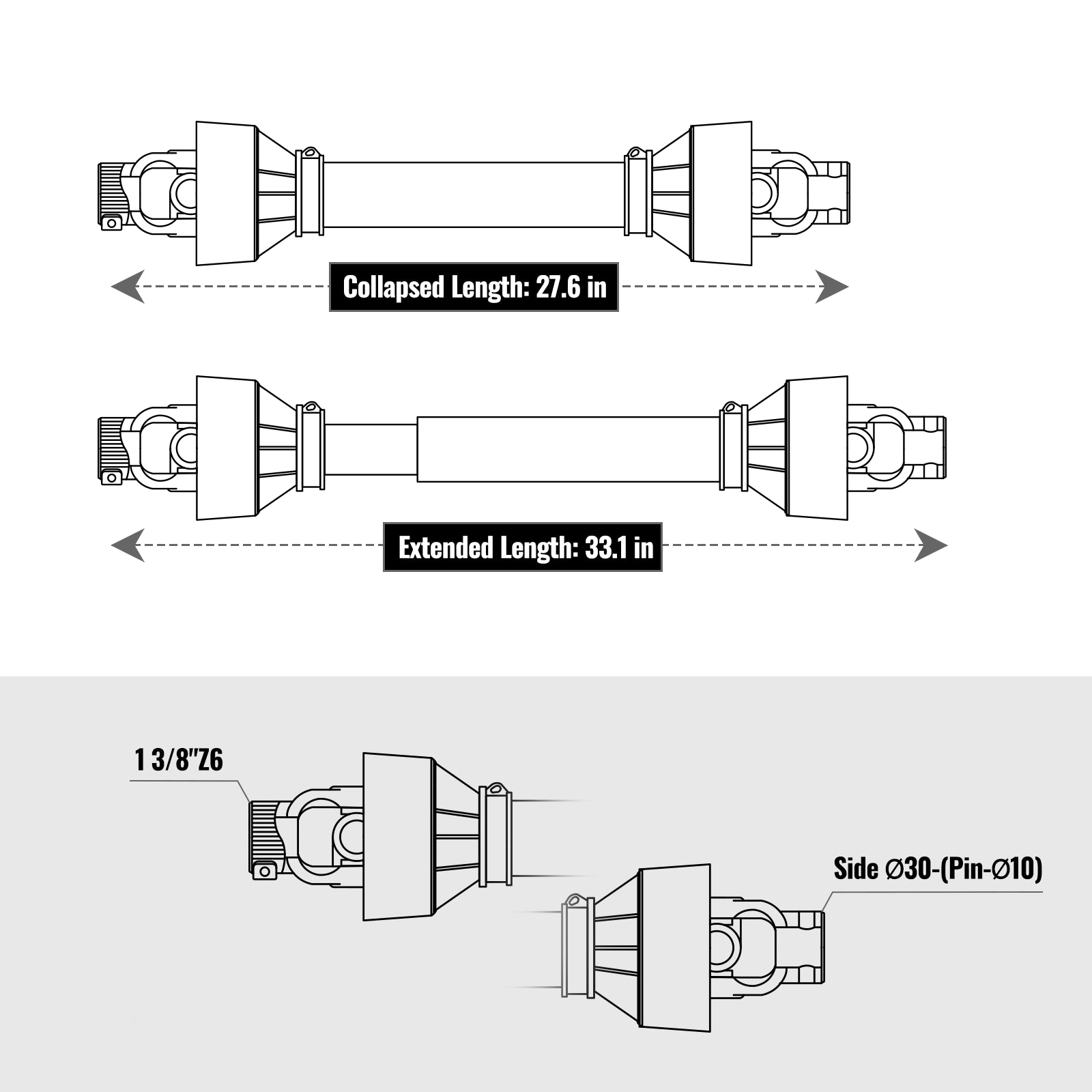

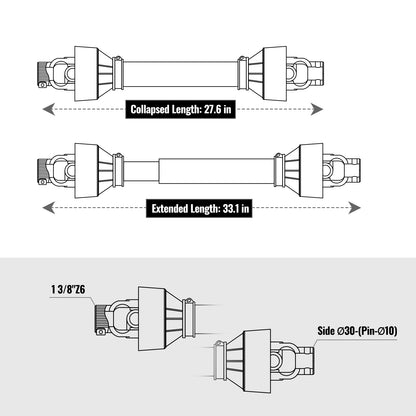

  • PTO Shaft( 1-3/8” Z6): The HB3120 balers use 27.5in 6 x 6 spline PTO shafts, the length is able to be adjusted according to your tractor.

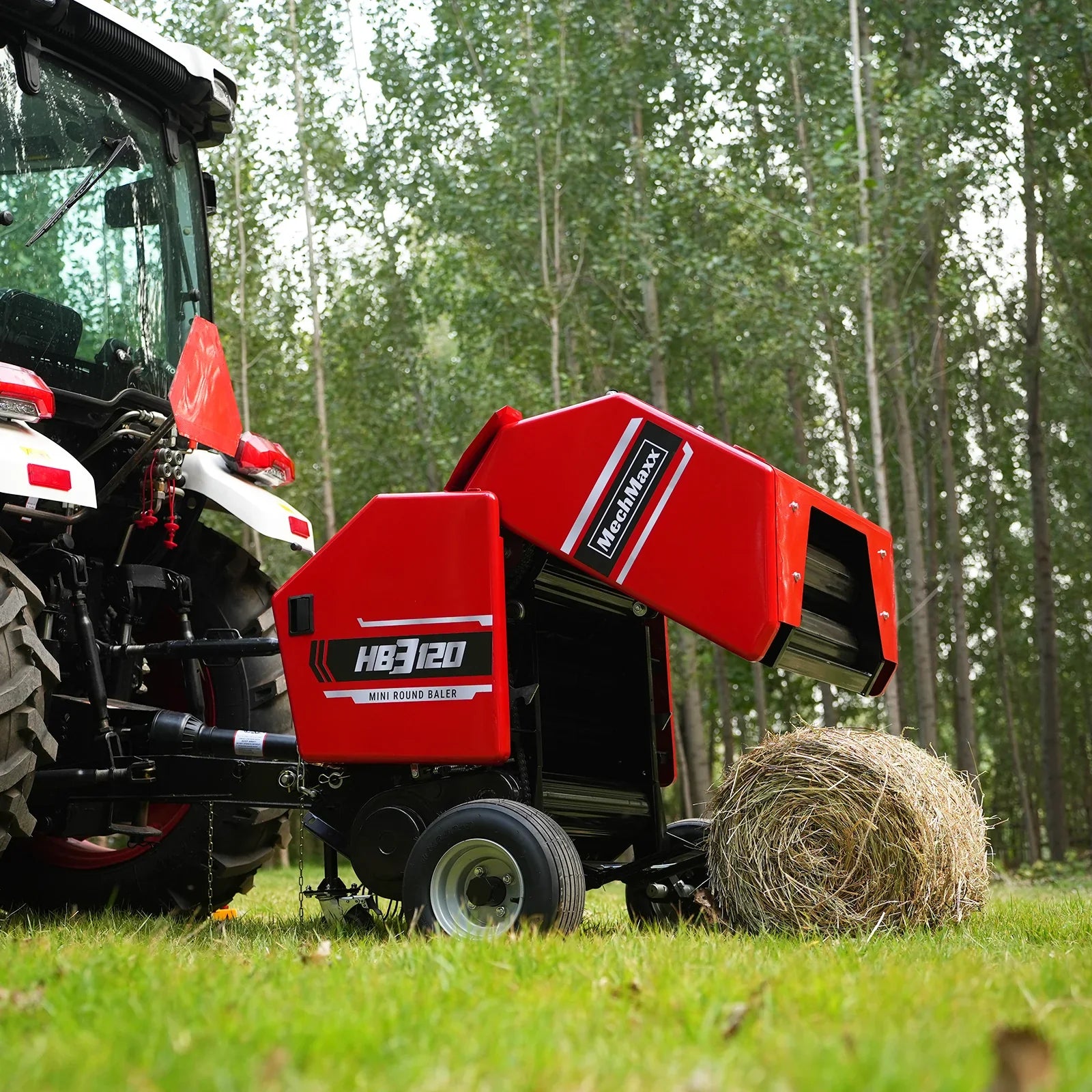

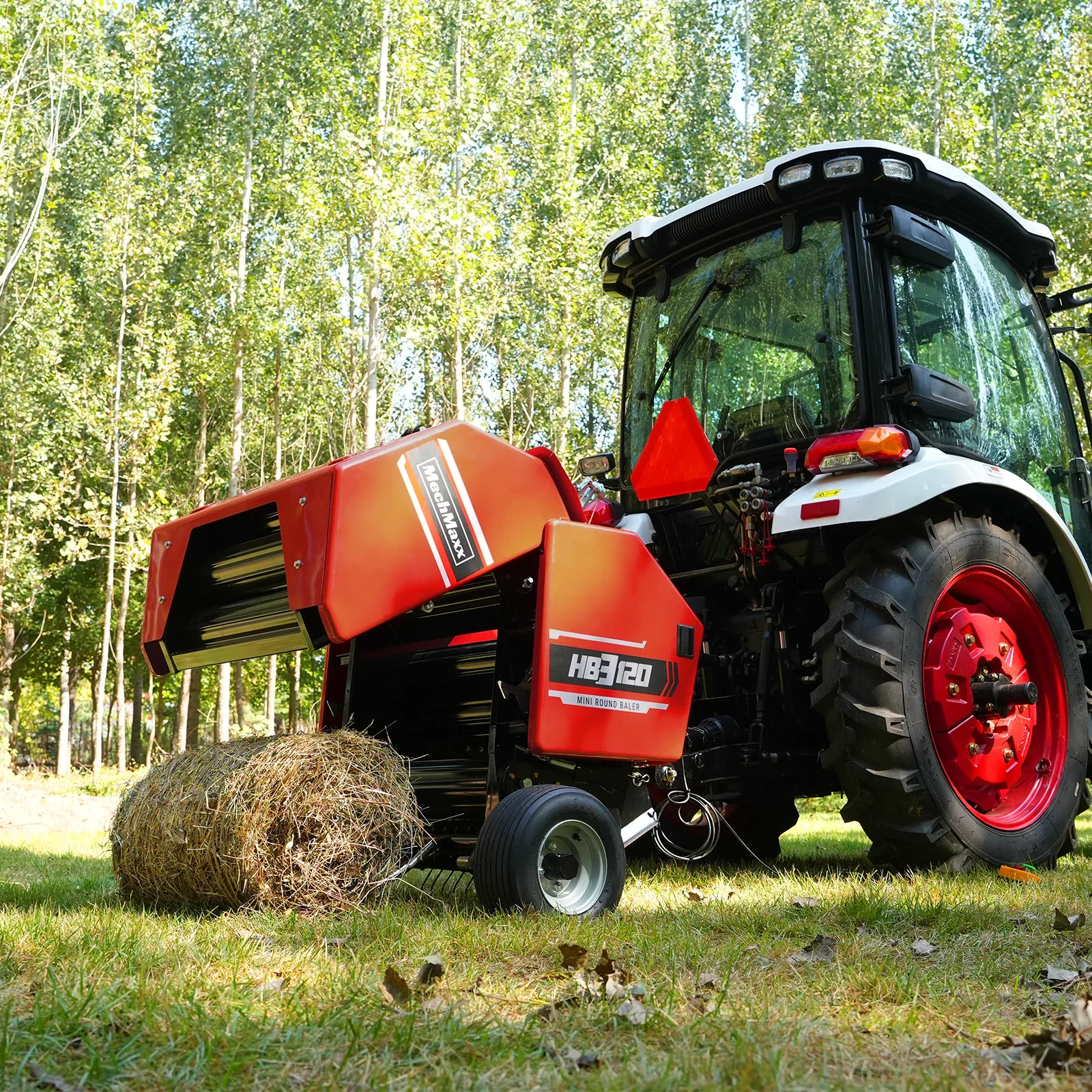

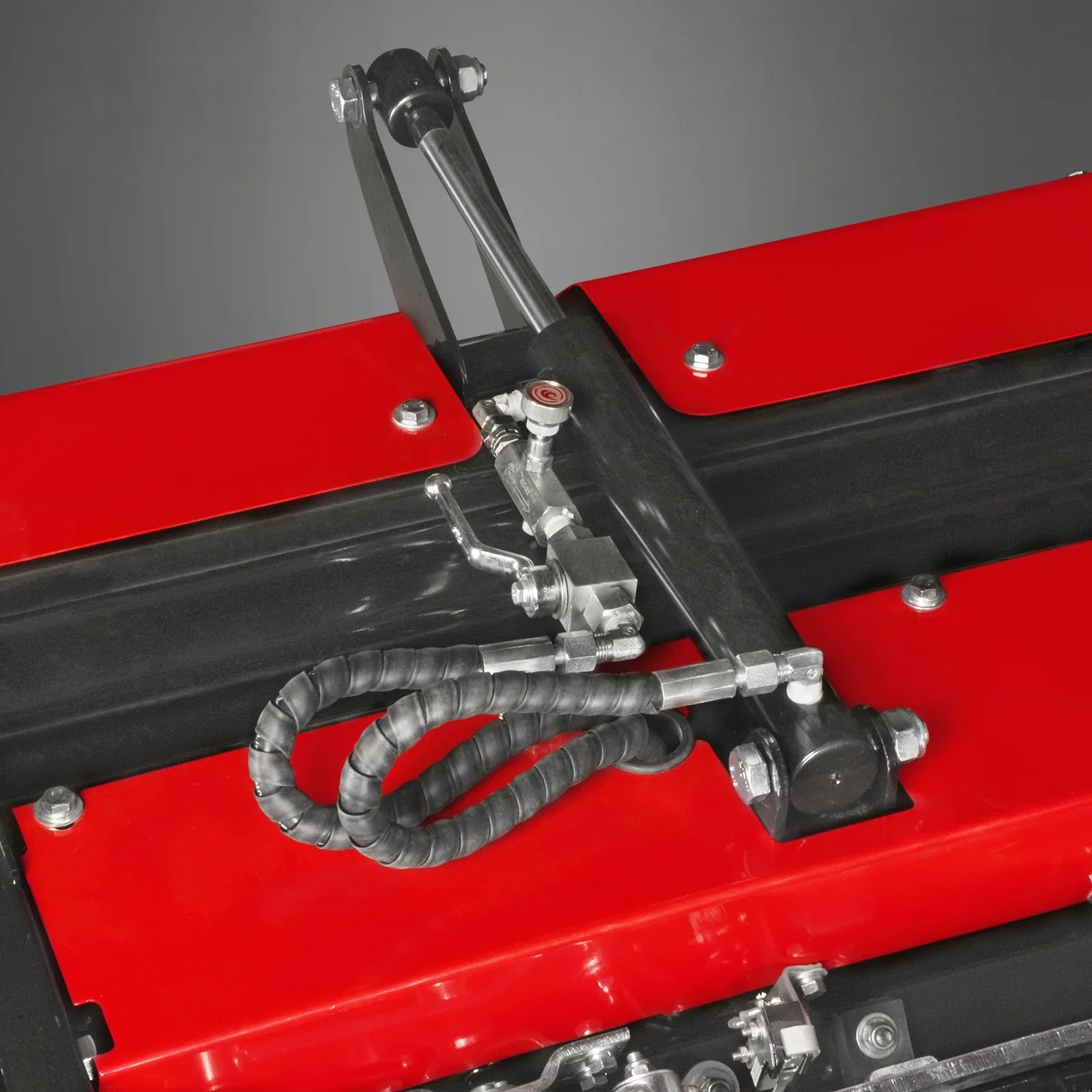

  • Hydraulic Ejection System: The HB3120 baler releases the bales by hydraulic cylinder, you can adjust the tailgate closing speed by adjusting the throttle valve on the cylinder.
  • Remote Control To Release The Bales: The HB3120 balers equipped with a remote control box, press the button to release the bale, you no need to pull a string to release the bale.

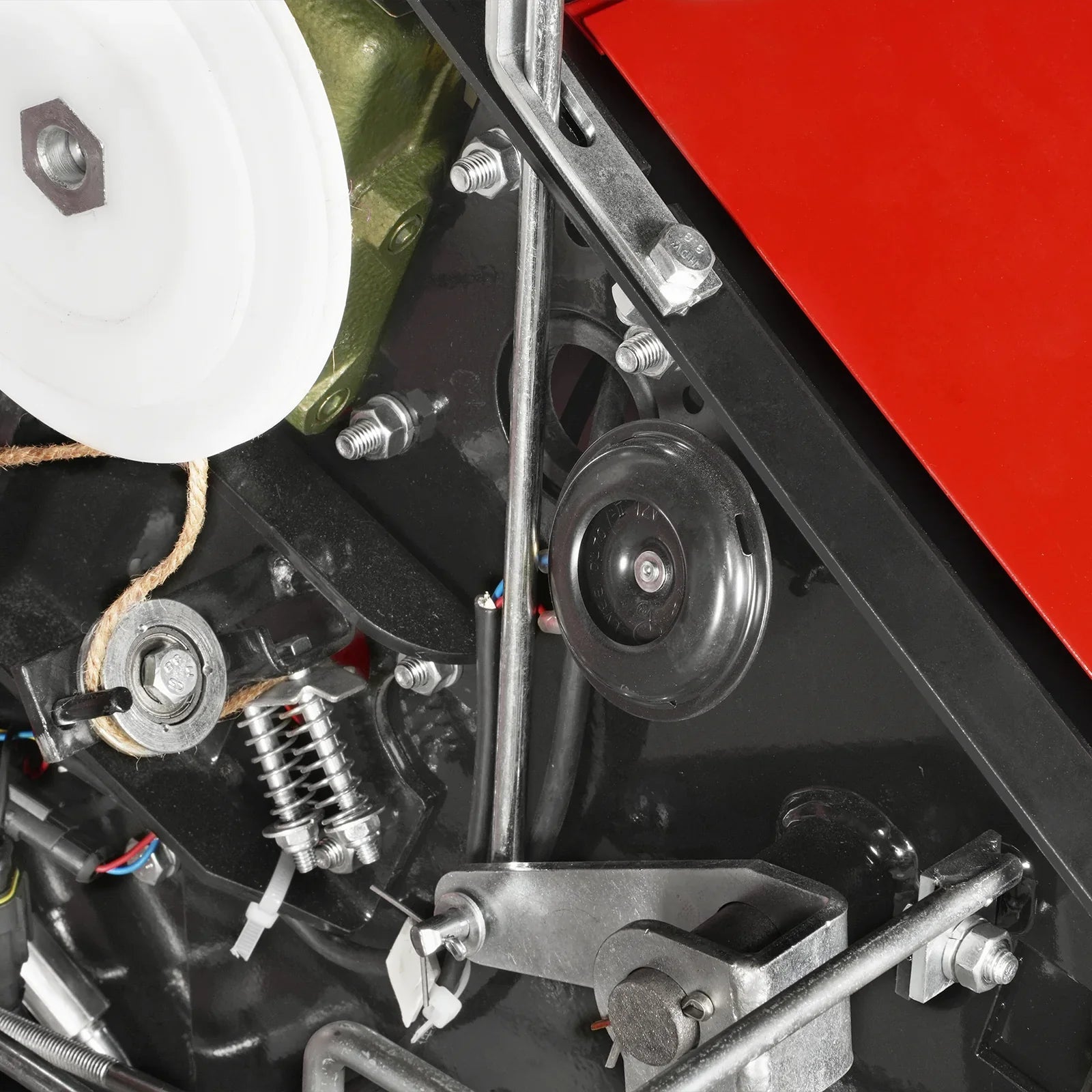

  • Full Bale Chamber Alarm: The full chamber horn sounds when the bale cham-ber is full, after the twine arm drops and depresses the activation switch. This begins thetwine wrapping process.

Power Required: 15-50 Hp

Minimum Tractor Weight: 1500 lbs

Bale Size （Diameter X Width）: φ20 X 28 in

Bale Weight: 30 - 50 lbs

Overall (L x W x H): 45 x 51 x 47 in

Pickup Width: 31.5 in

Efficiency: 1.24-3.11 mi/h

Capacity: 80 - 100 Bales / Hour

Bale Wrapping: Twine Wrap

Hydraulics: Independent Hydraulic Power Unit, No Need Tractor Hydraulics

Electrical: Aviation Plug, Easy To Connect With Tractor

Ropes Needed For Per Bale: 62-95ft

Tire Size: 16 x 6.5 in

PTO Shaft Speed: 540 rpm

Driveline Shaft Length: T4-LF-27.5

Spline End: 1.375in Z6

3-Point Hitch: CAT 1

Gearbox Oil Type: 80W90 EP Gear Oil

Finish: Powder Coating

Shipping Box: 47 x 45 x 47 in

Weight (N.W./G.W.): 970 /992 lbs

This item comes with a 1 year factory warranty.
