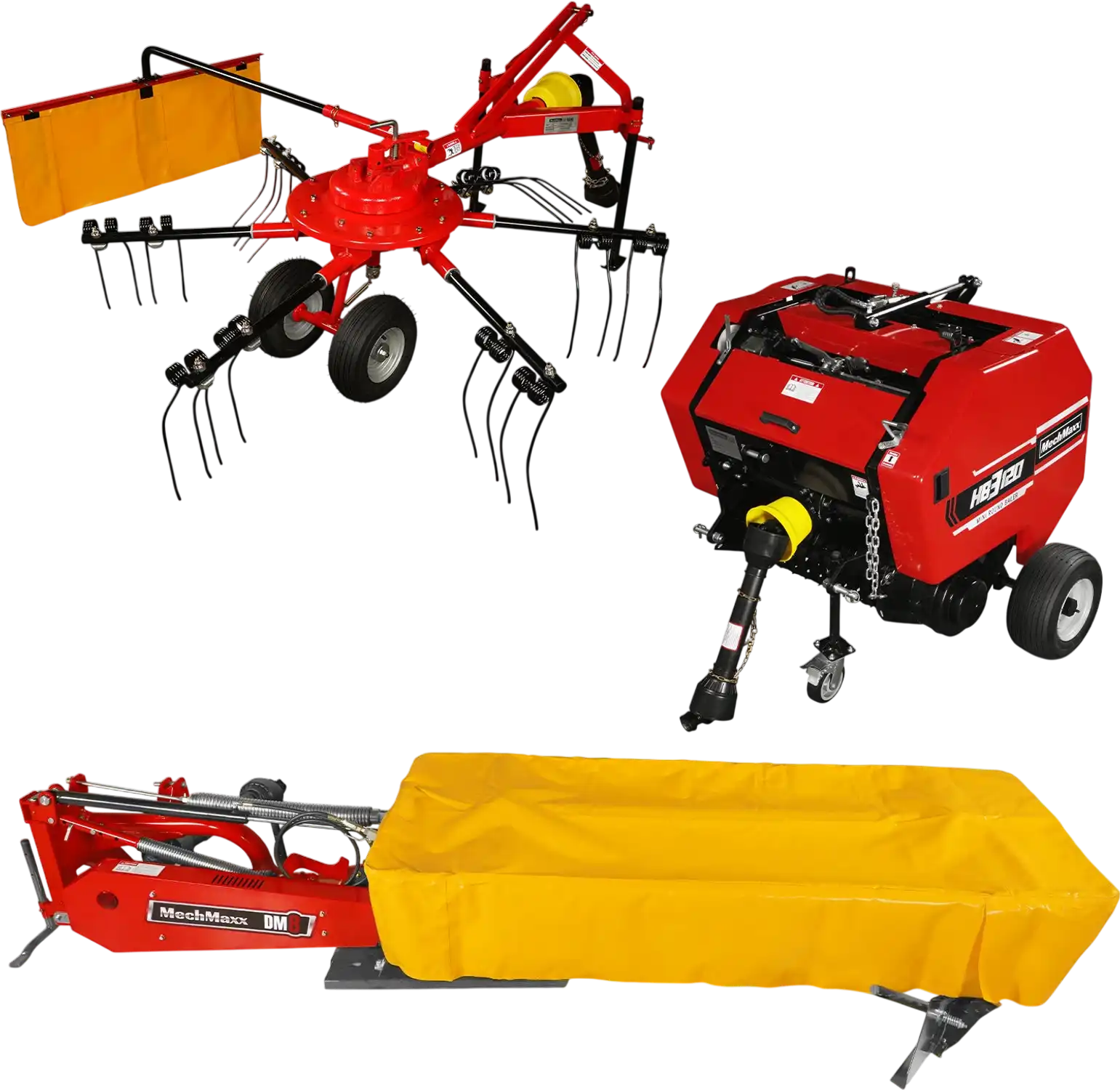

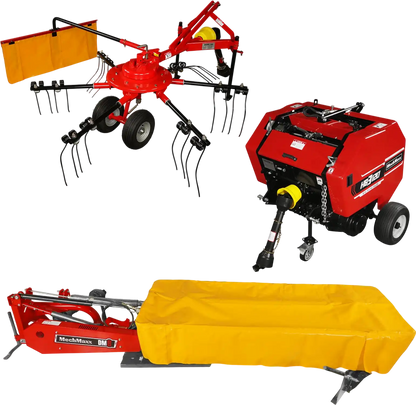

MechMaxx HB3120, HT100, DM8 Hay Equipment Bundles Hay Baler Hay Rake Tedder Disc Mower Bundle New

MechMaxx

$11,299.00
$11,299.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

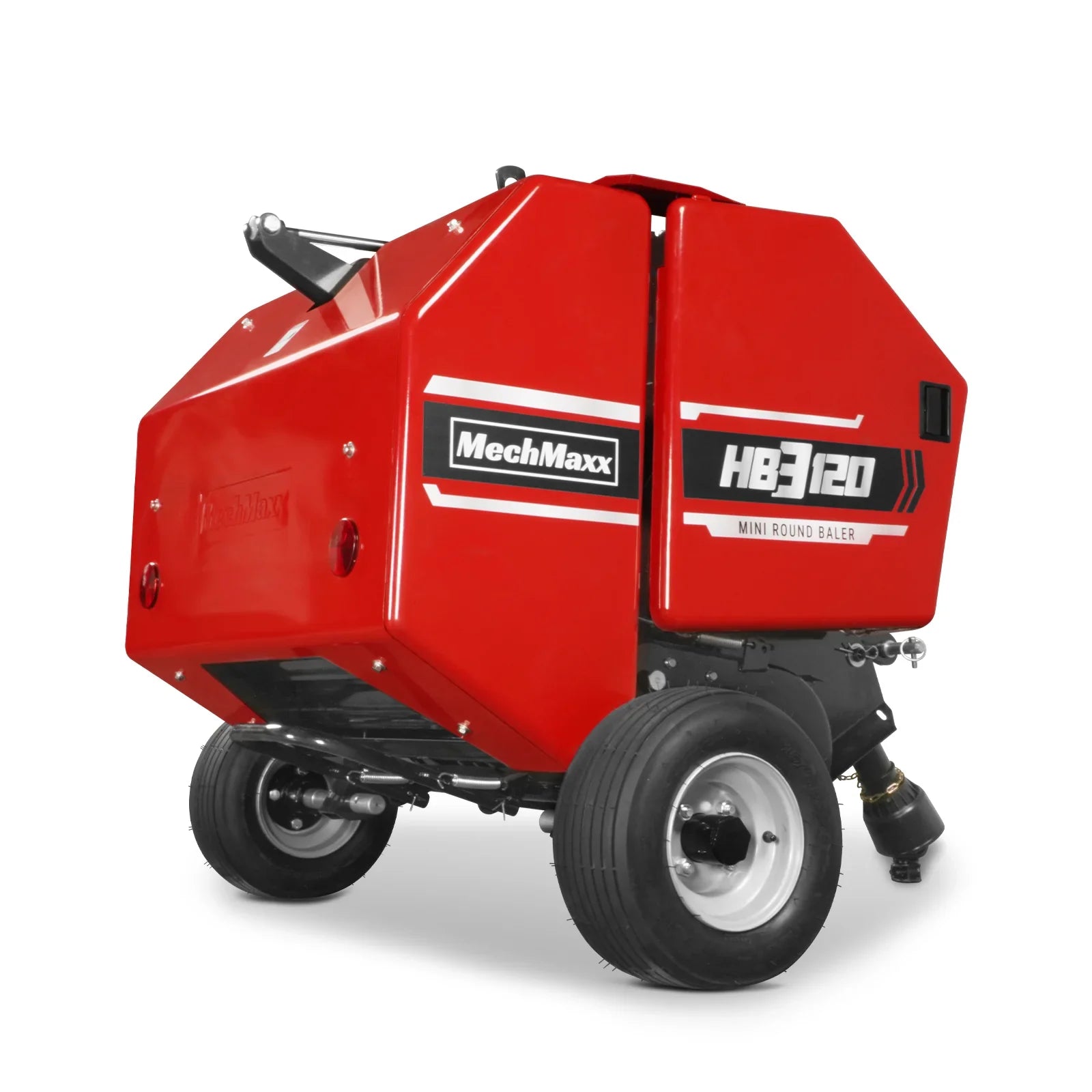

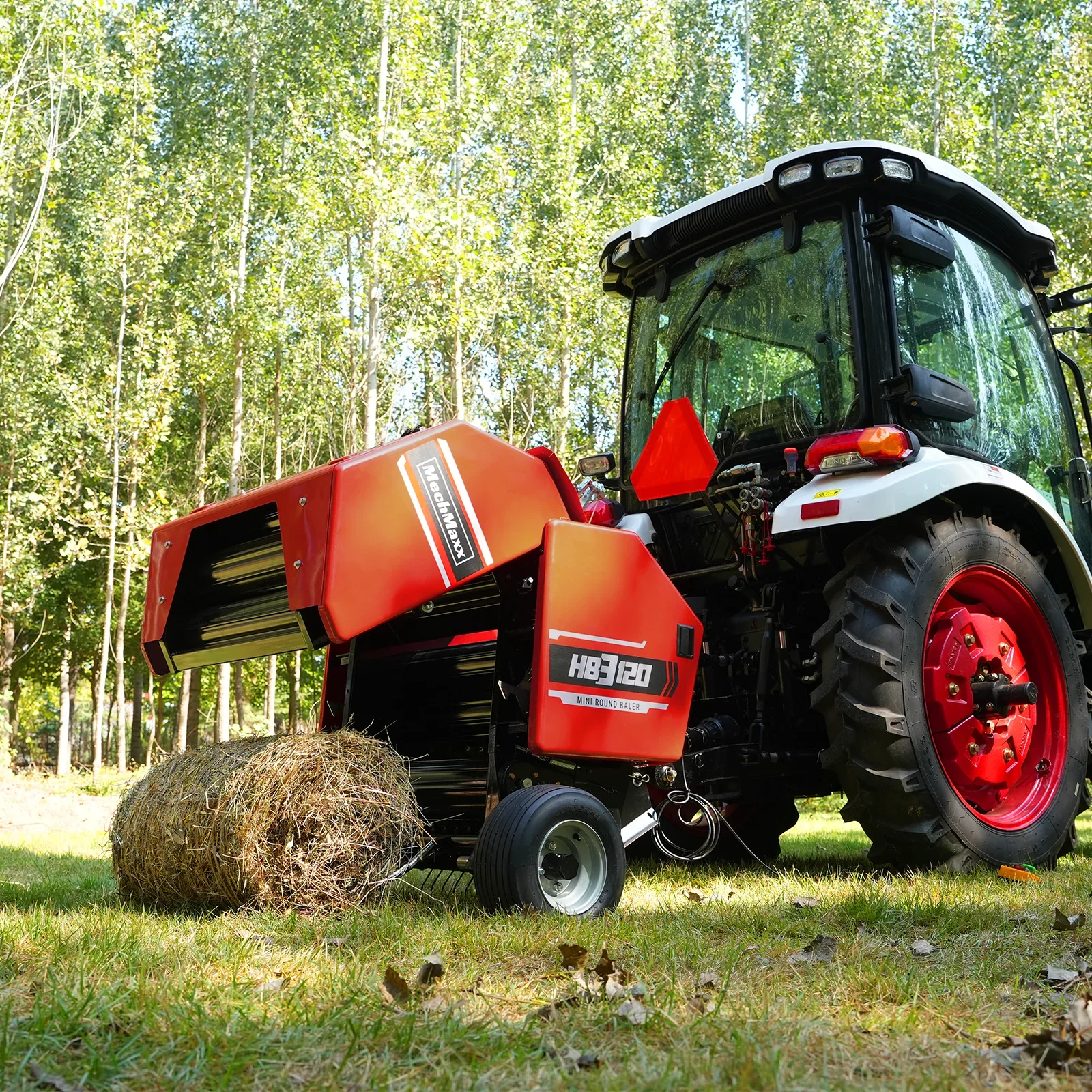

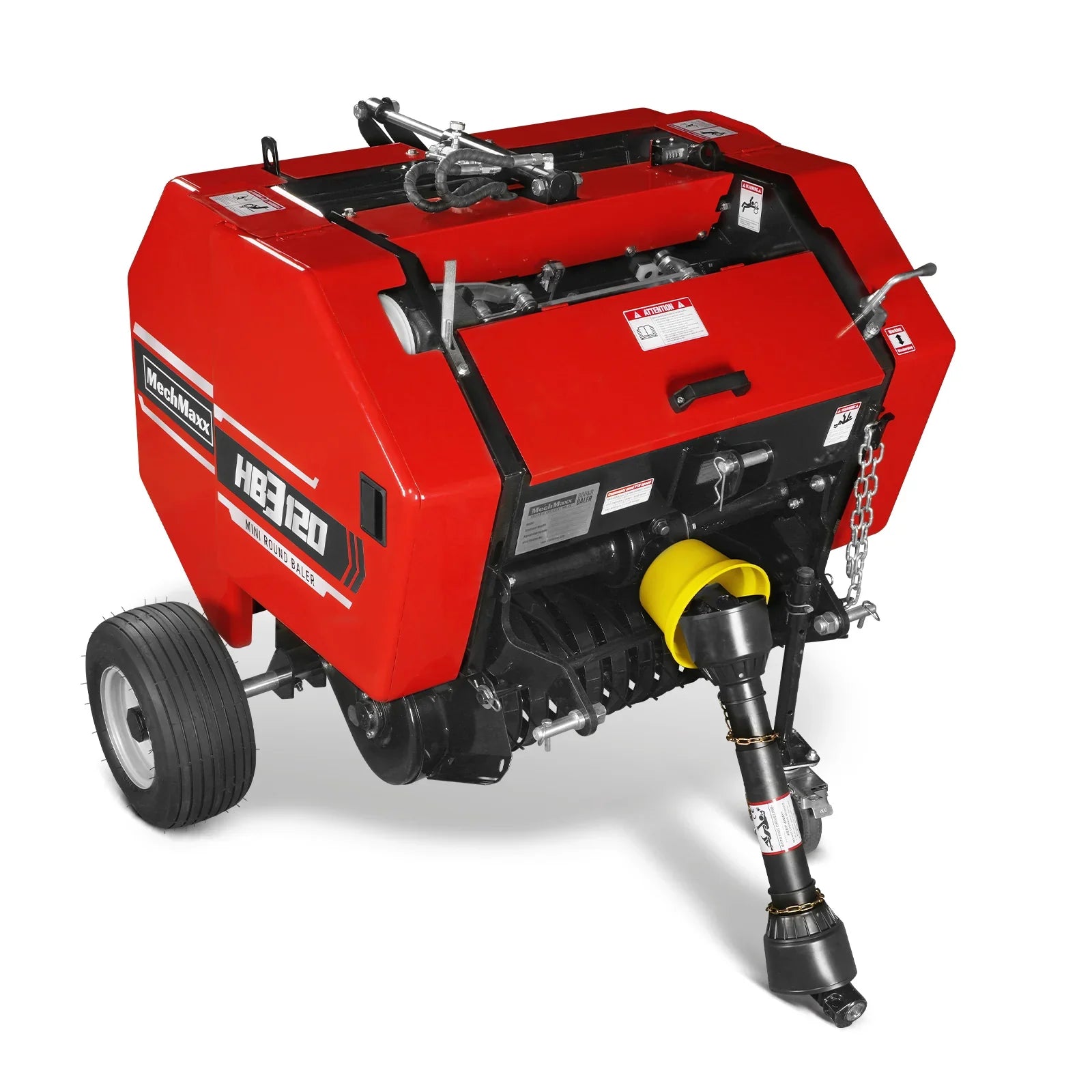

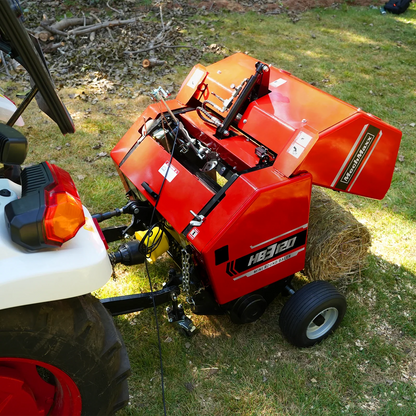

Hay Baler  HB3120

  • Twine auto binding system. Hydraulic bale ejection system. Simple mechanism, low maintenance. Bale counter, easy to know your bale quantity. Hydraulic lifting system for easy ridge crossing. Light and round straw bales convenient for transportation. Remote control easy to release the bale compare to pull the thread to release the bale.

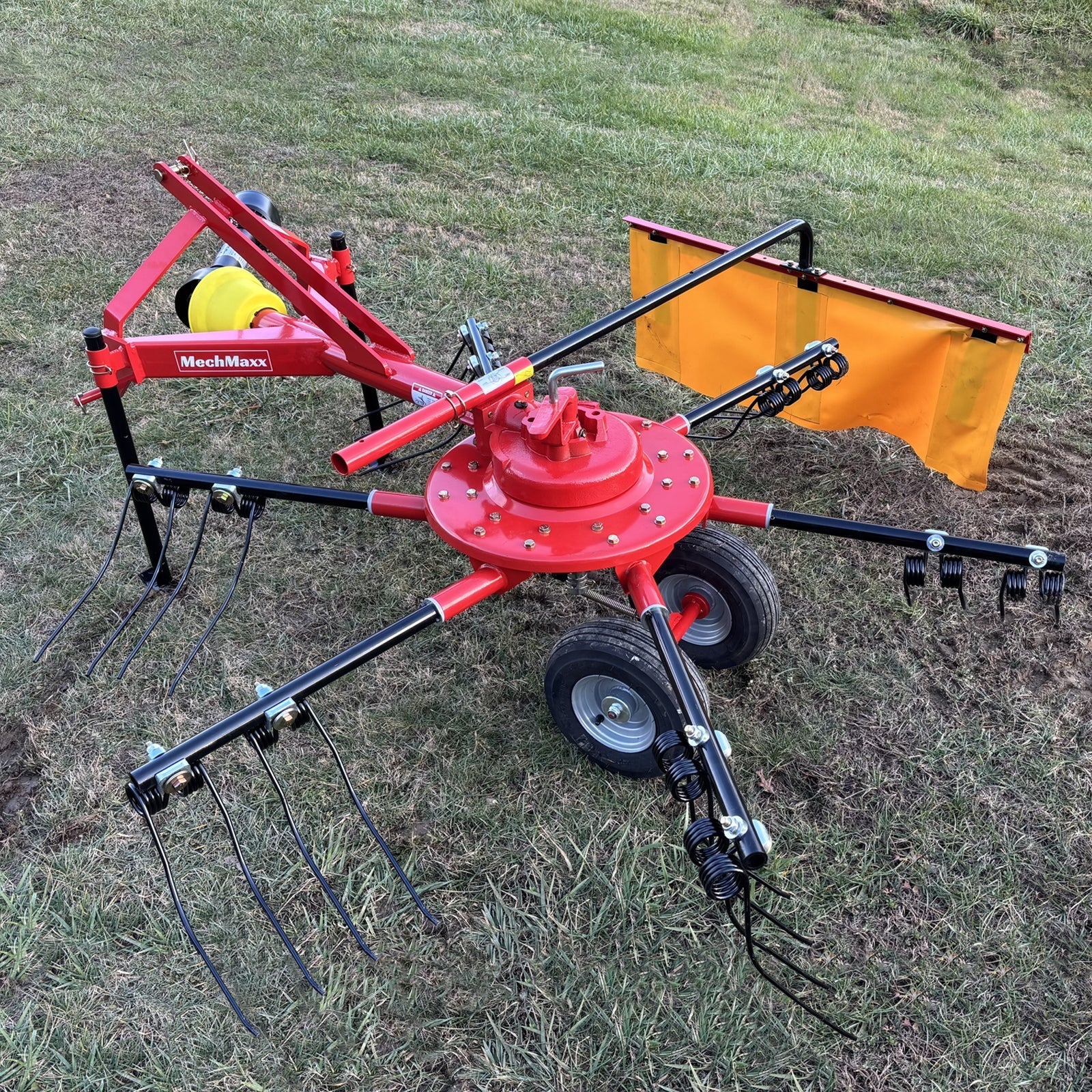

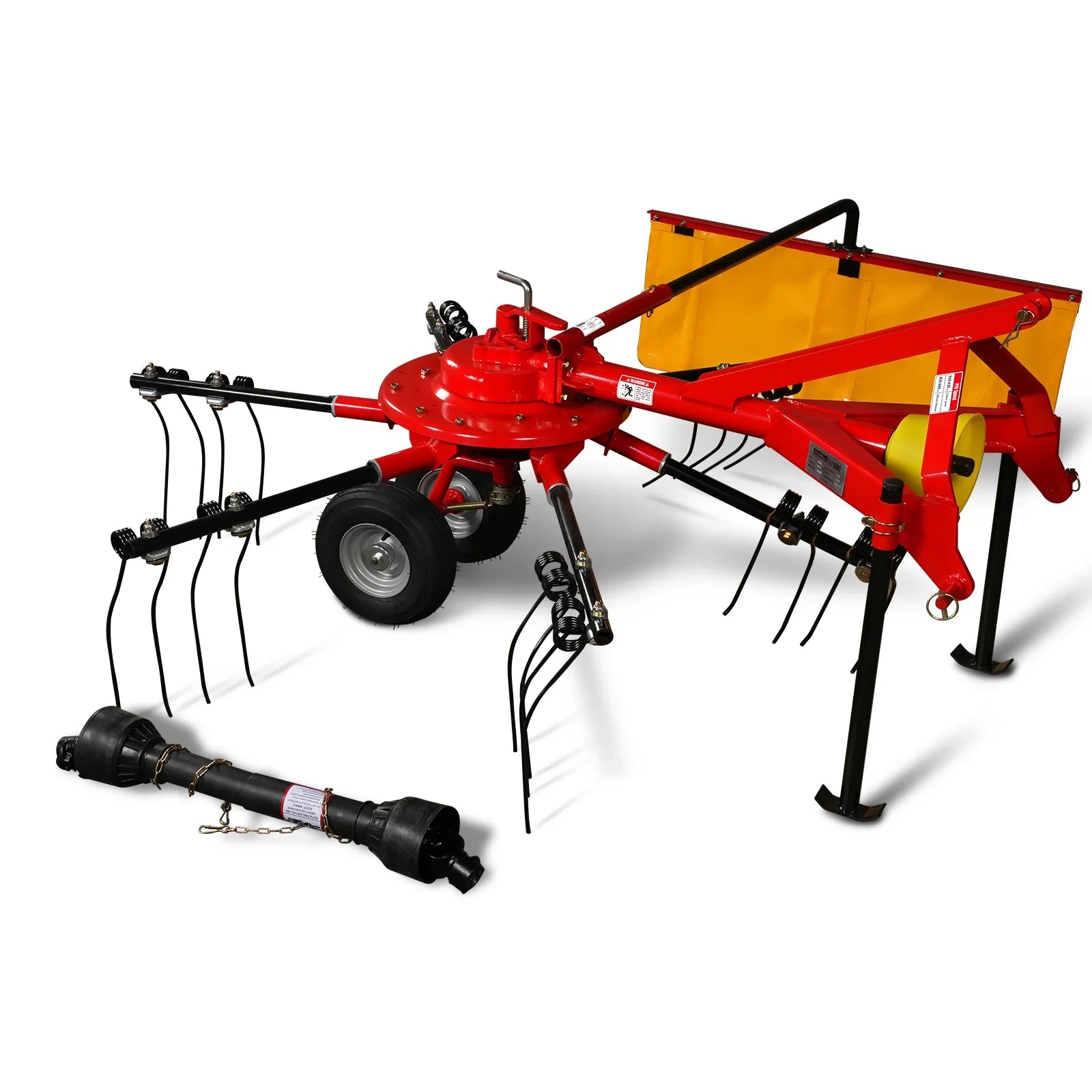

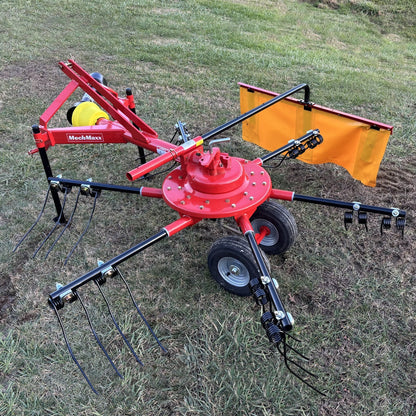

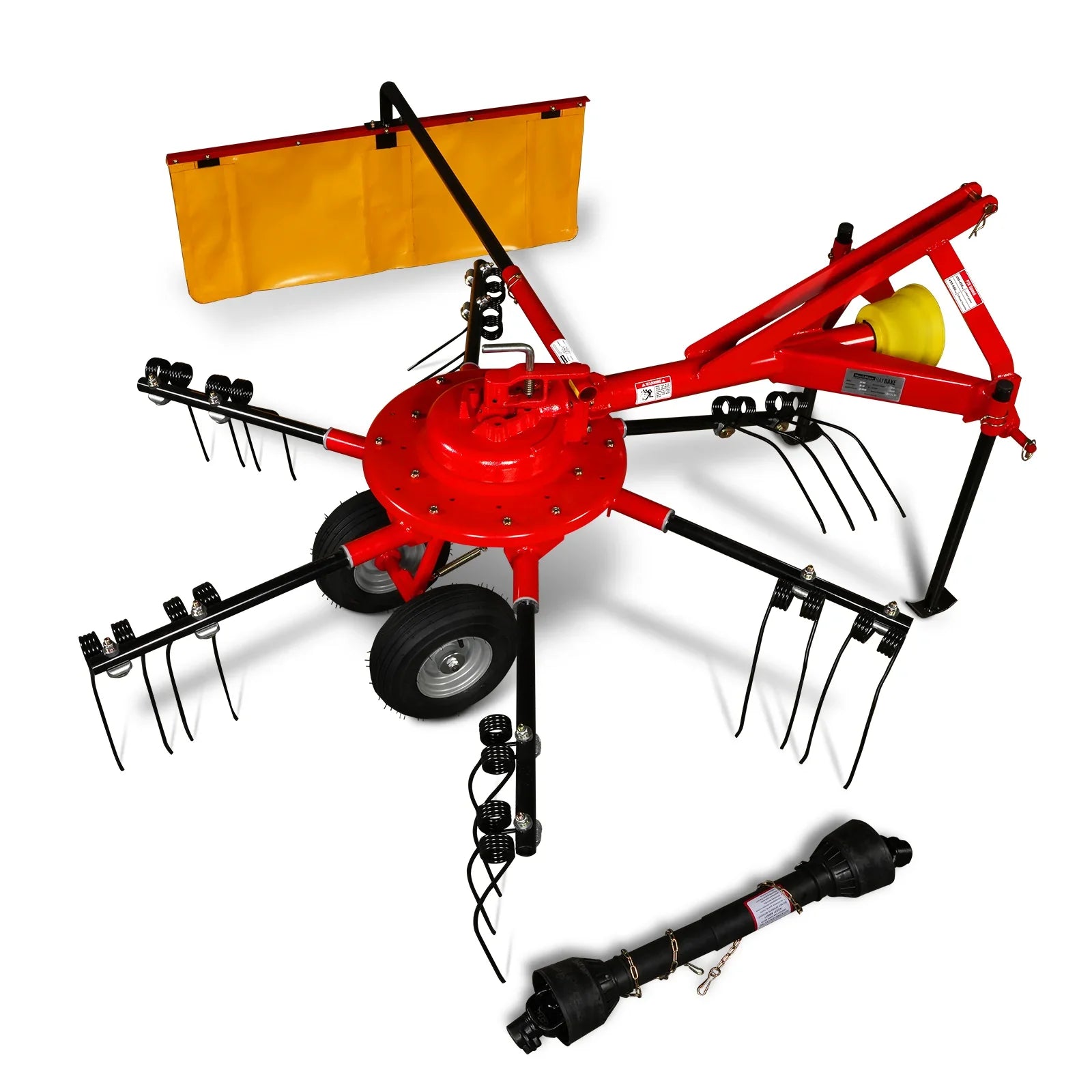

Hay Tedder Combo HT100

  • This 3-point hitch mounted, PTO-powered rotary hay rake tedder features a design that allows it to perform multiple tasks—spreading, turning, and raking hay—thereby reducing the need for multiple pieces of equipment. It is designed for compact and subcompact tractors for 15-50hp, making it ideal for tight spots and efficient hay harvesting. By effectively spreading and turning the hay, this tedder help ensure rapid and uniform drying, which is crucial for maintaining the nutritional value of the forage. Designed for easy towing and transportation, these tedders can be quickly moved from one location to another, enhancing operational flexibility.

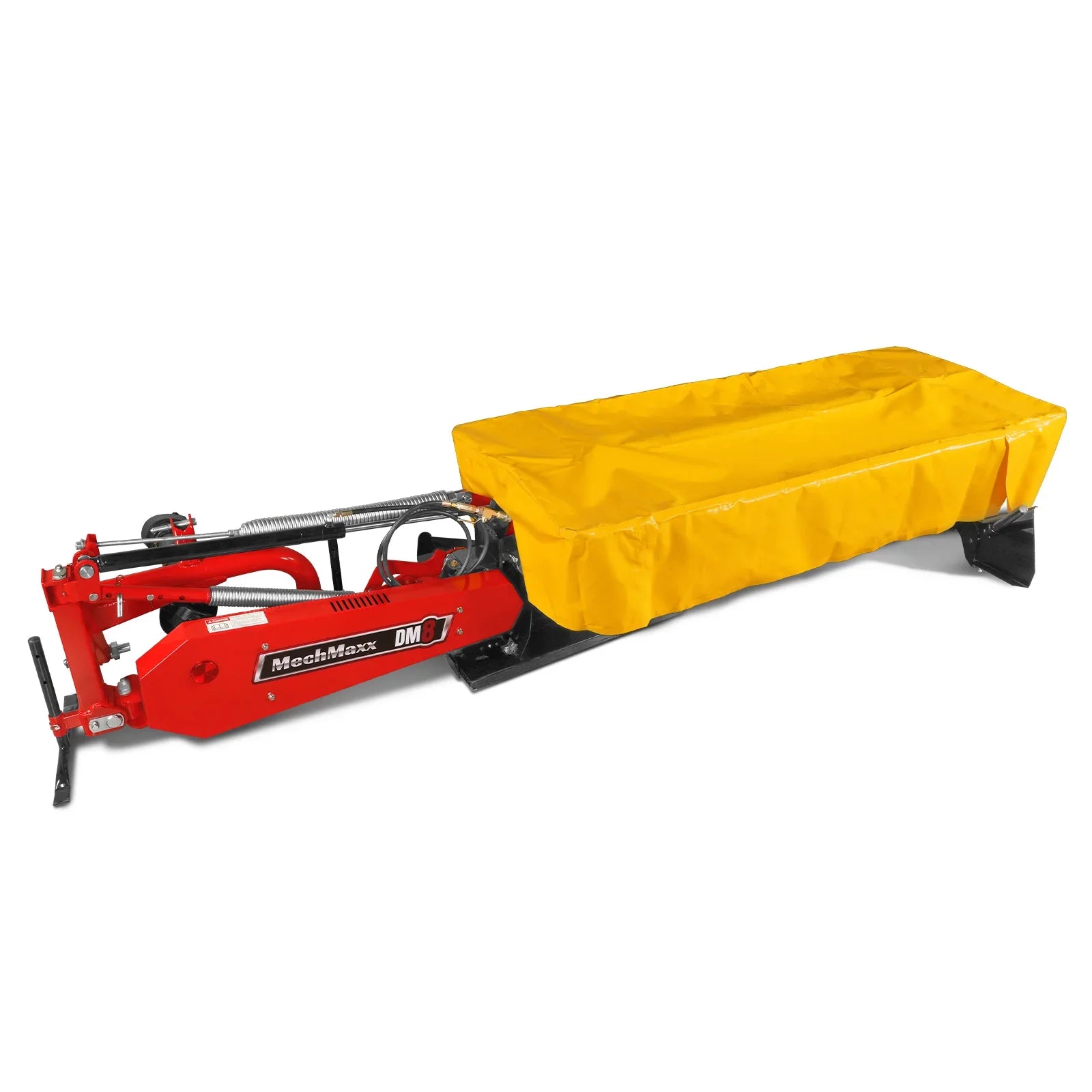

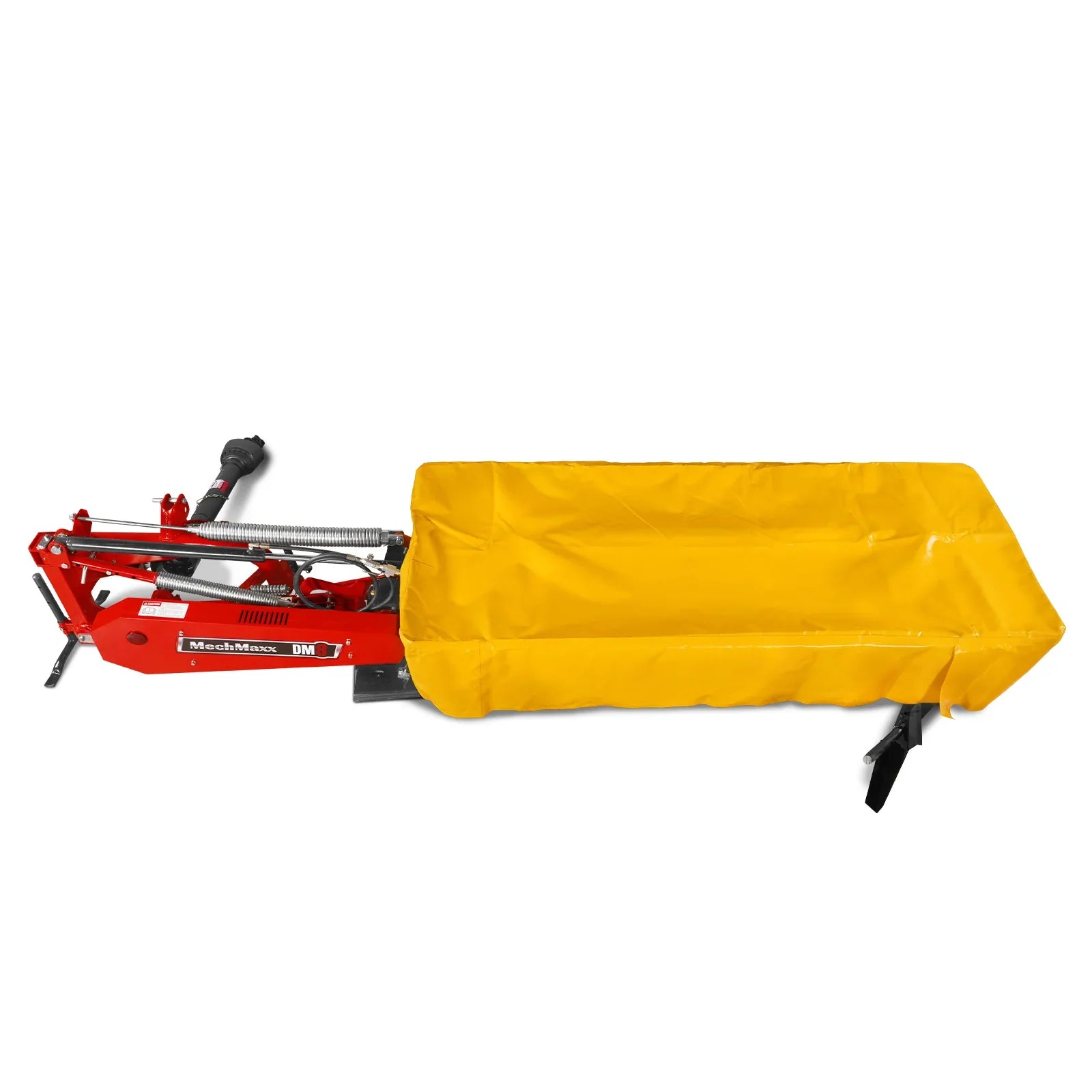

Disc Mower DM8

  • The mower is fully gear transmission, the gearbox and gears in the cutter bar can quickly transfer power from tractor to blades, improve mowing speed, reduce power lost. The disc mower was built with high quality robust components, thus suitable to heavy duty and harsh works. This kind of gear transmission mower can handle various kinds of terrain and cutting fields, also for different types of grasses, including thick and long grasses, stalks, etc.. Gear transmission disc mowers are relatively easy for maintenance, lubricate the main points and change blades according to the instructions. The mower was designed with safety components thus pullback the cutter bar while it hits heavy obstacles.

Note！

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Light And Compact Bales: The HB3120 balers makes ø20 x 28in bales, bale weight 30-50lbs, the bale weight differs from the material you bale, the compact bales are easy to carry and transport.
  • Simple Mechanism: The HB3120 baler was driven by chains and gears, the simple mechanism structure makes the machine easy for maintenance.
  • Bale Counter: The HB3120 baler was installed with a simple bale counter, this makes you easily know how many bales you have, and it makes renting much easier.
  • Easy-Access Covers: The HB3120 comes with easy-access covers which makes opening the bale covers much easier compare the ones which use Star-Handles.
  • Independent Power Unit: The HB3120 Baler does not require tractor hydraulics, as it is equipped with an independent hydraulic pump station.
  • Heavy-duty Caster Stand: The HB3120 baler comes with a heavy-duty caster stand, the strong caster stand is able to rotate as a small wheel thus help move the machine in short distance.
  • Extra Shear Bolts: The shear bolts act as an important role on the HB3120 baler, it breaks while the baler met big obstacles or bales too big, thus stop the mechanism parts to protect the main body of the machine. We designed an extra plate for holding the extra shear bolts, much convenient.
  • 0.08in steel compress roller: The HB3120 use 10 pieces 0.08in integrated forming compress rollers, each roller with 6 reinforcing ribs, this makes the rollers much stronger.

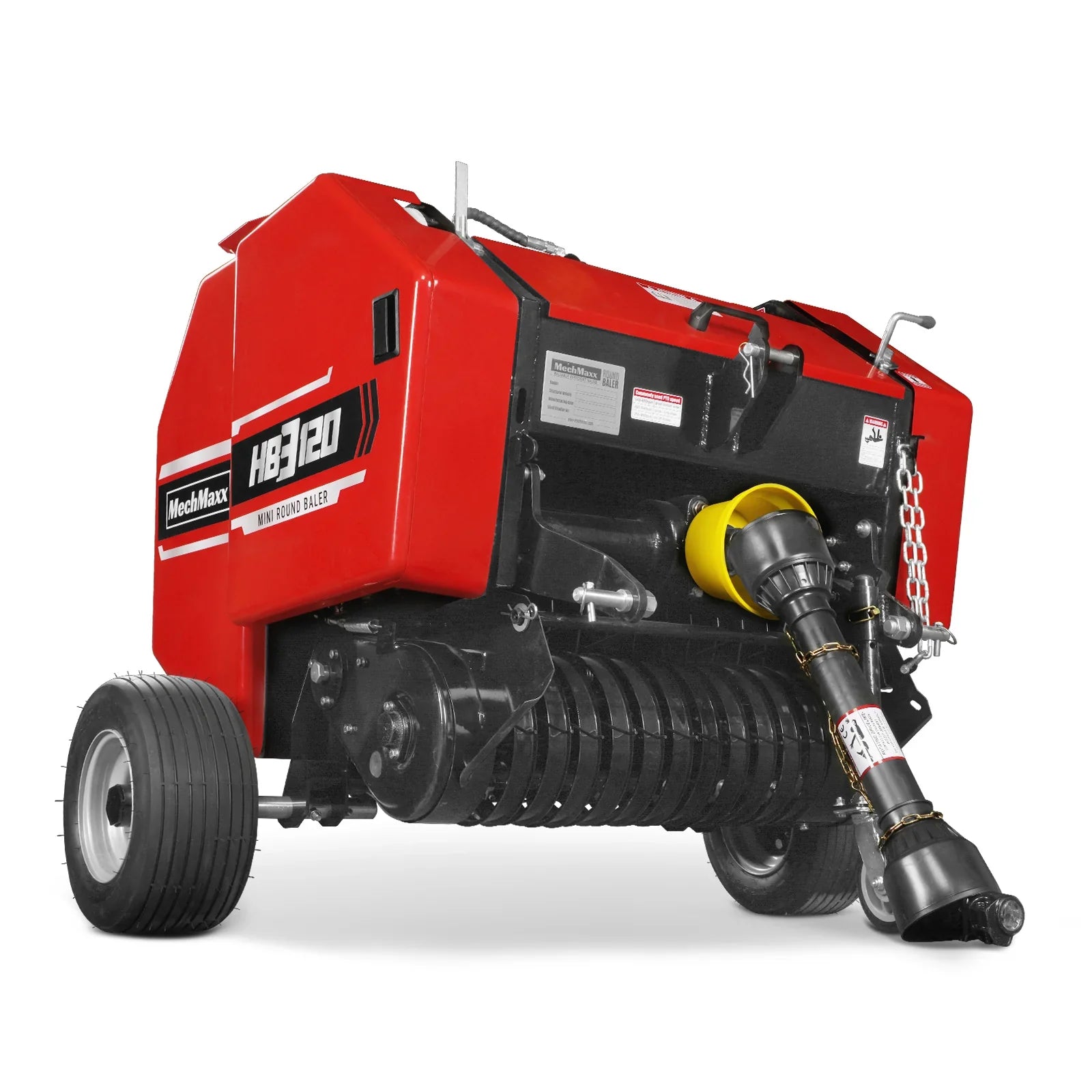

  • PTO Shaft( 1-3/8” Z6): The HB3120 balers use 27.5in 6 x 6 spline PTO shafts, the length is able to be adjusted according to your tractor.

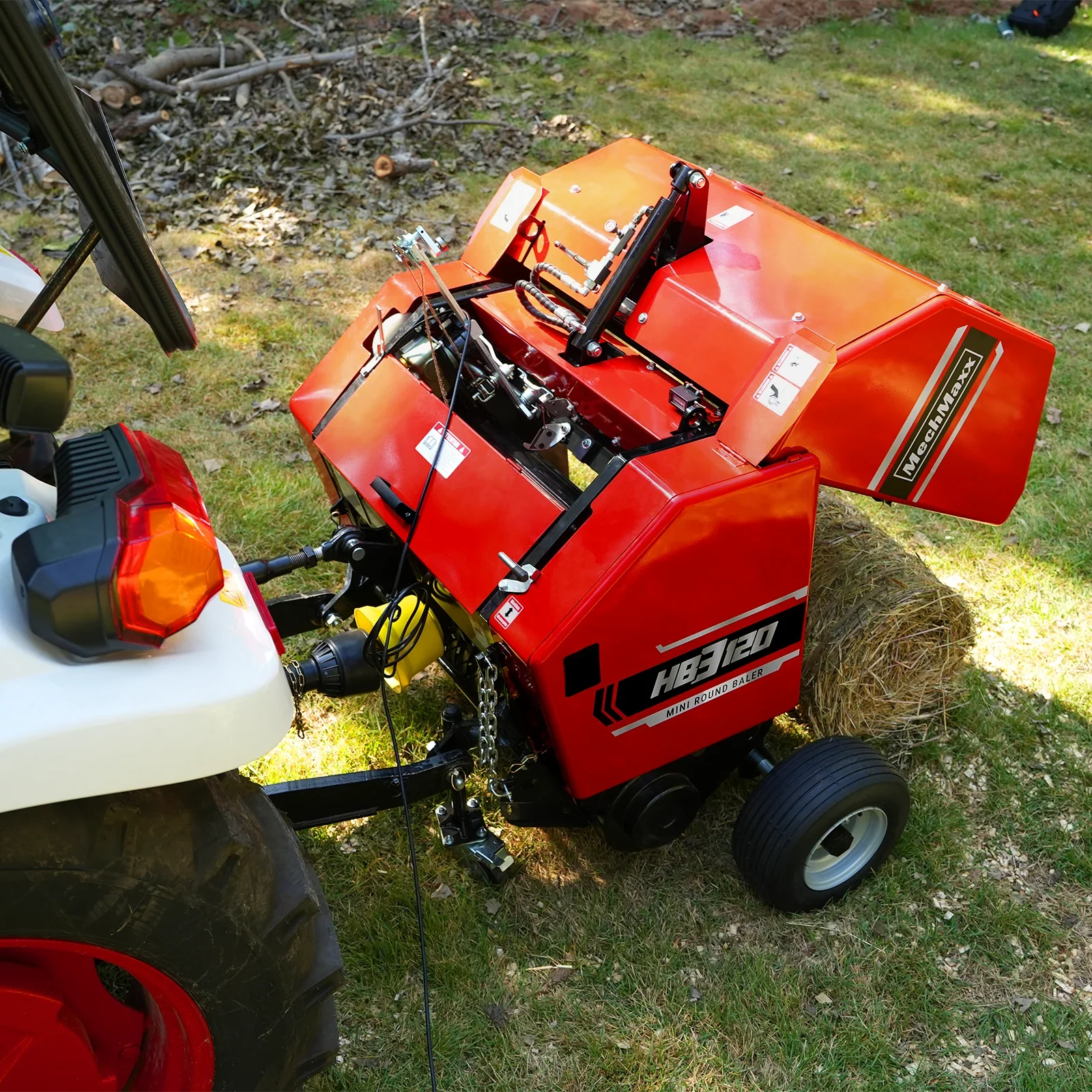

  • Hydraulic Ejection System: The HB3120 baler releases the bales by hydraulic cylinder, you can adjust the tailgate closing speed by adjusting the throttle valve on the cylinder.
  • Remote Control To Release The Bales: The HB3120 balers equipped with a remote control box, press the button to release the bale, you no need to pull a string to release the bale.
  • Full Bale Chamber Alarm: The full chamber horn sounds when the bale cham-ber is full, after the twine arm drops and depresses the activation switch. This begins thetwine wrapping process.
  • Durability And Low Maintenance: The HT100 hay rake features durability and low maintenance design to reduce downtime and repair costs.these attachments are made from high-quality materials that ensure longevity and reliability
  • Multi-functionality: The HT100 hay rake tedder can perform multiple tasks such as tedding, raking, and spreading without requiring additional tools for switching between functions, saving time and labor.
  • Compatibility With Compact Tractors: The HT100 hay rake tedders are designed to be compatible with compact and subcompact tractors, making it ideal for small to medium-sized farming operations. It provides excellent performance, spreading wet crops evenly for faster drying.
  • Gear Transmission, High Efficiency: DM mower is fully gear transmission, the gearbox and gears in the cutter bar can quickly transfer power from tractor to blades, improve mowing speed, reduce power lost.
  • 19-splinebelt Pulley Transmission Shaft: Spline shafts can transmit higher torque than ordinary shafts, provide a larger contact area, and ensure efficient power transmission, improve reliability and reduce maintenance requirements.
  • Easy For Lubricating: Removing the cover on the cutting deck allows for easy lubrication, simplifying maintenance and repair.
  • Bronze Decompression Valve On Gearbox: Decompressive valve was designed to release the heat inside the gearbox, thus makes the gears inside a longer life span.
  • Safety Device: Safety device to pull back the cutter bar when hit strong obstacles to protect the cutter bar.
  • Quick Coupler Included: The quick hitch is very convenient and can be done by one person. The operator backs up the tractor, hooks up the disc mower with the quick hitch and is ready to operate.
  • Thickened Safety Canopy: The thickened safety canopy prevents people from the splashed grass residue, also protect the disc mower from being rusted by rain and snow, thus extending the service life of the machine.
  • Inclined Strut: Inclined strut help bear the weight of the cutter bar（6-disc mower）.
  • Versatility: This kind of gear transmission mower can handle various kinds of terrain and cutting fields, also for different types of grasses, including thick and long grasses, stalks, etc..

Power Required: 15-50 Hp

Ropes Needed For Per Bale: 62-95ft

Minimum Tractor Weight: 1500 lbs

Tire Size: 16 x 6.5 in

Bale Size （Diameter X Width）: φ20 X 28 in

PTO Shaft Speed: 540 rpm

Bale Weight: 30 - 50 lbs

Driveline Shaft Length: T4-LF-27.5

Overall (L x W x H): 45 x 51 x 47 in

Spline End: 1.375in Z6

Pickup Width: 31.5 in

3-Point Hitch: CAT 1

Efficiency: 1.24-3.11 mi/h

Gearbox Oil Type: 80W90 EP Gear Oil

Capacity: 80 - 100 Bales / Hour

Finish: Powder Coating

Bale Wrapping: Twine Wrap

Hydraulics: Independent Hydraulic Power Unit, No Need Tractor Hydraulics

Shipping Box: 47 x 45 x 47 in

Electrical: Aviation Plug, Easy To Connect With Tractor

Weight (N.W./G.W.): 970 /992 lbs

Power Required: 15-50 hp

Tire Size: 13x5.0-6

Minimum Tractor Weight: 1500 lbs

PTO Shaft Speed: 540 rpm

Working Width: 100 in

Driveline Shaft Length: T4-23.2 in

Rake Diameter: 79 in

Spline End: 1.375in Z6

Spreading With: 63 in

3-Point Hitch: CAT 1

Overall (L x W x H): 83 x 98 x 37 in

Finish: Powder Coating

Arms No.: 6

Spring Teeth No.: 12

Shipping Box: 57 x 24 x 29 in

Working Speed: 2.5-5 mi/h

Weight (N.W./G.W.): 357/405 lbs

Picking Up Objects: Various Types Of Straw, Pasture

Power Required: 50-100 hp

Tilt-Down Angle: 30°-40°

Working Width: 7.7 ft

Min. Tractor Weight: 2000 lbs

Working Speed: 2.5-6.2 mi/h

Gearbox Oil Type: 90SAE Oil

Stubble Height: 2 in

3-Point Hitch: CAT 2

Number Of Disk: 6 pcs

PTO Shaft Speed: 540 rpm

Disc Length: 15.4 in

Spline End: 1.375 in Z6

Disc Diameter Including Blade）: 19.7 in

Safety Coth Material: PVC

Side Disc Height: 9.5 in

Finish: Powder Coating

Number Of Blades: 12 pcs

Product Size (L*W*H): 167 x 55 x 30 in

Blades Material: 65 Mn

Package Size (L*W*H): 102 x 29 x 67 in

Number Of Belts: 4

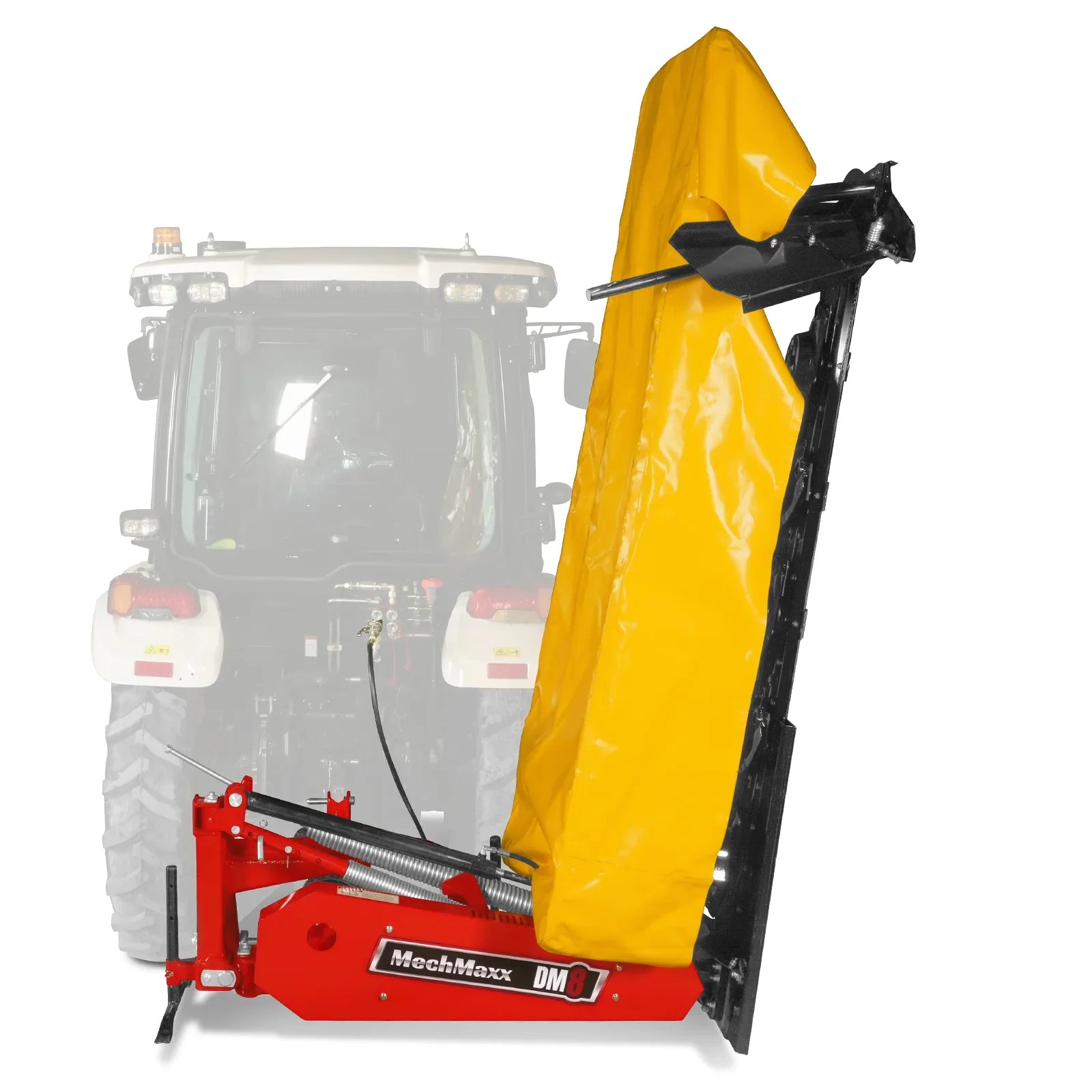

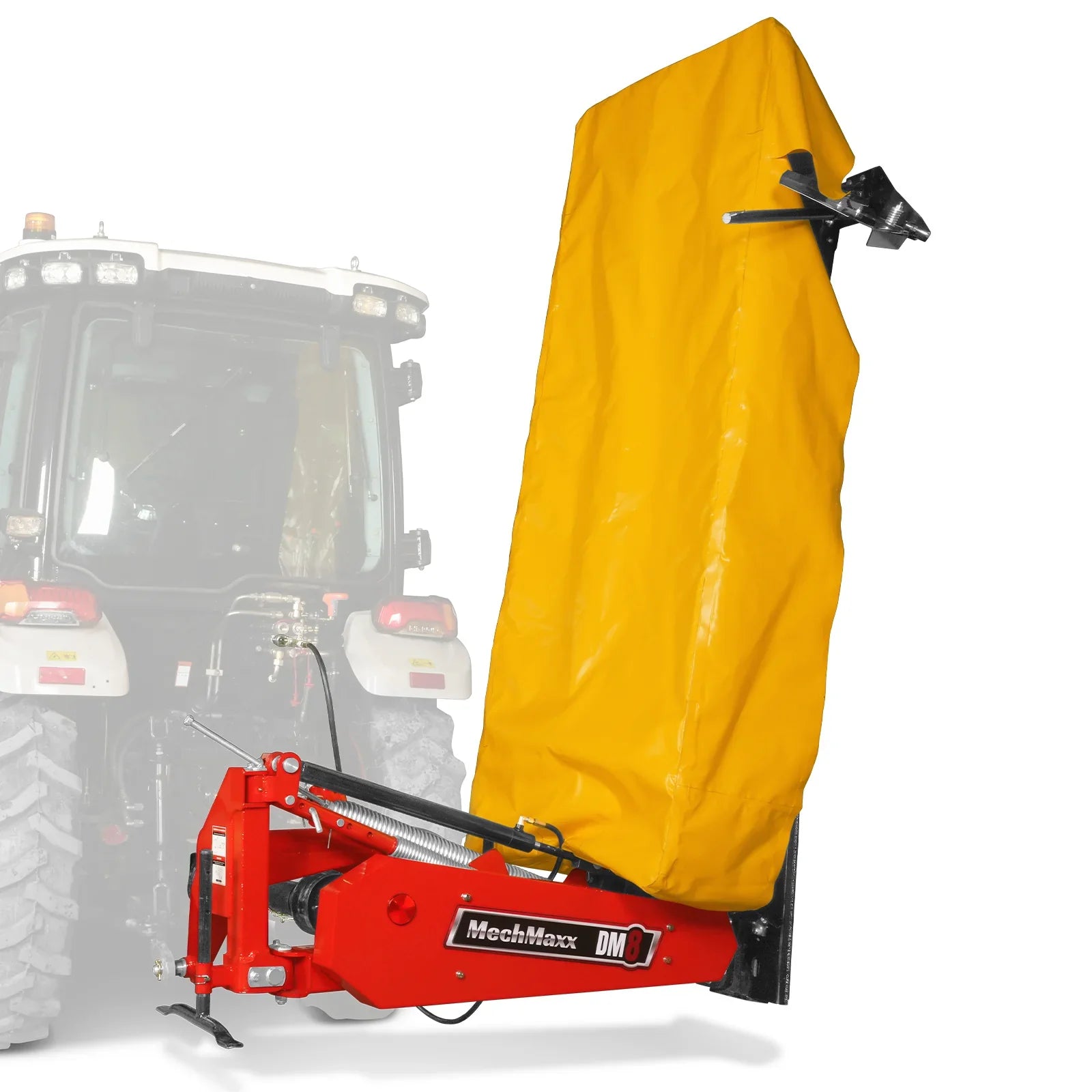

Tilt-Up Angle: 80°

Weight (N.W./G.W.): 1191/1389 lbs

This item comes with a 1 year factory warranty.
