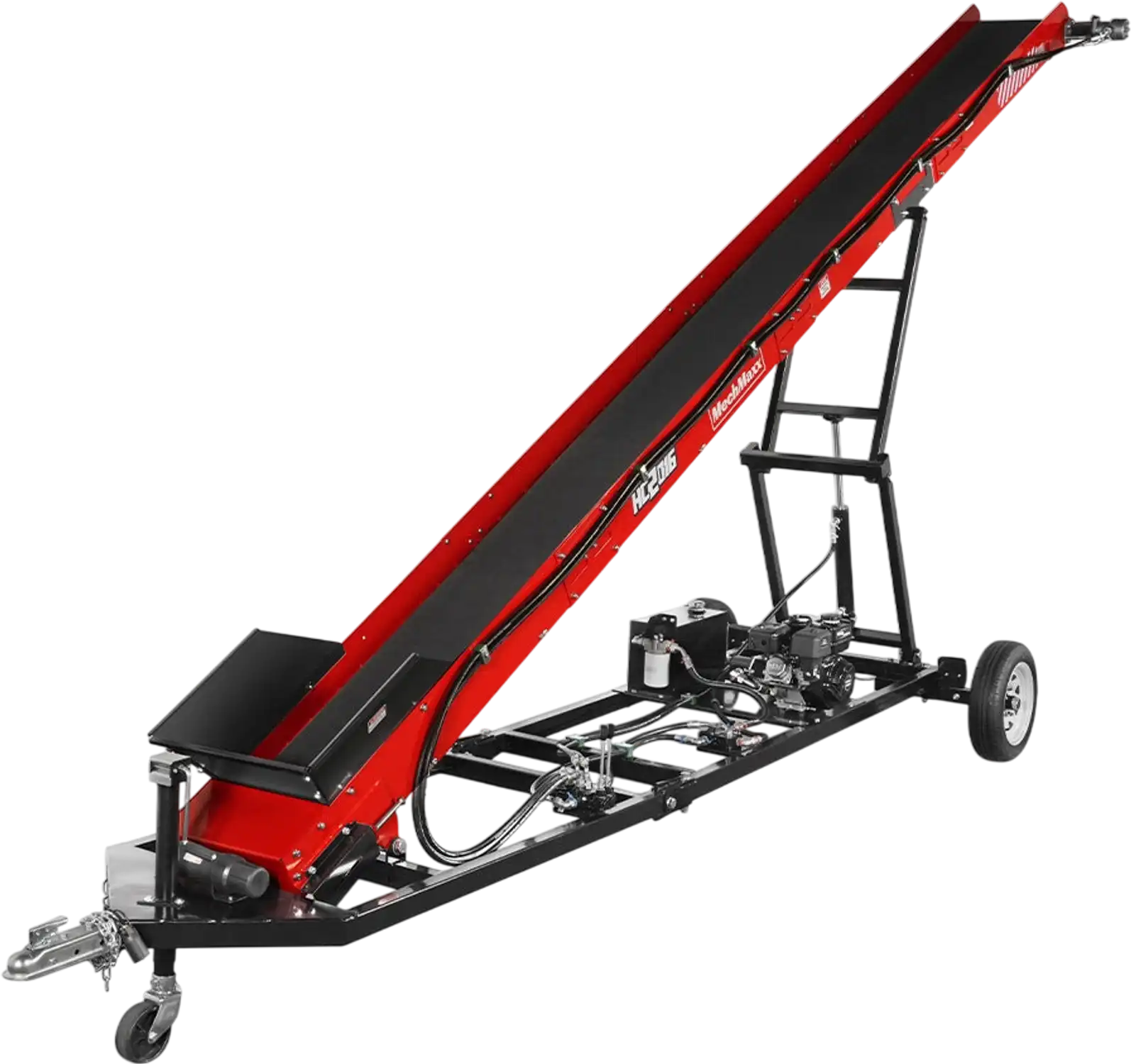

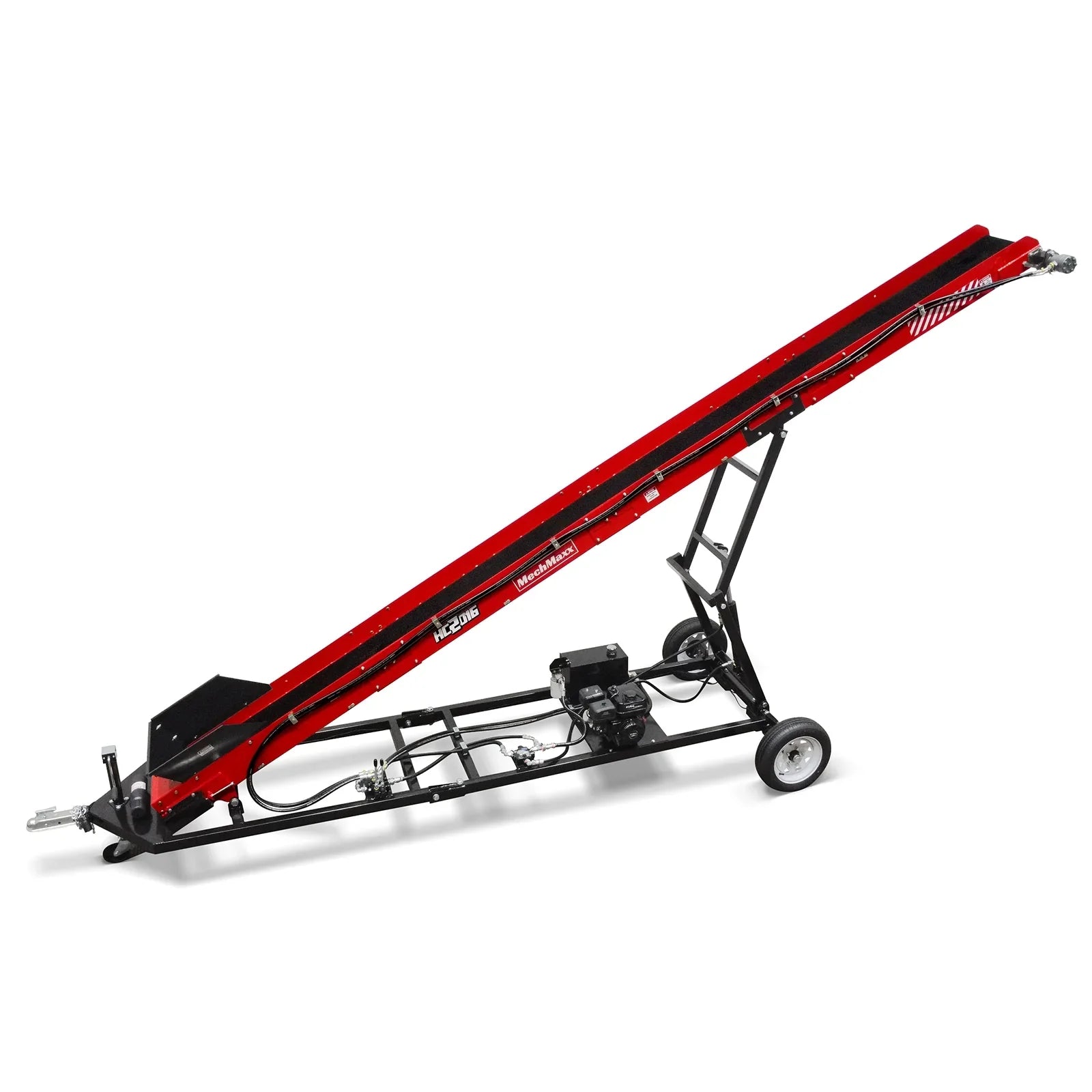

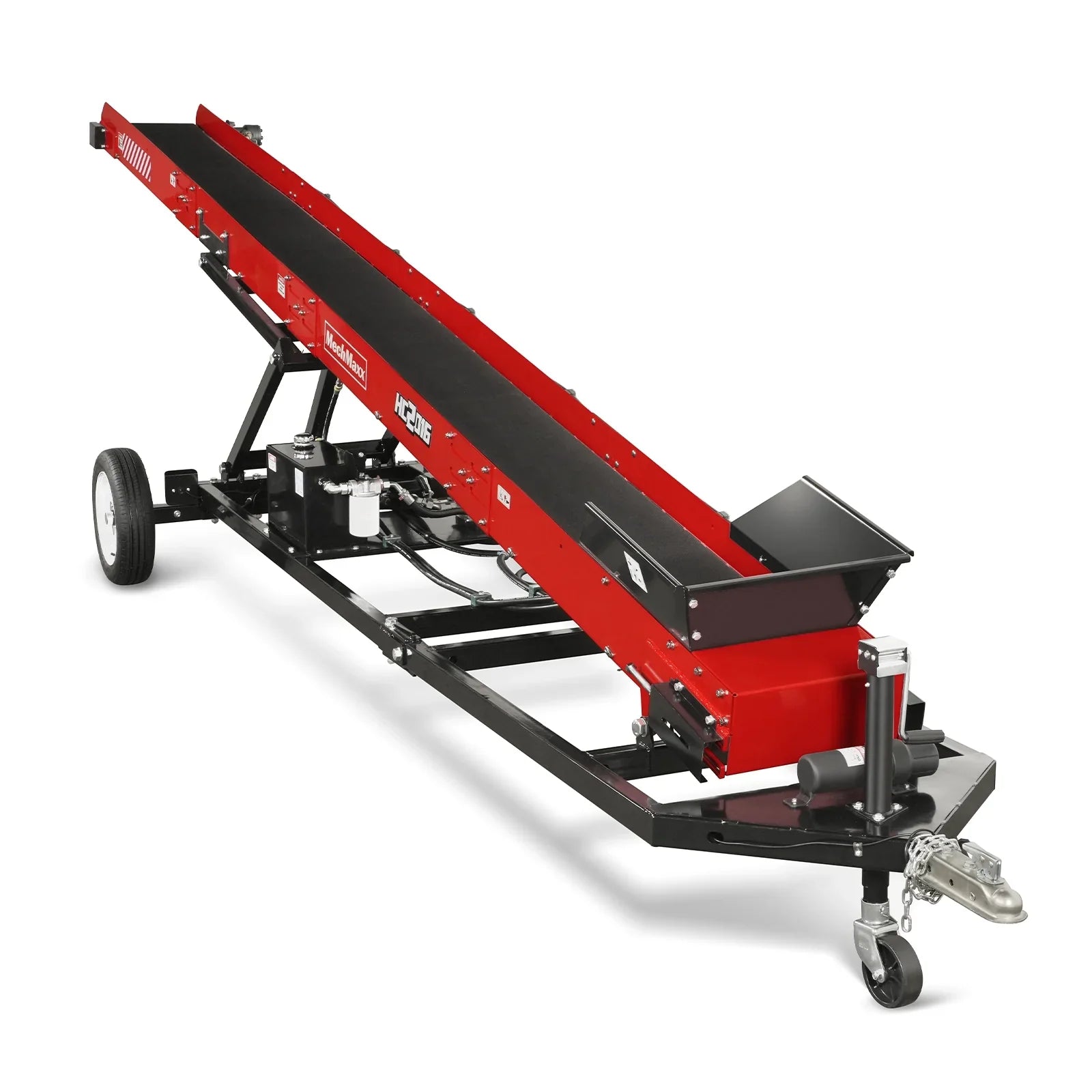

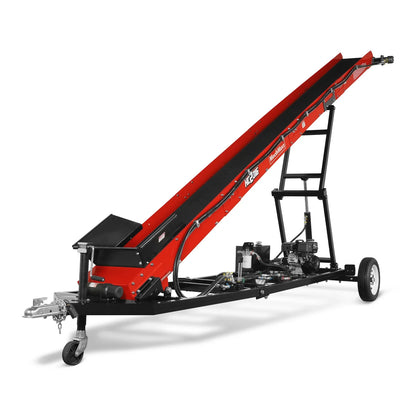

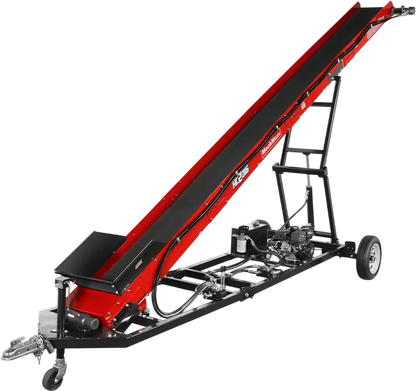

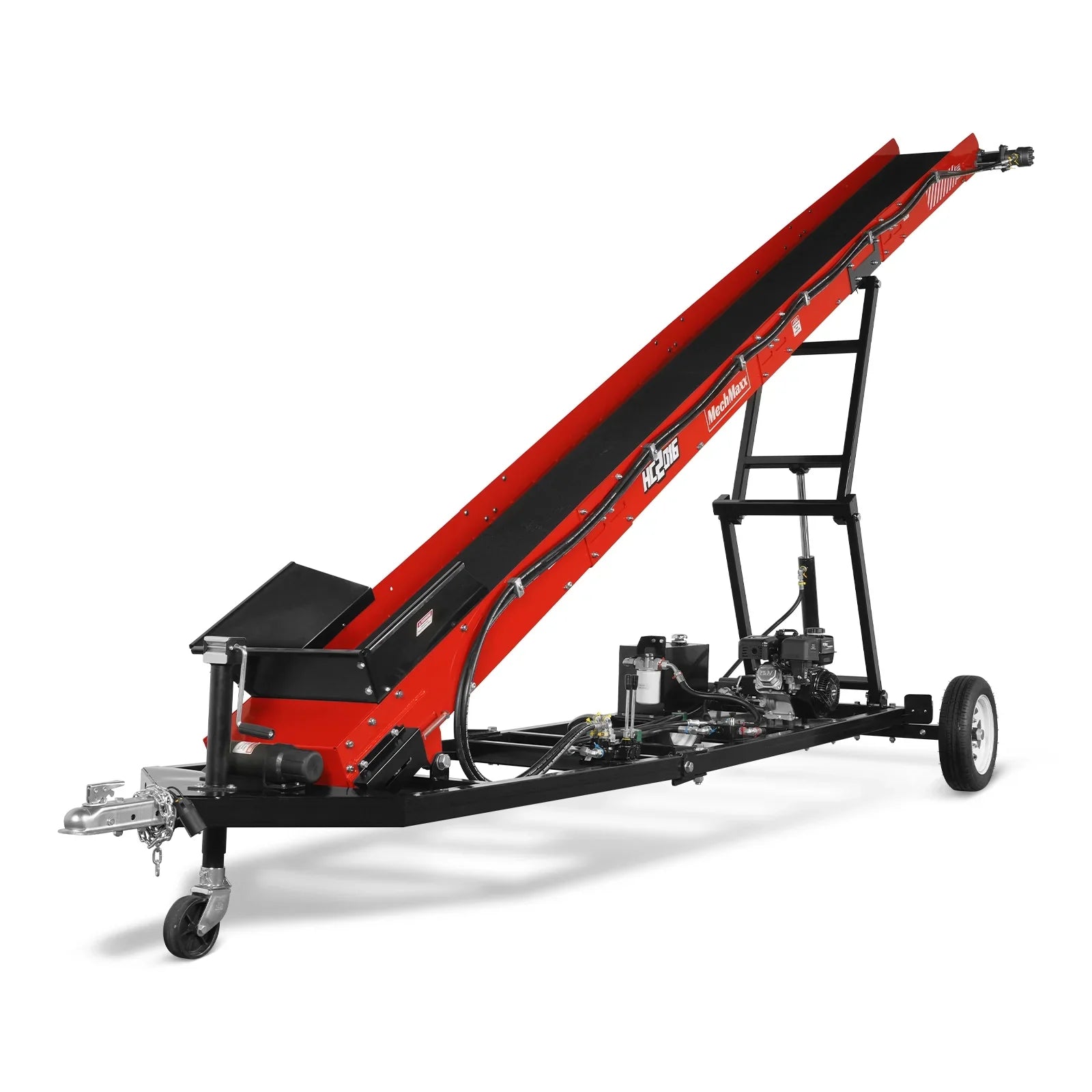

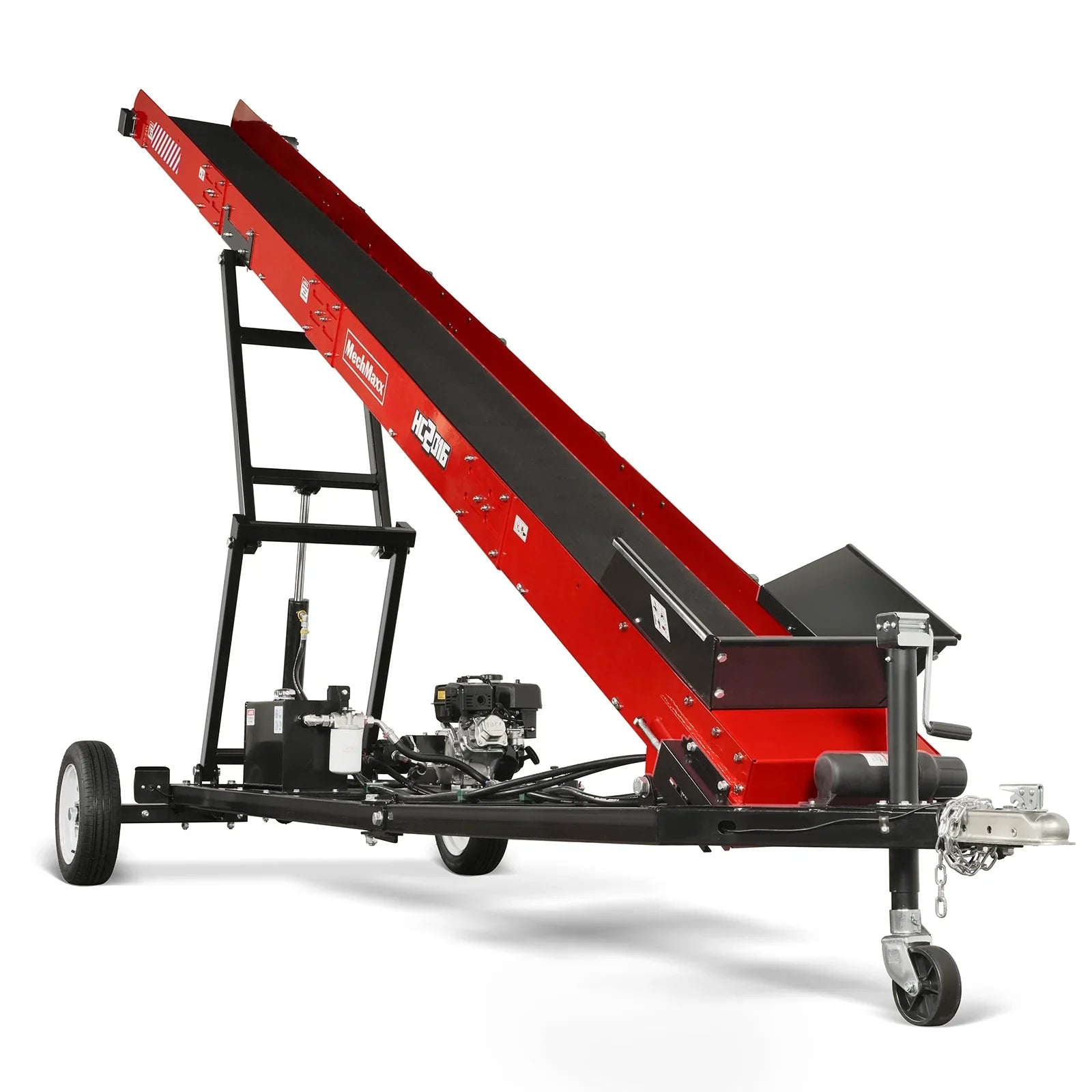

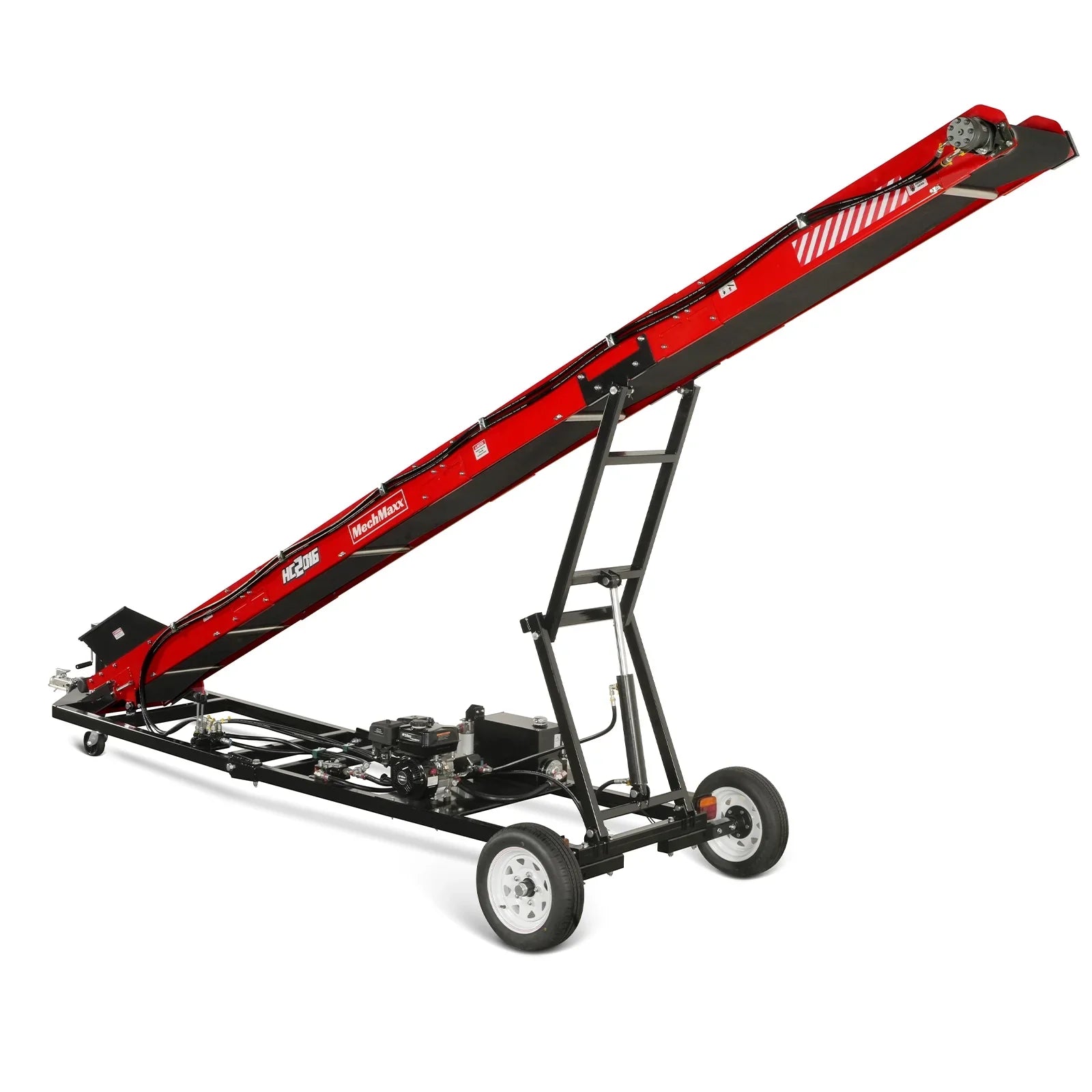

MechMaxx HC2016 Firewood Conveyor 7HP 212cc Gas Powered 124" Lift Height 236" Length 16" Width New

MechMaxx

$3,899.00
$3,899.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • This firewood conveyor offers efficient, powerful and safe performance, making it an essential tool for conveying and lifting firewood in diverse settings.
  • This wood conveyor equipped with a 7HP gasoline-powered hydraulic driven system operates with high efficiency and powerful performance. The belt speed is variable by changing the engine speed.
  • With an adjustable reach up to 124 inches, this conveyor's speed, efficiency, reliability, and safety are unmatched in the conveying industry.
  • Our top priority is the safety of our customers. Our portable concrete conveyor systems can make your job easier for a variety of applications including ready-mix concrete, steel fiber, ice, batching, and more.
  • Height at lowest point: 5 ft
    Maximum conveyor load: 264.5 lbs
  • Height at highest point: 10.5 ft
    Maximum conveyor load: 132 lbs
  • To ensure safety, when transporting lightweight timber, please ensure that the maximum height does not exceed 8 feet.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

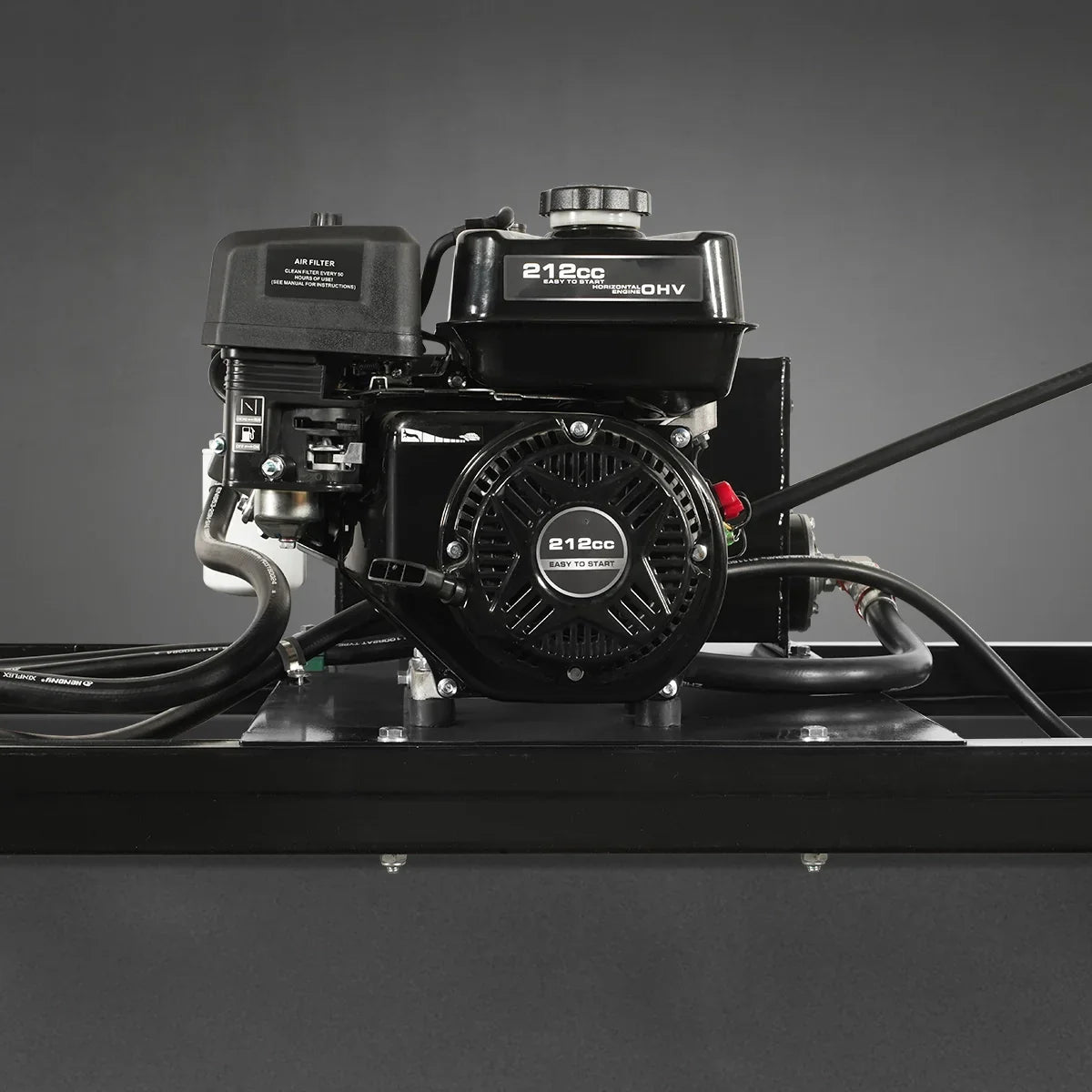

  • Engine: HC2016 is powered by a DUCAR DH212 7hp gasoline engine, so you can run the conveyor anywhere, from the woods to the neighborhood.

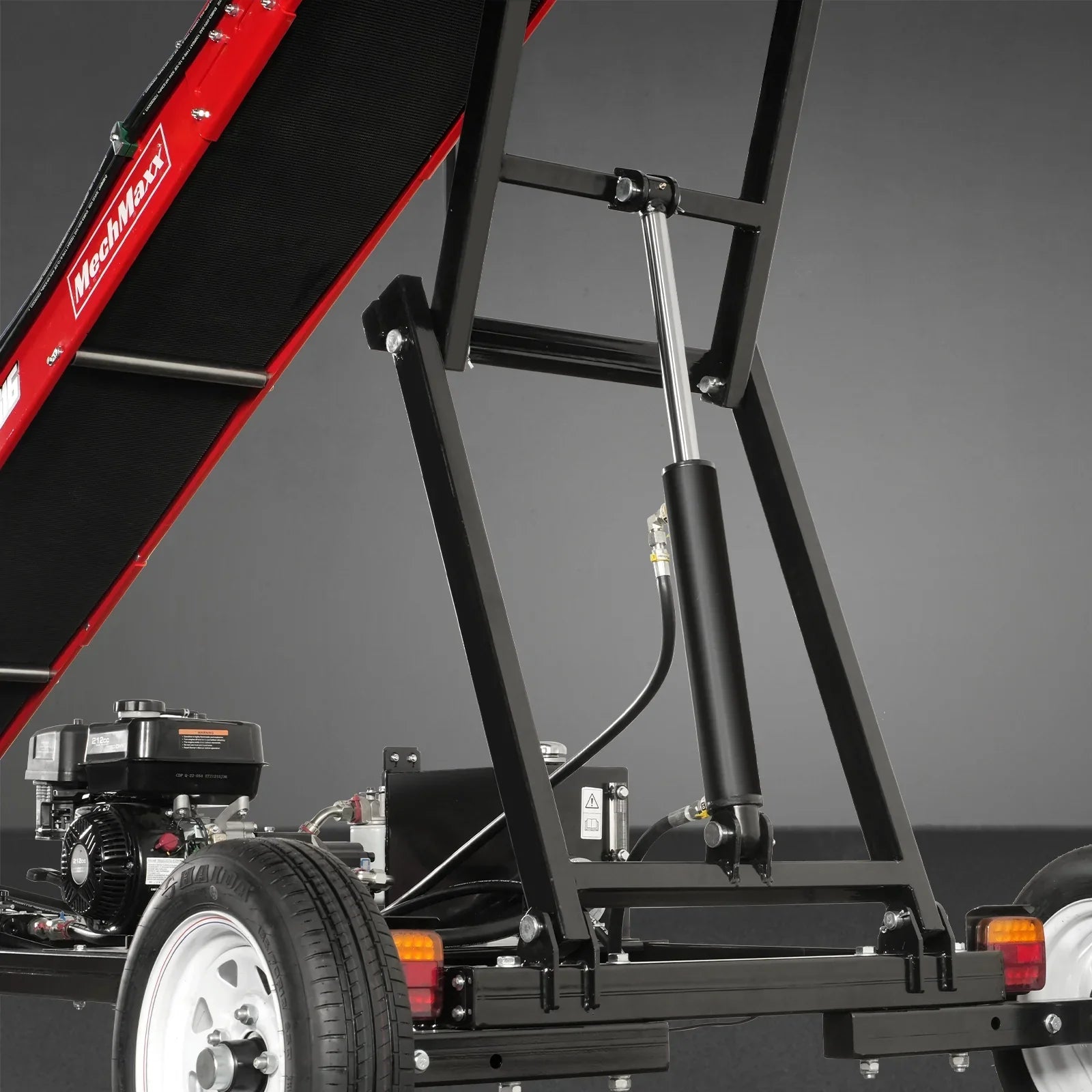

  • Hydraulic Lift Cylinder Controlled: The height of the HC2016 can be easily adjusted using our hydraulic lift cylinder. Connected to a tandem center spool, the hydraulic lift cylinder is controlled by the operator and can be adjusted multiple times to suit the needs of any project.

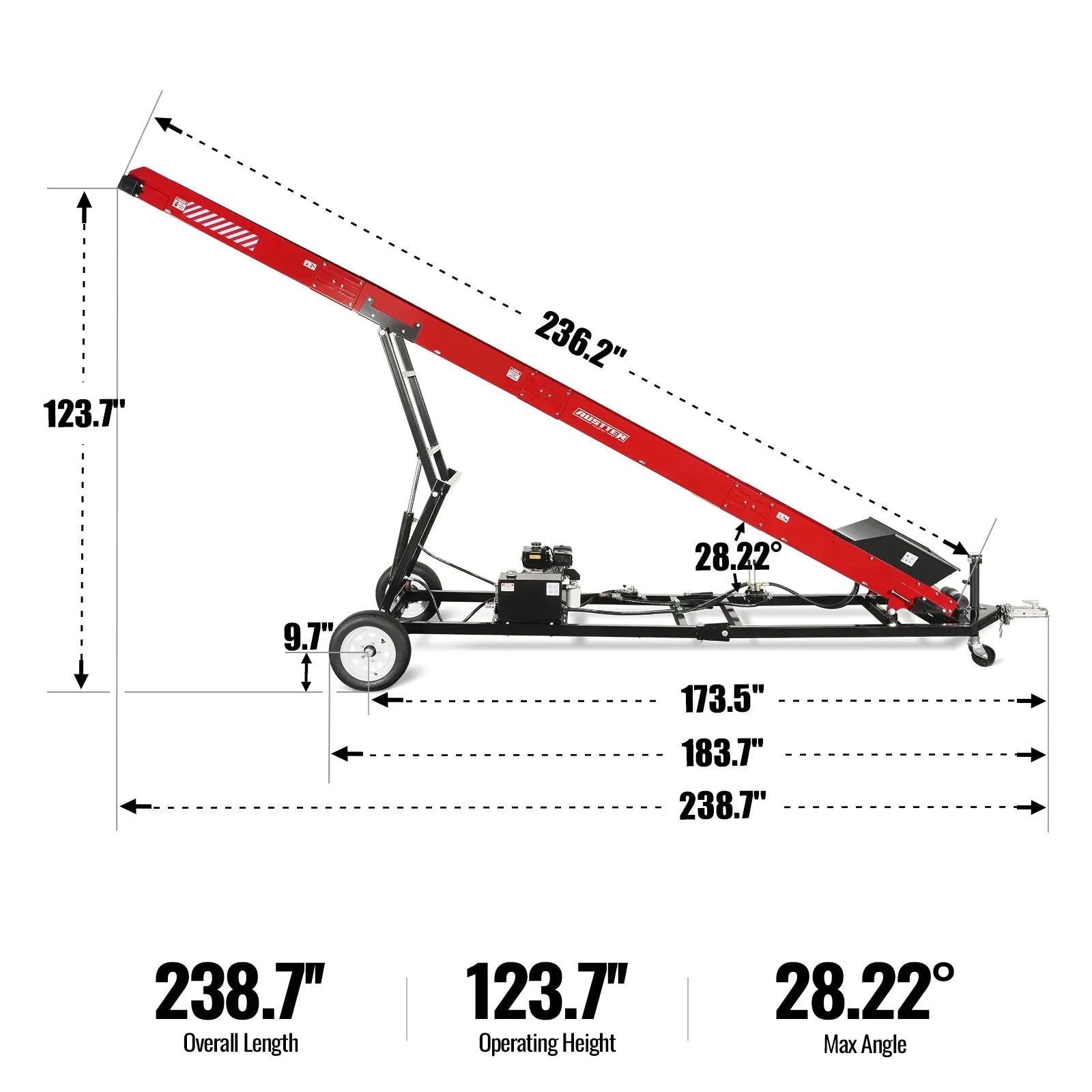

  • Adjustable Height: The maximum hydraulic height adjustment angle is 28.22 degrees, and the height can be locked between 60’’ and 124’’ depending on your application. The height can be locked at a maximum height and can be operated at different heights depending on your application.

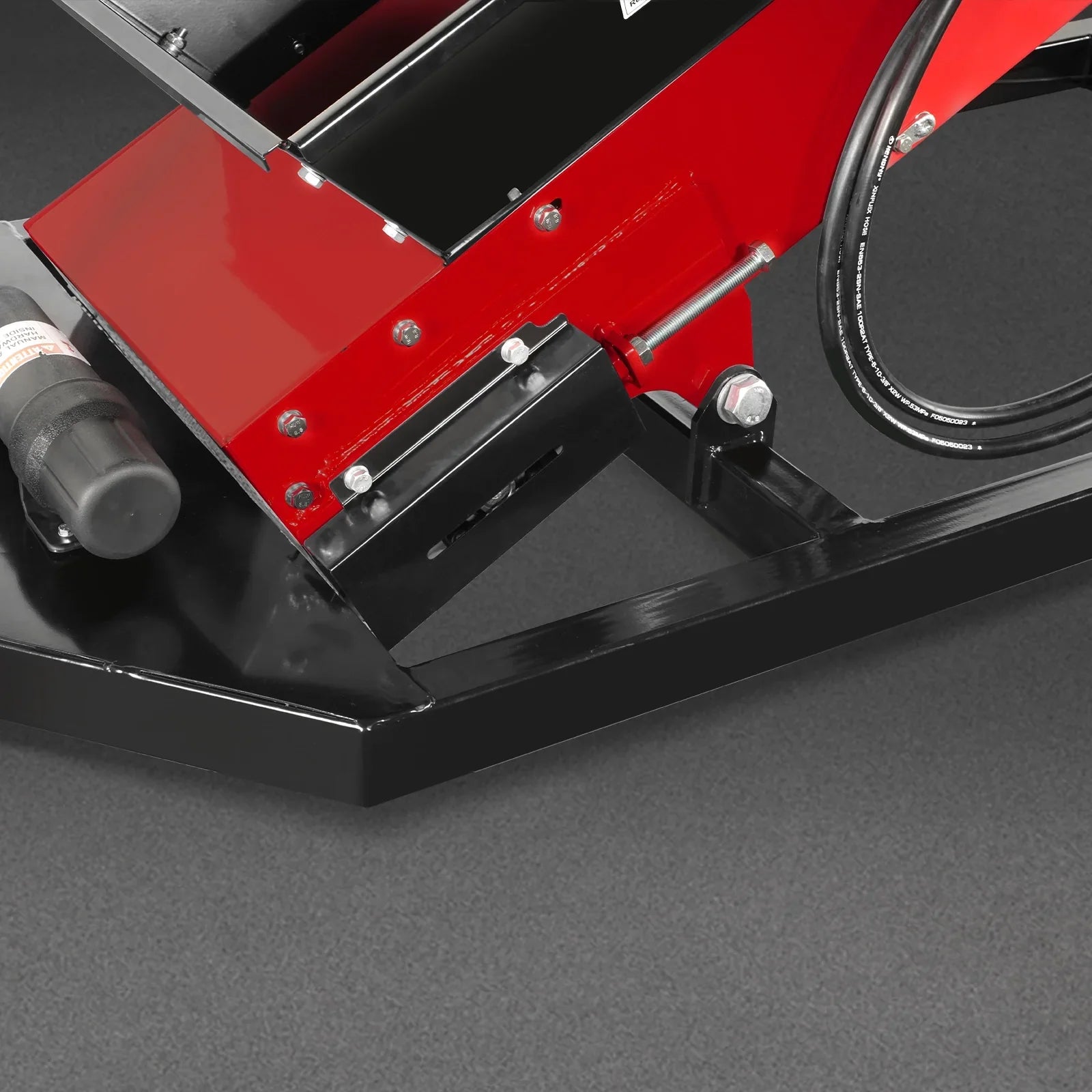

  • Modular Hopper: The modular hopper on the conveyor makes log loading simple, as it is shaped like a funnel and can be filled directly with the loader bucket. The hopper is bolted on for easy removal and upgrading.

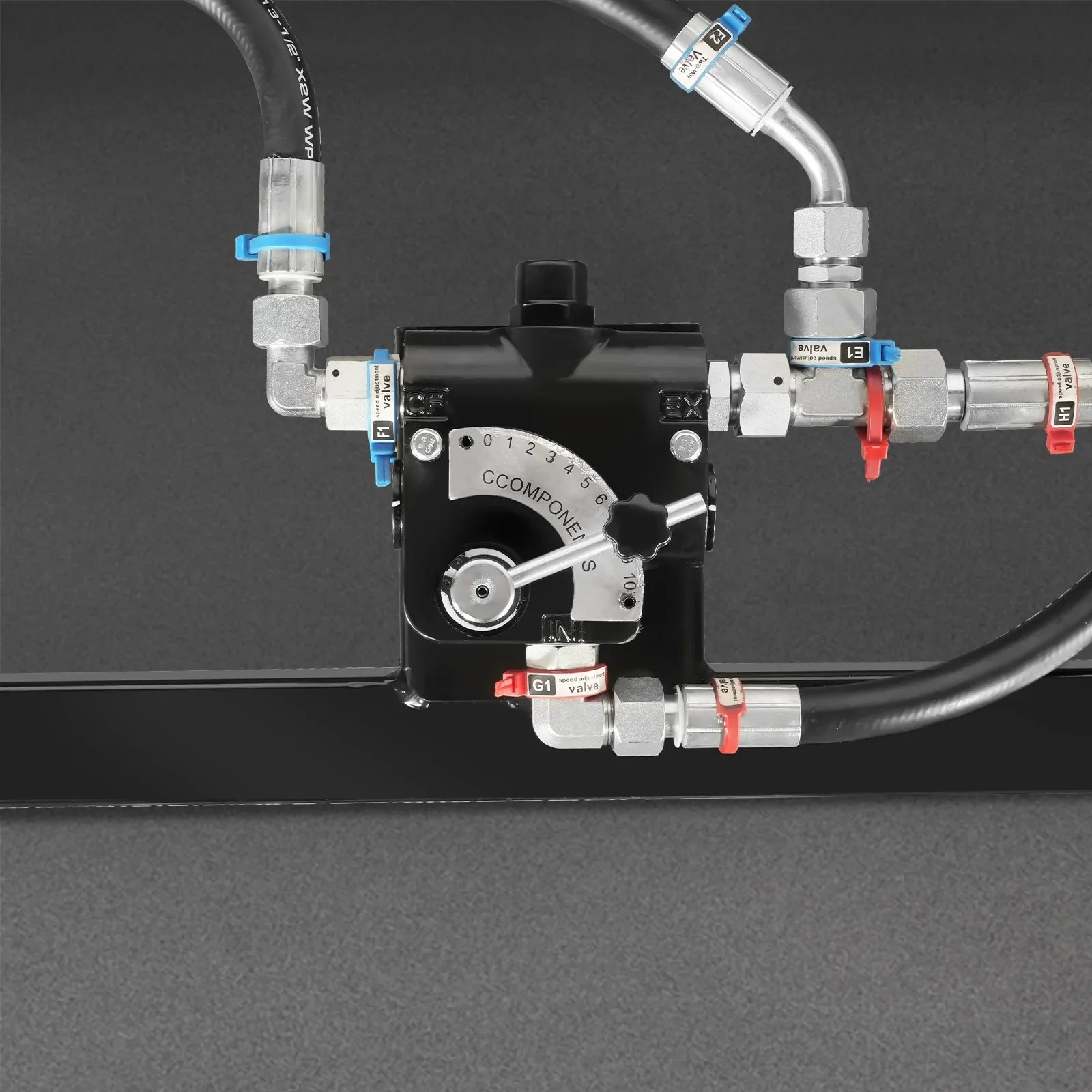

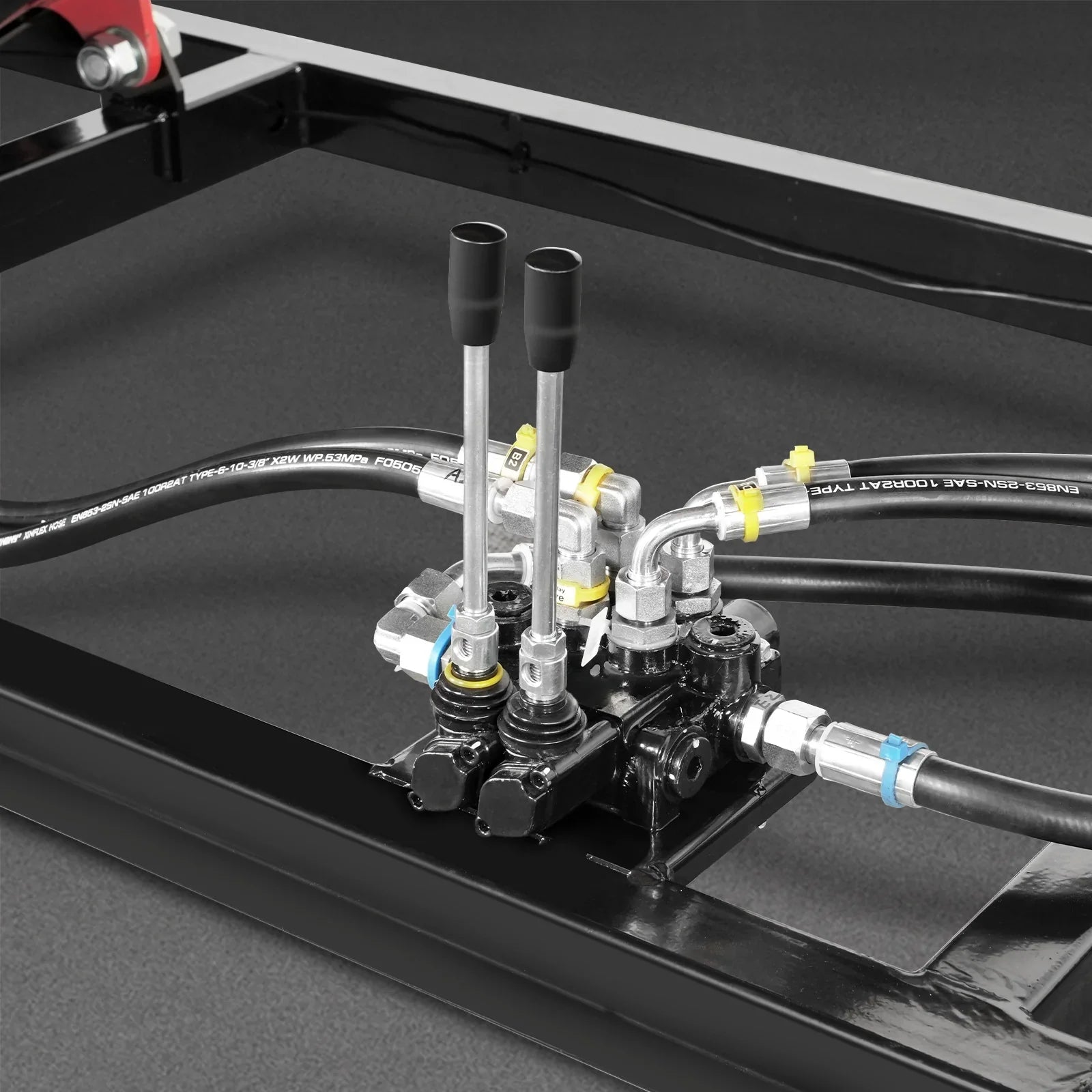

  • Hydraulic Motor and Speed Adjustment Valve: The speed regulating valve can adjust the running speed of the belt according to actual conditions. The speed indication is 0-9, 0 is the slowest and 9 is the fastest.
  • Trailer Hitch and Jockey Wheel: A 2-inch coupler is concealed on the trailer hitch, compatible with a 2-inch trailer ball. The jockey wheel adopts a single wheel design with a wheel diameter of 6 inches and the height can be adjusted during operation.

Engine Power: DUCAR DH212 7hp

Engine Type: Single Cylinder, 4 Stroke, Air-Cooled, OHV

Conveyor Belt length: 236 in

Conveyor Belt Wide: 16 in

Max Discharge Height: 124 in

Min Discharge Height: 60 in

Drive System: Hydraulic

Hydraulic Pump: 5.7 GPM Single Stage Pump

Hydraulic Fluid Type: AW-46

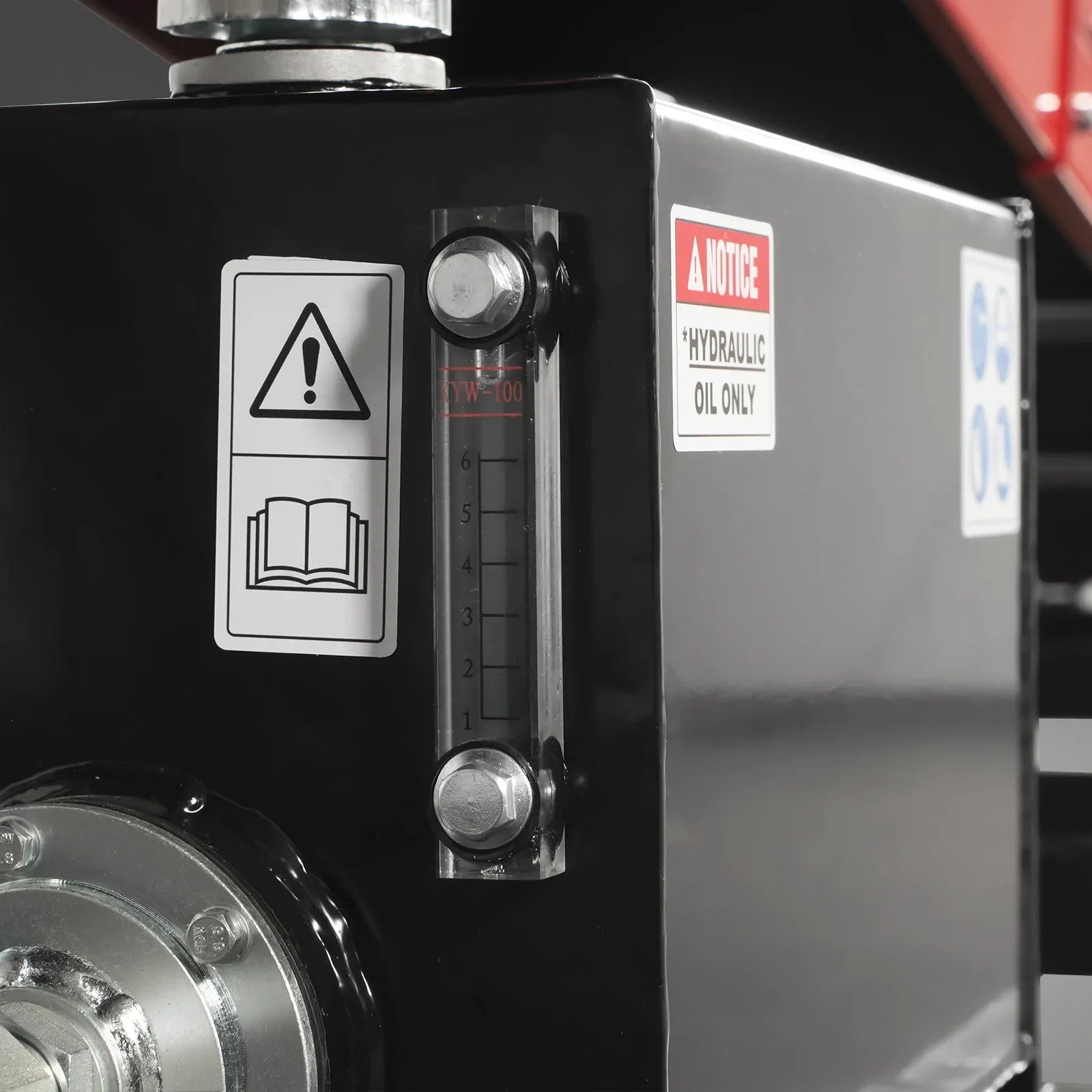

Hydraulic Tank Capacity: 4.2 gal

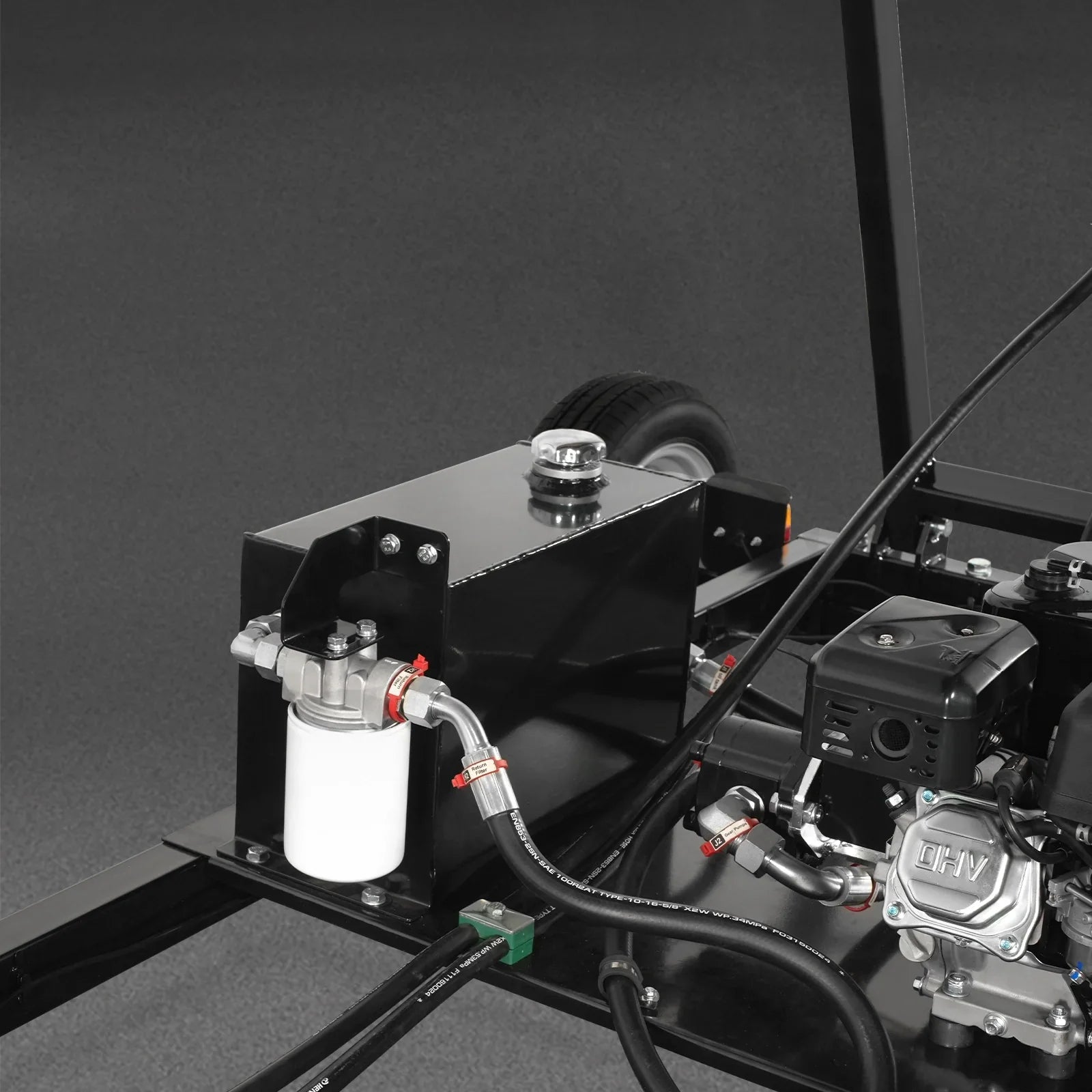

Hydraulic Oil Filter Fineness: 10 micron

Towing: Tow Bar with 2 in Coupler

Maximum Towing Speed: 45 MPH

Tires Rims: 13 in

Tires: 19 in Radial (O. D.)

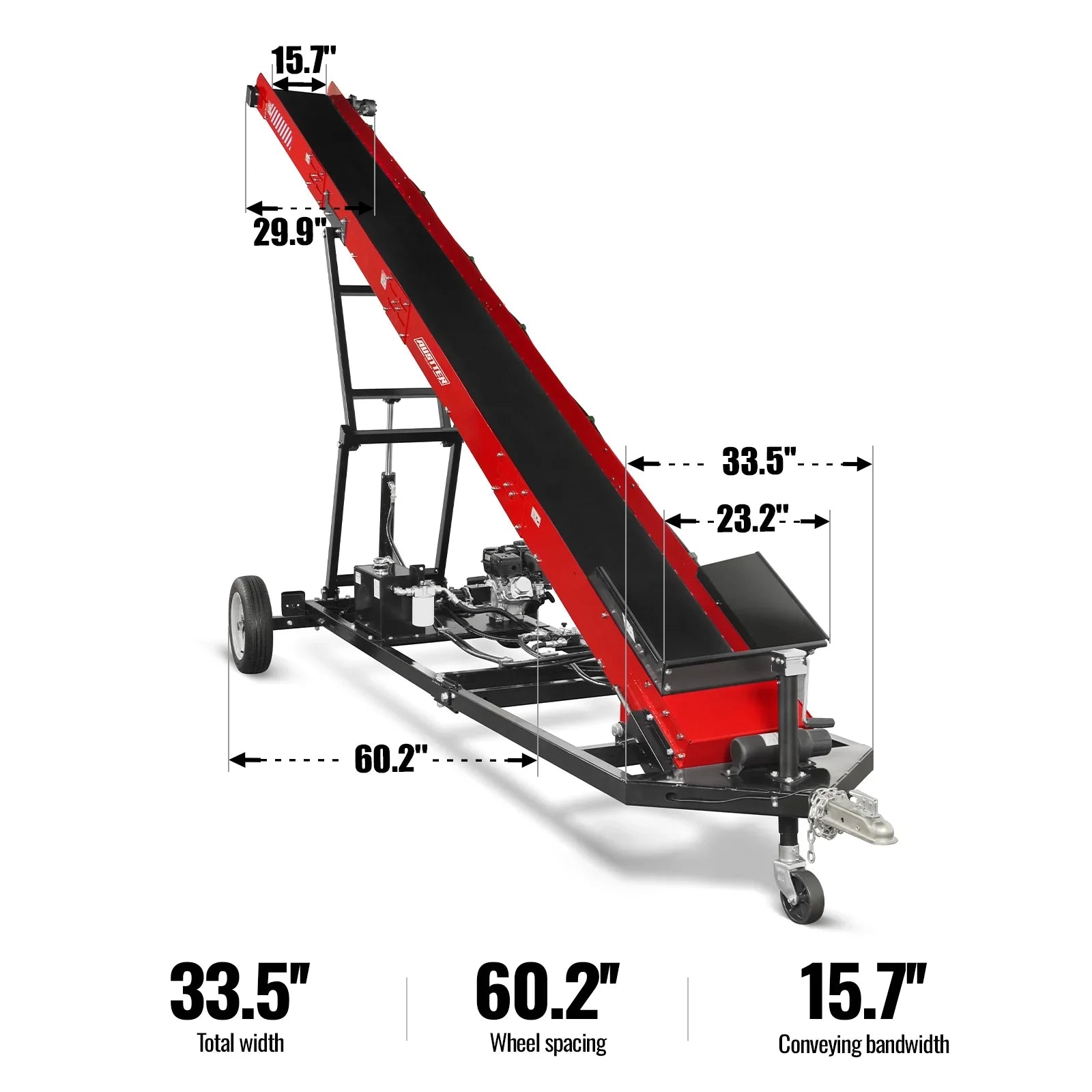

Overall Dimensions (LxWxH): 261x60x63 in

Finish: Powder Coating

Package Method: Plywood Case

Packing Size (LxWxH): 90x38x33 in

Weight (N.W./G.W.): 992/1124 lbs

This item comes with a 1 year factory warranty.
PDF HC2016 Product manual 1.0 PDF DUCAR DH212 Manual
