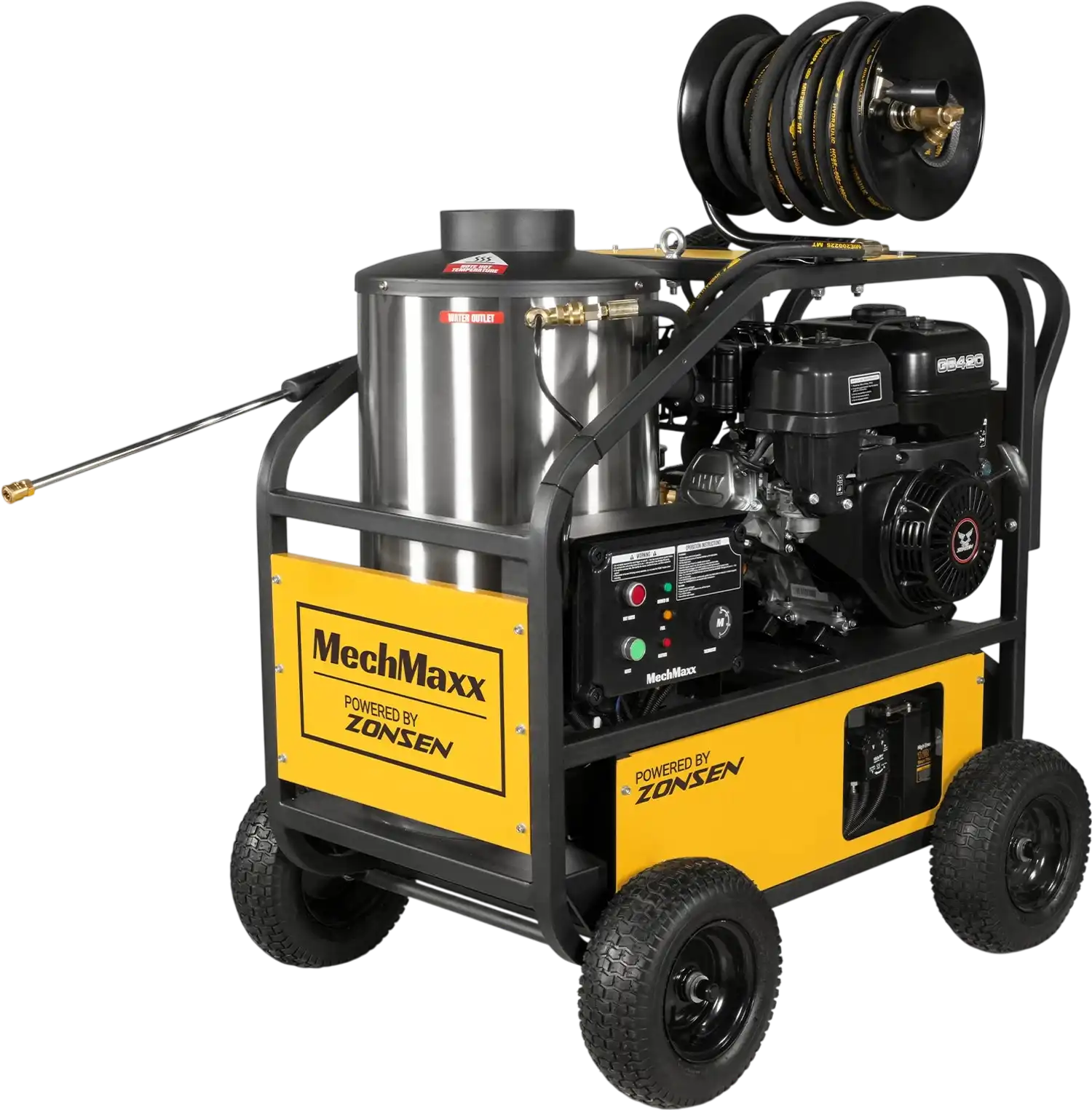

MechMaxx HPW40D Pressure Washer 4000 PSI 4 GPM Hot Water ZONSEN Electric Start Engine Hose Reel New

MechMaxx

$3,399.00
$3,399.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Powered by a ZONSEN GB420 electric-start engine, the MechMaxx HPW40D Hot Water Pressure Washer delivers dependable power and strong hot water cleaning performance for demanding washdown jobs. With 3,500–4,000 PSI pressure, 4.0 GPM flow, and water temperature up to 200°F, it helps remove grease, oil, mud, grime, and heavy buildup more effectively than cold water alone.
  • The unit is equipped with a triplex plunger pump, diesel-fired heating system, and integrated control panel for stable pressure output and convenient hot water operation. It is suitable for farm, construction, industrial, fleet, and equipment maintenance applications.
  • Designed as a portable model, this pressure washer features a rugged powder-coated steel frame, 13" pneumatic tires, a handlebar, and a lift hook for easier movement, loading, and transport. Since it runs on gasoline, it can be used wherever a suitable water supply is available, with no external electrical power required.

    NOTE!
  • This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.
  • Maximum pump pressure is 4000 PSI, with the factory working pressure preset to about 3500 PSI.
  • Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

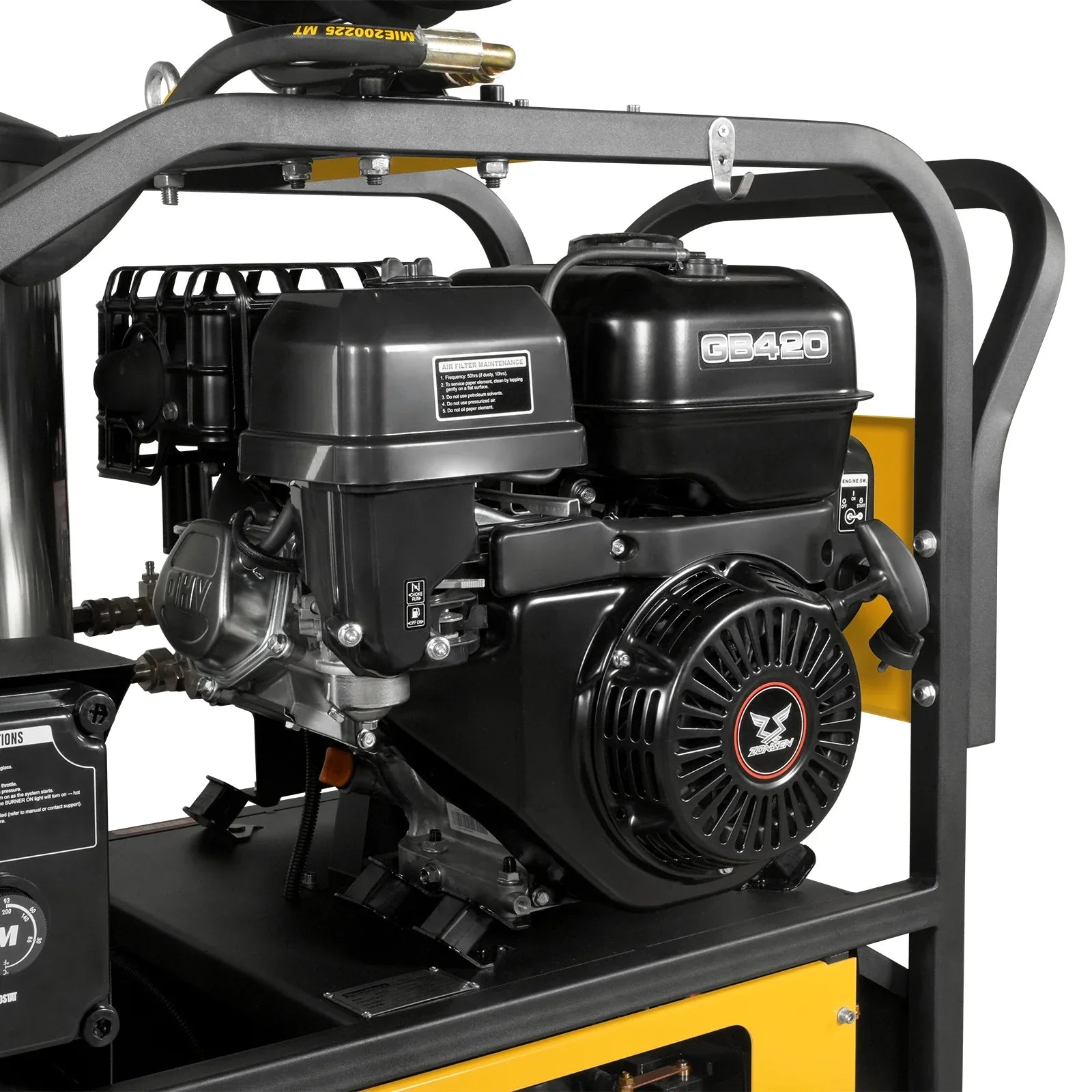

  • Electric Start with Battery: Powered by a ZONSEN GB420 gasoline engine with electric start and a 12V battery, this unit provides easier starting and dependable power for demanding cleaning jobs.

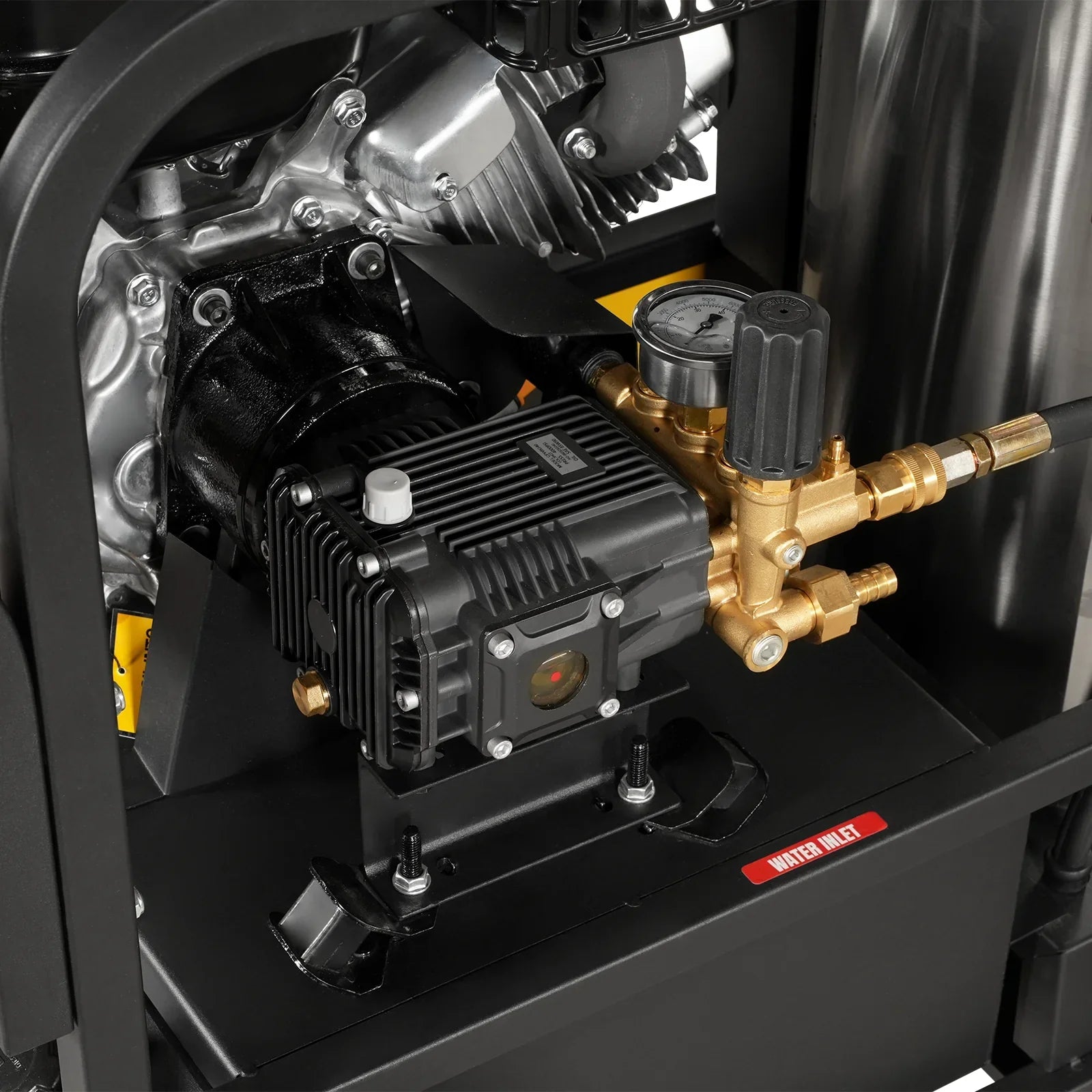

  • Triplex Plunger Pump: Equipped with a triplex plunger pump, the unit delivers a 4.0 GPM flow rate for powerful cleaning performance. The downstream chemical injection system works with the soap nozzle for detergent application.

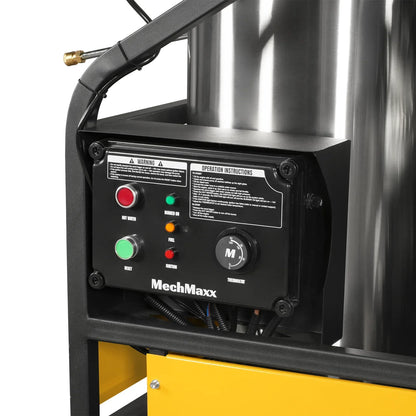

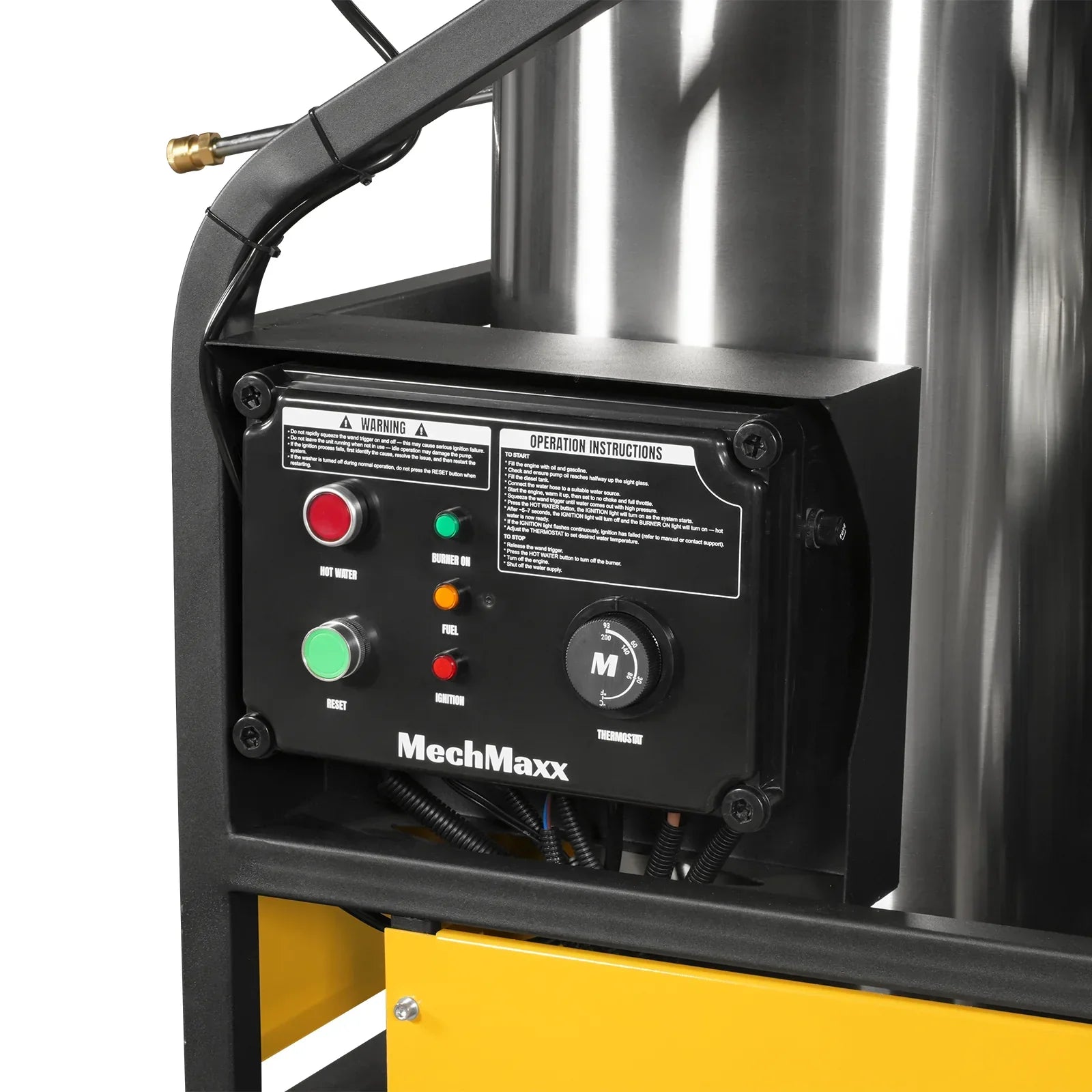

  • Integrated Control Panel: The integrated control panel combines the hot water switch, reset button, indicator lights, and thermostat for convenient operation and temperature control.

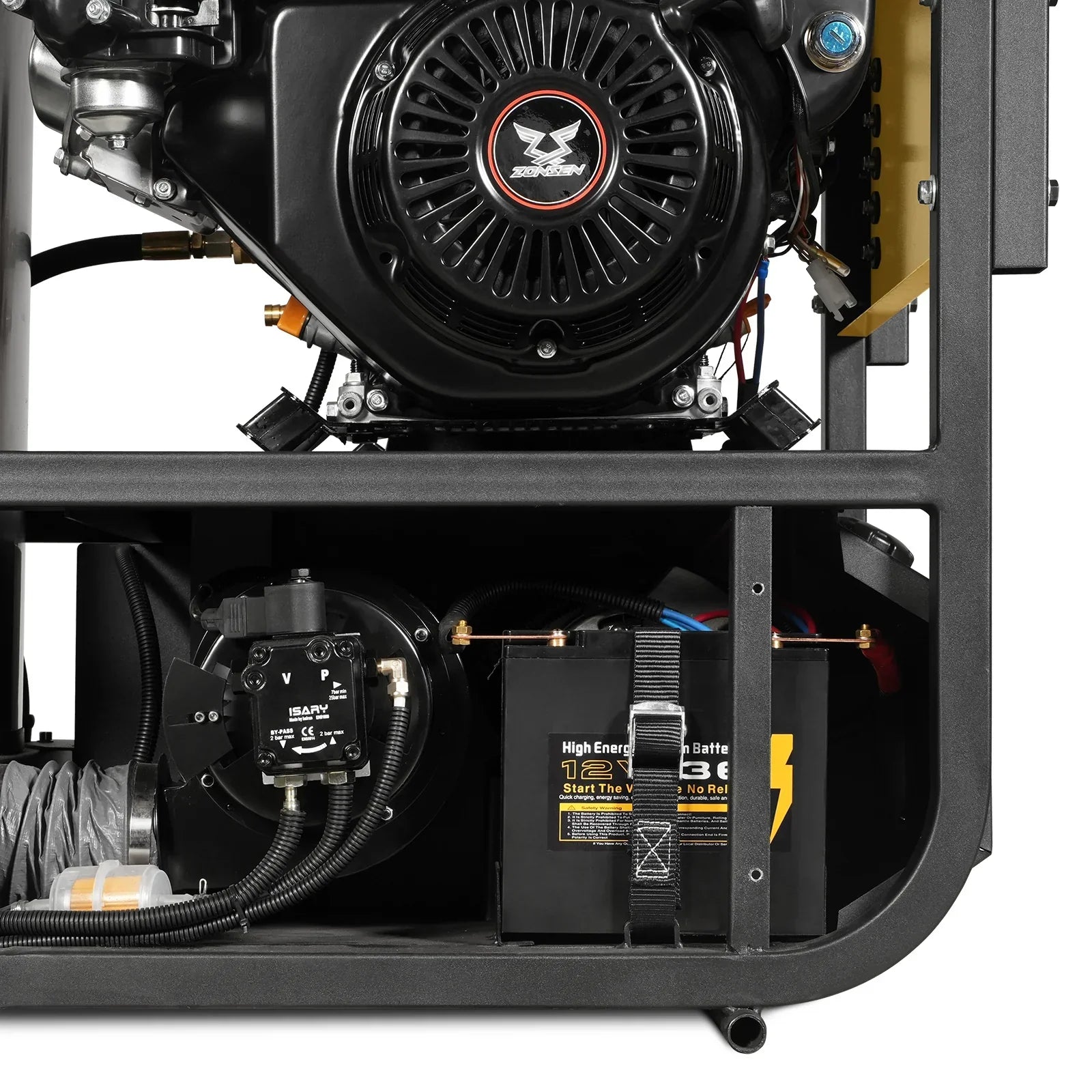

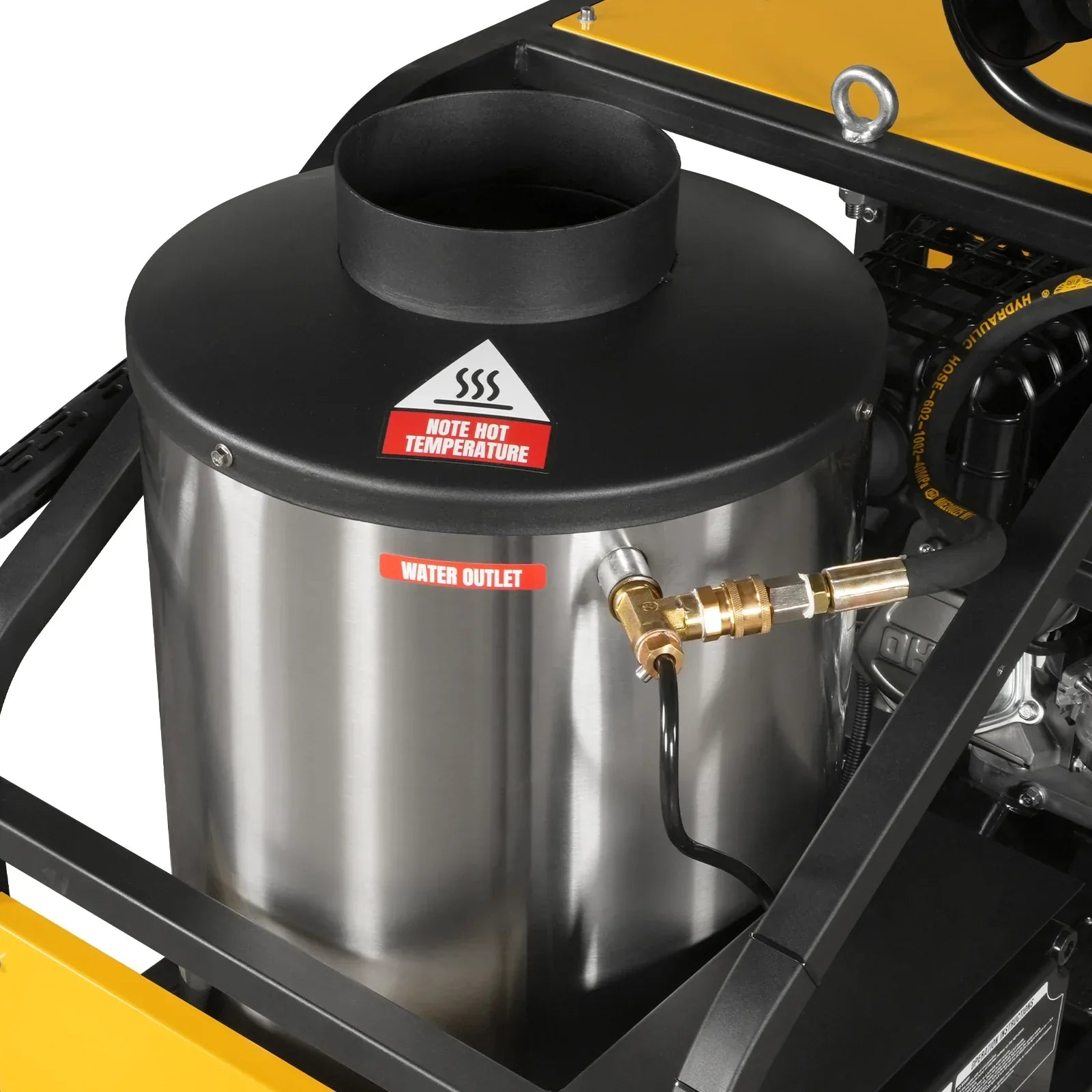

  • Heating Coil: The heating coil crafted from 20mm diameter, 2.5mm thick seamless steel pipes, features a ceramic fiber insulation layer and a stainless steel shell. Ignited by a 12V DC diesel burner, it heats water to approx. 200°F in under 2 minutes. An intelligent temperature control system manages ignition and combustion for stable hot water output.
  • Rugged Steel Frame: The unit features a rugged 1-1/4'' steel frame with a powder-coated finish for durability and corrosion resistance.

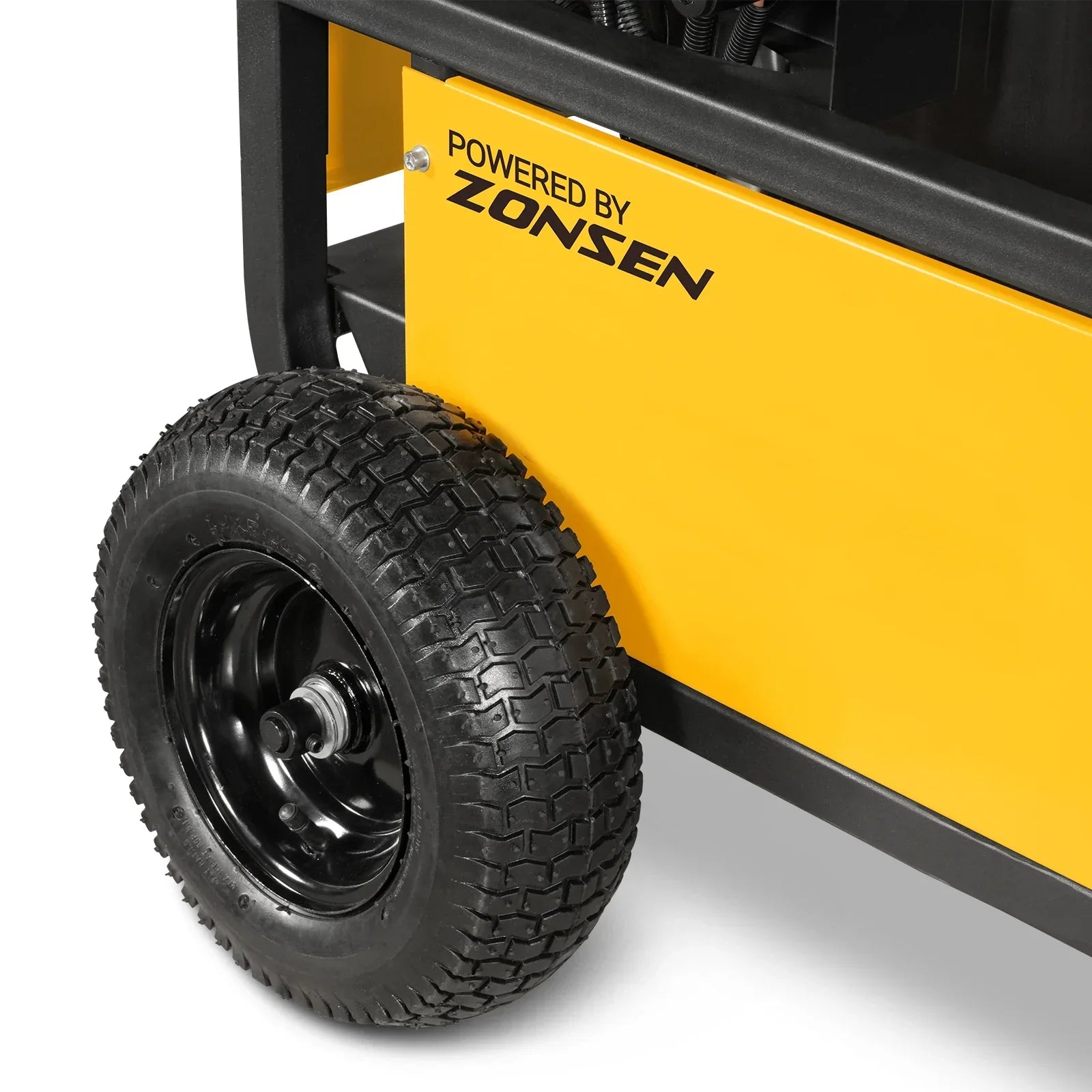

  • Handlebar, Tires & Lift Hook: A sturdy handlebar, 13'' pneumatic tires, and lift hook make the unit easier to move, load, and transport across shops, farms, driveways, and construction sites.
  • Rubber Anti-Vibration Pads: Six rubber pads help reduce vibration during operation and protect the frame and components from long-term wear.

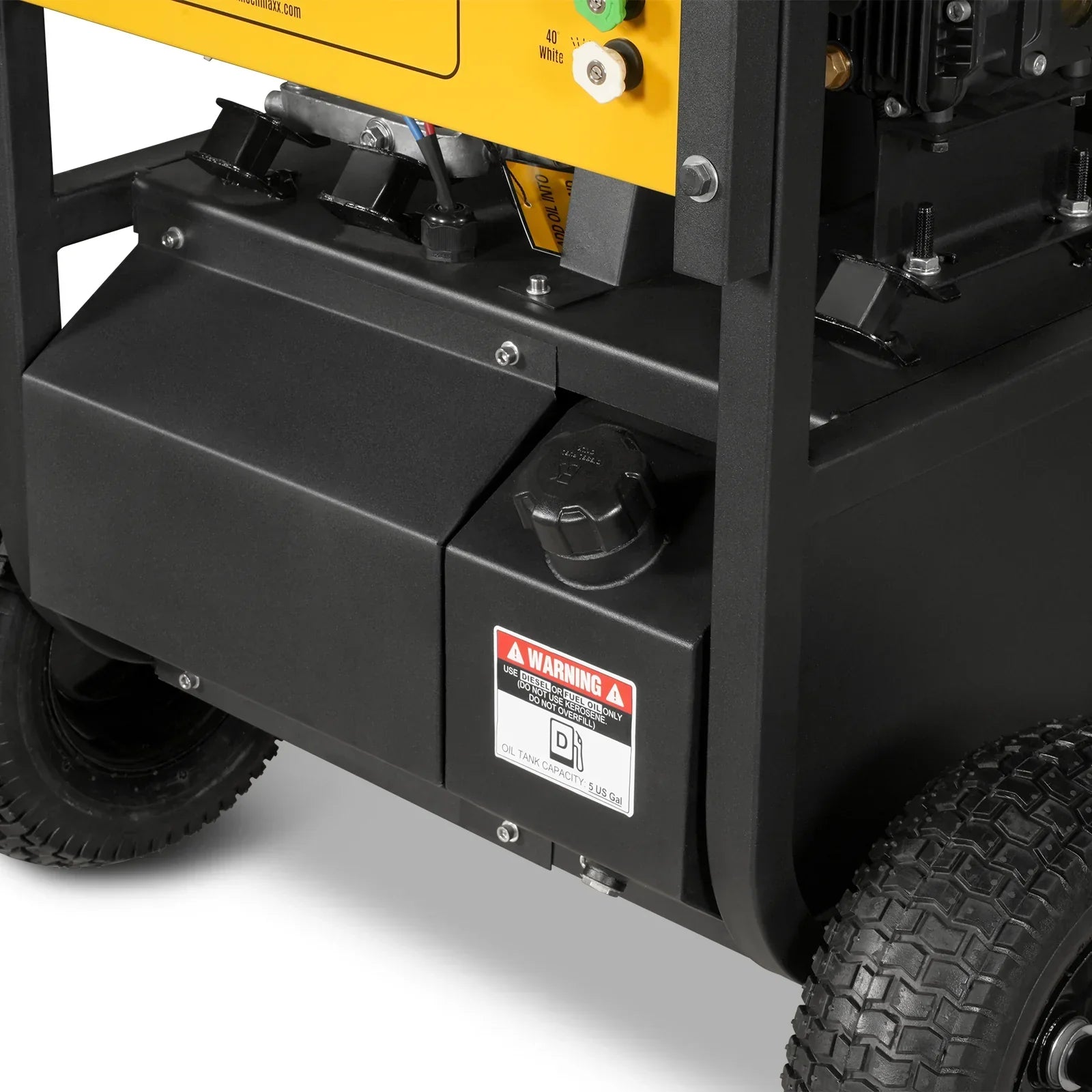

  • Burner Fuel Tank: The onboard 5-gallon diesel burner fuel tank supports extended hot water operation without requiring an external fuel source for the heating system.

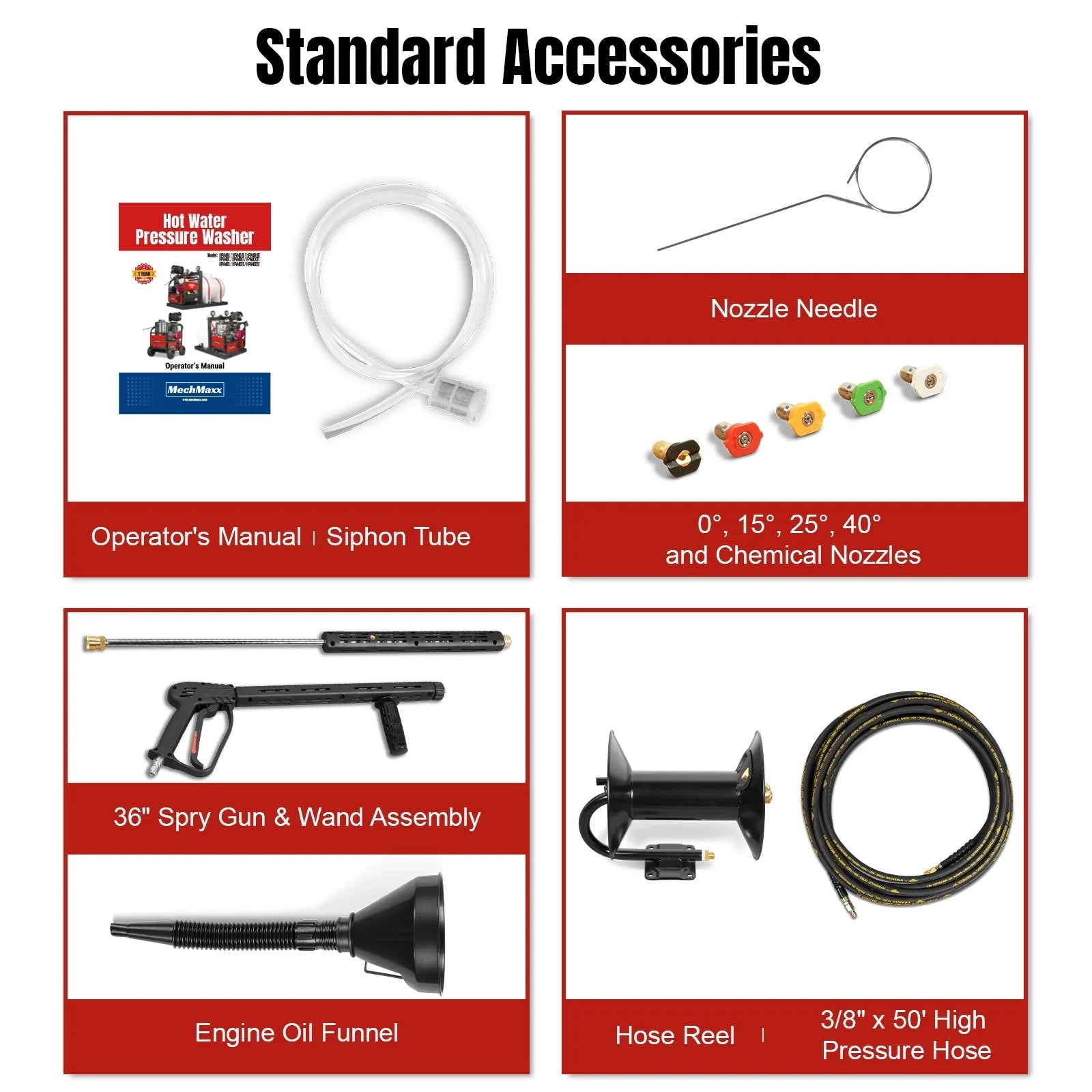

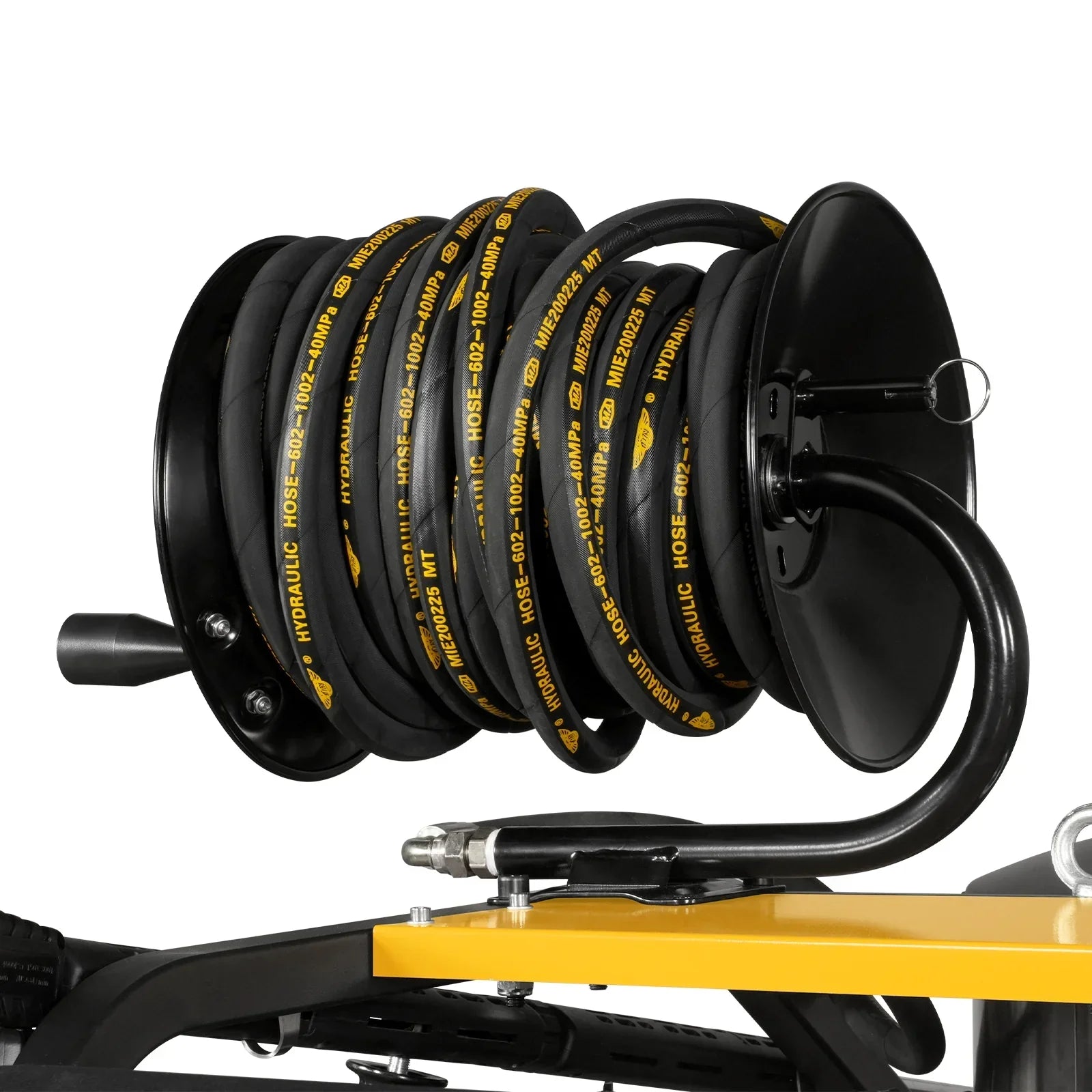

  • Accessories Included: ☑3/8'' x 50' High Pressure Hose,☑0°, 15°, 25°, 40° and Chemical Nozzles,☑36’’ Spray Gun & Wand Assembly,☑Hose Reel,☑Siphon Tube.

Engine: ZONSEN GB420

Max Temperature: 200℉ (93℃)

Engine Type: Single Cylinder, 4 Stroke, Air-Cooled, OHV

Igniter: 12V

Displacement: 420 cc; 13.4 HP

Burner Fuel: 5 US gal (19L) Diesel

Start Type: Electric Start (battery included)

Drive: Direct

Engine Fuel: 1.6 US galClean, fresh, unleaded gasoline

Pump Type: Triplex Plunger Pump / Oil Bath Crankcase

Engine Oil: 0.3 US galSAE 10W-30

Pump Oil: SAE 10W/30 or 15W/40 Non-detergent Oil

Machine Type: Portable with 13" Pneumatic Tires

Standard Accessories: 3/8" x 50' High Pressure Hose;0°, 15°, 25°, 40° and Chemical Nozzles;36" Spray Gun & Wand Assembly;Hose Reel;Siphon Tube

Pressure Range: 3500-4000 PSI

Package Method: Iron Frame

Flow Rate: 4.0 GPM

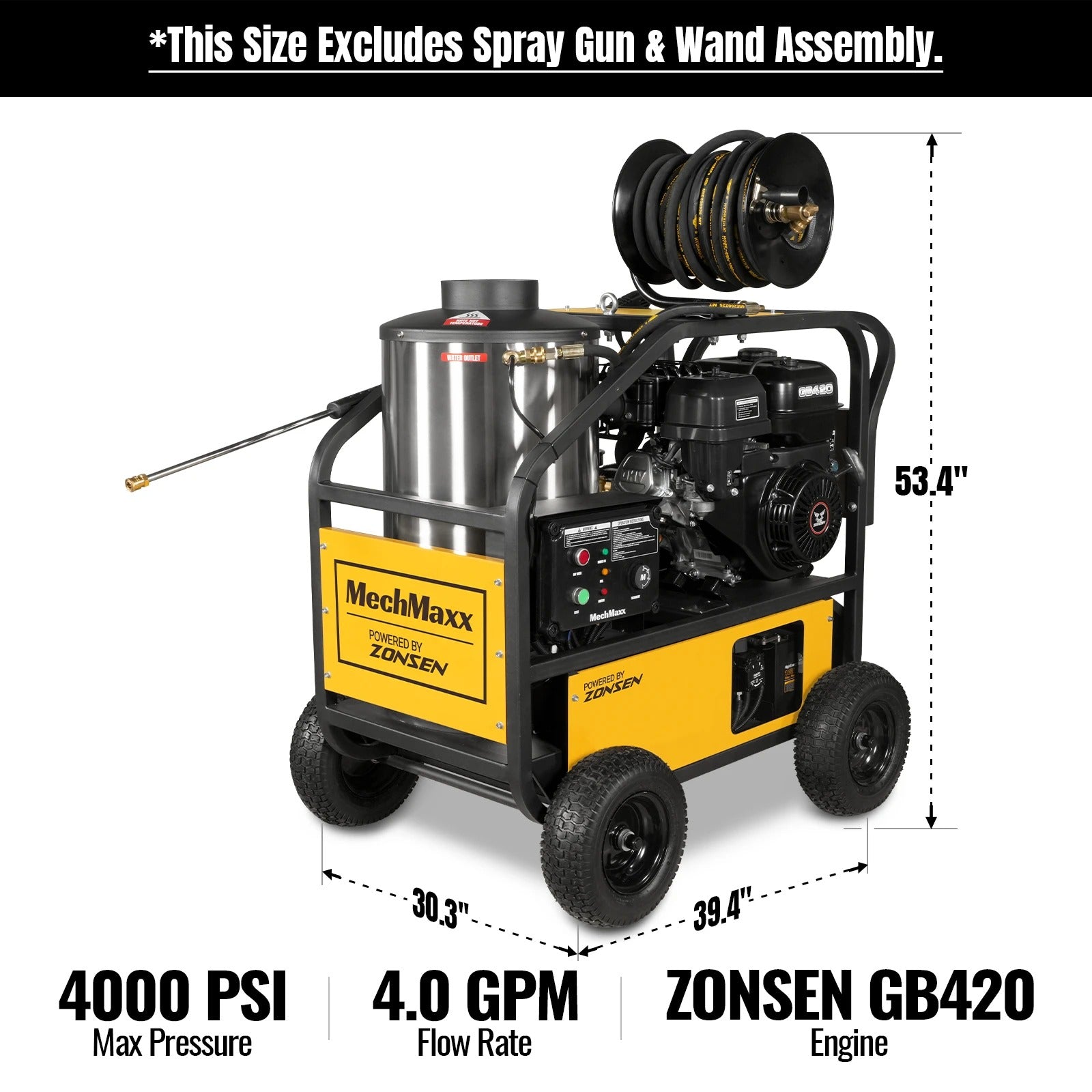

Packing Size: 43.7 x 25.6 x 49.8 in

BTU Per Hour: 350,700 BTU

Weight (N.W / G.W.): 450 / 507 lbs

This item comes with a 1 year factory warranty.
PDF Hot Water Pressure Washer Product manual 1.3 PDF ZONSEN Engine Manual PDF Quick Operation Guide
