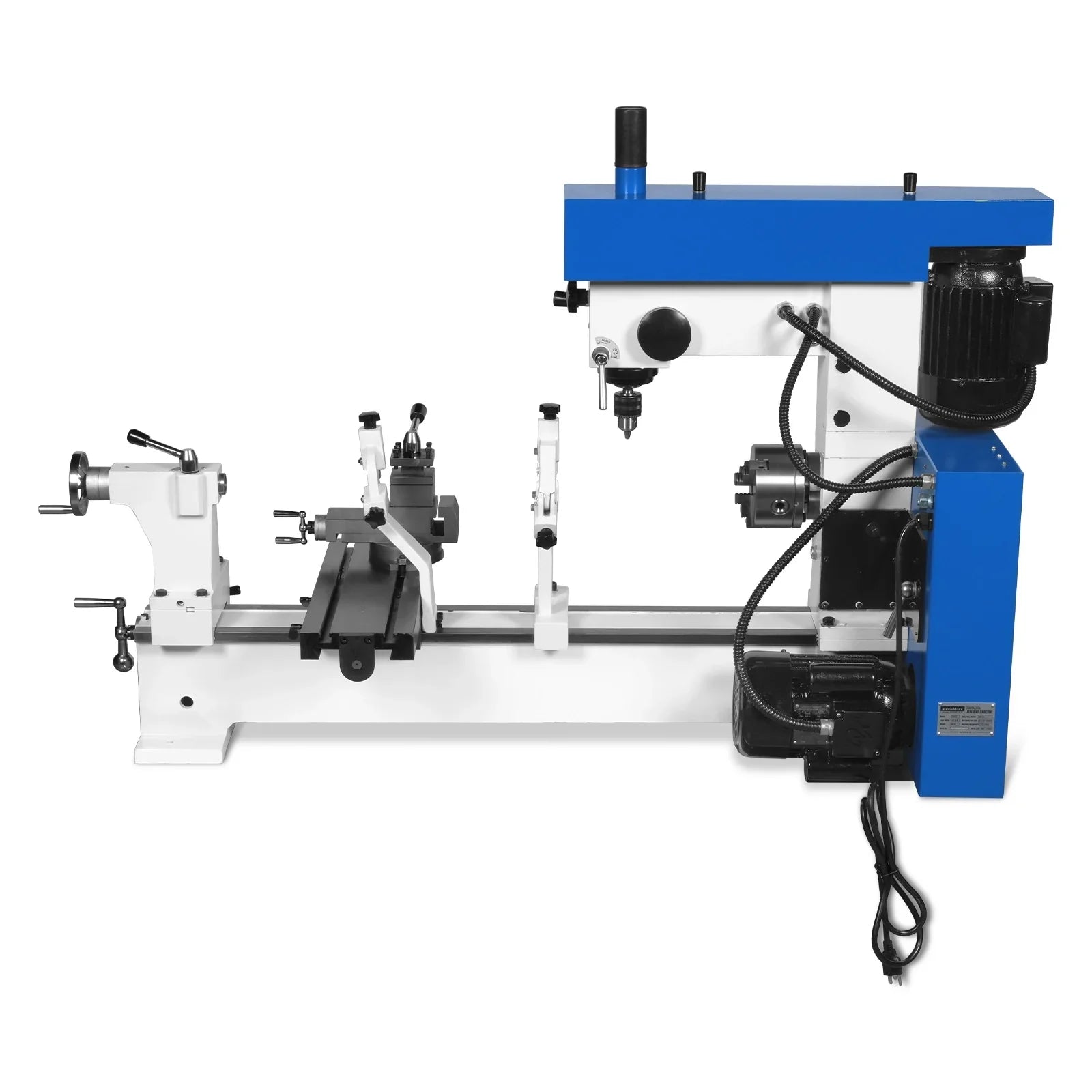

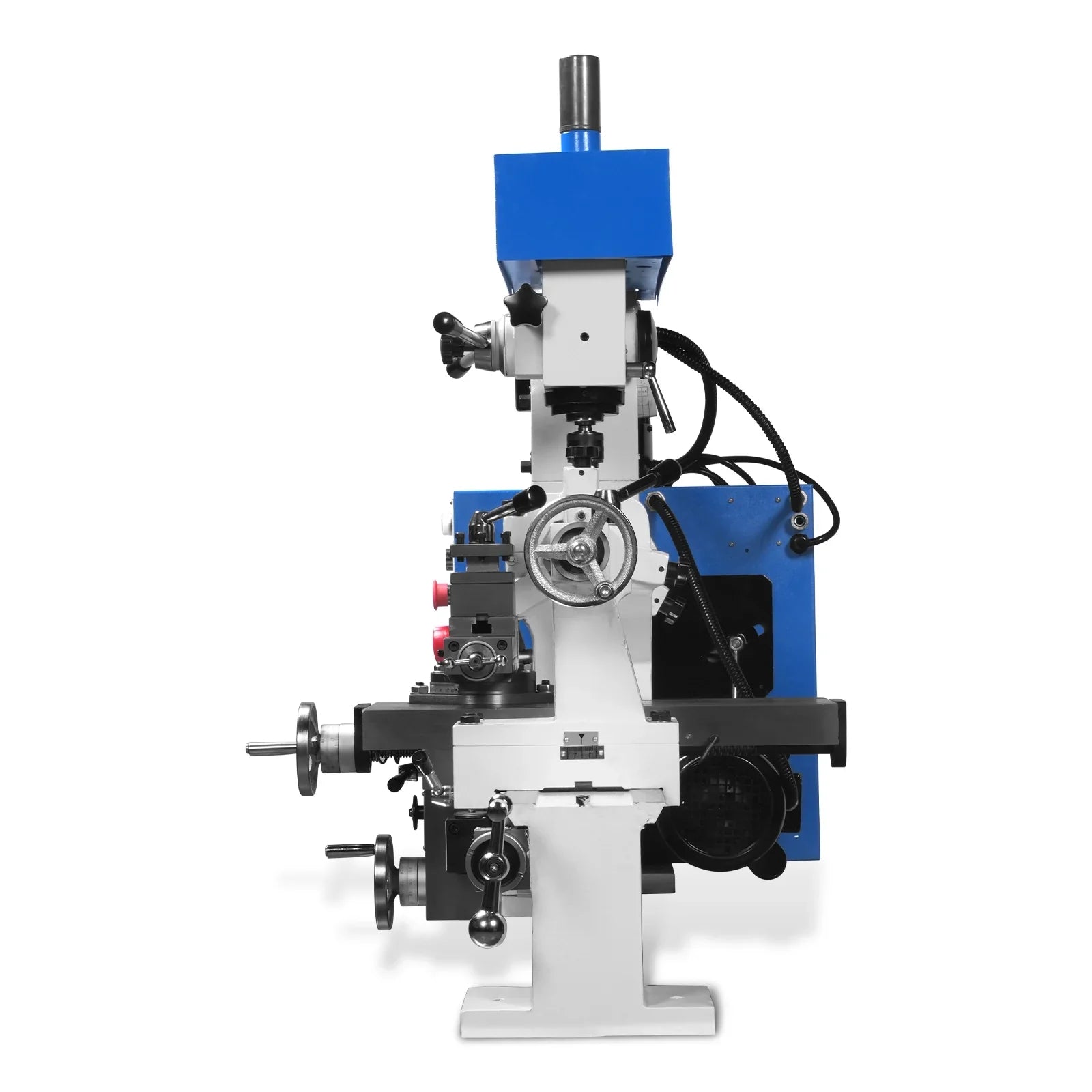

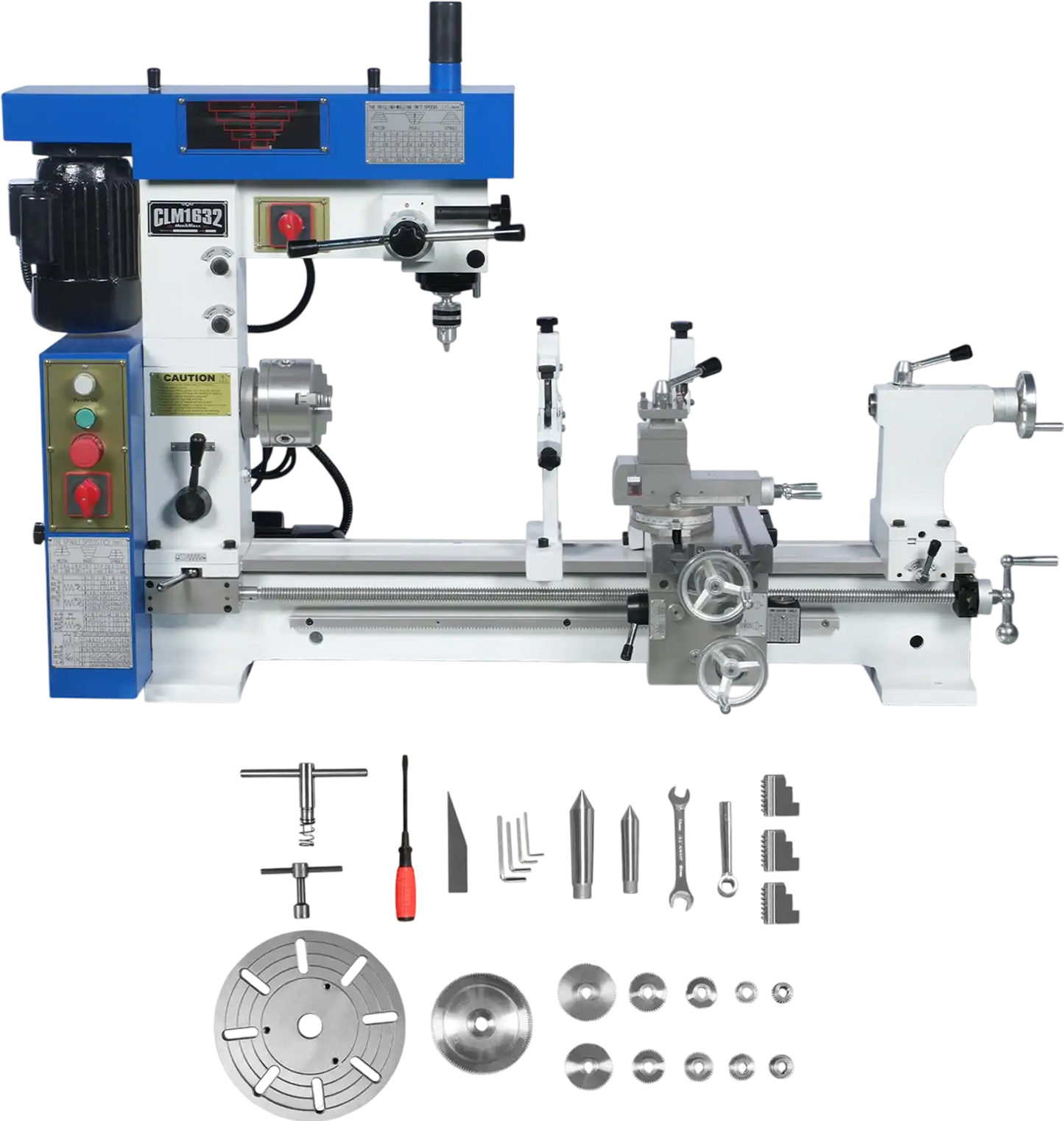

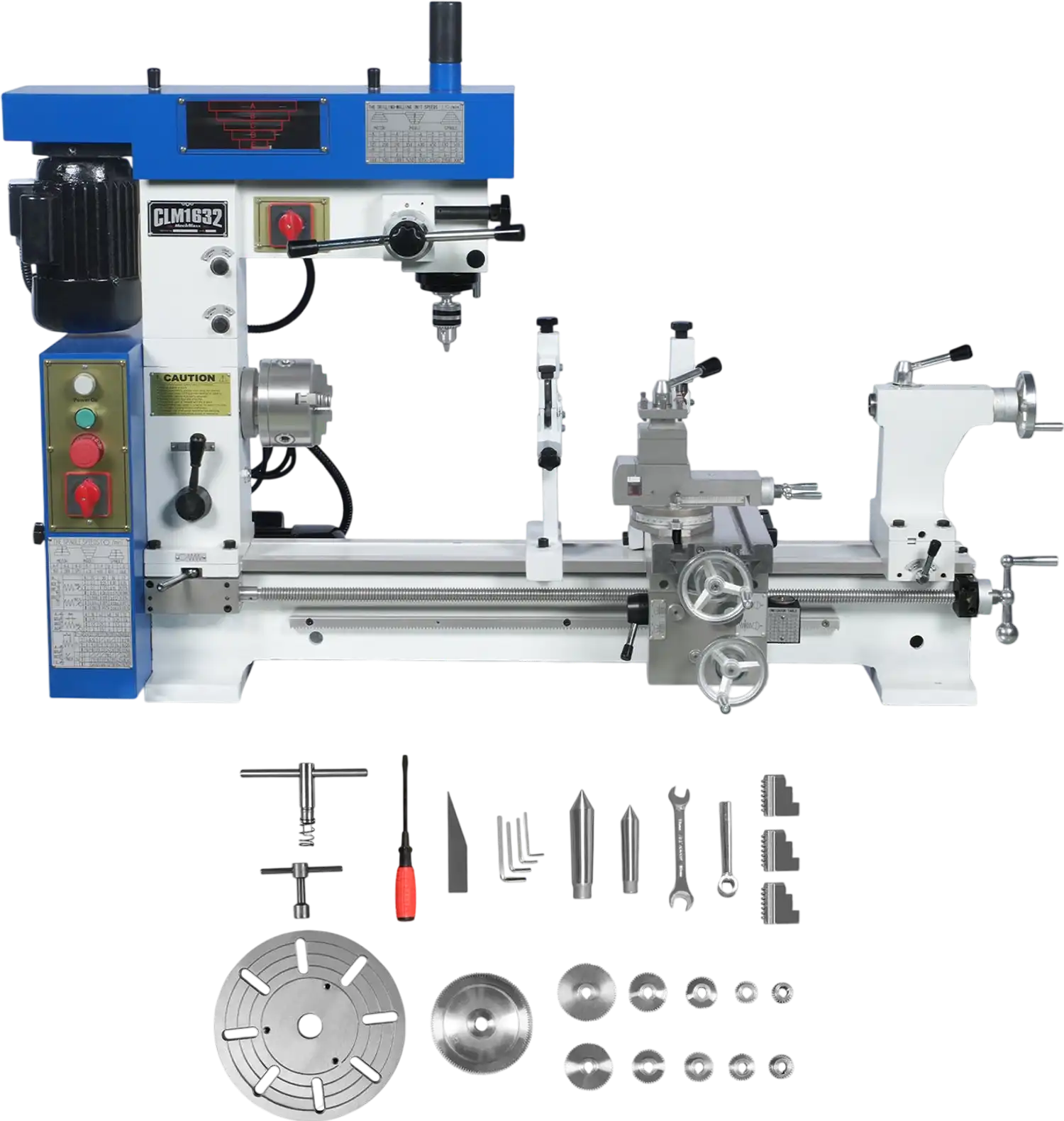

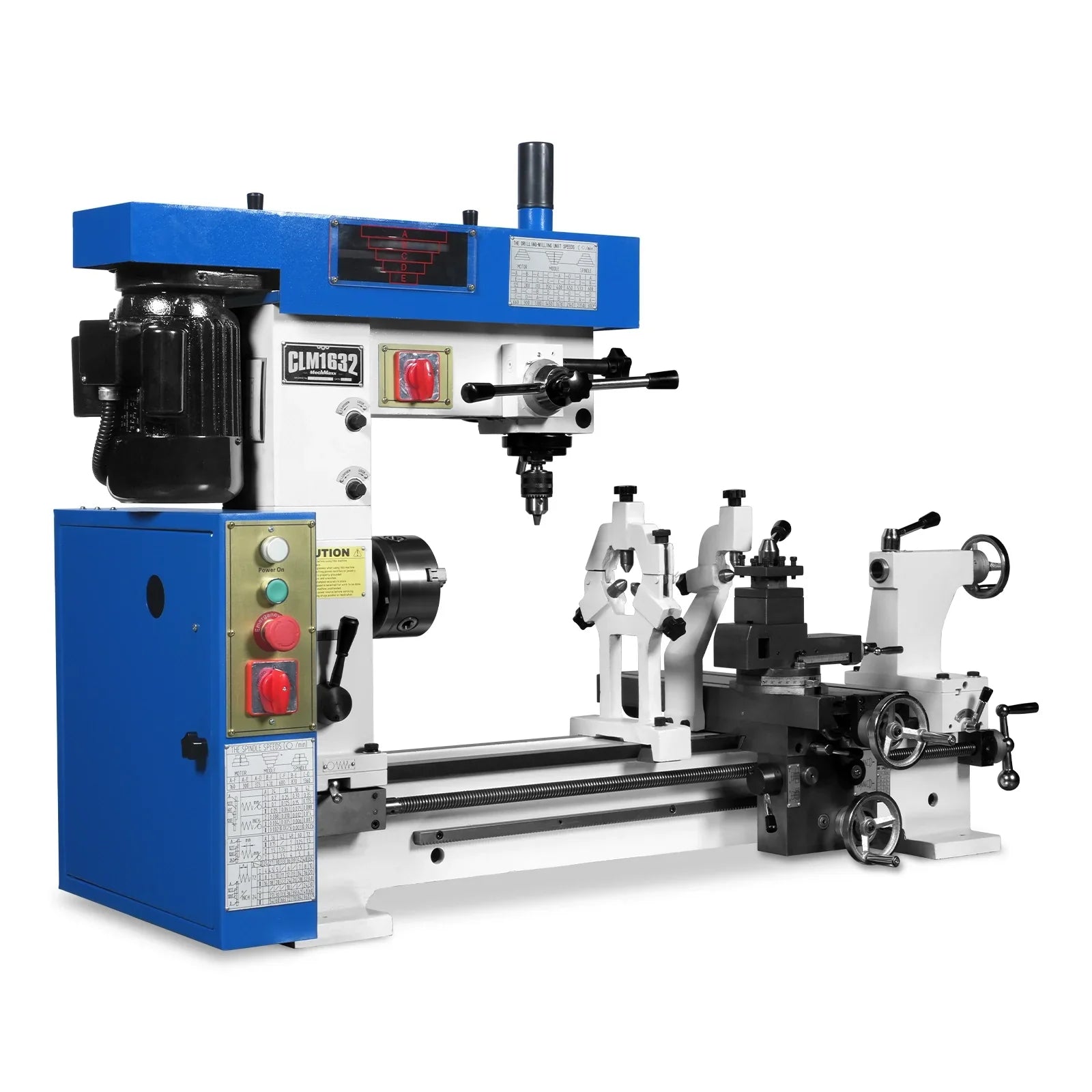

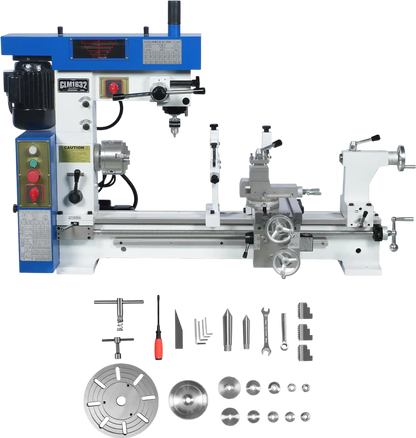

MechMaxx HQ800 Combination Lathe Milling Machine 1 HP 16x32" Multi-Function Metal Lathe Drilling Milling Machine Head New

MechMaxx

$3,499.00
$3,499.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  1. Powerful Motor: The 1PH (750W) motor provides ample power for efficient turning operations.
  2. Swing Over Bed: The lathe features a 16-8/15" (420mm) swing, allowing you to work with larger workpieces.
  3. Swing Over Cross Slide: The machine offers a 11-1/2" (120mm) swing over the cross slide, providing more clearance for your workpieces.
  4. Threading Capacity: Capable of cutting 4-120 TPI in inches and 0.2-6mm in metric, providing flexibility for various threading applications.
  5. Spindle Bore: With an 1-1/10" (28mm) spindle bore, it allows for a wide range of tool bits and workpieces.
  6. Carriage Travel: The 29-1/8" (740mm) carriage travel ensures flexibility for larger workpieces, making it suitable for long and intricate turning operations.

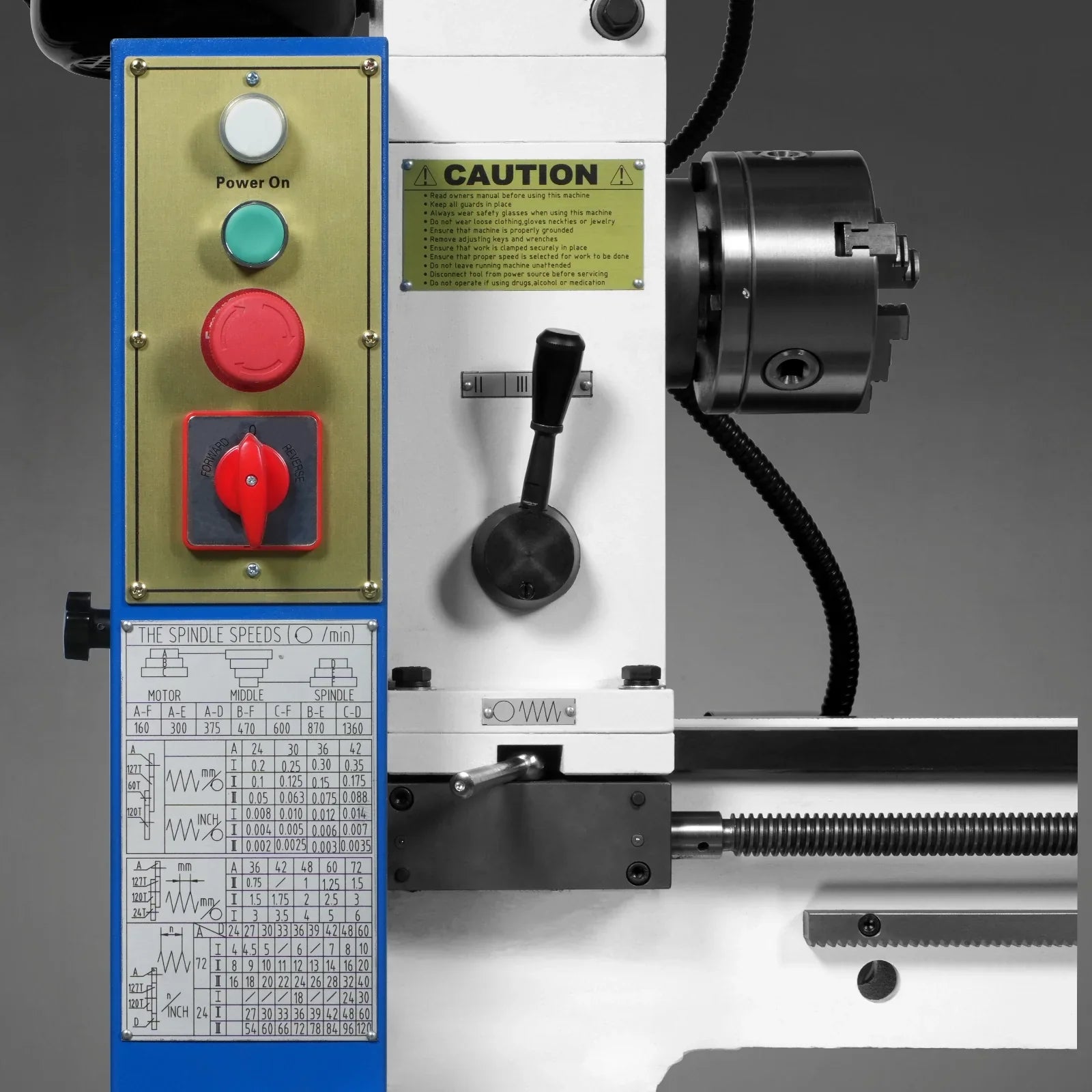

  7. Spindle Speed Range: The lathe's 7-speed spindle operates from 160 to 1360 RPM, allowing for precise control over the turning speed for various materials.
  8. Powerful Milling Head: The 1PH (750W) motor powers the mill head, delivering reliable performance for drilling and milling tasks.
  9. Speed Range: With a 16-step spindle speed range from 120 RPM to 3000 RPM, the machine is adaptable to a variety of milling operations, ensuring high efficiency for various materials.
  10. Drill and Milling Capacities:
  11. Drill Capacity: Capable of drilling up to 7/8" (22mm).
  12. End Milling Capacity: Provides up to 1-1/8" (28mm) for end milling.
  13. Face Milling Capacity: The machine can handle up to 3-5/32" (80mm) for face milling, making it ideal for high-precision milling jobs
  14. Vertical and Horizontal Milling: Features 360° swiveling headstock with 0° head tilt, providing the flexibility for complex milling tasks in multiple orientations
  15. Spindle Travel: The 4-5/16" (110mm) spindle travel offers great depth for different drilling and milling tasks.
  16. Headstock Height: The 3-1/8" (79.4mm) headstock height provides sufficient clearance for various workpieces.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Dual Motor System for Lathe and Mill with Independent Power: This machine features TWO 1 HP motors—one dedicated to lathe operations and the other to milling tasks. While the systems are independent, they allow for quick switching between lathe and mill functions, ensuring reliable performance and optimized power delivery for each task. This design enhances efficiency and provides versatility without the risk of simultaneous operation.
  • 3-in-1 Versatility: Turning, Drilling & Milling: Save space without sacrificing capability. This multi-functional lathe integrates turning, drilling, and milling operations into a single compact machine—ideal for small workshops, DIY users, and repair jobs. Perfect for precision metalworking in tight spaces.

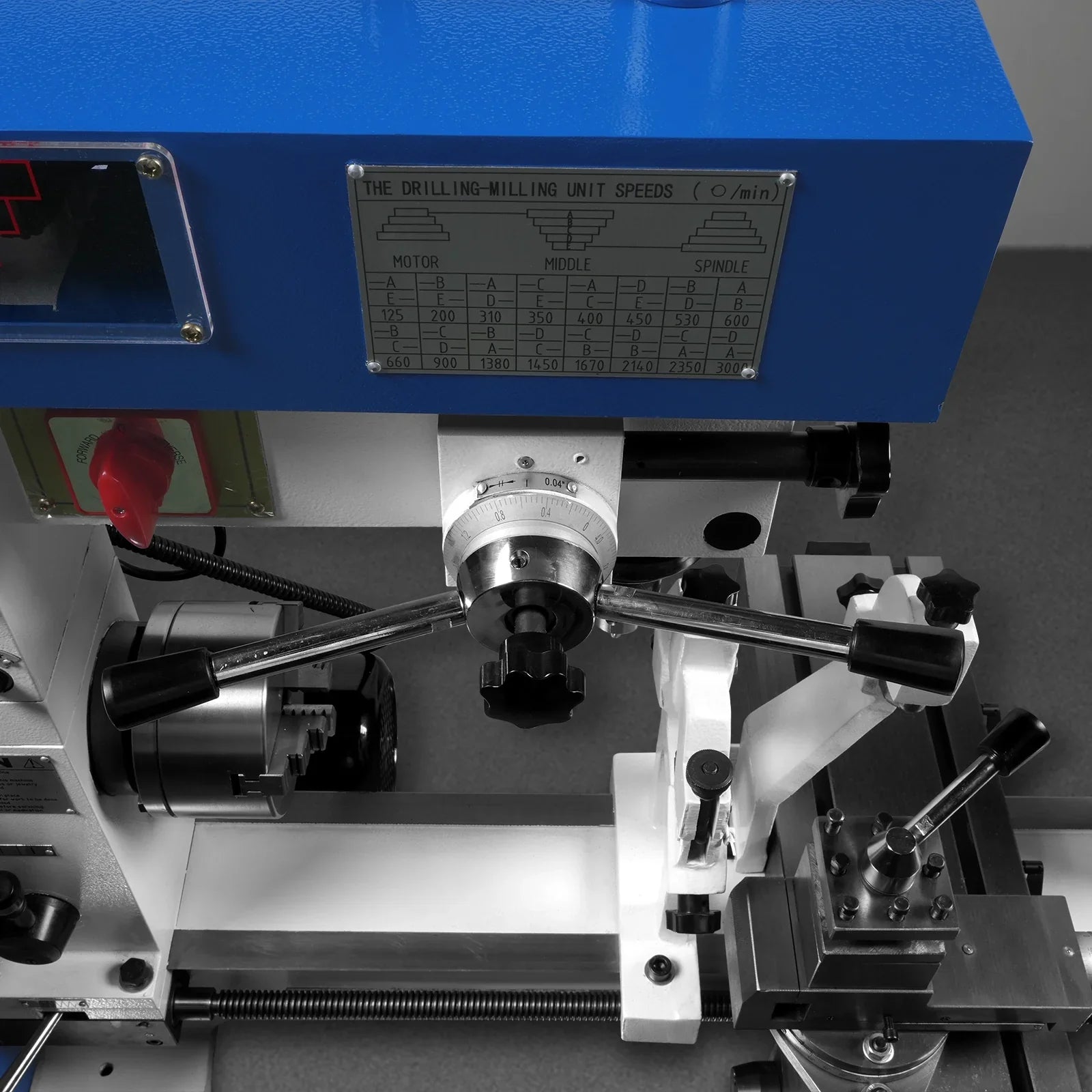

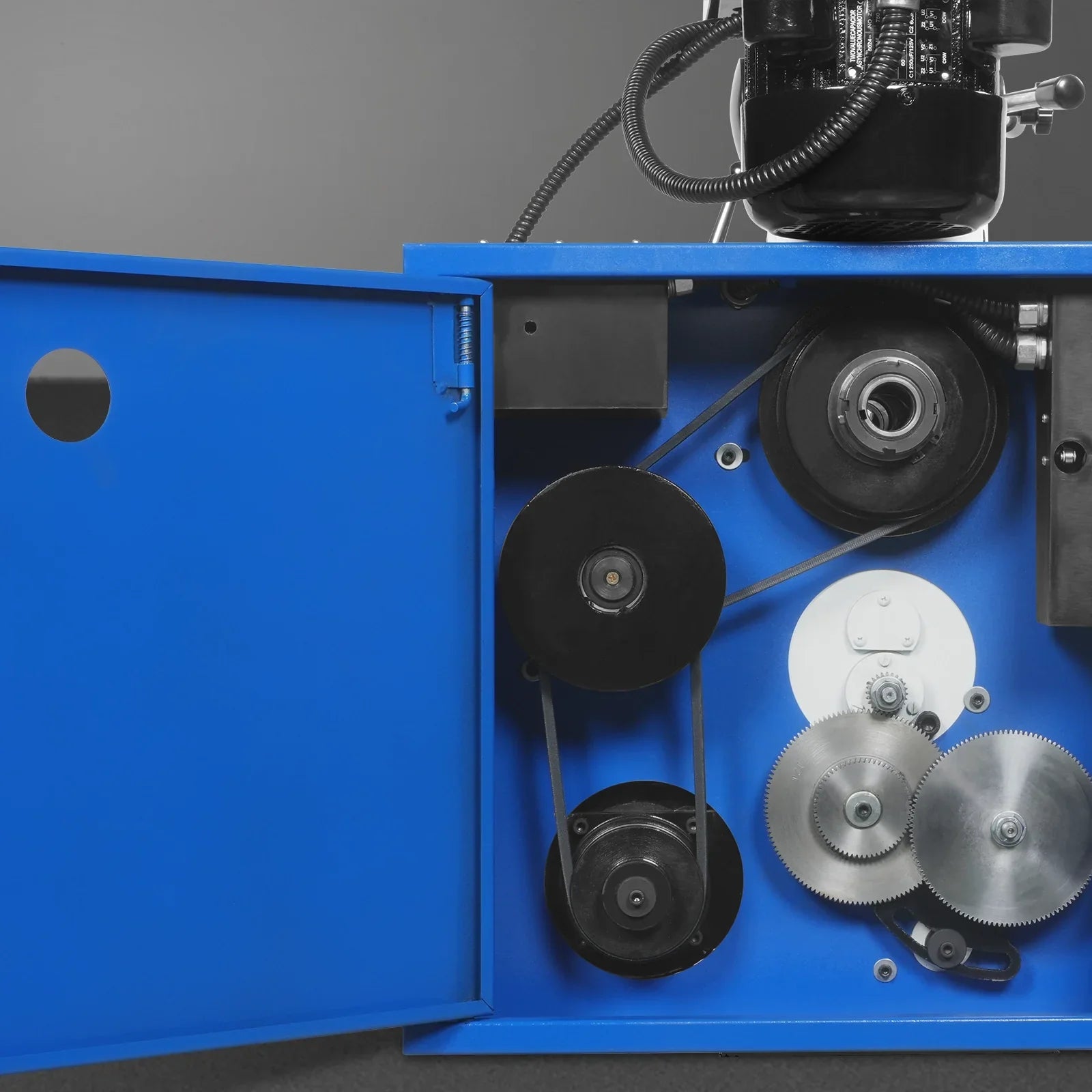

  • Multi-Speed Belt Drive for Versatile Milling: This belt-driven system provides 14 spindle speed settings—from 117 to 1300 RPM—via easy pulley adjustments. The vibration-free, low-noise design ensures smooth transitions across drilling and milling tasks, giving you full control over cutting speed and torque for various materials.
  • Effortless Precision with Automatic Feed Control: Experience smooth, hands-free operation with automatic longitudinal and cross feeds. This feature ensures consistent cuts, reduces operator fatigue, and enhances machining efficiency—ideal for repetitive tasks and precision work.
  • Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

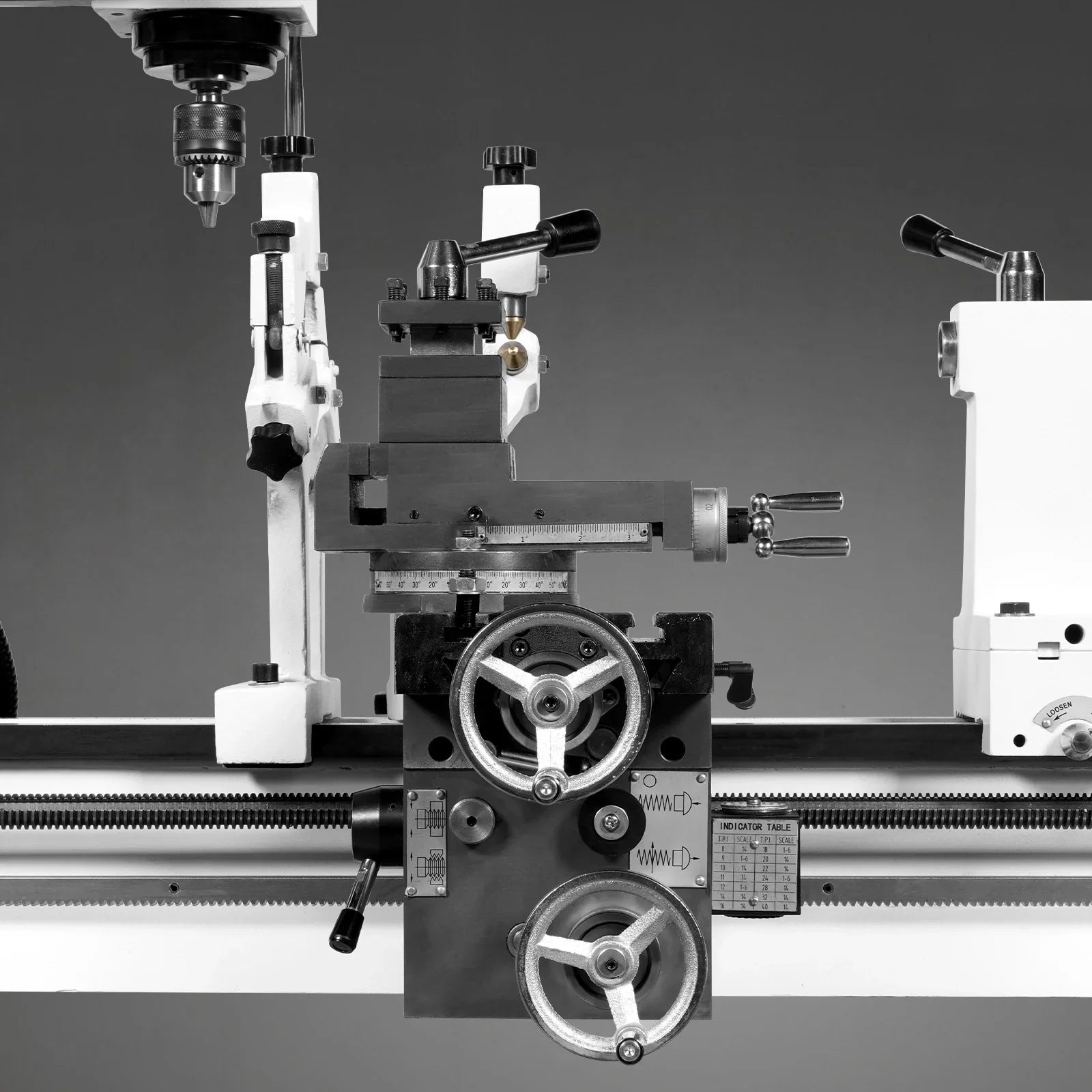

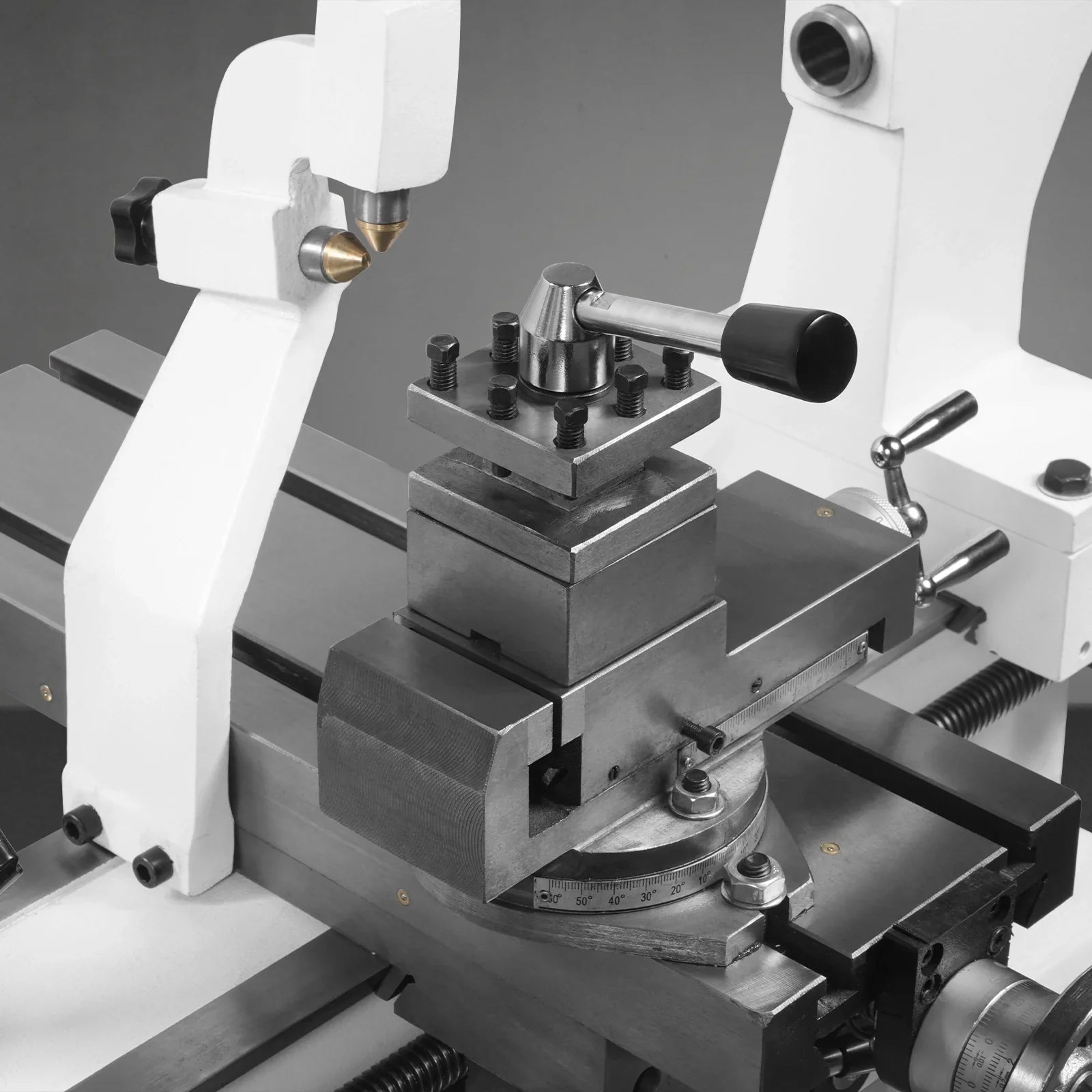

  • Smooth Travel, Stable Cutting: Built for precision and control, the cross and compound slides ensure smooth tool movement and firm support during every cut. Whether you're facing, turning, or tapering, this rigid assembly provides the accuracy you need for professional-quality results in your garage or workshop.

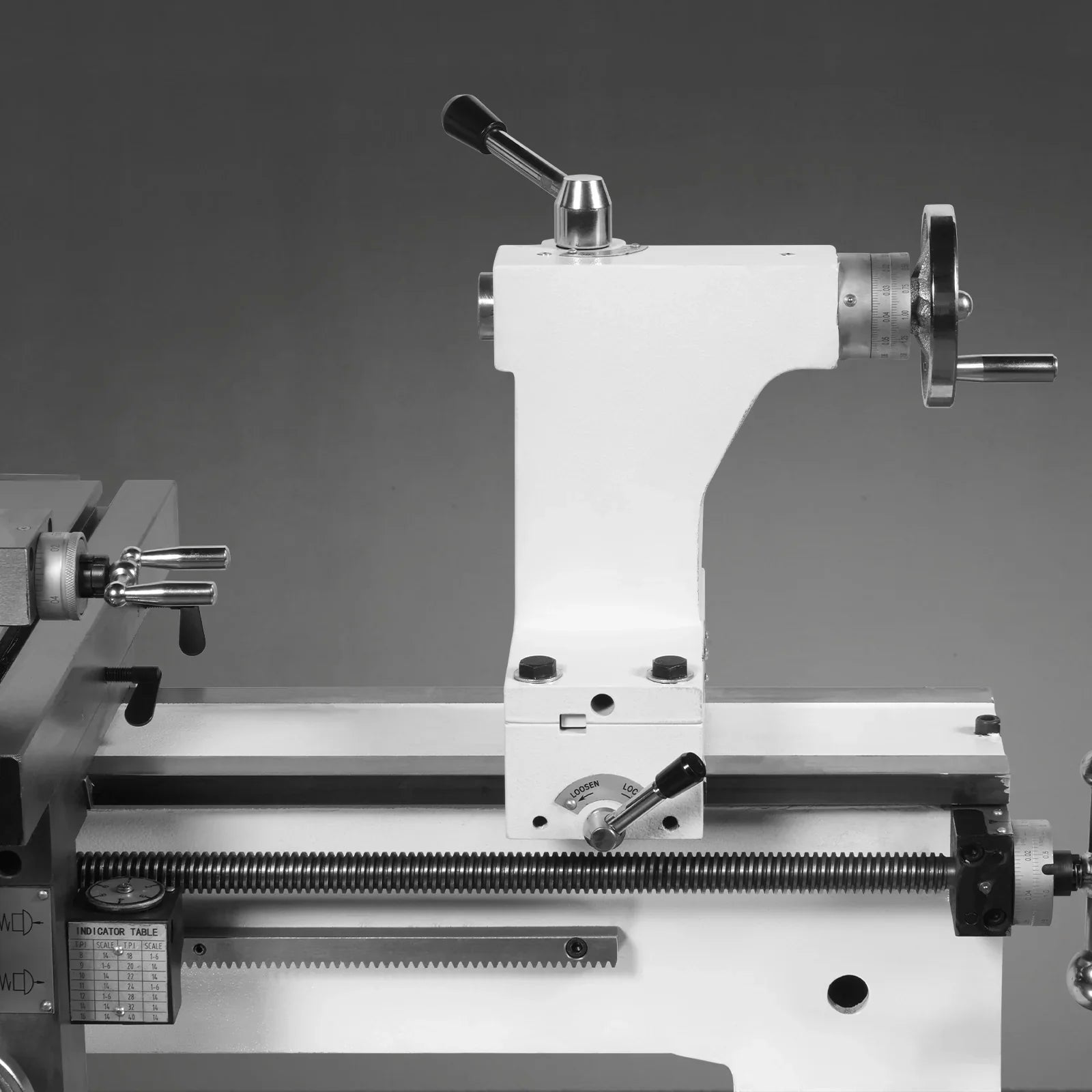

  • Precision Tailstock with Fast-Action Lock: Designed for accuracy and convenience, the tailstock features 2-3/4inch quill travel and an MT3 taper—perfect for drilling, centering, and support tasks. The quick-locking lever allows rapid repositioning without tools, boosting productivity and ensuring consistent alignment during turning operations.

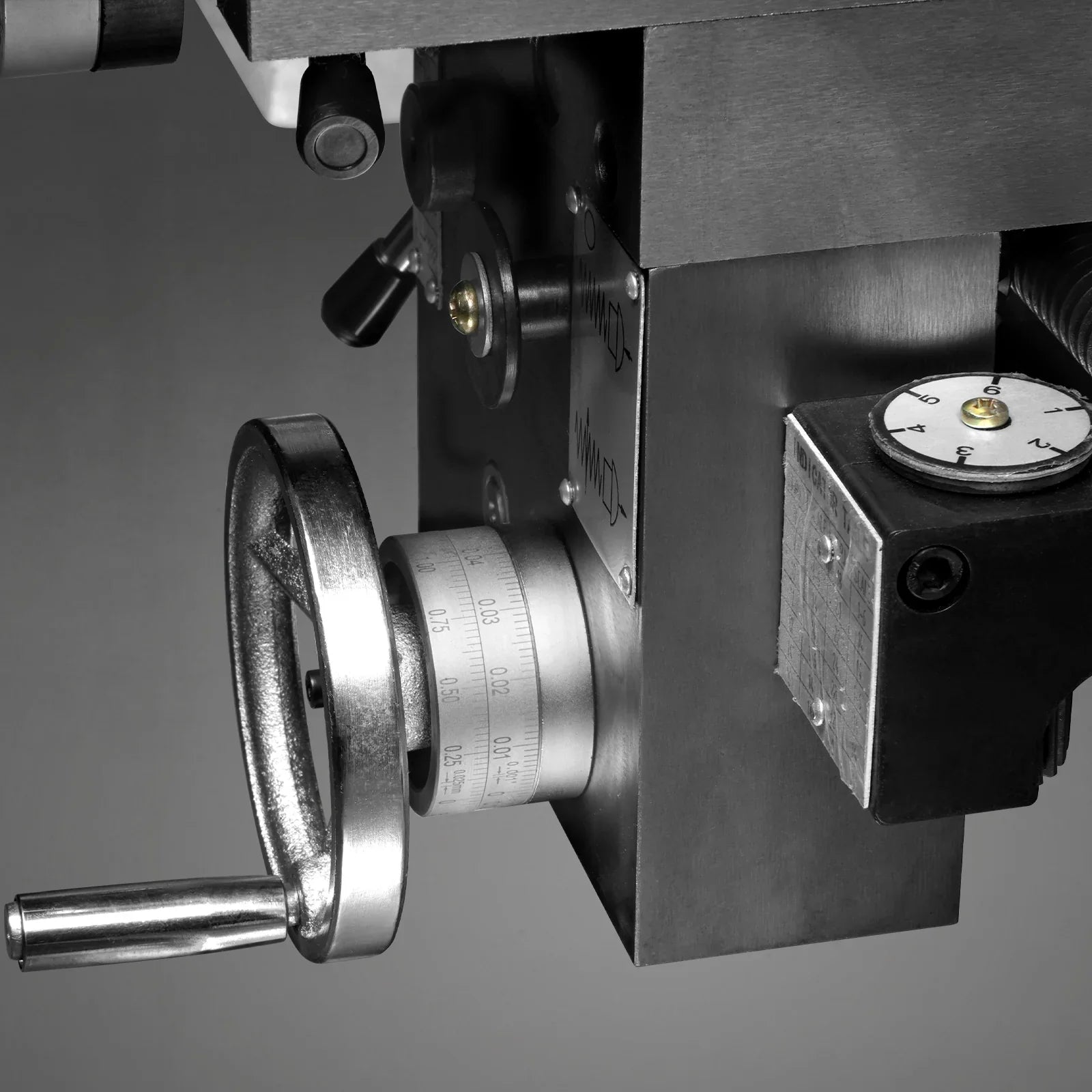

  • Clear Dials for Precise Manual Control: Every handwheel features engraved graduations for fine depth adjustment during turning, drilling, or milling. Whether you're threading or facing, precise dial feedback lets you make accurate cuts with confidence—perfect for hobbyists and professionals alike.

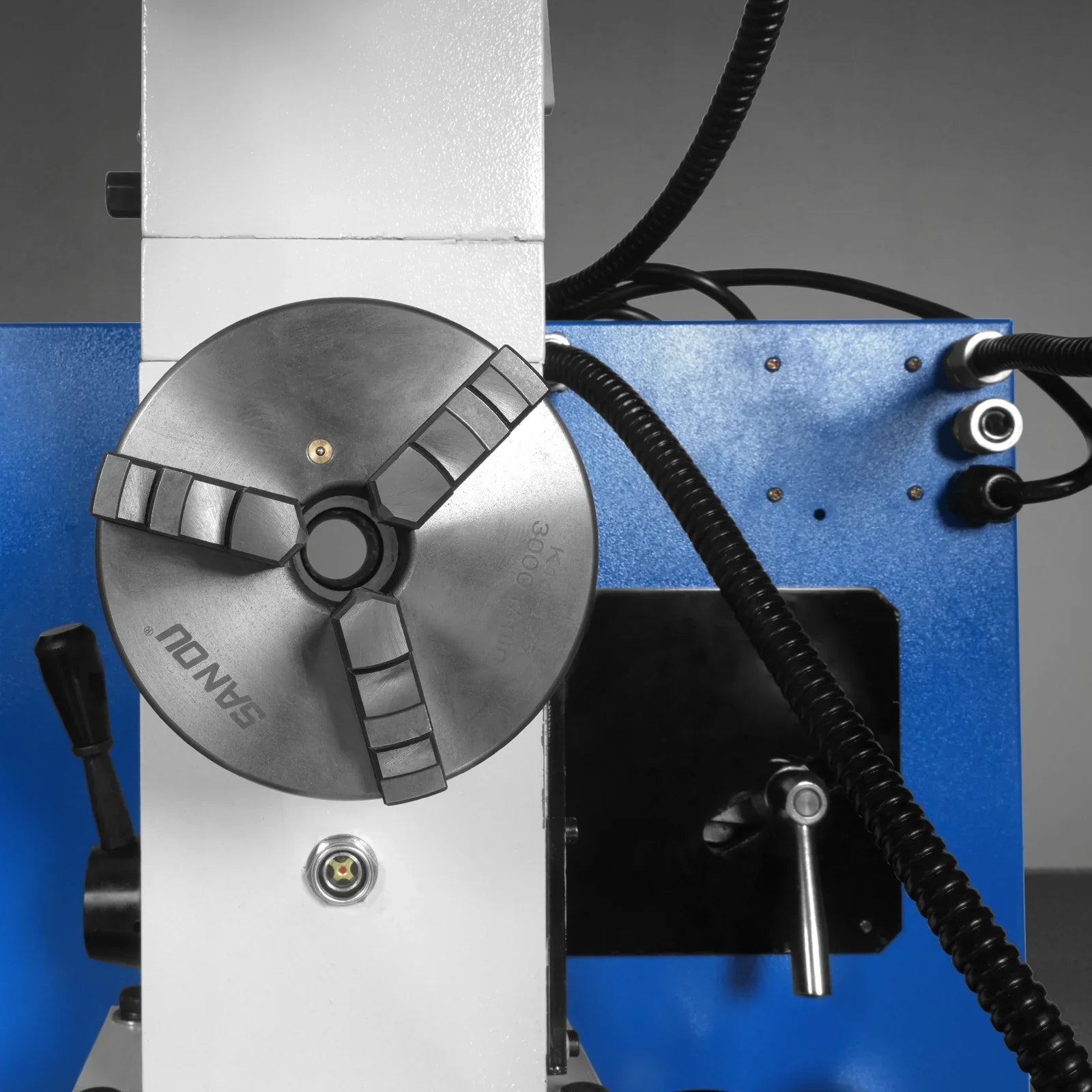

  • 1-1/10'' Spindle Bore and MT4 Spindle Taper: This lathe is equipped with a 5" chuck, providing a strong, secure grip for a wide range of workpieces. The MT4 spindle taper ensures a tight, stable fit for precise turning operations, while the 1-1/10'' spindle bore allows you to work with longer materials, enabling continuous operations without limitation.

Motor Power (Lathe): 1PH(750W), Single-Phase, 110V, 60HZ

Swing Over Bed: 16-8/15''(420mm)

Swing Over Cross Slide: 11-1/2"(120mm)

Distance Between Centers: 31-1/2''(800mm)

Bed Width: 5-5/16''(135mm)

Spindle Bore: 1-1/10''(28mm)

Spindle Mount: Flange mount

Spindle Type: Integrated Spindle

DIA of the chuck: 5''(125mm)

Spindle Taper: MT4

Tailstock Taper: MT3

Tailstock Quill Travel: 2-3/4''(70mm)

Carriage Travel: 29-1/8''(740mm)

Carriage Leadscrew Diameter: 25/32"(20mm)

Cross Slide Travel: 7-7/8''(200mm)

Compound Slide Travel: 3''(76.2mm)

Spindle Speed Range: 160-1360RPM

Number of Speed Ranges: 7

Longitudinal Feed Rate: 0.002''-0.014''

Transverse Feed Rate: 0.002''-0.014''

Leadscrew Size & Pitch: 20mm 6TPI

Threading Capacity – Inch: 4-120TPI

Threading Capacity – Metric: 0.2-6mm

Thread Dial Indicator: YES

Maximum Tool Bit Size: 1/2''x1/2''(12x12mm)

Motor Power (Mill Head): 1PH(750W)

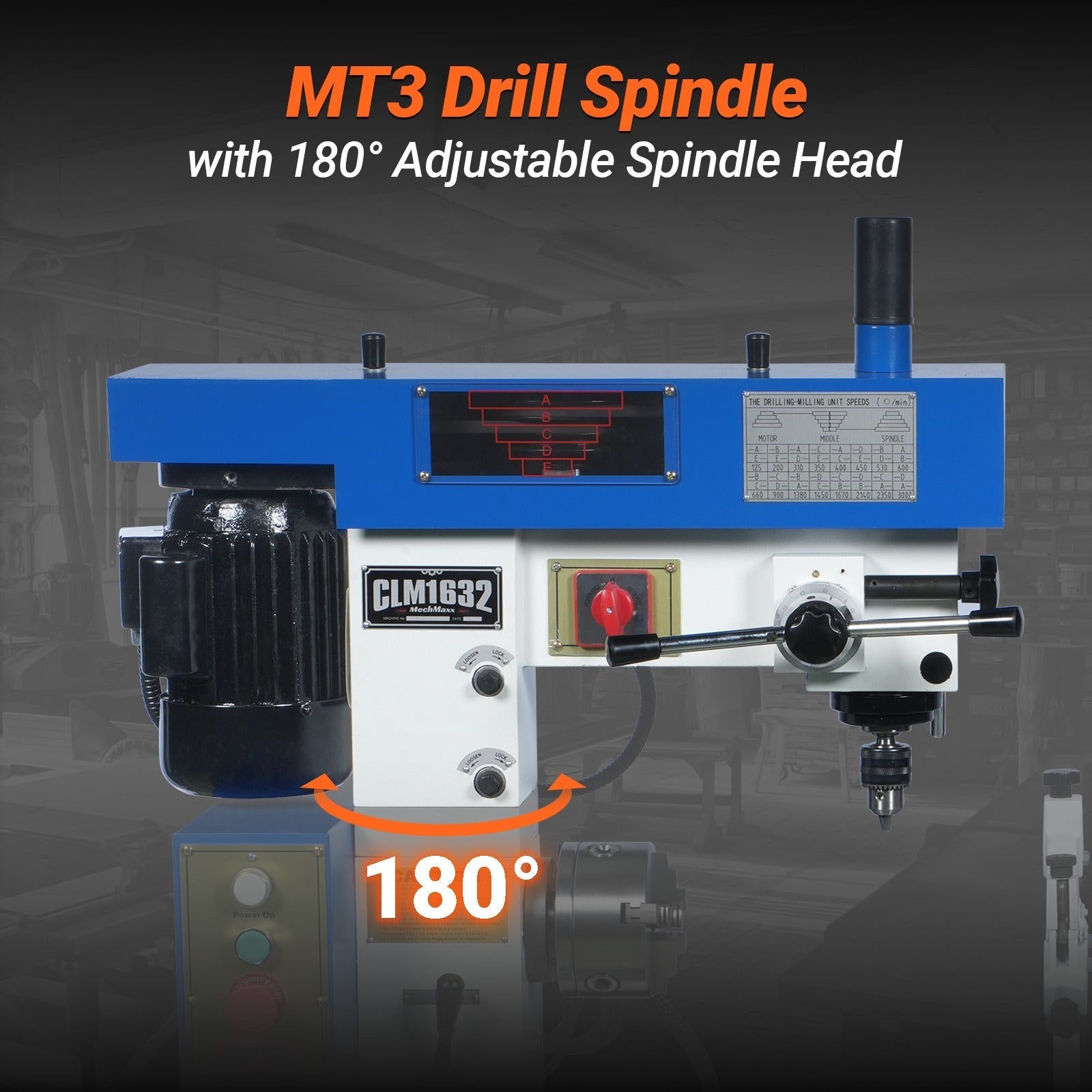

Mill Taper: MT3

Spindle Speed Range: 120, 200, 310, 350, 400, 450, 530, 600, 660, 900, 1380, 1450, 1670, 2140, 2350, 3000 RPM

Number of Speed Steps: 16

Spindle Travel: 4-5/16"(110mm)

Drawbar Thread Size: 3/8''(9.52mm)

Drawbar Length: 13''(330mm)

Drawbar Thread Pitch: 16TPI

Drill Capacity: 7/8''(22mm)

End Milling Capacity: 1-1/8"(28mm)

Face Milling Capacity: 3-5/32''(80mm)

Vertical Travel (Z-Axis): /

Distance: Spindle to Table: 14-1/2''(370mm)

Distance: Spindle to Center Line: 6-1/8''(156mm)

Headstock Height: 3-1/8''(79.4mm)

Head Tilt Angle: 0°

Swivel angle of the headstock: 360°

Drive Type: Belt-driven AC Motor

Overall Dimensions: 57''x23''x45''(1440x580x1140mm)

N.W/G.W: 595/653lbs(270/296kg)

This item comes with a 1 year factory warranty.
