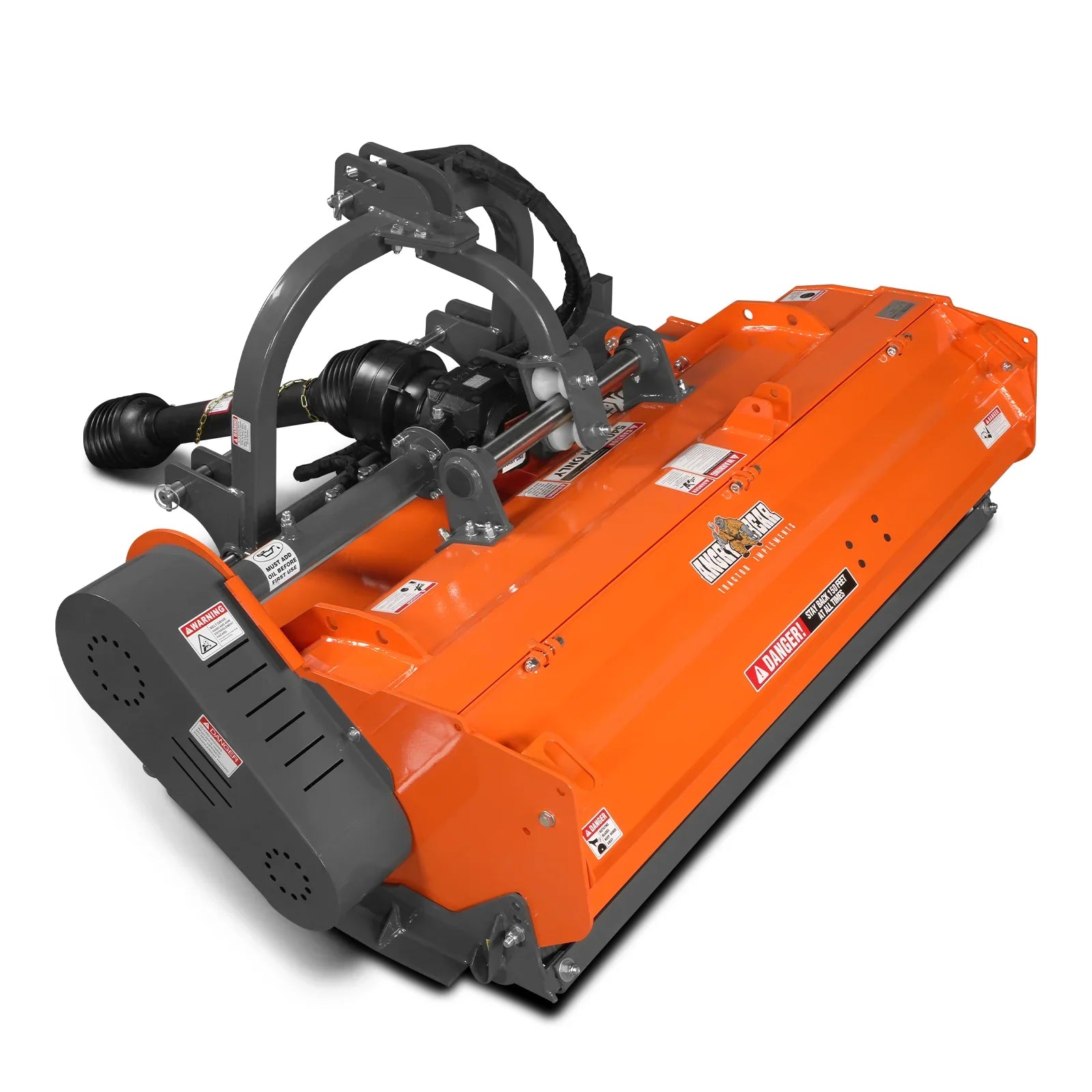

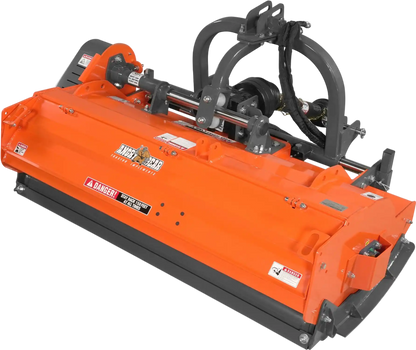

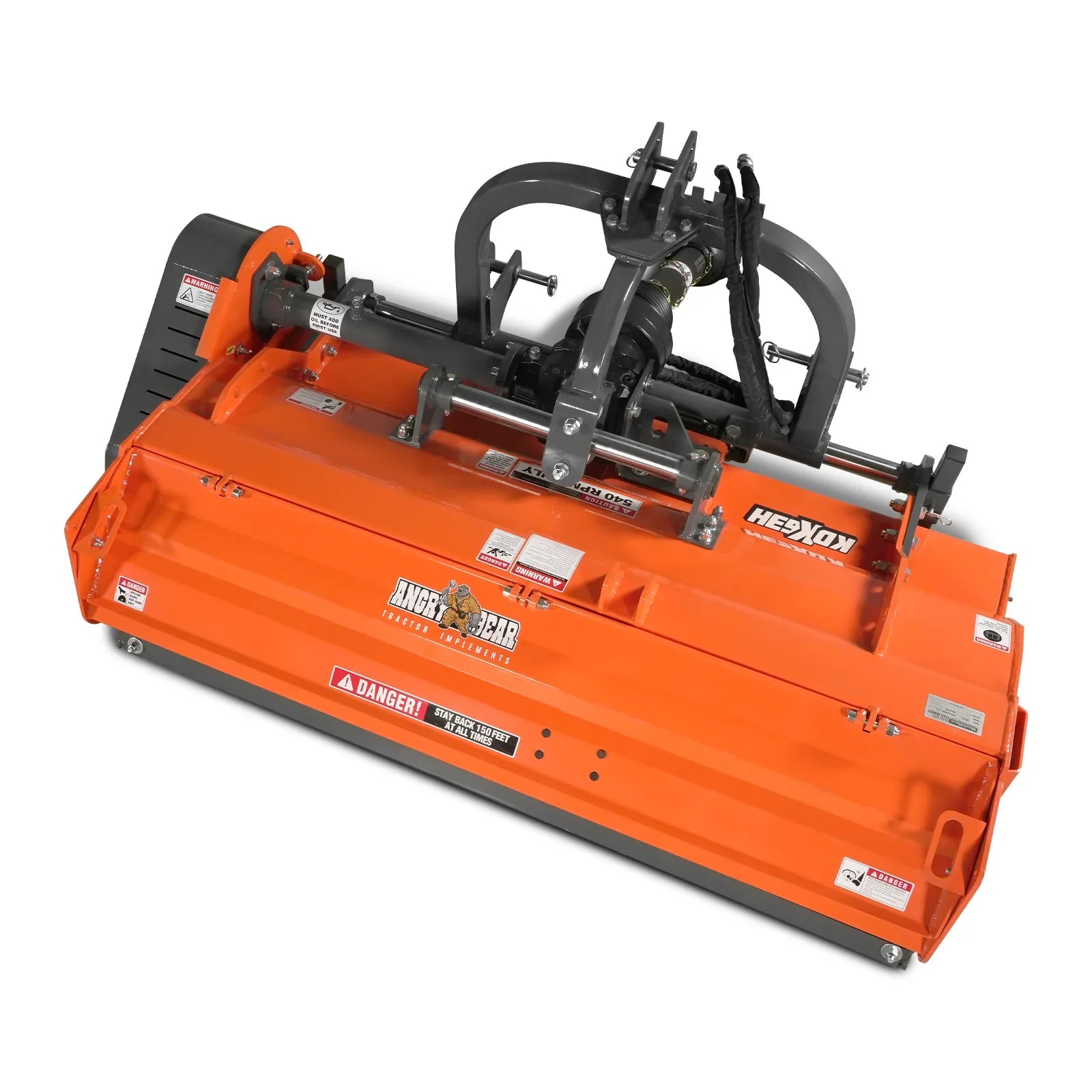

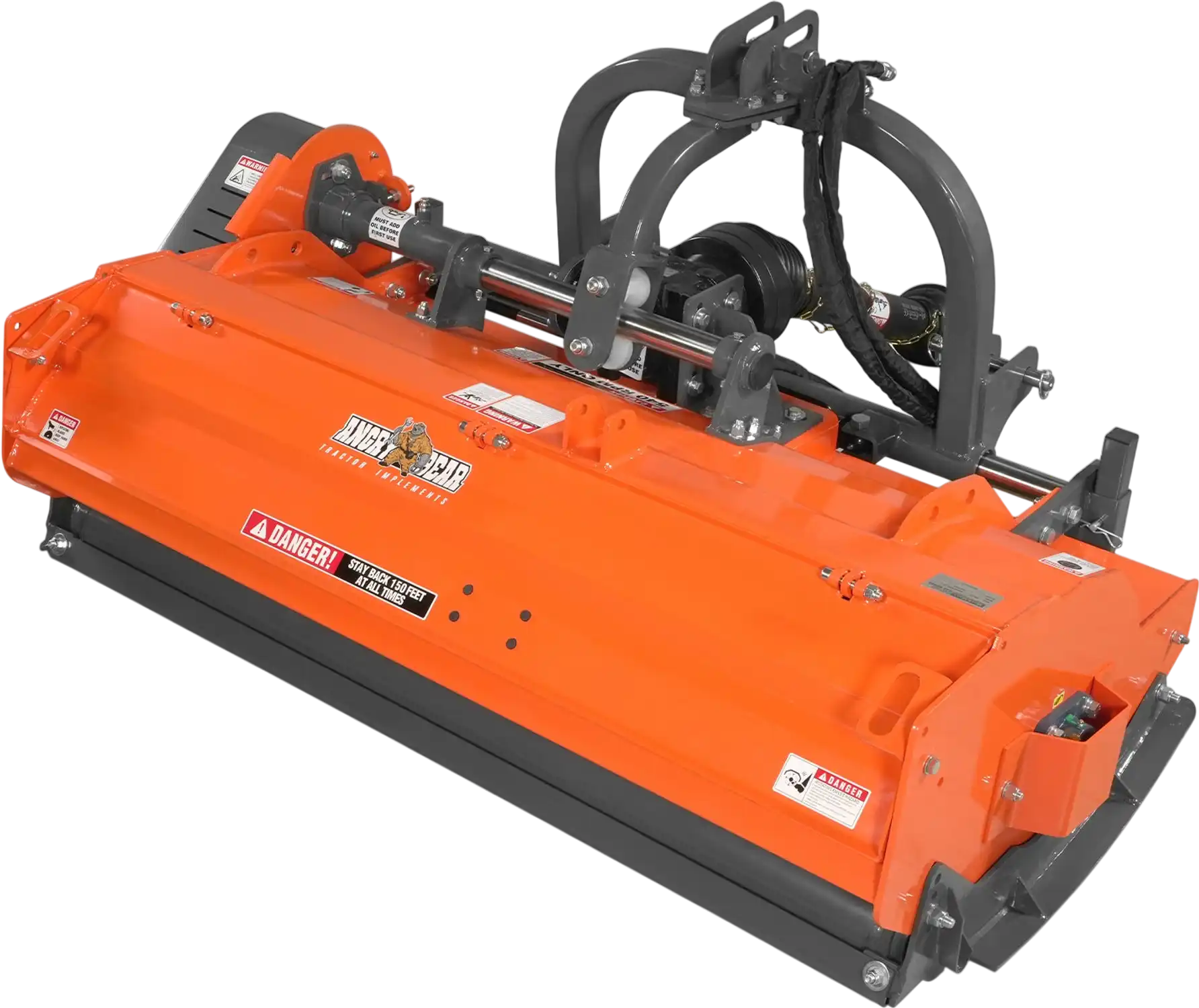

MechMaxx KDK 63H Flail Mower 63" Heavy Duty PTO Hydraulic Side Shift 3 Point 50-75 HP New

MechMaxx

$3,599.00
$3,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Featuring a Heavy-Duty 1.375" z6 PTO Shaft Spline and the standard 540 RPM PTO speed, this flail mower guarantees maximum universal compatibility for a reliable, plug-and-play connection to the majority of tractors, ensuring efficient and reliable power transmission even in the toughest mowing conditions.

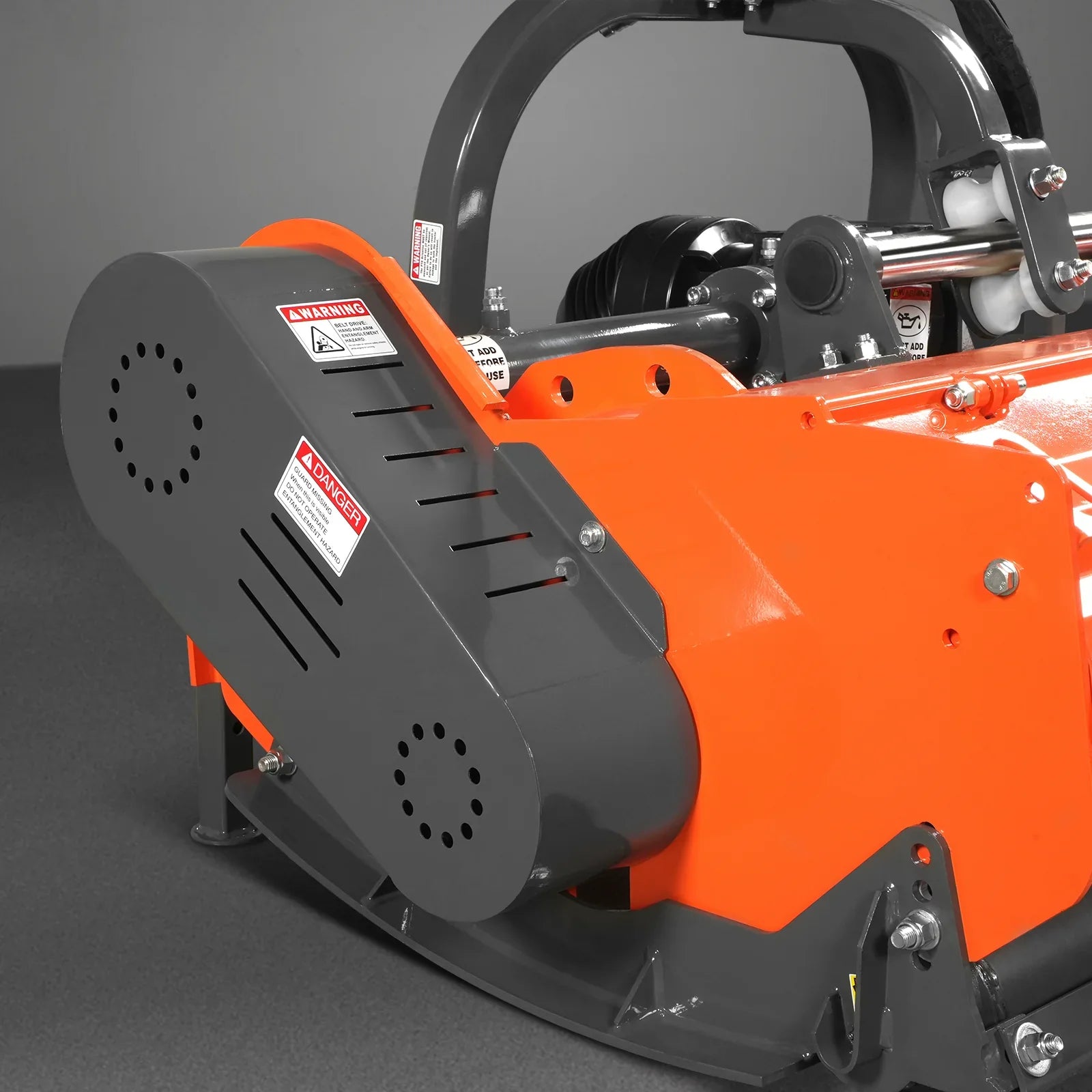

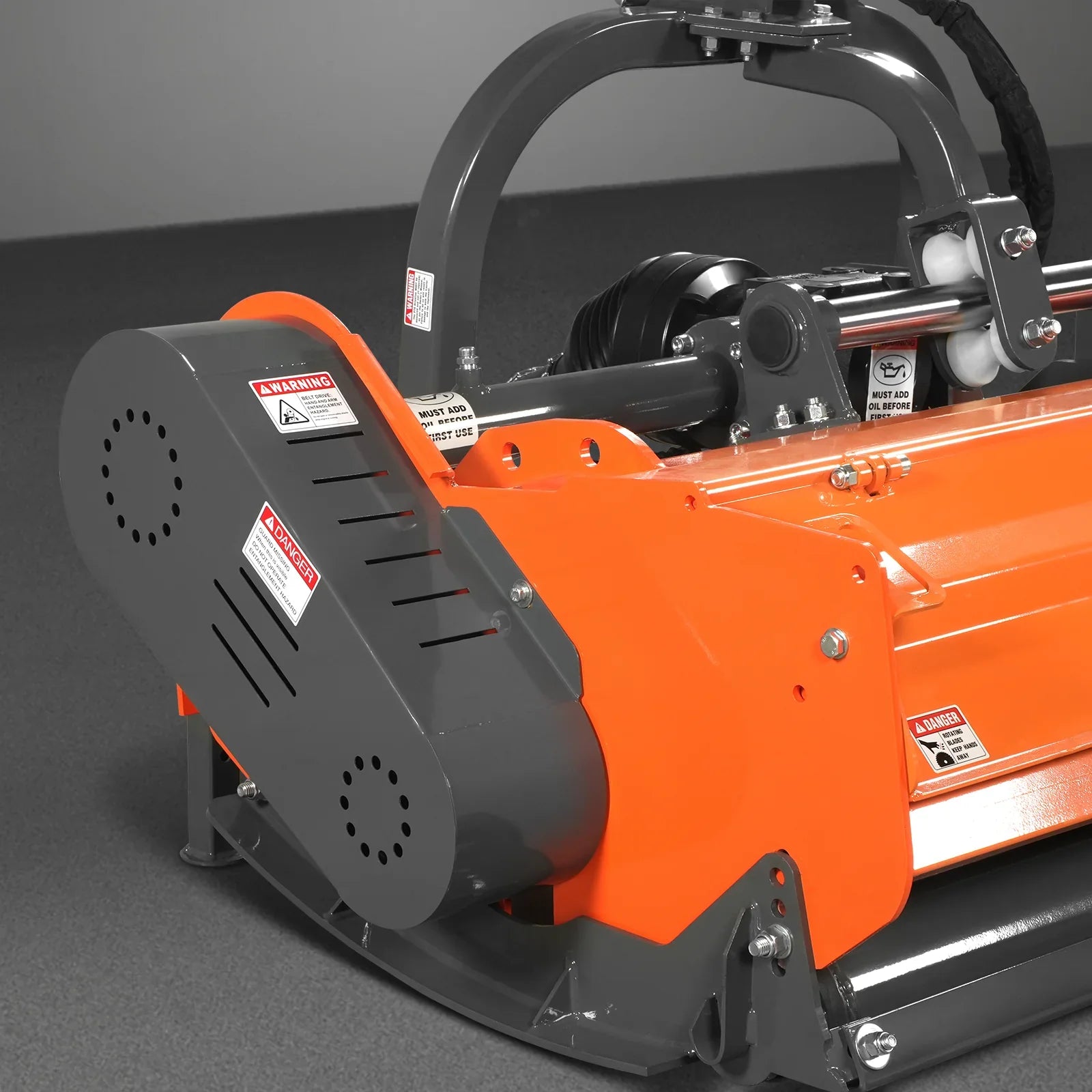

  • The integrated spring-loaded automatic belt tensioner constantly maintains optimal tension, dramatically boosting mowing efficiency while reducing wear to prolong the machine's lifespan and lower maintenance costs.
  • With an extra-wide 63-inch cutting width, you can cover large areas quickly and efficiently, making it the perfect choice for major agricultural fields and roadside maintenance projects.

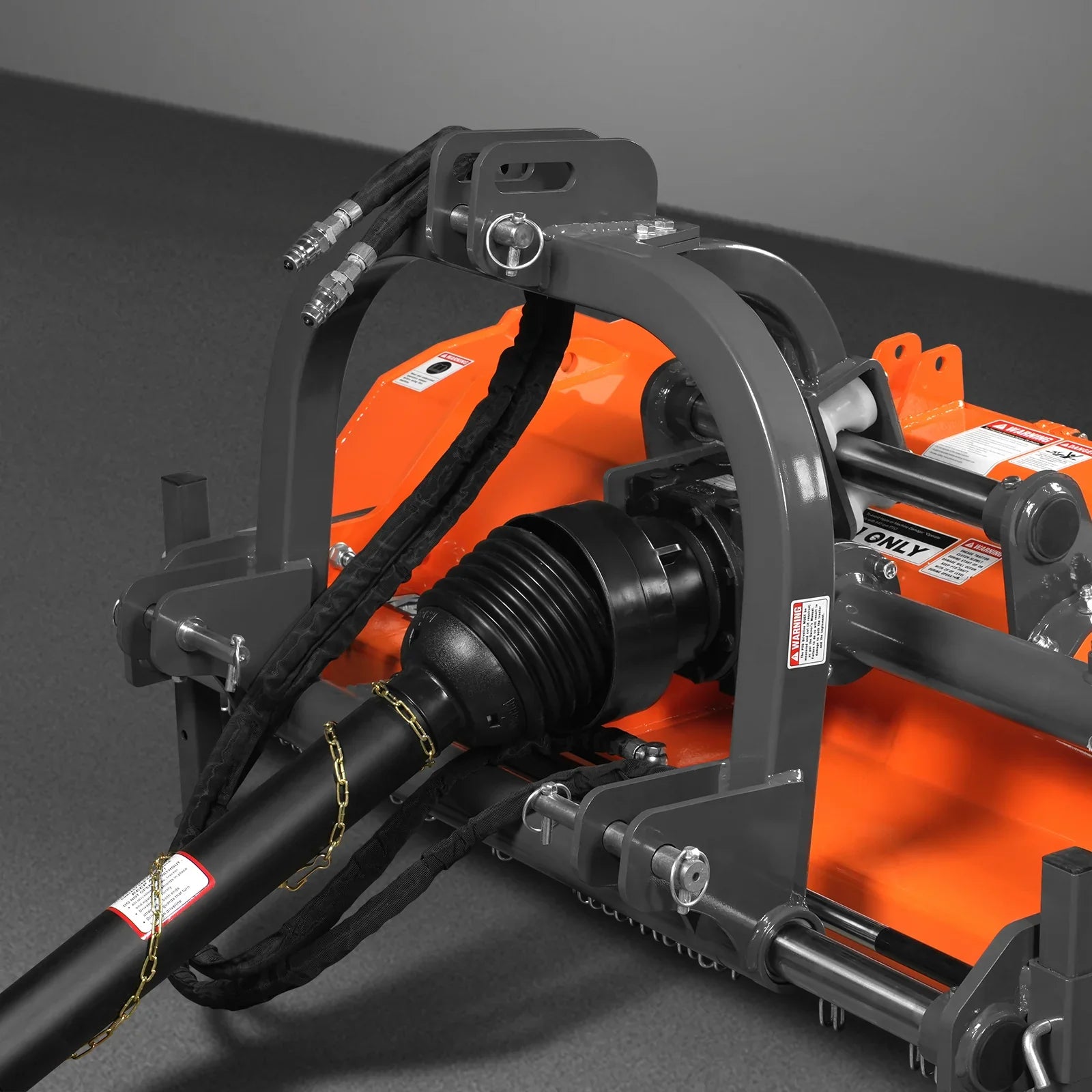

  • The unit features a robust 3-point linkage that ensures a solid, secure, and wobble-free attachment to your tractor, delivering superior stability during high-speed or challenging operations.

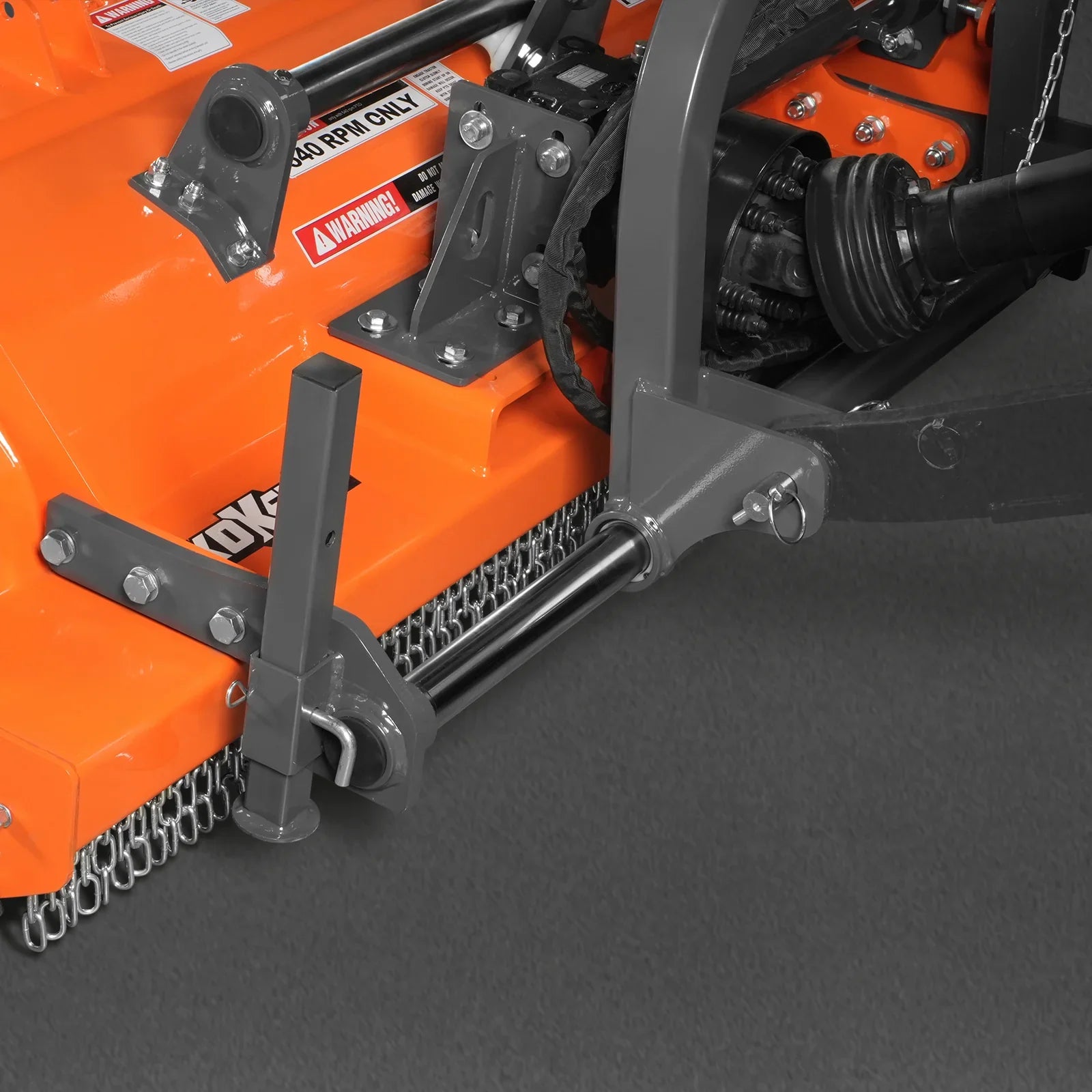

  • Height-adjustable side skids allow for precise cutting height control, effectively preventing ground damage and ensuring smooth, stable performance across rough and uneven terrain.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • 63-Inch High-Efficiency Mower: This mower features a 63-inch working width and is suitable for 50–75 HP tractors. Equipped with a CAT 2 three-point hitch, it can be easily attached and provides stable operation across various working conditions, enhancing both efficiency and ease of use.

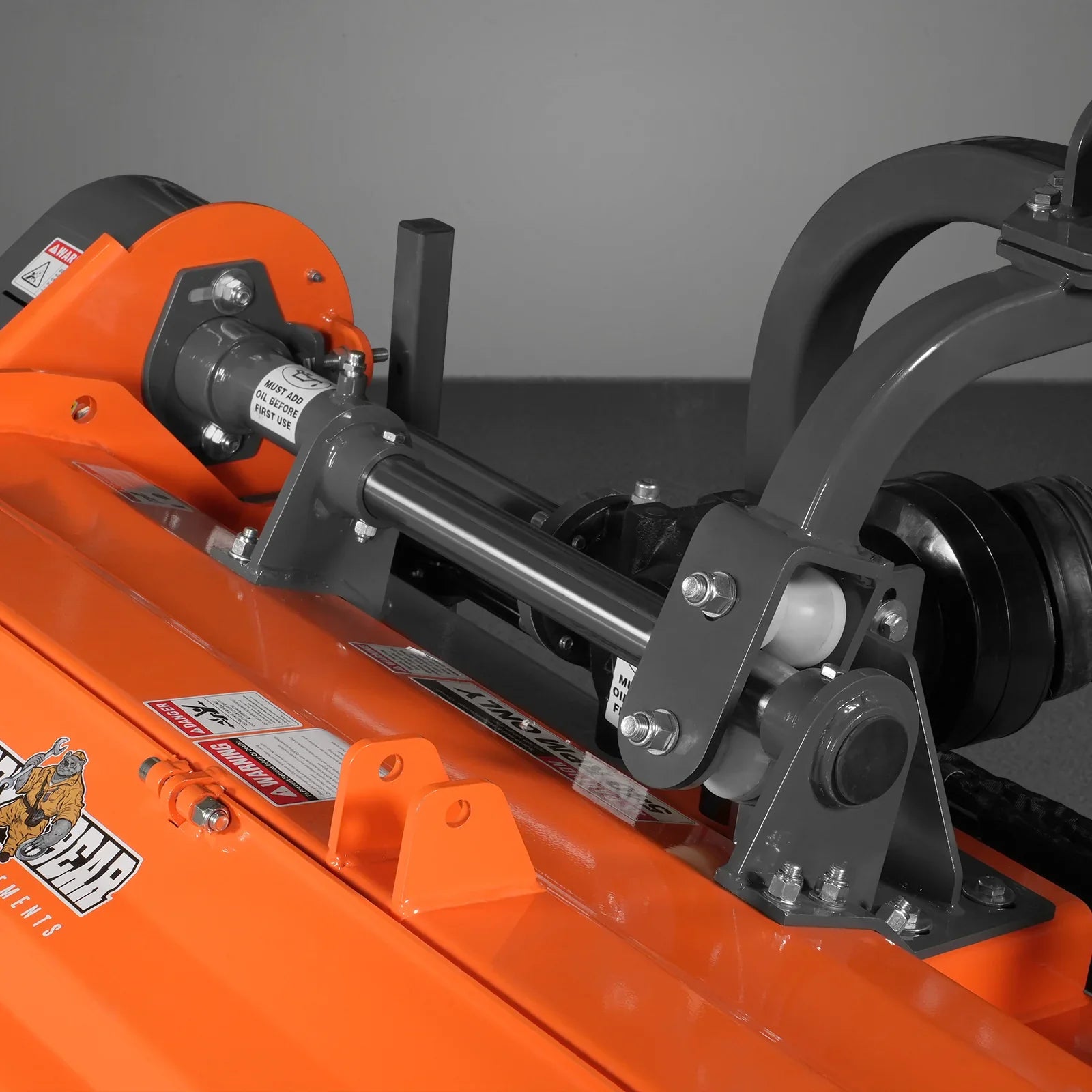

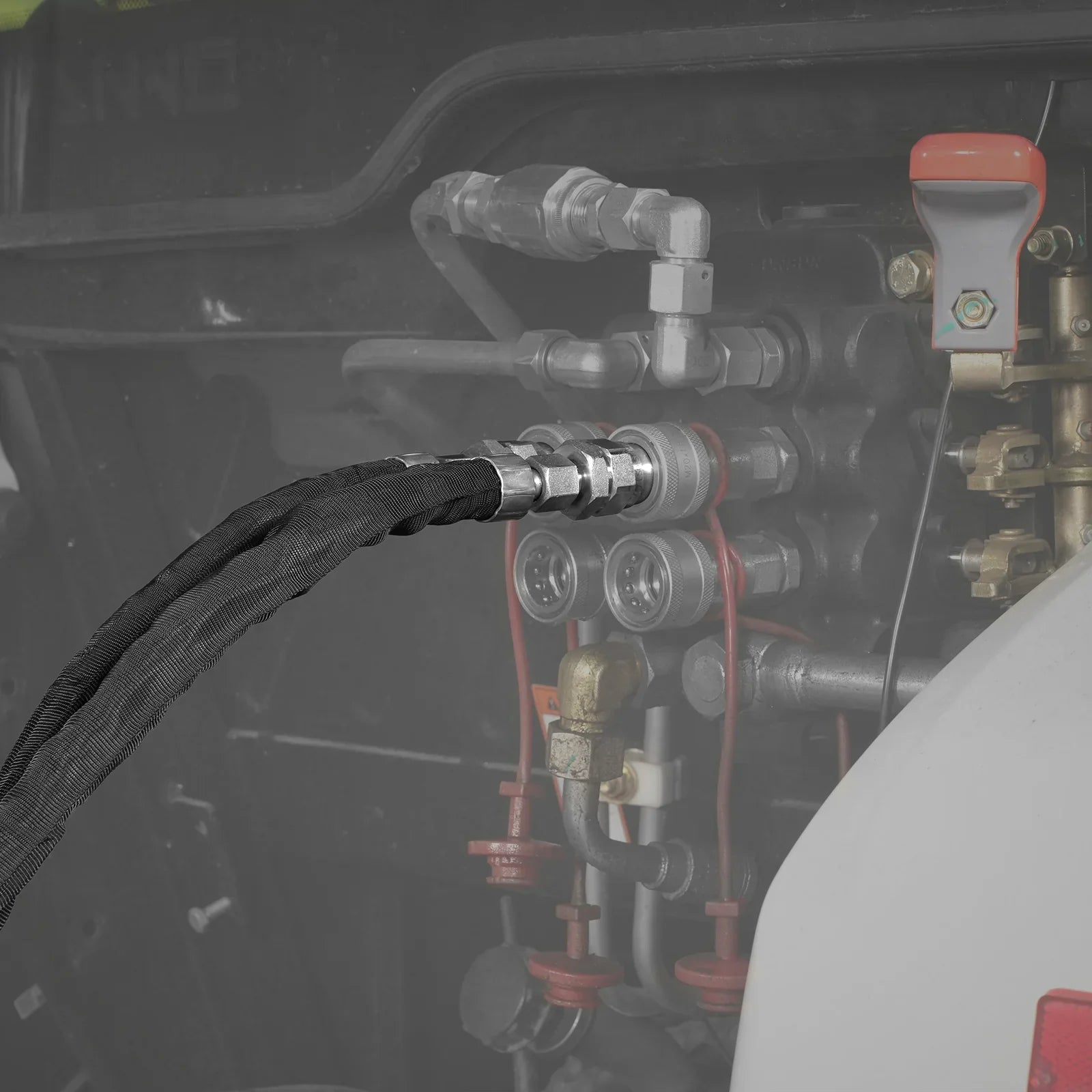

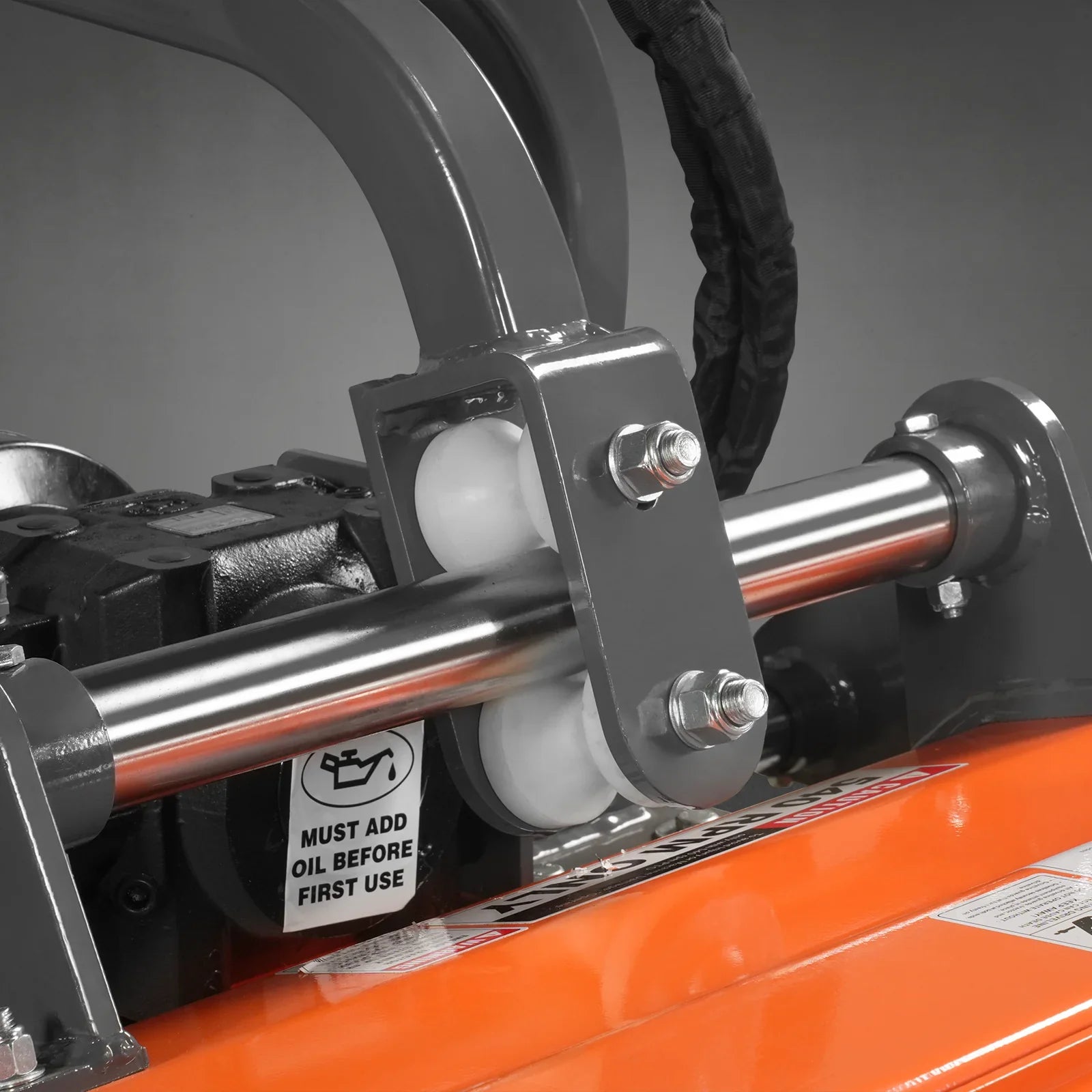

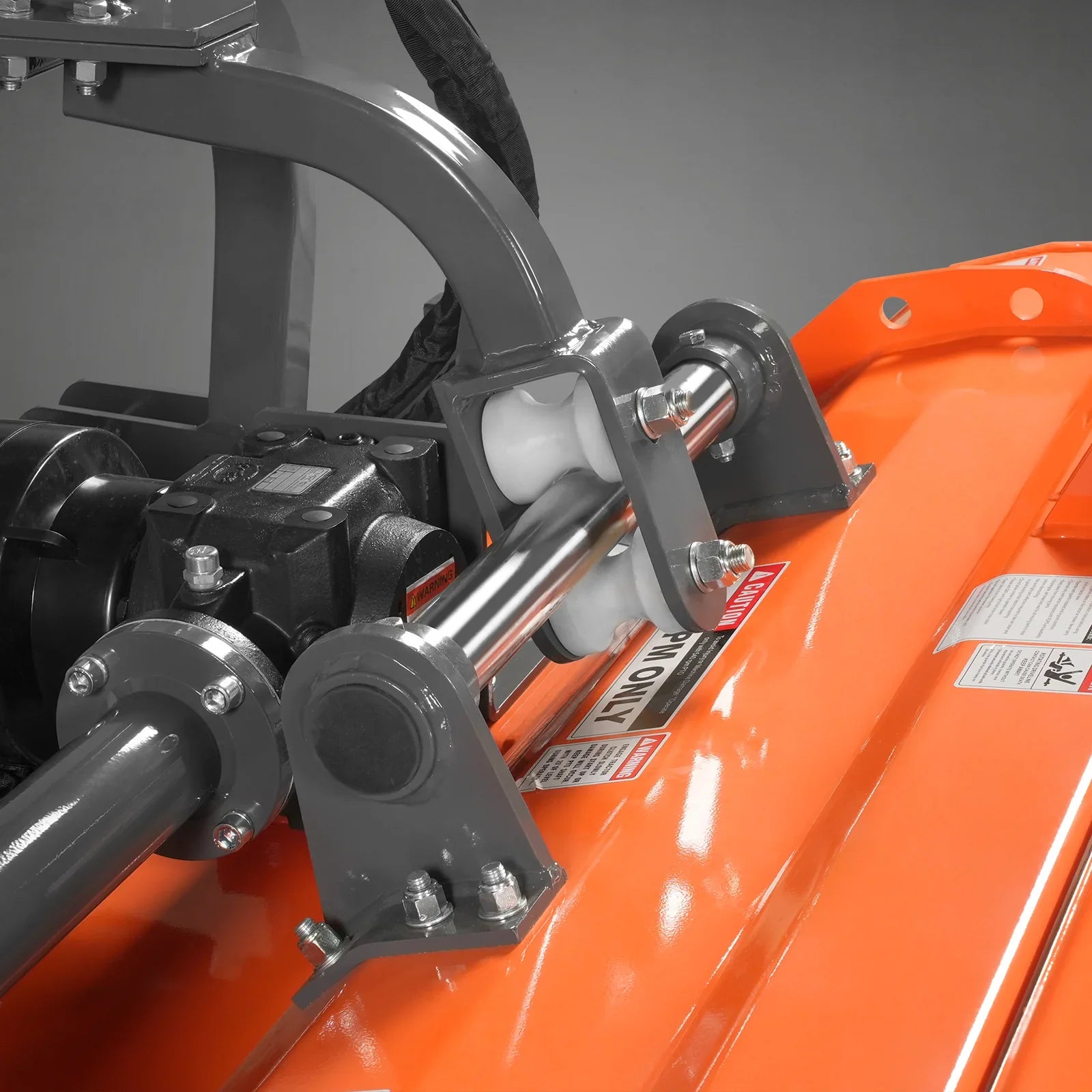

  • Flexible side offset design: Connects to the tractor via hydraulic hoses, with hydraulic side-to-side control allowing horizontal movement up to 13.4 inches. Adjustable cutting direction enables easy trimming of distant overgrown areas.
  • CMR Gearbox: High-quality CMR bearings from Italy efficiently transmit power to all key components of the machine, ensuring smooth and reliable operation, reducing wear, and enhancing both lifespan and efficiency.
  • Outside Rotor Bearing: Externally mounted bearings allow easy maintenance and repairs. High-quality Swedish SKF shaft bearings handle high loads, run quietly and coolly, ensuring reliable performance.

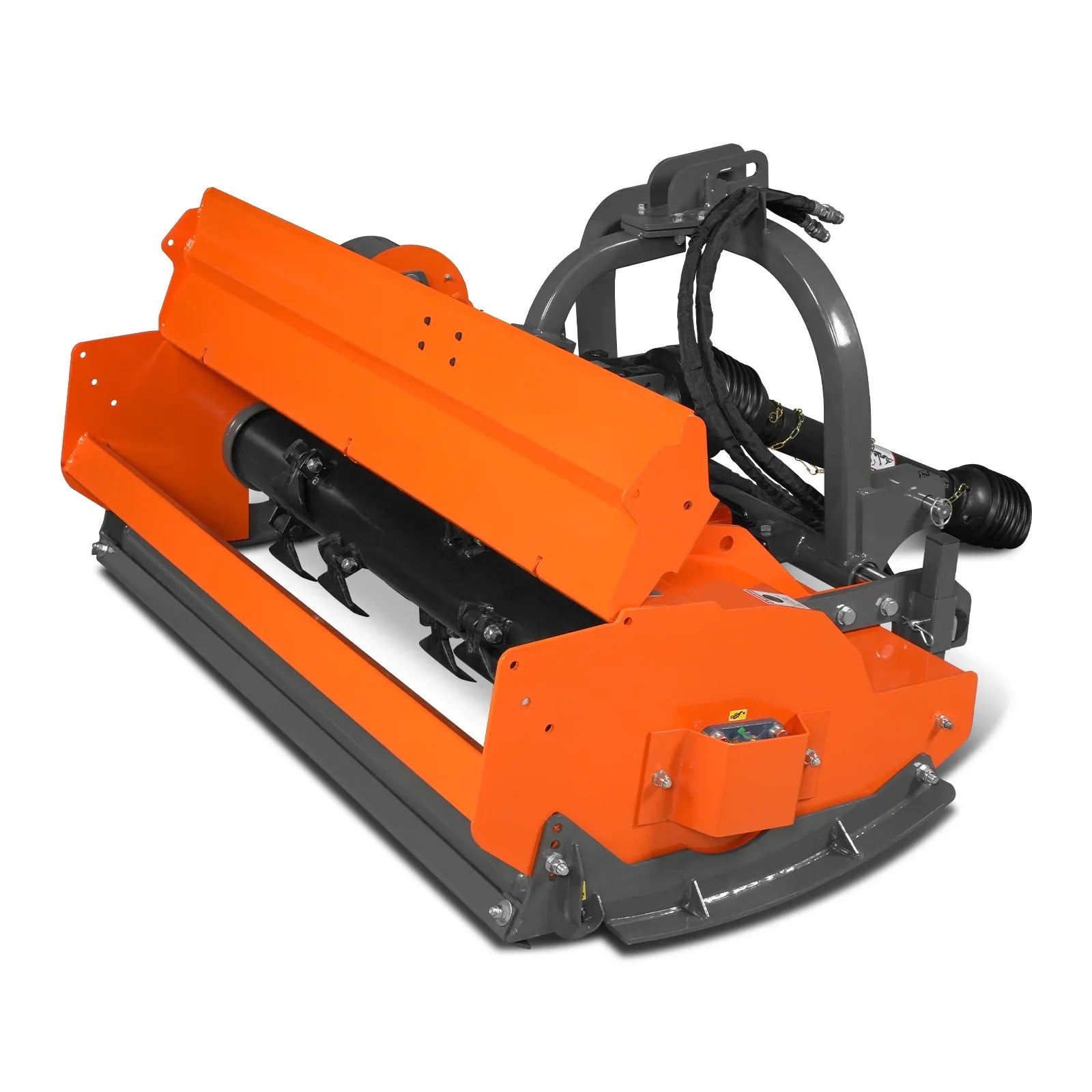

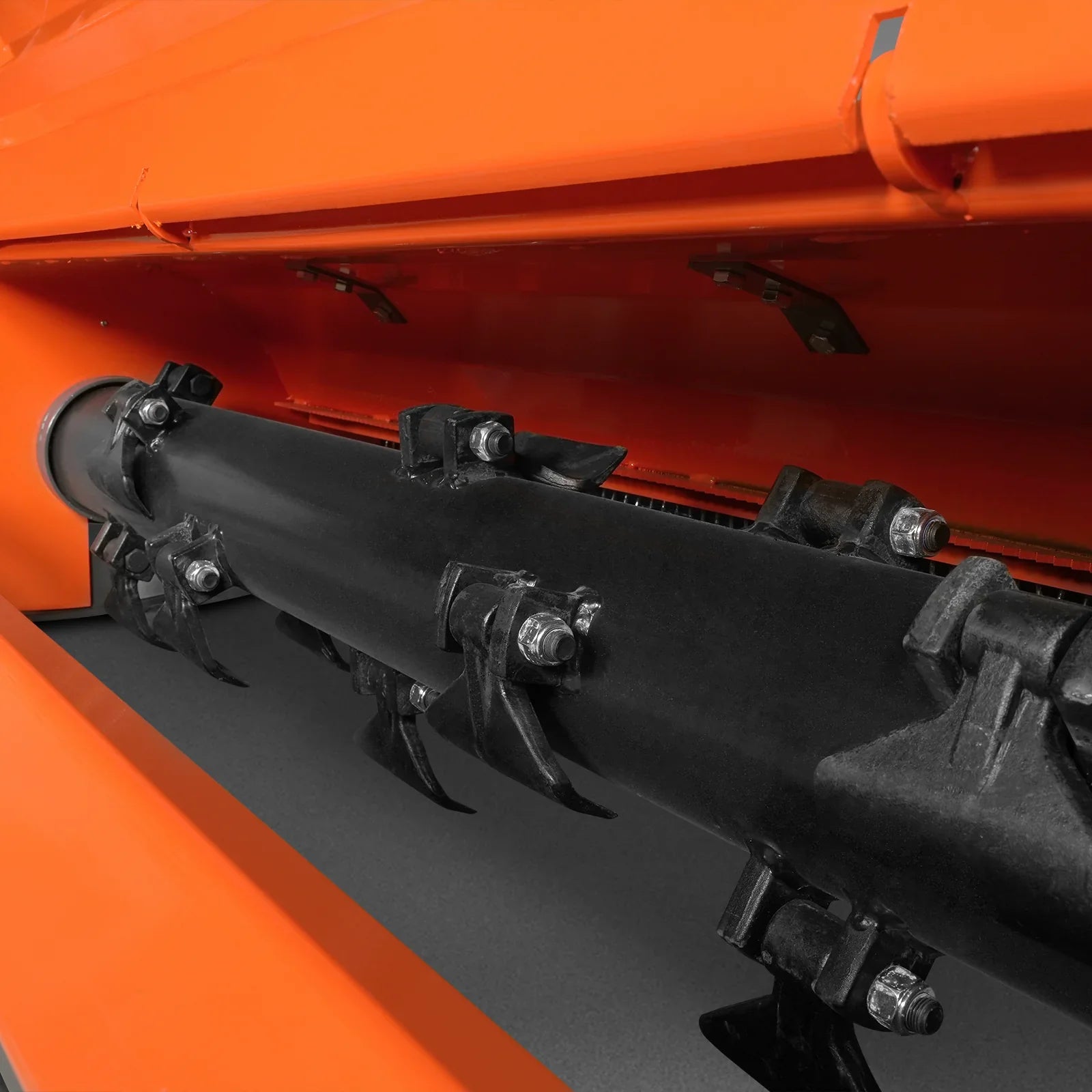

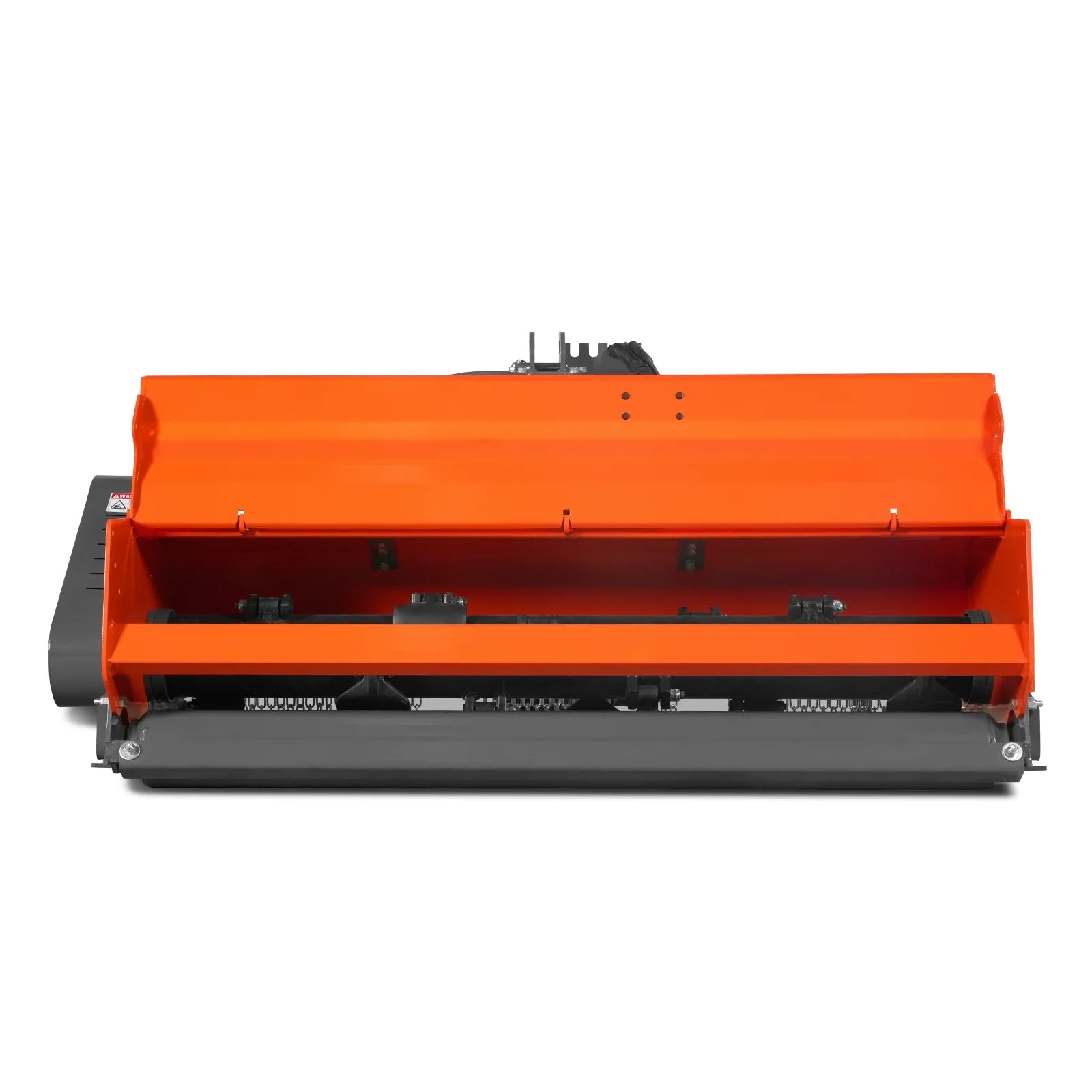

  • Openable Back Cover: Features an openable rear cover for easy blade replacement and blockage clearing. Thickened shaft improves mowing efficiency for smoother operation.

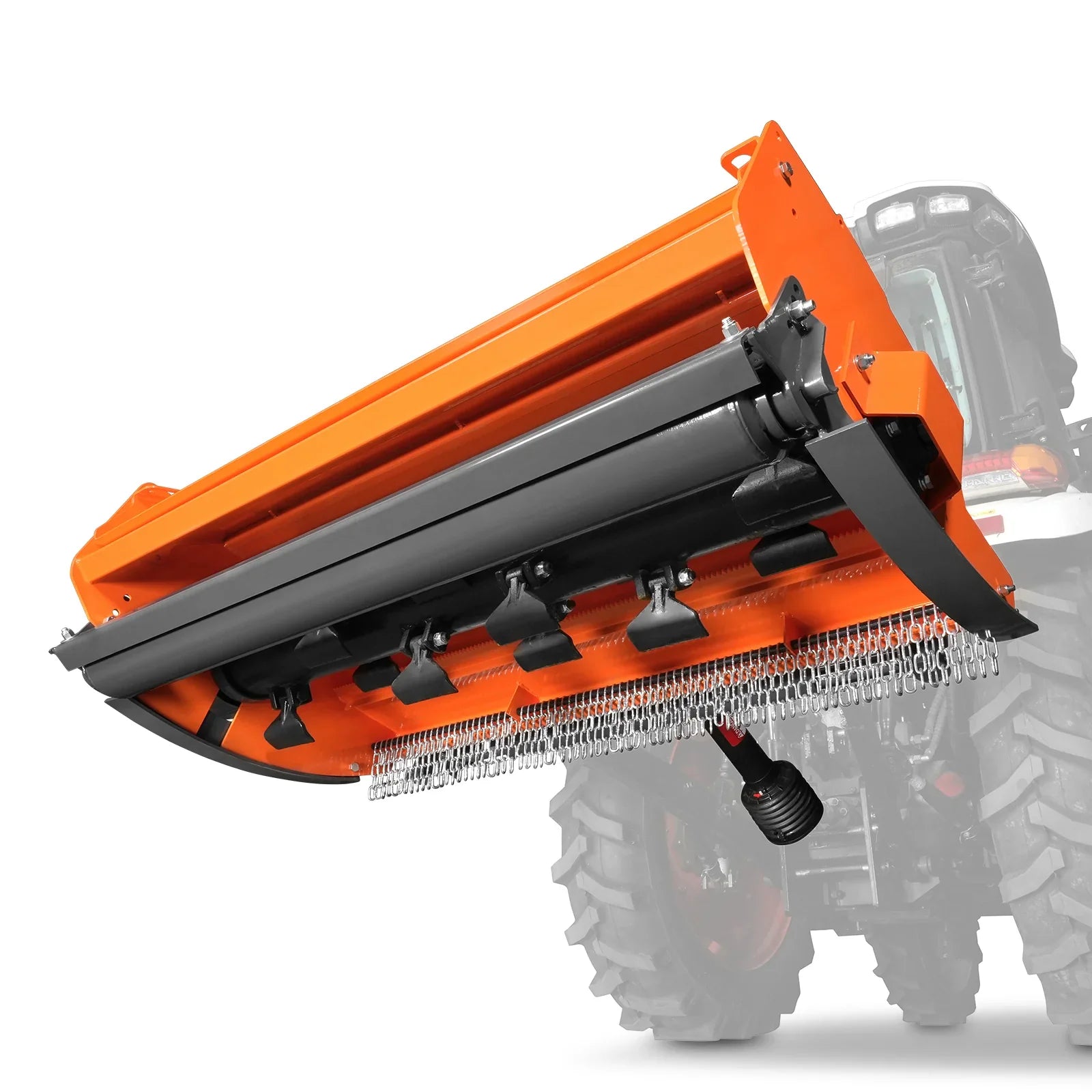

  • Adjustable Height Roller Bar: The adjustable height roller bar allows you to raise or lower the cutting height to your desired level, and features a self-cleaning scraper to enhance cutting performance.

Power Required: 50-75 hp

Drive Type: Gearbox with belt

Minimum Power: 50 hp

Number of Belts: 5

Working Width: 63 in

Belt Type: AV 17*1245

Overall Width: 73 in

Drive Blet Tensioner: Yes, bolts tightened

Variable Cutting Height: 0-3 in

Deck Material: 0.2 in

Horicontal Etending Distance: 13 in

Side Plate Material: 0.3 in

With Rear Open Door: 1 pcs rear open door

PTO Shaft RPM: 540 rpm

Blade Number: 14

Driveline Shaft Length: 39-50 in

Blade Type: Hammer

Spline End: PTO Shaft Spline: 1.375" z6

Blade Weight: 2.7 lbs

3-Point Hitch: CAT 2

Blade Material: Cast steel

Tractor Mount: Three-point hitch

Rotor Bearing: SKF Bearing

Gearbox 0il Type: 85W/90

Rotor Diameter: 6 in

Dimensions (L x W x H): 73x46x37 in

Rotor Swing Diameter: 16 in

Packing Size: 74x38x28 in

Rotor Thickness: 0.3 in

Finsh: Durable Powder Coated finish

Rotor Shaft Speed: 2082 rpm

Blade Speed: 31.5 mph

Net Weight: 1041 lbs

Rotor Rotation: Clockwise

Gross Weight: 1168 lbs

This item comes with a 1 year factory warranty.
PDF KDK Mower Product manual 1.0
