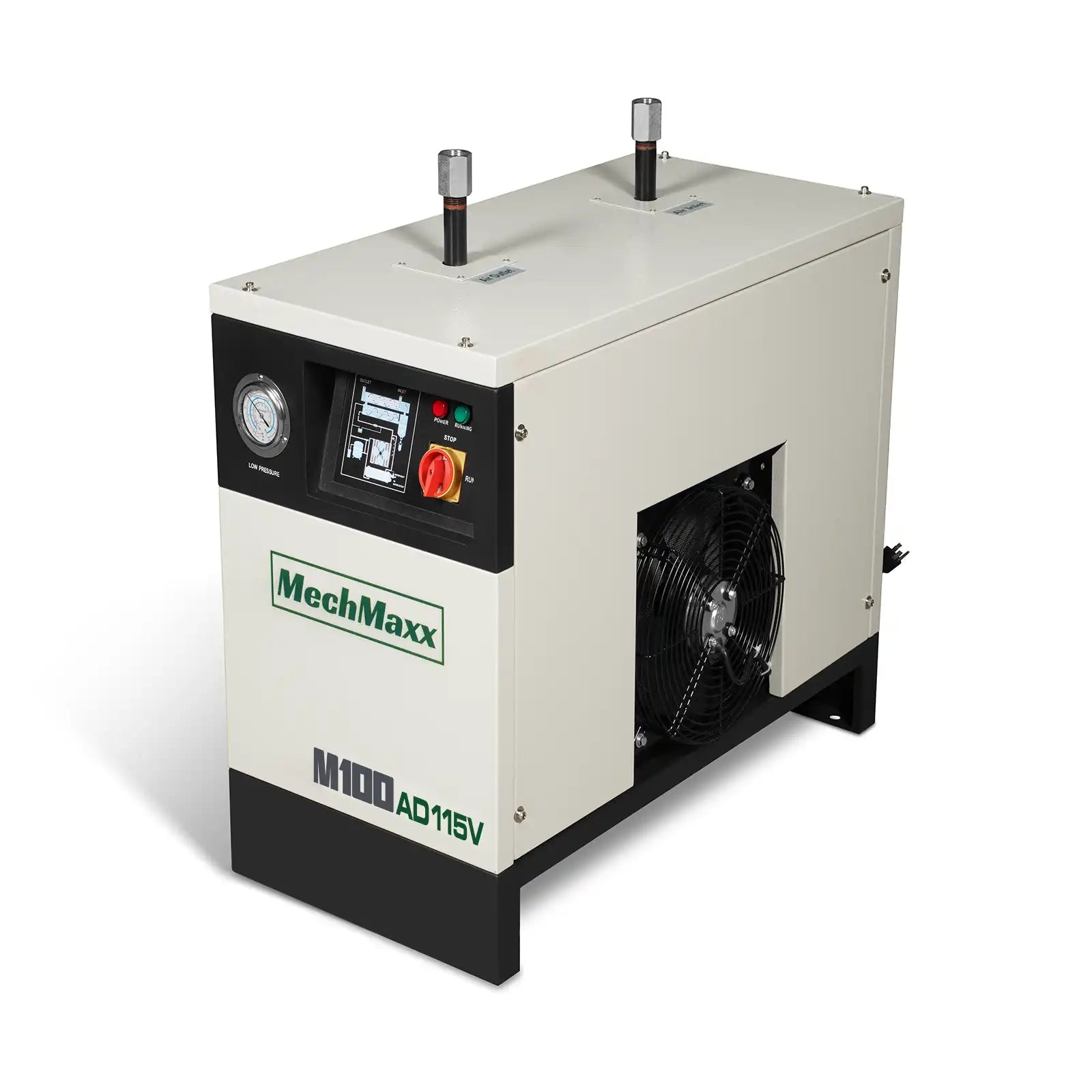

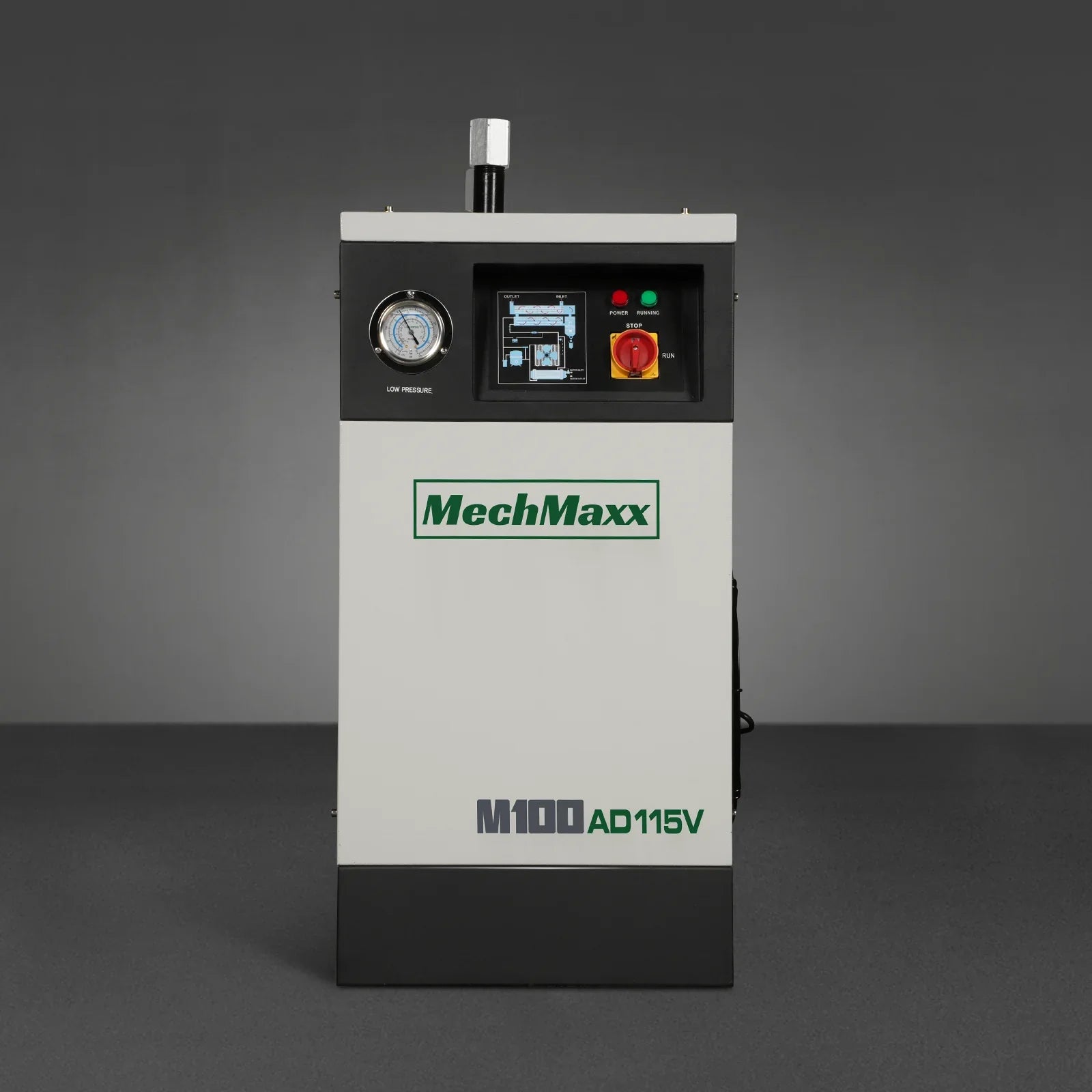

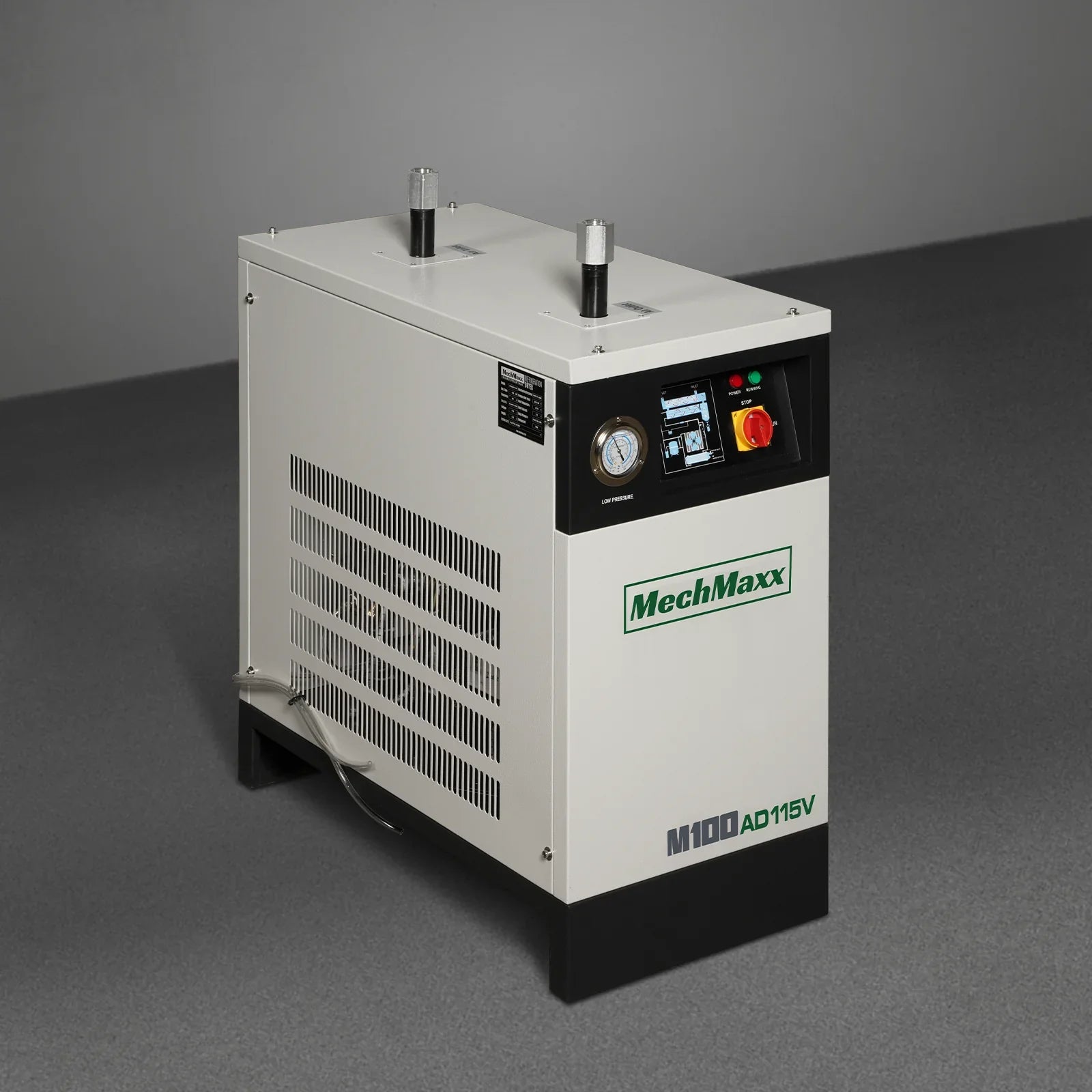

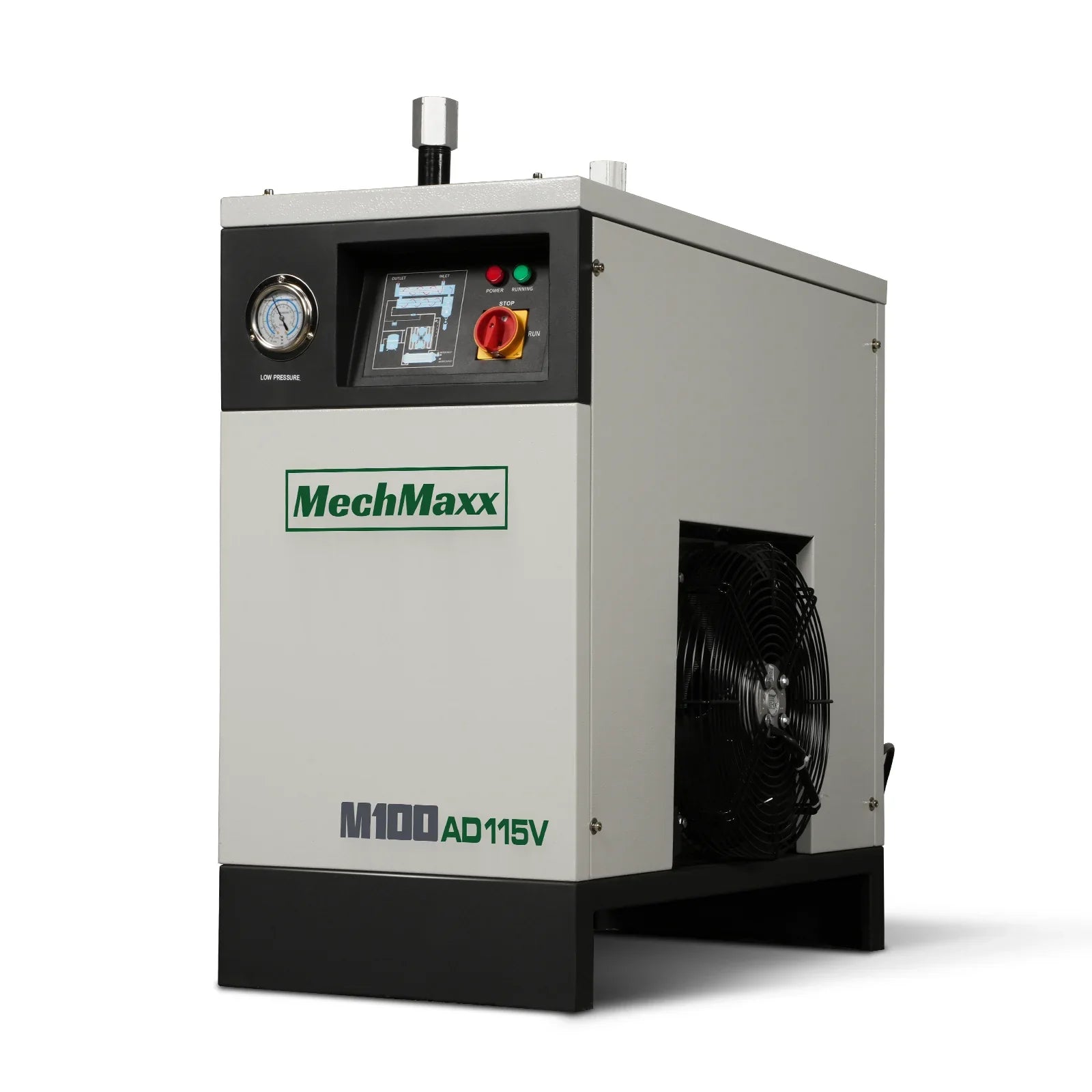

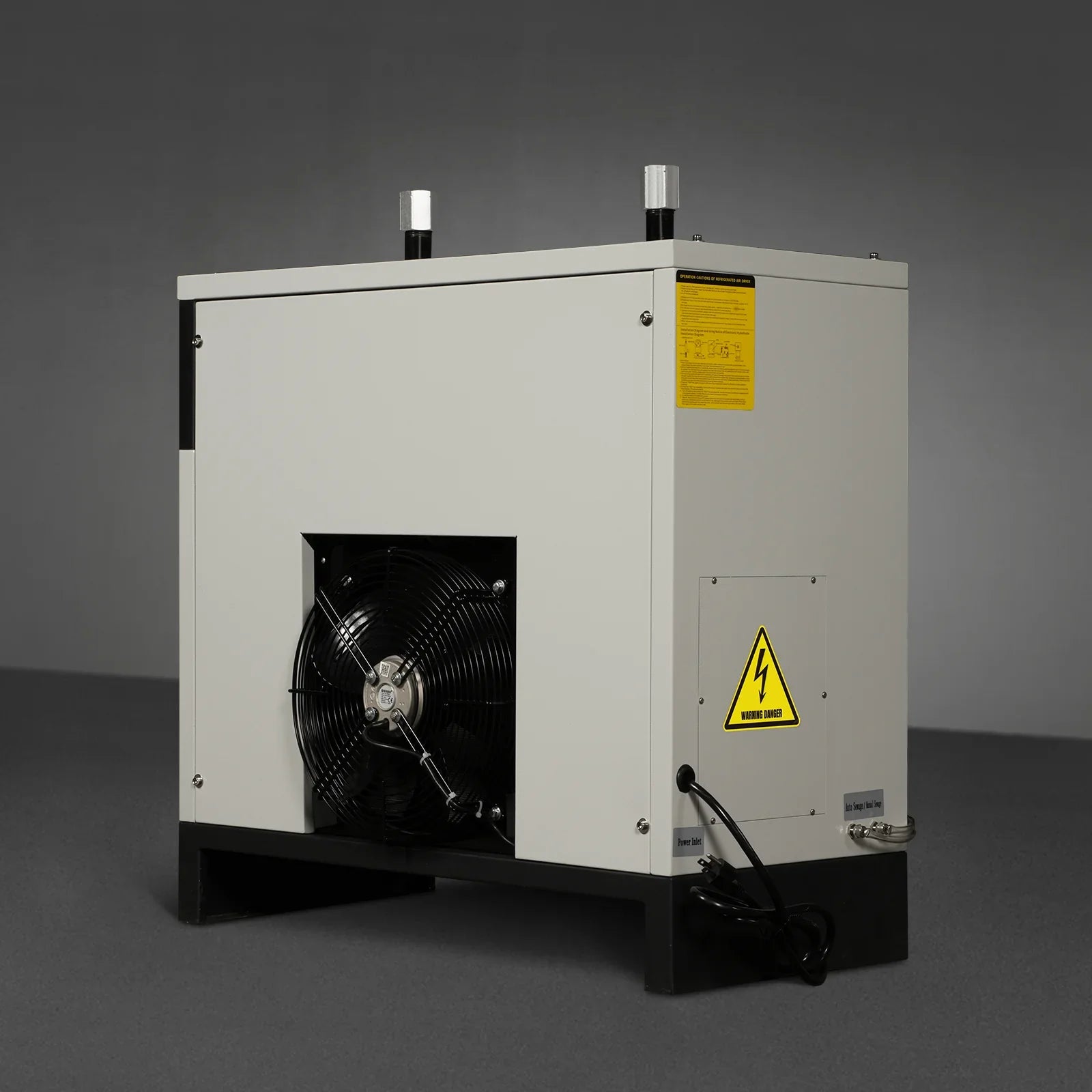

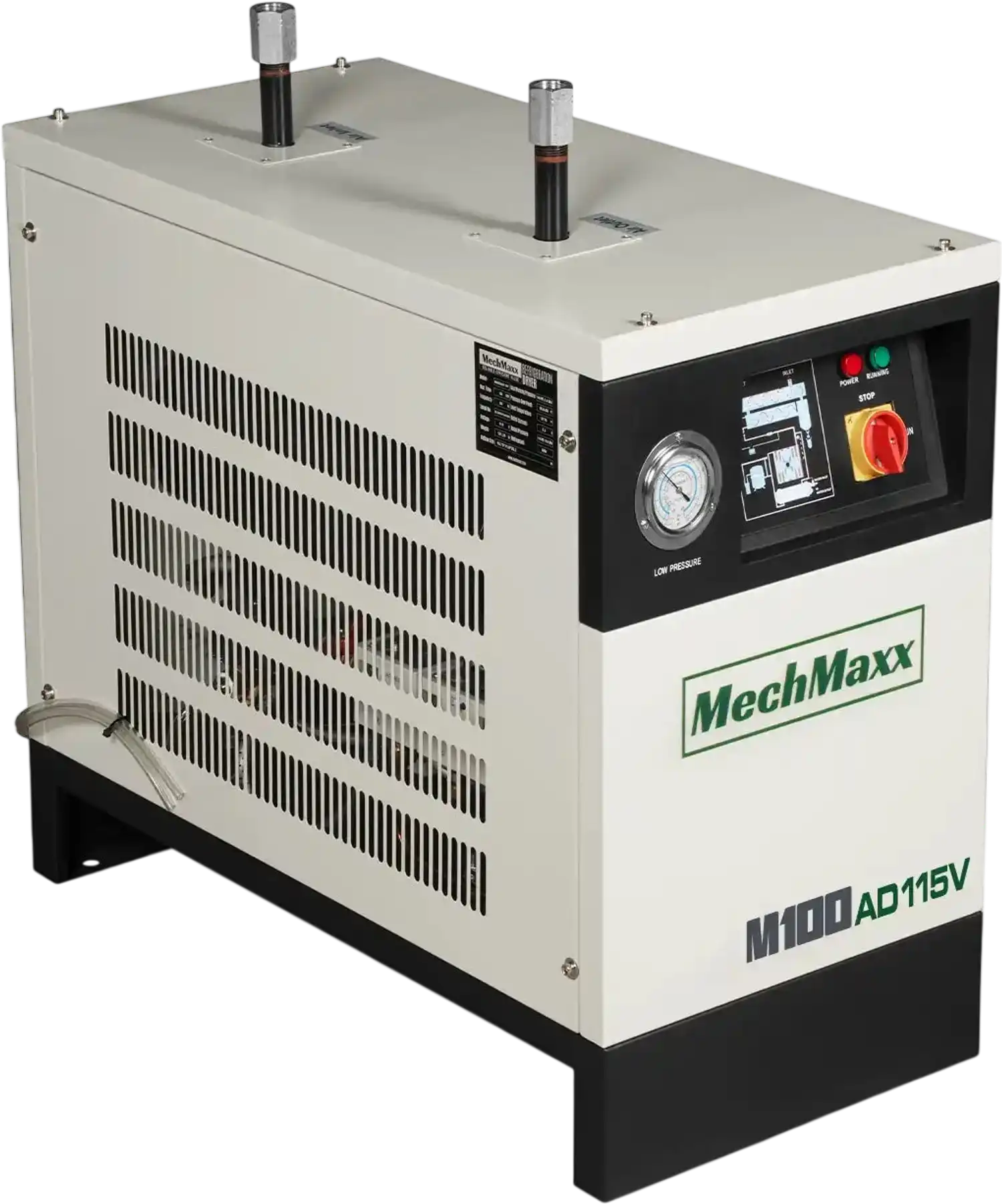

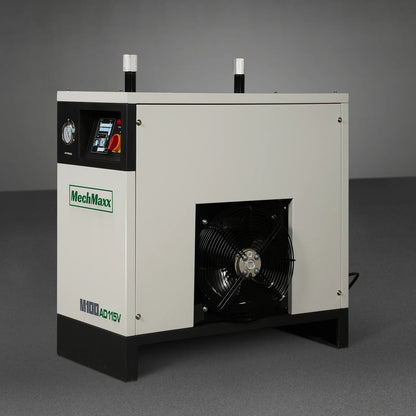

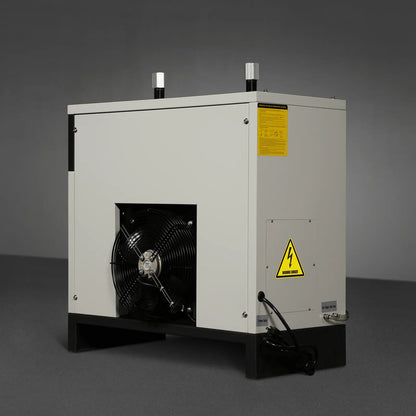

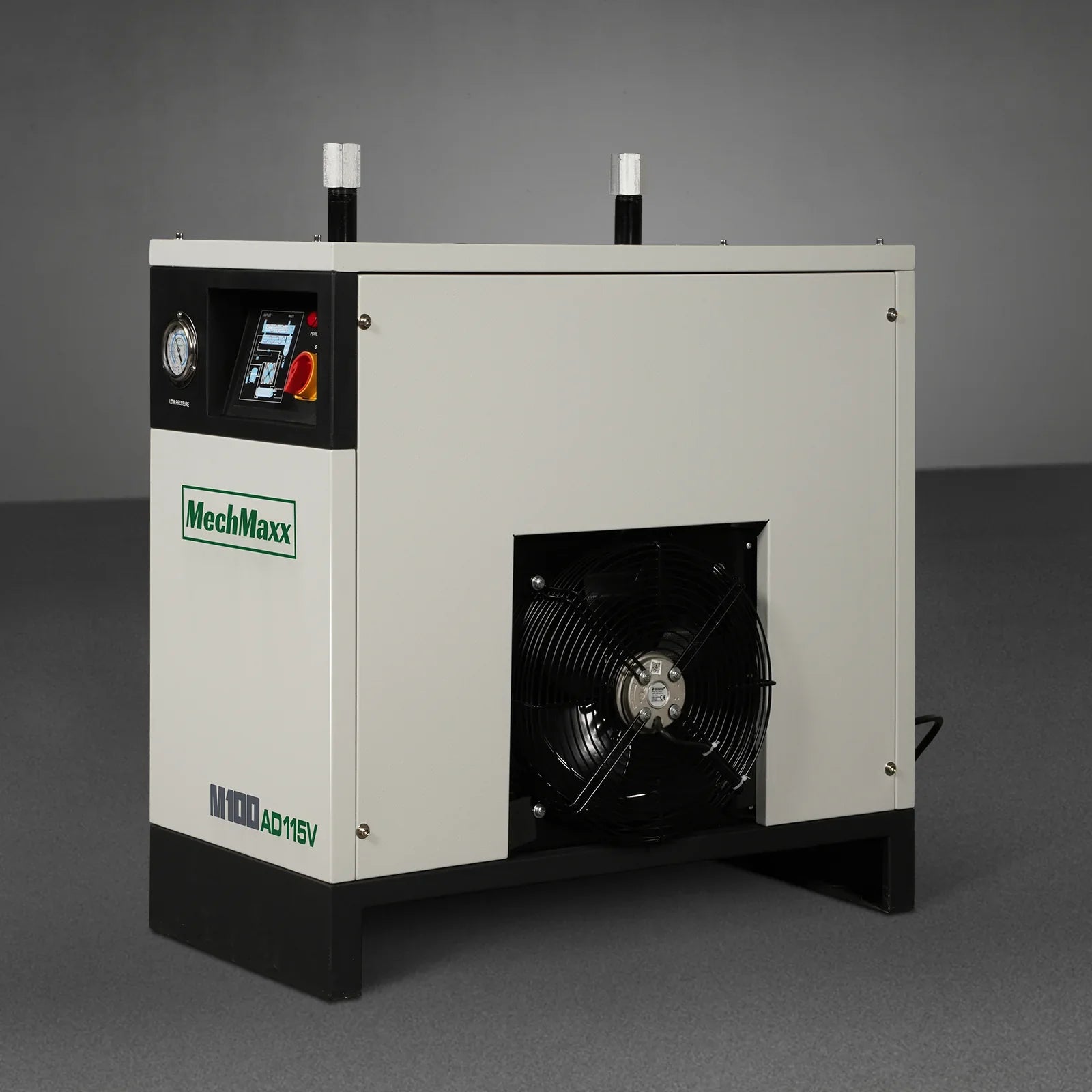

MechMaxx M100AD115V Air Dryer 100 CFM Refrigerated 1 Phase 115V For Air Compressor New

MechMaxx

$1,599.00
$1,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

1.Energy saving and environmental protection
Using high-efficiency compressors and advanced control systems can achieve energy savings and environmental protection and reduce operating costs.

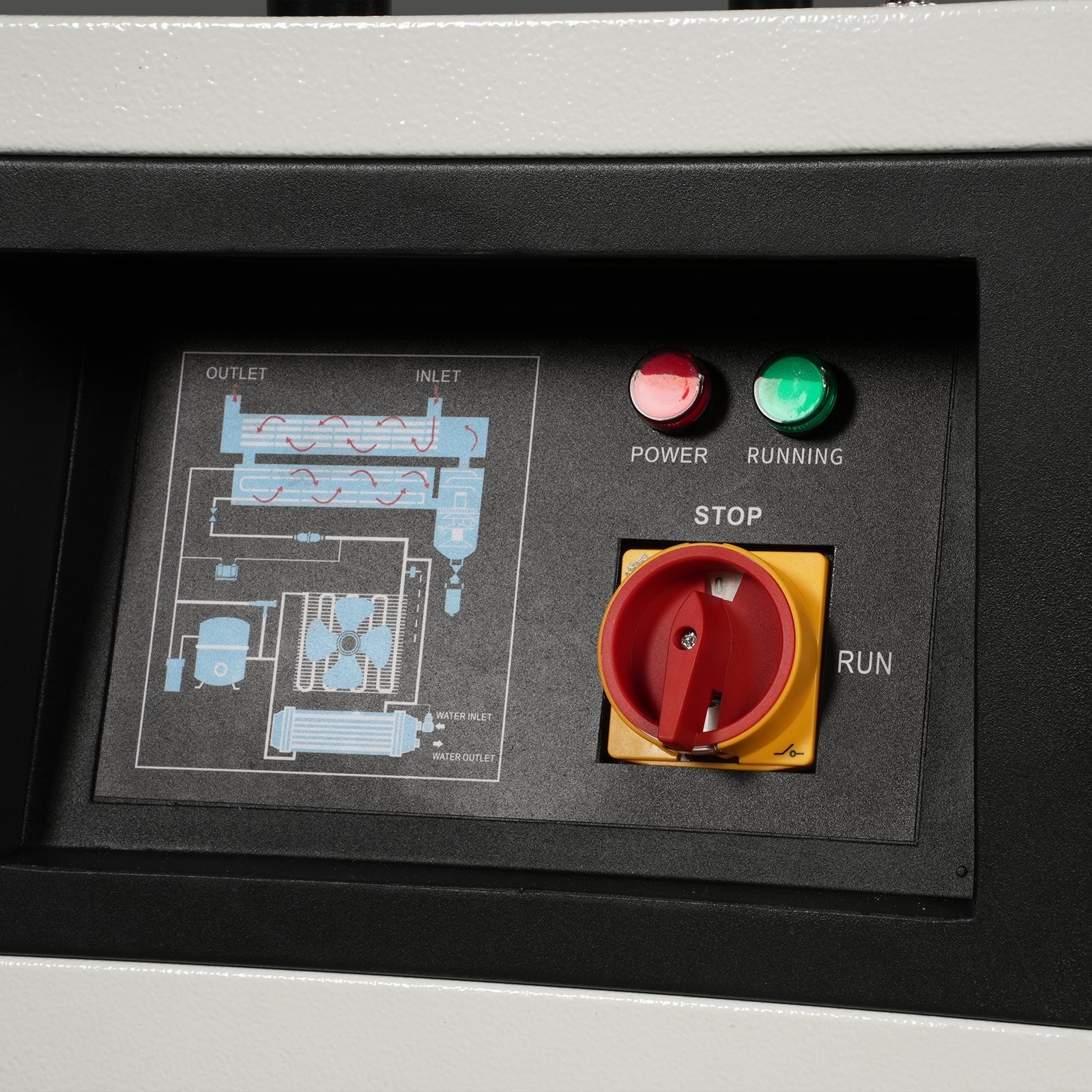

2.Reliable intelligent control systems
Include Intelligent anti-freezing protection , Automatic Temperature control, High / Low Voltage Protection
3. Efficient dehumidification technology
Using advanced refrigeration dehumidification technology can quickly remove moisture from the air.
4. Silent operation
The equipment has low noise during operation and will not interfere with the surrounding environment.

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

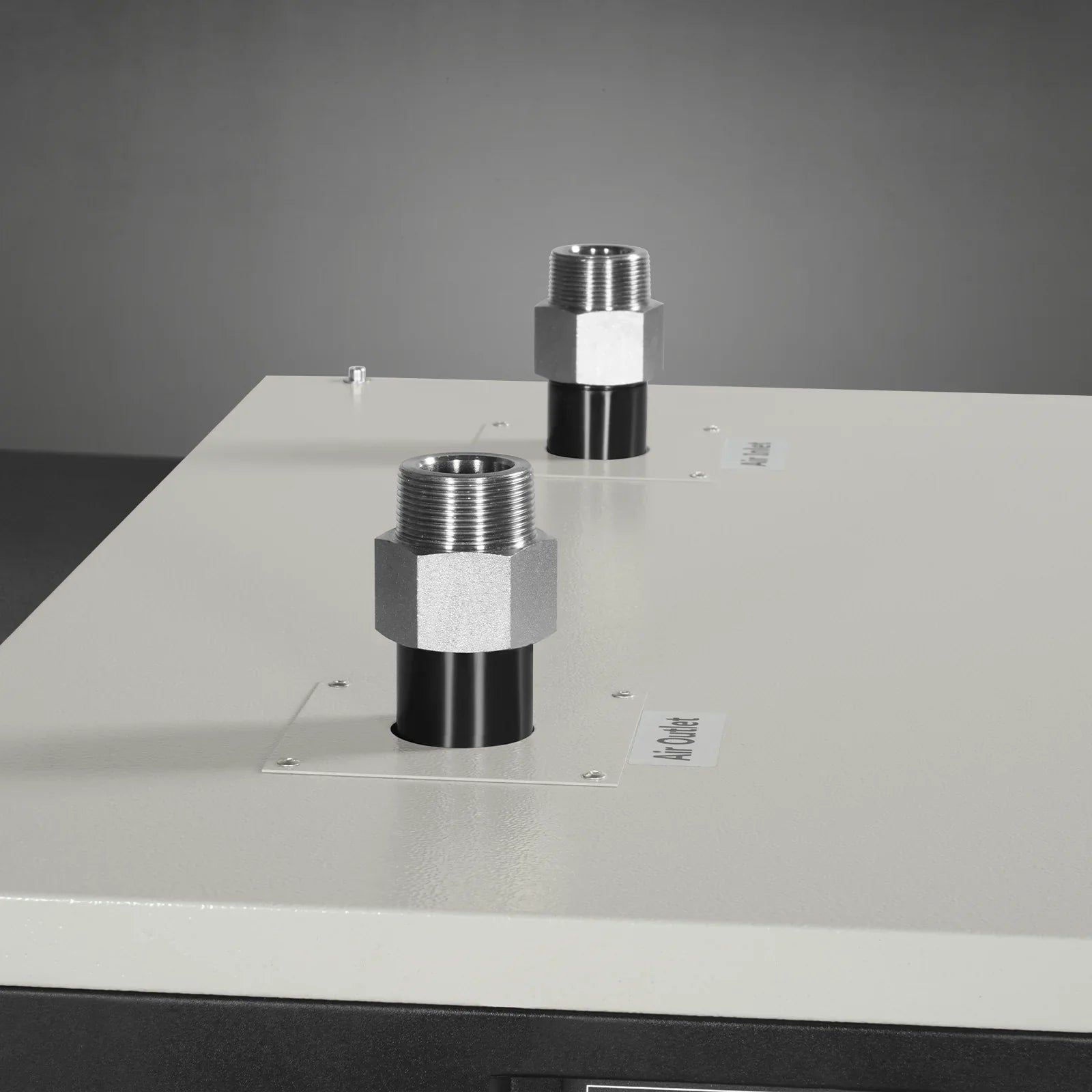

  • Air Inlet/Outlet: Air Inlet/Outlett Thread:1’’NPT

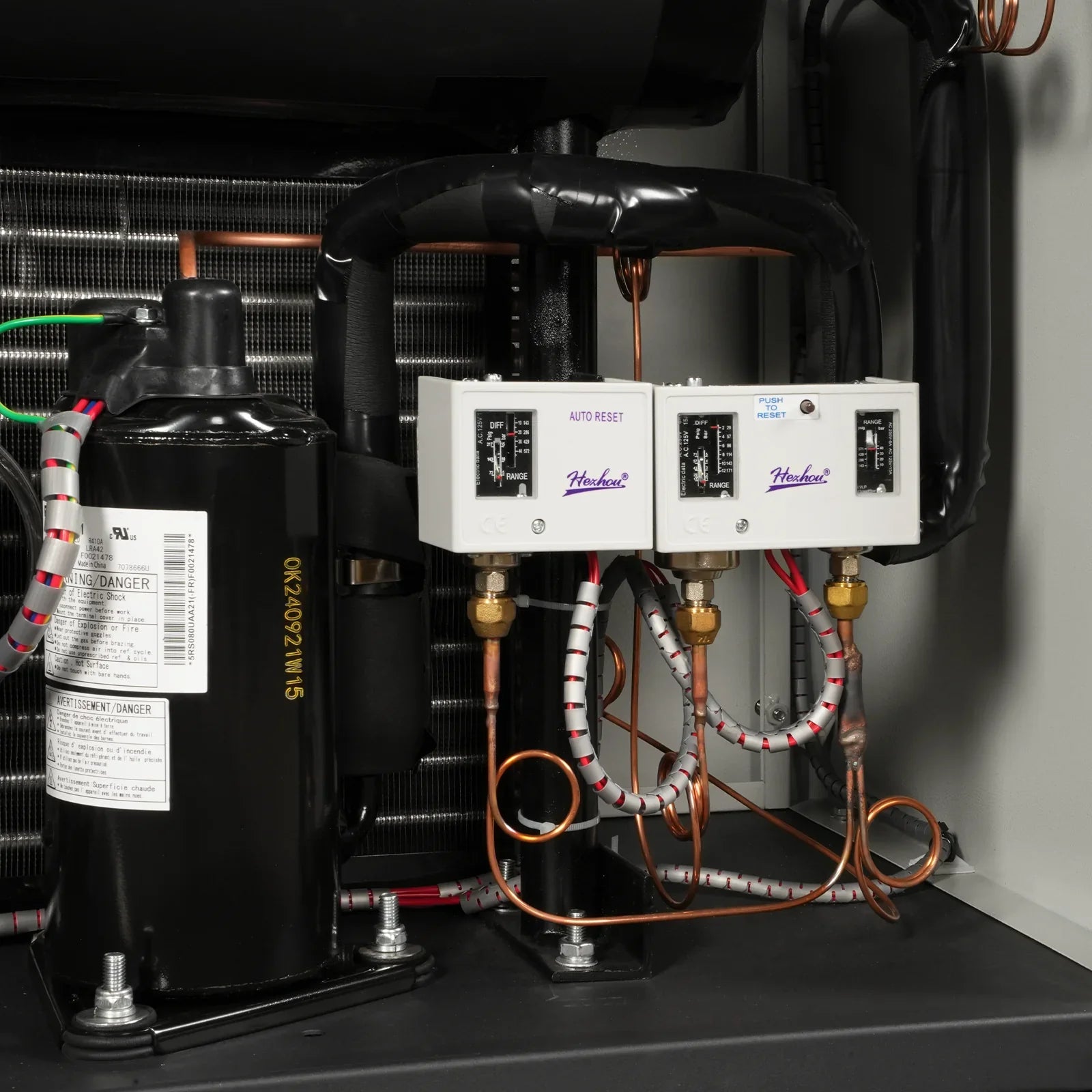

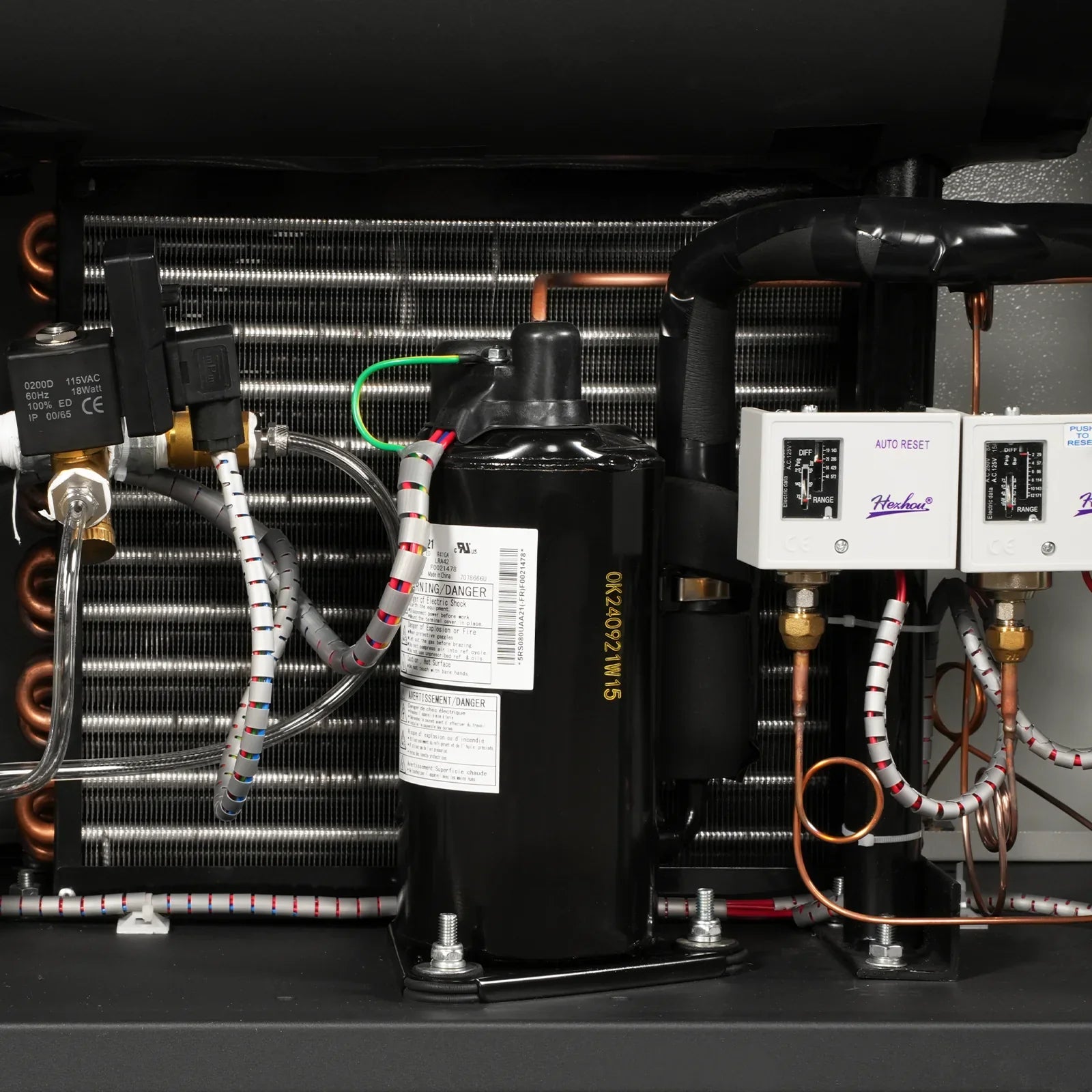

  • Compressor: Brand: PanasonicPower:0.75KW

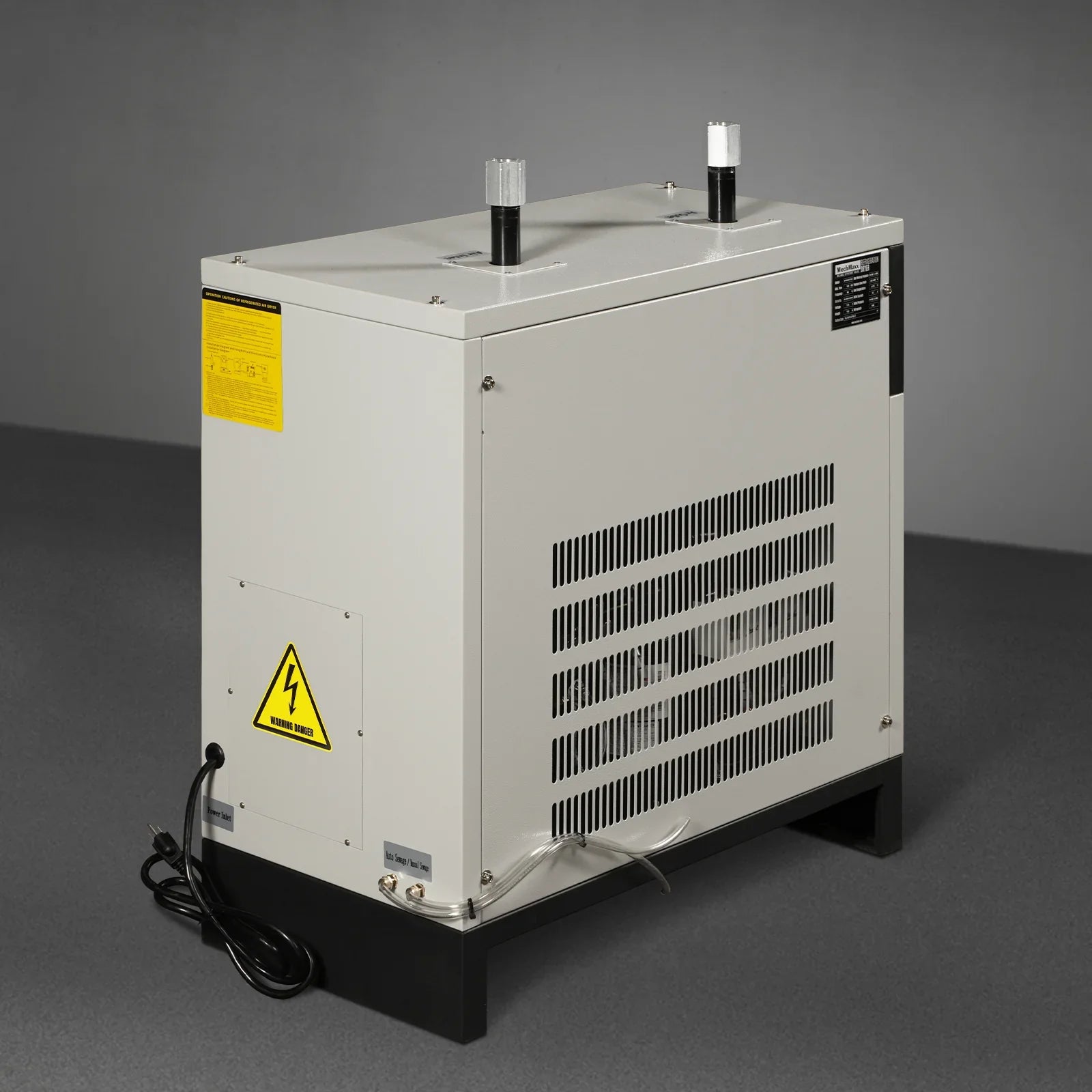

  • Standard 3-Core Plug And Double Drainpipes: 4O’’ Long 3-Core Powen Cord PlugDouble drainpipes for electronic timed drain and manual drain.

Voltage: 115V 1PH 60HZ

Max Flow: 100CFM

Rated Pressure: 116 PSI / 0.8MPa

Max Working Pressure: 145 PSI / 1.0MPa

Compressor Brand: Panasonic

Compressor Power: 0.75KW

Max Inlet Temperature: ≤176℉

Pressure Dew Point: 35.6℉ ~ 50℉

Refrigerant: R410a

Air Inlet Thread: 1"NPT

Air Outlet Thread: 1"NPT

Machine Size: :15.7 x 31.5 x 30.7"

Packing Size: :18.9 x 32.7 x 33.5"

N.W.:/ G.W.: :143LBS / 220LBS

This item comes with a 1 year factory warranty.
