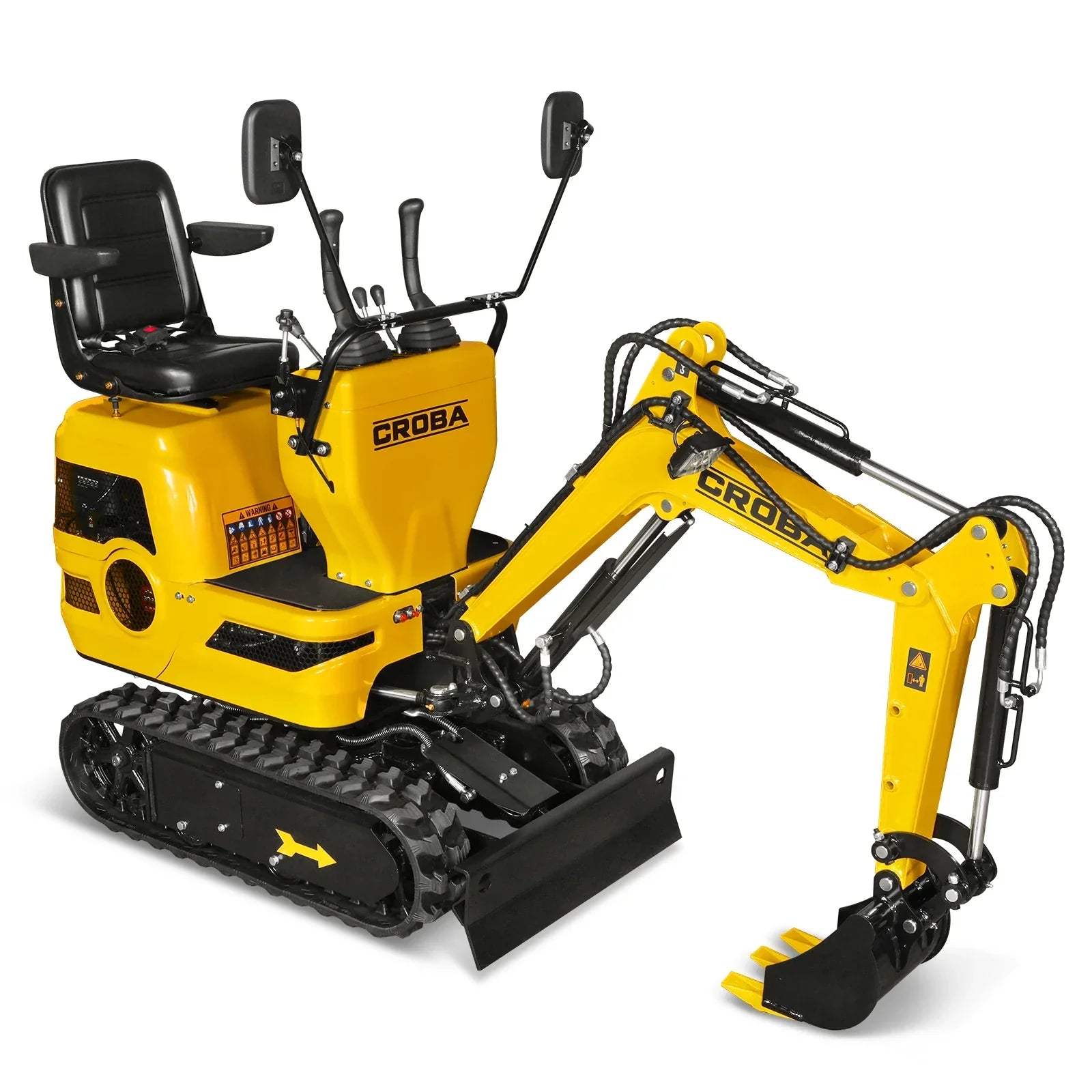

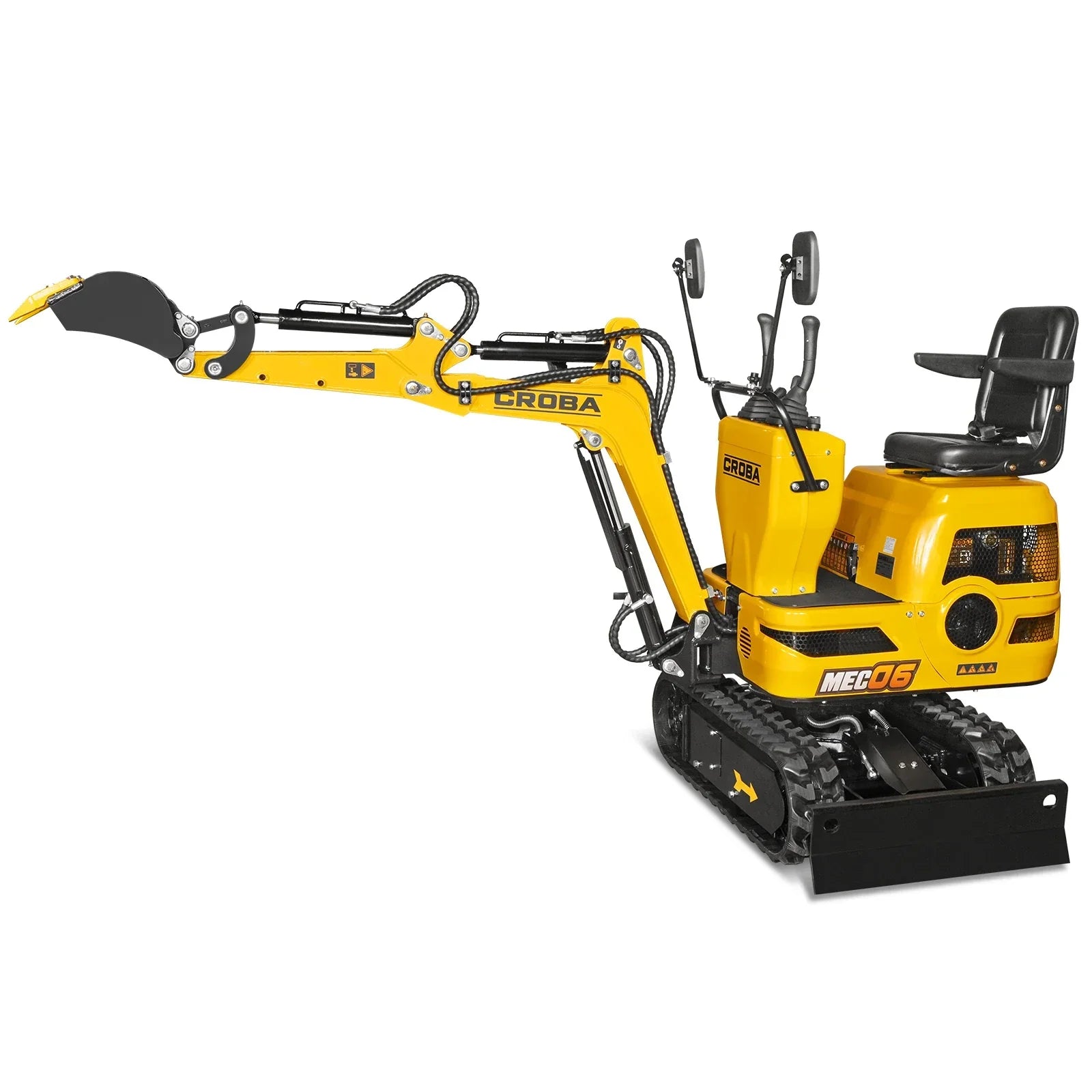

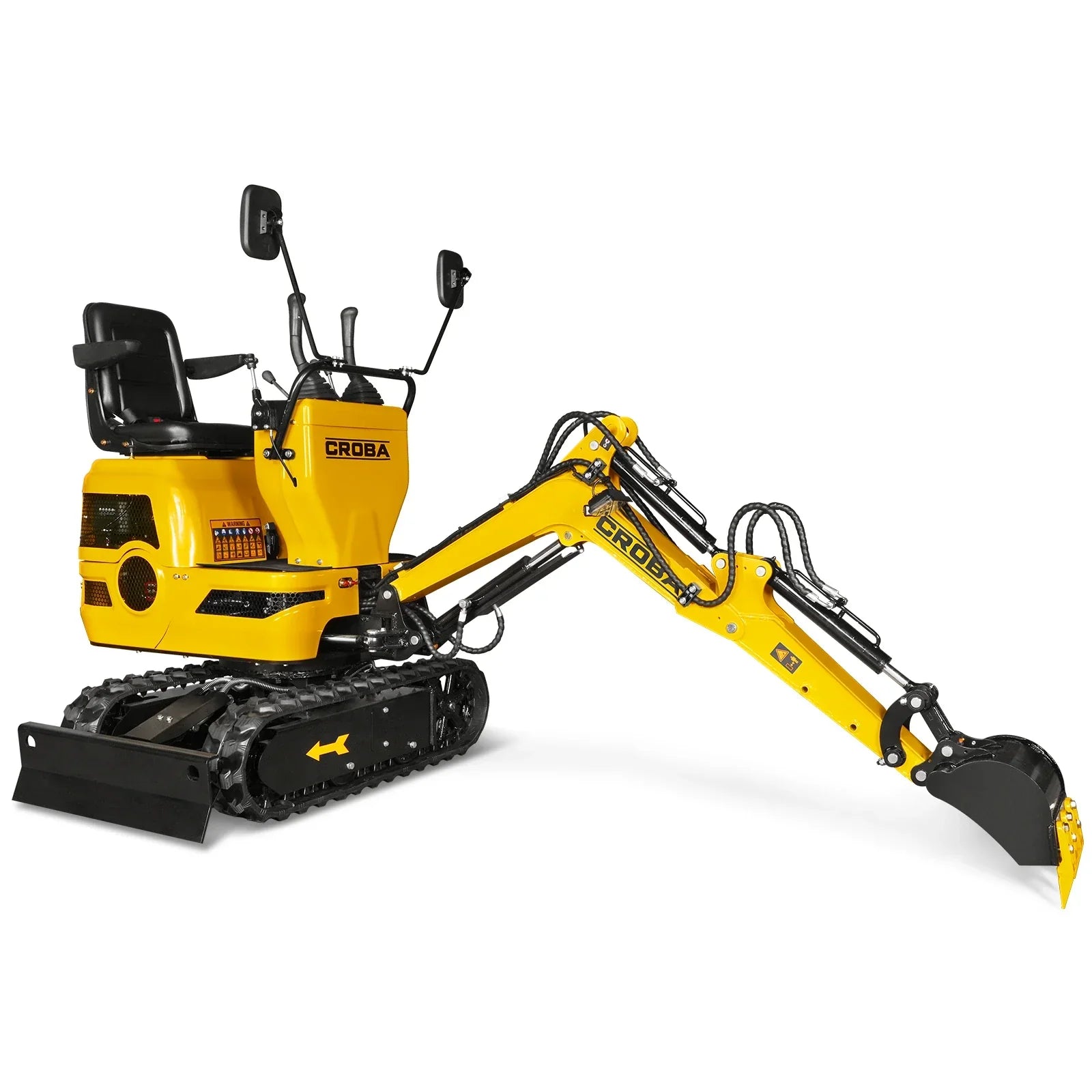

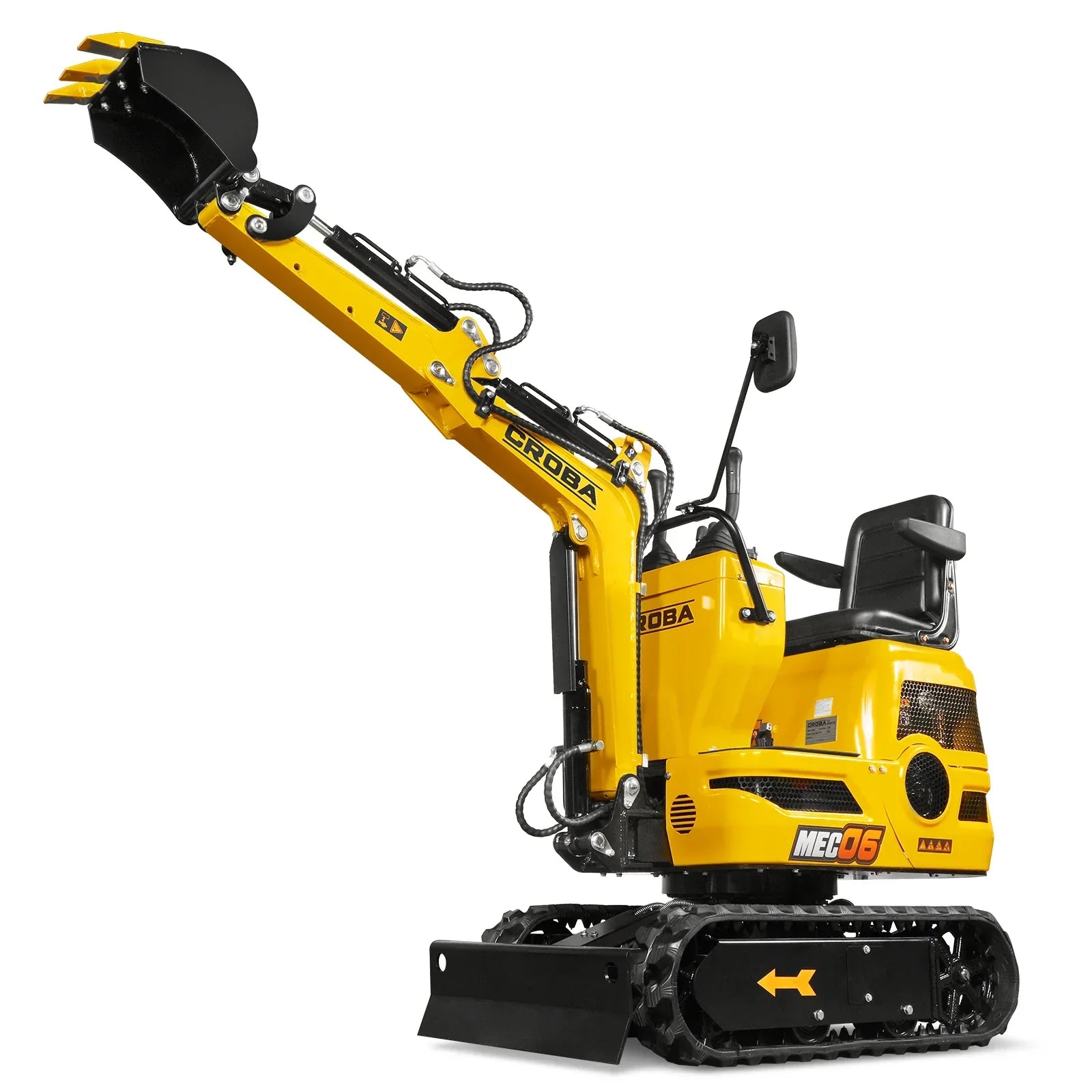

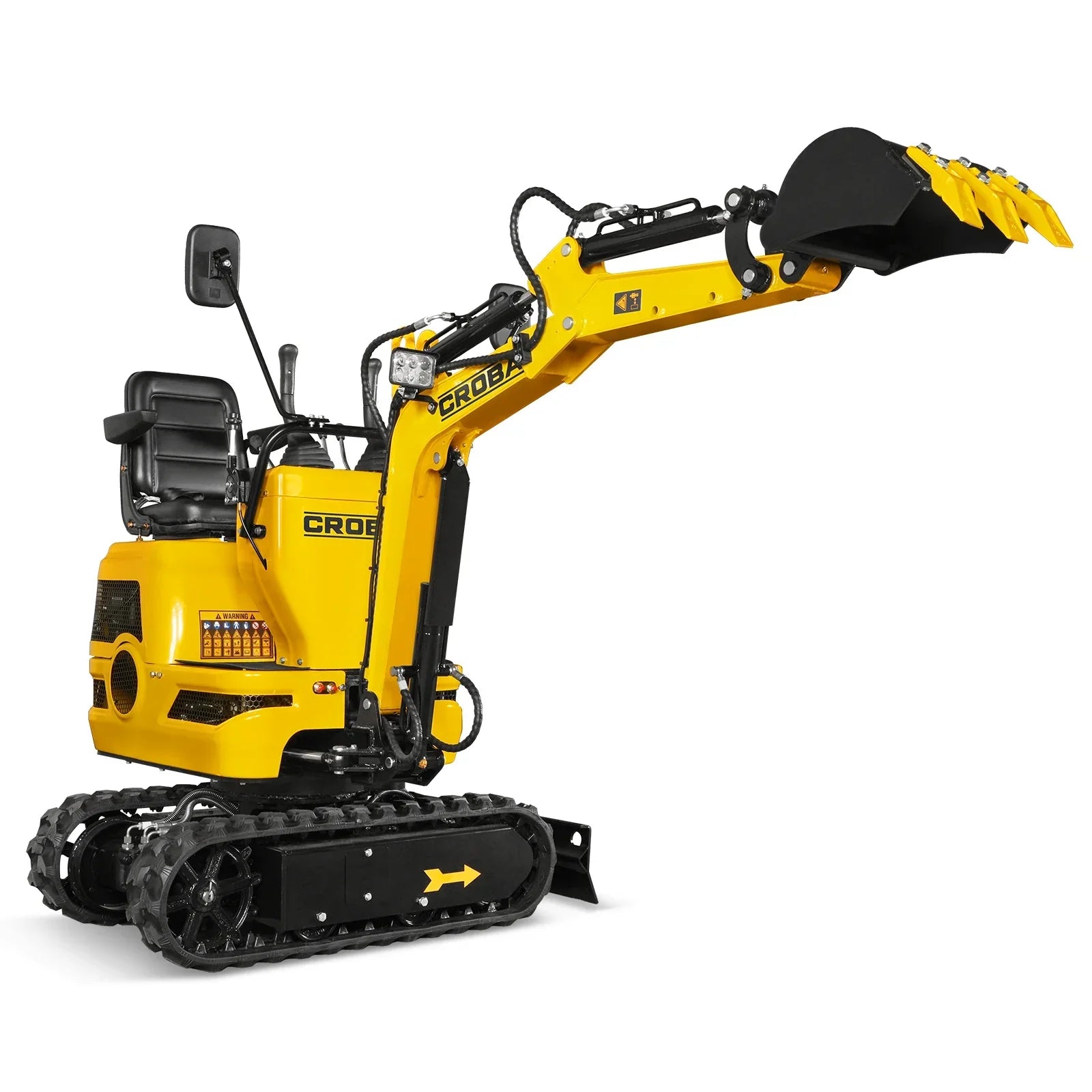

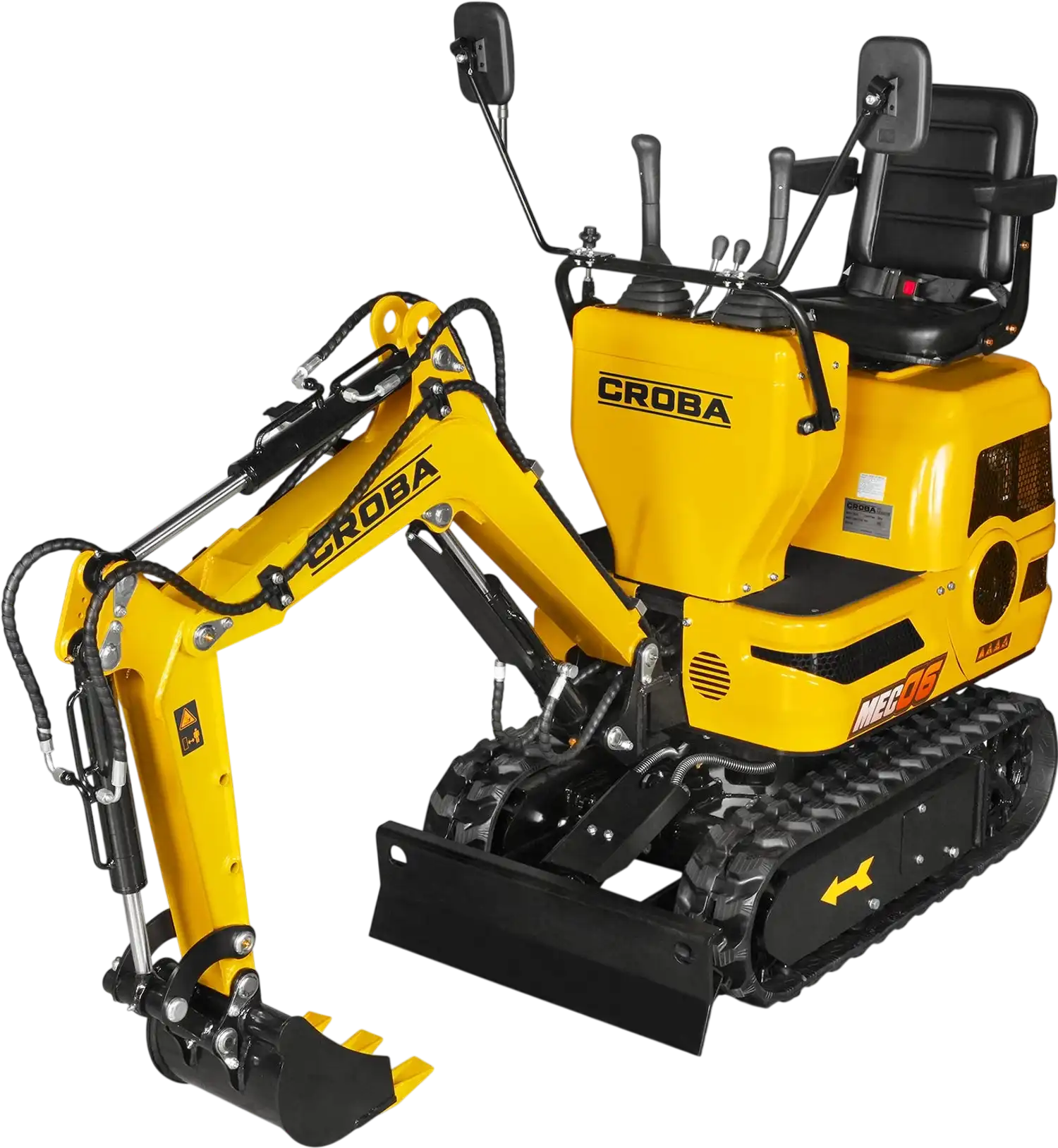

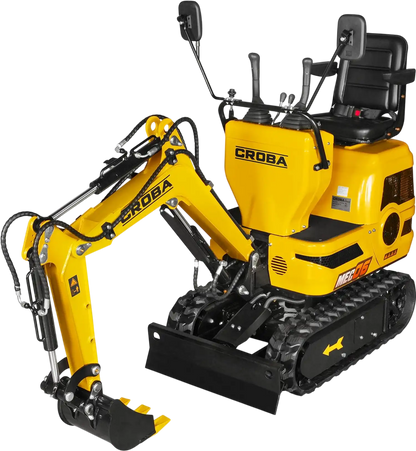

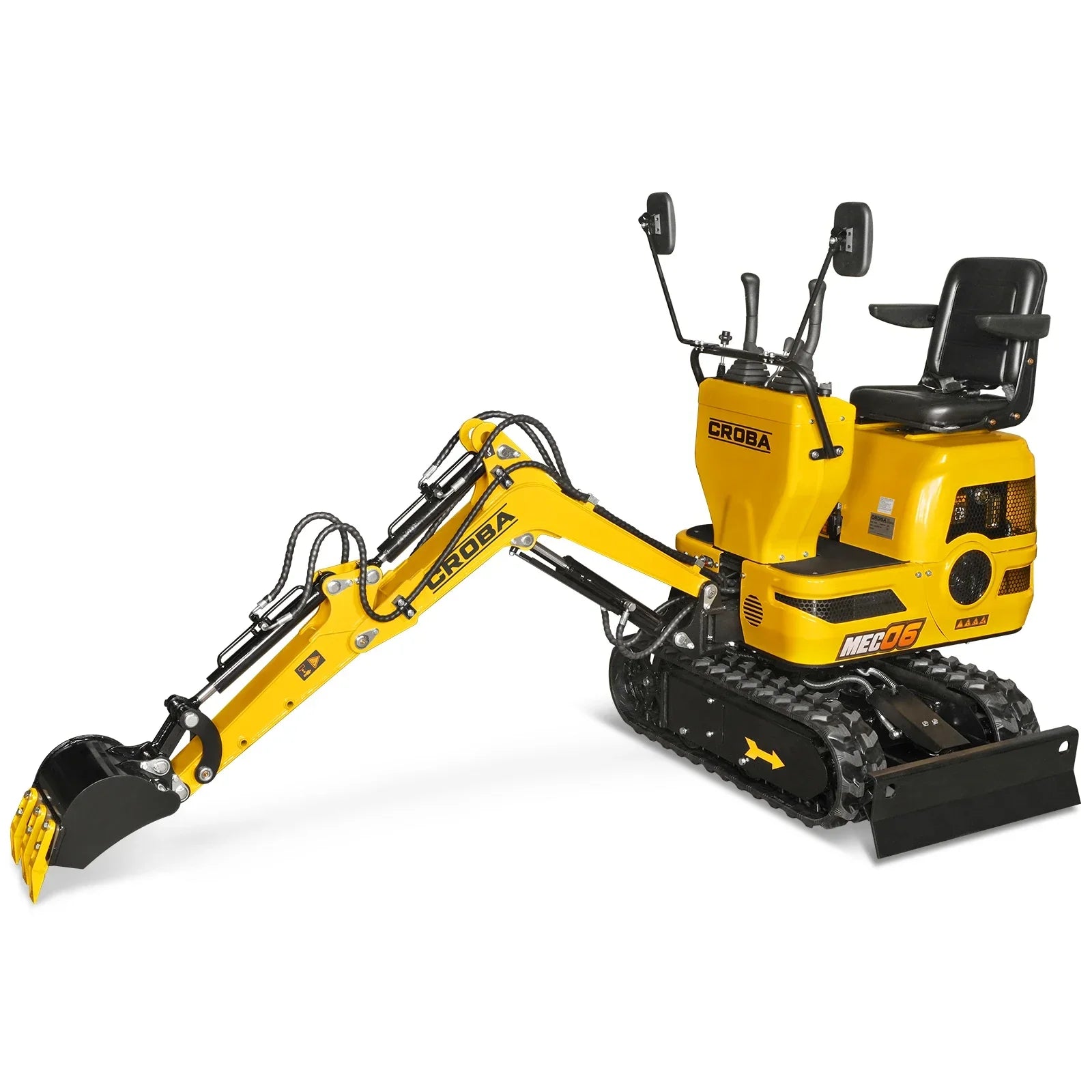

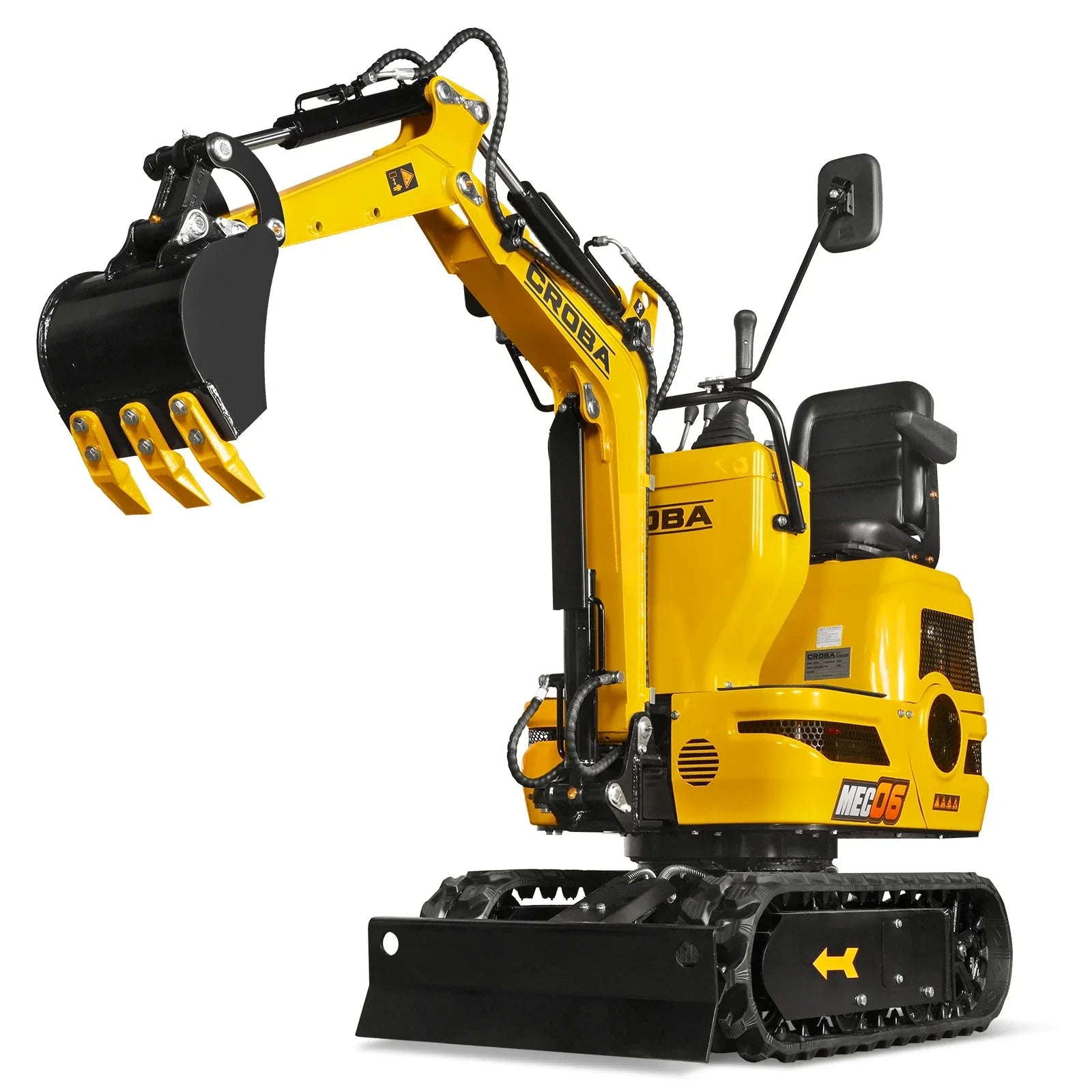

MechMaxx MEC06 Mini Excavator Compact 0.6 Ton Loncin 300cc 9HP Engine 43.3" Max Digging Depth 1345 lbs Operating Weight New

MechMaxx

$4,999.00
$4,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • MEC06 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

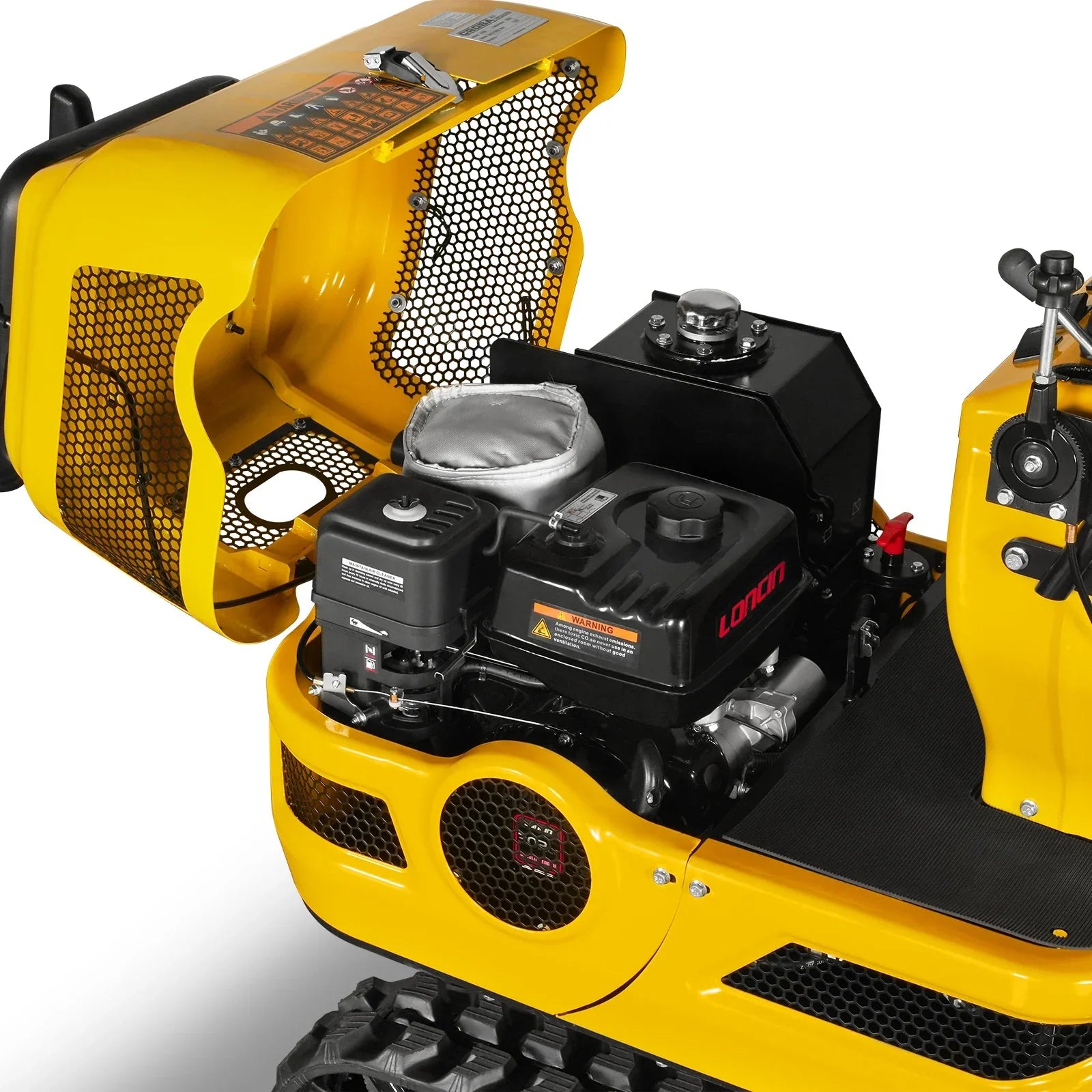

  • Powered by Loncin G300FDA 300cc 9hp Engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
  • 43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Can rotate 360 degrees.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Chassis Width: At 28 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.
  • Swing Arc: The digging arm can swing left and right, turn 55 degrees to the left and 65 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
  • Digging Depth: It features an all-around 43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Digging Performance: Generating an impressive 1,911 lbf of bucket digging force, this excavator easily tackles tough soil and demanding excavation tasks, maximizing productivity and job site efficiency.
  • 360° Full-Rotation Capability: The excavator features a 360-degree rotating platform, allowing operators to work efficiently in any direction without repositioning the machine.

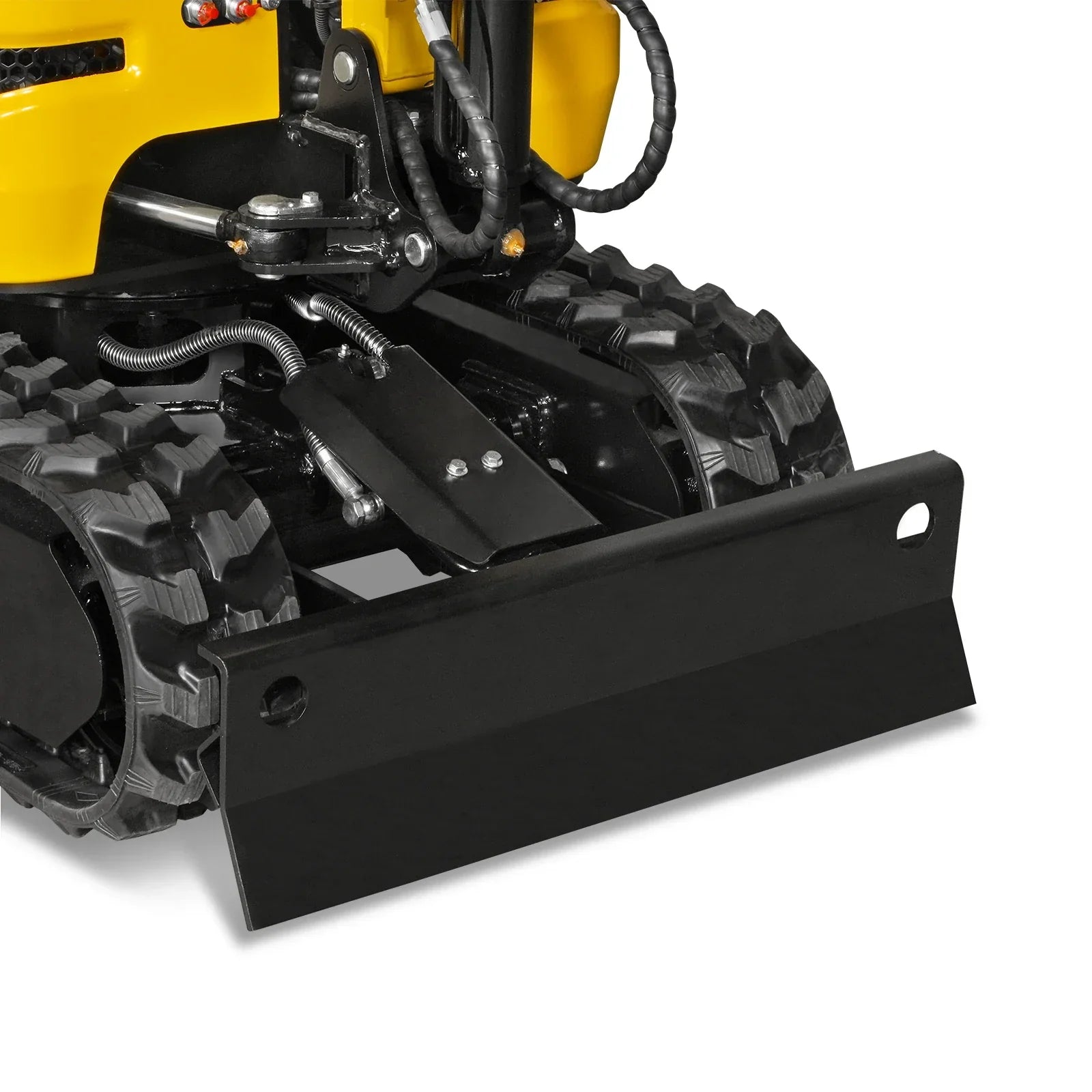

  • Hydraulic Safety Locks: Hydraulic locks on both the boom and dozer blade prevent unintended movement or lowering, providing enhanced safety and peace of mind during operation.

Operating Weight: 1345 lb

Hydraulic Oil Tank Capacity: 2.64 gal

Standard Bucket Capacity: 0.53 ft³

Auxiliary Std Flow: 4.76 gal/min

Standard Bucket Width: 11.4 in

Max. Tractive Force: 742 lbf

Max. Travel Speed: 1.12 mile/h

Arm Digging Force: 1012 lbf

Slewing Speed: 9.5 RPM

Bucket Digging Force: 1911 lbf

Max. Gradeability: 15°

Rated Lift Capacity: 330 lb

Track Ground Pressure: 3.84 psi

Lift Radius: 78.7 in

Max.Digging Radius On Ground: 82.7 in

Max. Vertical Digging Depth: 45.3 in

Max. Digging Depth: 43.3 in

Min. Turning Radius: 47.2 in

Overall Operating Height (Fully Raised): 79.9 in

Max. Lifting Height Dozer Blade: 5.5 in

Max. Digging Radius: 90.6 in

Max. Depth Dozer Blade: 5.5 in

Max. Unloading Height: 67.3 in

Wheel Track: 31.5 in

Track Height: 12.6 in

Track Length: 43.3 in

Transportation Length: 83.4 in

Upper Chassis Ground Clearance: 4.5 in

Height Of Seat To Ground: 47.2 in

Counterweight Turning Radius: 23.6 in

Overall Height: 68.1 in

Chassis Width: 28 in

Boom Swing-Right: 65°

Track Width: 5.9 in

Boom Swing-Left: 55°

Model: Loncin G300FDA

Max. Net Torque: 20.3 N.m/2500 RPM

Displacement: 300 cc; 9 HP

Fuel Tank Capacity: 1.45 gal

Engine Type: 4-stroke, overhead valve, single cylinder

Engine Oil Capacity: 0.25 gal

Start Type: Electric start

Engine Oil Type: 10W-30

Rated Power: 6.8 KW/3600 RPM

Package Method: Steel Frame Packaging

Package Size: 89x29x49 in

Warranty for Machine/Engine: 1 Year

Weight (N.W./G.W.): 1345/1510 lb

This item comes with a 1 year factory warranty.
PDF MEC06 Product manual 1.0
