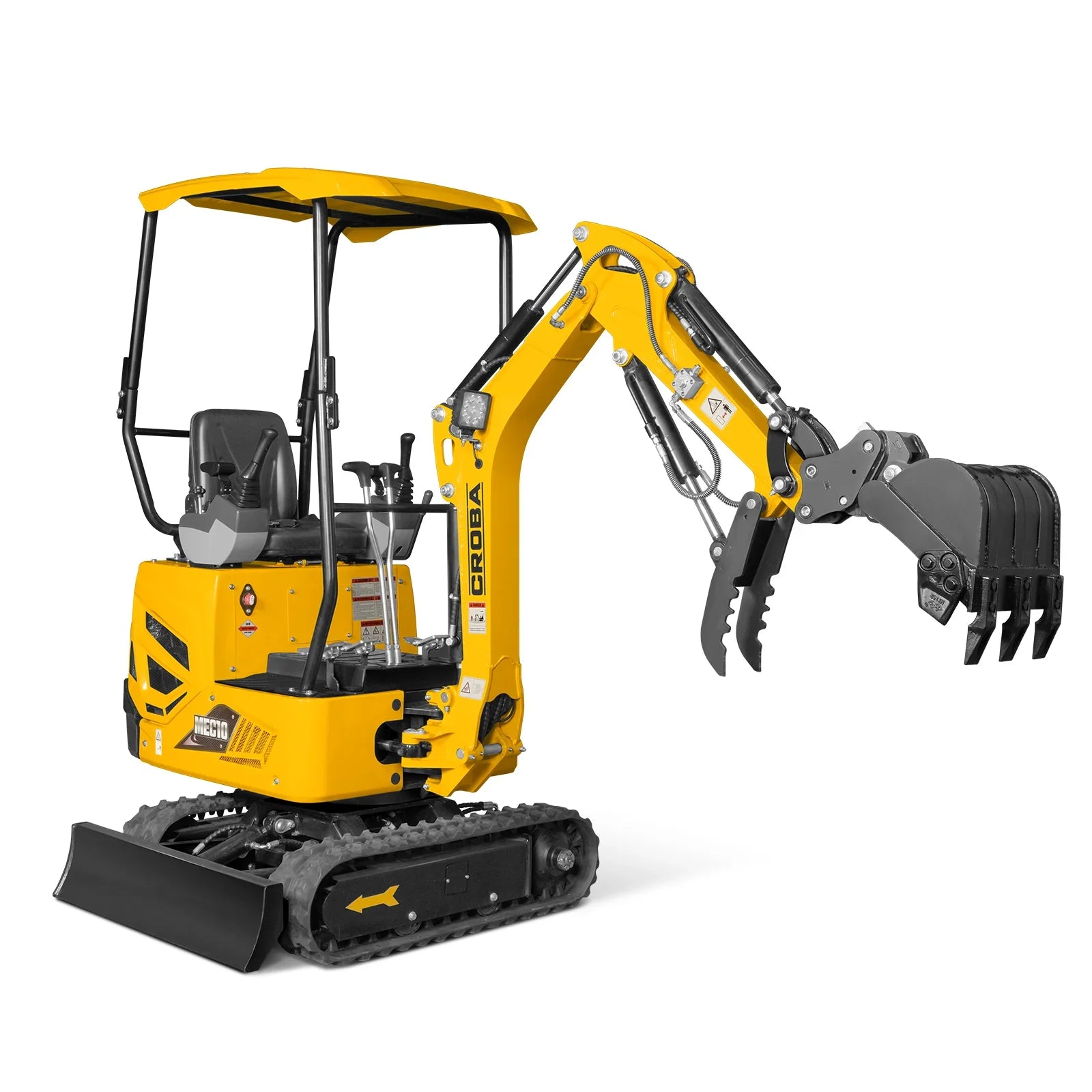

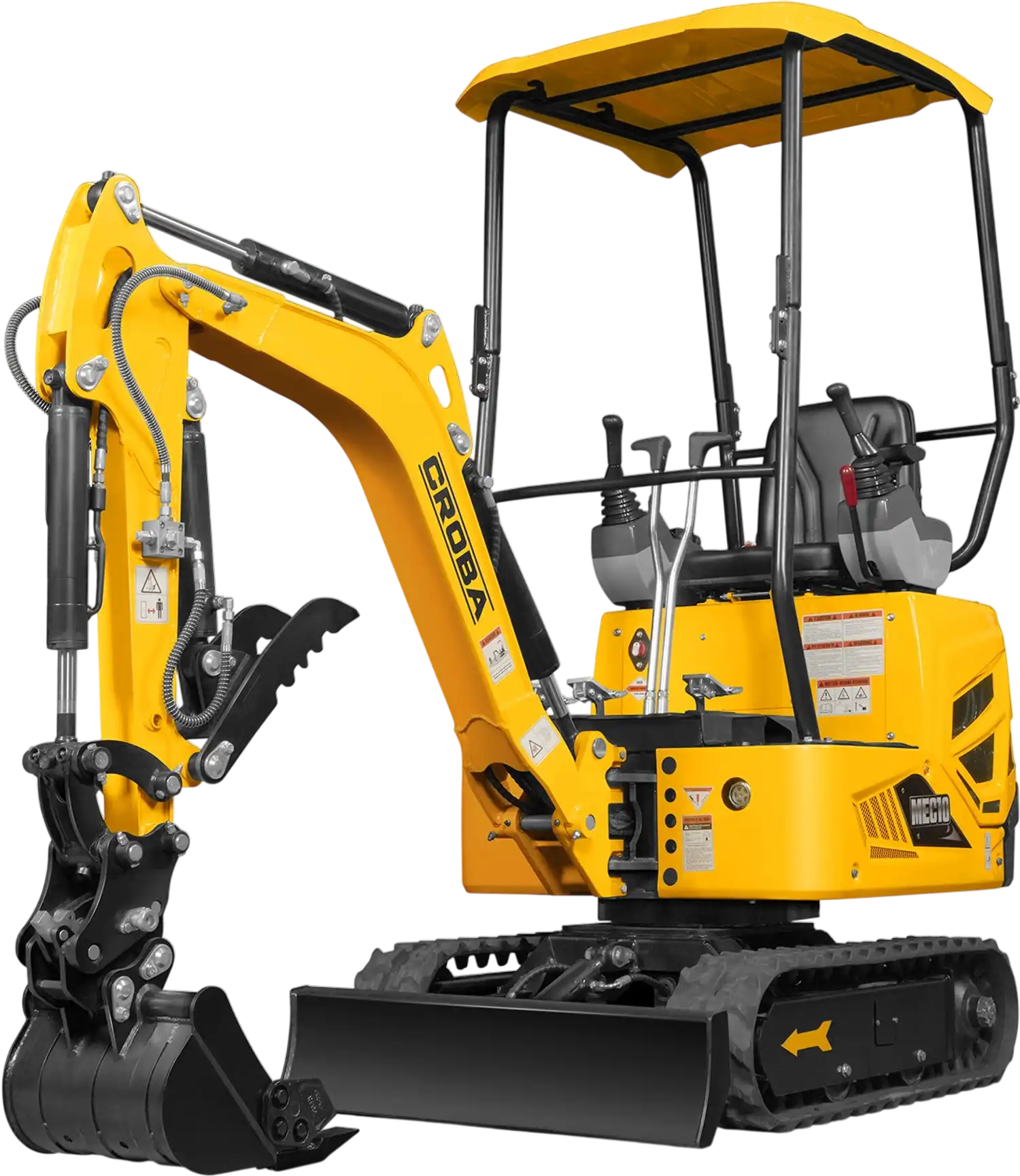

MechMaxx MEC10 Mini Excavator Compact B&S Vanguard 408cc 14HP Engine 65.7" Max Digging Depth 1 Ton 2370 lbs Operating Weight New

MechMaxx

$9,699.00
$9,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • MEC10 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

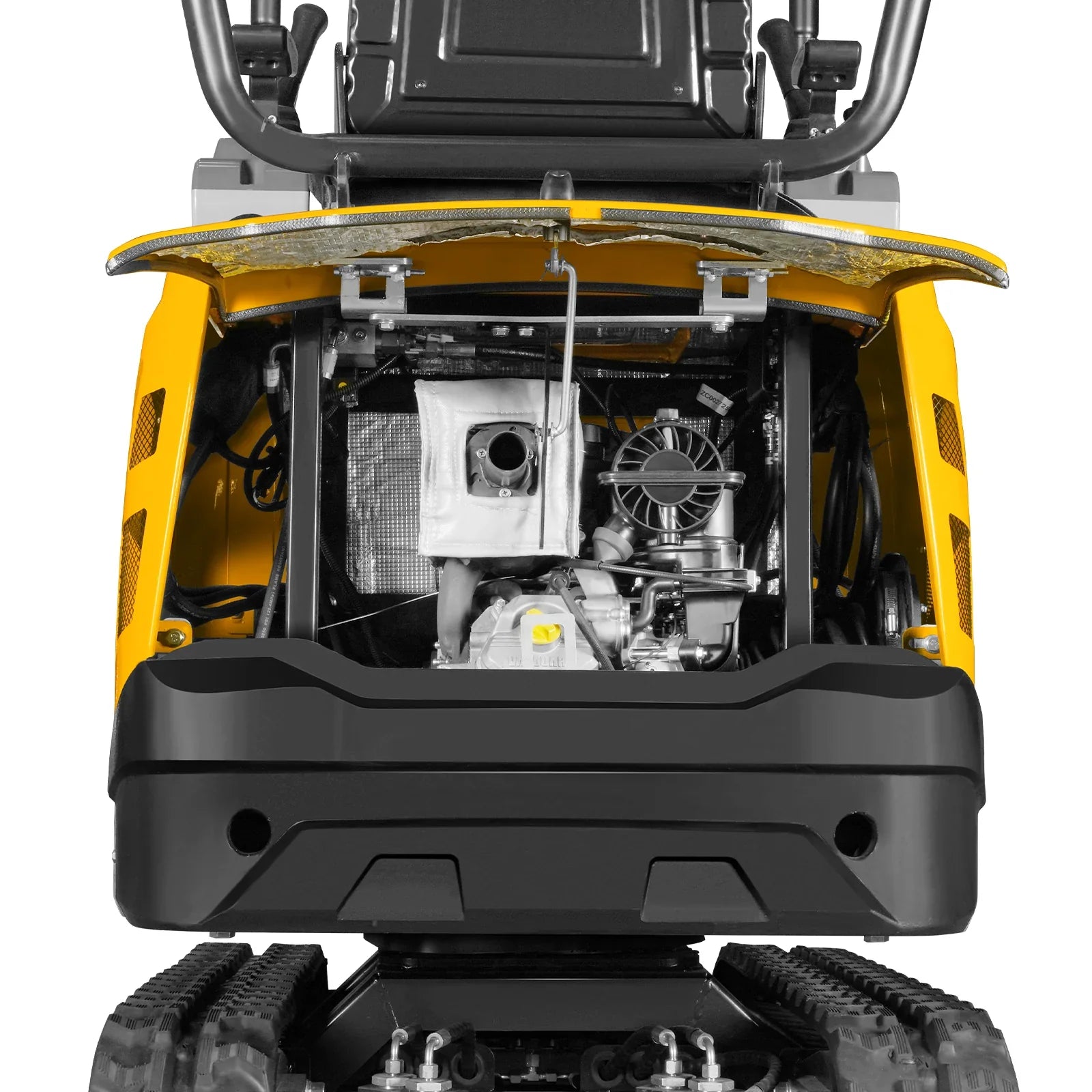

  • Powered by B&S VANGUARD 408cc 14hp air-cooled engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.

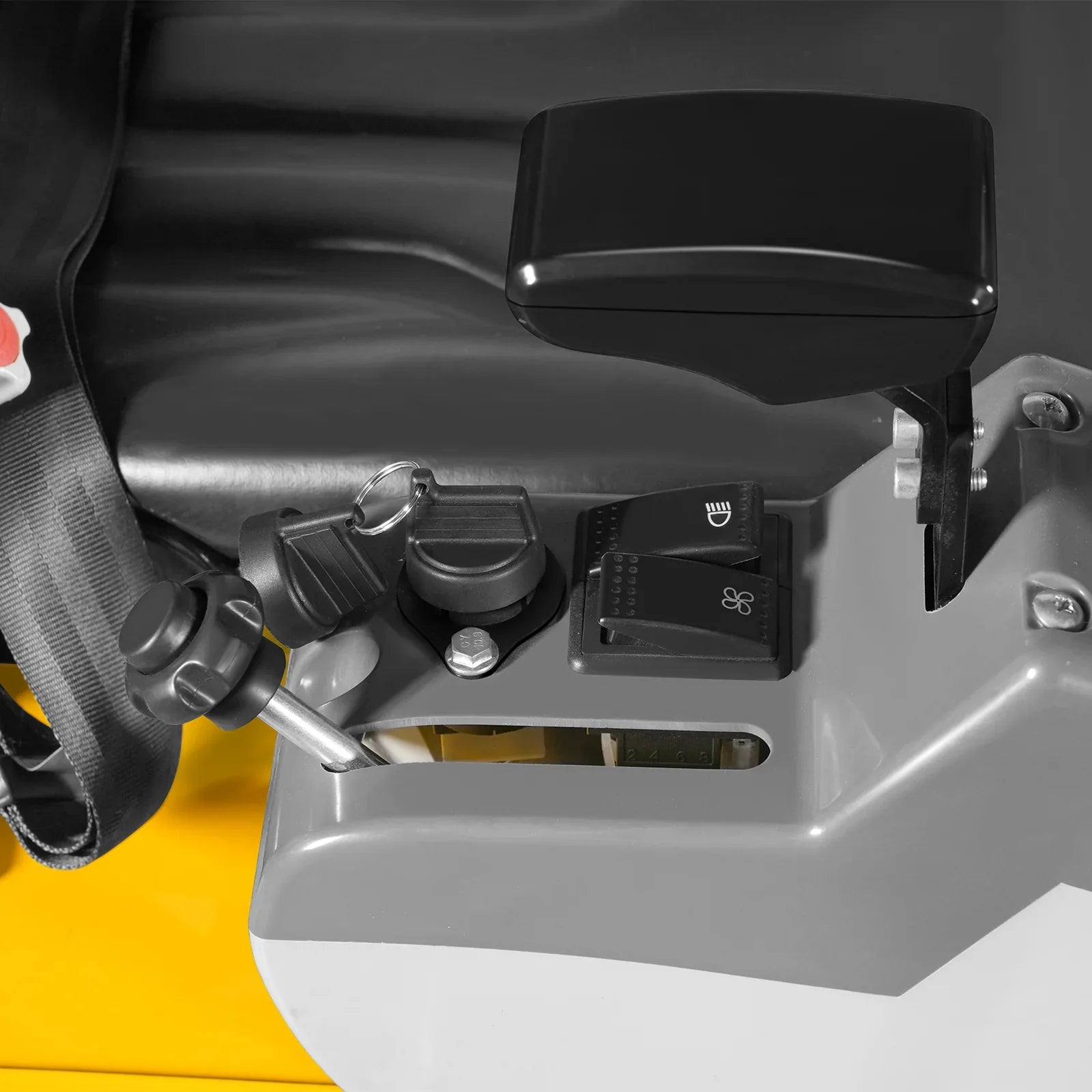

  • The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • 65.7-inch digging depth reach capability and a 118.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

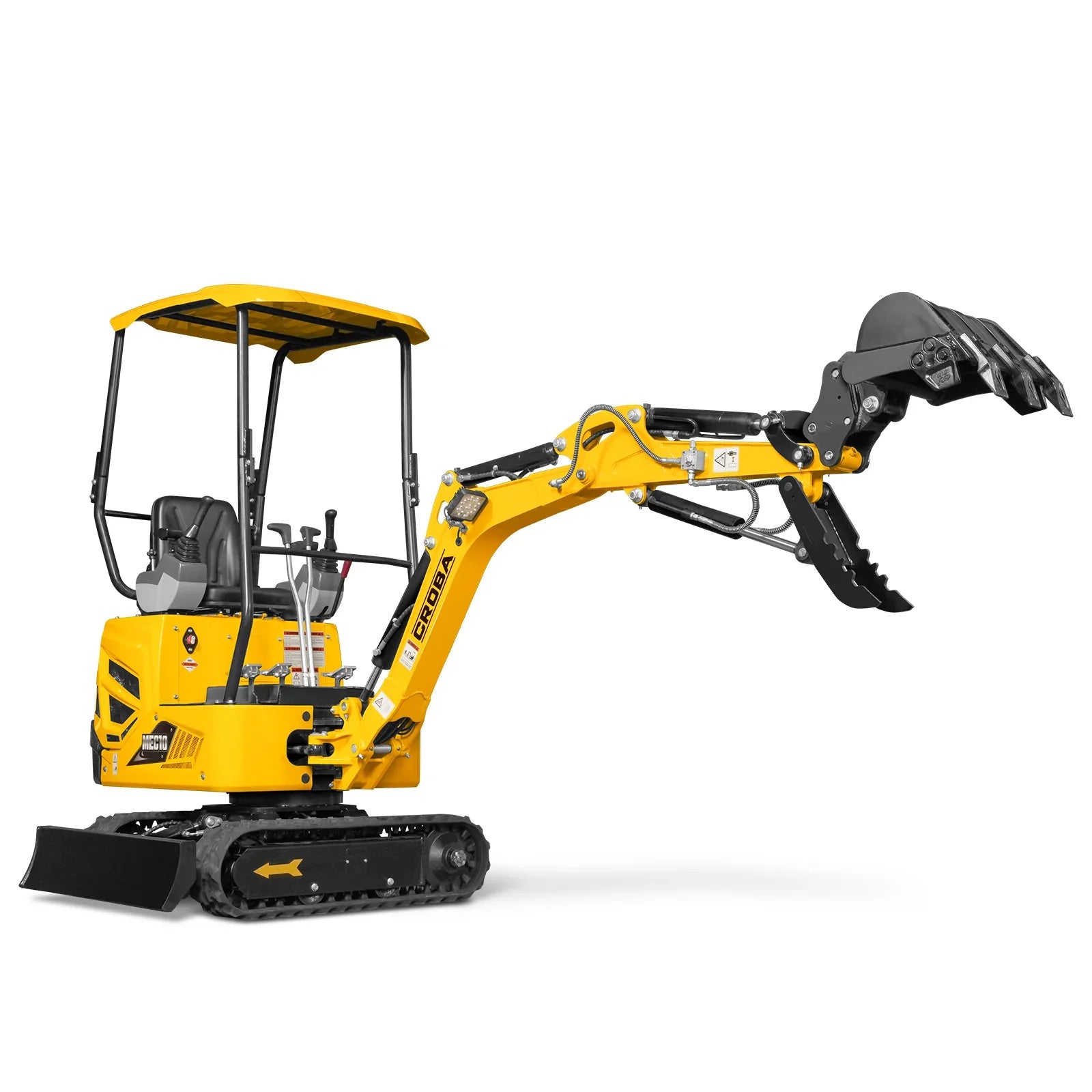

  • Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Can rotate 360 degrees.




Note！

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

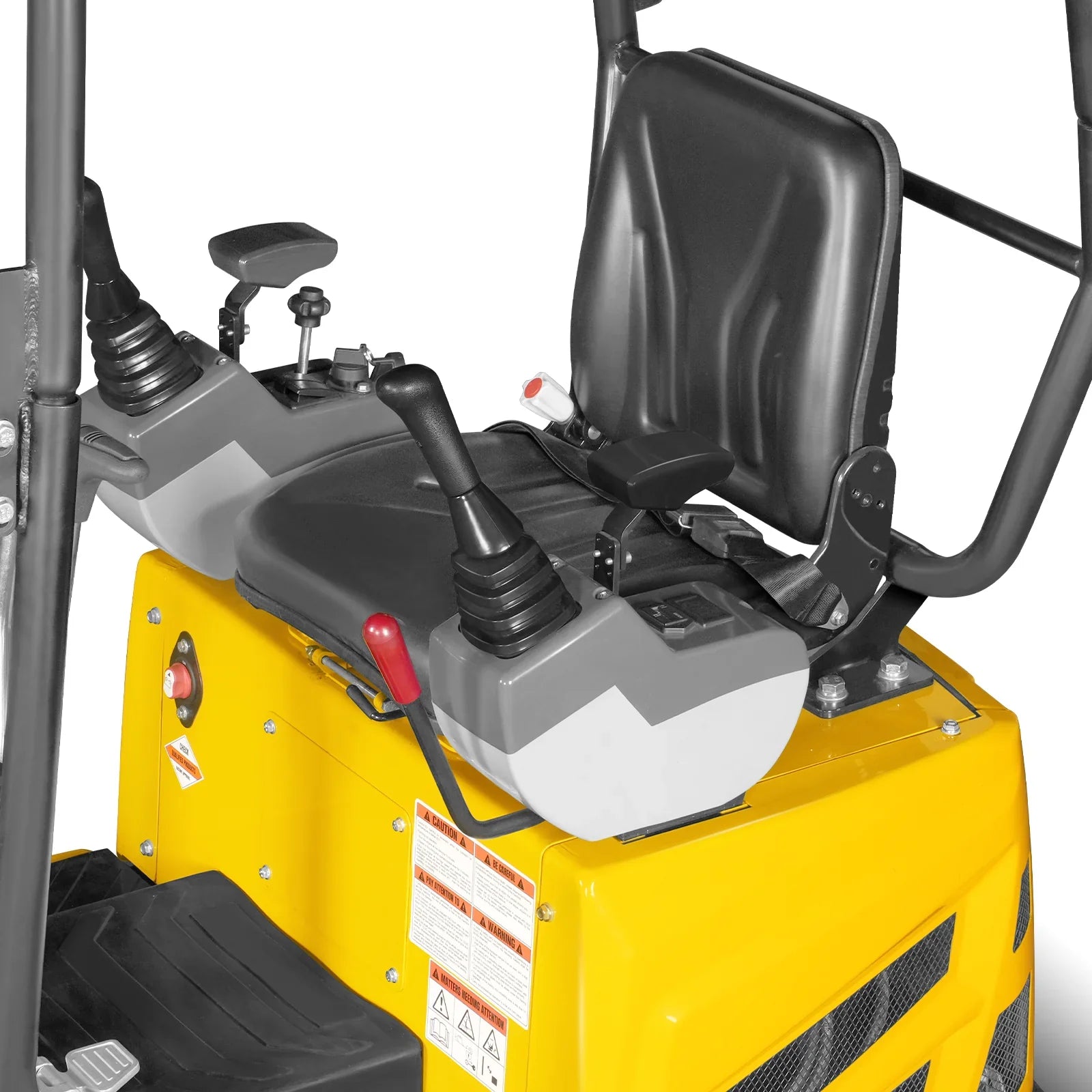

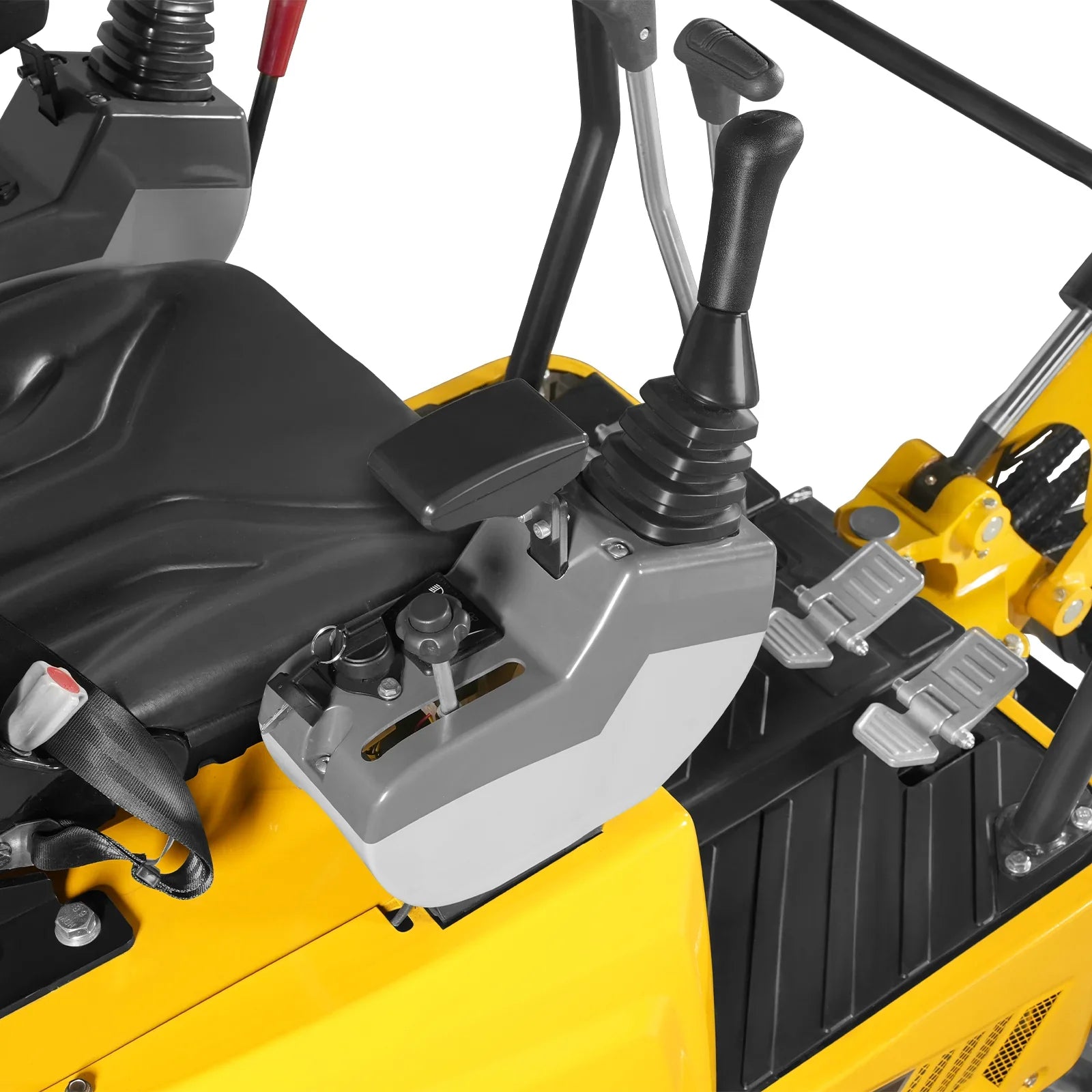

  • Pilot-Operated Control: The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.

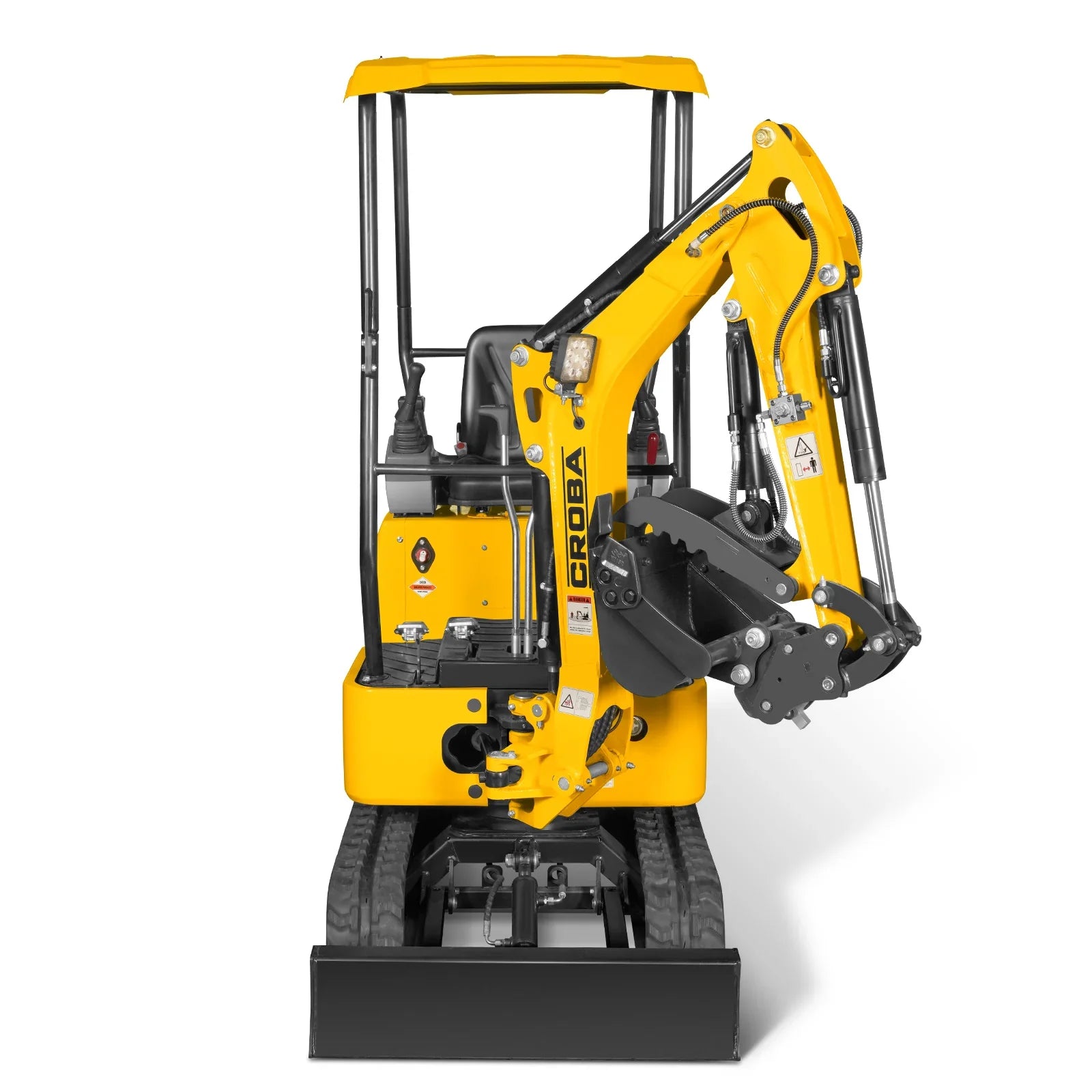

  • Swing Arc: The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
  • Digging Depth: It features an all-around 65.7-inch digging depth reach capability and a 118.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Semi-automatic Quick Hitch: The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.

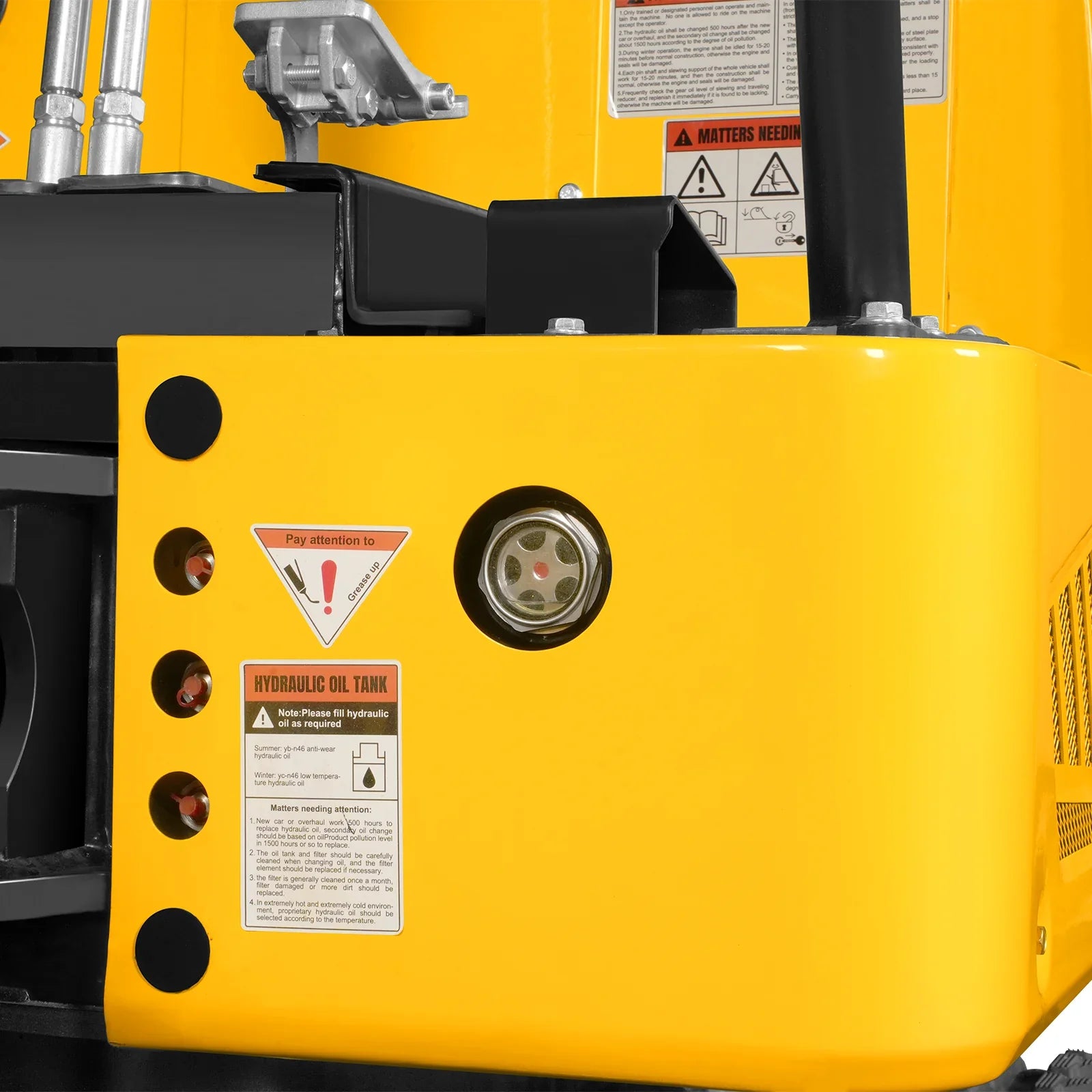

  • Hydraulic Oil Radiator: Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.

Model: Vanguard 25V000

Displacement: 408cc

No.Of Cylinders: 1

Engine Output: 14hp

Stroke: 2.638in

Warranty for Engine: 3-Year

Bore: 3.465in

Fuel Tank: 1.52 gal

Rated speed: 3600rpm

Engine Oil: 0.7gal

Max. Travel Speed: 0.75 mile/h

Ground Pressure: 5.1psi

Maximum Traction Force: 3035 lbf

Gradeability - Maximum: Maximum 30 degrees

Ground Clearance: 15.9in

Operating Weight: 2370lbs

Hydraulic Oil Tank: 3.96gal

Max.Discharge Flow: 4.65 gpm

Swing Speed: 8rpm

Tail Swing Radius: 32.6in

Bucket Digging Force: 1619 lbf

Arm Digging Force: 1191 lbf

Bucket Capacity: 0.7 ft³

Bucket Width: 15 in

Max.Digging Height: 109 in

Min Turning Radius Of Working Device: 48.1in

Max.Dumping Height: 80 in

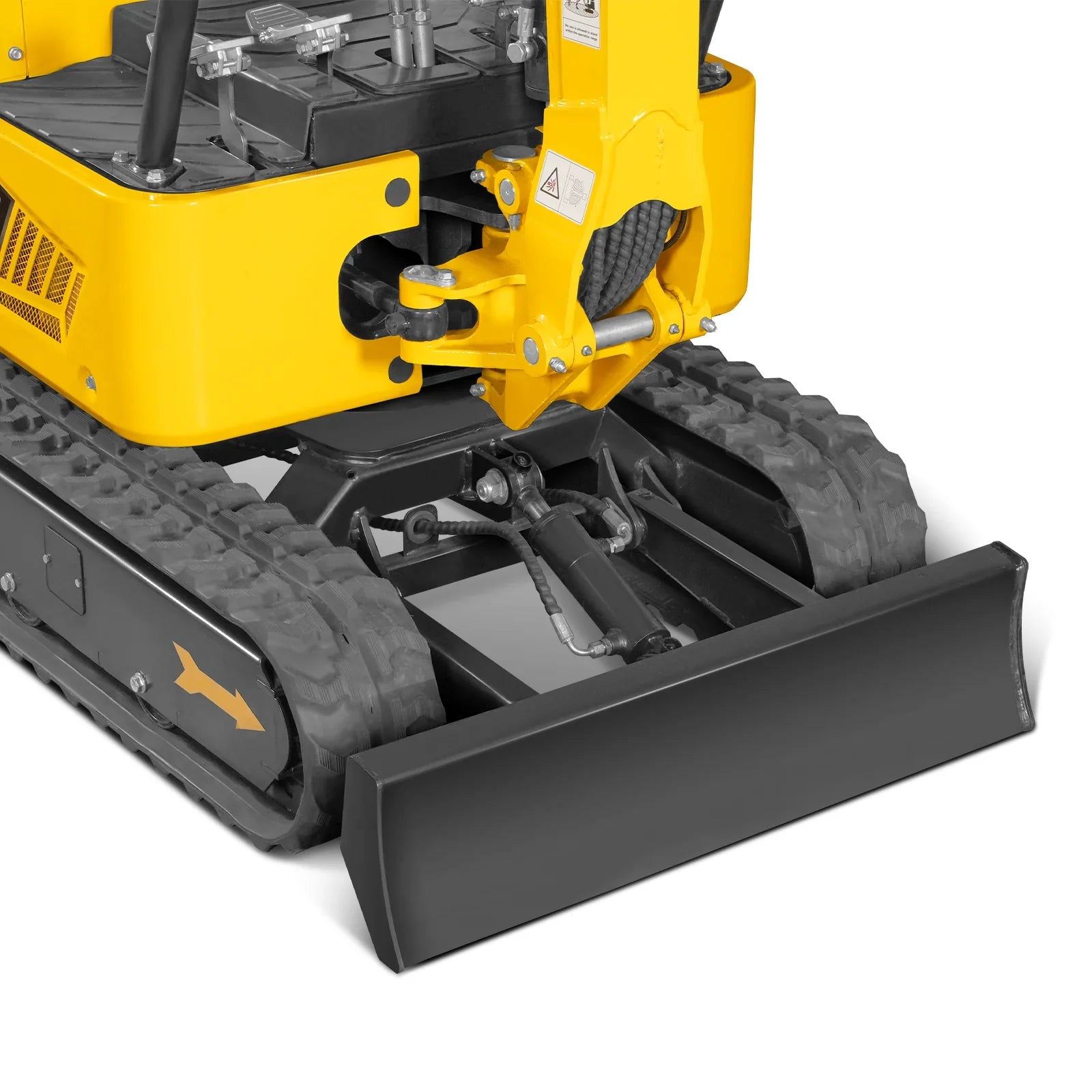

Max. Lifting Height Dozer Blade: 5.9in

Max.Digging Depth: 65.7in

Max. Depth Dozer Blade: 7.4in

Max.Vertical Digging Depth: 62.6in

Boom Swing - Left: 53°

Max Digging Radius: 119in

Boom Swing - Right: 40°

Max.digging Radius At Ground Level: 118.7in

Transportation Length: 82in/115in

Crawler Wheel Base: 36in

Overall Width: 37in

Track Belt/Shoe Width: 7in

Overall Height（To Top Of Cab）: 88.5in

Track Length: 48.5in

Counter Weight Ground Clearance: 16in

Track Width: 37in

Package Method: Wood Case

Warranty for Machine: 1 Year

Packing Size: 91x40x98 in

Weight (N.W./G.W.): 2180/2440 lbs

This item comes with a 1 year factory warranty.
