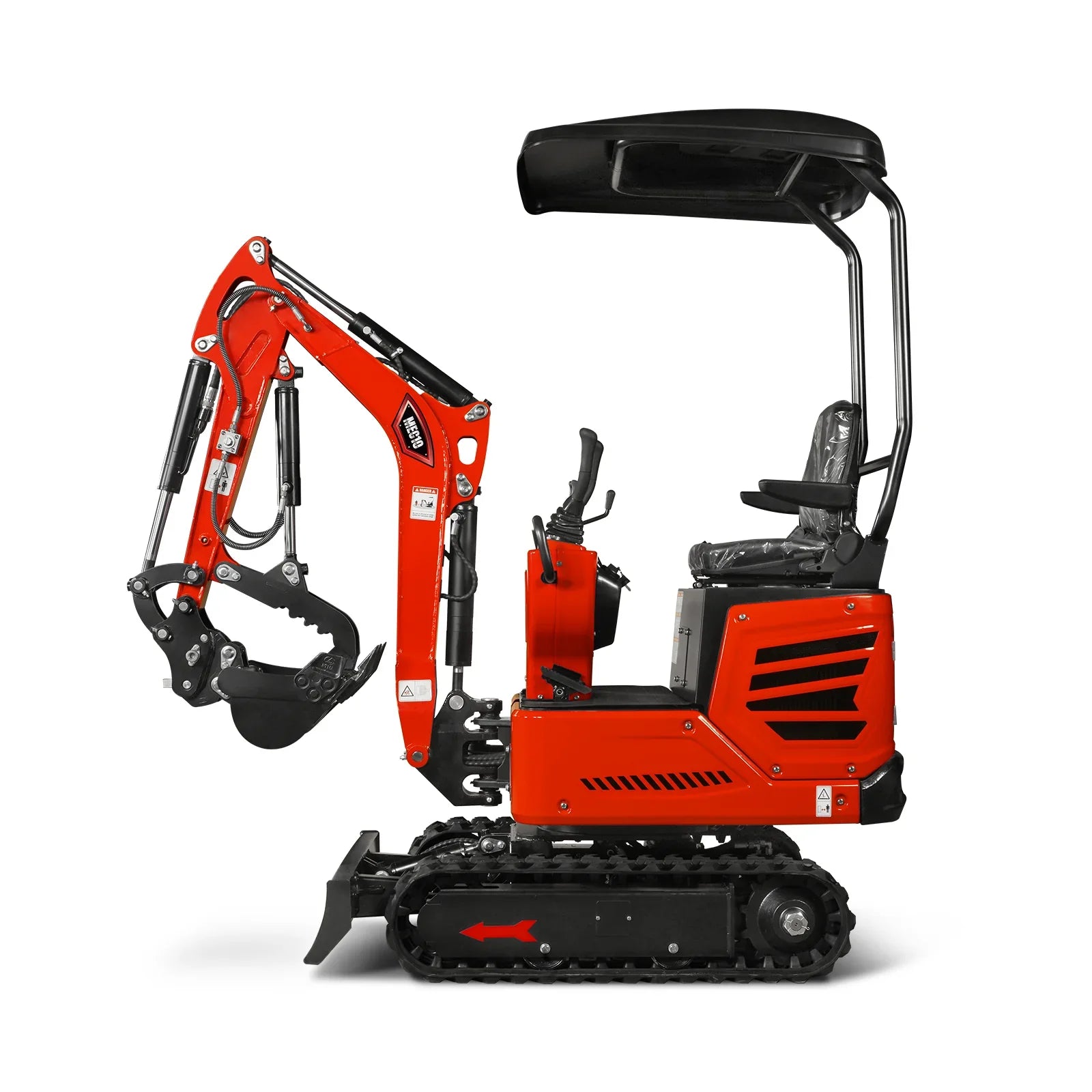

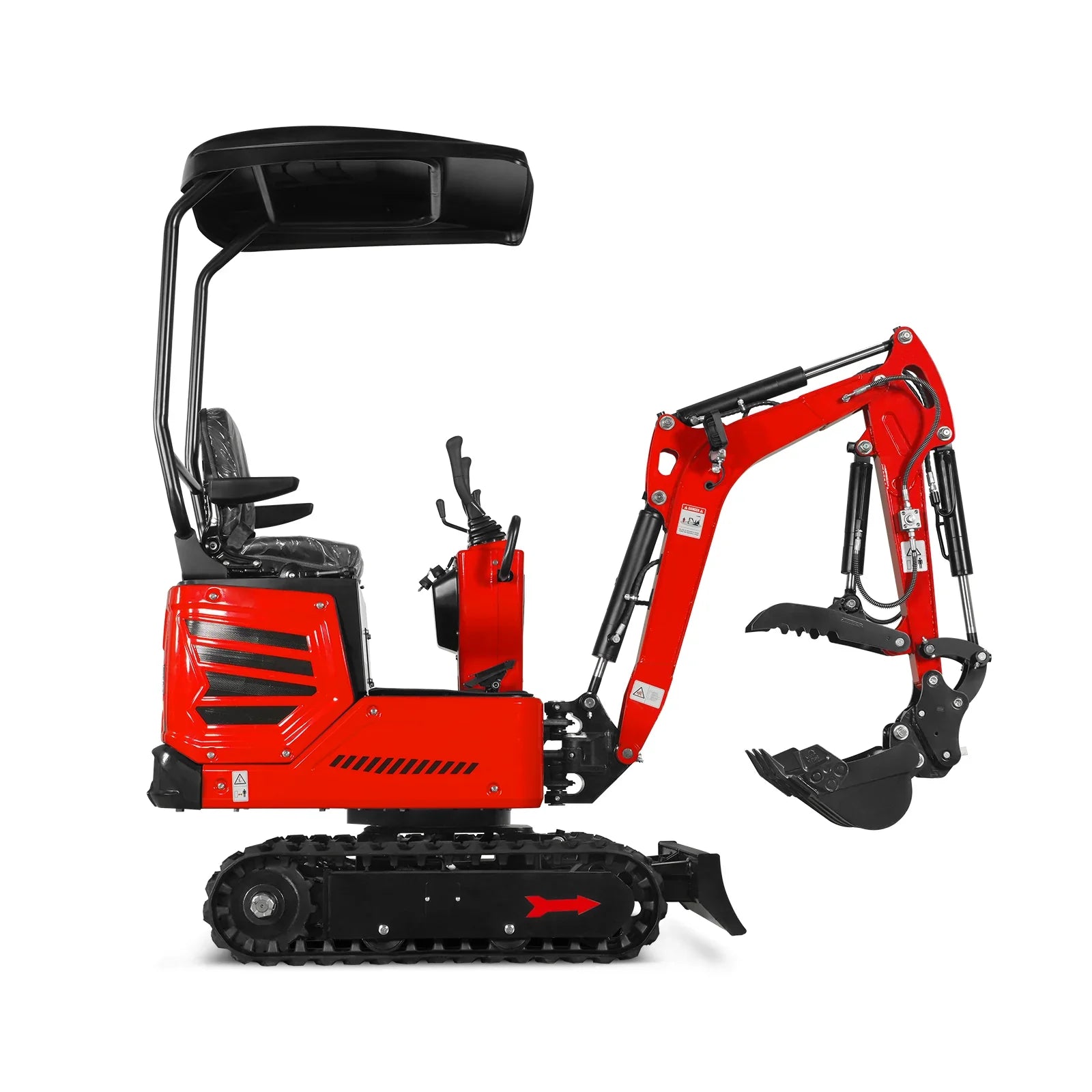

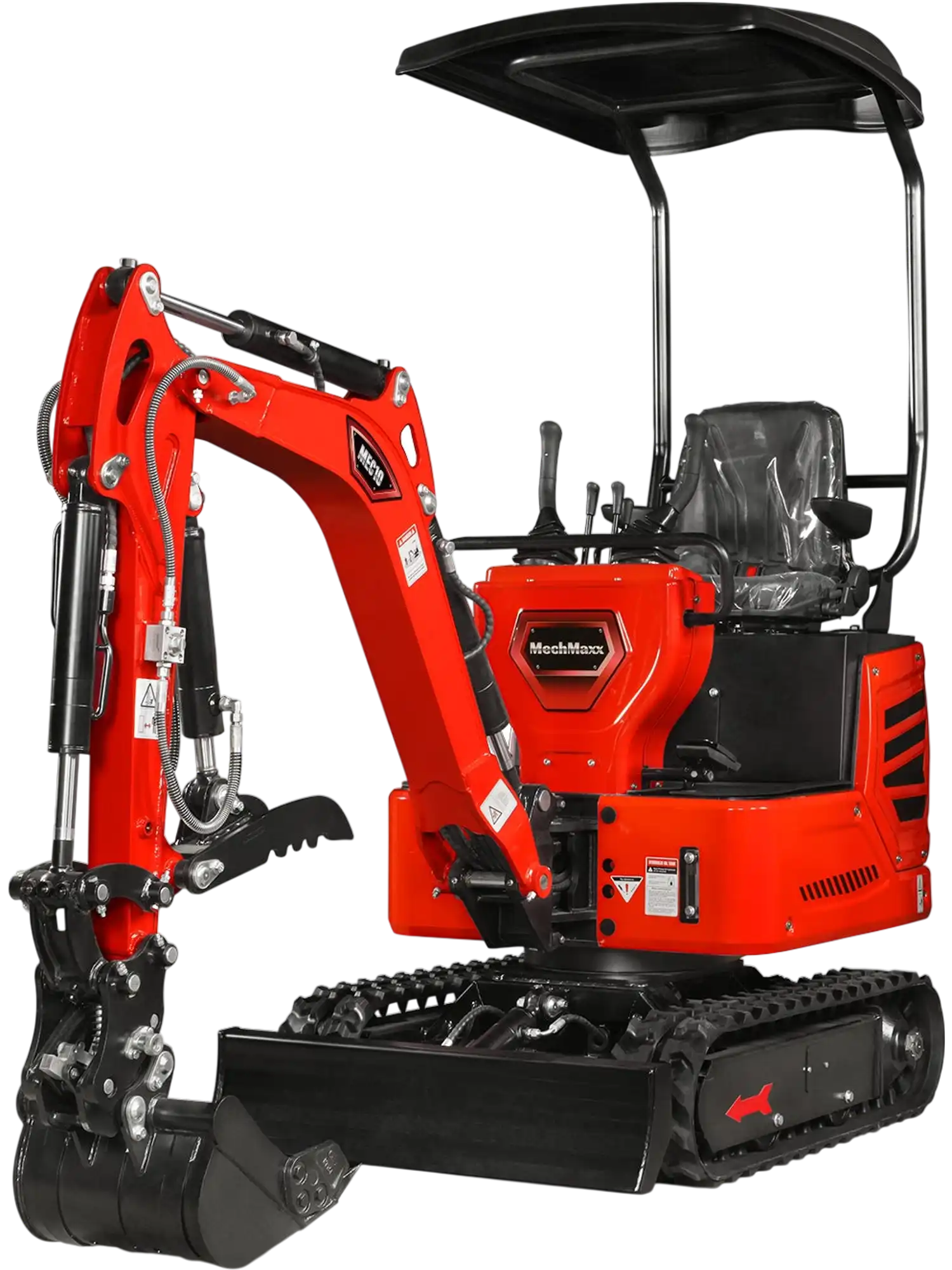

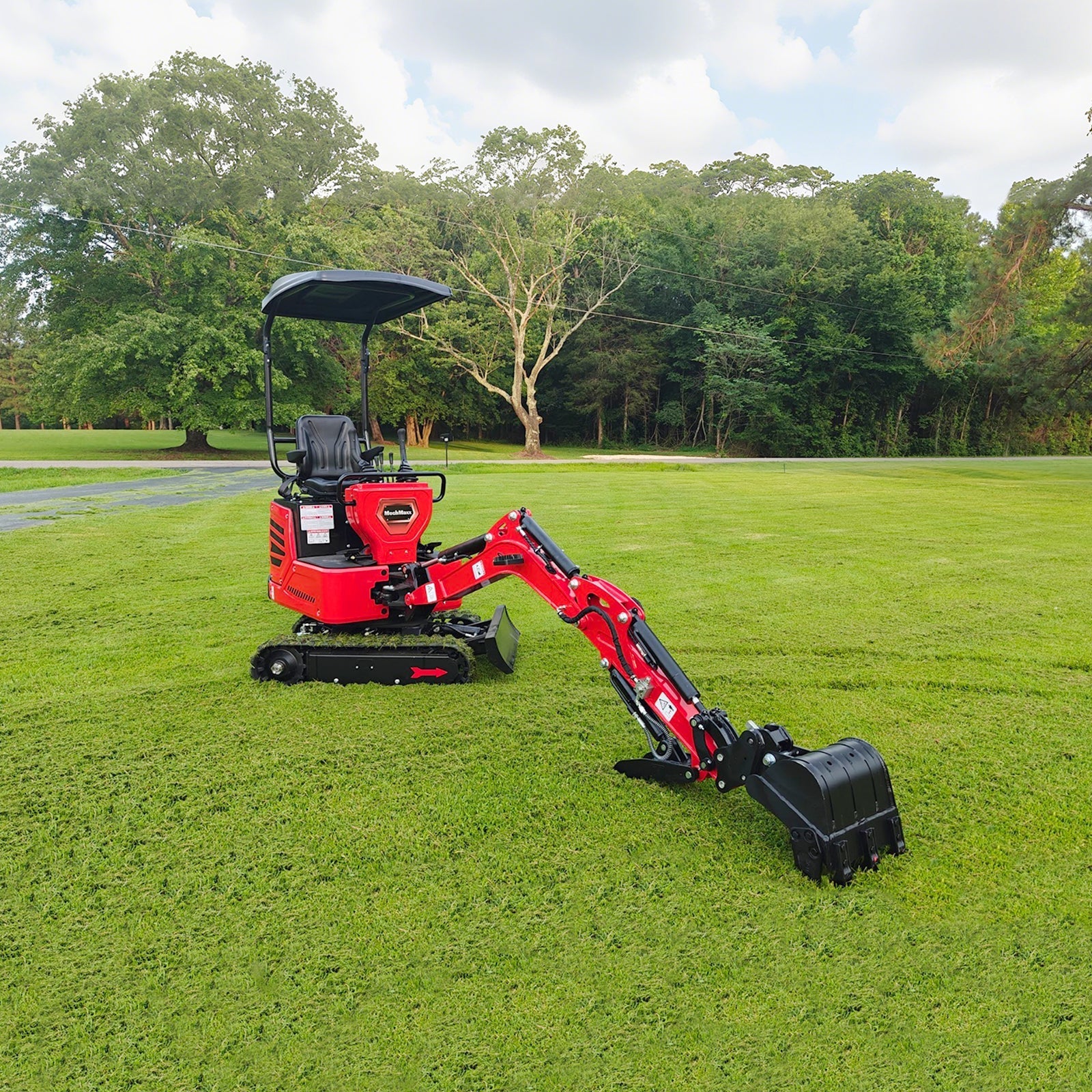

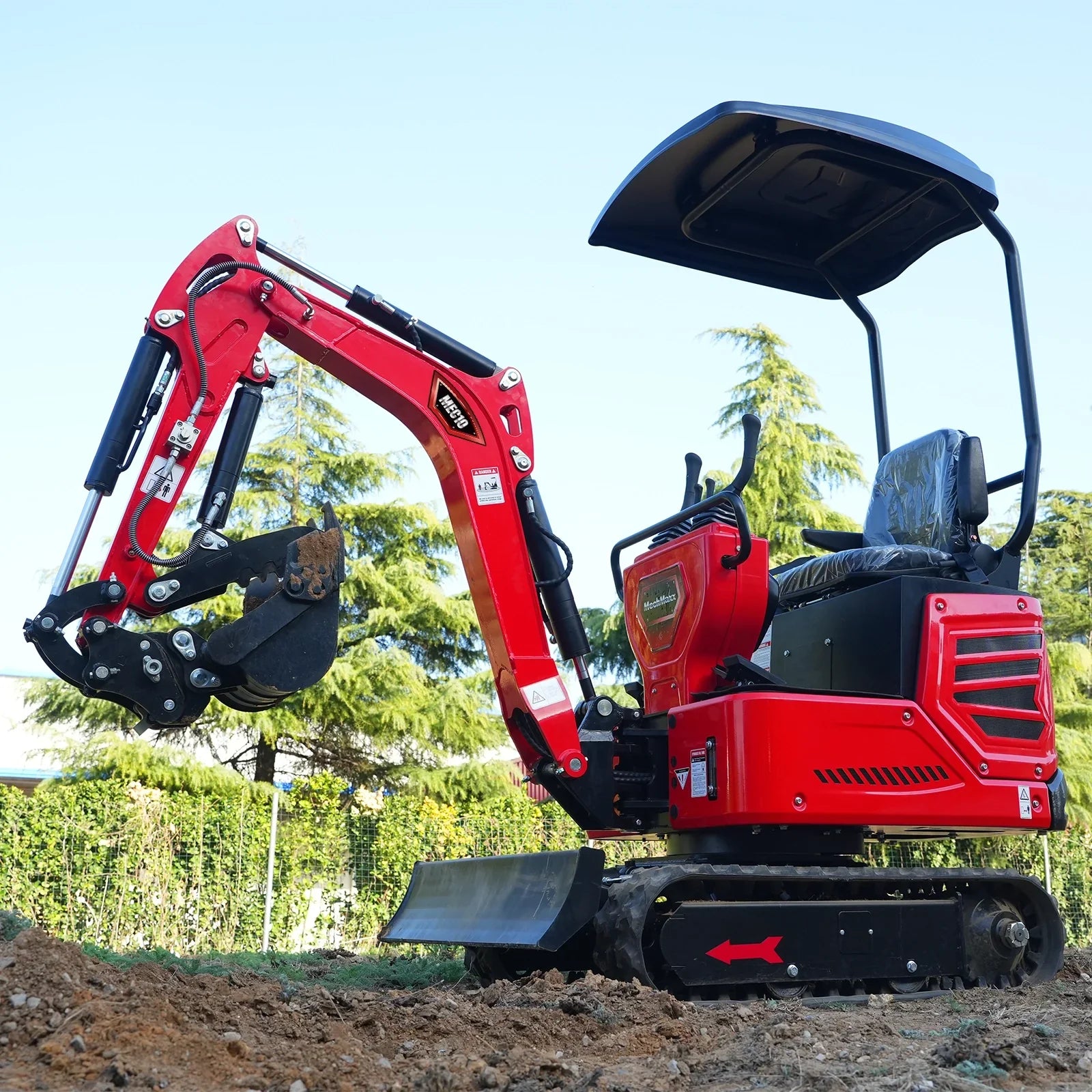

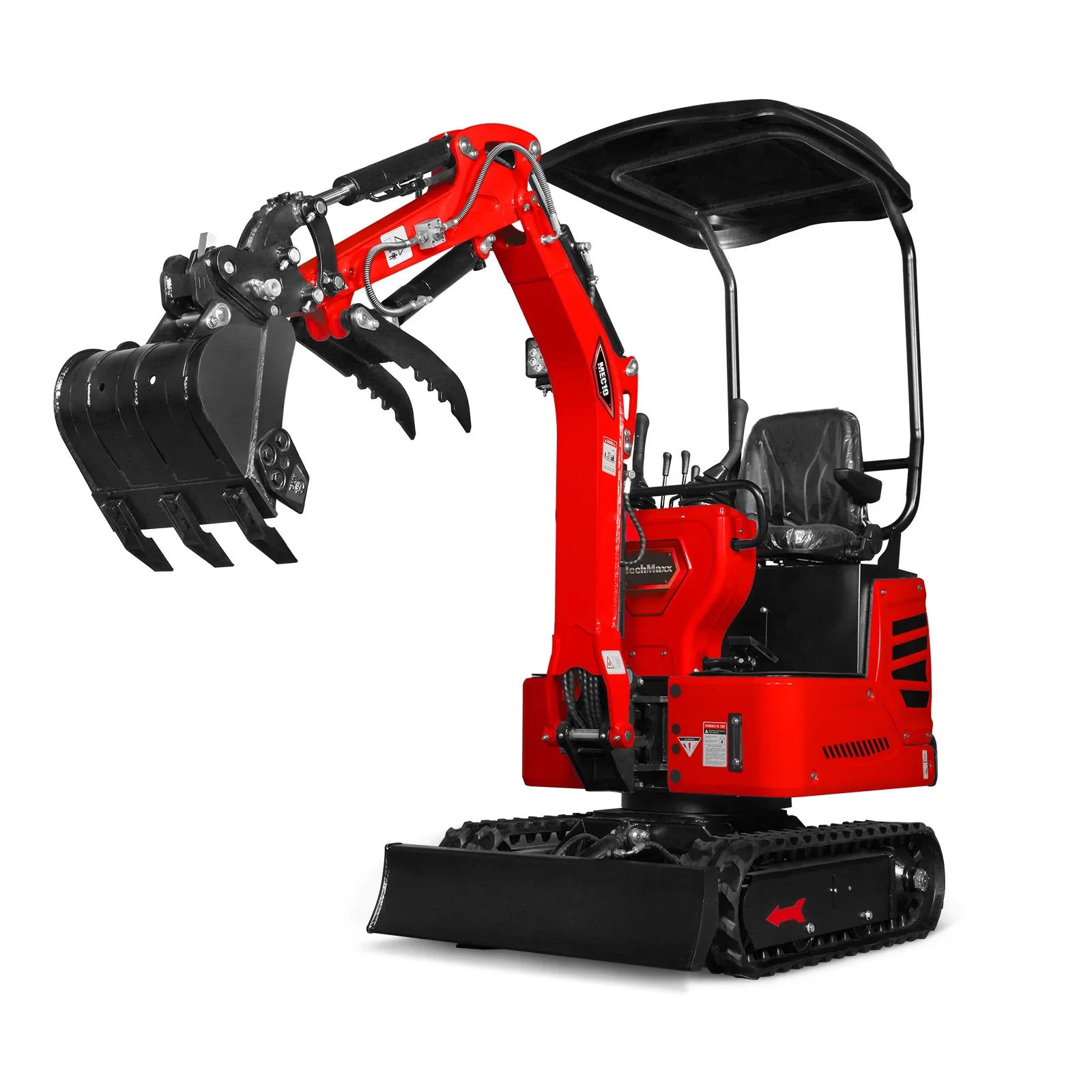

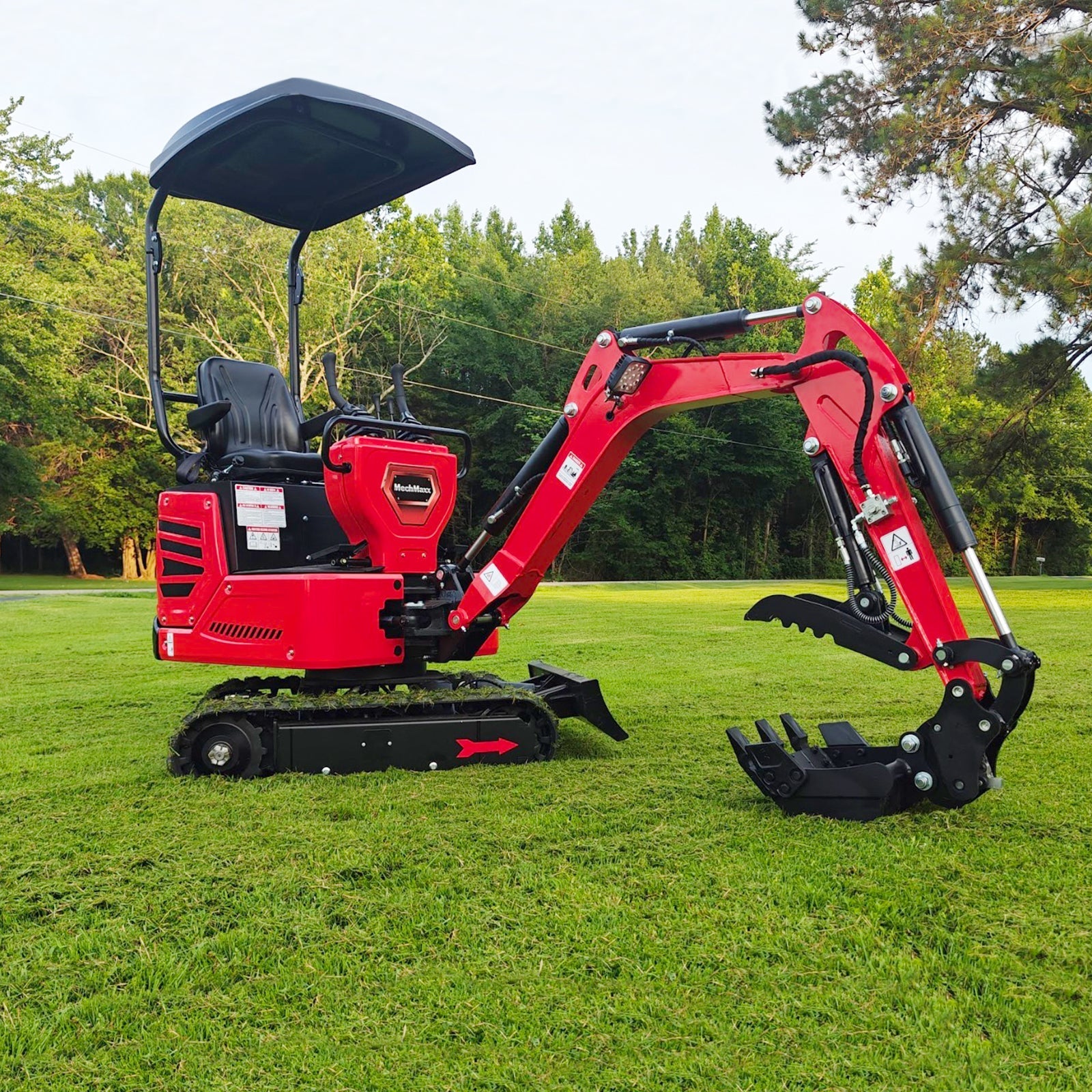

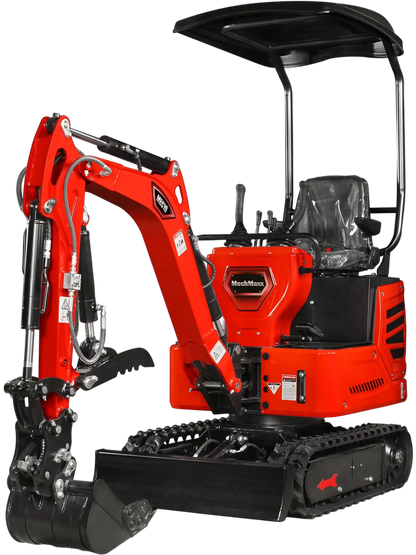

MechMaxx MEC10 Mini Excavator Compact HONDA GX390 Engine 65.7" Max Digging Depth 1 Ton 2280 lbs Operating Weight New

MechMaxx

$8,699.00
$8,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

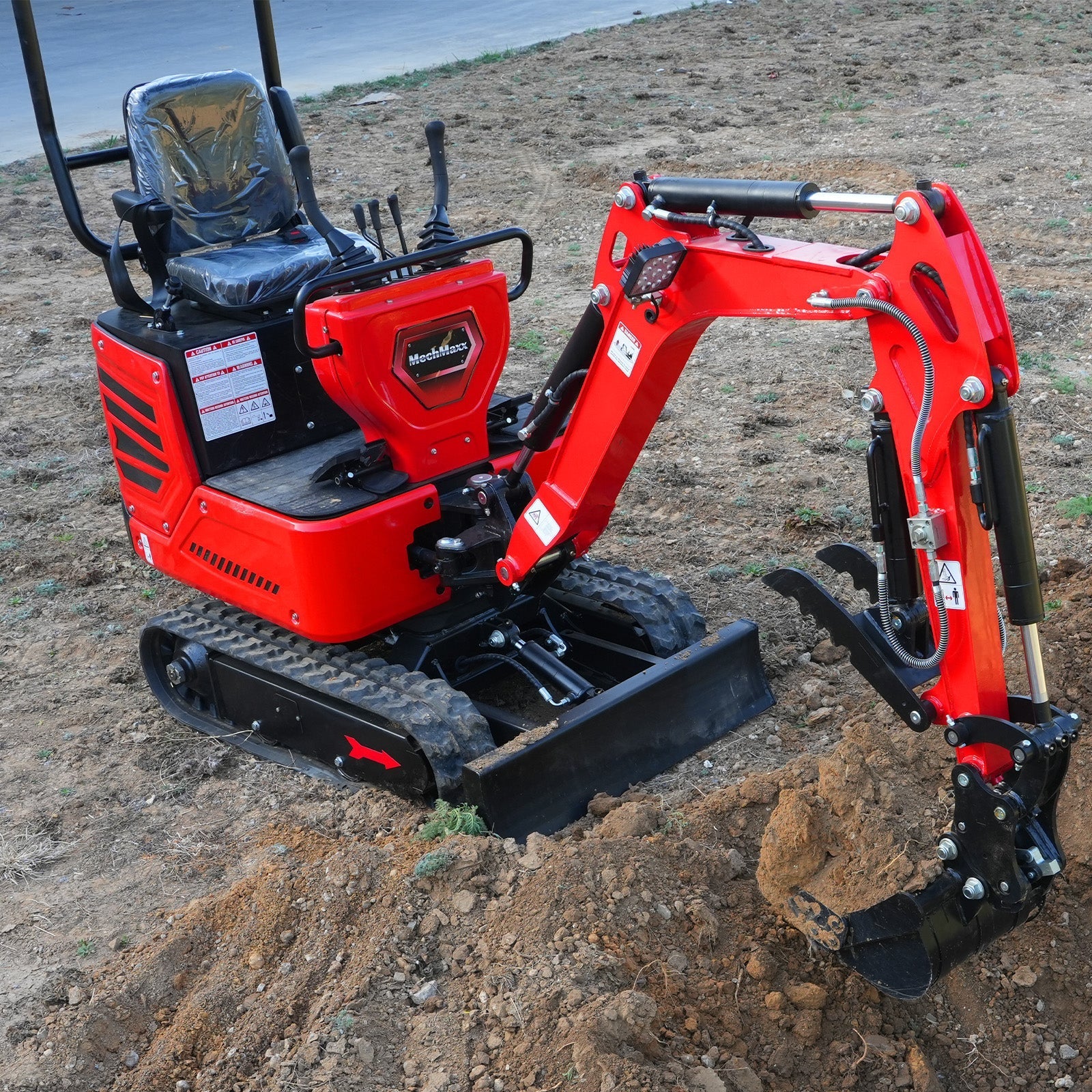

  • MEC10 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
  • Powered by Honda GX390 389cc 11.7HP air-cooled engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
  • 65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

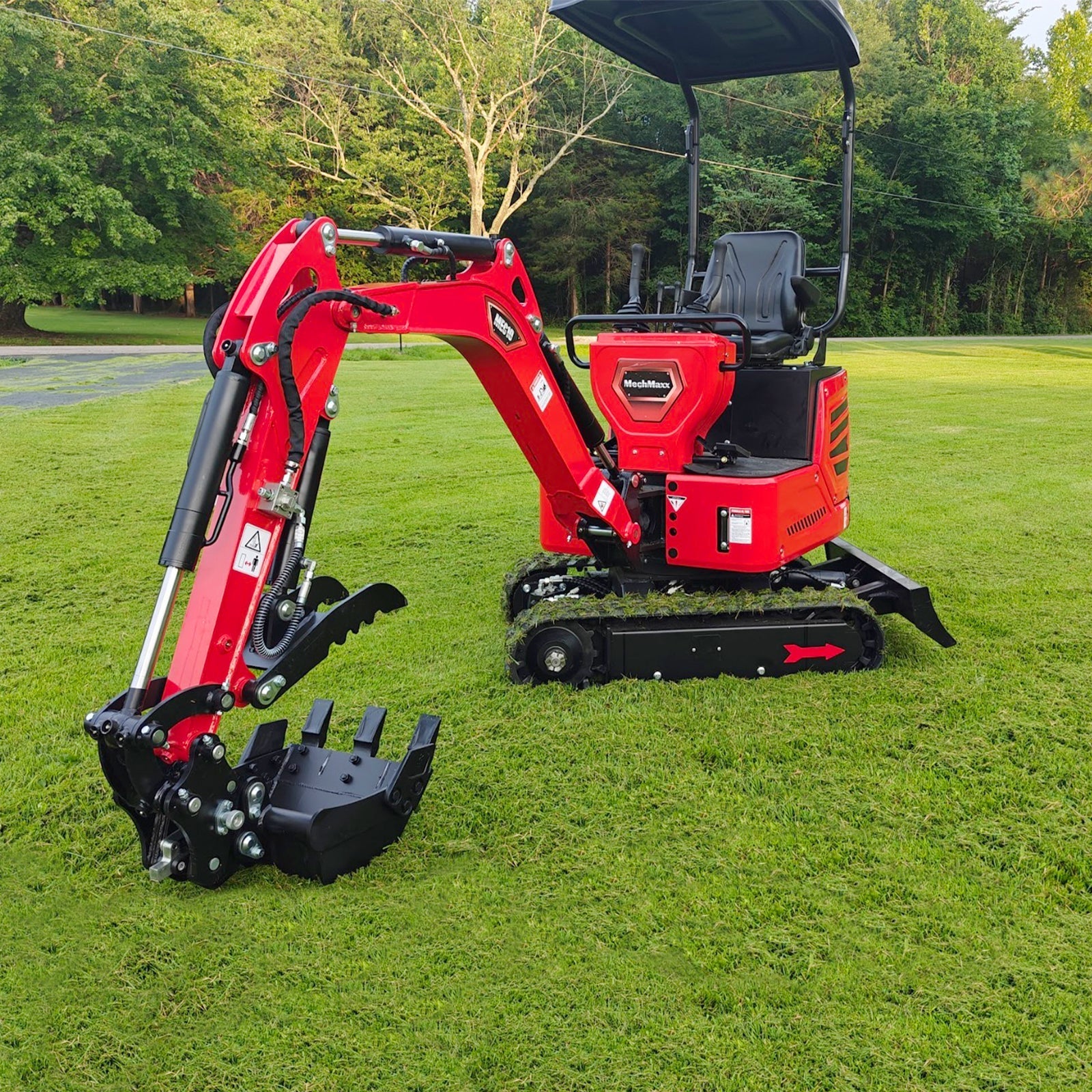

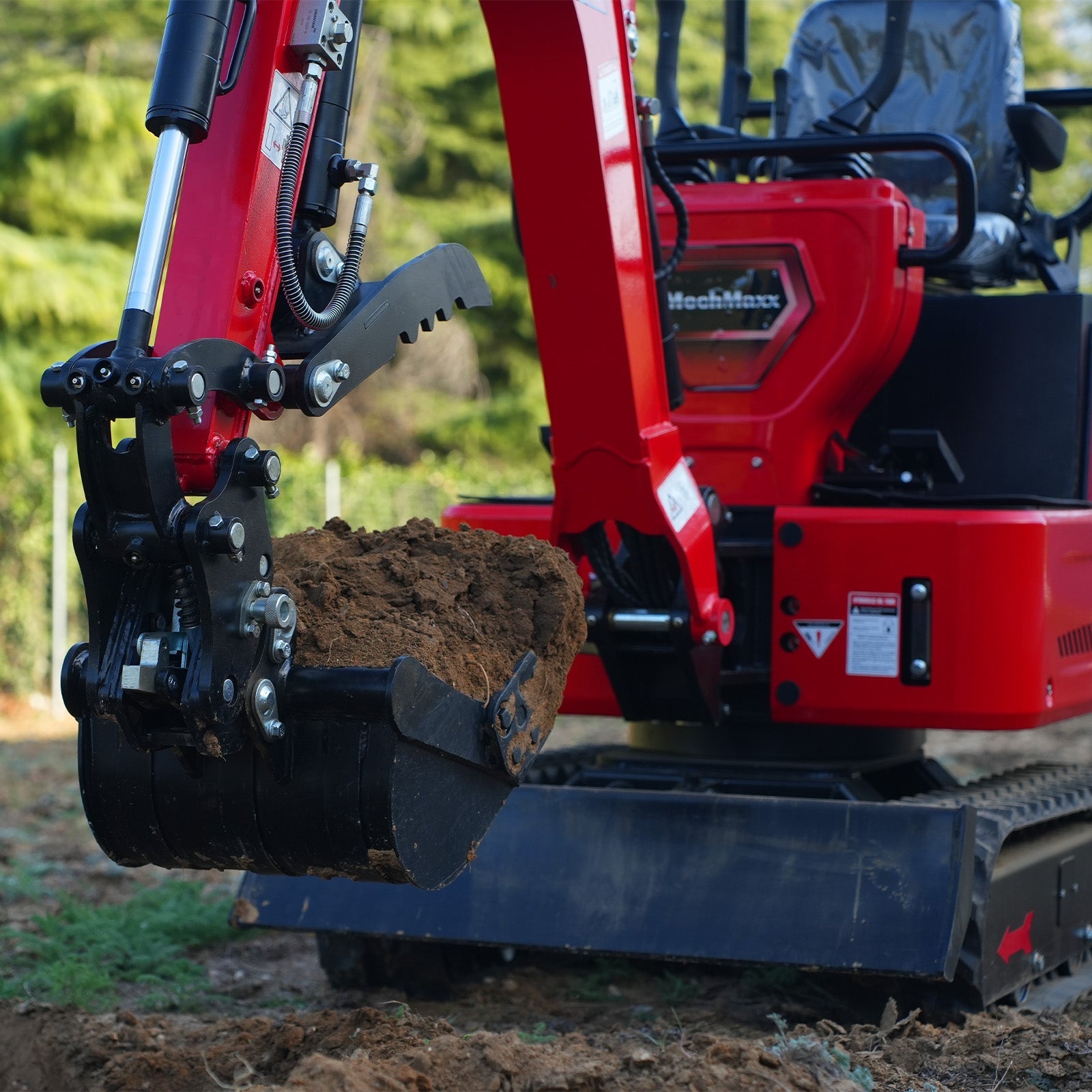

  • Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Can rotate 360 degrees.




Note！

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Chassis Width: At 36 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

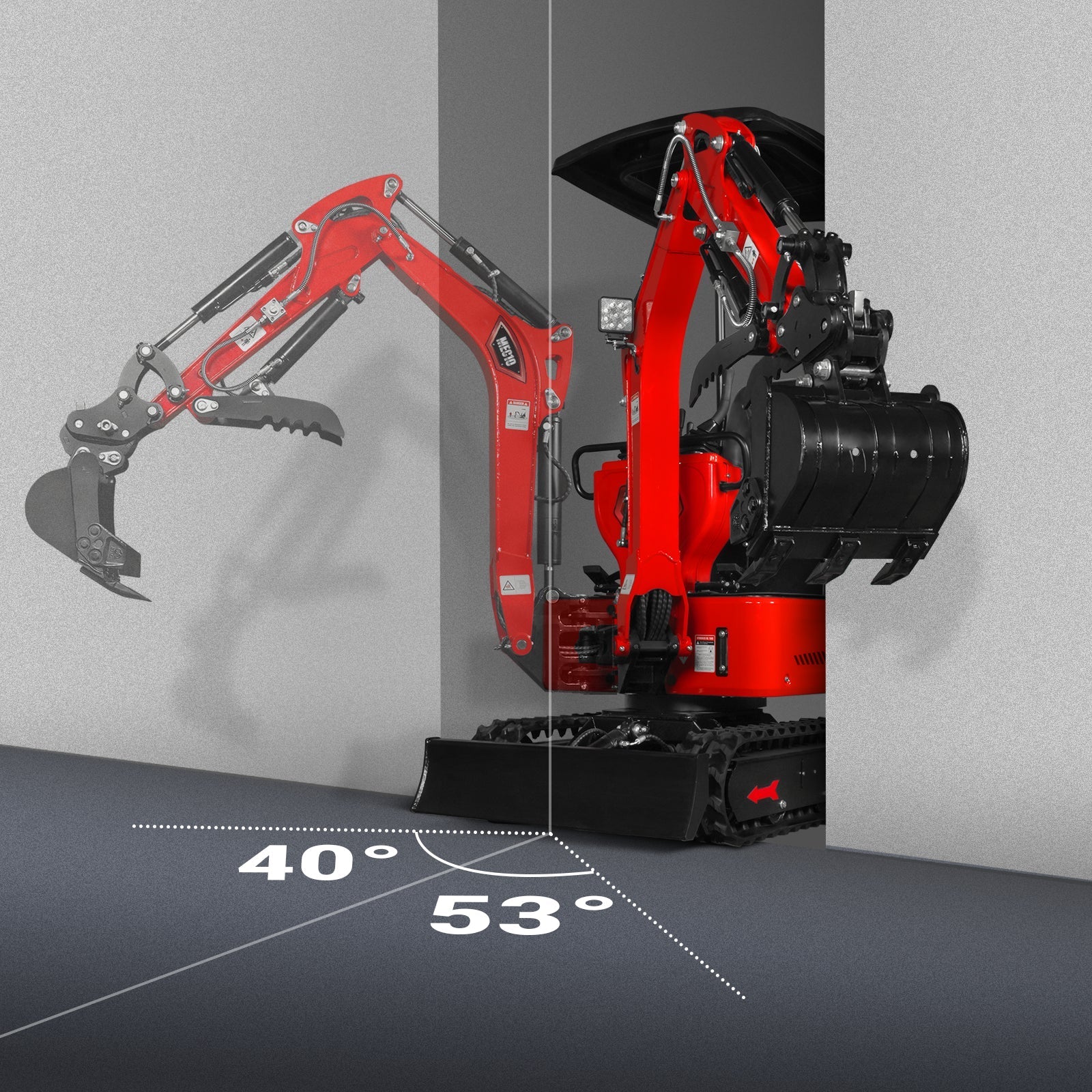

  • Swing Arc: The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
  • Digging Depth: It features an all-around 65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Semi-automatic Quick Hitch: The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.
  • Hydraulic Oil Radiator: Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.

Standard Bucket Capacity: 0.7 cu-ft

Auxiliary Std Flow: 5.7 gal/min

Standard Bucket Width: 15 in

Max. Tractive Force: 3035 lbf

Max. Travel Speed: 0.75 mile/h

Arm Digging Force: 1191 lbf

Slewing Speed: 11 rpm

Bucket Digging Force: 1619 lbf

Max. Gradeability: 30°

Rated Lift Capacity: 728 lb

Track Ground Pressure: 5.1 psi

Lift Radius: 80 in

Hydraulic Oil Tank Capacity: 3.96 gal

Operating Weight: 2280 lb

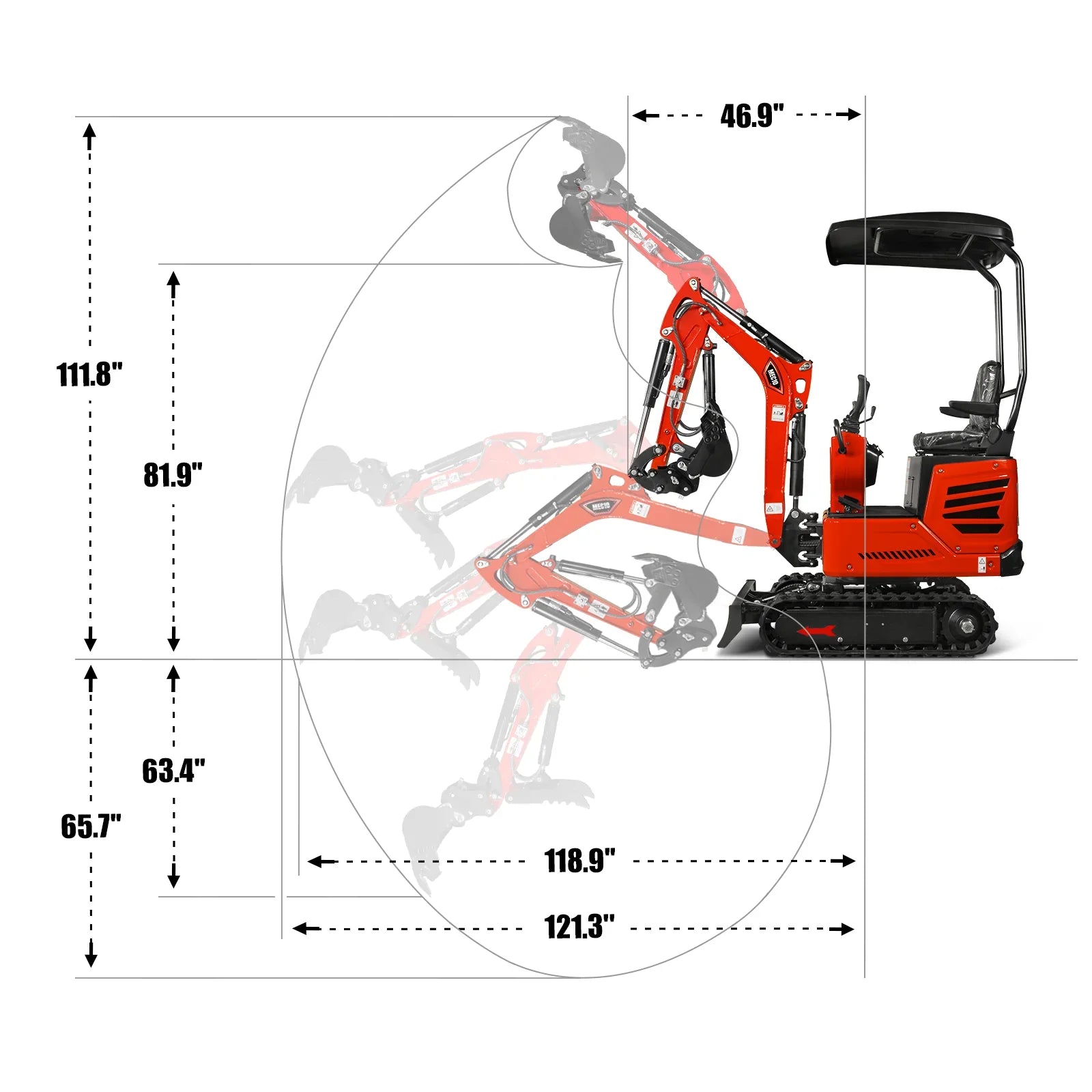

Max.Digging Radius On Ground: 119 in

Max. Vertical Digging Depth: 63.3 in

Max. Digging Depth: 65.7 in

Min. Turning Radius: 46.8 in

Overall Operating Height (Fully Raised): 111.8 in

Max. Lifting Height Dozer Blade: 5.9 in

Max. Digging Radius: 121 in

Max. Depth Dozer Blade: 7.4 in

Max. Unloading Height: 81.8 in

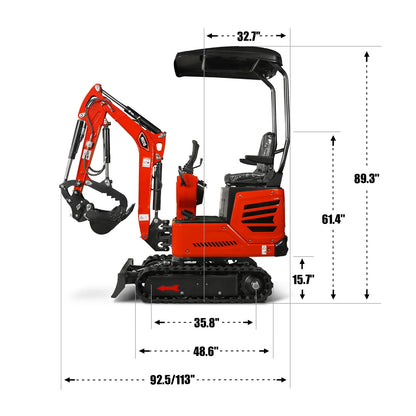

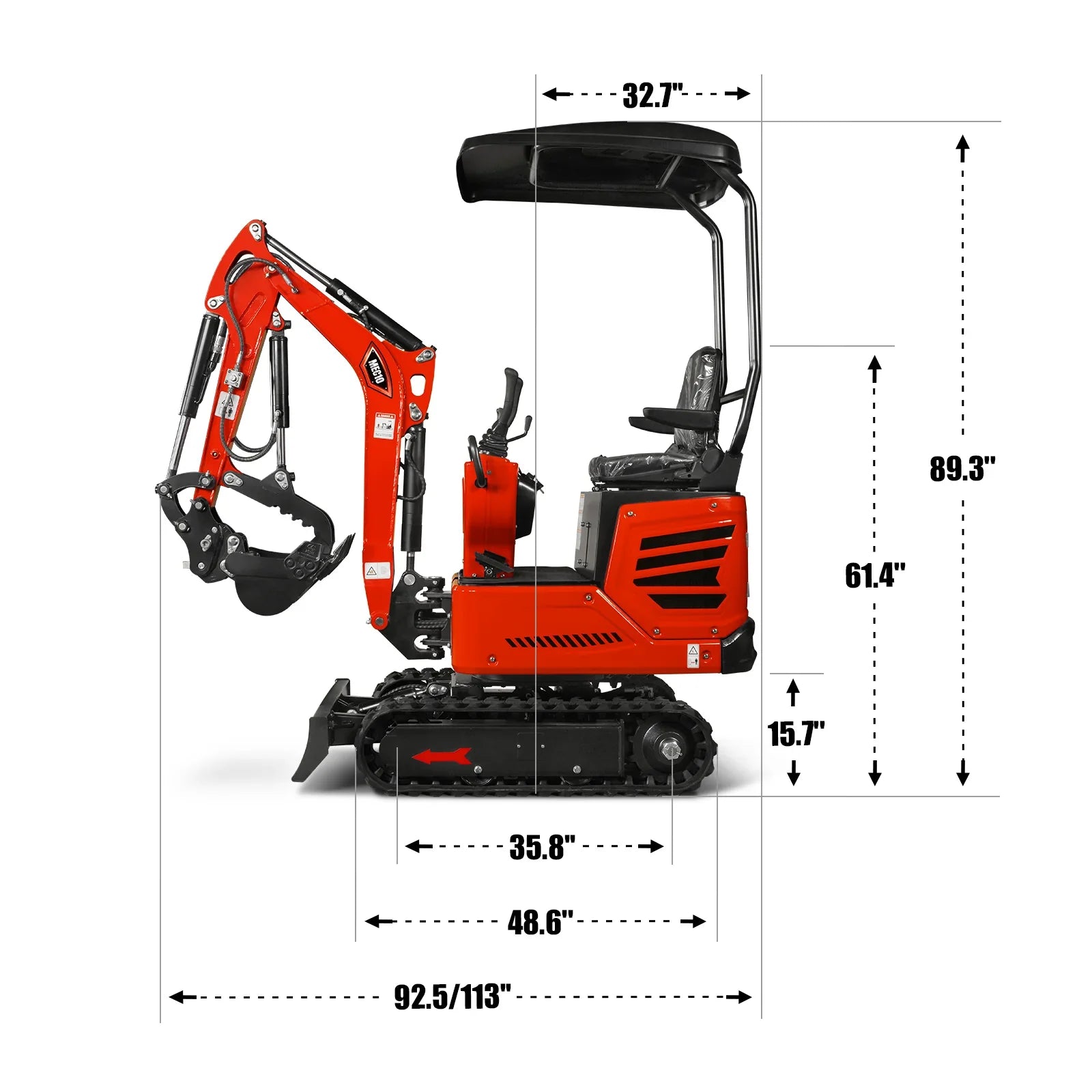

Wheel Track: 35.8 in

Track Height: 12.6 in

Track Length: 48.6 in

Transportation Length: 92.5/113 in

Upper Chassis Ground Clearance: 15.7 in

Height Of Seat To Ground: 61.4 in

Counterweight Turning Radius: 32.6 in

Overall Height: 89.3 in

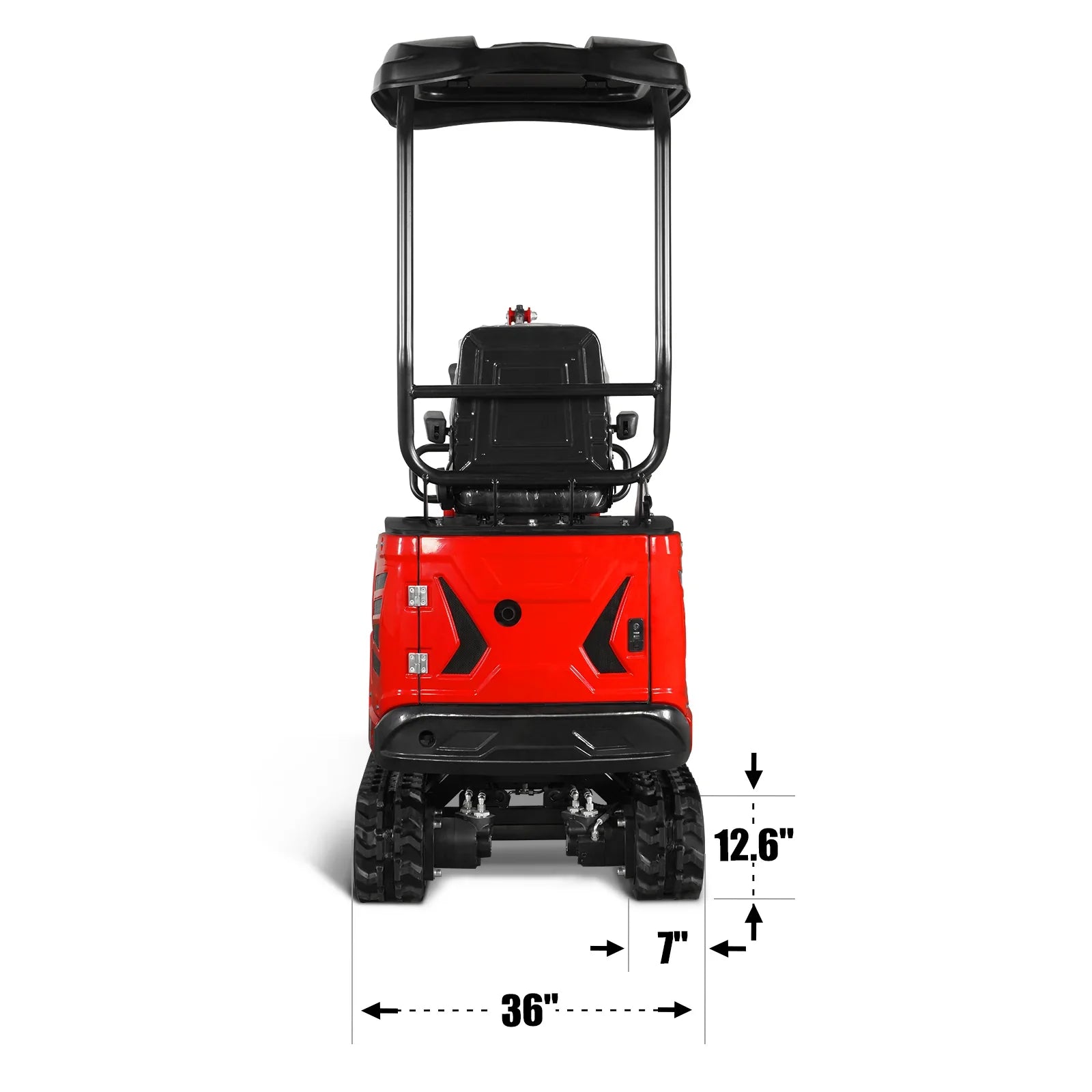

Chassis Width: 36 in

Boom Swing-Right: 40°

Track Width: 7 in

Boom Swing-Left: 53°

Model: Honda GX390

Max. Net Torque: 26.5 N.m/2500 RPM

Displacement: 389 cc; 11.7 HP

Fuel Tank Capacity: 1.6 gal

Engine Type: 4-stroke, overhead valve, single cylinder

Engine Oil Capacity: 0.3 gal

Start Type: Electric start

Engine Oil Type: 10W-30

Rated Power: 8.7 KW/3600 RPM

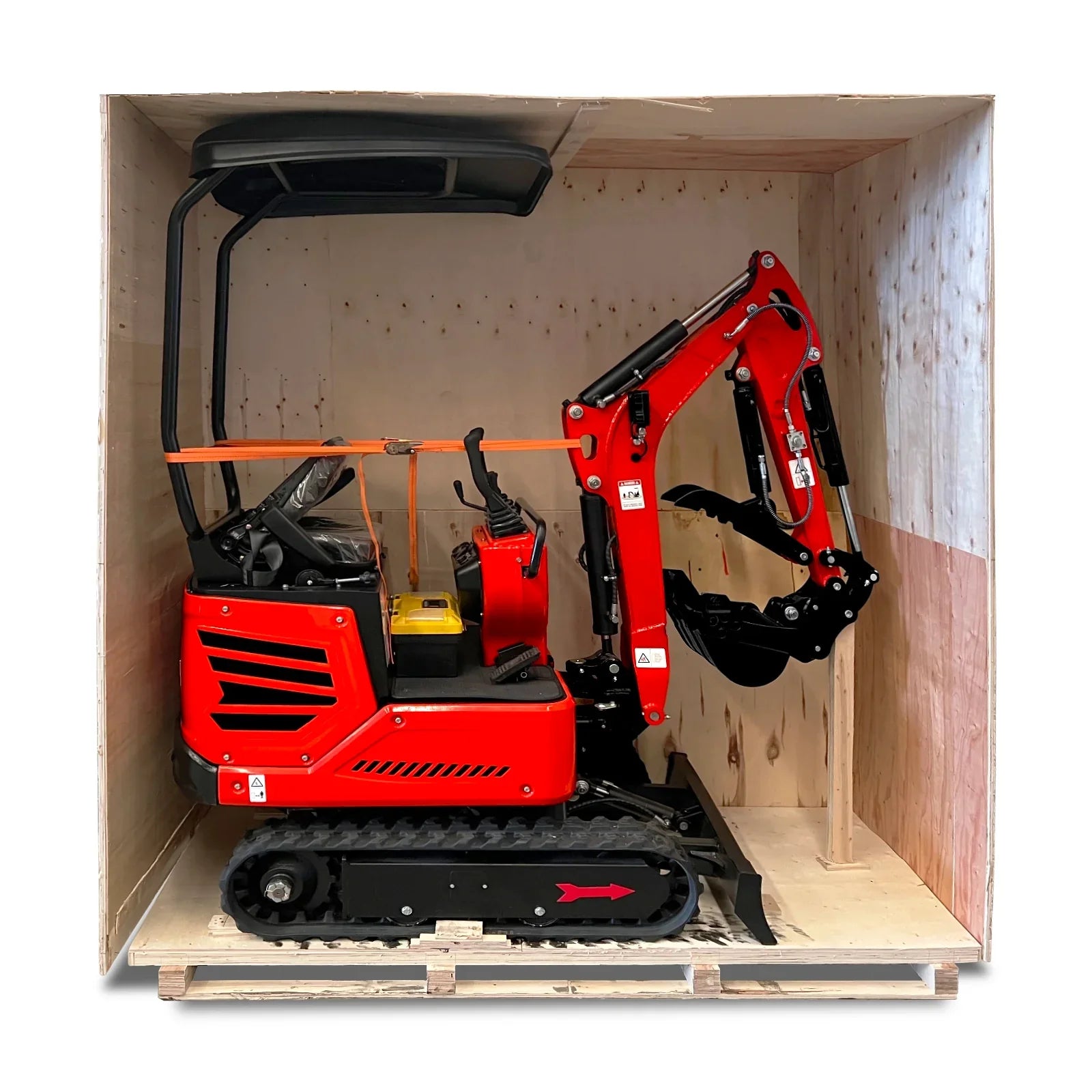

Package Method: Plywood Case

Weight (N.W./G.W.): 2100/2376 lb

Dimensions: 91x40x98 in

This item comes with a 1 year factory warranty.
PDF MEC10 Product manual 1.0 PDF Honda GX390 manual
