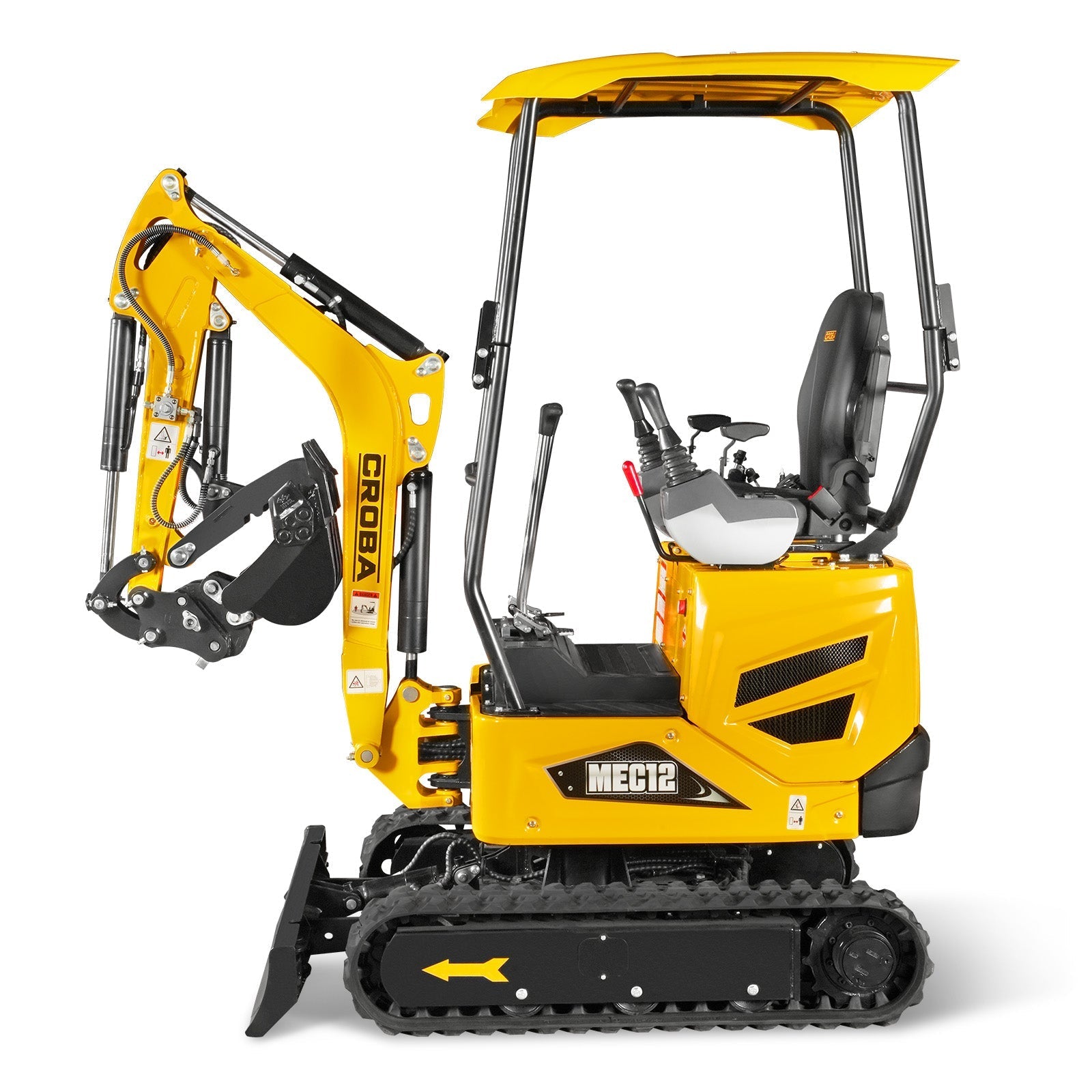

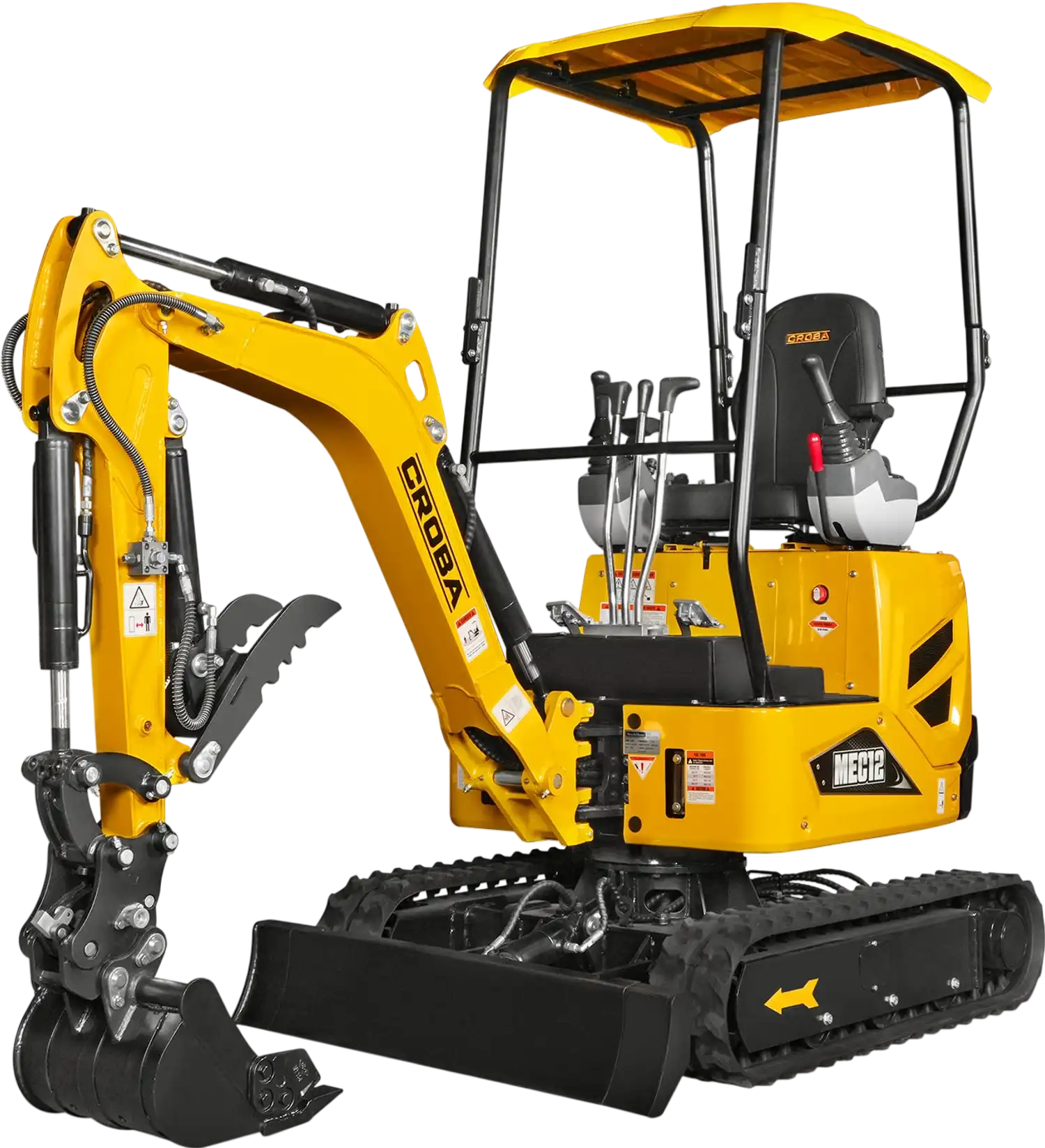

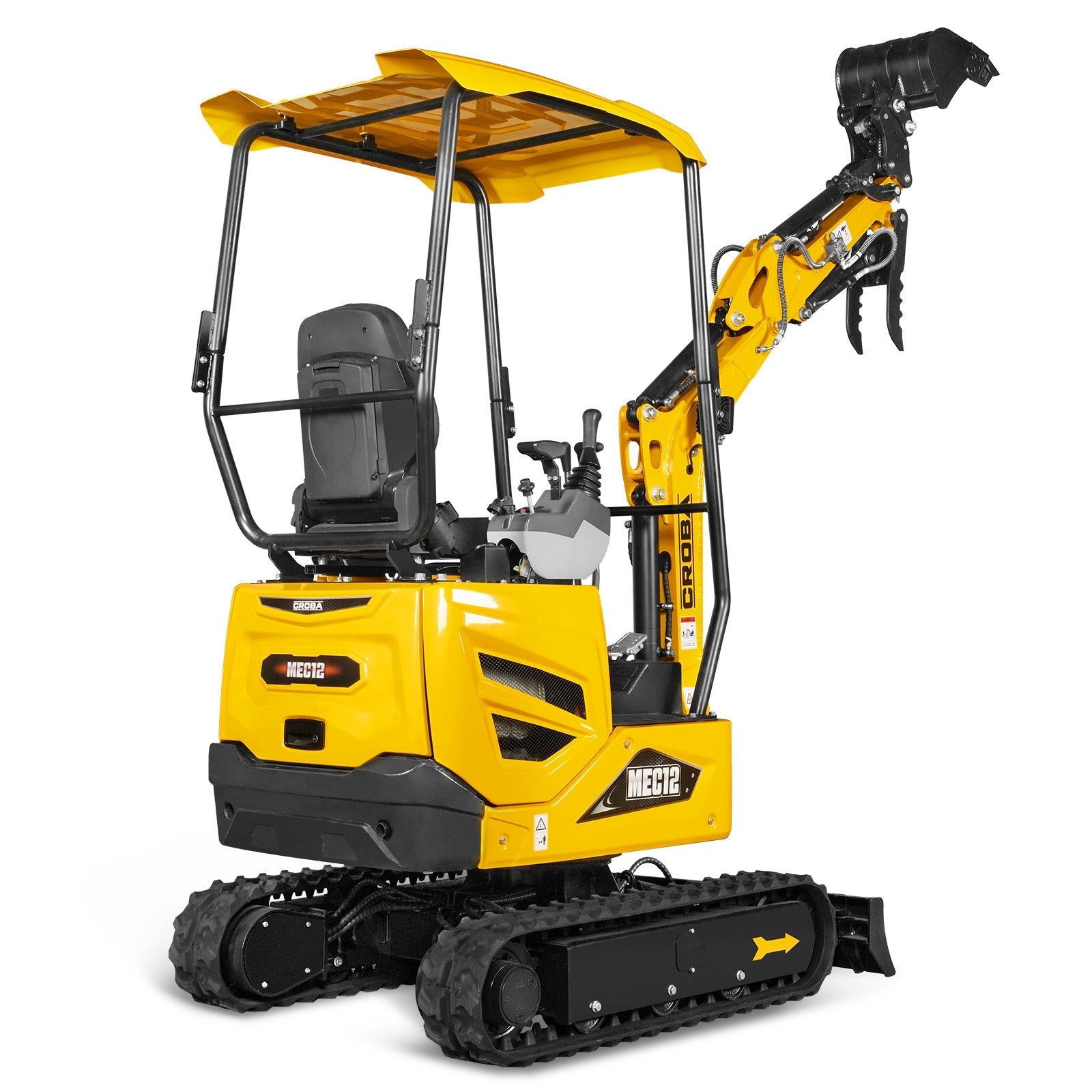

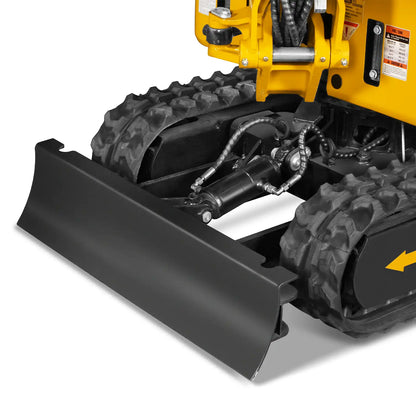

MechMaxx MEC12 Mini Excavator Kubota D722 Engine 65.7" Max Digging Depth 1.2 Ton 2700 lbs Operating Weight New

MechMaxx

$16,999.00
$16,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • MEC12 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
  • Powered by Kubota D722 air-cooled engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
  • It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.
  • The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.

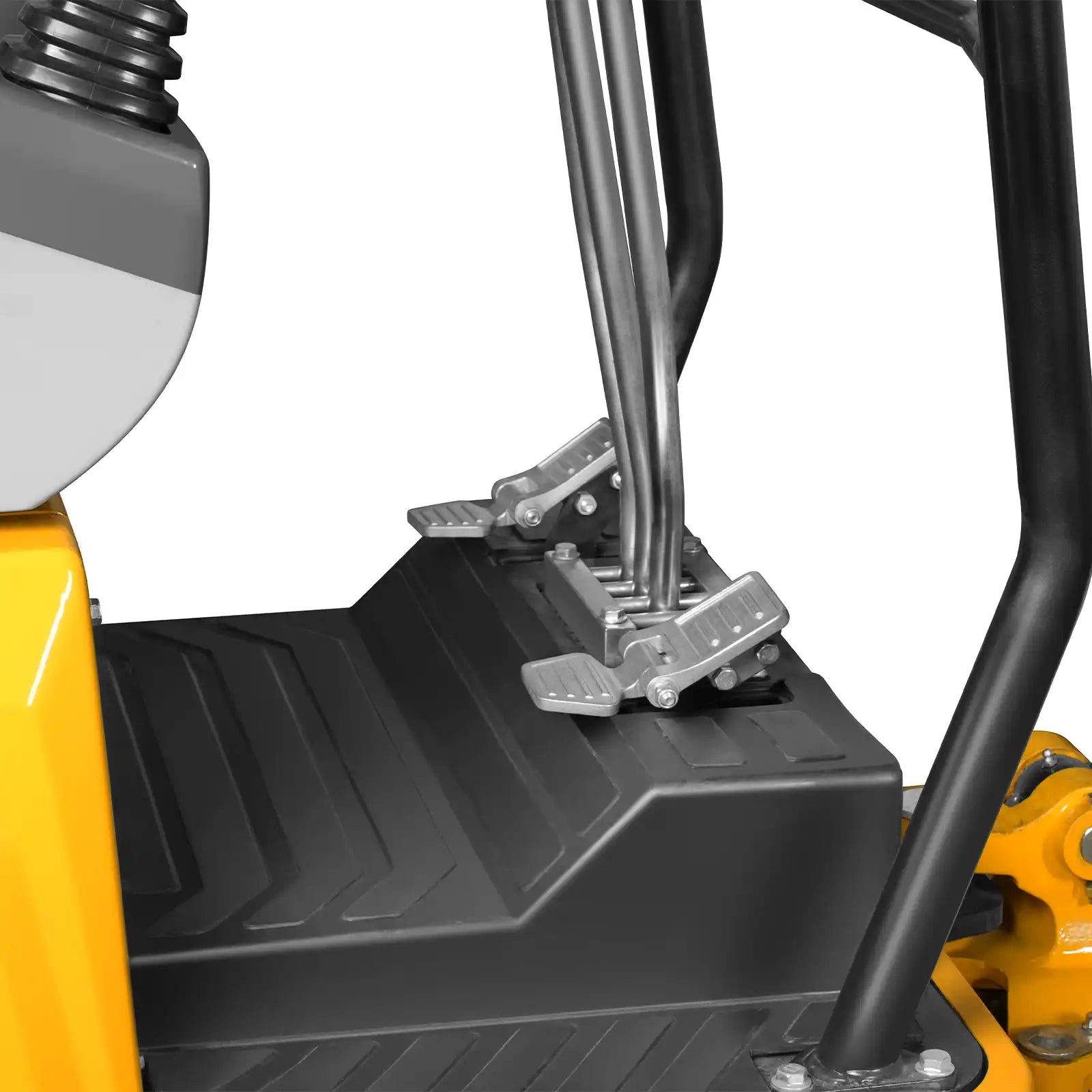

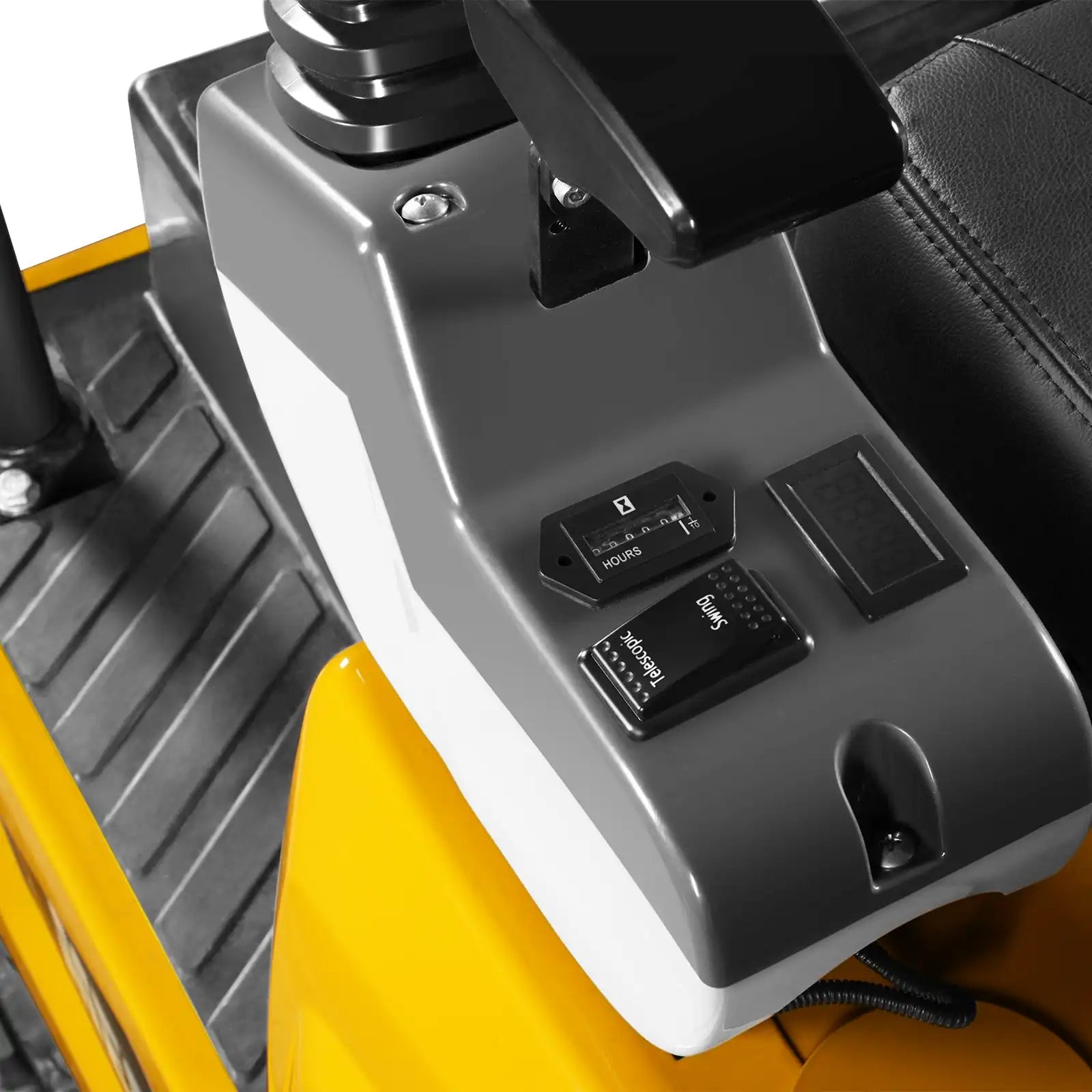

  • The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • 65.7-inch digging depth reach capability and a 118.7in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Can rotate 360 degrees.




Note!

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

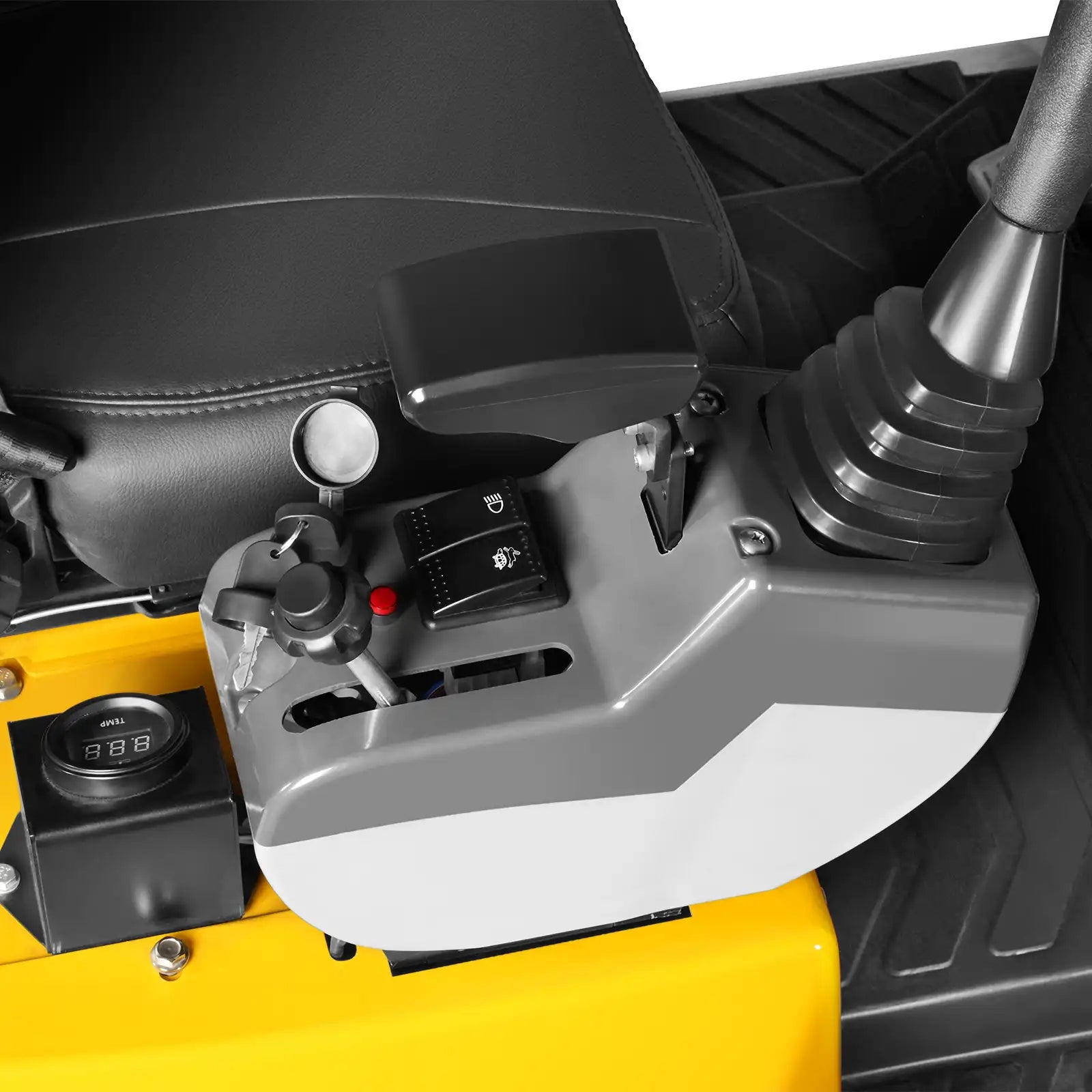

  • Pilot-Operated Control: The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • High and Low Speed: The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • Swing Arc: The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
  • Digging Depth: It features an all-around 65.7-inch digging depth reach capability and a 121.2-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

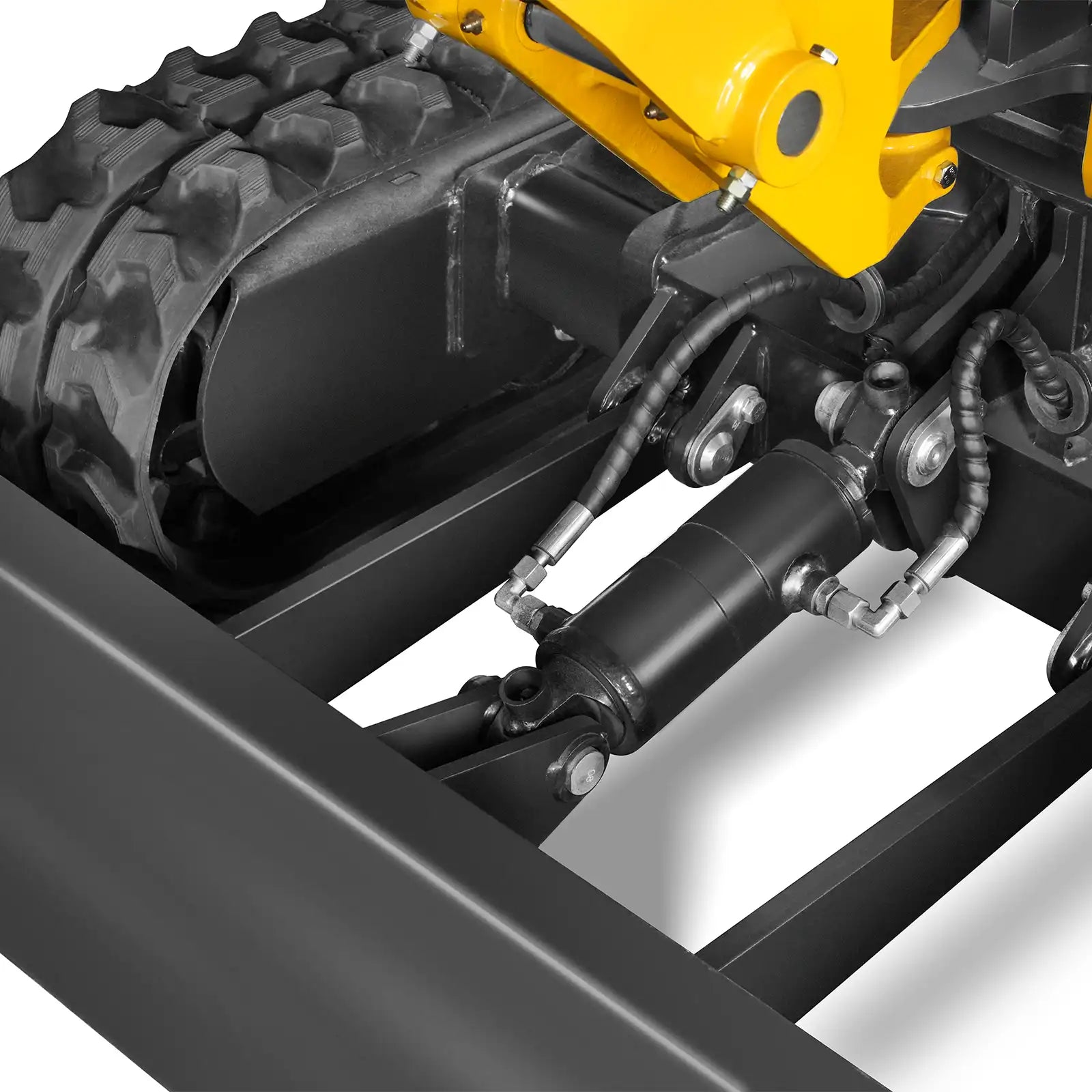

  • Track Retractable Function: It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.

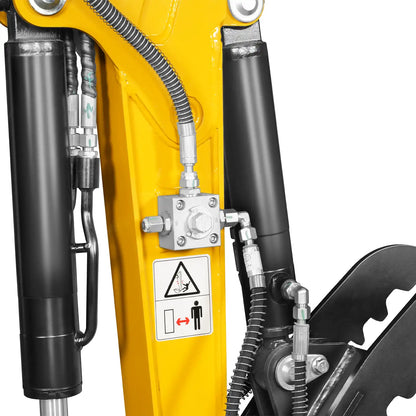

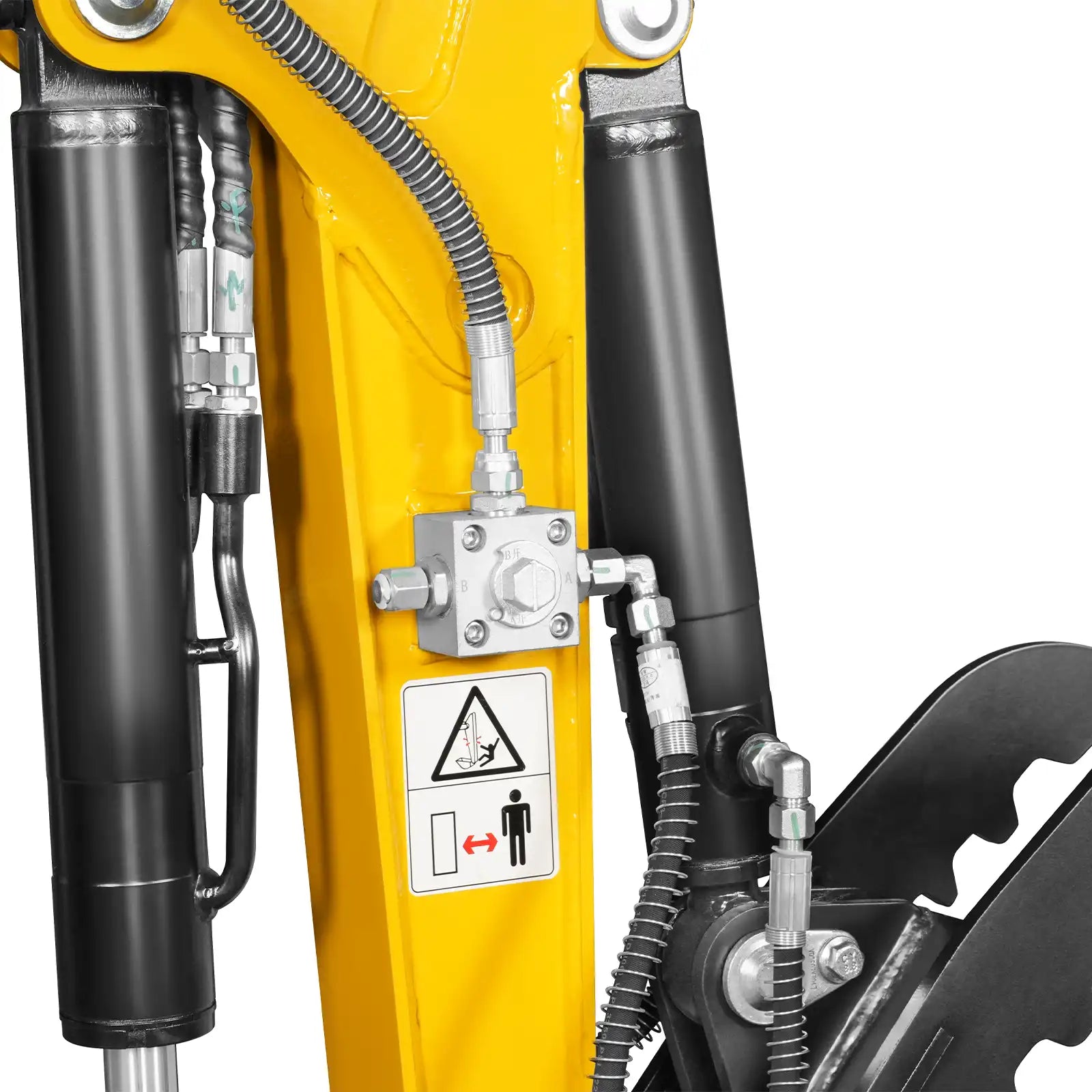

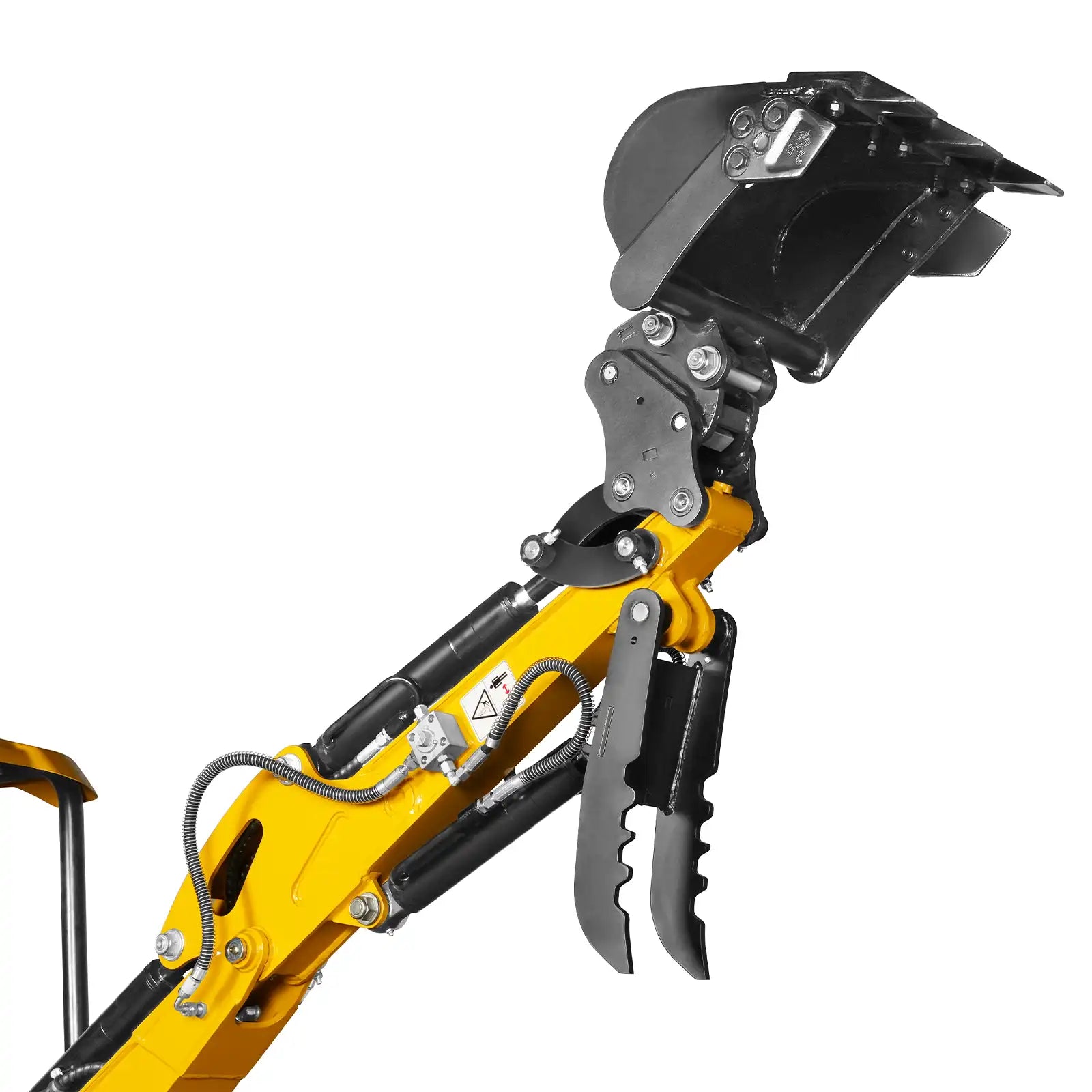

  • Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

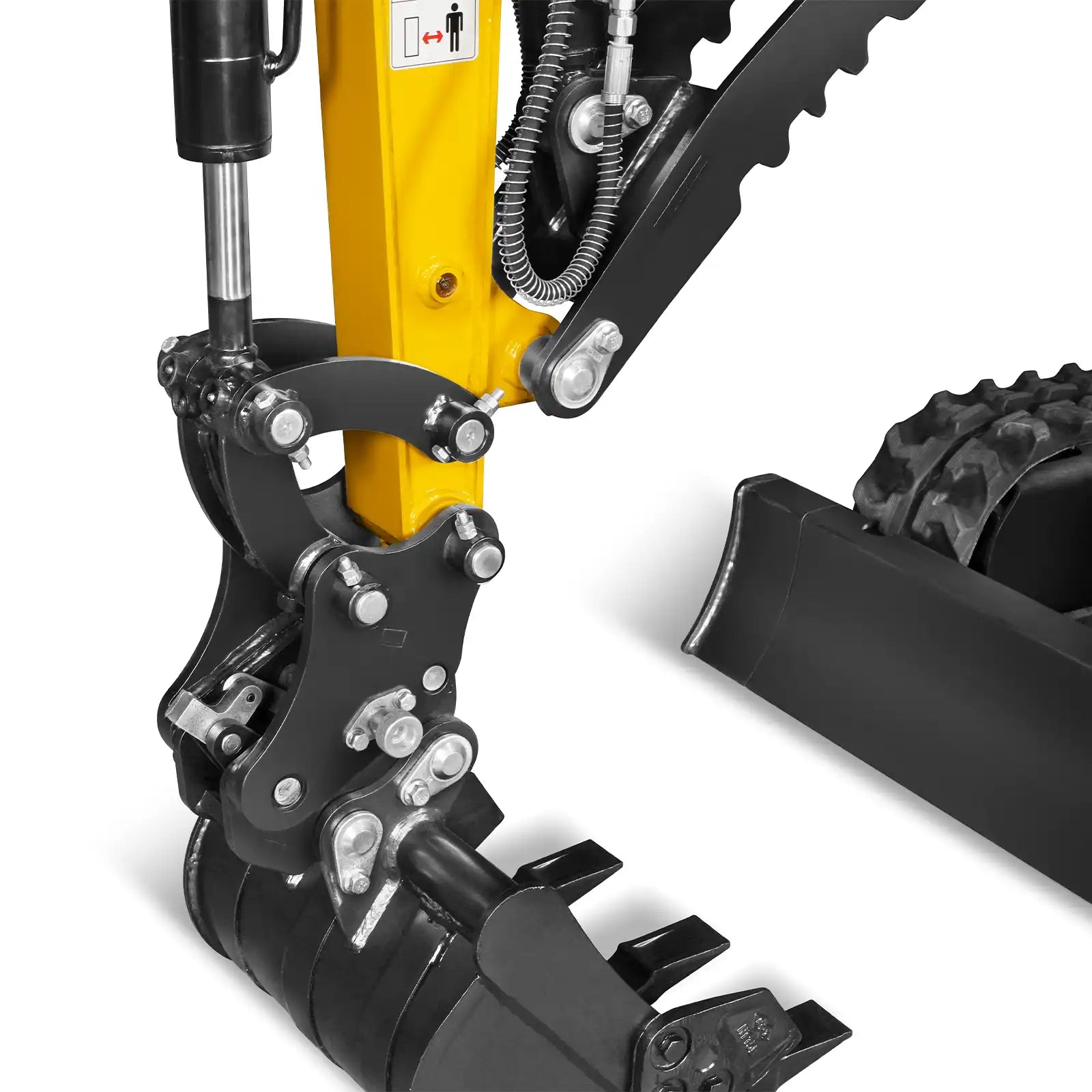

  • Semi-automatic Quick Hitch: The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.
  • High-Back Seat: For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.

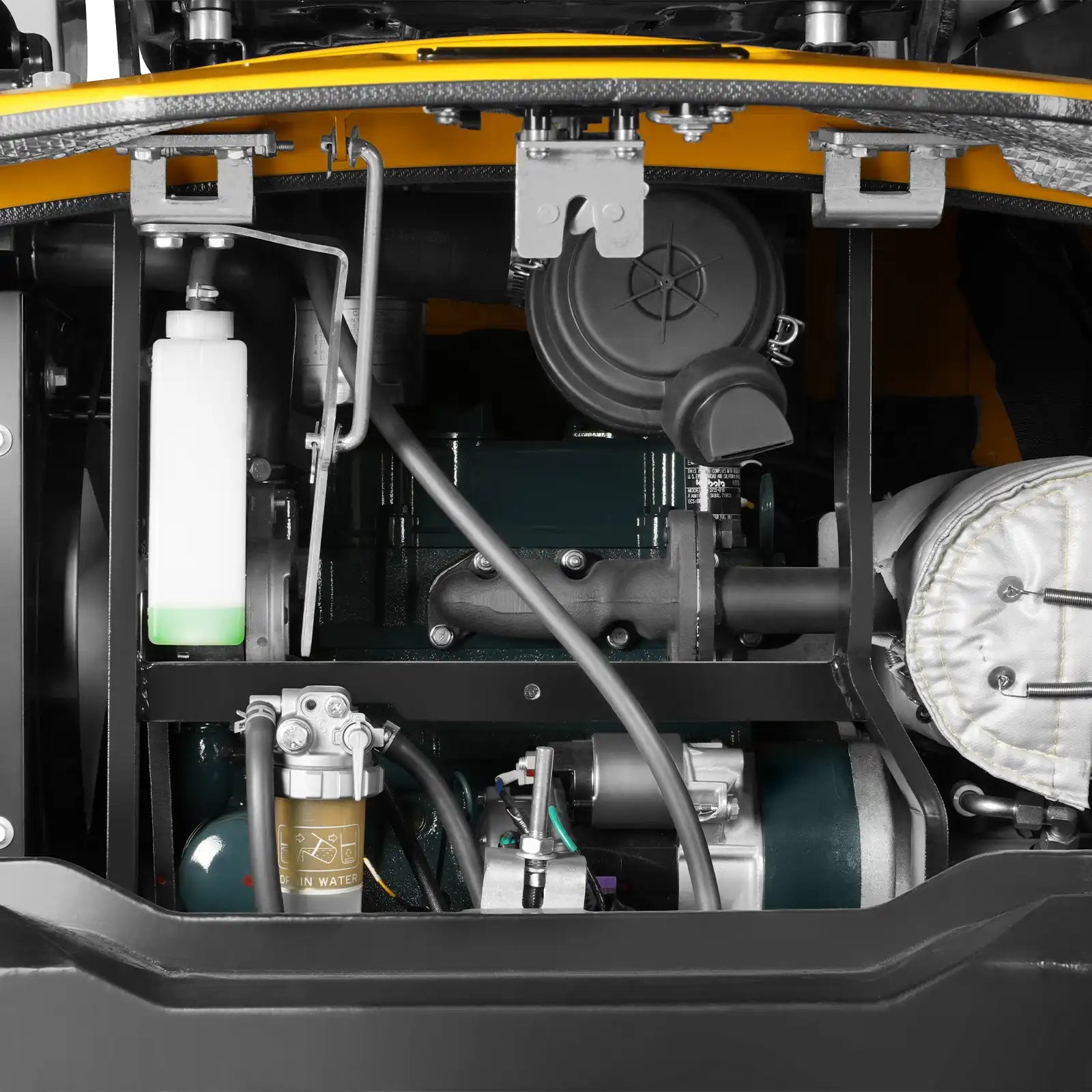

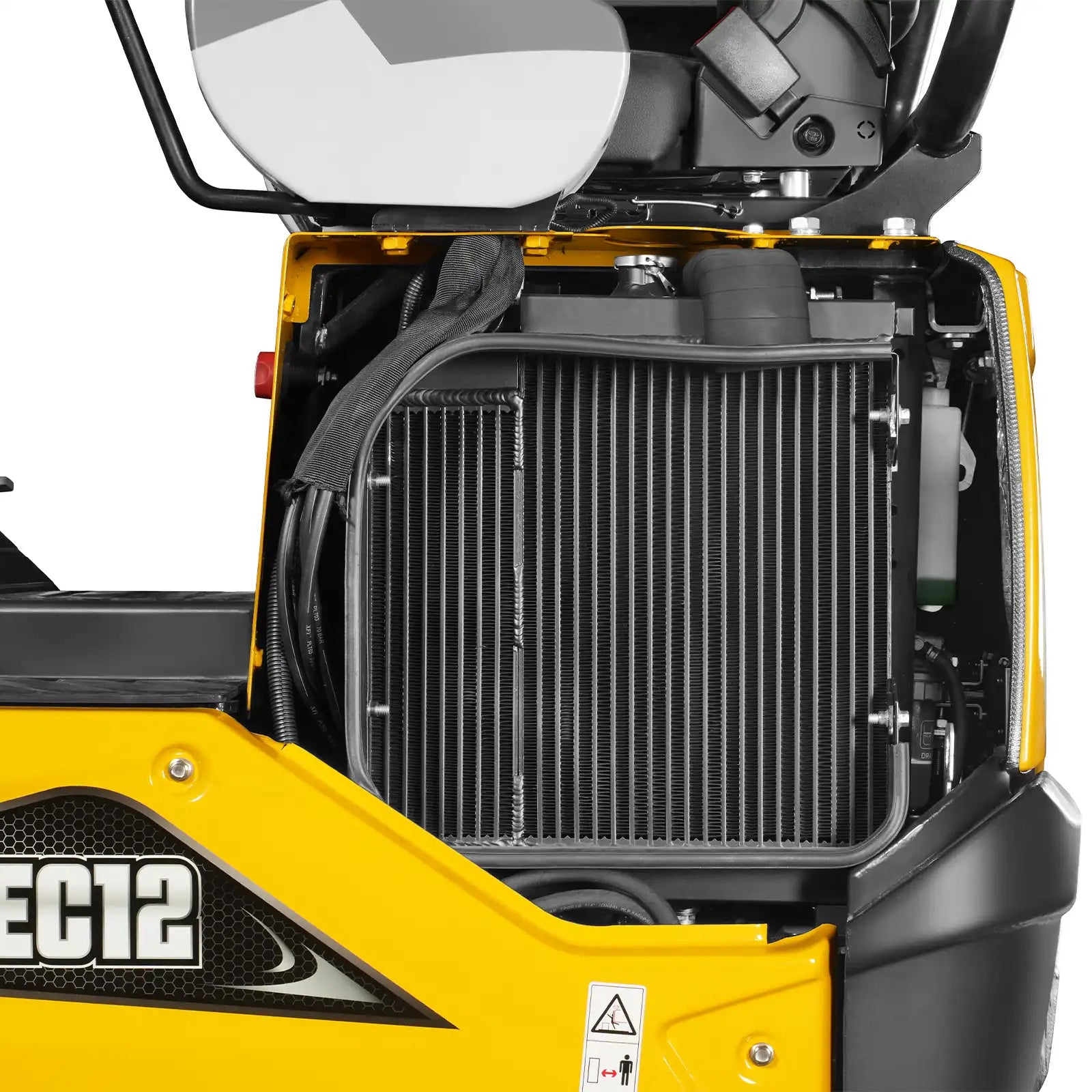

  • The Hydraulic Oil Radiator: Engine compartment design allows the operator to avoid noise during work. The hydraulic oil radiator and engine shaft end fan perfectly reduce the temperature of the console to within 104.0 °F.

Model: Kubota D722

Rated speed: 2500rpm

No.Of Cylinders: 3

Displacement: 43.88in³

Stroke: 2.68in

Engine Output: 13.7hp

Bore: 2.64in

Warranty for Engine: 2-Year

Travel Speed - High: 2.24 mile/h

Ground Clearance: 15.9in

Travel Speed - Low: 1.12 mile/h

Ground Pressure: 5.1psi

Maximum Traction Force - Low Speed: 2923lbf

Gradeability - Maximum: Maximum 30 degrees

Operating Weight: 2700lb

Type: Load Sensing Hydraulics with Variable Displacement Piston Pump

Max.Discharge Flow: 4.65 gpm

Swing Speed: 8rpm

Tail Swing Radius: 48.1in

Boom Length: 52in

Bucket Digging Force: 1960lbf

Arm length: 35in

Arm Digging Force: 875lbf

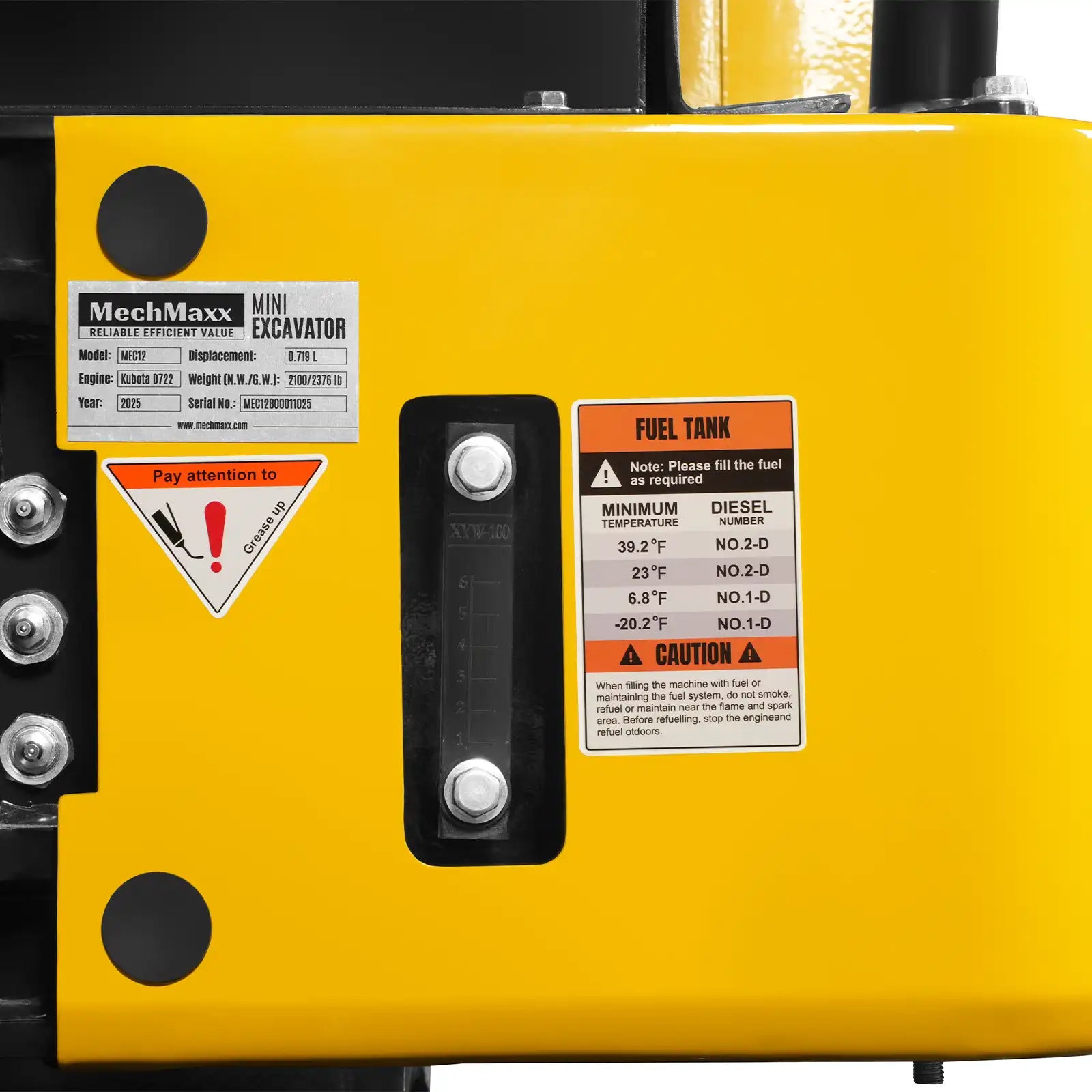

Fuel Tank: 2.4gal

Hydraulic Oil Tank: 3.2gal

Cooling System: 1.1gal

System Capacity: 4.8gal

Engine Oil: 0.7gal

Bucket Capacity: 0.7 ft³

Bucket Width: 15 in

Max.Digging Height: 111.2in

Min Turning Radius Of Working Device: 48.1in

Max.Dumping Height: 81.1in

Max. Lift Above Ground: 5.5in

Max.Digging Depth: 65.7in

Max. Drop Below Ground: 8.9in

Max.Vertical Digging Depth: 62.6in

Boom Swing - Left: 53°

Max Digging Radius: 119in

Boom Swing - Right: 40°

Max.digging Radius At Ground Level: 118.7in

Transportation Length: 92.4in/114.8in

Crawler Wheel Base: 42.5in

Overall Width (Retracted/Expanded): 42.7 in

Track Belt/Shoe Width: 7in

Overall Height(To Top Of Cab): 89.5in

Track Length: 55.5in

Counter Weight Ground Clearance: 16.7in

Track Width(Retracted/Expanded): 34.6 in/42.7 in

Ground Clearance: 15.9in

Package Method: Wood Case

Warranty for Machine: 1 Year

Packing Size: 91x40x98 in

Weight (N.W./G.W.): 2700/2978 lb

This item comes with a 1 year factory warranty.
