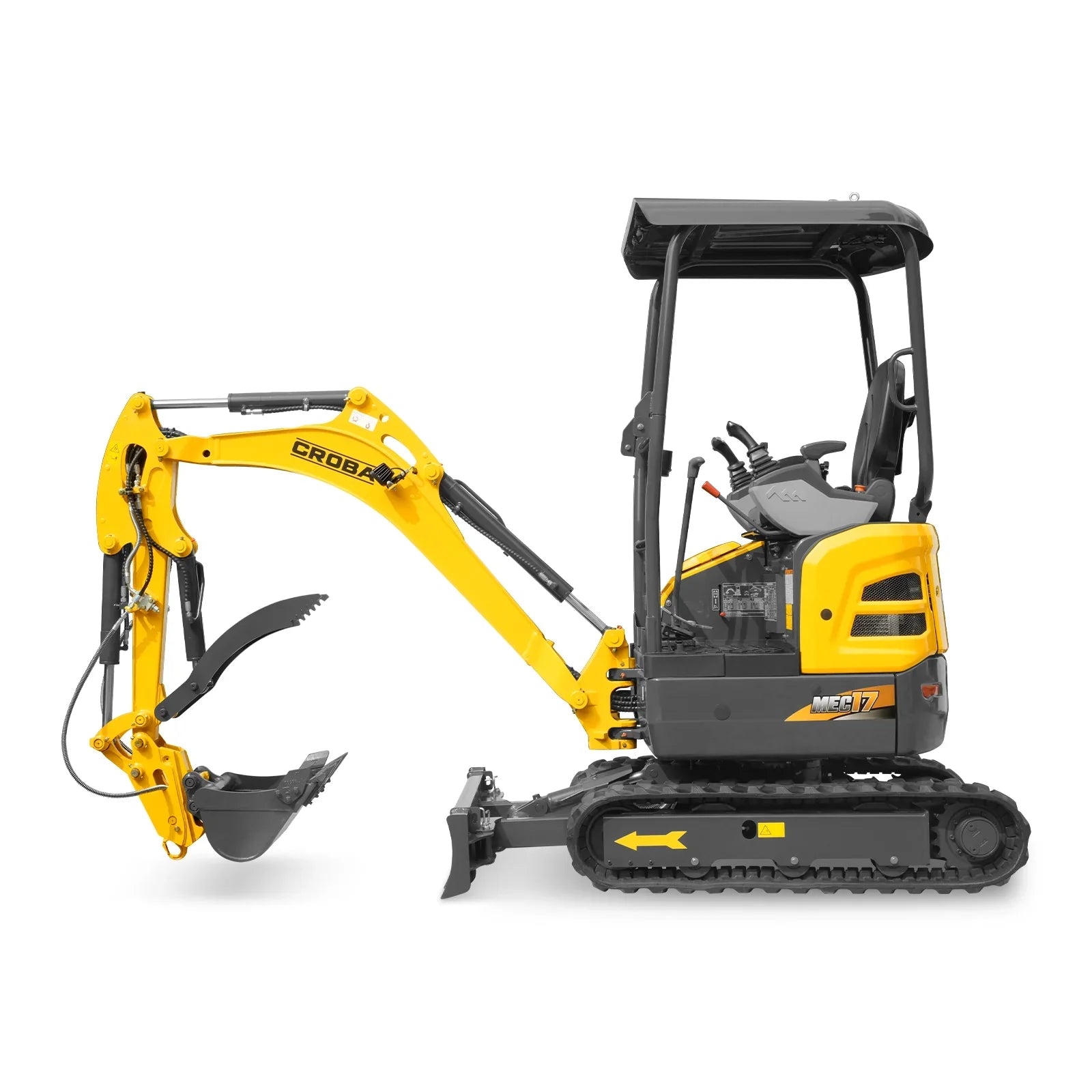

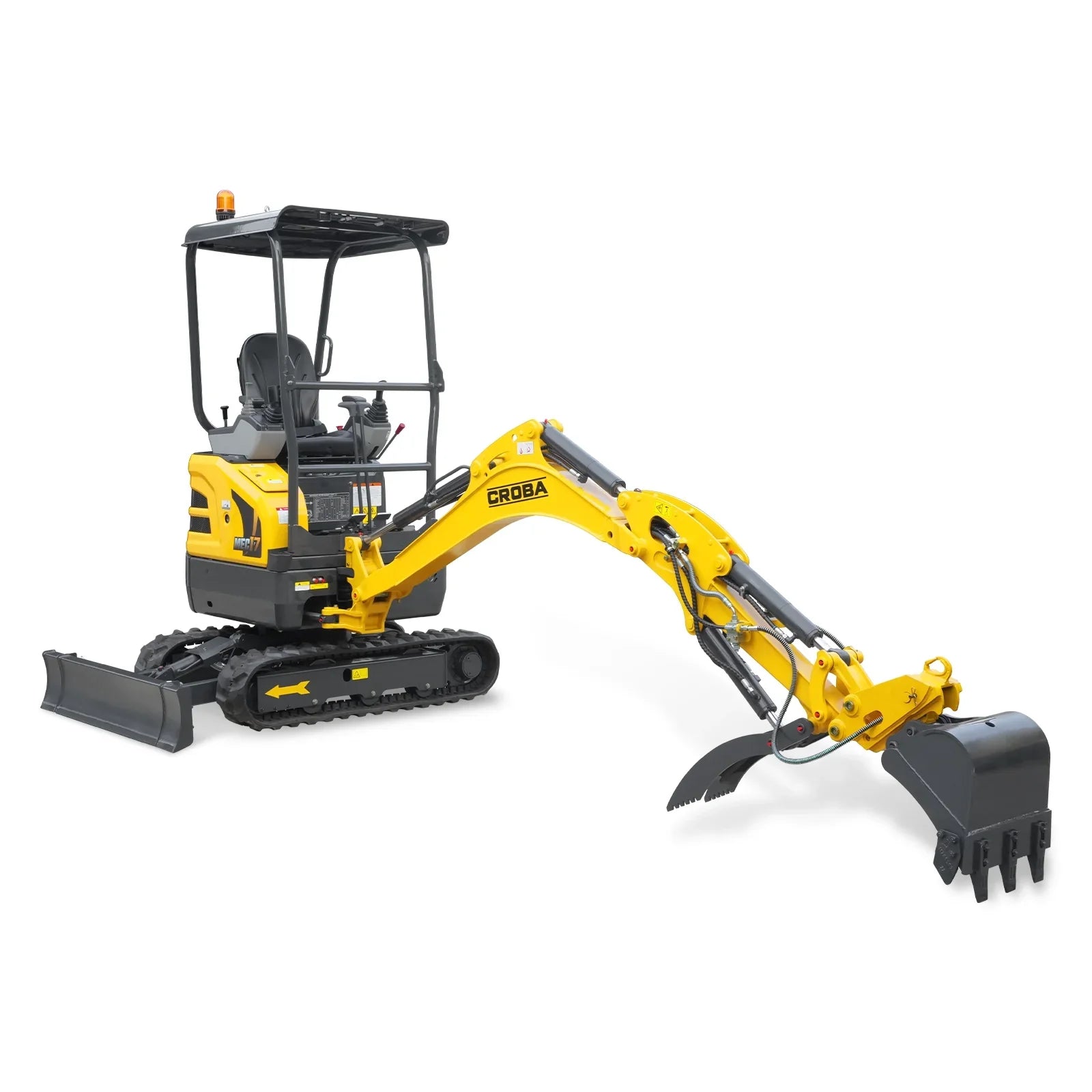

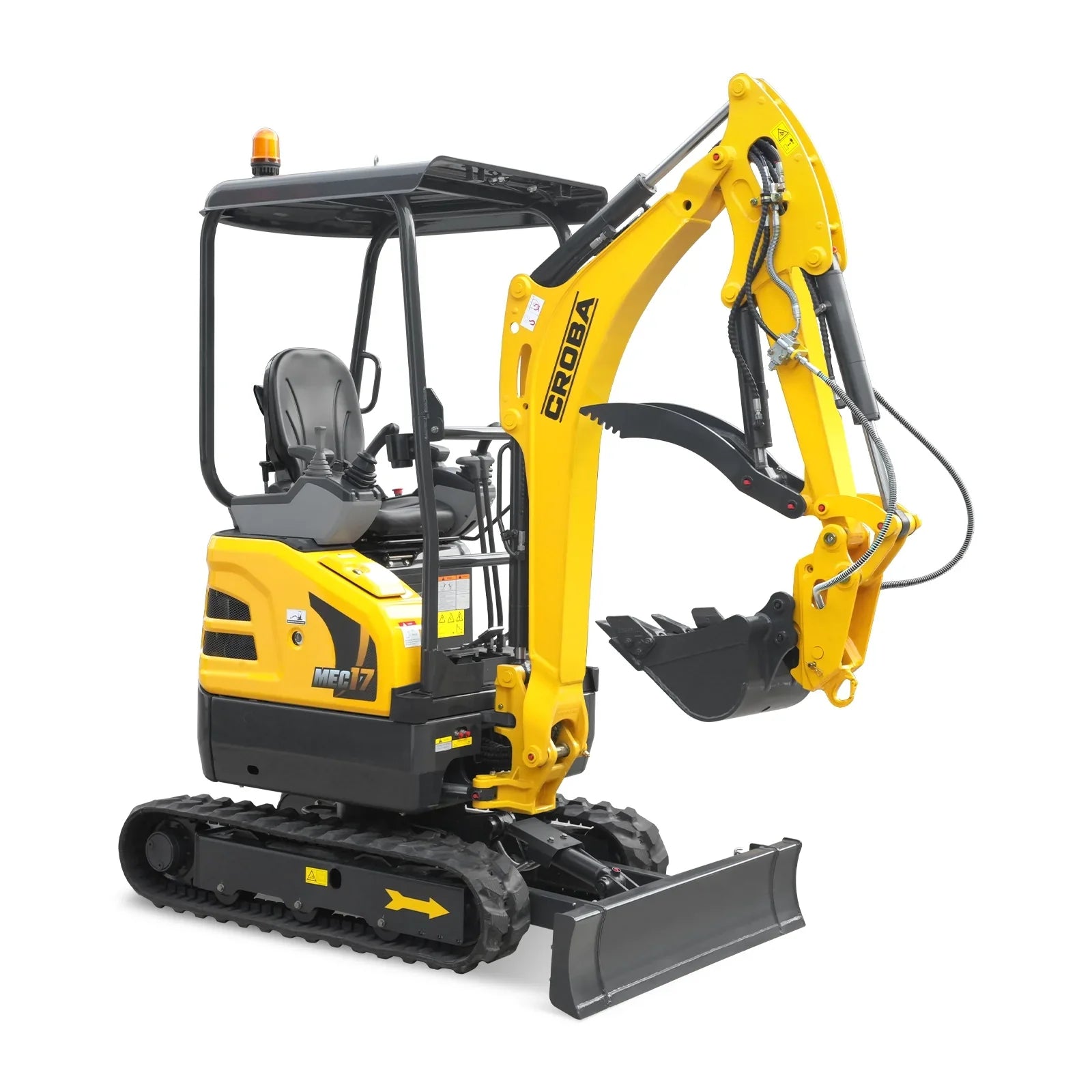

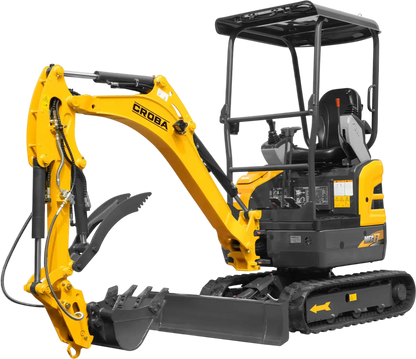

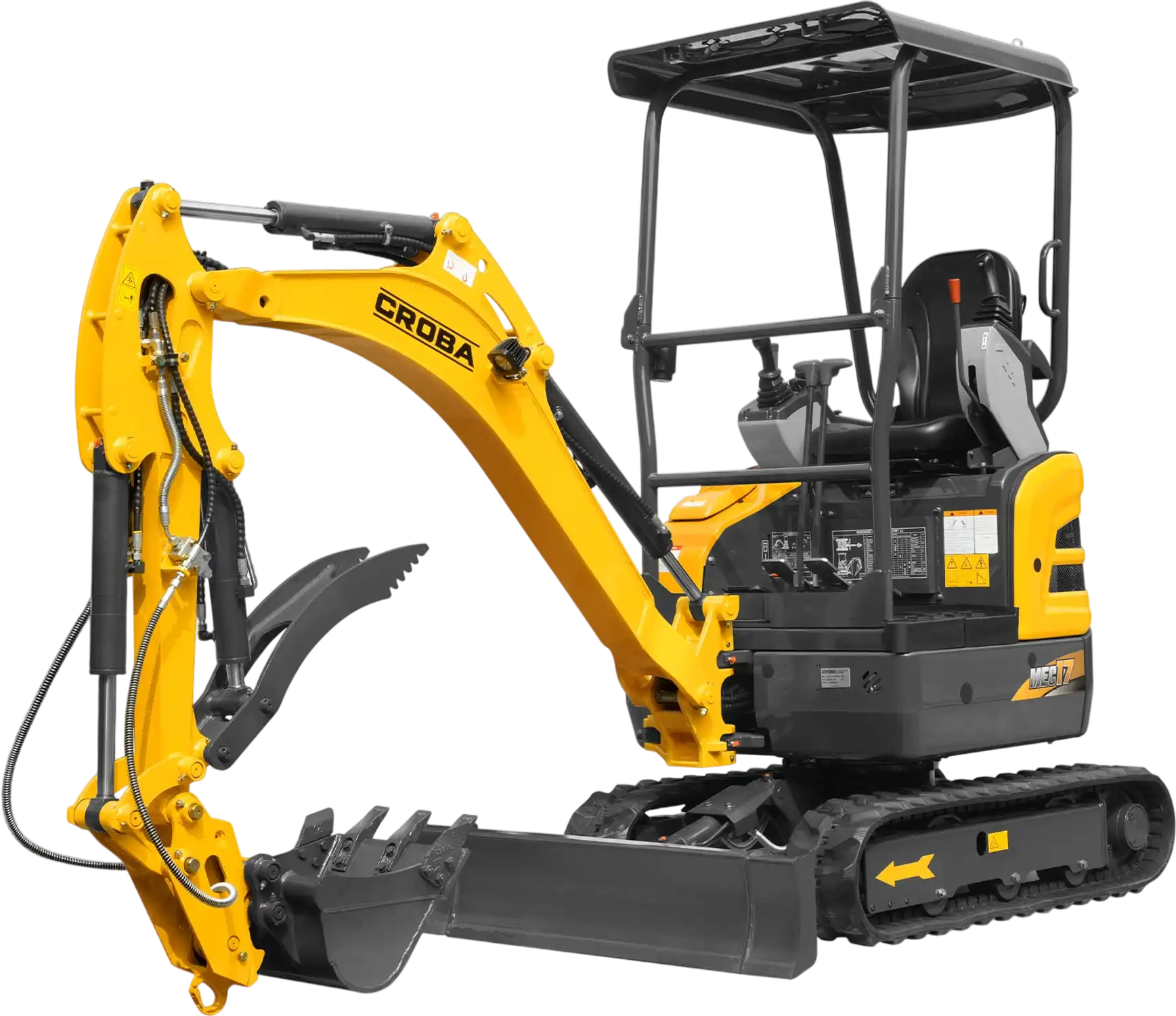

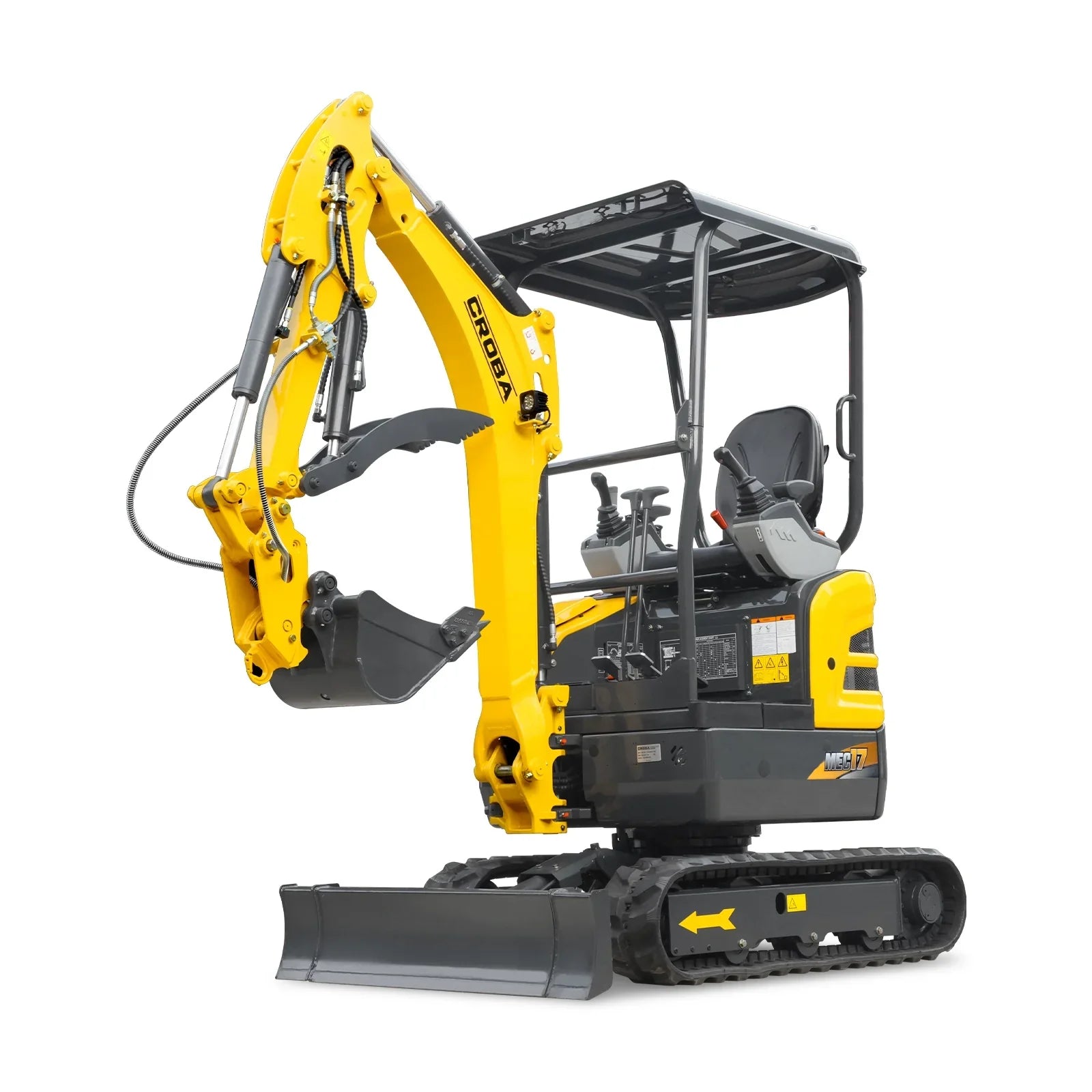

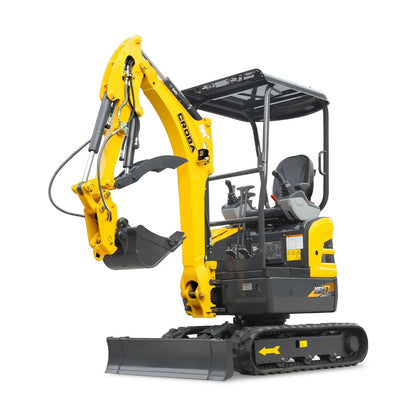

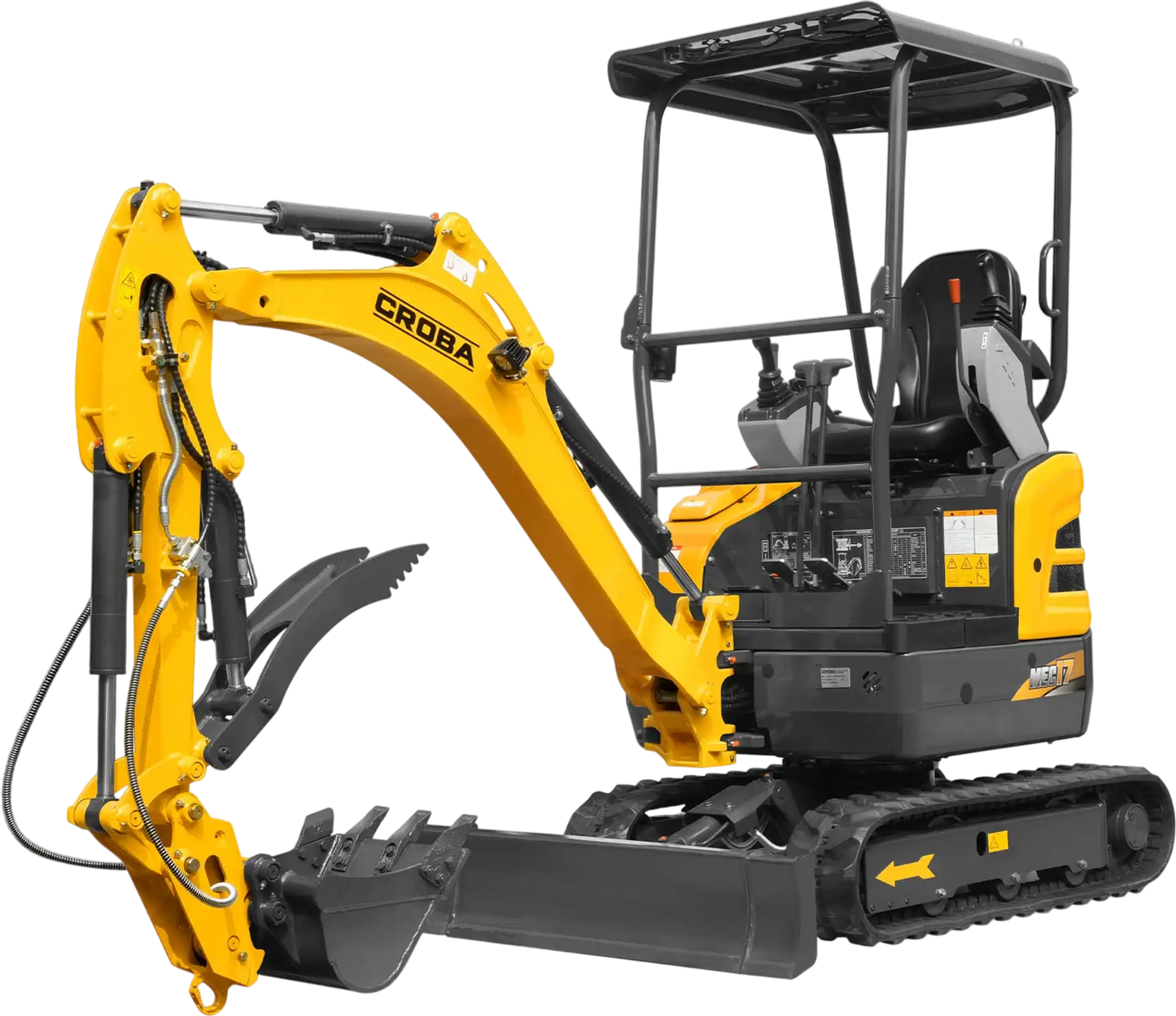

MechMaxx MEC17 Mini Excavator Compact Kubota D902 Engine 95" Max Digging Depth 1.7 Ton 4190 lbs Operating Weight New

MechMaxx

$29,999.00
$29,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • MEC17PRO is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.

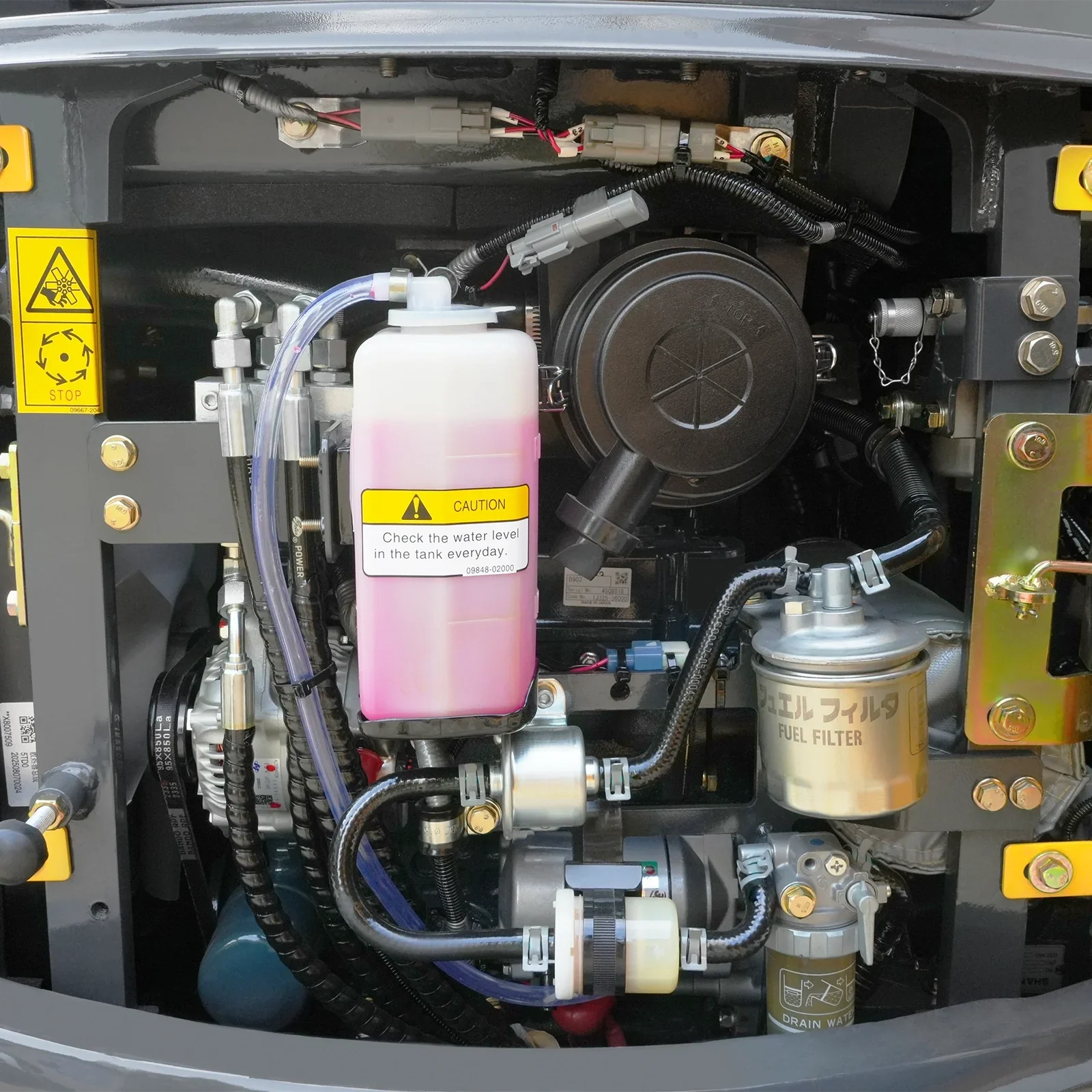

  • Powered by Kubota D902 engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
  • It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.
  • The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.

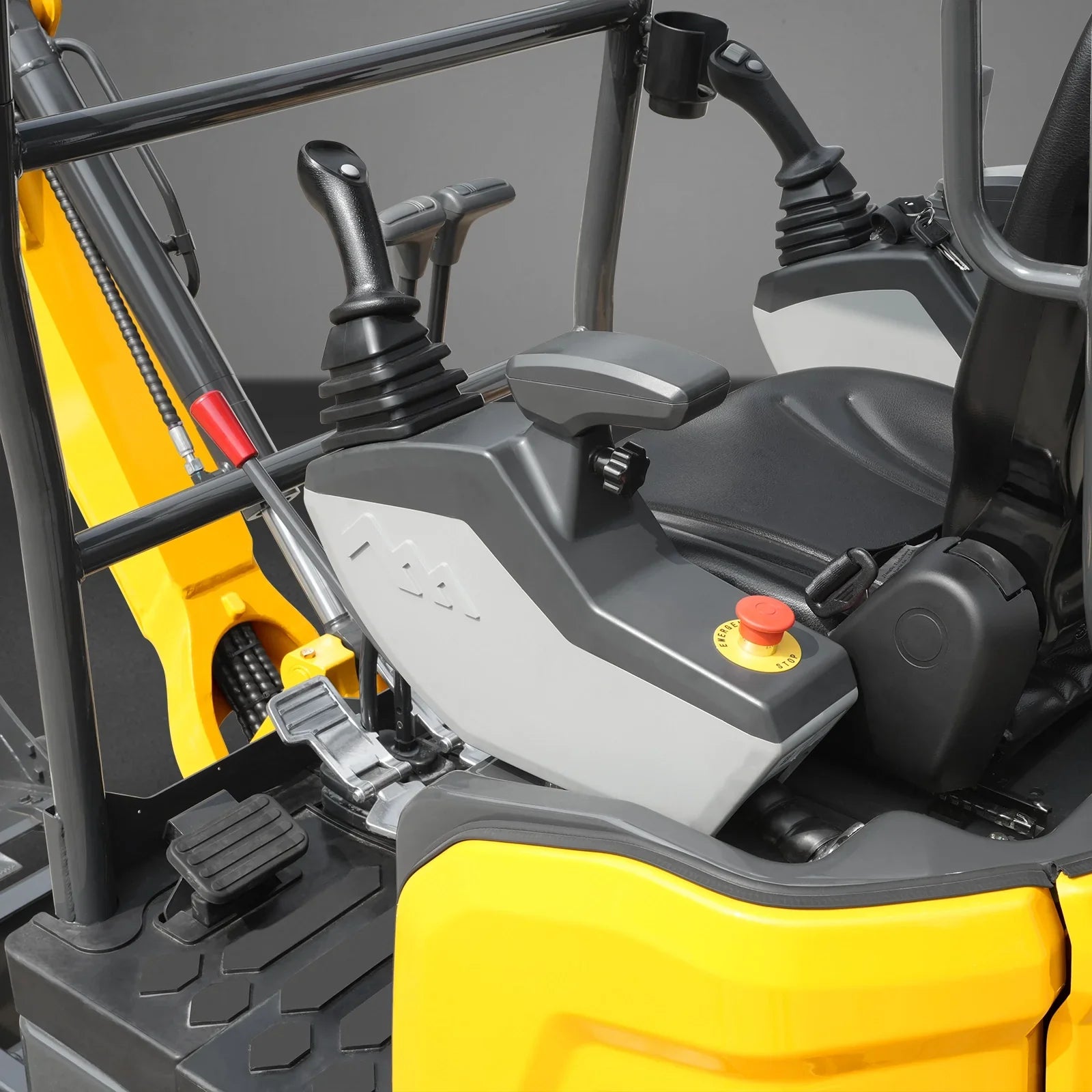

  • The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • Zero-tail swing design with adjustable undercarriage and boom swing function ensures excellent maneuverability and full coverage in confined spaces.
  • Equipped with an LCD display for easy operation and real-time monitoring.
  • Built-in hydraulic hoses effectively prevent damage from impacts during construction.
  • Features durable, Gates hydraulic hoses for reliable performance and long service life.
  • 90in digging depth reach capability and 157in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Can rotate 360 degrees.




Note!

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

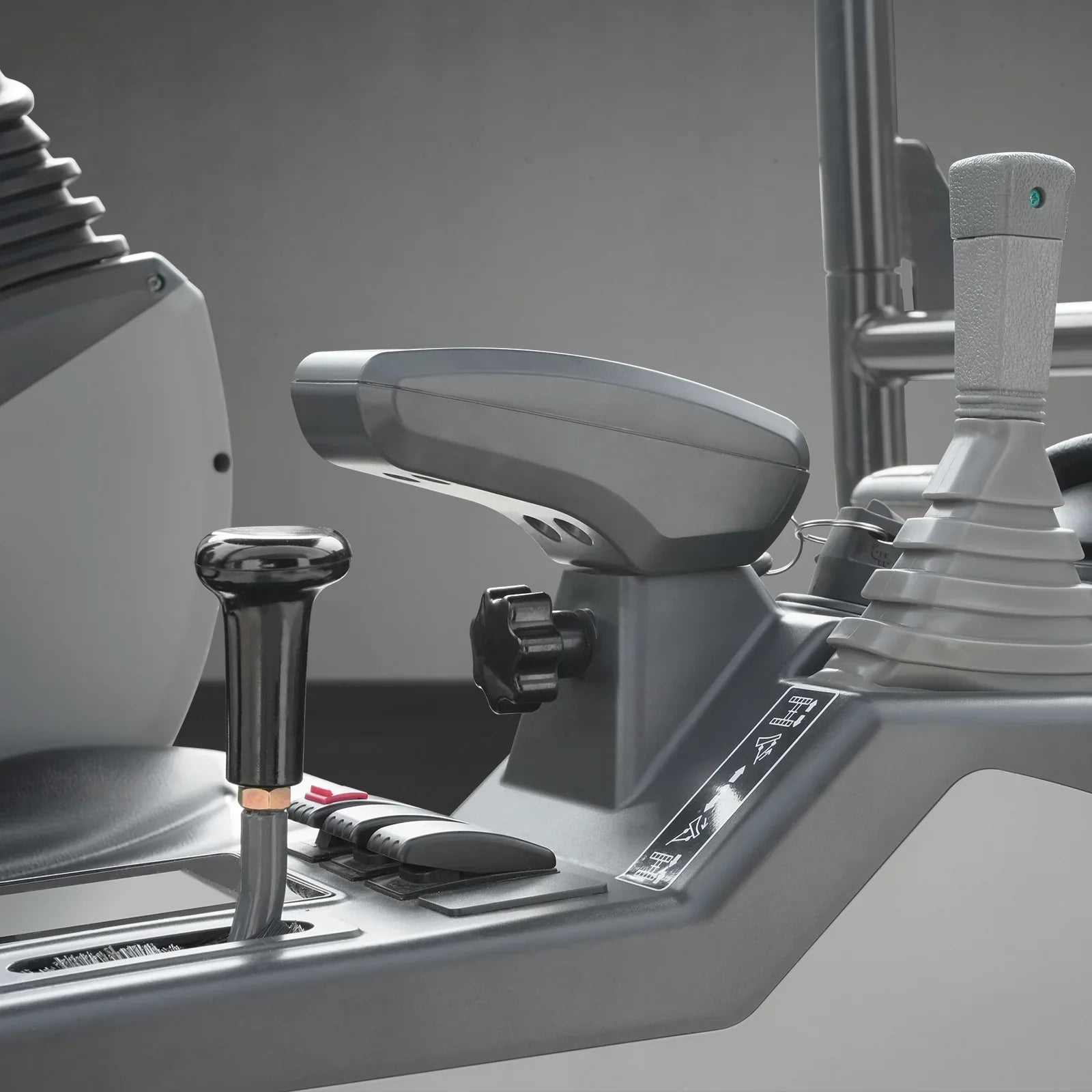

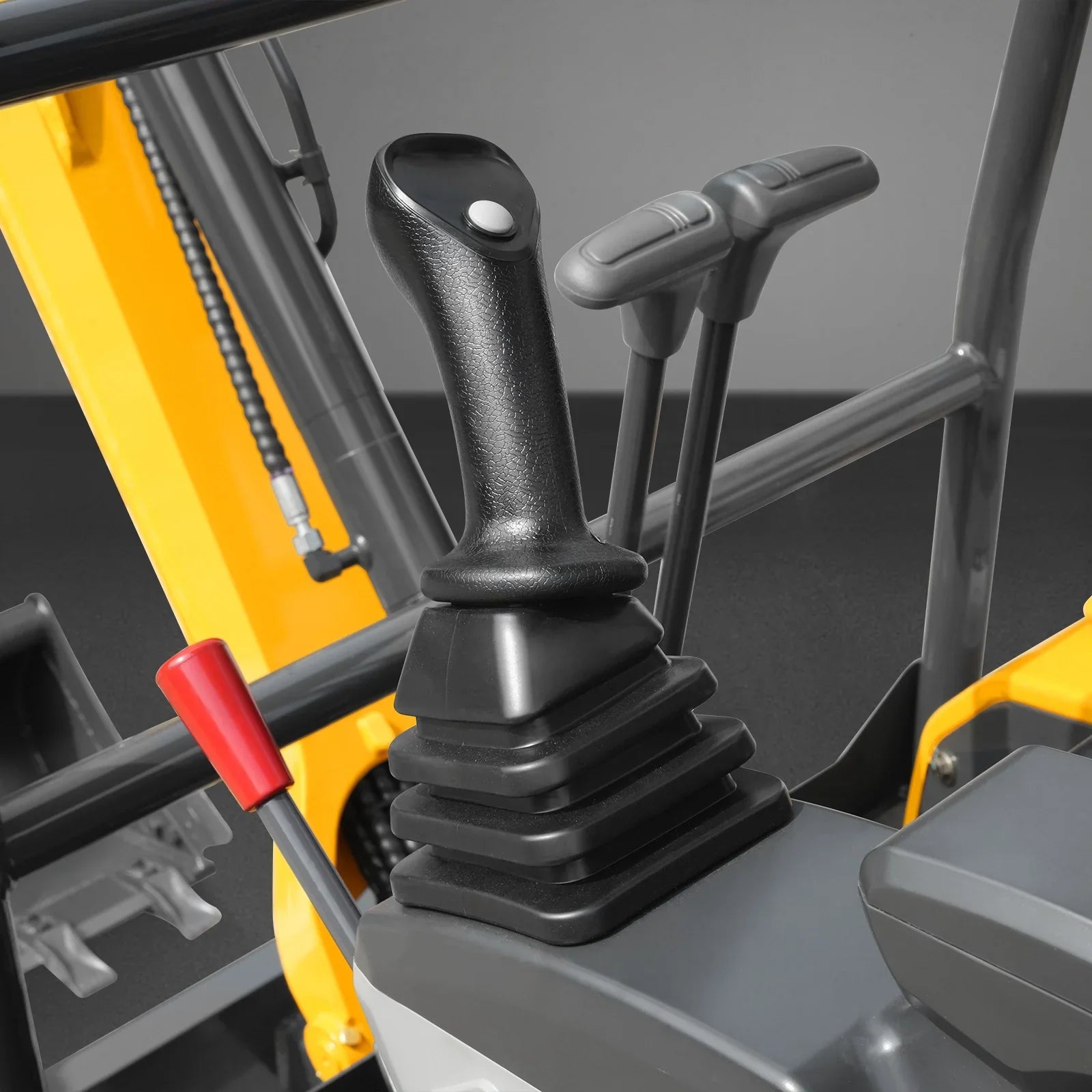

  • Pilot-Operated Control: The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods. The pulsator handle is a vital control component designed to regulate hydraulic flow and manage precise machine operations.
  • Zero-Tail Swing: With zero-tail swing, adjustable undercarriage, and boom swing function, this mini excavator delivers unmatched maneuverability and precision — even in the most confined job sites.
  • High and Low Speed: The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • Swing Arc: The digging arm can swing left and right, turn 65 degrees to the left and 50 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.
  • Digging Depth: It features an all-around 95-inch digging depth reach capability and a 160-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

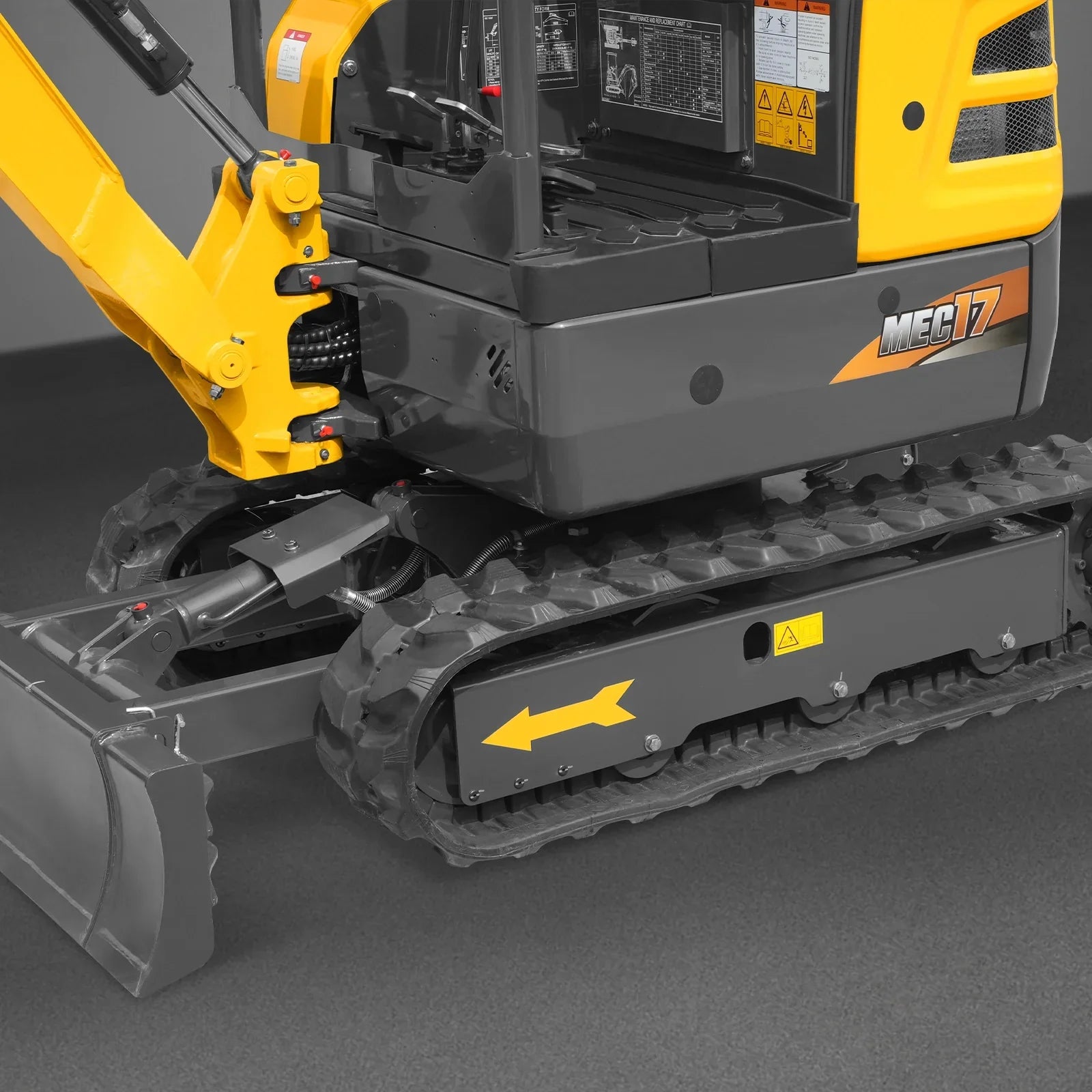

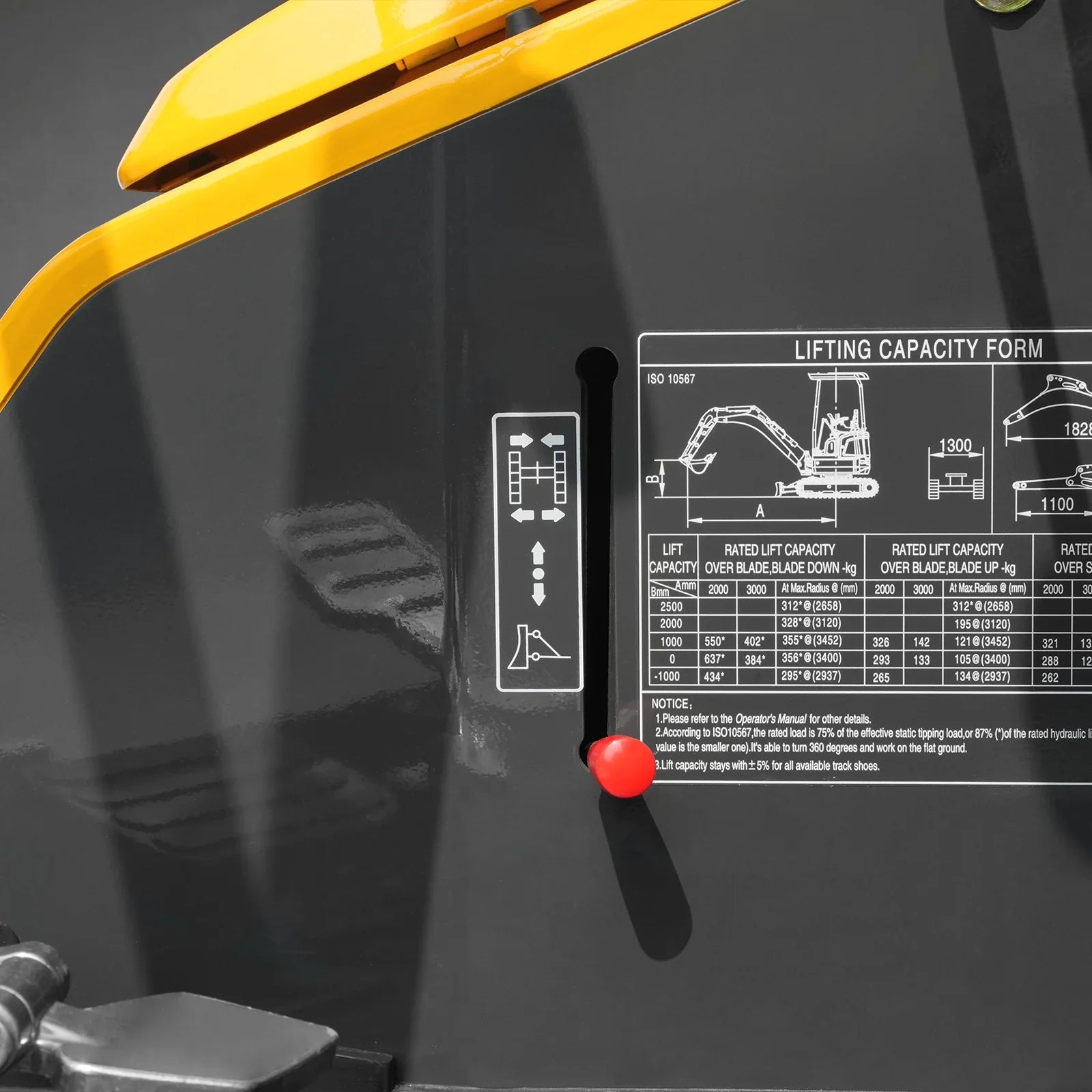

  • Track Retractable Function: It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.

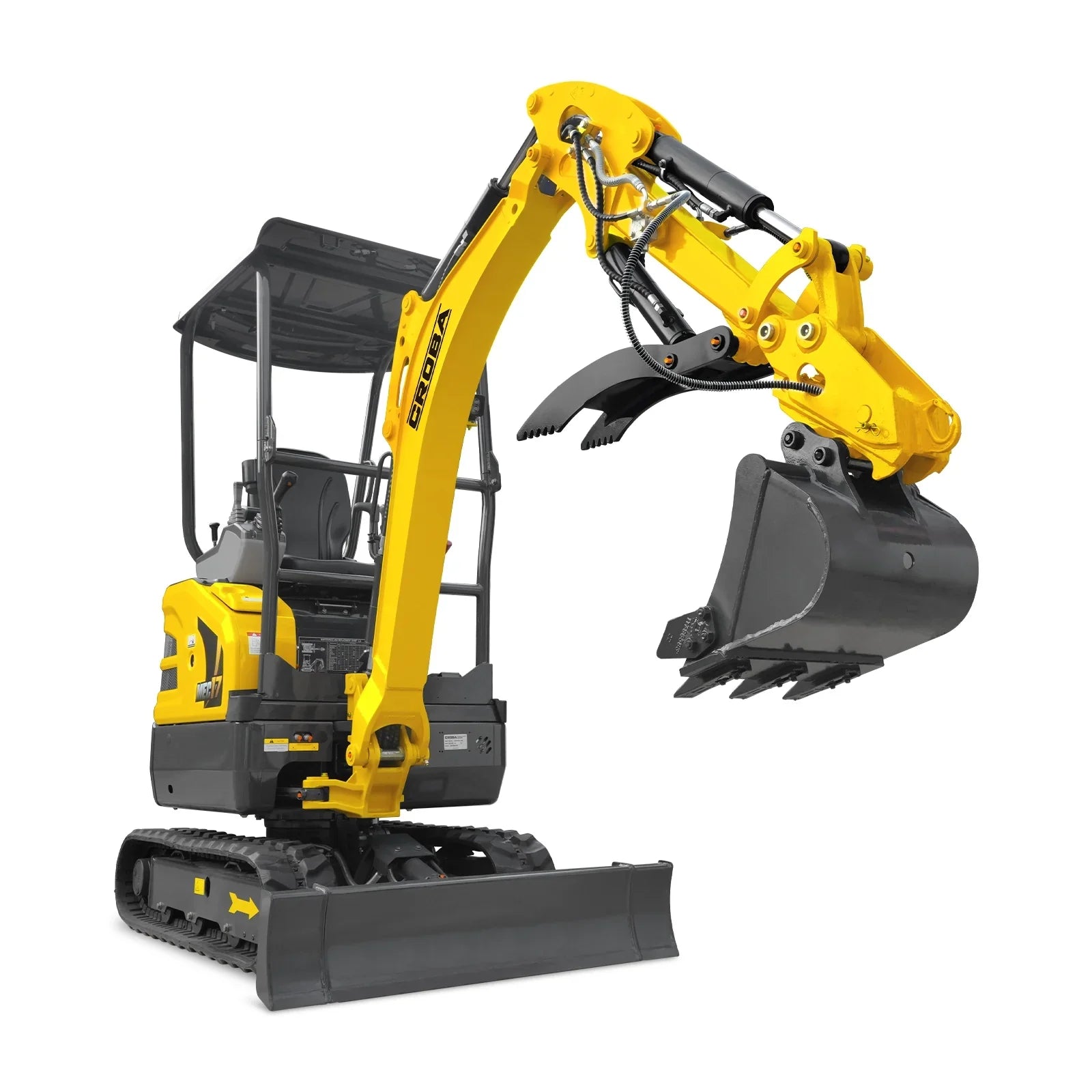

  • Hydraulic Thumb: The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Gates Hydraulic Hoses &Protected Hydraulic System: Equipped with high-quality, Gates hoses for exceptional durability, reliability, and long-lasting performance. Built-in hydraulic hoses are safely enclosed to prevent damage during tough construction work — keeping your projects running smoothly.
  • Control Switch: Designed with left-handed operators in mind — simply twist the knob to reverse joystick controls, allowing seamless left- or right-hand operation with ease and comfort.
  • Hydraulic Semi-Automatic Quick Hitch: The hydraulic quick hitch is made of durable steel, controlled by the pulsator handle, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.

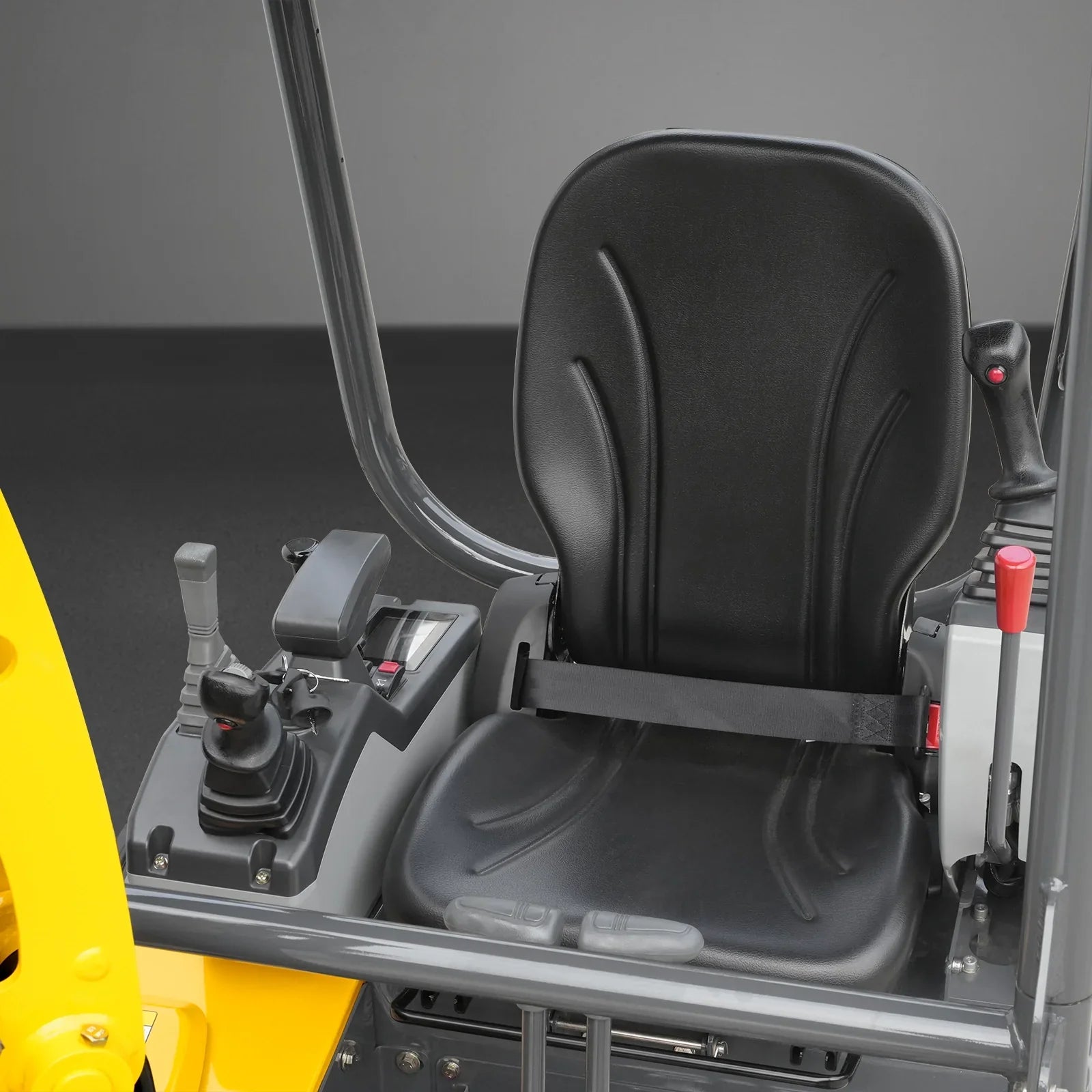

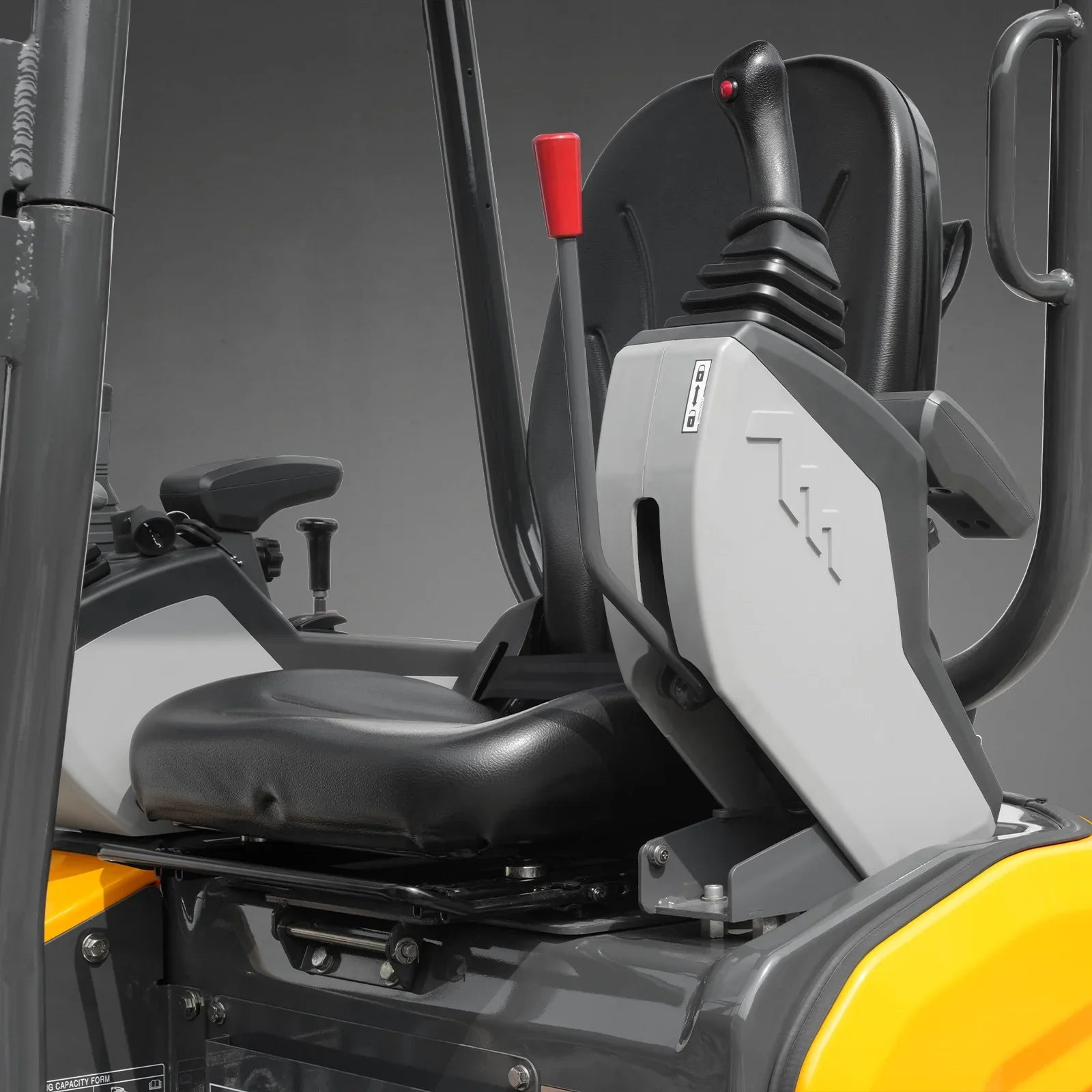

  • High-Back Seat: For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.
  • Smart LCD Display: Stay in control with an intuitive LCD screen that makes operation simpler, smarter, and more efficient.

Model: Kubota D902

Rated speed: 2300rpm

No.Of Cylinders: 3

Displacement: 54.8in³

Stroke: 2.9in

Engine Output - Net: 15.8hp

Bore: 2.83in

Warranty For Engine: 2-Year or 2,000-Hour Warranty, Whichever Comes First.

Track Roller Qty: 6

Maximum Traction Force - Low Speed: 4047lbf

Type of tracks: Rubber

Ground Clearance: 5.7in

Travel Speed - High: 2.67 mile/h

Ground Pressure: 4.2psi

Travel Speed - Low: 1.37 mile/h

Gradeability - Maximum: Maximum 30 degrees

Operating Weight: 4190lb

Pump Flow at 2,300 rpm: 17gpm

Auxiliary Circuit - Secondary - Flow: 2.6gpm

Auxiliary Circuit - Primary - Flow: 9.1gpm

Swing Motor: Danfoss

Swing Speed: 9.5rpm

Swing Motor Type: SW2.5K

Tail Swing Radius: 25.6in

Boom Length: 72in

Bucket Digging Force: 3597lbf

Arm length: 43.3in

Arm Digging Force: 2136lbf

Fuel Tank: 5gal

Hydraulic Oil Tank: 3.6gal

Engine Oil: 1gal

System Capacity: 5.7gal

Bucket Capacity: 1.4ft³

Bucket Width: 17.7in

Max.Digging Height: 147in

Min Turning Radius Of Working Device: 57in

Max.Dumping Height: 104in

Max. Lift Above Ground: 11in

Max.Digging Depth: 95in

Max. Drop Below Ground: 7.5in

Max.Vertical Digging Depth: 81in

Boom Swing - Left: 65°

Max Digging Radius: 160in

Boom Swing - Right: 50°

Max.digging Radius At Ground Level: 157in

Overall Length: 133in

Blade Height: 11.8in

Ground Contact Length (Transportation): 96in

Crawler Wheel Base: 48.4in

Overall Width (Retracted/Expanded): 39/51in

Shoe Width: 9.1in

Overall Height(To Top Of Cab): 94.7in

Track Length: 62.7in

Counter Weight Ground Clearance: 18in

Track Gauge(Retracted/Expanded): 30/42in

Ground Clearance: 5.7in

Track Width(Retracted/Expanded): 39/51in

Blade Width(Retracted/Expanded): 39/51in

Package Method: Wood Case

Warranty For Machine: 1 Year

Packing Size: 112.6x43.7x99.2 in

Weight (N.W./G.W.): 4012/4580lb
