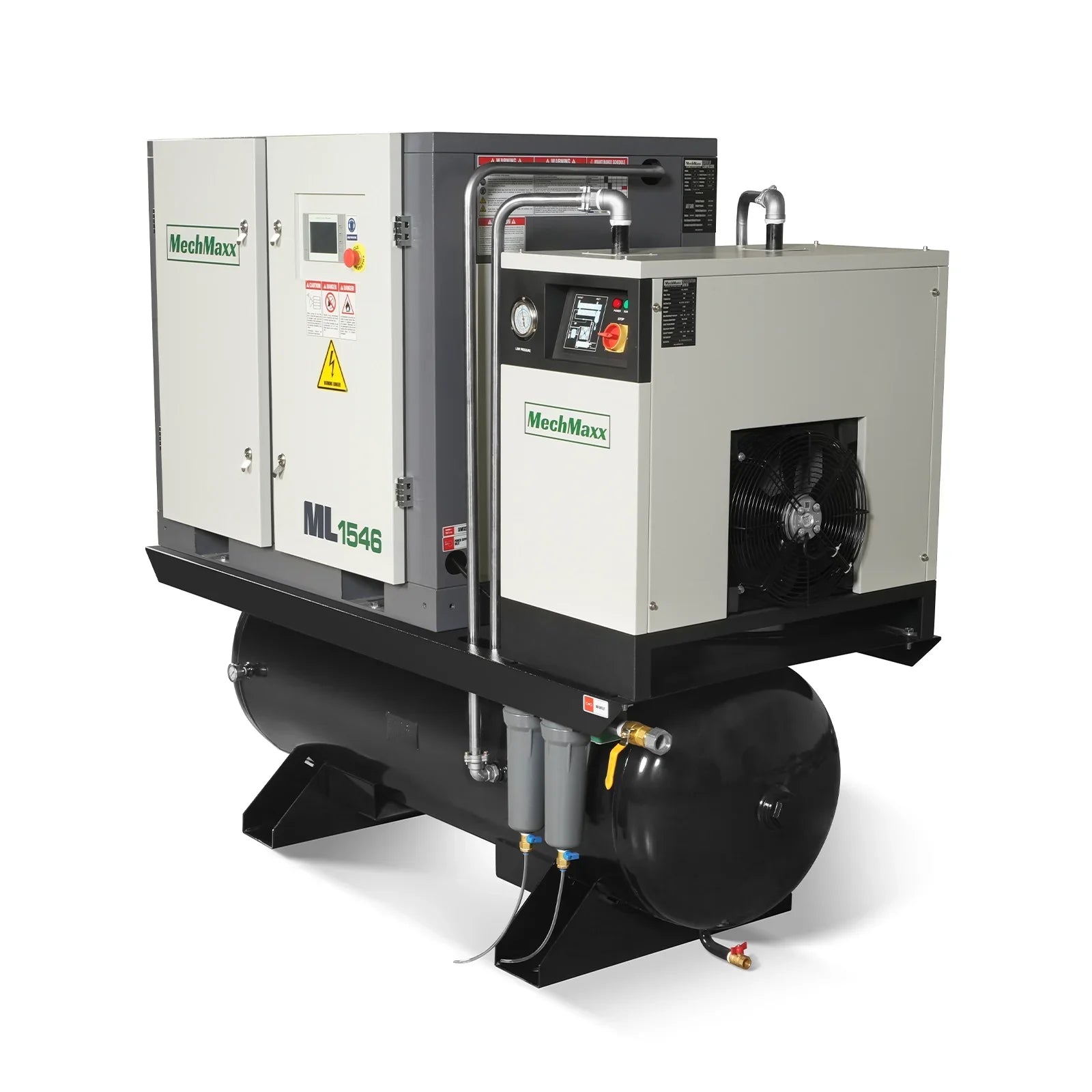

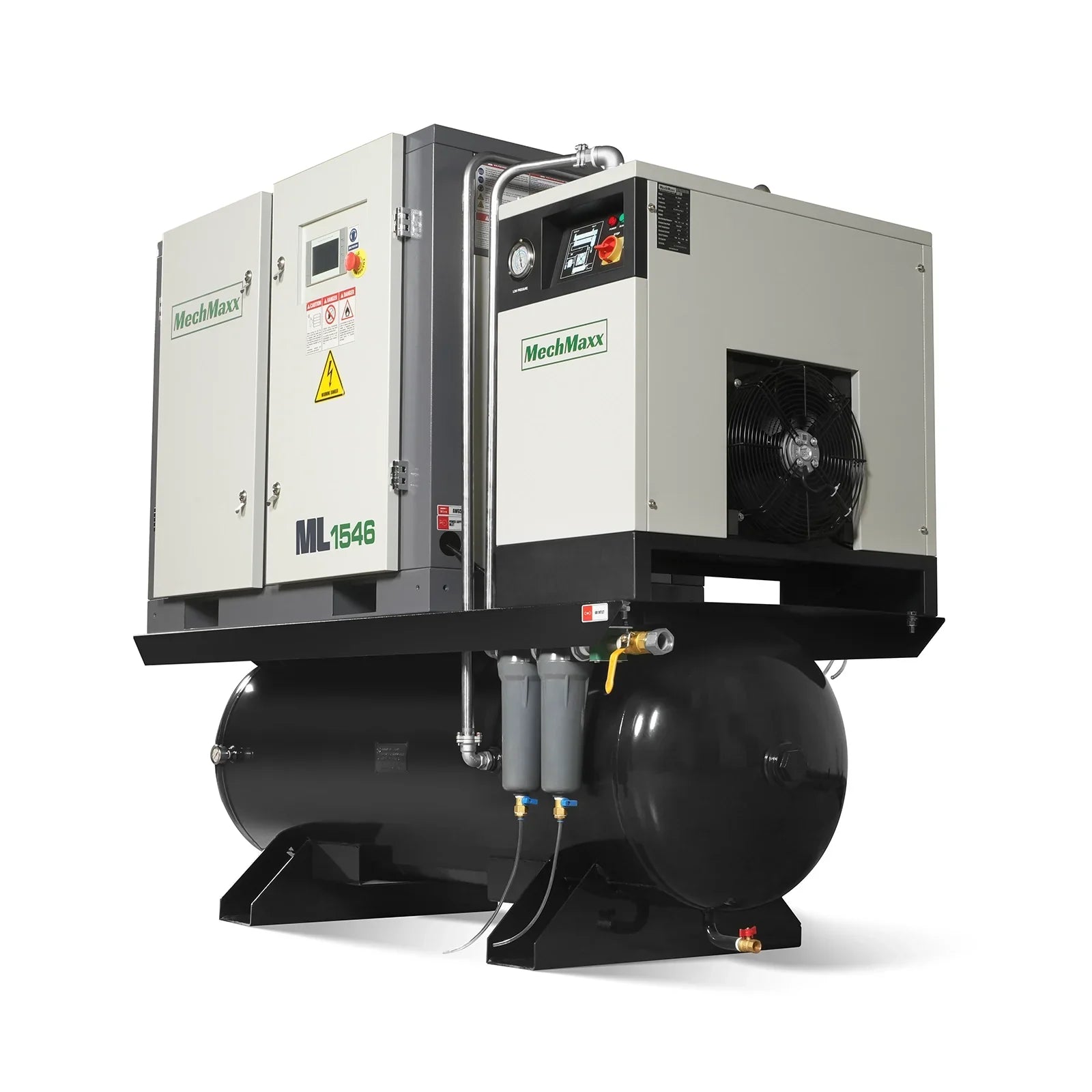

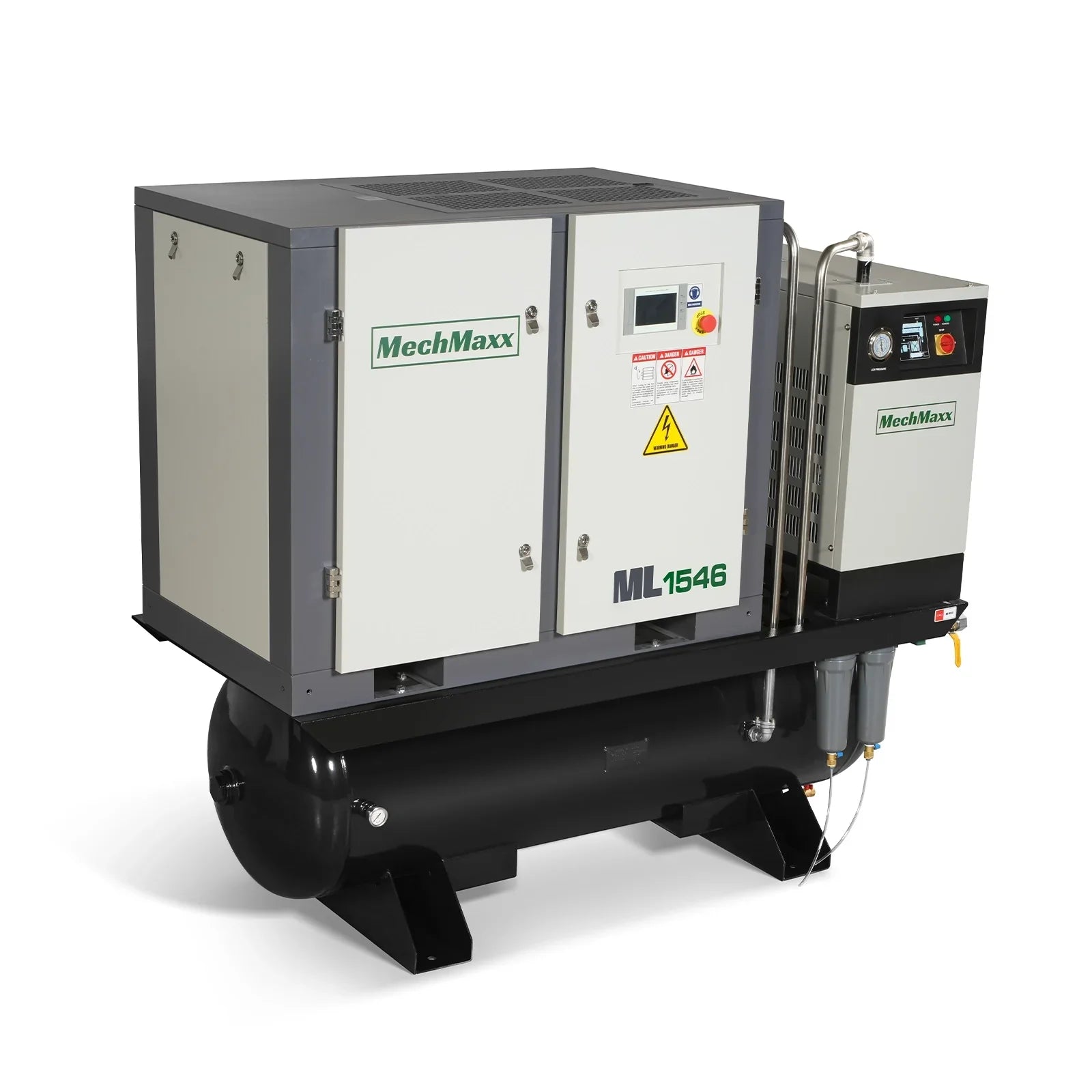

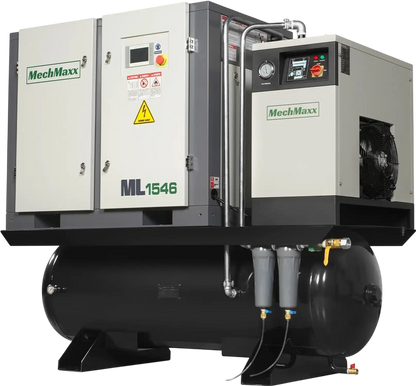

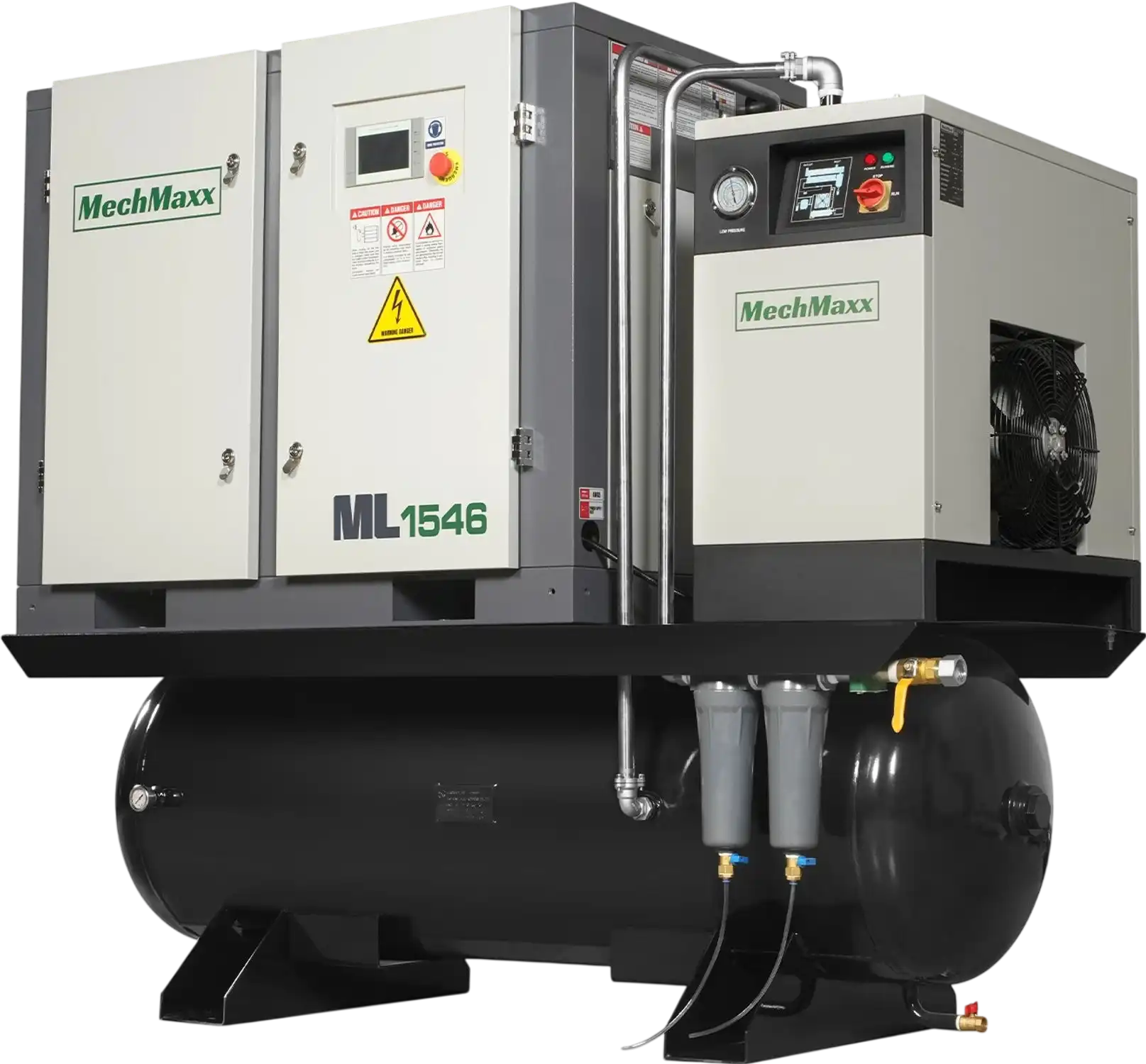

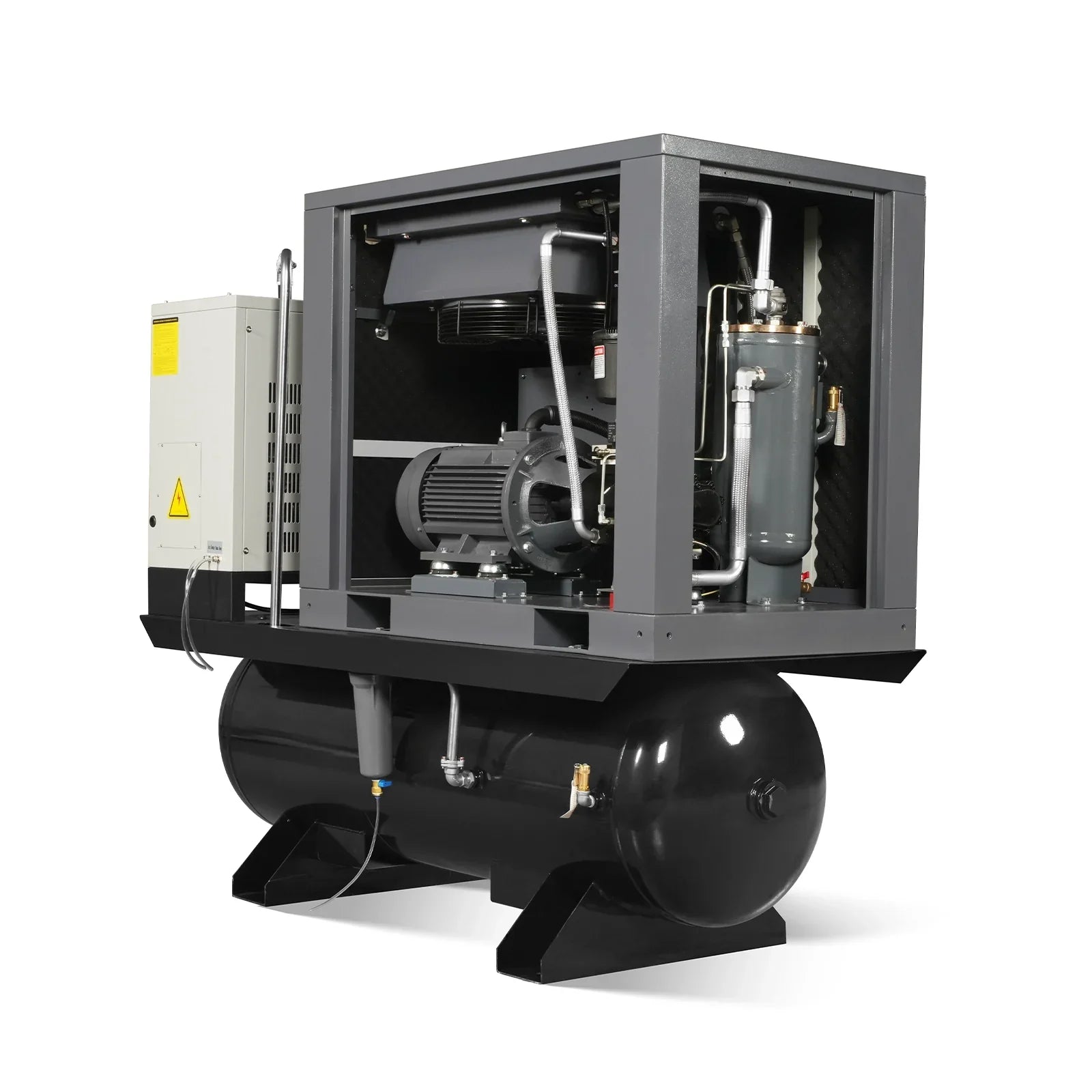

MechMaxx ML1546 Rotary Screw Air Compressor 15HP Combined with Dryer 105-Gal ASME Tank 45 CFM 116 PSI 460V 3-Phase Industrial Grade New

MechMaxx

$7,799.00
$7,799.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • High-Performance Motor. Equipped with a high-performance motor featuring IP54 protection, a fully enclosed dust-proof design, and Class F insulation, combined with SKF heavy-duty bearings. It delivers high starting torque, excellent heat resistance, and a long service life.
  • Premium Airend Design. Built with a high-quality airend manufactured by an advanced producer. Precision machining controls tolerances within microns, ensuring outstanding reliability and extended service life.
  • Efficient Oil-Gas Separation System. The highly efficient oil-gas separation system includes a specially designed separator tank, a high-performance separation element, and an oil return device, ensuring the discharged compressed air maintains an oil content of less than 3 ppm.
  • Intelligent Control System. The intelligent control system enables fully automatic operation and provides fast on-site fault diagnostics during operation, maximizing reliability and extending the compressor’s service life.
  • Energy-Saving EPC Control with Automatic Load/Unload Regulation. Featuring an EPC intelligent control system with fully automatic load/unload regulation, the compressor operates according to real-time air demand. When no compressed air is required, the unit automatically shuts down to eliminate waste, reduce energy consumption, and significantly lower operating costs.

Note:

Before first use, please open the rear panel and remove the transportation shockproof bolts.

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • PLC Controller: Monitors maintenance, temperature readings,,pressure settings,oil level, filtration & hours ,also monitors remote start / stop.

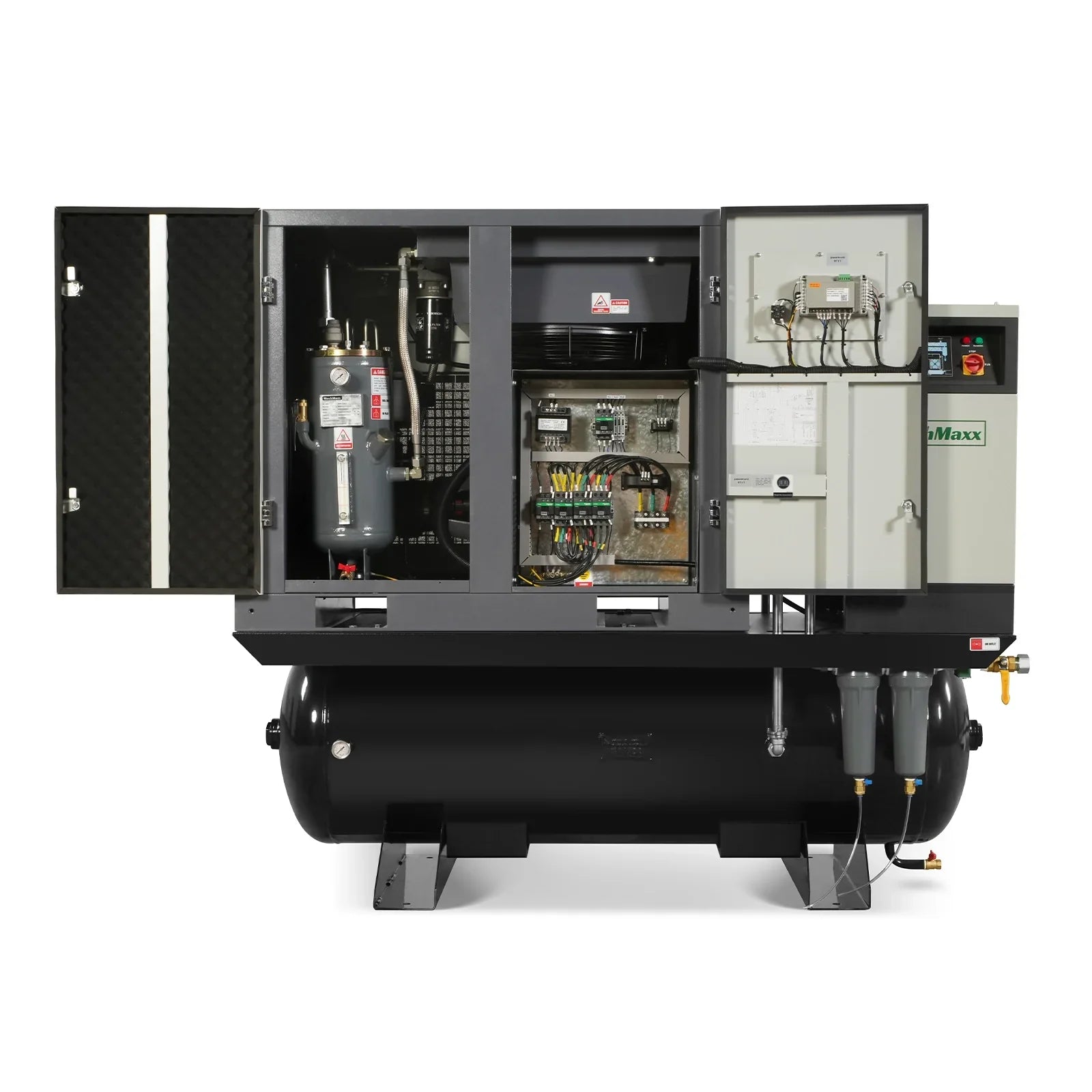

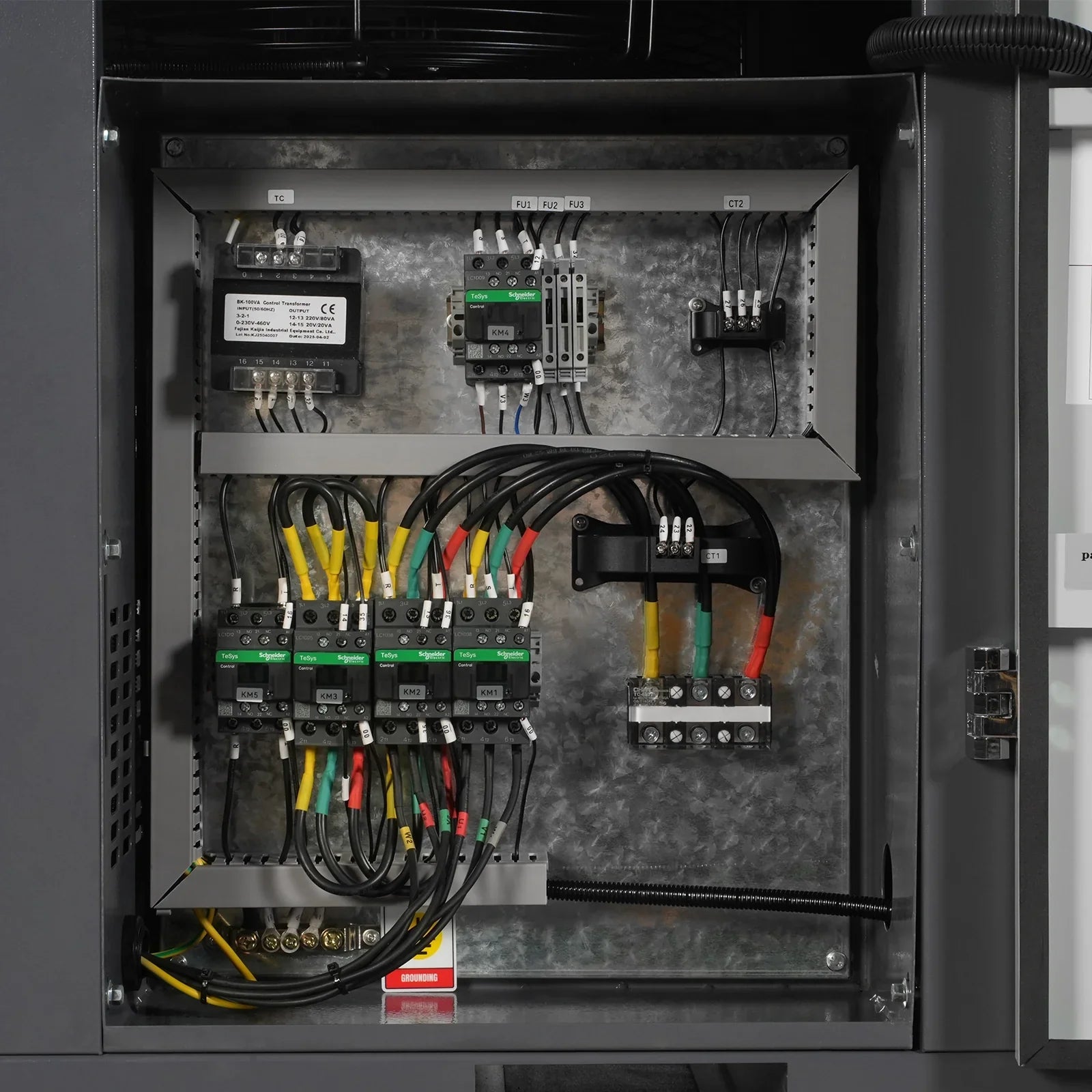

  • Safe And Reliable Electrical Components: Adoption of Schneider brand electrical components.
  • Top And Right Side Vent Heat Dissipation: Please leave enough space on the top and right side of the machine for heat dissipation and exhaust.
  • Easy Replacement Air Filter: Large ash capacity, low initial pressure drop, reduce compressor energy consumption.It can remove the particles over 3microns and ensure the compressor unit to operate stably in harsh environment.
  • Easy Replacement High Precision Oil Filter: With multi-layer filter material, the high precision oil filter can ensure high filtration accuracy and unfailingly filter out impurities in lubricating oil, highly resistant to damage and able to operate reliably at high temperatures.
  • Easy Replacement Oil-air Separator Filter: Professional filter material with enlarged area, high precision filtration.Three stage separation system can remove lubricants and deliver high quality air, protecting downstream equipment.Optimized air-oil separation structure, very low pressure drop, reduce power consumption.

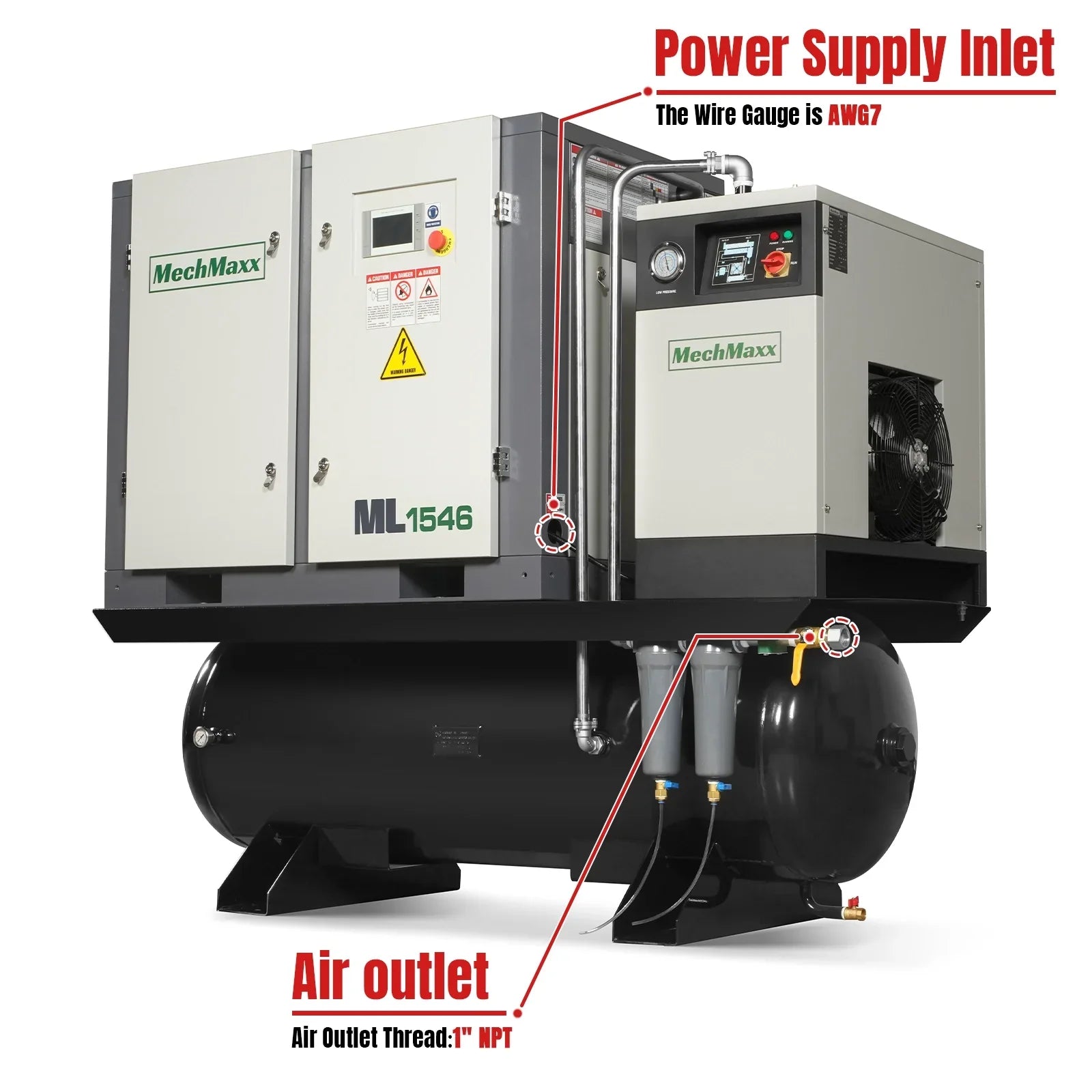

  • Standard Threads And Wires Gauge: Wire Gauge:AWG7Air Outlet Thread:1’’NPTVoltage:460V 3PH 60HZ
  • Strip Oil Label: Clear indication of oil level.
  • Maintenance Schedule Reminders: Please refer to the maintenance schedule for maintenance.

Model: ML1546

Voltage: 460V 3PH 60HZ（L1+L2+L3,G）

Air Flow Capacity: 45.9CFM

Wire Gauge: AWG7

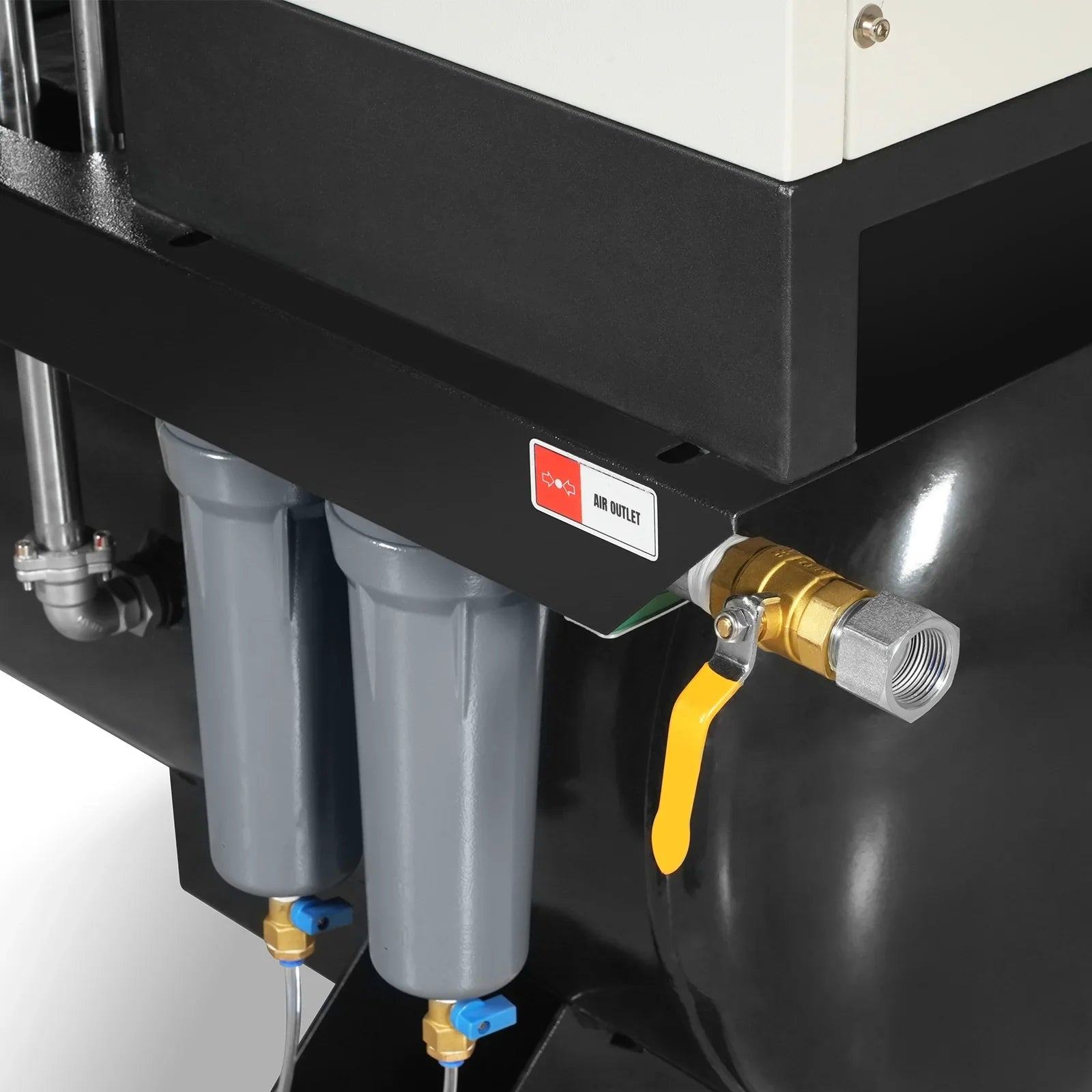

Air Outlet Thread: 1"NPT

Oil Tank Capacity: 2.64Gal (10L)

Rated Power: 15HP

Starting Method: Star-Delta (Wye-Delta) Start

Rated Pressure: 116 PSI (0.8 MPa)

Noise Level: 65dba

Motor Speed: 3515RPM

Oil Type: Oil Lubricated

Oil System: Splash Lubricated

Recommended Oil Grade: S3R46

Oil Sight Glass: Yes

Pump Drive: Belt Drive

Working Pressure: ≤145PSI/1.0MPa

Design Pressure: 145PSI/1.0MPa

Max Allowable Working Pressure: 145PSI/1.0MPa

Working Temprerature: ≤302℉/150℃

Design Temprerature: 302℉/150℃

Maximum Design Metal Temperature: 17.6℉/-8℃

Air Tank Capacity: 400L / 105.6GAL

Air Dryer Capacity Flow: 100CFM

Machine Size: :72.8" x 33.5" x 66.1"

Packing Size: :75.6" x 38.2" x 72.8"

N.W.:/ G.W.: :1146 lbs / 1364 lbs

This item comes with a 1 year factory warranty.
