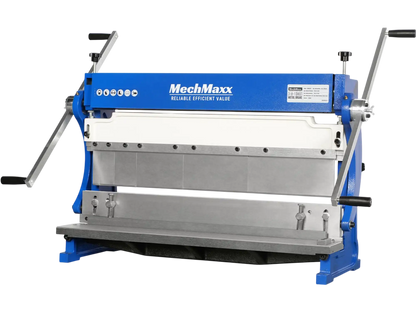

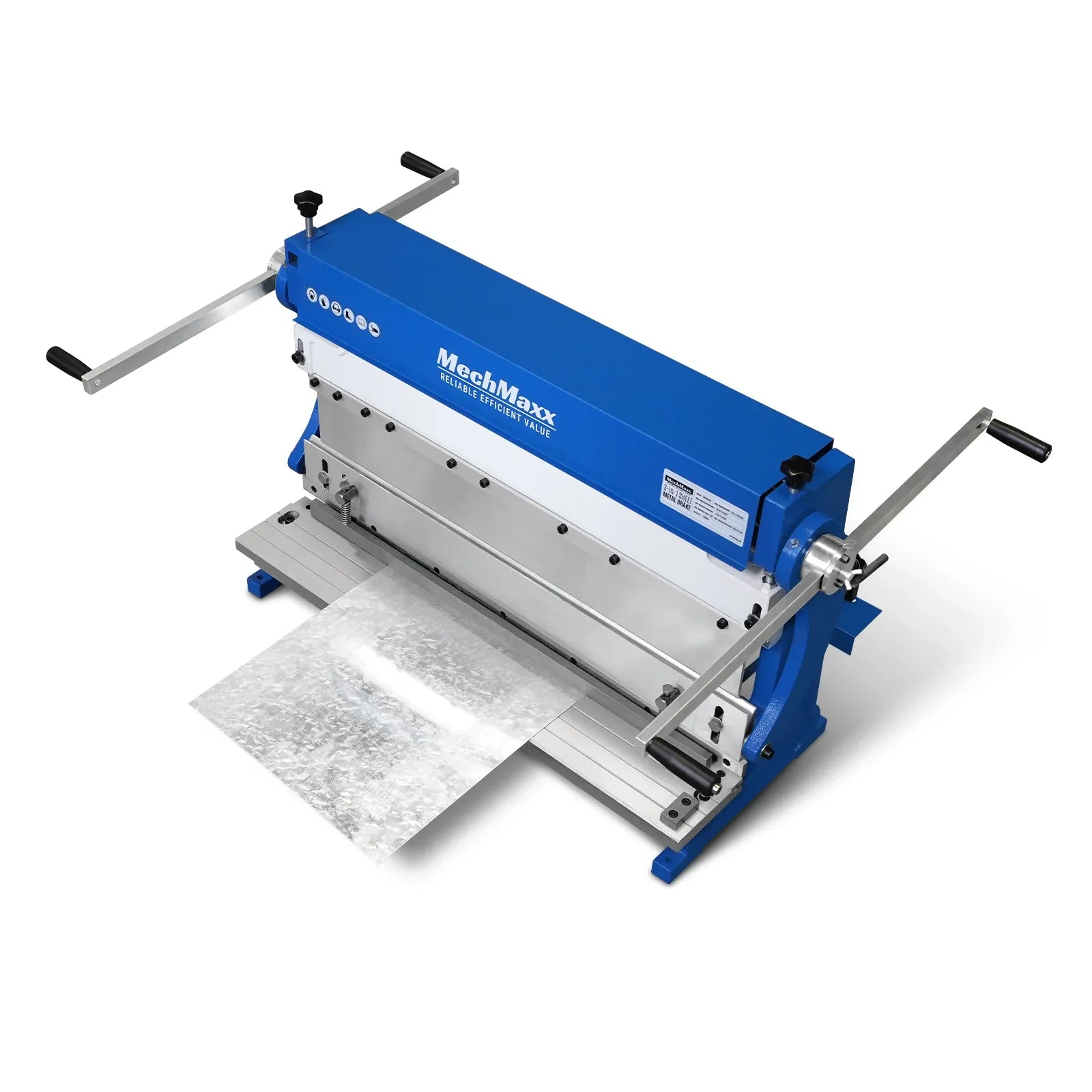

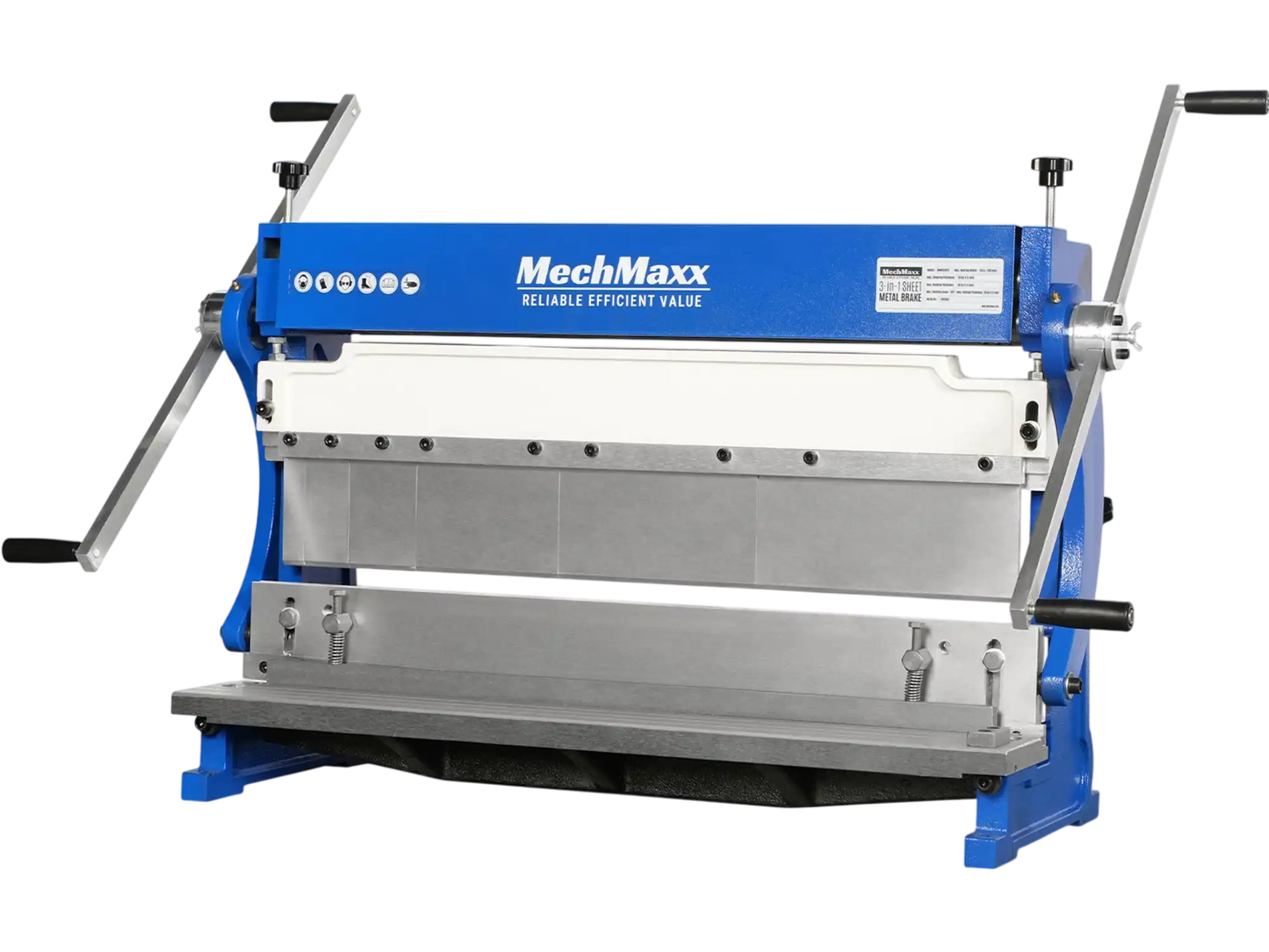

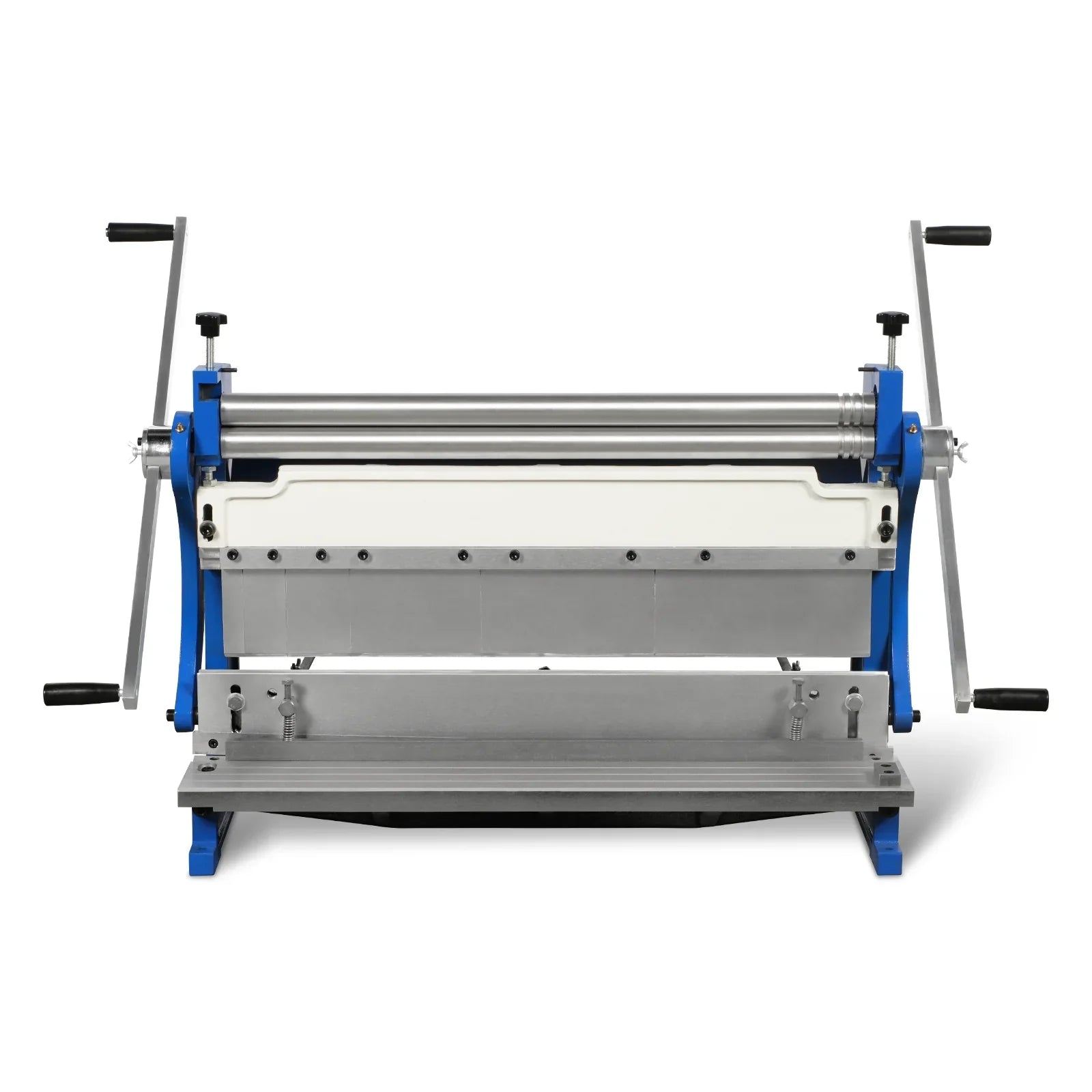

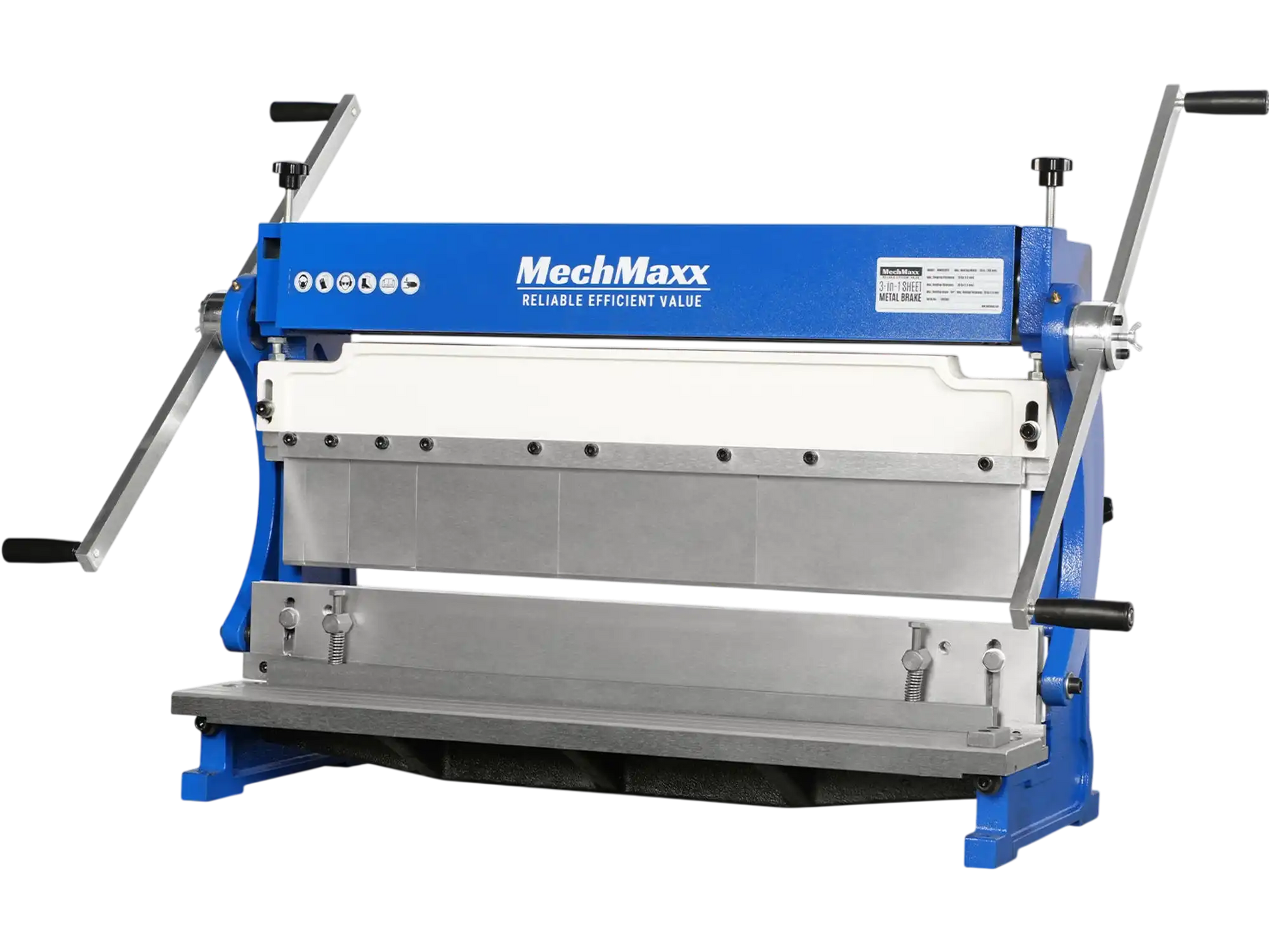

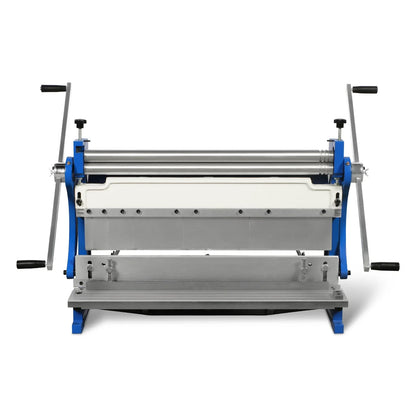

MechMaxx MMCB3016 3"-1 Sheet Metal Machine 30" Pan and Box Brake Slip Roll Shear Bending Machine 20 Gauge Mild Steel Adjustable Fingers Heavy Duty New

MechMaxx

$1,169.00
$1,169.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

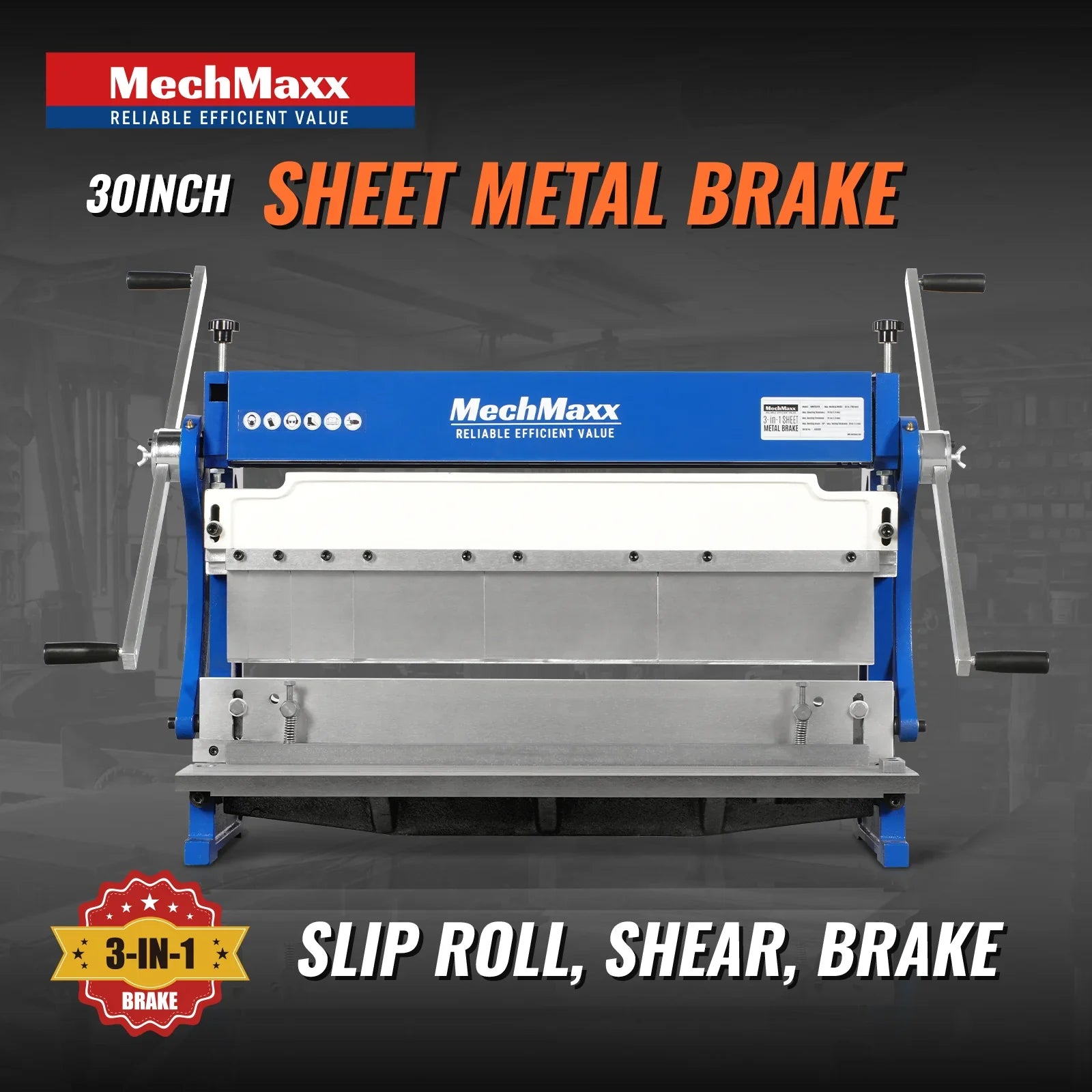

  1. Three-in-One Functionality: Combines Slip Roll, Shear, and Brake functions in one machine, offering versatile metalworking capabilities for bending, cutting, and rolling sheet metal.
  2. Slip Roll Capacity: Handles rolling of 20 Ga. mild steel, with a minimum rolling diameter of 1.53" (39 mm), ideal for creating cylinders, cones, and arcs.
  3. Shearing Power: Shear capacity of 20 Ga. mild steel with a 30" maximum cutting length, equipped with reversible upper shear blades and adjustable blade settings for different materials.

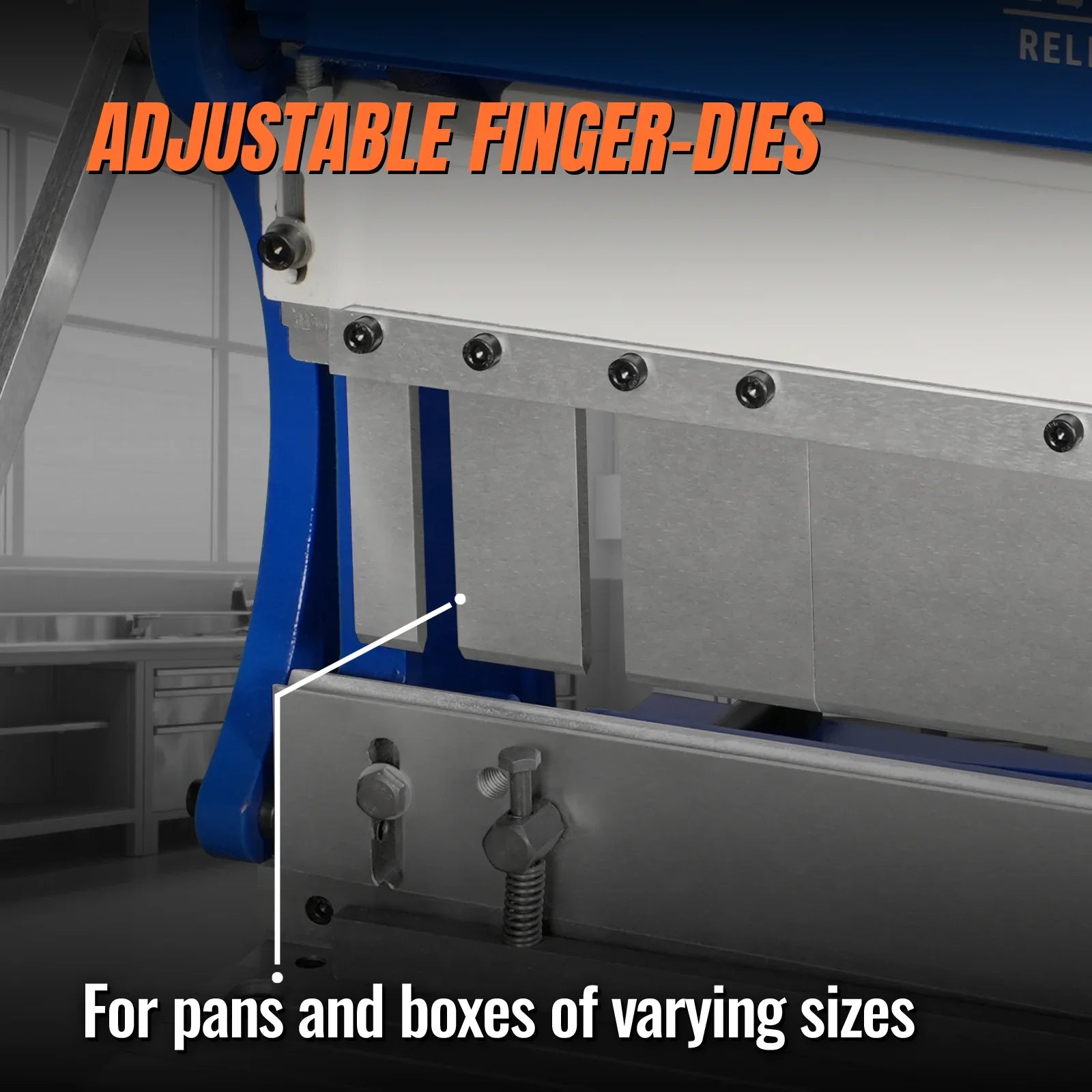

  4. Precision Bending: Maximum bending angle of 90° and adjustable finger dies (sizes: 1", 2", 3", 6", 8", 10") for flexible and accurate pan and box bending.
  5. Heavy-Duty Construction: Built with high-strength cast iron for durability and long-term reliability, ensuring the machine stands up to years of heavy use.
  6. Compact and Efficient: Designed with a 30" width to fit into smaller workshops while providing professional-grade performance for metalworking tasks.
  7. Adjustable Fingers: Equipped with adjustable fingers, allowing users to bend pans and boxes of varying sizes, making it perfect for different project needs.
  8. Easy Operation: Simple manual controls for bending, shearing, and rolling tasks, making it user-friendly and accessible for both beginners and experienced fabricators.
  9. Versatile Applicationsmetal fabrication shops, HVAC manufacturing, and general metalworking, offering a wide range of applications in various industries.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

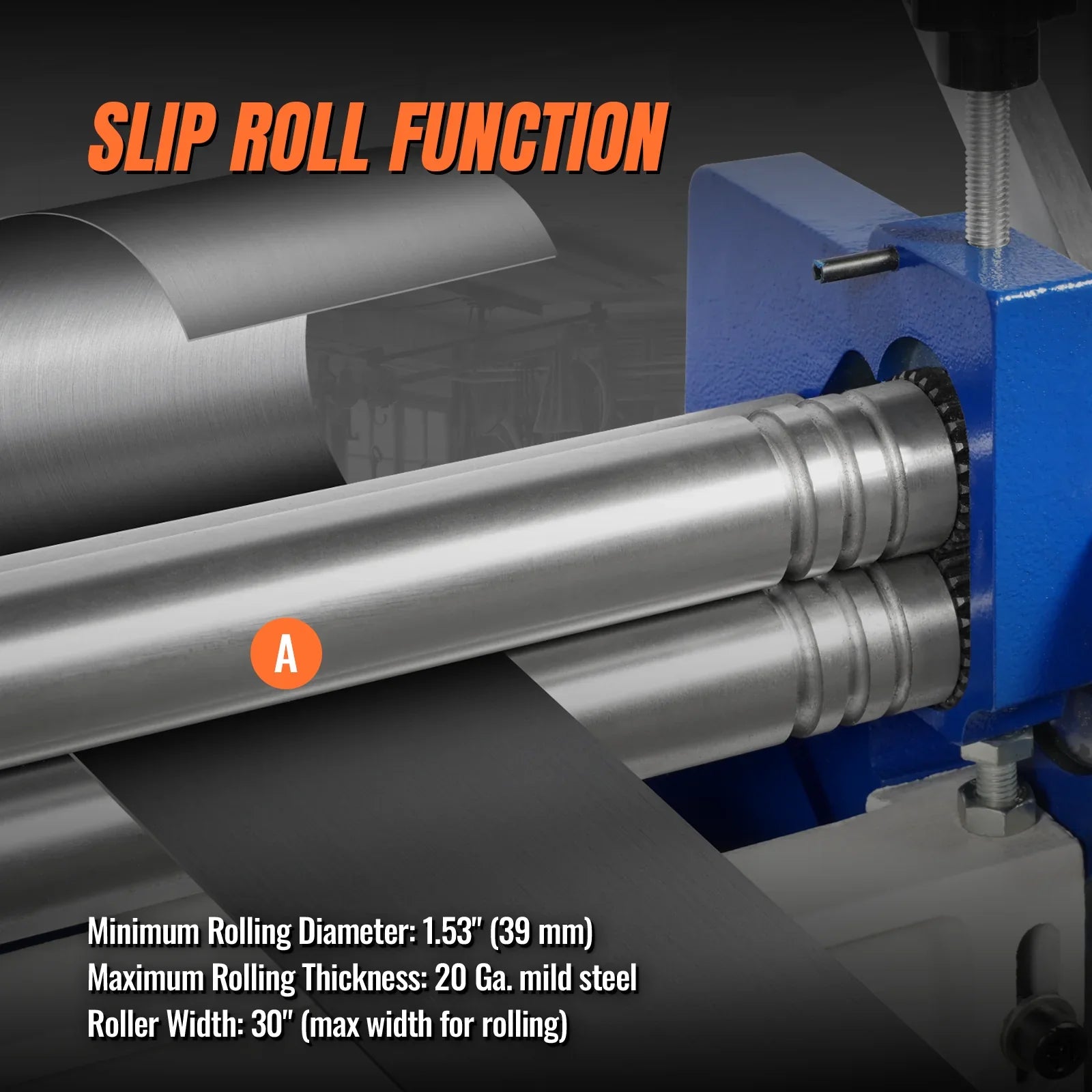

Slip Roll Function: Minimum Rolling Diameter

Maximum Rolling Thickness: 20 Ga. mild steel

Wire Sizes: 3/16", 1/4", 5/16"

Roller Type: Slip Rollers for straightening and forming cylinders, cones, and arcs

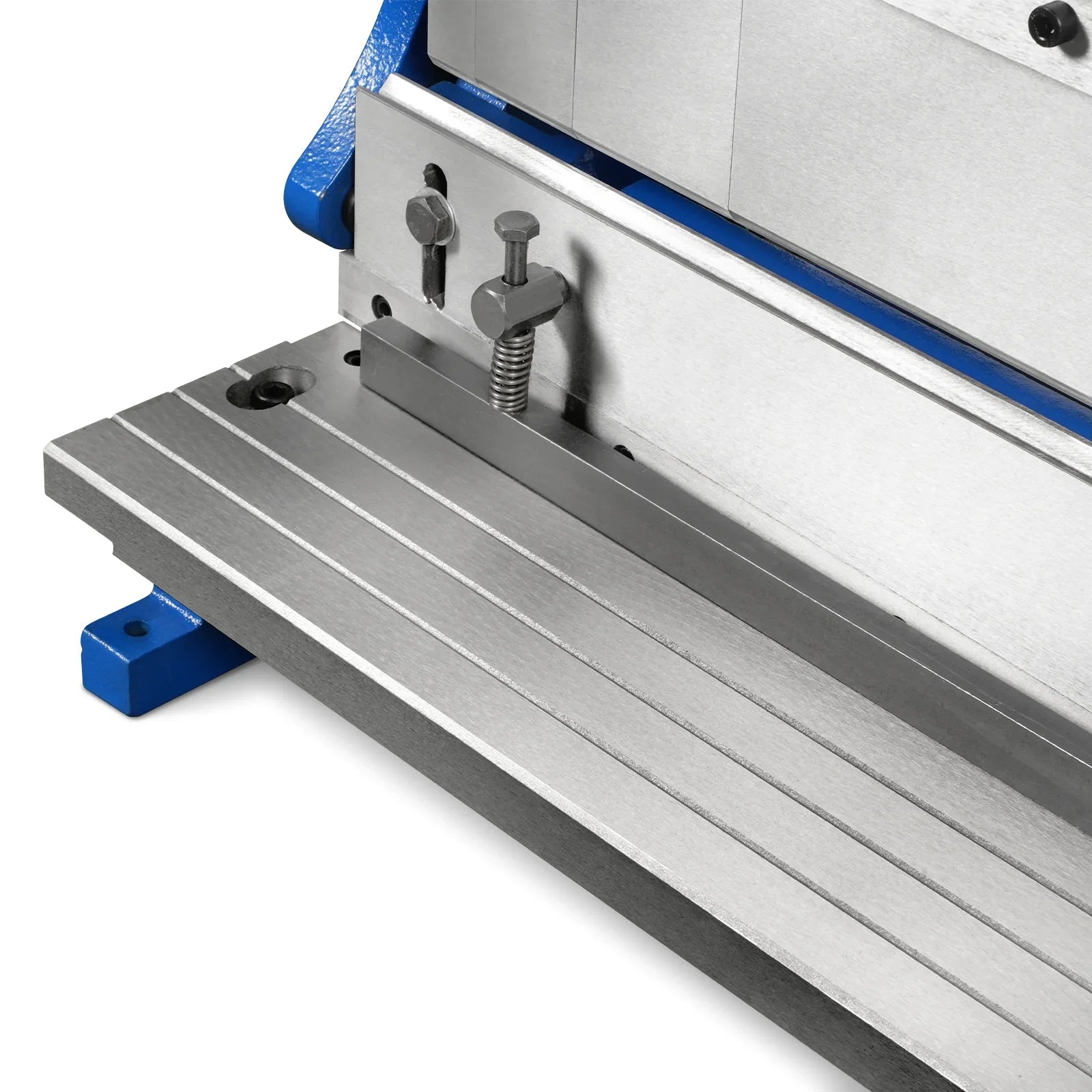

Brake Function: Maximum Bending Angle

Maximum Bending Thickness: 20 Ga. mild steel

Minimum Reverse Bend: 1/2"

Maximum Height of Pan/Box Brake Sides: 2-3/8"

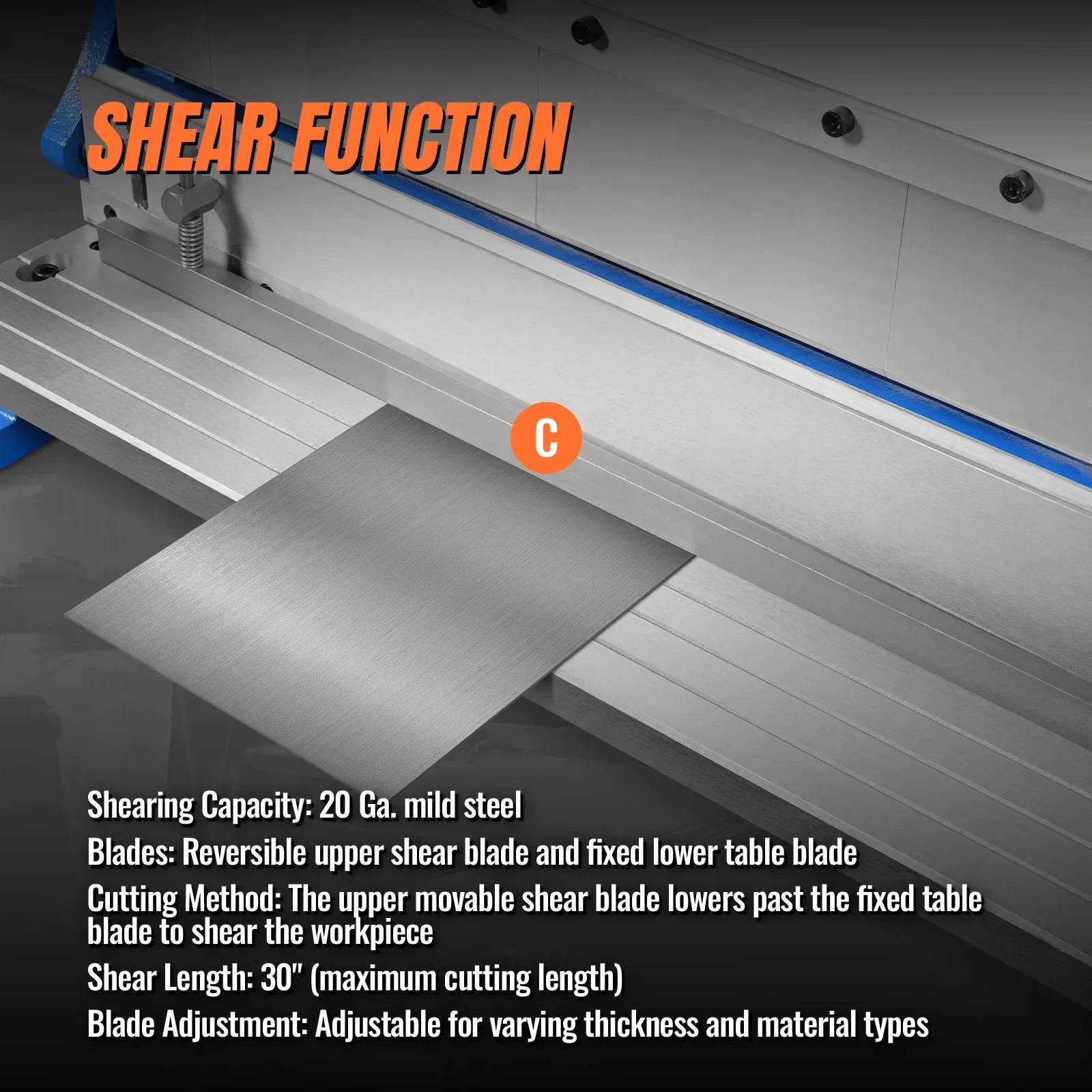

Shear Function: Shearing Capacity

Blades: Reversible upper shear blade and fixed lower table blade

Cutting Method: The upper movable shear blade lowers past the fixed table blade to shear the workpiece

Shear Length: 30" (maximum cutting length)

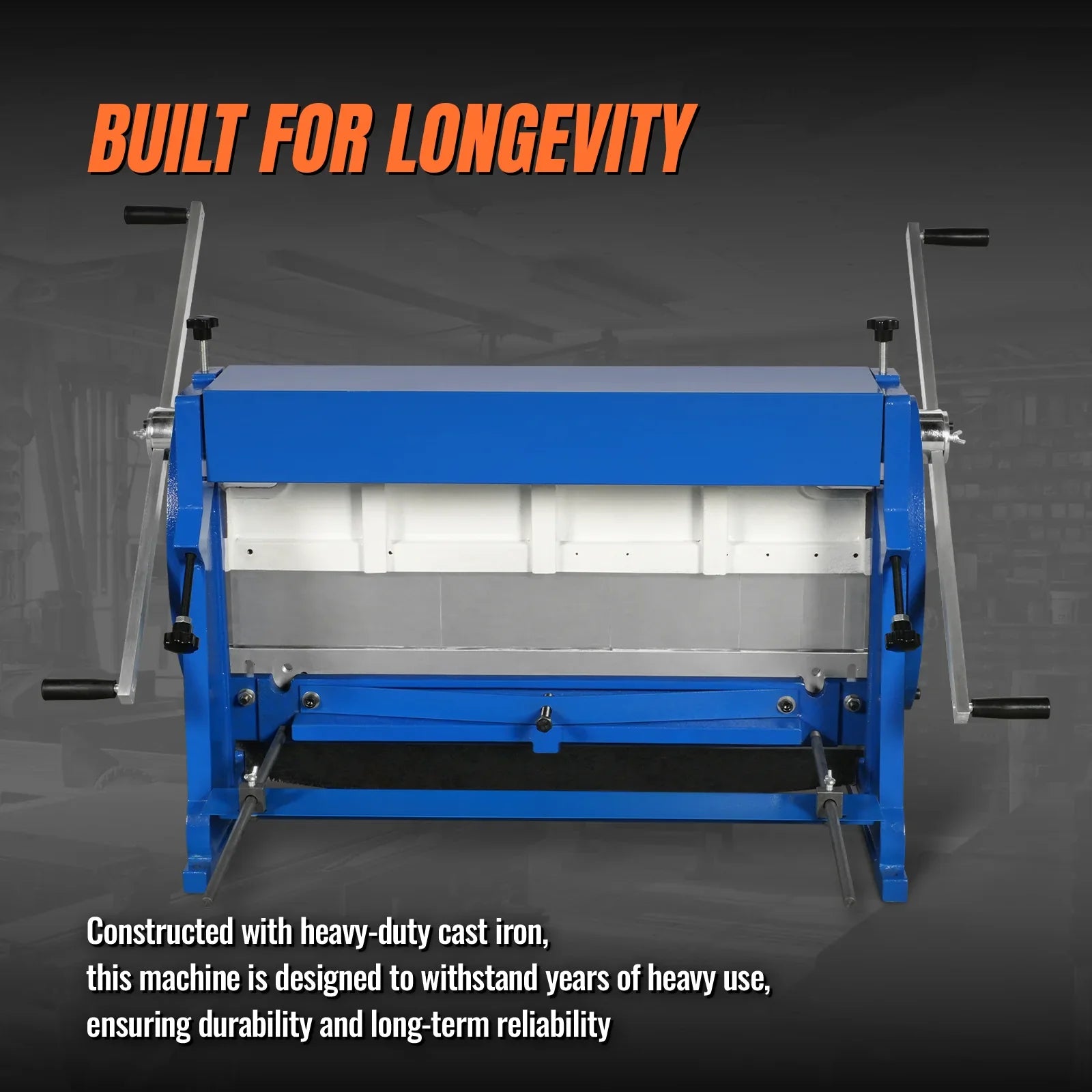

Built for Longevity: Blade Adjustment

Construction: Built with heavy-duty cast iron for durability and long-term reliability

Finger Dies: Adjustable for pans and boxes of varying sizes

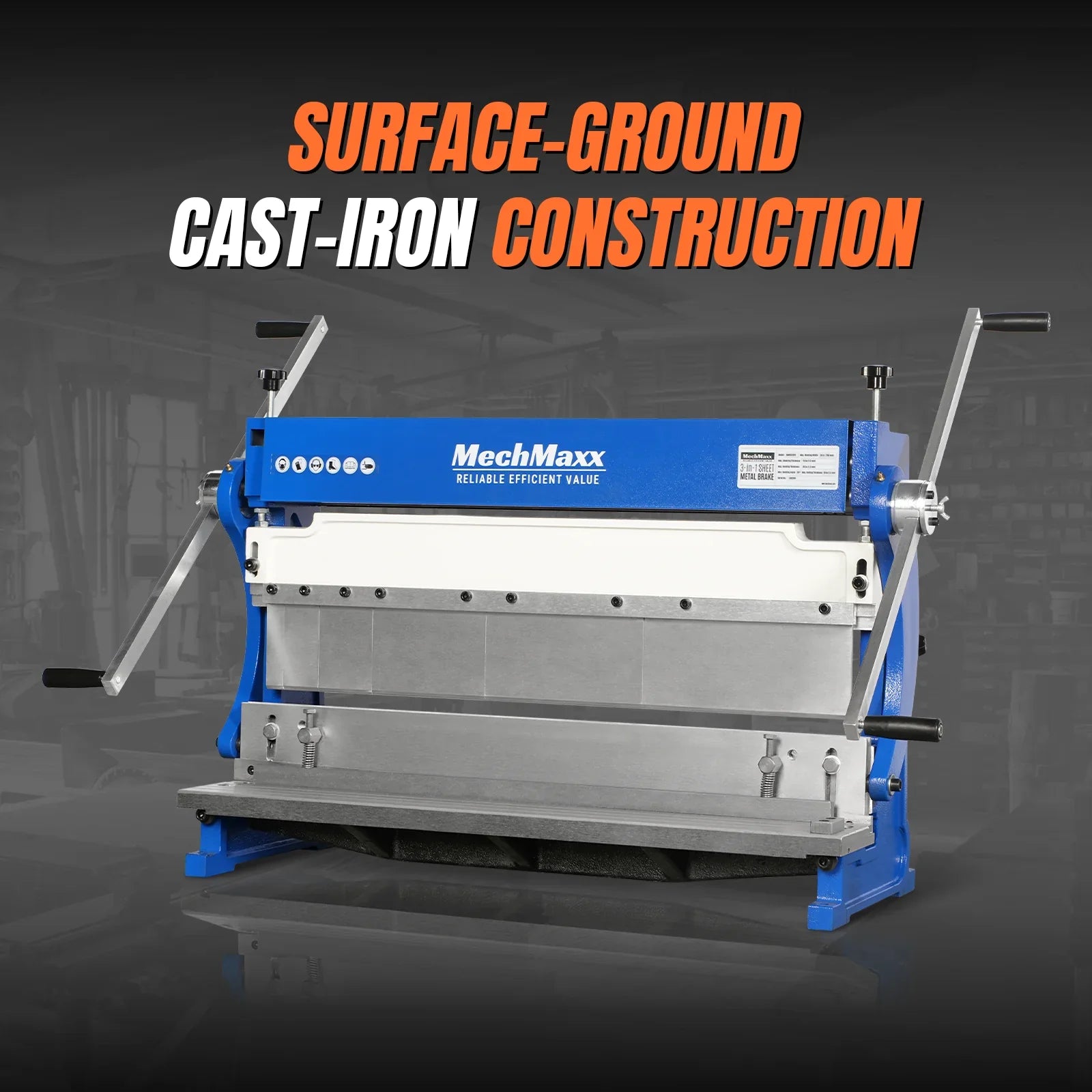

Surface Construction: Surface-ground cast-iron construction for smooth operation

This item comes with a 1 year factory warranty.
PDF 30-inch 3-in-1 Pan and Box Brake
