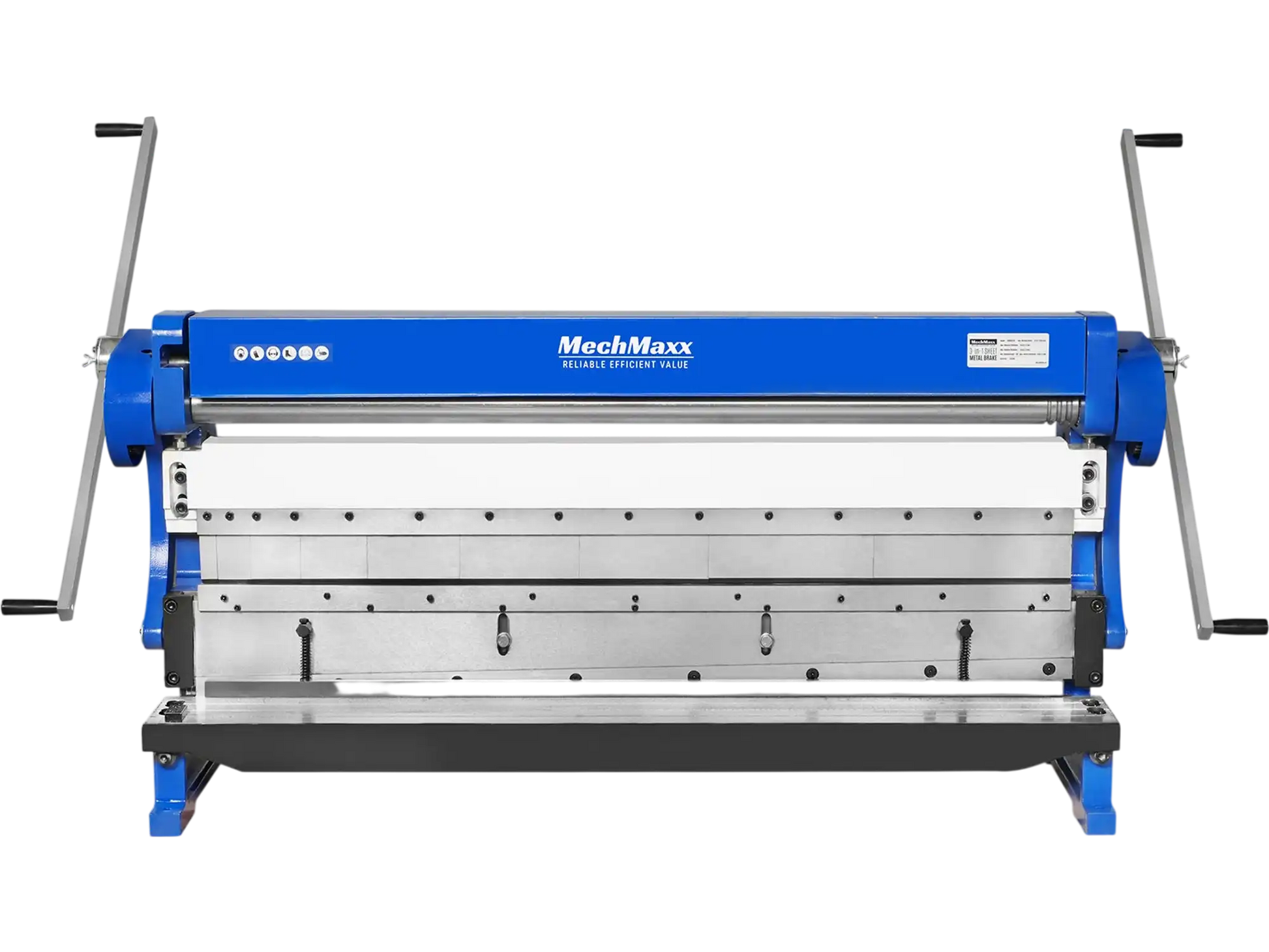

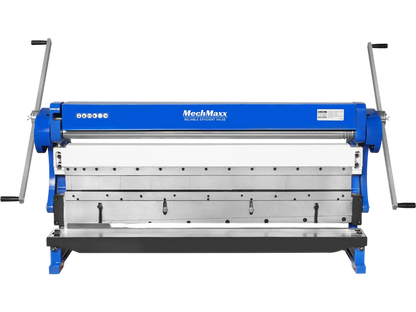

MechMaxx MMCB5216 3"-1 Sheet Metal Machine 52" Heavy Duty Pan and Box Brake Slip Roll Shear Bending Machine 16 Gauge Mild Steel Adjustable Fingers New

MechMaxx

$2,779.00
$2,779.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

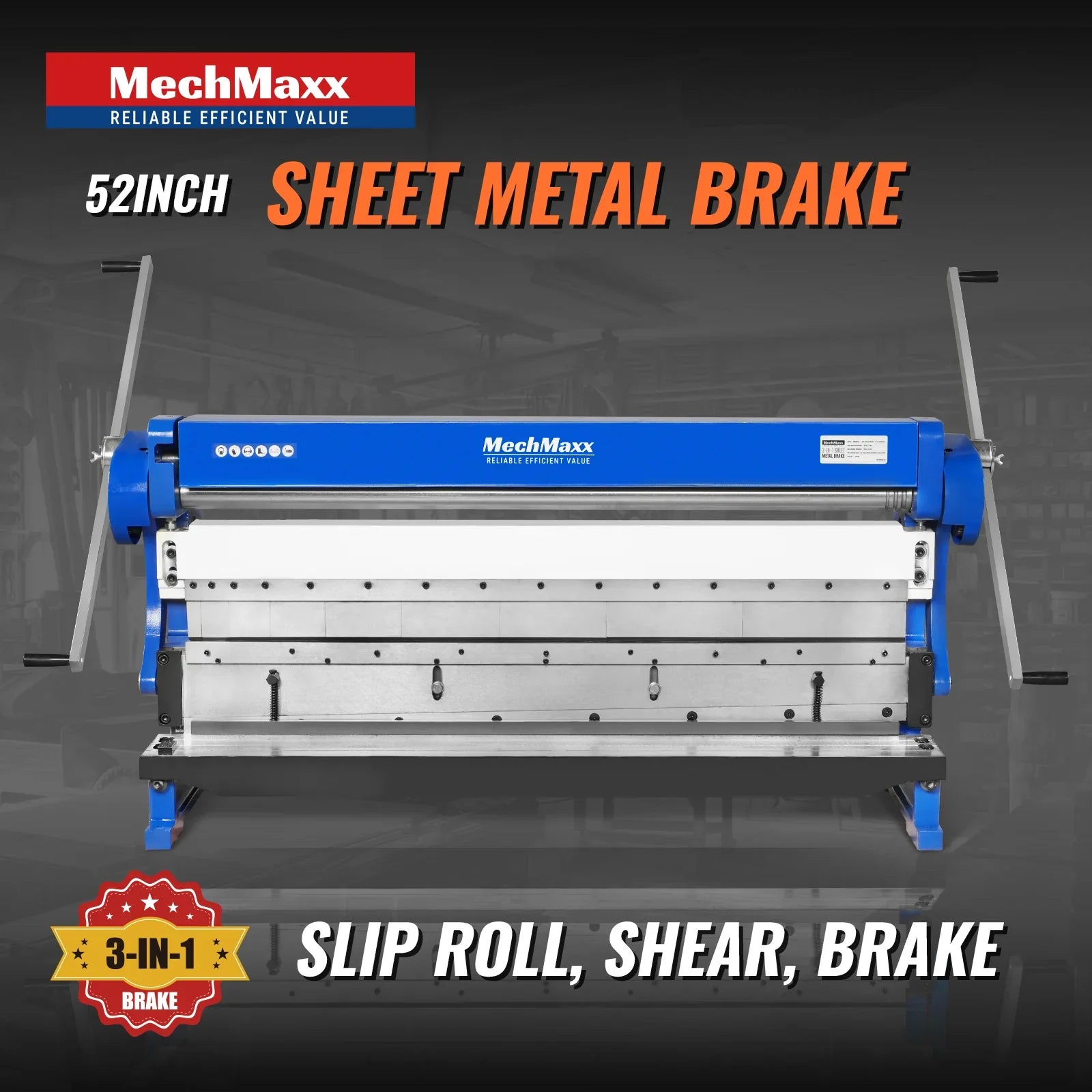

  • Three-in-One Functionality: The 52-inch combination machine integrates shear, brake, and slip roll functions in one compact unit, delivering versatile metalworking capabilities for bending, cutting, and rolling sheet metal.
  • Slip Roll Capacity: Handles 16 Ga. mild steel with a minimum rolling diameter of 1.96" (50 mm). Equipped with wire grooves (3/16", 1/4", 5/16") for forming small round rods, it allows effortless production of cylinders, cones, and arcs.
  • Shearing Power: Cuts mild steel sheets up to 16 Ga. thickness with a 52" maximum cutting length. Features a reversible upper shear blade and fixed lower table blade, with adjustable settings for different materials and thicknesses.

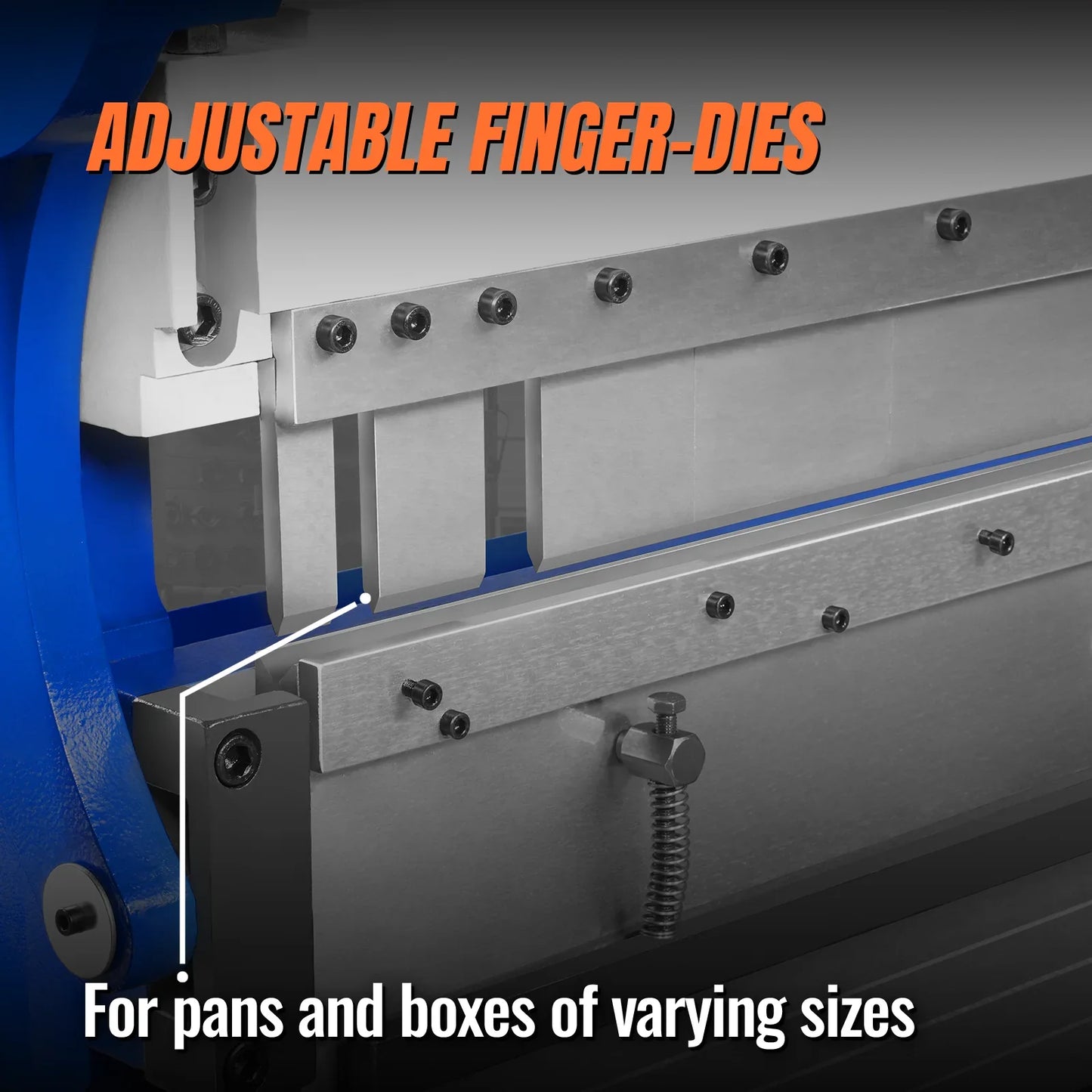

  • Precision Bending: Offers a maximum bending angle of 90° and 16 Ga. bending capacity. Includes a nine-piece finger die set (sizes: 1", 2", 3", 4", 5-1/2", 7", 8", 10", 10") for accurate pan and box bending. The design supports a minimum reverse bend of 1/2" and maximum box side height of 2-3/8" (60 mm).

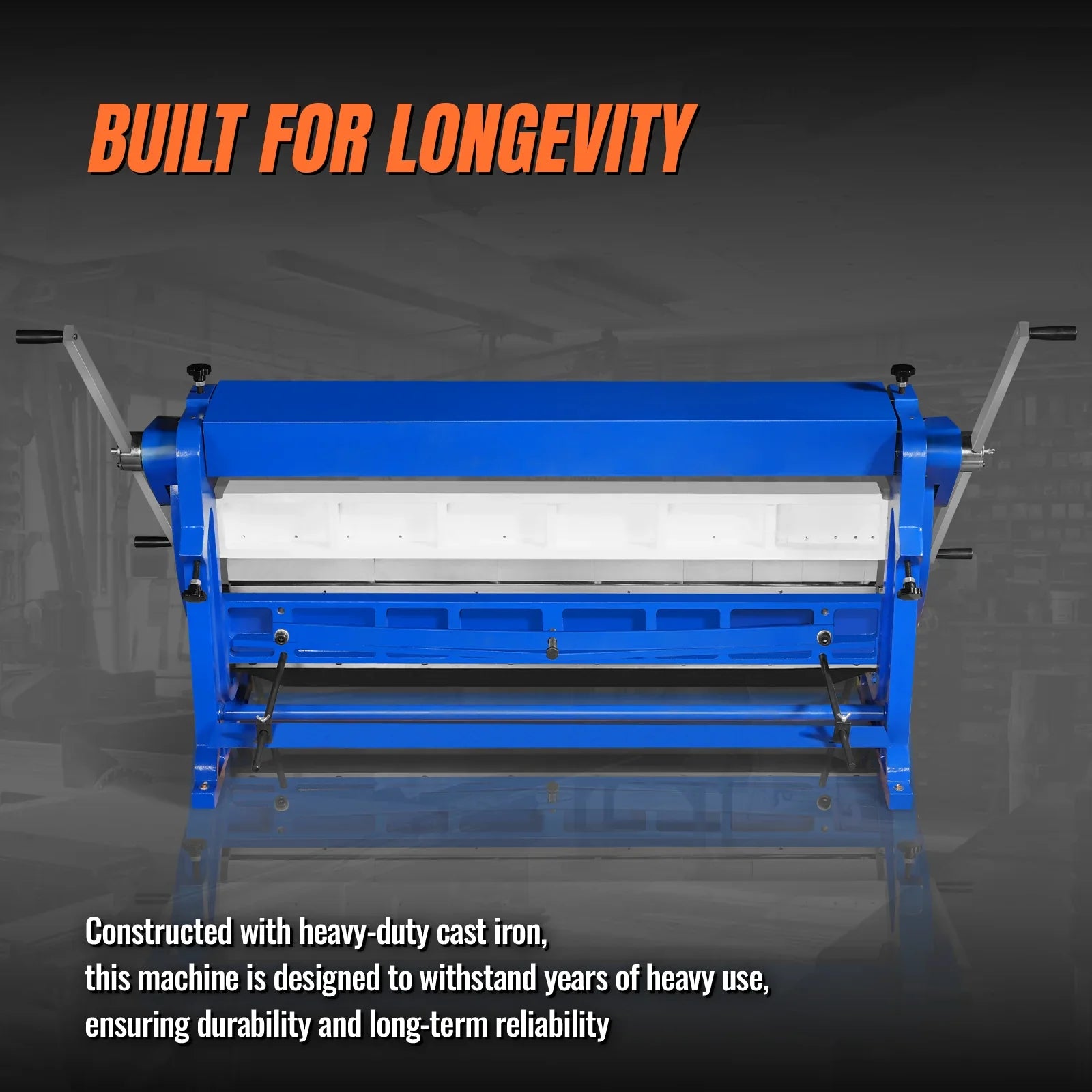

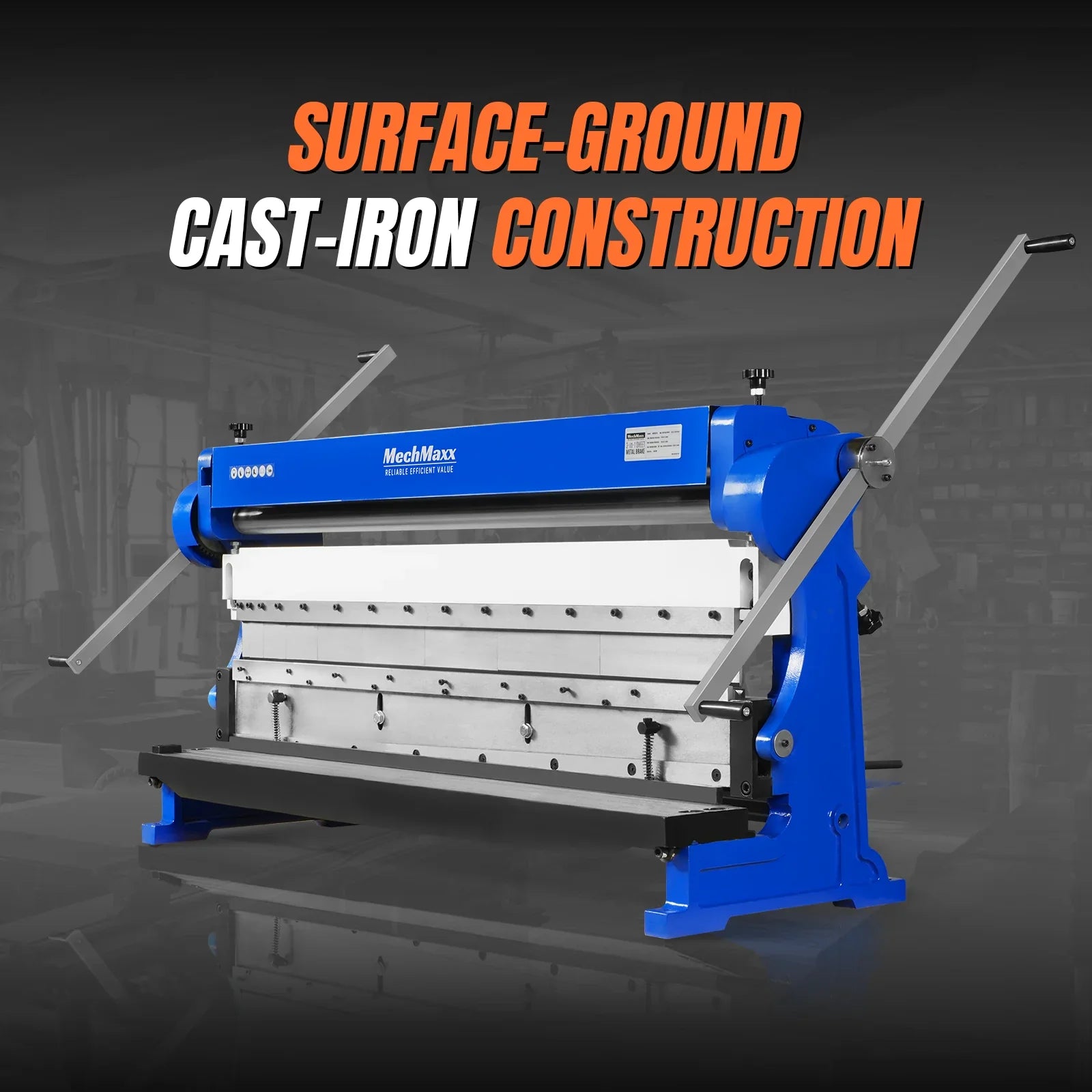

  • Heavy-Duty Construction: Built with a heavy cast iron frame for durability and stability, ensuring years of reliable performance in both workshop and industrial environments.
  • Compact and Efficient: Despite its 52" working width, this combines three machines into one space-saving footprint, enhancing productivity and reducing equipment investment.
  • Versatile Applications: Ideal for sheet metal shops, HVAC ductwork, automotive fabrication, and general metalworking projects. Perfect for professionals and DIY users requiring a multifunctional and durable solution.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

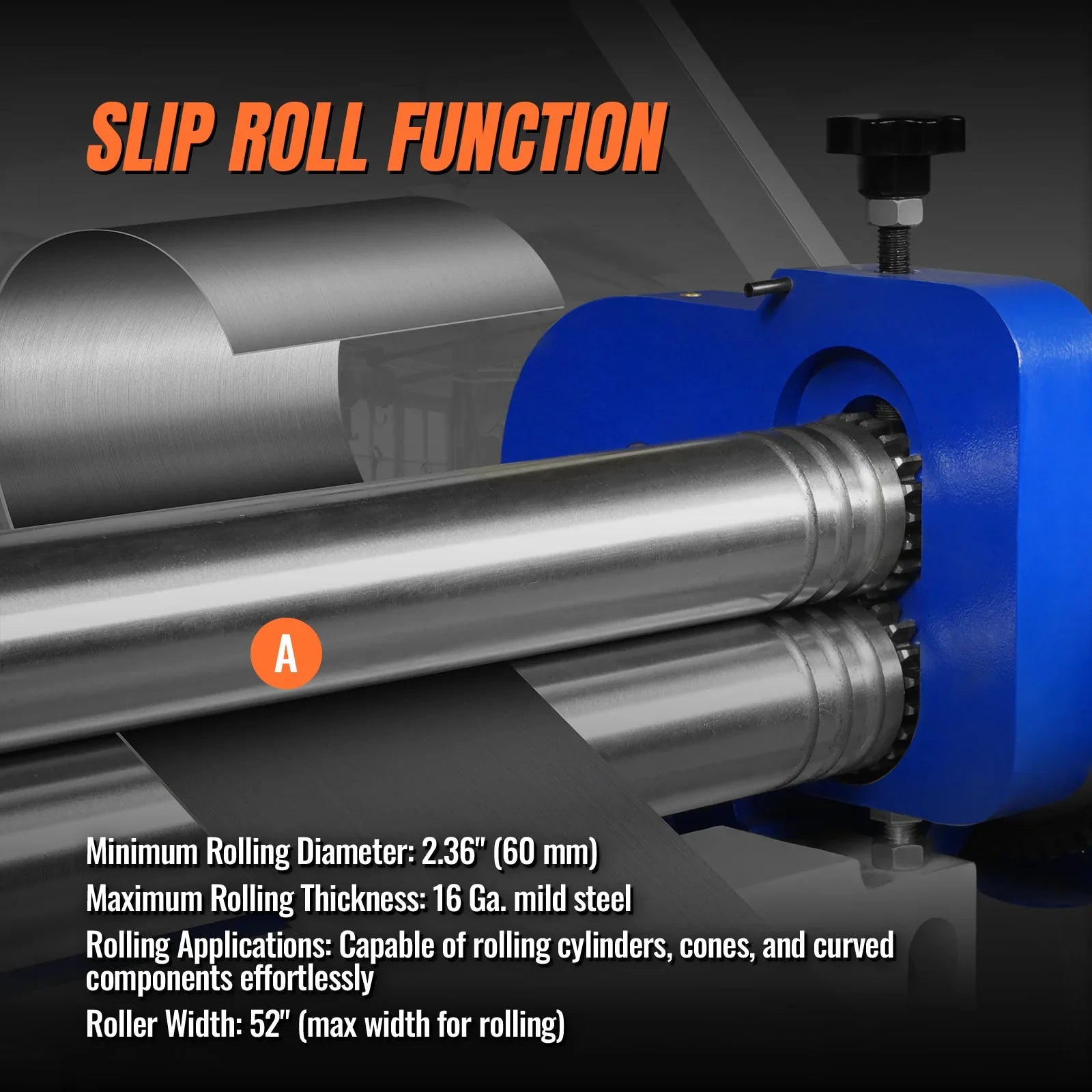

Slip Roll Function: Minimum Rolling Diameter

Maximum Rolling Thickness: 16 Ga. mild steel

Wire Sizes: 3/16", 1/4", 5/16"

Roller Type: Slip Rollers for straightening and forming cylinders, cones, and arcs

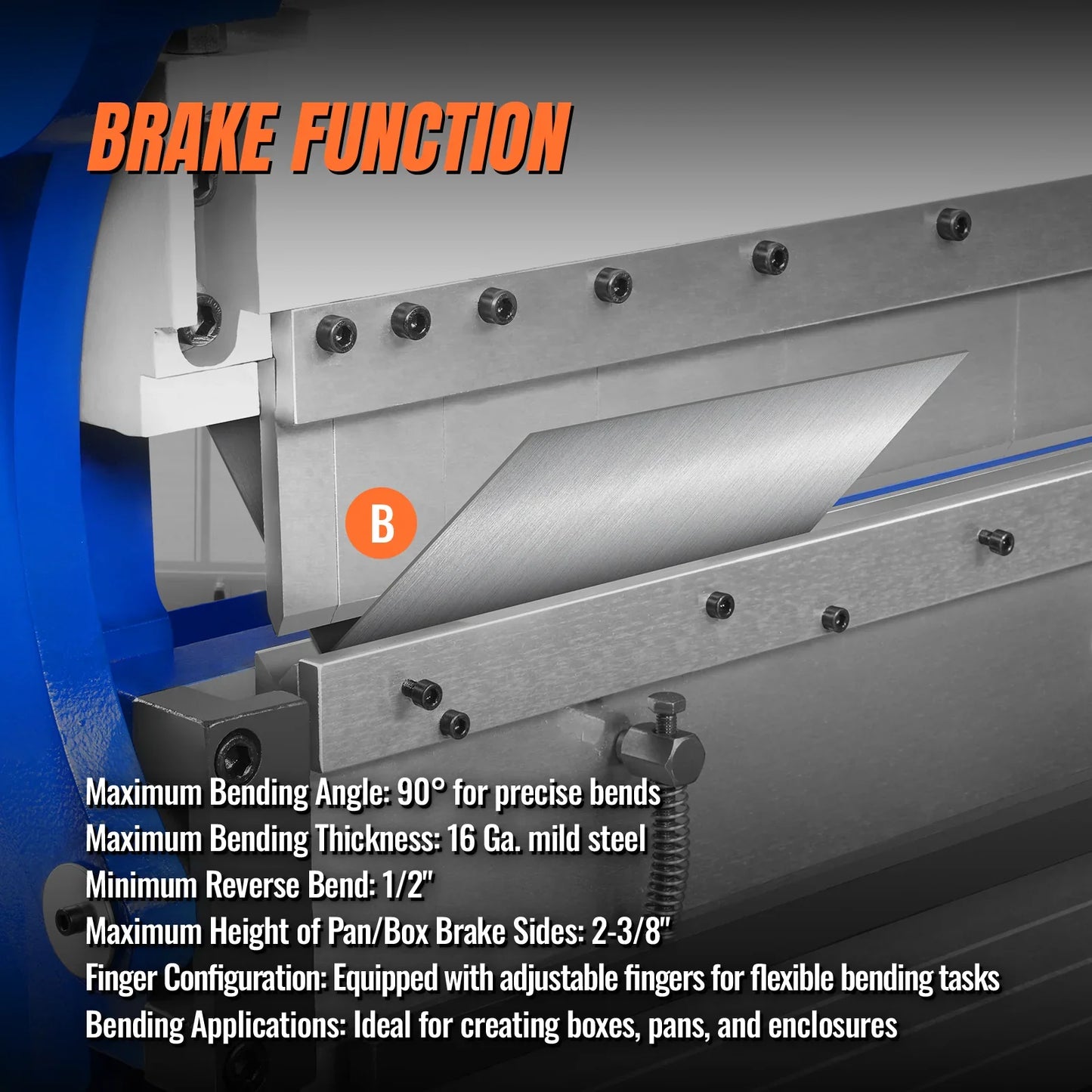

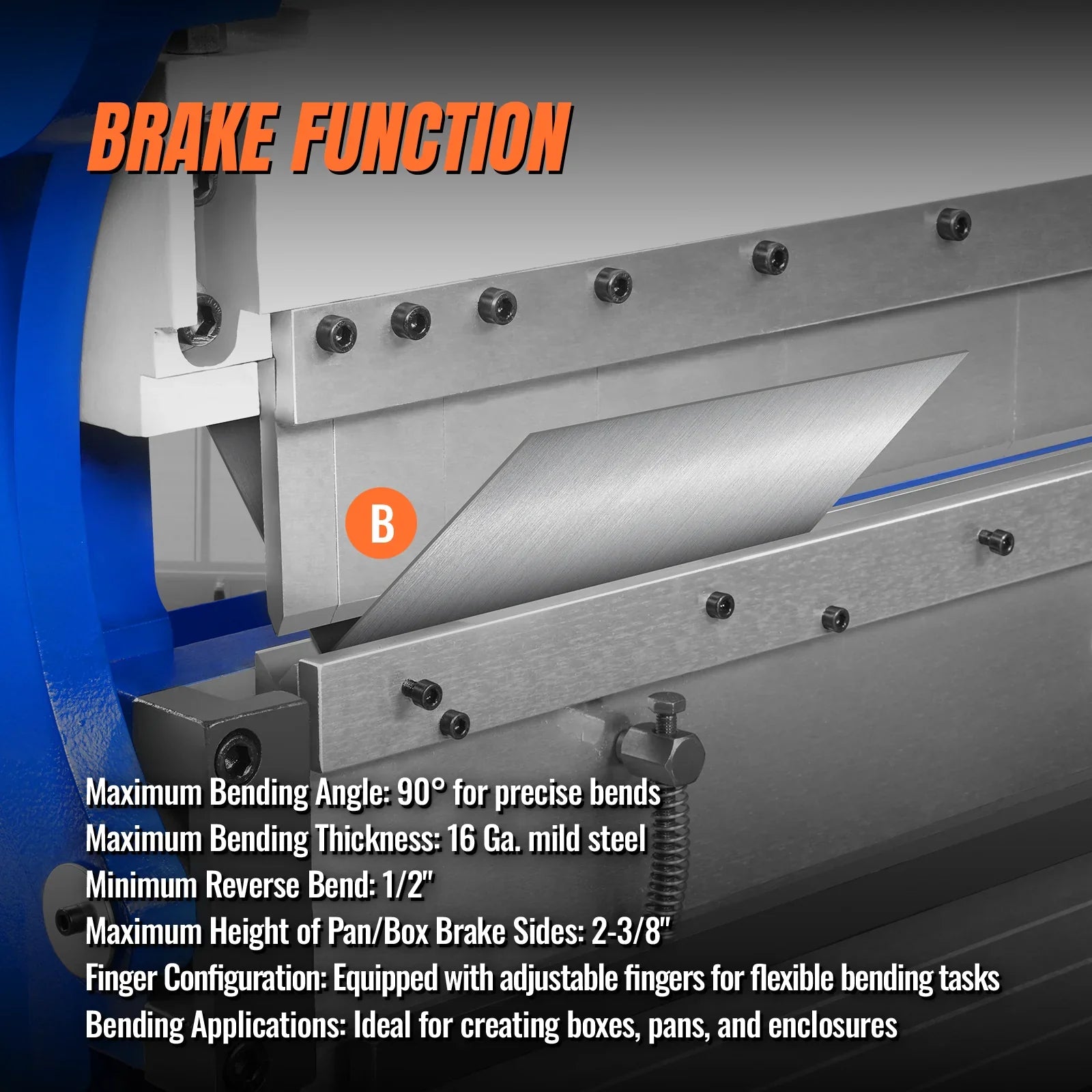

Brake Function: Maximum Bending Angle

Maximum Bending Thickness: 16 Ga. mild steel

Minimum Reverse Bend: 1/2"

Maximum Height of Pan/Box Brake Sides: 2-3/8" (60 mm)

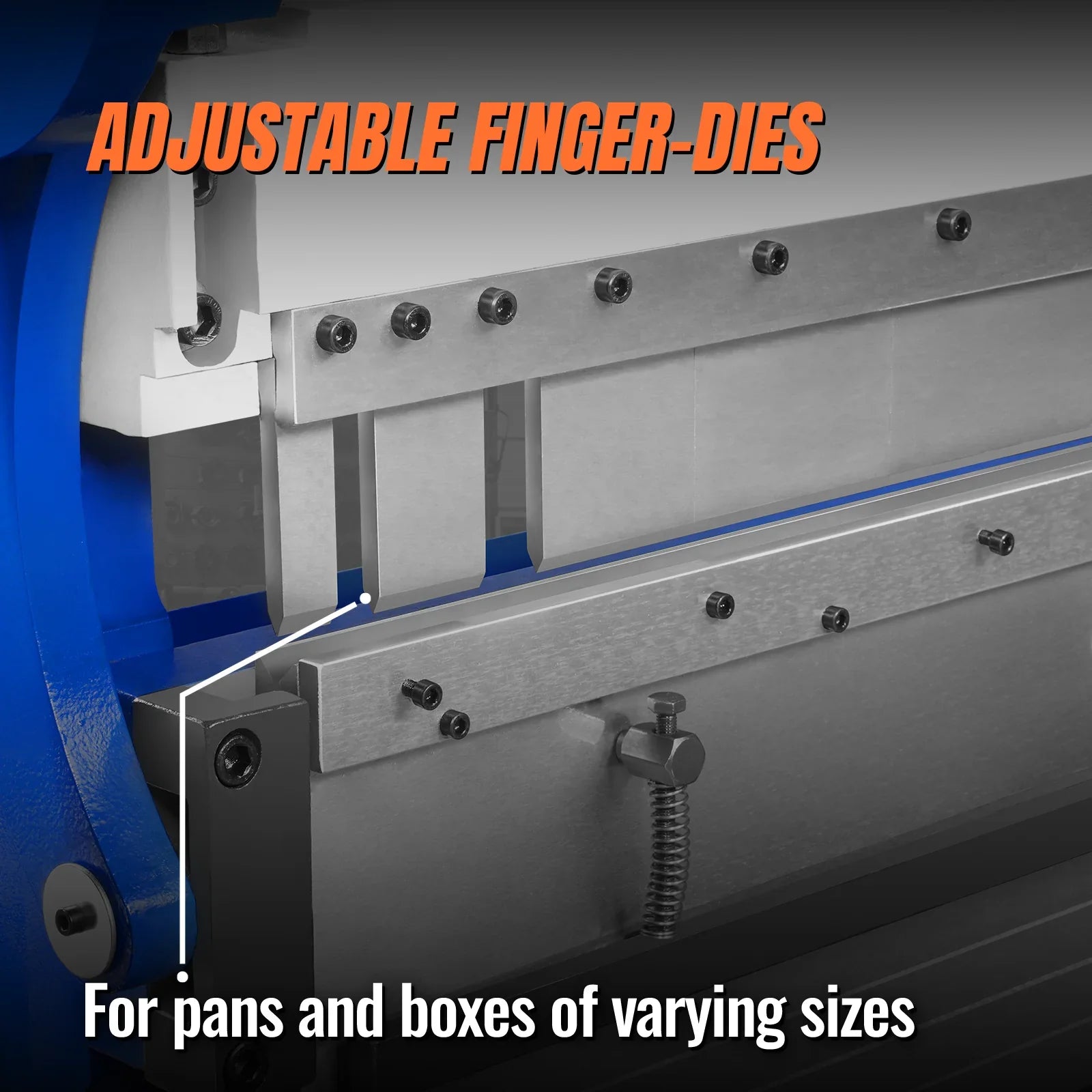

Finger Configuration: 9 adjustable fingers: 1", 2", 3", 4", 5-1/2", 7", 8", 10", 10"

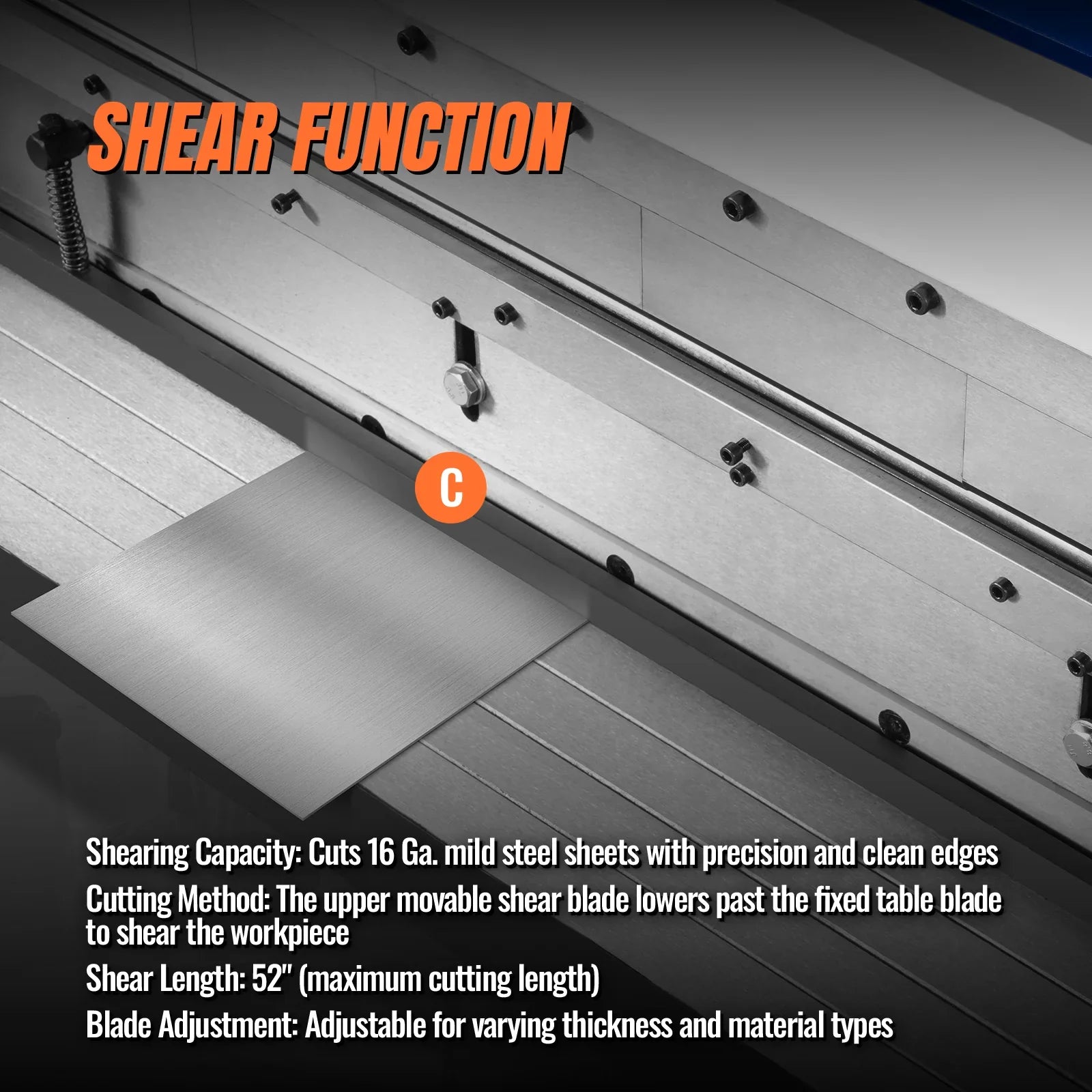

Shear Function: Shearing Capacity

Blades: Reversible upper shear blade and fixed lower table blade

Cutting Method: Upper movable shear blade lowers past the fixed table blade

Shear Length: 52" (maximum cutting length)

Blade Adjustment: Adjustable for varying thickness and material types

This item comes with a 1 year factory warranty.
PDF 52inch 3-in-1 Heavy Duty Pan and Box Brake
