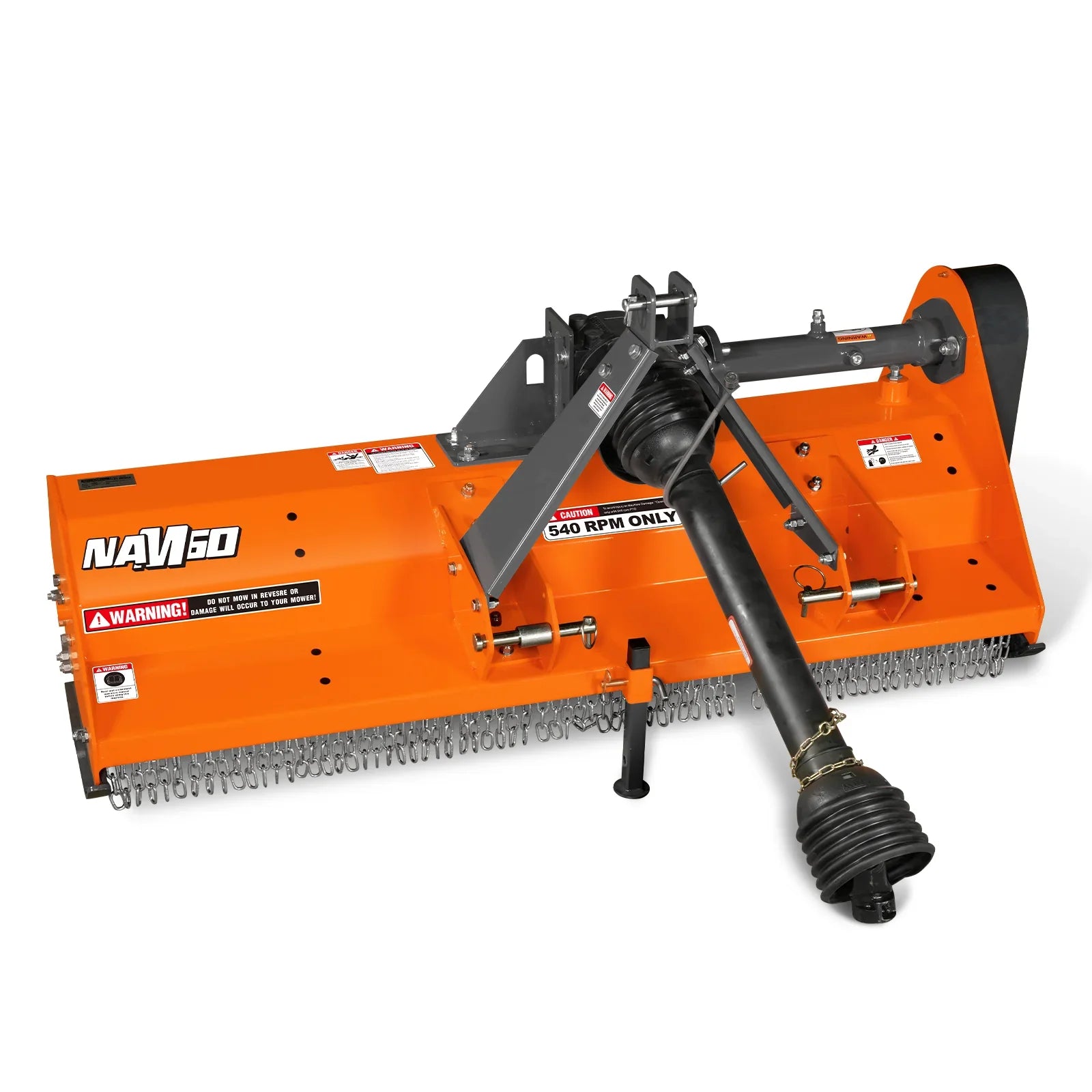

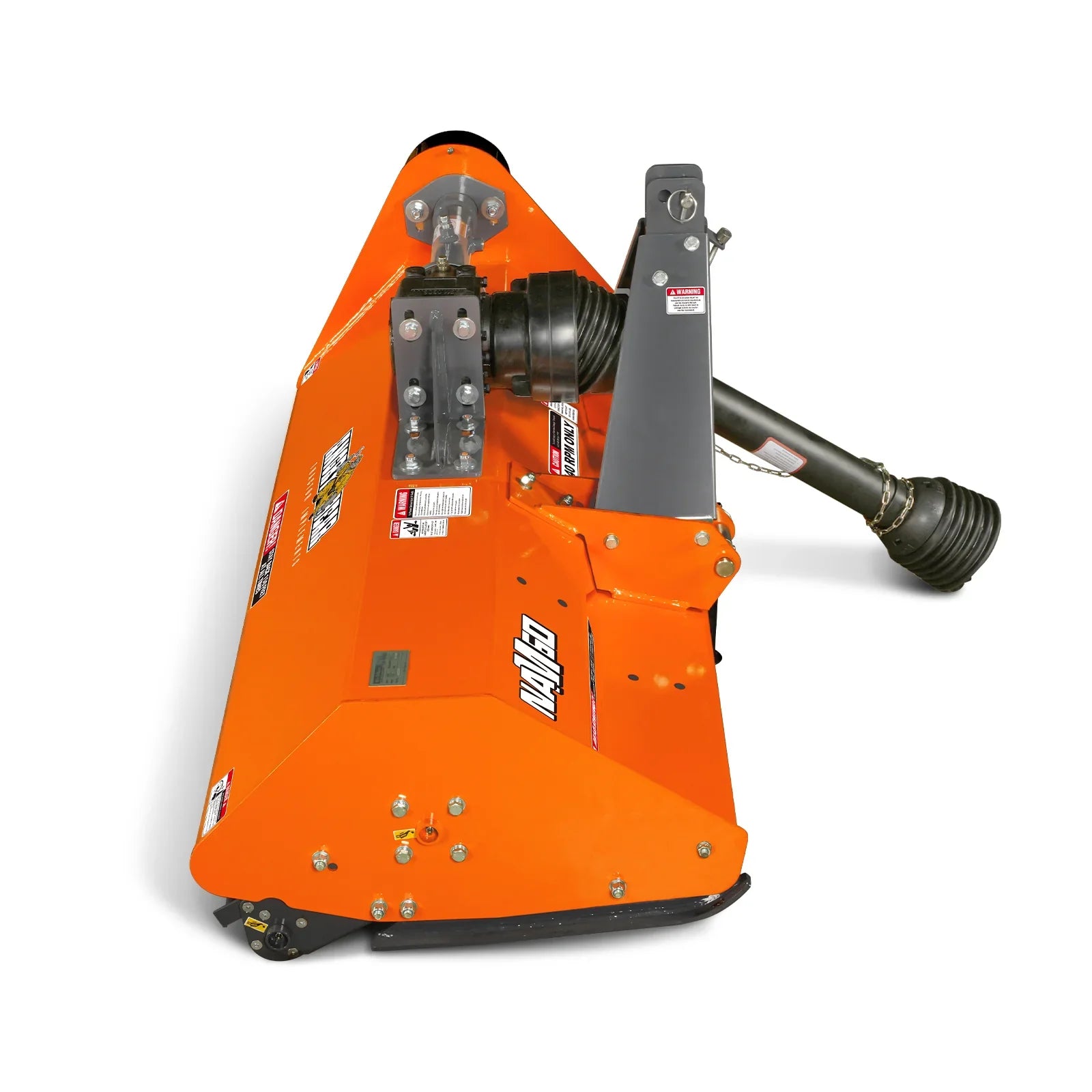

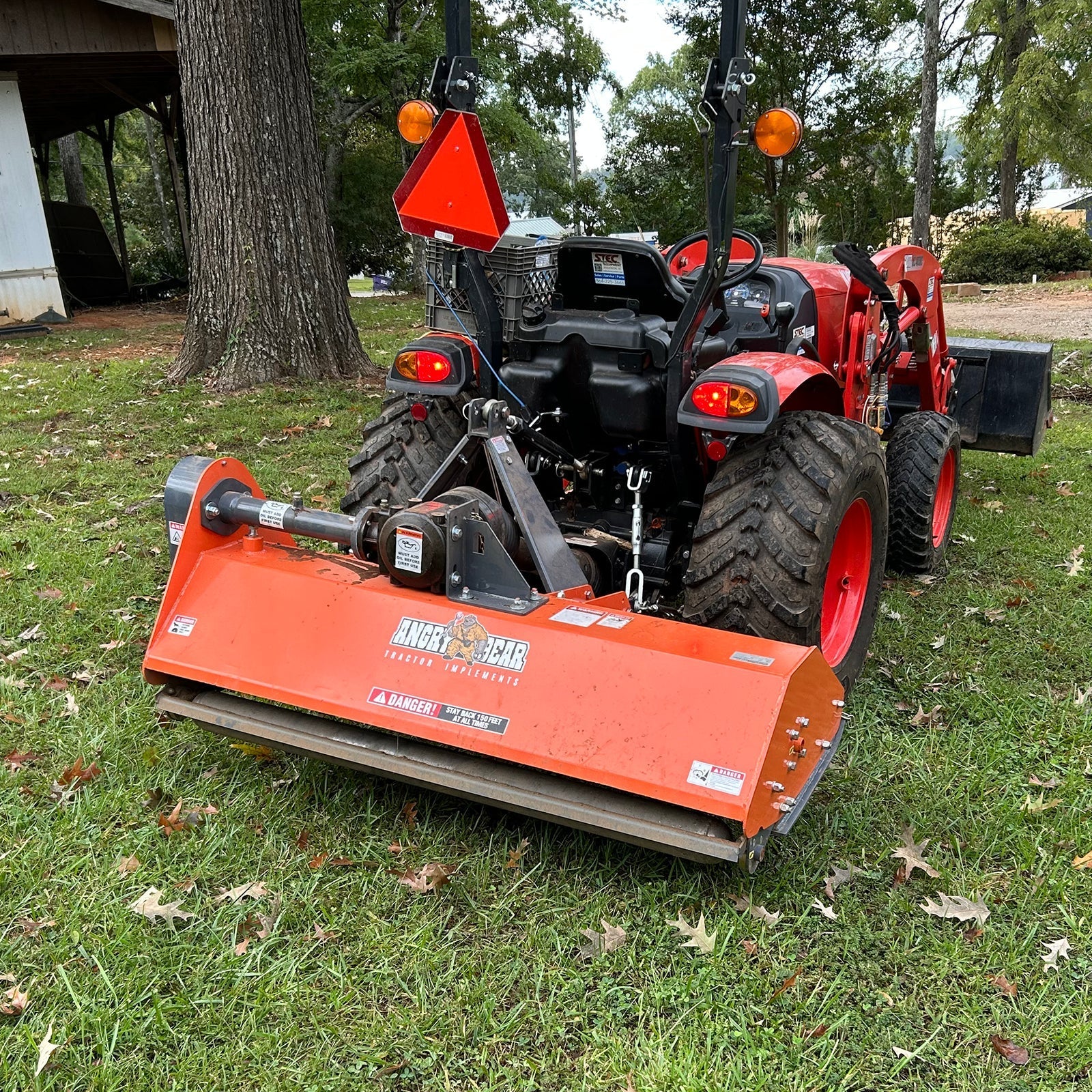

MechMaxx NAM 60 Flail Mower 60" PTO Driven 3 Point 30-60HP New

MechMaxx

$2,499.00
$2,499.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • It can save time and cost-effectively cut plants in larger areas.
  • The attachment has a forged flail hammer to help the mower push through dense debris.
  • The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
  • Offset category 1, 3 point knot
  • It is recommended for 30-60HP tractors.

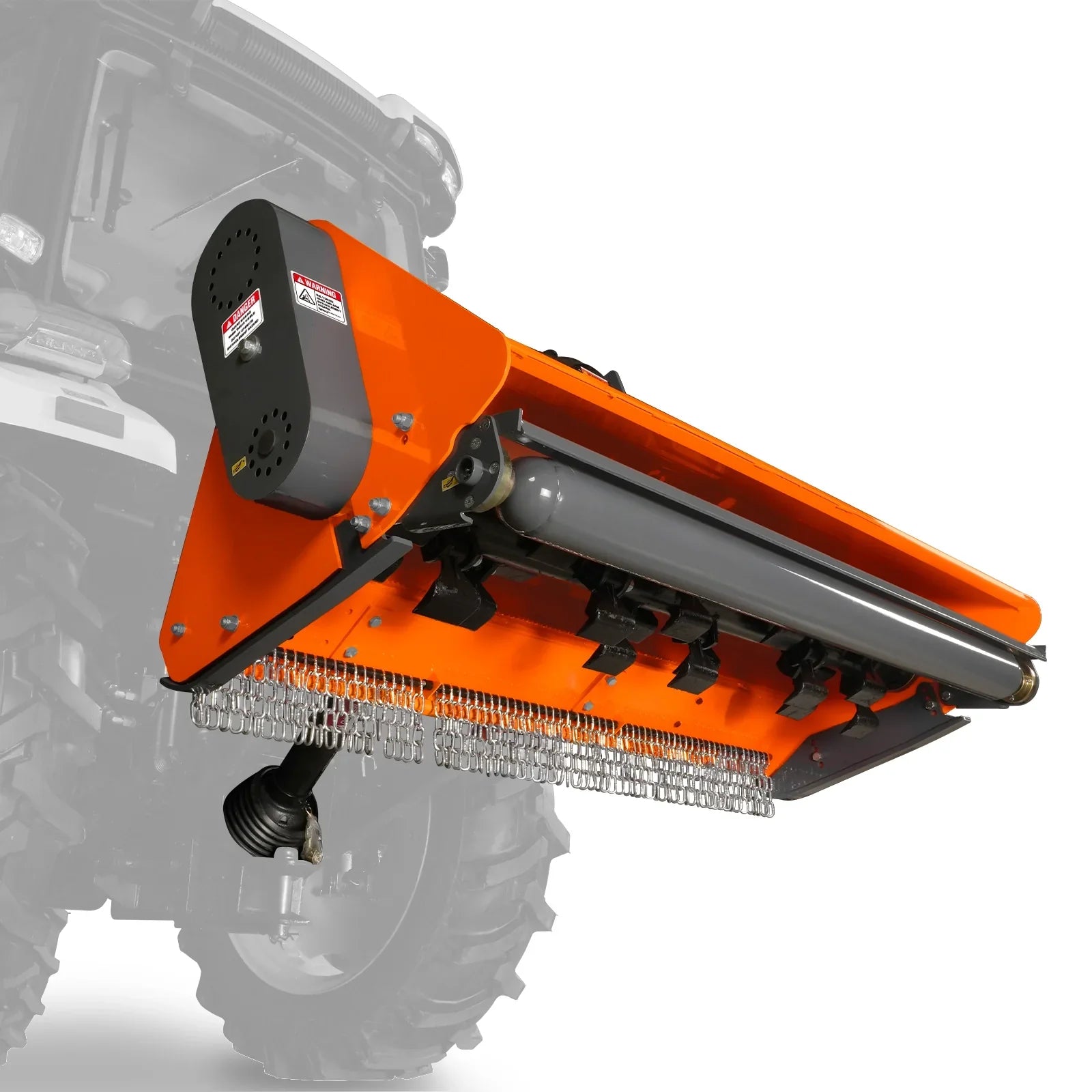

  • Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Max Cutting Diameter: This NAM mower has its 60’’ working width and the work efficiency up to 2750-7600 yd2/h.
  • Hammers: 24 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.

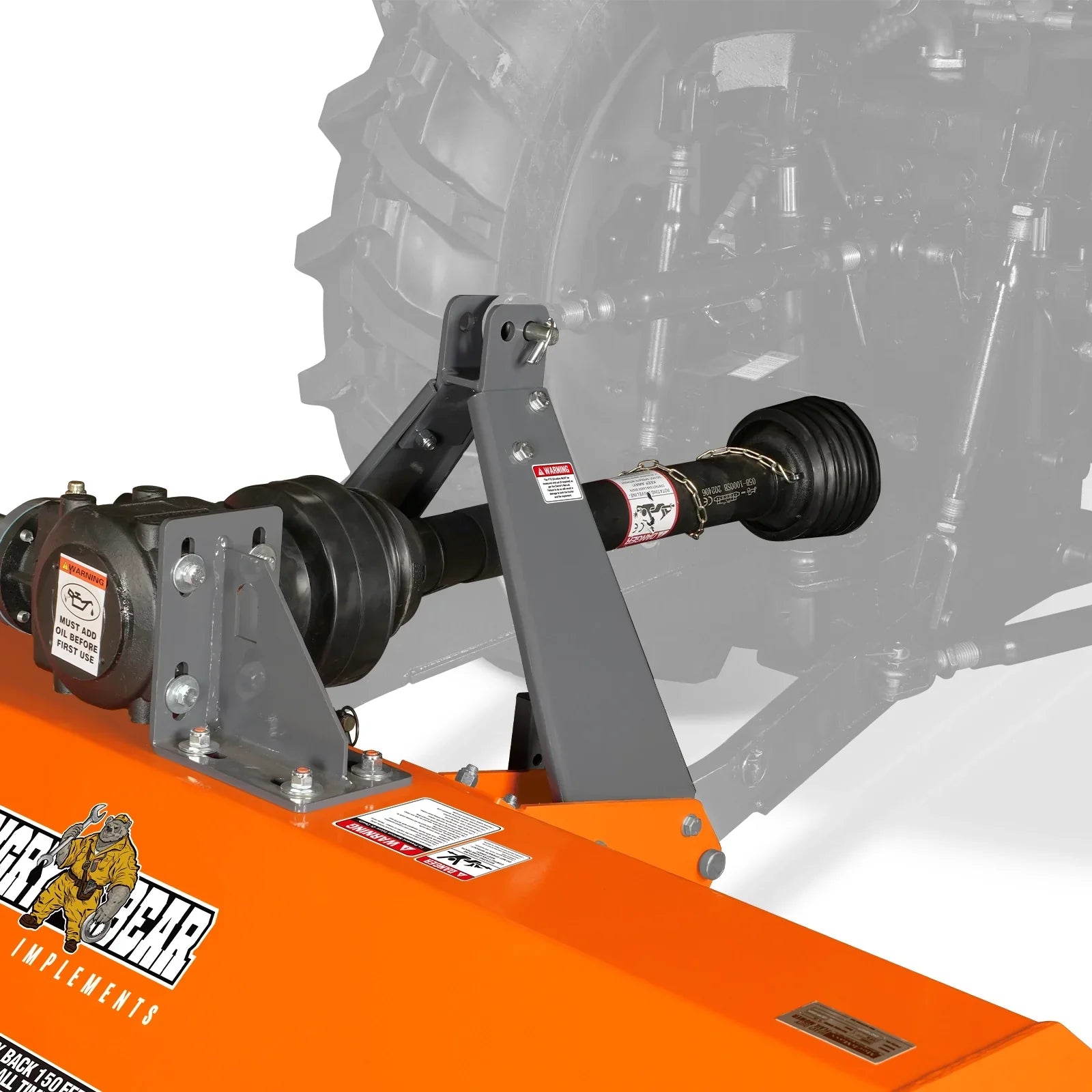

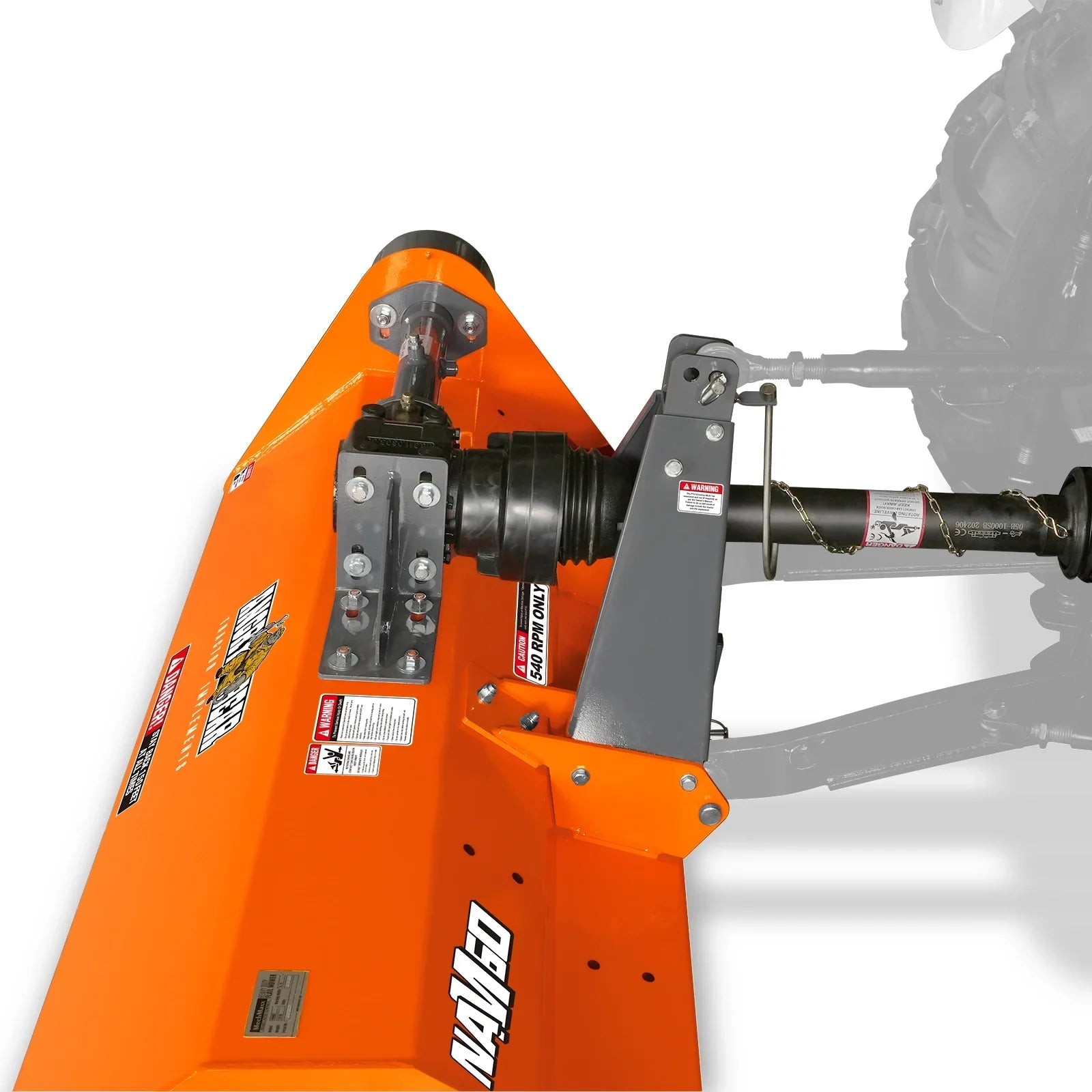

  • PTO shaft(1- 3/8’’Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-39’’with shear bolt ; 39''-49’’
  • PTO Required: Extremely sturdy flail mower engineered to provide optimal performance when used with tractors with PTO power of 30-60HP.

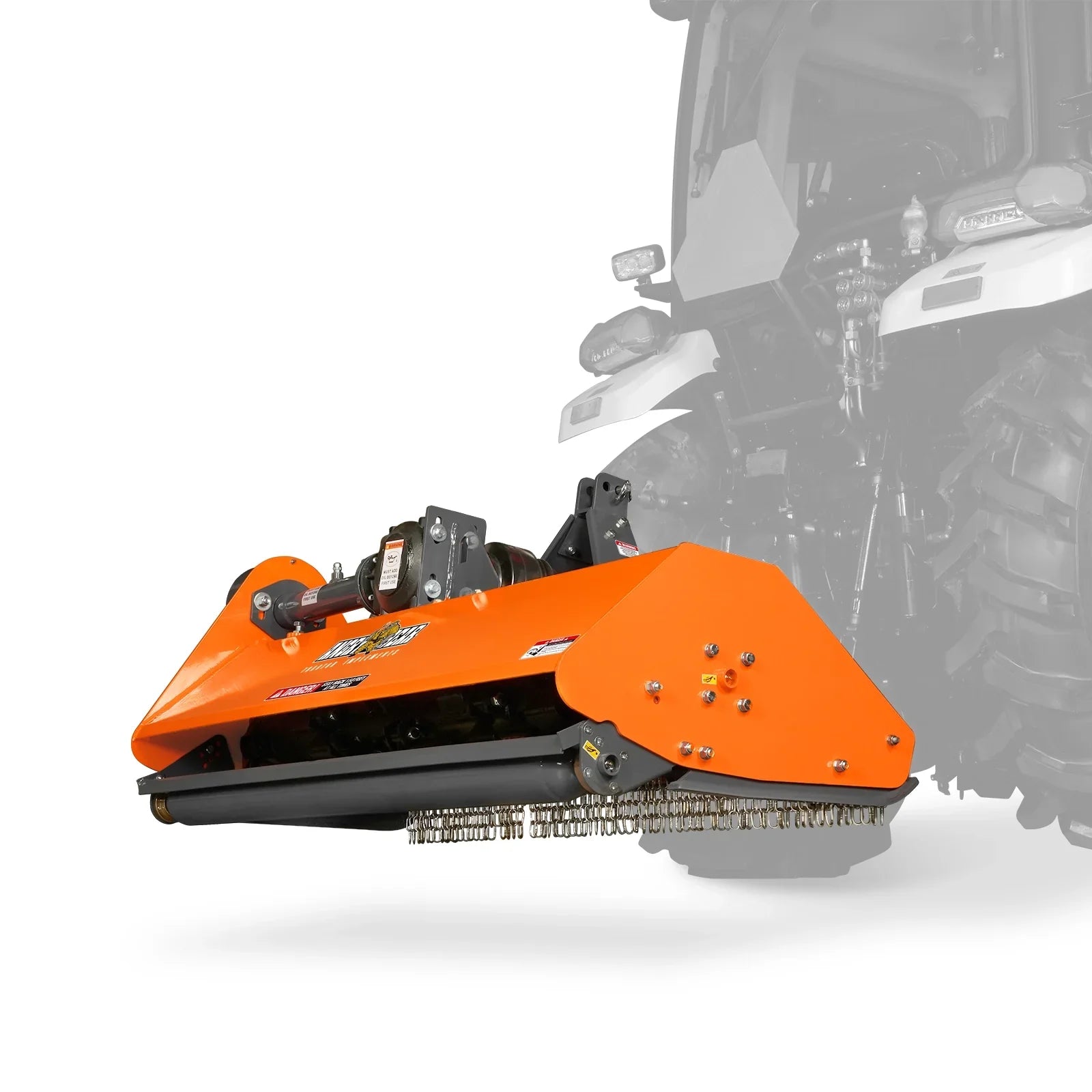

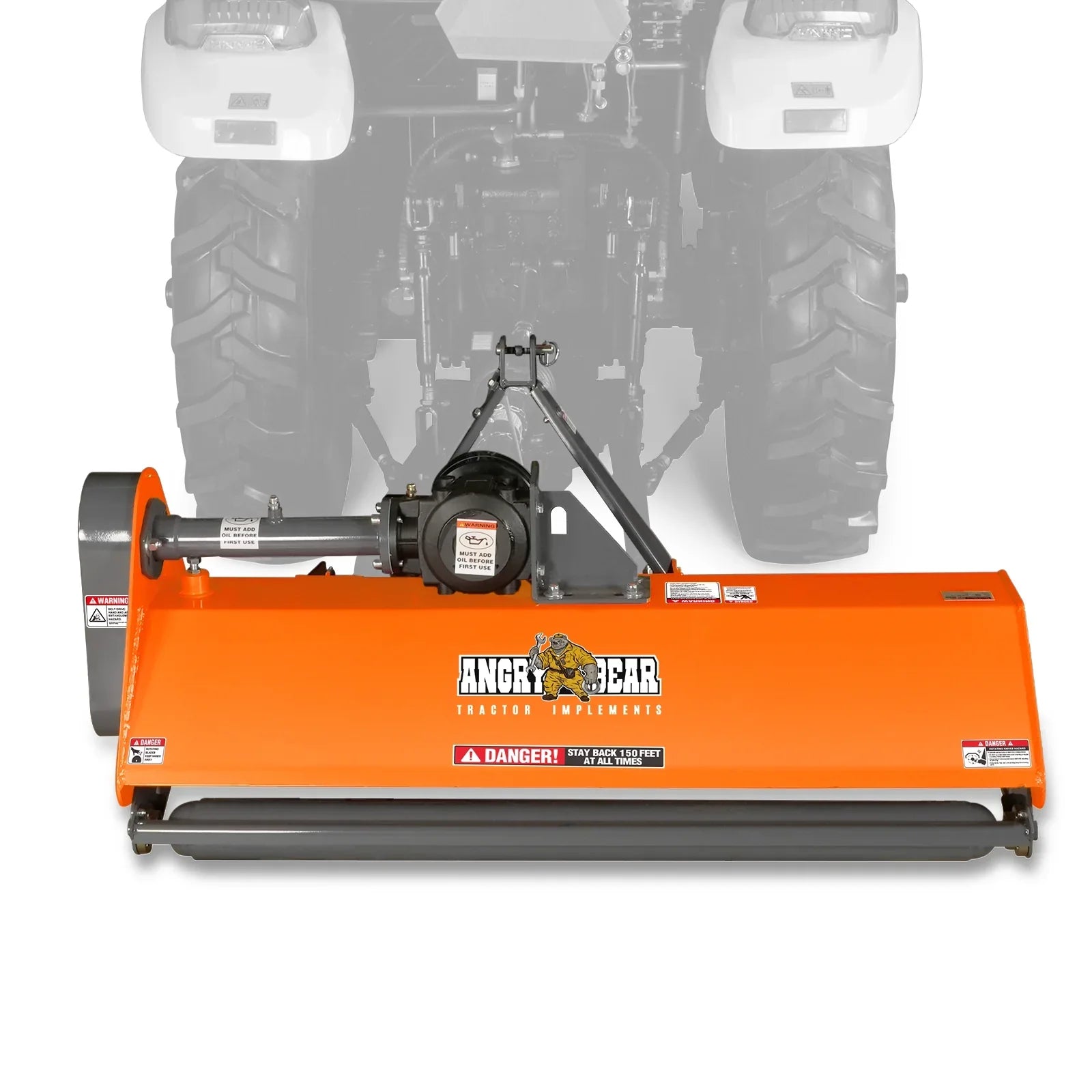

  • Adjustable Height Roller Bar: Adjustable Height Roller Bar adjusts to raise or lower the cutting height to your desired need.

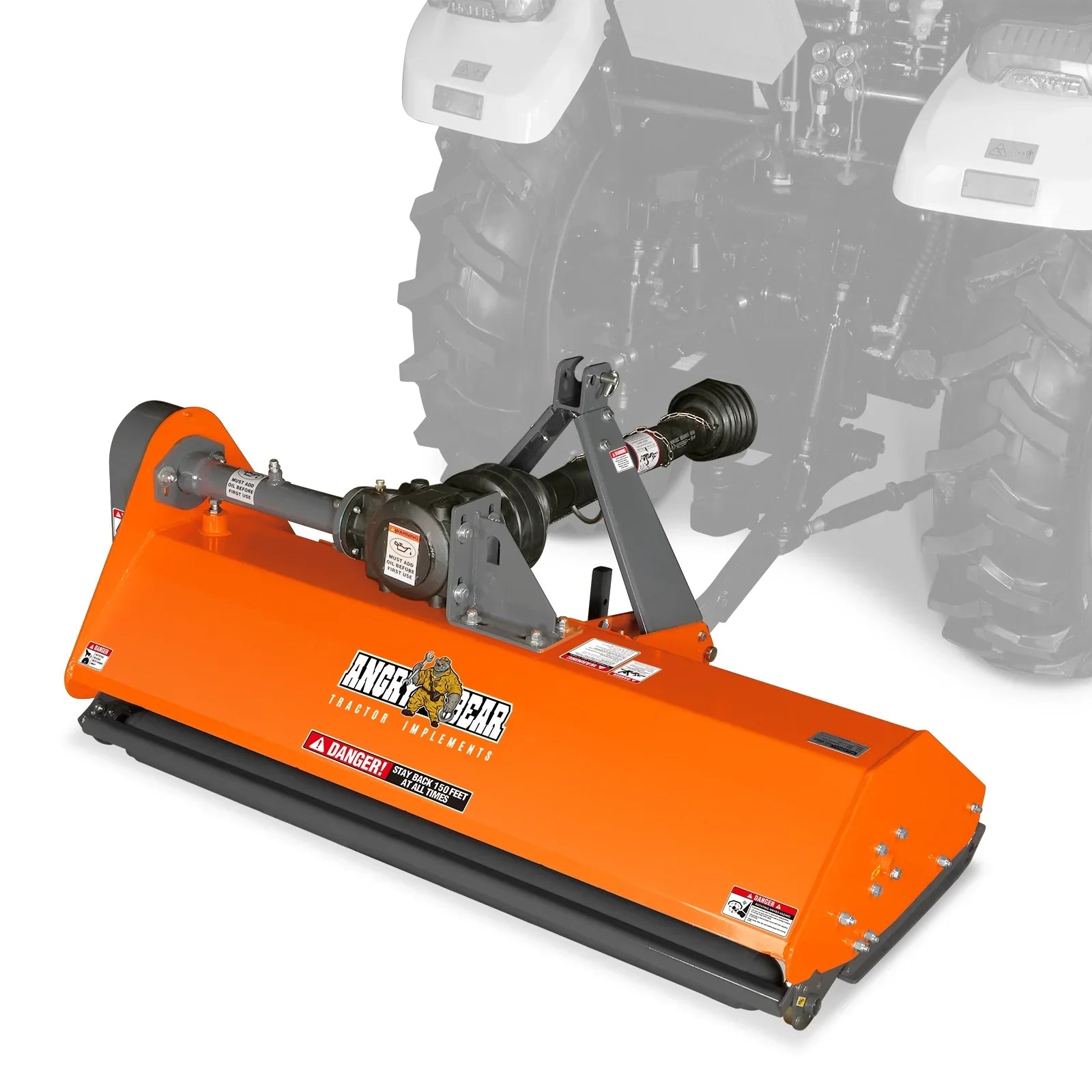

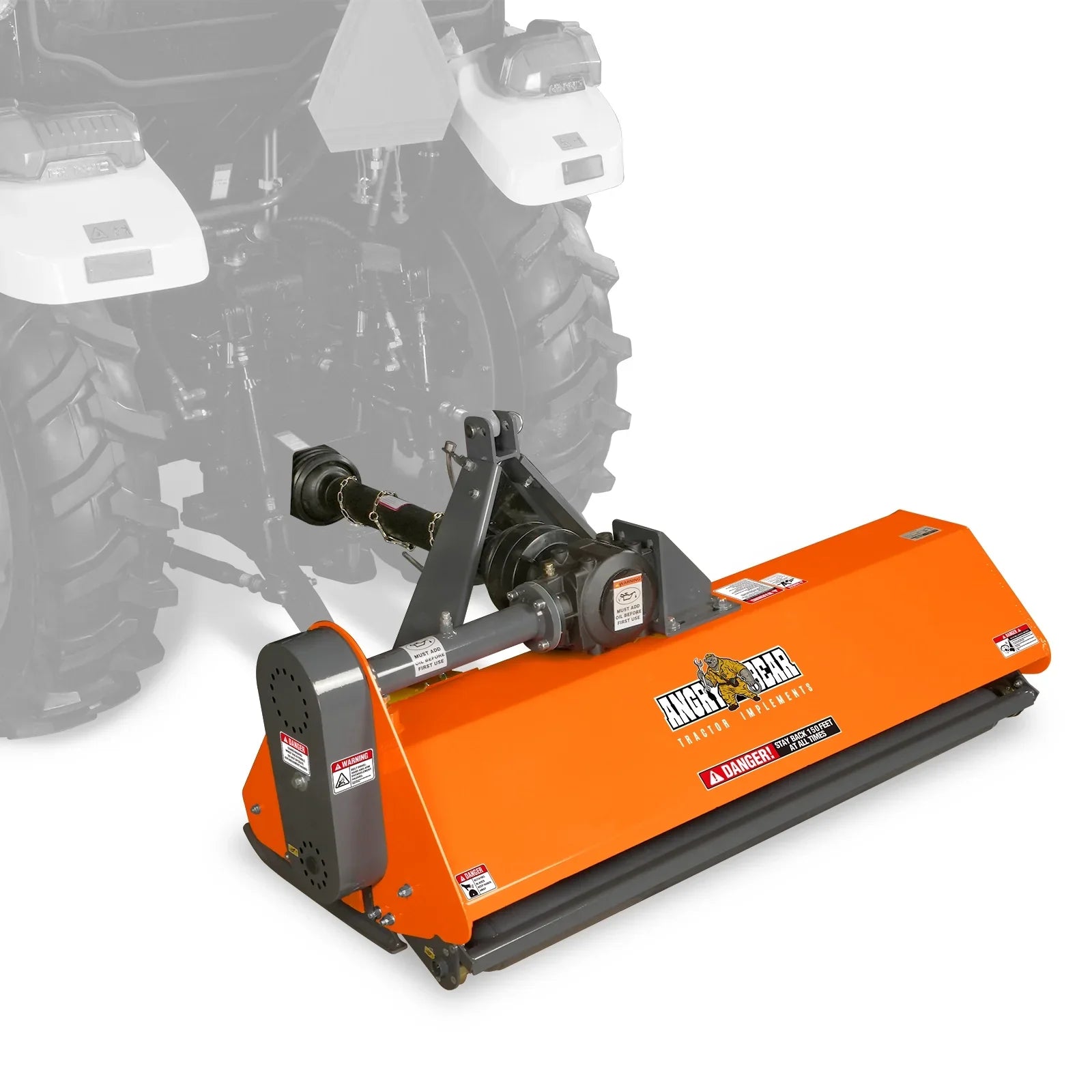

  • 3 Point Hitch Cat. 1: The three-point connection ensures the stability of the mower connected to the tractor and remains stable when the machine is running, improving mowing efficiency and reducing working time.

Engine Power Required: 30-60HP

Number of Belts: 3

Working Width: 60in

Belt Size: V Belt 17 X 991

Overall Width: 65in

Drive Belt Tensioner: Yes

Blade Ground Clearance: 0.6in-2in

Deck Thickness: 0.16in

Max. Cutting Diameter: Depends On The Type Of Grass

Side Plate Thickness: 0.25in

Number Of Blades: 24

PTO Shaft RPM: 540 RPM

Blade Type: Hammer

Driveline Shaft Length: T6-LF-39" with shear bolt ;39"-49"

Blade Weight: 1.8lbs

Spline End: 1 3/8" Z6

Blade （Tines）Material: Cast Steel

3-Point Hitch: CAT 1

Rotor Bearing: SKF bearing

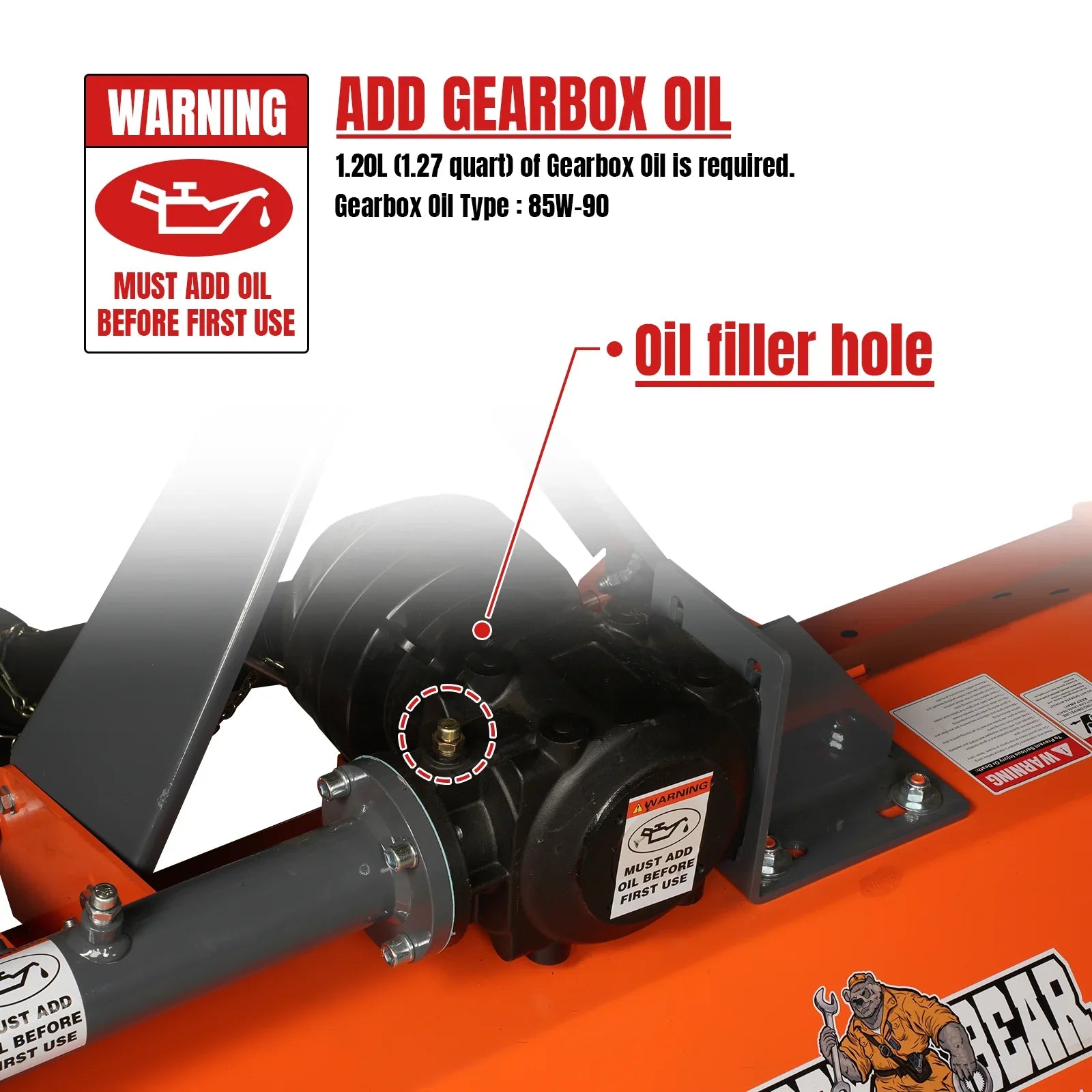

Gearbox Oil Type: 85W-90

Roller Diameter: 4in

Dimensions (L x W x H): 70 x 34 x 26in

Rotor Diameter: 5in

Finsh: Powder Coat Paint Galvanized Steel

Rotor Swing Diameter: 14in

Drive Type: Belt drive

Weight (N.W./G.W.): 595/662lbs

This item comes with a 1 year factory warranty.
