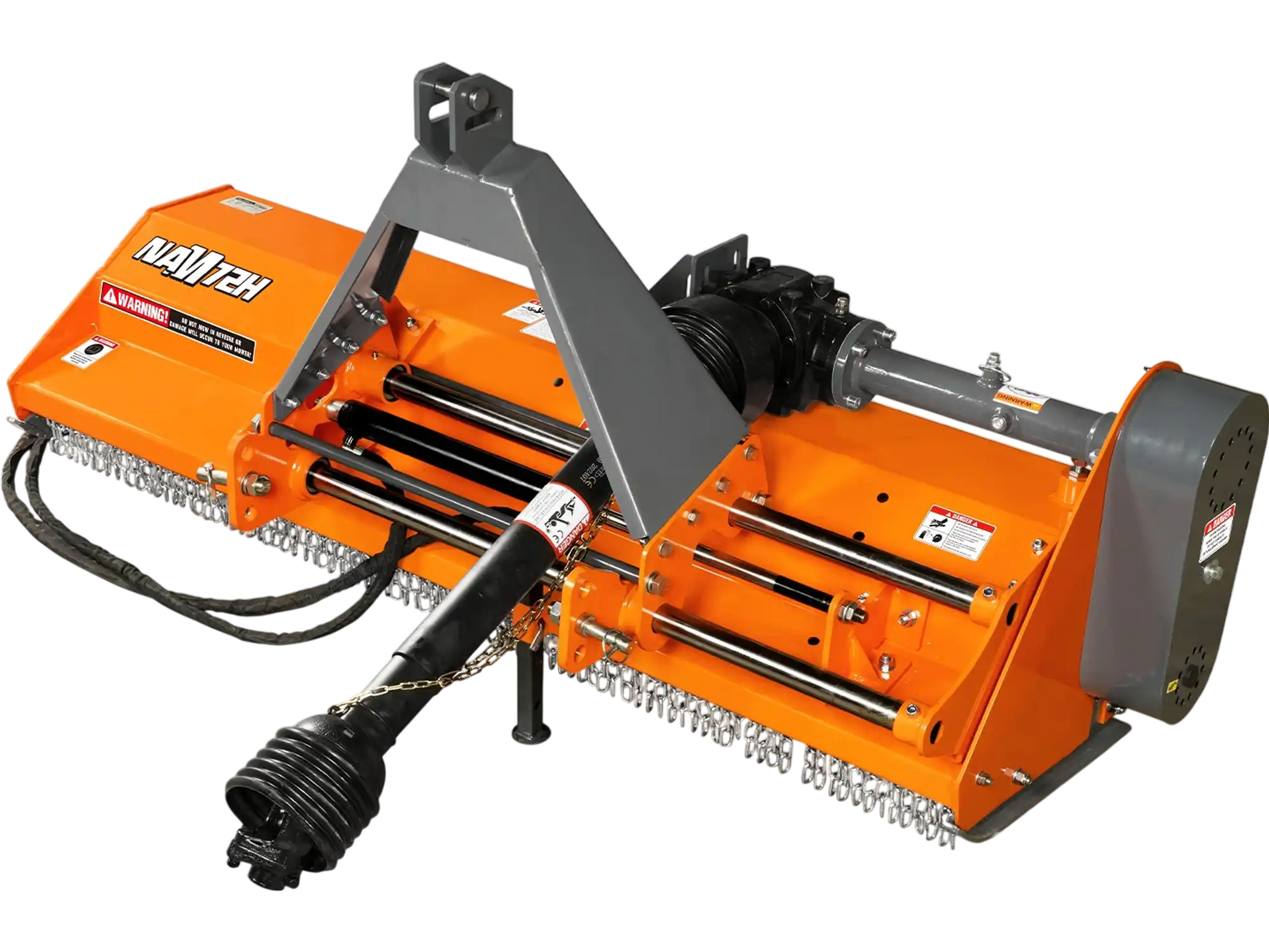

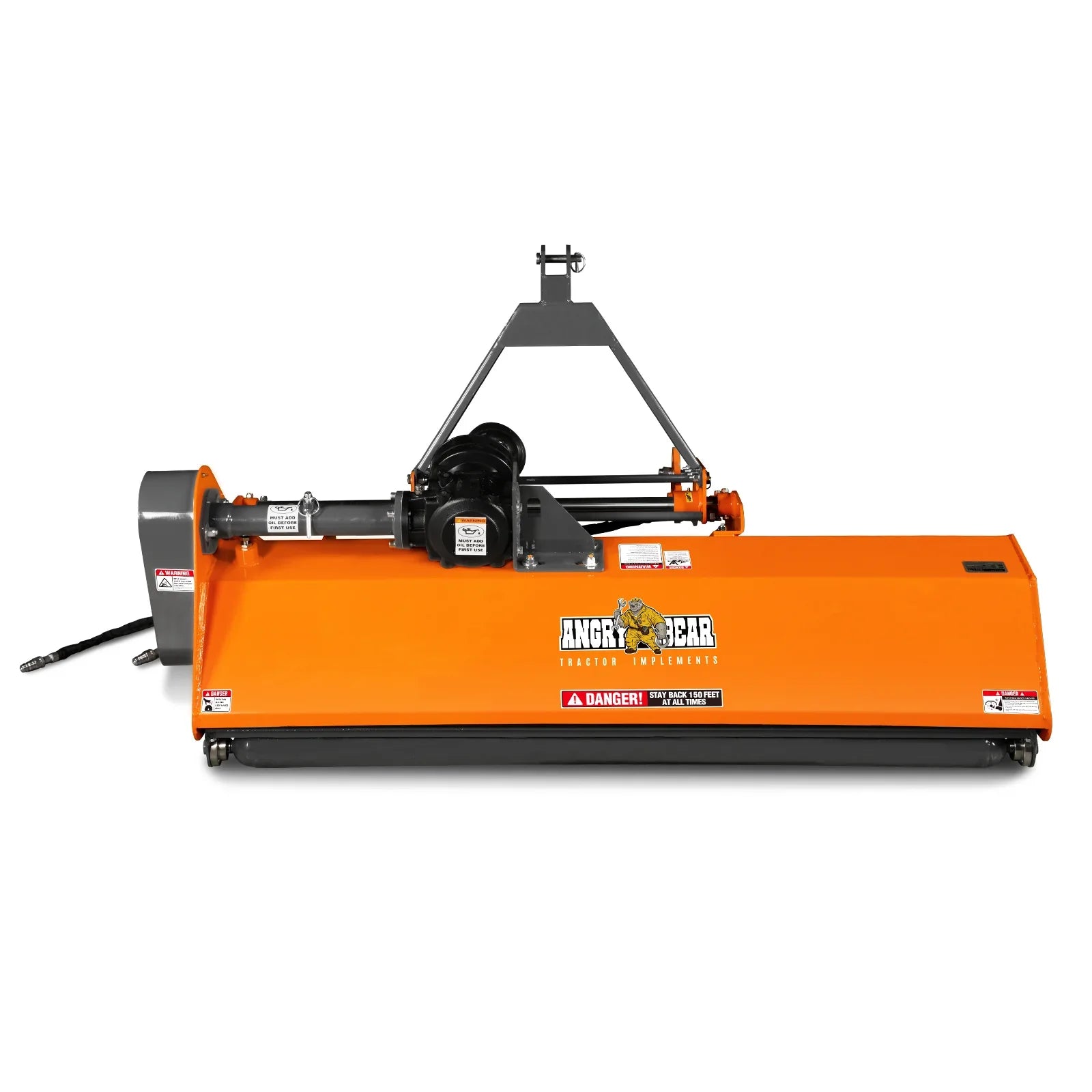

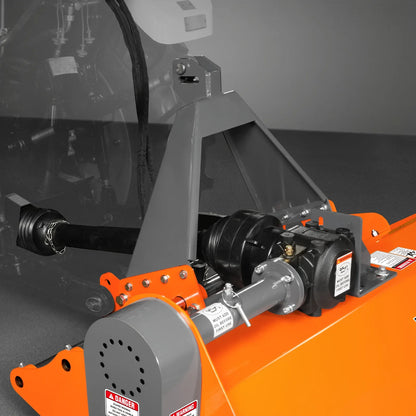

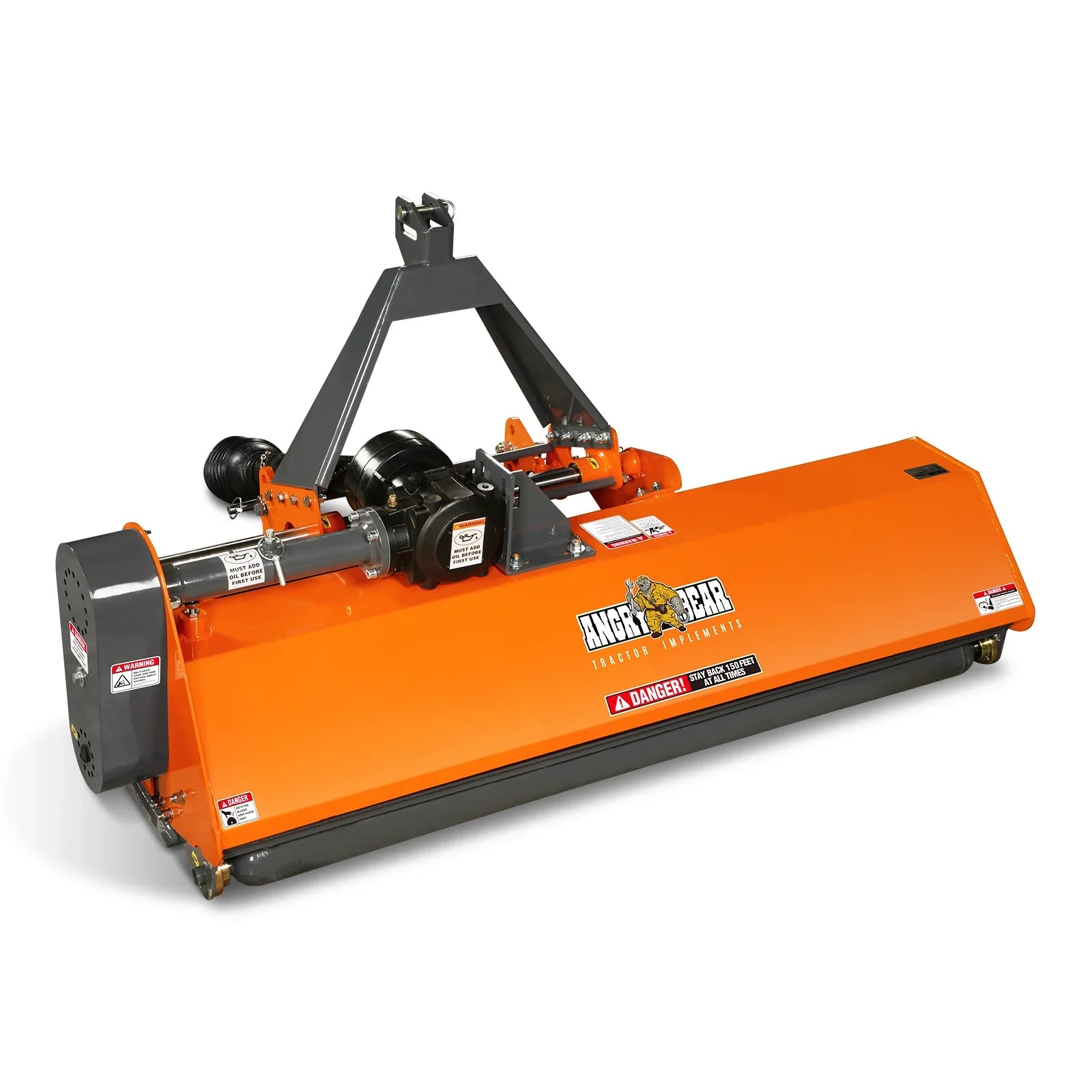

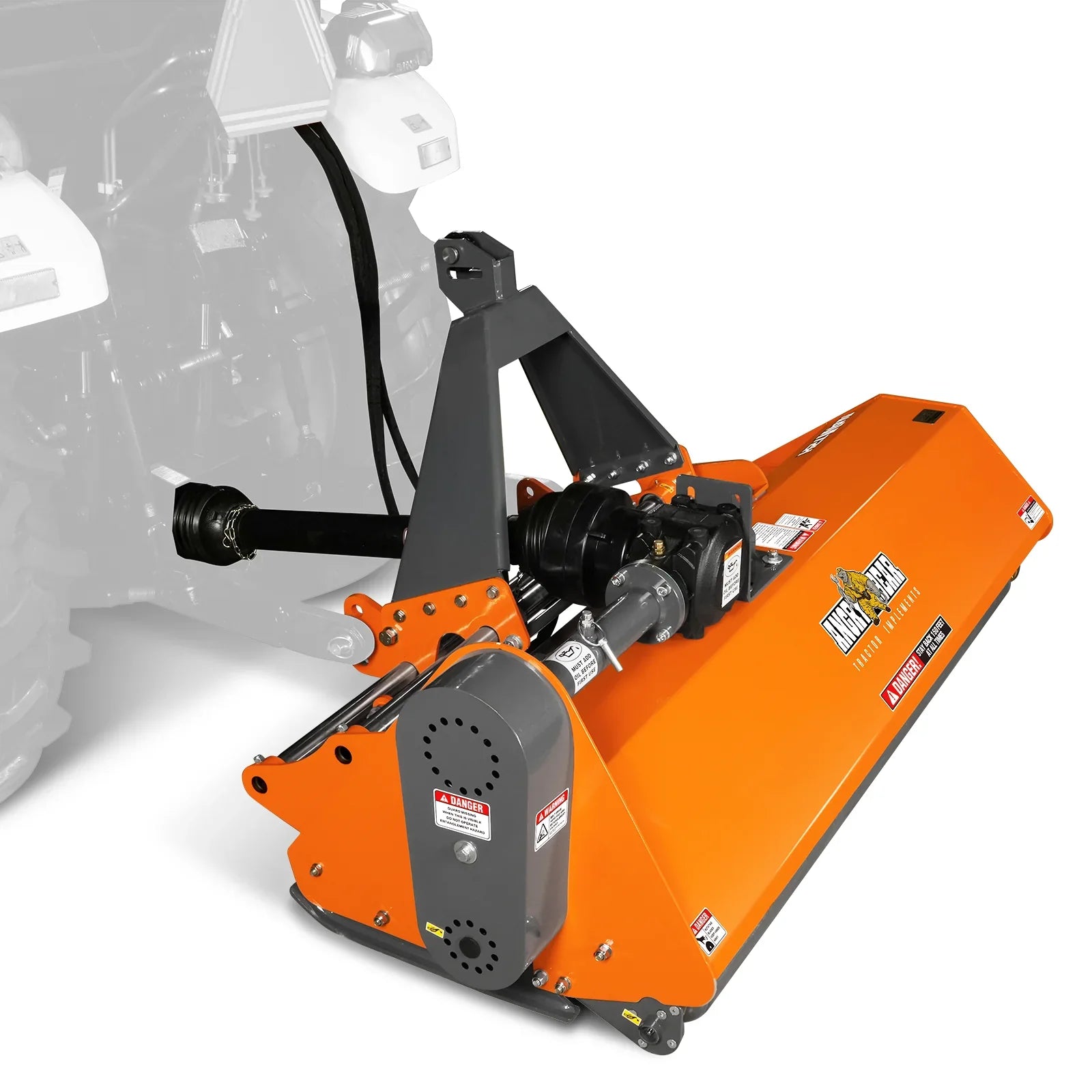

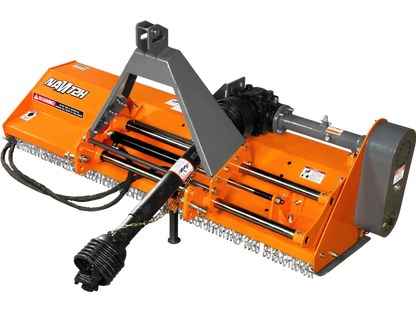

MechMaxx NAM 72H Flail Mower 72" PTO Hydraulic Side Shift 3 Point 45-85HP New

MechMaxx

$3,199.00
$3,199.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • It can save time and cost-effectively cut plants in larger areas. It has 16in of side shift capability to support working around perimeters, fence lines, tree wells, etc.
  • The attachment has a forged flail hammer to help the mower push through dense debris.

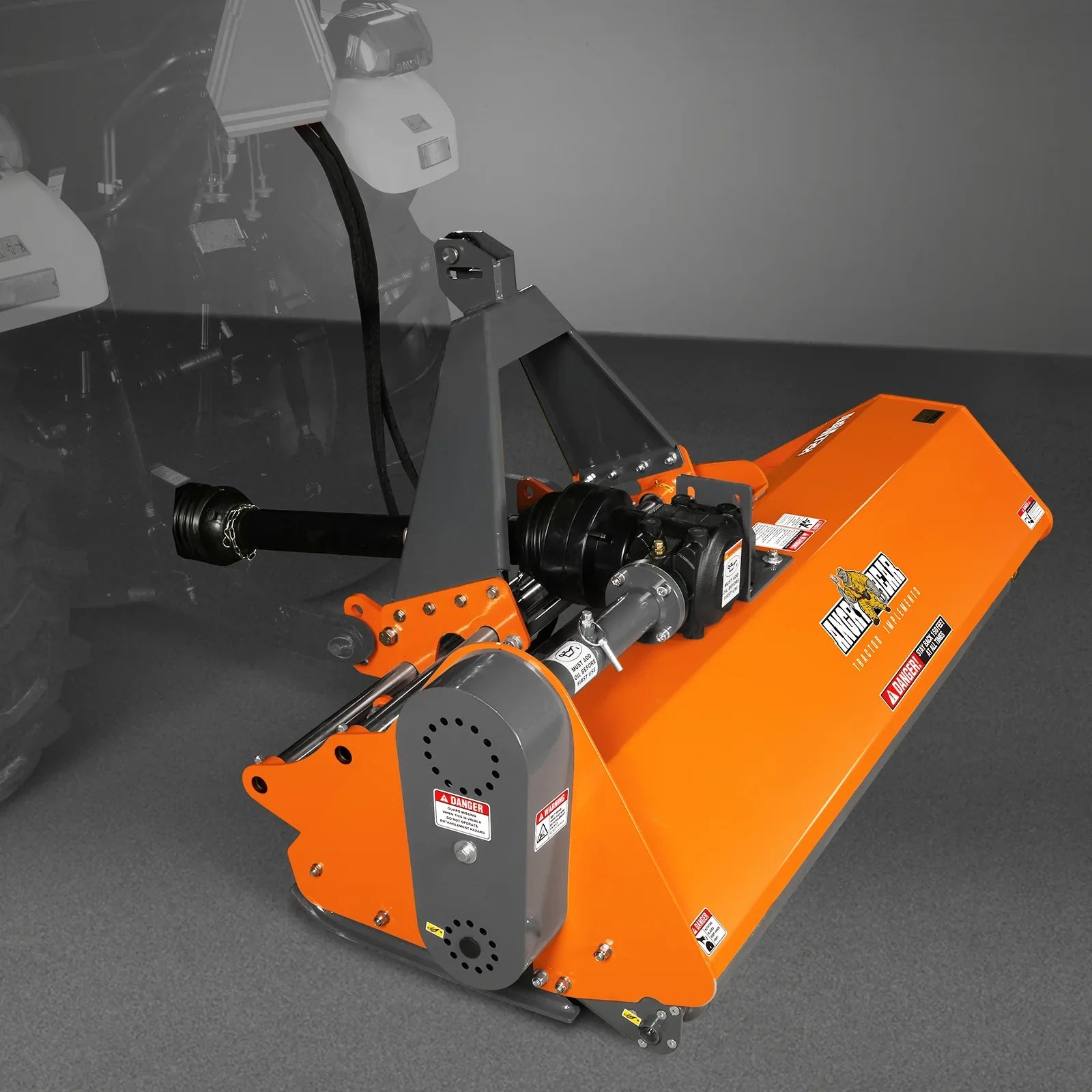

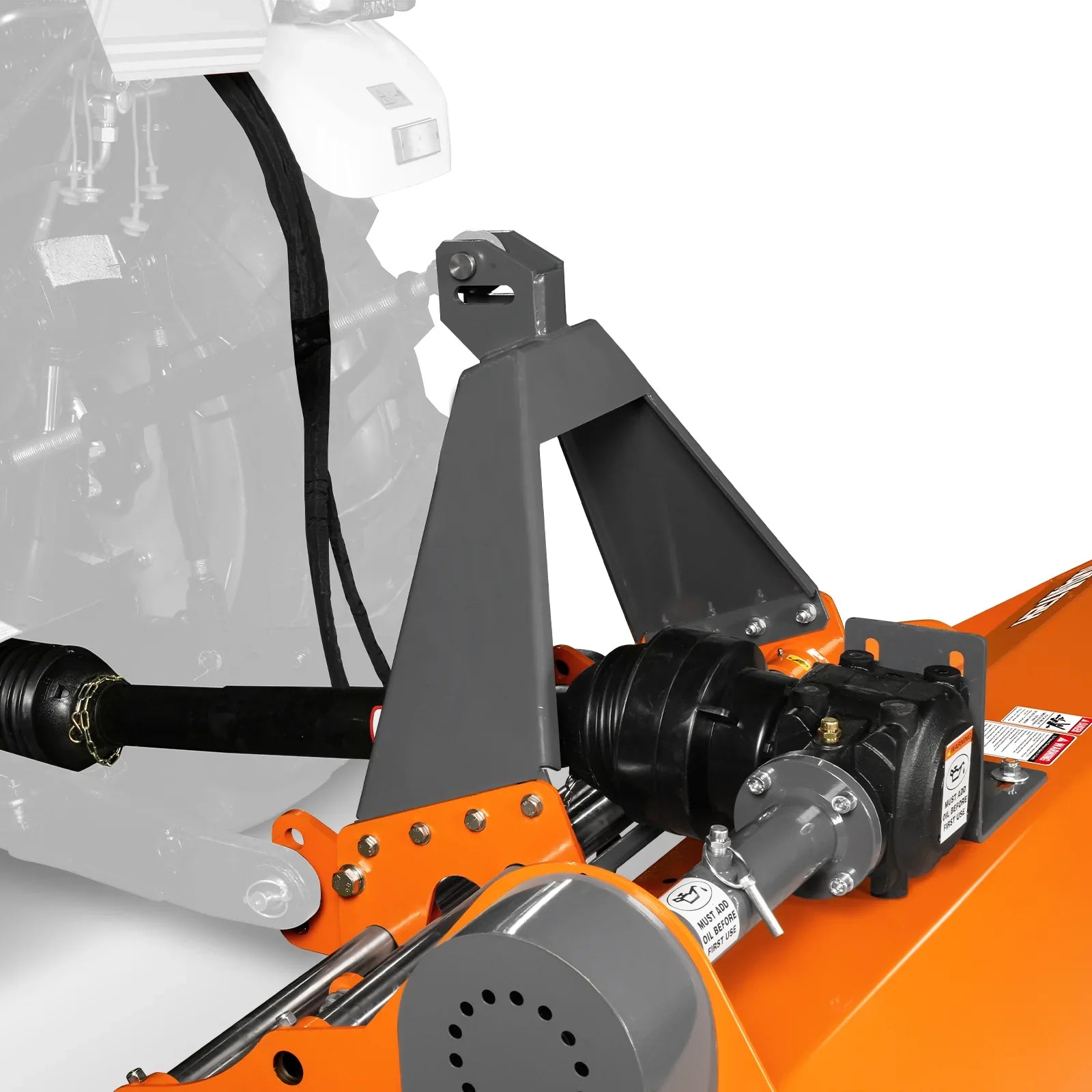

  • The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
  • Offset category 1, 3 point knot
  • It is recommended for 45-85HP tractors, capable of covering material up to 3in diameter.
  • Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Max Cutting Diameter: This NAM mower has its 72’’ working width and blade ground clearance efficiency range to 0.6-2in.

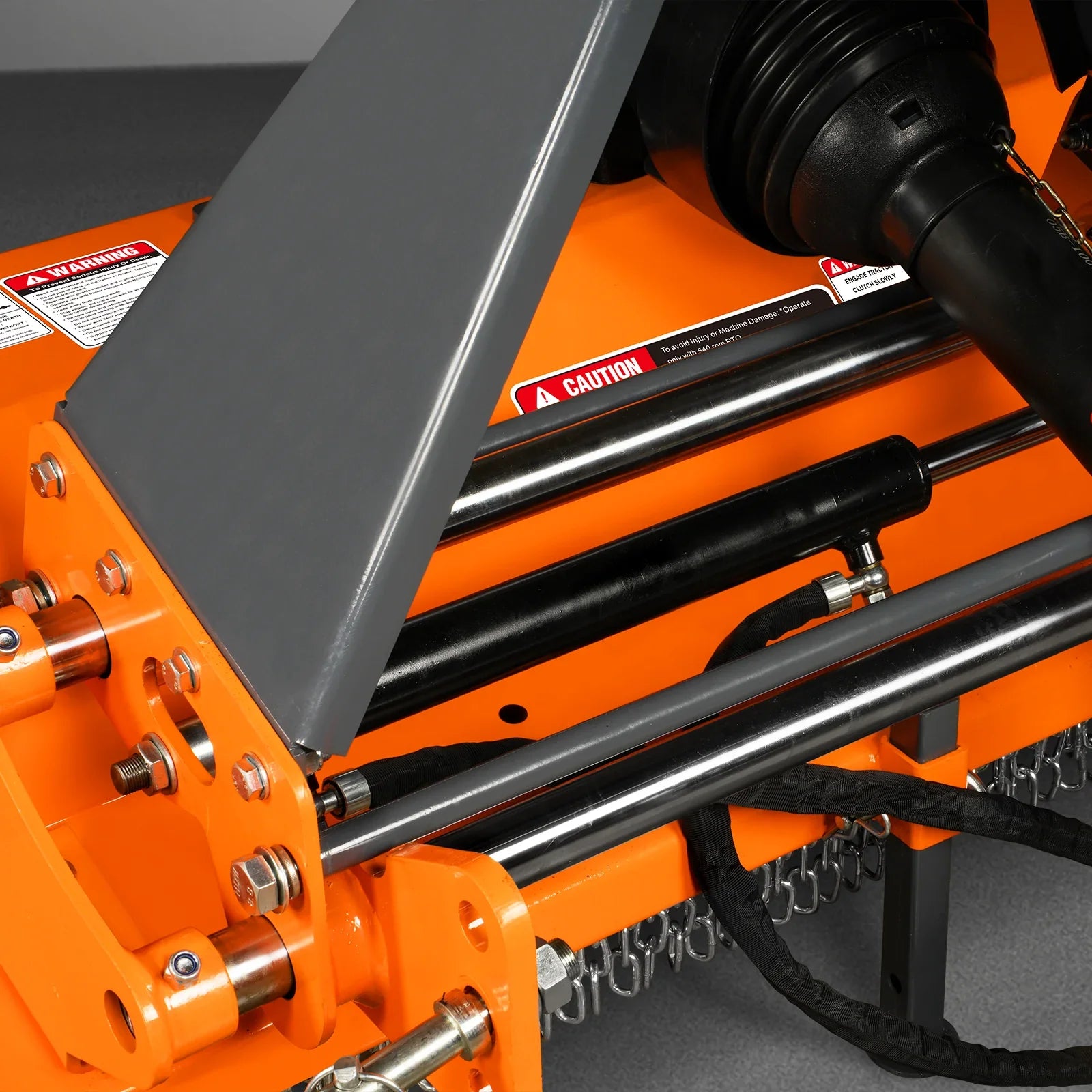

  • Hydraulic Side Shift: This mower has a side shift capability of 8 inches to the left and right, with a total length of 16 inches, to expand the mowing range.
  • PTO shaft(1- 3/8’’Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-39’’with shear bolt ; 39''-49’’
  • PTO Required: Extremely sturdy flail mower engineered to provide optimal performance when used with tractors with PTO power of 45-85HP.

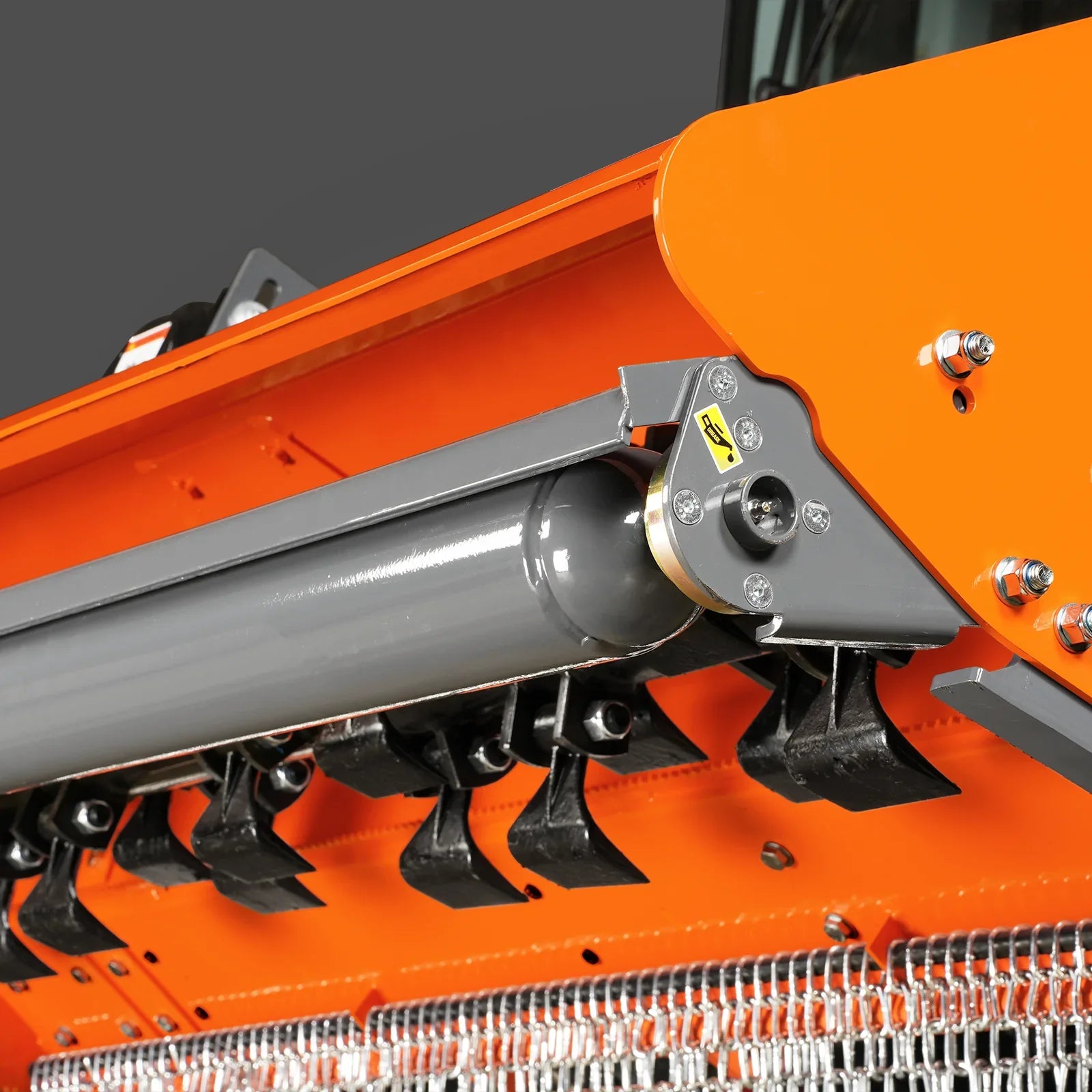

  • Adjustable Height Roller Bar: Adjustable Height Roller Bar adjusts to raise or lower the cutting height to your desired need.

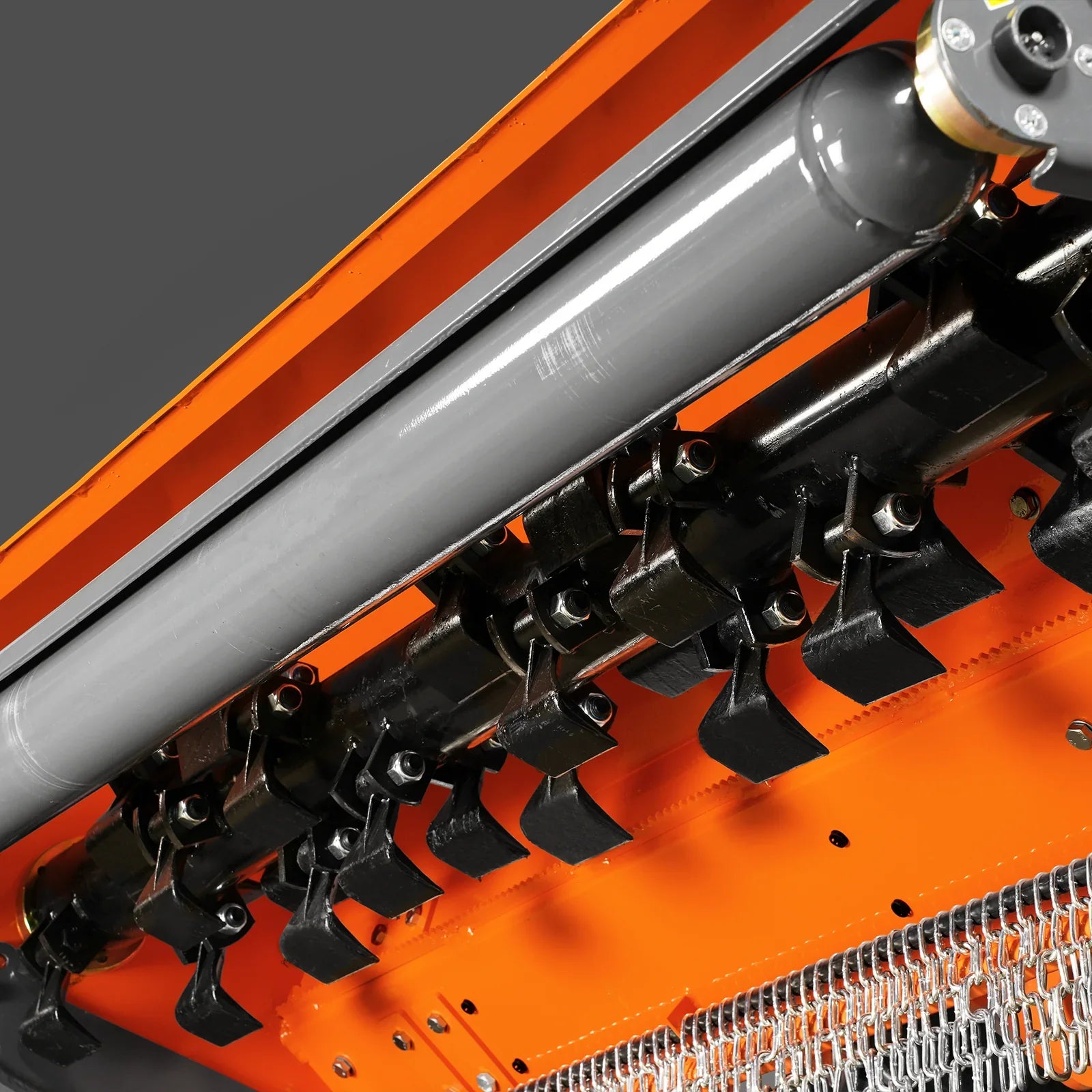

  • Hammers: 28 long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease.

Engine Power Required: 45-85HP

Number Of Belts: 4

Working Width: 72in

Belt Size: V Belt 17 X 991

Hydraulic Side Shift: 8in(Left Or Right)

Drive Belt Tensioner: Yes

Overall Width: 78in

Deck Thickness: 0.16in

Blade Ground Clearance: 0.6in-2in

Side Plate Thickness: 0.25in

Max. Cutting Diameter: Depends On The Type Of Grass

PTO Shaft RPM: 540 RPM

Number Of Blades: 28

Driveline Shaft Length: T6-LF-39" with shear bolt ;39"-49"

Blade Type: Hammer

Spline End: 1 3/8" Z6

Blade Weight: 1.8lbs

3-Point Hitch: CAT 1

Blade （Tines）Material: Cast Steel

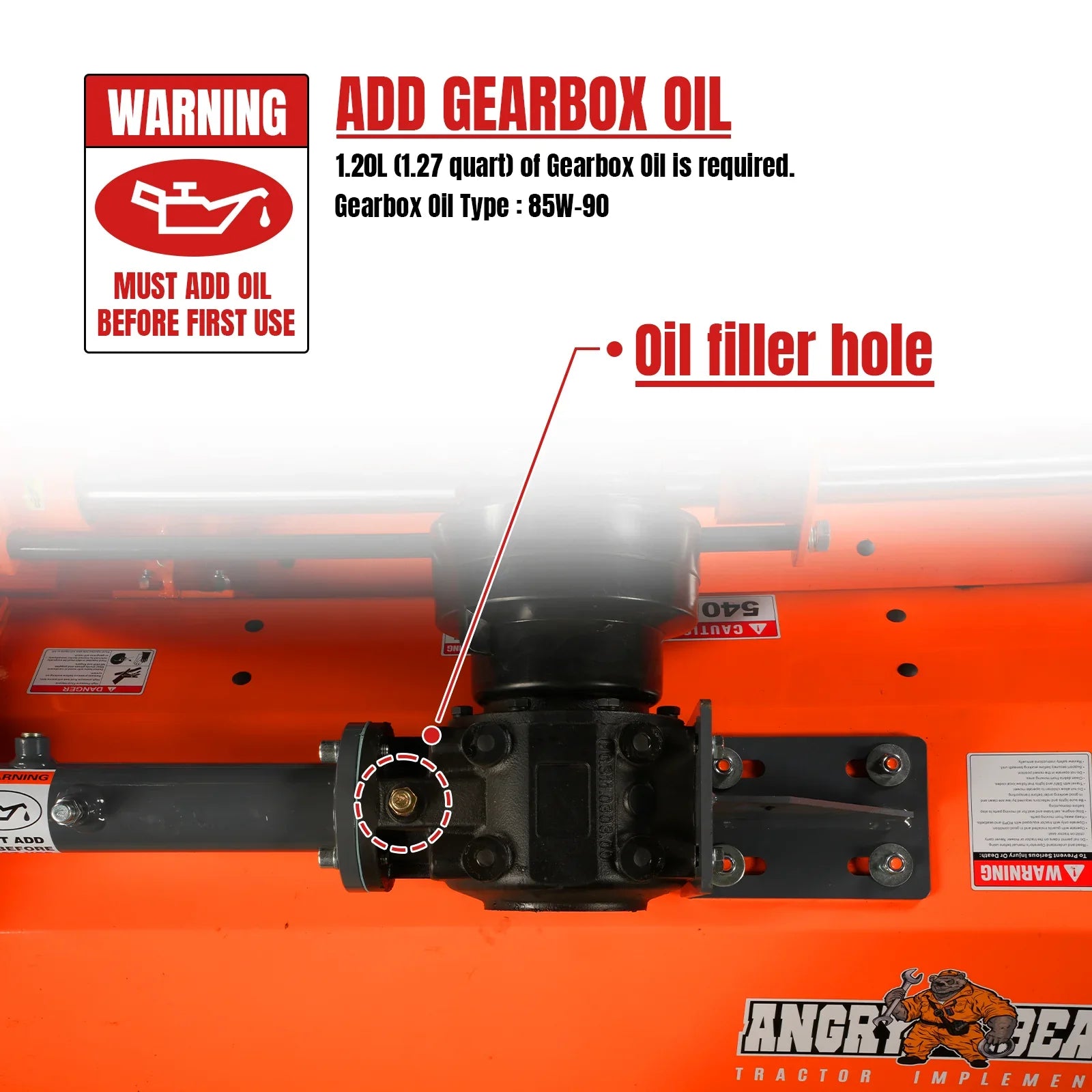

Gearbox Oil Type: 85W-90

Rotor Bearing: SKF bearing

Dimensions (L x W x H): 82 x 34 x 26in

Roller Diameter: 4in

Finsh: Powder Coat Paint Galvanized Steel

Rotor Diameter: 5in

Rotor Swing Diameter: 14in

Weight (N.W./G.W.): 745/871 lbs

Drive Type: Belt drive

This item comes with a 1 year factory warranty.
PDF NAM-H mower Product manual 1.0
